1. METS metadata for complete
beginners
NDF 2017
Stuart Yeates
Max Sullivan

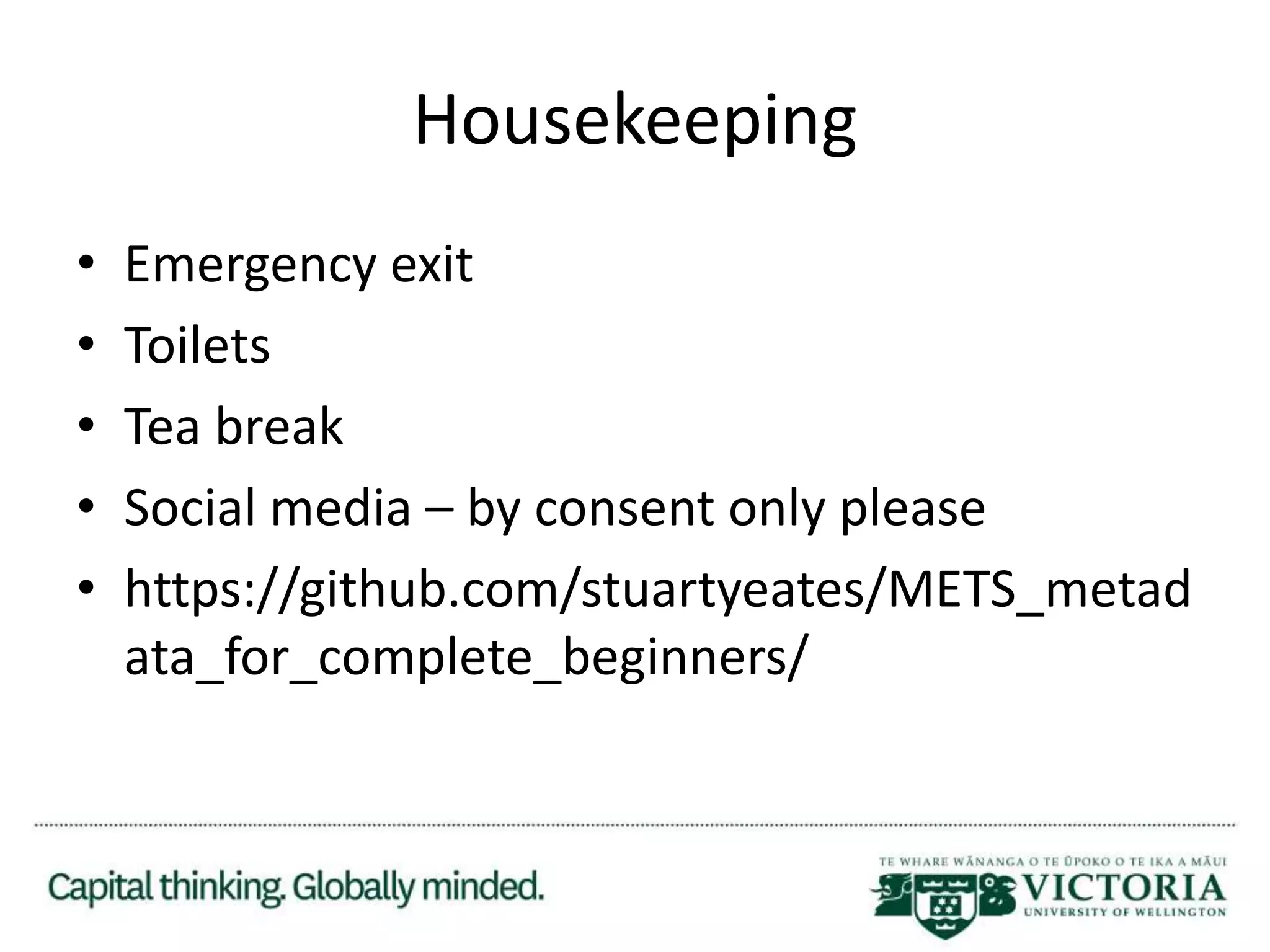

2. Housekeeping
• Emergency exit
• Toilets
• Tea break
• Social media – by consent only please
• https://github.com/stuartyeates/METS_metad
ata_for_complete_beginners/

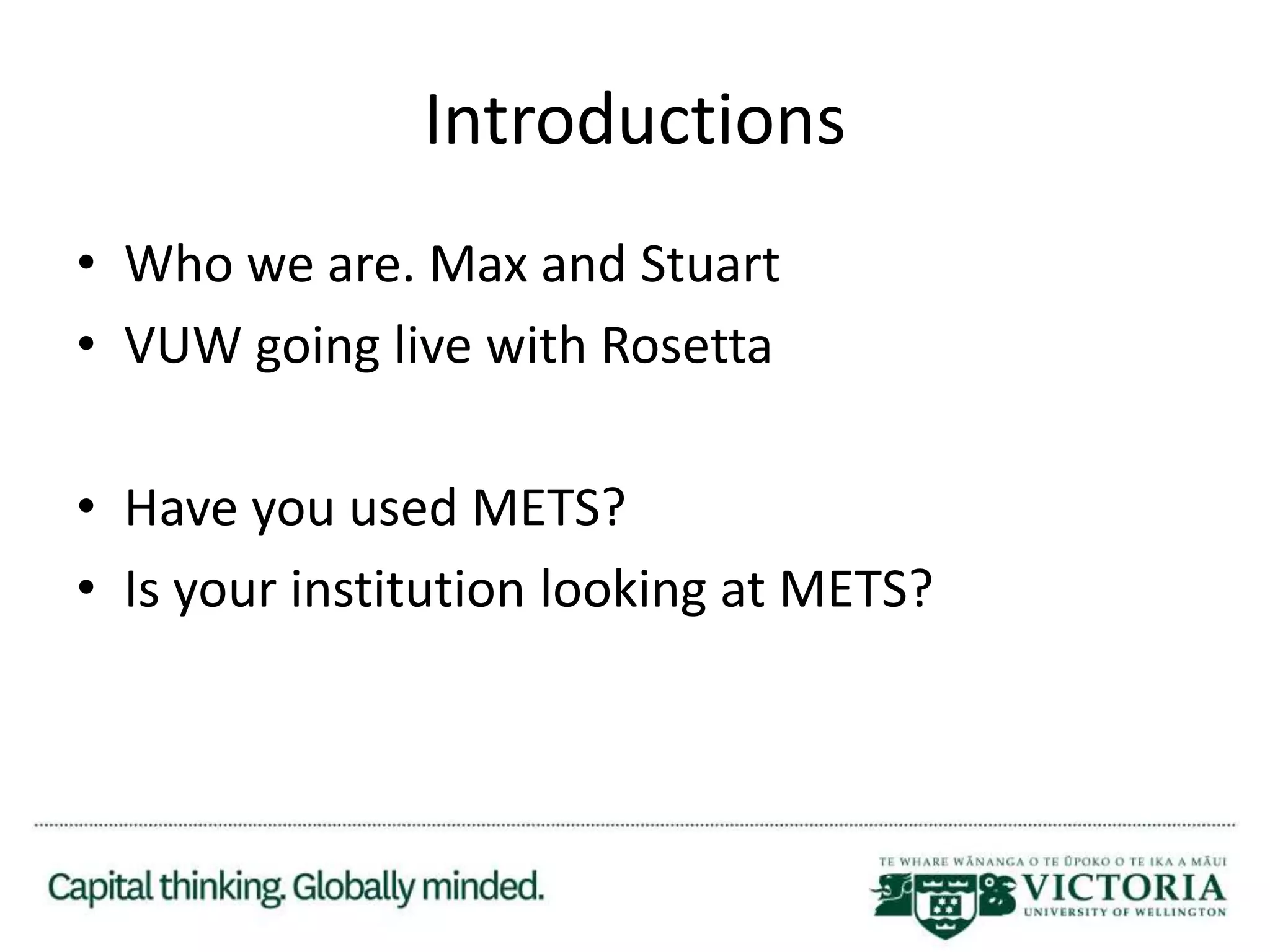

3. Introductions
• Who we are. Max and Stuart
• VUW going live with Rosetta
• Have you used METS?
• Is your institution looking at METS?

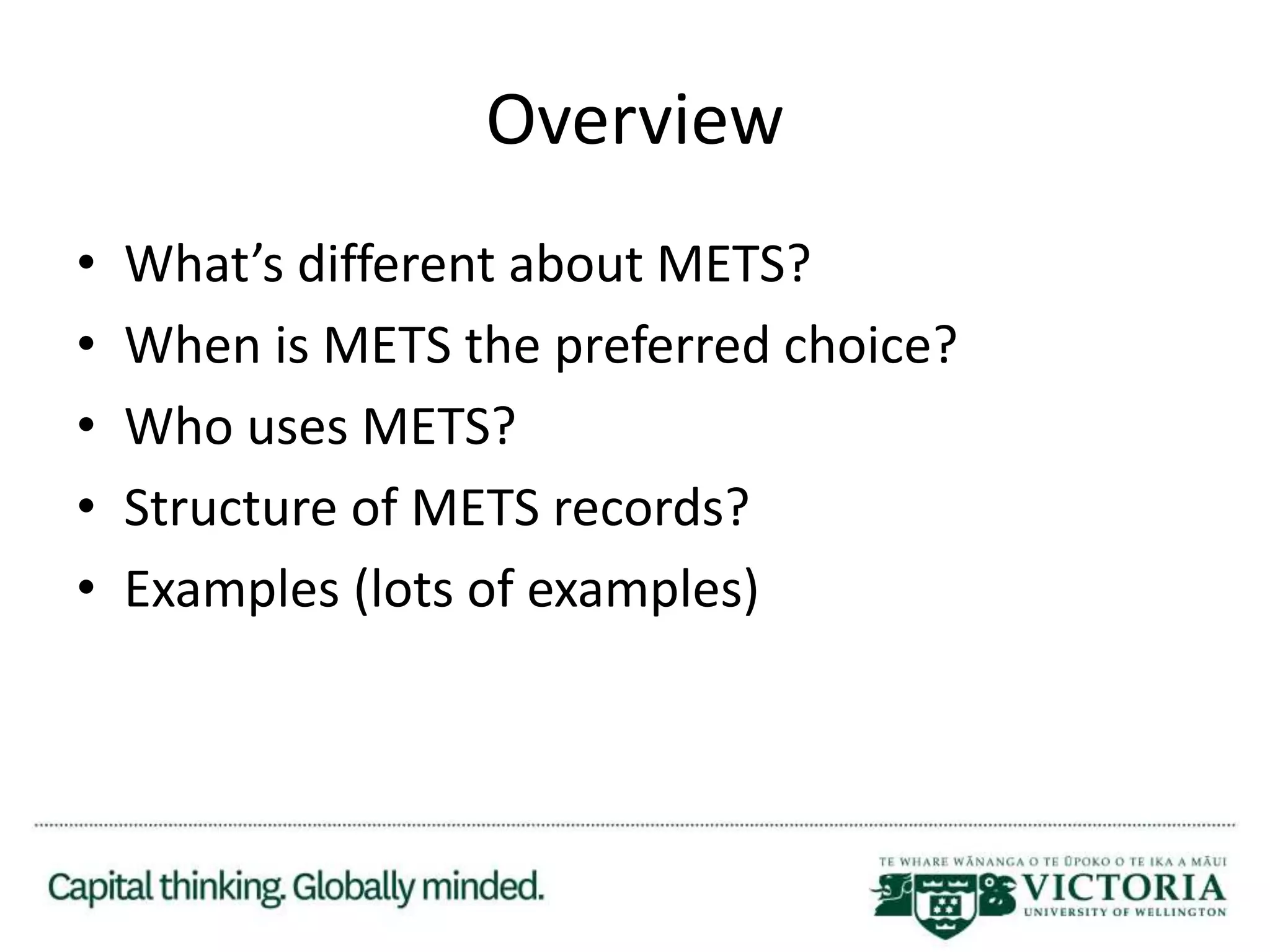

4. Overview
• What’s different about METS?
• When is METS the preferred choice?
• Who uses METS?
• Structure of METS records?
• Examples (lots of examples)

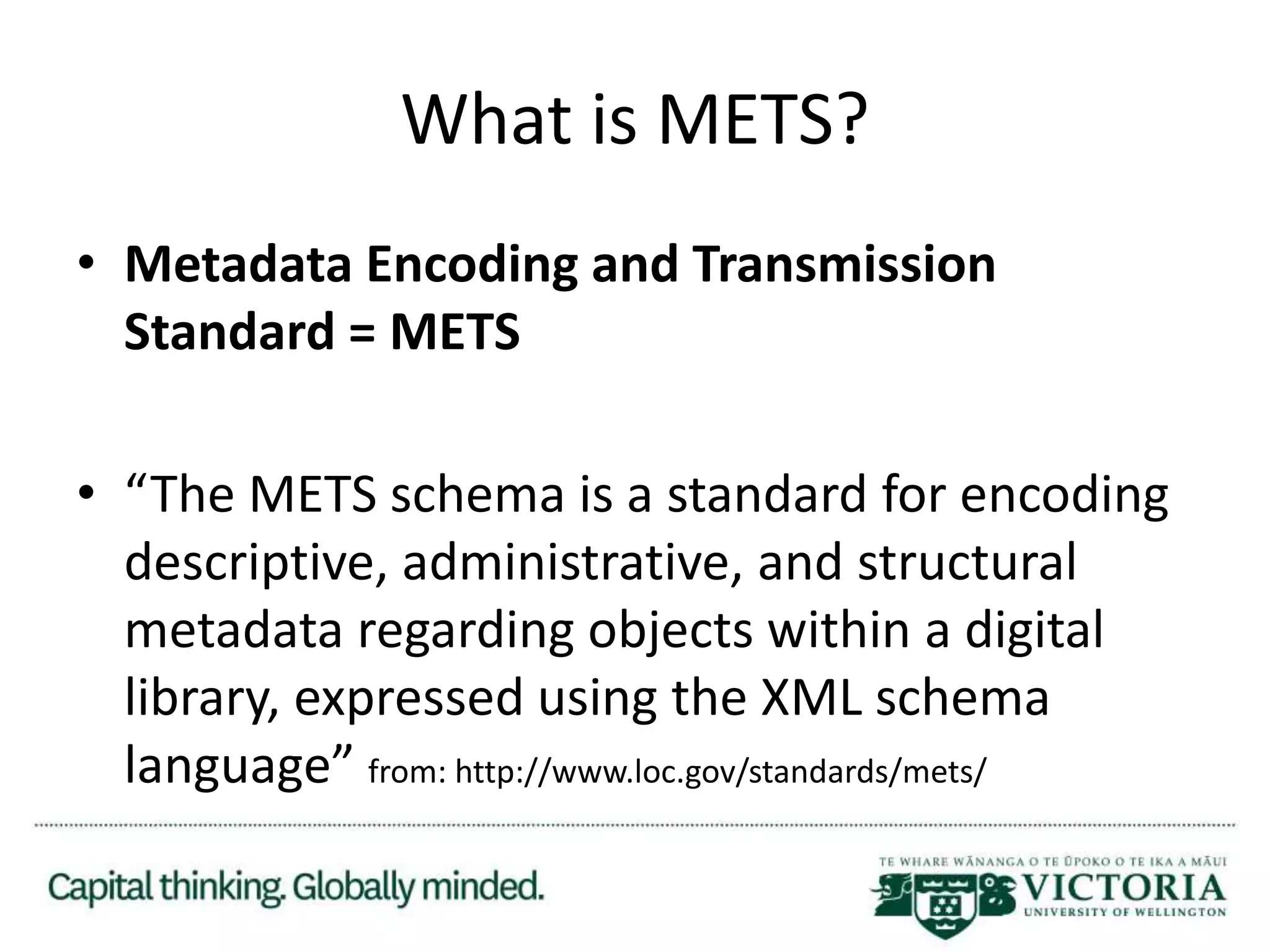

5. What is METS?
• Metadata Encoding and Transmission
Standard = METS
• “The METS schema is a standard for encoding
descriptive, administrative, and structural
metadata regarding objects within a digital
library, expressed using the XML schema
language” from: http://www.loc.gov/standards/mets/

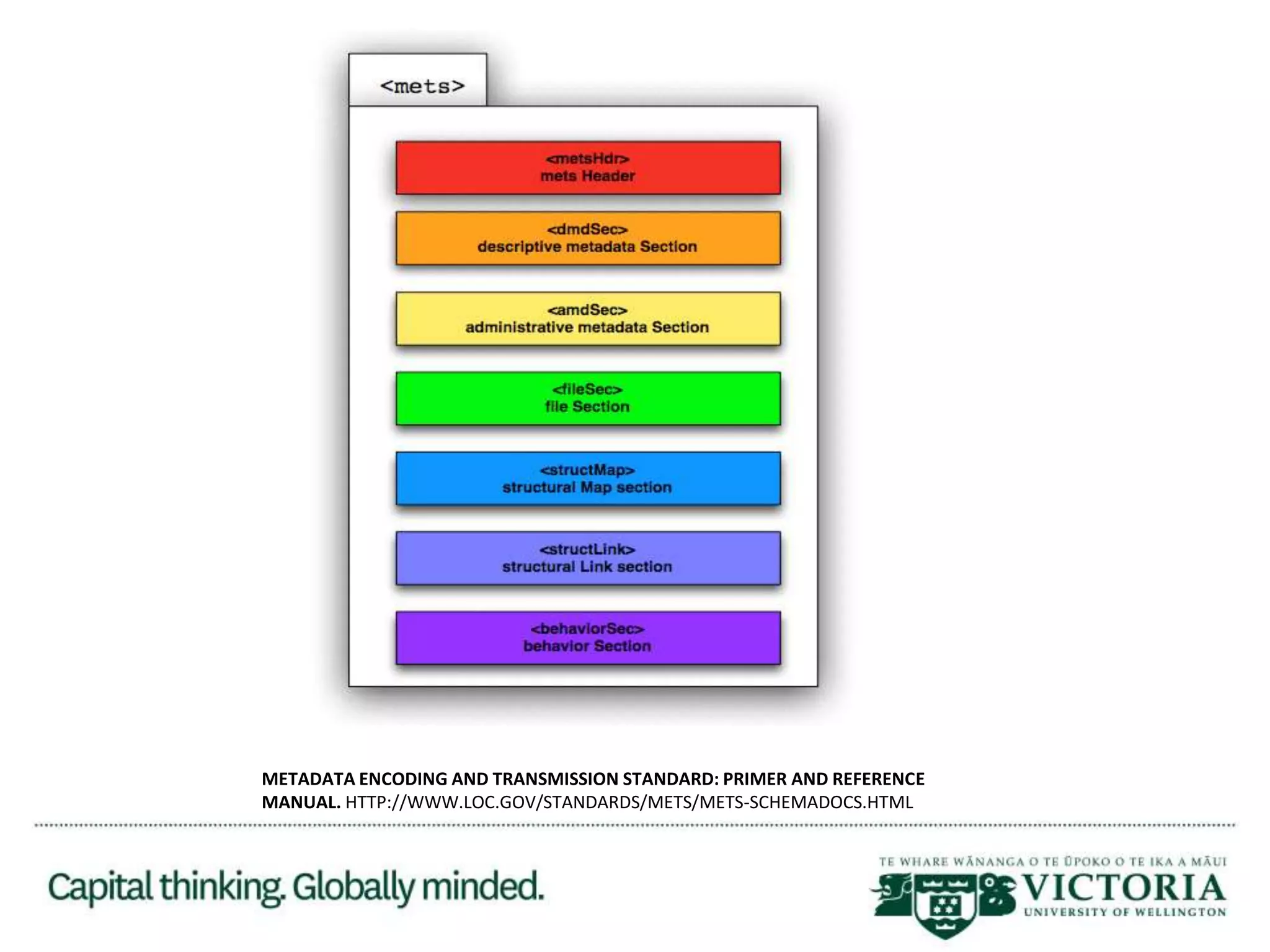

6. METADATA ENCODING AND TRANSMISSION STANDARD: PRIMER AND REFERENCE
MANUAL. HTTP://WWW.LOC.GOV/STANDARDS/METS/METS-SCHEMADOCS.HTML

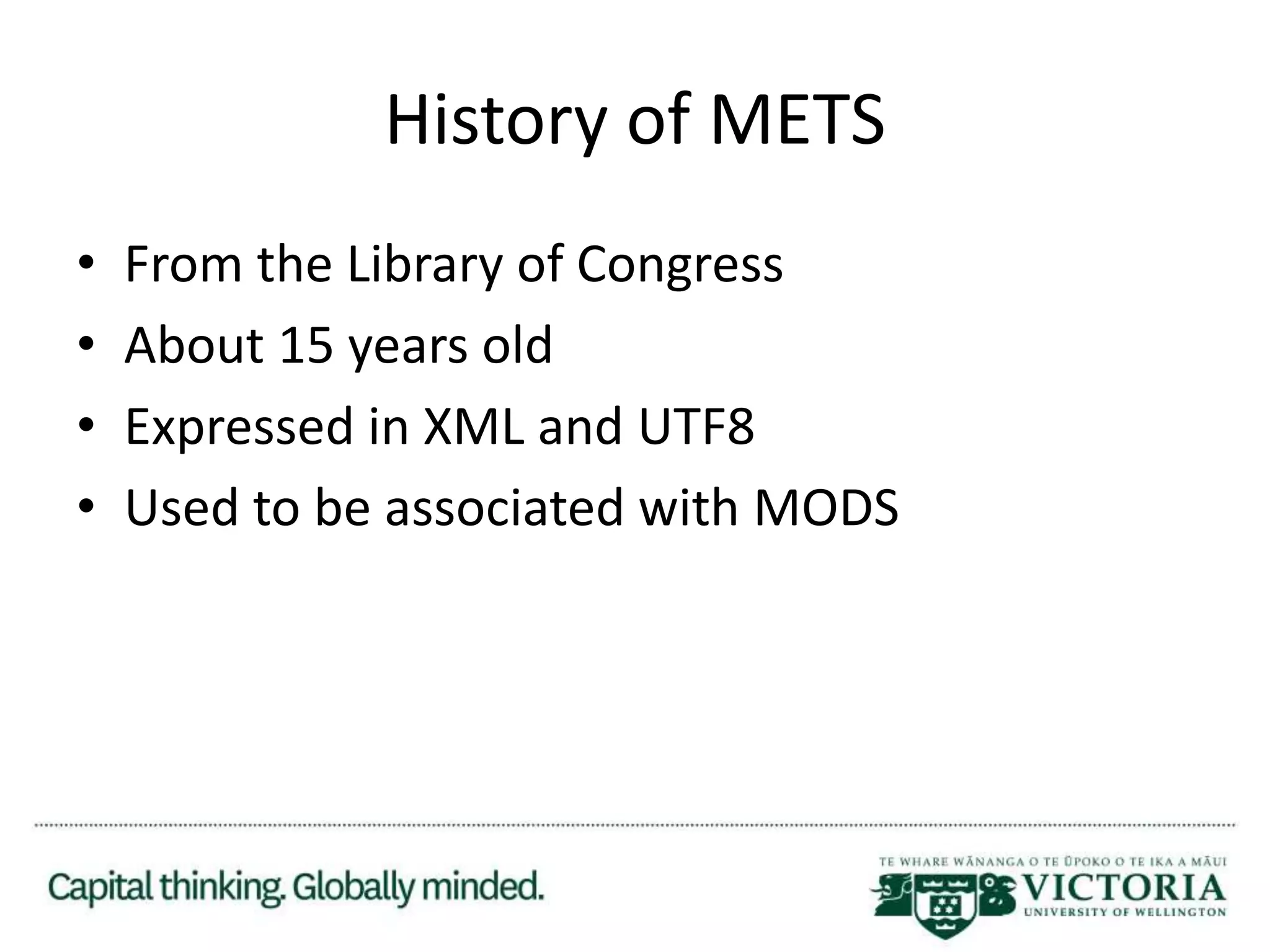

7. History of METS
• From the Library of Congress
• About 15 years old
• Expressed in XML and UTF8
• Used to be associated with MODS

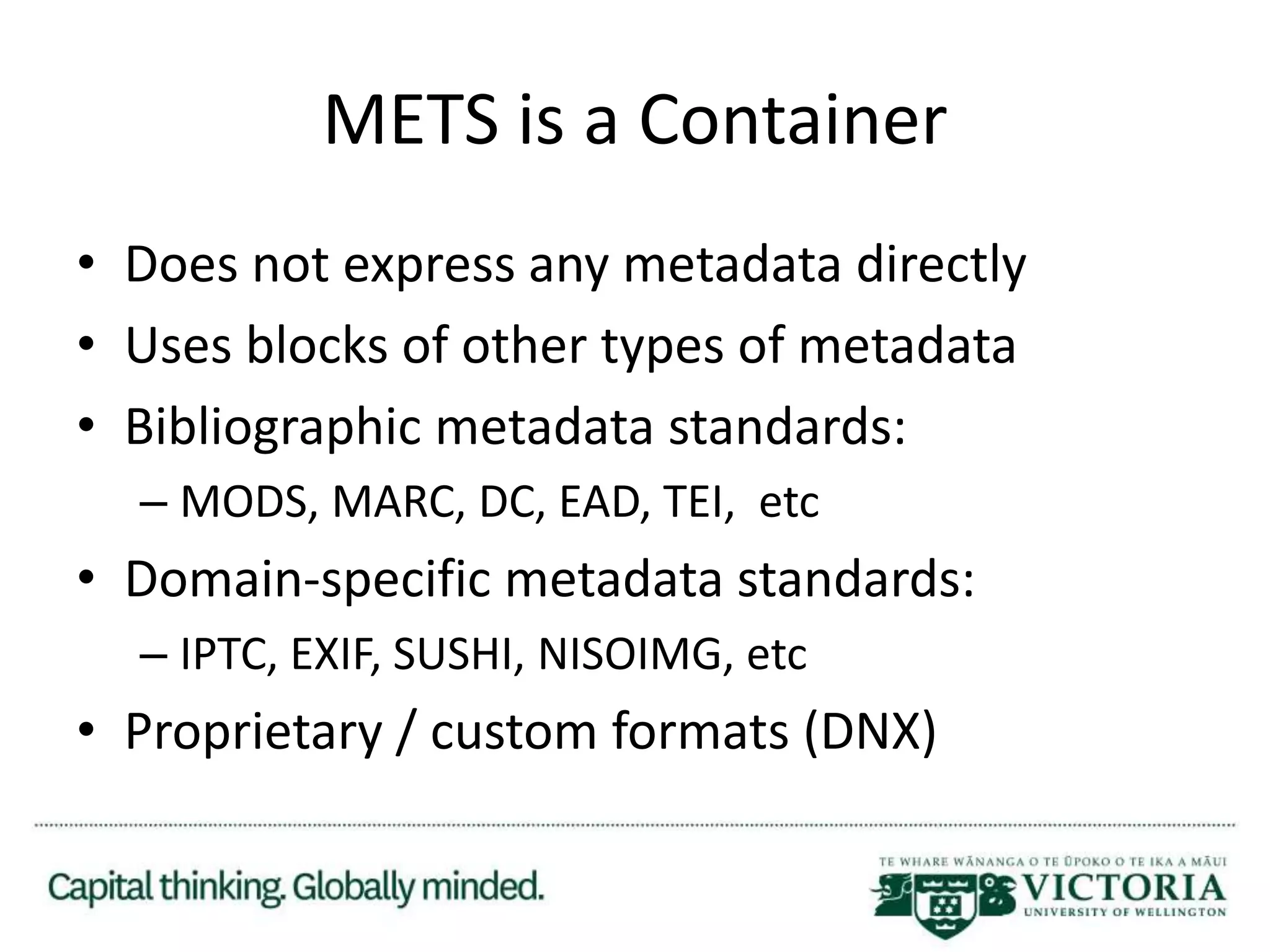

8. METS is a Container
• Does not express any metadata directly
• Uses blocks of other types of metadata
• Bibliographic metadata standards:
– MODS, MARC, DC, EAD, TEI, etc
• Domain-specific metadata standards:
– IPTC, EXIF, SUSHI, NISOIMG, etc
• Proprietary / custom formats (DNX)

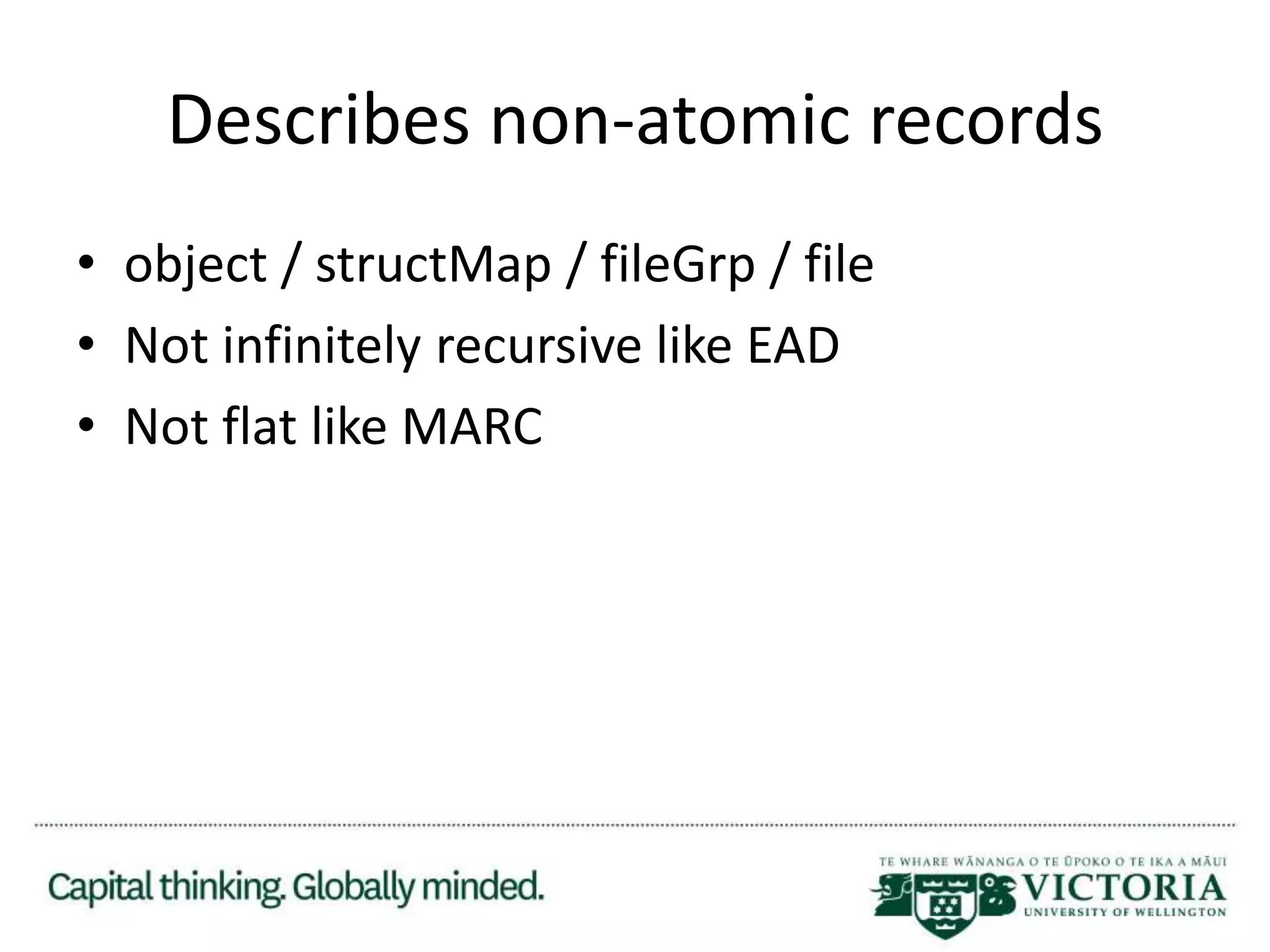

9. Describes non-atomic records
• object / structMap / fileGrp / file
• Not infinitely recursive like EAD
• Not flat like MARC

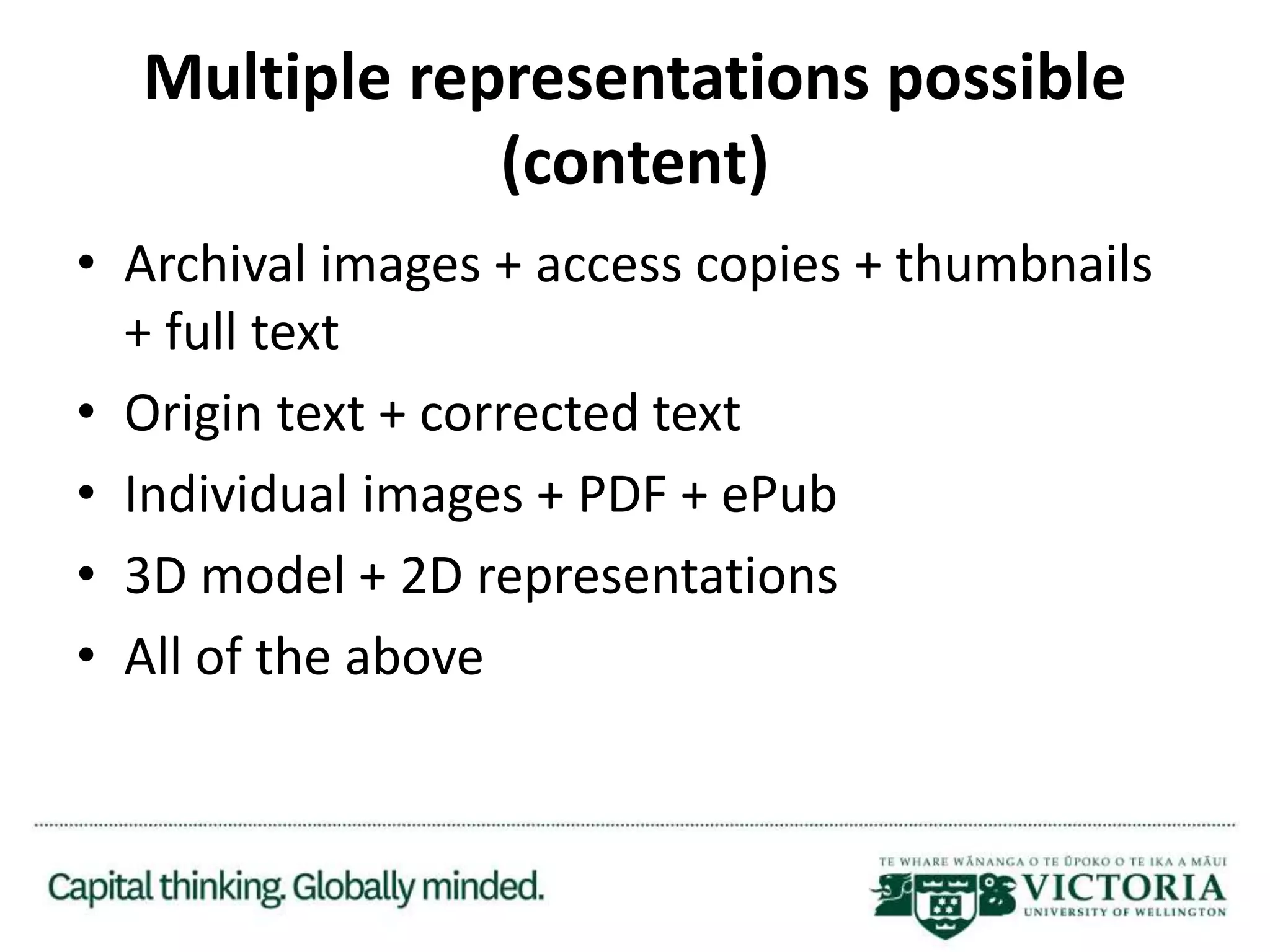

10. Multiple representations possible
(content)
• Archival images + access copies + thumbnails
+ full text
• Origin text + corrected text
• Individual images + PDF + ePub
• 3D model + 2D representations
• All of the above

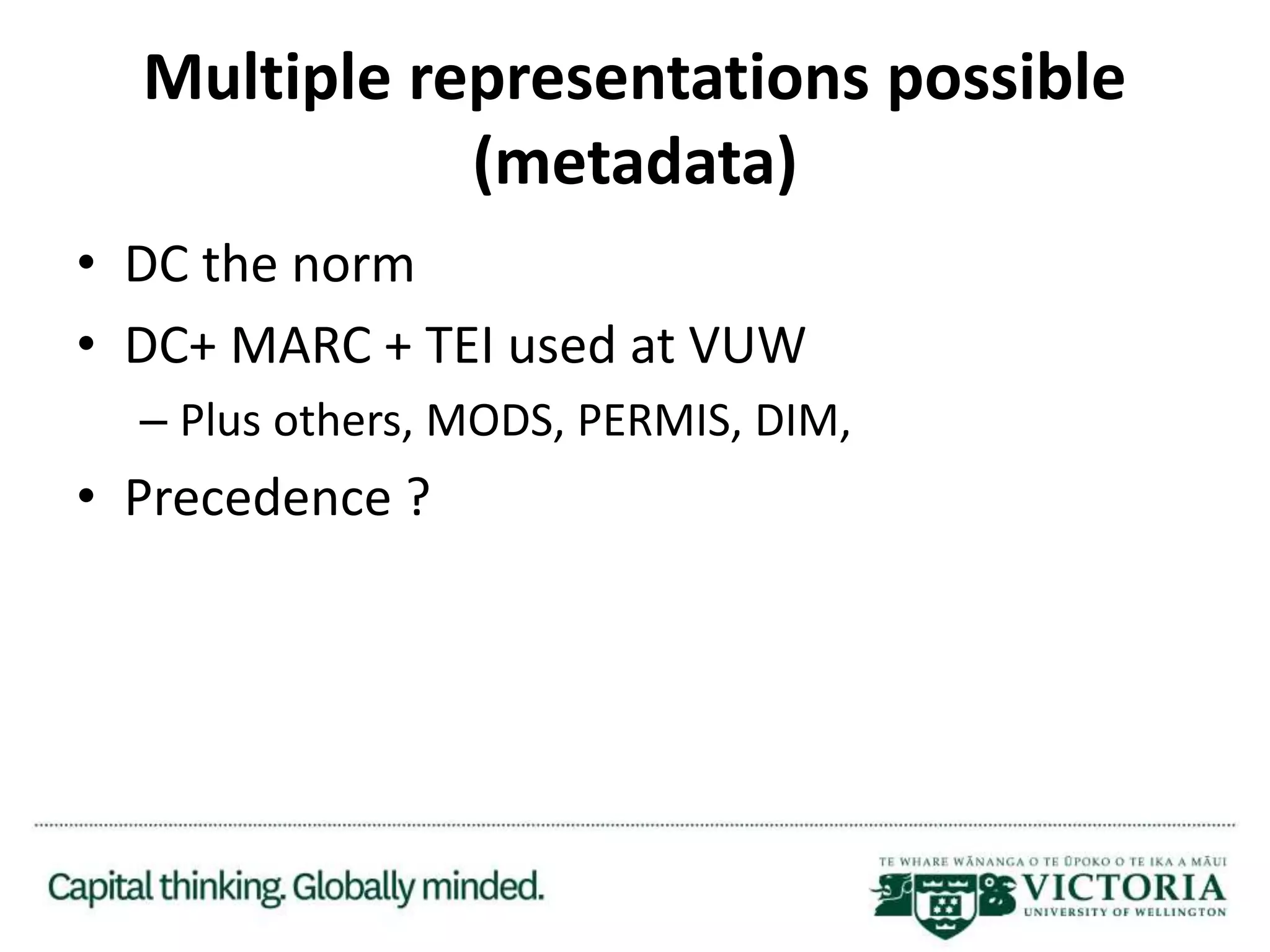

11. Multiple representations possible
(metadata)
• DC the norm
• DC+ MARC + TEI used at VUW
– Plus others, MODS, PERMIS, DIM,
• Precedence ?

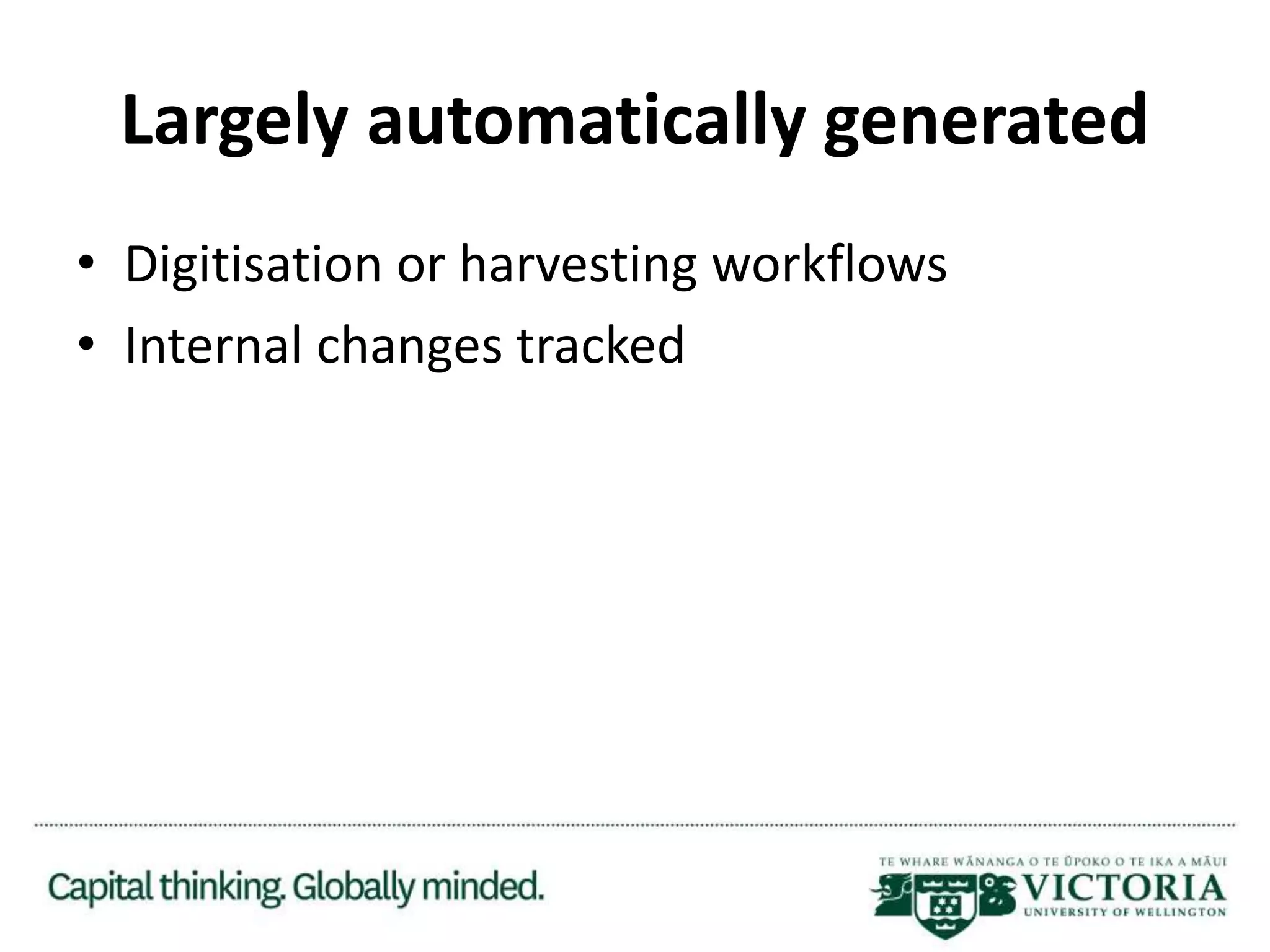

12. Largely automatically generated
• Digitisation or harvesting workflows
• Internal changes tracked

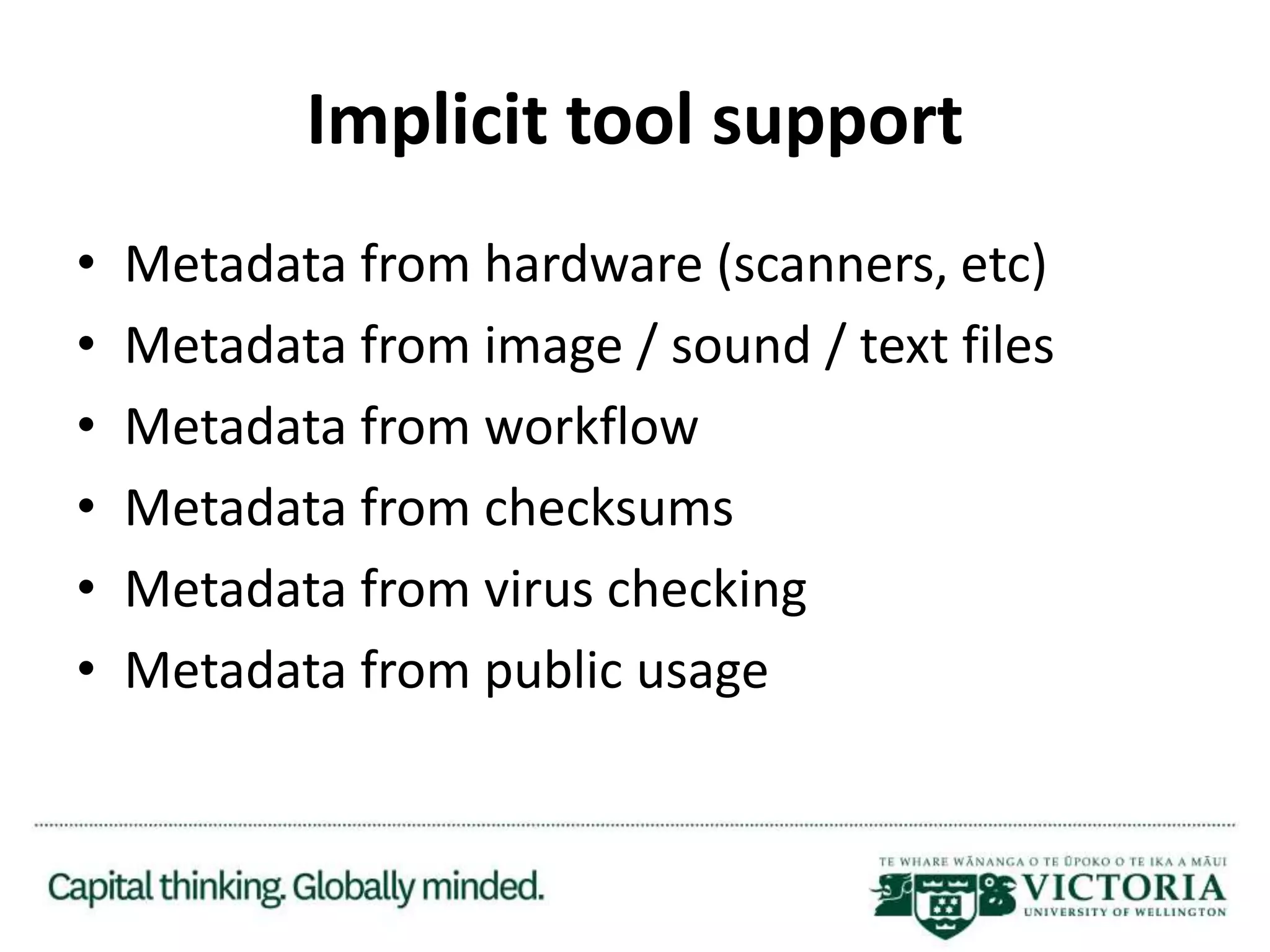

13. Implicit tool support
• Metadata from hardware (scanners, etc)
• Metadata from image / sound / text files
• Metadata from workflow
• Metadata from checksums
• Metadata from virus checking
• Metadata from public usage

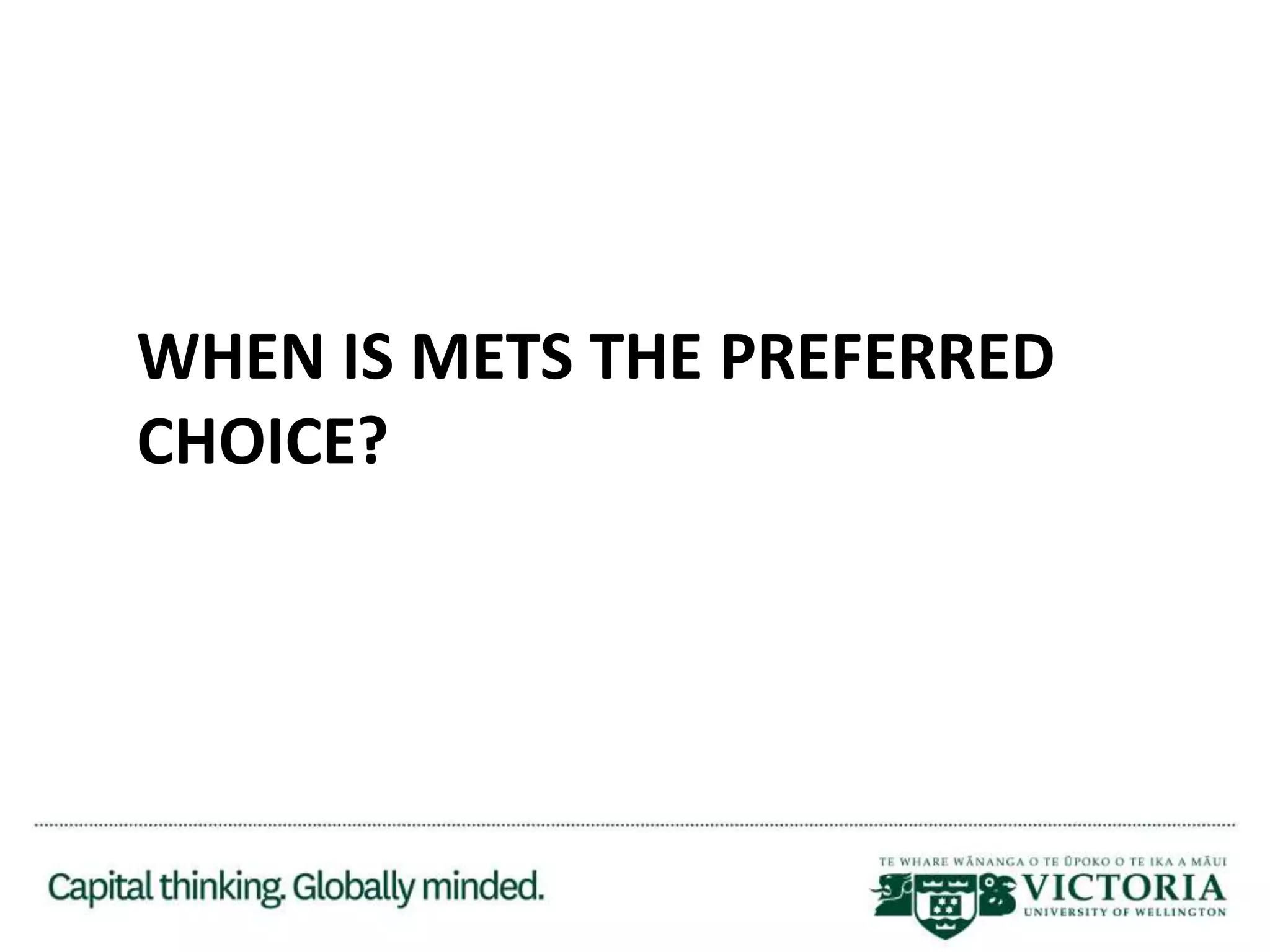

14. WHEN IS METS THE PREFERRED
CHOICE?

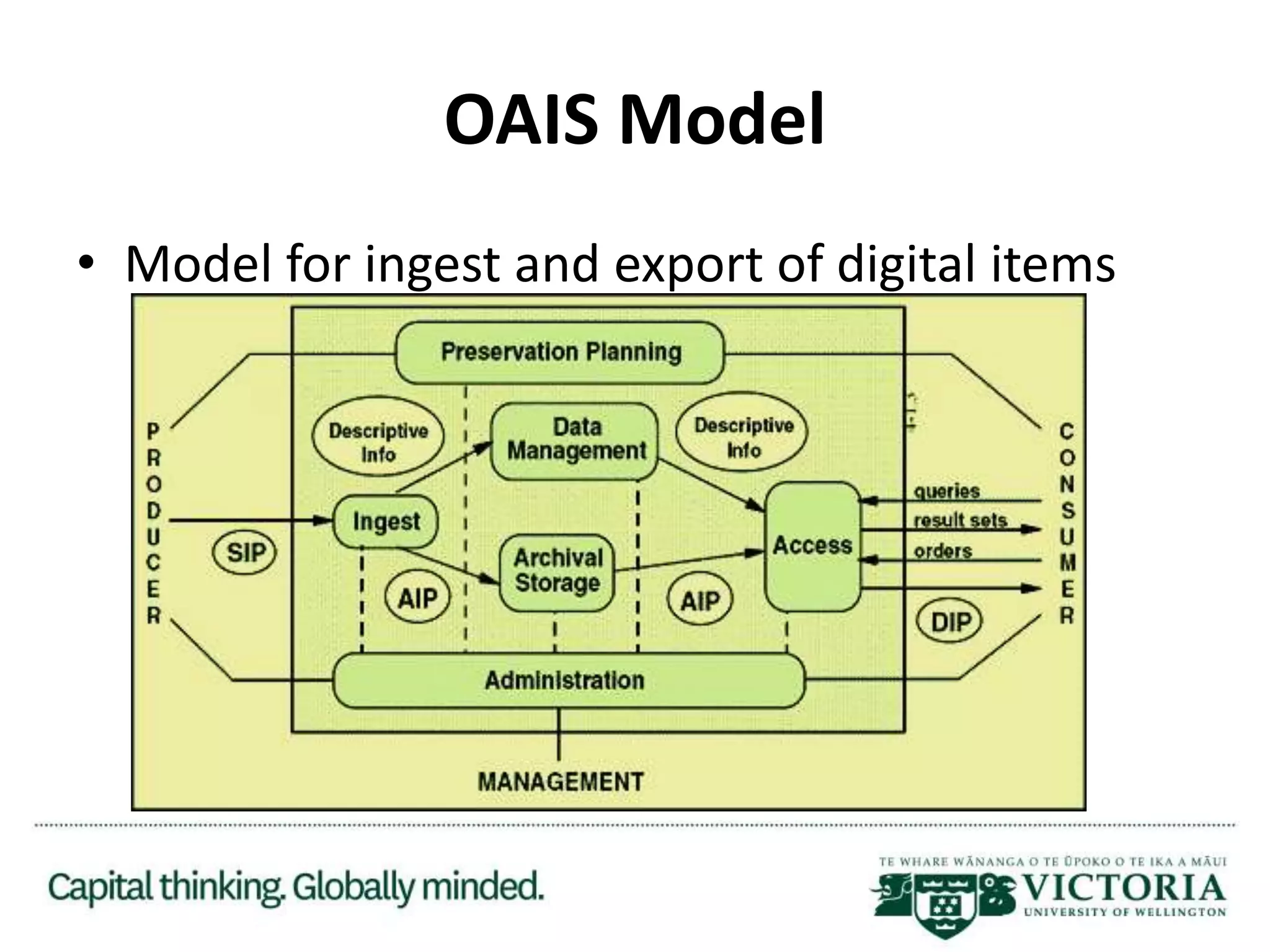

15. OAIS Model
• Model for ingest and export of digital items

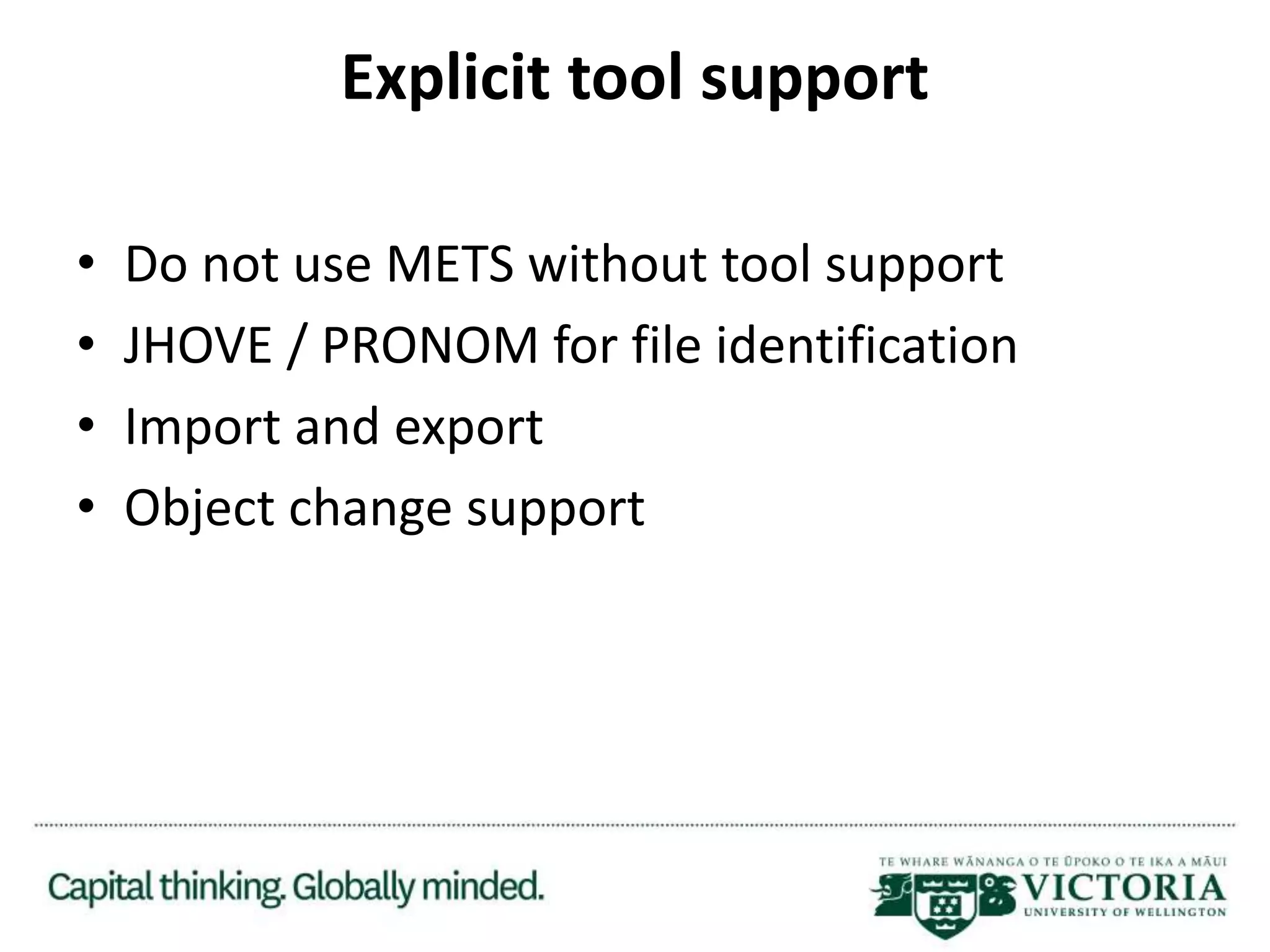

16. Explicit tool support
• Do not use METS without tool support
• JHOVE / PRONOM for file identification
• Import and export
• Object change support

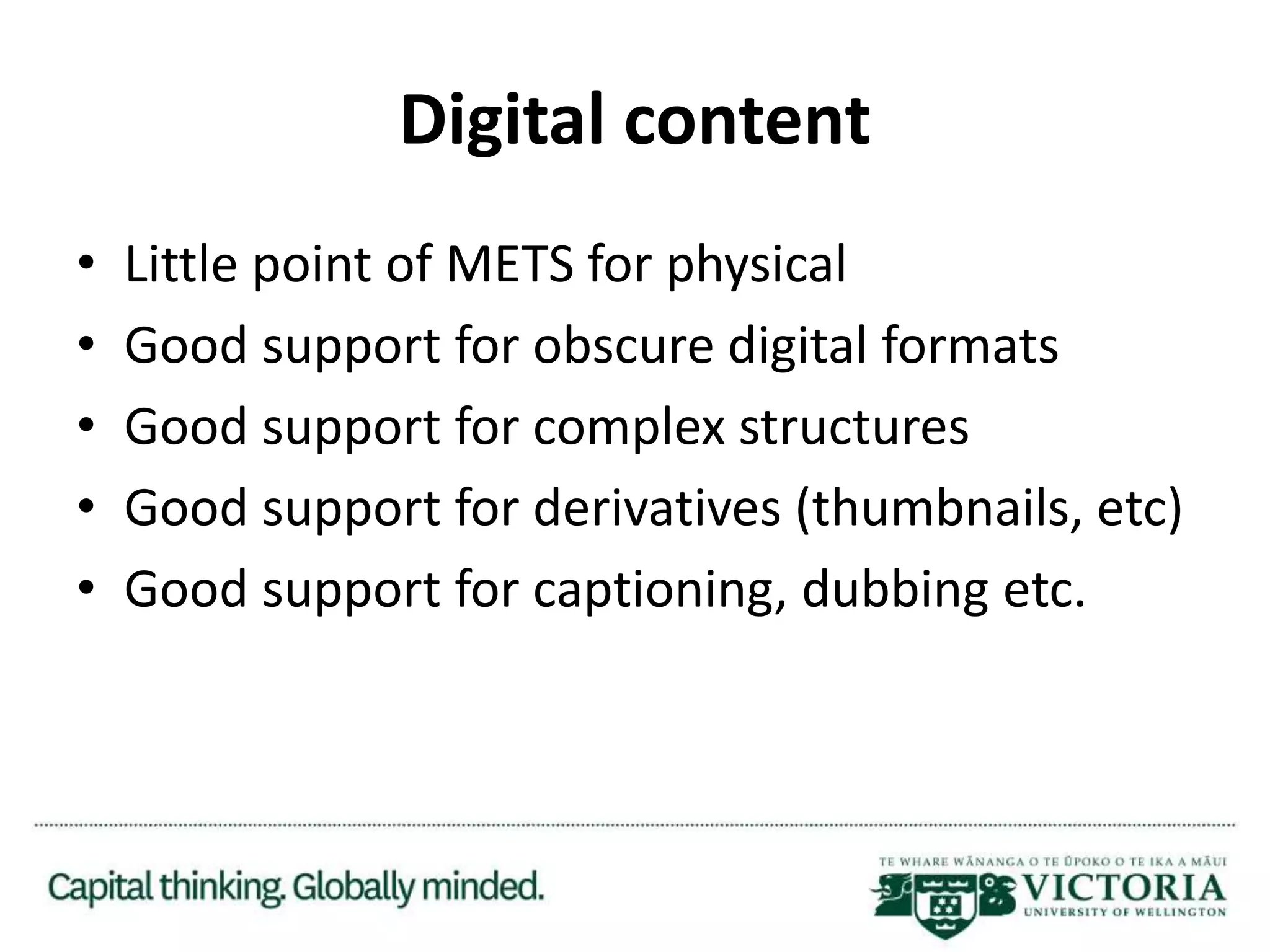

17. Digital content
• Little point of METS for physical
• Good support for obscure digital formats
• Good support for complex structures
• Good support for derivatives (thumbnails, etc)
• Good support for captioning, dubbing etc.

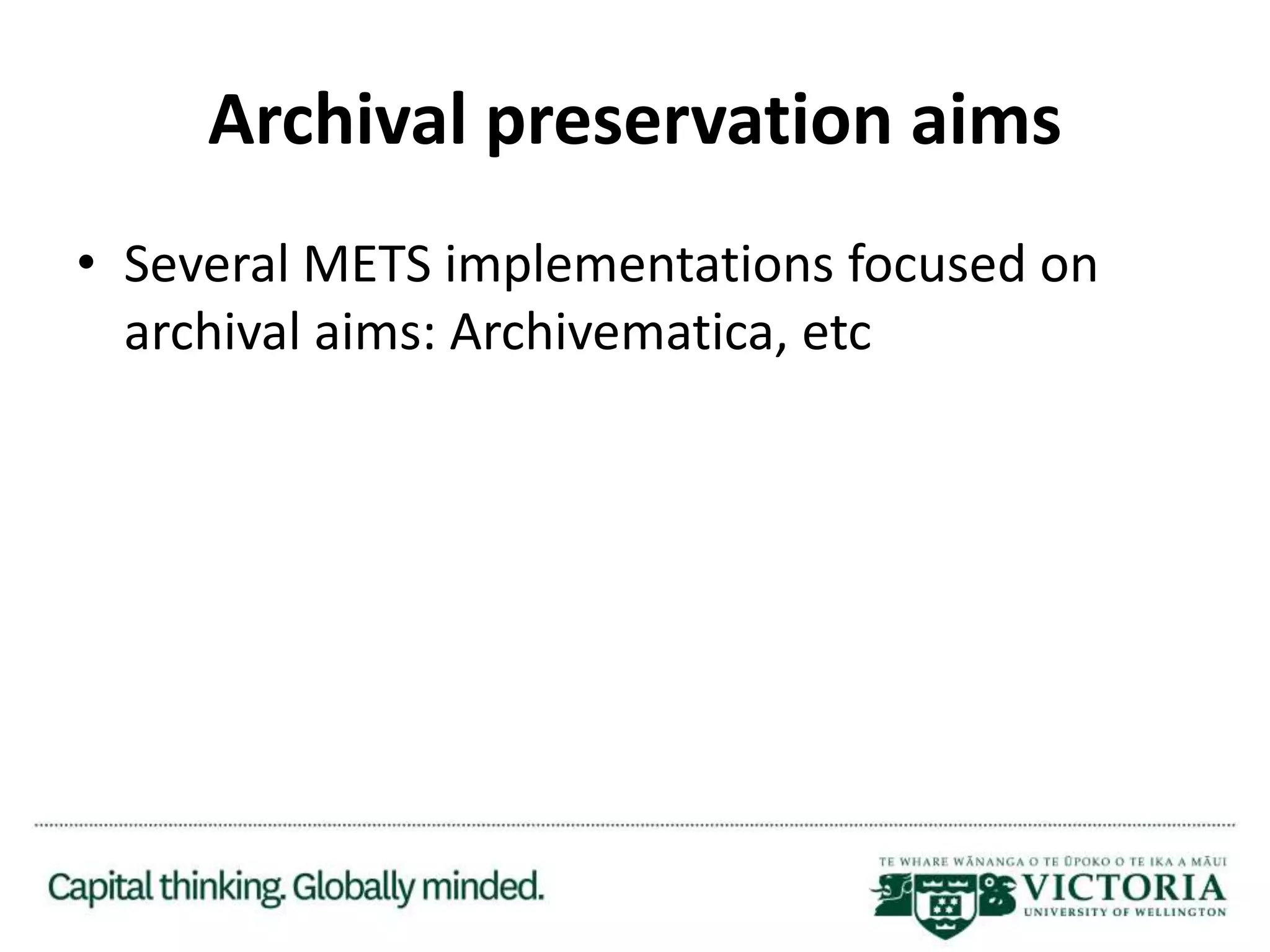

18. Archival preservation aims
• Several METS implementations focused on
archival aims: Archivematica, etc

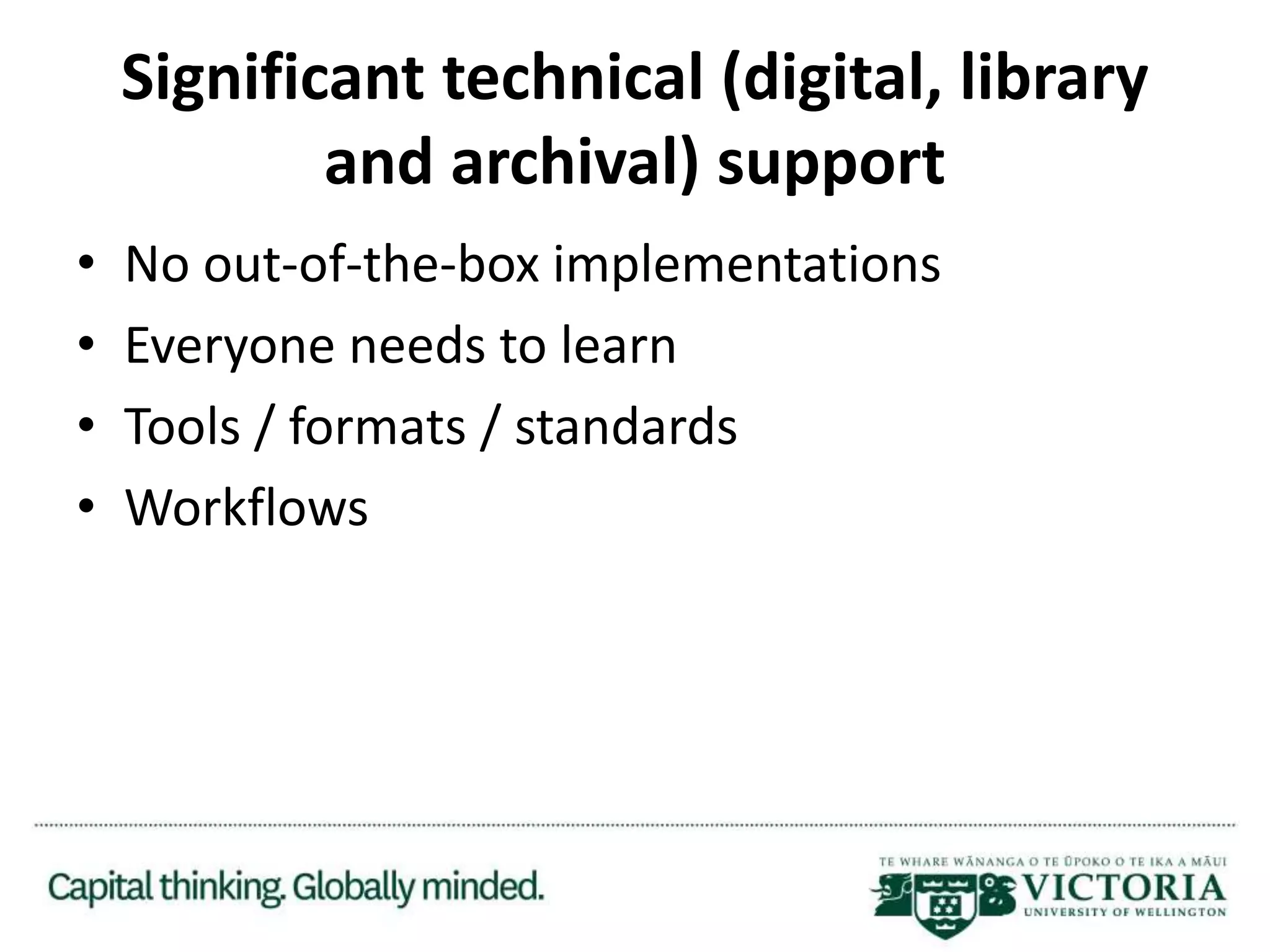

19. Significant technical (digital, library
and archival) support
• No out-of-the-box implementations
• Everyone needs to learn
• Tools / formats / standards
• Workflows

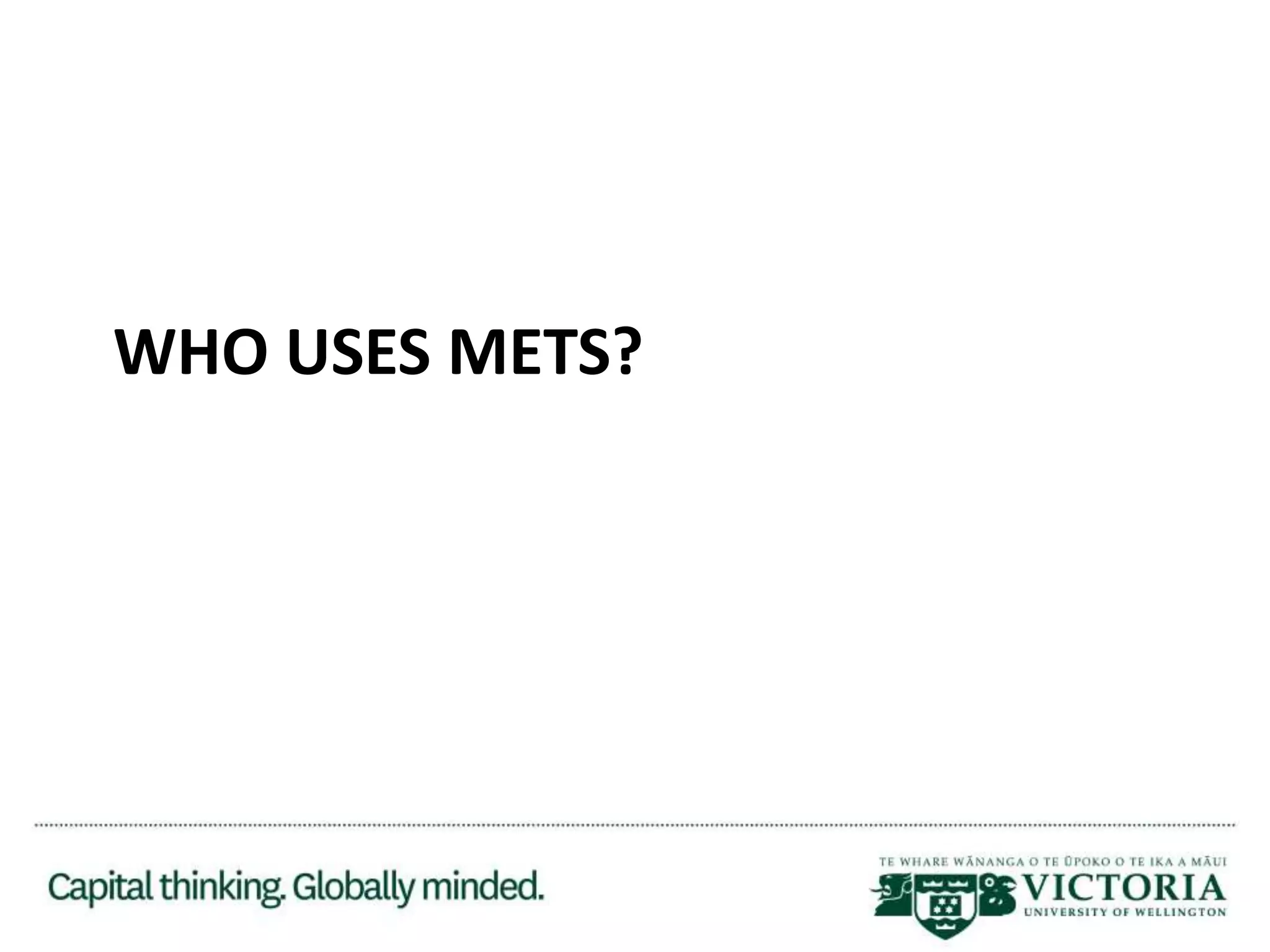

20. WHO USES METS?

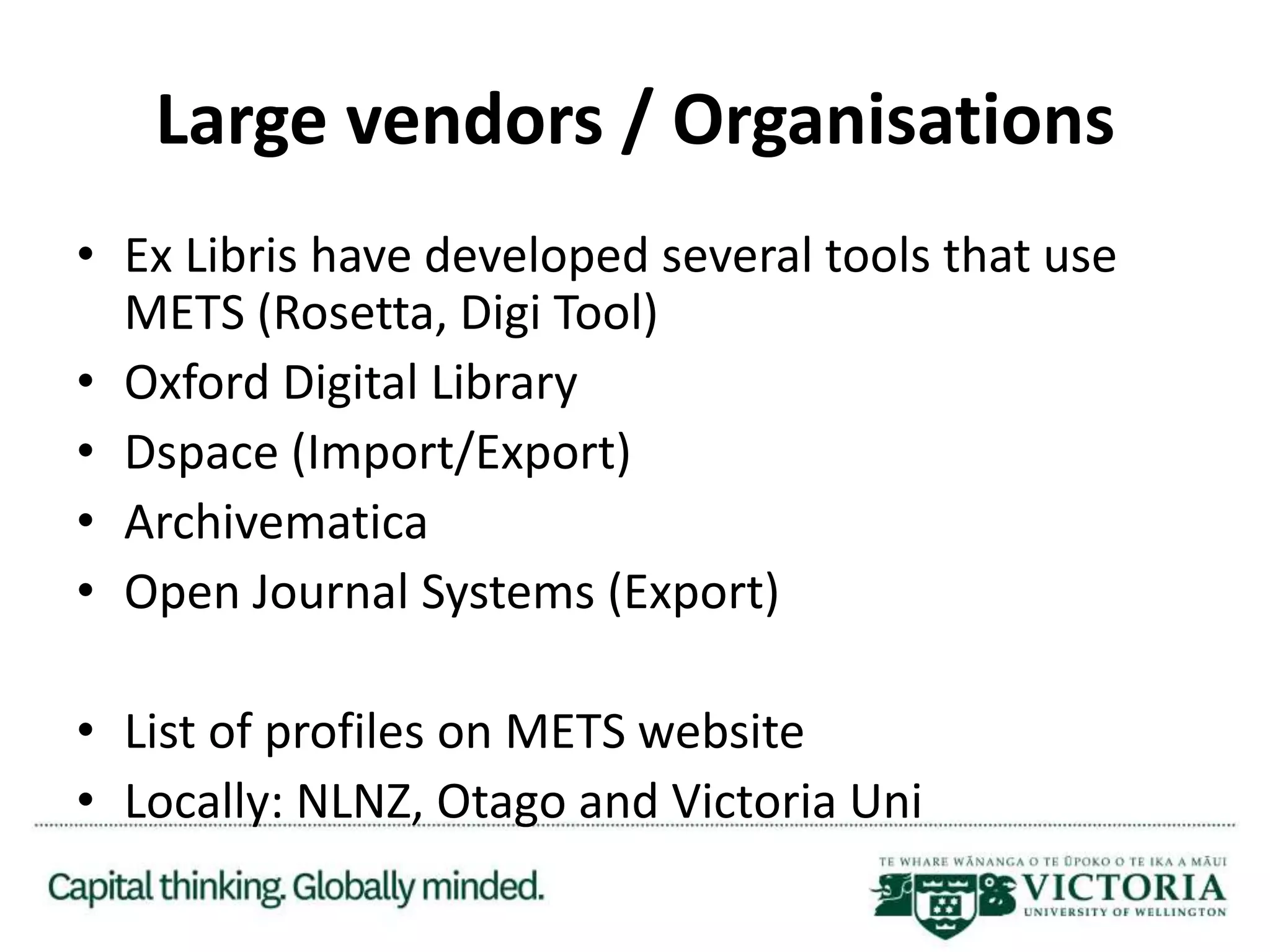

21. Large vendors / Organisations
• Ex Libris have developed several tools that use
METS (Rosetta, Digi Tool)
• Oxford Digital Library
• Dspace (Import/Export)
• Archivematica
• Open Journal Systems (Export)
• List of profiles on METS website
• Locally: NLNZ, Otago and Victoria Uni

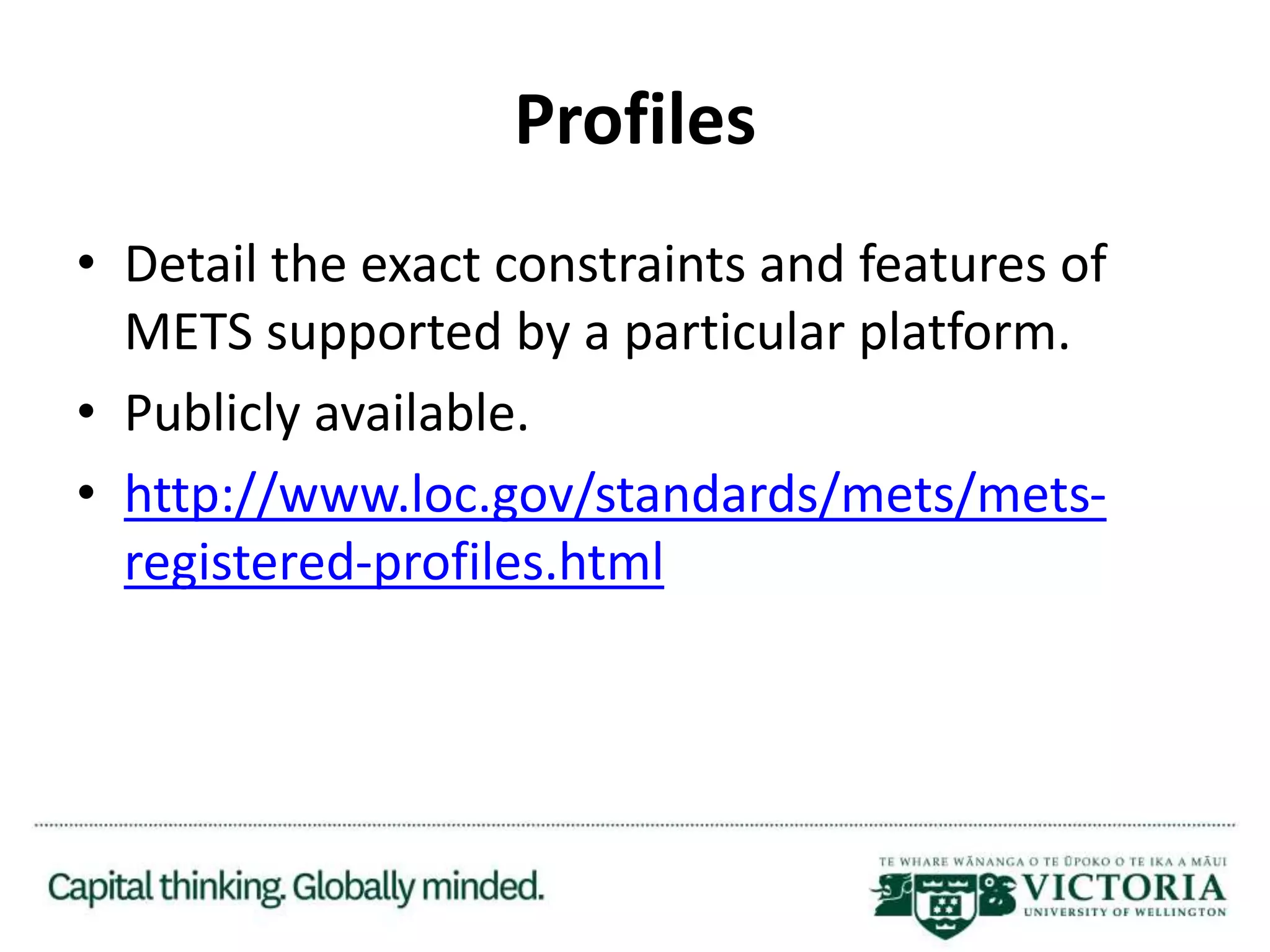

22. Profiles
• Detail the exact constraints and features of
METS supported by a particular platform.
• Publicly available.
• http://www.loc.gov/standards/mets/mets-
registered-profiles.html

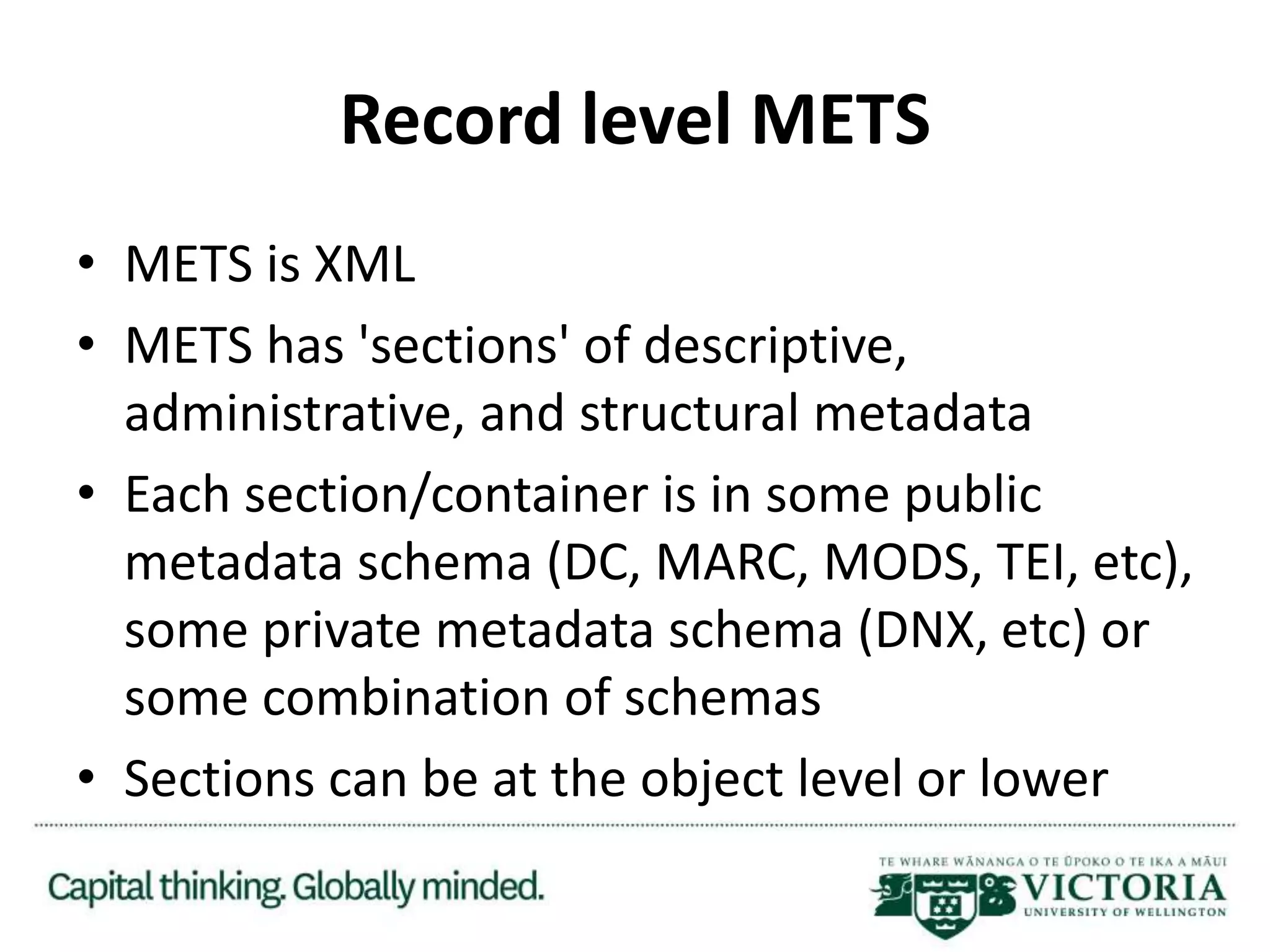

23. Record level METS
• METS is XML
• METS has 'sections' of descriptive,
administrative, and structural metadata
• Each section/container is in some public
metadata schema (DC, MARC, MODS, TEI, etc),
some private metadata schema (DNX, etc) or
some combination of schemas
• Sections can be at the object level or lower

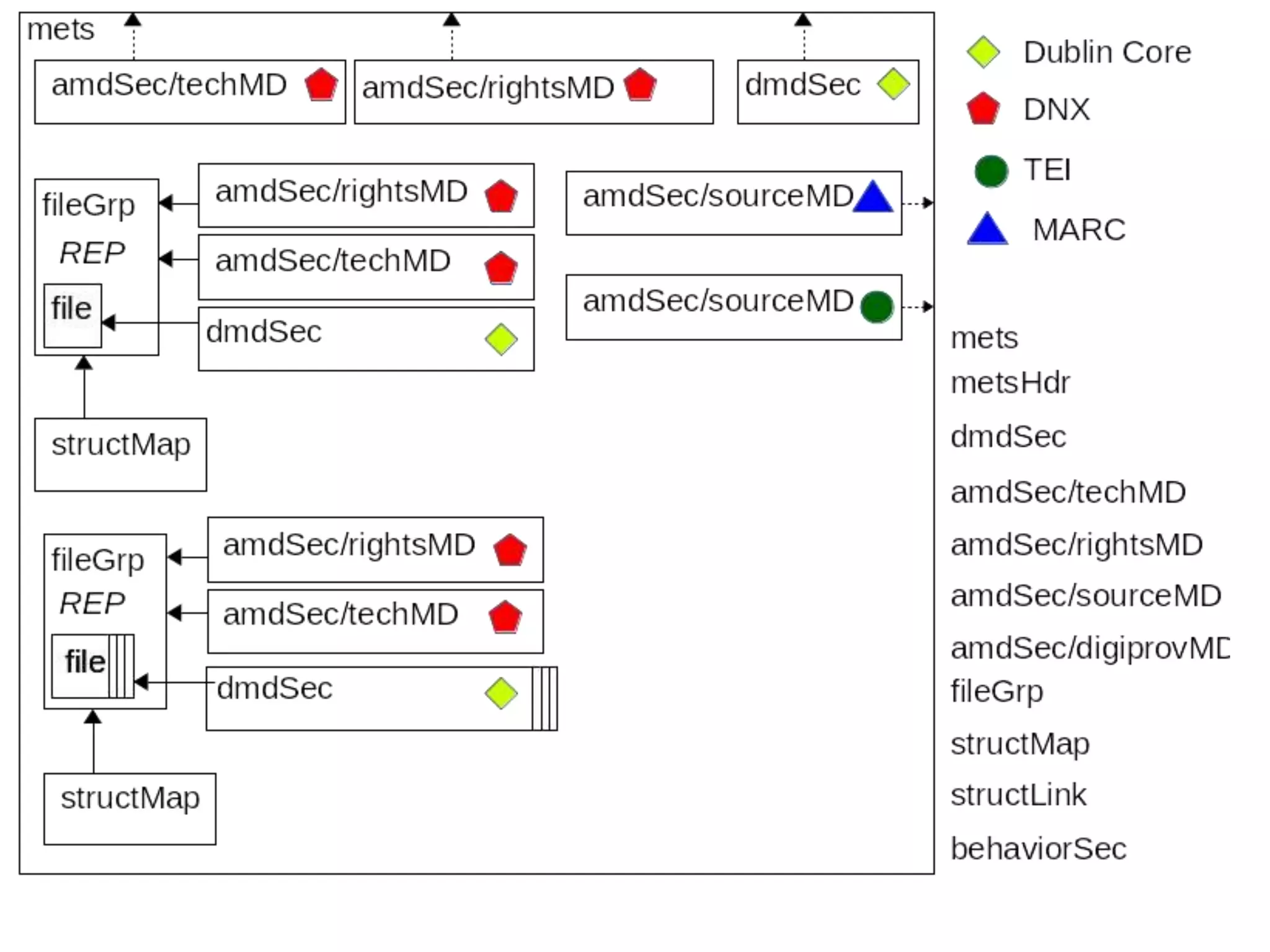

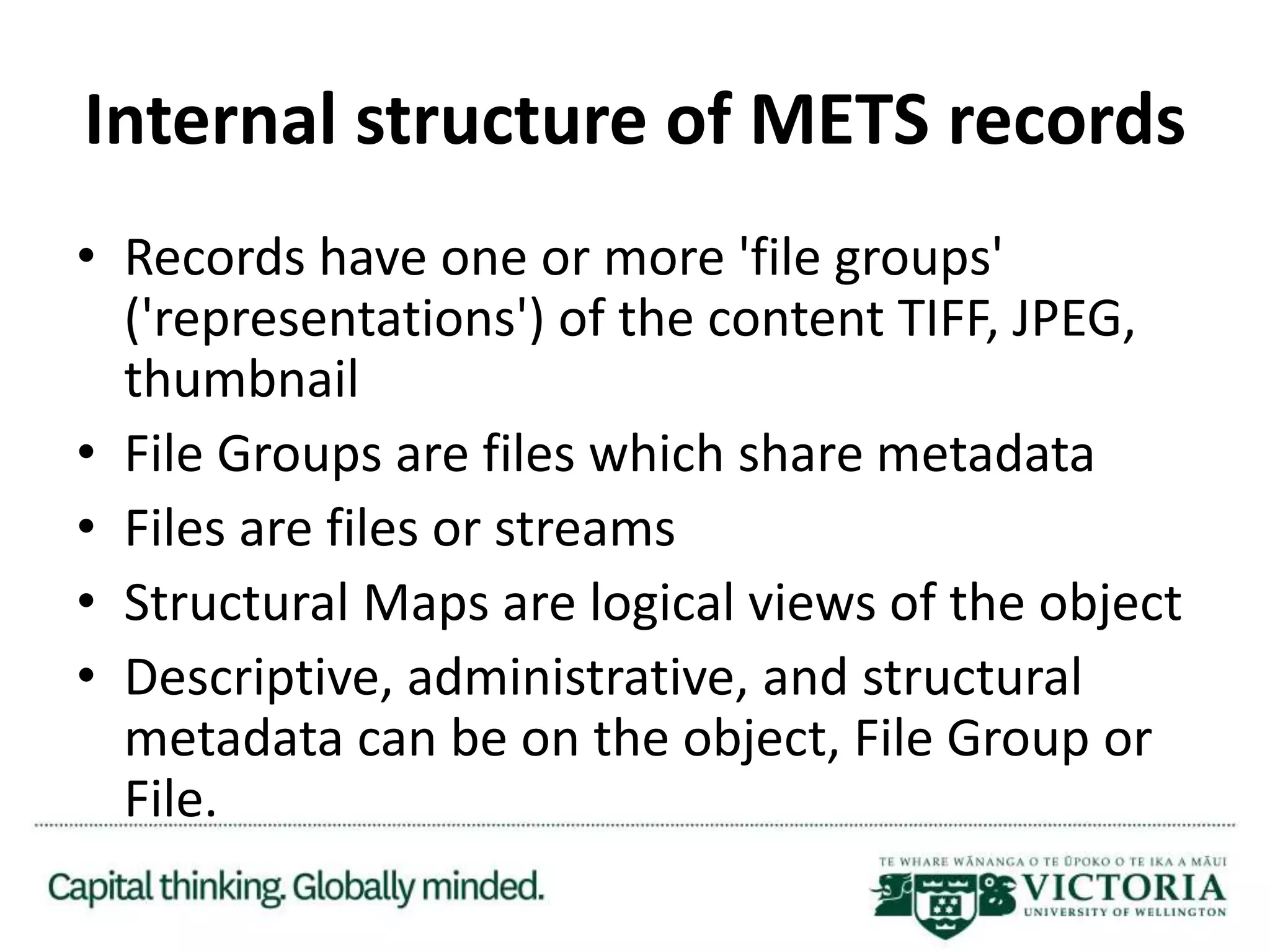

24. Internal structure of METS records
• Records have one or more 'file groups'
('representations') of the content TIFF, JPEG,
thumbnail
• File Groups are files which share metadata
• Files are files or streams
• Structural Maps are logical views of the object
• Descriptive, administrative, and structural
metadata can be on the object, File Group or
File.

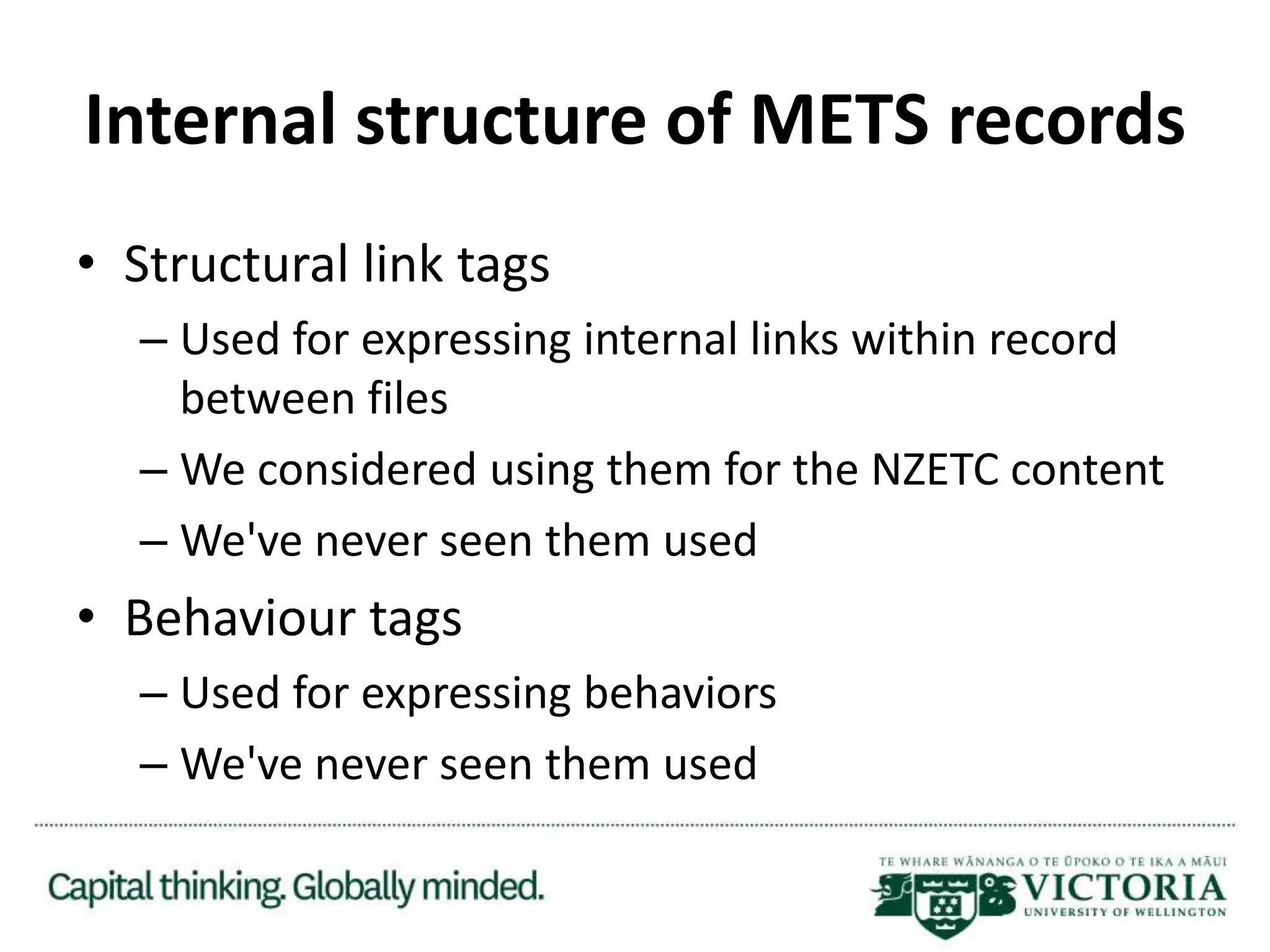

25. Internal structure of METS records
• Structural link tags
– Used for expressing internal links within record
between files
– We considered using them for the NZETC content
– We've never seen them used
• Behaviour tags
– Used for expressing behaviors
– We've never seen them used

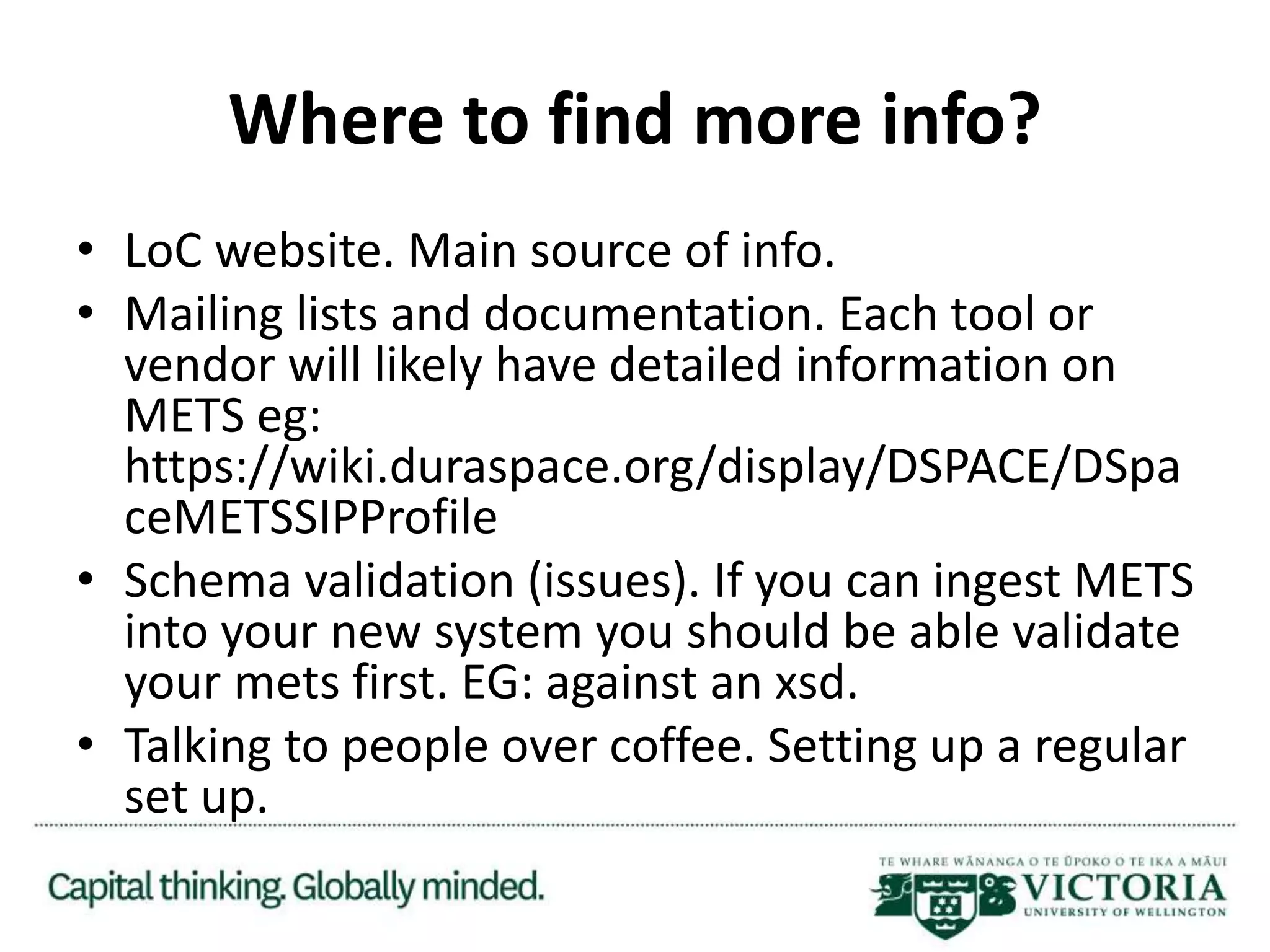

27. Where to find more info?
• LoC website. Main source of info.
• Mailing lists and documentation. Each tool or
vendor will likely have detailed information on
METS eg:
https://wiki.duraspace.org/display/DSPACE/DSpa
ceMETSSIPProfile
• Schema validation (issues). If you can ingest METS
into your new system you should be able validate
your mets first. EG: against an xsd.
• Talking to people over coffee. Setting up a regular
set up.

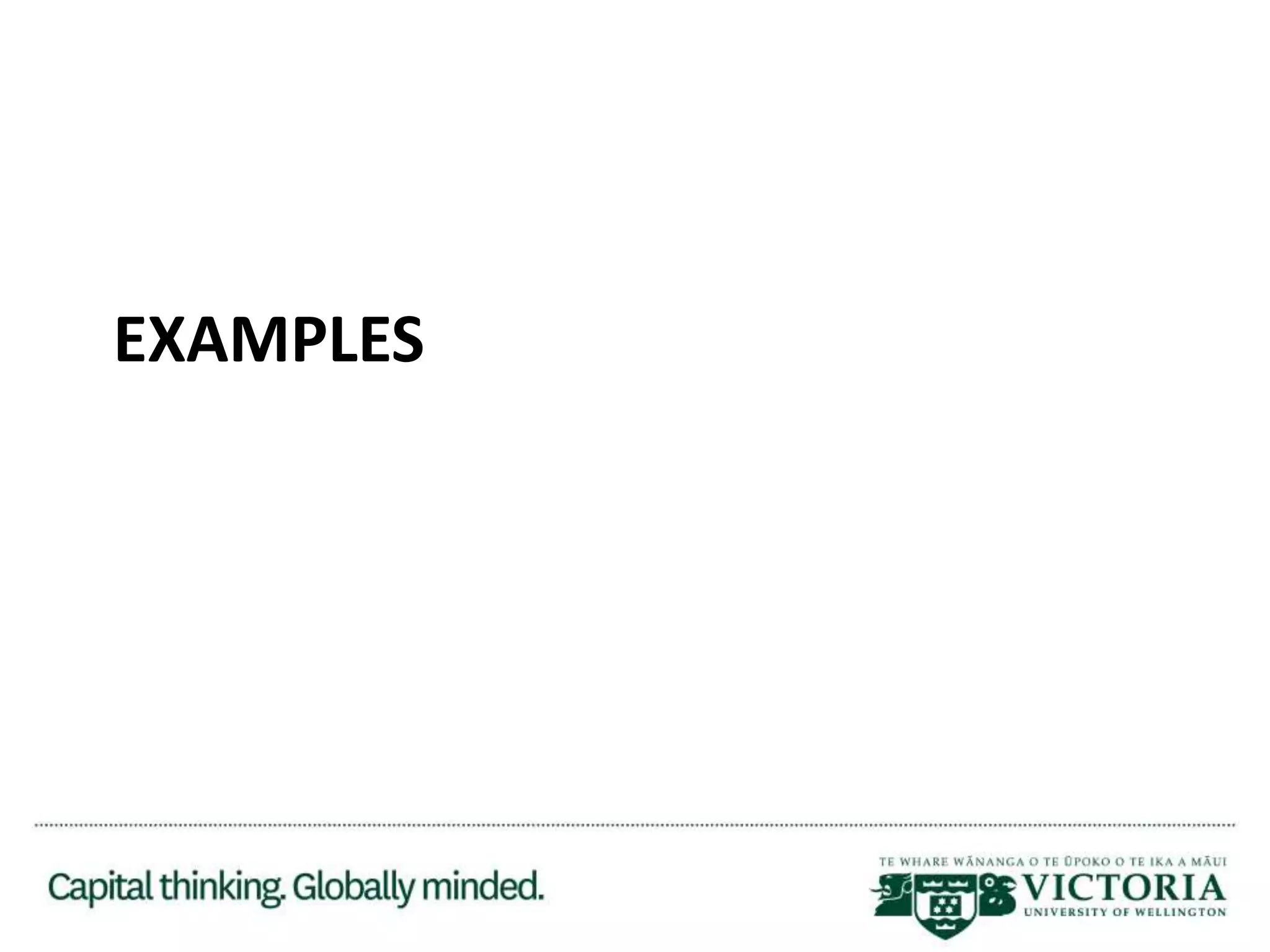

28. EXAMPLES

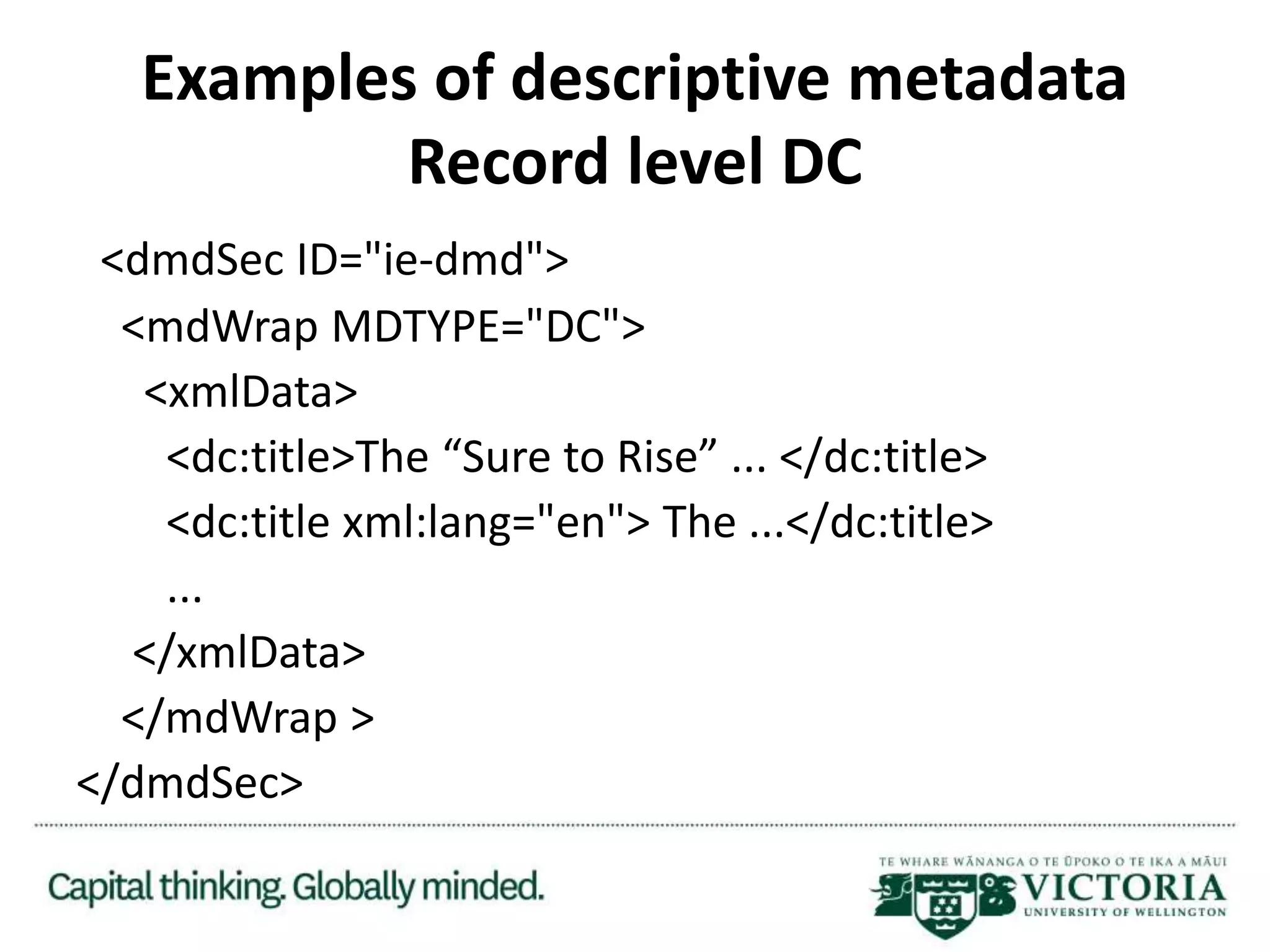

29. Examples of descriptive metadata
Record level DC
<dmdSec ID="ie-dmd">
<mdWrap MDTYPE="DC">
<xmlData>
<dc:title>The “Sure to Rise” ... </dc:title>
<dc:title xml:lang="en"> The ...</dc:title>
...
</xmlData>
</mdWrap >
</dmdSec>

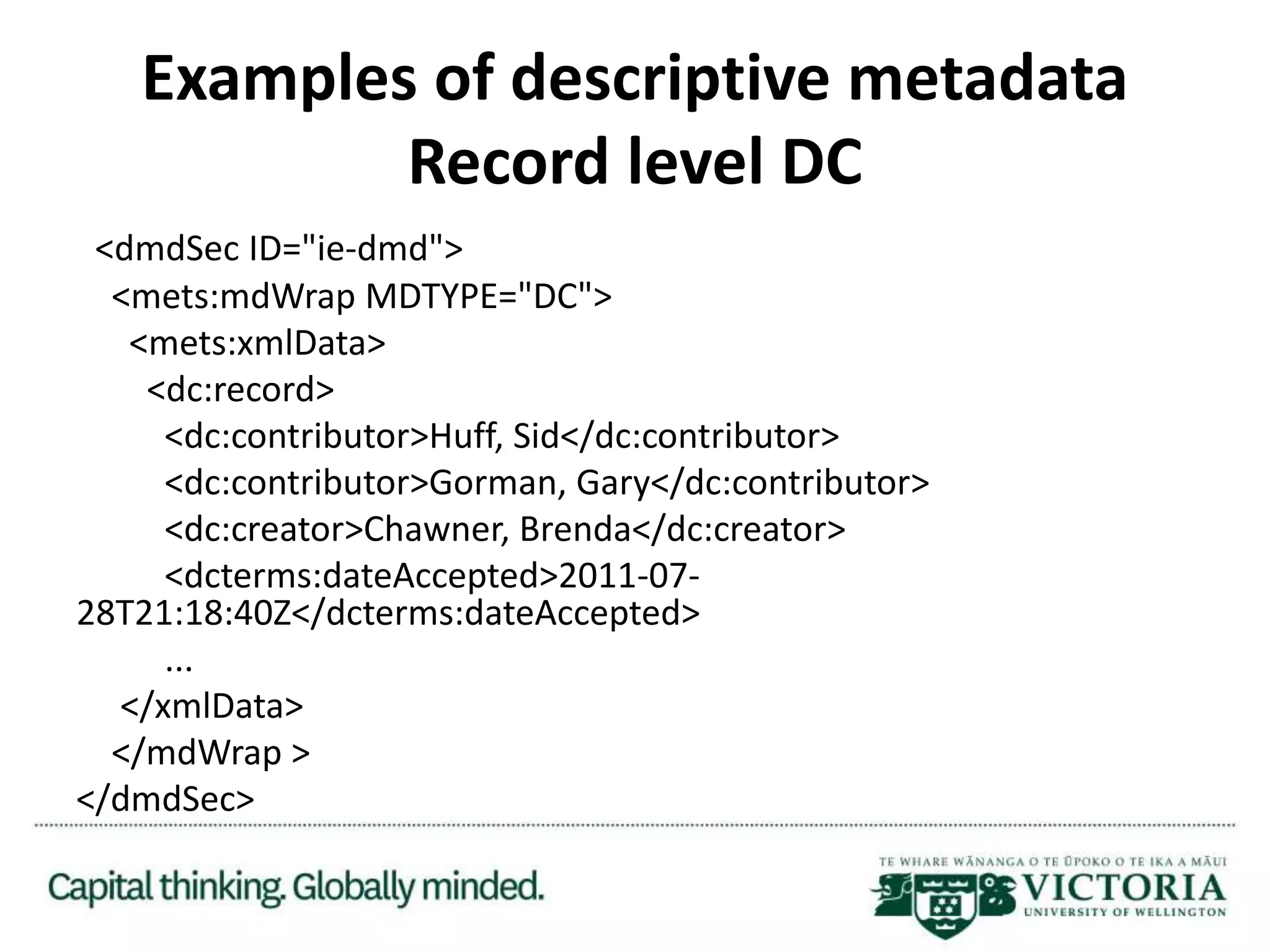

30. Examples of descriptive metadata
Record level DC
<dmdSec ID="ie-dmd">
<mets:mdWrap MDTYPE="DC">
<mets:xmlData>
<dc:record>
<dc:contributor>Huff, Sid</dc:contributor>
<dc:contributor>Gorman, Gary</dc:contributor>
<dc:creator>Chawner, Brenda</dc:creator>
<dcterms:dateAccepted>2011-07-
28T21:18:40Z</dcterms:dateAccepted>
...
</xmlData>
</mdWrap >
</dmdSec>

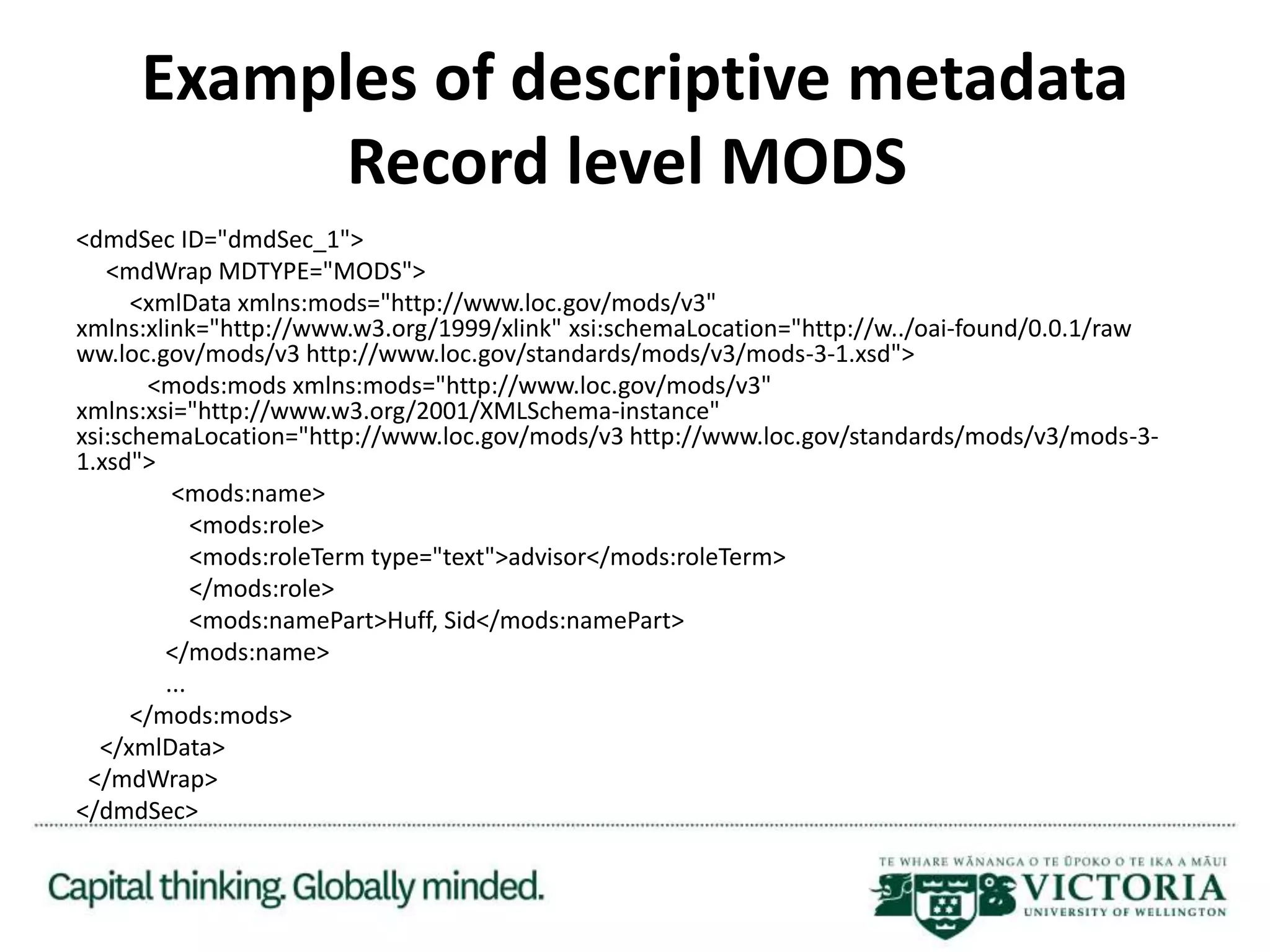

31. Examples of descriptive metadata
Record level MODS
<dmdSec ID="dmdSec_1">
<mdWrap MDTYPE="MODS">
<xmlData xmlns:mods="http://www.loc.gov/mods/v3"
xmlns:xlink="http://www.w3.org/1999/xlink" xsi:schemaLocation="http://w../oai-found/0.0.1/raw
ww.loc.gov/mods/v3 http://www.loc.gov/standards/mods/v3/mods-3-1.xsd">
<mods:mods xmlns:mods="http://www.loc.gov/mods/v3"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.loc.gov/mods/v3 http://www.loc.gov/standards/mods/v3/mods-3-
1.xsd">
<mods:name>
<mods:role>
<mods:roleTerm type="text">advisor</mods:roleTerm>
</mods:role>
<mods:namePart>Huff, Sid</mods:namePart>
</mods:name>
...
</mods:mods>
</xmlData>
</mdWrap>
</dmdSec>

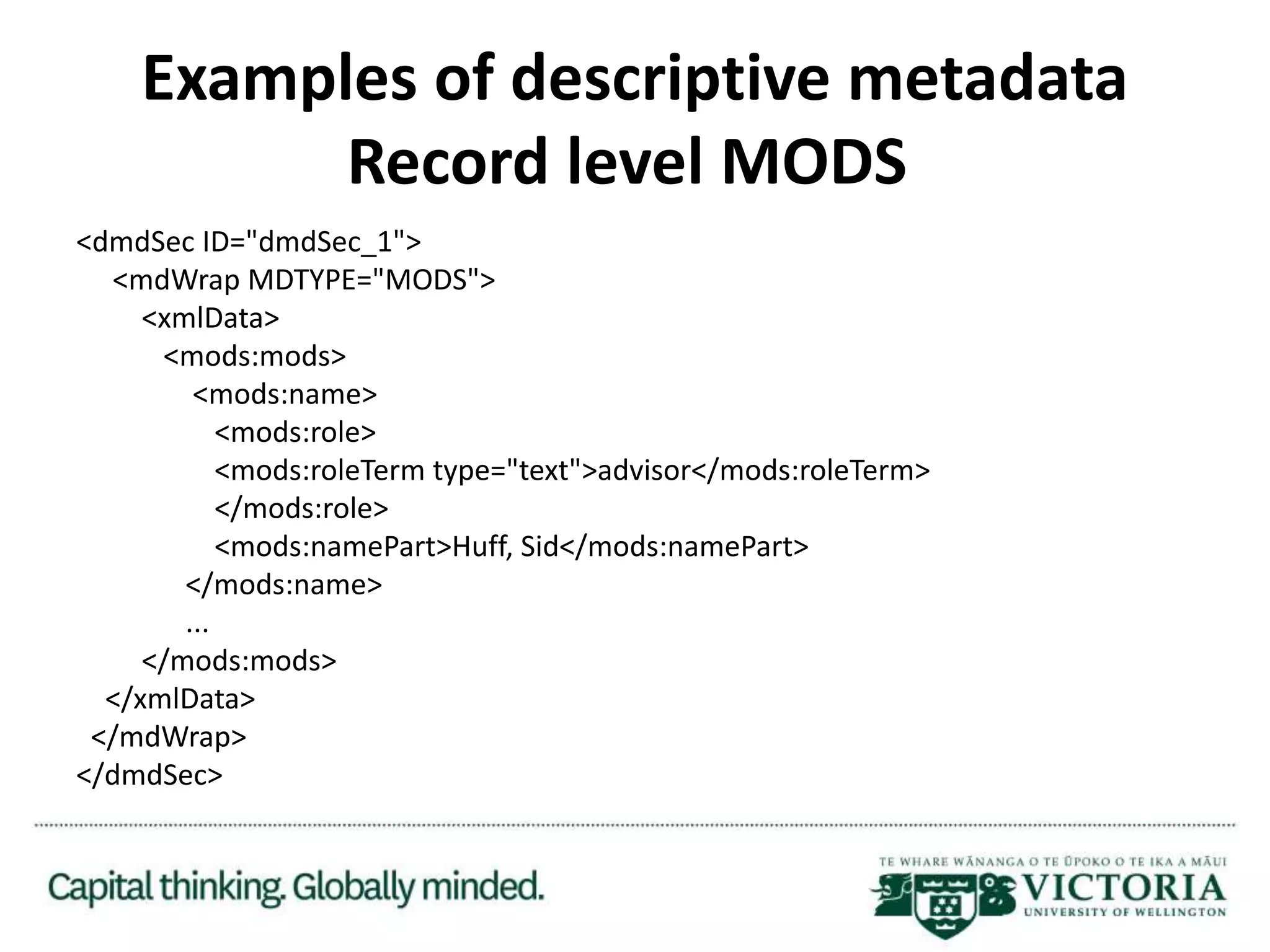

32. Examples of descriptive metadata
Record level MODS
<dmdSec ID="dmdSec_1">
<mdWrap MDTYPE="MODS">
<xmlData>
<mods:mods>
<mods:name>
<mods:role>
<mods:roleTerm type="text">advisor</mods:roleTerm>
</mods:role>
<mods:namePart>Huff, Sid</mods:namePart>
</mods:name>
...
</mods:mods>
</xmlData>
</mdWrap>
</dmdSec>

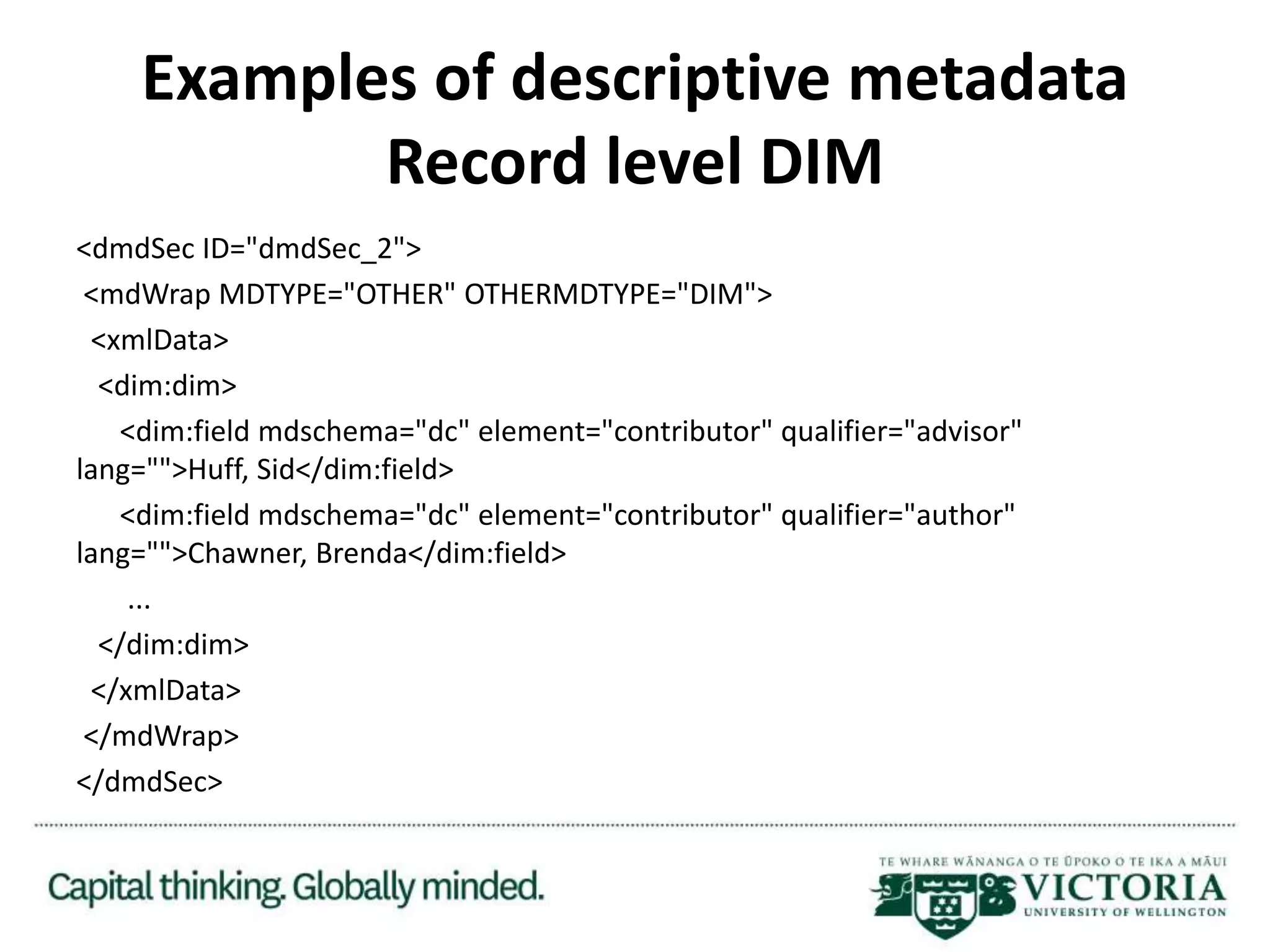

33. Examples of descriptive metadata
Record level DIM
<dmdSec ID="dmdSec_2">
<mdWrap MDTYPE="OTHER" OTHERMDTYPE="DIM">
<xmlData>
<dim:dim>
<dim:field mdschema="dc" element="contributor" qualifier="advisor"
lang="">Huff, Sid</dim:field>
<dim:field mdschema="dc" element="contributor" qualifier="author"
lang="">Chawner, Brenda</dim:field>
...
</dim:dim>
</xmlData>
</mdWrap>
</dmdSec>

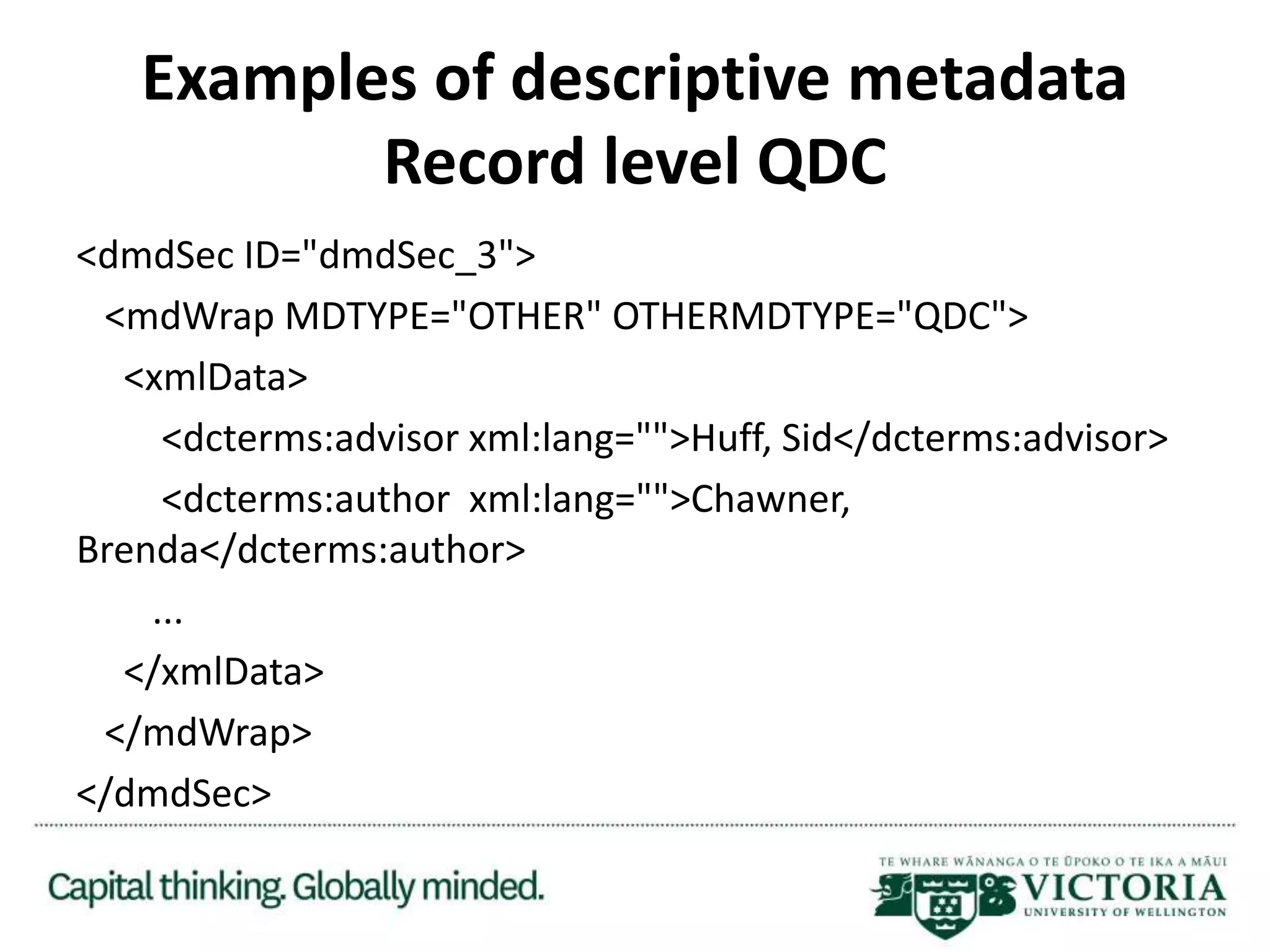

34. Examples of descriptive metadata
Record level QDC
<dmdSec ID="dmdSec_3">
<mdWrap MDTYPE="OTHER" OTHERMDTYPE="QDC">
<xmlData>
<dcterms:advisor xml:lang="">Huff, Sid</dcterms:advisor>
<dcterms:author xml:lang="">Chawner,
Brenda</dcterms:author>
...
</xmlData>
</mdWrap>
</dmdSec>

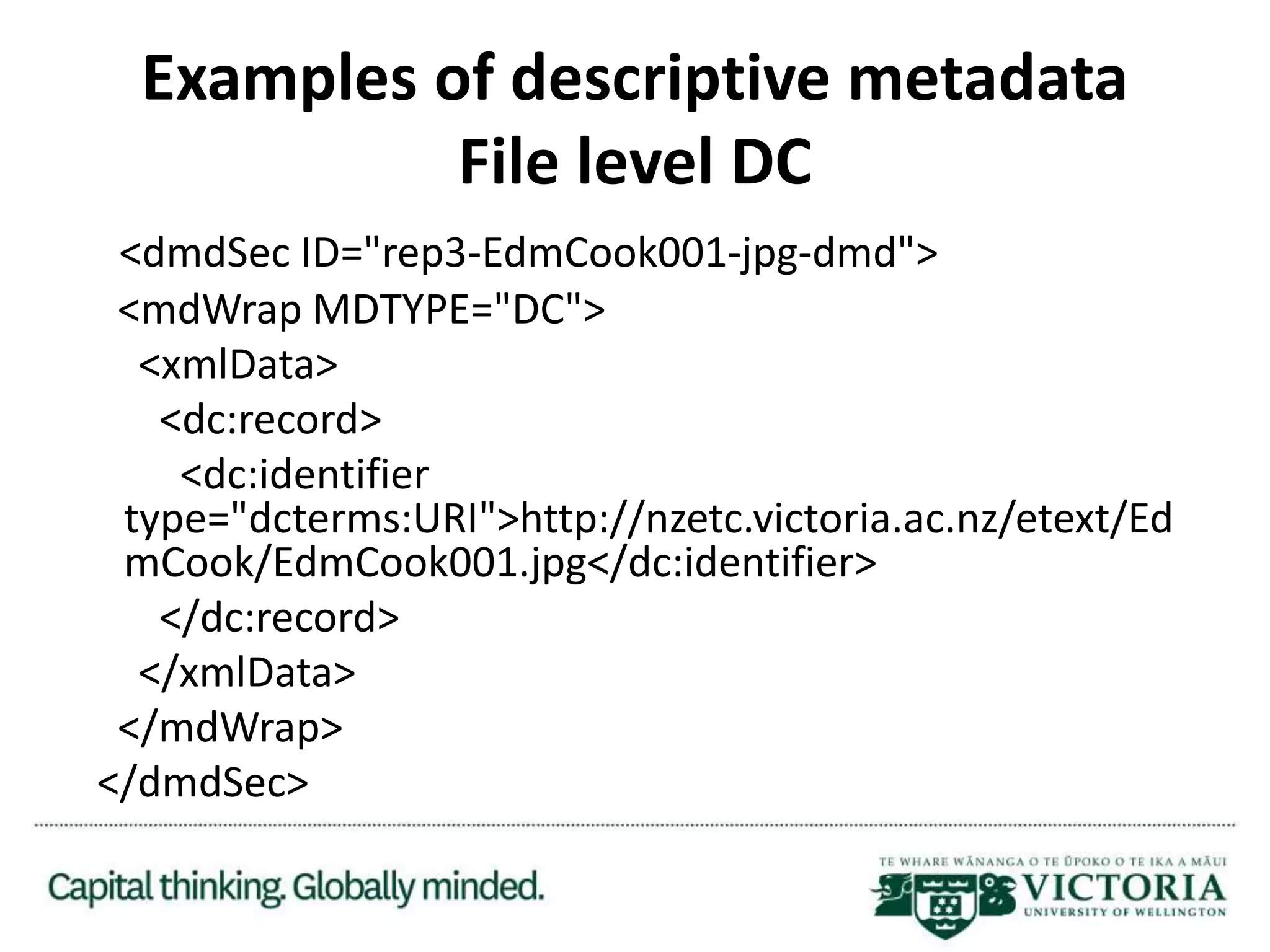

35. Examples of descriptive metadata
File level DC
<dmdSec ID="rep3-EdmCook001-jpg-dmd">
<mdWrap MDTYPE="DC">
<xmlData>
<dc:record>
<dc:identifier
type="dcterms:URI">http://nzetc.victoria.ac.nz/etext/Ed
mCook/EdmCook001.jpg</dc:identifier>
</dc:record>
</xmlData>
</mdWrap>
</dmdSec>

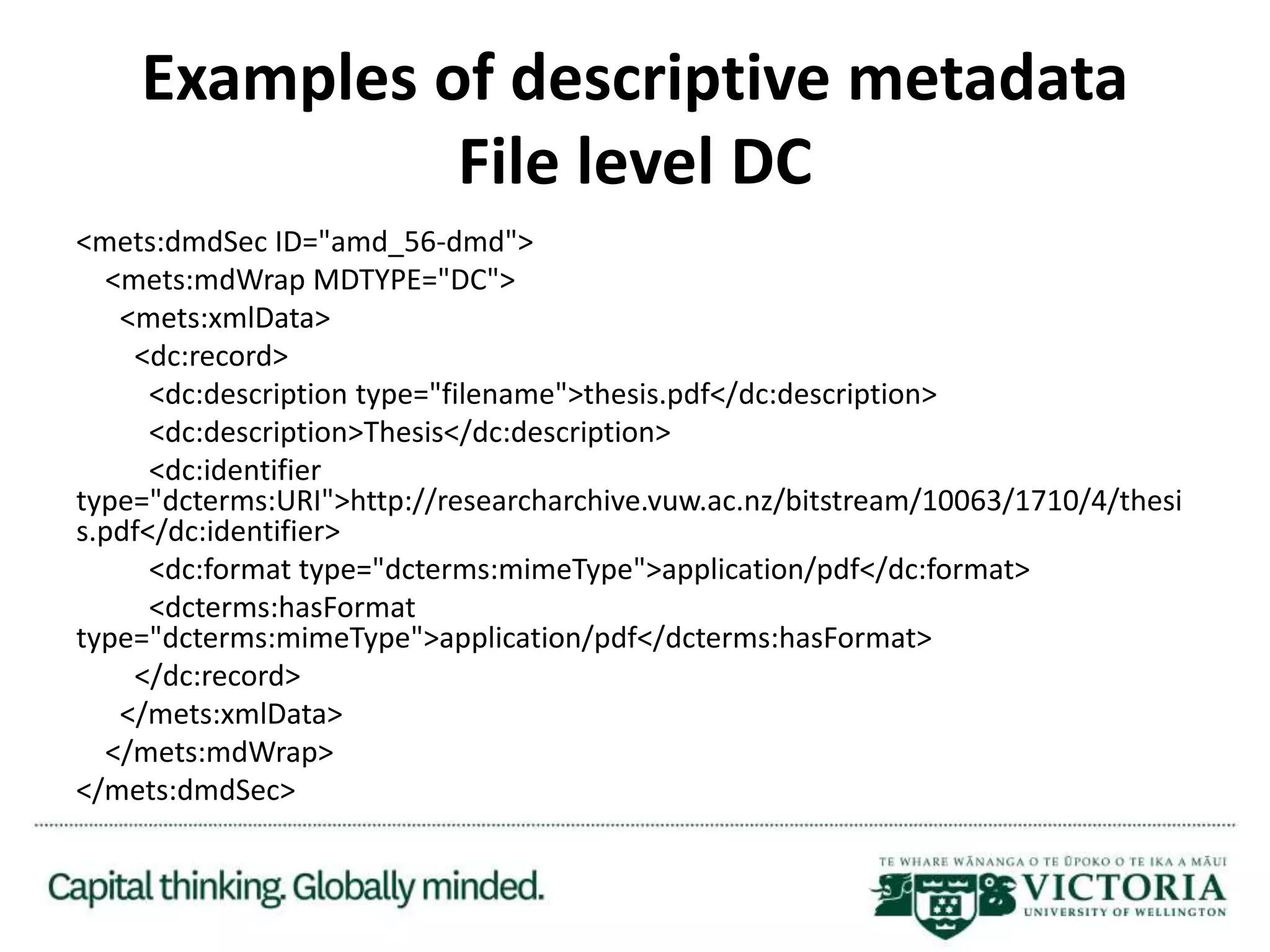

36. Examples of descriptive metadata
File level DC
<mets:dmdSec ID="amd_56-dmd">
<mets:mdWrap MDTYPE="DC">
<mets:xmlData>
<dc:record>
<dc:description type="filename">thesis.pdf</dc:description>
<dc:description>Thesis</dc:description>
<dc:identifier
type="dcterms:URI">http://researcharchive.vuw.ac.nz/bitstream/10063/1710/4/thesi
s.pdf</dc:identifier>
<dc:format type="dcterms:mimeType">application/pdf</dc:format>
<dcterms:hasFormat
type="dcterms:mimeType">application/pdf</dcterms:hasFormat>
</dc:record>
</mets:xmlData>
</mets:mdWrap>
</mets:dmdSec>

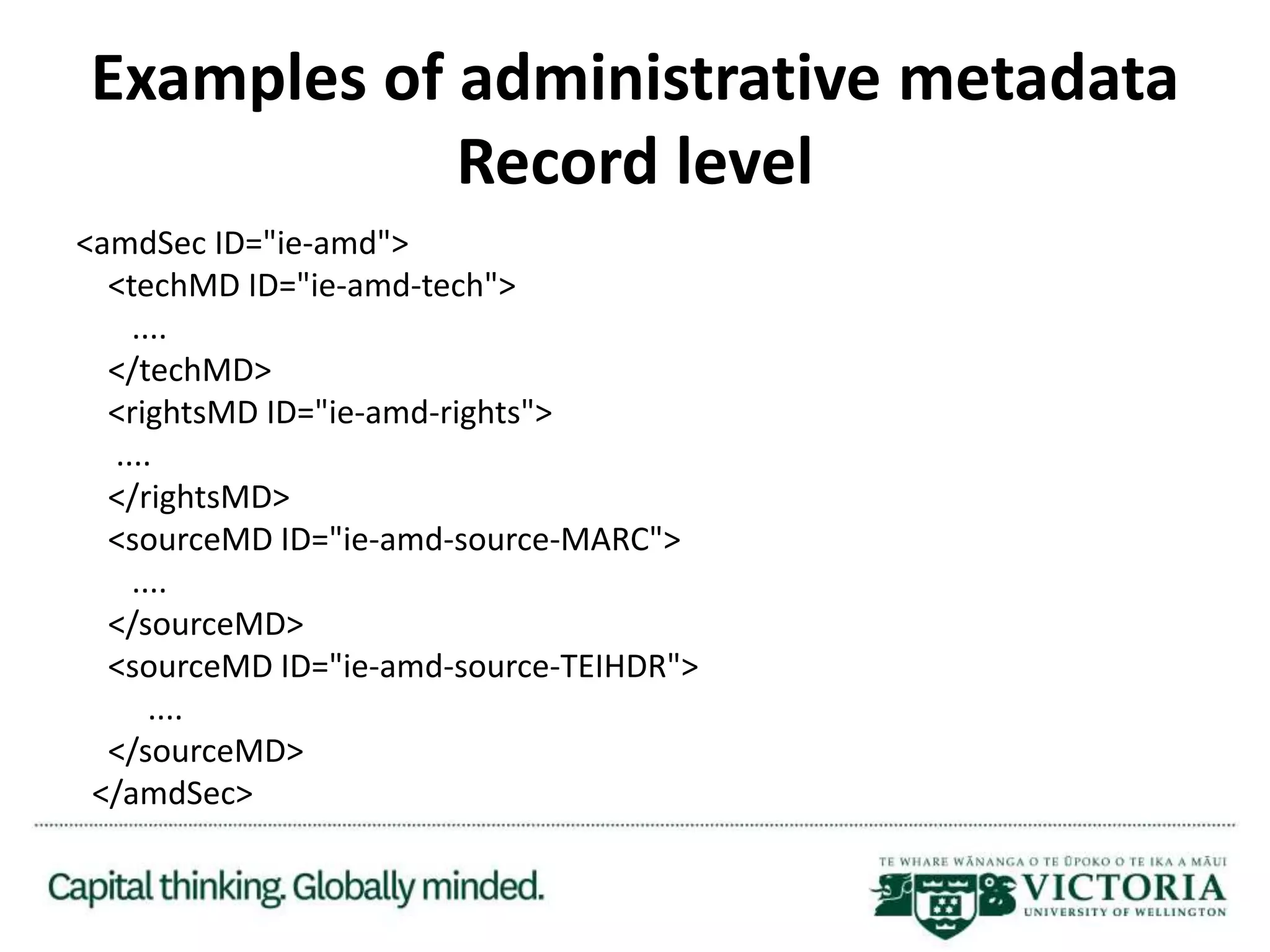

37. Examples of administrative metadata
Record level
<amdSec ID="ie-amd">
<techMD ID="ie-amd-tech">
....
</techMD>
<rightsMD ID="ie-amd-rights">
....
</rightsMD>
<sourceMD ID="ie-amd-source-MARC">
....
</sourceMD>
<sourceMD ID="ie-amd-source-TEIHDR">
....
</sourceMD>
</amdSec>

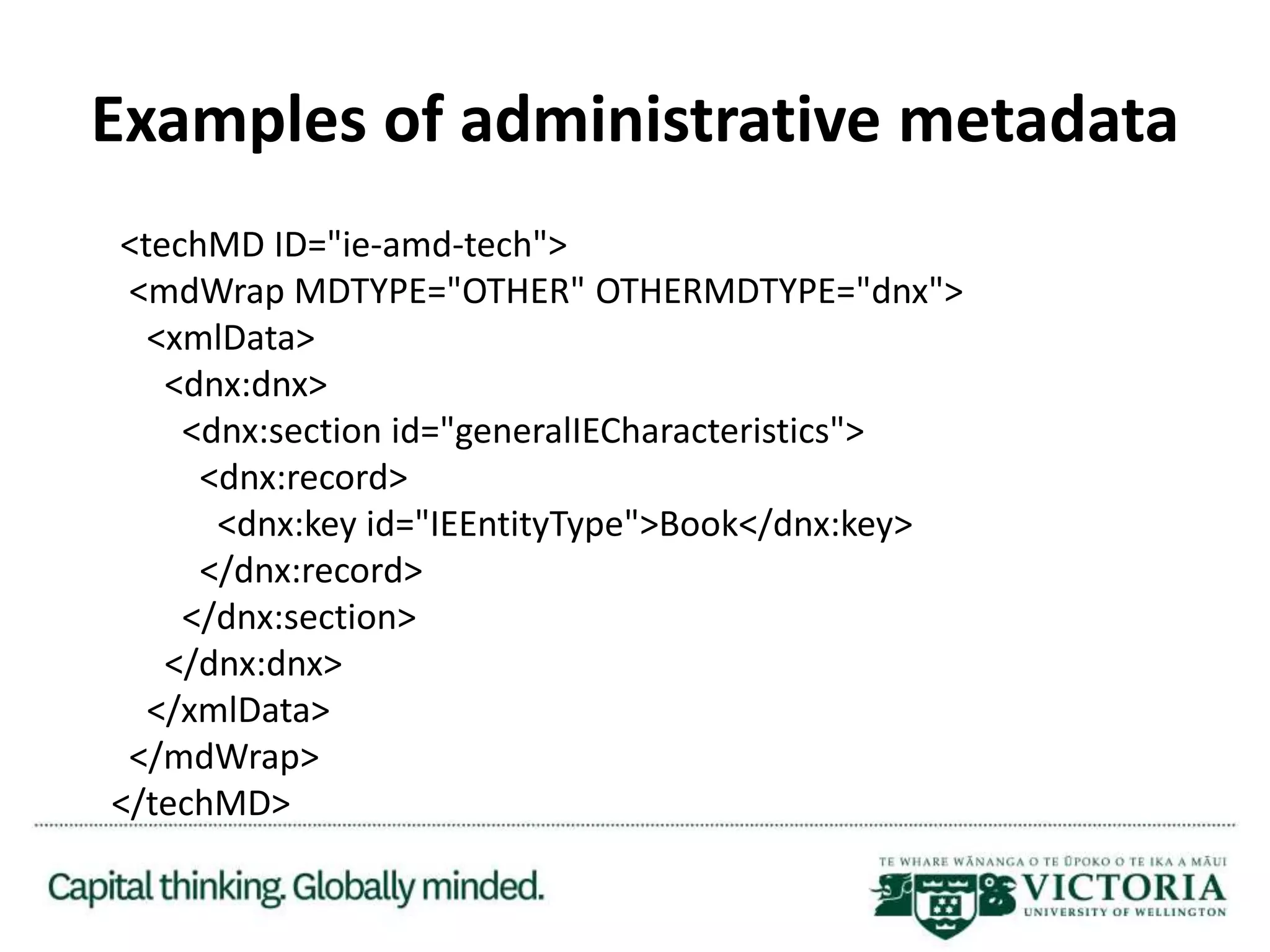

38. Examples of administrative metadata
<techMD ID="ie-amd-tech">
<mdWrap MDTYPE="OTHER" OTHERMDTYPE="dnx">
<xmlData>
<dnx:dnx>
<dnx:section id="generalIECharacteristics">
<dnx:record>
<dnx:key id="IEEntityType">Book</dnx:key>
</dnx:record>
</dnx:section>
</dnx:dnx>
</xmlData>
</mdWrap>
</techMD>

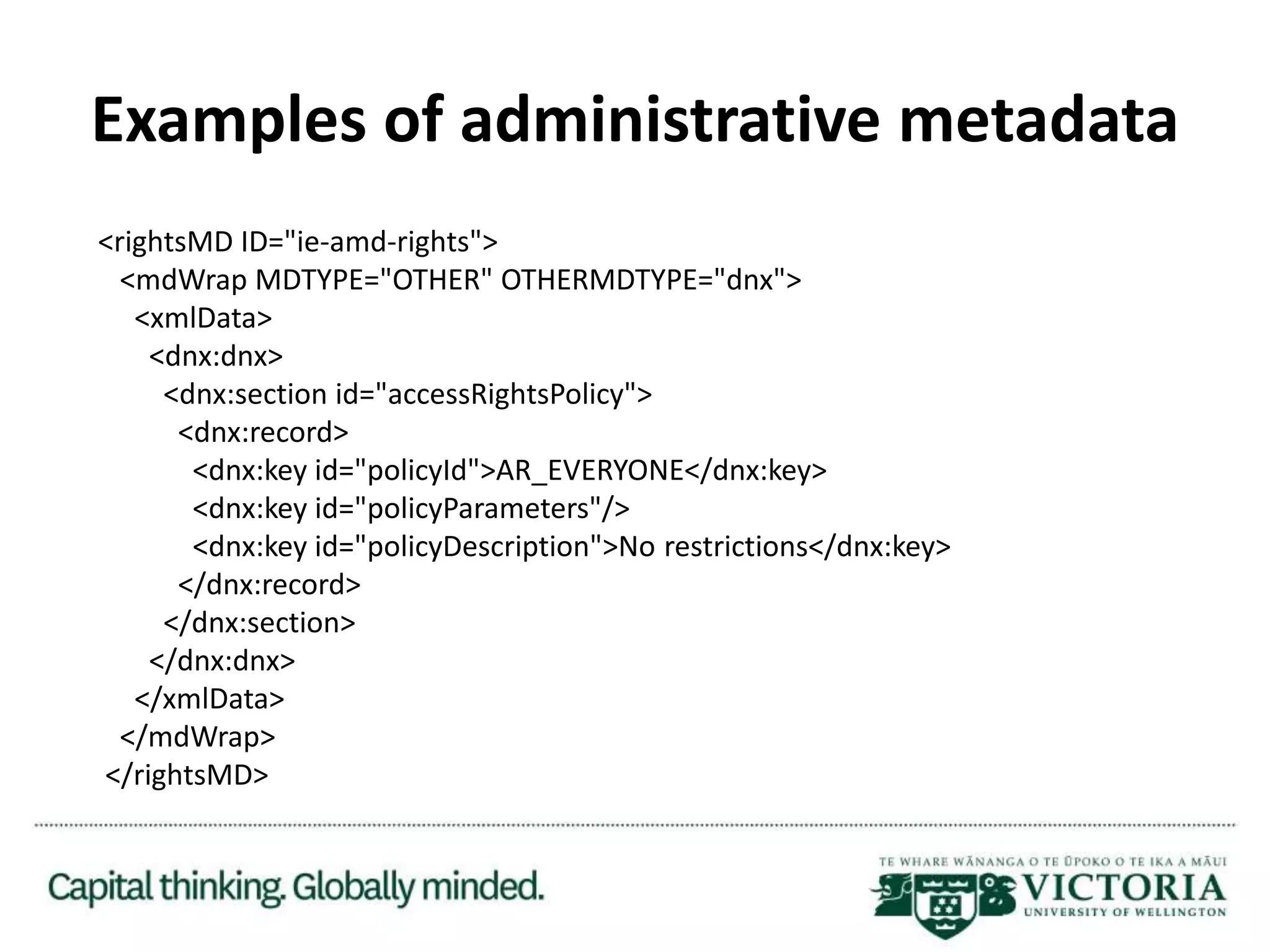

39. Examples of administrative metadata
<rightsMD ID="ie-amd-rights">
<mdWrap MDTYPE="OTHER" OTHERMDTYPE="dnx">
<xmlData>
<dnx:dnx>
<dnx:section id="accessRightsPolicy">
<dnx:record>
<dnx:key id="policyId">AR_EVERYONE</dnx:key>
<dnx:key id="policyParameters"/>
<dnx:key id="policyDescription">No restrictions</dnx:key>
</dnx:record>
</dnx:section>
</dnx:dnx>
</xmlData>
</mdWrap>
</rightsMD>

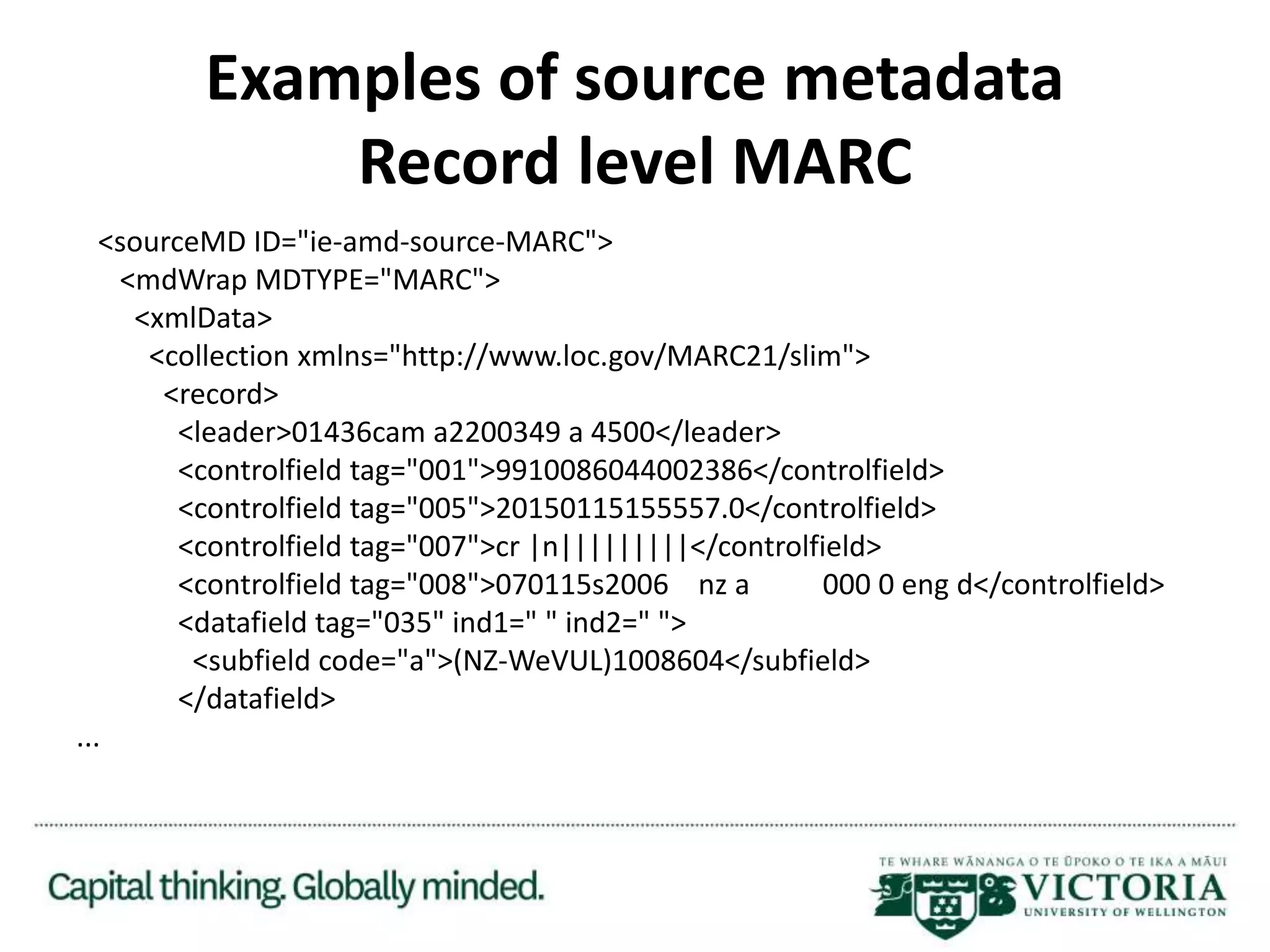

40. Examples of source metadata
Record level MARC
<sourceMD ID="ie-amd-source-MARC">
<mdWrap MDTYPE="MARC">
<xmlData>
<collection xmlns="http://www.loc.gov/MARC21/slim">
<record>
<leader>01436cam a2200349 a 4500</leader>
<controlfield tag="001">9910086044002386</controlfield>
<controlfield tag="005">20150115155557.0</controlfield>
<controlfield tag="007">cr |n|||||||||</controlfield>
<controlfield tag="008">070115s2006 nz a 000 0 eng d</controlfield>
<datafield tag="035" ind1=" " ind2=" ">
<subfield code="a">(NZ-WeVUL)1008604</subfield>
</datafield>
...

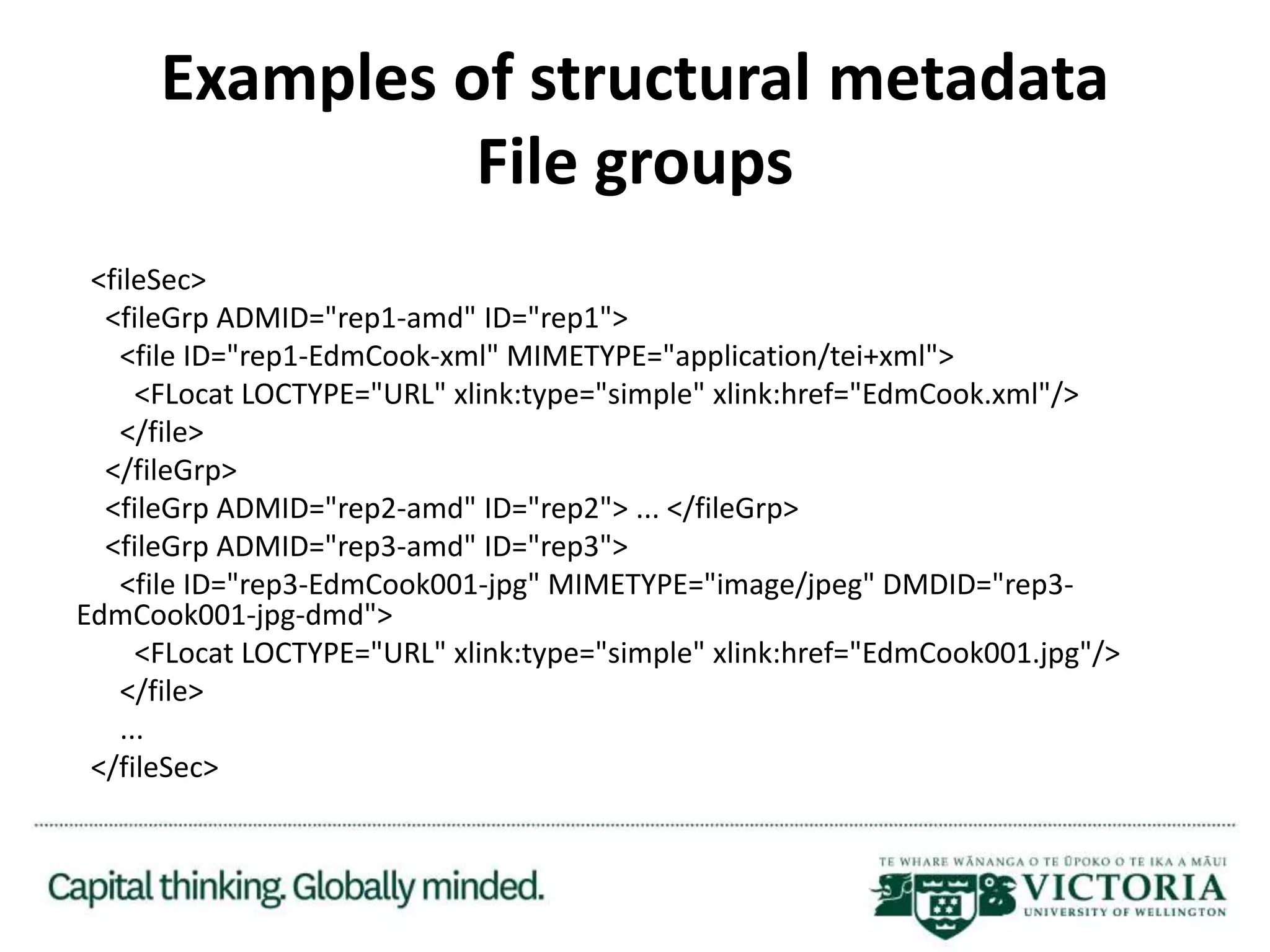

41. Examples of structural metadata
File groups
<fileSec>
<fileGrp ADMID="rep1-amd" ID="rep1">
<file ID="rep1-EdmCook-xml" MIMETYPE="application/tei+xml">
<FLocat LOCTYPE="URL" xlink:type="simple" xlink:href="EdmCook.xml"/>
</file>
</fileGrp>
<fileGrp ADMID="rep2-amd" ID="rep2"> ... </fileGrp>
<fileGrp ADMID="rep3-amd" ID="rep3">
<file ID="rep3-EdmCook001-jpg" MIMETYPE="image/jpeg" DMDID="rep3-
EdmCook001-jpg-dmd">
<FLocat LOCTYPE="URL" xlink:type="simple" xlink:href="EdmCook001.jpg"/>
</file>
...
</fileSec>

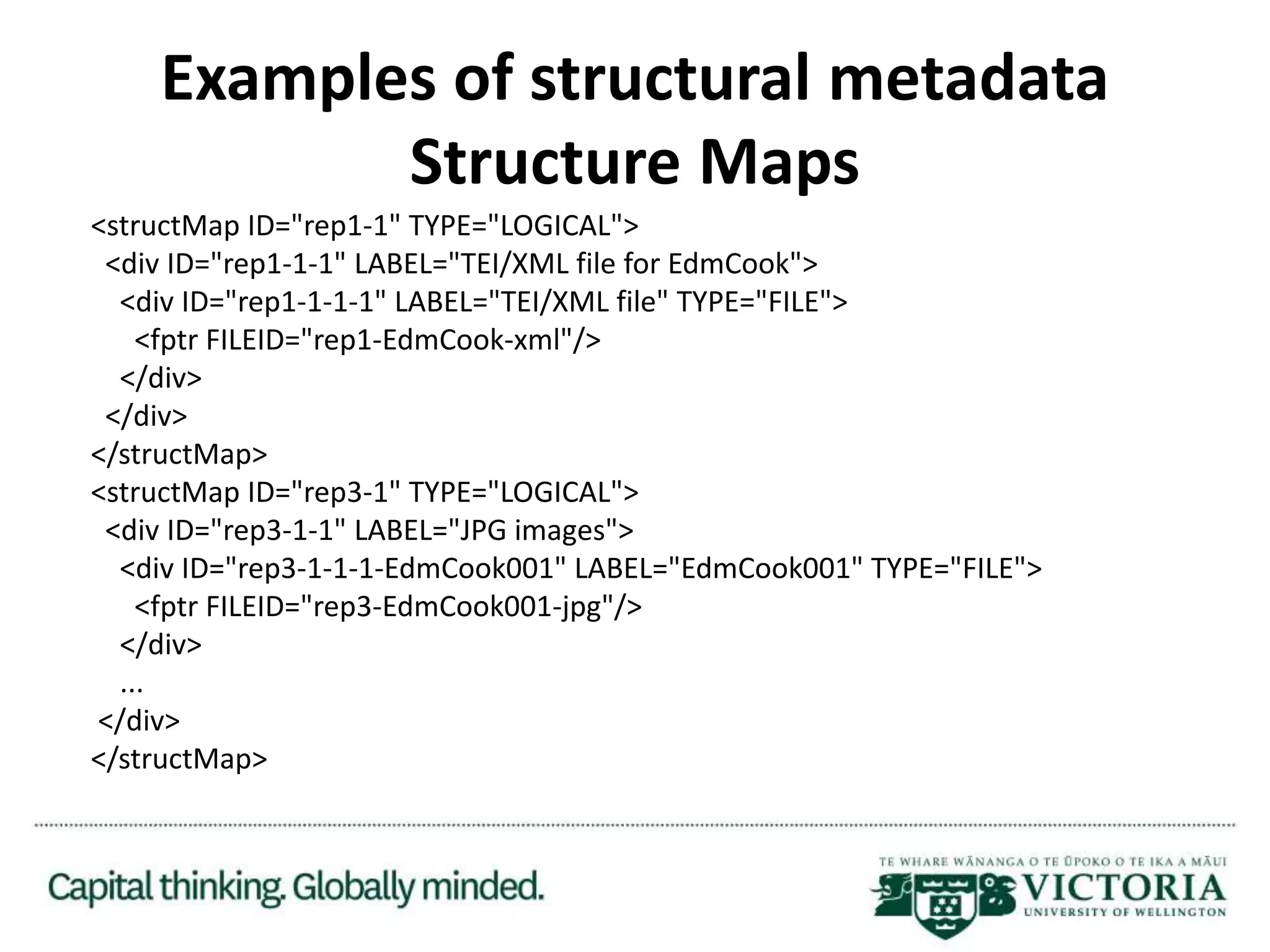

42. Examples of structural metadata
Structure Maps
<structMap ID="rep1-1" TYPE="LOGICAL">
<div ID="rep1-1-1" LABEL="TEI/XML file for EdmCook">
<div ID="rep1-1-1-1" LABEL="TEI/XML file" TYPE="FILE">
<fptr FILEID="rep1-EdmCook-xml"/>
</div>
</div>
</structMap>
<structMap ID="rep3-1" TYPE="LOGICAL">
<div ID="rep3-1-1" LABEL="JPG images">
<div ID="rep3-1-1-1-EdmCook001" LABEL="EdmCook001" TYPE="FILE">
<fptr FILEID="rep3-EdmCook001-jpg"/>
</div>
...
</div>
</structMap>

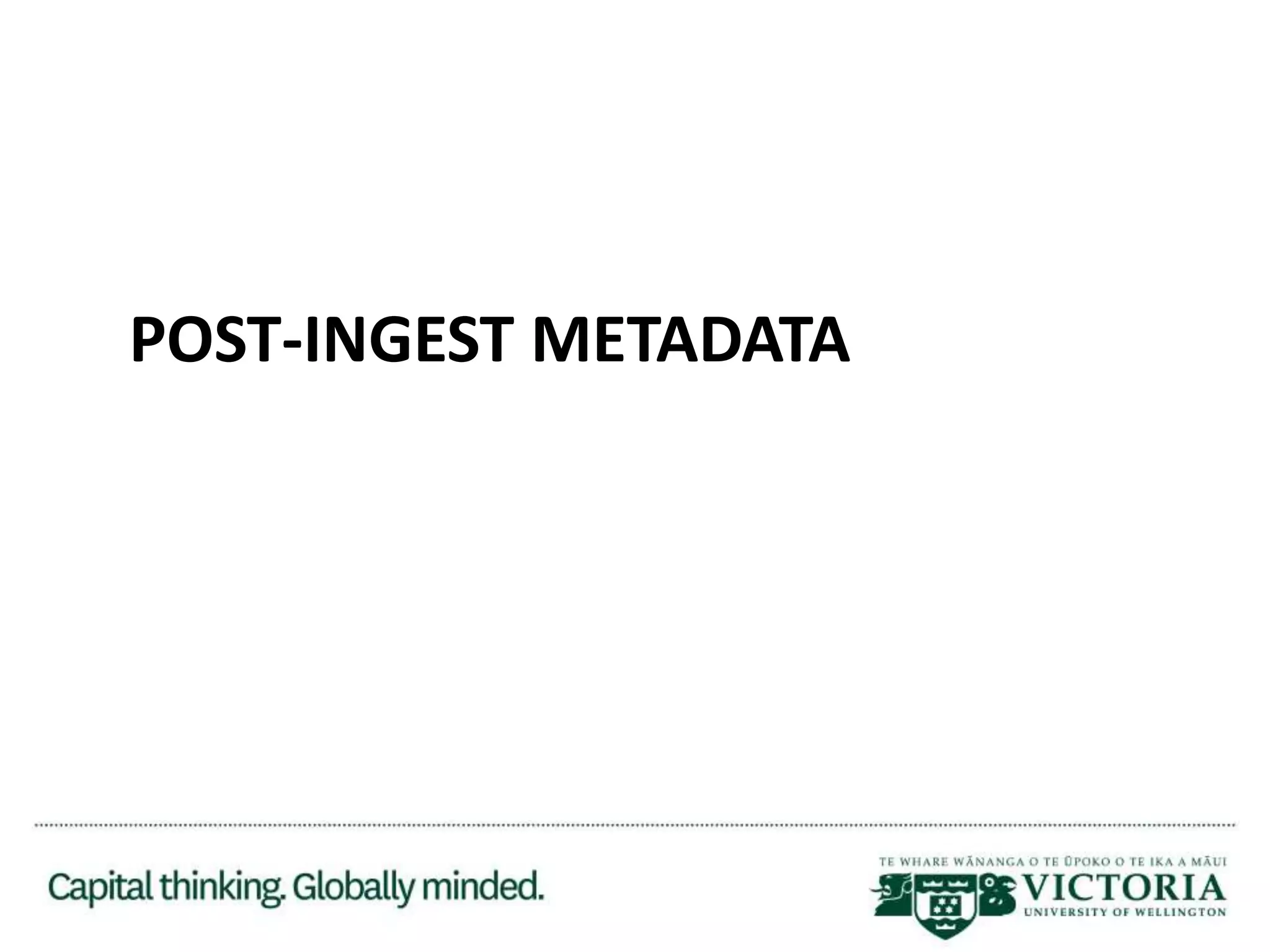

43. POST-INGEST METADATA

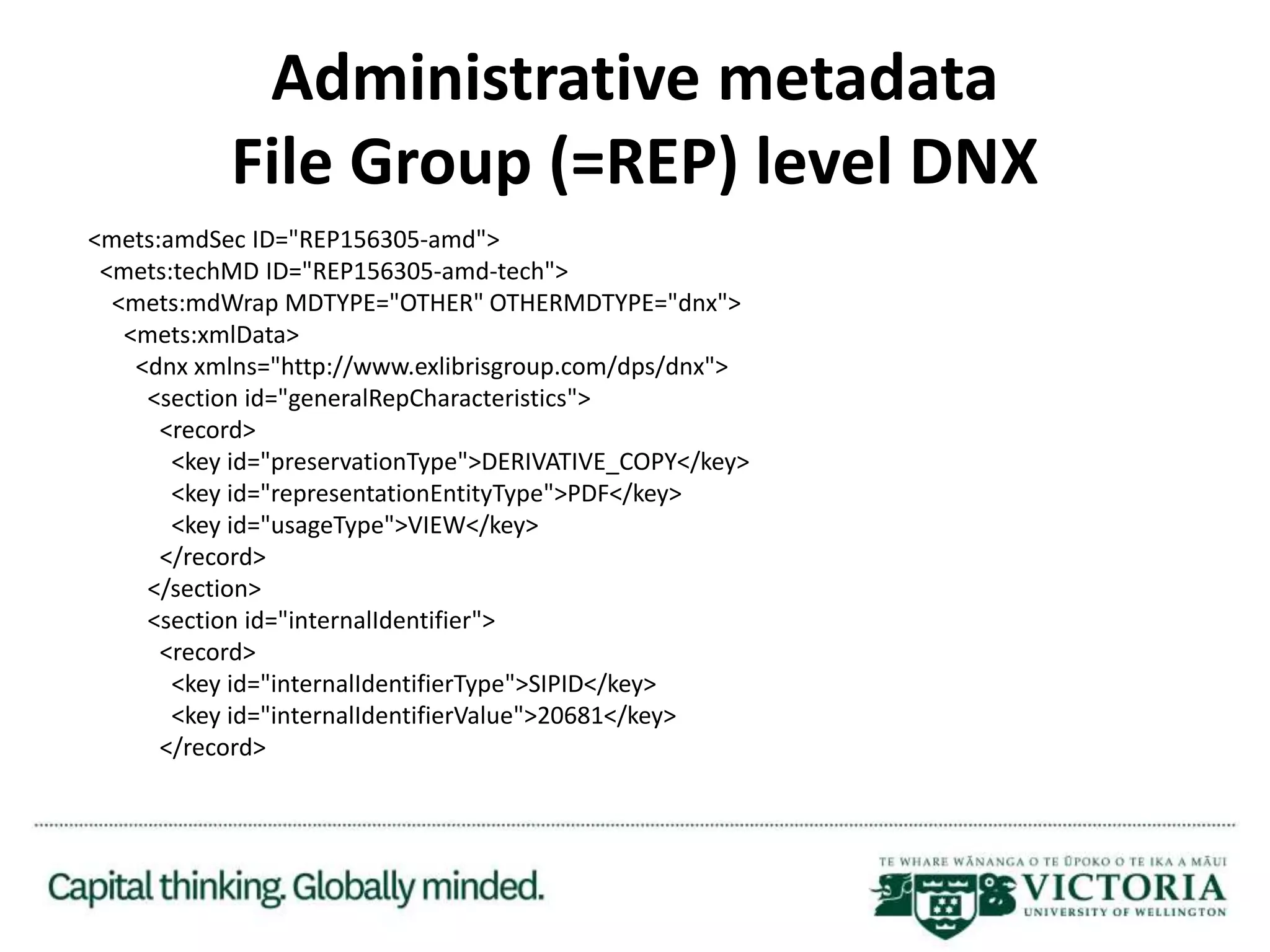

44. Administrative metadata
File Group (=REP) level DNX
<mets:amdSec ID="REP156305-amd">
<mets:techMD ID="REP156305-amd-tech">
<mets:mdWrap MDTYPE="OTHER" OTHERMDTYPE="dnx">
<mets:xmlData>
<dnx xmlns="http://www.exlibrisgroup.com/dps/dnx">
<section id="generalRepCharacteristics">
<record>
<key id="preservationType">DERIVATIVE_COPY</key>
<key id="representationEntityType">PDF</key>
<key id="usageType">VIEW</key>
</record>
</section>
<section id="internalIdentifier">
<record>
<key id="internalIdentifierType">SIPID</key>
<key id="internalIdentifierValue">20681</key>
</record>

45. Administrative metadata
File Group level DNX (continued)
<mets:amdSec ID="REP156305-amd">
<mets:techMD ID="REP156305-amd-tech">
<mets:mdWrap MDTYPE="OTHER" OTHERMDTYPE="dnx">
<mets:xmlData>
<dnx>
....
<section id="objectCharacteristics">
<record>
<key id="objectType">REPRESENTATION</key>
<key id="creationDate">2017-05-19 10:48:50</key>
<key id="createdBy">automatedworker</key>
<key id="modificationDate">2017-05-19 10:48:50</key>
<key id="modifiedBy">automatedworker</key>
<key id="owner">CRS00.VUW00.LIBR</key>
</record>

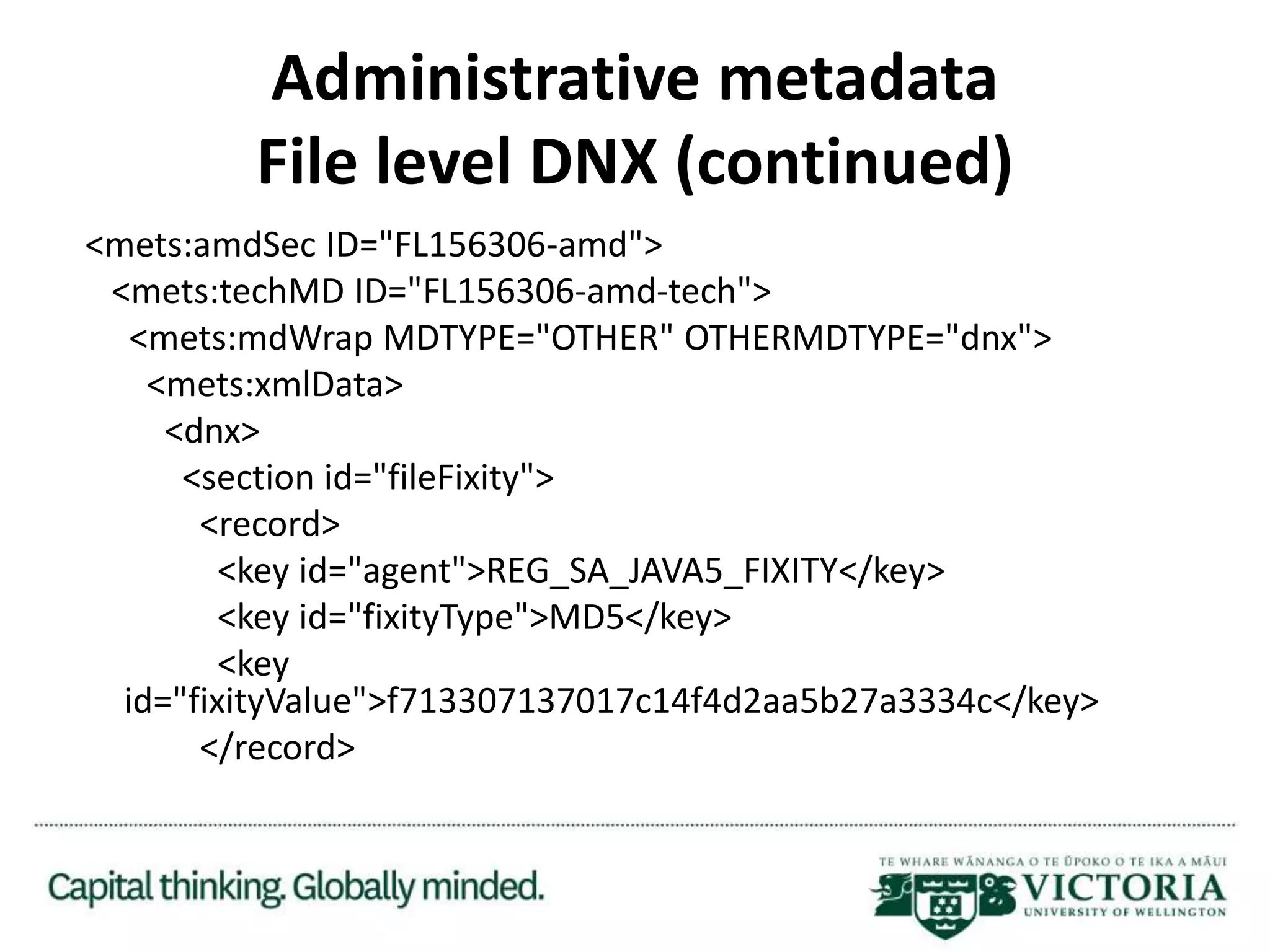

46. Administrative metadata
File level DNX (continued)
<mets:amdSec ID="FL156306-amd">
<mets:techMD ID="FL156306-amd-tech">
<mets:mdWrap MDTYPE="OTHER" OTHERMDTYPE="dnx">
<mets:xmlData>
<dnx>
<section id="fileFixity">
<record>
<key id="agent">REG_SA_JAVA5_FIXITY</key>
<key id="fixityType">MD5</key>
<key
id="fixityValue">f713307137017c14f4d2aa5b27a3334c</key>
</record>

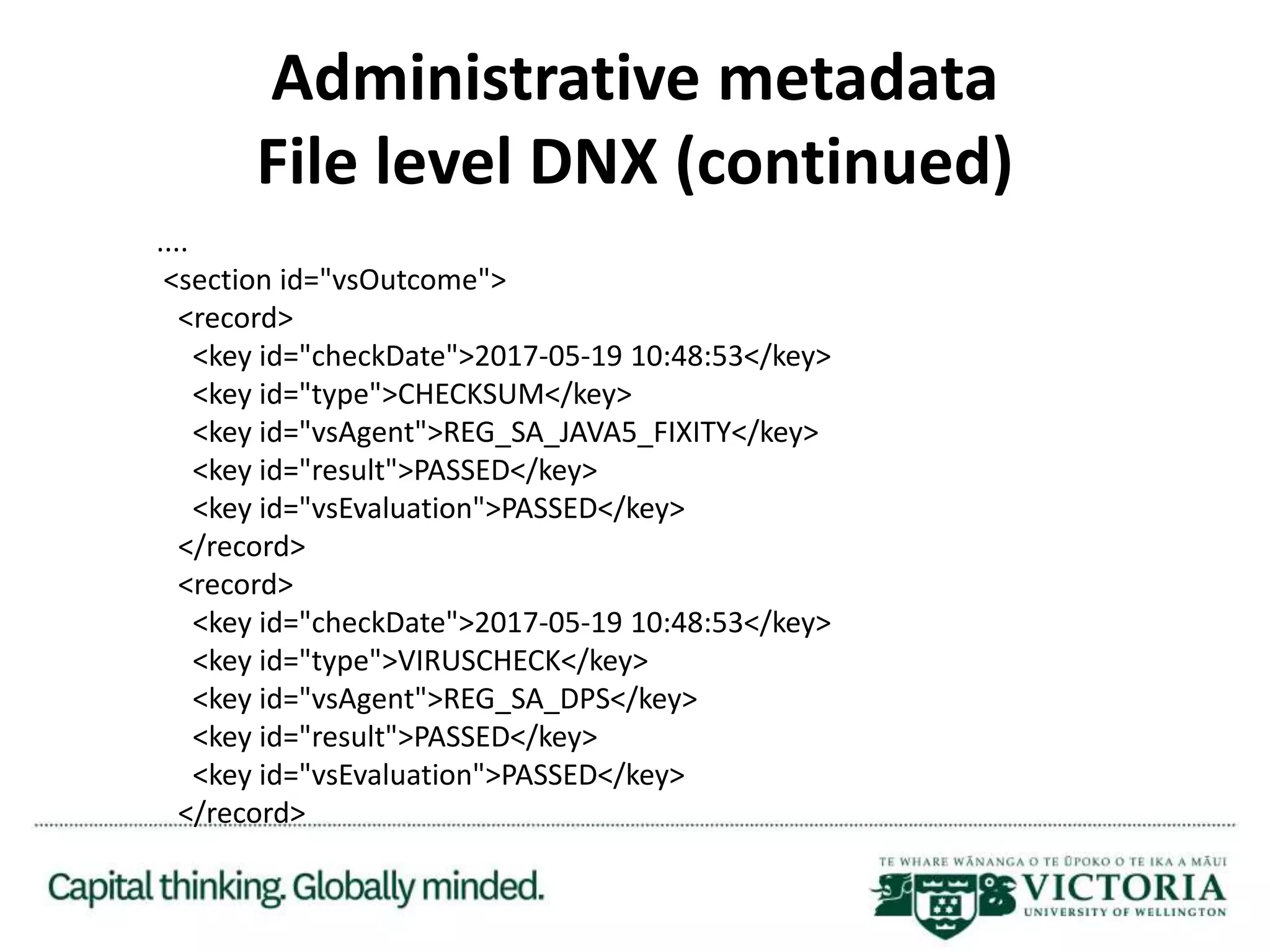

47. Administrative metadata
File level DNX (continued)
....
<section id="vsOutcome">
<record>
<key id="checkDate">2017-05-19 10:48:53</key>
<key id="type">CHECKSUM</key>
<key id="vsAgent">REG_SA_JAVA5_FIXITY</key>
<key id="result">PASSED</key>
<key id="vsEvaluation">PASSED</key>
</record>
<record>
<key id="checkDate">2017-05-19 10:48:53</key>
<key id="type">VIRUSCHECK</key>
<key id="vsAgent">REG_SA_DPS</key>
<key id="result">PASSED</key>
<key id="vsEvaluation">PASSED</key>
</record>

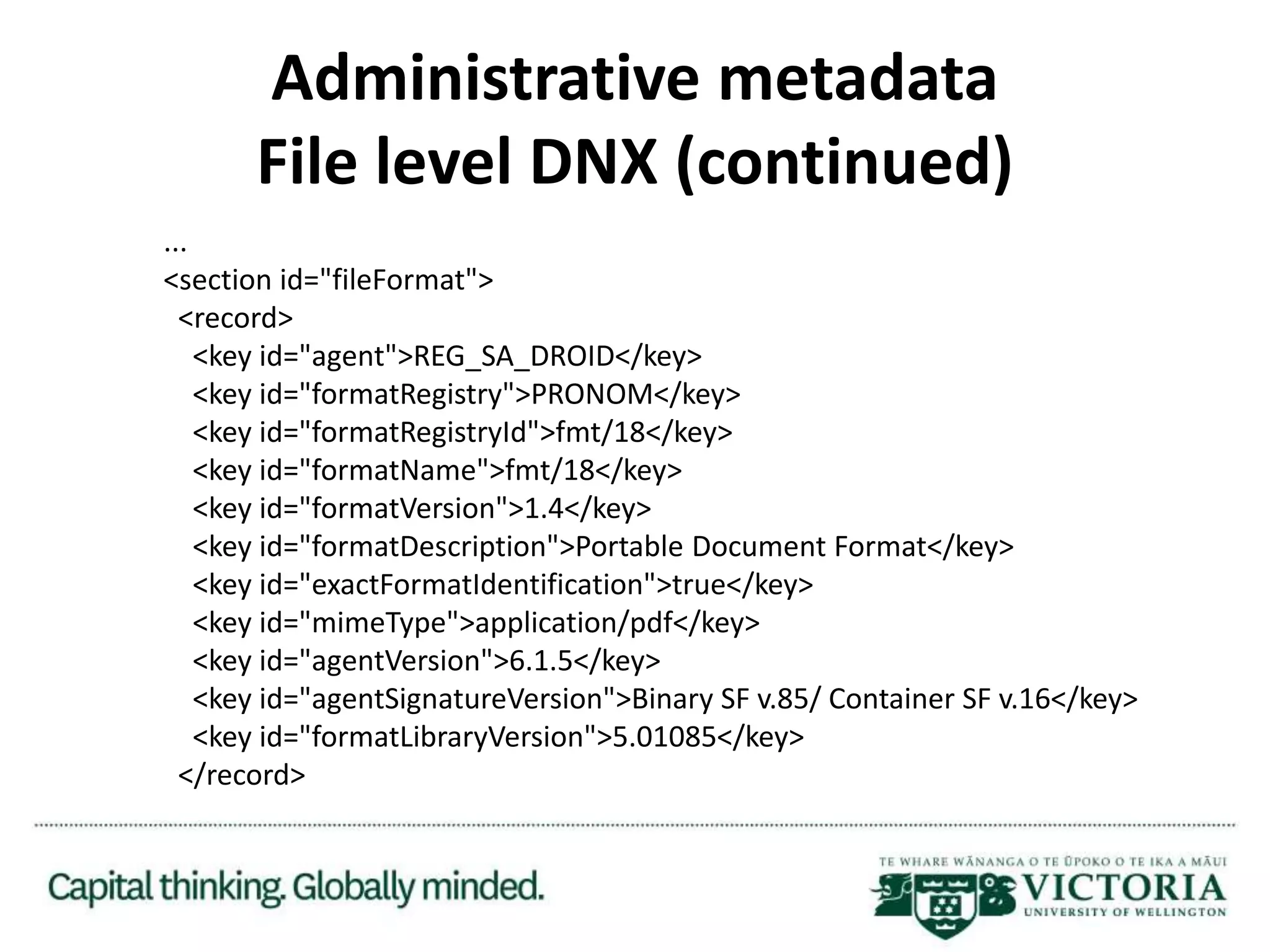

48. Administrative metadata
File level DNX (continued)
...
<section id="fileFormat">
<record>
<key id="agent">REG_SA_DROID</key>
<key id="formatRegistry">PRONOM</key>
<key id="formatRegistryId">fmt/18</key>
<key id="formatName">fmt/18</key>
<key id="formatVersion">1.4</key>
<key id="formatDescription">Portable Document Format</key>
<key id="exactFormatIdentification">true</key>
<key id="mimeType">application/pdf</key>
<key id="agentVersion">6.1.5</key>
<key id="agentSignatureVersion">Binary SF v.85/ Container SF v.16</key>
<key id="formatLibraryVersion">5.01085</key>
</record>

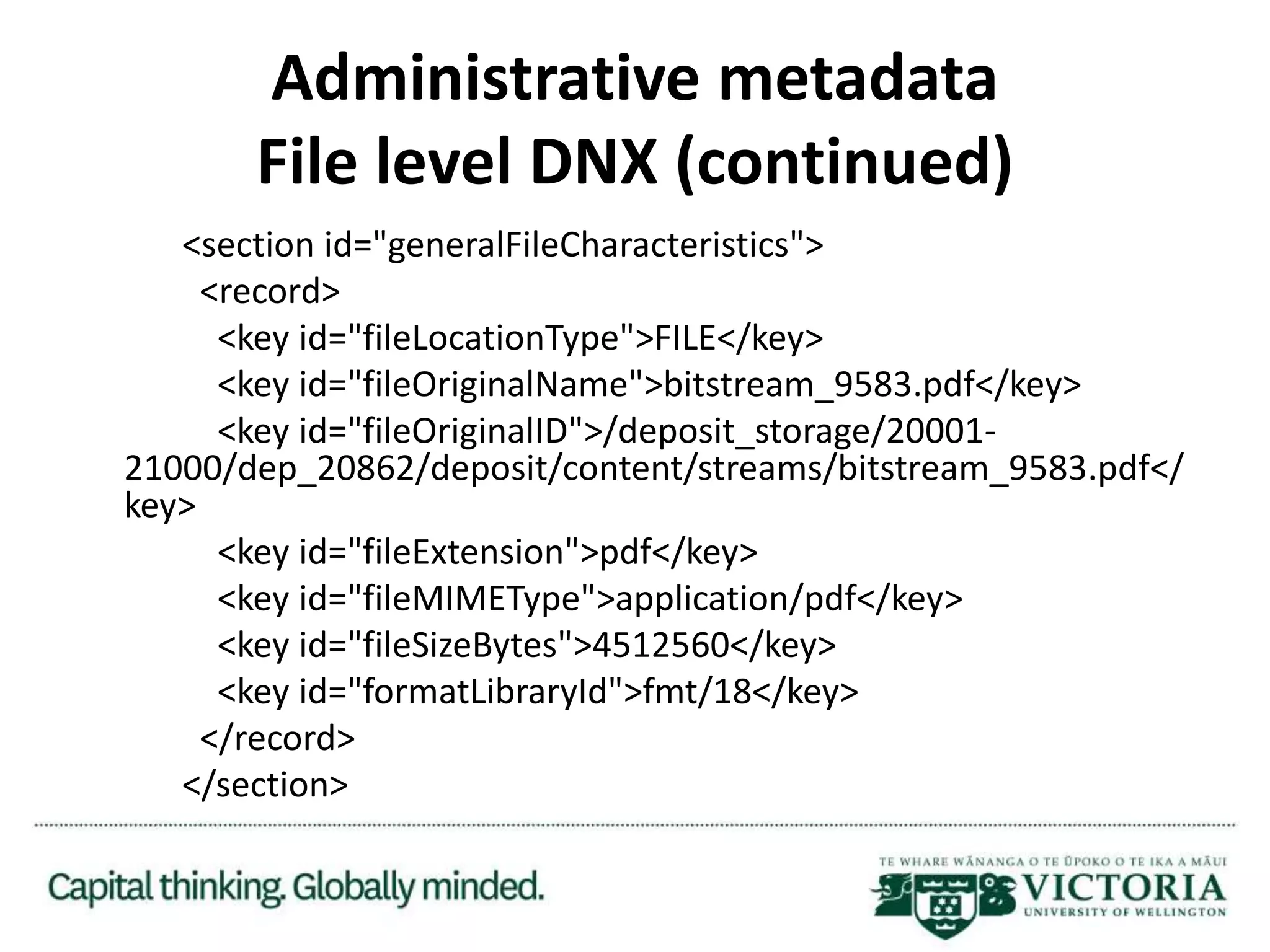

49. Administrative metadata
File level DNX (continued)
<section id="generalFileCharacteristics">
<record>
<key id="fileLocationType">FILE</key>
<key id="fileOriginalName">bitstream_9583.pdf</key>
<key id="fileOriginalID">/deposit_storage/20001-
21000/dep_20862/deposit/content/streams/bitstream_9583.pdf</
key>
<key id="fileExtension">pdf</key>
<key id="fileMIMEType">application/pdf</key>
<key id="fileSizeBytes">4512560</key>
<key id="formatLibraryId">fmt/18</key>
</record>
</section>

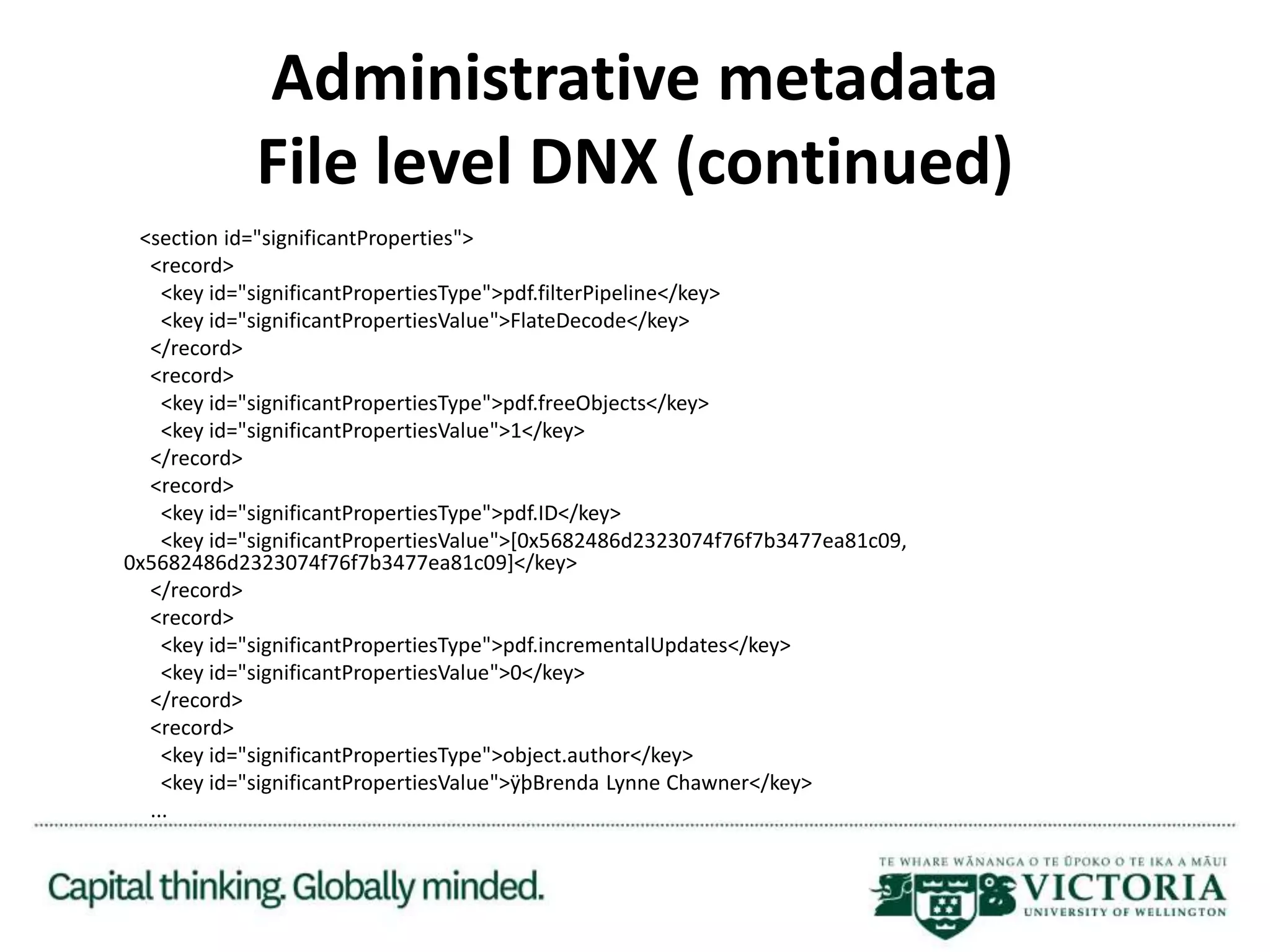

50. Administrative metadata
File level DNX (continued)
<section id="significantProperties">
<record>
<key id="significantPropertiesType">pdf.filterPipeline</key>
<key id="significantPropertiesValue">FlateDecode</key>
</record>
<record>
<key id="significantPropertiesType">pdf.freeObjects</key>
<key id="significantPropertiesValue">1</key>
</record>
<record>
<key id="significantPropertiesType">pdf.ID</key>
<key id="significantPropertiesValue">[0x5682486d2323074f76f7b3477ea81c09,
0x5682486d2323074f76f7b3477ea81c09]</key>
</record>
<record>
<key id="significantPropertiesType">pdf.incrementalUpdates</key>
<key id="significantPropertiesValue">0</key>
</record>
<record>
<key id="significantPropertiesType">object.author</key>
<key id="significantPropertiesValue">ÿþBrenda Lynne Chawner</key>
...

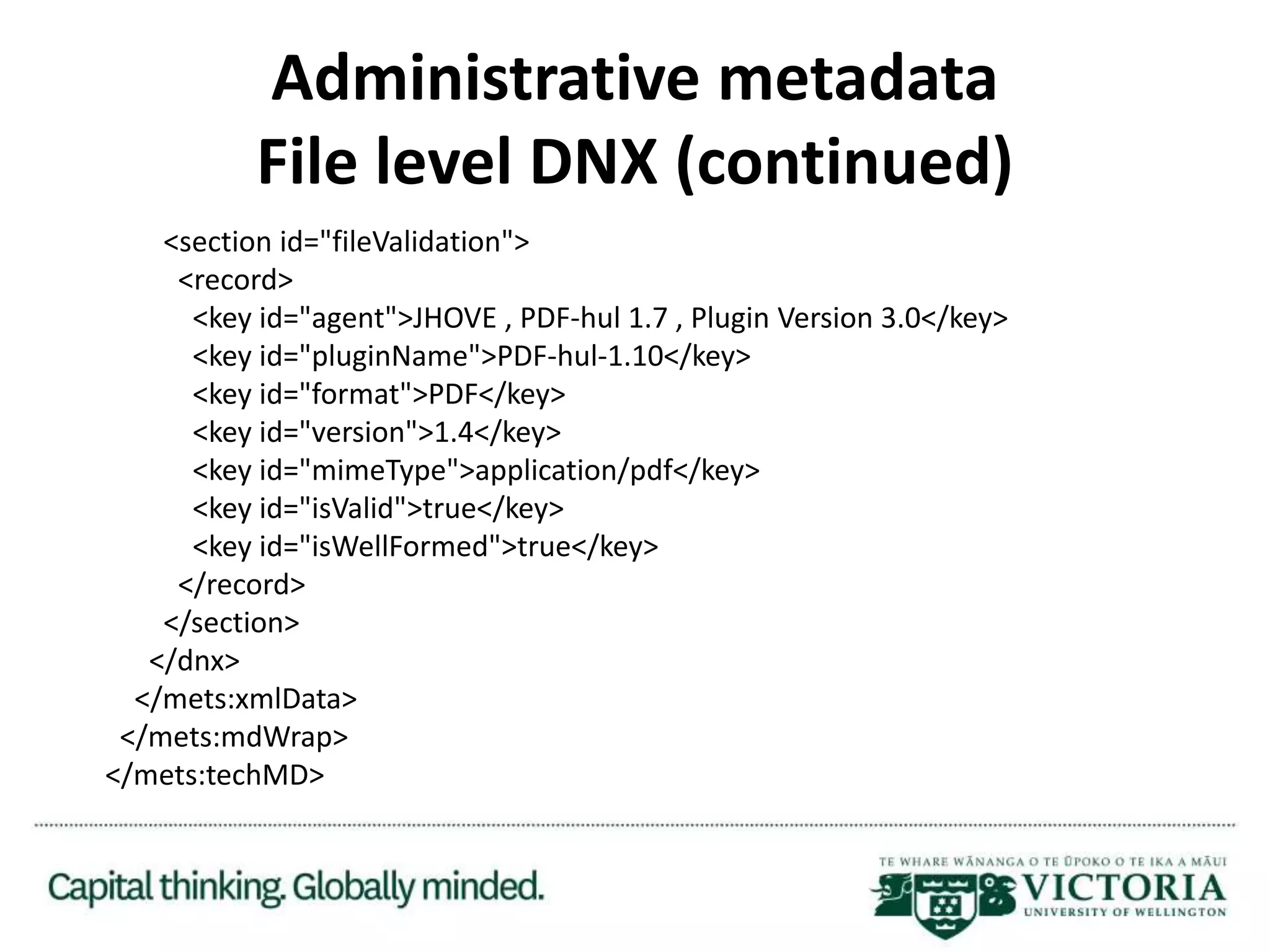

51. Administrative metadata
File level DNX (continued)
<section id="fileValidation">
<record>
<key id="agent">JHOVE , PDF-hul 1.7 , Plugin Version 3.0</key>
<key id="pluginName">PDF-hul-1.10</key>
<key id="format">PDF</key>
<key id="version">1.4</key>
<key id="mimeType">application/pdf</key>
<key id="isValid">true</key>
<key id="isWellFormed">true</key>
</record>
</section>
</dnx>
</mets:xmlData>
</mets:mdWrap>
</mets:techMD>

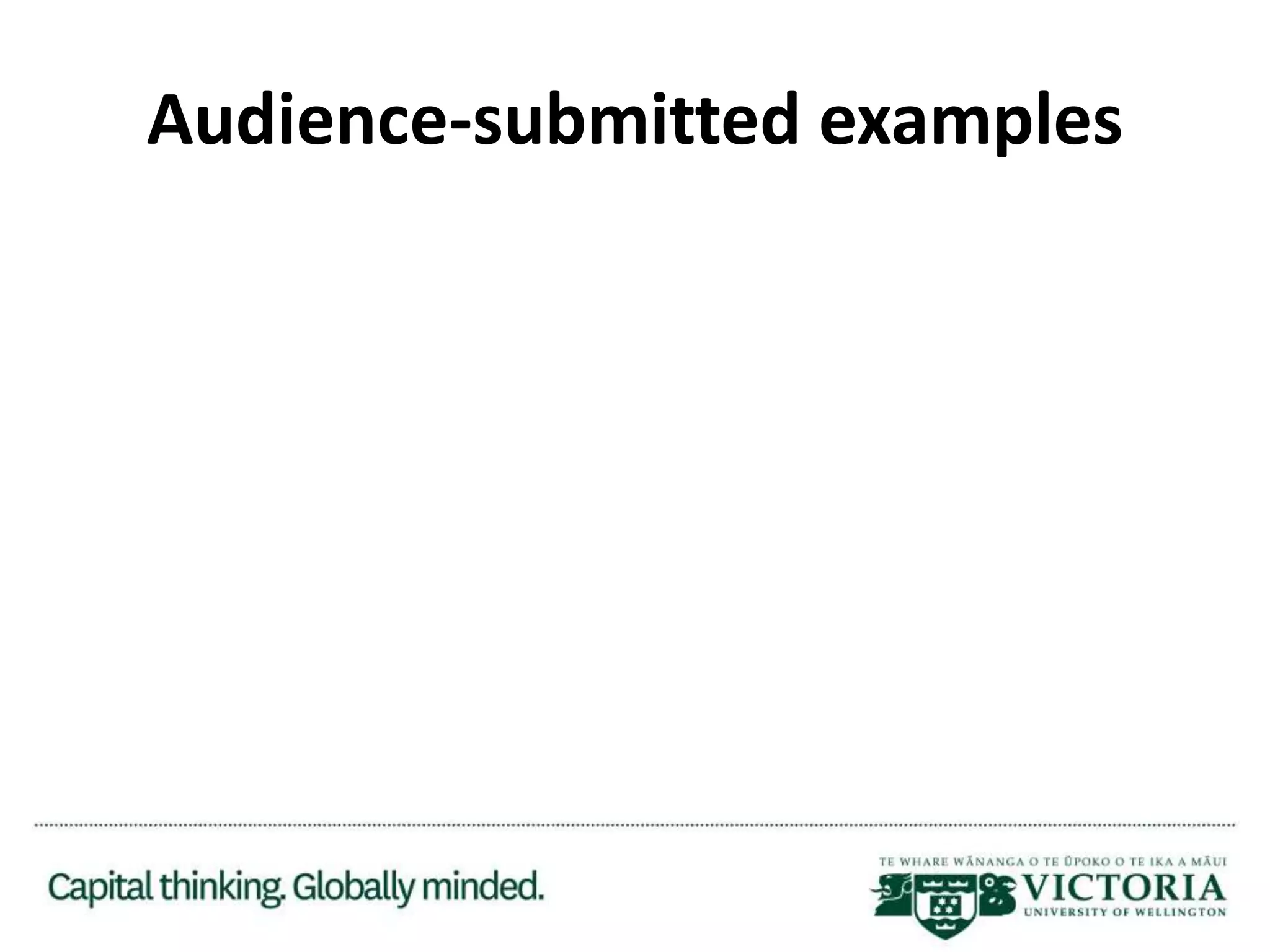

52. Audience-submitted examples
