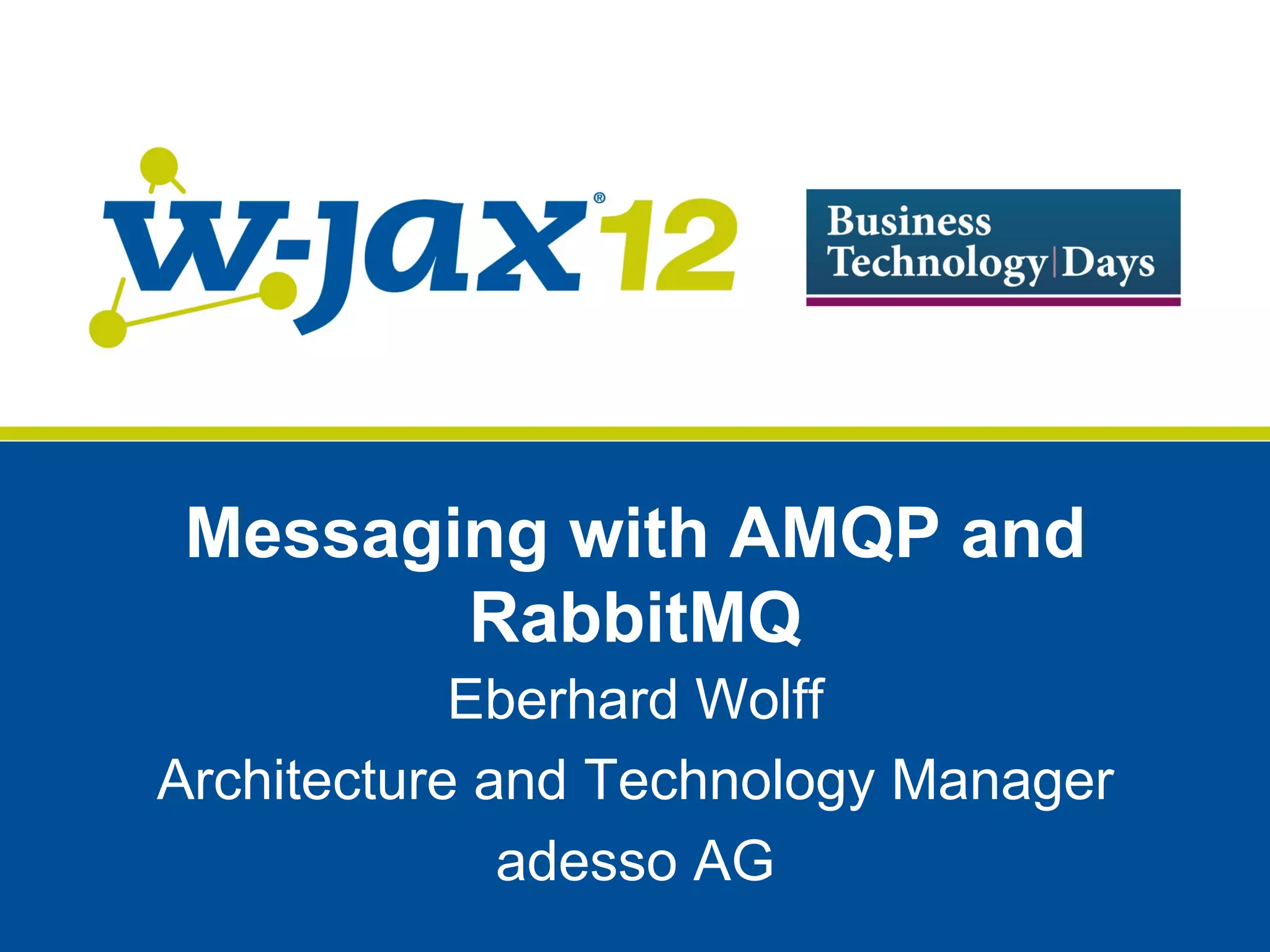

1. Messaging with AMQP and
RabbitMQ
Eberhard Wolff
Architecture and Technology Manager
adesso AG

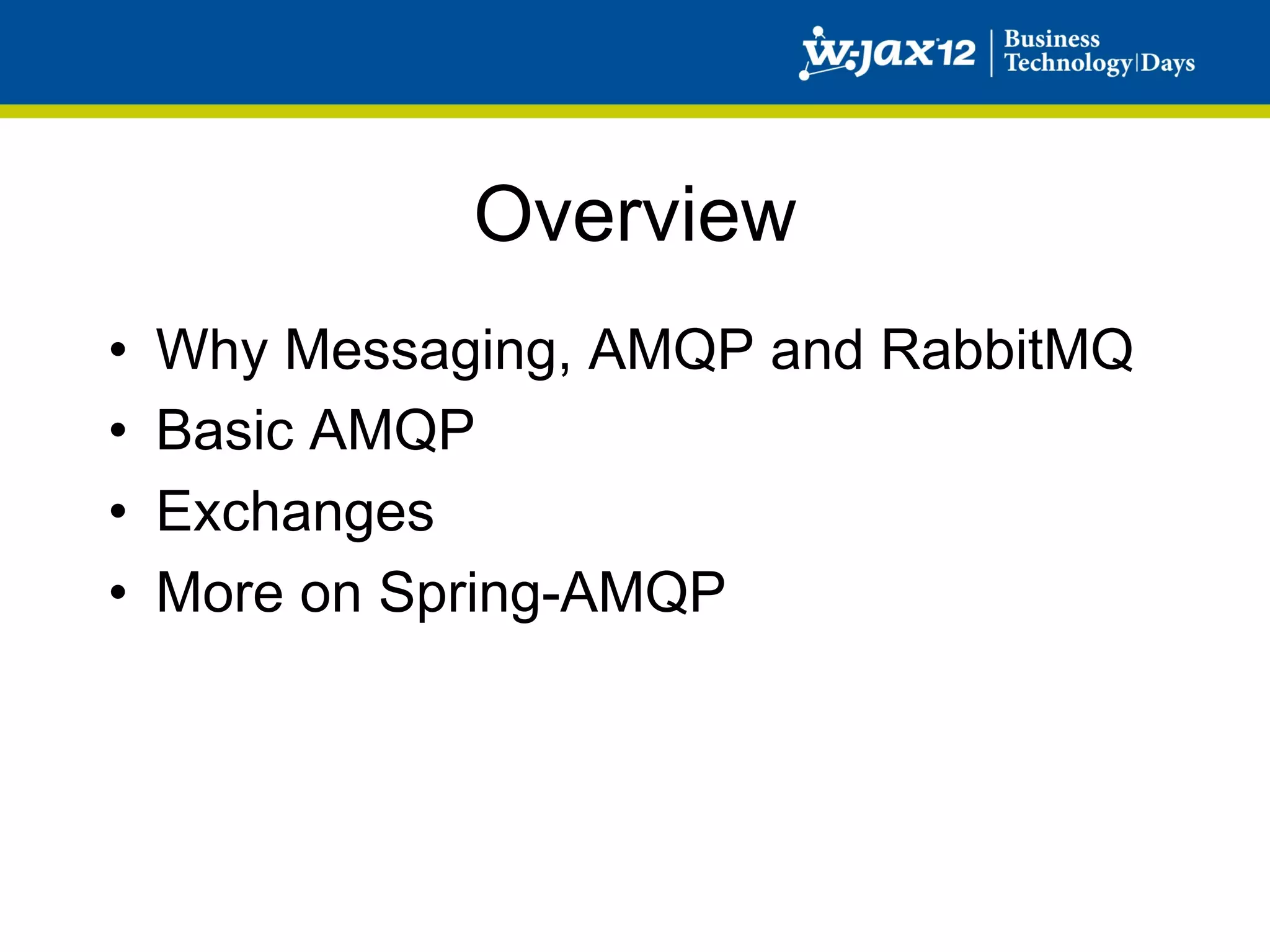

2. Overview
• Why Messaging, AMQP and RabbitMQ
• Basic AMQP
• Exchanges
• More on Spring-AMQP

3. Why Messaging?
• Decoupling
– Data, no action i.e. receiver
Component
can react arbitrarily
– Asynchronous i.e. decoupled
by time
• Reliable
– Message can be stored-and-
Component
forwarded
Messages
– Redelivery until message
processed
• Solves typical problems of
distributed systems

4. Why Messaging?
• But: Requires different architecture
• Very different from calling remote
methods
• Asynchronous
• AJAX has the same model
• See for example “Patterns of Enterprise
Integration”

5. Why AMQP?
• Open standard protocol
• Standard wire protocol
• i.e. just one client library – no matter which
implementation you are using
• Less vendor lock in
• Efficient
– Binary wire protocol
• Support in all major languages
• Supported on most OS platforms

6. What about JMS?
• JMS has been the default for Java
messaging system for 10+ years
• But:
– Only standardized on the API level
– Less flexible than AMQP
• Mapping AMQP/JMS is being defined
• Some products support both

7. Why Rabbit?
• Because it has a kewl name
• Numerous protocols supported
• Most popular choice on EC2
• Foundation for demanding systems e.g.
NASA’s cloud initiative Nebula
• Implemented in Erlang
• Clustering built in
• Currently in 2.8.7
• Supports AMQP 0.8, 0.9, 0.9.1
• 1.0 as a prototype Plug In

8. Broad Support in RabbitMQ

9. Broad Support in the JVM Space
• Grails Plug In
• Java Client
• Scala / Lift support
• We will discuss Spring support in detail
• Spring AMQP project 1.1.2
• http://www.springsource.org/spring-
amqp

10. Why Erlang?
• Originally designed for telephone
switches by Ericsson
• Much easier to develop scalable and fault
tolerant systems
(by factors)
• See Motorola presentation:
http://www.slideshare.net/Arbow/comparing-
cpp-and-erlang-for-motorola-telecoms-software
• Good tool for reliable and scalable systems

11. Erlang‘s Model
Monitor
Link to monitor,
restart
Light Light Light
weight Messages weight Messages weight
process process process
with with with
state state state

12. Why Erlang?
• Let it crash
– If a process fails, it can be easily restarted
– Different approach to fault tolerance
– Otherwise lots of error handling
• Message Passing in the Core
– RabbitMQ is a messaging system…
• Light-weight process model
– Scales to massive numbers of connections

13. Basic AMQP

14. Very Basic AMQP
• Queues: Store messages
• Queues might be
– Durable: Survive server restarts
– Exclusive: For one connection
– autoDelete: Deleted if connection closes
• All resources are dynamic
• Producer sends a message to a Queue

15. Code
ConnectionFactory conFactory =
new CachingConnectionFactory ("localhost");
RabbitAdmin admin = new RabbitAdmin(conFactory);
admin.declareQueue(
new Queue("myQueue", false, true, true));
RabbitTemplate template =
new RabbitTemplate(conFactory);
template.convertAndSend("myQueue", "Hi AMQP!");
String receive =
(String) template.receiveAndConvert("myQueue");
Assert.assertEquals("Hi AMQP!", receive);

16. Spring’s MessageConverter
• Messages are binary data
• RabbitTemplate uses
MessageConverter
to convert between objects and
messages
• E.g. JSON, Serialization, XML …
• Can also send binary data if preferred

17. Basics of AMQP
• Sending messages directly to queues is
not enough
• What about e.g. pub / sub?
• Exchange: Route messages (stateless)
• Example used the default exchange
• More dynamic, flexible and cleaner than
JMS

18. AMQP
in
a
nutshell
Exchange routes message
Stateless
Usually created by producer
No queue: Message discarded
X
Binding binds an
Exchange to a Queue Queues buffer
messages
Usually created by
consumer

19. AMQP
in
a
nutshell
Producer and Consumer might be written in Java, C#,
Python, Ruby …
C
P X
C
AMQP RabbitMQ AMQP
protocol protocol

20. Exchanges

21. X
Exchange: Route Messages
• The type of Exchange defines the
routing algorithm
• Binding provides selector for routing
• Exchange is addressed by name
• Some standard types
• Can provide additional ones

22. X
Fanout Exchange
• Broadcast to all bound queues
• Fast
• Simple
• amq.fanout is mandatory
• To broadcast information

23. X
Fanout Exchange
C
P X
C
Fanout
C

24. Queue fanoutQueue = new Queue("fanoutQueue");
admin.declareQueue(fanoutQueue);
FanoutExchange fanoutExchange=
new FanoutExchange("myFanout");
admin.declareExchange(fanoutExchange);
admin.declareBinding(
BindingBuilder.bind(fanoutQueue).
to(fanoutExchange));
template.setExchange("myFanout");
template.convertAndSend("Hi Fanout!");
String receive = (String)
template.receiveAndConvert("fanoutQueue");
Assert.assertEquals("Hi Fanout!", receive);

25. X
Direct Exchange
• Routing based on one routing key
• amq.direct and the default Exchange (no
name) always exist
• To send work orders to a specific worker

26. Direct Exchange
normal
express
Direct
Exchange C
express
P X
C
normal
C

27. X
Topic Exchange
• Routing based on routing pattern
• amq.topic is mandatory
• E.g. for public / subscribe scenarios

28. Topic Exchange
order.DE
invoice.USD
Topic
Exchange
order.*
P X C
invoice.*
C

29. X
Headers Exchange
• Routing based on one or more headers and
an expression
• amqp.match is mandatory
• Complex routing roles

30. Other Features
• Message can be persistent
• Request / response using correlations
possible
• Redelivery / acknowledgement possible
• Clustering with e.g. Linux HA possible
• ...or send message through multiple
channels and drop duplicates

31. More on Spring AMQP

32. The MessageListener
• So far: Calling receive() on
RabbitTemplate
• Needed: Something that is called when
a new message appears

33. Spring’s MessageListener
Container
• Spring provides lightweight containers
to call MessageListeners
• SimpleMessageListenerContainer
• Advanced scheduling and endpoint
management options available
• i.e. thread pools, concurrent consumers,
transaction handling

34. Spring's message-driven objects
• MessageListener means the receiver
depends on Spring API
• Why not just a POJO?

35. Message-driven POJO
<rabbit:listener-container
connection-factory="connectionFactory“
message-converter="jsonMessageConverter">
<rabbit:listener ref="consumer" method="consume"
queue-names="my.amqp.queue2" />
</rabbit:listener-container>
• Takes a POJO and makes it a
MessageListener
• i.e. calls consume on Bean consume

36. @Component Consumer code
public class Consumer {
public String consume(String message) {
return …;
}
}
• No dependency on AMQP!
• But: What about the result of the method?
• Send to the Reply-To address given in
message properties with same correlationId
as original method

37. Client Code
String response = (String)
rabbitTemplate.convertSendAndReceive(
"my.fanout", "", "test");
• Message sent to destination with routing key
• Reply-To set to exclusive, autodelete, non-
durable queue
• Response received through Reply-To
converted and returned
• Easy request-response!
• Beware of potential latency

38. Web Messaging

39. Web Messaging
• Goal: Send / receive messages in the
browser
• With JavaScript
• I.e. JavaScript must receive message
• HTML5 browser: WebSockets
• Pre HTML5: long polling etc

40. SockJS
• Unifies Web Sockets, long polling etc
• Unified JavaScript API
• Server component
• Can run embedded in RabbitMQ

41. STOMP
• Simple (or Streaming) Text Oriented
Message Protocol
• Very simple protocol for Message Oriented
Middleware
• STOMP over SockJS
• See http://www.rabbitmq.com/blog/
2012/05/14/introducing-rabbitmq-web-
stomp/

42. STOMP
JavaScript Java
SockJS AMQP C#
Web Sockets …
Long Polling
http://127.0.0.1:55670/

43. JavaScript Code
WebSocketStompMock = SockJS;
var client =
Stomp.client('http://localhost:55674/stomp');
…
client.send('/topic/test', {}, data);
…
client.connect('guest', 'guest', function(x) {
id = client.subscribe("/topic/test", function(message) {
if (message.body) {
alert("got message with body " + message.body)
} AMQP: Topic exchange
}); amq.topic
}); with routing key test

44. Conclusion: AMQP
• Ubiquitous Messaging
• AMQP: Protocol standard
• Better scalability
• Dynamic resources

45. Conclusion: Spring AMQP
• Easy to use
• Flexible (e.g. message encoding)
• Allows scalable message handling
• Full support for AMQP and RabbitMQ

46. Conclusion: Web Messaging
• Simple API
• Works on older browsers
• Single server – also for messaging
• Erlang is very well able to handle the
many connections

47. More
• http://springsource.org/spring-amqp
• Also a .NET version available
• …and support in Spring Integration
• …and there is very similar Spring JMS support
• http://blog.springsource.com/2011/04/01/routing-
topologies-for-performance-and-scalability-with-
rabbitm
• https://github.com/zanox/rabbiteasy
– CDI event / AMQP integration
– Managed publisher and consumer
