1. RabbitMQ
« an AMQP Message Broker… »
Hassan BOUMARSEL
Java & Middleware Specialist
Hboumarsel @ anasys.fr
- 1 -
© ANASYS

2. Java & Middleware Specialists
ANASYS

3. Agenda
1. Introduction
2. Message Queue Fundamentals
3. AMQP Fundamentals
4. Introduction to RabbitMQ
5. RabbitMQ : Installation, Administration, and Configuration
- 3 -© ANASYS

4. Introduction
Messaging / Message-Oriented Middleware…
© ANASYS - 4 -

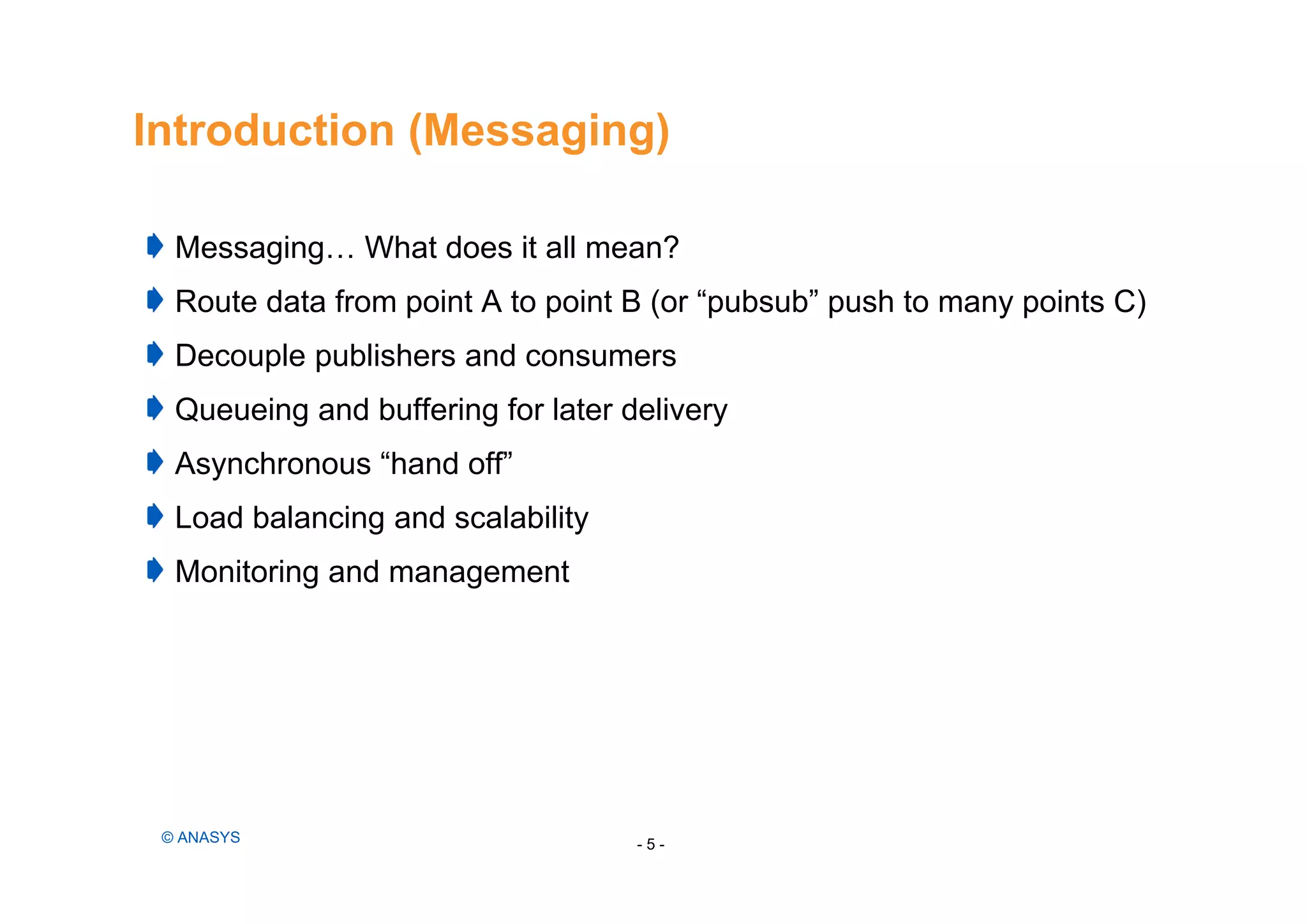

5. Introduction (Messaging)
Messaging… What does it all mean?
Route data from point A to point B (or “pubsub” push to many points C)
Decouple publishers and consumers
Queueing and buffering for later delivery
Asynchronous “hand off”
Load balancing and scalability
Monitoring and management
- 5 -© ANASYS

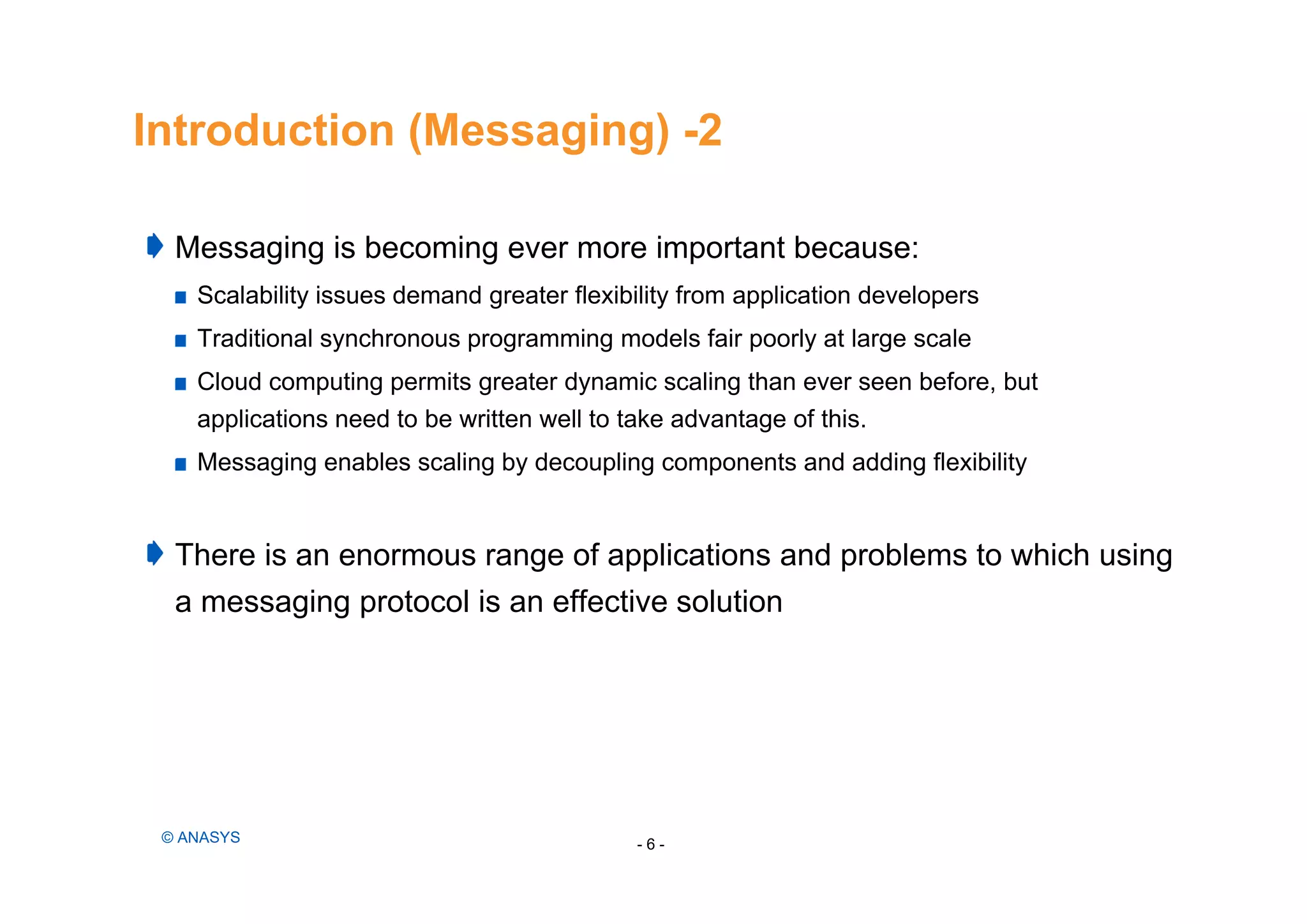

6. Introduction (Messaging) -2
Messaging is becoming ever more important because:
Scalability issues demand greater flexibility from application developers
Traditional synchronous programming models fair poorly at large scale
Cloud computing permits greater dynamic scaling than ever seen before, but
applications need to be written well to take advantage of this.
Messaging enables scaling by decoupling components and adding flexibility
There is an enormous range of applications and problems to which using
a messaging protocol is an effective solution
- 6 -© ANASYS

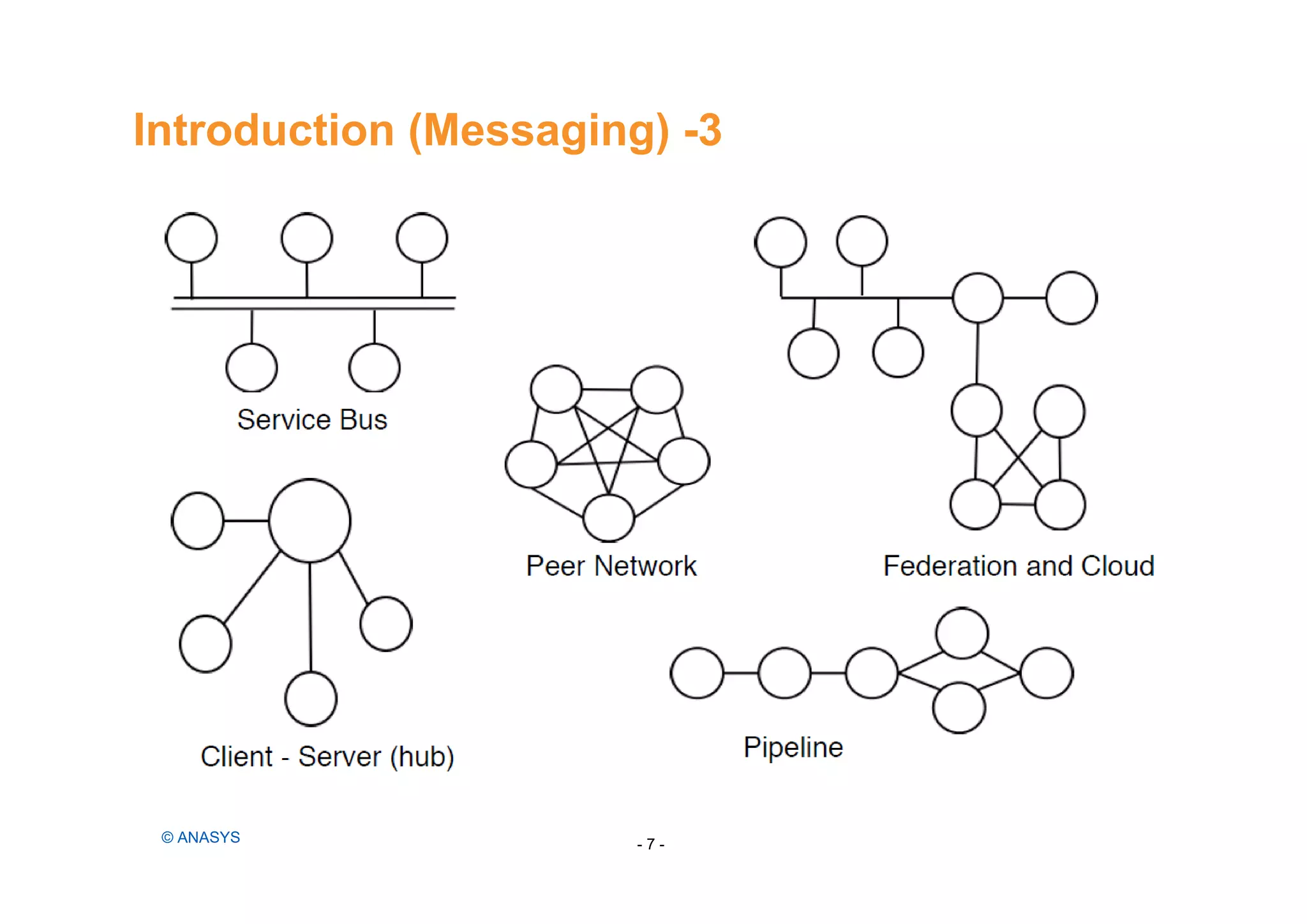

7. Introduction (Messaging) -3
- 7 -© ANASYS

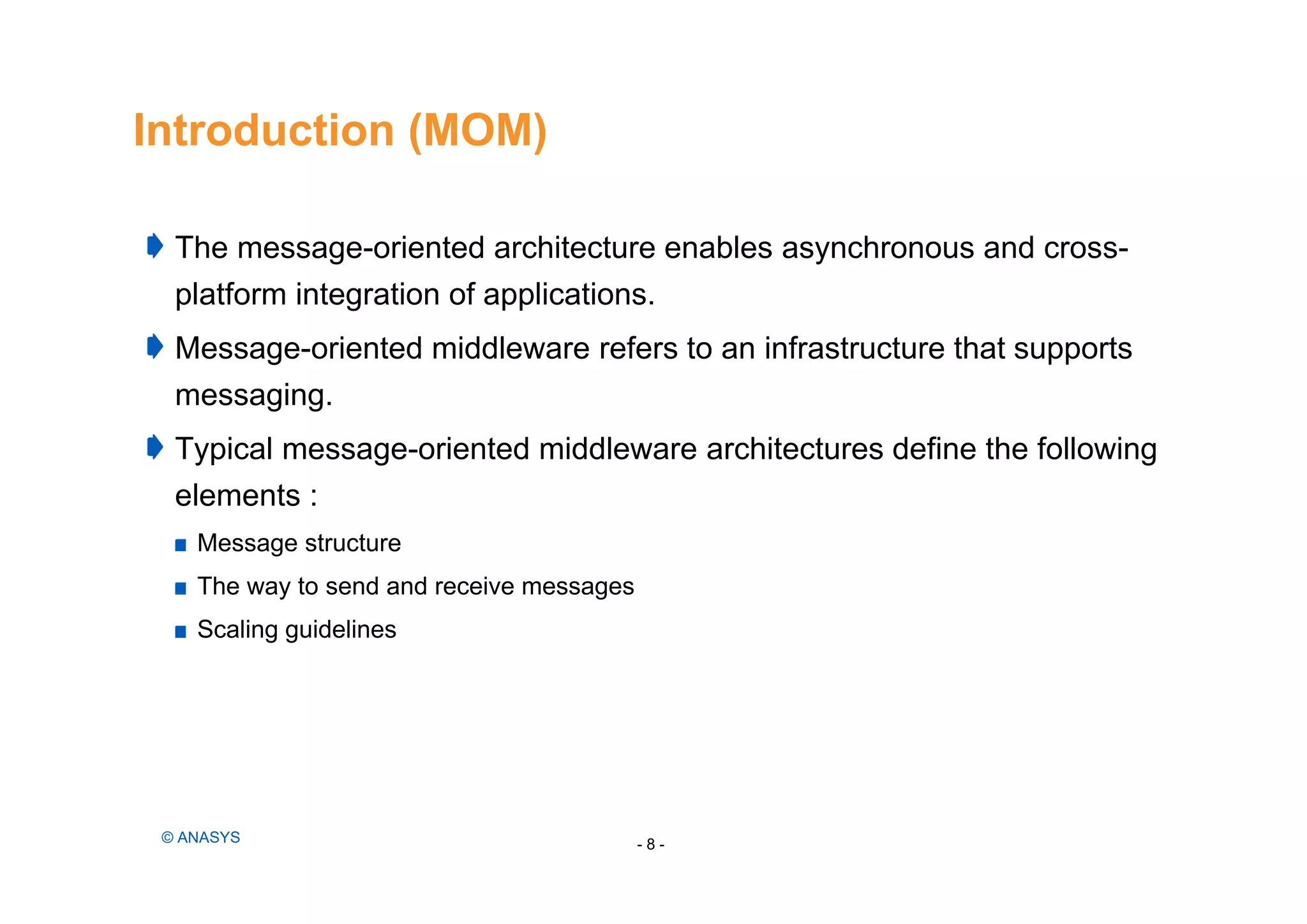

8. Introduction (MOM)
The message-oriented architecture enables asynchronous and cross-
platform integration of applications.
Message-oriented middleware refers to an infrastructure that supports
messaging.
Typical message-oriented middleware architectures define the following
elements :
Message structure
The way to send and receive messages
Scaling guidelines
- 8 -© ANASYS

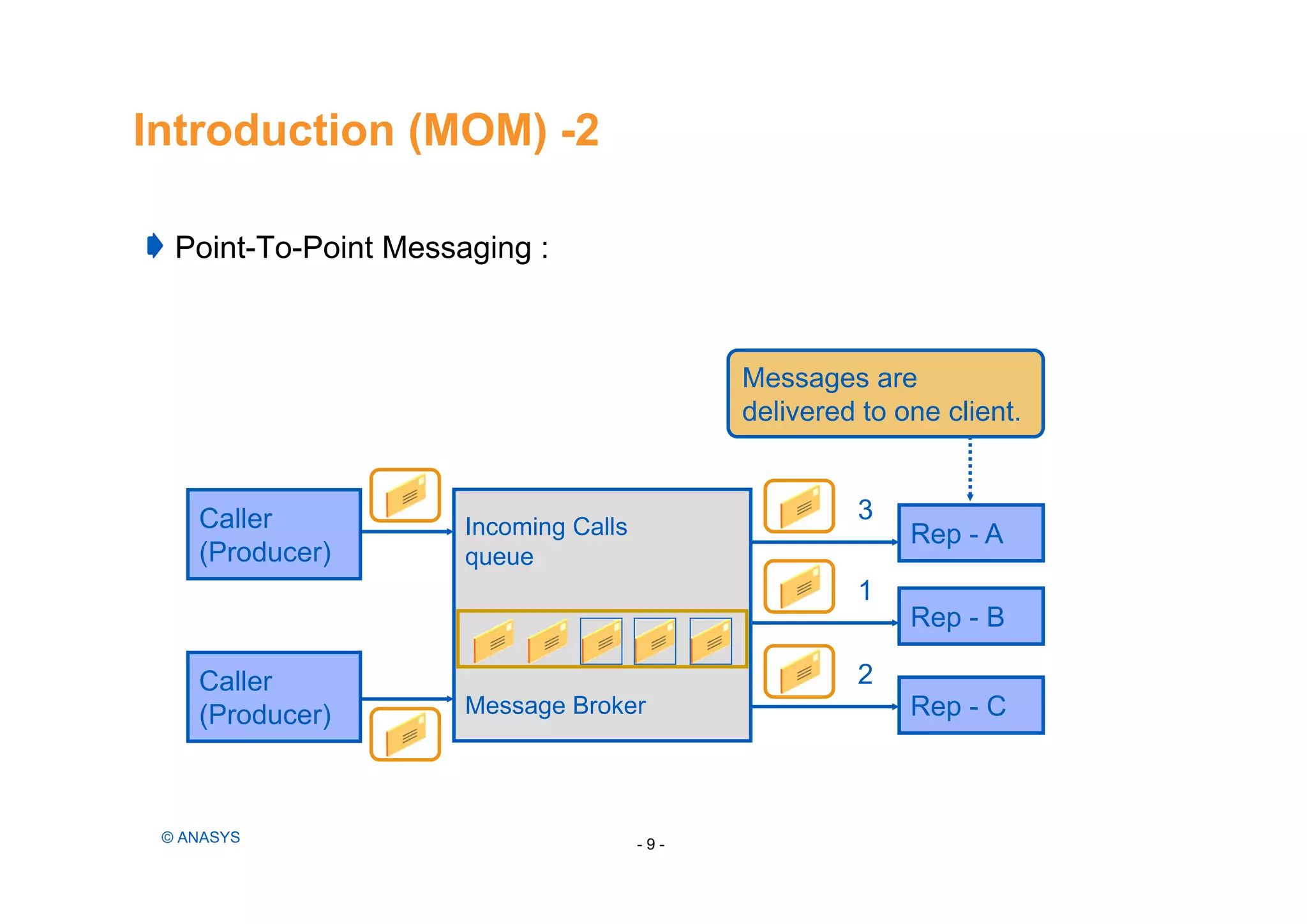

9. Introduction (MOM) -2
Point-To-Point Messaging :
- 9 -© ANASYS
Rep - A
Rep - B
Rep - C
3
1
2
Caller
(Producer)
Incoming Calls
queue
Message Broker
Messages are
delivered to one client.
Caller
(Producer)

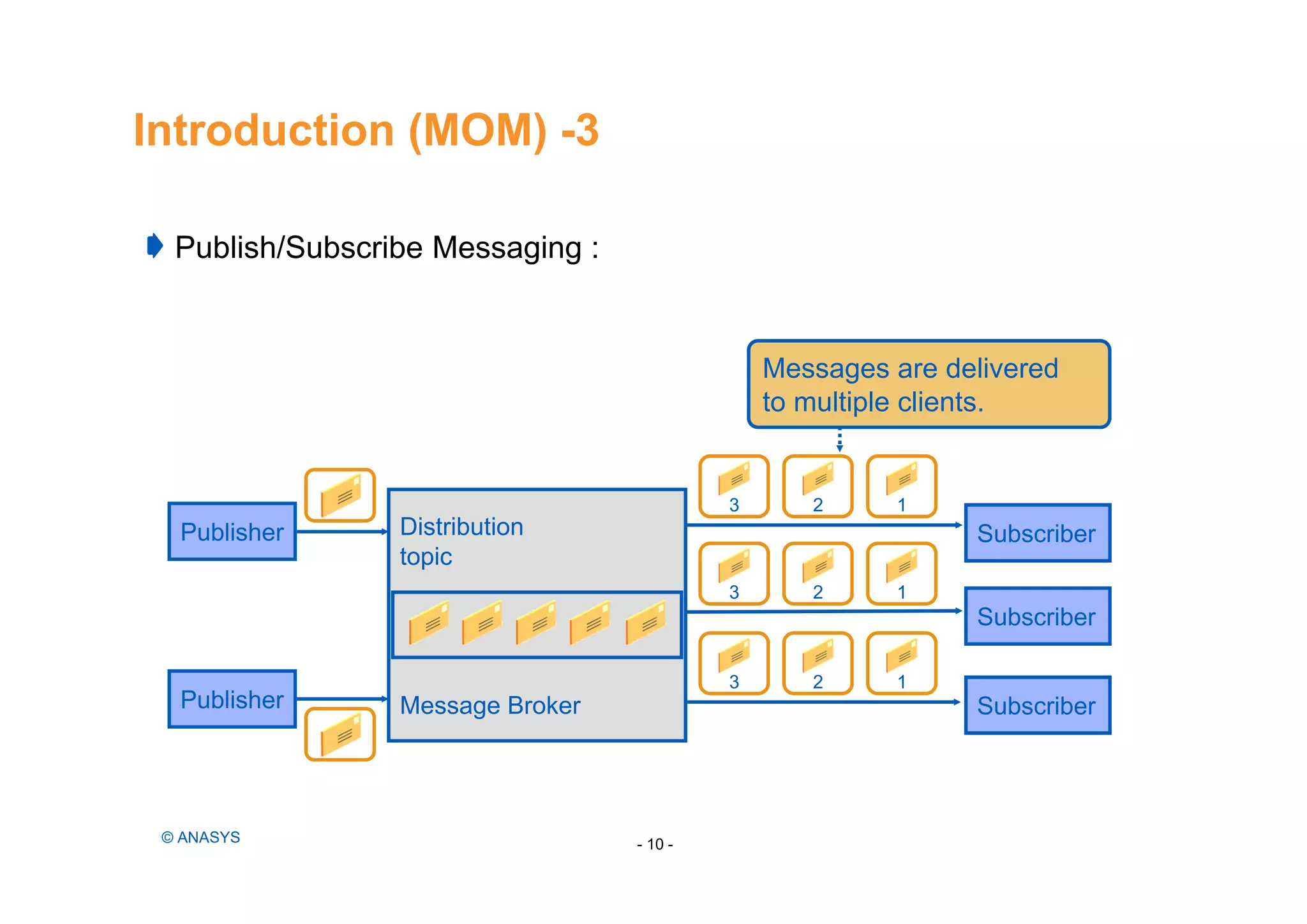

10. Introduction (MOM) -3
Publish/Subscribe Messaging :
- 10 -© ANASYS
Distribution
topic
Message Broker
Publisher
Publisher
Messages are delivered
to multiple clients.
Subscriber
Subscriber
Subscriber
3 2 1
3 2 1
3 2 1

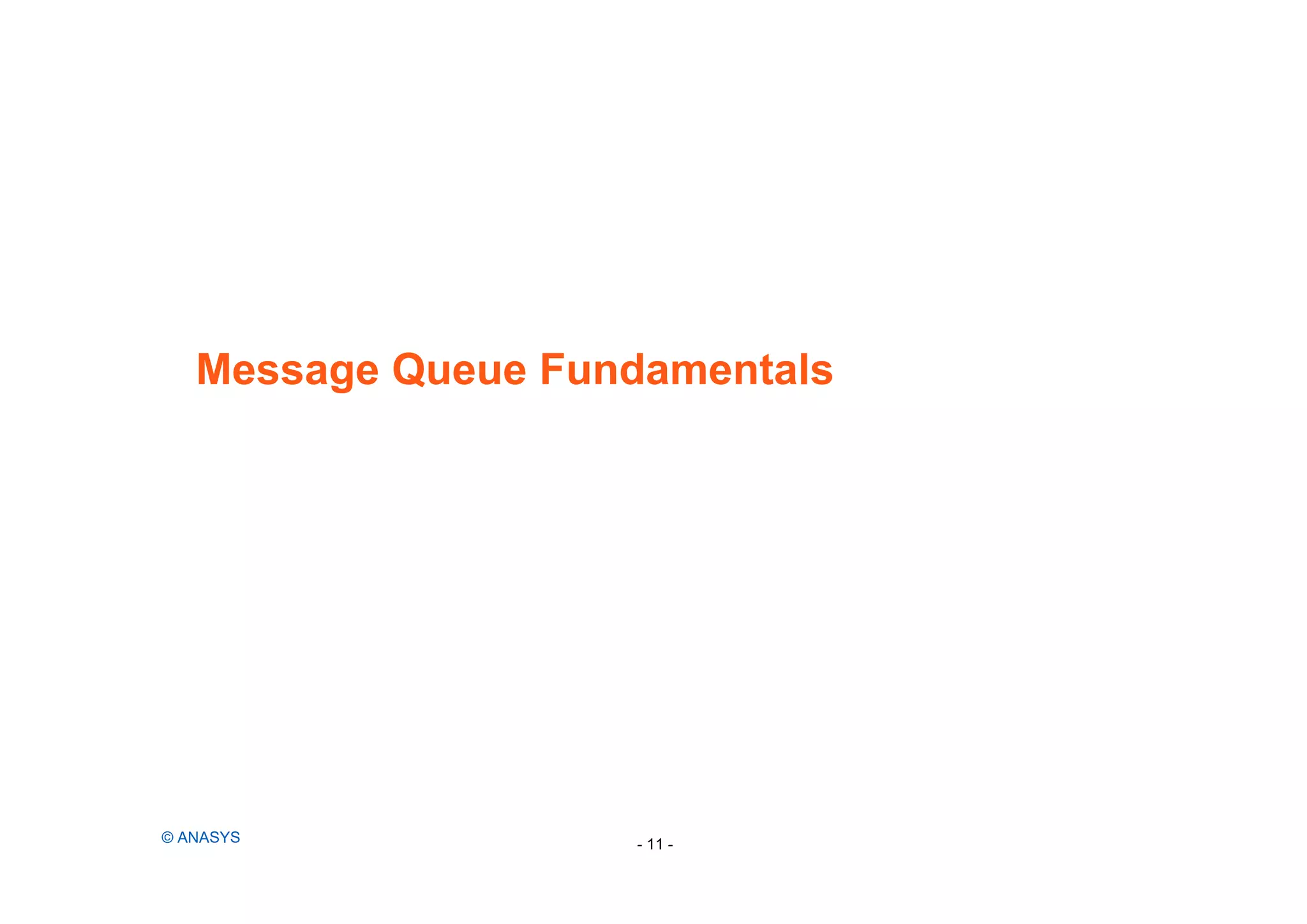

11. Message Queue Fundamentals
© ANASYS - 11 -

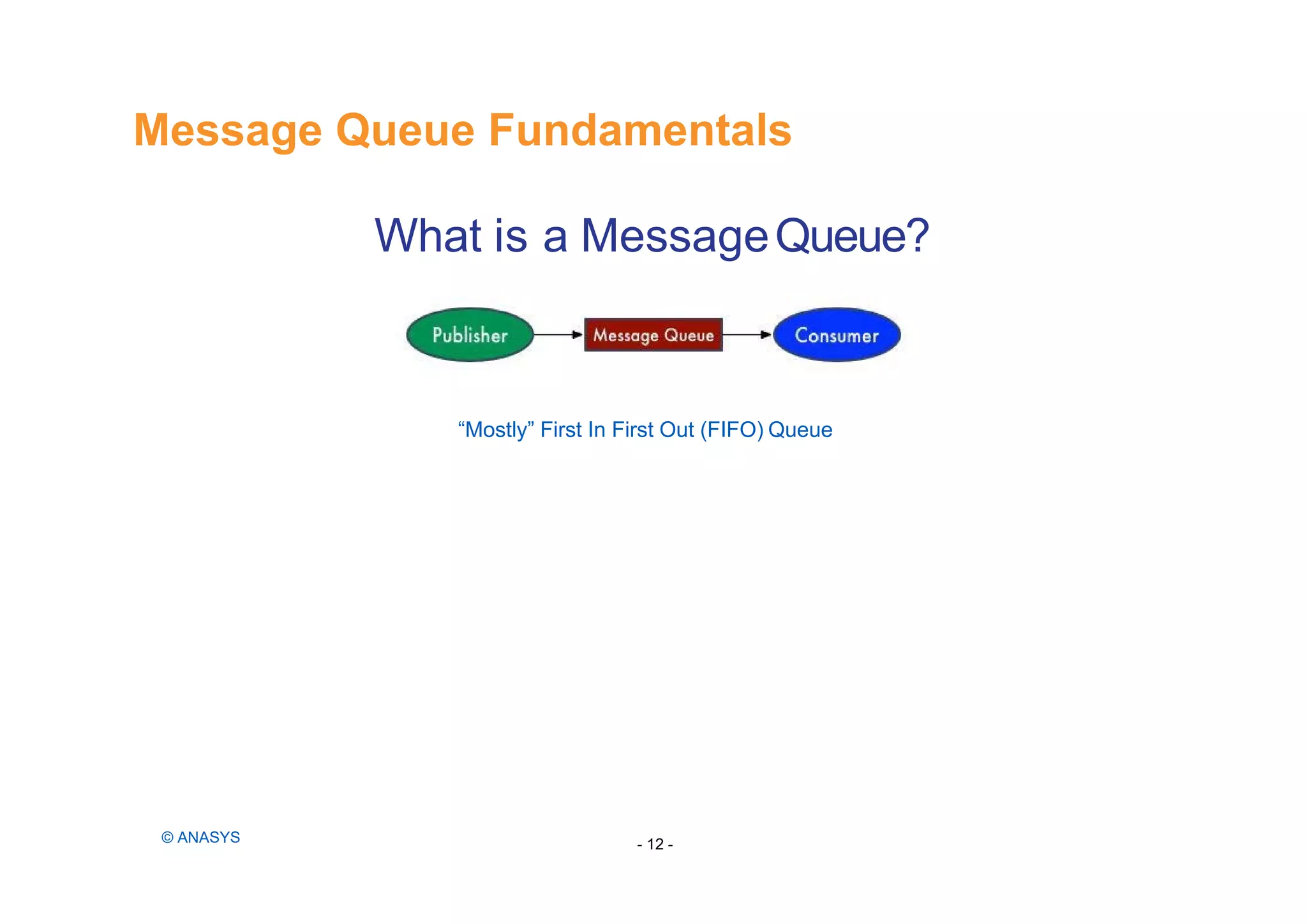

12. What is a MessageQueue?
“Mostly” First In First Out (FIFO) Queue
Message Queue Fundamentals
- 12 -© ANASYS

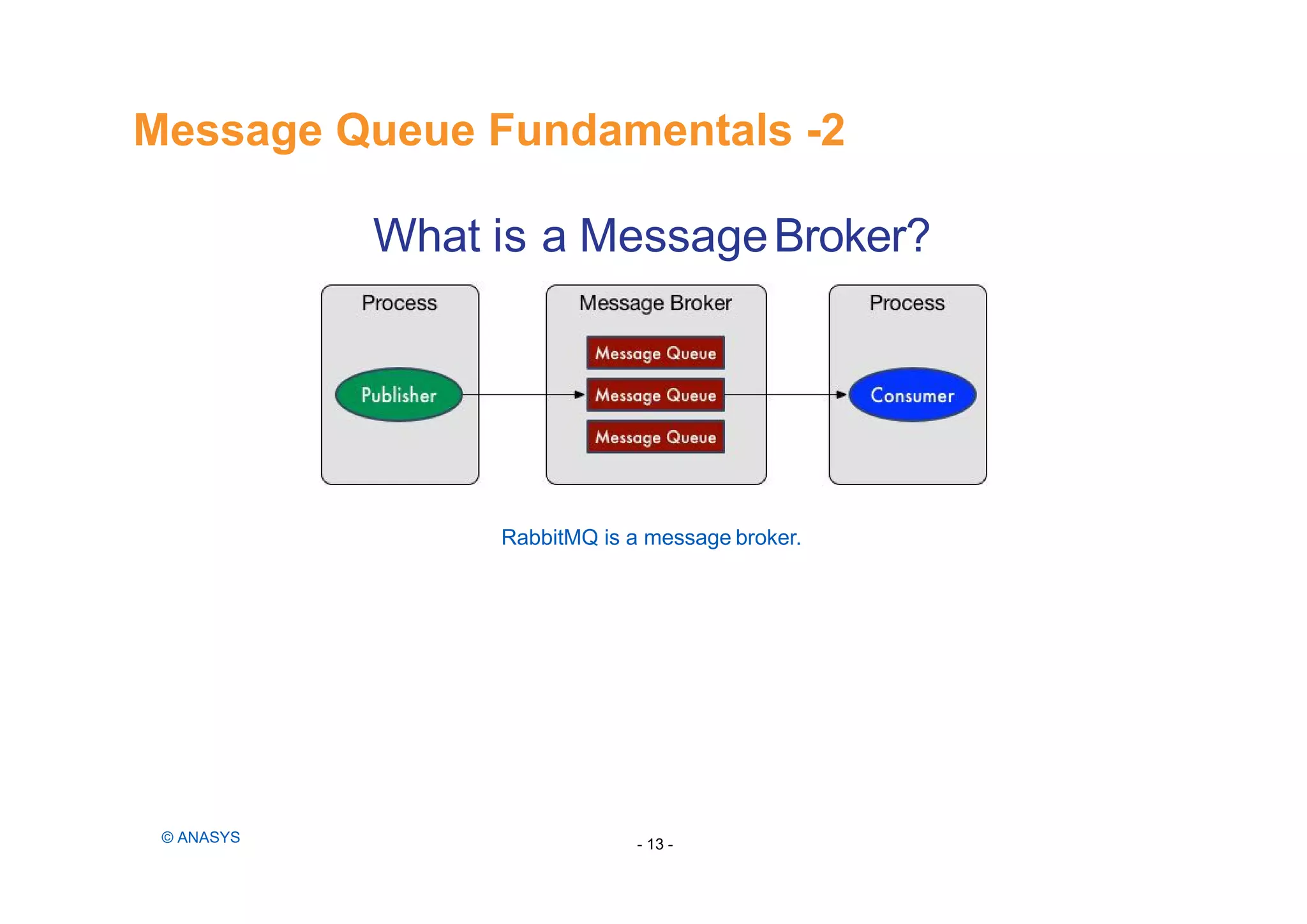

13. What is a MessageBroker?
RabbitMQ is a message broker.
Message Queue Fundamentals -2
- 13 -© ANASYS

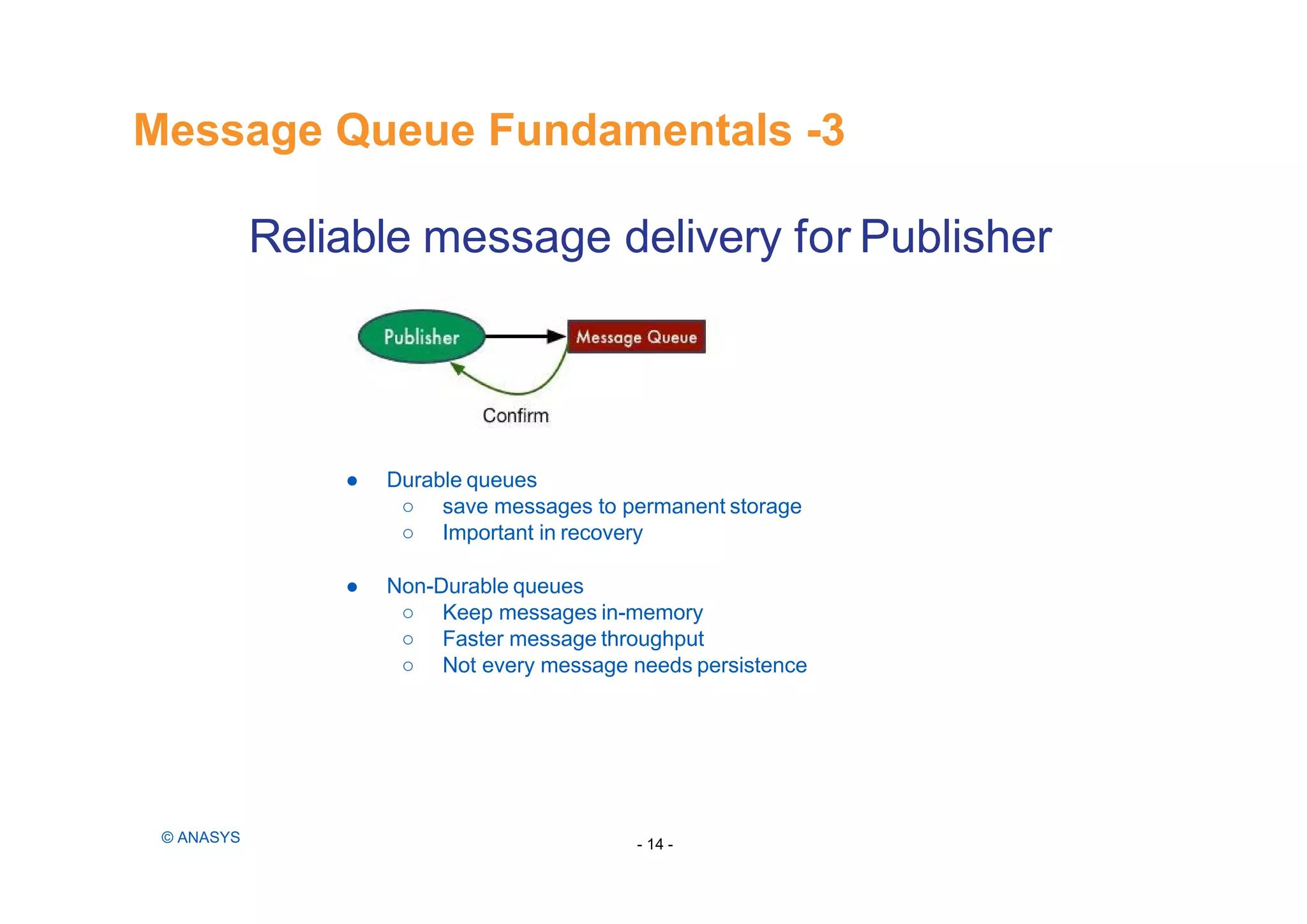

14. Reliable message delivery for Publisher
● Durable queues
○ save messages to permanent storage
○ Important in recovery
● Non-Durable queues
○ Keep messages in-memory
○ Faster message throughput
○ Not every message needs persistence
Message Queue Fundamentals -3
- 14 -© ANASYS

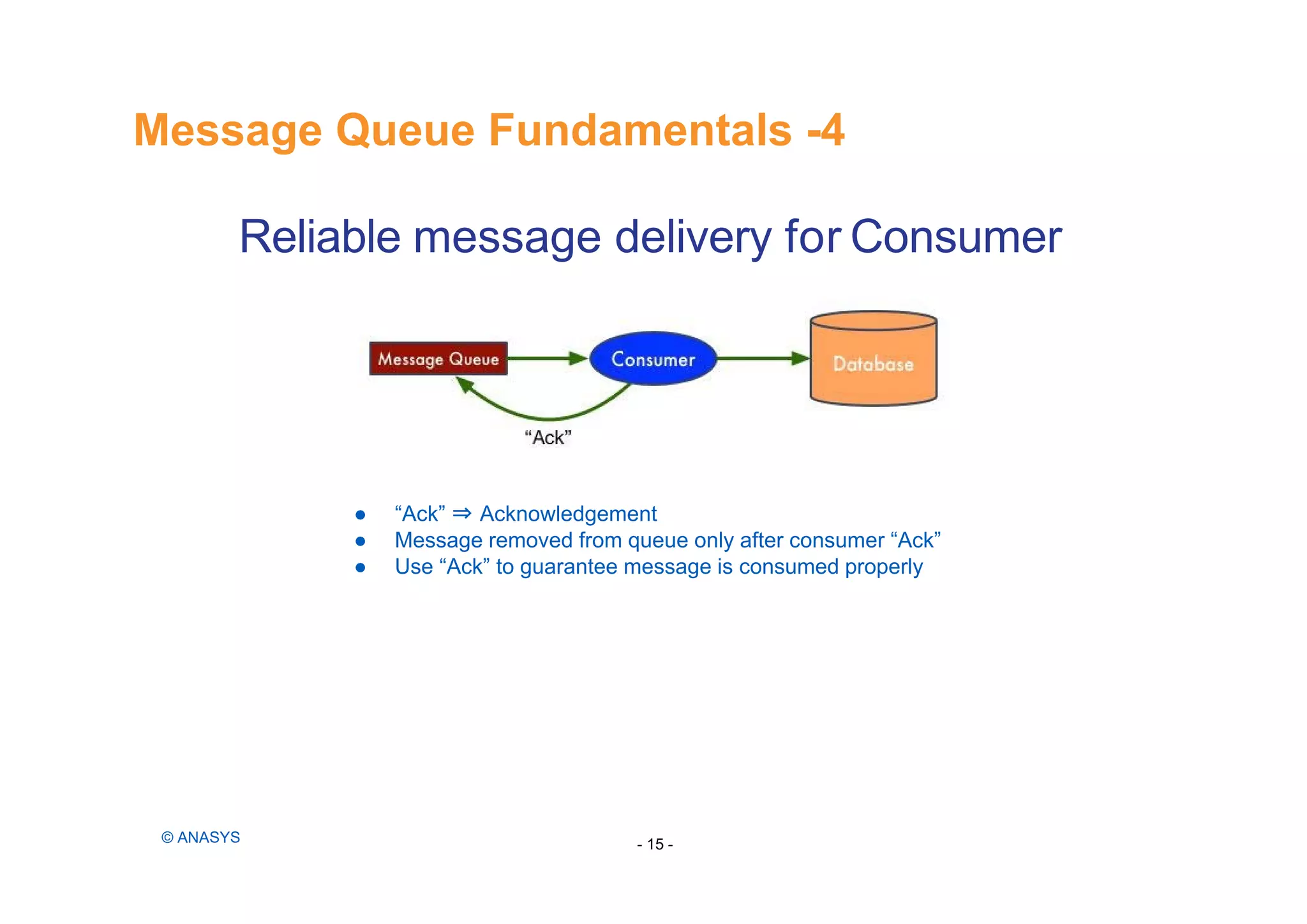

15. Reliable message delivery for Consumer
● “Ack” ⇒ Acknowledgement
● Message removed from queue only after consumer “Ack”
● Use “Ack” to guarantee message is consumed properly
Message Queue Fundamentals -4
- 15 -© ANASYS

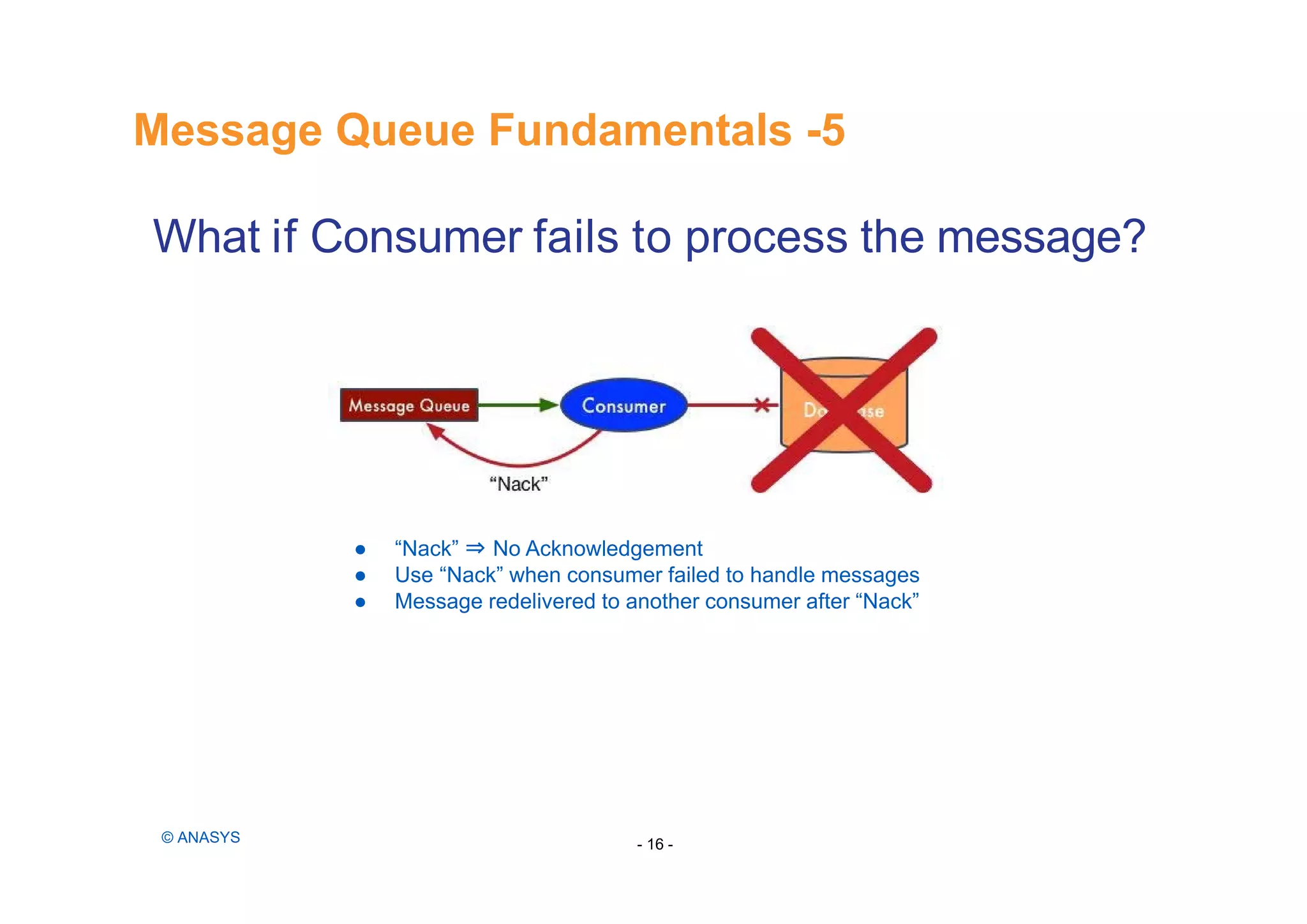

16. What if Consumer fails to process the message?
● “Nack” ⇒ No Acknowledgement
● Use “Nack” when consumer failed to handle messages
● Message redelivered to another consumer after “Nack”
Message Queue Fundamentals -5
- 16 -© ANASYS

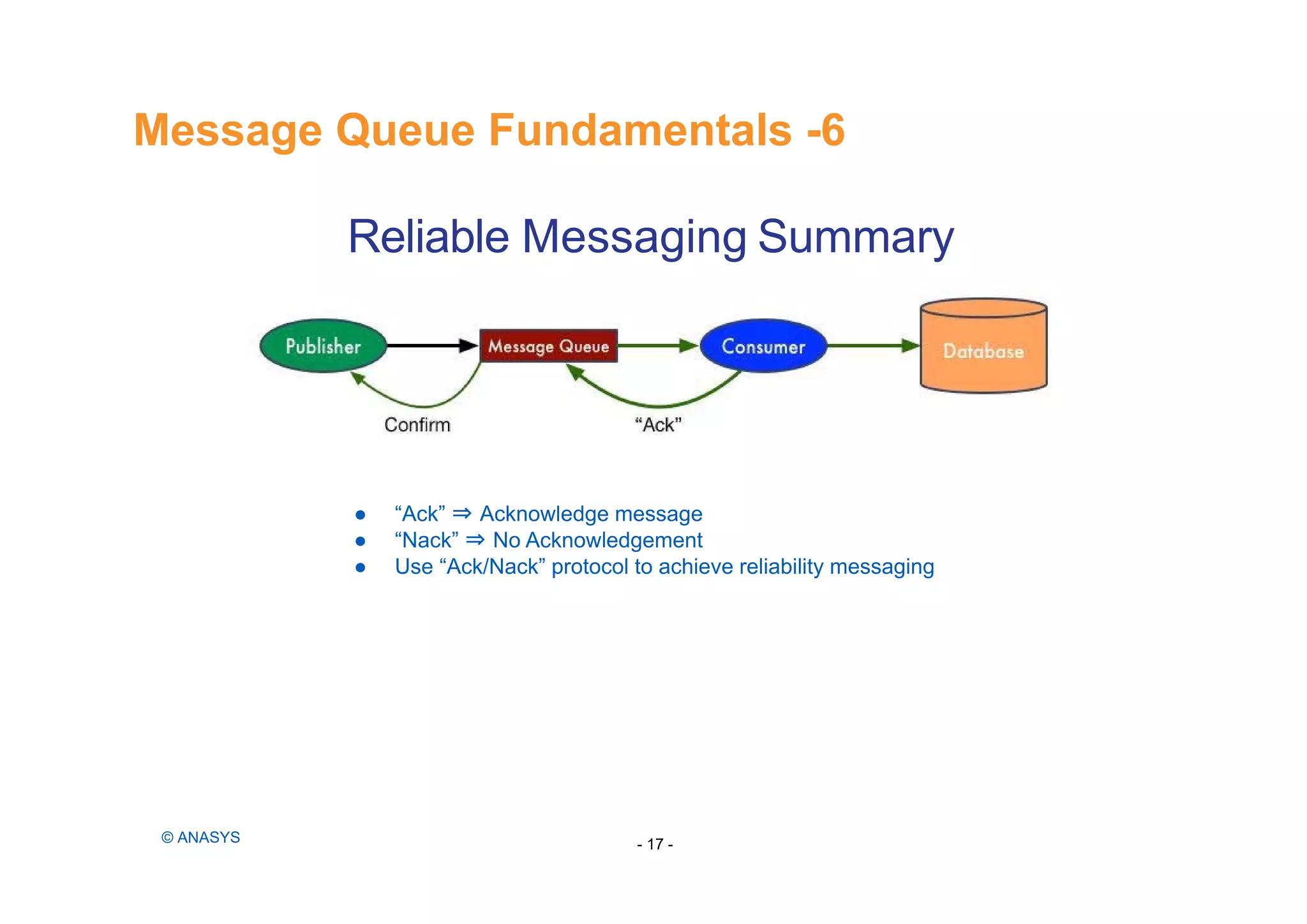

17. Reliable Messaging Summary
● “Ack” ⇒ Acknowledge message
● “Nack” ⇒ No Acknowledgement
● Use “Ack/Nack” protocol to achieve reliability messaging
Message Queue Fundamentals -6
- 17 -© ANASYS

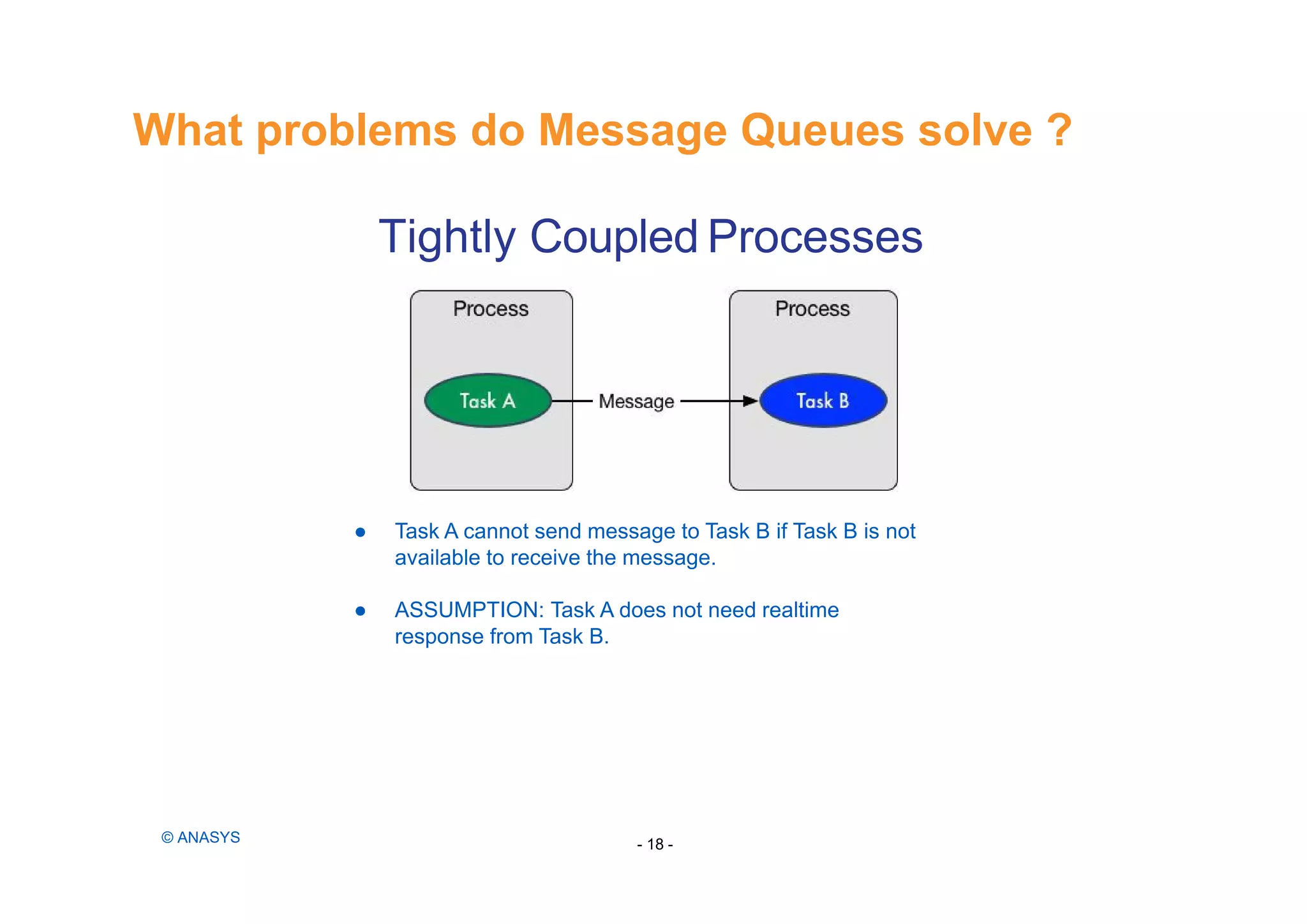

18. Tightly Coupled Processes
● Task A cannot send message to Task B if Task B is not
available to receive the message.
● ASSUMPTION: Task A does not need realtime
response from Task B.
What problems do Message Queues solve ?
- 18 -© ANASYS

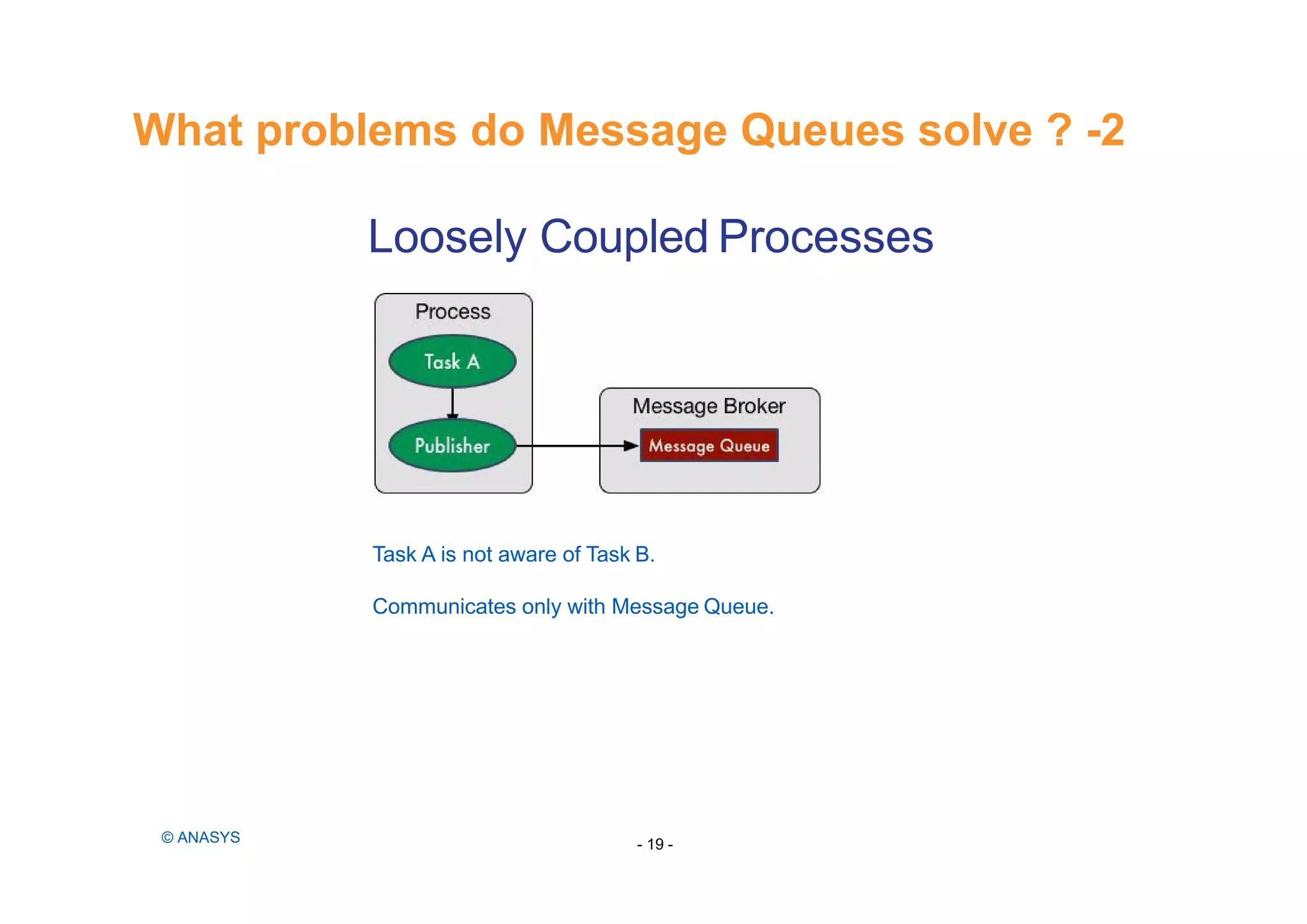

19. Loosely Coupled Processes
Task A is not aware of Task B.
Communicates only with Message Queue.
What problems do Message Queues solve ? -2
- 19 -© ANASYS

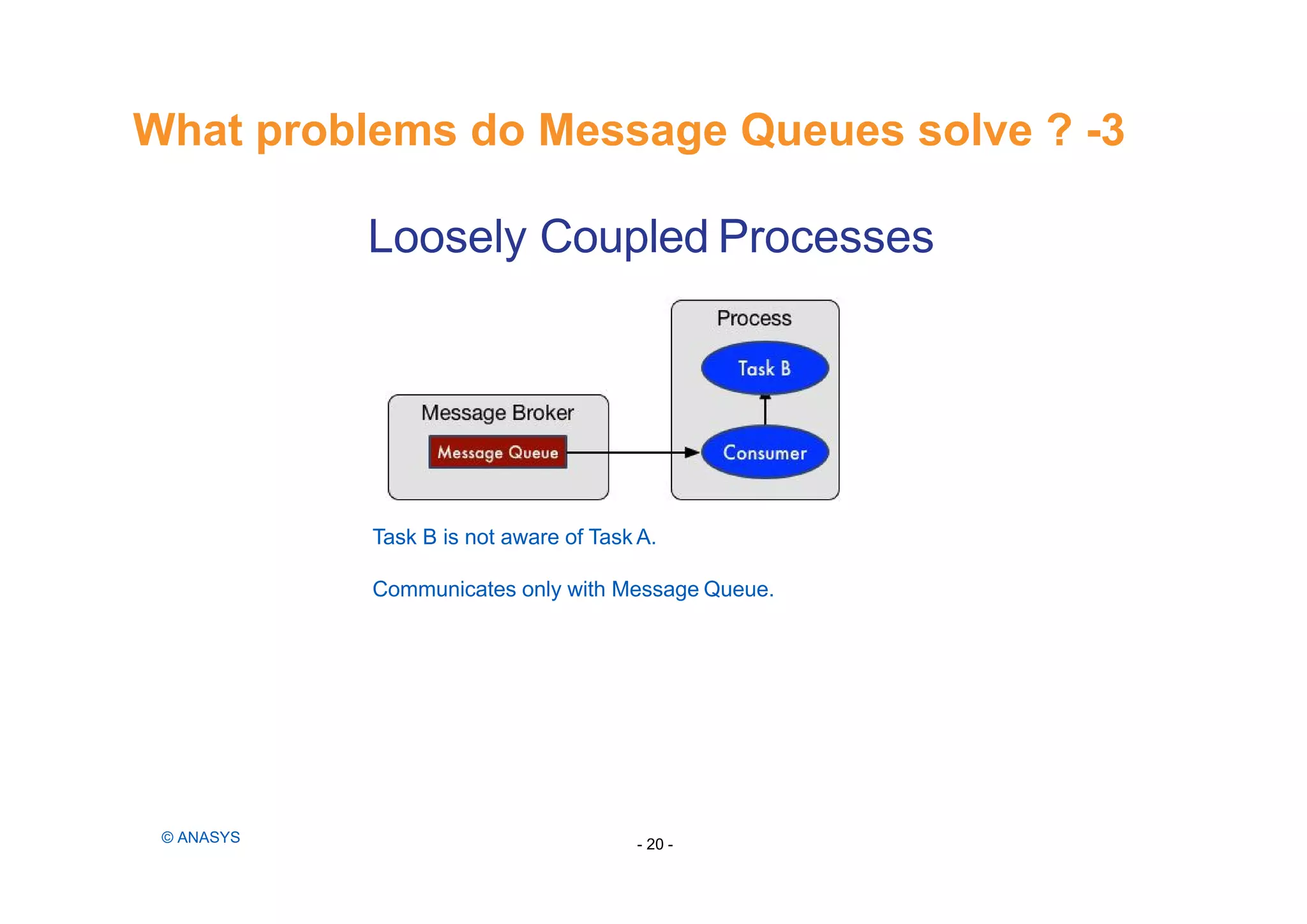

20. Loosely Coupled Processes
Task B is not aware of Task A.
Communicates only with Message Queue.
What problems do Message Queues solve ? -3
- 20 -© ANASYS

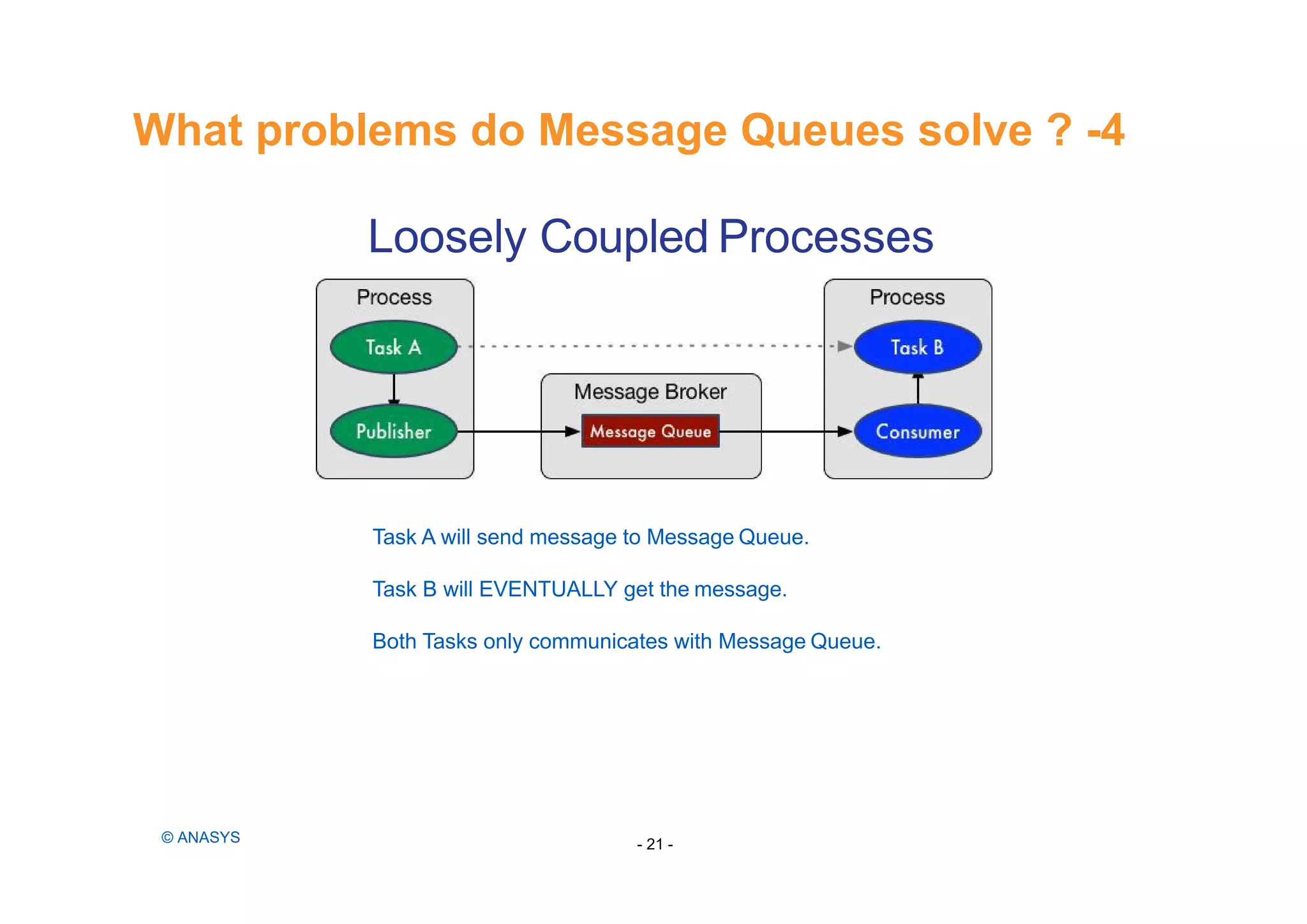

21. Loosely Coupled Processes
Task A will send message to Message Queue.
Task B will EVENTUALLY get the message.
Both Tasks only communicates with Message Queue.
What problems do Message Queues solve ? -4
- 21 -© ANASYS

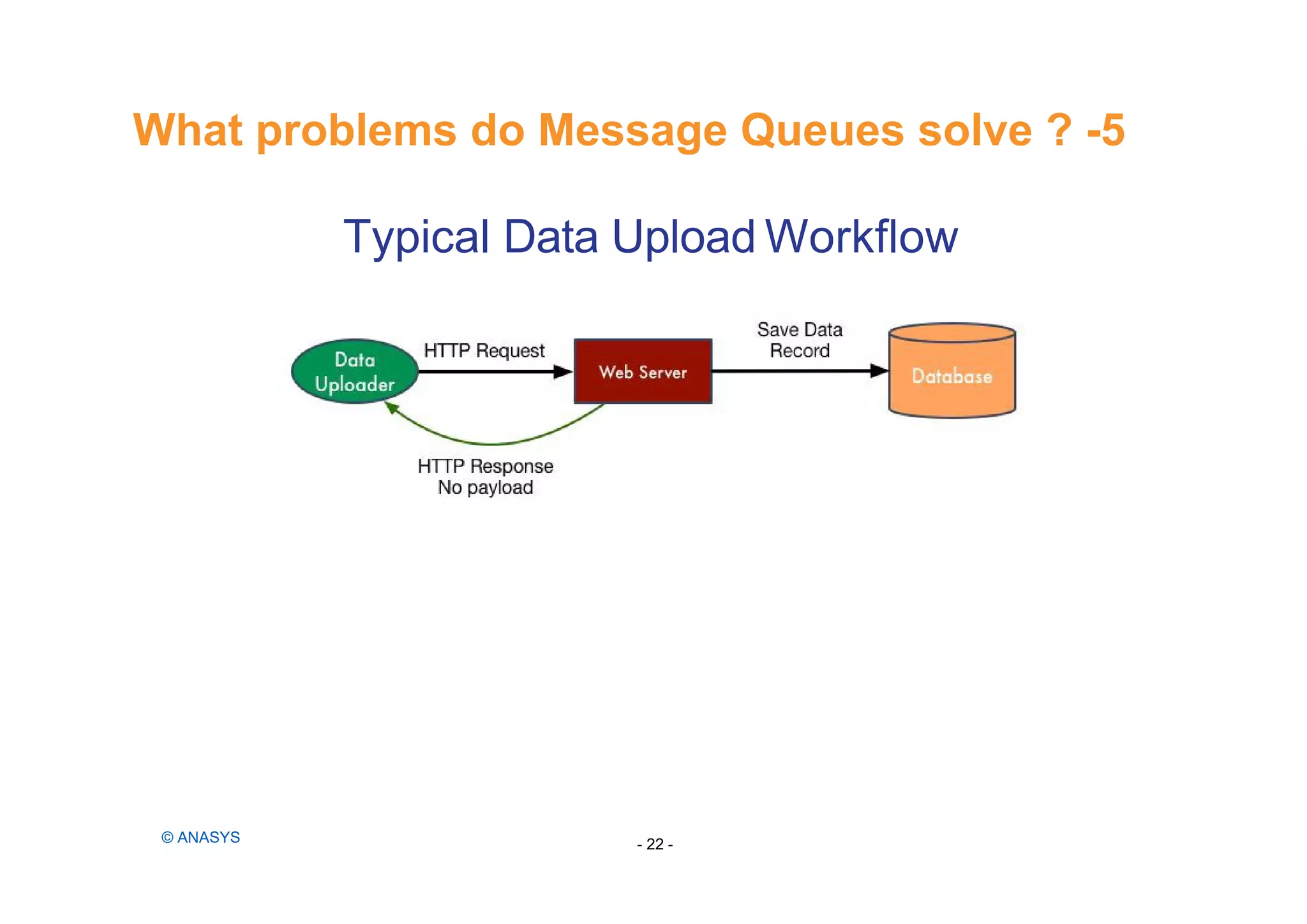

22. Typical Data Upload Workflow
What problems do Message Queues solve ? -5
© ANASYS - 22 -

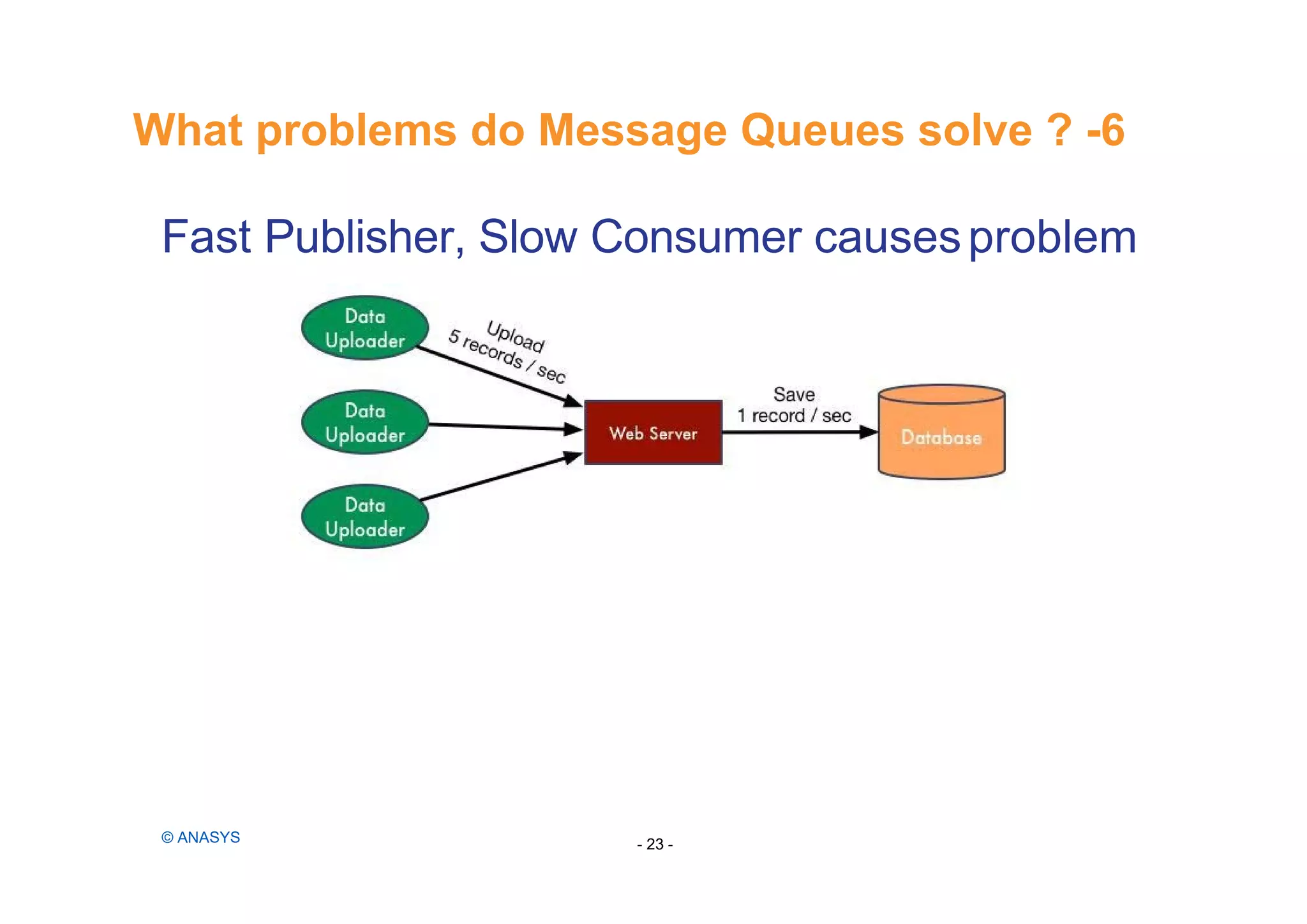

23. Fast Publisher, Slow Consumer causesproblem
What problems do Message Queues solve ? -6
- 23 -© ANASYS

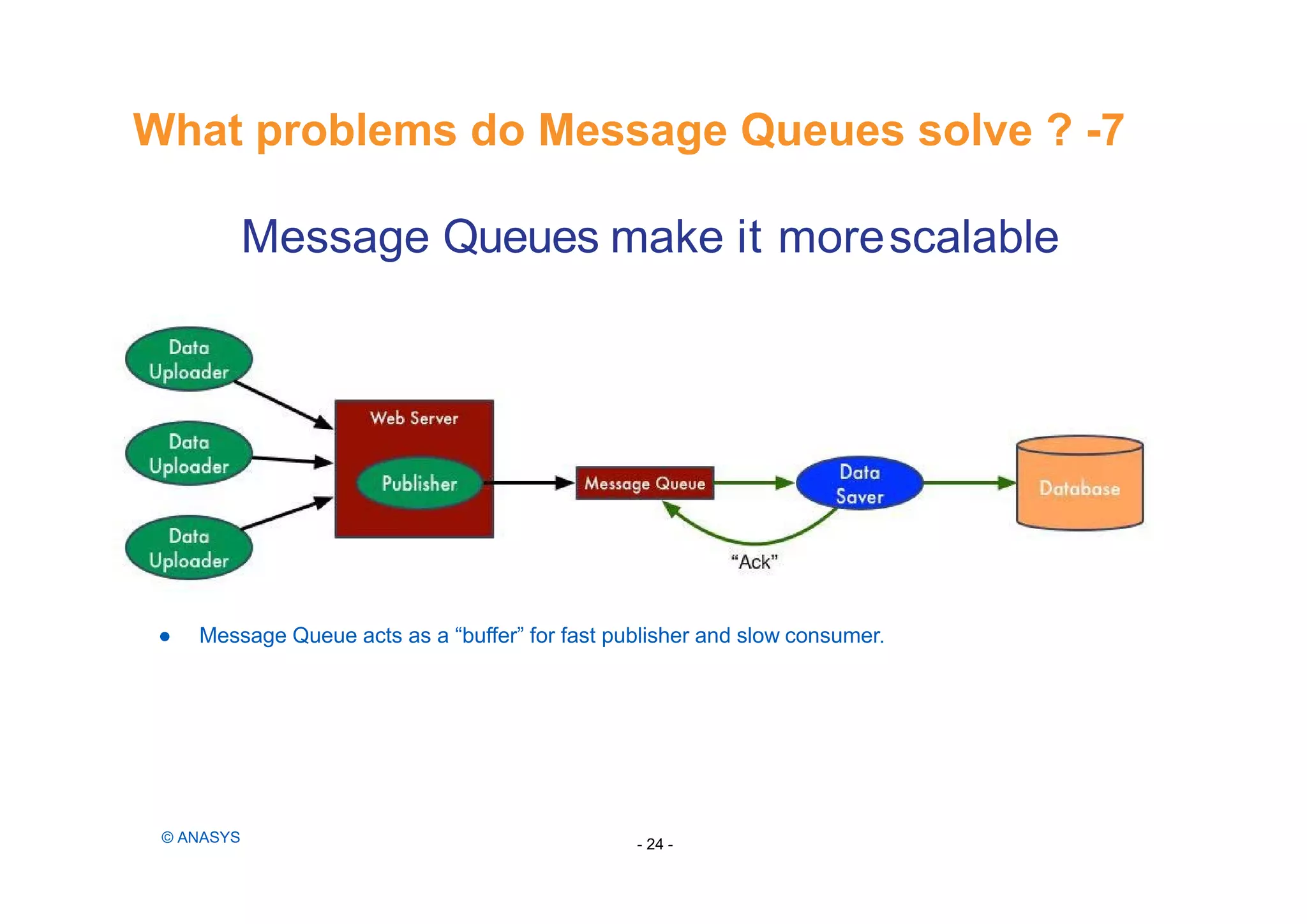

24. Message Queues make it morescalable
● Message Queue acts as a “buffer” for fast publisher and slow consumer.
What problems do Message Queues solve ? -7
© ANASYS - 24 -

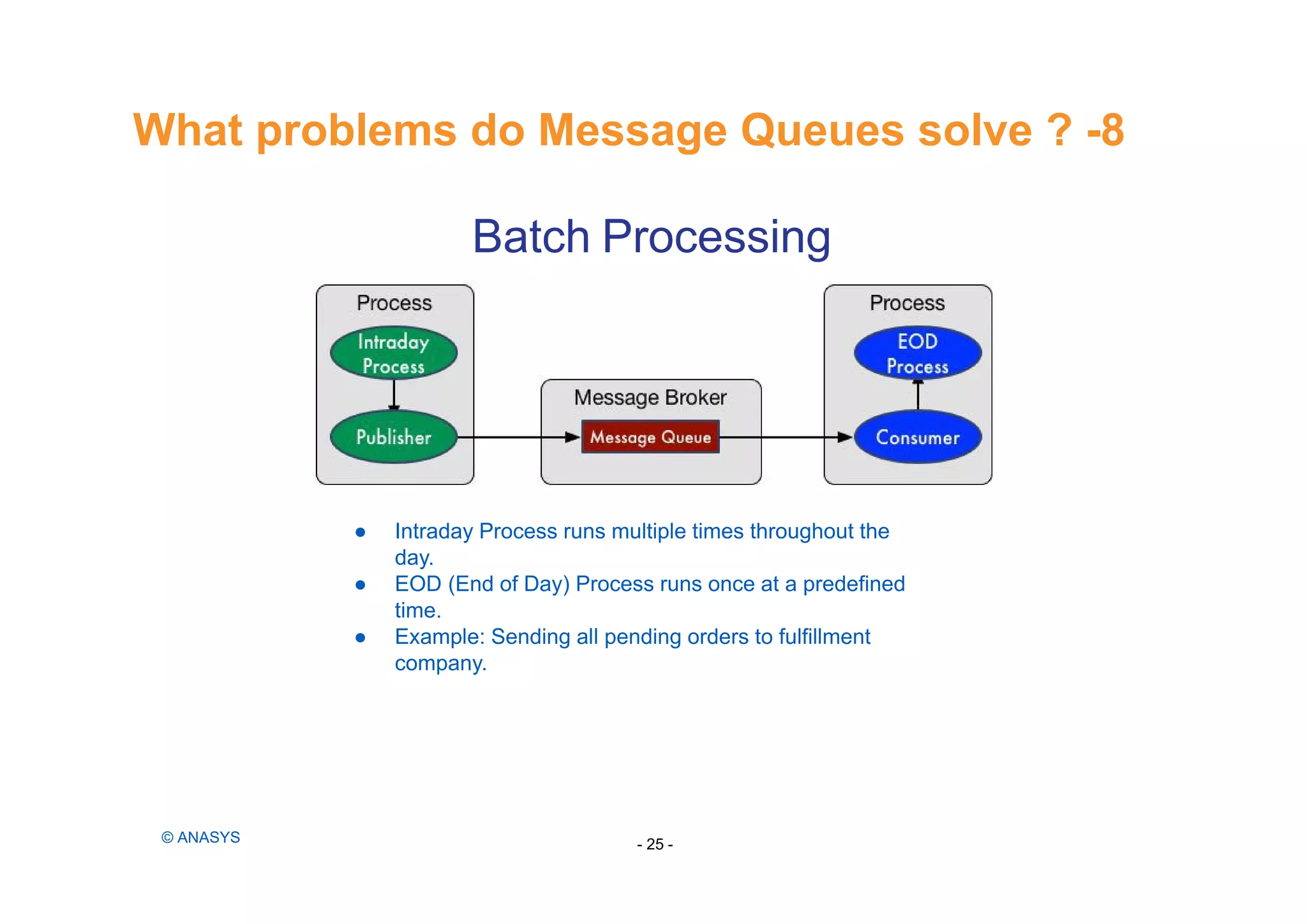

25. Batch Processing
● Intraday Process runs multiple times throughout the
day.
● EOD (End of Day) Process runs once at a predefined
time.
● Example: Sending all pending orders to fulfillment
company.
What problems do Message Queues solve ? -8
- 25 -© ANASYS

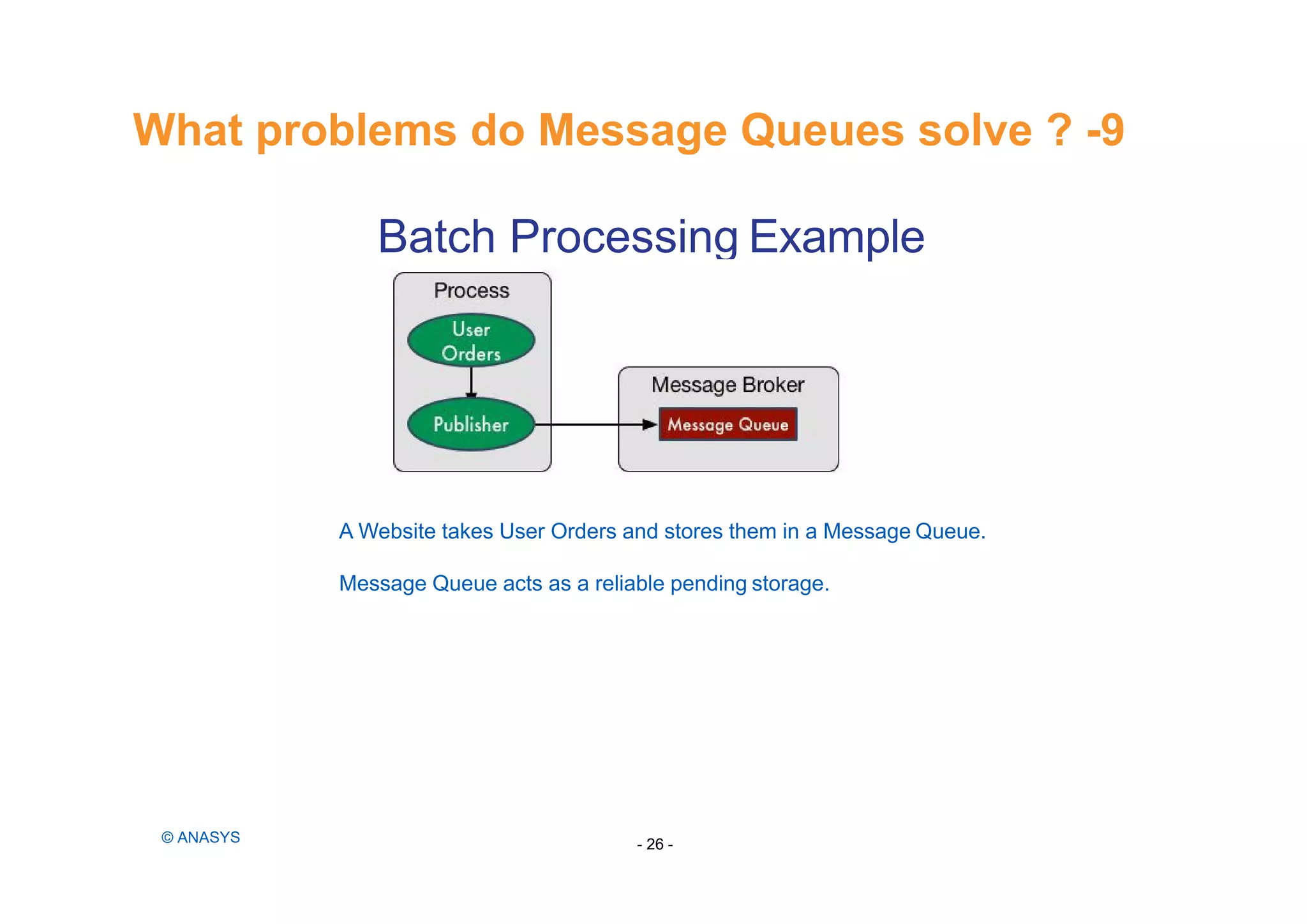

26. Batch Processing Example
A Website takes User Orders and stores them in a Message Queue.
Message Queue acts as a reliable pending storage.
What problems do Message Queues solve ? -9
- 26 -© ANASYS

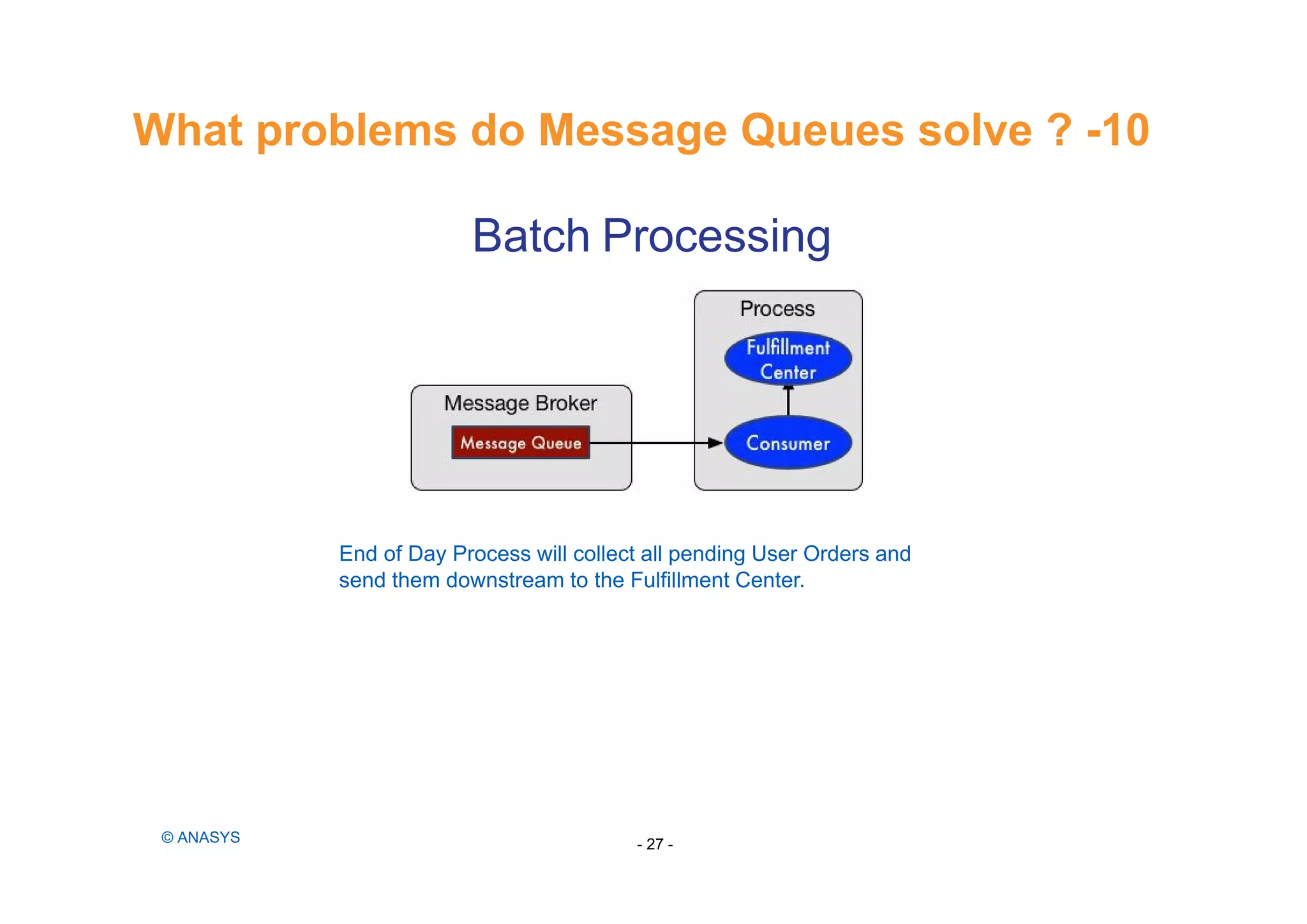

27. Batch Processing
End of Day Process will collect all pending User Orders and
send them downstream to the Fulfillment Center.
What problems do Message Queues solve ? -10
- 27 -© ANASYS

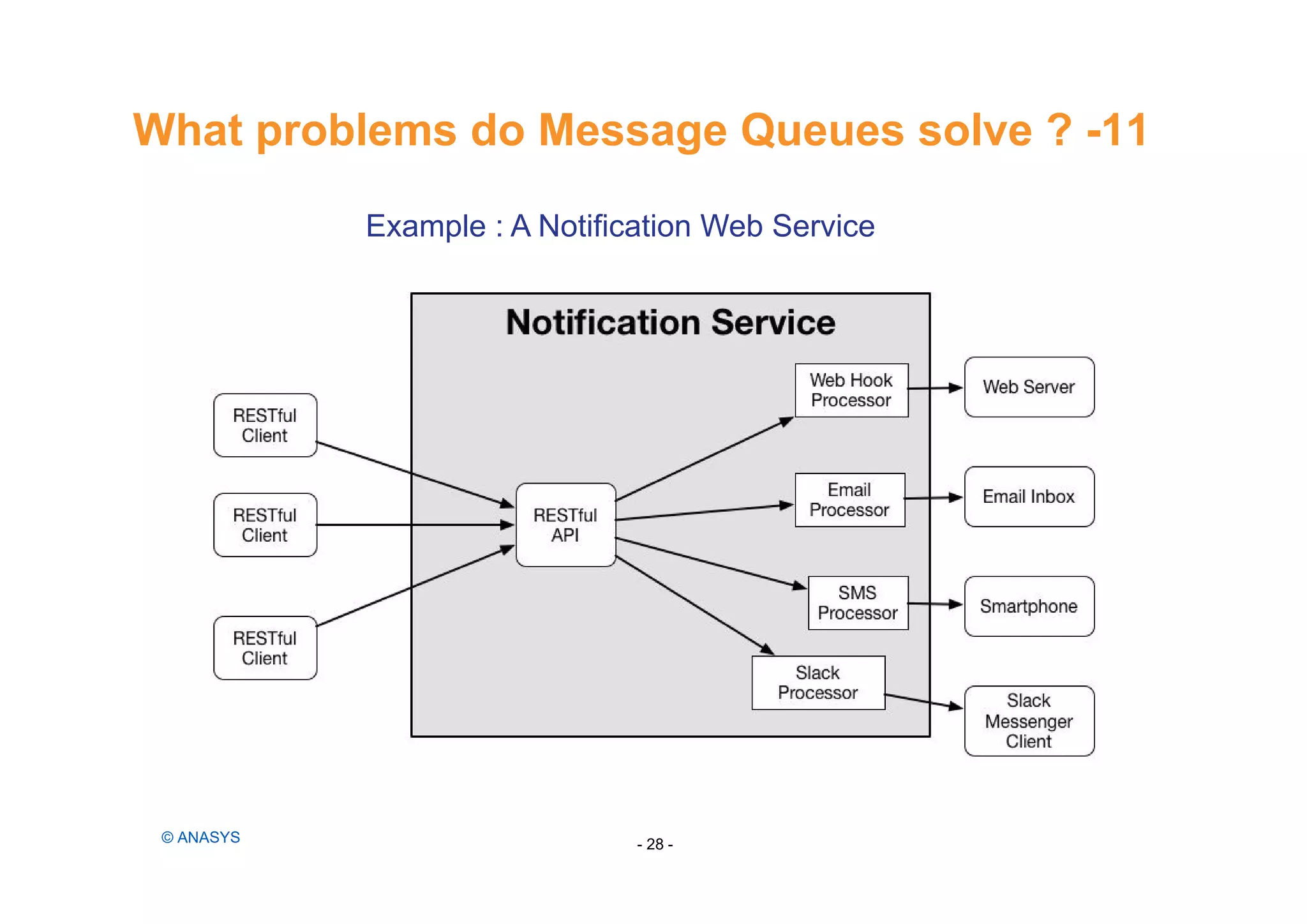

28. What problems do Message Queues solve ? -11
Example : A Notification Web Service
- 28 -© ANASYS

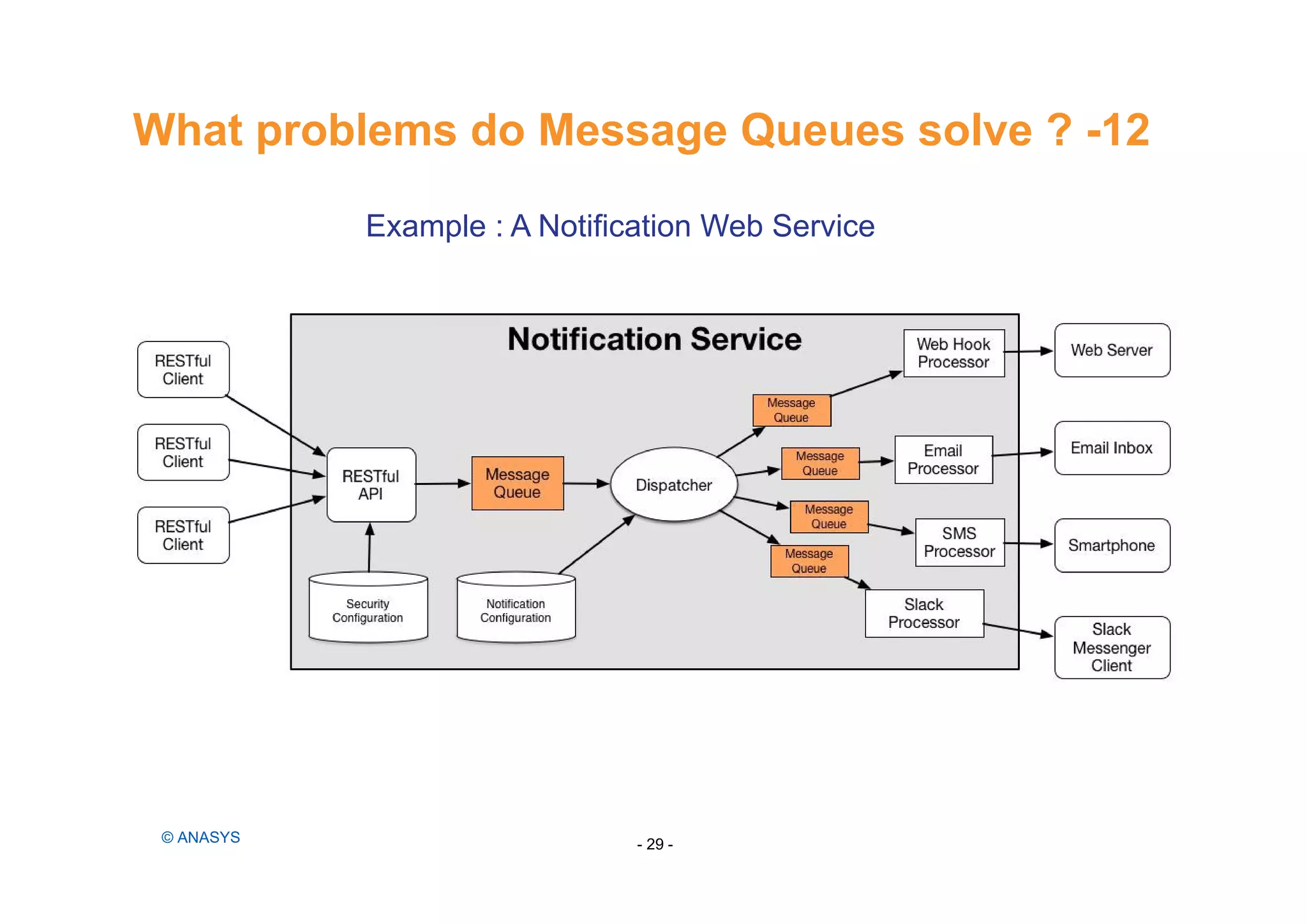

29. What problems do Message Queues solve ? -12
Example : A Notification Web Service
- 29 -© ANASYS

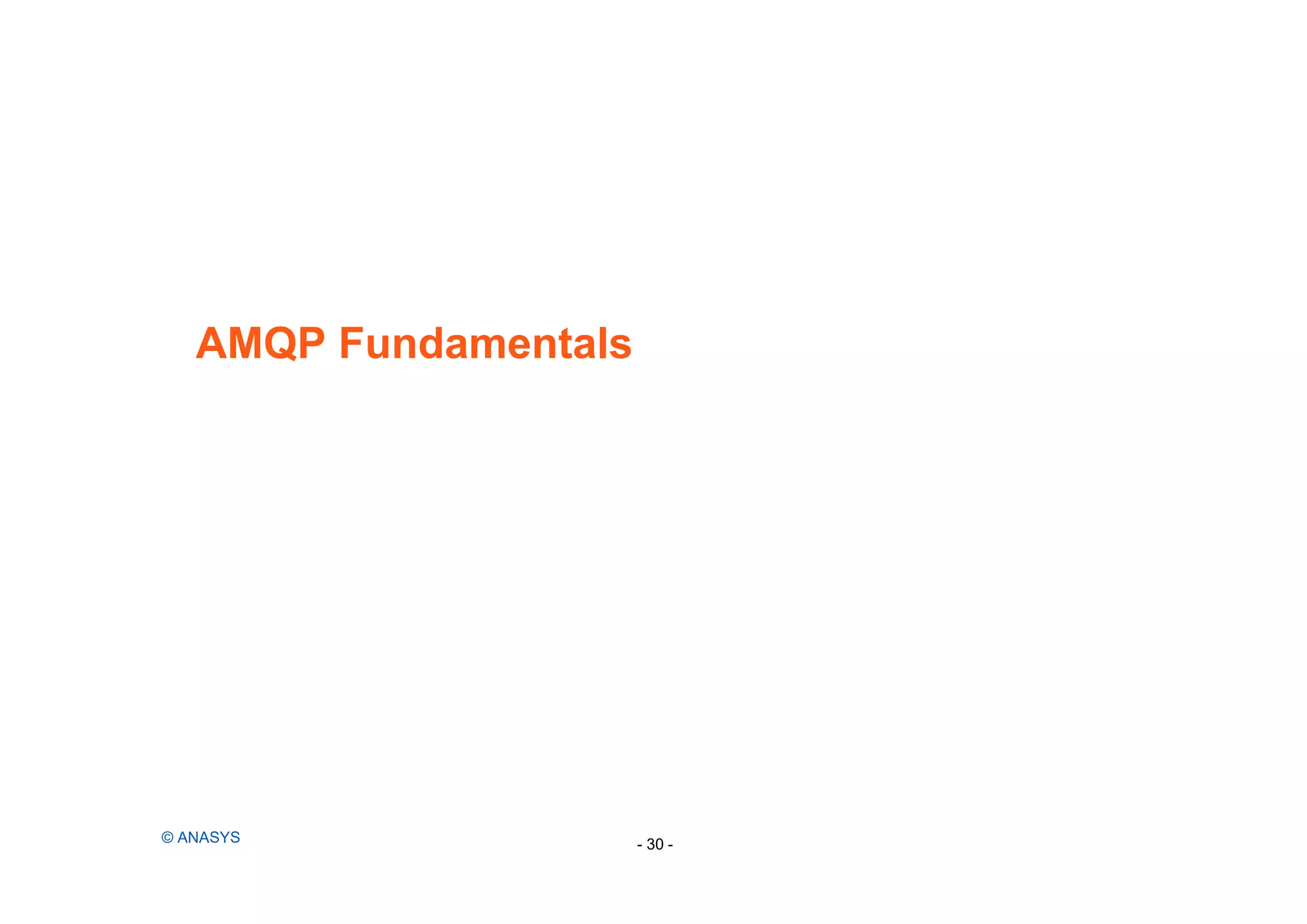

30. AMQP Fundamentals
© ANASYS - 30 -

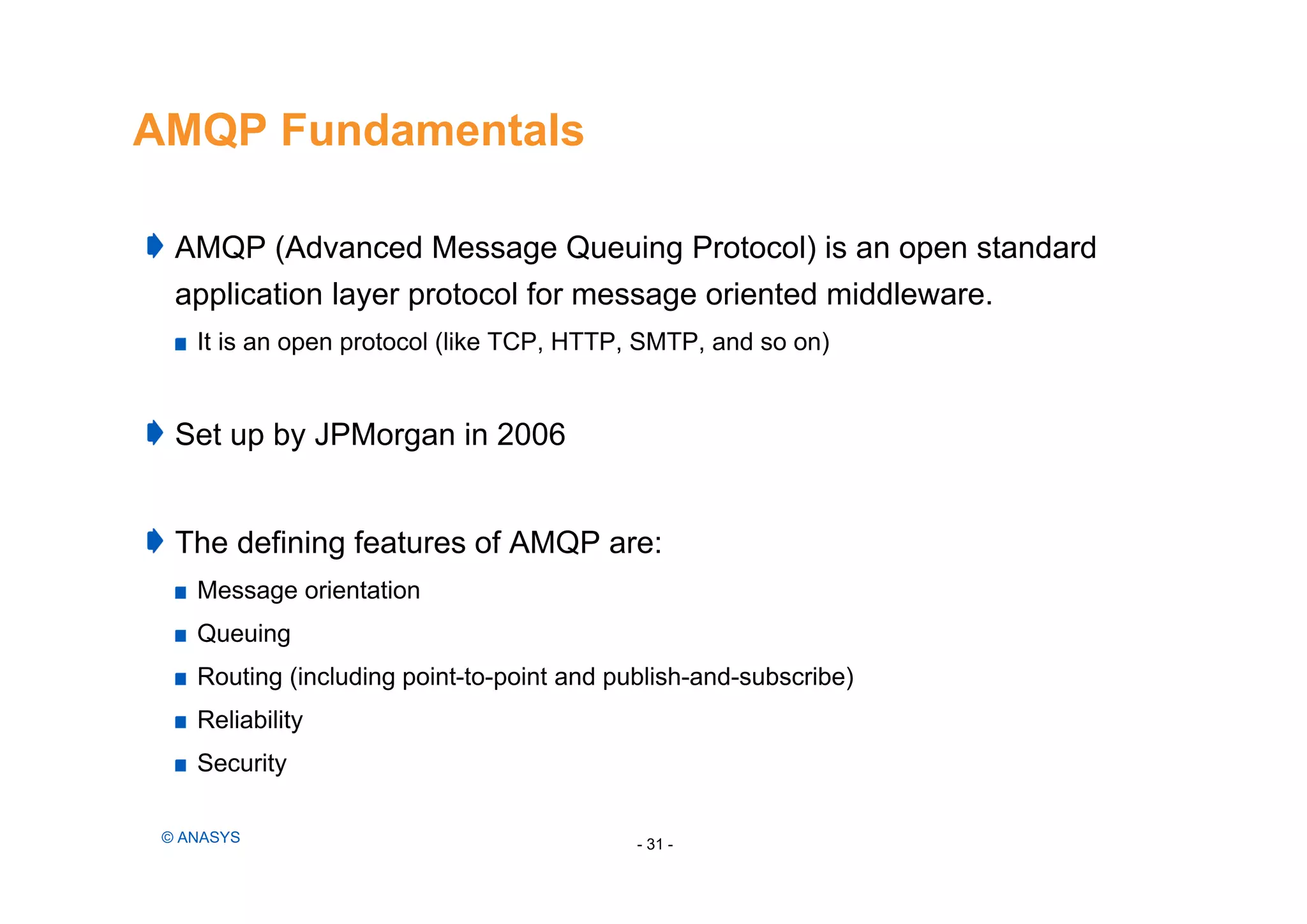

31. AMQP Fundamentals
AMQP (Advanced Message Queuing Protocol) is an open standard
application layer protocol for message oriented middleware.
It is an open protocol (like TCP, HTTP, SMTP, and so on)
Set up by JPMorgan in 2006
The defining features of AMQP are:
Message orientation
Queuing
Routing (including point-to-point and publish-and-subscribe)
Reliability
Security
- 31 -© ANASYS

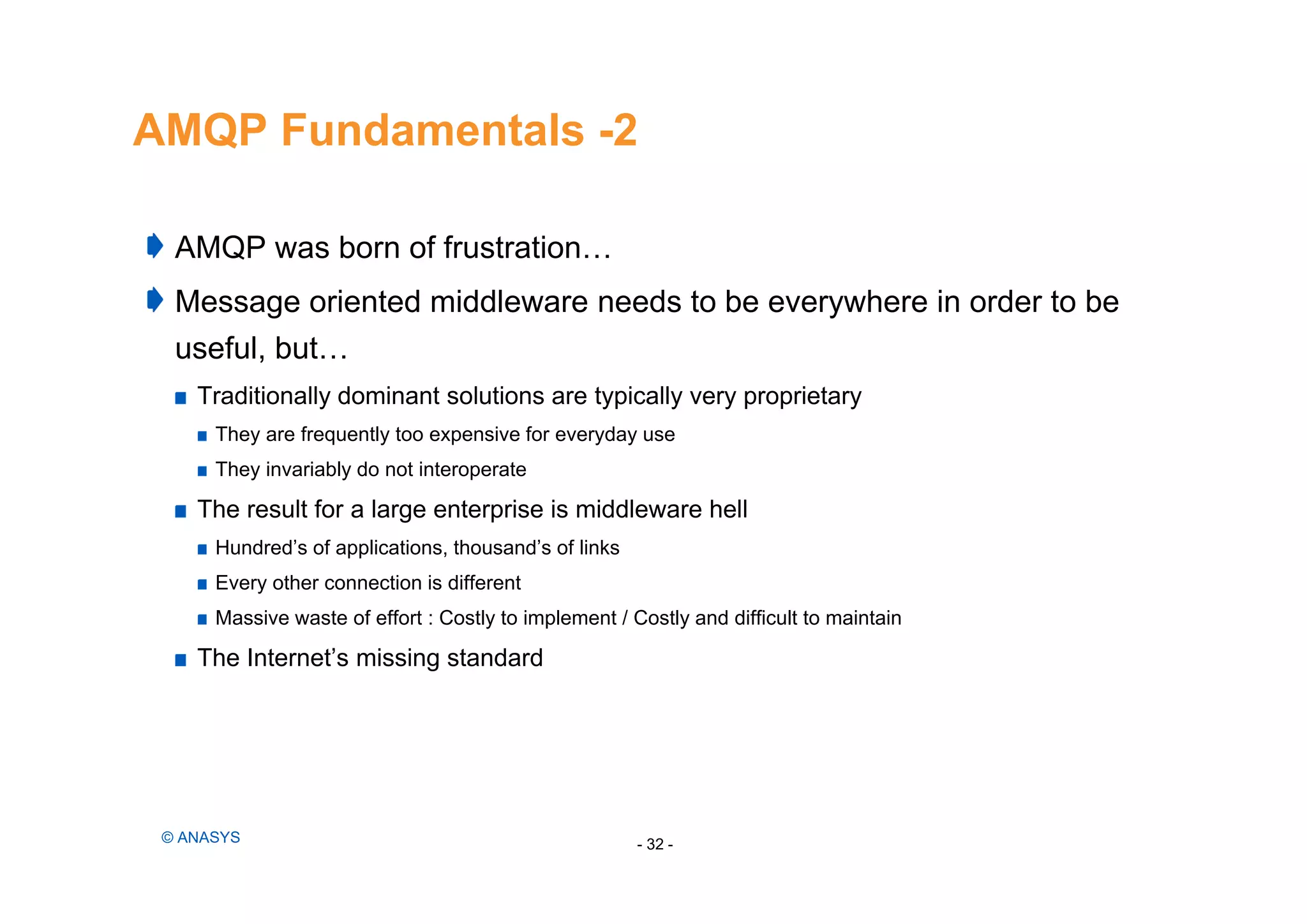

32. AMQP Fundamentals -2
AMQP was born of frustration…
Message oriented middleware needs to be everywhere in order to be
useful, but…
Traditionally dominant solutions are typically very proprietary
They are frequently too expensive for everyday use
They invariably do not interoperate
The result for a large enterprise is middleware hell
Hundred’s of applications, thousand’s of links
Every other connection is different
Massive waste of effort : Costly to implement / Costly and difficult to maintain
The Internet’s missing standard
- 32 -© ANASYS

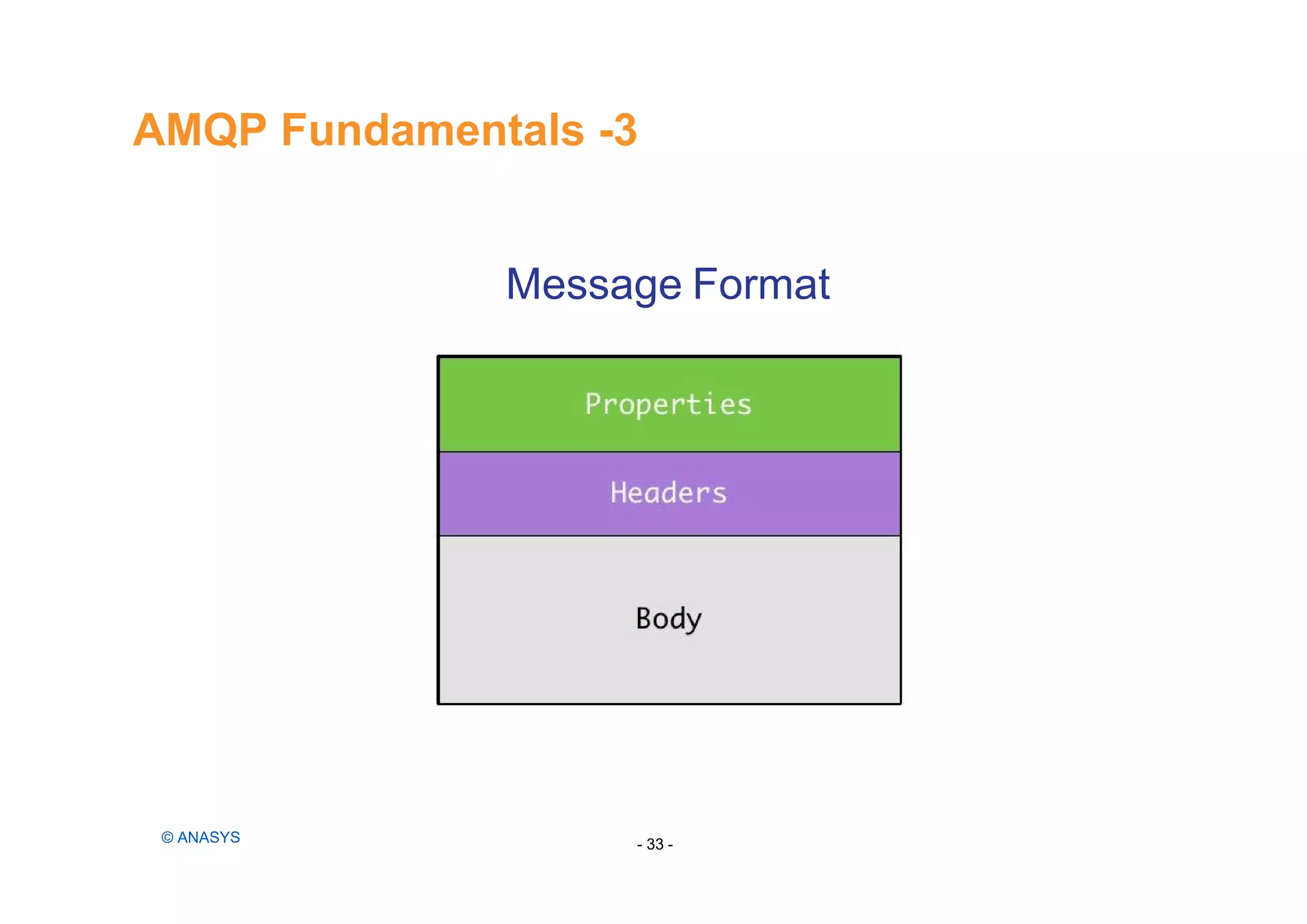

33. AMQP Fundamentals -3
- 33 -© ANASYS
Message Format

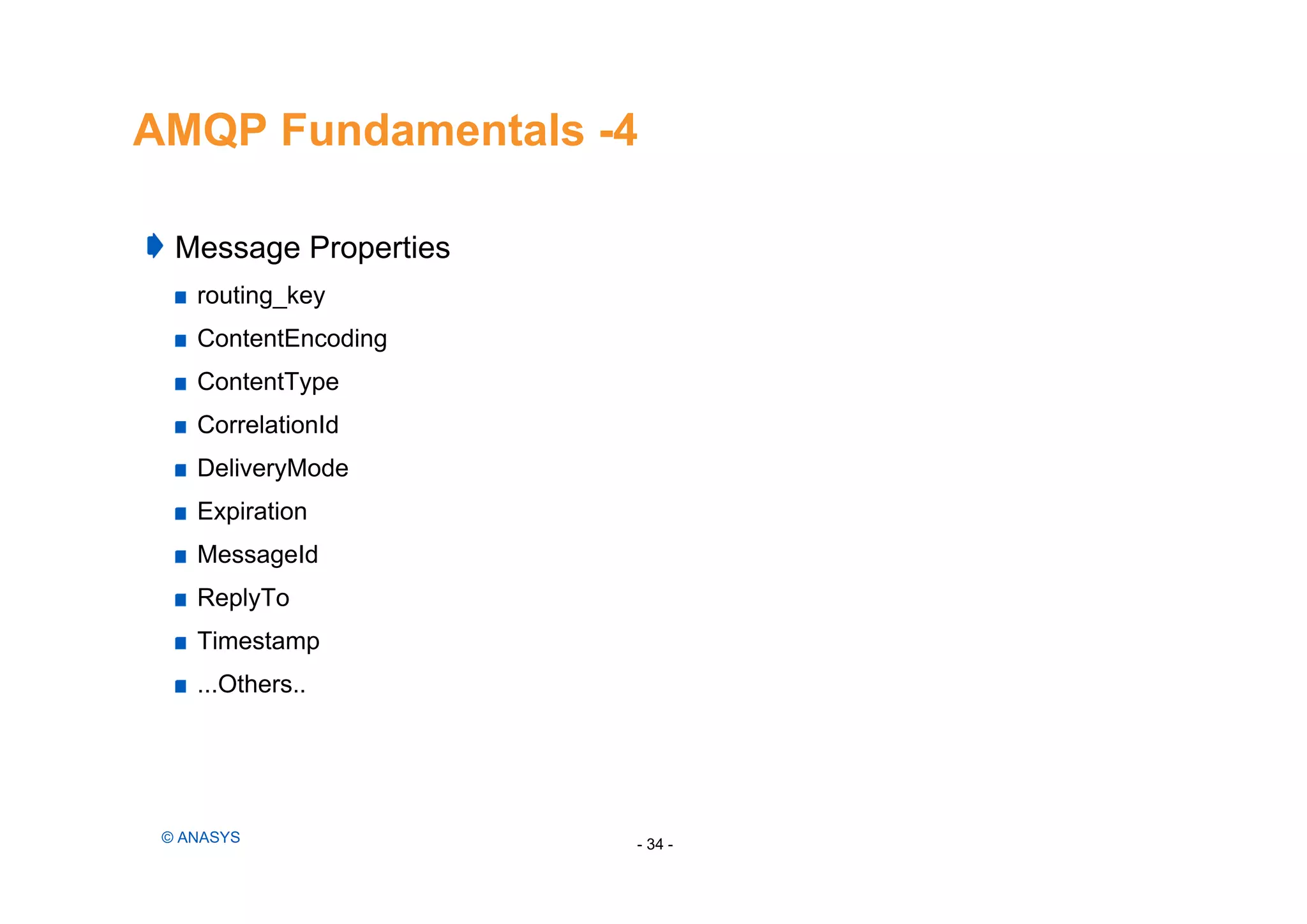

34. AMQP Fundamentals -4
- 34 -© ANASYS
Message Properties
routing_key
ContentEncoding
ContentType
CorrelationId
DeliveryMode
Expiration
MessageId
ReplyTo
Timestamp
...Others..

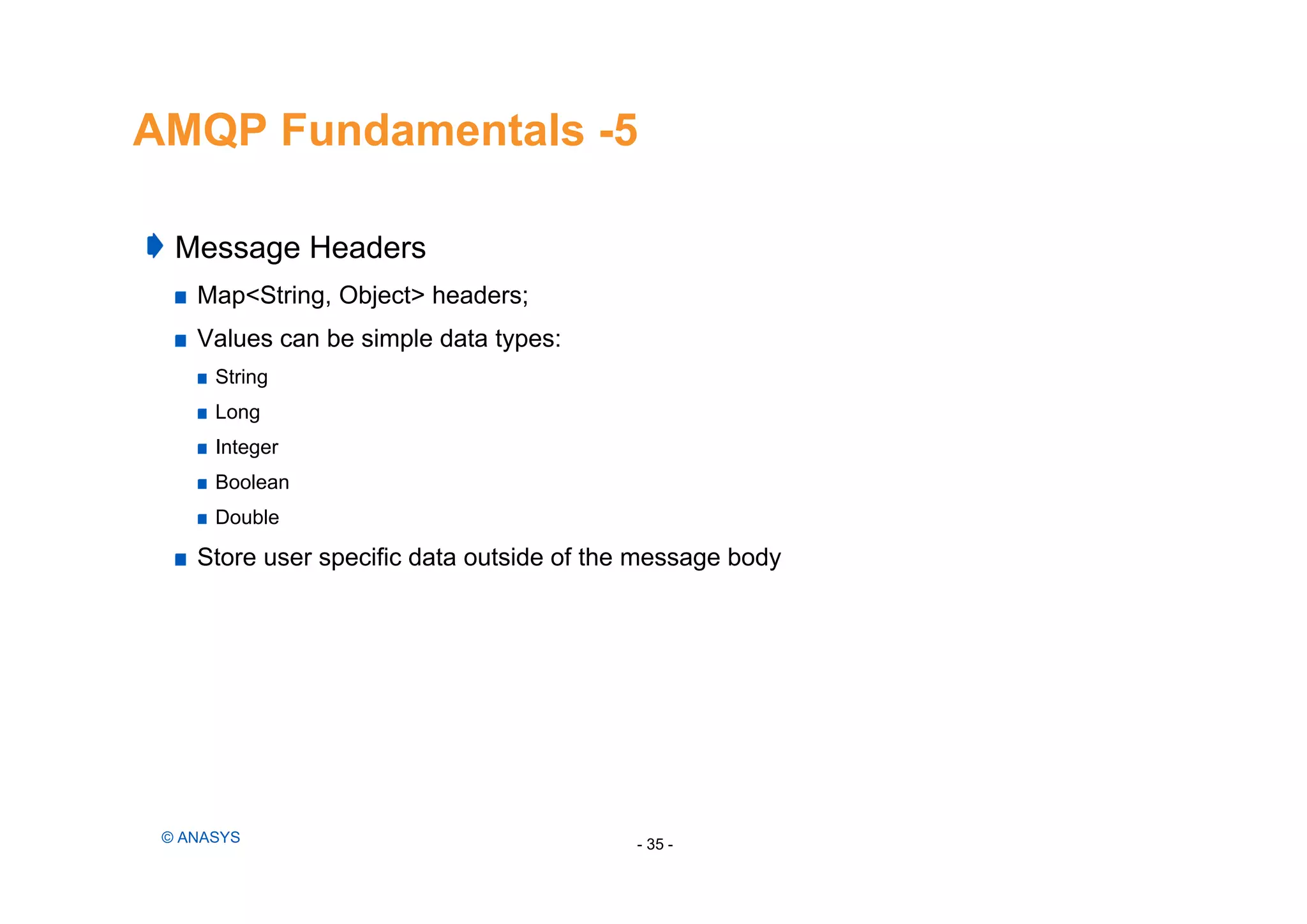

35. AMQP Fundamentals -5
- 35 -© ANASYS
Message Headers
Map<String, Object> headers;
Values can be simple data types:
String
Long
Integer
Boolean
Double
Store user specific data outside of the message body

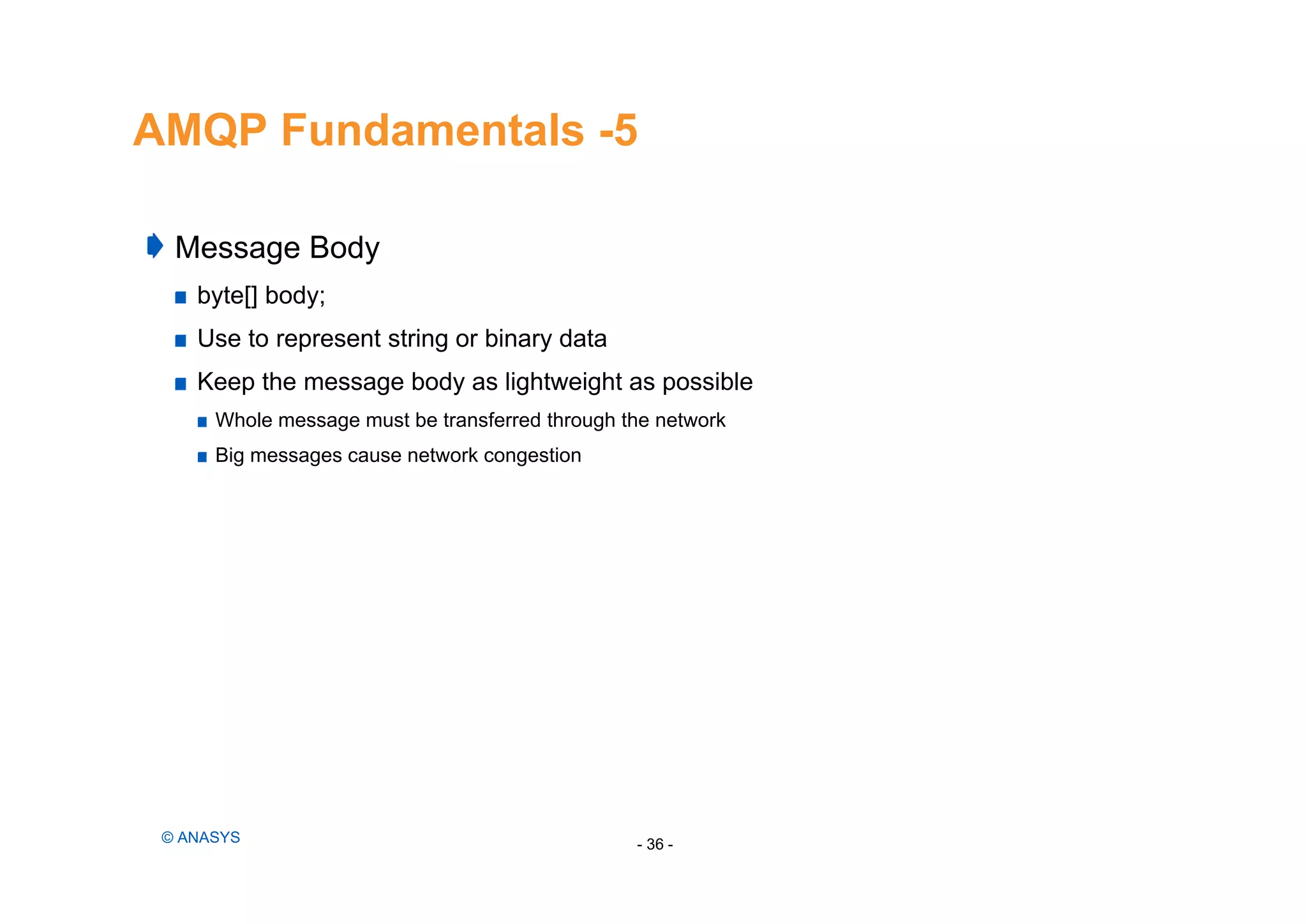

36. AMQP Fundamentals -5
- 36 -© ANASYS
Message Body
byte[] body;
Use to represent string or binary data
Keep the message body as lightweight as possible
Whole message must be transferred through the network
Big messages cause network congestion

37. Introduction to RabbitMQ
© ANASYS - 37 -

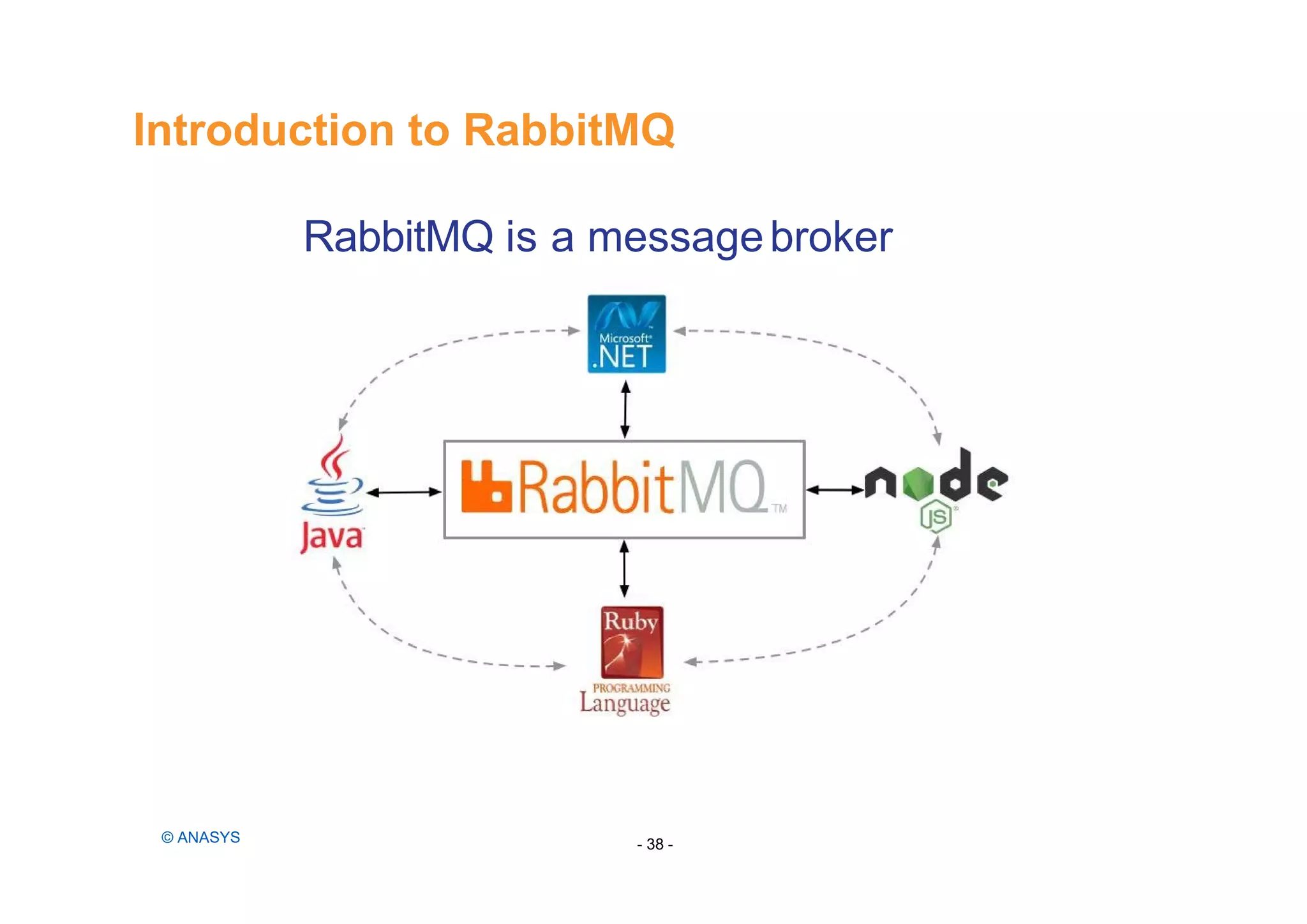

38. Introduction to RabbitMQ
- 38 -© ANASYS
RabbitMQ is a messagebroker

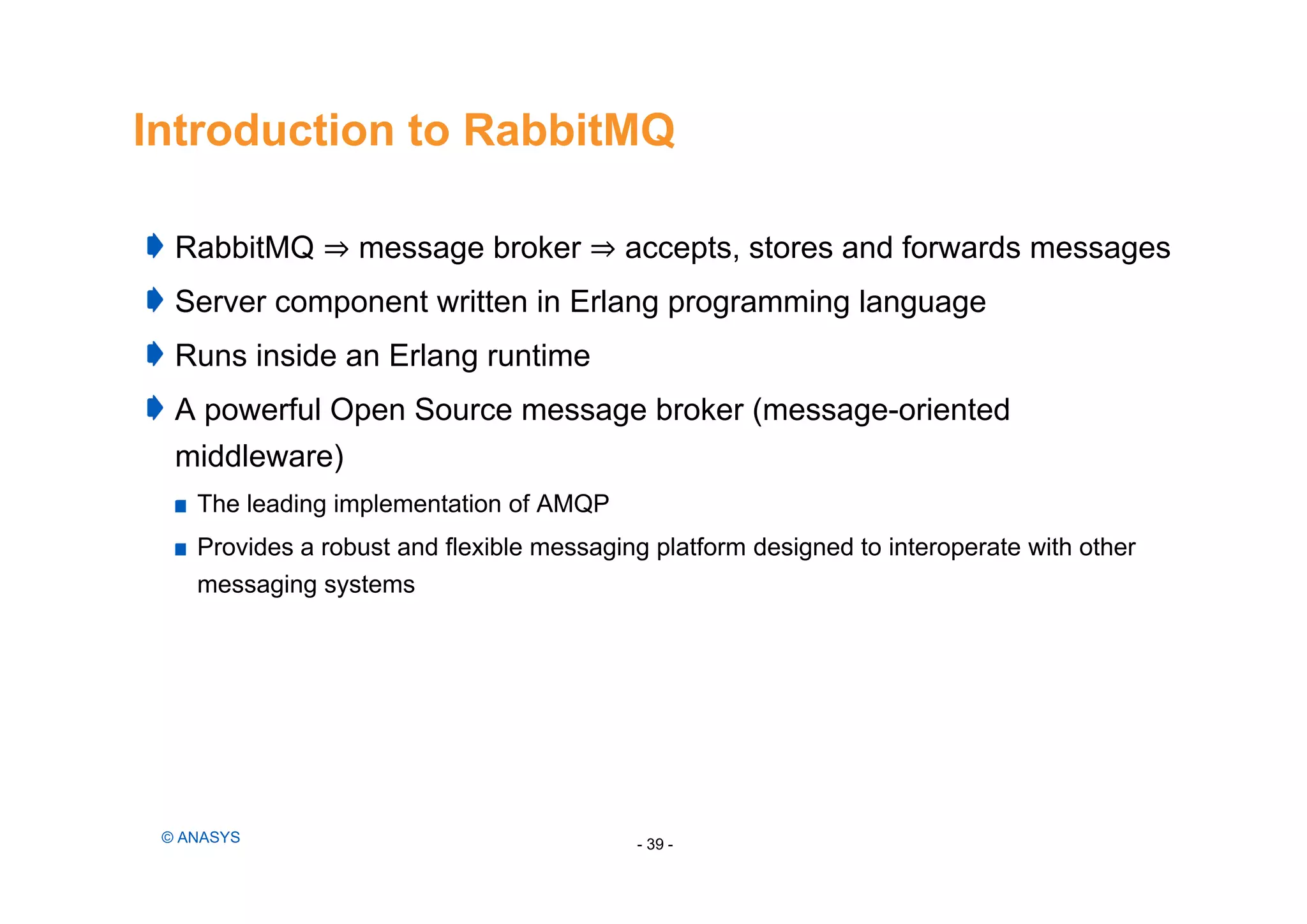

39. Introduction to RabbitMQ
RabbitMQ ⇒ message broker ⇒ accepts, stores and forwards messages
Server component written in Erlang programming language
Runs inside an Erlang runtime
A powerful Open Source message broker (message-oriented
middleware)
The leading implementation of AMQP
Provides a robust and flexible messaging platform designed to interoperate with other
messaging systems
- 39 -© ANASYS

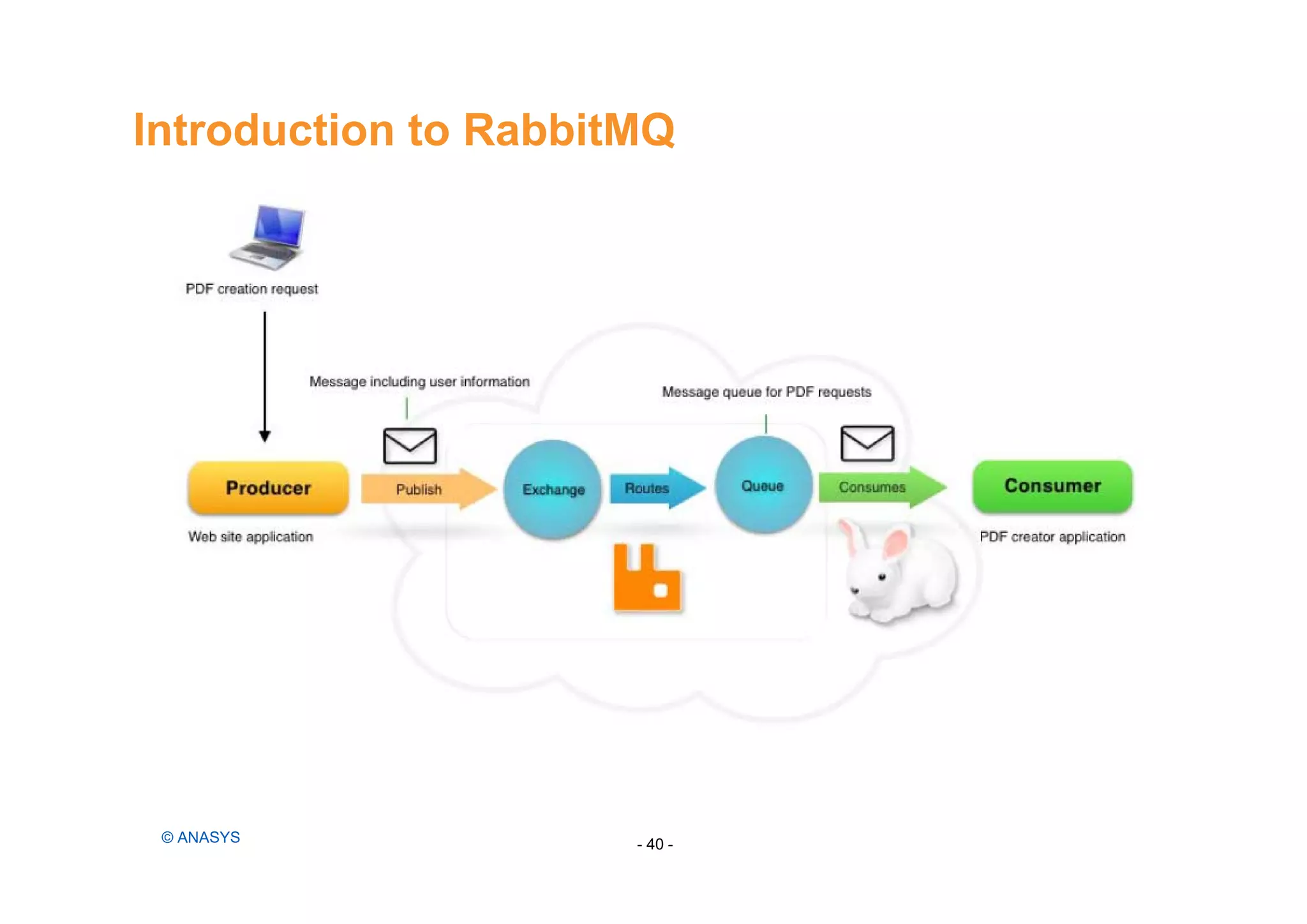

40. Introduction to RabbitMQ
- 40 -© ANASYS

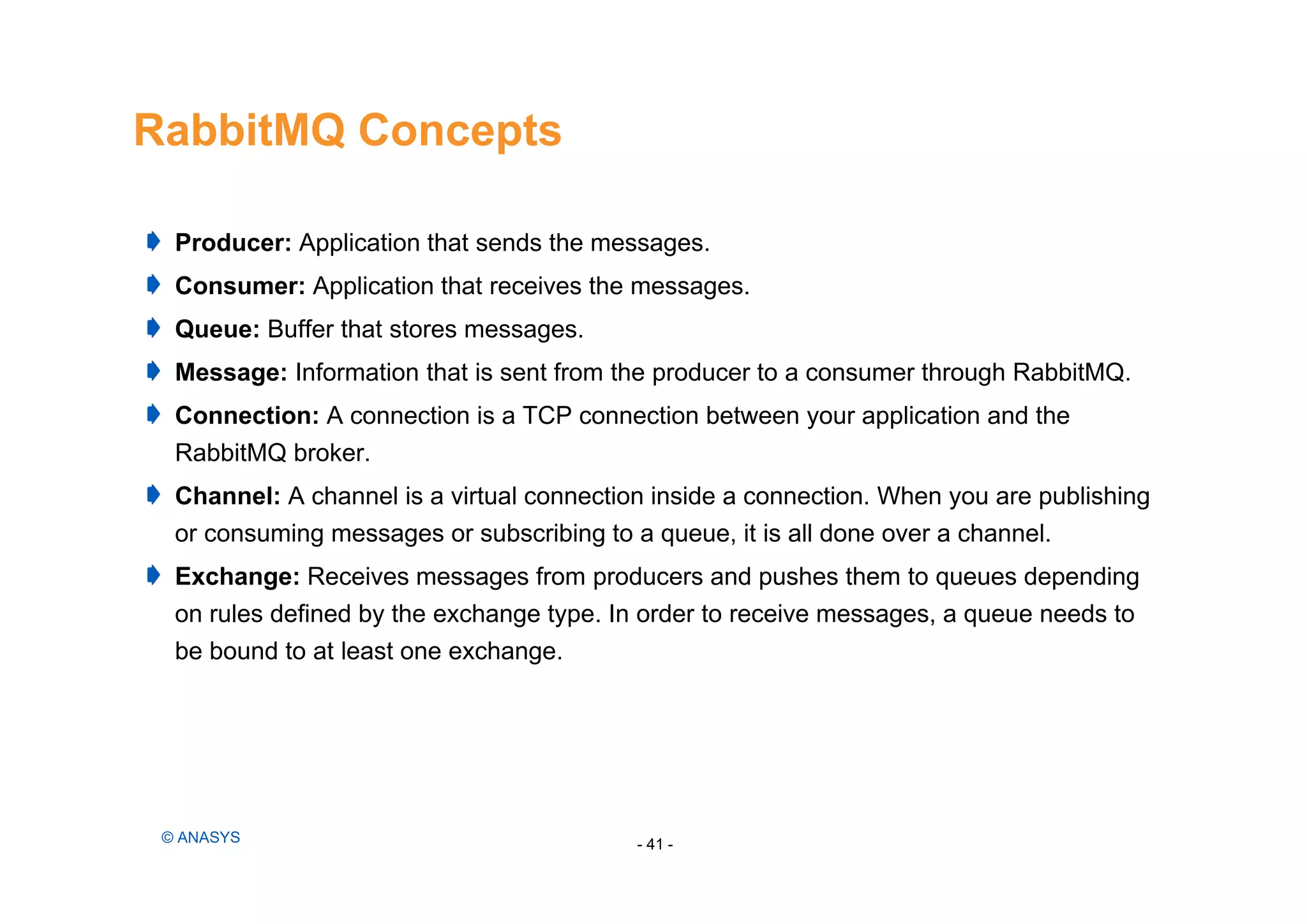

41. RabbitMQ Concepts
- 41 -© ANASYS
Producer: Application that sends the messages.
Consumer: Application that receives the messages.
Queue: Buffer that stores messages.
Message: Information that is sent from the producer to a consumer through RabbitMQ.
Connection: A connection is a TCP connection between your application and the
RabbitMQ broker.
Channel: A channel is a virtual connection inside a connection. When you are publishing
or consuming messages or subscribing to a queue, it is all done over a channel.
Exchange: Receives messages from producers and pushes them to queues depending
on rules defined by the exchange type. In order to receive messages, a queue needs to
be bound to at least one exchange.

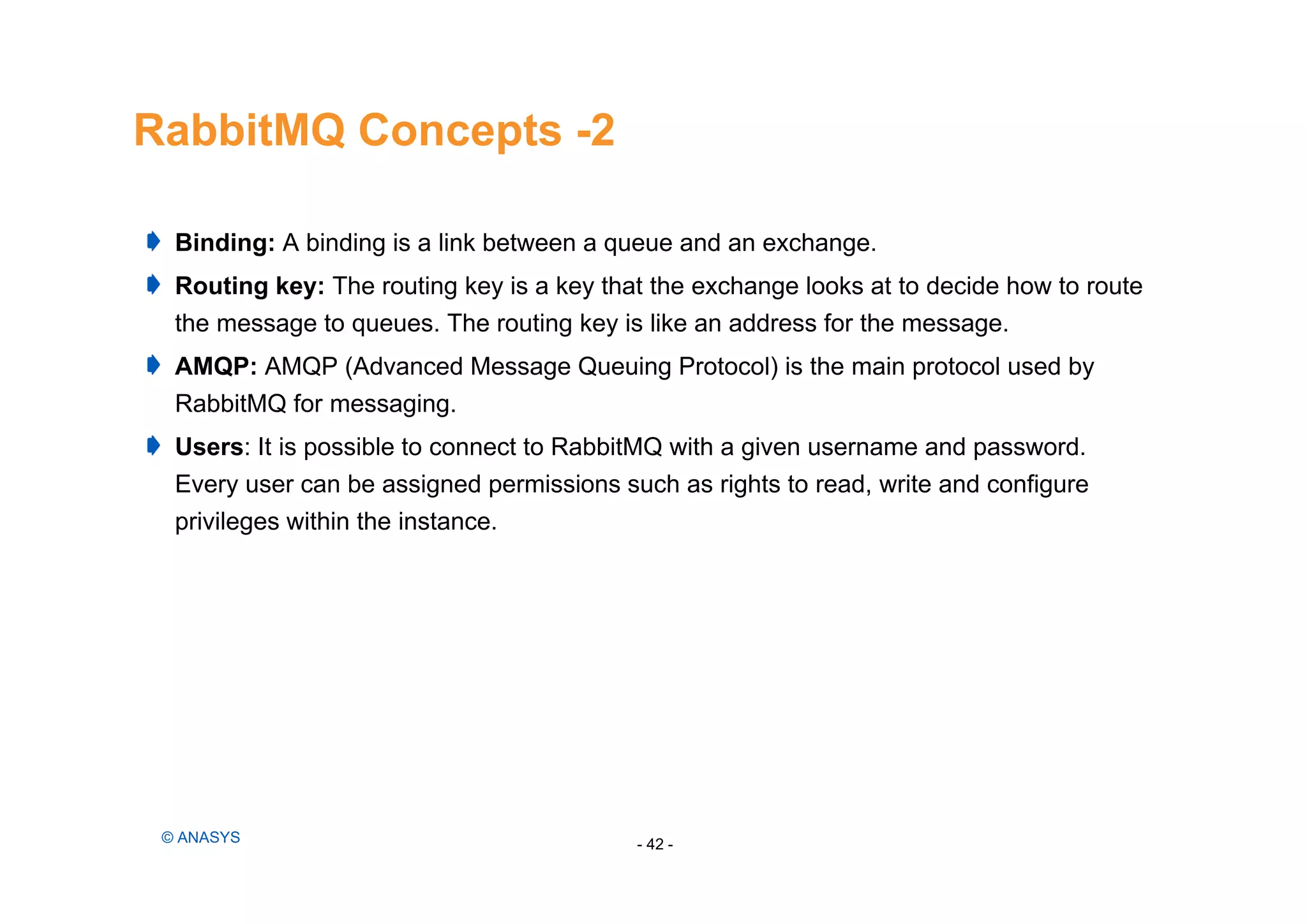

42. RabbitMQ Concepts -2
- 42 -© ANASYS
Binding: A binding is a link between a queue and an exchange.
Routing key: The routing key is a key that the exchange looks at to decide how to route
the message to queues. The routing key is like an address for the message.
AMQP: AMQP (Advanced Message Queuing Protocol) is the main protocol used by
RabbitMQ for messaging.
Users: It is possible to connect to RabbitMQ with a given username and password.
Every user can be assigned permissions such as rights to read, write and configure
privileges within the instance.

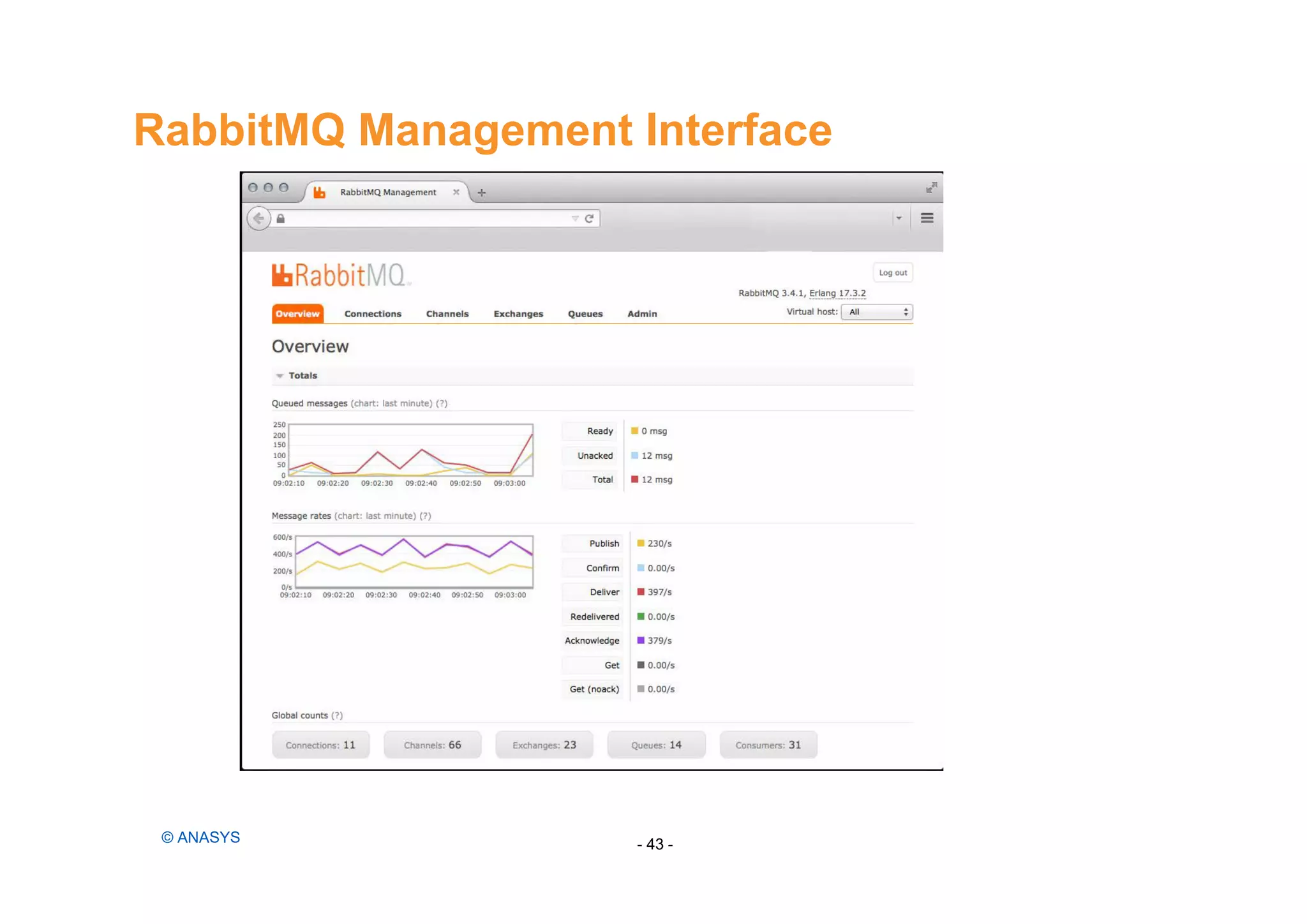

43. RabbitMQ Management Interface
- 43 -© ANASYS

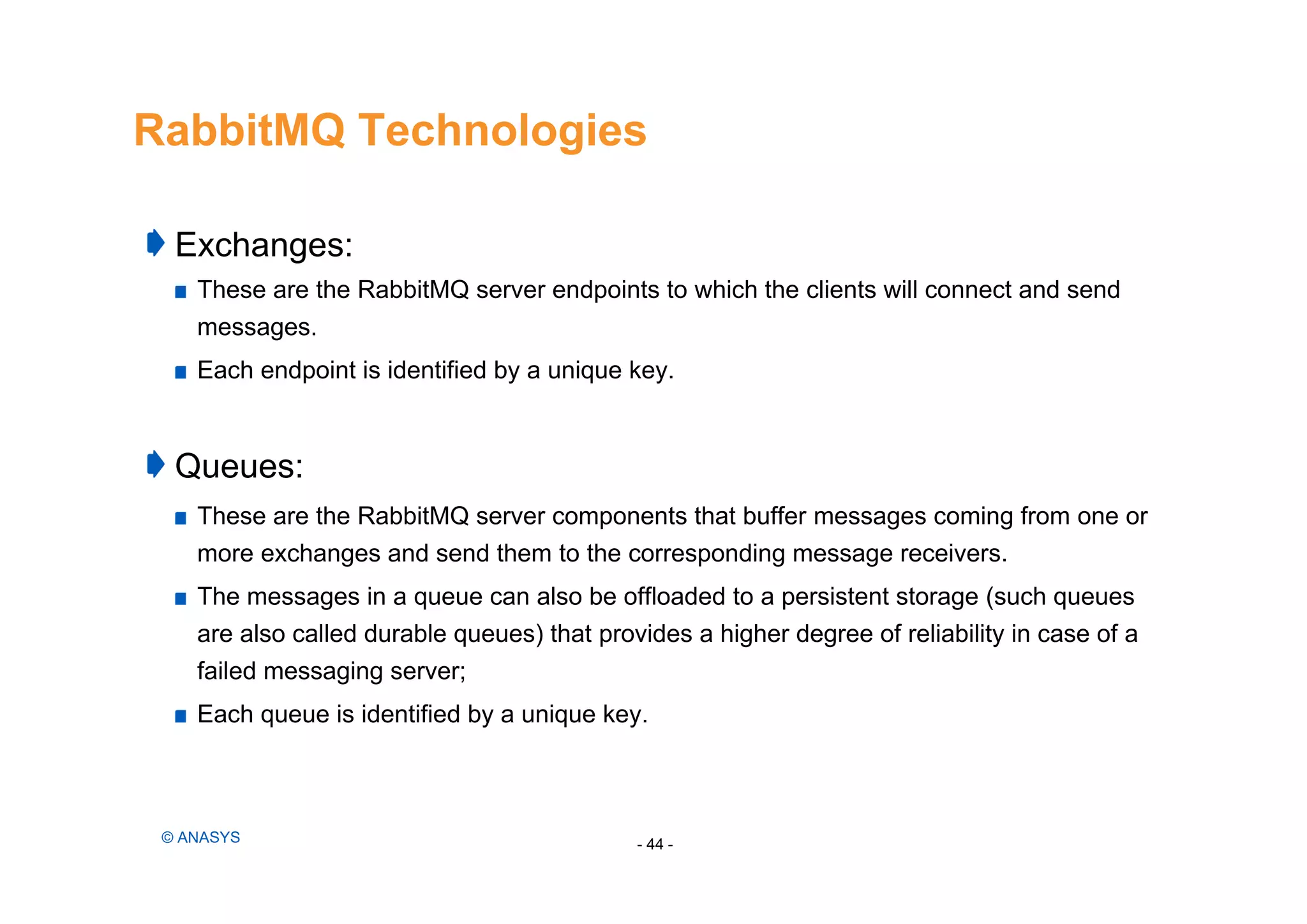

44. RabbitMQ Technologies
Exchanges:
These are the RabbitMQ server endpoints to which the clients will connect and send
messages.
Each endpoint is identified by a unique key.
Queues:
These are the RabbitMQ server components that buffer messages coming from one or
more exchanges and send them to the corresponding message receivers.
The messages in a queue can also be offloaded to a persistent storage (such queues
are also called durable queues) that provides a higher degree of reliability in case of a
failed messaging server;
Each queue is identified by a unique key.
- 44 -© ANASYS

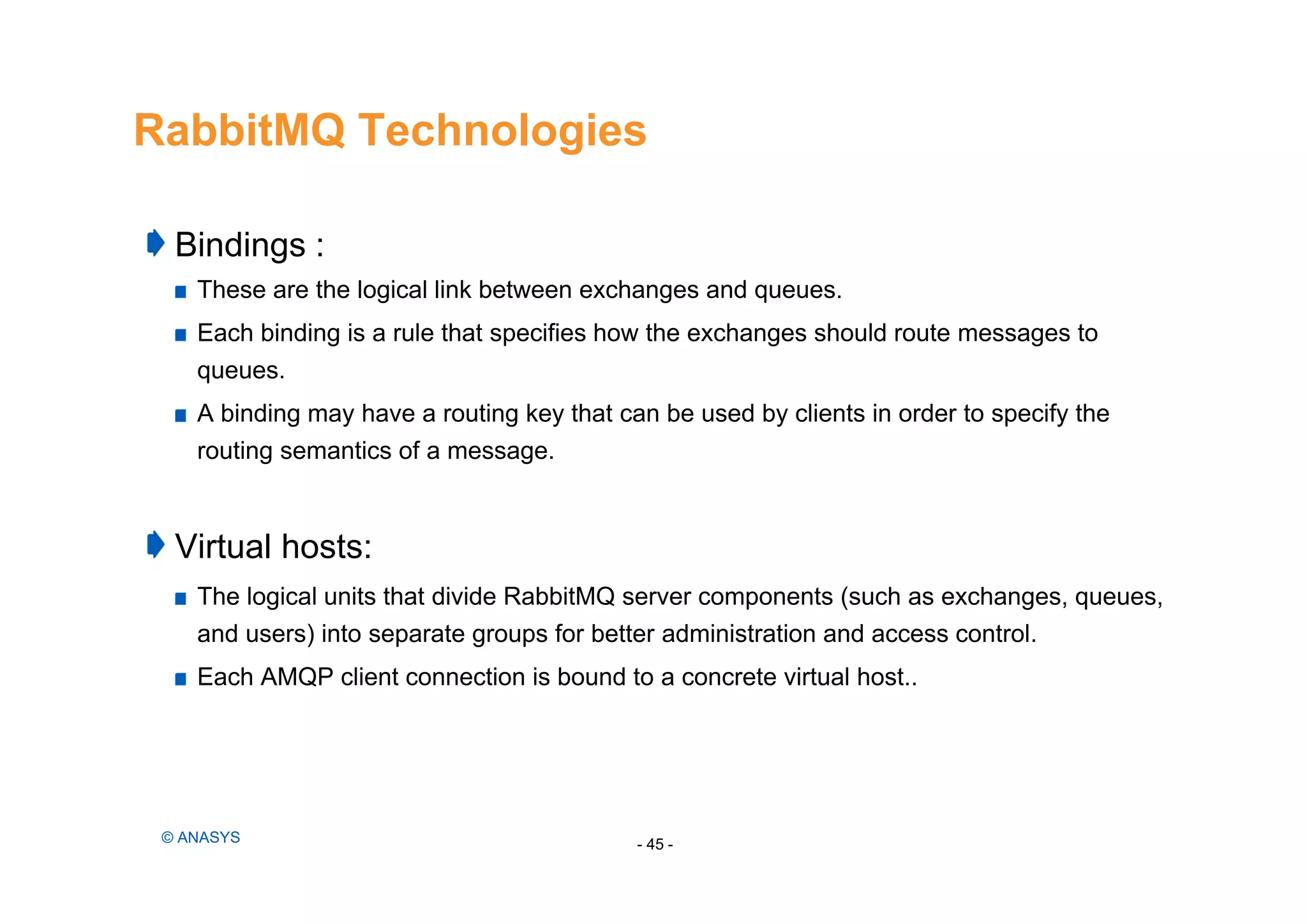

45. RabbitMQ Technologies
Bindings :
These are the logical link between exchanges and queues.
Each binding is a rule that specifies how the exchanges should route messages to
queues.
A binding may have a routing key that can be used by clients in order to specify the
routing semantics of a message.
Virtual hosts:
The logical units that divide RabbitMQ server components (such as exchanges, queues,
and users) into separate groups for better administration and access control.
Each AMQP client connection is bound to a concrete virtual host..
- 45 -© ANASYS

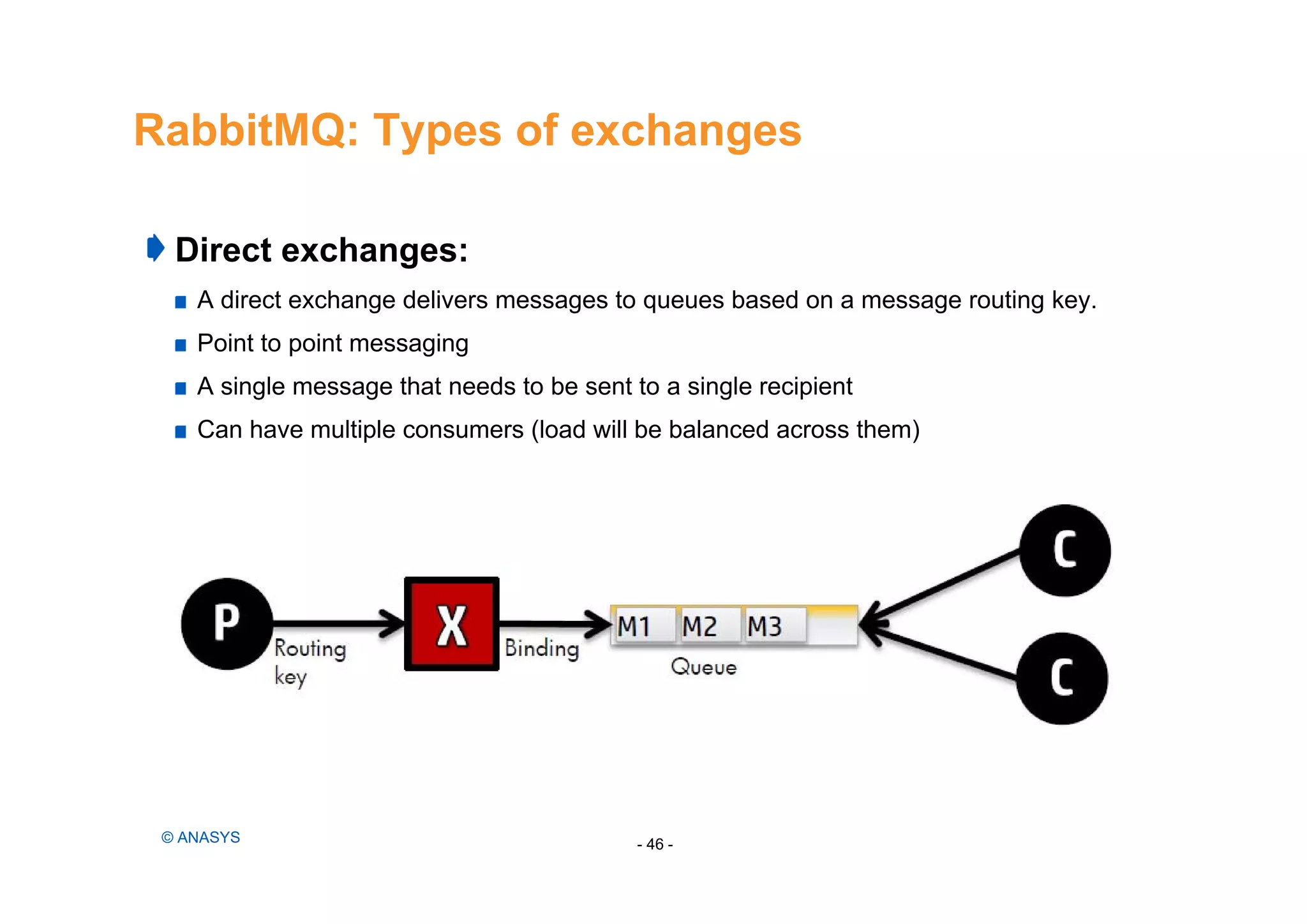

46. RabbitMQ: Types of exchanges
- 46 -© ANASYS

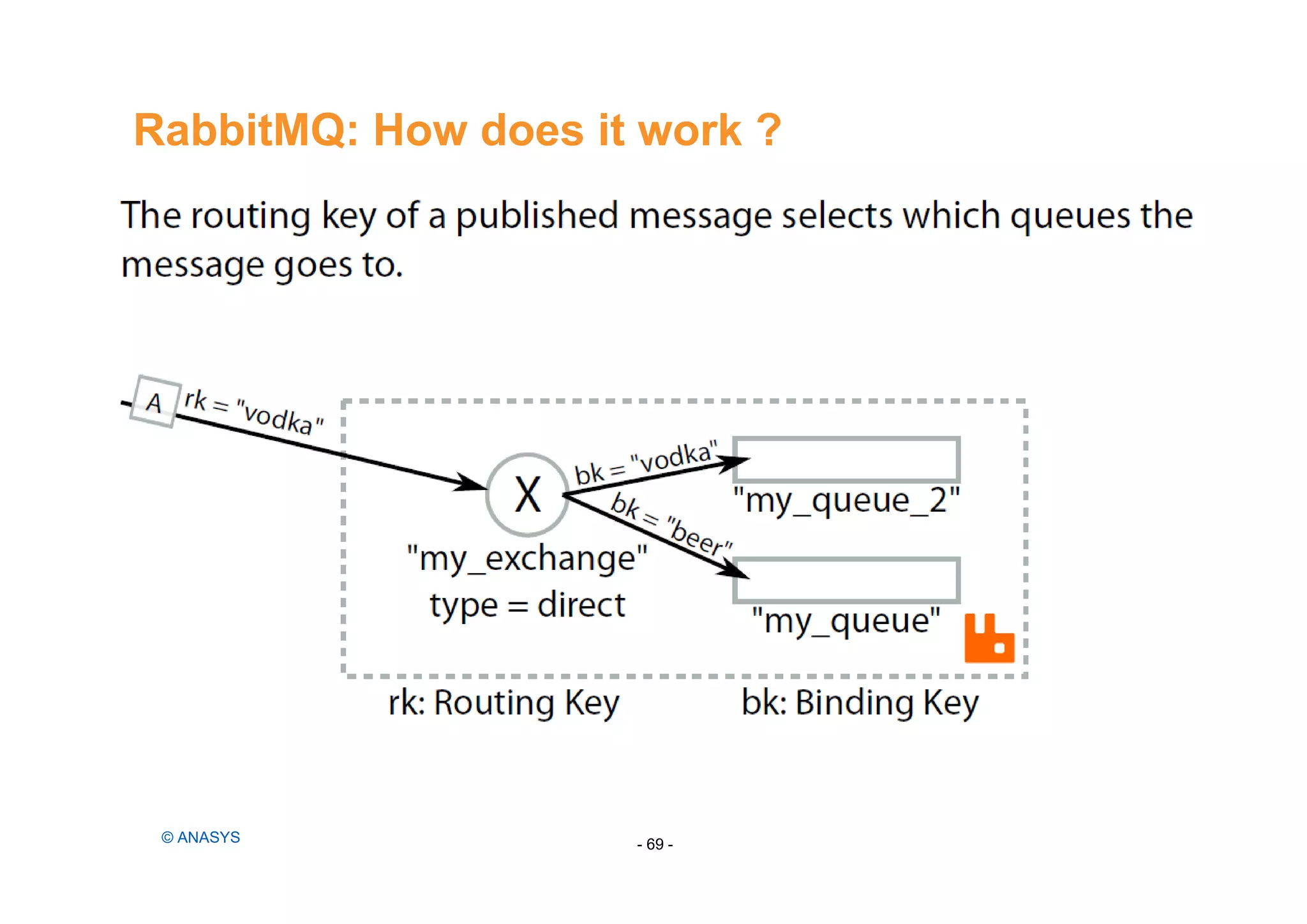

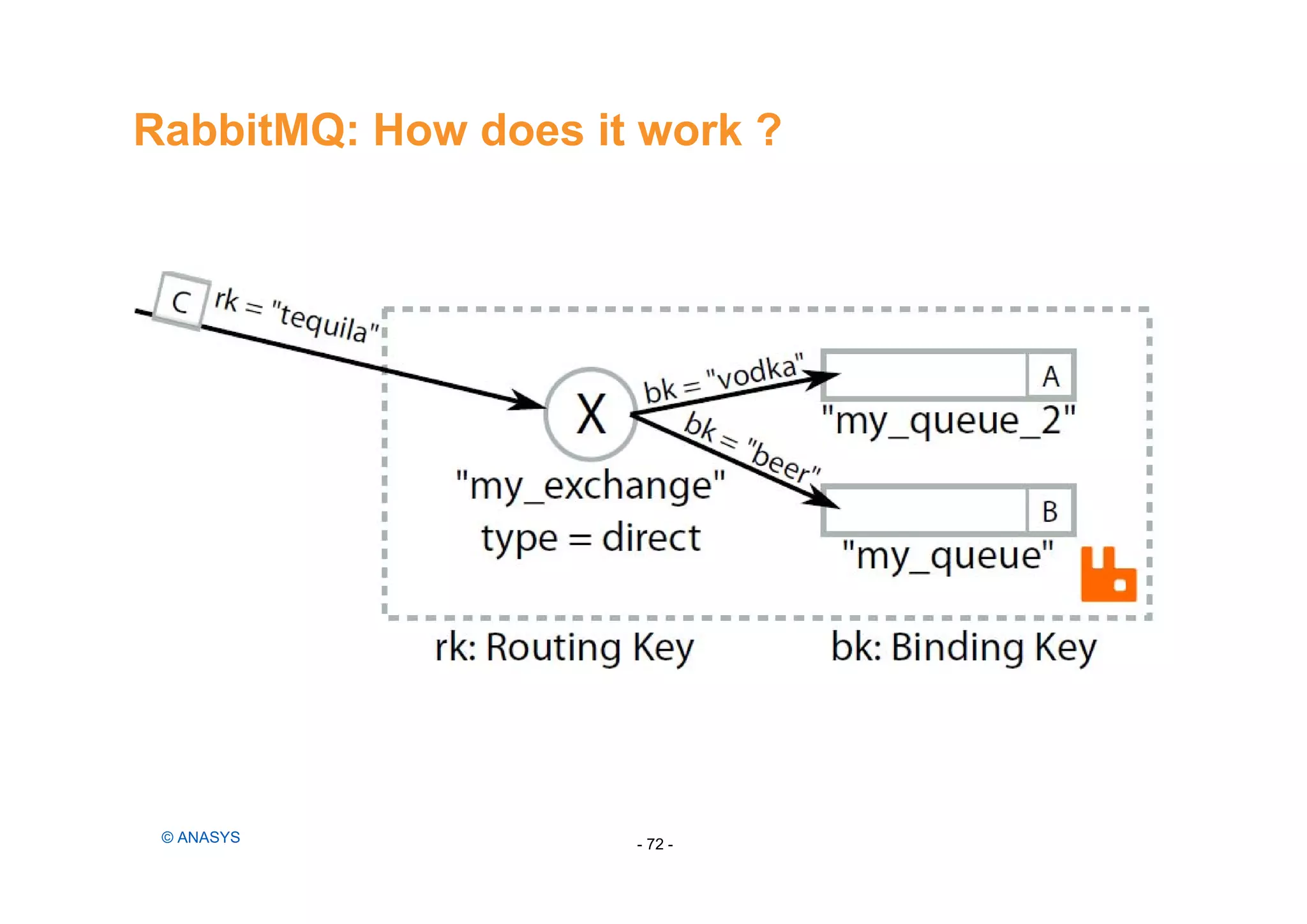

Direct exchanges:
A direct exchange delivers messages to queues based on a message routing key.
Point to point messaging
A single message that needs to be sent to a single recipient
Can have multiple consumers (load will be balanced across them)

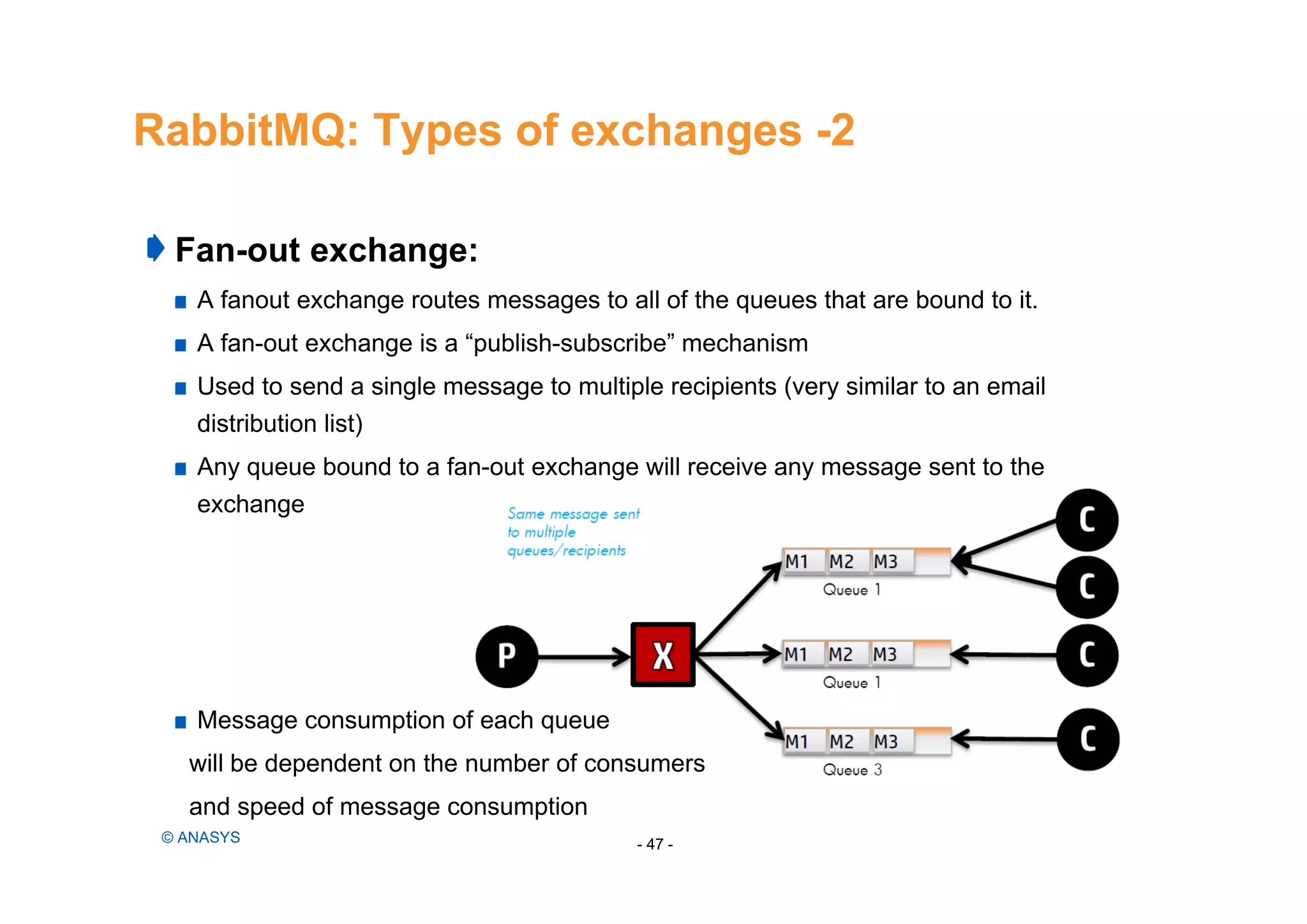

47. RabbitMQ: Types of exchanges -2
- 47 -© ANASYS

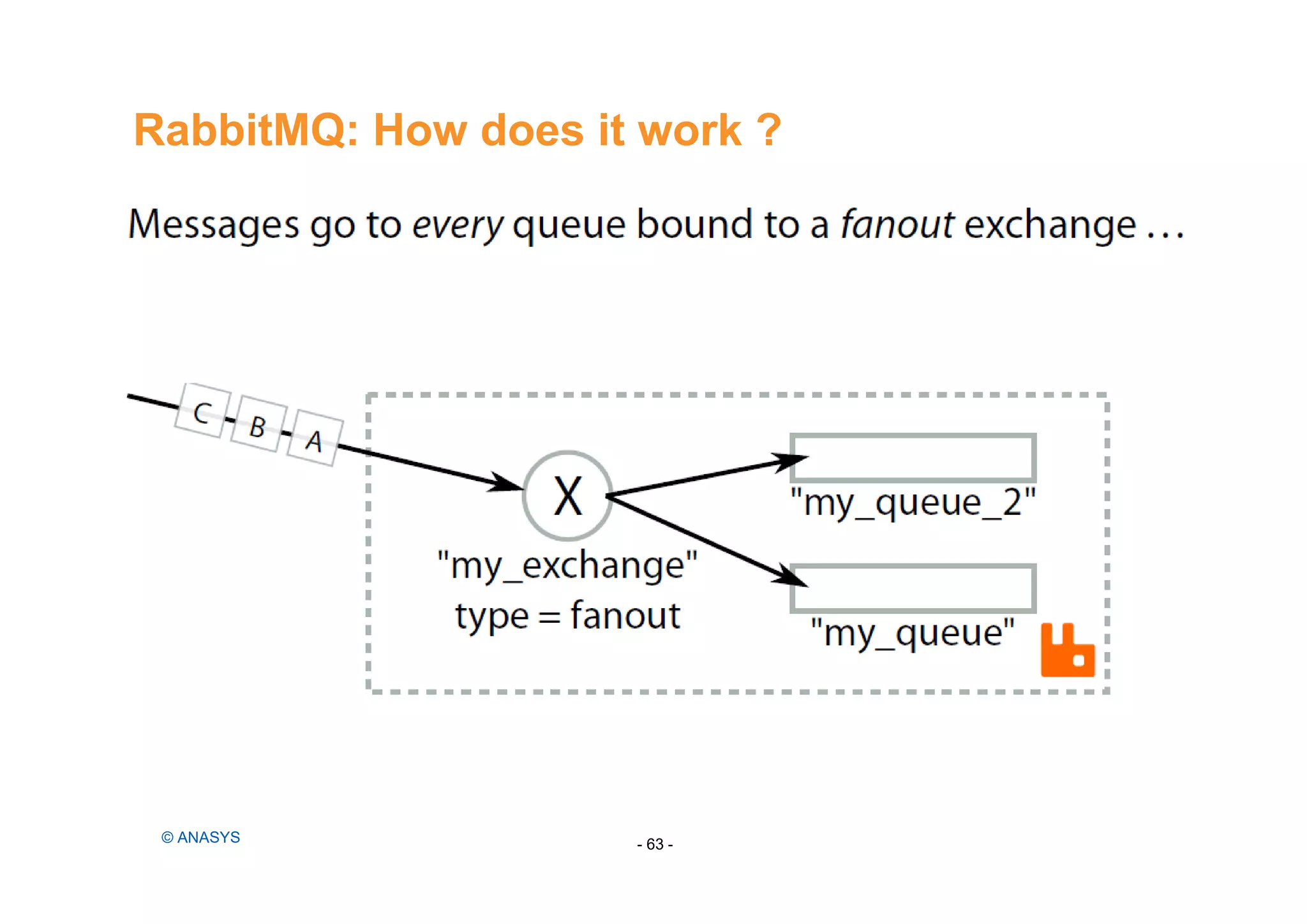

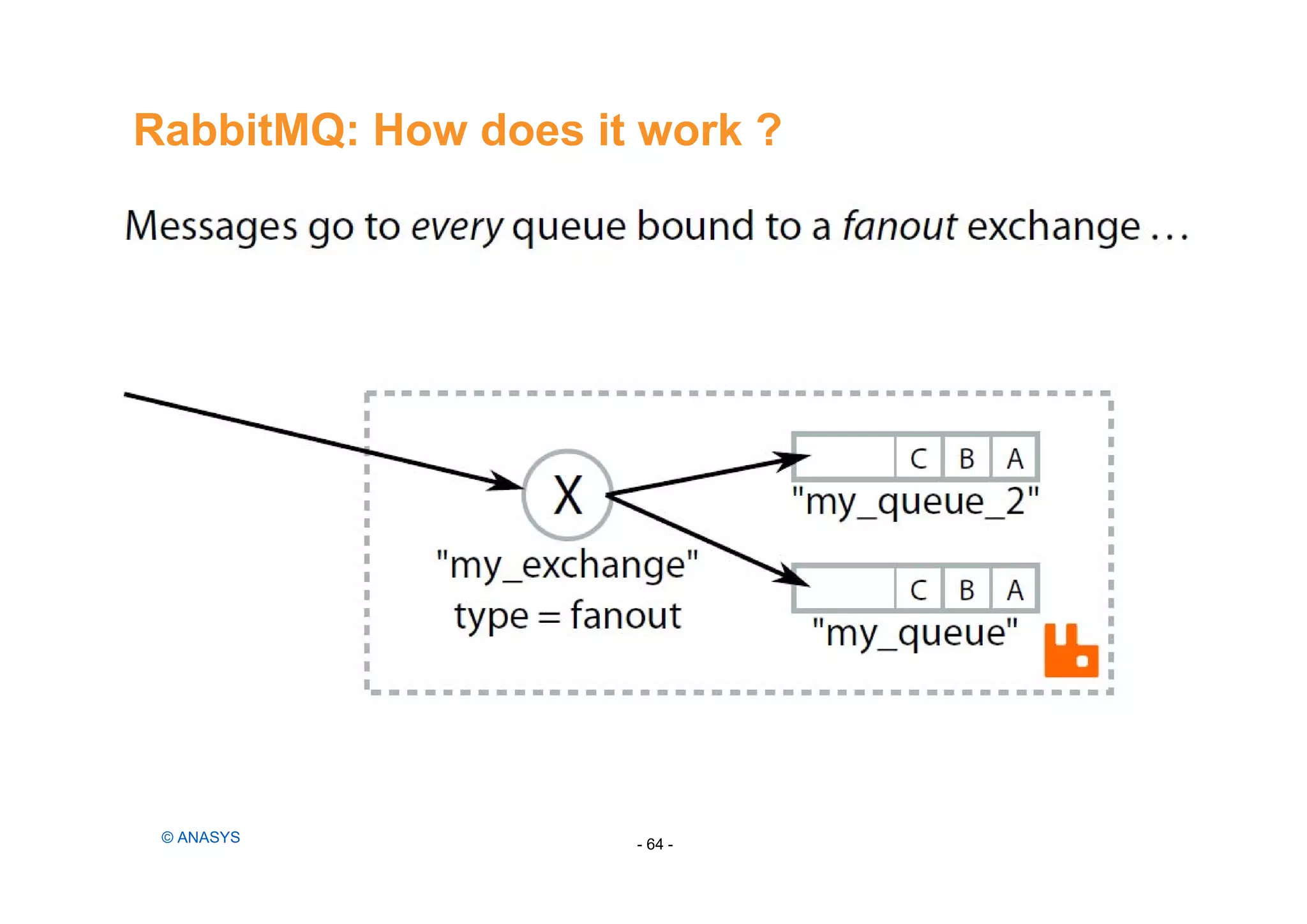

Fan-out exchange:
A fanout exchange routes messages to all of the queues that are bound to it.
A fan-out exchange is a “publish-subscribe” mechanism
Used to send a single message to multiple recipients (very similar to an email
distribution list)
Any queue bound to a fan-out exchange will receive any message sent to the
exchange
Message consumption of each queue
will be dependent on the number of consumers
and speed of message consumption

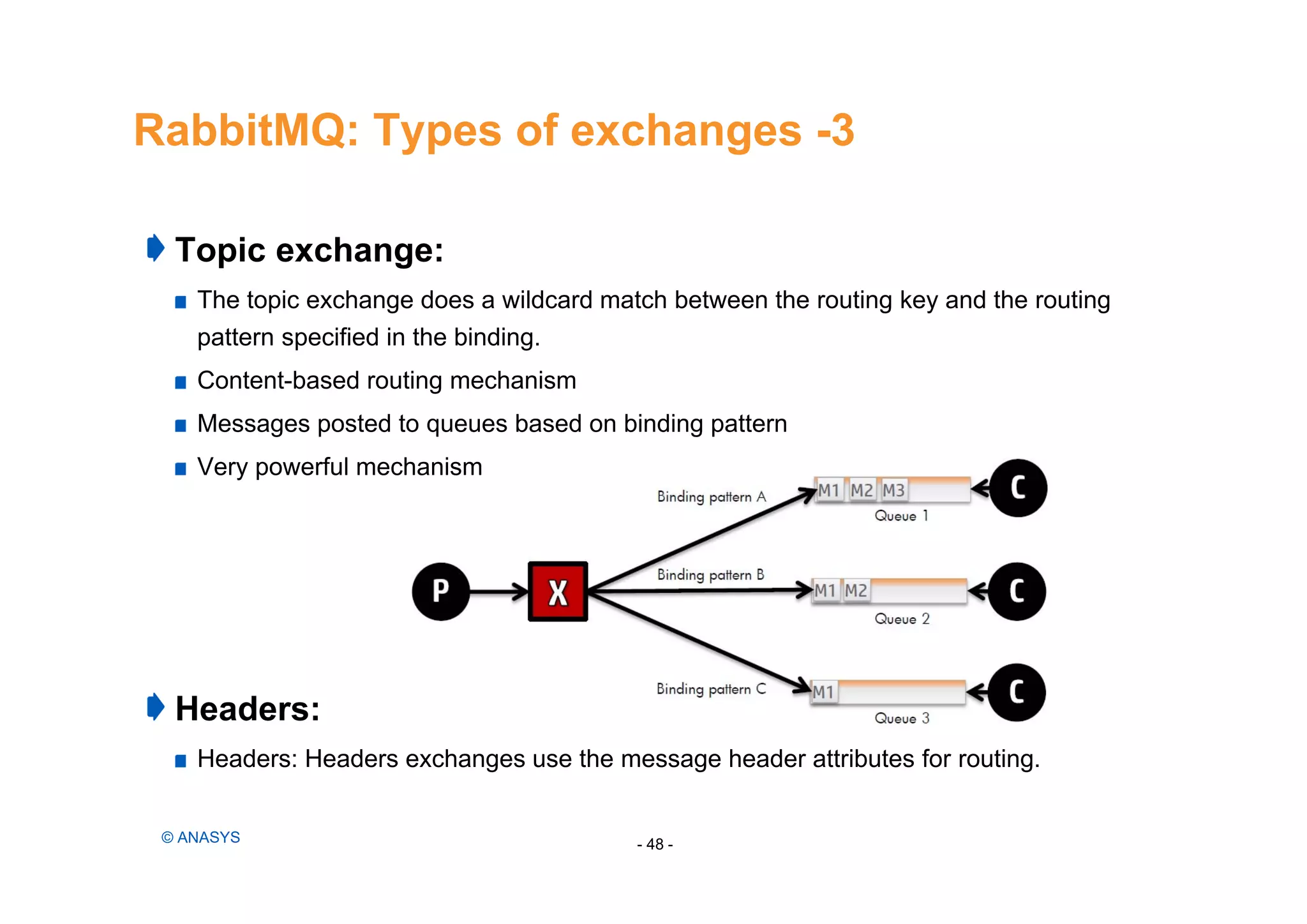

48. RabbitMQ: Types of exchanges -3
- 48 -© ANASYS
Headers:
Headers: Headers exchanges use the message header attributes for routing.

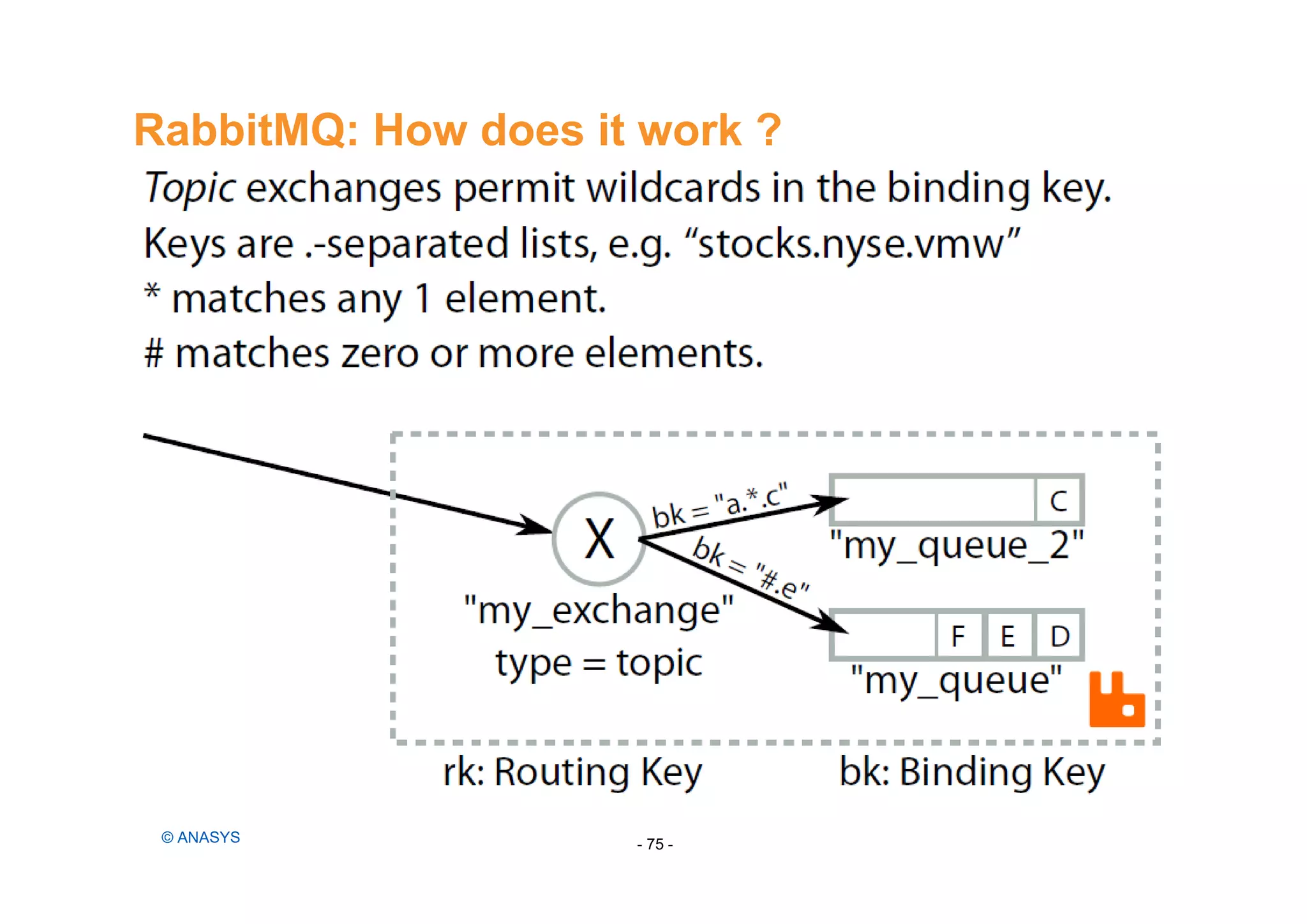

Topic exchange:
The topic exchange does a wildcard match between the routing key and the routing
pattern specified in the binding.
Content-based routing mechanism
Messages posted to queues based on binding pattern
Very powerful mechanism

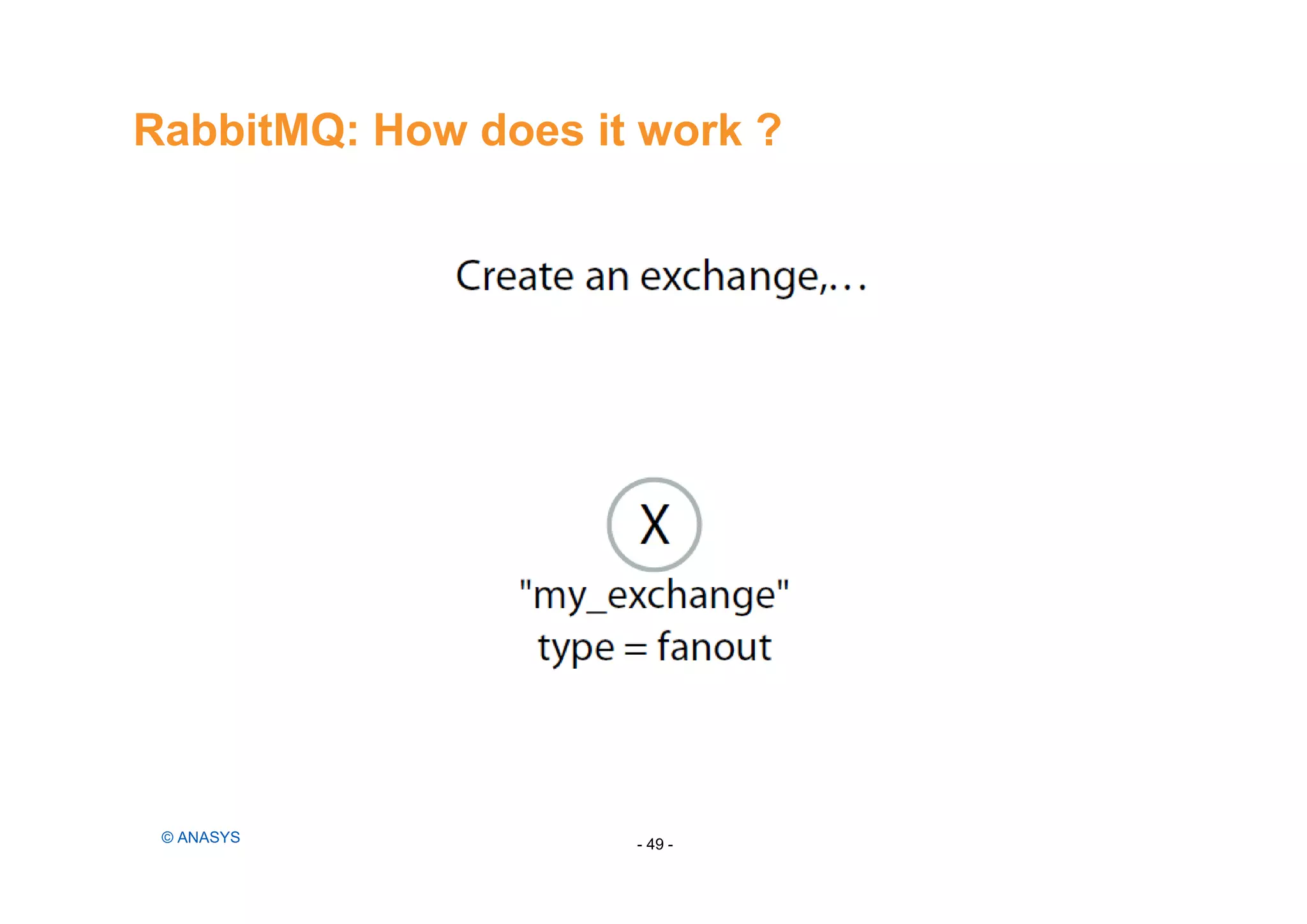

49. RabbitMQ: How does it work ?
- 49 -© ANASYS

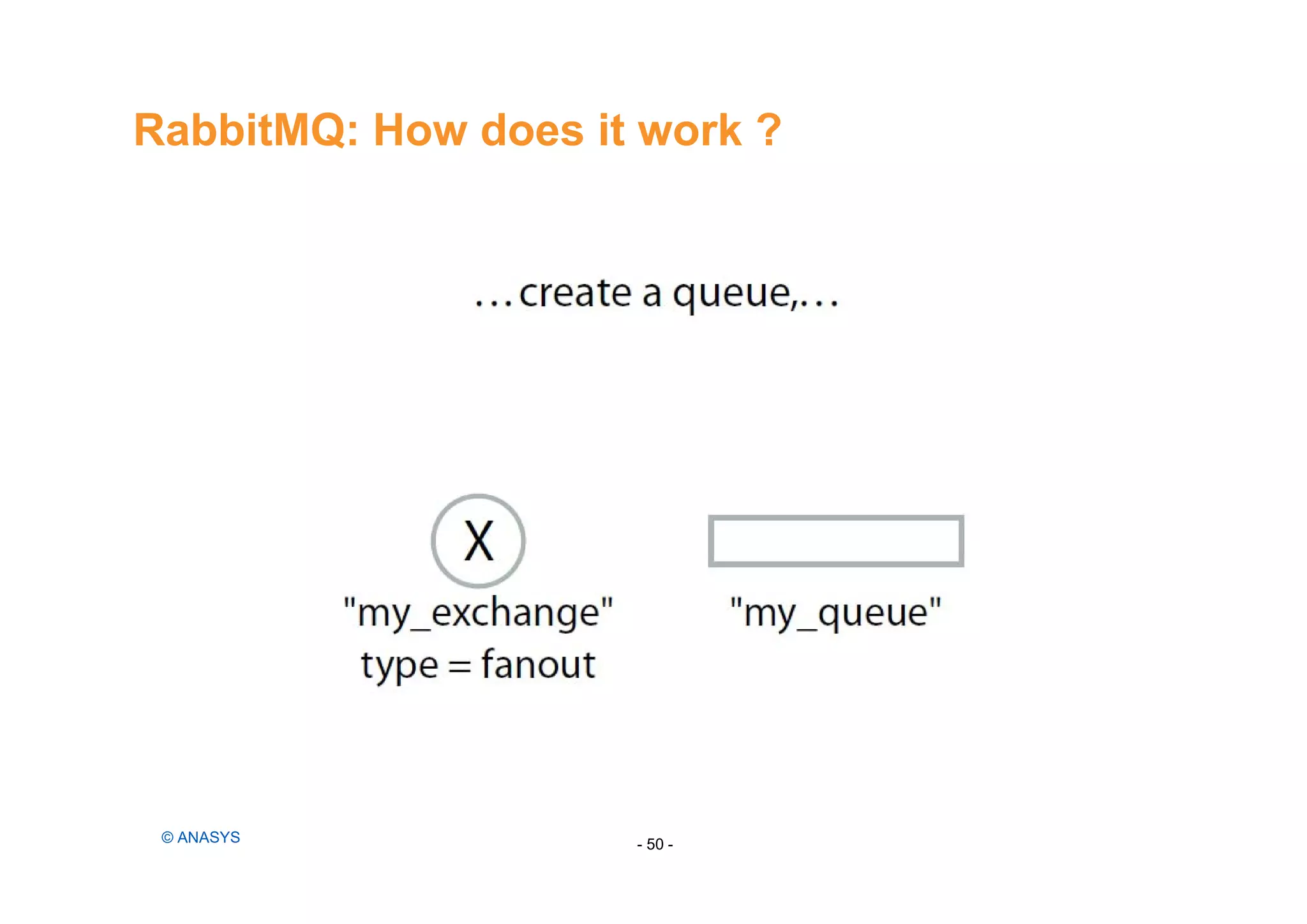

50. RabbitMQ: How does it work ?
- 50 -© ANASYS

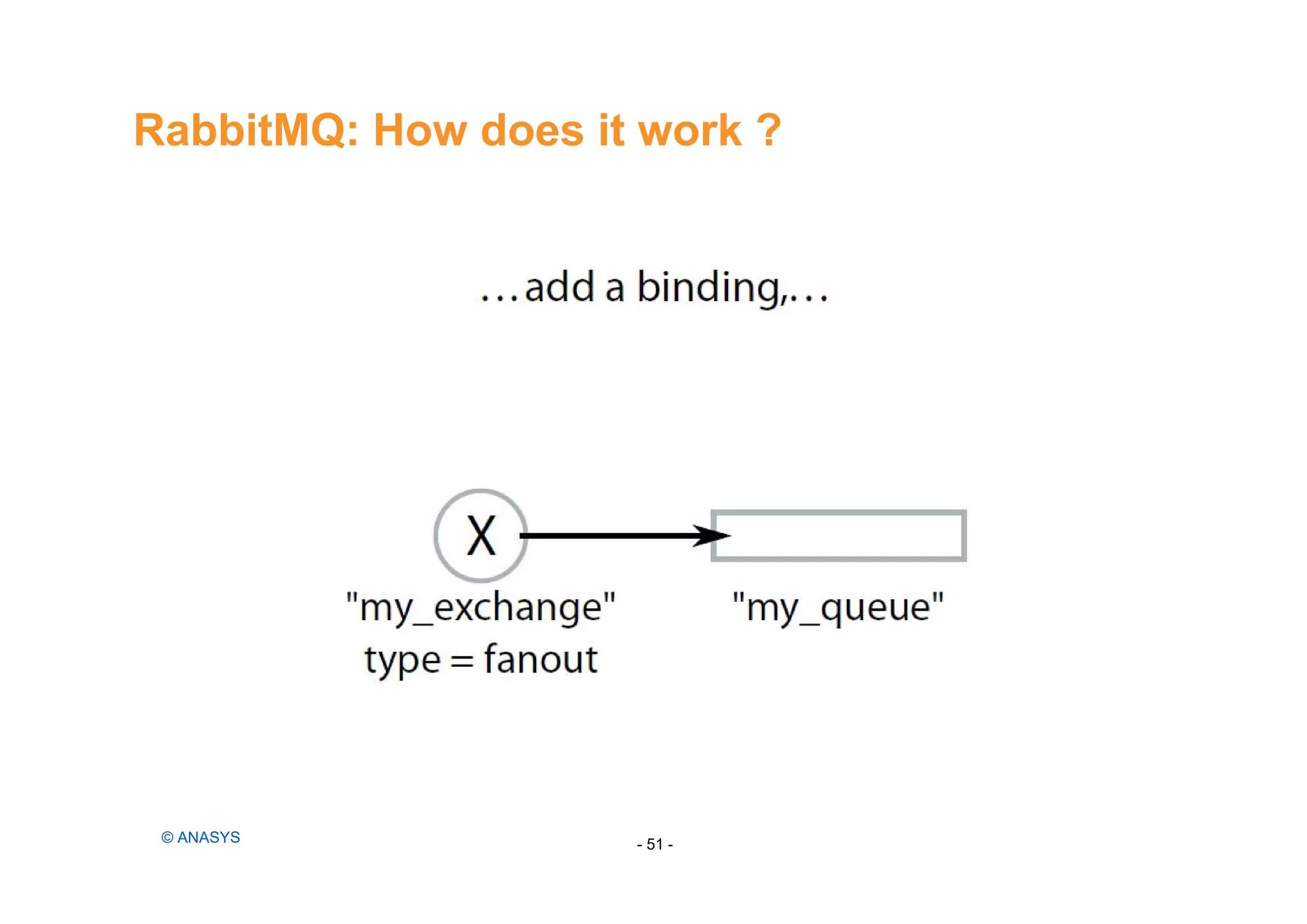

51. RabbitMQ: How does it work ?
- 51 -© ANASYS

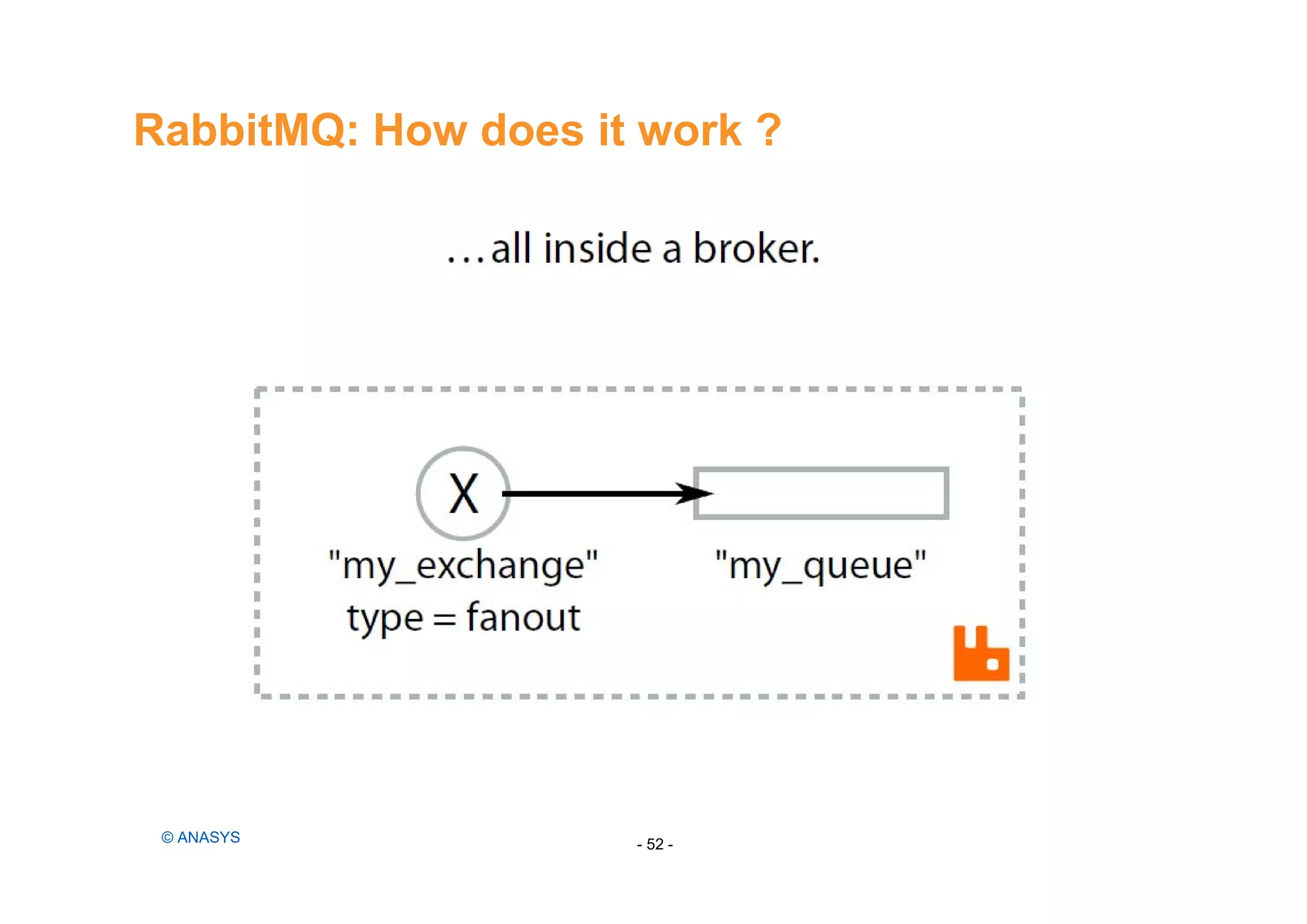

52. RabbitMQ: How does it work ?
- 52 -© ANASYS

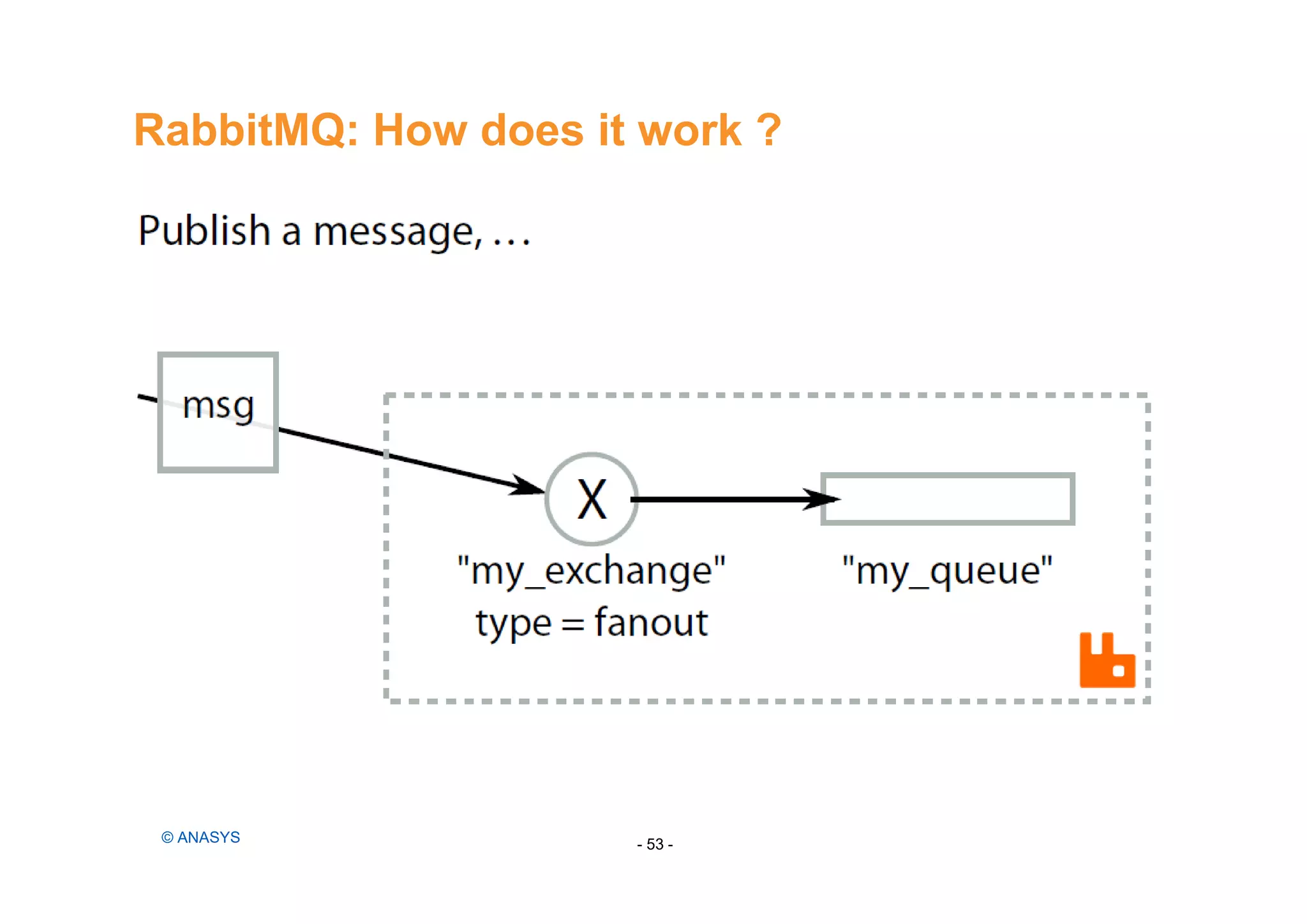

53. RabbitMQ: How does it work ?
- 53 -© ANASYS

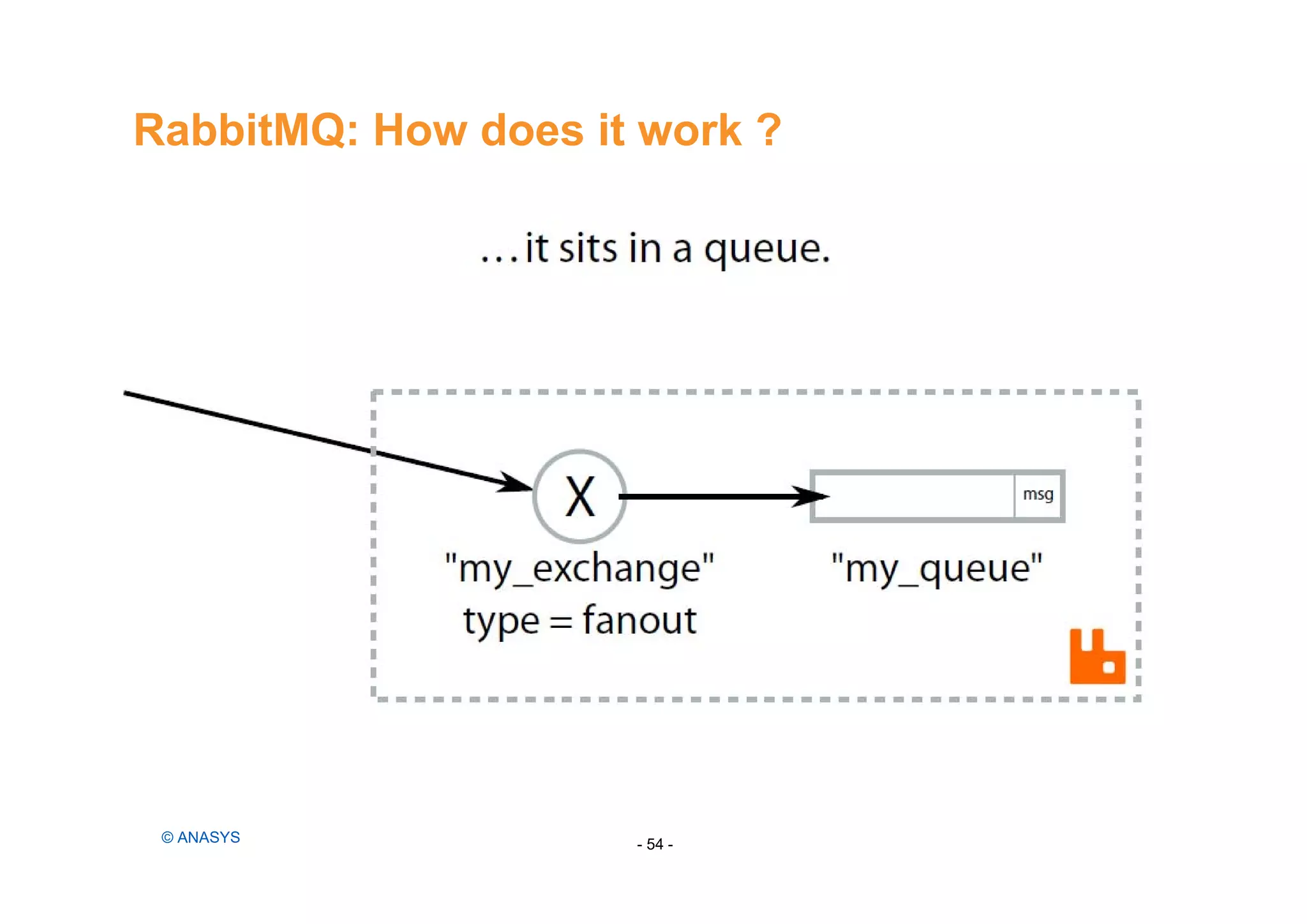

54. RabbitMQ: How does it work ?
- 54 -© ANASYS

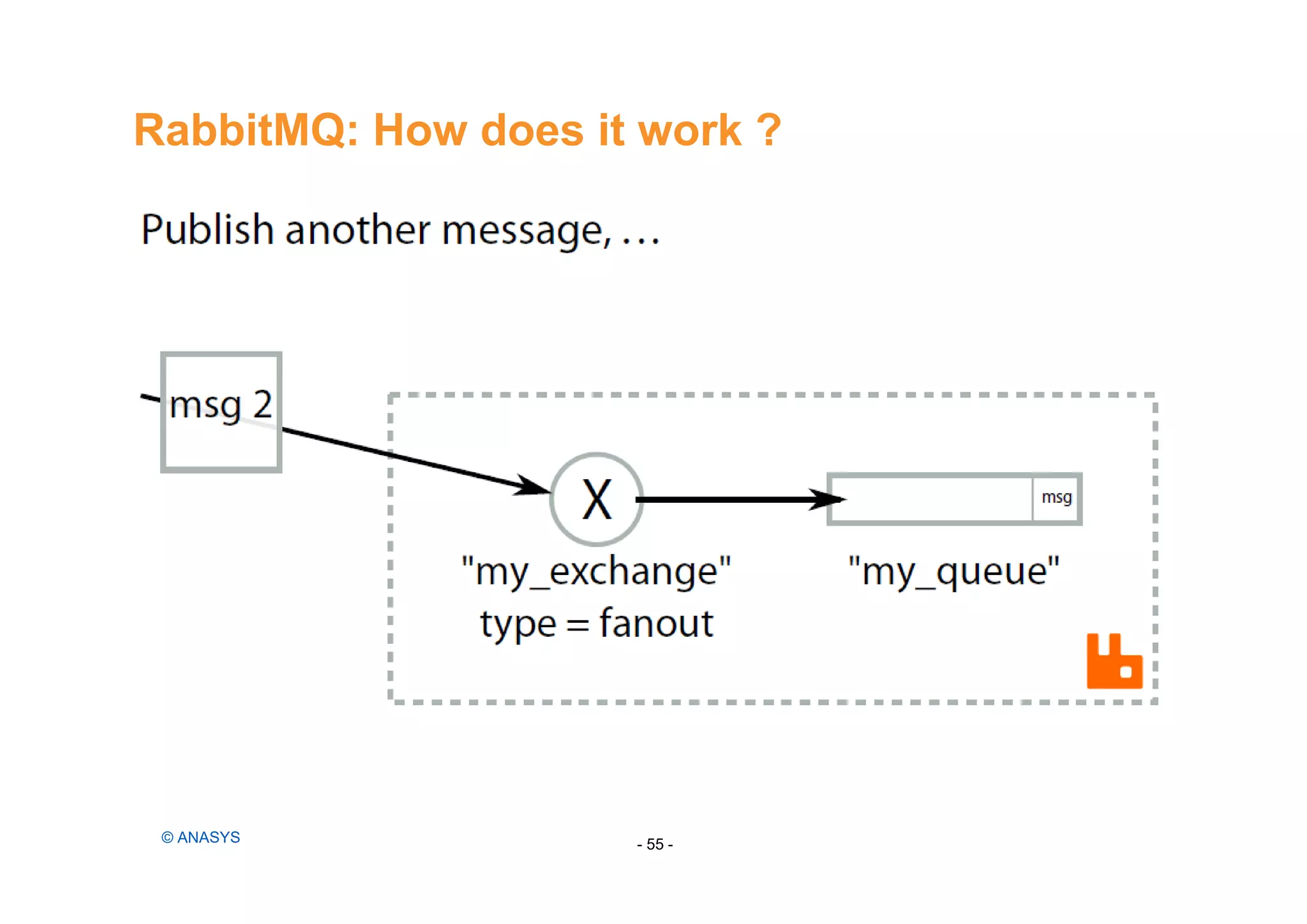

55. RabbitMQ: How does it work ?
- 55 -© ANASYS

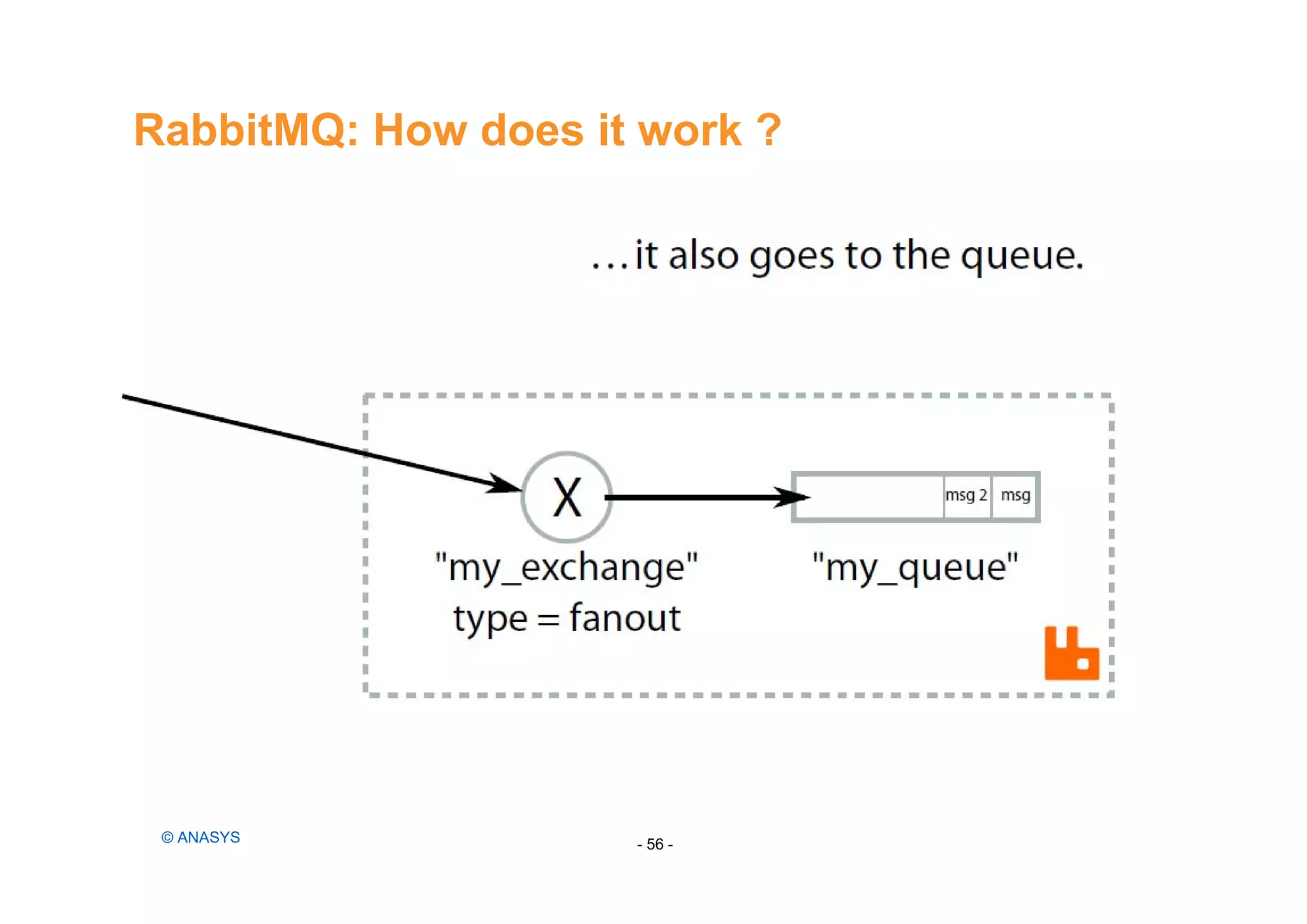

56. RabbitMQ: How does it work ?
- 56 -© ANASYS

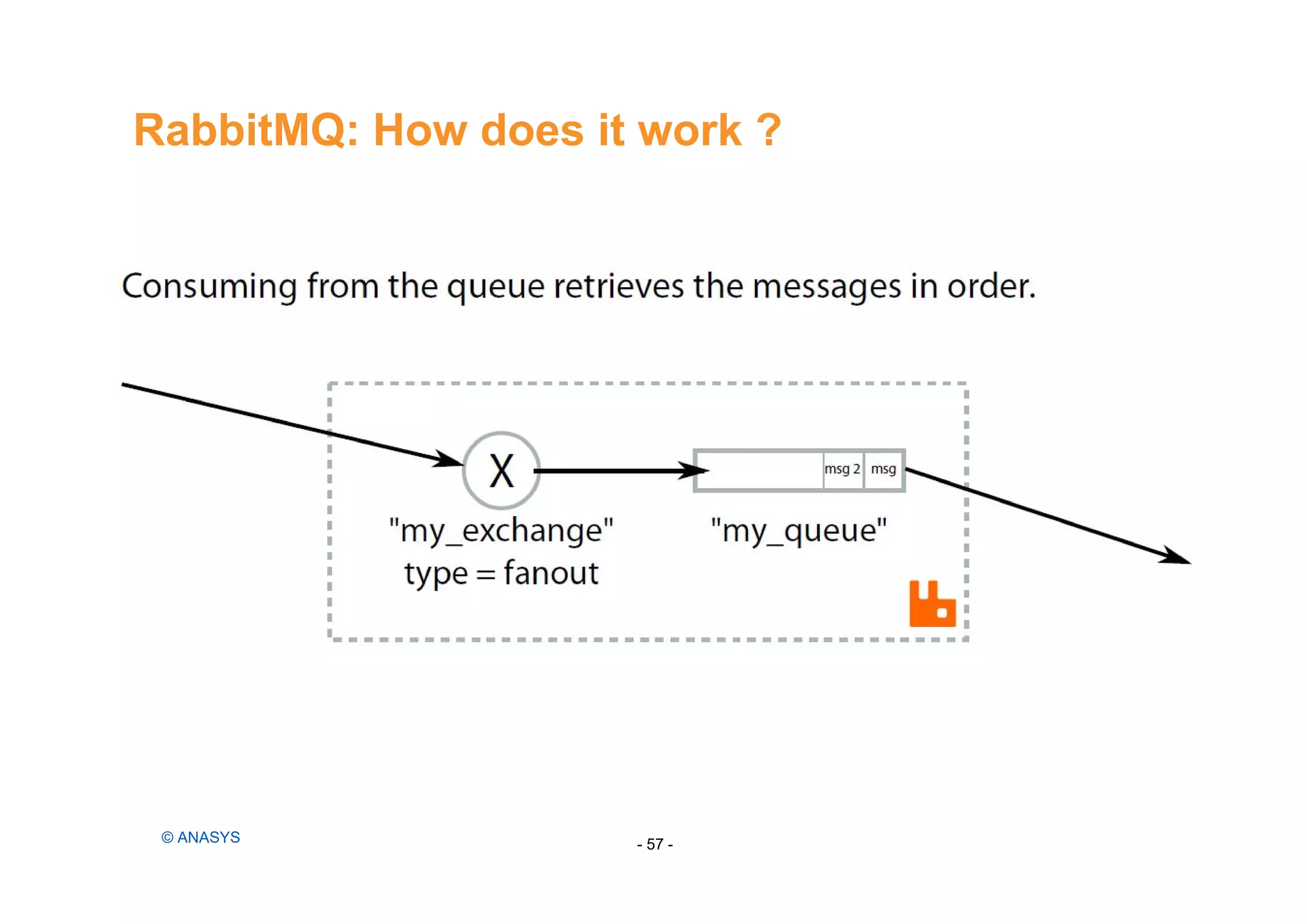

57. RabbitMQ: How does it work ?
- 57 -© ANASYS

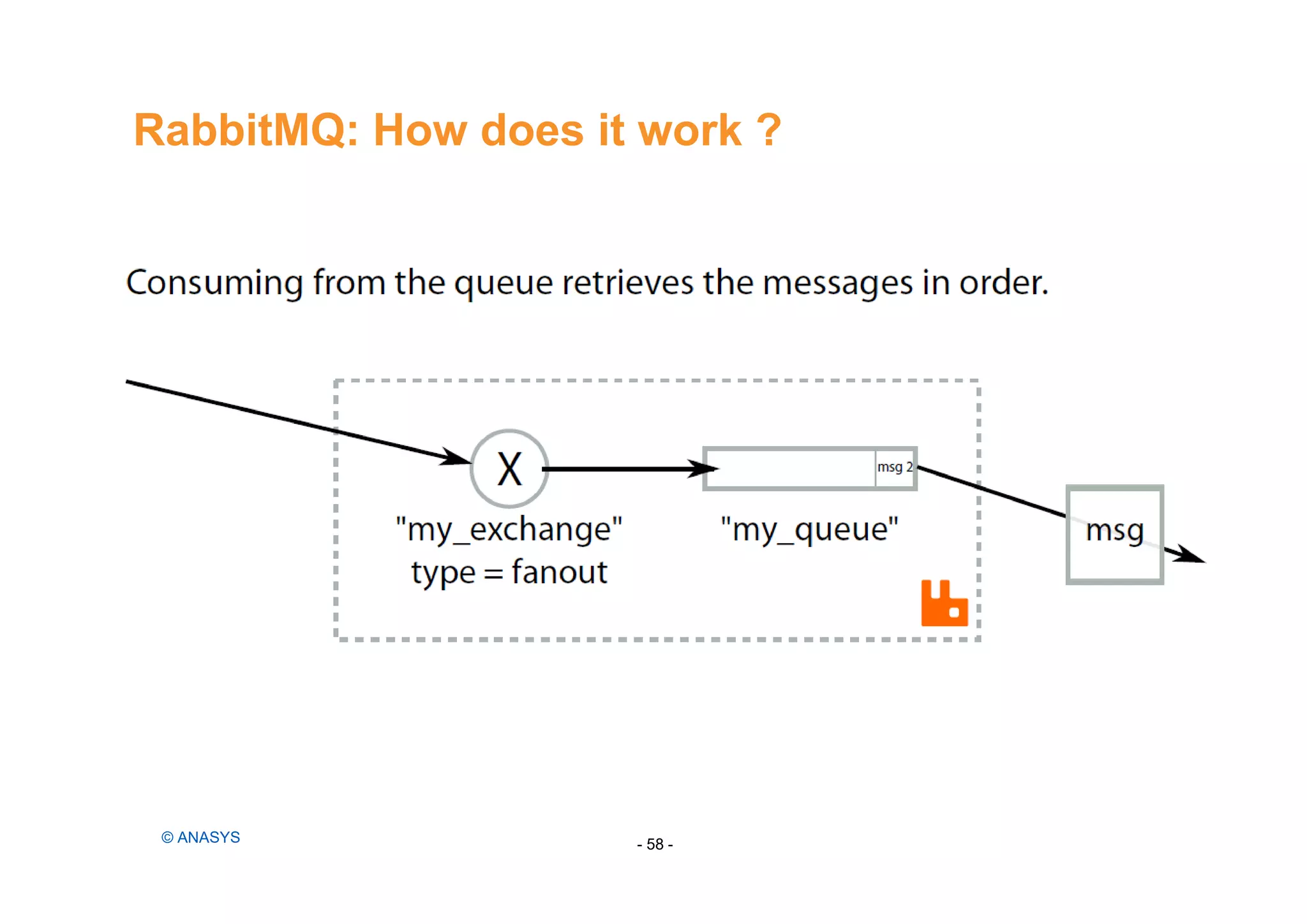

58. RabbitMQ: How does it work ?
- 58 -© ANASYS

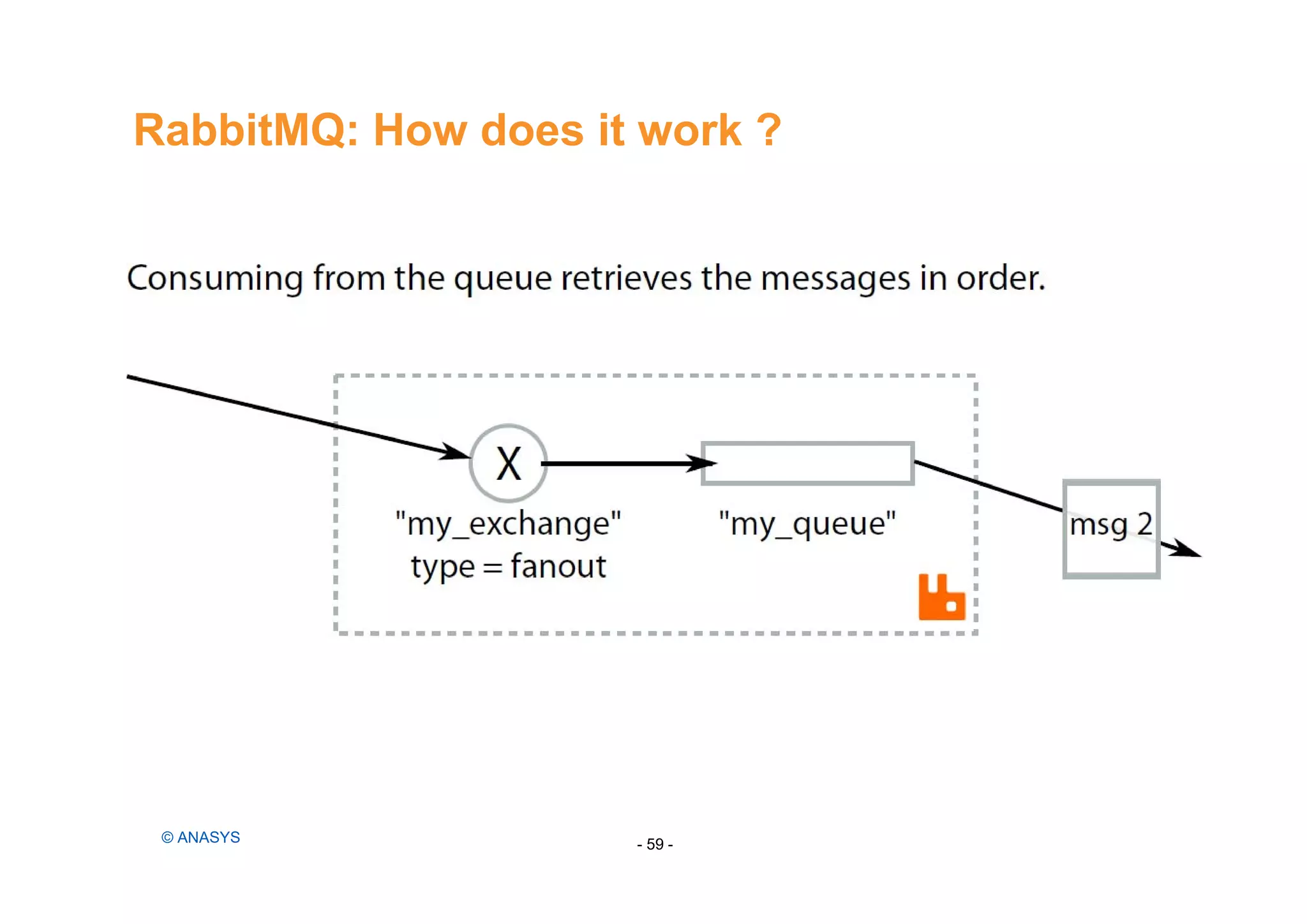

59. RabbitMQ: How does it work ?
- 59 -© ANASYS

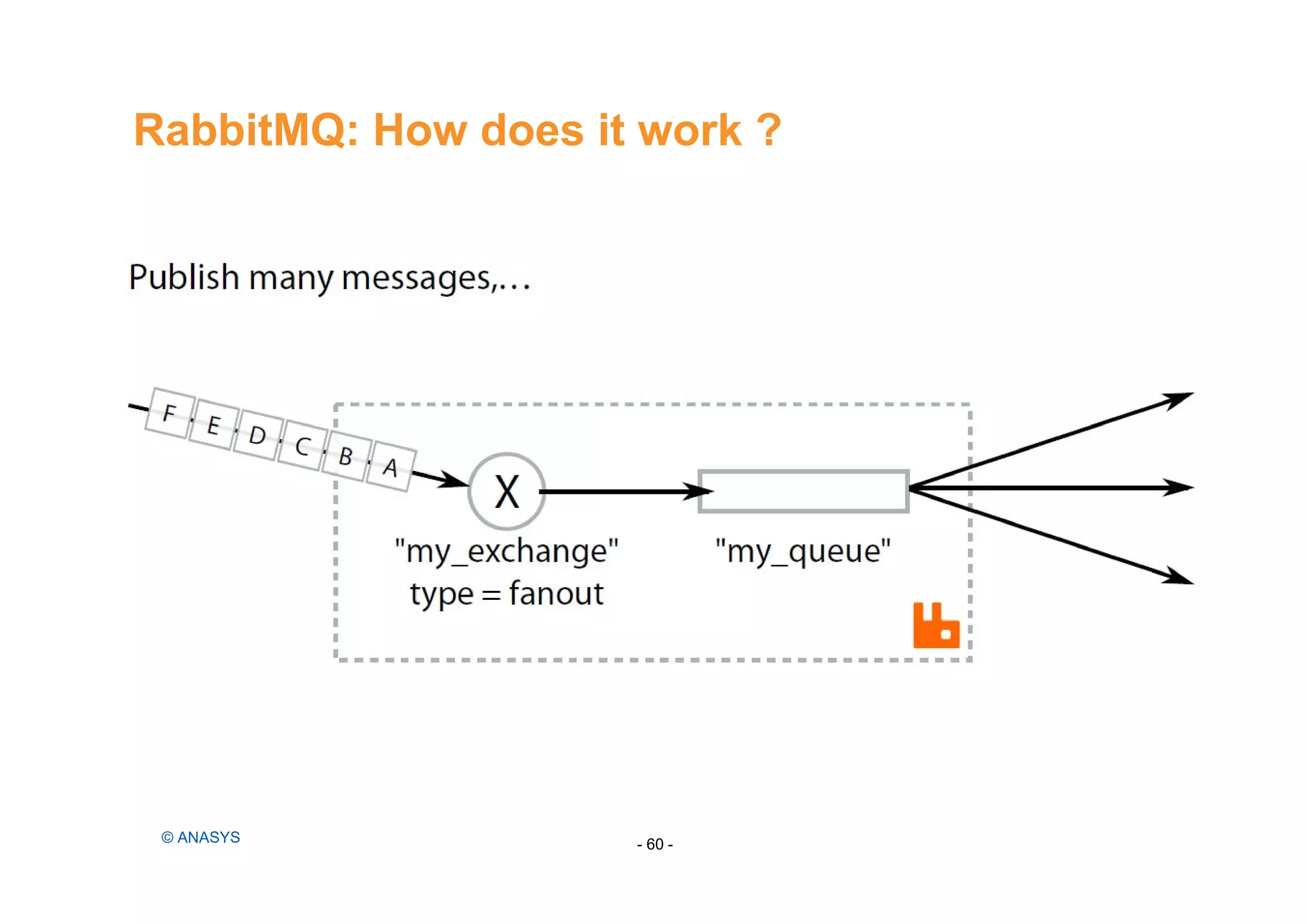

60. RabbitMQ: How does it work ?
- 60 -© ANASYS

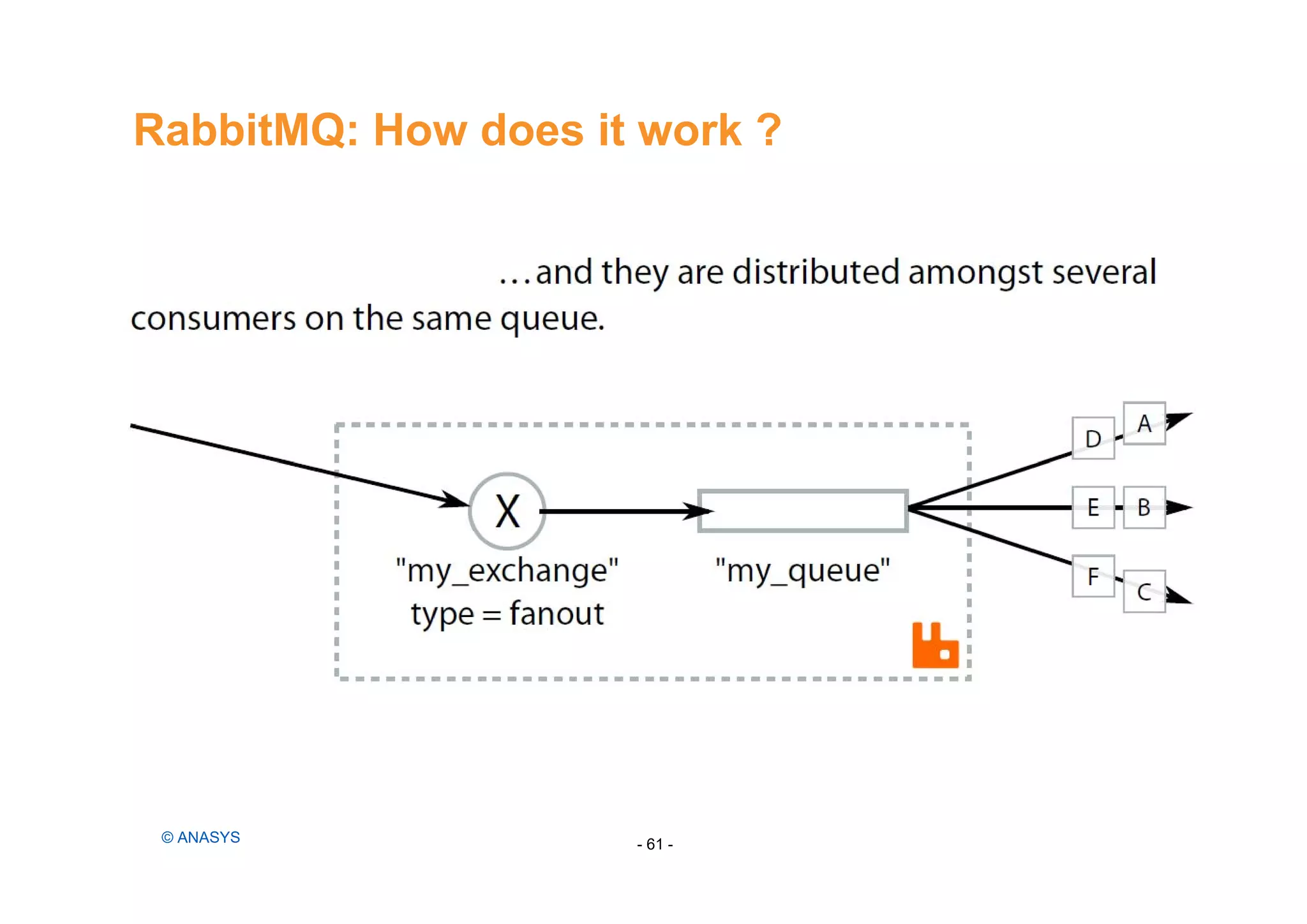

61. RabbitMQ: How does it work ?
- 61 -© ANASYS

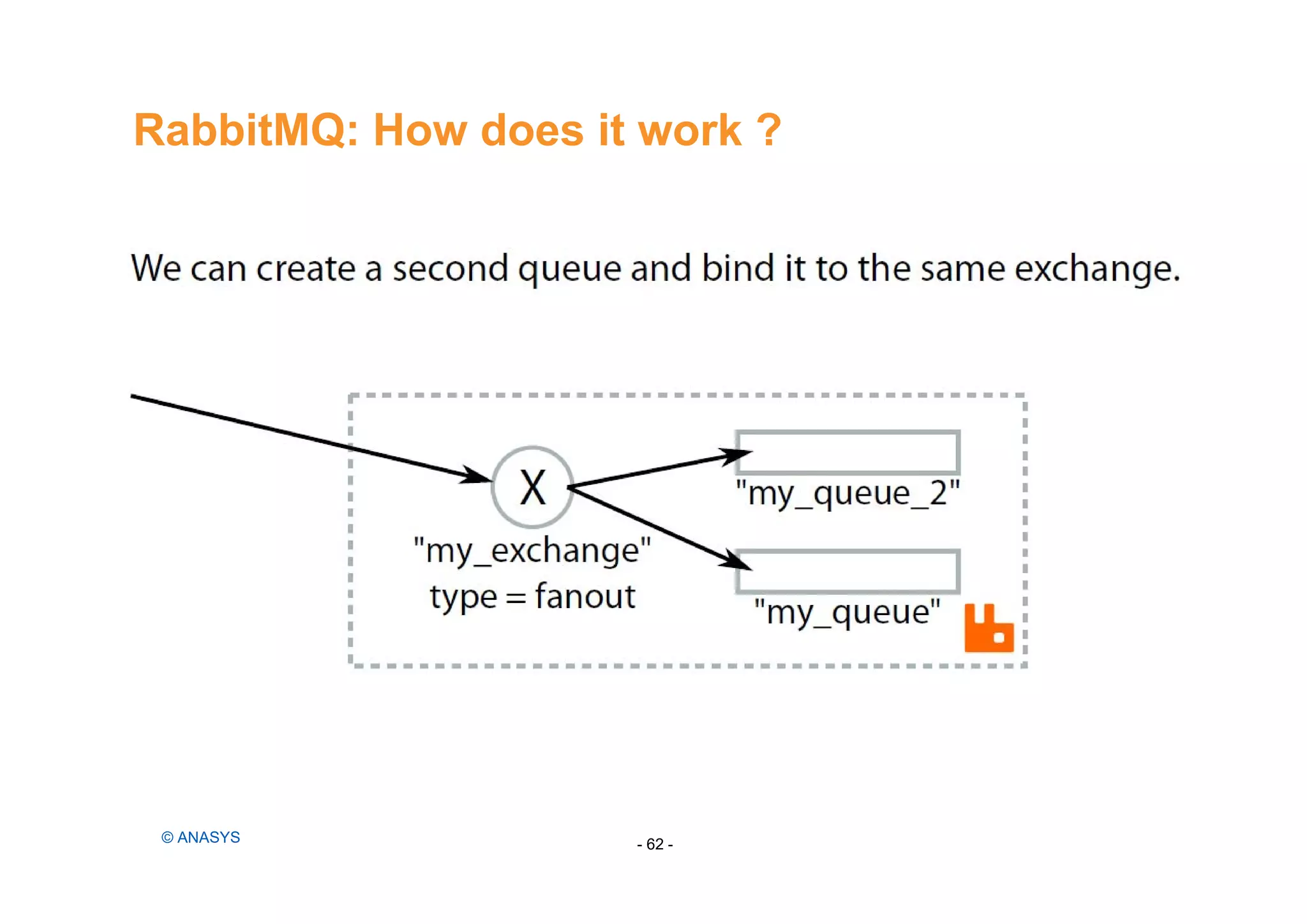

62. RabbitMQ: How does it work ?
- 62 -© ANASYS

63. RabbitMQ: How does it work ?
- 63 -© ANASYS

64. RabbitMQ: How does it work ?
- 64 -© ANASYS

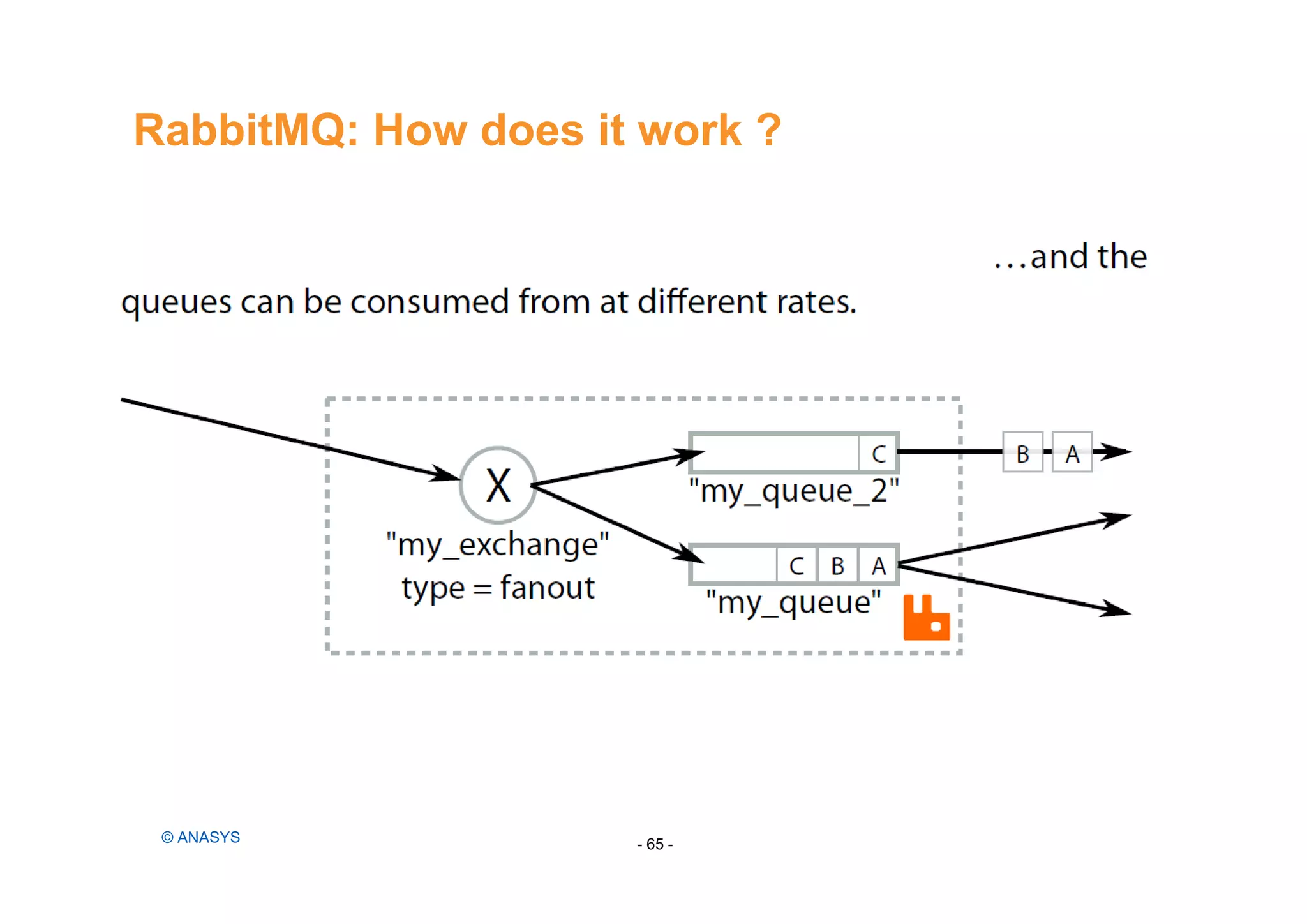

65. RabbitMQ: How does it work ?
- 65 -© ANASYS

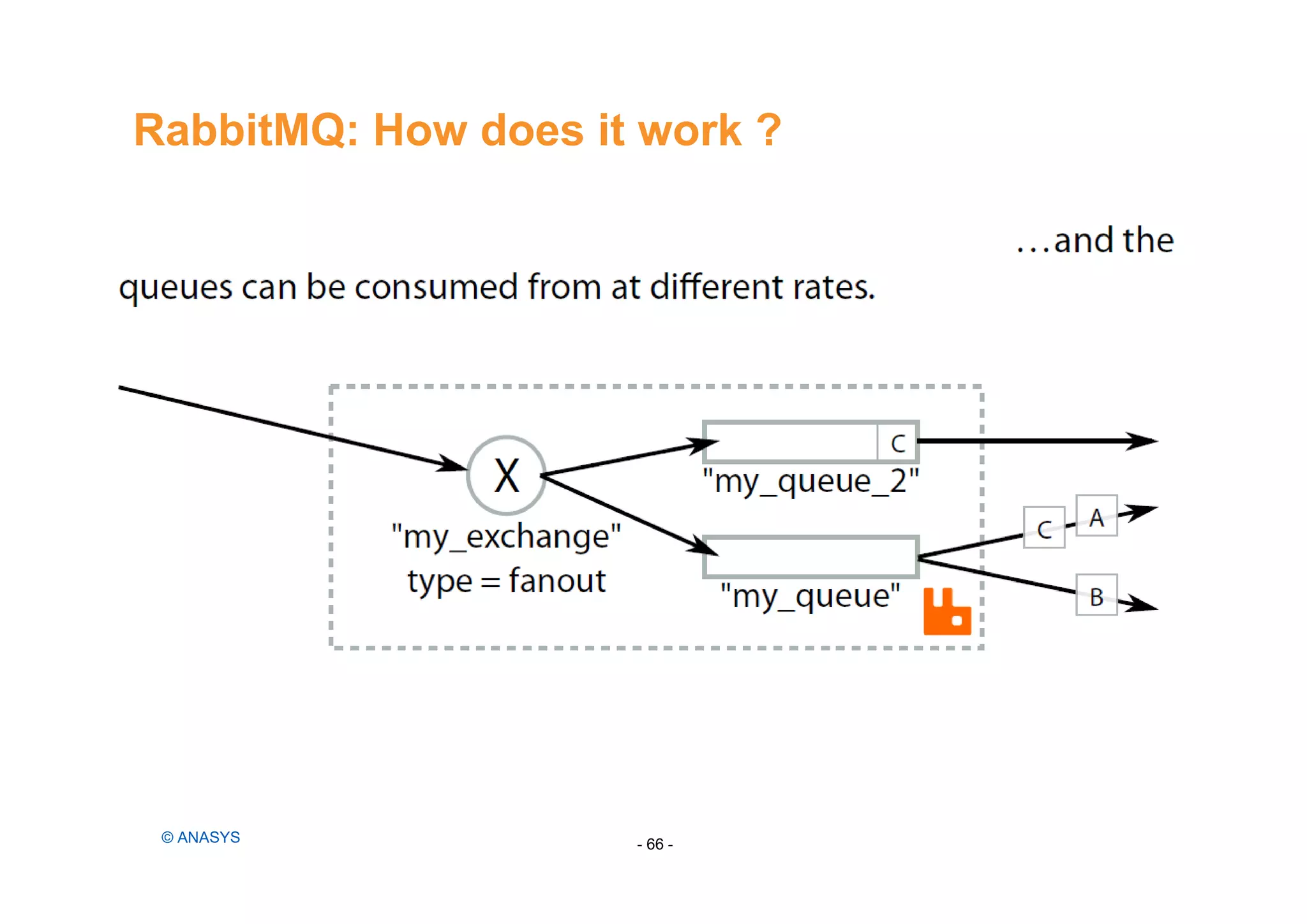

66. RabbitMQ: How does it work ?
- 66 -© ANASYS

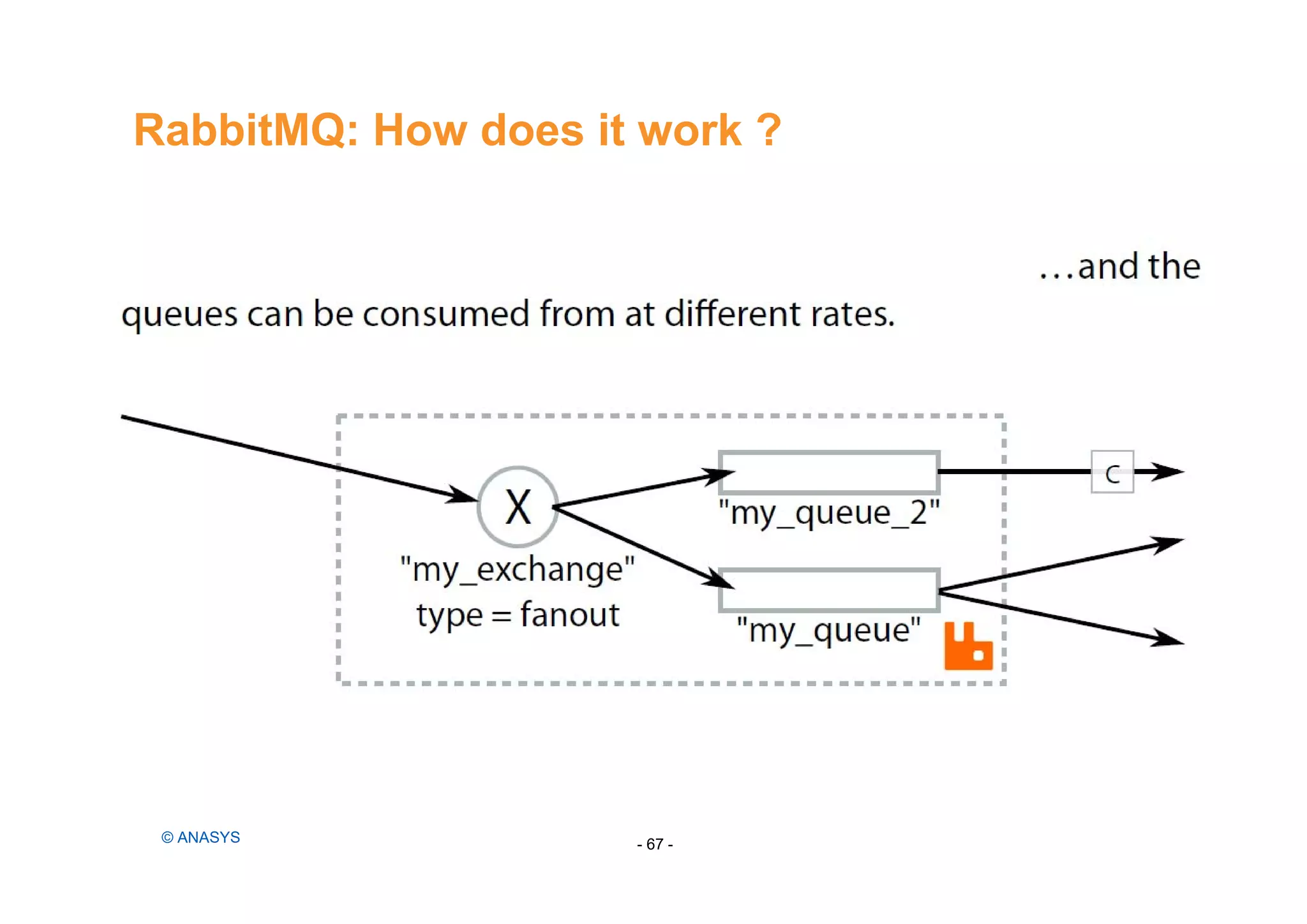

67. RabbitMQ: How does it work ?
- 67 -© ANASYS

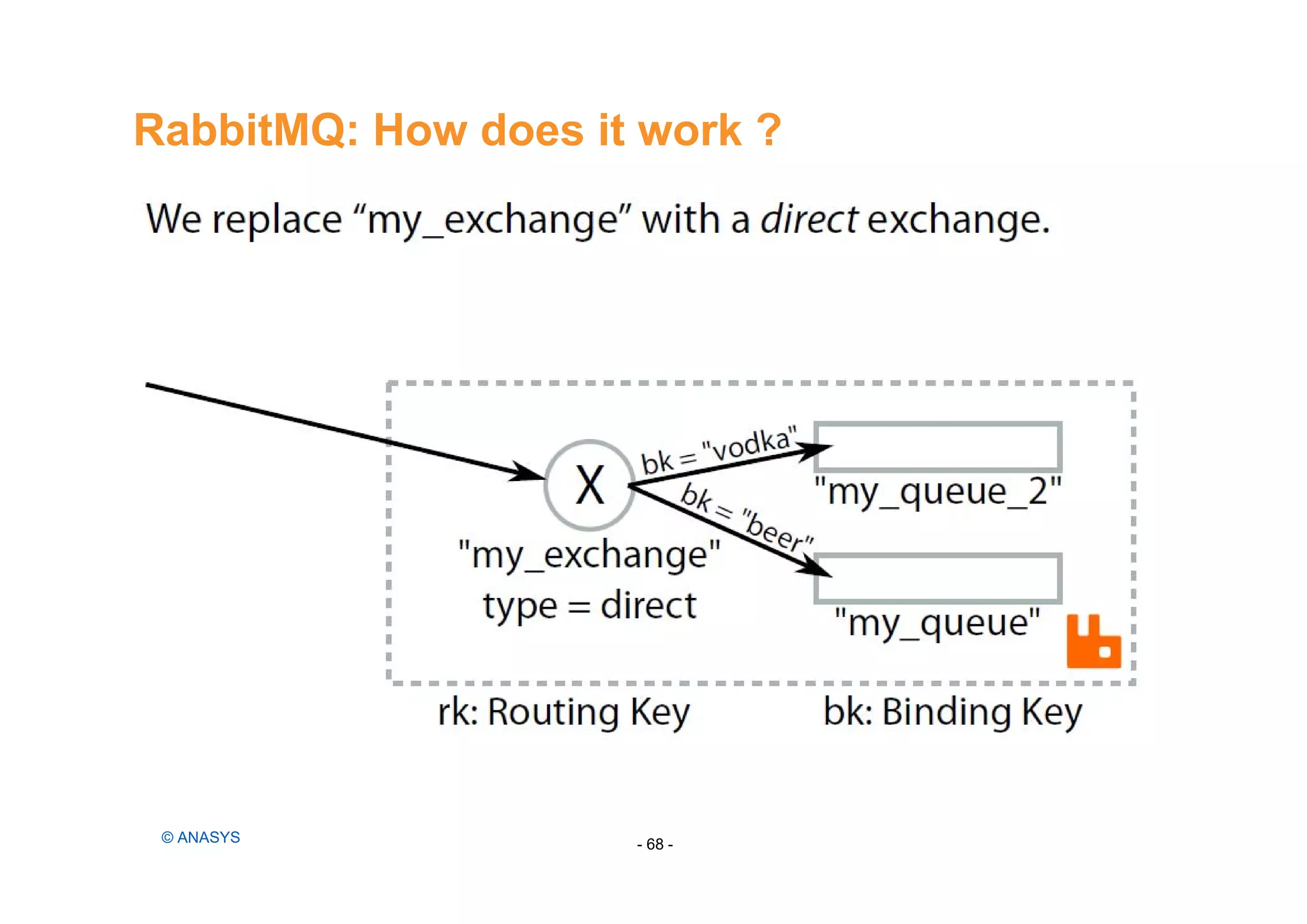

68. RabbitMQ: How does it work ?
- 68 -© ANASYS

69. RabbitMQ: How does it work ?
- 69 -© ANASYS

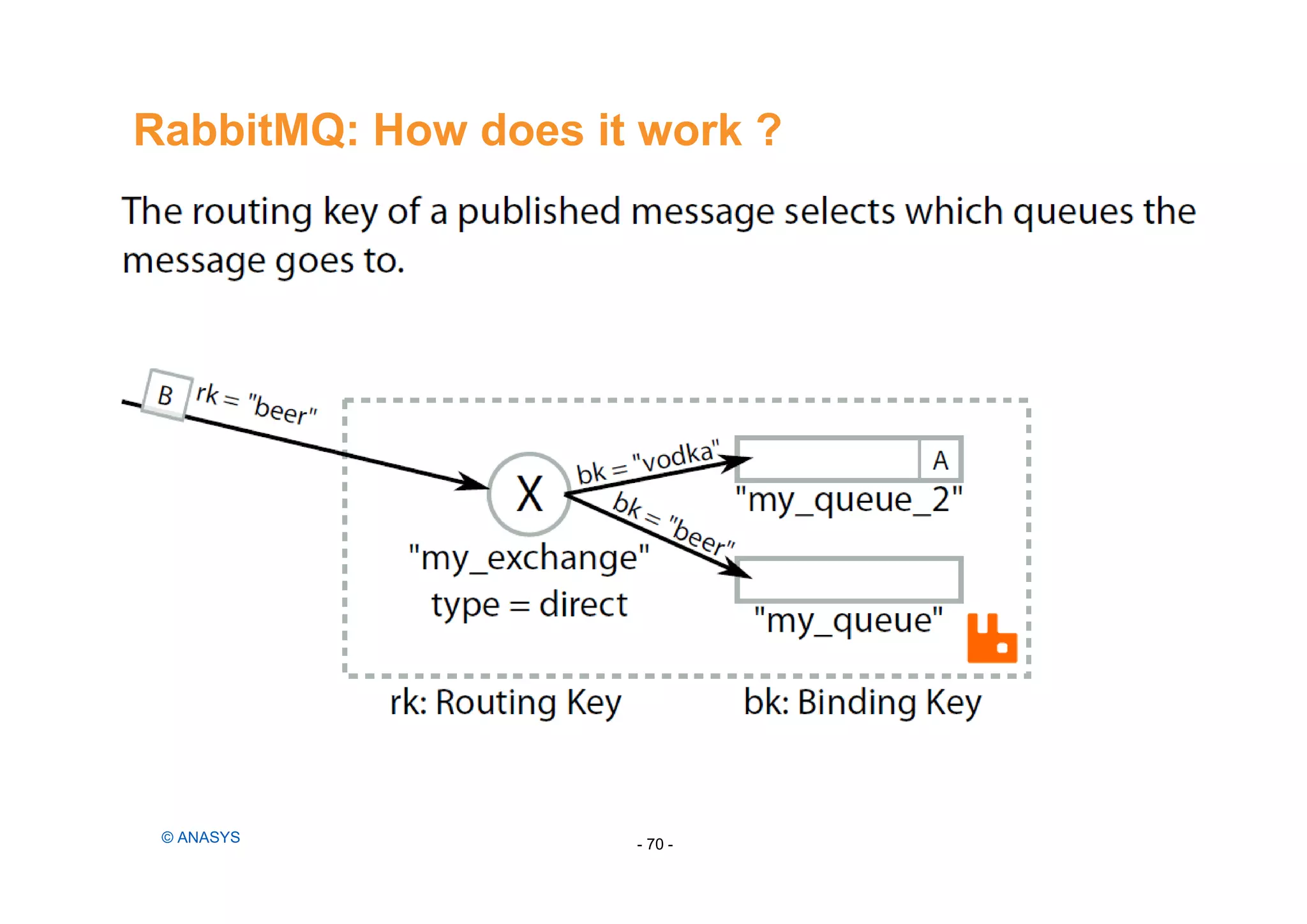

70. RabbitMQ: How does it work ?
- 70 -© ANASYS

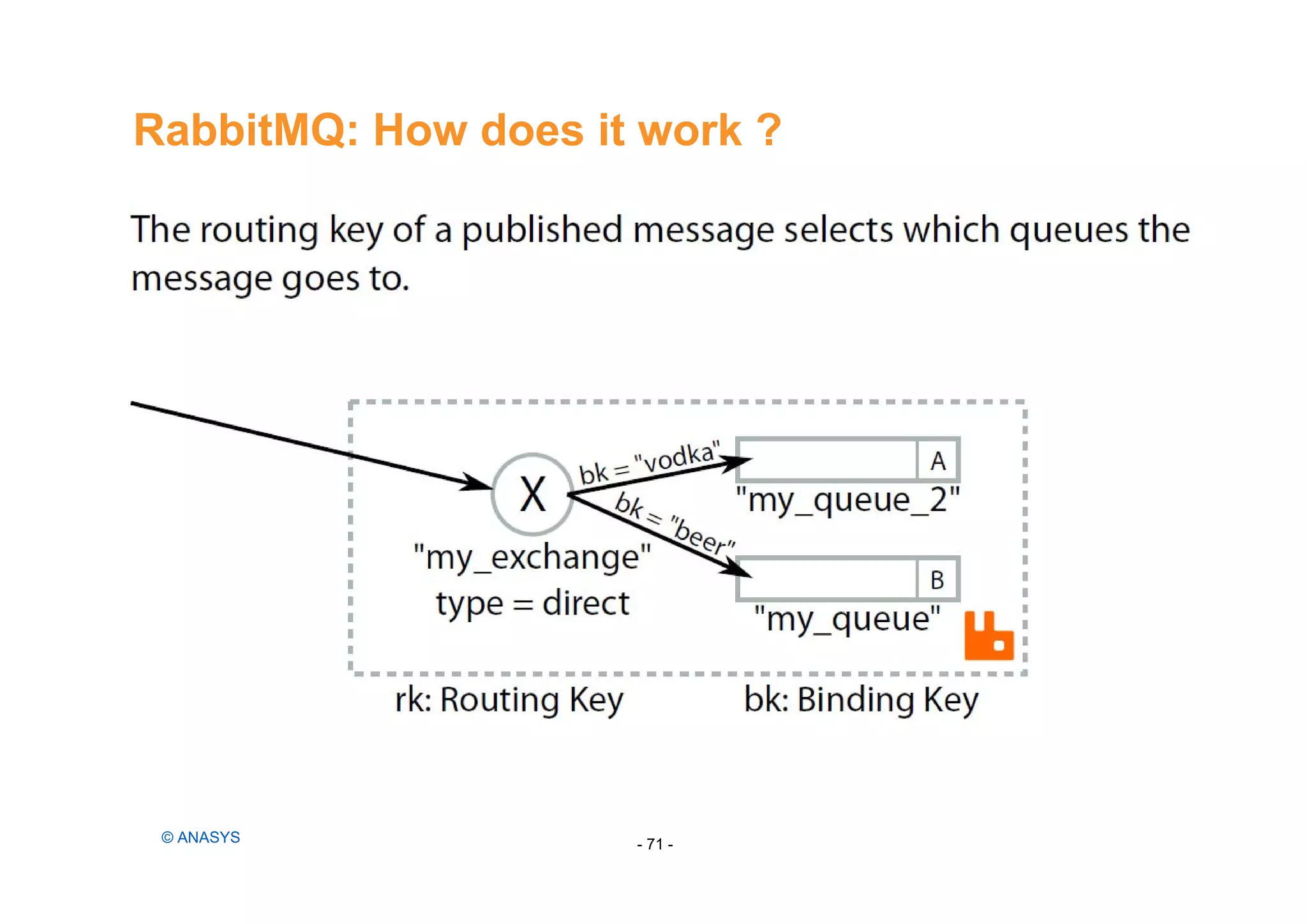

71. RabbitMQ: How does it work ?
- 71 -© ANASYS

72. RabbitMQ: How does it work ?
- 72 -© ANASYS

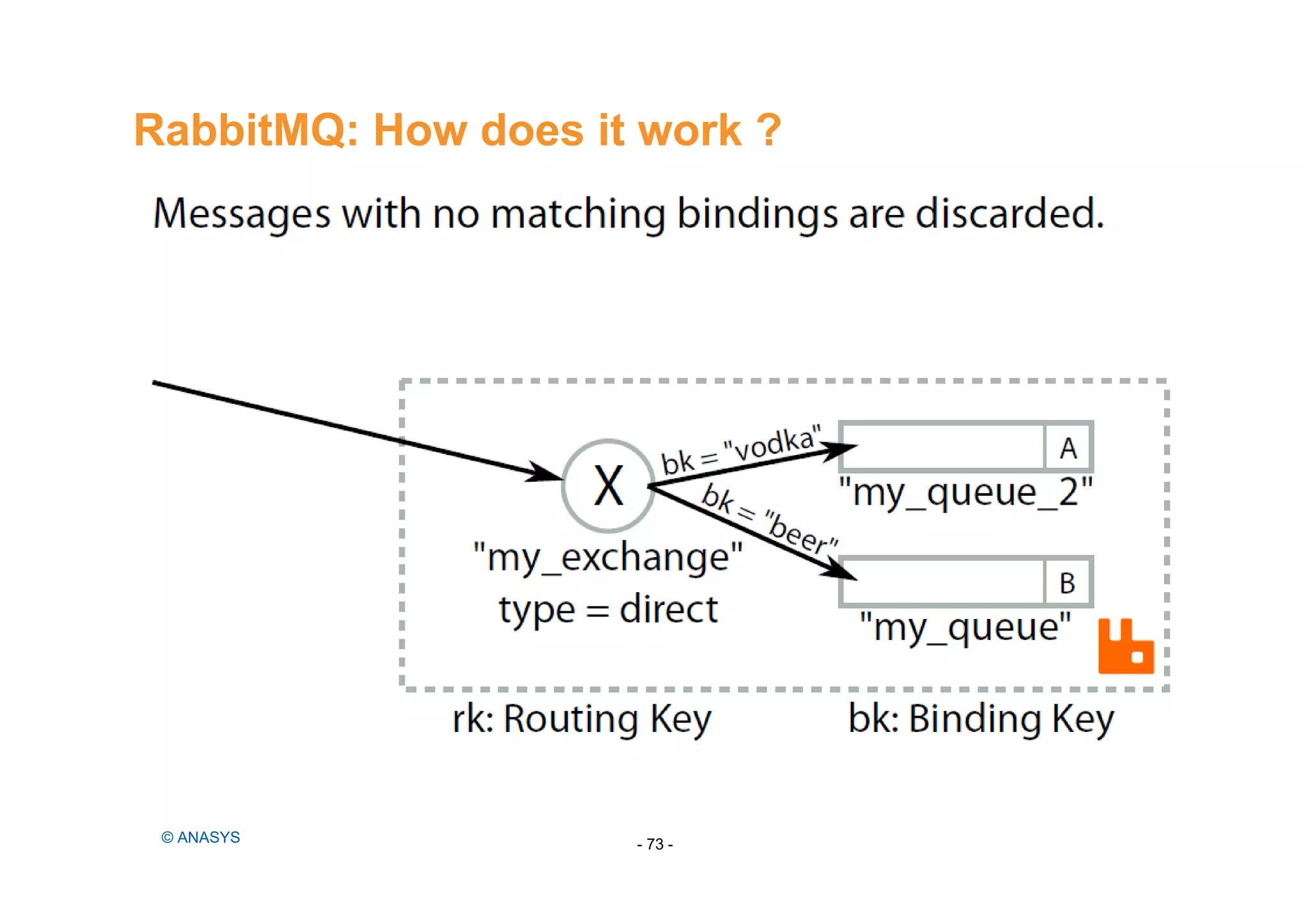

73. RabbitMQ: How does it work ?
- 73 -© ANASYS

74. RabbitMQ: How does it work ?
- 74 -© ANASYS

75. RabbitMQ: How does it work ?
- 75 -© ANASYS

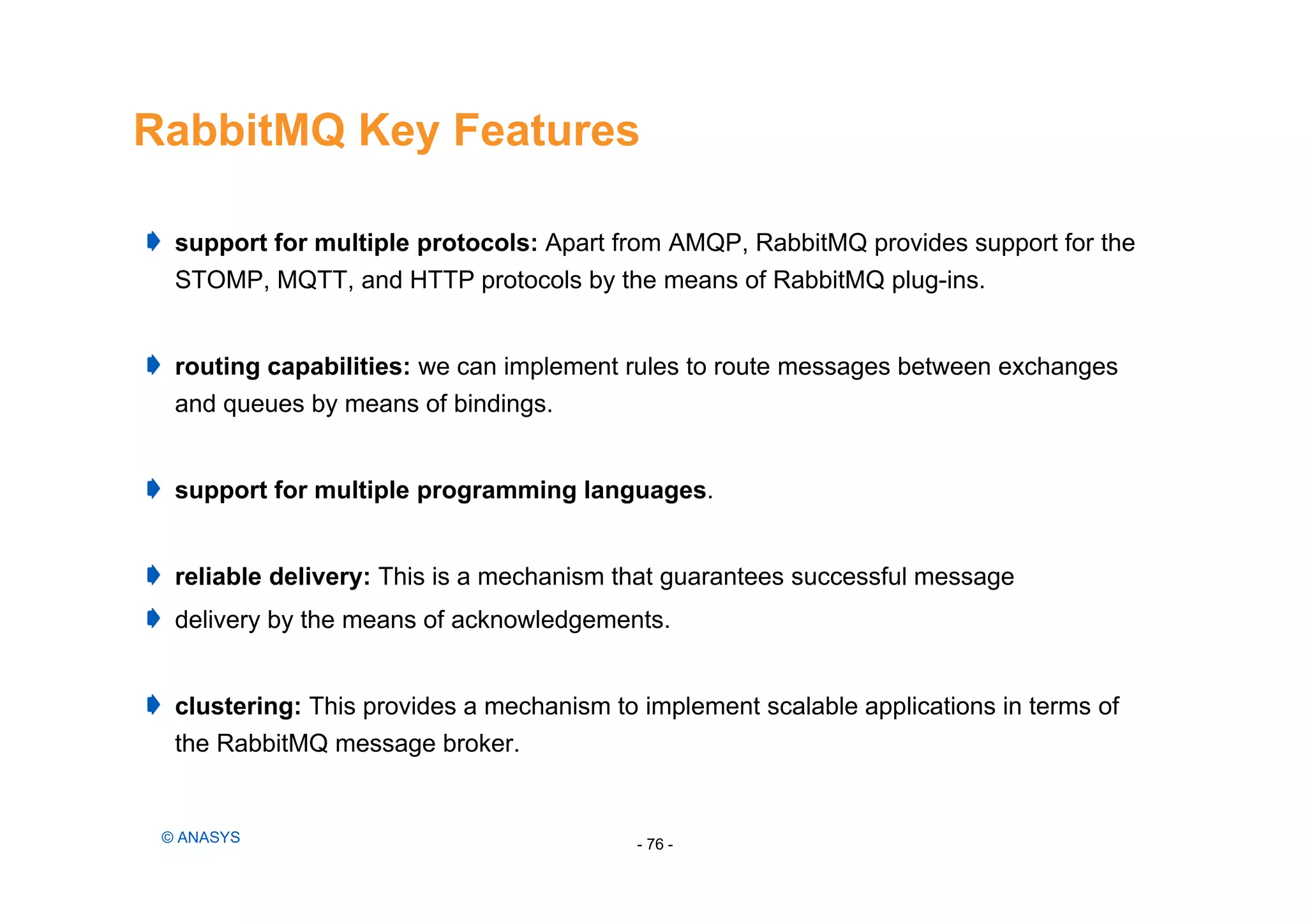

76. RabbitMQ Key Features
- 76 -© ANASYS
support for multiple protocols: Apart from AMQP, RabbitMQ provides support for the
STOMP, MQTT, and HTTP protocols by the means of RabbitMQ plug-ins.
routing capabilities: we can implement rules to route messages between exchanges
and queues by means of bindings.
support for multiple programming languages.
reliable delivery: This is a mechanism that guarantees successful message
delivery by the means of acknowledgements.
clustering: This provides a mechanism to implement scalable applications in terms of
the RabbitMQ message broker.

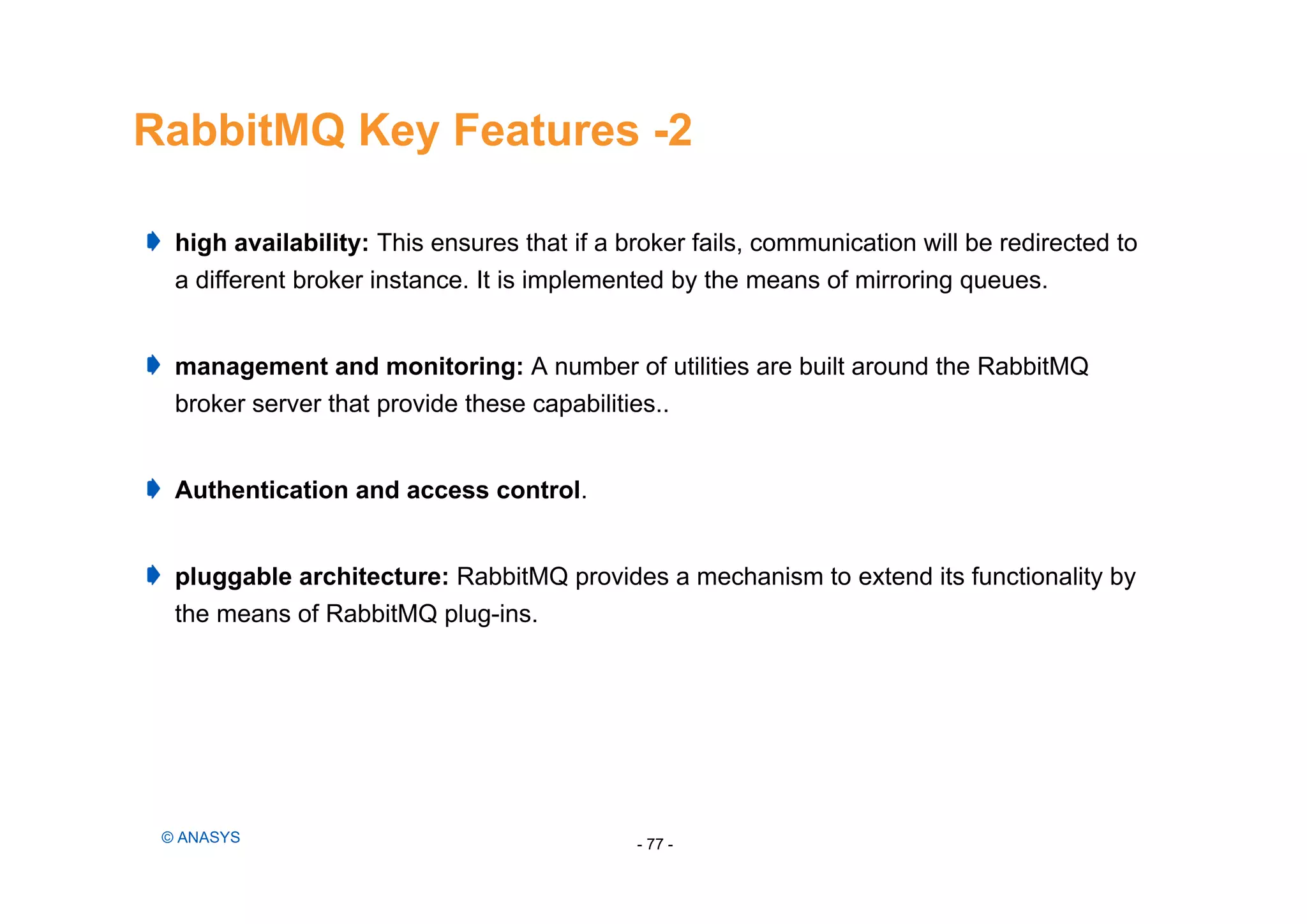

77. RabbitMQ Key Features -2
- 77 -© ANASYS
high availability: This ensures that if a broker fails, communication will be redirected to
a different broker instance. It is implemented by the means of mirroring queues.
management and monitoring: A number of utilities are built around the RabbitMQ
broker server that provide these capabilities..
Authentication and access control.
pluggable architecture: RabbitMQ provides a mechanism to extend its functionality by
the means of RabbitMQ plug-ins.

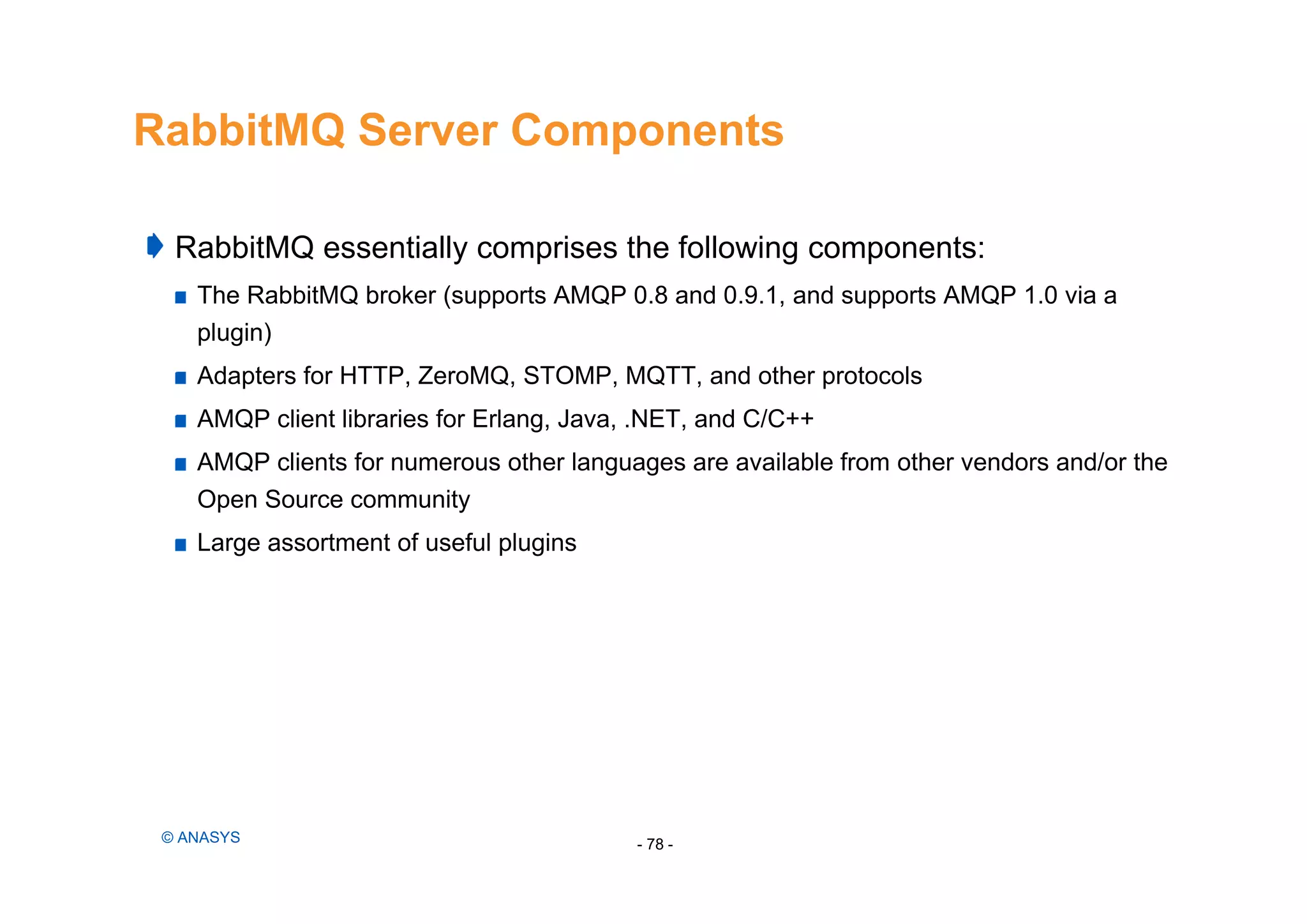

78. RabbitMQ Server Components
RabbitMQ essentially comprises the following components:
The RabbitMQ broker (supports AMQP 0.8 and 0.9.1, and supports AMQP 1.0 via a
plugin)
Adapters for HTTP, ZeroMQ, STOMP, MQTT, and other protocols
AMQP client libraries for Erlang, Java, .NET, and C/C++
AMQP clients for numerous other languages are available from other vendors and/or the
Open Source community
Large assortment of useful plugins
- 78 -© ANASYS

79. - 79 -
Who uses RabbitMQ?
Instagram - handle 4,000+ tasks and 10,000+ concurrent connections
VMWare - uses RabbitMQ in virtualization products
RedHat’s Cloud Services - uses RabbitMQ to coordinate internal
operations
JPMorgan, NSF, NASA, RedHat, OpenStack, AT&T, many others
© ANASYS

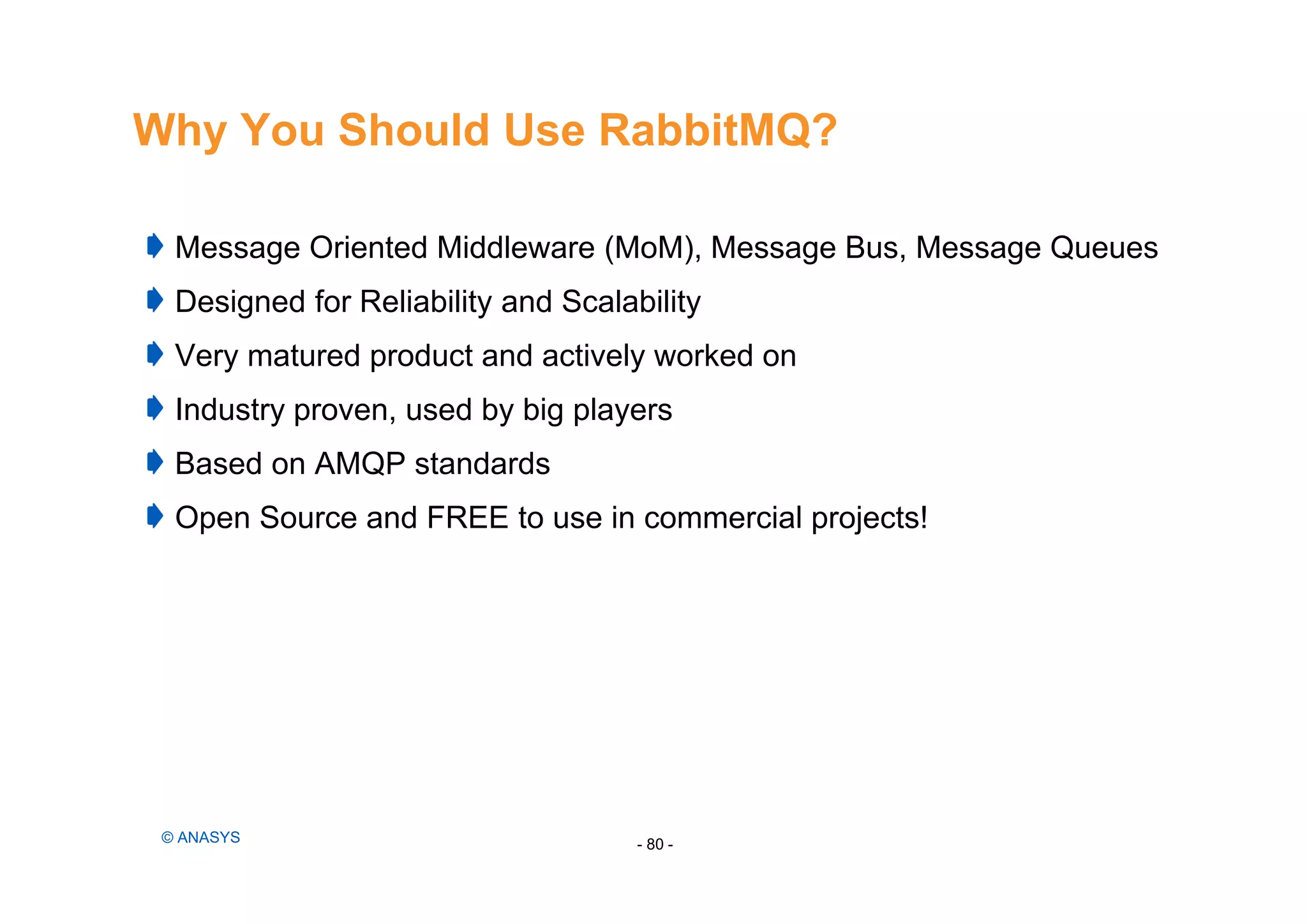

80. Why You Should Use RabbitMQ?
Message Oriented Middleware (MoM), Message Bus, Message Queues
Designed for Reliability and Scalability
Very matured product and actively worked on
Industry proven, used by big players
Based on AMQP standards
Open Source and FREE to use in commercial projects!
- 80 -© ANASYS

81. RabbitMQ : Installation
© ANASYS - 81 -

82. © ANASYS

83. Questions ?

84. Hassan BOUMARSEL
Java & Middleware Specialist
Contact
