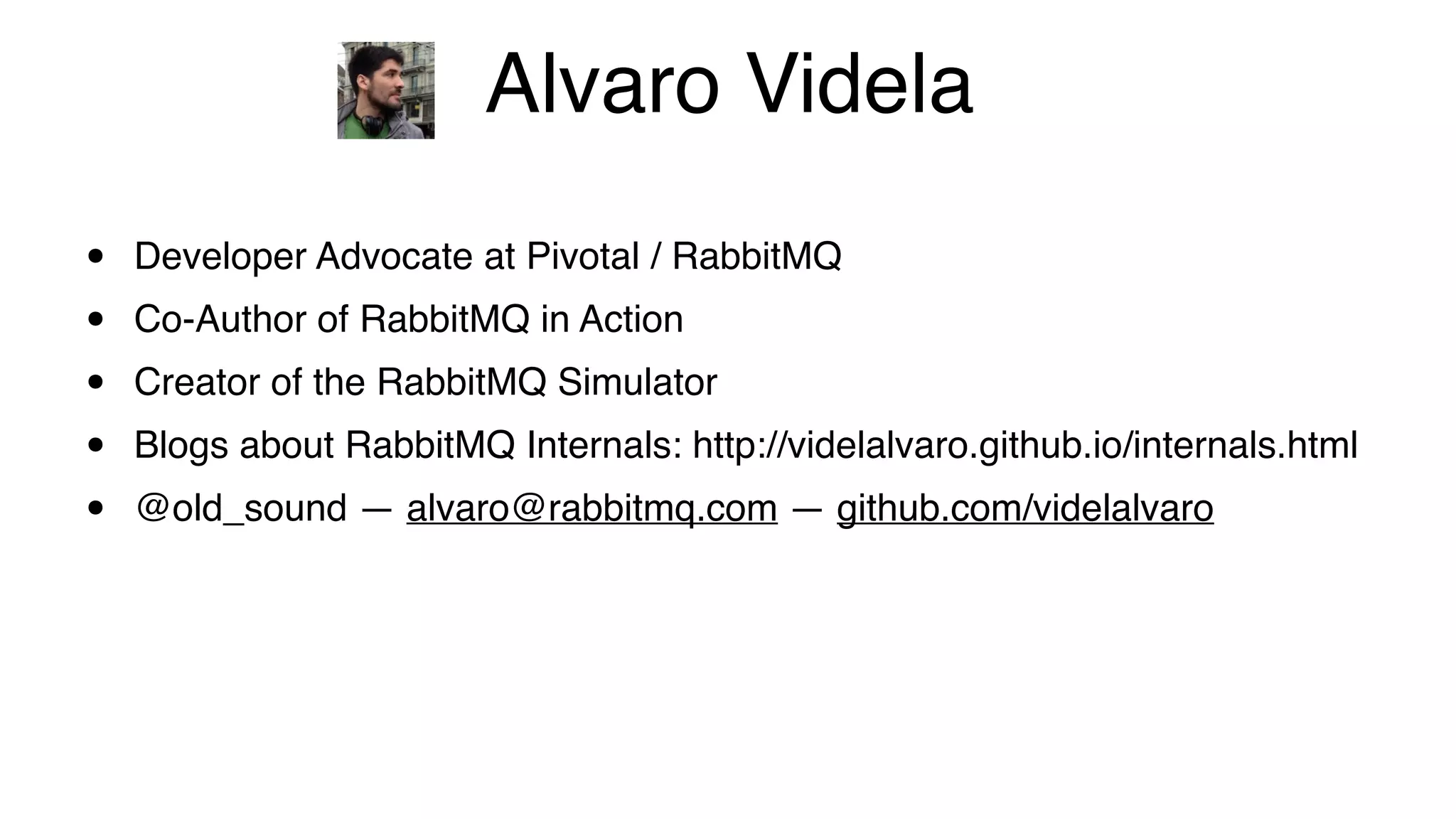

2. Alvaro Videla
• Developer Advocate at Pivotal / RabbitMQ!
• Co-Author of RabbitMQ in Action!
• Creator of the RabbitMQ Simulator!
• Blogs about RabbitMQ Internals: http://videlalvaro.github.io/internals.html!
• @old_sound — alvaro@rabbitmq.com — github.com/videlalvaro

3. About Me
Co-authored!
!
RabbitMQ in Action!
http://bit.ly/rabbitmq

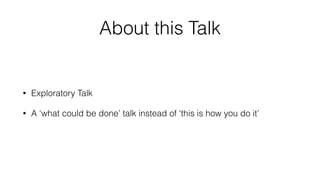

4. About this Talk
• Exploratory Talk
• A ‘what could be done’ talk instead of ‘this is how you do it’

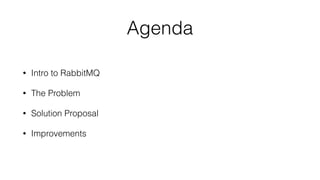

5. Agenda
• Intro to RabbitMQ
• The Problem
• Solution Proposal
• Improvements

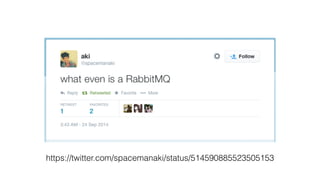

6. https://twitter.com/spacemanaki/status/514590885523505153

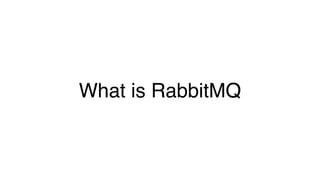

7. What is RabbitMQ

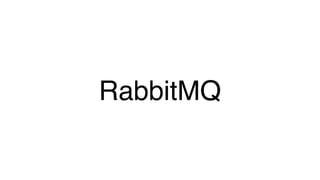

8. RabbitMQ

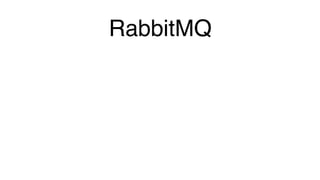

9. RabbitMQ

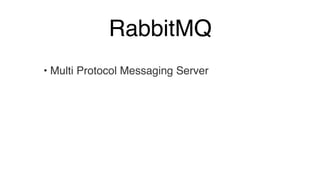

10. RabbitMQ
• Multi Protocol Messaging Server

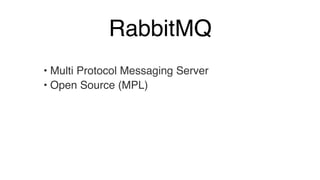

11. RabbitMQ
• Multi Protocol Messaging Server!
• Open Source (MPL)

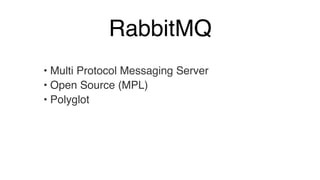

12. RabbitMQ
• Multi Protocol Messaging Server!
• Open Source (MPL)!
• Polyglot

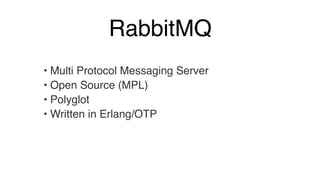

13. RabbitMQ
• Multi Protocol Messaging Server!
• Open Source (MPL)!
• Polyglot!
• Written in Erlang/OTP

14. Multi Protocol
http://bit.ly/rmq-protocols

15. Community Plugins
http://www.rabbitmq.com/community-plugins.html

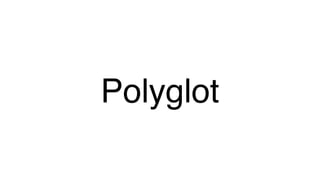

16. Polyglot

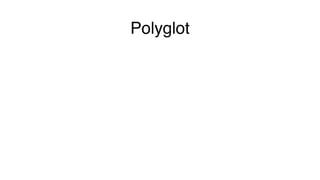

17. Polyglot

18. Polyglot
• Java

19. Polyglot
• Java!
• node.js

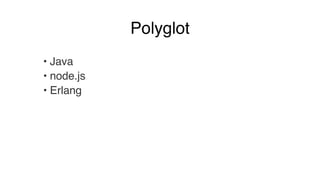

20. Polyglot
• Java!
• node.js!
• Erlang

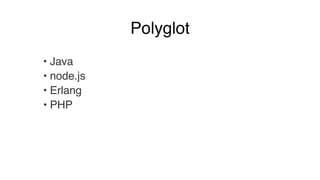

21. Polyglot
• Java!
• node.js!
• Erlang!
• PHP

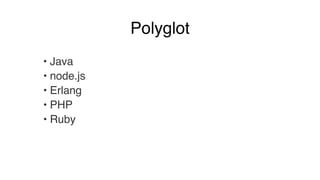

22. Polyglot
• Java!
• node.js!
• Erlang!
• PHP!
• Ruby

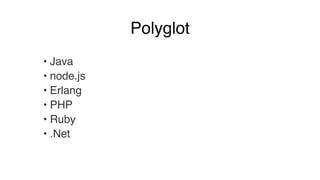

23. Polyglot
• Java!
• node.js!
• Erlang!
• PHP!
• Ruby!
• .Net

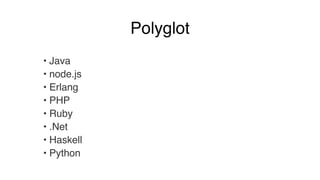

24. Polyglot
• Java!
• node.js!
• Erlang!
• PHP!
• Ruby!
• .Net!
• Haskell!
• Python

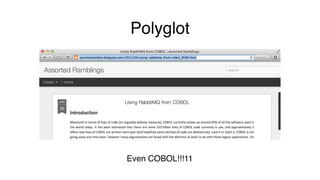

25. Polyglot
Even COBOL!!!11

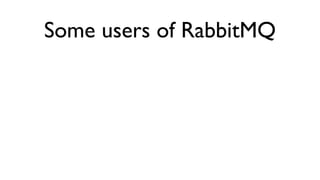

26. Some users of RabbitMQ

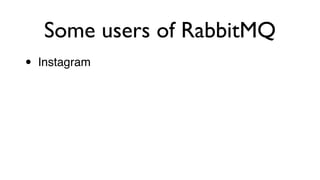

27. Some users of RabbitMQ
• Instagram

28. Some users of RabbitMQ
• Instagram!
• Indeed.com

29. Some users of RabbitMQ
• Instagram!
• Indeed.com!
• Telefonica

30. Some users of RabbitMQ
• Instagram!
• Indeed.com!
• Telefonica!
• Mercado Libre

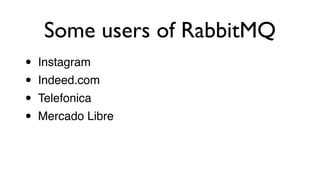

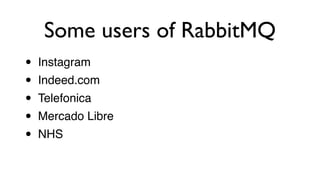

31. Some users of RabbitMQ
• Instagram!
• Indeed.com!
• Telefonica!
• Mercado Libre!
• NHS

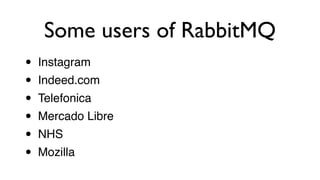

32. Some users of RabbitMQ
• Instagram!
• Indeed.com!
• Telefonica!
• Mercado Libre!
• NHS!
• Mozilla

33. The New York Times on RabbitMQ
This architecture - Fabrik - has dozens of RabbitMQ instances
spread across 6 AWS zones in Oregon and Dublin.
Upon launch today, the system autoscaled to ~500,000 users.
Connection times remained flat at ~200ms.
http://lists.rabbitmq.com/pipermail/rabbitmq-discuss/2014-January/032943.html

34. http://www.rabbitmq.com/download.html
Unix - Mac - Windows

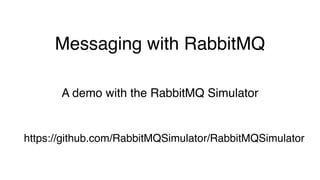

35. Messaging with RabbitMQ
A demo with the RabbitMQ Simulator
https://github.com/RabbitMQSimulator/RabbitMQSimulator

36. http://tryrabbitmq.com

37. RabbitMQ Simulator

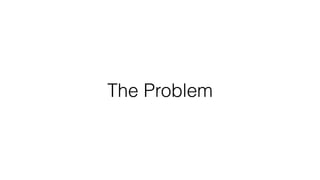

38. The Problem

39. Distributed Application
App
App
App
App

40. Distributed Application
App
App
App
App

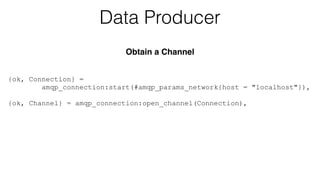

41. {ok, Connection} =
Data Producer
Obtain a Channel
amqp_connection:start(#amqp_params_network{host = "localhost"}),
!
{ok, Channel} = amqp_connection:open_channel(Connection),

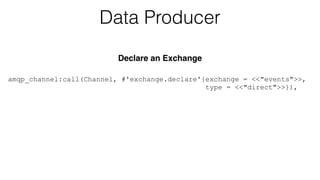

42. Data Producer
Declare an Exchange
amqp_channel:call(Channel, #'exchange.declare'{exchange = <<"events">>,
type = <<"direct">>}),

43. Data Producer
amqp_channel:cast(Channel,
Publish a message
#'basic.publish'{
exchange = <<"events">>},
#amqp_msg{props = #'P_basic'{delivery_mode = 2},
payload = <<“Hello Federation">>}),

44. Data Consumer
Obtain a Channel
{ok, Connection} =
amqp_connection:start(#amqp_params_network{host = "localhost"}),
!
{ok, Channel} = amqp_connection:open_channel(Connection),

45. Data Consumer
Declare Queue and bind it
amqp_channel:call(Channel, #'exchange.declare'{exchange = <<"events">>,
type = <<"direct">>}),
!
#'queue.declare_ok'{queue = Queue} =
amqp_channel:call(Channel, #'queue.declare'{exclusive = true}),
!
amqp_channel:call(Channel, #'queue.bind'{exchange = <<"events">>,
queue = Queue}),

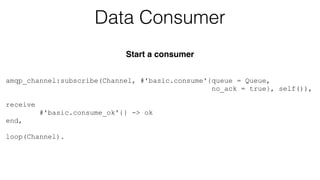

46. amqp_channel:subscribe(Channel, #'basic.consume'{queue = Queue,
no_ack = true}, self()),
!
receive
#'basic.consume_ok'{} -> ok
end,
!
loop(Channel).
Data Consumer
Start a consumer

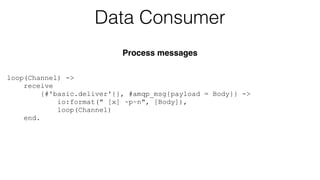

47. loop(Channel) ->
receive
{#'basic.deliver'{}, #amqp_msg{payload = Body}} ->
io:format(" [x] ~p~n", [Body]),
loop(Channel)
end.
Data Consumer
Process messages

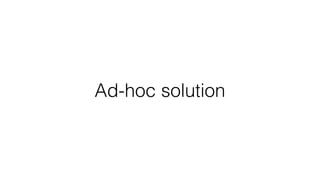

48. Ad-hoc solution

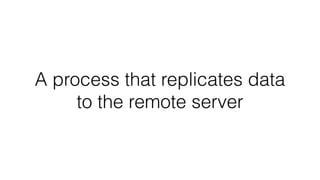

49. A process that replicates data
to the remote server

50. Possible issues

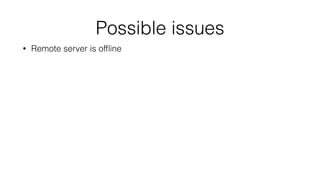

51. Possible issues
• Remote server is offline

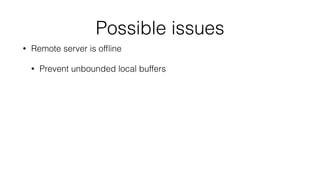

52. Possible issues
• Remote server is offline
• Prevent unbounded local buffers

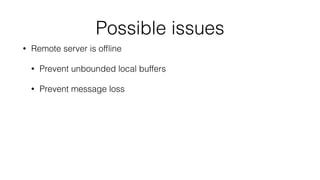

53. Possible issues
• Remote server is offline
• Prevent unbounded local buffers
• Prevent message loss

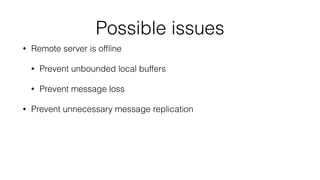

54. Possible issues
• Remote server is offline
• Prevent unbounded local buffers
• Prevent message loss
• Prevent unnecessary message replication

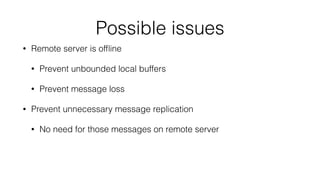

55. Possible issues
• Remote server is offline
• Prevent unbounded local buffers
• Prevent message loss
• Prevent unnecessary message replication
• No need for those messages on remote server

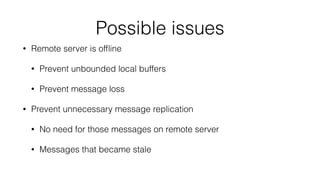

56. Possible issues
• Remote server is offline
• Prevent unbounded local buffers
• Prevent message loss
• Prevent unnecessary message replication
• No need for those messages on remote server
• Messages that became stale

57. Can we do better?

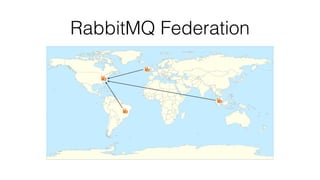

58. RabbitMQ Federation

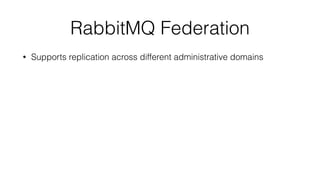

59. RabbitMQ Federation

60. RabbitMQ Federation
• Supports replication across different administrative domains

61. RabbitMQ Federation
• Supports replication across different administrative domains
• Supports mix of Erlang and RabbitMQ versions

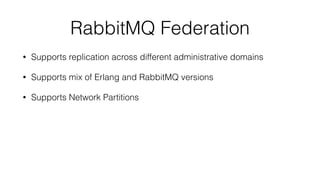

62. RabbitMQ Federation
• Supports replication across different administrative domains
• Supports mix of Erlang and RabbitMQ versions
• Supports Network Partitions

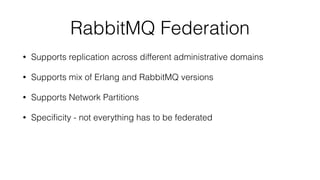

63. RabbitMQ Federation
• Supports replication across different administrative domains
• Supports mix of Erlang and RabbitMQ versions
• Supports Network Partitions
• Specificity - not everything has to be federated

64. RabbitMQ Federation

65. RabbitMQ Federation

66. RabbitMQ Federation

67. RabbitMQ Federation
• It’s a RabbitMQ Plugin

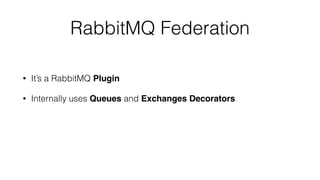

68. RabbitMQ Federation
• It’s a RabbitMQ Plugin
• Internally uses Queues and Exchanges Decorators

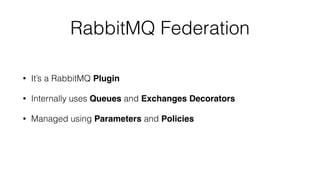

69. RabbitMQ Federation
• It’s a RabbitMQ Plugin
• Internally uses Queues and Exchanges Decorators
• Managed using Parameters and Policies

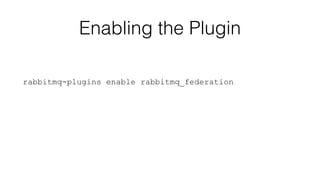

70. Enabling the Plugin
rabbitmq-plugins enable rabbitmq_federation

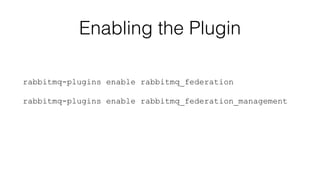

71. Enabling the Plugin
rabbitmq-plugins enable rabbitmq_federation
rabbitmq-plugins enable rabbitmq_federation_management

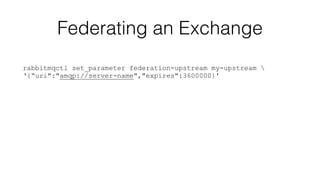

72. Federating an Exchange
rabbitmqctl set_parameter federation-upstream my-upstream
‘{“uri":"amqp://server-name","expires":3600000}'

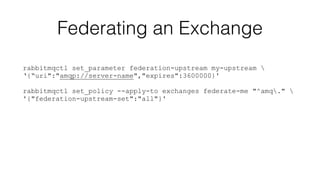

73. Federating an Exchange
rabbitmqctl set_parameter federation-upstream my-upstream
‘{“uri":"amqp://server-name","expires":3600000}'
!
rabbitmqctl set_policy --apply-to exchanges federate-me "^amq."
'{"federation-upstream-set":"all"}'

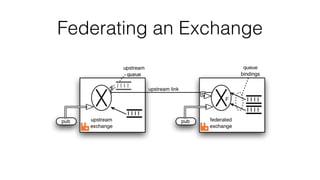

74. Federating an Exchange

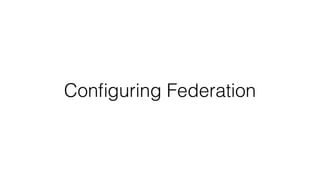

75. Configuring Federation

76. Config Options
rabbitmqctl set_parameter federation-upstream
name ‘json-object’

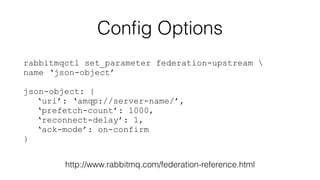

77. Config Options
rabbitmqctl set_parameter federation-upstream
name ‘json-object’
!
json-object: {
‘uri’: ‘amqp://server-name/’,
‘prefetch-count’: 1000,
‘reconnect-delay’: 1,
‘ack-mode’: on-confirm
}
http://www.rabbitmq.com/federation-reference.html

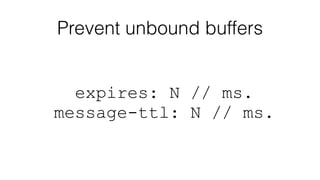

78. Prevent unbound buffers
expires: N // ms.
message-ttl: N // ms.

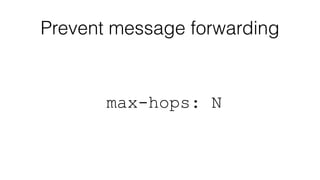

79. Prevent message forwarding

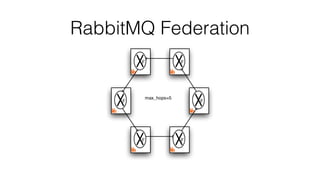

max-hops: N

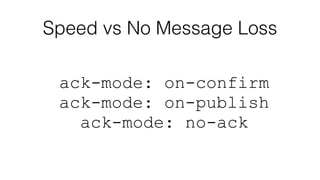

80. Speed vs No Message Loss
ack-mode: on-confirm
ack-mode: on-publish
ack-mode: no-ack

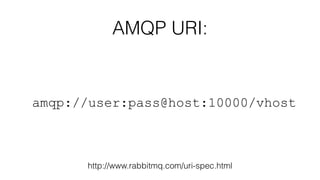

81. AMQP URI:
amqp://user:pass@host:10000/vhost
http://www.rabbitmq.com/uri-spec.html

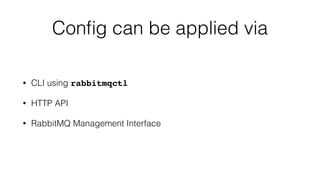

82. Config can be applied via
• CLI using rabbitmqctl
• HTTP API
• RabbitMQ Management Interface

83. RabbitMQ Federation

84. Some Queueing Theory
http://www.rabbitmq.com/blog/2012/05/11/some-queuing-theory-throughput-latency-and-bandwidth/

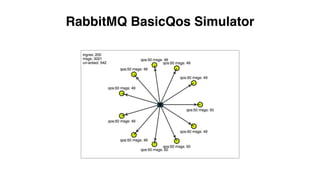

85. RabbitMQ BasicQos Simulator

86. Prevent Unbound Buffers
λ = mean arrival time
μ = mean service rate
if λ > μ what happens?
https://www.rabbitmq.com/blog/2014/01/23/preventing-unbounded-buffers-with-rabbitmq/

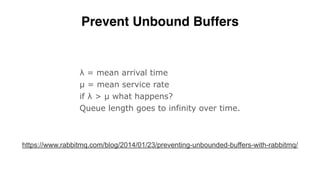

87. Prevent Unbound Buffers
λ = mean arrival time
μ = mean service rate
if λ > μ what happens?
Queue length goes to infinity over time.
https://www.rabbitmq.com/blog/2014/01/23/preventing-unbounded-buffers-with-rabbitmq/

88. Recommended Reading
Performance Modeling and
Design of Computer Systems:
Queueing Theory in Action

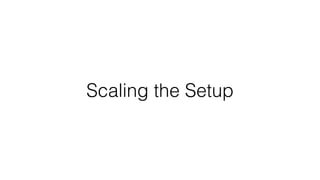

89. Scaling the Setup

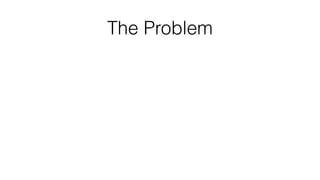

90. The Problem

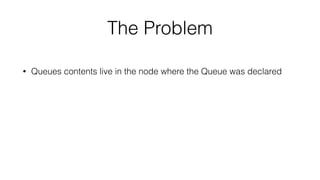

91. The Problem
• Queues contents live in the node where the Queue was declared

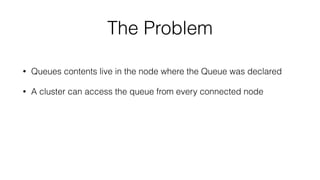

92. The Problem
• Queues contents live in the node where the Queue was declared
• A cluster can access the queue from every connected node

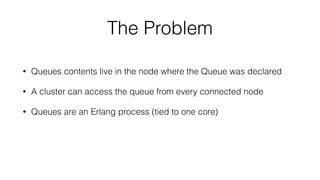

93. The Problem
• Queues contents live in the node where the Queue was declared
• A cluster can access the queue from every connected node
• Queues are an Erlang process (tied to one core)

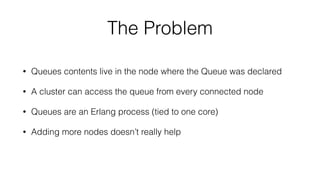

94. The Problem
• Queues contents live in the node where the Queue was declared
• A cluster can access the queue from every connected node
• Queues are an Erlang process (tied to one core)
• Adding more nodes doesn’t really help

95. Enter Sharded Queues

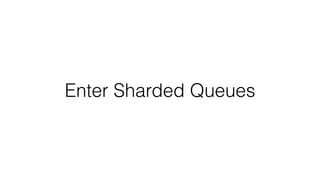

96. Enter Sharded Queues

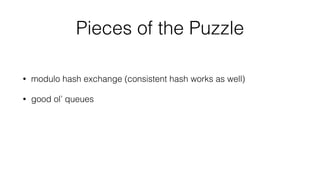

97. Pieces of the Puzzle
• modulo hash exchange (consistent hash works as well)
• good ol’ queues

98. Sharded Queues

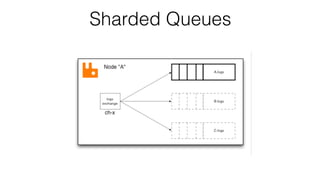

99. Sharded Queues

100. Sharded Queues

101. Sharded Queues

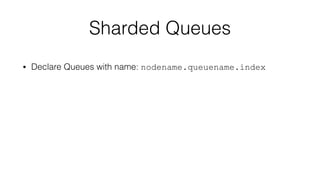

102. Sharded Queues
• Declare Queues with name: nodename.queuename.index

103. Sharded Queues
• Declare Queues with name: nodename.queuename.index
• Bind the queues to a consistent hash exchange

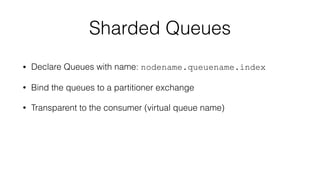

104. Sharded Queues
• Declare Queues with name: nodename.queuename.index
• Bind the queues to a partitioner exchange
• Transparent to the consumer (virtual queue name)

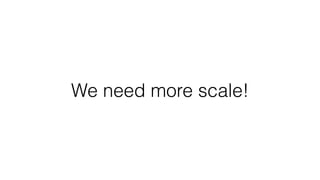

105. We need more scale!

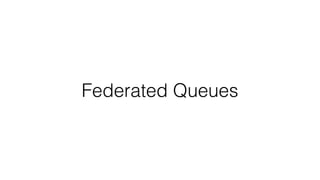

106. Federated Queues

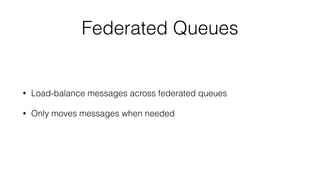

107. Federated Queues
• Load-balance messages across federated queues
• Only moves messages when needed

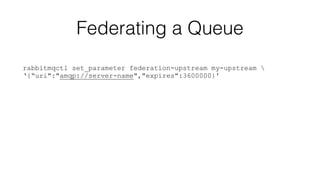

108. Federating a Queue
rabbitmqctl set_parameter federation-upstream my-upstream
‘{“uri":"amqp://server-name","expires":3600000}'

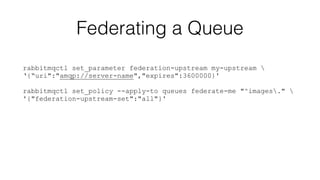

109. Federating a Queue
rabbitmqctl set_parameter federation-upstream my-upstream
‘{“uri":"amqp://server-name","expires":3600000}'
!
rabbitmqctl set_policy --apply-to queues federate-me "^images."
'{"federation-upstream-set":"all"}'

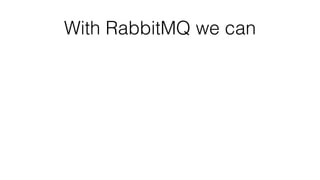

110. With RabbitMQ we can

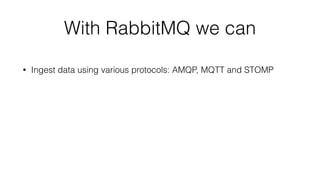

111. With RabbitMQ we can
• Ingest data using various protocols: AMQP, MQTT and STOMP

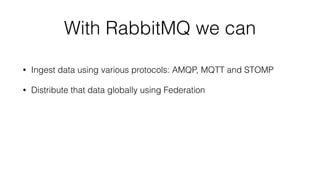

112. With RabbitMQ we can
• Ingest data using various protocols: AMQP, MQTT and STOMP
• Distribute that data globally using Federation

113. With RabbitMQ we can
• Ingest data using various protocols: AMQP, MQTT and STOMP
• Distribute that data globally using Federation
• Scale up using Sharding

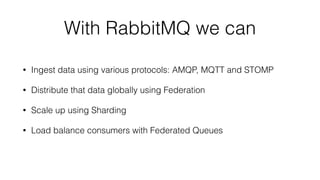

114. With RabbitMQ we can
• Ingest data using various protocols: AMQP, MQTT and STOMP
• Distribute that data globally using Federation
• Scale up using Sharding
• Load balance consumers with Federated Queues

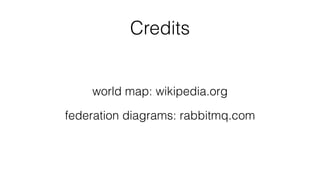

115. Credits
world map: wikipedia.org
federation diagrams: rabbitmq.com

116. Questions?

117. Thanks
Alvaro Videla - @old_sound
