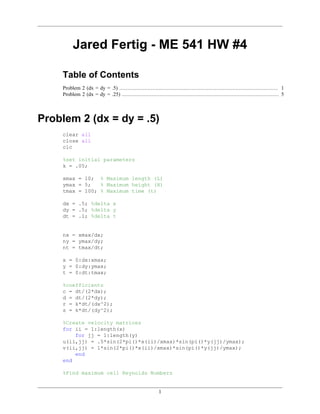

Jared Fertig - ME 541 HW #4
Table of Contents
Problem 2 (dx = dy = .5) ..................................................................................................... 1
Problem 2 (dx = dy = .25) .................................................................................................... 5
Problem 2 (dx = dy = .5)
clear all
close all
clc
%set initial parameters
k = .05;
xmax = 10; % Maximum length (L)
ymax = 5; % Maximum height (H)
tmax = 100; % Maximum time (t)
dx = .5; %delta x
dy = .5; %delta y
dt = .1; %delta t
nx = xmax/dx;
ny = ymax/dy;
nt = tmax/dt;
x = 0:dx:xmax;
y = 0:dy:ymax;
t = 0:dt:tmax;
%coefficients
c = dt/(2*dx);
d = dt/(2*dy);
r = k*dt/(dx^2);
s = k*dt/(dy^2);
%Create velocity matrices
for ii = 1:length(x)
for jj = 1:length(y)
u(ii,jj) = .5*sin(2*pi()*x(ii)/xmax)*sin(pi()*y(jj)/ymax);
v(ii,jj) = 1*sin(2*pi()*x(ii)/xmax)*sin(pi()*y(jj)/ymax);
end
end
%Find maximum cell Reynolds Numbers

2. Jared Fertig - ME 541 HW #4
2
umax = max(max(u));
vmax = max(max(v));
Rcx = umax*dx/k;
disp(['The Maximum Reynolds Number in the x-direction is R_cx =',
num2str(Rcx)])
Rcy = vmax*dy/k;
disp(['The Maximum Reynolds Number in the y-direction is R_cy =',
num2str(Rcy)])
%Create the Temperature Matrix
T = zeros(nx+1,ny+1,nt+1);
%initial conditions
for ii = 1:nx+1
for kk = 2:nt+1
T(ii,1,kk) = 10*sin(pi()*x(ii)/xmax)^2;
T(ii,ny,kk) = 10*sin(pi()*x(ii)/xmax)^2;
end
end
for jj = 1:ny+1
for kk = 2:nt+1
T(1,jj,kk) = 5*sin(2*pi()*y(jj)/ymax)^2;
T(nx,jj,kk) = 5*sin(2*pi()*y(jj)/ymax)^2;
end
end
for ii = 1:nx+1
for jj = 1:ny+1
T(ii,jj,1) = 0;
end
end
%create matrix based on forward time center space
for kk = 1:nt
T(1,1,kk+1) = T(1,1,kk)-...
c*u(1,1)*(T(2,1,kk)-T(nx,1,kk))-...
c*v(1,1)*(T(1,2,kk)-T(1,ny,kk))+...
r*(T(2,1,kk)-2*T(1,1,kk)+T(nx,1,kk))+...
r*(T(1,ny,kk)-2*T(1,1,kk)+T(1,ny,kk));
for ii = 2:nx
for jj = 2:ny
T(ii,jj,kk+1)=T(ii,jj,kk)-...
c*u(ii,jj)*(T(ii+1,jj,kk)-T(ii-1,jj,kk))-...
c*v(ii,jj)*(T(ii,jj+1,kk)-T(ii,jj-1,kk))+...
r*(T(ii+1,jj,kk)-2*T(ii,jj,kk)+T(ii-1,jj,kk))+...
r*(T(ii,jj+1,kk)-2*T(ii,jj,kk)+T(ii,jj-1,kk));
end
for ll = 1:ny
T(nx+1,ll,kk+1)=T(1,ll,kk+1);
end
for mm = 1:nx
T(mm,ny+1,kk+1)=T(mm,1,kk+1);

3. Jared Fertig - ME 541 HW #4
3
end
end
end
%Calculate Temperature Matrix at the Center
T_center = T(nx/2,ny/2,:);
T_cent = T_center(:)';
figure(1)
plot(t,T_cent)
grid on
title('Temperature at Center vs Time')
xlabel('Time (s)')
ylabel('Temperature (deg)')
%Find Steady State Time and Temperature
tol = .0001;
pp = 40;
err = 1;
while err > tol
err = T_cent(pp+1) - T_cent(pp);
pp = pp + 1;
end
disp(['Steady State is Reached at the Center at ', num2str(t(pp)),'
seconds'])
disp(['The Steady State Temperature is ', num2str(T_cent(pp)),'
degrees'])
T_contour = T(:,:,pp);
C = rot90(T_contour);
figure(2)
contour(x,y,C,20);
title('Contour Plot at Steady State (20 Levels)')
xlabel('Distance')
ylabel('Height')
The Maximum Reynolds Number in the x-direction is R_cx =5
The Maximum Reynolds Number in the y-direction is R_cy =10
Steady State is Reached at the Center at 33.2 seconds
The Steady State Temperature is 7.1491 degrees

4. Jared Fertig - ME 541 HW #4
4

5. Jared Fertig - ME 541 HW #4
5
Problem 2 (dx = dy = .25)
%set initial parameters
k = .05;
xmax = 10; % Maximum length (L)
ymax = 5; % Maximum height (H)
tmax = 100; % Maximum time (t)
dx = .25; %delta x
dy = .25; %delta y
dt = .1; %delta t
nx = xmax/dx;
ny = ymax/dy;
nt = tmax/dt;
x = 0:dx:xmax;
y = 0:dy:ymax;
t = 0:dt:tmax;
%coefficients
c = dt/(2*dx);
d = dt/(2*dy);
r = k*dt/(dx^2);
s = k*dt/(dy^2);
%Create velocity matrices
for ii = 1:length(x)
for jj = 1:length(y)
u(ii,jj) = .5*sin(2*pi()*x(ii)/xmax)*sin(pi()*y(jj)/ymax);
v(ii,jj) = 1*sin(2*pi()*x(ii)/xmax)*sin(pi()*y(jj)/ymax);
end
end
%Find maximum cell Reynolds Numbers
umax = max(max(u));
vmax = max(max(v));
Rcx = umax*dx/k;
disp(['The Maximum Reynolds Number in the x-direction is R_cx =',
num2str(Rcx)])
Rcy = vmax*dy/k;
disp(['The Maximum Reynolds Number in the y-direction is R_cy =',
num2str(Rcy)])
%Create the Temperature Matrix
T = zeros(nx+1,ny+1,nt+1);
%initial conditions
for ii = 1:nx+1
for kk = 2:nt+1

6. Jared Fertig - ME 541 HW #4
6
T(ii,1,kk) = 10*sin(pi()*x(ii)/xmax)^2;
T(ii,ny,kk) = 10*sin(pi()*x(ii)/xmax)^2;
end
end
for jj = 1:ny+1
for kk = 2:nt+1
T(1,jj,kk) = 5*sin(2*pi()*y(jj)/ymax)^2;
T(nx,jj,kk) = 5*sin(2*pi()*y(jj)/ymax)^2;
end
end
for ii = 1:nx+1
for jj = 1:ny+1
T(ii,jj,1) = 0;
end
end
%create matrix based on forward time center space
for kk = 1:nt
T(1,1,kk+1) = T(1,1,kk)-...
c*u(1,1)*(T(2,1,kk)-T(nx,1,kk))-...
c*v(1,1)*(T(1,2,kk)-T(1,ny,kk))+...
r*(T(2,1,kk)-2*T(1,1,kk)+T(nx,1,kk))+...
r*(T(1,ny,kk)-2*T(1,1,kk)+T(1,ny,kk));
for ii = 2:nx
for jj = 2:ny
T(ii,jj,kk+1)=T(ii,jj,kk)-...
c*u(ii,jj)*(T(ii+1,jj,kk)-T(ii-1,jj,kk))-...
c*v(ii,jj)*(T(ii,jj+1,kk)-T(ii,jj-1,kk))+...
r*(T(ii+1,jj,kk)-2*T(ii,jj,kk)+T(ii-1,jj,kk))+...
r*(T(ii,jj+1,kk)-2*T(ii,jj,kk)+T(ii,jj-1,kk));
end
for ll = 1:ny
T(nx+1,ll,kk+1)=T(1,ll,kk+1);
end
for mm = 1:nx
T(mm,ny+1,kk+1)=T(mm,1,kk+1);
end
end
end
%Calculate Temperature Matrix at the Center
T_center = T(nx/2,ny/2,:);
T_cent = T_center(:)';
figure(3)
plot(t,T_cent)
grid on
title('Temperature at Center vs Time')
xlabel('Time (s)')
ylabel('Temperature (deg)')
%Find Steady State Time and Temperature

7. Jared Fertig - ME 541 HW #4
7
tol = .0001;
pp = 40;
err = 1;
while err > tol
err = T_cent(pp+1) - T_cent(pp);
pp = pp + 1;
end
disp(['Steady State is Reached at the Center at ', num2str(t(pp)),'
seconds'])
disp(['The Steady State Temperature is ', num2str(T_cent(pp)),'
degrees'])
T_contour = T(:,:,pp);
C = rot90(T_contour);
figure(4)
contour(x,y,C,20);
title('Contour Plot at Steady State (20 Levels)')
xlabel('Distance')
ylabel('Height')
The Maximum Reynolds Number in the x-direction is R_cx =2.5
The Maximum Reynolds Number in the y-direction is R_cy =5
Steady State is Reached at the Center at 34.5 seconds
The Steady State Temperature is 6.7535 degrees

8. Jared Fertig - ME 541 HW #4
8

9. Jared Fertig - ME 541 HW #4
9
Published with MATLAB® R2015b
