Research by
                                           Sameer Tandon
                                           & Vijay Hegde

Exploring untapped RFID potential for Asset Management in
           IT/Data Center and Oil and Gas sector
Flow of events

         The motivation and direction

         RFID as a technology and as an enabler

         Research objective and methodology

         Integrated 5 lens framework

         IT Asset Management

         Oil and Gas industry




Page 2
Asset Intensive Industries




Page 3
The need of the hour




                                 The fact is that only 7% are
                                completely satisfied with their
                                  service and maintenance
                                        performance.



Page 4
Flow of events

         The motivation and direction

         RFID as a technology and as an enabler

         Research objective and methodology

         Integrated 5 lens framework

         IT Asset Management

         Oil and Gas industry




Page 5
Straight from the horse’s mouth



            quot;RFID is one of those rare
         'change the world' technologies                       “The use of RFID goes beyond
           that will force a rethinking of                      the supply chain. Companies
           many value-chain strategies”                        are seeing the benefits in areas
                                                                 like asset tracking and drug
                                                                       authentication. ”
           Mark Bauhaus, VP, Juniper Networks

                                                                    Julie Sarbacker, Director, Sun
                                                                       Micrsosytems RFID BU

          quot; RFID is being used today by their customers to
           grow business and to benefit consumers: from
               increasing visibility in the supply chain to
         decreasing counterfeit drugs; from providing asset
            tracking in hospitals to ensuring the safety of
         miners; from streamlining baggage handling at US
            airports to tagging valuable documents in the
                             Vatican Library”
                       Mark Bauhaus, VP, Juniper Networks

          Linda Young, Director, Business Development, AIM Global
Page 6
Taking over from the legacy




         Barcodes have been around for decades


                        But they are far from perfect…




Page 7
Technology Basics

     Essentials
         RFID Tags




                         Passive   Semi-passive
           Active

                                         Host PC
         RFID Readers




Page 8
RFID operating frequencies and associated
         characteristics




Page 9
RFID market size and applications of RFID




                                               The Market
                                                   is
                                                Booming!




                                           RFID Market 2004 - 2010




Page 10
Flow of events

          The motivation and direction

          RFID as a technology and as an enabler

          Research objective and methodology

          Integrated 5 lens framework

          IT Asset Management

          Oil and Gas industry




Page 11
Typical questions when you are starting the project



          How to best use selected                                  How to build
           solution capabilities?                                     internal
                                                                     expertise?
                                         Do we have internal
                                             capabilities
                                           and capacity to
            How and where                 staff the project?
             do we start?


                                                                   How expensive will
                                                                  this project be? How
                                     Who does what
                                                               do we keep the costs low?
                                     in this project?



               How to manage
            project and business                           How do we assure
               risks involved?                                success?




Page 12
RFID

          Research Objective


            To assess the untapped business potential of RFID applications for asset
           tracking and management in Information Technology/Data Centers and
                                       Oil/Gas Sector




          Research Methodology


          Phase 1: Data Collection

          Phase 2: Development of Framework

          Phase 3: Application of framework



Page 13
Flow of events

          The motivation and direction

          RFID as a technology and as an enabler

          Research objective and methodology

          Integrated 5 lens framework

          IT Asset Management

          Oil and Gas industry




Page 14
Integrated 5 Lens Framework




            Value     Business    Challenges      Return      Proof
            Chain      Impact                       On         Of
           Analysis
                      Analysis                  Investment   Concept
                                                  (ROI)


                          Integrated 5 Lens Method




Page 15
Integrated 5 Lens Framework           Contd.



          Value Chain analysis
          • Identify areas of applicability for RFID, develop use cases and the
            benefits involved
          Business Impact Analysis
          • Prioritize the benefits and the associated use cases in the order of
            their impact on the business
          Challenges
          • Identify the various challenges involved

          ROI
          • ROI calculations to substantiate the business case for RFID
            adoption
          Proof-of-Concept
          • Select priority use cases and run a pilot test in the field environment
Page 16
Integrated 5 Lens Framework Contd. ROI




           Forrester’s Total Economic Impact (TIE) based ROI Analysis

           “Risk” adjusted ROI
                Risk-to-benefit and Risk-to-cost
                Most likely benefits and Most likely costs




Page 17
Flow of events

          The motivation and direction

          RFID as a technology and as an enabler

          Research objective and methodology

          Integrated 5 lens framework

          IT Asset Management

          Oil and Gas industry




Page 18
Information Technology Asset Management (ITAM)
  Description
                                        N


     The growth has outstripped the
      manpower available to look
          after the resources!                                       IT Assets


     Exponential Growth in:
     •Servers/Storage
     •Desktops/laptops
     •Memory cards
                                                                        Manpower
     •I/O Hardware
     •Peripherals (printers, routers)



           The Challenges:
           YoY server footprint growth of 13.5% (IDC)
           Blade servers and small IT assets account for majority
           “Run Book” automation depends on human intervention


Page 19

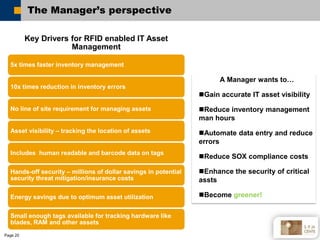

The Manager’s perspective

          Key Drivers for RFID enabled IT Asset
                      Management

  5x times faster inventory management

                                                                       A Manager wants to…
  10x times reduction in inventory errors
                                                                 Gain accurate IT asset visibility

                                                                 Reduce inventory management
  No line of site requirement for managing assets
                                                                 man hours
  Asset visibility – tracking the location of assets             Automate data entry and reduce
                                                                 errors
  Includes human readable and barcode data on tags
                                                                 Reduce SOX compliance costs

                                                                 Enhance the security of critical
  Hands-off security – millions of dollar savings in potential
  security threat mitigation/insurance costs                     assts

                                                                 Become greener!
  Energy savings due to optimum asset utilization


  Small enough tags available for tracking hardware like
  blades, RAM and other assets
Page 20
Survey Results




Page 21
Lens 1: IT Asset Value Chain analysis




           Receive    Assign IT       Manage        Maintain    Locate IT       Secure
          Shipments    Assets        Inventory     and Retire    Assets        and Alert

    Highly Labor intensive process

                                  SOX Compliance
                                                                                           Pain Points and
                                                 Green
                                                                                              Concerns
                                                 IT Security / Data Assurance

                                                                Theft / Loss



Page 22
Lens 1: Use Cases
    Output
           1                 2                 3              4               5


       Automated     Control point       Manage rack      Cubicle or       Asset
      receiving of   monitoring of       level IT asset   distributed   maintenance
         assets        assets              inventory       inventory    and retrieval

     •Reduces        •Asset visibility
                                    •Asset visibility •Rapid      data * Faster asset
     shipment                                         capture       of location within
                     •Generate and •Faster
     errors                                           distributed      a facility
                     maintain       inventory         assets
     •Billing        comprehensive management
                                                      •Paper
     Sequence        audit trail of                               less
                                    •Accuracy of
                     assets                           process
     •Reduces                       IT audits         limiting human
                     •Access
     manual                                           error
                                    •Security
     labour          management



Page 23
Lens 2: Business Impact Analysis


                      Business Drivers of an organization
                      Security
                      Operational Efficiency
                      Asset accounting and accuracy
                      Asset utilization




                                          Output
            Quantified Business Benefits according to the above business
                                       drivers
                                 Priority list of use cases
             Higher priority to the use cases with higher business impact




Page 24
Lens 3: Challenges

          Business Process Analysis

          Integration

          Infrastructure cost

          Recurring Cost

          Organizational acceptance

          Environmental/Scenario challenges


          Output
          Total cost (including pre-RFID labour rate for ITAM)

Page 25
Lens 4: ROI


          Total benefits from priority list of use cases (lens #2)

          Total costs from challenges and pre-RFID labour costs
          (lens#3)

          ITAM Risks: risk-to-cost and risk-to-benefit


          TEI based ROI analysis


          Output
          Risk adjusted ROI, Payback

Page 26
Sample Illustration


                                                                                 Present
                              Year I         Year II     Year III     Total     Value (PV)

          Total benefit      $969,117      $1,453,675   $2,422,792 $4,845,583 $3,603,973

          Total cost        $2,479,983     $264,433     $294,500    $3,038,917 $2,577,676

          Net cash flow     -$1,510,867    $1,189,242   $2,128,292 $1,806,667 $1,026,297
          Cumulative cash
          flow              -$1,510,867    -$321,625    $1,806,667 $3,613,333

          NPV                $1,026,297
          ROI                       40%
          Payback           Over 2 Years




Page 27
Lens 5: Proof – of – Concept

          Each implementation is unique

          Pilot run by Vendors

          Priority use cases chosen for pilot run
               Control point IT Asset tracking
               Rack level inventory management


          Check whether perceived benefits meet the required
          expectations

          Produce performance benchmark results

          Pilot results used to develop implementation
          roadmaps

Page 28
Conclusions

                  RFID based solutions add significant value to IT
                  Asset management (ITAM)

                  RFID tag selection decisions will drive
                  performance of RFID based solutions for ITAM


                  Surging end user demand for RFID based ITAM


                  Growing need for performance standards to
                  spur ITAM adoption


                  Limitations of ITAM usage


Page 29
Flow of events

          The motivation and direction

          RFID as a technology and as an enabler

          Research objective and methodology

          The 5 lens integrated framework

          IT Asset Management

          Oil and Gas industry




Page 30
Oil and Gas Industry




            The growth of the energy
             industry is astounding!

          And almost all of it is driven by
           the Oil and Gas industry…

Page 31
IT Spending on Oil and Gas

        The Growth in IT
          spending has
     increased in the same
              vein!




                                         And as the graph on
                                          the left shows, the
                                       industry has to keep up
                                          with the demand…

Page 32
Lens 1: Value Chain Analysis

    Bird’s eye view of
       Oil and Gas
      Supply Chain

          Exploration      Production         Refining          Marketing      Consumer



                Upstream

     •Exploration & Production               Midstream
     of crude oil
     •Services and Repair                                               Downstream
                                        •Refining Operations
     •Refinery transport                •Sale and Delivery of
                                                                  •Storage and Distribution
                                        product
                                                                  •Terminal Management
                                        •Inventory tracking
                                                                  •CRM
                                                                  •Inventory Management
                                                                  •Marketing planning



Page 33
Use Cases
    Output
                     1                        2                            3


              Seismic and             Human Capital                   Facilities
            Exploration wells          Management

          •Monitoring and        •Increases safety and         •Quality control
          management of          security of personnel at
                                                               •Dyamic KPI collection
          mobile and fixed       drilling and rig operations
          assets
                                 •Measure location and         •Geo-fencing
          •Performance           operational safety
                                                               •Supply chain visibility
          monitoring in down-    environment
          hole conditions
                                 •More directed                •Inventory control
          •Faster location of    emergency operations
          assets
                                 •CSR measures
          •Improve operational
          efficiency
Page 34
Lens 2: Business Impact Analysis

                       Business Drivers of an organization
                       Supply chain collaboration and visibility
                       Simplify and enhance operations
                       Asset security
                       Asset utilization
                       Personnel management and security




                                        Output
            Quantified Business Benefits according to the above business
                                       drivers
                                 Priority list of use cases
             Higher priority to the use cases with higher business impact




Page 35
Lens 3: Challenges

            Infrastructure cost


            Organizational acceptance across the ranks


            Scenario of implementation


            Integration across the supply chain


            Evolving standards and technology specifications


            Recurring costs (upgrade and maintenance cost)


            Damage to tags and readers owing to the harsh environment


                                 List of challenges under the above category
                                 Tag life time and performance under harsh
          Output
                                  physical conditions
                                 Total costs including the pre-RFID labour costs
Page 36
Lens 4: ROI


          Total benefits from priority list of use cases (lens #2)

          Total costs from challenges and pre-RFID labour costs
          (lens#3)

          Risks: risk-to-cost and risk-to-benefit


          Total Economic Impact (TEI) based ROI analysis


          Output
          Risk adjusted ROI, Payback

Page 37
Sample Illustration


                                                                                   Present
                               Year I         Year II     Year III     Total      Value (PV)


          Total benefit      $2,095,145     $4,190,291   $4,190,291 $10,475,727 $7,890,467

          Total cost         $3,015,498     $720,513     $720,513    $5,689,857 $3,685,910

          Net cash flow      -$920,353      $3,469,778   $3,469,778 $4,785,870 $4,204,556
          Cumulative cash
          flow               -$920,353      $2,549,426   $6,019,204 $10,805,074

          NPV                  $4,204,556
          ROI                       114%
                              Between 12
          Payback           and 24 months




Page 38
Lens 5: Proof – of – Concept

          Each implementation is unique

          Pilot run by Vendors

          Priority use cases chosen for pilot run
               Seismic   and exploration wells
               Human capital management
               Facilities and asset utilization/maintenance


          Check whether perceived benefits meet the required
          expectations

          Produce performance benchmark results

          Pilot results used to develop implementation
          roadmaps
Page 39

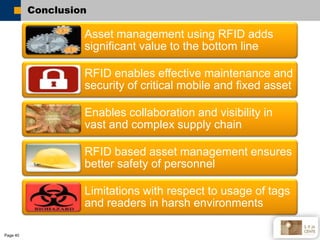

Conclusion

                   Asset management using RFID adds
                   significant value to the bottom line

                   RFID enables effective maintenance and
                   security of critical mobile and fixed asset

                   Enables collaboration and visibility in
                   vast and complex supply chain

                   RFID based asset management ensures
                   better safety of personnel

                   Limitations with respect to usage of tags
                   and readers in harsh environments

Page 40
Thank You!




                       Questions?
Page 41

More Related Content

What's hot

Presentation RFID
Presentation  RFIDPresentation  RFID
Presentation RFID
Pravin Shinde

Rfid presentation
Rfid presentationRfid presentation
Rfid presentation
Kalpna Saharan

Radio frequency identification
Radio frequency    identificationRadio frequency    identification
Radio frequency identification
Ravi Teja

RFID Technology
RFID TechnologyRFID Technology
RFID Technology
davidtowers

Using RFID in Manufacturing Operations
Using RFID in Manufacturing OperationsUsing RFID in Manufacturing Operations
Using RFID in Manufacturing Operations
Angela Carver

RFID
RFIDRFID
rfid presentation
rfid presentationrfid presentation
rfid presentation
Dinesh Nikam

Rfid technology
Rfid technologyRfid technology
Rfid technology
hkpeterpeter

RFID based tracking System
RFID based tracking SystemRFID based tracking System
RFID based tracking System
Shahrikh Khan

RFID (Radio Frequency Identification)
RFID (Radio Frequency Identification)RFID (Radio Frequency Identification)
RFID (Radio Frequency Identification)
Amber Bhaumik

RFID Technology
RFID TechnologyRFID Technology
RFID Technology
Kshitij Varma

RFID tag - technology and scenarios
RFID tag - technology and scenariosRFID tag - technology and scenarios
RFID tag - technology and scenarios
Davide Del Monte

Rfid based attendance sytem
Rfid based attendance sytemRfid based attendance sytem
Rfid based attendance sytem
Piyush Saini

Rfid and gsm based attendence system
Rfid and gsm based attendence systemRfid and gsm based attendence system
Rfid and gsm based attendence system
Karthik Kumar

RFID Basics
RFID BasicsRFID Basics
RFID Basics
fizzyjazzy

Library management system using rfid
Library management system using rfidLibrary management system using rfid
Library management system using rfid
Naveen Sihag

Warehouse management system (1)
Warehouse    management   system (1)Warehouse    management   system (1)
Warehouse management system (1)
RUBY DIKSHIT

Rfid based smart attendance system
Rfid based smart attendance systemRfid based smart attendance system
Rfid based smart attendance system
afserfec56

Rfid technology
Rfid technologyRfid technology
Rfid technology
Publicis Sapient

Asset Tracking System
Asset Tracking SystemAsset Tracking System
Asset Tracking System
Orange Technolab Pvt Ltd


What's hot (20)

Presentation RFID
Presentation  RFIDPresentation  RFID
Presentation RFID

Rfid presentation
Rfid presentationRfid presentation
Rfid presentation

Radio frequency identification
Radio frequency    identificationRadio frequency    identification
Radio frequency identification

RFID Technology
RFID TechnologyRFID Technology
RFID Technology

Using RFID in Manufacturing Operations
Using RFID in Manufacturing OperationsUsing RFID in Manufacturing Operations
Using RFID in Manufacturing Operations

RFID
RFIDRFID
RFID

rfid presentation
rfid presentationrfid presentation
rfid presentation

Rfid technology
Rfid technologyRfid technology
Rfid technology

RFID based tracking System
RFID based tracking SystemRFID based tracking System
RFID based tracking System

RFID (Radio Frequency Identification)
RFID (Radio Frequency Identification)RFID (Radio Frequency Identification)
RFID (Radio Frequency Identification)

RFID Technology
RFID TechnologyRFID Technology
RFID Technology

RFID tag - technology and scenarios
RFID tag - technology and scenariosRFID tag - technology and scenarios
RFID tag - technology and scenarios

Rfid based attendance sytem
Rfid based attendance sytemRfid based attendance sytem
Rfid based attendance sytem

Rfid and gsm based attendence system
Rfid and gsm based attendence systemRfid and gsm based attendence system
Rfid and gsm based attendence system

RFID Basics
RFID BasicsRFID Basics
RFID Basics

Library management system using rfid
Library management system using rfidLibrary management system using rfid
Library management system using rfid

Warehouse management system (1)
Warehouse    management   system (1)Warehouse    management   system (1)
Warehouse management system (1)

Rfid based smart attendance system
Rfid based smart attendance systemRfid based smart attendance system
Rfid based smart attendance system

Rfid technology
Rfid technologyRfid technology
Rfid technology

Asset Tracking System
Asset Tracking SystemAsset Tracking System
Asset Tracking System


Viewers also liked

RFID based asset management
RFID based asset managementRFID based asset management
RFID based asset management
AOPL

Teamliftss rfid based_asset_management_system
Teamliftss rfid based_asset_management_system Teamliftss rfid based_asset_management_system
Teamliftss rfid based_asset_management_system
Venkatesa Prasad

Rfid ppt
Rfid pptRfid ppt
Band- ID RFID Inspection - Asset Tracking for OCTG- Drill Pipe & Equipment ...
Band- ID RFID  Inspection - Asset Tracking for  OCTG- Drill Pipe & Equipment ...Band- ID RFID  Inspection - Asset Tracking for  OCTG- Drill Pipe & Equipment ...
Band- ID RFID Inspection - Asset Tracking for OCTG- Drill Pipe & Equipment ...
Gary ABEL

Designing With RFID
Designing With RFIDDesigning With RFID
Designing With RFID
Chen pinmiao

GAO Asset Tracking System: know where your assets are at all times!
GAO Asset Tracking System: know where your assets are at all times!GAO Asset Tracking System: know where your assets are at all times!
GAO Asset Tracking System: know where your assets are at all times!
GAO RFID Inc.

Using RFID to Track Tools and Equipment
Using RFID to Track Tools and EquipmentUsing RFID to Track Tools and Equipment
Using RFID to Track Tools and Equipment
Impinj RFID

Rfid Presentation Slides
Rfid Presentation SlidesRfid Presentation Slides
Rfid Presentation Slides
guestbed1dd

RFID and its applications
RFID and its applicationsRFID and its applications
RFID and its applications
Naveen Kumar

Rfid ppt 8th sem
Rfid ppt 8th semRfid ppt 8th sem
Rfid ppt 8th sem
Amit Ranjan

GAO RFID Asset Management System: Easily manage the flow of materials, docume...
GAO RFID Asset Management System: Easily manage the flow of materials, docume...GAO RFID Asset Management System: Easily manage the flow of materials, docume...
GAO RFID Asset Management System: Easily manage the flow of materials, docume...
GAO RFID Inc.

Getting started with asset tracking
Getting started with asset trackingGetting started with asset tracking
Getting started with asset tracking
EZOfficeInventory

Implementing Technology in the AEC Industry
Implementing Technology in the AEC IndustryImplementing Technology in the AEC Industry
Implementing Technology in the AEC Industry
Kris Lengieza

Implementing Technology in the AEC Industry
Implementing Technology in the AEC IndustryImplementing Technology in the AEC Industry
Implementing Technology in the AEC Industry
Kris Lengieza


Viewers also liked (14)

RFID based asset management
RFID based asset managementRFID based asset management
RFID based asset management

Teamliftss rfid based_asset_management_system
Teamliftss rfid based_asset_management_system Teamliftss rfid based_asset_management_system
Teamliftss rfid based_asset_management_system

Rfid ppt
Rfid pptRfid ppt
Rfid ppt

Band- ID RFID Inspection - Asset Tracking for OCTG- Drill Pipe & Equipment ...
Band- ID RFID  Inspection - Asset Tracking for  OCTG- Drill Pipe & Equipment ...Band- ID RFID  Inspection - Asset Tracking for  OCTG- Drill Pipe & Equipment ...
Band- ID RFID Inspection - Asset Tracking for OCTG- Drill Pipe & Equipment ...

Designing With RFID
Designing With RFIDDesigning With RFID
Designing With RFID

GAO Asset Tracking System: know where your assets are at all times!
GAO Asset Tracking System: know where your assets are at all times!GAO Asset Tracking System: know where your assets are at all times!
GAO Asset Tracking System: know where your assets are at all times!

Using RFID to Track Tools and Equipment
Using RFID to Track Tools and EquipmentUsing RFID to Track Tools and Equipment
Using RFID to Track Tools and Equipment

Rfid Presentation Slides
Rfid Presentation SlidesRfid Presentation Slides
Rfid Presentation Slides

RFID and its applications
RFID and its applicationsRFID and its applications
RFID and its applications

Rfid ppt 8th sem
Rfid ppt 8th semRfid ppt 8th sem
Rfid ppt 8th sem

GAO RFID Asset Management System: Easily manage the flow of materials, docume...
GAO RFID Asset Management System: Easily manage the flow of materials, docume...GAO RFID Asset Management System: Easily manage the flow of materials, docume...
GAO RFID Asset Management System: Easily manage the flow of materials, docume...

Getting started with asset tracking
Getting started with asset trackingGetting started with asset tracking
Getting started with asset tracking

Implementing Technology in the AEC Industry
Implementing Technology in the AEC IndustryImplementing Technology in the AEC Industry
Implementing Technology in the AEC Industry

Implementing Technology in the AEC Industry
Implementing Technology in the AEC IndustryImplementing Technology in the AEC Industry
Implementing Technology in the AEC Industry


Similar to Asset Tracking and Management using RFID for IT/Datacenters and Oil and Gas industry

SYMCInvestorPresentationDec2008II
SYMCInvestorPresentationDec2008IISYMCInvestorPresentationDec2008II
SYMCInvestorPresentationDec2008II
finance40

SYMCInvestorPresentationDec2008II
SYMCInvestorPresentationDec2008IISYMCInvestorPresentationDec2008II
SYMCInvestorPresentationDec2008II
finance40

DecisionPoint Investor Presentation-January 2011
DecisionPoint Investor Presentation-January 2011DecisionPoint Investor Presentation-January 2011
DecisionPoint Investor Presentation-January 2011
EHodges

Worldwide Business Research
Worldwide Business ResearchWorldwide Business Research
Worldwide Business Research
wbr_marketing

Why outsource?
Why outsource?Why outsource?
Why outsource?
rnfimran

RFID in Maintenance Management Best Practice
RFID in Maintenance Management Best PracticeRFID in Maintenance Management Best Practice
RFID in Maintenance Management Best Practice
T.A. Cook

Speed and Flow
Speed and Flow Speed and Flow
Speed and Flow
William Yu

Transform Your Application Portfolio - and Keep Your Focus!
Transform Your Application Portfolio - and Keep Your Focus!Transform Your Application Portfolio - and Keep Your Focus!
Transform Your Application Portfolio - and Keep Your Focus!
Software AG

El caso India
El caso IndiaEl caso India
El caso India
TELEACCION

Baird2006RFIDConferencefinal
Baird2006RFIDConferencefinalBaird2006RFIDConferencefinal
Baird2006RFIDConferencefinal
finance45

RFID:A pragmatic approach
RFID:A pragmatic approachRFID:A pragmatic approach
RFID:A pragmatic approach
Zetes srl

Wt Whitepaper 0308
Wt Whitepaper 0308Wt Whitepaper 0308
Wt Whitepaper 0308
Bonita Read

Market Research Report : Ipv6 market in india 2012
Market Research Report :  Ipv6 market in india 2012 Market Research Report :  Ipv6 market in india 2012
Market Research Report : Ipv6 market in india 2012
Netscribes, Inc.

Maximise Software Investment In Uncertain Times
Maximise Software Investment In Uncertain TimesMaximise Software Investment In Uncertain Times
Maximise Software Investment In Uncertain Times
Kristina O'Regan

Real Life Lessons From an Operational Excellence Expert
Real Life Lessons From an Operational Excellence ExpertReal Life Lessons From an Operational Excellence Expert
Real Life Lessons From an Operational Excellence Expert
Minitab, LLC

Unlocking Your Organization\'s Warranty Management Potential
Unlocking Your Organization\'s Warranty Management PotentialUnlocking Your Organization\'s Warranty Management Potential
Unlocking Your Organization\'s Warranty Management Potential
ImranMasood

Technology and business innovation v5
Technology and business innovation v5Technology and business innovation v5
Technology and business innovation v5
Anil Kumar Yadav

Biometrics - The Key for Effective, Secure & Smart Identification
Biometrics - The Key for Effective, Secure & Smart IdentificationBiometrics - The Key for Effective, Secure & Smart Identification
Biometrics - The Key for Effective, Secure & Smart Identification
IDEX ASA

Managed Services: RFID's Newest Business Model?
Managed Services: RFID's Newest Business Model?Managed Services: RFID's Newest Business Model?
Managed Services: RFID's Newest Business Model?
VDC Research Group

CIO priorities and Data Virtualization: Balancing the Yin and Yang of the IT
CIO priorities and Data Virtualization: Balancing the Yin and Yang of the ITCIO priorities and Data Virtualization: Balancing the Yin and Yang of the IT
CIO priorities and Data Virtualization: Balancing the Yin and Yang of the IT
Denodo


Similar to Asset Tracking and Management using RFID for IT/Datacenters and Oil and Gas industry (20)

SYMCInvestorPresentationDec2008II
SYMCInvestorPresentationDec2008IISYMCInvestorPresentationDec2008II
SYMCInvestorPresentationDec2008II

SYMCInvestorPresentationDec2008II
SYMCInvestorPresentationDec2008IISYMCInvestorPresentationDec2008II
SYMCInvestorPresentationDec2008II

DecisionPoint Investor Presentation-January 2011
DecisionPoint Investor Presentation-January 2011DecisionPoint Investor Presentation-January 2011
DecisionPoint Investor Presentation-January 2011

Worldwide Business Research
Worldwide Business ResearchWorldwide Business Research
Worldwide Business Research

Why outsource?
Why outsource?Why outsource?
Why outsource?

RFID in Maintenance Management Best Practice
RFID in Maintenance Management Best PracticeRFID in Maintenance Management Best Practice
RFID in Maintenance Management Best Practice

Speed and Flow
Speed and Flow Speed and Flow
Speed and Flow

Transform Your Application Portfolio - and Keep Your Focus!
Transform Your Application Portfolio - and Keep Your Focus!Transform Your Application Portfolio - and Keep Your Focus!
Transform Your Application Portfolio - and Keep Your Focus!

El caso India
El caso IndiaEl caso India
El caso India

Baird2006RFIDConferencefinal
Baird2006RFIDConferencefinalBaird2006RFIDConferencefinal
Baird2006RFIDConferencefinal

RFID:A pragmatic approach
RFID:A pragmatic approachRFID:A pragmatic approach
RFID:A pragmatic approach

Wt Whitepaper 0308
Wt Whitepaper 0308Wt Whitepaper 0308
Wt Whitepaper 0308

Market Research Report : Ipv6 market in india 2012
Market Research Report :  Ipv6 market in india 2012 Market Research Report :  Ipv6 market in india 2012
Market Research Report : Ipv6 market in india 2012

Maximise Software Investment In Uncertain Times
Maximise Software Investment In Uncertain TimesMaximise Software Investment In Uncertain Times
Maximise Software Investment In Uncertain Times

Real Life Lessons From an Operational Excellence Expert
Real Life Lessons From an Operational Excellence ExpertReal Life Lessons From an Operational Excellence Expert
Real Life Lessons From an Operational Excellence Expert

Unlocking Your Organization\'s Warranty Management Potential
Unlocking Your Organization\'s Warranty Management PotentialUnlocking Your Organization\'s Warranty Management Potential
Unlocking Your Organization\'s Warranty Management Potential

Technology and business innovation v5
Technology and business innovation v5Technology and business innovation v5
Technology and business innovation v5

Biometrics - The Key for Effective, Secure & Smart Identification
Biometrics - The Key for Effective, Secure & Smart IdentificationBiometrics - The Key for Effective, Secure & Smart Identification
Biometrics - The Key for Effective, Secure & Smart Identification

Managed Services: RFID's Newest Business Model?
Managed Services: RFID's Newest Business Model?Managed Services: RFID's Newest Business Model?
Managed Services: RFID's Newest Business Model?

CIO priorities and Data Virtualization: Balancing the Yin and Yang of the IT
CIO priorities and Data Virtualization: Balancing the Yin and Yang of the ITCIO priorities and Data Virtualization: Balancing the Yin and Yang of the IT
CIO priorities and Data Virtualization: Balancing the Yin and Yang of the IT


More from sam_tandon

FDI inflow and related issues in Russia
FDI inflow and related issues in RussiaFDI inflow and related issues in Russia
FDI inflow and related issues in Russia
sam_tandon

Foreign trade and etiquettes in Poland
Foreign trade and etiquettes in PolandForeign trade and etiquettes in Poland
Foreign trade and etiquettes in Poland
sam_tandon

Shared Services and Outsourcing
Shared Services and OutsourcingShared Services and Outsourcing
Shared Services and Outsourcing
sam_tandon

IT Strategy for the retail domain
IT Strategy for the retail domainIT Strategy for the retail domain
IT Strategy for the retail domain
sam_tandon

e-Business ideas in Telecom
e-Business ideas in Telecome-Business ideas in Telecom
e-Business ideas in Telecom
sam_tandon

Indian Tourism Industry Analysis
Indian Tourism Industry AnalysisIndian Tourism Industry Analysis
Indian Tourism Industry Analysis
sam_tandon

NY Times
NY TimesNY Times
NY Times
sam_tandon


More from sam_tandon (7)

FDI inflow and related issues in Russia
FDI inflow and related issues in RussiaFDI inflow and related issues in Russia
FDI inflow and related issues in Russia

Foreign trade and etiquettes in Poland
Foreign trade and etiquettes in PolandForeign trade and etiquettes in Poland
Foreign trade and etiquettes in Poland

Shared Services and Outsourcing
Shared Services and OutsourcingShared Services and Outsourcing
Shared Services and Outsourcing

IT Strategy for the retail domain
IT Strategy for the retail domainIT Strategy for the retail domain
IT Strategy for the retail domain

e-Business ideas in Telecom
e-Business ideas in Telecome-Business ideas in Telecom
e-Business ideas in Telecom

Indian Tourism Industry Analysis
Indian Tourism Industry AnalysisIndian Tourism Industry Analysis
Indian Tourism Industry Analysis

NY Times
NY TimesNY Times
NY Times


Recently uploaded

DearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUniDearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUni
katiejasper96

NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
BBPMedia1

Negotiation & Presentation Skills regarding steps in business communication, ...
Negotiation & Presentation Skills regarding steps in business communication, ...Negotiation & Presentation Skills regarding steps in business communication, ...
Negotiation & Presentation Skills regarding steps in business communication, ...
UdayaShankarS1

一比一原版新西兰奥塔哥大学毕业证(otago毕业证)如何办理
一比一原版新西兰奥塔哥大学毕业证(otago毕业证)如何办理一比一原版新西兰奥塔哥大学毕业证(otago毕业证)如何办理
一比一原版新西兰奥塔哥大学毕业证(otago毕业证)如何办理
taqyea

Pitch Deck Teardown: Kinnect's $250k Angel deck
Pitch Deck Teardown: Kinnect's $250k Angel deckPitch Deck Teardown: Kinnect's $250k Angel deck
Pitch Deck Teardown: Kinnect's $250k Angel deck
HajeJanKamps

Dpboss Matka Guessing Satta Matta Matka Kalyan panel Chart Indian Matka Dpbos...
Dpboss Matka Guessing Satta Matta Matka Kalyan panel Chart Indian Matka Dpbos...Dpboss Matka Guessing Satta Matta Matka Kalyan panel Chart Indian Matka Dpbos...
Dpboss Matka Guessing Satta Matta Matka Kalyan panel Chart Indian Matka Dpbos...
➒➌➎➏➑➐➋➑➐➐Dpboss Matka Guessing Satta Matka Kalyan Chart Indian Matka

list of states and organizations .pdf
list of  states  and  organizations .pdflist of  states  and  organizations .pdf
list of states and organizations .pdf
Rbc Rbcua

The latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from NewentideThe latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from Newentide
JoeYangGreatMachiner

Registered-Establishment-List-in-Uttarakhand-pdf.pdf
Registered-Establishment-List-in-Uttarakhand-pdf.pdfRegistered-Establishment-List-in-Uttarakhand-pdf.pdf
Registered-Establishment-List-in-Uttarakhand-pdf.pdf
dazzjoker

Cover Story - China's Investment Leader - Dr. Alyce SU
Cover Story - China's Investment Leader - Dr. Alyce SUCover Story - China's Investment Leader - Dr. Alyce SU
Cover Story - China's Investment Leader - Dr. Alyce SU
msthrill

Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Herman Kienhuis

The APCO Geopolitical Radar - Q3 2024 The Global Operating Environment for Bu...
The APCO Geopolitical Radar - Q3 2024 The Global Operating Environment for Bu...The APCO Geopolitical Radar - Q3 2024 The Global Operating Environment for Bu...
The APCO Geopolitical Radar - Q3 2024 The Global Operating Environment for Bu...
APCO

Digital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital ExcellenceDigital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital Excellence
Operational Excellence Consulting

4 Benefits of Partnering with an OnlyFans Agency for Content Creators.pdf
4 Benefits of Partnering with an OnlyFans Agency for Content Creators.pdf4 Benefits of Partnering with an OnlyFans Agency for Content Creators.pdf
4 Benefits of Partnering with an OnlyFans Agency for Content Creators.pdf
onlyfansmanagedau

TIMES BPO: Business Plan For Startup Industry
TIMES BPO: Business Plan For Startup IndustryTIMES BPO: Business Plan For Startup Industry
TIMES BPO: Business Plan For Startup Industry
timesbpobusiness

GKohler - Retail Scavenger Hunt Presentation
GKohler - Retail Scavenger Hunt PresentationGKohler - Retail Scavenger Hunt Presentation
GKohler - Retail Scavenger Hunt Presentation
GraceKohler1

The Most Inspiring Entrepreneurs to Follow in 2024.pdf
The Most Inspiring Entrepreneurs to Follow in 2024.pdfThe Most Inspiring Entrepreneurs to Follow in 2024.pdf
The Most Inspiring Entrepreneurs to Follow in 2024.pdf
thesiliconleaders

How to Buy an Engagement Ring.pcffbhfbfghfhptx
How to Buy an Engagement Ring.pcffbhfbfghfhptxHow to Buy an Engagement Ring.pcffbhfbfghfhptx
How to Buy an Engagement Ring.pcffbhfbfghfhptx
Charleston Alexander

Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
my Pandit

The Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb PlatformThe Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb Platform
SabaaSudozai


Recently uploaded (20)

DearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUniDearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUni

NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...
NIMA2024 | De toegevoegde waarde van DEI en ESG in campagnes | Nathalie Lam |...

Negotiation & Presentation Skills regarding steps in business communication, ...
Negotiation & Presentation Skills regarding steps in business communication, ...Negotiation & Presentation Skills regarding steps in business communication, ...
Negotiation & Presentation Skills regarding steps in business communication, ...

一比一原版新西兰奥塔哥大学毕业证(otago毕业证)如何办理
一比一原版新西兰奥塔哥大学毕业证(otago毕业证)如何办理一比一原版新西兰奥塔哥大学毕业证(otago毕业证)如何办理
一比一原版新西兰奥塔哥大学毕业证(otago毕业证)如何办理

Pitch Deck Teardown: Kinnect's $250k Angel deck
Pitch Deck Teardown: Kinnect's $250k Angel deckPitch Deck Teardown: Kinnect's $250k Angel deck
Pitch Deck Teardown: Kinnect's $250k Angel deck

Dpboss Matka Guessing Satta Matta Matka Kalyan panel Chart Indian Matka Dpbos...
Dpboss Matka Guessing Satta Matta Matka Kalyan panel Chart Indian Matka Dpbos...Dpboss Matka Guessing Satta Matta Matka Kalyan panel Chart Indian Matka Dpbos...
Dpboss Matka Guessing Satta Matta Matka Kalyan panel Chart Indian Matka Dpbos...

list of states and organizations .pdf
list of  states  and  organizations .pdflist of  states  and  organizations .pdf
list of states and organizations .pdf

The latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from NewentideThe latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from Newentide

Registered-Establishment-List-in-Uttarakhand-pdf.pdf
Registered-Establishment-List-in-Uttarakhand-pdf.pdfRegistered-Establishment-List-in-Uttarakhand-pdf.pdf
Registered-Establishment-List-in-Uttarakhand-pdf.pdf

Cover Story - China's Investment Leader - Dr. Alyce SU
Cover Story - China's Investment Leader - Dr. Alyce SUCover Story - China's Investment Leader - Dr. Alyce SU
Cover Story - China's Investment Leader - Dr. Alyce SU

Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...

The APCO Geopolitical Radar - Q3 2024 The Global Operating Environment for Bu...
The APCO Geopolitical Radar - Q3 2024 The Global Operating Environment for Bu...The APCO Geopolitical Radar - Q3 2024 The Global Operating Environment for Bu...
The APCO Geopolitical Radar - Q3 2024 The Global Operating Environment for Bu...

Digital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital ExcellenceDigital Transformation Frameworks: Driving Digital Excellence
Digital Transformation Frameworks: Driving Digital Excellence

4 Benefits of Partnering with an OnlyFans Agency for Content Creators.pdf
4 Benefits of Partnering with an OnlyFans Agency for Content Creators.pdf4 Benefits of Partnering with an OnlyFans Agency for Content Creators.pdf
4 Benefits of Partnering with an OnlyFans Agency for Content Creators.pdf

TIMES BPO: Business Plan For Startup Industry
TIMES BPO: Business Plan For Startup IndustryTIMES BPO: Business Plan For Startup Industry
TIMES BPO: Business Plan For Startup Industry

GKohler - Retail Scavenger Hunt Presentation
GKohler - Retail Scavenger Hunt PresentationGKohler - Retail Scavenger Hunt Presentation
GKohler - Retail Scavenger Hunt Presentation

The Most Inspiring Entrepreneurs to Follow in 2024.pdf
The Most Inspiring Entrepreneurs to Follow in 2024.pdfThe Most Inspiring Entrepreneurs to Follow in 2024.pdf
The Most Inspiring Entrepreneurs to Follow in 2024.pdf

How to Buy an Engagement Ring.pcffbhfbfghfhptx
How to Buy an Engagement Ring.pcffbhfbfghfhptxHow to Buy an Engagement Ring.pcffbhfbfghfhptx
How to Buy an Engagement Ring.pcffbhfbfghfhptx

Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...

The Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb PlatformThe Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb Platform


Asset Tracking and Management using RFID for IT/Datacenters and Oil and Gas industry

  • 1. Research by Sameer Tandon & Vijay Hegde Exploring untapped RFID potential for Asset Management in IT/Data Center and Oil and Gas sector
  • 2. Flow of events The motivation and direction RFID as a technology and as an enabler Research objective and methodology Integrated 5 lens framework IT Asset Management Oil and Gas industry Page 2
  • 4. The need of the hour The fact is that only 7% are completely satisfied with their service and maintenance performance. Page 4
  • 5. Flow of events The motivation and direction RFID as a technology and as an enabler Research objective and methodology Integrated 5 lens framework IT Asset Management Oil and Gas industry Page 5
  • 6. Straight from the horse’s mouth quot;RFID is one of those rare 'change the world' technologies “The use of RFID goes beyond that will force a rethinking of the supply chain. Companies many value-chain strategies” are seeing the benefits in areas like asset tracking and drug authentication. ” Mark Bauhaus, VP, Juniper Networks Julie Sarbacker, Director, Sun Micrsosytems RFID BU quot; RFID is being used today by their customers to grow business and to benefit consumers: from increasing visibility in the supply chain to decreasing counterfeit drugs; from providing asset tracking in hospitals to ensuring the safety of miners; from streamlining baggage handling at US airports to tagging valuable documents in the Vatican Library” Mark Bauhaus, VP, Juniper Networks Linda Young, Director, Business Development, AIM Global Page 6
  • 7. Taking over from the legacy Barcodes have been around for decades But they are far from perfect… Page 7
  • 8. Technology Basics Essentials RFID Tags Passive Semi-passive Active Host PC RFID Readers Page 8
  • 9. RFID operating frequencies and associated characteristics Page 9
  • 10. RFID market size and applications of RFID The Market is Booming! RFID Market 2004 - 2010 Page 10
  • 11. Flow of events The motivation and direction RFID as a technology and as an enabler Research objective and methodology Integrated 5 lens framework IT Asset Management Oil and Gas industry Page 11
  • 12. Typical questions when you are starting the project How to best use selected How to build solution capabilities? internal expertise? Do we have internal capabilities and capacity to How and where staff the project? do we start? How expensive will this project be? How Who does what do we keep the costs low? in this project? How to manage project and business How do we assure risks involved? success? Page 12
  • 13. RFID Research Objective To assess the untapped business potential of RFID applications for asset tracking and management in Information Technology/Data Centers and Oil/Gas Sector Research Methodology Phase 1: Data Collection Phase 2: Development of Framework Phase 3: Application of framework Page 13
  • 14. Flow of events The motivation and direction RFID as a technology and as an enabler Research objective and methodology Integrated 5 lens framework IT Asset Management Oil and Gas industry Page 14
  • 15. Integrated 5 Lens Framework Value Business Challenges Return Proof Chain Impact On Of Analysis Analysis Investment Concept (ROI) Integrated 5 Lens Method Page 15
  • 16. Integrated 5 Lens Framework Contd. Value Chain analysis • Identify areas of applicability for RFID, develop use cases and the benefits involved Business Impact Analysis • Prioritize the benefits and the associated use cases in the order of their impact on the business Challenges • Identify the various challenges involved ROI • ROI calculations to substantiate the business case for RFID adoption Proof-of-Concept • Select priority use cases and run a pilot test in the field environment Page 16
  • 17. Integrated 5 Lens Framework Contd. ROI  Forrester’s Total Economic Impact (TIE) based ROI Analysis  “Risk” adjusted ROI  Risk-to-benefit and Risk-to-cost  Most likely benefits and Most likely costs Page 17
  • 18. Flow of events The motivation and direction RFID as a technology and as an enabler Research objective and methodology Integrated 5 lens framework IT Asset Management Oil and Gas industry Page 18
  • 19. Information Technology Asset Management (ITAM) Description N The growth has outstripped the manpower available to look after the resources! IT Assets Exponential Growth in: •Servers/Storage •Desktops/laptops •Memory cards Manpower •I/O Hardware •Peripherals (printers, routers) The Challenges: YoY server footprint growth of 13.5% (IDC) Blade servers and small IT assets account for majority “Run Book” automation depends on human intervention Page 19
  • 20. The Manager’s perspective Key Drivers for RFID enabled IT Asset Management 5x times faster inventory management A Manager wants to… 10x times reduction in inventory errors Gain accurate IT asset visibility Reduce inventory management No line of site requirement for managing assets man hours Asset visibility – tracking the location of assets Automate data entry and reduce errors Includes human readable and barcode data on tags Reduce SOX compliance costs Enhance the security of critical Hands-off security – millions of dollar savings in potential security threat mitigation/insurance costs assts Become greener! Energy savings due to optimum asset utilization Small enough tags available for tracking hardware like blades, RAM and other assets Page 20
  • 22. Lens 1: IT Asset Value Chain analysis Receive Assign IT Manage Maintain Locate IT Secure Shipments Assets Inventory and Retire Assets and Alert Highly Labor intensive process SOX Compliance Pain Points and Green Concerns IT Security / Data Assurance Theft / Loss Page 22
  • 23. Lens 1: Use Cases Output 1 2 3 4 5 Automated Control point Manage rack Cubicle or Asset receiving of monitoring of level IT asset distributed maintenance assets assets inventory inventory and retrieval •Reduces •Asset visibility •Asset visibility •Rapid data * Faster asset shipment capture of location within •Generate and •Faster errors distributed a facility maintain inventory assets •Billing comprehensive management •Paper Sequence audit trail of less •Accuracy of assets process •Reduces IT audits limiting human •Access manual error •Security labour management Page 23
  • 24. Lens 2: Business Impact Analysis Business Drivers of an organization Security Operational Efficiency Asset accounting and accuracy Asset utilization Output Quantified Business Benefits according to the above business drivers Priority list of use cases Higher priority to the use cases with higher business impact Page 24
  • 25. Lens 3: Challenges Business Process Analysis Integration Infrastructure cost Recurring Cost Organizational acceptance Environmental/Scenario challenges Output Total cost (including pre-RFID labour rate for ITAM) Page 25
  • 26. Lens 4: ROI Total benefits from priority list of use cases (lens #2) Total costs from challenges and pre-RFID labour costs (lens#3) ITAM Risks: risk-to-cost and risk-to-benefit TEI based ROI analysis Output Risk adjusted ROI, Payback Page 26
  • 27. Sample Illustration Present Year I Year II Year III Total Value (PV) Total benefit $969,117 $1,453,675 $2,422,792 $4,845,583 $3,603,973 Total cost $2,479,983 $264,433 $294,500 $3,038,917 $2,577,676 Net cash flow -$1,510,867 $1,189,242 $2,128,292 $1,806,667 $1,026,297 Cumulative cash flow -$1,510,867 -$321,625 $1,806,667 $3,613,333 NPV $1,026,297 ROI 40% Payback Over 2 Years Page 27
  • 28. Lens 5: Proof – of – Concept Each implementation is unique Pilot run by Vendors Priority use cases chosen for pilot run  Control point IT Asset tracking  Rack level inventory management Check whether perceived benefits meet the required expectations Produce performance benchmark results Pilot results used to develop implementation roadmaps Page 28
  • 29. Conclusions RFID based solutions add significant value to IT Asset management (ITAM) RFID tag selection decisions will drive performance of RFID based solutions for ITAM Surging end user demand for RFID based ITAM Growing need for performance standards to spur ITAM adoption Limitations of ITAM usage Page 29
  • 30. Flow of events The motivation and direction RFID as a technology and as an enabler Research objective and methodology The 5 lens integrated framework IT Asset Management Oil and Gas industry Page 30
  • 31. Oil and Gas Industry The growth of the energy industry is astounding! And almost all of it is driven by the Oil and Gas industry… Page 31
  • 32. IT Spending on Oil and Gas The Growth in IT spending has increased in the same vein! And as the graph on the left shows, the industry has to keep up with the demand… Page 32
  • 33. Lens 1: Value Chain Analysis Bird’s eye view of Oil and Gas Supply Chain Exploration Production Refining Marketing Consumer Upstream •Exploration & Production Midstream of crude oil •Services and Repair Downstream •Refining Operations •Refinery transport •Sale and Delivery of •Storage and Distribution product •Terminal Management •Inventory tracking •CRM •Inventory Management •Marketing planning Page 33
  • 34. Use Cases Output 1 2 3 Seismic and Human Capital Facilities Exploration wells Management •Monitoring and •Increases safety and •Quality control management of security of personnel at •Dyamic KPI collection mobile and fixed drilling and rig operations assets •Measure location and •Geo-fencing •Performance operational safety •Supply chain visibility monitoring in down- environment hole conditions •More directed •Inventory control •Faster location of emergency operations assets •CSR measures •Improve operational efficiency Page 34
  • 35. Lens 2: Business Impact Analysis Business Drivers of an organization Supply chain collaboration and visibility Simplify and enhance operations Asset security Asset utilization Personnel management and security Output Quantified Business Benefits according to the above business drivers Priority list of use cases Higher priority to the use cases with higher business impact Page 35
  • 36. Lens 3: Challenges Infrastructure cost Organizational acceptance across the ranks Scenario of implementation Integration across the supply chain Evolving standards and technology specifications Recurring costs (upgrade and maintenance cost) Damage to tags and readers owing to the harsh environment  List of challenges under the above category  Tag life time and performance under harsh Output physical conditions  Total costs including the pre-RFID labour costs Page 36
  • 37. Lens 4: ROI Total benefits from priority list of use cases (lens #2) Total costs from challenges and pre-RFID labour costs (lens#3) Risks: risk-to-cost and risk-to-benefit Total Economic Impact (TEI) based ROI analysis Output Risk adjusted ROI, Payback Page 37
  • 38. Sample Illustration Present Year I Year II Year III Total Value (PV) Total benefit $2,095,145 $4,190,291 $4,190,291 $10,475,727 $7,890,467 Total cost $3,015,498 $720,513 $720,513 $5,689,857 $3,685,910 Net cash flow -$920,353 $3,469,778 $3,469,778 $4,785,870 $4,204,556 Cumulative cash flow -$920,353 $2,549,426 $6,019,204 $10,805,074 NPV $4,204,556 ROI 114% Between 12 Payback and 24 months Page 38
  • 39. Lens 5: Proof – of – Concept Each implementation is unique Pilot run by Vendors Priority use cases chosen for pilot run  Seismic and exploration wells  Human capital management  Facilities and asset utilization/maintenance Check whether perceived benefits meet the required expectations Produce performance benchmark results Pilot results used to develop implementation roadmaps Page 39
  • 40. Conclusion Asset management using RFID adds significant value to the bottom line RFID enables effective maintenance and security of critical mobile and fixed asset Enables collaboration and visibility in vast and complex supply chain RFID based asset management ensures better safety of personnel Limitations with respect to usage of tags and readers in harsh environments Page 40
  • 41. Thank You! Questions? Page 41
