Manuscript Preparation using LATEX
A Cloud Based Approach(Overleaf)
Dr. Ramchandra Mangrulkar
Associate Professor, Department of Computer Engineering,
DJSCE Mumbai.
ramchandra.mangrulkar@djsce.ac.in
October 10, 2020
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
2. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Outline of presentation
1 Overleaf and LATEX
2 Sections and Subsections
3 Inserting Figures
4 Inserting Tables
5 Math Mode
6 Math Mode
7 Page Numbering and Style
8 Bullets
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
3. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S

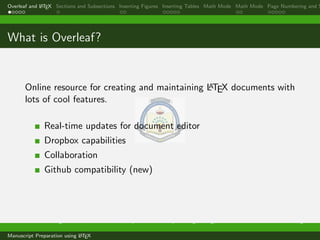

What is Overleaf?
Online resource for creating and maintaining LATEX documents with
lots of cool features.
Real-time updates for document editor
Dropbox capabilities
Collaboration
Github compatibility (new)
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
4. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Why Use Overleaf?
Organized and user-friendly.
Microsoft Word is easier, so it’s better, right?
No.
Microsoft Word Version (very lame)
lim [1 +
a
n
+ o(n 1
)]n
= ea
LATEX Version (very awesome!)
lim
n3I
"
1 +
a
n
+ o
n 1
#n
= ea
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
5. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S

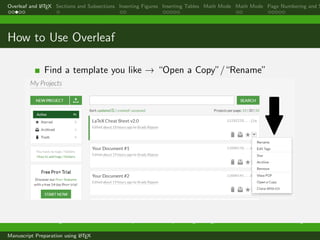

How to Use Overleaf
Find a template you like ! “Open a Copy”/“Rename”
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
6. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Advantages and Disadvantages of LATEX
ADVANTAGES
Fastest Delivery
Reduced Proof Reading.
Shorter Publication Time.
Reliability.
DISADVANTAGES
Processing Burden
Investment in Learning
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
7. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Example 2
Dr. Ramchandra Mangrulkar 1 Dr. Mangesh Ghonge 2
1 D.J. Sanghvi College of Engineering, 2 Sandip Institute Nashik
1ramchandra.mangrulkar@djsce.ac.in,
2mangesh.ghonge@gmail.com
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
8. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Example 3
% to be copied to package section
usepackage{lipsum}
% Till This line section{Introduction}
lipsum[n]
section{Literature Survey}
lipsum[n]
section{Proposed Methodology}
lipsum[n]
section{ Results}
lipsum[n]
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
9. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Inserting Figure
begin{figure}[t]
centering
includegraphics{tetra0.jpg}
caption{Tetra Devices}
label{f1}
end{figure}
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
10. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Crossreferencing Figure
% type following line in any section
The figure ref{f1} represents the various tetra devices used for
radio communication.
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
11. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Table Creation
begin{table }[t]
centering
caption{My First Table}
label {t1 }
begin{tabular}[rrr]
destination next hop hopcount
D A 2
G B 3
end{tabular }
end {table }
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
12. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Crossreferencing Table
% type following line in any section
The table ref{t1} represents the xxxx.
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
13. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S

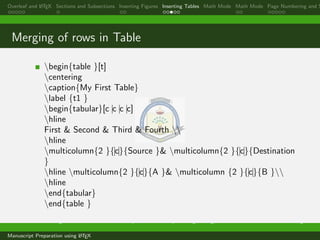

Merging of rows in Table
begin{table }[t]
centering
caption{My First Table}
label {t1 }
begin{tabular}[c c c c]
hline
First Second Third Fourth
hline
multicolumn{2 }{c}{Source } multicolumn{2 }{c}{Destination
}
hline multicolumn{2 }{c}{A } multicolumn {2 }{c}{B }
hline
end{tabular}
end{table }
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
14. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd..
output
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
15. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Spacing: double spacing in doc
Add following command in preamble section
usepackagesetspace
doublespacing
Note: manuscript should be in doublespacing if you want to
submit it to reputed journal such as elsevier willey for review
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
16. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S

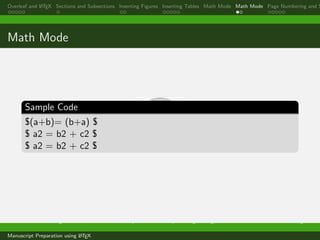

Math Mode
Sample Code
$(a+b)= (b+a) $
$ a2 = b2 + c2 $
$ a2 = b2 + c2 $
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
17. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Fontsize
tiny scriptsize footnotesize
small normalsize
large Large
LARGE huge
Huge
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
18. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Page Numbering
Add these lines below maketitle
Various Styles
thispagestyle{empty}
newpage
pagenumbering{arabic}
Replace above pagenumbering command by
pagenumbering{Roman}for I,II,III,IV
or
pagenumbering{roman}for I,ii,iii,iv
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
19. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S

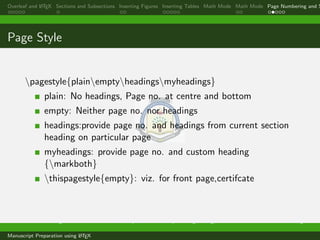

Page Style
pagestyle{plainemptyheadingsmyheadings}
plain: No headings, Page no. at centre and bottom
empty: Neither page no. nor headings
headings:provide page no. and headings from current section
heading on particular page
myheadings: provide page no. and custom heading
{markboth}
thispagestyle{empty}: viz. for front page,certifcate
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
20. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Example lab5.tex
Various Styles
Try these lines below lab5
thispagestyle{empty}
newpage
pagestyle{myheadings}
markboth{}{R.S.Mangrulkar and Dr. Amol Porganwar }
markright{Session 2013-14}
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
21. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Important Packages
write following commands below documentclass
usepackage{amsmath}
usepackage{graphicx}
usepackage{amssymb}
OR
usepackage{amsmath,graphicx,amssymb}
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
22. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Matrices
$ begin{matrix}
x y
p q end{matrix}
$
$ begin{vmatrix}
x y
p q end{vmatrix}
$
output
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
23. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Description
begin{description}
item[CS]CS Computer Science
item[EXTC] Electronics and comm
item[EXPO]Electronics and Power
end{description}
output
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
24. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Add these lines below maketitle
thispagestyle{empty}
pagenumbering{Roman}
newpage
tableofcontents
newpage
listoffigures
newpage
listoftables
newpage
pagenumbering{arabic}
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
25. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S

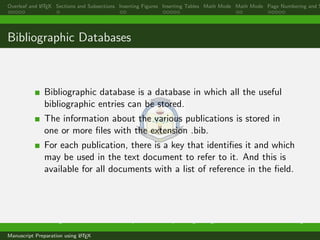

Bibliographic Databases
Bibliographic database is a database in which all the useful
bibliographic entries can be stored.
The information about the various publications is stored in
one or more files with the extension .bib.
For each publication, there is a key that identifies it and which
may be used in the text document to refer to it. And this is
available for all documents with a list of reference in the field.
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
26. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd..
Insert these lines above end{document}
newpage
bibliographystyle{plain/alpha/unsrt/abbrv/acm }
bibliography{biblio}end{document}
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
27. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd..
plain/unsrt/alpha/abbrv/acm
plain Standard BIBTEX style. Entries sorted alphabetically
with numeric labels.
unsrt Standard BIBTEX style. Similar to plain, but entries
are printed in order of citation, rather than sorted. Numeric
labels are used.
alpha Standard BIBTEX style. Similar to plain, but the labels
of the entries are formed from the author’s name and the year
of publication.
abbrv Standard BIBTEX style. Similar to plain, but entries
are more compact, since first names, month, and journal
names are abbreviated.
acm Alternative BIBTEX style, used for the journals of the
Association for Computing Machinery. It has the author name
(surname and first name) in small caps and numbers as labels.
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
28. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
contd...
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
29. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
contd...
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
30. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
contd...

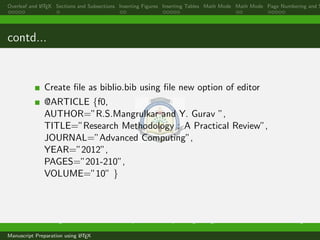

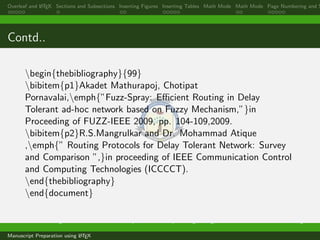

Create file as biblio.bib using file new option of editor
@ARTICLE {f0,
AUTHOR=”R.S.Mangrulkar and Y. Gurav ”,
TITLE=”Research Methodology : A Practical Review”,
JOURNAL=”Advanced Computing”,
YEAR=”2012”,
PAGES=”201-210”,
VOLUME=”10” }
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
31. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd..

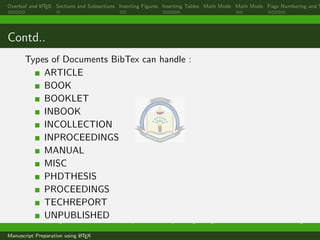

Types of Documents BibTex can handle :
ARTICLE
BOOK
BOOKLET
INBOOK
INCOLLECTION
INPROCEEDINGS
MANUAL
MISC
PHDTHESIS
PROCEEDINGS
TECHREPORT
UNPUBLISHEDDr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
32. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd..
@ARTICLE {f1,
AUTHOR=”R.S.Mangrulkar Dr. Mohammad Atique”,
TITLE=” Routing Protocols for Delay Tolerant Network: A Survey
and Comparison”,
JOURNAL=” In IEEE Proceeding ”,
YEAR=”2010”,
PAGES=”21-27”,
VOLUME=”1” }
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
33. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd....
Each Document type can have the following entries:
address
author
booktitle
chapter
crossref
edition
editor
howpublished
institution
journal
key
languag
month
note
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
34. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd...
pages
publisher
school
series
title
type=”Ph.D. dissertation”
volume
year
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
35. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Thank you...
Lets Promote use of Latex for Research Writing
Feedback: https:
//docs.google.com/forms/d/e/1FAIpQLSdpMJnqUiwBdDFvxzhk6PfPa1ew4FSqUpxE_oynmFpa8DWwEg/viewform
Contact:
Dr. Ramchandra Mangrulkar
Associate Professor
Department of Computer Engineering
D.J. Sanghvi College of Engineering, Vile Parle (W)
Mumbai
Email: ramchandra.mangrulkar@djsce.ac.in,
“A Journey with Happiness..Not for Happiness ”
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
36. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S

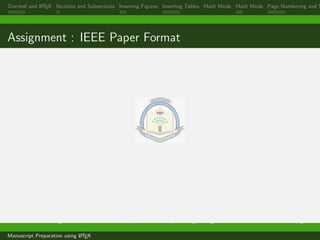

Assignment : IEEE Paper Format
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
37. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
IEEE Paper Format
Download IEEEtran Folder from net
Right now open MY IEEEPaper Folder
Class file IEEEtran.cls IEEE Class File
Open My IEEE Paper.tex
Read this line by line and perform changes as per your need
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
38. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
My IEEE Paper.tex
documentclass[conference]{IEEEtran}
usepackage{cite}
usepackage[dvips]{graphicx}
bibliographystyle{plain}
begin{document}
title{PERFORMANCE TRADEOFFS BETWEEN DELAY
TOLERANT ROUTING STRATEGIES: MAXPROP AND
PROPHET}
author {
IEEEauthorblockN {R.S.Mangrulkar}
IEEEauthorblockA{Research Scholar,P.G. Department of
Computer Science,
Sant Gadge Baba Amravati University,
Amravati, Maharashtra-442001, India ,
Associate Professor, B.D.C.E Sevagram.
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
39. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd..
and
IEEEauthorblockN {Dr. Mohammad Atique}
IEEEauthorblockA{Associate Professor,P.G. Department of
Computer Science,
Sant Gadge Baba Amravati University,
Amravati, Maharashtra-442001, India.
Email-mohd.atique@gmail.com
}}
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
40. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd...
begin{abstract}
Basic moto of the workshop is to make researchers aware about
the LaTex and its capability.
end{abstract}
section{Introduction}
Most of the journals reject papers because of the reason that
researchers are not using Latex
section{Simulations}label{Sim}
subsection{Simulation Setup}
subsection{Simulation Parameters}
section{Performance Evaluation}
section{Conclusion}
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
41. Overleaf and LATEX Sections and Subsections Inserting Figures Inserting Tables Math Mode Math Mode Page Numbering and S
Contd..
begin{thebibliography}{99}
bibitem{p1}Akadet Mathurapoj, Chotipat
Pornavalai,emph{”Fuzz-Spray: Efficient Routing in Delay
Tolerant ad-hoc network based on Fuzzy Mechanism,”}in
Proceeding of FUZZ-IEEE 2009, pp. 104-109,2009.
bibitem{p2}R.S.Mangrulkar and Dr. Mohammad Atique
,emph{” Routing Protocols for Delay Tolerant Network: Survey
and Comparison ”,}in proceeding of IEEE Communication Control
and Computing Technologies (ICCCCT).
end{thebibliography}
end{document}
Dr. Ramchandra Mangrulkar Associate Professor, Department of Computer Engineering, DJSCE Mumbai. ramchandra.mangrulkar@
Manuscript Preparation using LATEX
