Managing the Complexities of Conversion to S1000D
This document outlines a webinar on managing the complexities of converting to S1000D, presented by Tammy Halter and Naveh Greenberg. It emphasizes the importance of thorough analysis and planning in the conversion process to ensure efficiency and minimize potential issues. Additionally, it introduces the ADG's R4I S1000D product suite, designed to assist in the creation and management of technical content.
More Related Content
Similar to Managing the Complexities of Conversion to S1000D
More from dclsocialmedia
Managing the Complexities of Conversion to S1000D
- 1. Welcome to anInformation Session on Managing the Complexities of Conversion to S1000D Host: Tammy Halter, CEO, Absolute Data Group (ADG) Presenter: Naveh Greenberg, Senior Project Manager, Data Conversion Laboratory, Inc. (DCL) Wednesday, 9 April 2014 Thursday, 10 April, 2014 Please ensure you have speakers on your computer or a headset in order to hear the presentation. No telephone dial-in is required.
- 2. How to InteractToday • To show or hide the panel, use the orange arrow • To keep the panel open, click ‘view’ and uncheck the ‘hide panel’ option • You will be on mute, so don’t worry about background noise • To make a comment or ask a question at ANY time, click in the box, type your question and hit ‘send’
- 3. 3 great reasonsto fill out the Exit Survey 1. Help us improve our webinars and present on the topics most important to you 2. Receive a link to the recording of the webinar within 48 hours 3. Access a special 10% discount on all S1000D training booked and undertaken by 31 May 2014
- 4. ADG’s R4i S1000DProduct Suite • R4i CSDB – Create, manage and publish critical content to IETP/IETM, HTML and other Electronic Delivery • R4i Viewer – Royalty-free online and offline IETM Viewer for an advanced Interactive Electronic Technical Manual • R4i Workbench – Easy to use, web-based S1000D Authoring tool for faster authoring • R4i Binder – Powerful ‘drag & drop’ tool for creating manuals, handbooks and large technical books from S1000D

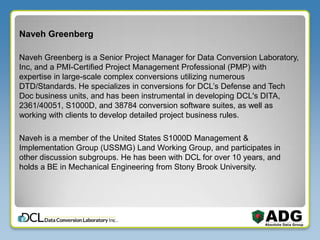

- 5. Naveh Greenberg Naveh Greenbergis a Senior Project Manager for Data Conversion Laboratory, Inc, and a PMI-Certified Project Management Professional (PMP) with expertise in large-scale complex conversions utilizing numerous DTD/Standards. He specializes in conversions for DCL’s Defense and Tech Doc business units, and has been instrumental in developing DCL's DITA, 2361/40051, S1000D, and 38784 conversion software suites, as well as working with clients to develop detailed project business rules. Naveh is a member of the United States S1000D Management & Implementation Group (USSMG) Land Working Group, and participates in other discussion subgroups. He has been with DCL for over 10 years, and holds a BE in Mechanical Engineering from Stony Brook University.
- 6. Managing the Complexitiesof Conversion to S1000D
- 7. Experience the DCLDifference DCL blends years of conversion experience with cutting-edge technology and the infrastructure to make the process easy and efficient. • World-Class Services • Leading-Edge Technology • Unparalleled Infrastructure • US-Based Management • Complex-Content Expertise • 24/7 Online Project Tracking • Automated Quality Control • Global Capabilities
- 8. Valuable Content Transformed •Document Digitization • XML and HTML Conversion • eBook Production • Hosted Solutions • Big Data Automation • Conversion Management • Editorial Services • Harmonizer
- 9. We Serve aVery Broad Client Base . . .
- 10. . . .Spanning All Industries • Aerospace • Associations • Defense • Distribution • Education • Financial • Government • Libraries • Life Sciences • Manufacturing • Medical • Museums • Periodicals • Professional • Publishing • Reference • Research • Societies • Software • STM • Technology • Telecommunications • Universities • Utilities
- 11. Planning for aconversion to S1000D • Ask the important initial questions • Who are the stakeholders. Who is the final client/user? • What is the estimated volume and deadline? • What version of S1000D? • Do we know what CMS or rendering tools will be used? • Source format. Not all source data are created equal. • Budget? • Ask around or join discussion groups. • Prepare for the next step • Get your hands on the source data, business rules, and schemas. • Begin looking for the right people. You don’t need to be a S1000D savvy but you do at a minimum understand the concept. “If I had eight hours to chop down a tree, I'd spend six sharpening my ax.”

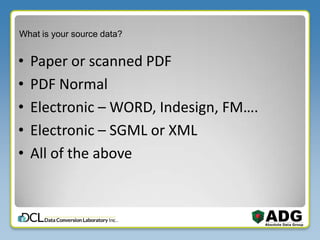

- 12. What is yoursource data? • Paper or scanned PDF • PDF Normal • Electronic – WORD, Indesign, FM…. • Electronic – SGML or XML • All of the above

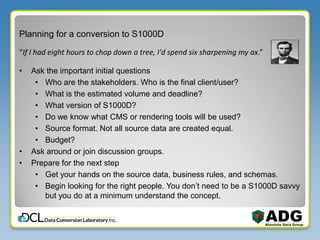

- 13. Planning for aconversion to S1000D • Ask the important initial questions • Who are the stakeholders. Who is the final client/user? • What is the estimated volume and deadline? • What version of S1000D? • Do we know what CMS or rendering tools will be used? • Source format. Not all source data are created equal. • Budget? • Ask around or join discussion groups. • Prepare for the next step • Get your hands on the source data, business rules, and schemas. • Begin looking for the right people. You don’t need to be a S1000D savvy but you do at a minimum understand the concept. “If I had eight hours to chop down a tree, I'd spend six sharpening my ax.”

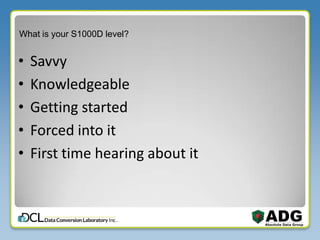

- 14. What is yourS1000D level? • Savvy • Knowledgeable • Getting started • Forced into it • First time hearing about it
- 15. The importance ofanalysis as the first step in conversion • It will help you to: • Properly scope the project. • Understand source data structure and inconsistencies. • Have a general idea of what Data Modules will or will not be used. • Estimate SME involvement. • Figure out if re authoring is needed. • Plan a head on what requires automated QC checks and estimate what must be done manually. • Minimize the risk of finding "surprised" in the middle of the conversion process.

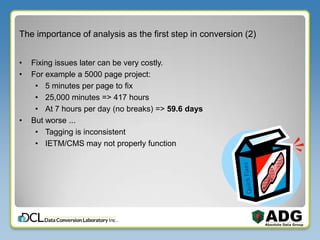

- 16. The importance ofanalysis as the first step in conversion (2) • Fixing issues later can be very costly. • For example a 5000 page project: • 5 minutes per page to fix • 25,000 minutes => 417 hours • At 7 hours per day (no breaks) => 59.6 days • But worse ... • Tagging is inconsistent • IETM/CMS may not properly function

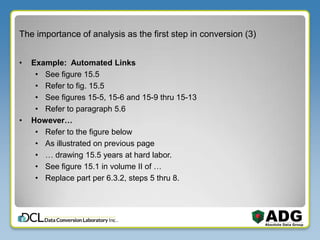

- 17. The importance ofanalysis as the first step in conversion (3) • Example: Automated Links • See figure 15.5 • Refer to fig. 15.5 • See figures 15-5, 15-6 and 15-9 thru 15-13 • Refer to paragraph 5.6 • However… • Refer to the figure below • As illustrated on previous page • … drawing 15.5 years at hard labor. • See figure 15.1 in volume II of … • Replace part per 6.3.2, steps 5 thru 8.
- 18. Idiosyncrasies to identifyearly in the process • Flagging headings – will be used in the DMRL • Missing required text (for example preliminary requirements) • “extra” text (such as “do the following steps”) that doesn’t fit S1000D structure. • Content Tables downgrade to CALS Tables • Auto-generated Text – If not cautious can cause duplicated text but if properly used should help you in automation. • How to handle graphics • Conflicts with Business Rules • Identifying proper Data Module Code/Information Code. • Introductory paragraphs or requirements that apply to more than one Data Module.

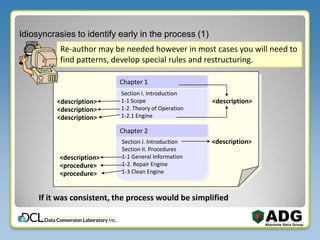

- 19. Idiosyncrasies to identifyearly in the process (1) Re-author may be needed however in most cases you will need to find patterns, develop special rules and restructuring. If it was consistent, the process would be simplified Section I. Introduction 1-1 Scope 1-2. Theory of Operation 1-2.1 Engine Chapter 1 Section I. Introduction Section II. Procedures 1-1 General Information 1-2. Repair Engine 1-3 Clean Engine Chapter 2 <description> <description> <description> <description> <description> <description> <procedure> <procedure>

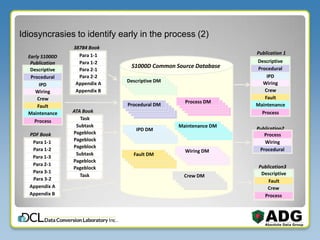

- 20. Idiosyncrasies to identifyearly in the process (2) IPD Wiring Descriptive Crew Fault Appendix B Procedural Para 1-1Early S1000D Publication Para 1-2 Para 1-3 Para 1-1 Para 3-1 Para 2-1 PDF Book Para 1-2 38784 Book Para 2-1 Para 2-2 Appendix A Para 3-2 Appendix A Appendix B S1000D Common Source Database Publication 1 Publication2 Subtask Task Subtask ATA Book Pageblock Pageblock Pageblock Pageblock Pageblock Task Maintenance Process Descriptive DM Procedural DM IPD DM Wiring DM Crew DM Process DM Maintenance DM Fault DM IPD Wiring Descriptive Crew Fault Procedural Maintenance Process Process Wiring Procedural Descriptive Fault Crew Process Publication3

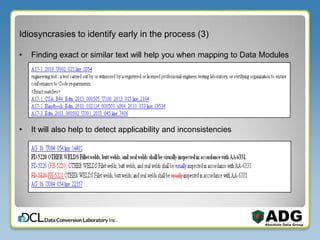

- 21. Idiosyncrasies to identifyearly in the process (3) • Finding exact or similar text will help you when mapping to Data Modules • It will also help to detect applicability and inconsistencies
- 22. Idiosyncrasies to identifyearly in the process • Flagging headings – will be used in the DMRL • Missing required text (for example preliminary requirements) • “extra” text (such as “do the following steps”) that doesn’t fit S1000D structure. • Content Tables downgrade to CALS Tables • Auto-generated Text – If not cautious can cause duplicated text but if properly used should help you in automation. • How to handle graphics • Conflicts with Business Rules • Identifying proper Data Module Code/Information Code. • Introductory paragraphs or requirements that apply to more than one Data Module.

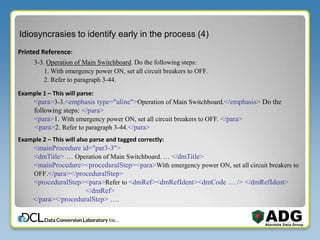

- 23. Idiosyncrasies to identifyearly in the process (4) Printed Reference: 3-3. Operation of Main Switchboard. Do the following steps: 1. With emergency power ON, set all circuit breakers to OFF. 2. Refer to paragraph 3-44. Example 1 – This will parse: <para>3-3.<emphasis type="uline">Operation of Main Switchboard.</emphasis> Do the following steps: </para> <para>1. With emergency power ON, set all circuit breakers to OFF. </para> <para>2. Refer to paragraph 3-44.</para> Example 2 – This will also parse and tagged correctly: <mainProcedure id="par3-3"> <dmTitle> … Operation of Main Switchboard. … </dmTitle> <mainProcedure><proceduralStep><para>With emergency power ON, set all circuit breakers to OFF.</para></proceduralStep> <proceduralStep><para>Refer to <dmRef><dmRefIdent><dmCode … /> </dmRefIdent> </dmRef> </para></proceduralStep> ….

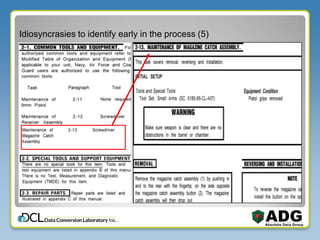

- 24. Idiosyncrasies to identifyearly in the process (5)

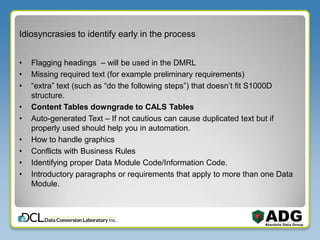

- 25. Idiosyncrasies to identifyearly in the process • Flagging headings – will be used in the DMRL • Missing required text (for example preliminary requirements) • “extra” text (such as “do the following steps”) that doesn’t fit S1000D structure. • Content Tables downgrade to CALS Tables • Auto-generated Text – If not cautious can cause duplicated text but if properly used should help you in automation. • How to handle graphics • Conflicts with Business Rules • Identifying proper Data Module Code/Information Code. • Introductory paragraphs or requirements that apply to more than one Data Module.

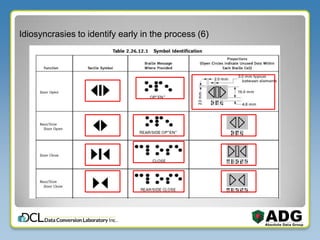

- 26. Idiosyncrasies to identifyearly in the process (6)
- 27. Idiosyncrasies to identifyearly in the process (7)
- 28. Idiosyncrasies to identifyearly in the process (8) DUMMY VALUE DUMMY VALUE DUMMY VALUE 1 DUMMY VALUE 2
- 29. Idiosyncrasies to identifyearly in the process (9) <pmcstable> <title id="tbl2-2">Preventive Maintenance Checks and Services</title> <pmcs-entry> <itemno>1</itemno> <interval>Before</interval> <interval>After</interval> <interval>Weekly</interval> <manhours>0.04</manhours> <checked>DUMMY VALUE</checked> <pmcsproc> <pmcsstep1> <specpara><warning><para>Improper handling will cause death</para></warning> <para>Inspect shelter exterior</para></specpara> <pmcsstep2><para>Make sure area is clean</para></pmcsstep2> </pmcsstep1> </pmcsproc> </pmcs-entry> </pmcstable>

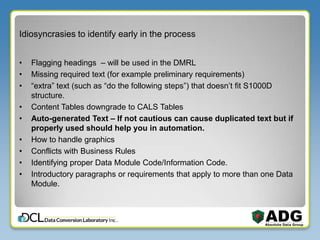

- 30. Idiosyncrasies to identifyearly in the process • Flagging headings – will be used in the DMRL • Missing required text (for example preliminary requirements) • “extra” text (such as “do the following steps”) that doesn’t fit S1000D structure. • Content Tables downgrade to CALS Tables • Auto-generated Text – If not cautious can cause duplicated text but if properly used should help you in automation. • How to handle graphics • Conflicts with Business Rules • Identifying proper Data Module Code/Information Code. • Introductory paragraphs or requirements that apply to more than one Data Module.

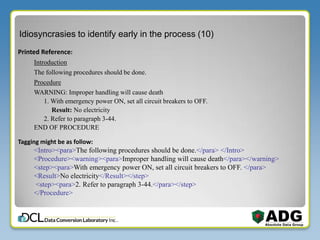

- 31. Idiosyncrasies to identifyearly in the process (10) Printed Reference: Introduction The following procedures should be done. Procedure WARNING: Improper handling will cause death 1. With emergency power ON, set all circuit breakers to OFF. Result: No electricity 2. Refer to paragraph 3-44. END OF PROCEDURE Tagging might be as follow: <Intro><para>The following procedures should be done.</para> </Intro> <Procedure><warning><para>Improper handling will cause death</para></warning> <step><para>With emergency power ON, set all circuit breakers to OFF. </para> <Result>No electricity</Result></step> <step><para>2. Refer to paragraph 3-44.</para></step> </Procedure>
- 32. Idiosyncrasies to identifyearly in the process • Flagging headings – will be used in the DMRL • Missing required text (for example preliminary requirements) • “extra” text (such as “do the following steps”) that doesn’t fit S1000D structure. • Content Tables downgrade to CALS Tables • Auto-generated Text – If not cautious can cause duplicated text but if properly used should help you in automation. • How to handle graphics • Conflicts with Business Rules • Identifying proper Data Module Code/Information Code. • Introductory paragraphs or requirements that apply to more than one Data Module.

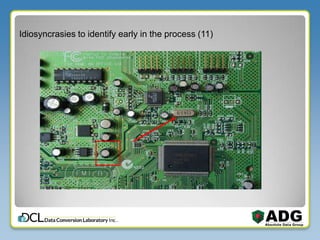

- 33. Idiosyncrasies to identifyearly in the process (11)

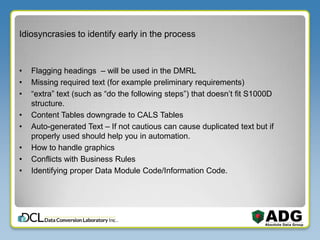

- 34. Idiosyncrasies to identifyearly in the process • Flagging headings – will be used in the DMRL • Missing required text (for example preliminary requirements) • “extra” text (such as “do the following steps”) that doesn’t fit S1000D structure. • Content Tables downgrade to CALS Tables • Auto-generated Text – If not cautious can cause duplicated text but if properly used should help you in automation. • How to handle graphics • Conflicts with Business Rules • Identifying proper Data Module Code/Information Code.

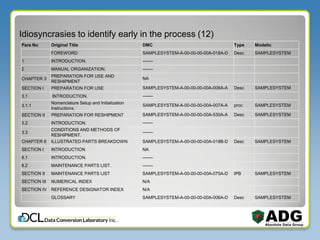

- 35. Idiosyncrasies to identifyearly in the process (12) Para No Original Title DMC Type Modelic FOREWORD SAMPLESYSTEM-A-00-00-00-00A-018A-D Desc SAMPLESYSTEM 1 INTRODUCTION. ------- 2 MANUAL ORGANIZATION. ------- CHAPTER 3 PREPARATION FOR USE AND RESHIPMENT NA SECTION I PREPARATION FOR USE SAMPLESYSTEM-A-00-00-00-00A-006A-A Desc SAMPLESYSTEM 3.1 INTRODUCTION. ------- 3.1.1 Nomenclature Setup and Initialization Instructions. SAMPLESYSTEM-A-00-00-00-00A-007A-A proc SAMPLESYSTEM SECTION II PREPARATION FOR RESHIPMENT SAMPLESYSTEM-A-00-00-00-00A-530A-A Desc SAMPLESYSTEM 3.2 INTRODUCTION. ------- 3.3 CONDITIONS AND METHODS OF RESHIPMENT. ------- CHAPTER 8 ILLUSTRATED PARTS BREAKDOWN SAMPLESYSTEM-A-00-00-00-00A-018B-D Desc SAMPLESYSTEM SECTION I INTRODUCTION NA 8.1 INTRODUCTION. ------- 8.2 MAINTENANCE PARTS LIST. ------- SECTION II MAINTENANCE PARTS LIST SAMPLESYSTEM-A-00-00-00-00A-075A-D IPB SAMPLESYSTEM SECTION III NUMERICAL INDEX N/A SECTION IV REFERENCE DESIGNATOR INDEX N/A GLOSSARY SAMPLESYSTEM-A-00-00-00-00A-006A-D Desc SAMPLESYSTEM
- 36. Idiosyncrasies to identifyearly in the process (13)

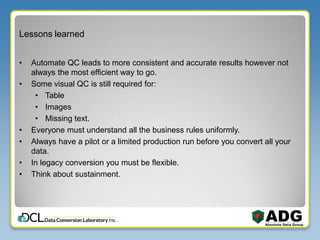

- 37. Lessons learned • AutomateQC leads to more consistent and accurate results however not always the most efficient way to go. • Some visual QC is still required for: • Table • Images • Missing text. • Everyone must understand all the business rules uniformly. • Always have a pilot or a limited production run before you convert all your data. • In legacy conversion you must be flexible. • Think about sustainment.
- 38.
- 39. Q&A Naveh Greenberg Senior ProjectManager, DCL NGreenberg@dclab.com Tammy Halter CEO, ADG thalter@absolutedata.com
- 40. Thank you forattending our S1000D Webinar. Reasons to stay online to complete our survey: 1. Receive a 10% discount on S1000D Training* 2. Receive a copy of the webinar recording 3. Improve our webinars to ensure you benefit 4. Assess your Content Strategy ROI: http://www.dclab.com/resources/rate-your- content-strategy-scorecard * Course must be paid for and attended before 31 May, 2014
Editor's Notes
- #2 TH: Good afternoon and welcome to today’s information session on: Managing the Complexities of Conversion to S1000D. My Name is Tammy Halter, I am the CEO of Absolute Data Group, AND I will be your host today. While we are waiting for the last few people to log-on, I will start going through some housekeeping items with you.
- #3 We encourage your interaction during this session. You are welcome to make a comment or ask a question at any time, using the GoToWebinar panel in the top right hand side of your screen. You can keep this panel minimised throughout the session, however if you’d like to make a comment or ask a question at any time, just use the orange arrow to show the full panel. Just click in the box and type your question, then press ‘send’. Depending on your question, we’ll either answer it then, or keep it until the end, for our Q&A time.There’s no need to take lots of notes today. We’ll be providing you with a link within the next 24 hours to a recording of the session which you can then re-watch or pass on to colleagues.
- #4 At the end of today’s webinar, your web browser will open a quick survey. I encourage you to complete this as it assists with our future webinars. By completing this, you also get access to a download of today’s webinar, and a discount on any Classroom or Virtual S1000D Training, taken by end of November this year.
- #5 For those of you attending today, who have not worked with ADG. We have a complete suite of S1000D and SCORM compliant software,This slide does not detail all of our software, but this is a list of our core S1000D products that most people talk about, and use on a day to day basis:The R4i CSDB …. Etc…If you have any questions regarding the R4i software, please feel free to connect with me personally and I will make sure you have the information you need. OK well that takes care of all the housekeeping items, so I would like to move on to our Presenter…Your Presenter today is MrNaveh Greenberg..
- #6 Navehis a Senior Project Manager for Data Conversion Laboratory, Inc, Who is a PMI-Certified Project Management Professional (PMP) with expertise in large-scale complex conversions Naveh has had to work with numerous DTD’s and Standards. And specializes in conversions for DCL’s Defense and Tech Doc business units, and has been instrumental in developing DCL's DITA, 2361/40051, S1000D, and 38784 conversion software suites, as well as working with clients to develop detailed project business rules. Naveh is a member of the United States S1000D Management & Implementation Group (USSMG) Land Working Group, and participates in other discussion subgroups. Naveh has been with DCL for over 10 years, and holds a BE in Mechanical Engineering from Stony Brook University.
- #13 Explain PollWhat is your source data??Paper or scanned PDFElectronic – PDF NormalElectronic – WORD, Indesign, FM….Electronic – SGML or XMLAll of the above
- #15 Explain PollWhat is your S1000D level?SavvyKnowledgeableGetting startedForced into itFirst time hearing about it
- #39 OK Thank you Reeta,That brings the topic of S1000D Illustrations and Hotspots to an end.If there are any questions, please tap the orange arrow to bring up the dialog to type your question in there for us.And while we are waiting for those questions to come through, I would like to thank everyone…. NEXT slide
- #40 While questions are being written, I have just displayed a slide with Naveh and my email contact, if you think of any questions after the session today.
- #41 Thank everyone for attending our Webinar today.And a friendly reminder you that when we exit today that quick survey will pop up on your screen.We look forward to seeing everyone at our next session in January !
