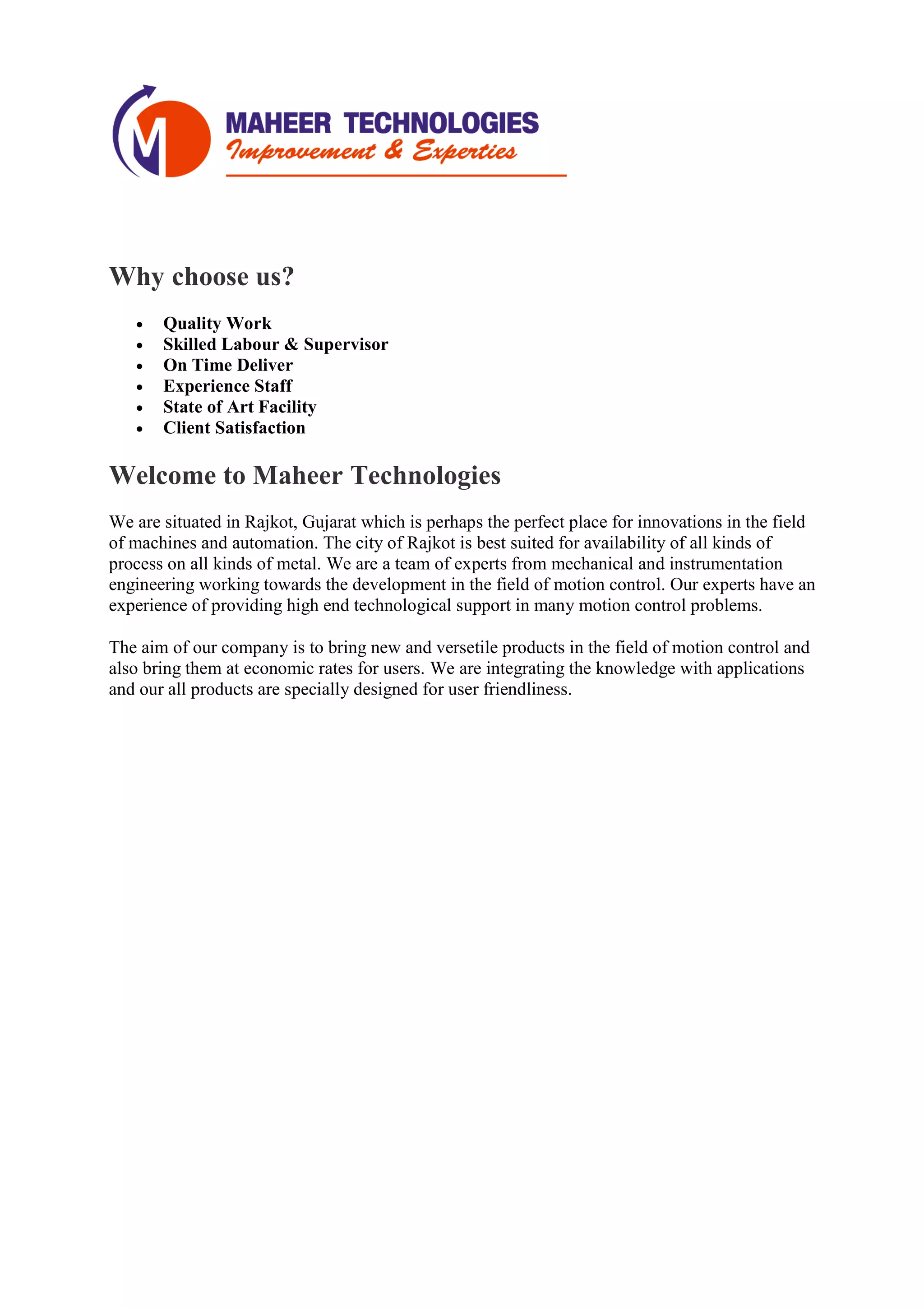

Maheer Technologies, located in Rajkot, Gujarat, specializes in high-end motion control products and automation solutions with a focus on user-friendly design and economic pricing. The document details specifications for various CNC router machines and engraving machines suitable for materials like wood, marble, and metal, highlighting dimensions, motor power, and control systems. The company aims to provide quality work supported by skilled labor and advanced facilities to ensure client satisfaction.

1. Why choose us?
• Quality Work
• Skilled Labour & Supervisor
• On Time Deliver
• Experience Staff
• State of Art Facility
• Client Satisfaction
Welcome to Maheer Technologies
We are situated in Rajkot, Gujarat which is perhaps the perfect place for innovations in the field
of machines and automation. The city of Rajkot is best suited for availability of all kinds of
process on all kinds of metal. We are a team of experts from mechanical and instrumentation
engineering working towards the development in the field of motion control. Our experts have an
experience of providing high end technological support in many motion control problems.
The aim of our company is to bring new and versetile products in the field of motion control and
also bring them at economic rates for users. We are integrating the knowledge with applications
and our all products are specially designed for user friendliness.

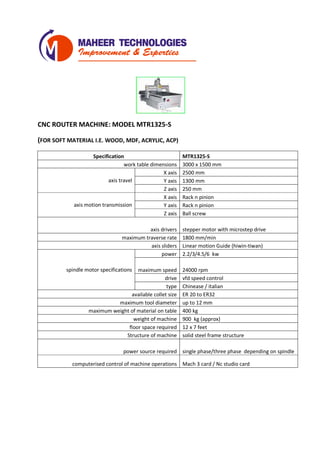

2. CNC ROUTER MACHINE: MODEL MTR1325-S
(FOR SOFT MATERIAL I.E. WOOD, MDF, ACRYLIC, ACP)
Specification MTR1325-S
work table dimensions 3000 x 1500 mm
axis travel
X axis 2500 mm
Y axis 1300 mm
Z axis 250 mm
axis motion transmission
X axis Rack n pinion
Y axis Rack n pinion
Z axis Ball screw
axis drivers stepper motor with microstep drive
maximum traverse rate 1800 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 2.2/3/4.5/6 kw
maximum speed 24000 rpm
drive vfd speed control
type Chinease / italian
available collet size ER 20 to ER32
maximum tool diameter up to 12 mm
maximum weight of material on table 400 kg
weight of machine 900 kg (approx)
floor space required 12 x 8 feet
Structure of machine solid steel frame structure
power source required single phase/three phase depending on spindle
computerised control of machine operations Mach 3 card / Nc studio card

3. CNC ROUTER MACHINE: MODEL MTR1010-S
(FOR SOFT MATERIAL I.E. WOOD, MDF, ACRYLIC, ACP)
Specification MTR1010-S
work table dimensions 1300MM x 1300
axis travel
X axis 1000 mm
Y axis 1000 mm
Z axis 250 mm
axis motion transmission
X axis Rack n pinion
Y axis Rack n pinion
Z axis Ball screw
axis drivers stepper motor with microstep drive
maximum traverse rate 1800 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 2.2/3/4.5/6 kw
maximum speed 24000 rpm
drive vfd speed control
type Chinease / italian
available collet size ER 20 to ER32
maximum tool diameter up to 12 mm
maximum weight of material on table 300 kg
weight of machine 600 kg (approx)
floor space required 8feet x 8 feet
Structure of machine solid steel frame structure
power source required single phase/three phase depending on spindle
computerised control of machine operations Mach 3 card / Nc studio card

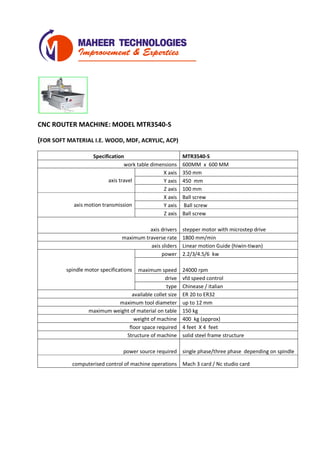

4. CNC ROUTER MACHINE: MODEL MTR3540-S
(FOR SOFT MATERIAL I.E. WOOD, MDF, ACRYLIC, ACP)
Specification MTR3540-S
work table dimensions 600MM x 600 MM
axis travel
X axis 350 mm
Y axis 450 mm
Z axis 200 mm
axis motion transmission
X axis Ball screw
Y axis Ball screw
Z axis Ball screw
axis drivers stepper motor with microstep drive
maximum traverse rate 1800 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 2.2/3/4.5/6 kw
maximum speed 24000 rpm
drive vfd speed control
type Chinease / italian
available collet size ER 20 to ER32
maximum tool diameter up to 12 mm
maximum weight of material on table 150 kg
weight of machine 400 kg (approx)
floor space required 4 feet X 4 feet
Structure of machine solid steel frame structure
power source required single phase/three phase depending on spindle
computerised control of machine operations Mach 3 card / Nc studio card

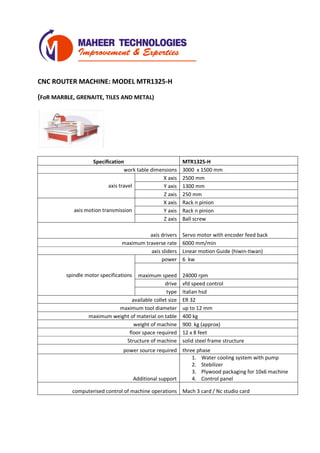

5. CNC ROUTER MACHINE: MODEL MTR1325-H
(FoR MARBLE, GRENAITE, TILES AND METAL)
Specification MTR1325-H
work table dimensions 3000 x 1500 mm
axis travel
X axis 2500 mm
Y axis 1300 mm
Z axis 250 mm
axis motion transmission
X axis Rack n pinion
Y axis Rack n pinion
Z axis Ball screw
axis drivers Servo motor with encoder feed back
maximum traverse rate 6000 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 6 kw
maximum speed 24000 rpm
drive vfd speed control
type Italian hsd
available collet size ER 32
maximum tool diameter up to 12 mm
maximum weight of material on table 400 kg
weight of machine 900 kg (approx)
floor space required 12 x 8 feet
Structure of machine solid steel frame structure
power source required three phase
Additional support
1. Water cooling system with pump
2. Stebilizer
3. Plywood packaging for 10x6 machine
4. Control panel
computerised control of machine operations Mach 3 card / Nc studio card

6. CNC ROUTER MACHINE: MODEL MTR1010-H
(FoR MARBLE, GRENAITE, TILES AND METAL)
Specification MTR1010-H
work table dimensions 1300 x 1300 mm
axis travel
X axis 1000 mm
Y axis 1000 mm
Z axis 250 mm
axis motion transmission
X axis Rack n pinion
Y axis Rack n pinion
Z axis Ball screw
axis drivers Servo motor with encoder feed back
maximum traverse rate 6000 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 6 kw
maximum speed 24000 rpm
drive vfd speed control
type Italian hsd
available collet size ER 32
maximum tool diameter up to 12 mm
maximum weight of material on table 300 kg
weight of machine 600 kg (approx)
floor space required 8 x 8 feet
Structure of machine solid steel frame structure
power source required three phase
Additional support
1. Water cooling system with pump
2. Stebilizer
3. Plywood packaging for 10x6 machine
4. Control panel
computerised control of machine operations Mach 3 card / Nc studio card

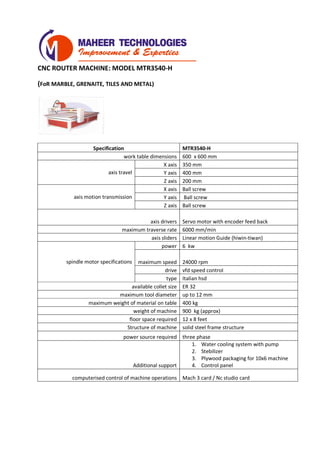

7. CNC ROUTER MACHINE: MODEL MTR3540-H
(FoR MARBLE, GRENAITE, TILES AND METAL)
Specification MTR3540-H
work table dimensions 600 x 600 mm
axis travel
X axis 350 mm
Y axis 400 mm
Z axis 200 mm
axis motion transmission
X axis Ball screw
Y axis Ball screw
Z axis Ball screw
axis drivers Servo motor with encoder feed back
maximum traverse rate 6000 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 6 kw
maximum speed 24000 rpm
drive vfd speed control
type Italian hsd
available collet size ER 32
maximum tool diameter up to 12 mm
maximum weight of material on table 200 kg
weight of machine 400 kg (approx)
floor space required 4 x 4 feet
Structure of machine solid steel frame structure
power source required three phase
Additional support
1. Water cooling system with pump
2. Stebilizer
3. Plywood packaging for 10x6 machine
4. Control panel
computerised control of machine operations Mach 3 card / Nc studio card

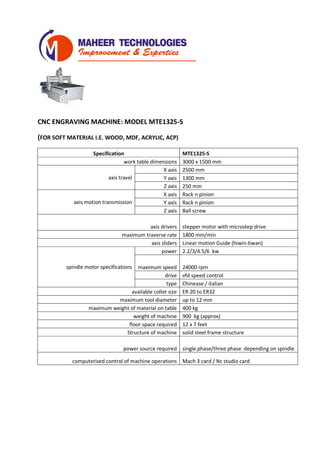

8. CNC ENGRAVING MACHINE: MODEL MTE1325-S
(FOR SOFT MATERIAL I.E. WOOD, MDF, ACRYLIC, ACP)
Specification MTE1325-S
work table dimensions 3000 x 1500 mm
axis travel
X axis 2500 mm
Y axis 1300 mm
Z axis 250 mm
axis motion transmission
X axis Rack n pinion
Y axis Rack n pinion
Z axis Ball screw
axis drivers stepper motor with microstep drive
maximum traverse rate 1800 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 2.2/3/4.5/6 kw
maximum speed 24000 rpm
drive vfd speed control
type Chinease / italian
available collet size ER 20 to ER32
maximum tool diameter up to 12 mm
maximum weight of material on table 400 kg
weight of machine 900 kg (approx)
floor space required 12 x 8 feet
Structure of machine solid steel frame structure
power source required single phase/three phase depending on spindle
computerised control of machine operations Mach 3 card / Nc studio card

9. CNC ENGRAVER MACHINE: MODEL MTE1010-S
(FOR SOFT MATERIAL I.E. WOOD, MDF, ACRYLIC, ACP)
Specification MTE1010-S
work table dimensions 1300MM x 1300
axis travel
X axis 1000 mm
Y axis 1000 mm
Z axis 250 mm
axis motion transmission
X axis Rack n pinion
Y axis Rack n pinion
Z axis Ball screw
axis drivers stepper motor with microstep drive
maximum traverse rate 1800 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 2.2/3/4.5/6 kw
maximum speed 24000 rpm
drive vfd speed control
type Chinease / italian
available collet size ER 20 to ER32
maximum tool diameter up to 12 mm
maximum weight of material on table 300 kg
weight of machine 600 kg (approx)
floor space required 8feet x 8 feet
Structure of machine solid steel frame structure
power source required single phase/three phase depending on spindle
computerised control of machine operations Mach 3 card / Nc studio card

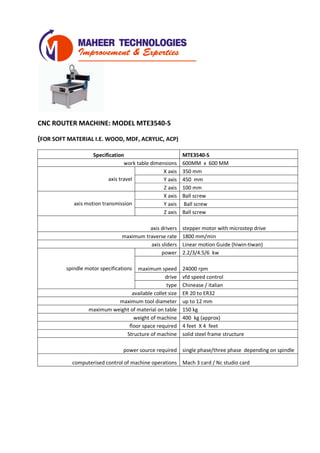

10. CNC ROUTER MACHINE: MODEL MTE3540-S
(FOR SOFT MATERIAL I.E. WOOD, MDF, ACRYLIC, ACP)
Specification MTE3540-S
work table dimensions 600MM x 600 MM
axis travel
X axis 350 mm
Y axis 400 mm
Z axis 200 mm
axis motion transmission
X axis Ball screw
Y axis Ball screw
Z axis Ball screw
axis drivers stepper motor with microstep drive
maximum traverse rate 1800 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 2.2/3/4.5/6 kw
maximum speed 24000 rpm
drive vfd speed control
type Chinease / italian
available collet size ER 20 to ER32
maximum tool diameter up to 12 mm
maximum weight of material on table 150 kg
weight of machine 400 kg (approx)
floor space required 4 feet X 4 feet
Structure of machine solid steel frame structure
power source required single phase/three phase depending on spindle
computerised control of machine operations Mach 3 card / Nc studio card

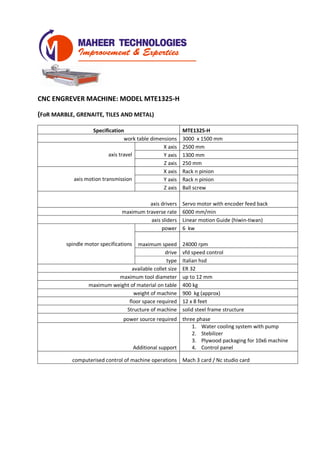

11. CNC ENGREVER MACHINE: MODEL MTE1325-H
(FoR MARBLE, GRENAITE, TILES AND METAL)
Specification MTE1325-H
work table dimensions 3000 x 1500 mm
axis travel
X axis 2500 mm
Y axis 1300 mm
Z axis 250 mm
axis motion transmission
X axis Rack n pinion
Y axis Rack n pinion
Z axis Ball screw
axis drivers Servo motor with encoder feed back
maximum traverse rate 6000 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 6 kw
maximum speed 24000 rpm
drive vfd speed control
type Italian hsd
available collet size ER 32
maximum tool diameter up to 12 mm
maximum weight of material on table 400 kg
weight of machine 900 kg (approx)
floor space required 12 x 8 feet
Structure of machine solid steel frame structure
power source required three phase
Additional support
1. Water cooling system with pump
2. Stebilizer
3. Plywood packaging for 10x6 machine
4. Control panel
computerised control of machine operations Mach 3 card / Nc studio card

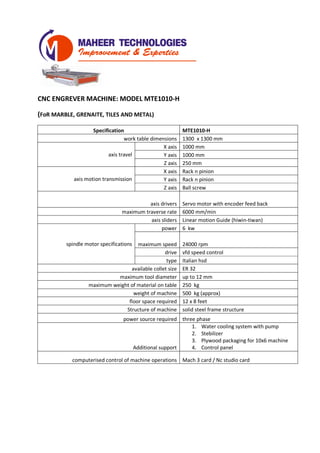

12. CNC ENGREVER MACHINE: MODEL MTE1010-H
(FoR MARBLE, GRENAITE, TILES AND METAL)
Specification MTE1010-H
work table dimensions 1300 x 1300 mm
axis travel
X axis 1000 mm
Y axis 1000 mm
Z axis 250 mm
axis motion transmission
X axis Rack n pinion
Y axis Rack n pinion
Z axis Ball screw
axis drivers Servo motor with encoder feed back
maximum traverse rate 6000 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 6 kw
maximum speed 24000 rpm
drive vfd speed control
type Italian hsd
available collet size ER 32
maximum tool diameter up to 12 mm
maximum weight of material on table 300 kg
weight of machine 600 kg (approx)
floor space required 8 x 8 feet
Structure of machine solid steel frame structure
power source required three phase
Additional support
1. Water cooling system with pump
2. Stebilizer
3. Plywood packaging for 10x6 machine
4. Control panel
computerised control of machine operations Mach 3 card / Nc studio card

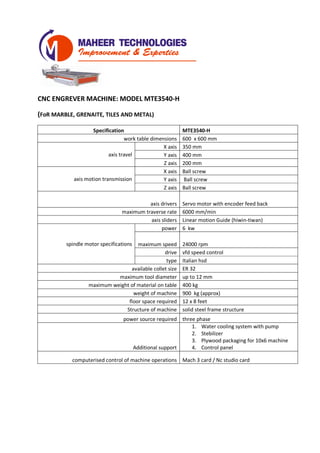

13. CNC ENGREVER MACHINE: MODEL MTE3540-H
(FoR MARBLE, GRENAITE, TILES AND METAL)
Specification MTE3540-H
work table dimensions 600 x 600 mm
axis travel
X axis 350 mm
Y axis 400 mm
Z axis 200 mm
axis motion transmission
X axis Ball screw
Y axis Ball screw
Z axis Ball screw
axis drivers Servo motor with encoder feed back
maximum traverse rate 6000 mm/min
axis sliders Linear motion Guide (hiwin-tiwan)
spindle motor specifications
power 6 kw
maximum speed 24000 rpm
drive vfd speed control
type Italian hsd
available collet size ER 32
maximum tool diameter up to 12 mm
maximum weight of material on table 200 kg
weight of machine 400 kg (approx)
floor space required 4 x 4 feet
Structure of machine solid steel frame structure
power source required three phase
Additional support
1. Water cooling system with pump
2. Stebilizer
3. Plywood packaging for 10x6 machine
4. Control panel
computerised control of machine operations Mach 3 card / Nc studio card

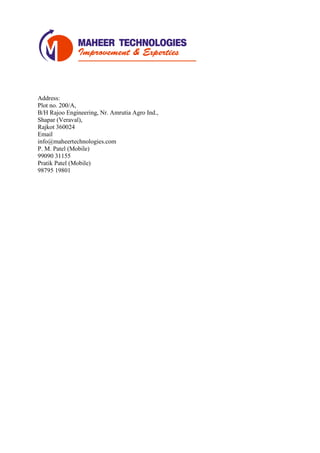

14. Address:
Plot no. 200/A,
B/H Rajoo Engineering, Nr. Amrutia Agro Ind.,
Shapar (Veraval),
Rajkot 360024
Email
info@maheertechnologies.com
P. M. Patel (Mobile)
99090 31155
Pratik Patel (Mobile)
98795 19801
