Apex cnc catalogue

Email: sales@apex-cnctech.com skype: apex-cnc
www.apex-cnctech.com - 1 -
APEX CNC TECHNOLOGY CO., LTD.
About us~~:
APEX CNC Technology Co., Ltd is a professional manufacturer specializing in exporting CNC router, CNC
plasma cutting machine, laser cutting machine, cuttting plotter. APEX CNC products are widely used in many
industries, such as the woodworking 2D/3D industry, advertising industry, stone engraving and sign marking,
furniture processing, decoration electronic fixtures, industry and other gifts industry. They can engrave and cut
wood, acrylic, stone, leather, glass, plastic sheet, metal sheet and other materials.
APEX CNC Technology Co., Ltd has set up in major cities across domestic market more than 20 agents and
we provide customers Online Negotiating, Order Confirmation, Delivery Date, Installation and Adjusting
Guidance, Daily Maintenance and After-sale Service. Our products is not only throughout the country, but also
exported to Europe, the United States, the Middle East, Southeast Asia, Africa and other regions.
Pursuing the faith of “Innovation and Development”, APEX CNC Technology Co., Ltd keeps the leading
position among the CNC woodworking equipment industry due to the high reliability and top quality of our
Products.

Application:
●Wooden plate processing: wood carving, cutting, hollowing-out and hole-drilling on the three-dimensional wave board processing,
wooden doors, window processing, cabinets doors and panels, computer table and Plate furniture auxiliary processing.
●Advertising industry processing: Acrylic cutting, Advertising signs, logo production, forming system module, a variety of the production of
advertising decorative products.
●Mold material industry: the wooden, copper, aluminum and other metal molds, as well as artificial marble, sand, plastic sheeting, non-metallic mold.
X,Y,Z working area 1300*2500*200mm(1500*3000*200mm, 2000*3000*200mm)
Drive and motor Yako stepper motor/driver; yaskawa servo motor/driver
Spindle 3kw/4.5kw/6kw watercooling spindle; 3kw/4.5kw/6kw HSD aircooling spindle
Inverter Delta frequency inverter
Control system NCstudio/ Mach3/DSP controller
XYZ Travelling Positioning Accuracy ±0.05/300mm
X, Y, Z Travelling Repositioning Accuracy ±0.05mm
Frame Big thickened Steel Square Tubes, thickness 8mm
X,Y structure Rack and pinion, Hiwin square rails on X, Y axis
Z structure Taiwan TBI Ballscrew, Hiwin square rails on Z axis
Max Rapid Travel Rate 30,000mm/min
Max working speed 18,000mm/min
Working voltage AC220V/380V, single/three phase
Command languages G code
Running Environment Temperature 0 degree - 45 degree
Software Type3 English version; Artcam English version
Net weight 1550KGS; 1750KGS; 2100KGS
Gross weight: 1750KGS; 1950KGS; 2300KGS

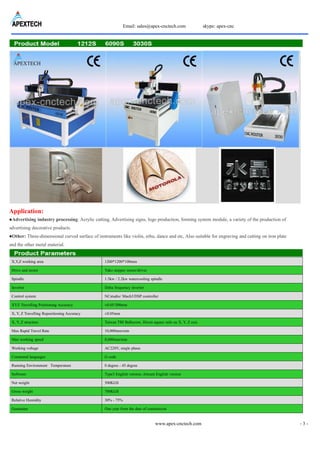

Application:
●Advertising industry processing: Acrylic cutting, Advertising signs, logo production, forming system module, a variety of the production of
advertising decorative products.
●Other: Three-dimensional curved surface of instruments like violin, erhu, dance and etc, Also suitable for engraving and cutting on iron plate
and the other metal material.
X,Y,Z working area 1200*1200*100mm
Drive and motor Yako stepper motor/driver
Spindle 1.5kw / 2.2kw watercooling spindle
X, Y, Z structure Taiwan TBI Ballscrew, Hiwin square rails on X, Y, Z axis
Working voltage AC220V, single phase
Net weight 500KGS
Gross weight 700KGS
Relative Humidity 30% - 75%
Guarantee One year from the date of commission

Application:
●Wood-working Industry: Kitchen Doors, Musical Instrument, Windows, etc;●Furniture Industry: Cabinet, Office Furniture, Panel Furniture, Wood
Door, etc;●Suitable Material: Solid Wood, Panel, Acrylic, Plexiglass, Wood, MDF, Plastic, Copper, Aluminum, etc.
Drive and motor Stepper/servo model
Spindle 2.2kw/3kw/4.5kw watercooling spindle
Z structure Taiwan TBI Ballscrew, Hiwin square rails on X, Y, Z axis
X, Y axis structure Rack and pinion, Hiwin square rails on X, Y axis
Net weight 1700KGS
Gross weight 1900KGS
Optional Accessories Rotary system, Mist-cooling system,Dust collector/ Dust hoods for three axis

Application:
●Wood-working Industry: Kitchen Doors, Musical Instrument, Windows, etc;●Furniture Industry: Cabinet, Office Furniture, Panel Furniture, Wood
Door, etc;●Suitable Material: Solid Wood, Panel, Acrylic, Plexiglass, Wood, MDF, Plastic, Copper, Aluminum, etc.
Drive and motor Stepper/servo model
Spindle 2.2kw watercooling spindle
Inverter Fuling frequency inverter
Z axis structure Taiwan TBI Ballscrew, Hiwin square rails on Z axis
Net weight 1700KGS

Application:
● Furniture: ideally suitable for processing cabinet door, solid wood furniture, panel wood furniture, windows, tables/chairs etc.
● Other wooden products: stereo box, computer desk, musical instruments, etc.
● Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Drive and motor Servo model
Spindle 9kw HSD aircooling spindle with carousel auto tool changer（LATC/CATC）
Control system Syntec controller
Net weight 2100KGS

Application:
●Instrument Industry: Shaping large instrument and Engraving on the three-dimensional surface.
●Mould Industry: suitable to engrave and Cut all kinds of mold and large nonmetal mould. Such as, auto Foam Mold, Aviation,Wood Mold, large
Ship Mold, Train Wood Mold etc.
Spindle 7.5kw watercooling spindle, 0-24000rpm
Control system Taiwan Syntec control system
Table structure T- slot with Milling steel table
Gantry steel
Max travelling speed 36,000mm/min
MAX working speed 8,000mm/min

Application:
●This Apex CNC Router with 4axis is very suitable for making deep foam, plastic, stone,wood mould works, MDF, Acrylic, and some soft metal; also
can be widely used for flat materials, such as flat stone, wood, aluminium, copper, PVC and other hard and soft materials.
X,Y,Z working area 1300*2500*(400mm~ 1000mm)*+- 90°
Spindle 9kw HSD aircooling spindle
Control system Taiwan Syntec control system
X, Y, Z Travelling Positioning Accuracy ±0.05/300mm
Frame Welded Steel gantry structure

Application:
●can be widely used for advertisement processing, engraving on wood processing and cylinder workpieces, such as cylindrical arts & crafts, PCB material
cutting, marble/ stone cutting, indoor decoration cutting, sign and mark manufacturing cutting, acrylic board processing.
Drive and motor stepper motor/driver;
Spindle 2.2kw or 3kw watercooling spindle, 0-24000rpm
Control system DSP control system
Table structure T- slot/ Aluminium
Gross weight 650KGS

Application:
●can be widely used for advertisement processing, engraving on wood processing and cylinder workpieces, such as cylindrical arts & crafts, PCB material
cutting, marble/ stone cutting, indoor decoration cutting, sign and mark manufacturing cutting, acrylic board processing.
Spindle 4.5kw aircooling spindle, 0-18000rpm
Table structure T- slot/ Aluminium

Application:
● Wood carving/ cutting, bamboo, window processing, cabinets doors and panels, computer table and Plate furniture auxiliary processing, jade, marble,
organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
● Advertising industry processing: Acrylic cutting, Advertising signs, logo production, forming system module, arts and crafts, shoes, toys, garments,
a variety of the production of advertising decorative products.
● Mold material industry: the wooden, as well as artificial marble, sand, plastic sheeting, PVC pipe, and other non-metallic mold.
X,Y,Z working area 1300*2500mm(1600*2600mm, 2000*3000*200mm)
Driving system Stepper motor or servo model
Laser power RECI Laser 60w, 80w, 100w, 130w
Laser type Sealed co2 laser tube
Working platform T- Blade worktable(honeycomb table for option)
Watercooling form Water-cooling chiller with air compressor
Interface USB
Cutting speed 0 -5000mm/min
Working power AC110v - 220v, 50hz -60hz
Graphic format supported *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las
Recommended Spare Parts Laser Tube and Lens
Software supported TCorelDraw, Photoshop, AutoCAD
Optional Accessories ① Rotary system
② Laser Tube and Lens
③ Motorized up and down table

Application:
●Apex plasma cutting machine adopts the heavy steel structure, with the feature of high temperature tempering after welding to eliminate the stress
treatment, distortion free, which has the good rigidity, more stability, higher precision, strong and long life, small moving inertia.
●High cutting speed, high precision and low cost. Parts cutting, plate cutting machining and welding shaped processing industries.
●This high precision plasma cutting machine applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the
sheet metal.
X,Y,Z working area 1300*2500mm
Working material Iron, steel, aluminum, sheets, galvanized sheets, titanium plates
Inverter Fuling frequency inverter
Control system Start torch height control system
Table structure Heavy steel frame
Cutting thickness 0.5-40mm
Document transfer U disk
Working form Untouched Arc Striking
Software Startcam software
MAX working speed 8,000 mm/min
Working voltage AC220v/240v/380v, 3 phase
Gross weight 1200 KGS
Plasma source Freecut/ Hwayuan /USA powermax 40A, 63A, 100A, 120A, 160A, 200A, 300A

Application:
●This machine is widely used in stone industry, such as natural marble, granite, artificial stone, tombstones, milepost, ceramic tile, glass and other materials.
●Metal mold industry, such as copper engraving cutting.
X,Y,Z working area 1300*2500*300mm(1500*3000*300mm, 2000*3000*300mm)
Spindle 3kw/4.5kw/6kw watercooling spindle
X, Y, Z Travelling Positioning Accuracy ±0.05/300mm
Frame Big thickened Steel Square Tubes
Net weight 1550KGS; 1750KGS; 2100KGS
Gross weight 1750KGS; 1950KGS; 2300KGS

Application:
Staircase column, staircase general column (beginning column), chair legs, wooden coat rack (with automatic start function), solid wood hangers, all kinds
of wood hyacinth, a baseball bat (all stick type), wooden vases, Roman column and washbasin European furniture, wooden cylindrical, conical, curved,
spherical and other complex shapes or wooden rotator semi-finished wood products.
X,Y,Z working area 1500*300mm
Max working diameter 20mm - 300mm
Max working lengh 100mm – 1500mm
Max spindle speed 700 – 2800 rpm
Air pressure 0.6- 0.8 Mpa
Motor power 5.5kw
Layout form Horizontal
Command language G code
Working voltage AC220V/380V, 3 phase
Overall size 2600*1100*1200mm
Net weight 1100KGS

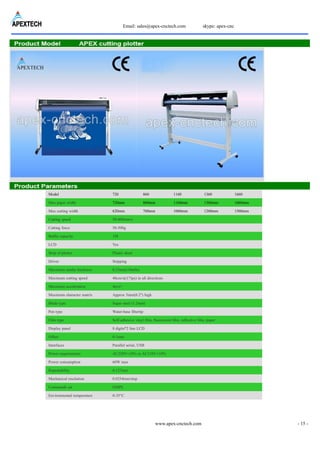

Model 720 860 1160 1360 1660
Max paper width 720mm 860mm 1160mm 1360mm 1660mm
Max cutting width 620mm 760mm 1060mm 1260mm 1560mm
Cutting speed 50-800mm/s
Cutting force 50-500g
Buffer capacity 1M
LCD Yes
Strip of plotter Plastic sheet
Driver Stepping
Maximum media thickness 0.25mm(10mlls)
Maximum cutting speed 40cm/s((17ips) in all directions
Maximum acceleration 4m/s²
Maximum character matrix Approx 5mm(0.2") high
Blade type Super steel (1.2mm)
Pen type Water-base fibertip
Film type Self-adhesive vinyl film, fluorescent film, reflective film, paper
Display panel 8 digits*2 line LCD
Offset 0-1mm
Interfaces Parallel serial, USB
Power requirements AC220V±10% or AC110V±10%
Power consumption 60W max
Repeatability 0.127mm
Mechanical resolution 0.0254mm/step
Commands set DMPL
Environmental temperature 0-35°C
