The Sherline Model 5400 milling machine has a table size of 2.75" x 13" and can fit in a small home machine shop. It has X, Y, and Z travel distances of 8.38", 5", and 6.25" respectively. The milling machine comes in several options, including a basic model, one with a digital readout, a CNC-ready version, and a complete CNC package with computer and software.

1. Sherline Model 5400
Milling Machine

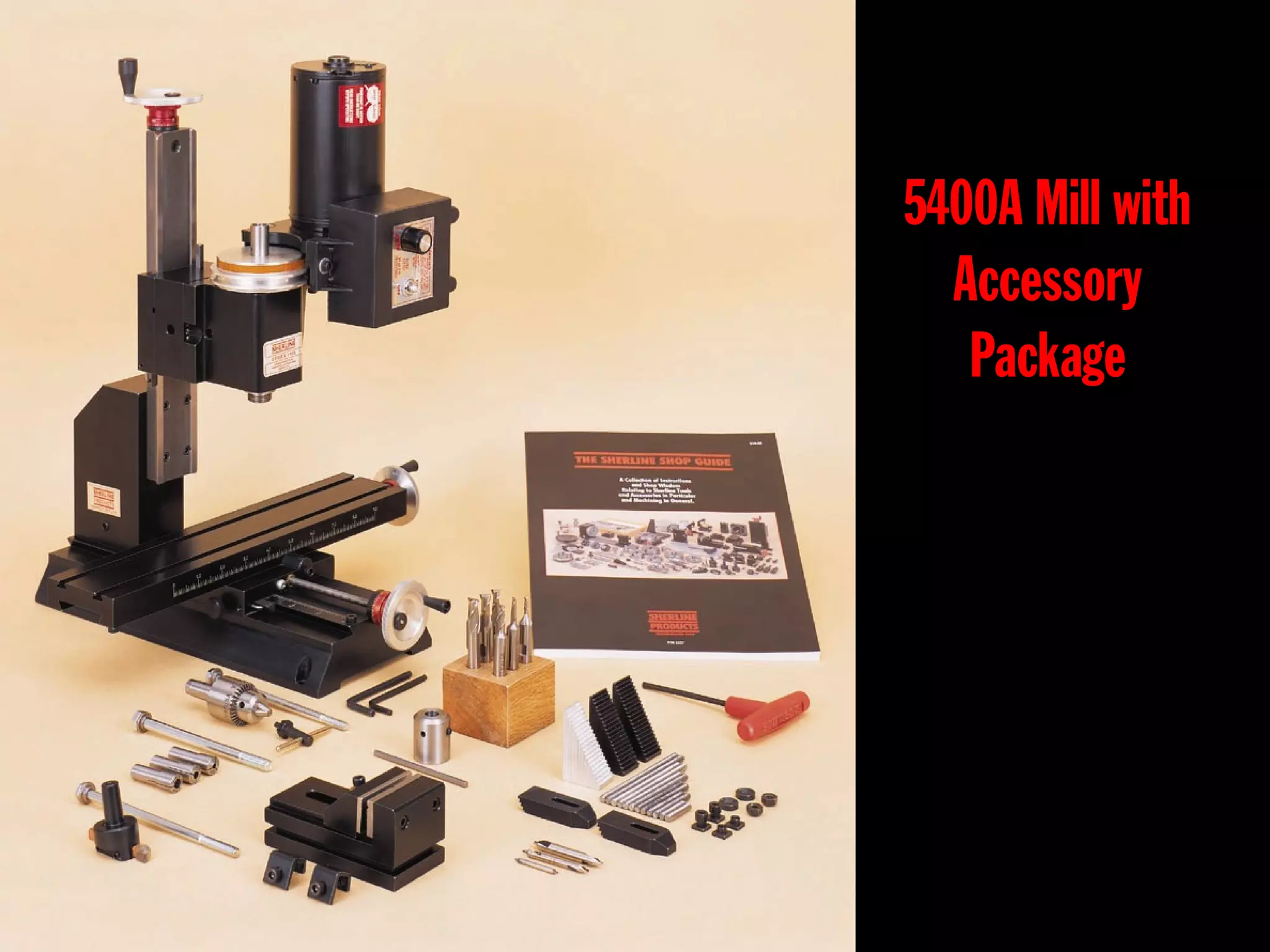

2. 5400A Mill with
Accessory
Package

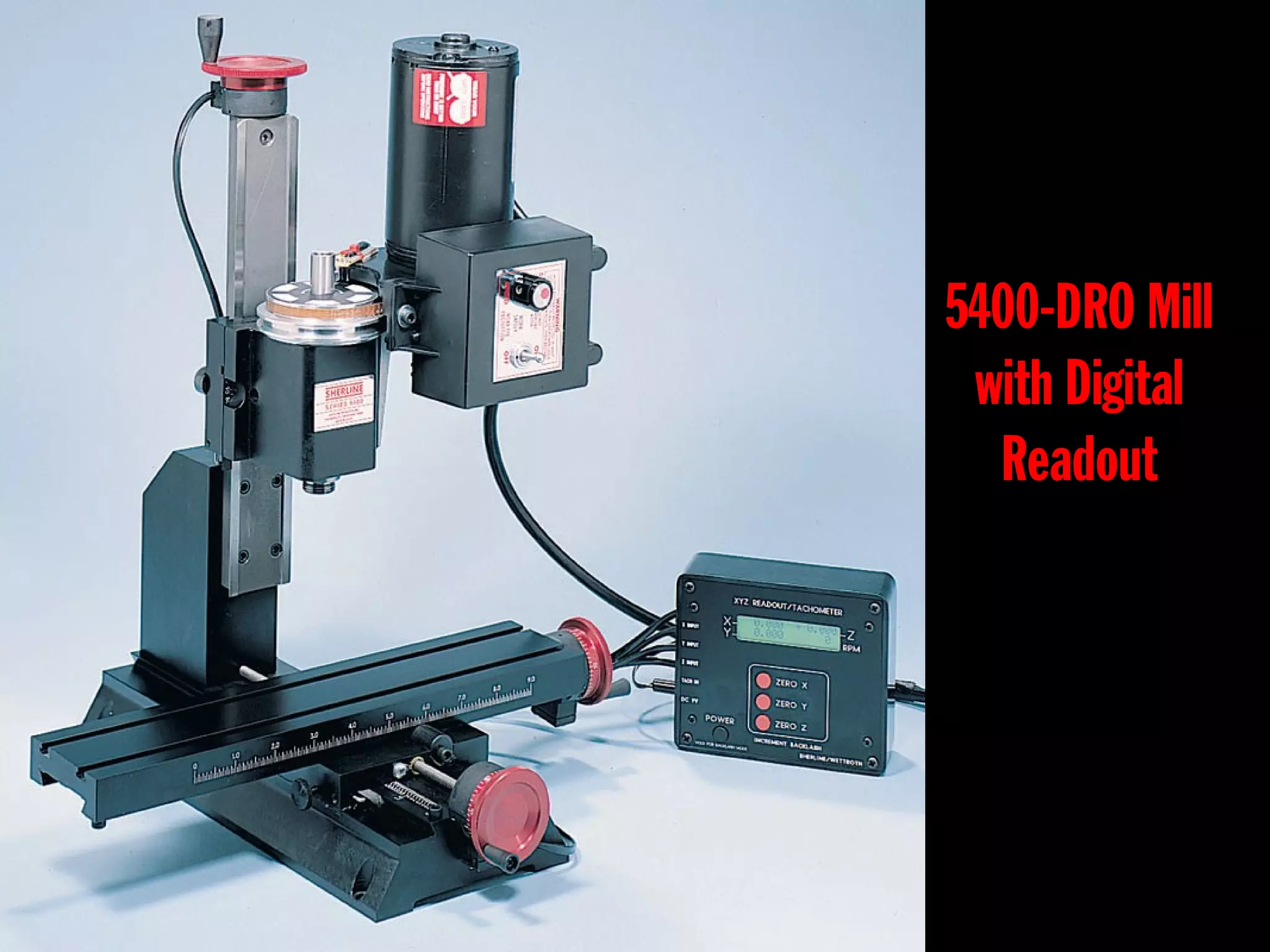

3. 5400-DRO Mill
with Digital
Readout

4. 5400-CNC Mill with
stepper motor mounts
ready for CNC

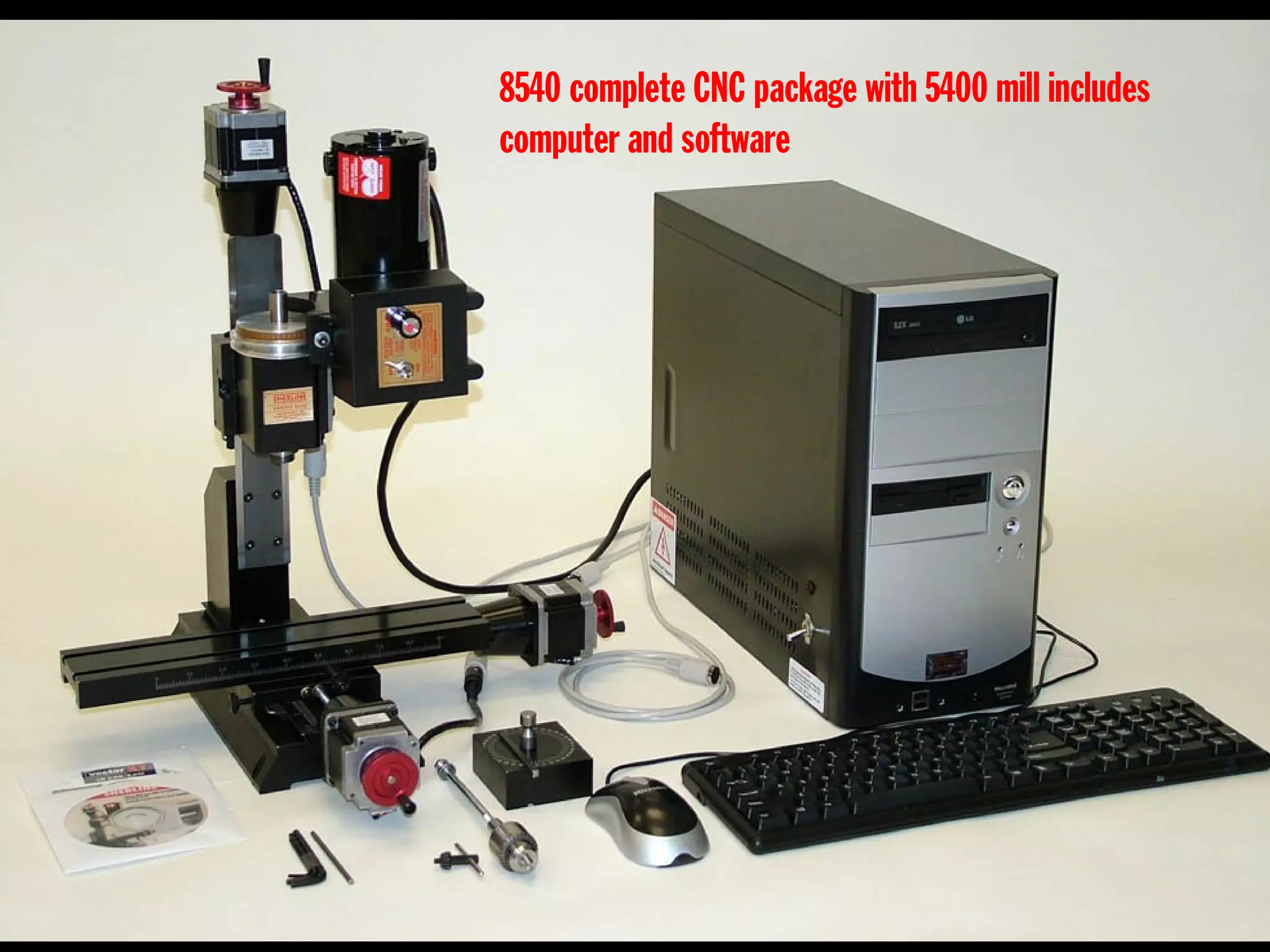

5. 8540 complete CNC package with 5400 mill includes
computer and software

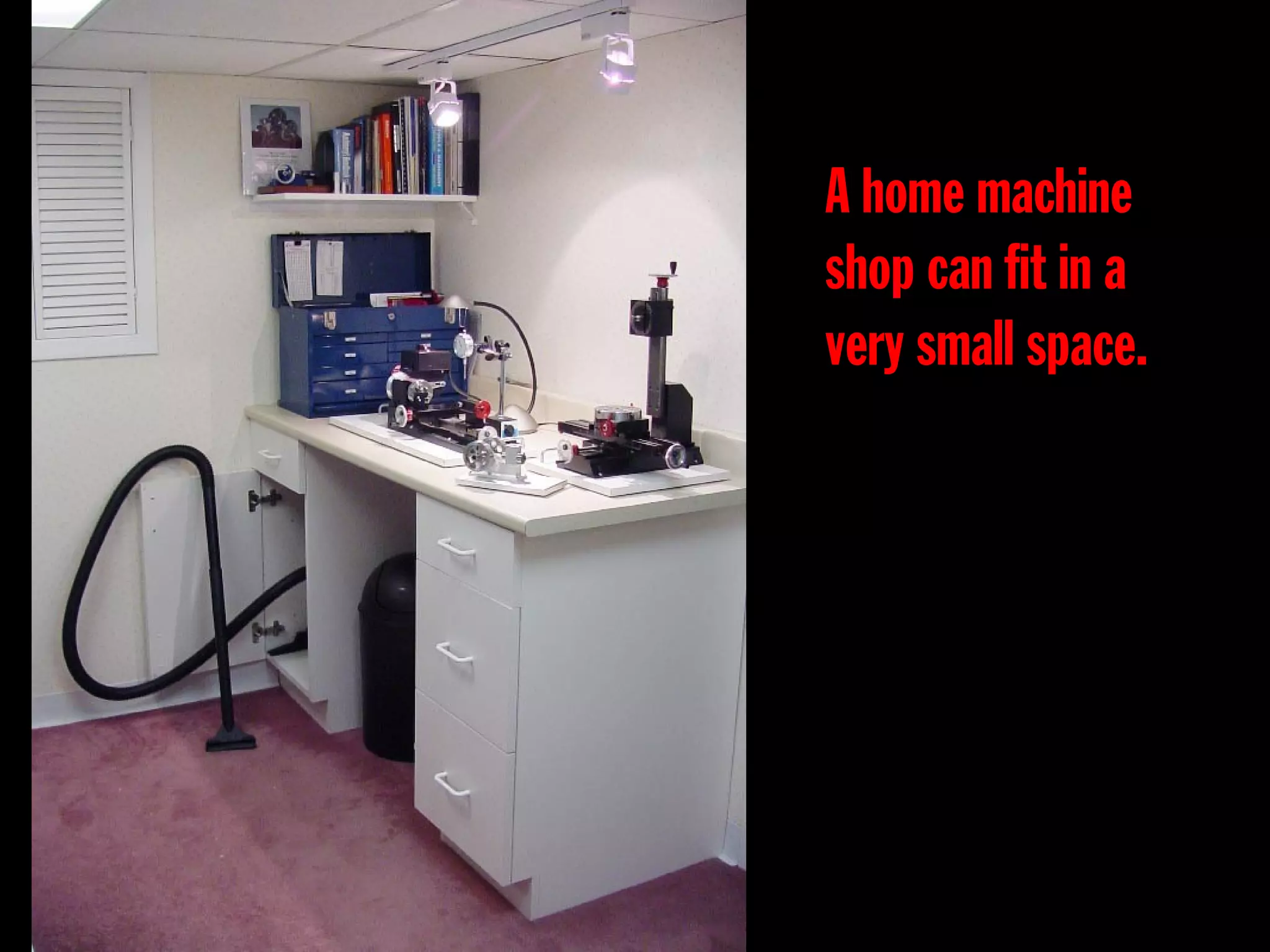

10. A home machine
shop can fit in a
very small space.

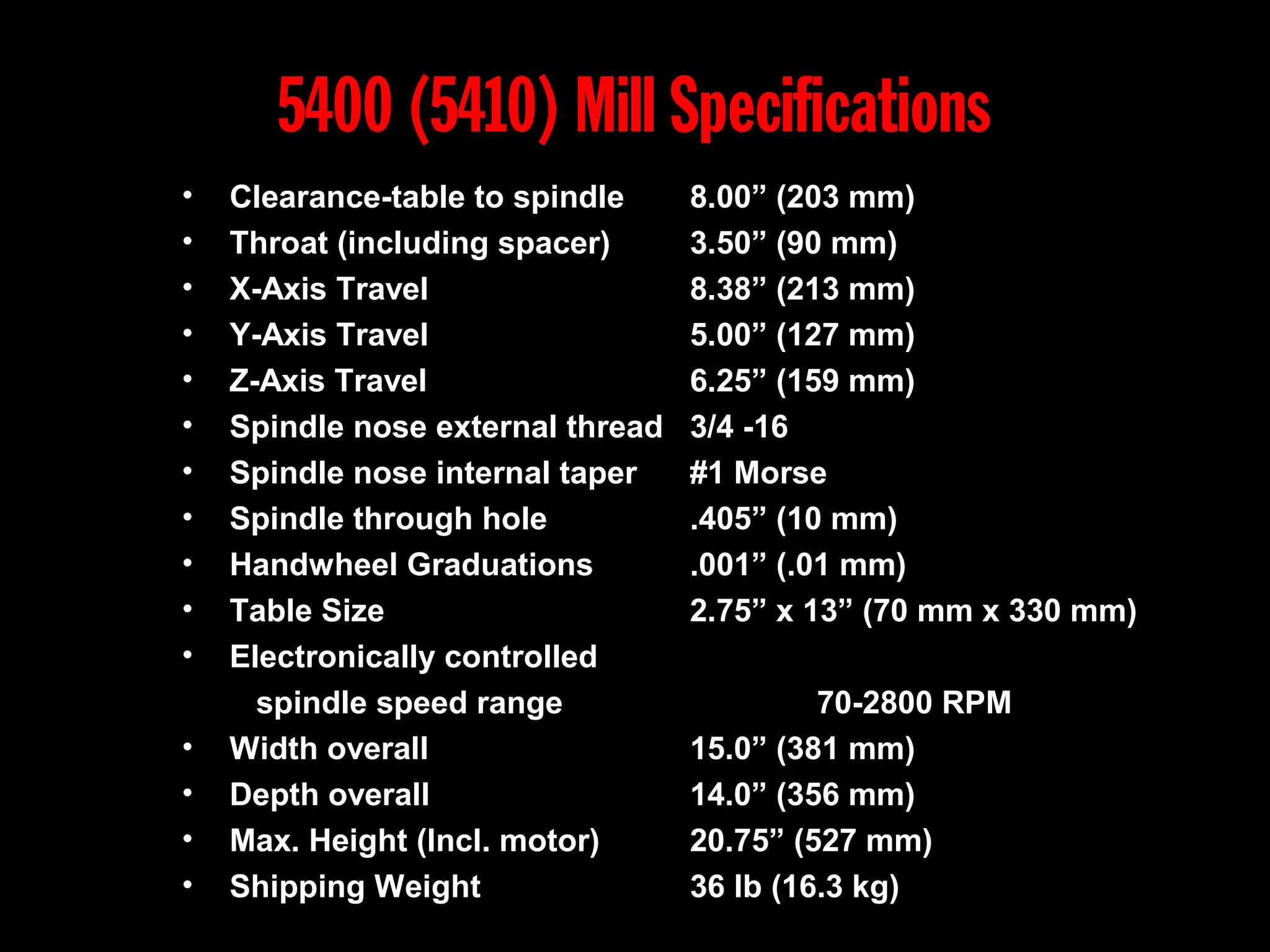

14. 5400 (5410) Mill Specifications
• Clearance-table to spindle 8.00” (203 mm)
• Throat (including spacer) 3.50” (90 mm)
• X-Axis Travel 8.38” (213 mm)
• Y-Axis Travel 5.00” (127 mm)
• Z-Axis Travel 6.25” (159 mm)

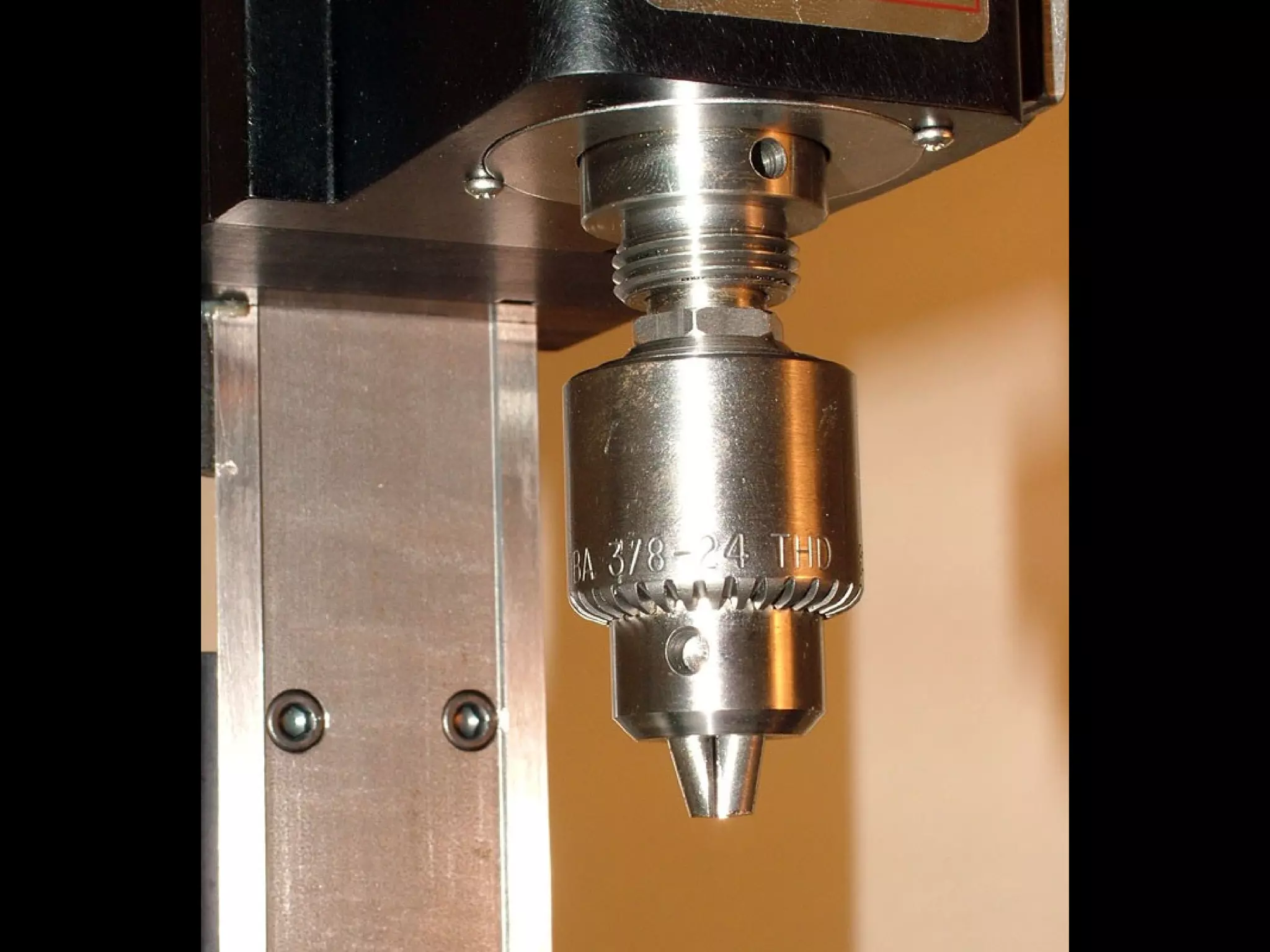

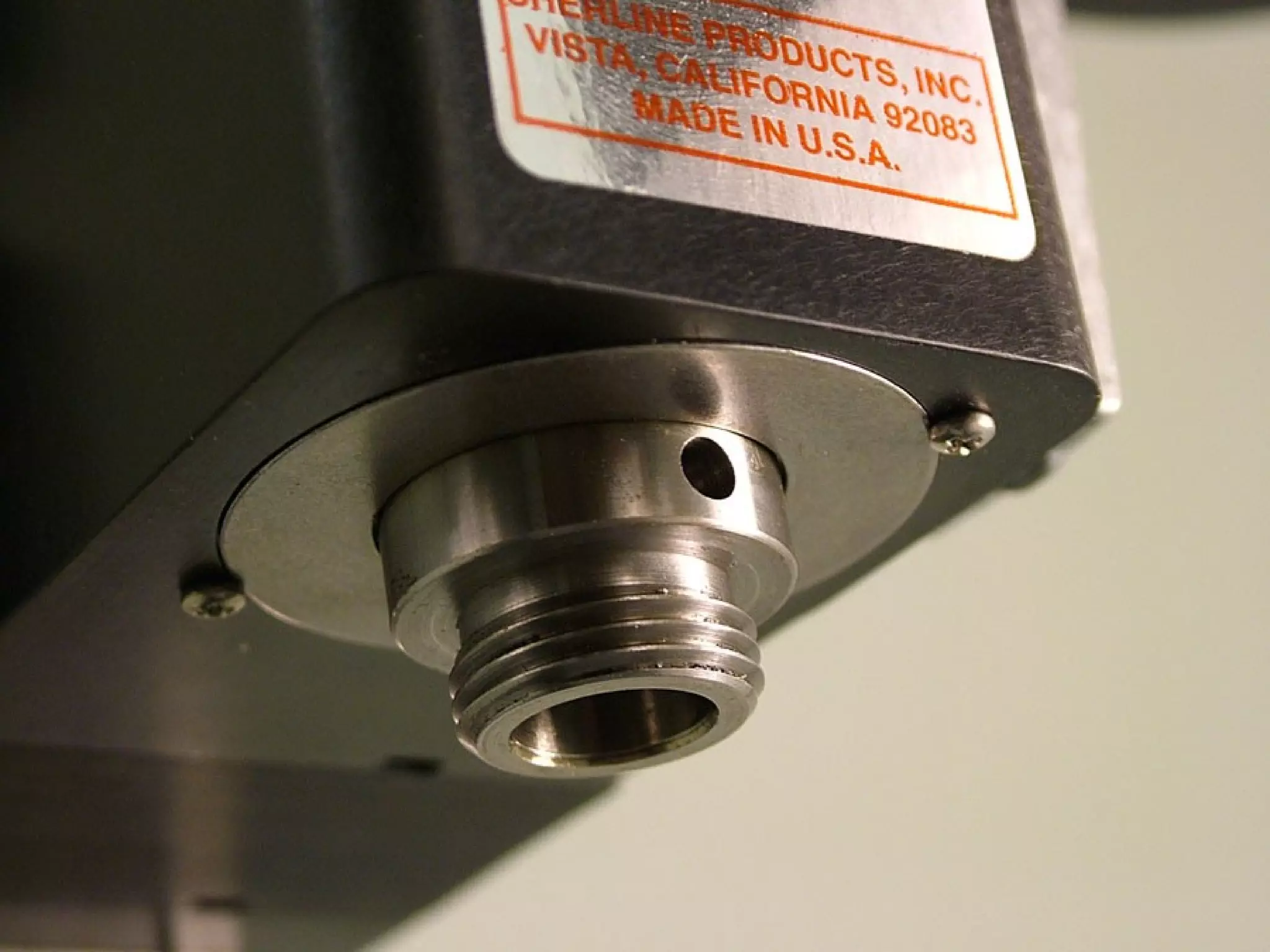

• Spindle nose external thread 3/4 -16
• Spindle nose internal taper #1 Morse
• Spindle through hole .405” (10 mm)

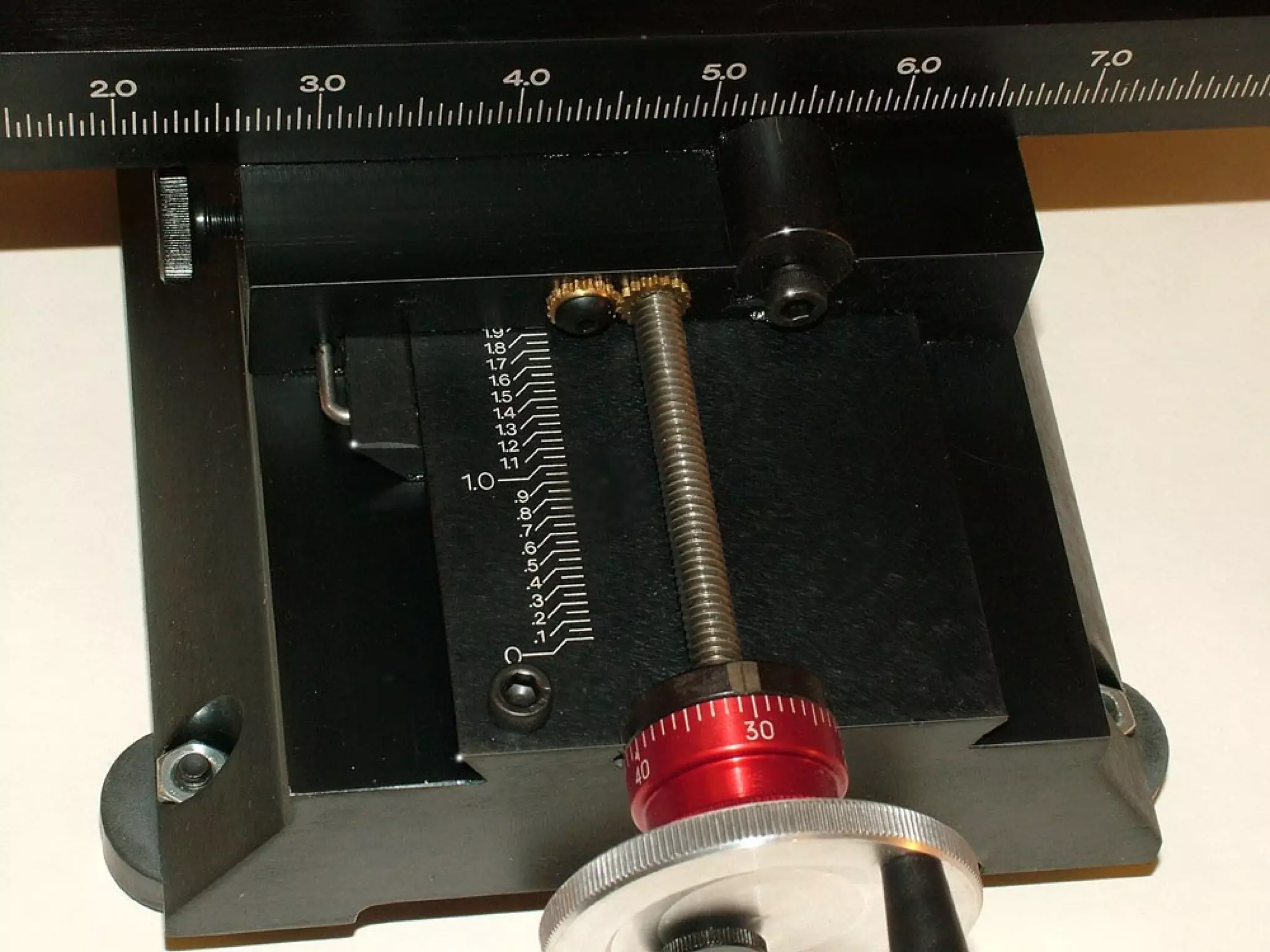

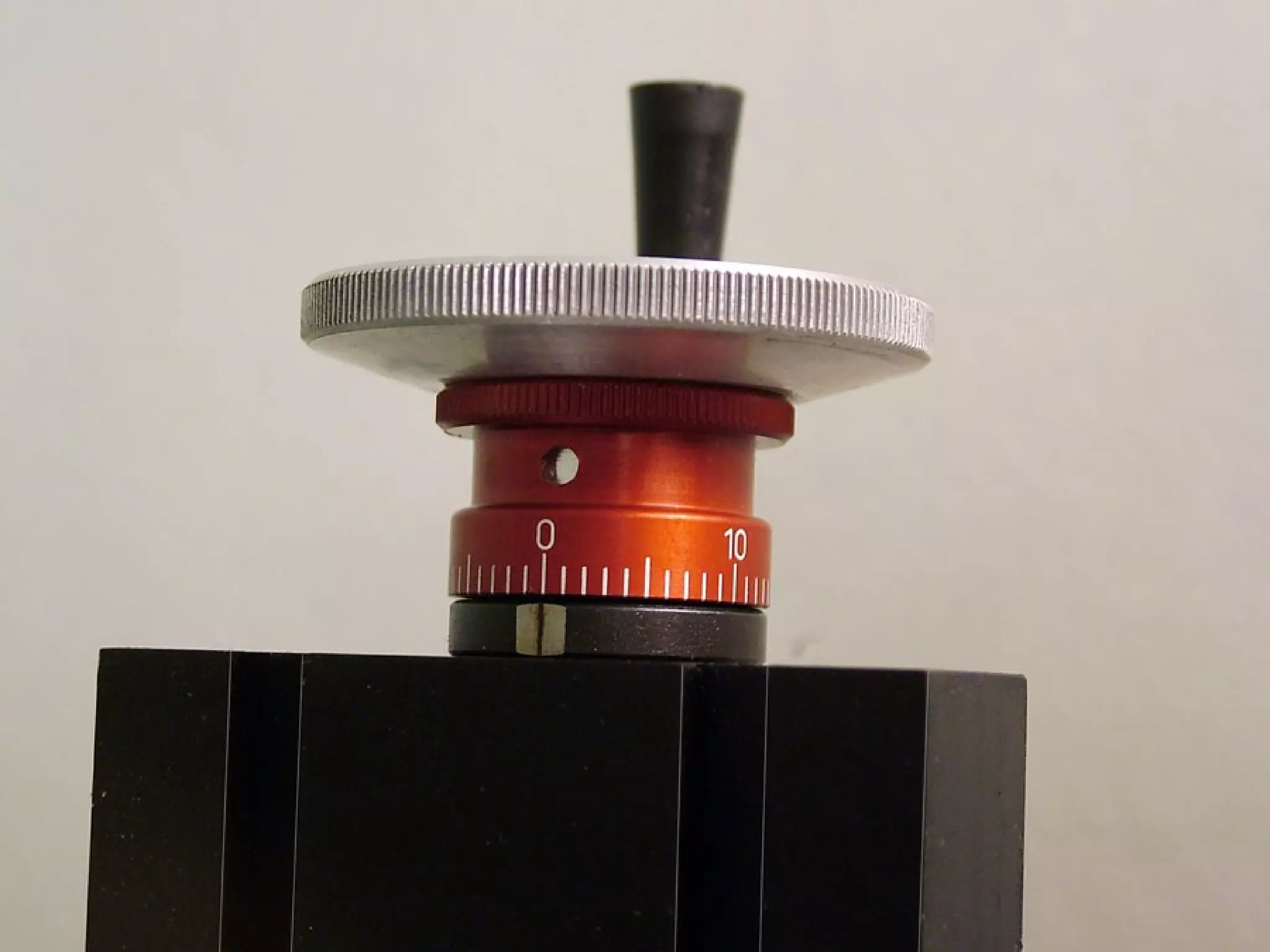

• Handwheel Graduations .001” (.01 mm)
• Table Size 2.75” x 13” (70 mm x 330 mm)

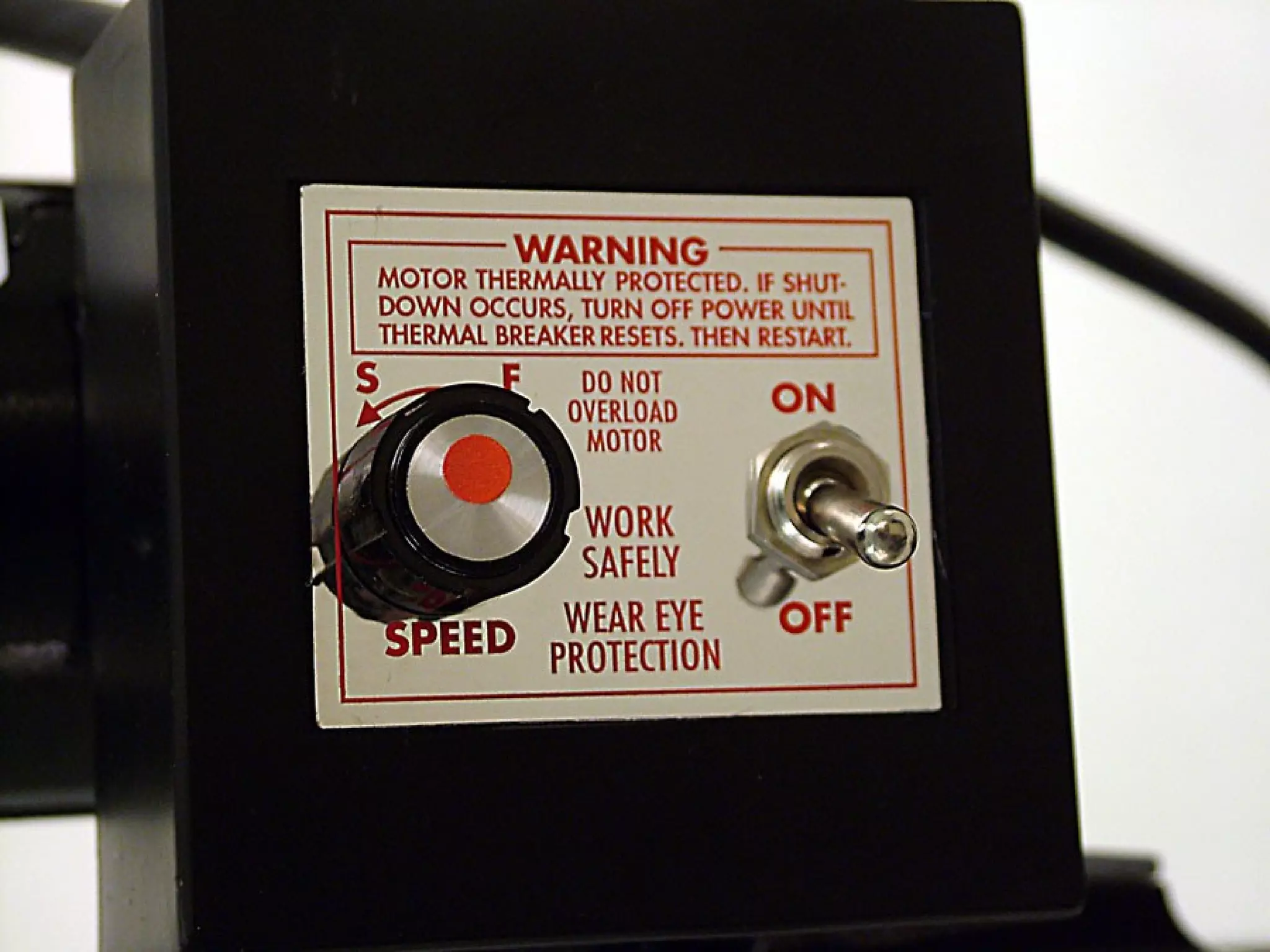

• Electronically controlled
spindle speed range 70-2800 RPM
• Width overall 15.0” (381 mm)
• Depth overall 14.0” (356 mm)
• Max. Height (Incl. motor) 20.75” (527 mm)
• Shipping Weight 36 lb (16.3 kg)
