Takam group（TAKAM）is an American-owned enterprise,
there are three global production bases, located in California,
USA & Taichung, Taiwan and Xiamen, China. Xiamen Takam
Machinery Co.,Ltd was founded in 1989, located in Xiamen City
China's special economic zone, factory parameter covers an
area of 30,000 square meters engaged in CNC high-tech series
product development, manufacturing and sales. As of date
TAKAM, MAPLE international high-end CNC machine brands
have been formed. Our machines are widely used in the
aerospace, automotive, electronics, precision molds and
mechanical parts processing and many other types of industries.
Takam products including CNC milling machines, vertical
machining centers, horizontal machining centers, CNC gantry
machining centers, CNC lathes, milling machining center attack
drill centers, CNC milling machines and so on. The products are
exported to Germany, Italy, the United States, Russia, Thailand,
South Africa, Turkey and other countries, covering Beijing,
Shanghai, Tianjin, Chongqing, Fujian, Jiangsu, Zhejiang,
Guangdong, Shandong, Henan and other provinces and regions
in China. The business philosophy of Takam is “the pursuit of
quality, create value, quality service”, continuously improve the
quality, service and innovation, we are committed to produce
high-quality, high-tech products to meet global customer's
demand.
Takam machines are built with quality every step of the
manufacturing process. Every component and step of the
manufacturing process undergoes a rigorous 100% quality
check prior to assembly. The result is a high quality built
machine.
Takam machines quality tests includes:
> Half complete 3-axis accuracy check
> Half complete 48 hours test run
> Complete 3-axis accuracy check
> Complete 48 hours test run
> 100% complete check
Half complete 3-axis accuracy check
When assembly reaches 50 % our machine undergoes the
first stage of accuracy check. This stage includes all 3-axis
to be check of any installation errors or any other problems
that might lead up to imperfection.
After the machine has passed the first stage of quality
control check, the machine will then undergo a 48 hour test
run to make sure the machine does not undergo any
accuracy changes.
Half complete 48 hours test run
Complete 3-axis accuracy check
The complete 3-axis accuracy check includes the
RENISHAW BALL BAR test, renishaw laser positioning
test, and other accuracy tests.
Complete 48 hours test run
The fourth stage of testing includes a full 48 hours weight
block test, tool changer test run, and complete full function
test run.
100% complete check
After the machine passes all the tests, the machine will
undergo its final 150 points inspection. This stage includes
all bolts, internal, external finishing and many other parts.
When Quality Is Everything

2. www.takam.com www.takam.com

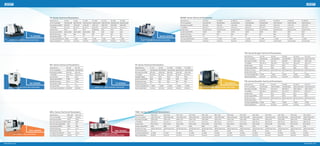

TK-Series Technical Parameters
Specifications TK-650 TK-855 TK-1055 TK-1100 TK-1370 TK-1600 TK-1890
X/Y/Z Travel(MM) 650/500/500 850/540/550 1000/540/550 1100/610/610 1300/700/700 1600/800/700 1800/900/680
Worktable Size(MM) 800×460 1000×500 1100×500 1200×510 1300×700 1600×800 1800×900
T-Slot(MM) 80×18×5 80×18×5 80×18×5 100×18×5 125×22×5 125×22×5 165×22×5
Spindle Taper BT40 BT40 BT40 BT40(BT50) BT50 BT50 BT50
Spindle Speed(RPM) 8000/10000 8000/10000 8000/10000 8000 6000 6000 6000
Spindle drive type Belt Belt Belt Belt Belt Belt Belt
Spindle Motor(KW) 5.5 7.5 7.5 11 15 15 18.5
Cutting Feed(MM/Min) 1-6000 1-6000 1-6000 1-6000 1-5000 1-5000 1-5000
Rapid Feed(M/Min) 24/24/24 24/24/24 24/24/24 24/24/24 20/20/15 20/20/15 15/15/12
TK-SERIES
V E R T I C A L M A C H I N I N G C E N T E R S
TW-Series(Single) Technical Parameters
Specifications TW-500 TW-630 TW-800 TW-1016 TW-1225
X/Y/Z Travel(MM) 700/600/600 1000/800/800 1300/900/900 1600/1200/1350 2200/1200/1350
Worktable Size(MM) 500×500 630×630 800×800 1000×1000 1000×1200
T-Slot(MM) 100×18×4 100×18×5 125×22×6 150×22×6 150×22×7
Spindle Taper BT50 BT50 BT50 BT50 BT50
Spindle Speed(RPM) 6000 6000 6000 6000 6000
Spindle drive type Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box)
Spindle Motor(KW) 15 15 22 22 22
Cutting Feed(MM/Min) 1-6000 1-6000 1-8000 1-8000 1-8000
Rapid Feed(M/Min) 24/24/24 24/24/24 24/24/24 24/24/24 24/24/24
TW-Series(Double) Technical Parameters
Specifications TW-500 TW-630 TW-800 TW-1016 TW-1225
X/Y/Z Travel(MM) 700/550/600 1000/750/800 1300/800/800 1600/1100/1250 2200/1100/1250
Worktable Size(MM) 500×500 2× 630×630×2 800×800×2 1000×1000×2 1000×1200×2
T-Slot(MM) 100×18×4 100×18×5 125×22×6 150×22×6 150×22×7
Spindle Taper BT50 BT50 BT50 BT50 BT50
Spindle Speed(RPM) 6000 6000 6000 6000 6000
Spindle drive type Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box)
Spindle Motor(KW) 15 15 22 22 22
Cutting Feed(MM/Min) 1-6000 1-6000 1-8000 1-8000 1-8000
Rapid Feed(M/Min) 24/24/24 24/24/24 24/24/24 24/24/24 24/24/24
TMC-Series Technical Parameters
Specifications TMC-2013 TMC-2016 TMC-2516 TMC-3016 TMC-3020 TMC-3025 TMC-4016 TMC-4020 TMC-4025 TMC-5025 TMC-5030 TMC-6025 TMC-10030
X/Y/Z Travel(MM) 2000/1400/750 2000/1600/1000 2500/1600/1000 3000/1600/1000 3000/2000/1000 3000/2500/1000 4000/1600/1000 4000/2000/1000 4000/2500/1000 5000/2500/1000 5000/3000/1000 6000/2500/1000 10000/3000/1000
Worktable Size(MM) 2000×1000 2100×1350 2600×1350 3100×1350 3100×1800 3200×2250 4100×1350 4100×1800 4200×2250 5200×2250 5200×2800 6200×2250 10200×2800
T-Slot(MM) 150×22×7 175×22×7 175×22×7 175×22×7 175×22×9 200×28×11 175×22×7 175×22×9 200×28×11 200×28×11 200×28×13 200×28×11 200×28×13
Spindle Taper BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190 BT50×Φ190
Spindle Speed(RPM) 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000 6000
Spindle drive type Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box) Belt(ZF gear box)
Spindle Motor(KW) 15 15 15 22(26) 22(26) 22(26) 22(26) 22(26) 22(26) 22(26) 22(26) 22(26) 22(26)
CuttingFeed(MM/Min) 10-6000 10-6000 10-6000 10-6000 10-6000 10-6000 10-6000 10-6000 10-6000 10-6000 10-6000 10-6000 10-6000
Rapid Feed(M/Min) 8/10/10 15/15/12 15/15/12 15/15/12 12/12/12 12/12/12 12/12/12 12/12/12 12/12/12 10/12/12 10/12/12 10/12/12 10/12/12
TMC-SERIES
D O U B L E C O L U M N
V E R T I C A L M A C H I N I N G C E N T E R S
MT-Series Technical Parameters
Specifications MT-500 MT-700
X/Y/Z Travel(MM) 500/400/400 700/400/450
Worktable Size(MM) 650×420 850×420
T-Slot(MM) 100×14×3 100×14×4
Spindle Taper BT30 BT30
Spindle Speed(RPM) 12000 12000
Spindle drive type Direct Direct
Spindle Motor(KW) 5.5 5.5
Axis Motor(KW) 1/1/3 1/1/3
X/Y/Z Rapid Feed(M/Min) 48/48/60 48/48/60
MT-SERIES
D R I L L I N G A N D TA P P I N G C E N T E R S
MONE-Series Technical Parameters
Specifications M-ONE 6 M-ONE 8 M-ONE 10 M-ONE 11 M-ONE 20 M-ONE 40 M-ONE 60 M-ONE 80
X/Y/Z Travel(MM) 650/500/500 860/600/600 1020/600/600 1100/600/600 1200/600/600 1400/700/620 1600/700/620 1800/700/620
Worktable Size(MM) 800×460 960×600 1100×600 1200×600 1300×600 1500×700 1700×700 1900×700
T-Slot(MM) 80×18×5 100×18×5 100×18×5 100×18×5 100×18×5 120×18×5 120×18×5 120×20×5
Spindle Taper BT/ISO/CAT40 BT/ISO/CAT40 BT/ISO/CAT40 BT/ISO/CAT40 BT/ISO/CAT40 BT/ISO/CAT50 BT/ISO/CAT50 BT/ISO/CAT50
Spindle Speed(RPM) 10000 10000 10000 10000 10000 6000 6000 6000
Spindle drive type Belt Belt Belt Belt Belt Belt Belt Belt
Spindle Motor(KW) 7.5 11 15 15 15 18.5 18.5 18.5
Cutting Feed(MM/Min) 1-12000 1-12000 1-12000 1-12000 1-12000 1-12000 1-10000 1-10000
Rapid Feed(M/Min) 36/36/36 36/36/24 36/36/24 36/36/24 36/36/24 24/24/24(36) 24/24/24(36) 24/24/24(36)
MONE-SERIES
V E R T I C A L M A C H I N I N G C E N T E R S
Specifications TE-750 TE-850 TE-750Q TE-850Q TE-1050Q
X/Y/Z Travel(MM) 700/500/500 800/500/500 700/500/500 800/500/500 1000/500/500
Worktable Size(MM) 800×500 1000×500 800×500 1000×500 1100×500
T-Slot(MM) 80×18×5 80×18×5 80×18×5 80×18×5 80×18×5
Spindle Taper BT40 BT40 BT40 BT40 BT40
Spindle Speed(RPM) 8000 8000 8000 8000 8000
Spindle drive type Belt Belt Belt Belt Belt
Spindle Motor(KW) 7.5 7.5 7.5 7.5 7.5
Cutting Feed(MM/Min) 1-10000 1-10000 1-20000 1-20000 1-20000
Rapid Feed(M/Min) 24/24/24 24/24/24 36/36/24 36/36/24 36/36/24
TE-Series Technical Parameters
TE-SERIES
V E R T I C A L M A C H I N I N G C E N T E R S
MOL-Series Technical Parameters
Specifications MOL-280 MOL-350
X/Y/Z Travel(MM) 210/400 185/635
Bed Diameter(MM) Φ470 Φ540
Max working diameter(MM) Φ280 Φ350
Max working length(MM) 400 530
Spindle Speed(RPM) 4000 4000
Spindle head type A2-6 A2-6
Spindle Motor(KW) 11 11
X/ Z Rapid Feed(M/Min) 24/24 24/24
X/ Z Motor Power(KW) 1.8/1.8 3/3
MOL-SERIES
L AT H E M I L L I N G C E N T E R S
TW-SERIES
卧 式 加 工 中 心
TW-SERIES
H O R I Z O N TA L M A C H I N I N G C E N T E R S
