Jatindra Engineering Corporation is a pioneer institution in designing and manufacturing of Rolling Mills and
Auxiliary systems. From the last four decades the core activity of our organization transacts with Hot Rolling
Mills for Steel & Non-ferrous metals, alongside we are also producing Cold Rolling Mills, Coil Processing Plants
and other auxiliaries related to the Steel and metal industry in general. Many successful installations in Private
and Public Sector organizations, is another paradigm of our expertise in field of Rolling Mills.
Jatindra Engineering Corporation has well equipped staff of Engineers to supervise the quality of the produce
at every stage. Our Design Laboratory comprises of the latest and state of the art computers and other
measuring instruments. To ensure the quality of the design we are equipped with most modern software i.e.
AutoCAD®, Solid Works®, Pro Engineer® & CATIA®.
We are conscious of the total quality movement in India. Regarding the quality of our products we like to
submit that we are committed to manufacture and marketing products as per specifications of DIN, BIS, ASTM,
ANSI, JIS etc. which are well documented in our in-house quality assurance plan. Besides satisfying stringent
quality control norms we conduct internal inspection at every stage of designing and manufacturing; thus all
of our produces are 100% tested for performance.
Jatindra Engineering Corporation products and services are well established across the globe for decades.
We have integral yet sophisticated plants equipped with modern technology to deliver the best quality
products to help our clients achieving exceptional performance year after year. We at JEC are committed to
deliver: reliability, accuracy and performance that our clients expect from us. Our plant and machinery is
designed to work even in hash working conditions and to serve a long lifetime.
 Building machines with high quality for unmatched performance and reliability is our USP to stay tuned
with technological innovation in constant evolution.
 Highly focused and competent staff to deliver cutting-edge solutions for Rolling Mills and Coil Processing
plants.
 Collaboration with clients, qualified machine operators and researchers of the field to deliver optimum
performance by prevailing economy.
 Continuous training of staff in all areas including IT solutions, management and production to respond
more efficiently and effectively for a consistent growth of our concern.
Ever since the establishment of our organization in 1975, we have been granted various opportunities to
explore all fields of Rolling Mill for ferrous / non-ferrous applications. After a decade of inception of our
organization we added Coil Processing Plants and Tube Mill Machinery to our manufacturing program.
Our solutions for Rolling Mills and Coil Processing Lines are designed to assure perfect quality of the produce
and the highest production capacity: these goals are achieved by distilling the experience gained on installing
a large number of plant and machineries designed to meet the vast requirements of the steel / metal industry.
2 Jatindra Engineering Corporation

INDEX
S. No
DESCRIPTION PAGE No
1. HOT ROLLING MILLS FOR LONG PRODUCTS 1 - 9
1.1
1.2
1.3
1.4
1.5
1.6
Merchant Bar Mills
Re-bar Mills
Section Mills
ERW Tube Mills
Finishing Lines for Tube Mills
Auxiliaries for Hot Rolling Mills
4
5
6
7
8
9
2. HOT ROLLING MILLS FOR FLAT PRODUCTS 10 - 12
2.1
2.2
2.3
Narrow Width Strip Mills
Hot Strip Mills
Plate Mills
10
11
12
3. COLD ROLLING MILLS 13 - 15
3.1
3.2
3.3
2-hi / 4-hi / 6-hi Cold Rolling Mills
Skin Pass / Temper Mills
Auxiliaries for Cold Rolling Mills
13
14
15
4. COIL PROCESSING PLANTS 16 - 20
4.1
4.2
4.3
4.4
4.5
Color Coating Lines
Continuous Galvanizing Lines
Continuous Pickling Lines
Slitting Lines
Cut to Length Lines
16
17
18
19
20
5. HOT DIP GALVANIZING PLANTS 21 - 22
5.1
5.2
Hot Dip Galvanizing Plant for Structures
Hot Dip Galvanizing Plant for Tubes
21
22
Jatindra Engineering Corporation 3

HOT ROLLING MILLS FOR LONG PRODUCTS
Bar Mills produces semi-finished products of quality, special and stainless steels for automotive, oil and gas,
wind farms, or other special applications. They produce billets or large products round, square and hexagonal
in several dimensions and grades that cannot be processed on a continuous caster. JEC has introduced the
Roll-forge process to roll cast round blooms of up to 400 mm and 6 ton ingots to produce rounds up to 40
mm. The target is to give wider choice of sizes of finish products in order to minimize second choice of
materials thus substantially reducing transformation costs. The Roll-forge provides the similar quality
achievable by forging process, thanks to the unique features of our new heavy duty design of housing stands
capable to roll the material with reduction analogous to forging.
Wire Rod Block Mill Coil Laying Head
Garret Coiler Automatic Cooling Bed

JEC offers you complete tailor-made Bar and Wire Rod Mill solutions, including the latest and best
technological solutions, comprehensive support, integration into existing mills, logistics, electrical, digital and
auxiliaries with cutting-edge technology. Rebar Mills are designed to produce with minimal martensite
formation by drastically reducing micro alloyed elements and transformation costs, thus improving weld-
ability, ductility, and material homogeneity.
Slit Rolling Technology High Speed Bar Delivery System
Bar Binding Machine High Speed Flying Shear

Sections are produced on 3-high or 2-high rolling mill stands with universal reversing or on continuous / semi-
continuous stands and over the years this technology has moved on to different solutions, such as profile
sizing process. The profile sizing system is the cost-breaking innovation in the production of H-beams (up to
600-mm height & 250-mm flange), equal / unequal profiles, special sections and all types and sizes of rails. By
combining reversing intermediate / pre-finishing rolling in a flexible reversing mill and finishing or sizing in a
separate independent universal stands, this process enhances product quality, plant productivity and
efficiency at lower production costs. The independent single finishing / sizing pass provides the best
tolerances thanks to small reductions, long life for rolls and guides, maximum roll pass design flexibility and
best finished product surface.
2-hi Reversible Roughing Mill Light Section Tandem Mill
Section Straightening Machine Bundling & Stacking System

Offering all core machines for ERW (Electric Resistance Welding) lines, our products are well known for their
process precision. The perfect combination of know-how, innovation, automation, and digitalization ensures
the production of high-precision tubes, line pipes, casings, tubings, and drill pipes as well as structural tubes
and pipes with round, square, and rectangular cross-sections. We accompany you during the whole process
chain from the raw material to strip preparation, forming, welding, and sizing, to the cutting and finishing of
your end product. These flexible plants cover product diameters up to 508 mm with wall thicknesses between
0.7 and 20.2 mm.
High Speed Forming Mill High Frequency Welder
Sizing Mill High Speed Cold Shear

Our complete lines for tube and pipe finishing reflect our many years of experience in plant engineering.
Depending on the requirements of the market, you may need different quality control equipment with quite
different performance characteristics. Likewise, it is necessary to integrate different machining processes i.e.
threading, chamfering, sizing, straightening, hydro-static pipe testing and bundling into the material flow. JEC
finishing lines are specially designed for these applications: API finishing lines, boiler tube finishing lines,
finishing lines for general construction tubes, and heat treatment lines.
Chamfering Machine Threading Machine
Hydrostatic Testing Machine Packaging Machine

Auxiliary equipment refers to various machineries and equipment other than Hot Rolling Mill. It consists of
mechanical equipment used to complete rolling and finishing procedures. According to the usages, auxiliary
equipment can be classified into; mill stands, reduction / pinion gear boxes, shear / saws, cooling beds,
quenching systems, high speed delivery systems, stand quick change robots, material handling manipulators,
roller tables, loopers, bar straightening machines, coilers and CNC roll turning / branding machines etc. The
equipment should meet the requirements for product production.
Tilting Manipulators Hot Saws
Cold Sizing Shears Side Guide Units

HOT ROLLING MILLS FOR FLAT PRODUCTS
Our solutions for Narrow Width Strip Mill comes with reasonable investment and provides the opportunity to
grow flexibly as per market requirements in terms of capacity, product dimensions, and product mix or quality
requirements. From an annual production of around 0.25 million tons, a narrow strip mill can be operated
profitably and systematically expanded stepwise to a capacity of around 1.5 million tons.
4-Hi Finishing Mill Hydraulic AGC
Differential Loop Tensioner Re-coiler

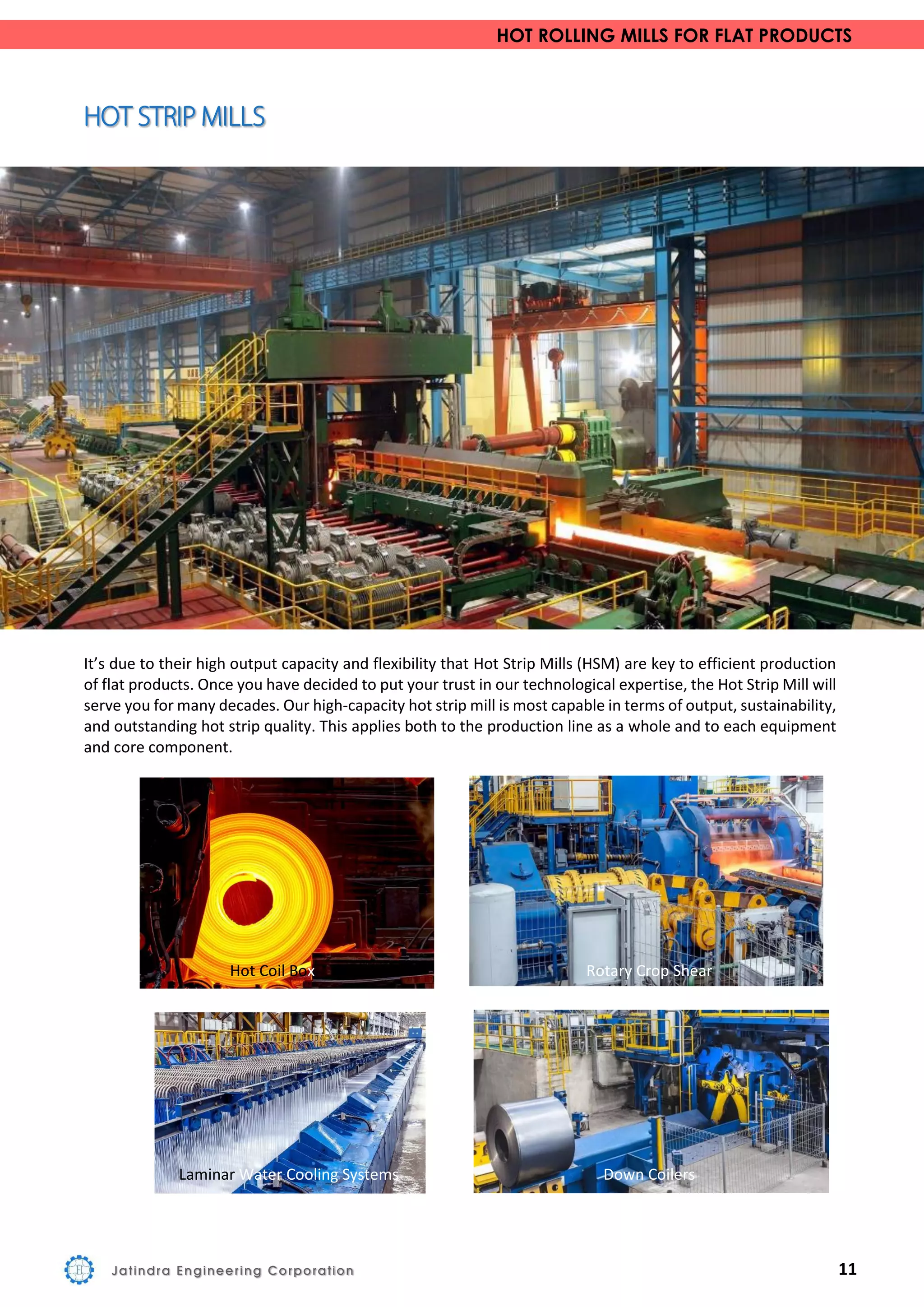

It’s due to their high output capacity and flexibility that Hot Strip Mills (HSM) are key to efficient production
of flat products. Once you have decided to put your trust in our technological expertise, the Hot Strip Mill will
serve you for many decades. Our high-capacity hot strip mill is most capable in terms of output, sustainability,
and outstanding hot strip quality. This applies both to the production line as a whole and to each equipment
and core component.
Hot Coil Box Rotary Crop Shear
Laminar Water Cooling Systems Down Coilers

We design Plate Mills for a long run. The individual dimensioning depends on the product mix, the target
production amount per year, the product geometries, and the basic conditions of the installation site. The
main process sections of any Plate Mill are: reheating furnaces, mill area with one or two reversing 2-high /
4-high stands, pre-leveler, plate cooling and hot plate leveler, cooling beds, shearing line, finishing line with
cold plate leveler, heavy plate line, and heat treatment line. What prepares our mill design for the long run
are opportunities for further development to help you to remain in a leading market position.
Medium Width Plate Mill Wider Width Plate Mill
Plate Levelling Machine Automatic Cooling Bed for Plates

COLD ROLLING MILLS
The reversing Cold Rolling Mill is the all-rounder among the CRM units. In Cold Rolling Mill, thin strips, thick
strips, soft grades, high-strength and ultra-high-strength strips can be rolled in succession on one and the
same plant. The Reversible Cold Rolling Mills in 2-hi / 4-hi / 6-hi formats are mainly used for reducing low
carbon steels, alongside provides a good solution for modern grades such as silicon steels and other metals.
If you wish to produce small to medium batch sizes of certain widths, this line is a highly efficient option.
Depending on your product mix and the installed rolling technology, the capacity ranges from about 50,000
to 250,000 ton per year.
Cold Rolling Mills for Steel Cold Rolling Mills for Aluminium
Cold Rolling Mills for Precious Metals Cold Rolling Mills for Copper

COLD ROLLING MILLS
Our Skin-pass / Temper mills for carbon steels are available in stand-alone or in-line processing of strips in a
rolling mill plant. The advantages of Skin-pass Mills include full compliance with tight strip elongation
tolerances, excellent flatness performance, uniform surface roughness for coating applications and the
availability of wet and dry skin-passing modes. Both stand-alone and inline Skin-pass Mills are supplied in
either single or 2-stand design for adjusting the final mechanical properties, flatness, and surface finish of
cold-rolled strip. To meet the continually increasing demands for strip flatness, elongation, and roughness,
especially for hard material grades such as advanced high strength steel for automotive applications, JEC
installs 2-high and 4-high Skin-pass Mills used for rolling from soft to middle and hard grade material. They
can also be equipped with dry and wet temper modes.
2-hi Skin Pass Mill 4-hi Temper Mill
4-hi Stand-alone Skin Pass Mills 4-hi In-line Temper Mills

COLD ROLLING MILLS

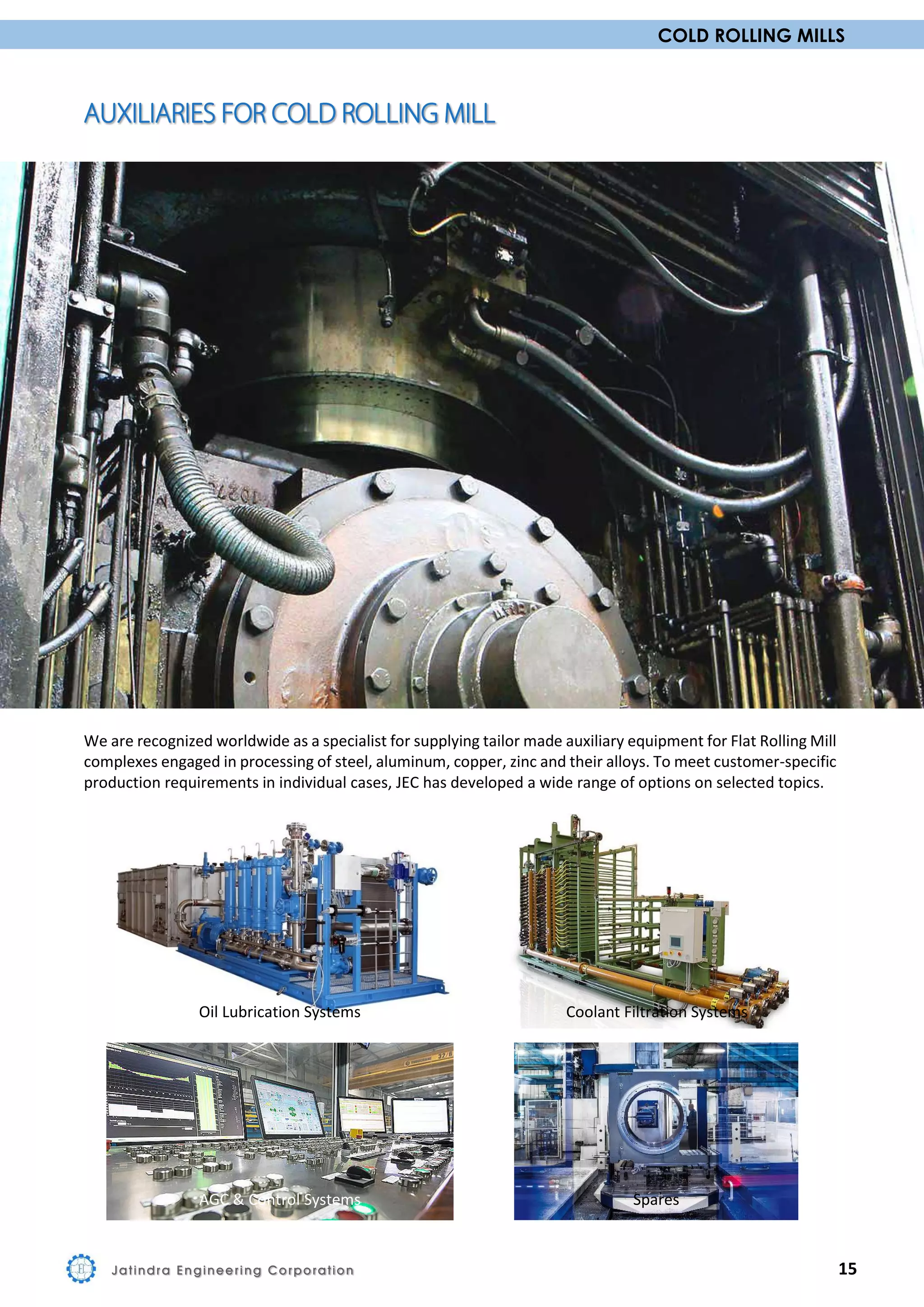

We are recognized worldwide as a specialist for supplying tailor made auxiliary equipment for Flat Rolling Mill
complexes engaged in processing of steel, aluminum, copper, zinc and their alloys. To meet customer-specific
production requirements in individual cases, JEC has developed a wide range of options on selected topics.
Oil Lubrication Systems Coolant Filtration Systems
AGC & Control Systems Spares

COIL PROCESSING LINES
In a Color Coating Line, the strips enter the line alternately from two payoff reels and are joined by a stitcher
into endless strip. The endless strip collects in a vertical looper. Next up is a spray and brush degreasing unit
that cleans the strip surface. Then a chemical coater applies a conversion layer, followed by vertical drying.
The strip is primed in a prime coater, then goes through the first horizontal hardening furnace. As it travels
through the two finish coaters, it is coated with a top coat that hardens in the second horizontal furnace. The
next station is a vertical looper. Downstream of this is an inspection stand that checks the strip before it is cut
and wound into coils.
S Wrap Double Coating Station Radiant Tube Furnace
Delivery End Accumulator Coil Rewinding Station

JEC Hot-dip Galvanizing Lines are specifically designed for manufacturing top-quality strip products for
construction, household appliances, exposed and non-exposed automotive applications. The combination of
outstanding mechanical equipment, furnace, air wiping, and post-treatment sections leads to increased plant
competitiveness, with excellent coatings for all the required steel grades, maximized production capacity and
low environmental impact. Further highlights of our state of the art technology are low operating costs and
high process flexibility for the production of a wide range of different products and coating types. Our Hot-
dip Galvanizing lines are the preferred choice for coating steel for automotive applications. The quality of the
finished product complies with the demands of the higher added-value market. The metal coating line can
target several markets in terms of steel grades and alloying type.
Coil Accumulators Coil Pre-heating Furnaces
Air Knife Systems Winding Reels

JEC offers contemporary Pickling technology for high-speed continuous and push-pull lines to suit any
customer requirements, with an optimized process and enhanced chemical and thermal efficiency, resulting
in reduced consumption of acid and water. The push-pull Pickling Lines handling a wider range of products
than Continuous Pickling Lines, require a much lower initial capital investment, and provide more flexibility in
production scheduling. While the Continuous Pickling Lines are suitable for producing pickled steel for
construction or automotive markets, and can exceed production of 1 million ton / year at a maximum process
speed of 250 mpm. Further highlights of our technology are high plant availability rate, reduced maintenance
programs, and low environmental impact. The pickling media flow concept, based on a customized tank
design and developed for both continuous and push-pull lines, makes it possible to minimize the pickling
transformation costs by maximizing the pickling effect and the thermal energy savings.
Degreasing Unit Picking Tanks
Side Trimming Unit Rewinding Unit

Our Slitting Lines for metal strips are among the most modern and efficient systems in this special area of
mechanical and plant engineering. We supply slitting lines for steel, aluminium, copper, brass, bronze and
other special metals and alloys. Our manufacturing program for Slitting Lines includes strip widths between
200 mm and 2,800 mm and the strip thicknesses ranging from 100 µm and 12.7 mm. Solutions for dimensions
that go beyond the stated range are subject to further discussion. Slitting systems from JEC are either
equipped with conventional eccentric arbor shaft type slitter heads or high-precision CNC slitter heads. The
chosen solution depends on the dimensions of the material and the requirements of the customers. Vacuum
brake rollers can be used for sensitive and thin material (up to 1 mm thickness). The vacuum roller technology
is used in a variety of applications by various customers for years. Apart from vacuum roller technology, belt
type reverse tensioning units are manufactured by us for a double loop former.
Slitting Line for Heavy Gauge Coils Slitting Lines for Coated Coils
Mini Slitting Lines for Special Applications Slitting Lines for Delicate Materials

Our Cut-To-Length Line is able to meet customers’ demand for special steels with high strength, low residual
stress (so that memory effects are eliminated), improved flatness, tight dimensional tolerances, and high
surface quality for cutting, forming, building, and automotive applications, etc. New equipment and
technologies have been developed in the last few years, in response to the evolution of the market
requirements concerning product quality, plant efficiency and capacity to process materials with high yield
strength. The higher yield points make the leveling and the maintenance of flatness requirements more
difficult, and often this can cause damage to the leveler. It has become evident during production that, up to
now, most levelers are limited with regard to their design, control and operating facilities, which in turn is
reflected in the strip quality. These requirements involve continuous improvement of existing practices and
procedures, and the installation of new technology.
Coil Feeding Station 4-hi Precision Levelling Unit
High Speed Flying Shear Automatic Stacker

HOT DIP GALVANIZING PLANTS
The Hot Dip Galvanizing is a metallurgical process which helps to protect steel materials from corrosion caused
by potential exposure to harsh environments. This can be achieved through numerous galvanizing types and
it safeguards materials over time from degrading while maintaining their properties unaltered. The Hot Dip
Galvanizing process consists in submerging metal products in a molten zinc bath. This causes a metallurgical
reaction that bonds both metals’ external layers, creating a homogeneous and highly resistant surface.
Chosen for more than 150 years as the best means for protecting metal from deterioration, the Hot Dip
Galvanization nowadays is preferred mostly because of its versatility and sustainability. It also guarantees the
products’ longevity and an overall lower investment cost.
Jig Lifting Station Pre-treatment Tanks
Hot Dip Galvanizing Furnace Post Treatment Discharge Station

HOT DIP GALVANIZING PLANTS
The Hot Dip Galvanizing Plants for tubes or hollow structures are completely automatic and allow the
galvanizing of water / gas pipes with diameter from ½” to 8” and with the length from 4.5 to 7.5 meters. The
Pipes Hot Dip Galvanizing Plants are highly efficient and allow to obtain a constant and continuous production
for each diameter of a pipe in process. The automatic Galvanizing Machine for tubes is equipped with a
complete set of equipment suitable to cover the whole range of hollow sections to be galvanized.
High Speed Dryer Encapsulated Pretreatment Room
Galvanizing Furnace Tube Discharge System

Jatindra Engineering Corporation
A-10/11, Jhilmil Industrial Estate, New Delhi - 110095
: +91-11-35724035
: jatindraengg@gmail.com
: www.jatindraengineeringcorporation.com

Jatindra Engineering Corporation

More Related Content

Similar to Jatindra Engineering Corporation

More from IndiaMART InterMESH Limited

Recently uploaded

Jatindra Engineering Corporation
