This document provides an overview of initial Big-IP configuration including hardware, licensing, file system, and basic network and management configuration. It also covers traffic processing concepts like pools, nodes, virtual servers and load balancing methods. Monitoring functionality and types of monitors like address, service, content and interactive are described. The document shows how to configure and assign different monitors to nodes, pool members and pools. It explains the status icons for monitor states like available, offline, unknown and unavailable.

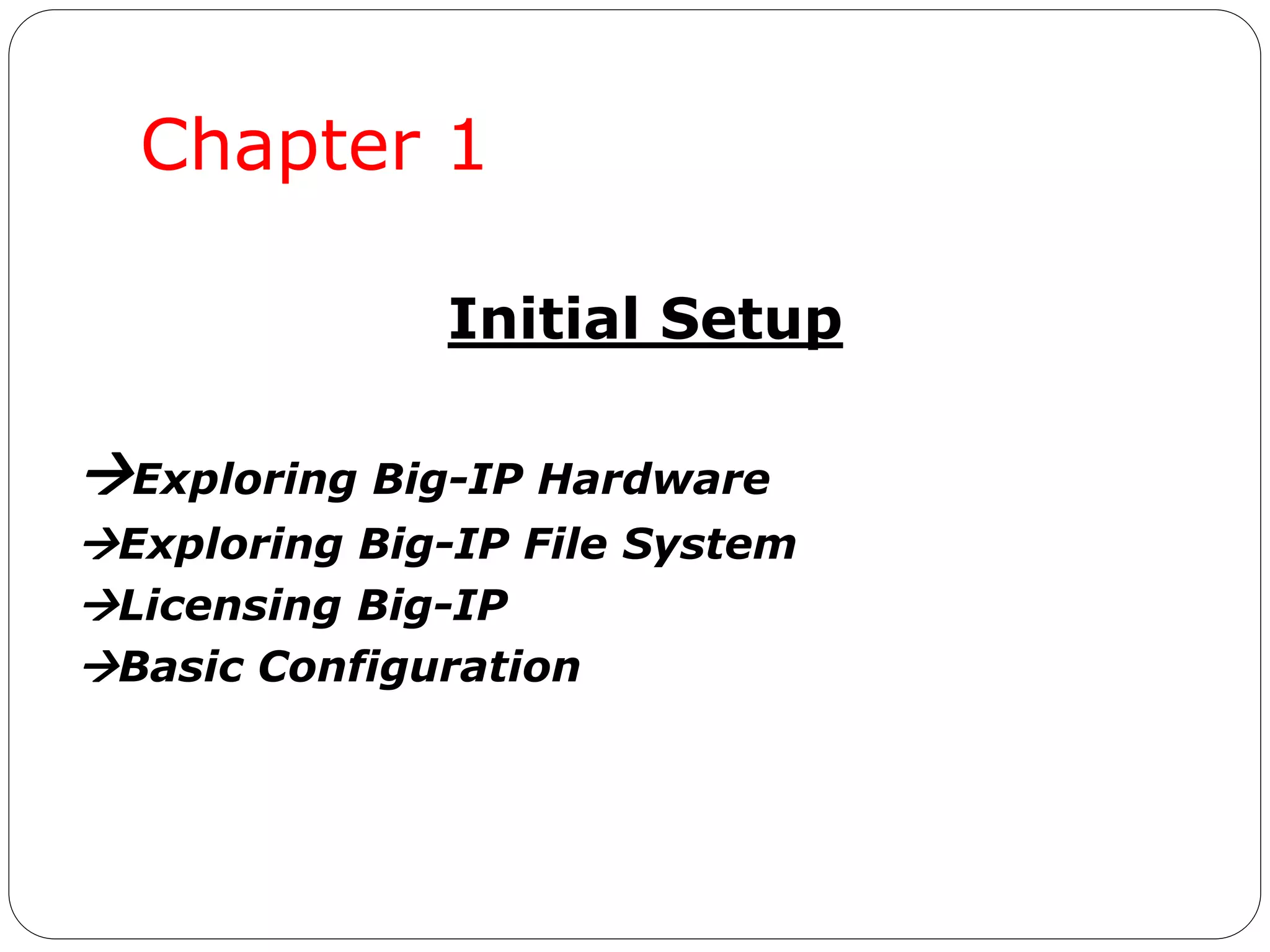

1. Chapter 1
Initial Setup
Exploring Big-IP Hardware
Exploring Big-IP File System
Licensing Big-IP
Basic Configuration

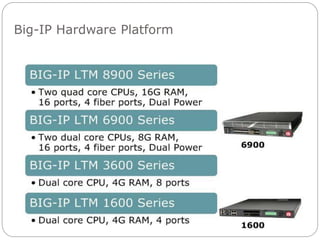

2. Big-IP Hardware Platform

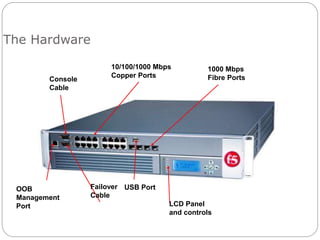

3. The Hardware
OOB
Management
Port
Console
Cable

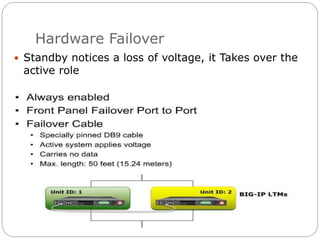

Failover
Cable
USB Port
LCD Panel
and controls
10/100/1000 Mbps
Copper Ports
1000 Mbps
Fibre Ports

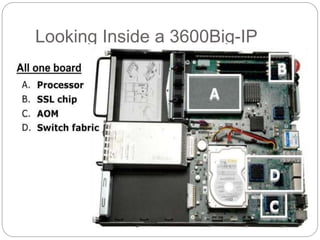

4. Looking Inside a 3600Big-IP

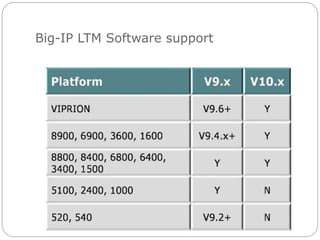

5. Big-IP LTM Software support

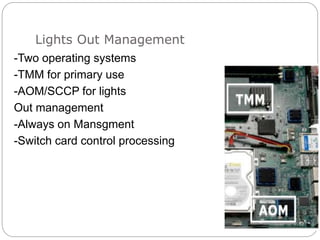

6. Lights Out Management
-Two operating systems
-TMM for primary use
-AOM/SCCP for lights
Out management
-Always on Mansgment
-Switch card control processing

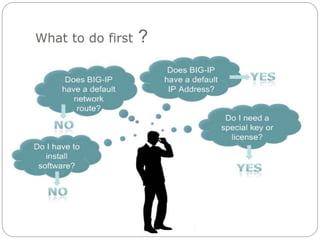

7. What to do first ?

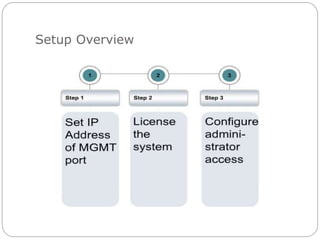

8. Setup Overview

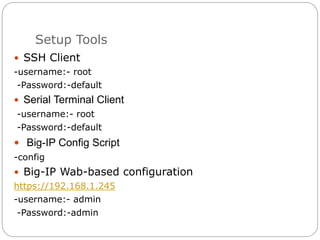

9. Setup Tools
 SSH Client
-username:- root
-Password:-default
 Serial Terminal Client
-username:- root
-Password:-default
 Big-IP Config Script
-config
 Big-IP Wab-based configuration
https://192.168.1.245
-username:- admin
-Password:-admin

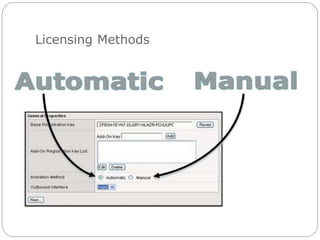

10. Licensing Methods

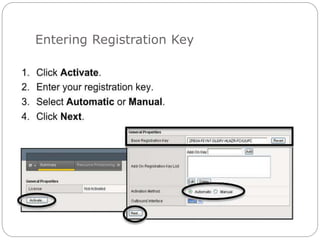

11. Entering Registration Key

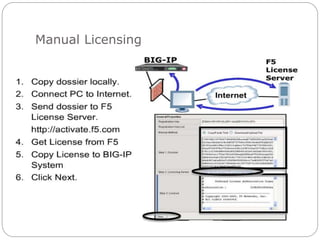

12. Manual Licensing

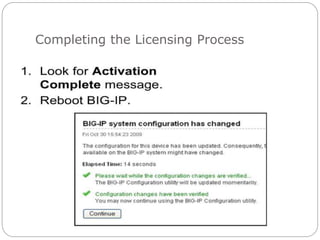

13. Completing the Licensing Process

14. Configuring administration Access

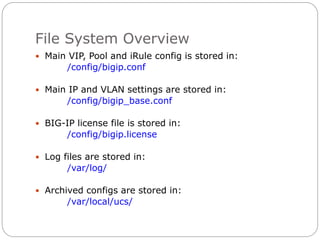

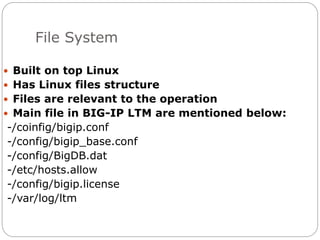

15. File System
 Built on top Linux
 Has Linux files structure
 Files are relevant to the operation
 Main file in BIG-IP LTM are mentioned below:
-/coinfig/bigip.conf
-/config/bigip_base.conf
-/config/BigDB.dat
-/etc/hosts.allow
-/config/bigip.license
-/var/log/ltm

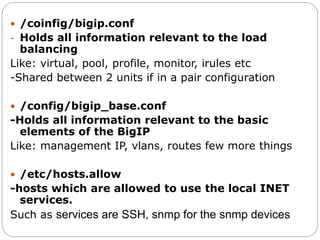

16.  /coinfig/bigip.conf
- Holds all information relevant to the load
balancing
Like: virtual, pool, profile, monitor, irules etc
-Shared between 2 units if in a pair configuration
 /config/bigip_base.conf
-Holds all information relevant to the basic
elements of the BigIP
Like: management IP, vlans, routes few more things
 /etc/hosts.allow
-hosts which are allowed to use the local INET
services.
Such as services are SSH, snmp for the snmp devices

17.  /config/BigDB.dat
-bigdb database holds a set of bigdb configuration
keys
-Keys define the behaviours of various aspects of the
BIG-IP system
-For example, the bigdb key Failover.Active Mode, when
set to enable, causes a redundant system to operate
in active-active mode, instead of the default
active/standby mode.
-We can edit these values by using
-The Configuration utility
-The bigpipe db command
#bigpipe db all list

18.  /config/bigip.license
-Holds all information about the license of the
BigIP system
-Without this file or a valid license file, the BigIP
will not operate
 There are few more vital files
/config/ssl/ssl.crt
/config/ssl/ssl.key

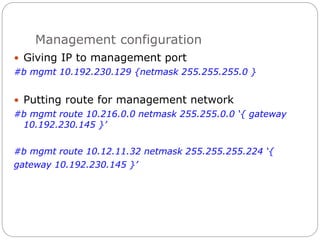

19. Management configuration
 Giving IP to management port
#b mgmt 10.192.230.129 {netmask 255.255.255.0 }
 Putting route for management network
#b mgmt route 10.216.0.0 netmask 255.255.0.0 ‘{ gateway
10.192.230.145 }’
#b mgmt route 10.12.11.32 netmask 255.255.255.224 ‘{
gateway 10.192.230.145 }’

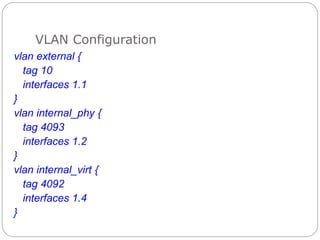

20. VLAN Configuration
vlan external {
tag 10
interfaces 1.1
}
vlan internal_phy {
tag 4093
interfaces 1.2
}
vlan internal_virt {
tag 4092
interfaces 1.4
}

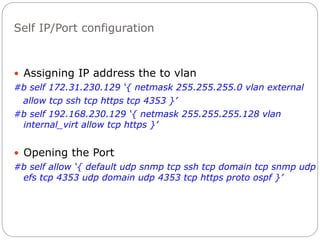

21. Self IP/Port configuration
 Assigning IP address the to vlan
#b self 172.31.230.129 ‘{ netmask 255.255.255.0 vlan external
allow tcp ssh tcp https tcp 4353 }’
#b self 192.168.230.129 ‘{ netmask 255.255.255.128 vlan
internal_virt allow tcp https }’
 Opening the Port
#b self allow ‘{ default udp snmp tcp ssh tcp domain tcp snmp udp
efs tcp 4353 udp domain udp 4353 tcp https proto ospf }’

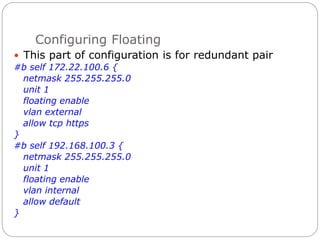

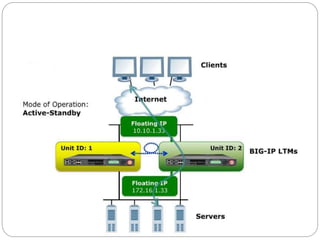

22. Configuring Floating
 This part of configuration is for redundant pair
#b self 172.22.100.6 {
netmask 255.255.255.0
unit 1
floating enable
vlan external
allow tcp https
}
#b self 192.168.100.3 {
netmask 255.255.255.0
unit 1
floating enable
vlan internal
allow default
}

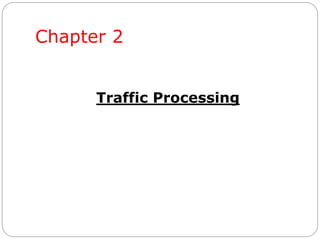

23. Chapter 2
Traffic Processing

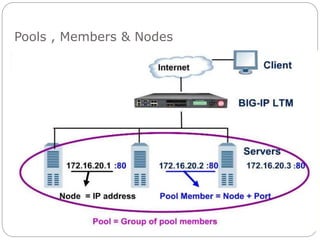

24. Pools , Members & Nodes

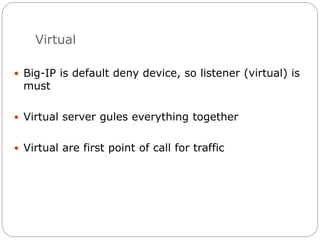

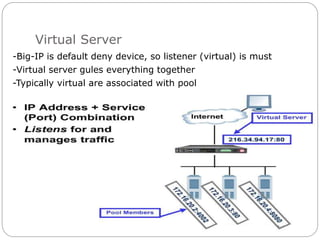

25. Virtual Server
-Big-IP is default deny device, so listener (virtual) is must
-Virtual server gules everything together
-Typically virtual are associated with pool

26. -Before virtual server can load balance it should mapped to pool
-Big-IP translate the destination ip address from virtual server to
actual server
-Client see the pool servers as single server, hence the term Virtual
Server

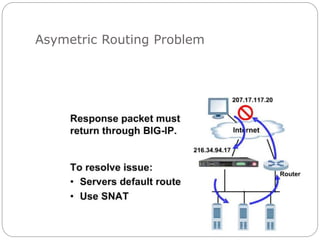

27. Asymetric Routing Problem

28. Full Proxy Architecture
-Big-IP do much more than translating the network Address
-F5 implemented full proxy architecture in Big-IP
-Separate tcp connections for the client & the server

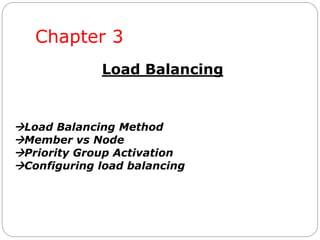

29. Chapter 3
Load Balancing
Load Balancing Method
Member vs Node
Priority Group Activation
Configuring load balancing

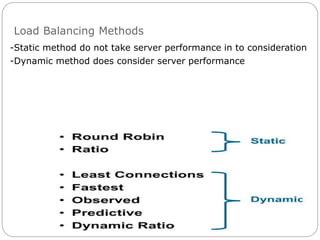

30. Load Balancing Methods
-Static method do not take server performance in to consideration
-Dynamic method does consider server performance

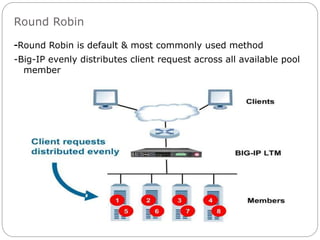

31. Round Robin
-Round Robin is default & most commonly used method
-Big-IP evenly distributes client request across all available pool
member

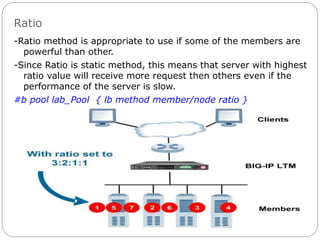

32. Ratio
-Ratio method is appropriate to use if some of the members are
powerful than other.
-Since Ratio is static method, this means that server with highest
ratio value will receive more request then others even if the
performance of the server is slow.
#b pool lab_Pool { lb method member/node ratio }

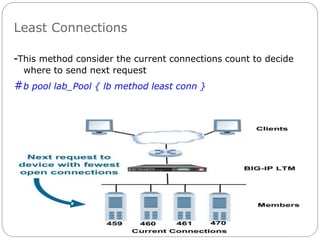

33. Least Connections
-This method consider the current connections count to decide
where to send next request
#b pool lab_Pool { lb method least conn }

34. Least Connections
-After connections counts shown below, the big-IP round robin next
requests between all three servers.

35. Fastest
-Fastest uses the outstanding layer 7 request to decide where to
send the next request
-Request or Response ?
#b pool lab_Pool { lb method fastest }

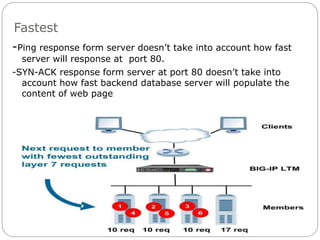

36. Fastest
-Ping response form server doesn’t take into account how fast
server will response at port 80.
-SYN-ACK response form server at port 80 doesn’t take into
account how fast backend database server will populate the
content of web page

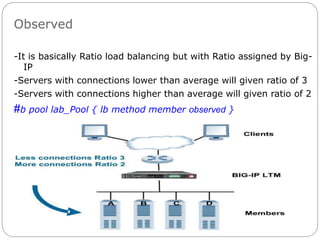

37. Observed
-It is basically Ratio load balancing but with Ratio assigned by Big-
IP
-Servers with connections lower than average will given ratio of 3
-Servers with connections higher than average will given ratio of 2
#b pool lab_Pool { lb method member observed }

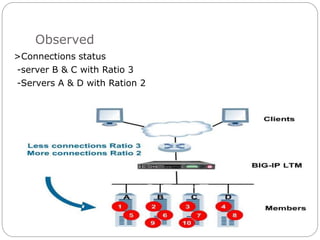

38. Observed
>Connections status
-server B & C with Ratio 3
-Servers A & D with Ration 2

39. Predictive
-Predictive method is similar to Observed, but assigns more
aggressive value
#b pool lab_Pool { lb method member predictive }

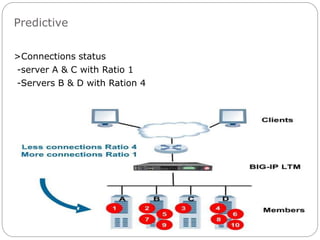

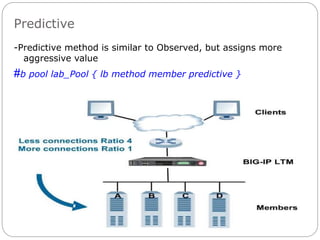

40. Predictive
>Connections status
-server A & C with Ratio 1
-Servers B & D with Ration 4

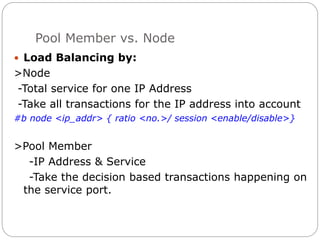

41. Pool Member vs. Node
 Load Balancing by:
>Node
-Total service for one IP Address
-Take all transactions for the IP address into account
#b node <ip_addr> { ratio <no.>/ session <enable/disable>}
>Pool Member
-IP Address & Service
-Take the decision based transactions happening on
the service port.

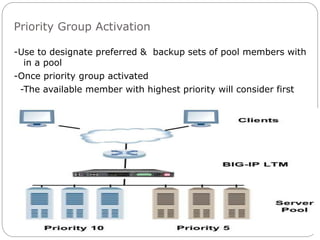

42. Priority Group Activation
-Use to designate preferred & backup sets of pool members with
in a pool
-Once priority group activated
-The available member with highest priority will consider first

43. Priority Group Activation
-If the number of member falls below the priority group
activation set,
-The next highest priority member also start serving
the requests.

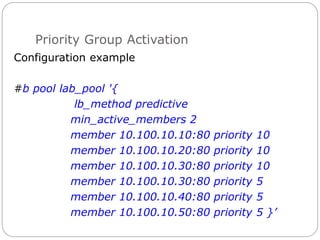

44. Priority Group Activation
Configuration example
#b pool lab_pool '{
lb_method predictive
min_active_members 2
member 10.100.10.10:80 priority 10
member 10.100.10.20:80 priority 10
member 10.100.10.30:80 priority 10
member 10.100.10.30:80 priority 5
member 10.100.10.40:80 priority 5
member 10.100.10.50:80 priority 5 }’

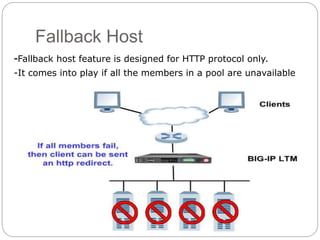

45. Fallback Host
-Fallback host feature is designed for HTTP protocol only.
-It comes into play if all the members in a pool are unavailable

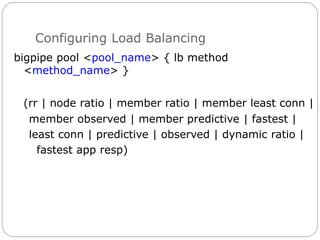

46. Configuring Load Balancing
bigpipe pool <pool_name> { lb method
<method_name> }
(rr | node ratio | member ratio | member least conn |
member observed | member predictive | fastest |
least conn | predictive | observed | dynamic ratio |
fastest app resp)

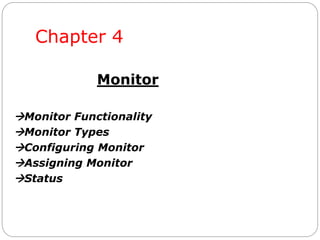

47. Chapter 4
Monitor
Monitor Functionality
Monitor Types
Configuring Monitor
Assigning Monitor
Status

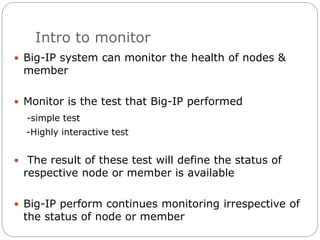

48. Intro to monitor
 Big-IP system can monitor the health of nodes &
member
 Monitor is the test that Big-IP performed
-simple test
-Highly interactive test
 The result of these test will define the status of
respective node or member is available
 Big-IP perform continues monitoring irrespective of
the status of node or member

49. Step to set-up a monitor
Step 1: Create
Step 2: Name & Type
-name the new monitor select the type from system
templates
Step 3: Customize
Step 4: Assign
- to pool/node/pool member
Step 5: Status

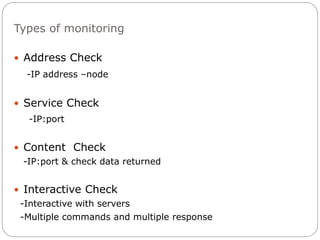

50. Types of monitoring
 Address Check
-IP address –node
 Service Check
-IP:port
 Content Check
-IP:port & check data returned
 Interactive Check
-Interactive with servers
-Multiple commands and multiple response

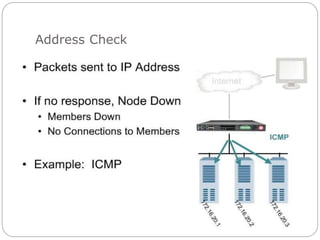

51. Address Check

52. Example
 System
#b monitor icmp list
monitorroot icmp {
interval 5
timeout 16
dest *
}
 Custom
#b monitor icmp_mon list
monitor icmp_mon {
defaults from icmp
interval 7
timeout 22
}

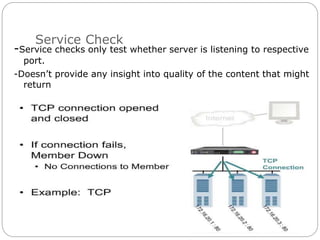

53. Service Check
-Service checks only test whether server is listening to respective
port.
-Doesn’t provide any insight into quality of the content that might
return

54. Example
 System
#b monitor tcp list
monitorroot tcp {
interval 5
timeout 16
dest *:*
recv ""
send ""
}
 Custom
#b monitor tcp_port_mon
list
monitor tcp_port_mon {
defaults from tcp
interval 15
timeout 47
}

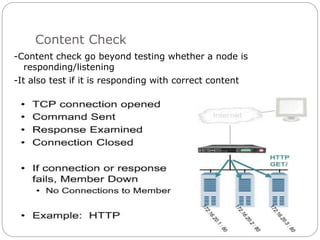

55. Content Check
-Content check go beyond testing whether a node is
responding/listening
-It also test if it is responding with correct content

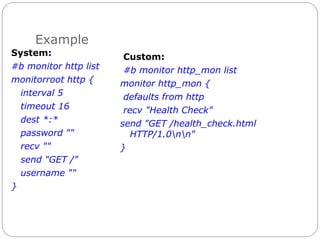

56. Example
System:
#b monitor http list
monitorroot http {
interval 5
timeout 16
dest *:*
password ""
recv ""
send "GET /"
username ""
}
Custom:
#b monitor http_mon list
monitor http_mon {
defaults from http
recv "Health Check"
send "GET /health_check.html
HTTP/1.0nn"
}

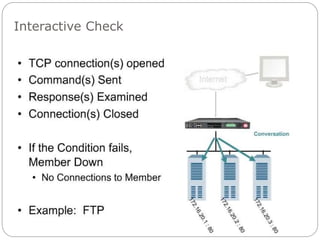

57. Interactive Check

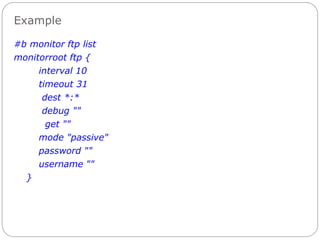

58. Example
#b monitor ftp list
monitorroot ftp {
interval 10
timeout 31
dest *:*
debug ""
get ""
mode "passive"
password ""
username ""
}

59. Assigning Monitor to Nodes
#b node 192.168.230.172 ‘{ ratio 100
monitor testwmi_mon
}’
#b node 10.10.10.10 { monitor gateway_icmp and icmp }

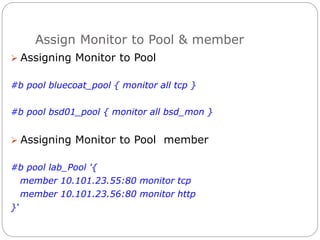

60. Assign Monitor to Pool & member
 Assigning Monitor to Pool
#b pool bluecoat_pool { monitor all tcp }
#b pool bsd01_pool { monitor all bsd_mon }
 Assigning Monitor to Pool member
#b pool lab_Pool '{
member 10.101.23.55:80 monitor tcp
member 10.101.23.56:80 monitor http
}‘

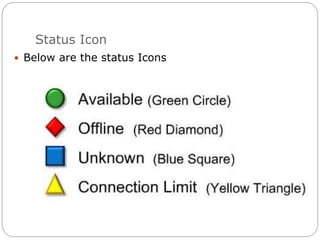

61. Status Icon
 Below are the status Icons

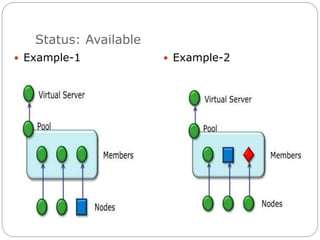

62. Status: Available
 Example-1  Example-2

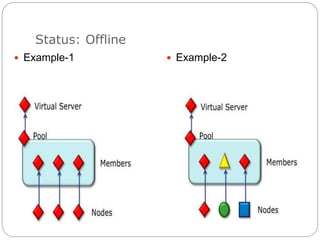

63. Status: Offline
 Example-1  Example-2

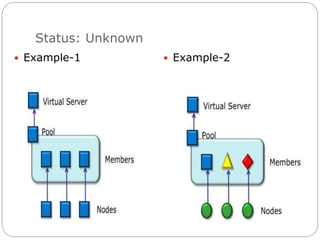

64. Status: Unknown
 Example-1  Example-2

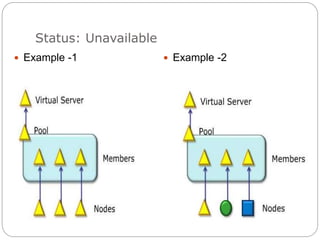

65. Status: Unavailable
 Example -1  Example -2

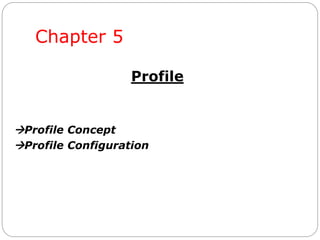

66. Chapter 5
Profile
Profile Concept
Profile Configuration

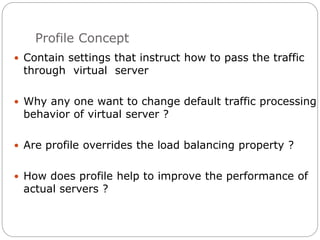

67. Profile Concept
 Contain settings that instruct how to pass the traffic
through virtual server
 Why any one want to change default traffic processing
behavior of virtual server ?
 Are profile overrides the load balancing property ?
 How does profile help to improve the performance of
actual servers ?

68. Profile Example
 Persistence  SSL Termination

69. Profile Example
 FTP

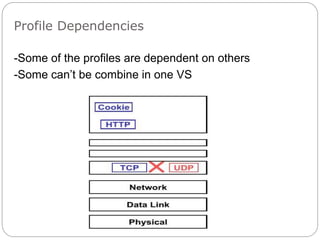

70. Profile Dependencies
-Some of the profiles are dependent on others
-Some can’t be combine in one VS

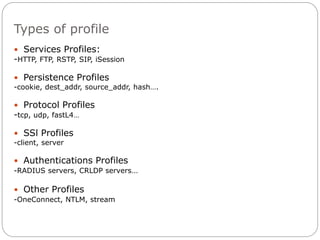

71. Types of profile
 Services Profiles:
-HTTP, FTP, RSTP, SIP, iSession
 Persistence Profiles
-cookie, dest_addr, source_addr, hash….
 Protocol Profiles
-tcp, udp, fastL4…
 SSl Profiles
-client, server
 Authentications Profiles
-RADIUS servers, CRLDP servers…
 Other Profiles
-OneConnect, NTLM, stream

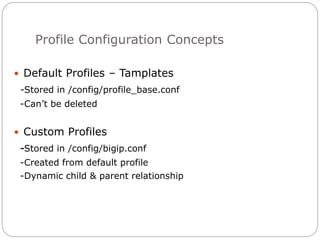

72. Profile Configuration Concepts
 Default Profiles – Tamplates
-Stored in /config/profile_base.conf
-Can’t be deleted
 Custom Profiles
-Stored in /config/bigip.conf
-Created from default profile
-Dynamic child & parent relationship

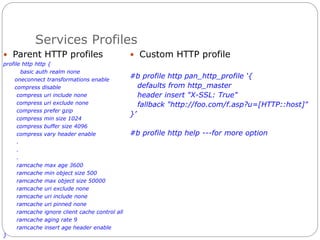

73. Services Profiles
 Parent HTTP profiles
profile http http {
basic auth realm none
oneconnect transformations enable
compress disable
compress uri include none
compress uri exclude none
compress prefer gzip
compress min size 1024
compress buffer size 4096
compress vary header enable
.
.
.
ramcache max age 3600
ramcache min object size 500
ramcache max object size 50000
ramcache uri exclude none
ramcache uri include none
ramcache uri pinned none
ramcache ignore client cache control all
ramcache aging rate 9
ramcache insert age header enable
}
 Custom HTTP profile
#b profile http pan_http_profile ‘{
defaults from http_master
header insert "X-SSL: True"
fallback "http://foo.com/f.asp?u=[HTTP::host]"
}’
#b profile http help ---for more option

74. Chapter 6
Persistence
Persistence profile
Source Address Persistence
Cookie Persistence

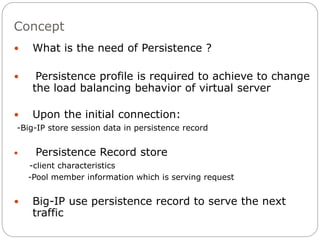

75. Concept
 What is the need of Persistence ?
 Persistence profile is required to achieve to change
the load balancing behavior of virtual server
 Upon the initial connection:
-Big-IP store session data in persistence record
 Persistence Record store
-client characteristics
-Pool member information which is serving request
 Big-IP use persistence record to serve the next
traffic

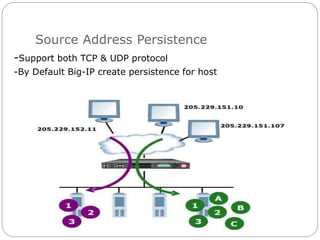

76. Source Address Persistence
-Support both TCP & UDP protocol
-By Default Big-IP create persistence for host

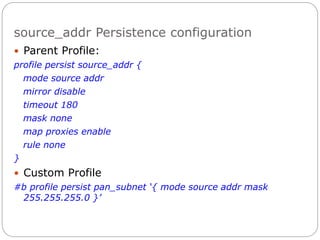

77. source_addr Persistence configuration
 Parent Profile:
profile persist source_addr {
mode source addr
mirror disable
timeout 180
mask none
map proxies enable
rule none
}
 Custom Profile
#b profile persist pan_subnet ‘{ mode source addr mask
255.255.255.0 }’

78. Cookie Persistence
 Why cookie Persistence ?
 Modes:
>Insert Mode
-LTM insert special cookie in HTTP response
-Pool name & Pool Member (encoded)
>Rewrite Mode
-Web server Creates a “blank” cookie
-LTM Rewrites to make Special Cookie
>Passive Mode
-Web server Creates Special Cookie
-LTM Passively lets it through

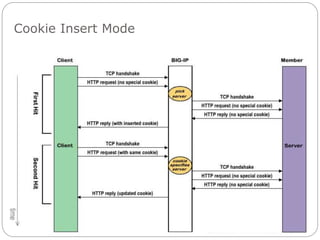

79. Cookie Insert Mode

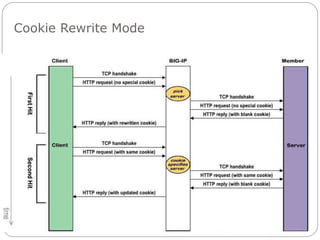

80. Cookie Rewrite Mode

81. Cookie Passive Mode

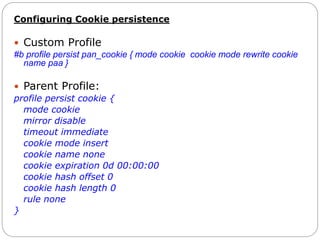

82. Configuring Cookie persistence
 Custom Profile
#b profile persist pan_cookie { mode cookie cookie mode rewrite cookie
name paa }
 Parent Profile:
profile persist cookie {
mode cookie
mirror disable
timeout immediate
cookie mode insert
cookie name none
cookie expiration 0d 00:00:00
cookie hash offset 0
cookie hash length 0
rule none
}

83. Chapter 7
Processing SSL Traffic
Exploring SSL on Big-IP
Configuring Big-IP for SSL

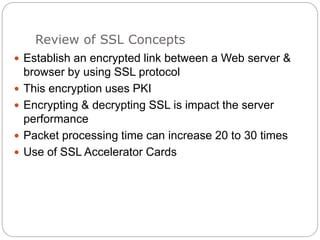

84. Review of SSL Concepts
 Establish an encrypted link between a Web server &
browser by using SSL protocol
 This encryption uses PKI
 Encrypting & decrypting SSL is impact the server
performance
 Packet processing time can increase 20 to 30 times
 Use of SSL Accelerator Cards

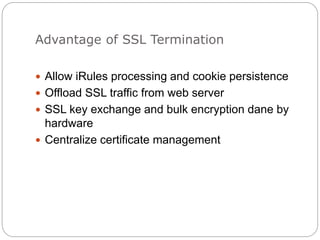

85. Advantage of SSL Termination
 Allow iRules processing and cookie persistence
 Offload SSL traffic from web server
 SSL key exchange and bulk encryption dane by
hardware
 Centralize certificate management

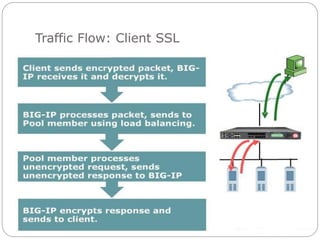

86. Traffic Flow: Client SSL

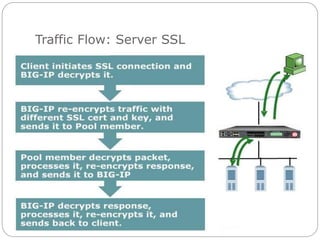

87. Traffic Flow: Server SSL

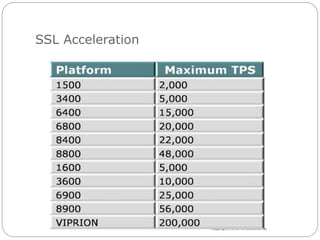

88. SSL Acceleration

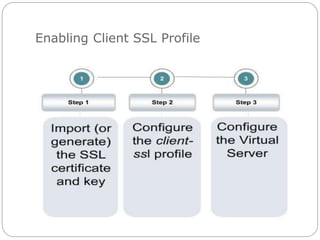

89. Enabling Client SSL Profile

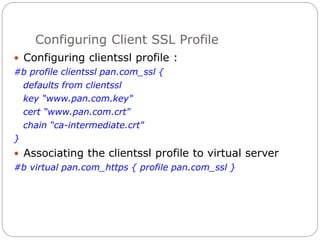

90. Configuring Client SSL Profile
 Configuring clientssl profile :
#b profile clientssl pan.com_ssl {
defaults from clientssl
key “www.pan.com.key"
cert “www.pan.com.crt"
chain “ca-intermediate.crt"
}
 Associating the clientssl profile to virtual server
#b virtual pan.com_https { profile pan.com_ssl }

91. Configuring Server SSL Profile
 Configuring Serverssl profile :
#b profile serverssl pan.com_ssl ‘{
defaults from serverssl"
 Associating the clientssl profile to virtual server
#b virtual pan.com_https { profile pan.com_ssl }

92. Chapter 8
Nat & SNAT
NAT Concepts and Configuration
SNAT Concepts and Configuration

93. Nat Concepts
 One to One mapping
 Bi-directional traffic
 Dedicated IP Address
 Can’t Configure port

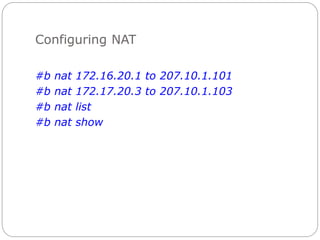

94. Configuring NAT
#b nat 172.16.20.1 to 207.10.1.101
#b nat 172.17.20.3 to 207.10.1.103
#b nat list
#b nat show

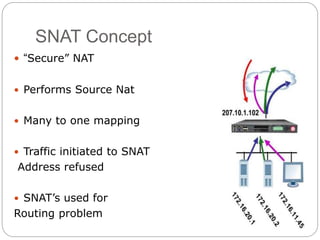

95. SNAT Concept
 “Secure” NAT
 Performs Source Nat
 Many to one mapping
 Traffic initiated to SNAT
Address refused
 SNAT’s used for
Routing problem

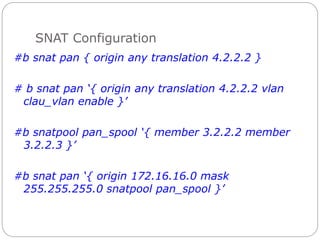

96. SNAT Configuration
#b snat pan { origin any translation 4.2.2.2 }
# b snat pan ‘{ origin any translation 4.2.2.2 vlan
clau_vlan enable }’
#b snatpool pan_spool ‘{ member 3.2.2.2 member
3.2.2.3 }’
#b snat pan ‘{ origin 172.16.16.0 mask
255.255.255.0 snatpool pan_spool }’

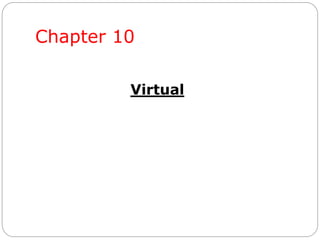

97. Chapter 10
Virtual

98. Virtual
 Big-IP is default deny device, so listener (virtual) is
must
 Virtual server gules everything together
 Virtual are first point of call for traffic

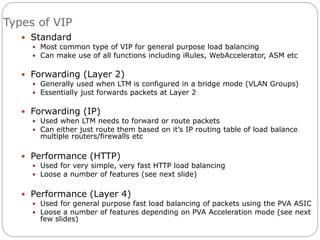

99. Types of VIP
 Standard
 Most common type of VIP for general purpose load balancing
 Can make use of all functions including iRules, WebAccelerator, ASM etc
 Forwarding (Layer 2)
 Generally used when LTM is configured in a bridge mode (VLAN Groups)
 Essentially just forwards packets at Layer 2
 Forwarding (IP)
 Used when LTM needs to forward or route packets
 Can either just route them based on it’s IP routing table of load balance
multiple routers/firewalls etc
 Performance (HTTP)
 Used for very simple, very fast HTTP load balancing
 Loose a number of features (see next slide)
 Performance (Layer 4)
 Used for general purpose fast load balancing of packets using the PVA ASIC
 Loose a number of features depending on PVA Acceleration mode (see next
few slides)

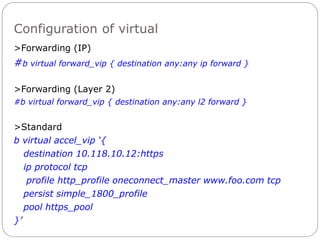

100. Configuration of virtual
>Forwarding (IP)
#b virtual forward_vip { destination any:any ip forward }
>Forwarding (Layer 2)
#b virtual forward_vip { destination any:any l2 forward }
>Standard
b virtual accel_vip ‘{
destination 10.118.10.12:https
ip protocol tcp
profile http_profile oneconnect_master www.foo.com tcp
persist simple_1800_profile
pool https_pool
}’

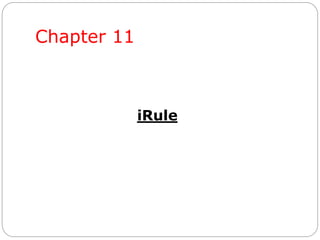

101. Chapter 11
iRule

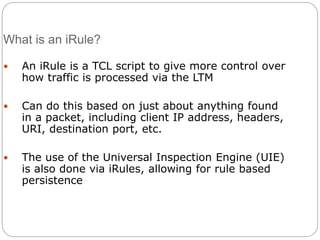

102. What is an iRule?
 An iRule is a TCL script to give more control over
how traffic is processed via the LTM
 Can do this based on just about anything found
in a packet, including client IP address, headers,
URI, destination port, etc.
 The use of the Universal Inspection Engine (UIE)
is also done via iRules, allowing for rule based
persistence

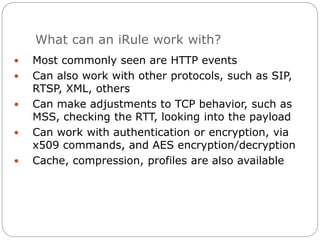

103. What can an iRule work with?
 Most commonly seen are HTTP events
 Can also work with other protocols, such as SIP,
RTSP, XML, others
 Can make adjustments to TCP behavior, such as
MSS, checking the RTT, looking into the payload
 Can work with authentication or encryption, via
x509 commands, and AES encryption/decryption
 Cache, compression, profiles are also available

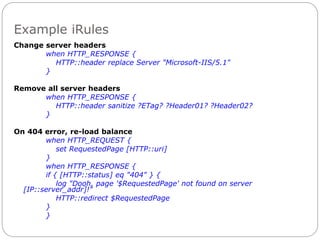

104. Example iRules
Change server headers
when HTTP_RESPONSE {
HTTP::header replace Server "Microsoft-IIS/5.1"
}
Remove all server headers
when HTTP_RESPONSE {
HTTP::header sanitize ?ETag? ?Header01? ?Header02?
}
On 404 error, re-load balance
when HTTP_REQUEST {
set RequestedPage [HTTP::uri]
}
when HTTP_RESPONSE {
if { [HTTP::status] eq "404" } {
log "Dooh, page '$RequestedPage' not found on server
[IP::server_addr]!"
HTTP::redirect $RequestedPage
}
}

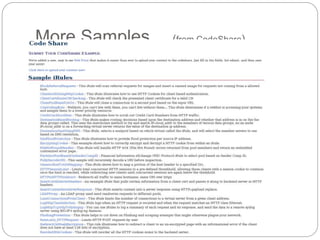

105. More Samples… (from CodeShare)

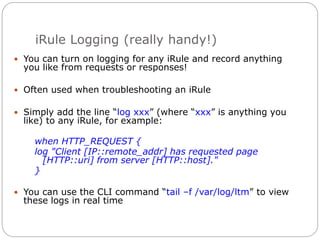

106. iRule Logging (really handy!)
 You can turn on logging for any iRule and record anything
you like from requests or responses!
 Often used when troubleshooting an iRule
 Simply add the line “log xxx” (where “xxx” is anything you
like) to any iRule, for example:
when HTTP_REQUEST {
log "Client [IP::remote_addr] has requested page
[HTTP::uri] from server [HTTP::host]."
}
 You can use the CLI command “tail –f /var/log/ltm” to view
these logs in real time

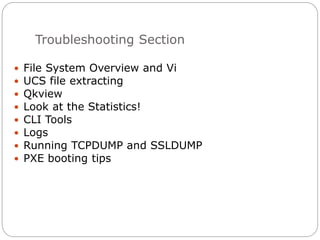

107. Troubleshooting Section
 File System Overview and Vi
 UCS file extracting
 Qkview
 Look at the Statistics!
 CLI Tools
 Logs
 Running TCPDUMP and SSLDUMP
 PXE booting tips

108. File System Overview
 Main VIP, Pool and iRule config is stored in:
/config/bigip.conf
 Main IP and VLAN settings are stored in:
/config/bigip_base.conf
 BIG-IP license file is stored in:
/config/bigip.license
 Log files are stored in:
/var/log/
 Archived configs are stored in:
/var/local/ucs/

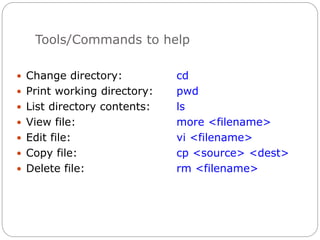

109. Tools/Commands to help
 Change directory: cd
 Print working directory: pwd
 List directory contents: ls
 View file: more <filename>
 Edit file: vi <filename>
 Copy file: cp <source> <dest>
 Delete file: rm <filename>

110. Useful “vi” commands
 “i” to start inserting text where the cursor is
 “A” to start inserting text at the end of the line
 “Esc” exits the editing mode
 “dd” delete entire line
 “x” delete single character
 “Esc” then “:” then “w” to write the file
 “Esc” then “:” then “q” to quit vi
 “/” starts a search through the file
Note: “:wq” would write the file and quit in one go
Note: “:w!” would write the file even if read-only file
Note: “:q!” would force vi to quit

111. UCS file extracting
 UCS files are simply “.tar.gz” files with a number of
configuration files inside
 Rename the file with a “.tar.gz” extension and use
WinRAR to extract the file
 Note that a UCS file contains both the “root” password
and license key for that unit – don’t put it on another
box unless you have a backup!

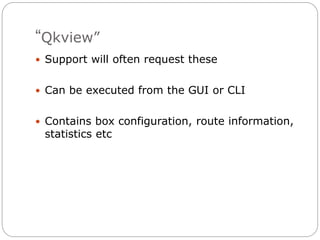

112. “Qkview”
 Support will often request these
 Can be executed from the GUI or CLI
 Contains box configuration, route information,
statistics etc

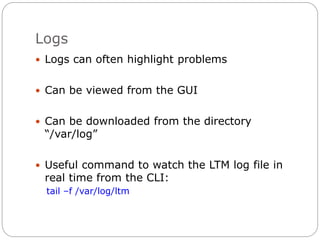

113. Logs
 Logs can often highlight problems
 Can be viewed from the GUI
 Can be downloaded from the directory
“/var/log”
 Useful command to watch the LTM log file in
real time from the CLI:
tail –f /var/log/ltm

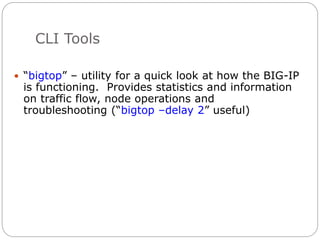

114. CLI Tools
 “bigtop” – utility for a quick look at how the BIG-IP
is functioning. Provides statistics and information
on traffic flow, node operations and
troubleshooting (“bigtop –delay 2” useful)

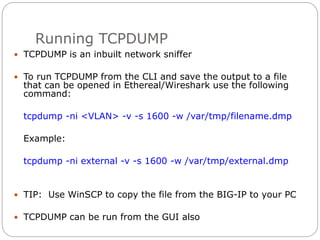

115. Running TCPDUMP
 TCPDUMP is an inbuilt network sniffer
 To run TCPDUMP from the CLI and save the output to a file
that can be opened in Ethereal/Wireshark use the following
command:
tcpdump -ni <VLAN> -v -s 1600 -w /var/tmp/filename.dmp
Example:
tcpdump -ni external -v -s 1600 -w /var/tmp/external.dmp
 TIP: Use WinSCP to copy the file from the BIG-IP to your PC
 TCPDUMP can be run from the GUI also

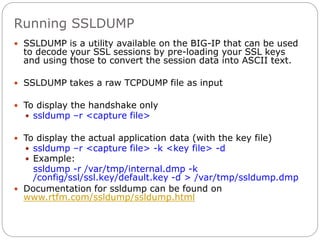

116. Running SSLDUMP
 SSLDUMP is a utility available on the BIG-IP that can be used
to decode your SSL sessions by pre-loading your SSL keys
and using those to convert the session data into ASCII text.
 SSLDUMP takes a raw TCPDUMP file as input
 To display the handshake only
 ssldump –r <capture file>
 To display the actual application data (with the key file)
 ssldump –r <capture file> -k <key file> -d
 Example:
ssldump -r /var/tmp/internal.dmp -k
/config/ssl/ssl.key/default.key -d > /var/tmp/ssldump.dmp
 Documentation for ssldump can be found on
www.rtfm.com/ssldump/ssldump.html

117. Useful links… F5 related
 Compression Test
 http://www.f5demo.com/compression
 Devcentral (iRules, iControl, SDK)
 http://devcentral.f5.com
 Software Downloads
 http://downloads.f5.com
 Askf5 (manuals, software, solutions, EOL info)
 http://www.askf5.com

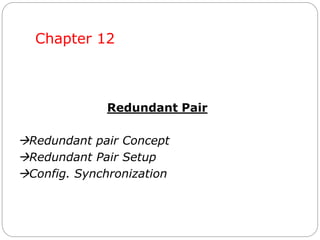

118. Chapter 12
Redundant Pair
Redundant pair Concept
Redundant Pair Setup
Config. Synchronization

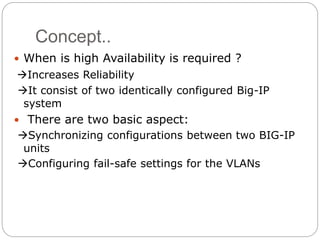

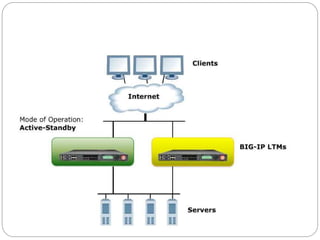

119. Concept..
 When is high Availability is required ?
Increases Reliability
It consist of two identically configured Big-IP
system
 There are two basic aspect:
Synchronizing configurations between two BIG-IP
units
Configuring fail-safe settings for the VLANs

121. Big-ip Individual System Settings
Big-IP LTM System -1
Hostname:- bigip1.cw.com
Admin Password:- XXXXX
Unit ID:- 1
Internal VLAN
-Self: 172.16.1.31
-Float : 172.16.1.33
-Peer : 172.16.1.32
Big-IP LTM System -2
Hostname:- bigip2.cw.com
Admin Password:- XXXXX
Unit ID:- 2
Internal VLAN
-Self: 172.16.1.32
-Float : 172.16.1.33
-Peer : 172.16.1.31

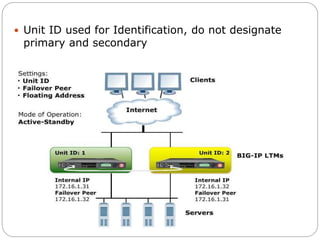

122.  Unit ID used for Identification, do not designate
primary and secondary

123.  Floating IP is always own by Active box

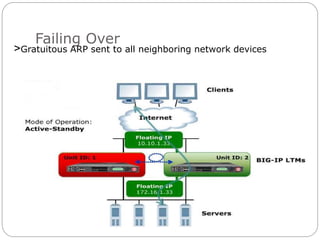

124. Failing Over
>Gratuitous ARP sent to all neighboring network devices

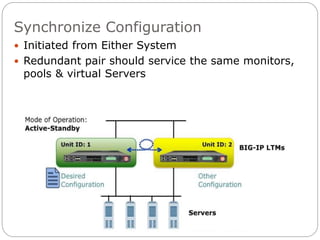

126. Synchronize Configuration
 Initiated from Either System
 Redundant pair should service the same monitors,
pools & virtual Servers

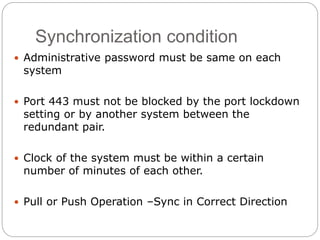

127. Synchronization condition
 Administrative password must be same on each
system
 Port 443 must not be blocked by the port lockdown
setting or by another system between the
redundant pair.
 Clock of the system must be within a certain
number of minutes of each other.
 Pull or Push Operation –Sync in Correct Direction

128. Synchronization Process
1-Create UCS file.
-Which contain all configurations + licensing information
2-Send to peer
3-Peer creates backup of itself
4-Peer opens UCS file
a) Matching Hostname > Full Installation
b) Different Hostname >Shared Installation

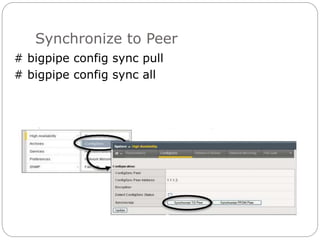

129. Synchronize to Peer
# bigpipe config sync pull
# bigpipe config sync all

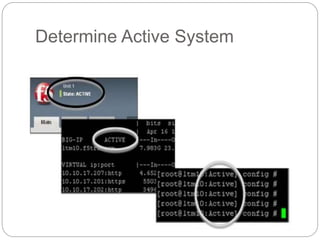

130. Determine Active System

131. Change to Standby Mode

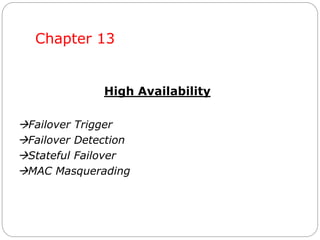

132. Chapter 13
High Availability
Failover Trigger
Failover Detection
Stateful Failover
MAC Masquerading

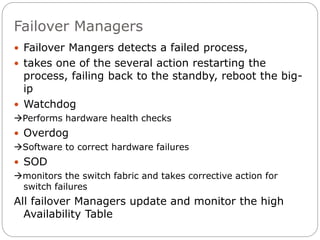

133. Failover Managers
 Failover Mangers detects a failed process,
 takes one of the several action restarting the
process, failing back to the standby, reboot the big-
ip
 Watchdog
Performs hardware health checks
 Overdog
Software to correct hardware failures
 SOD
monitors the switch fabric and takes corrective action for
switch failures
All failover Managers update and monitor the high
Availability Table

134. High Availability Table
 Update & Monitor by Failover Managers
 Table Fields
-Feature Name

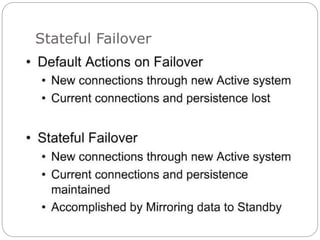

-Action on Failure
-Enabled
-Failed State
 Command Line: b ha table show

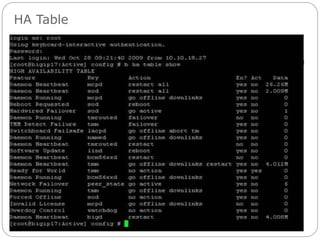

135. HA Table

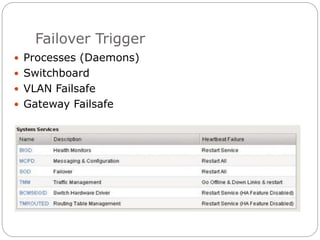

136. Failover Trigger
 Processes (Daemons)
 Switchboard
 VLAN Failsafe
 Gateway Failsafe

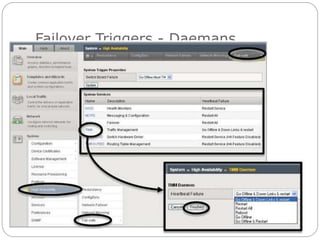

137. Failover Triggers - Daemans

138. VLAN Failsafe
 Detects no network traffic Tries to generate traffic
 Timeout reached Time Action; Standby becomes
active

139. Gateway Failsafe

140. Hardware Failover
 Standby notices a loss of voltage, it Takes over the
active role

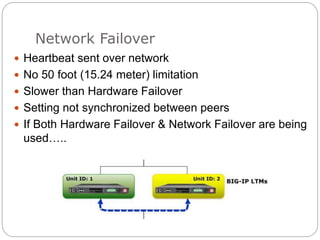

141. Network Failover
 Heartbeat sent over network
 No 50 foot (15.24 meter) limitation
 Slower than Hardware Failover
 Setting not synchronized between peers
 If Both Hardware Failover & Network Failover are being
used…..

142. Network Failover Settings

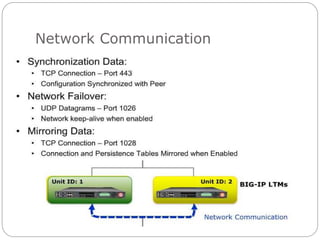

143. Network Communication

144. Stateful Failover

145. Types of Mirroring

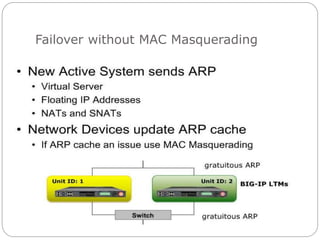

146. Failover without MAC Masquerading

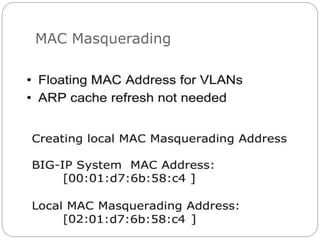

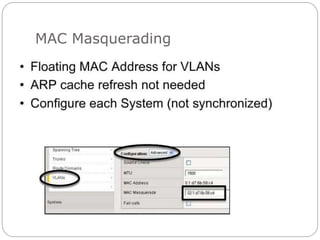

147. MAC Masquerading

148. MAC Masquerading

149. Thanks
