The document describes the OSI 7-layer model and how it can be used to understand network communication. It explains each of the 7 layers, including the physical, data link, network, transport, session, presentation and application layers. Examples are provided to illustrate how data moves through each layer of the OSI model when transferring a file between two computers on a network.

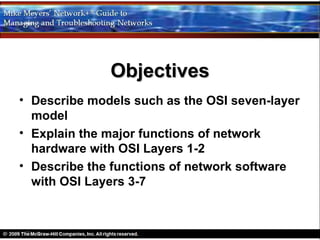

2. Objectives
• Describe models such as the OSI seven-layer
model
• Explain the major functions of network
hardware with OSI Layers 1-2
• Describe the functions of network software
with OSI Layers 3-7

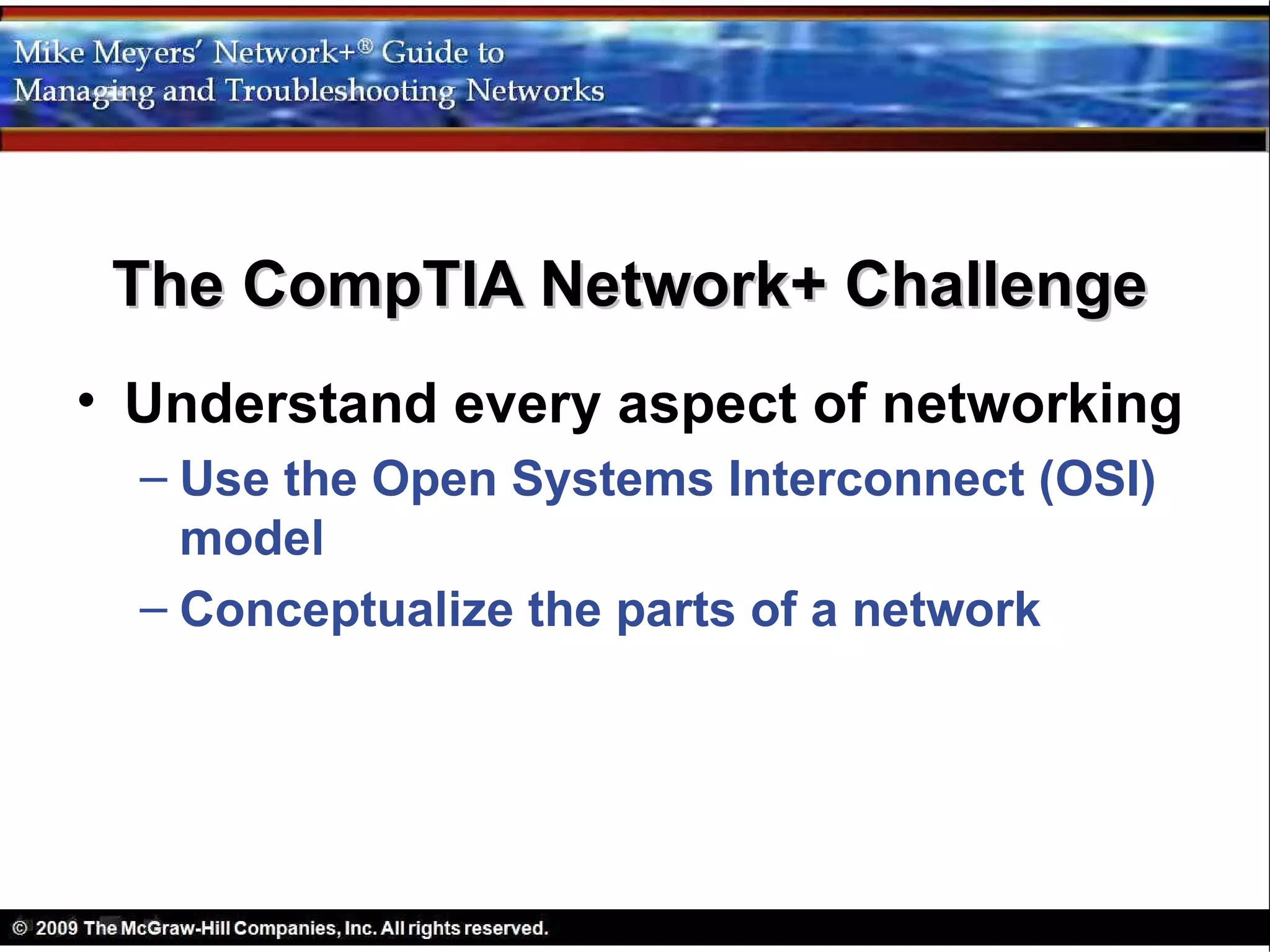

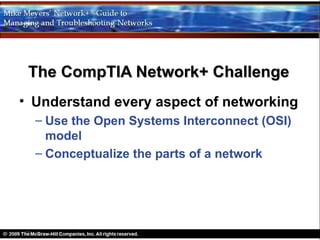

4. The CompTIA Network+ Challenge
• Understand every aspect of networking
– Use the Open Systems Interconnect (OSI)
model
– Conceptualize the parts of a network

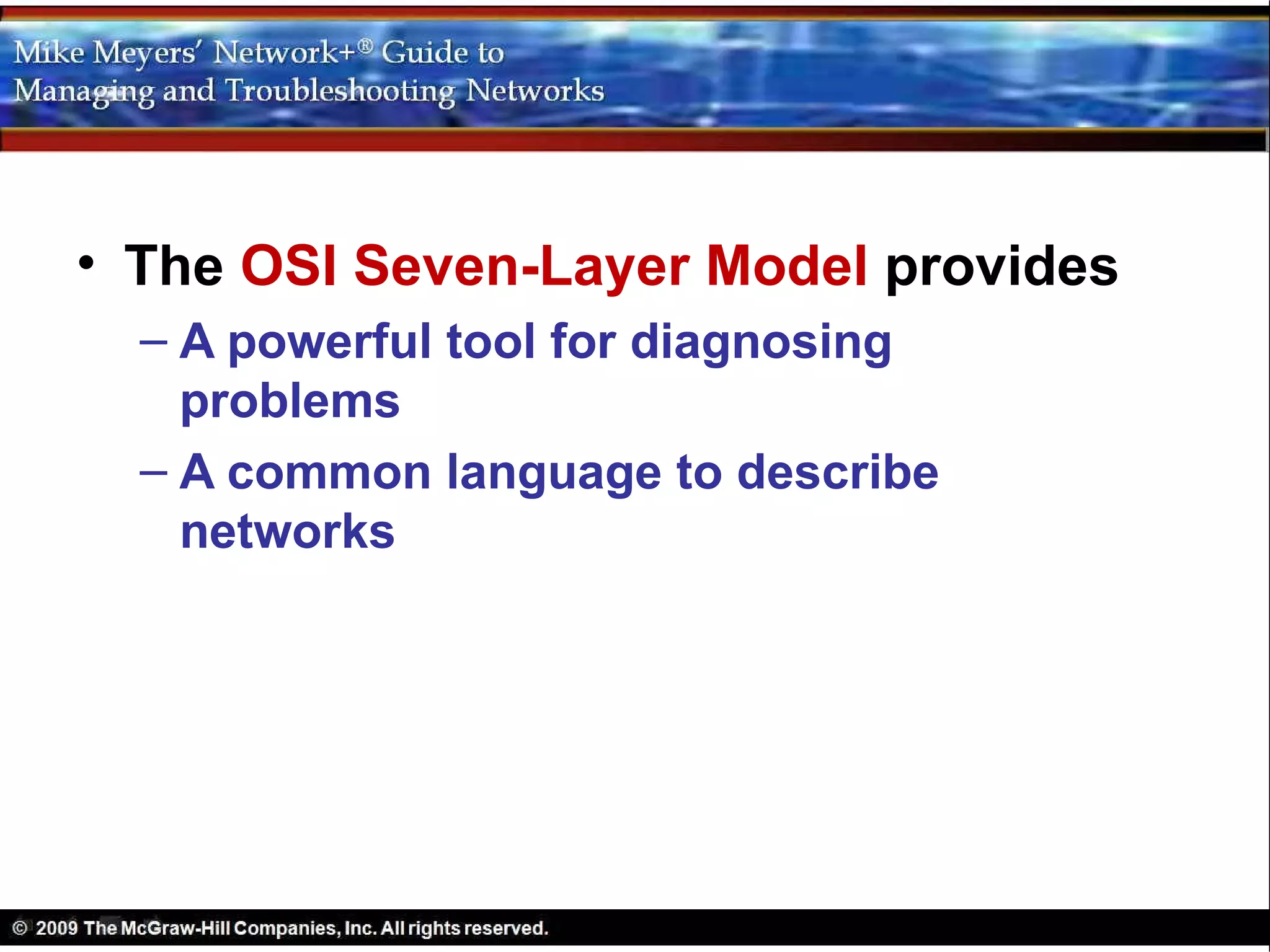

5. • The OSI Seven-Layer Model provides
– A powerful tool for diagnosing
problems
– A common language to describe
networks

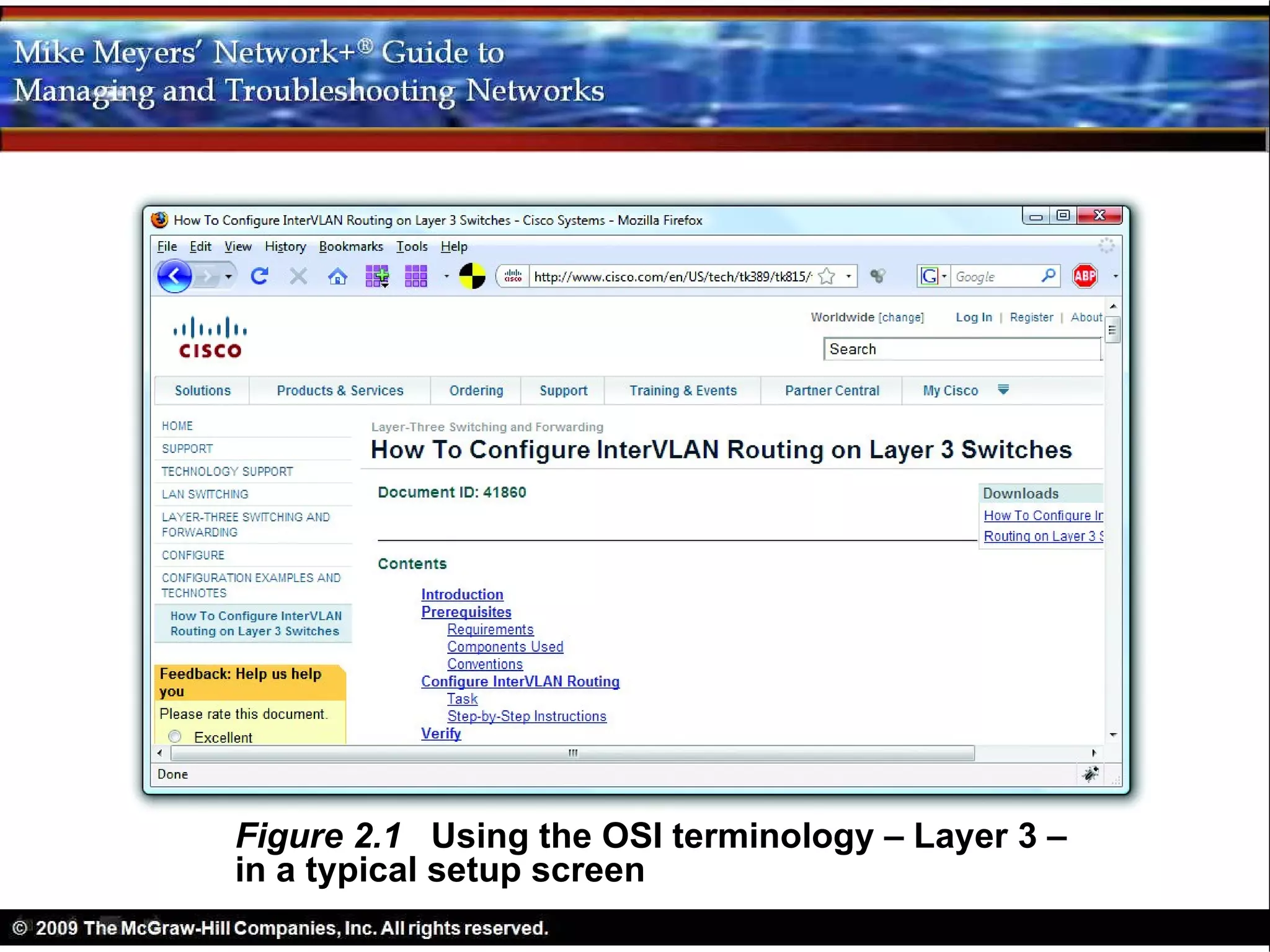

6. Figure 2.1 Using the OSI terminology – Layer 3 –
in a typical setup screen
8. Biography of a Model
• What does “model” mean to you?
– Computer models that predict weather
– Plastic model airplane
– Fashion model
Figure 2.2 Types of Models
9. A model has all the major
functions of the real item
Figure 2.3 Simple model airplane

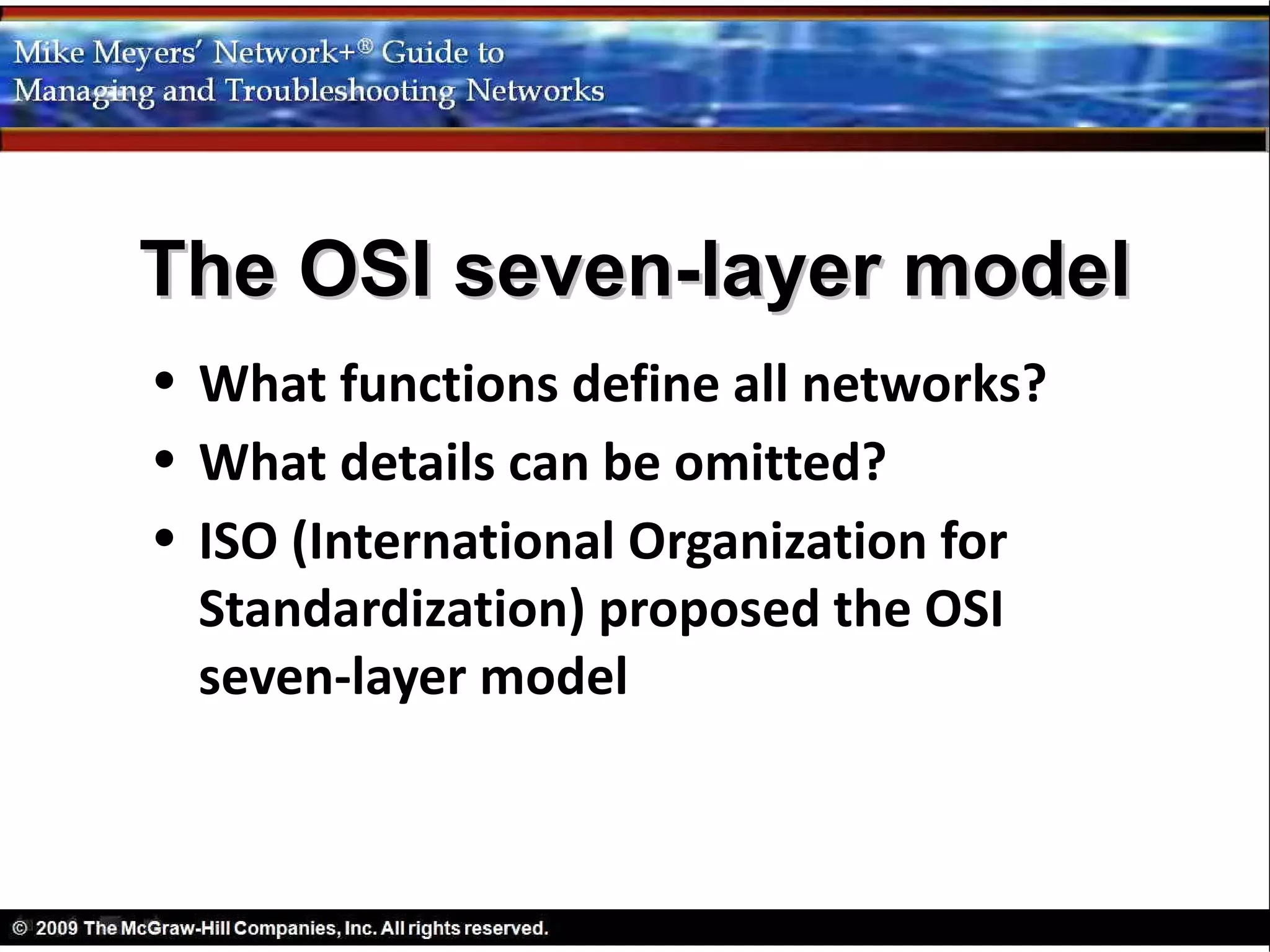

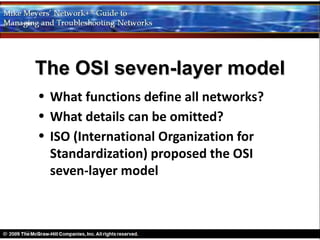

10. The OSI seven-layer model
• What functions define all networks?
• What details can be omitted?
• ISO (International Organization for
Standardization) proposed the OSI
seven-layer model

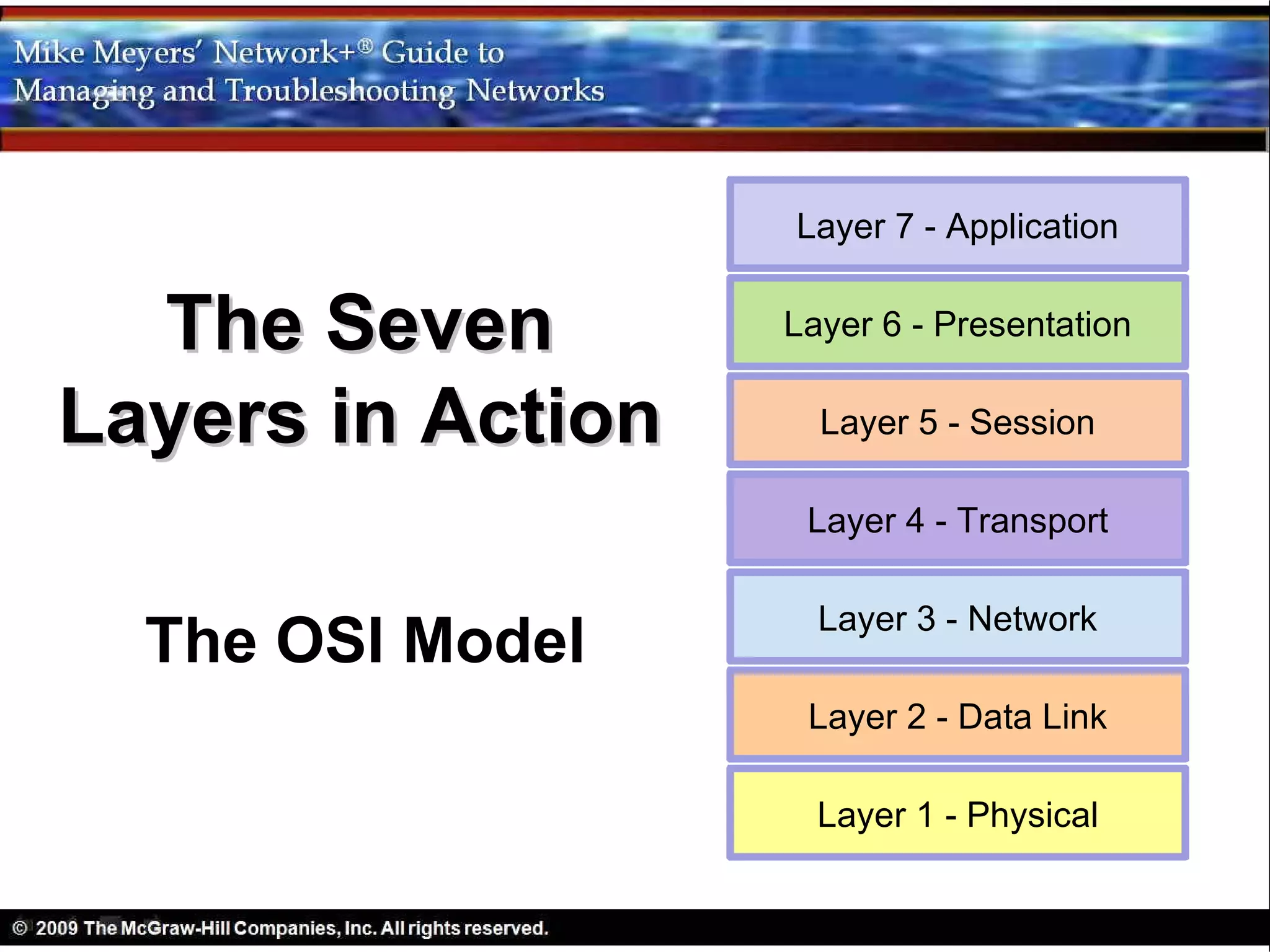

11. Layer 7 - Application
The Seven Layer 6 - Presentation
Layers in Action Layer 5 - Session
Layer 4 - Transport
Layer 3 - Network
The OSI Model
Layer 2 - Data Link
Layer 1 - Physical

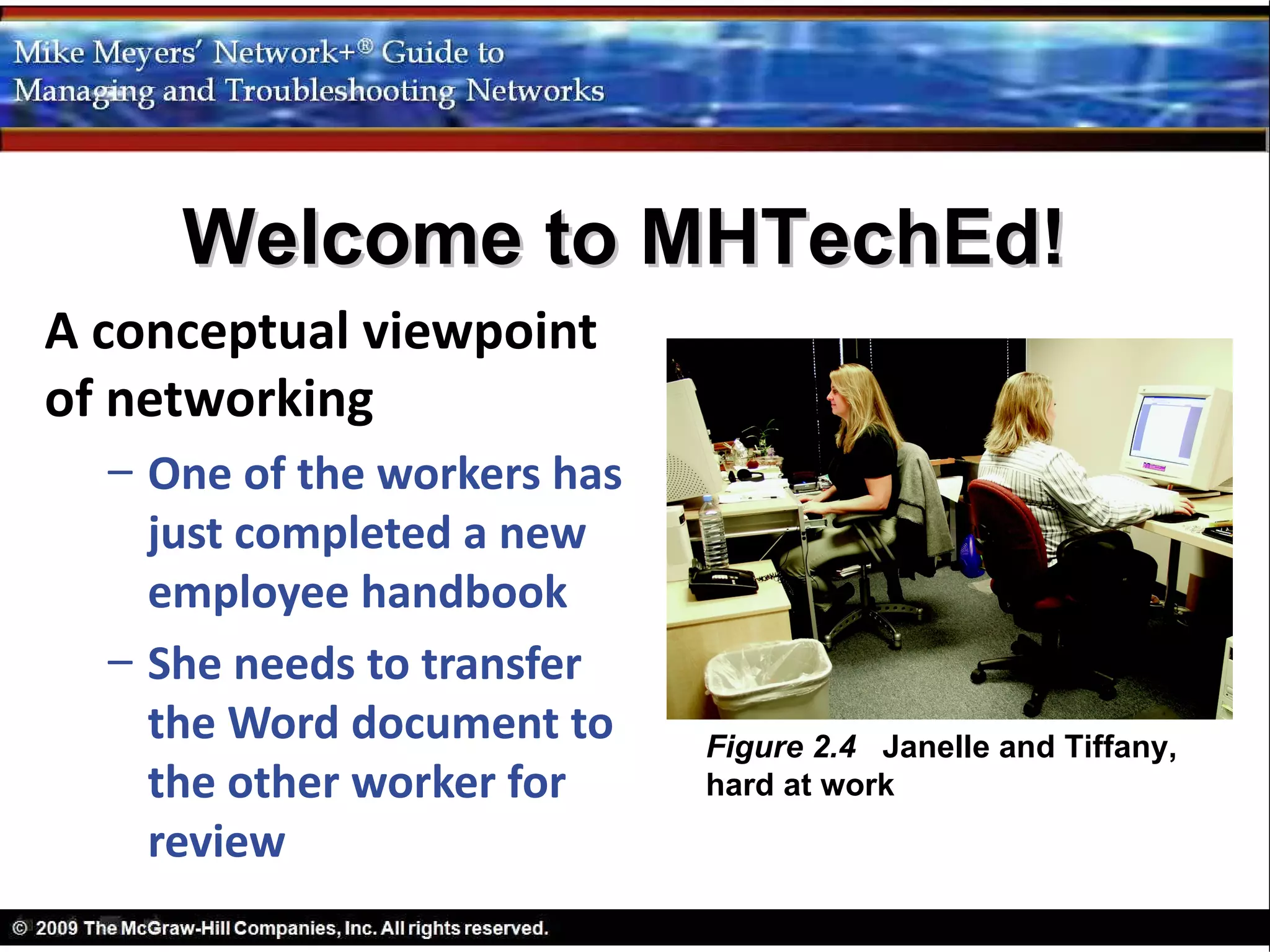

12. Welcome to MHTechEd!
A conceptual viewpoint
of networking
– One of the workers has
just completed a new
employee handbook
– She needs to transfer
the Word document to Figure 2.4 Janelle and Tiffany,
the other worker for hard at work
review

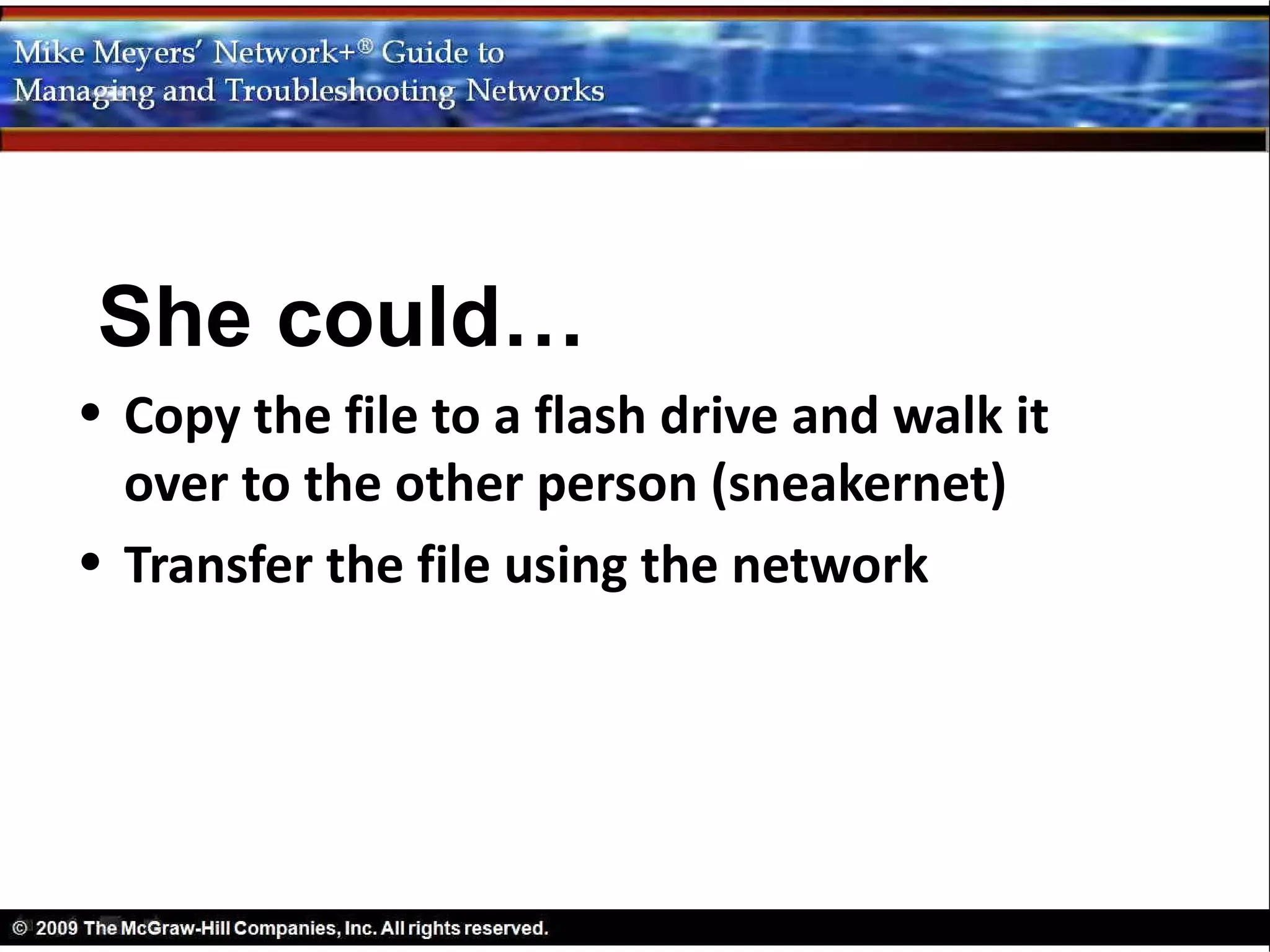

13. She could…
• Copy the file to a flash drive and walk it
over to the other person (sneakernet)
• Transfer the file using the network

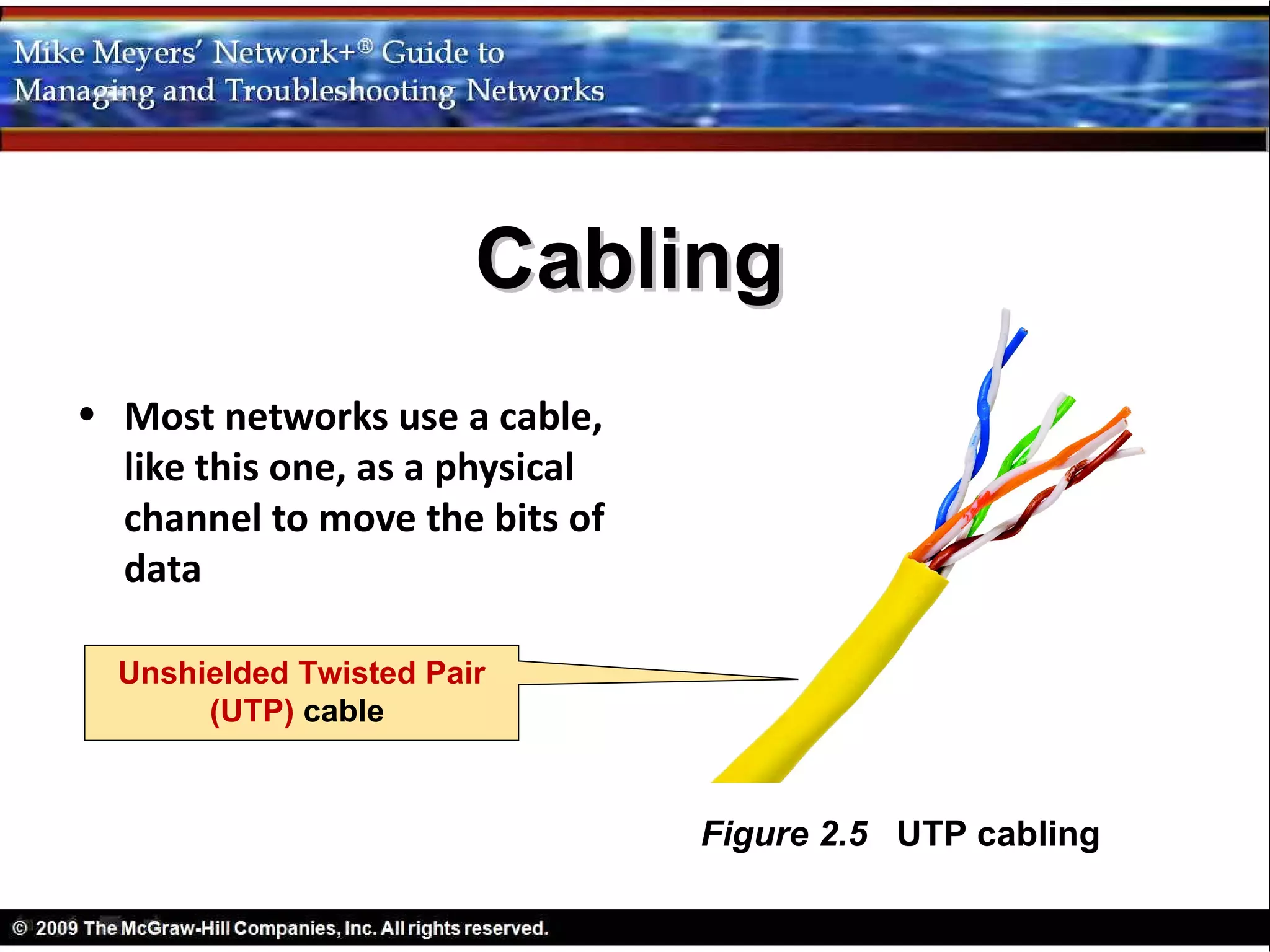

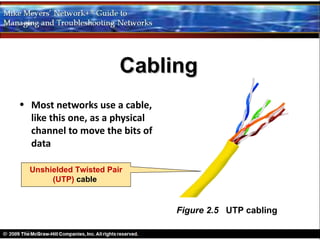

15. Cabling
• Most networks use a cable,
like this one, as a physical
channel to move the bits of
data
Unshielded Twisted Pair
(UTP) cable
Figure 2.5 UTP cabling
16. Hubs
• Each computer system has
a cable leading to a device
called a hub
– Usually located in a closet
• The hub sends the data
received from one system
to all the other systems
attached to it

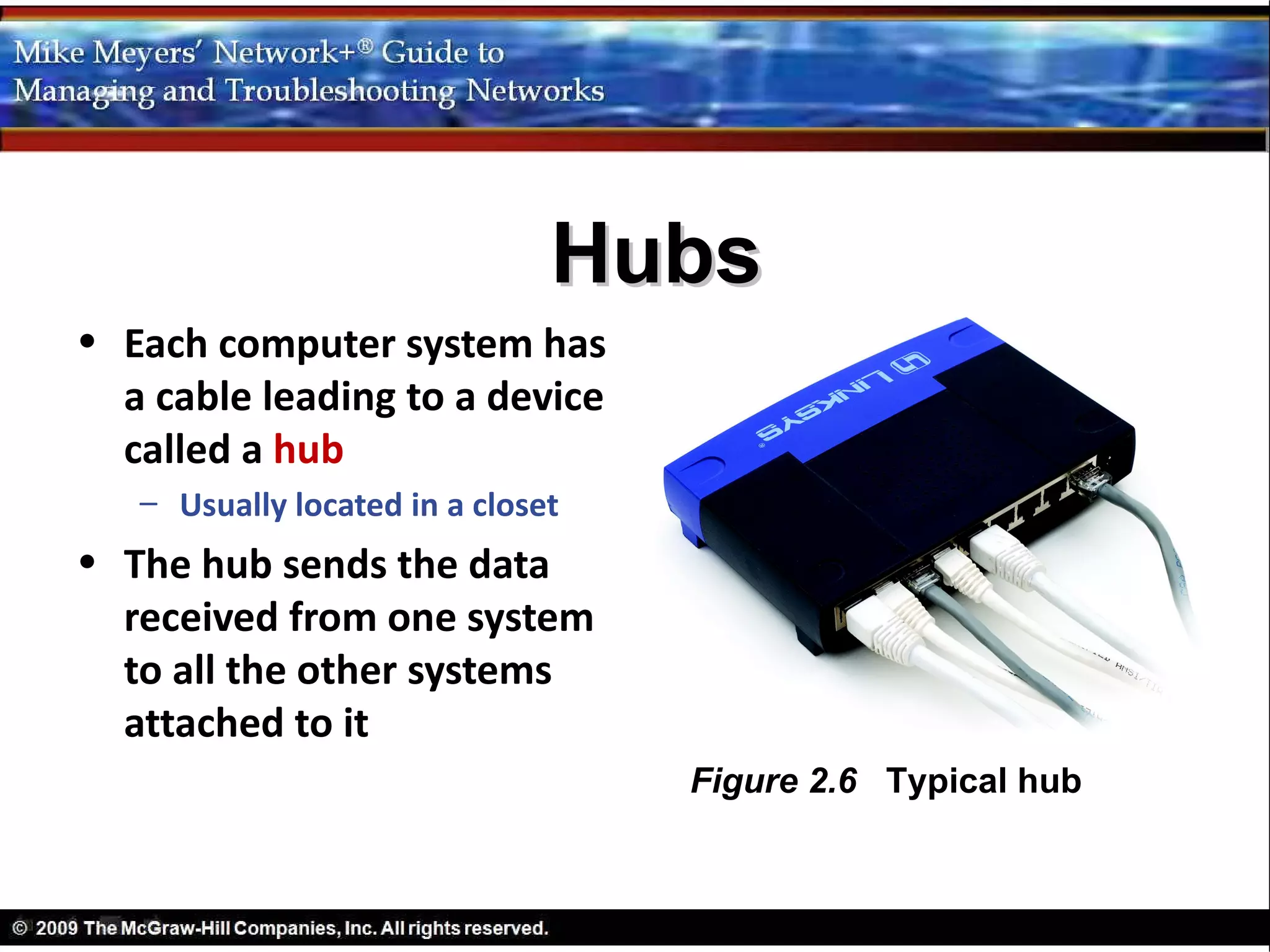

Figure 2.6 Typical hub

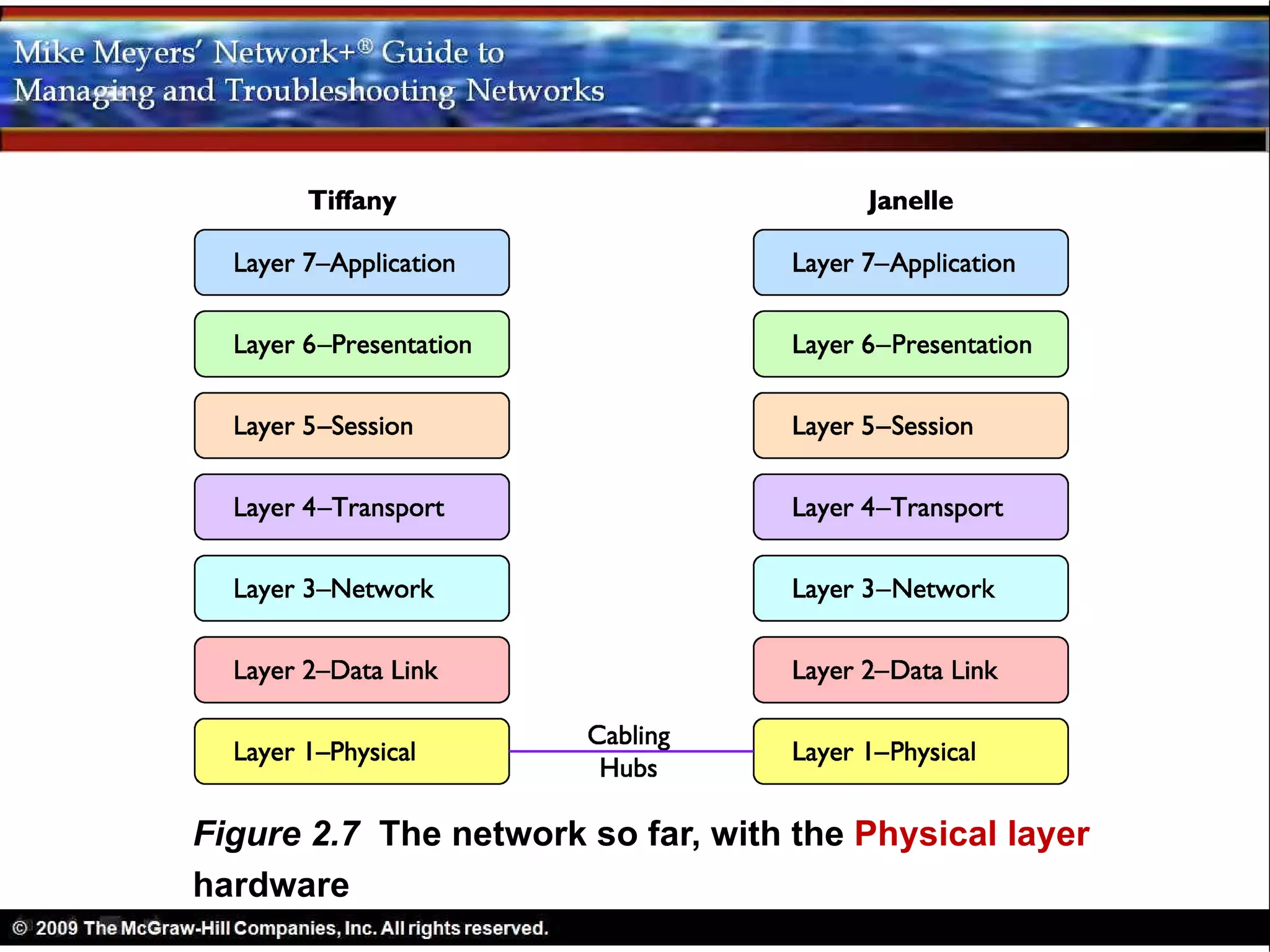

17. Figure 2.7 The network so far, with the Physical layer
hardware

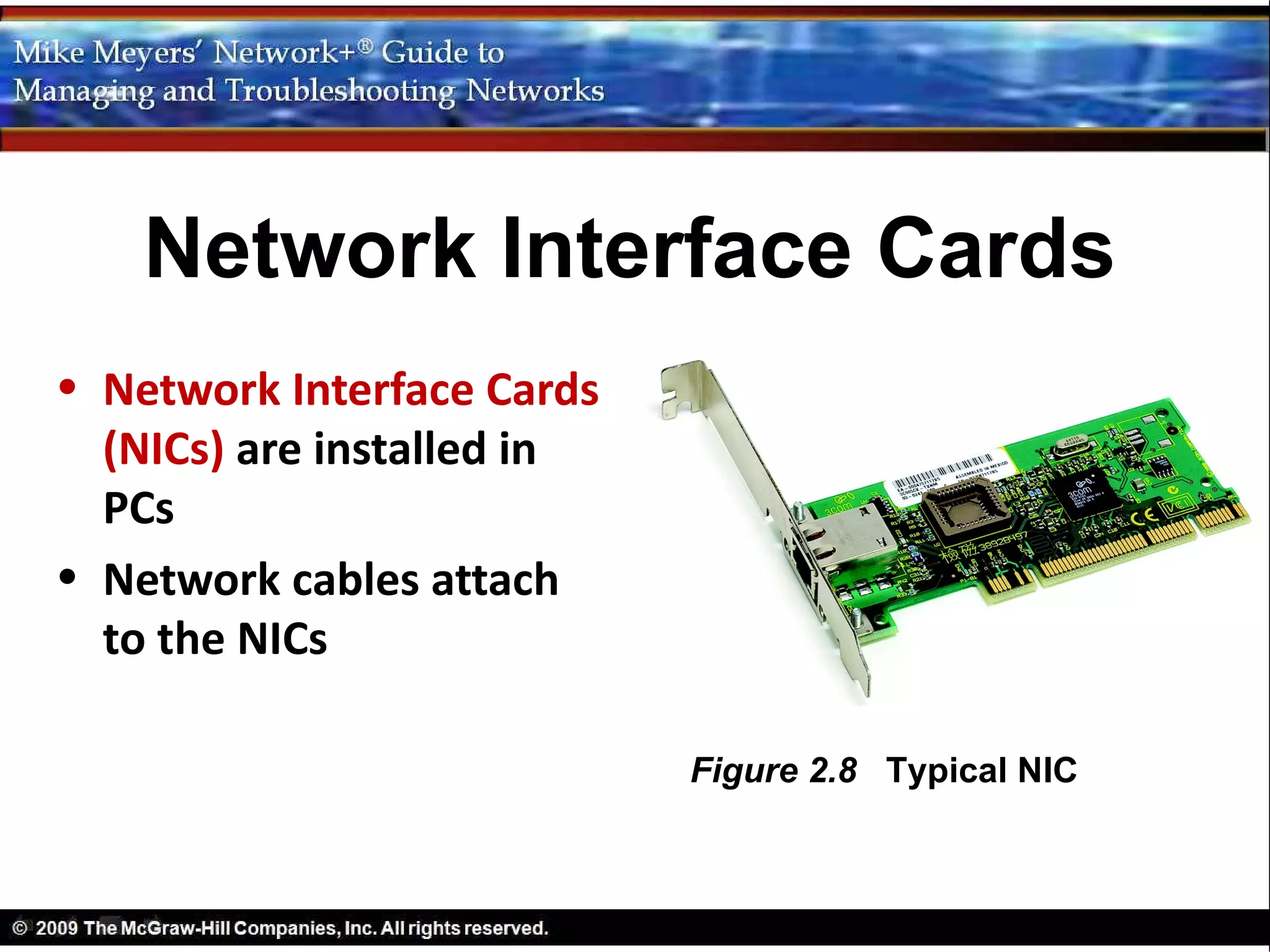

18. Network Interface Cards
• Network Interface Cards
(NICs) are installed in
PCs
• Network cables attach
to the NICs
Figure 2.8 Typical NIC

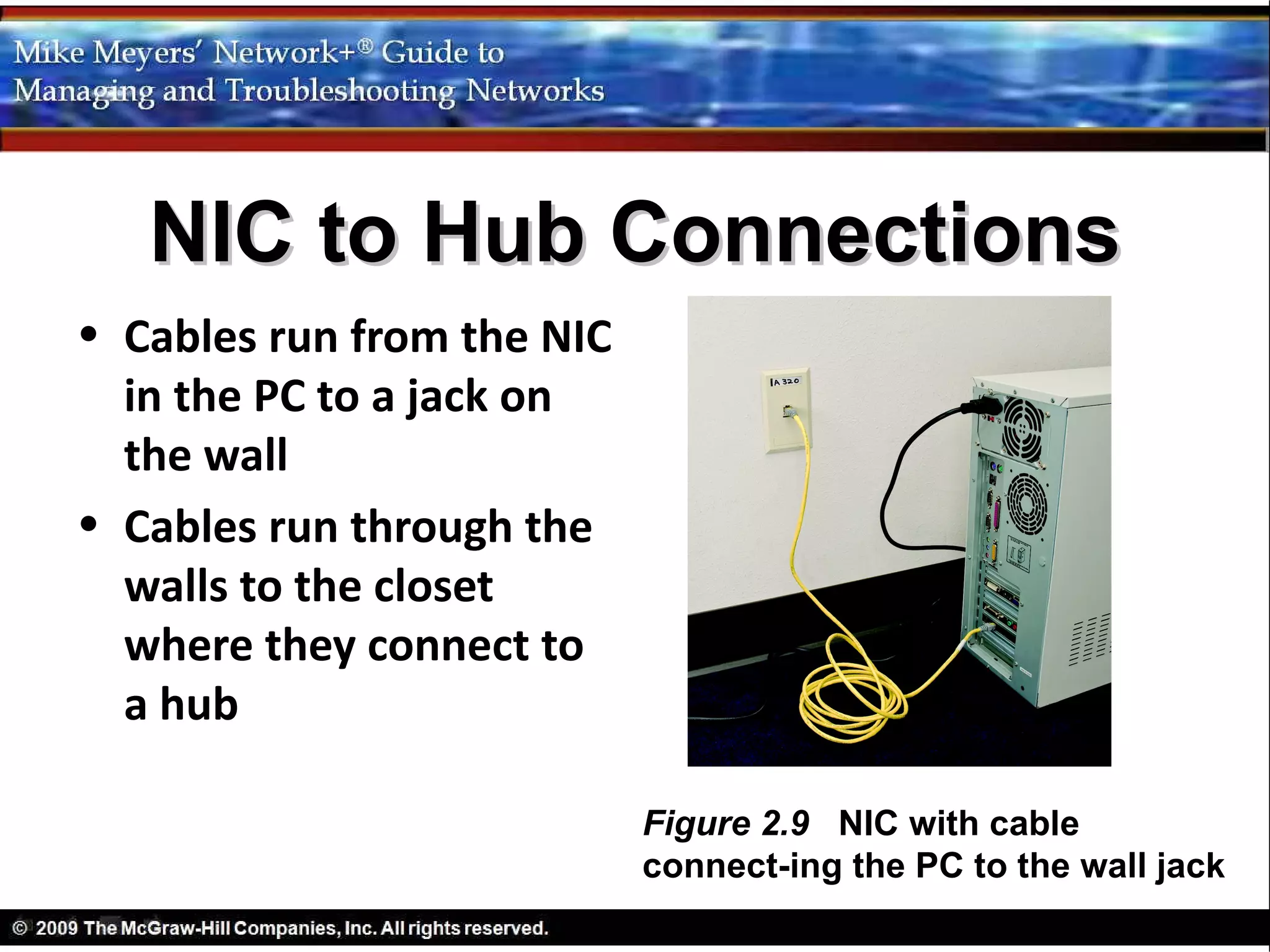

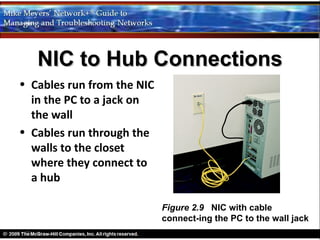

19. NIC to Hub Connections
• Cables run from the NIC
in the PC to a jack on
the wall
• Cables run through the
walls to the closet
where they connect to
a hub
Figure 2.9 NIC with cable
connect-ing the PC to the wall jack

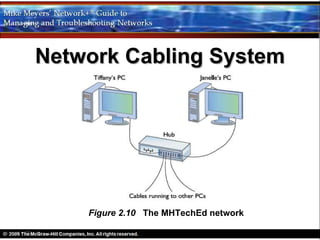

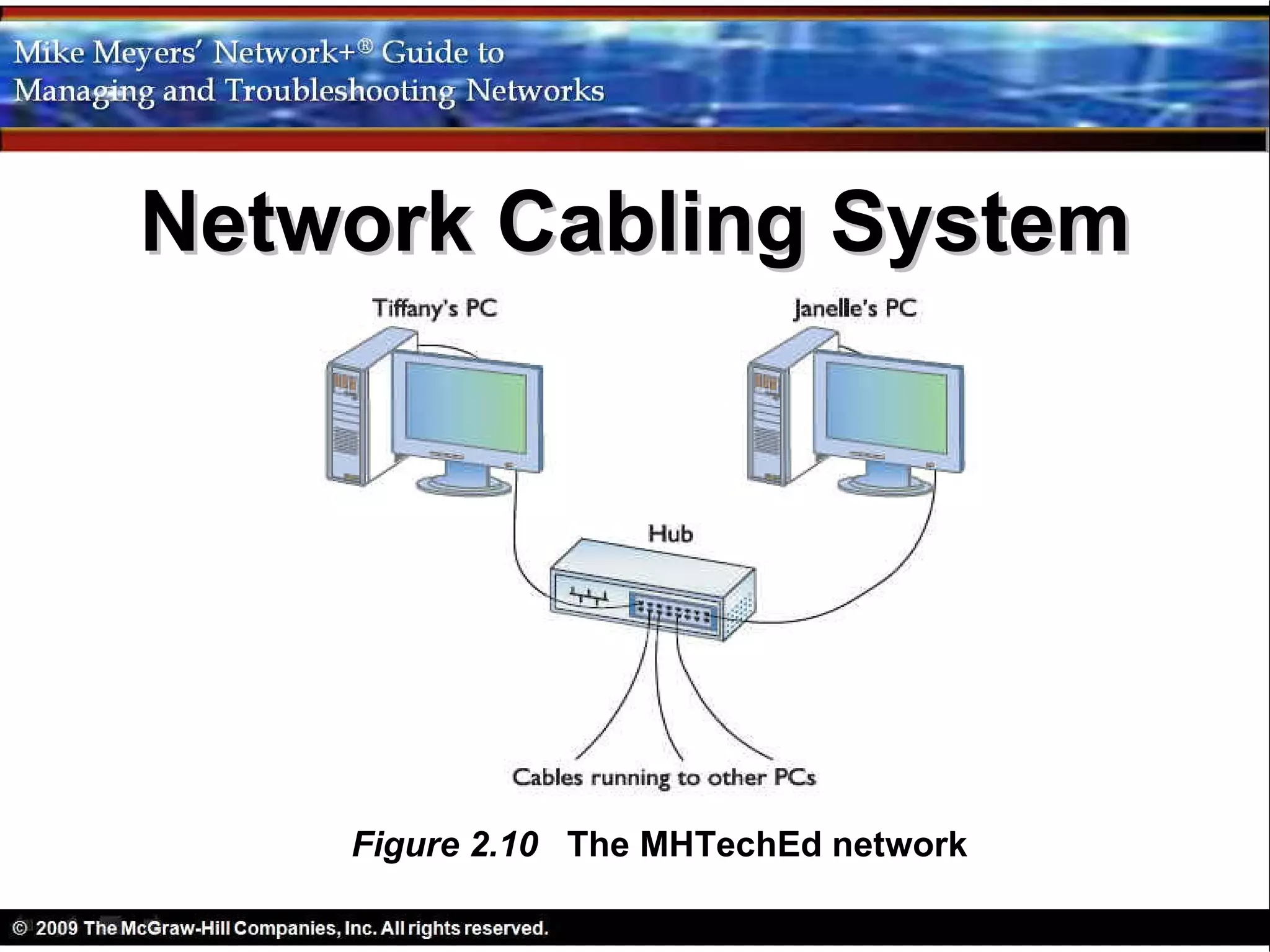

21. The NIC MAC address printed on
surface of chip – and burned
inside the chip.
• Each system must
have a unique
identifier
• Media Access Control
(MAC) address
– A unique address burned
into a ROM chip on the
network card
– Each MAC address is 12
hex characters or 48 bits in
length

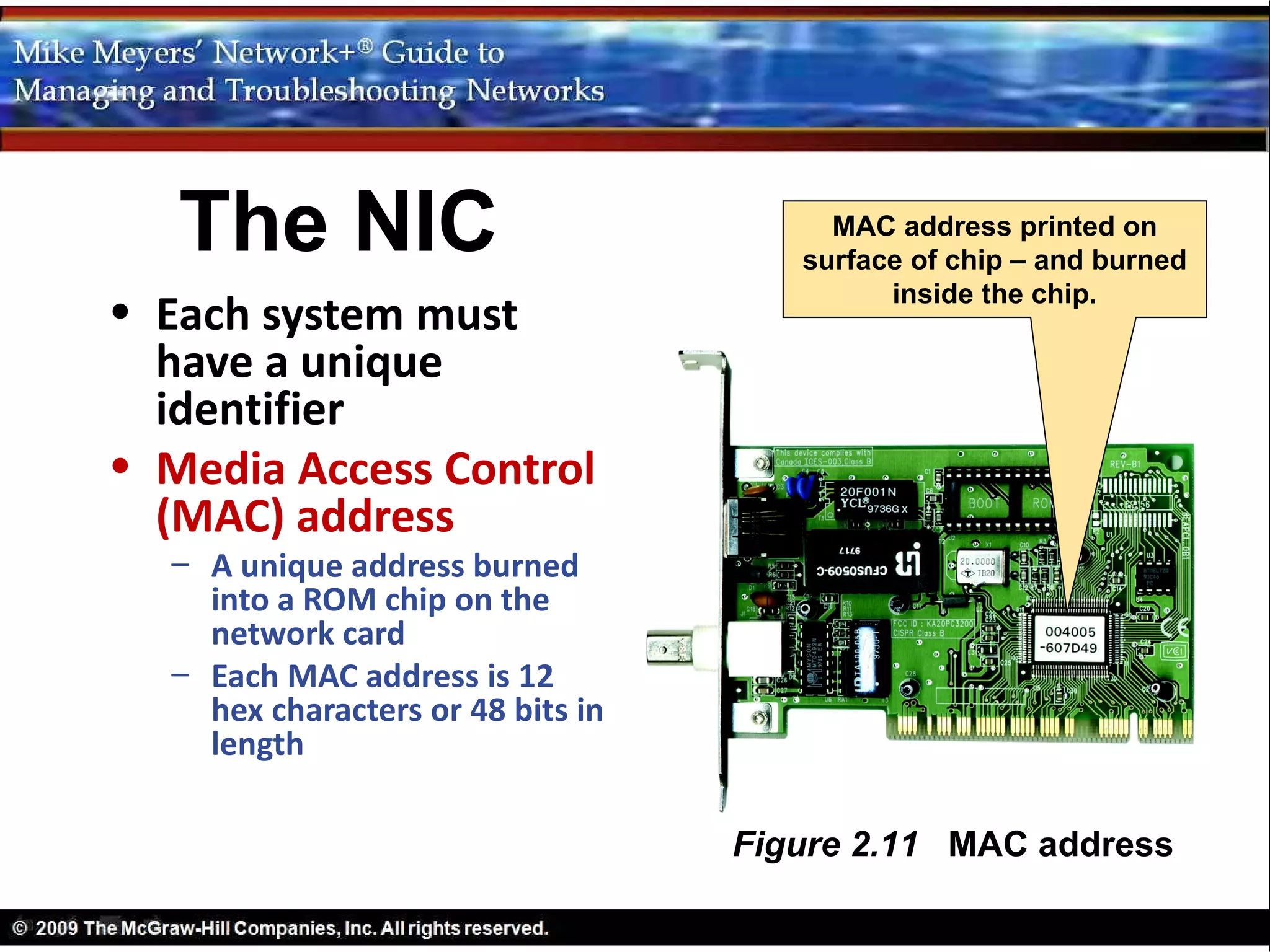

Figure 2.11 MAC address

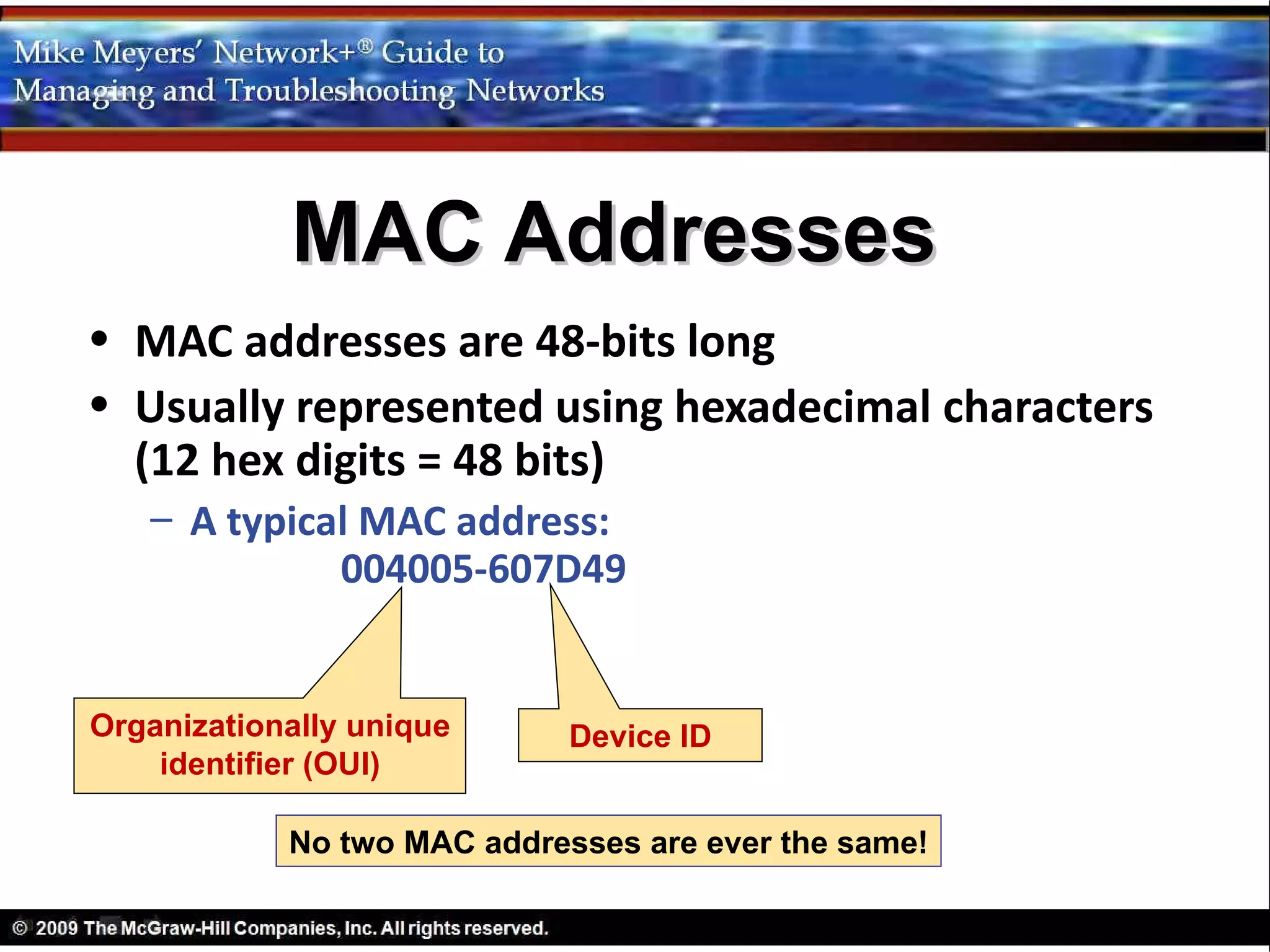

22. MAC Addresses
• MAC addresses are 48-bits long
• Usually represented using hexadecimal characters
(12 hex digits = 48 bits)
– A typical MAC address:
004005-607D49
Organizationally unique Device ID
identifier (OUI)
No two MAC addresses are ever the same!

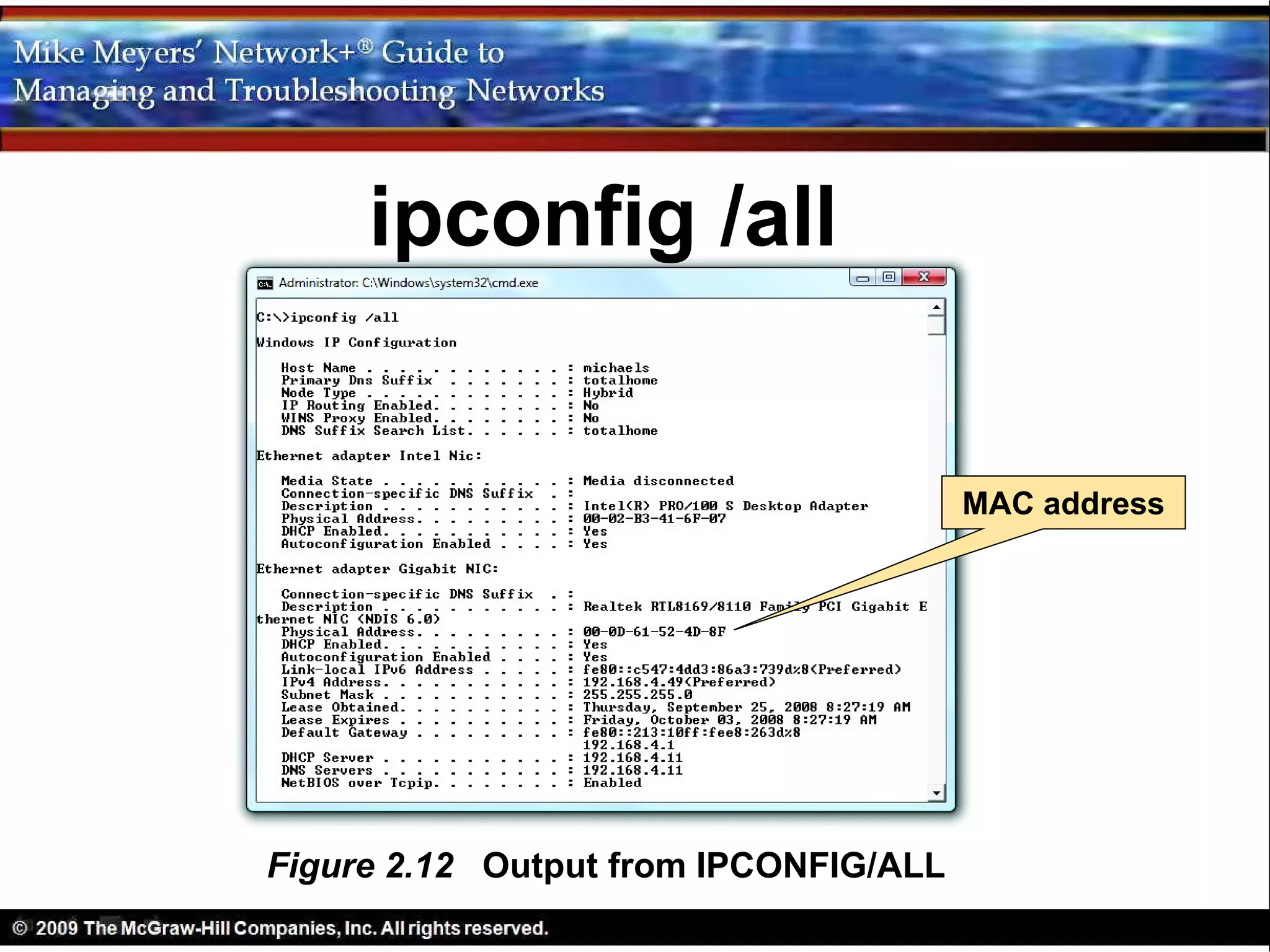

23. ipconfig /all
MAC address
Figure 2.12 Output from IPCONFIG/ALL

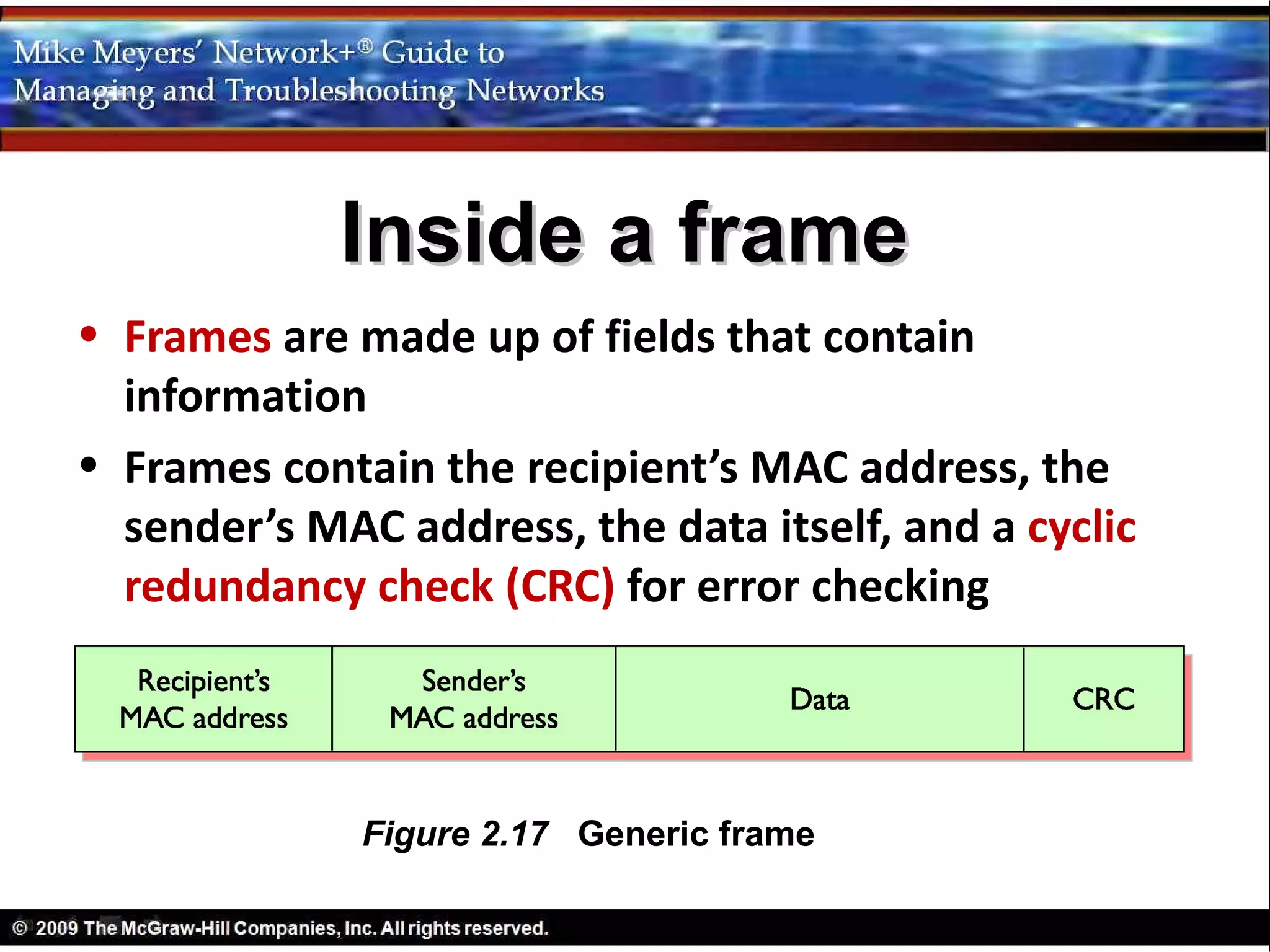

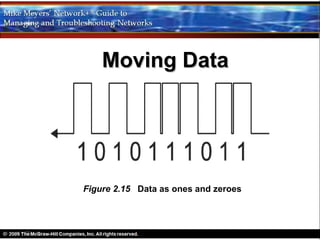

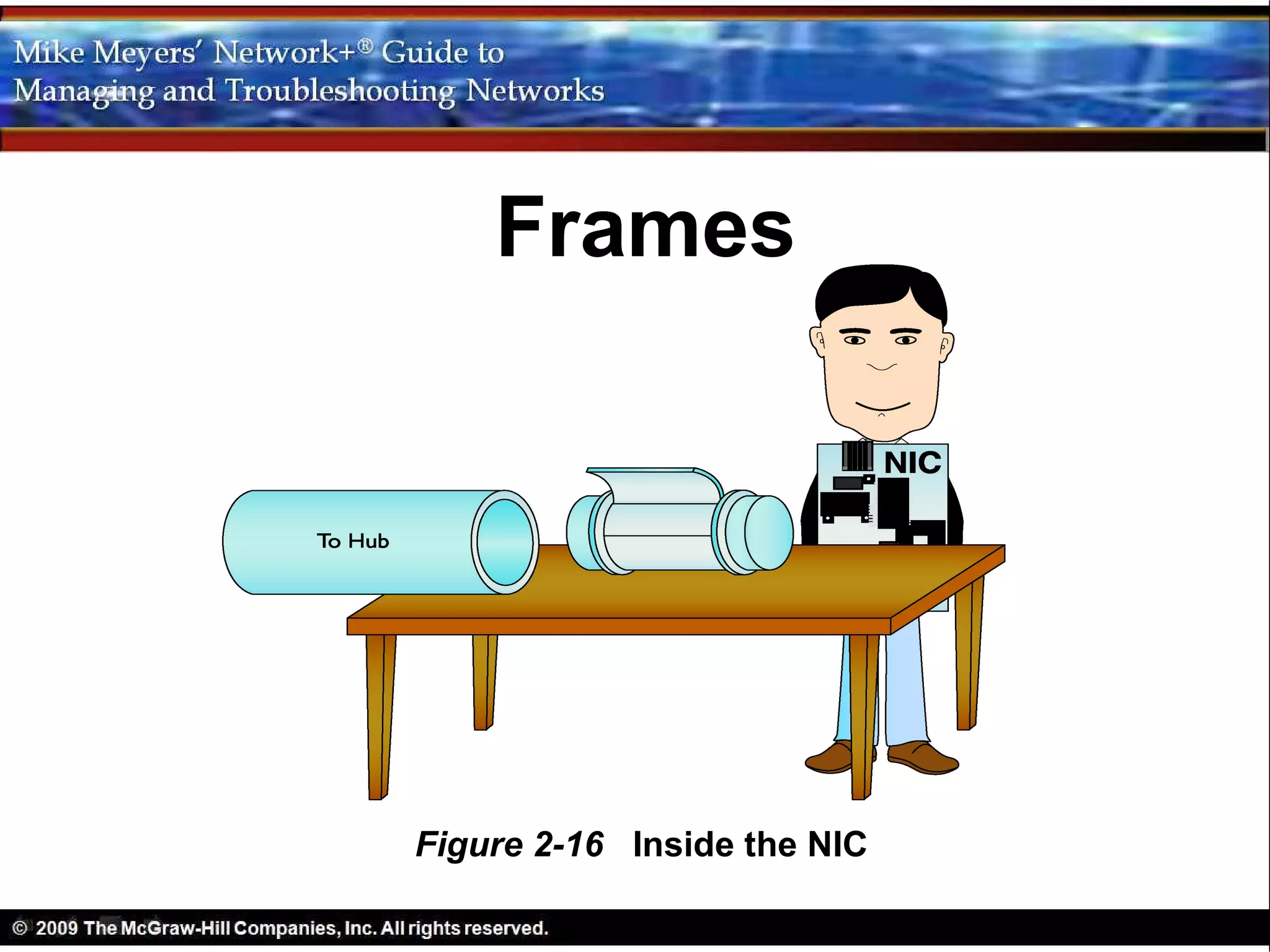

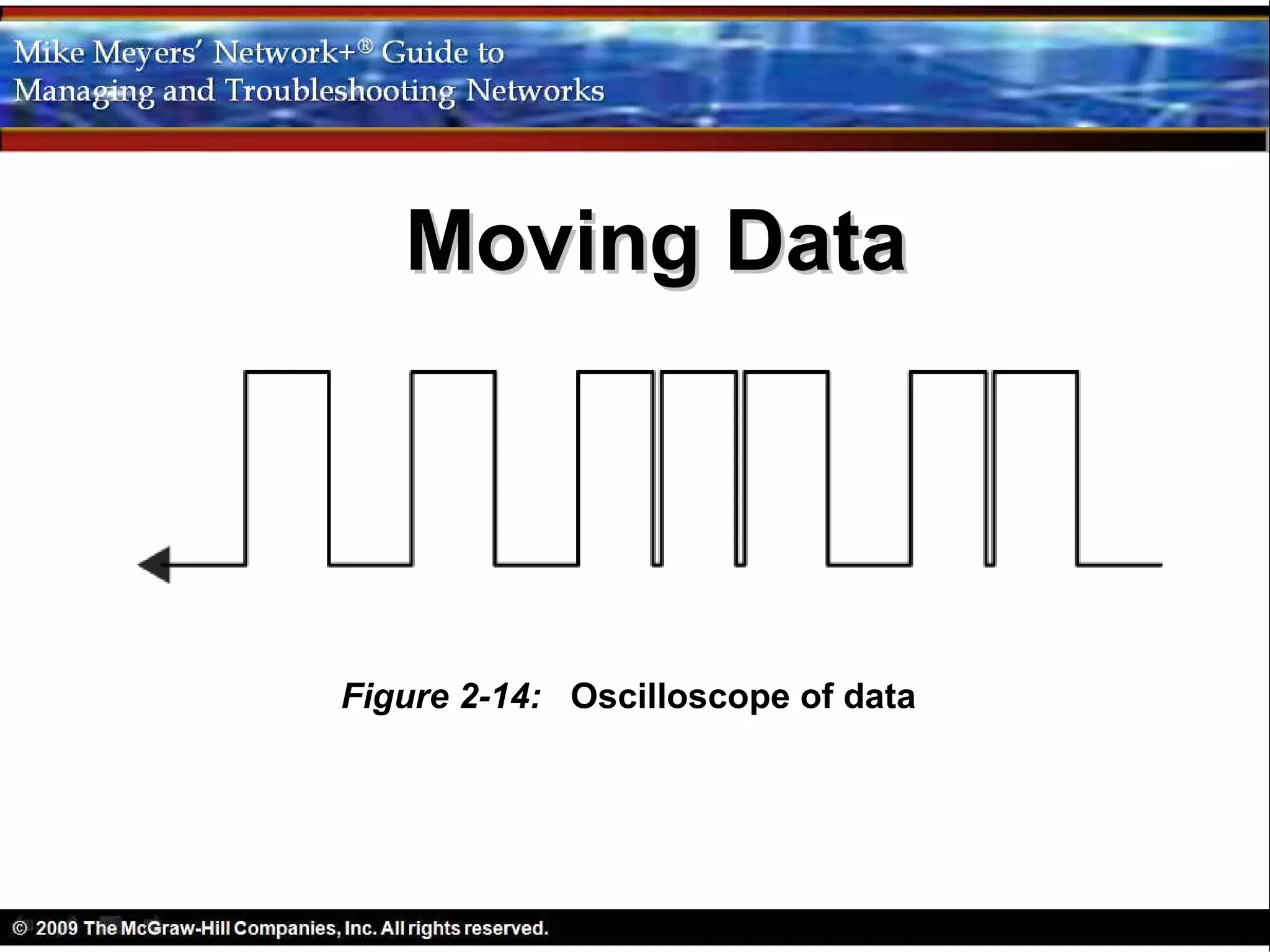

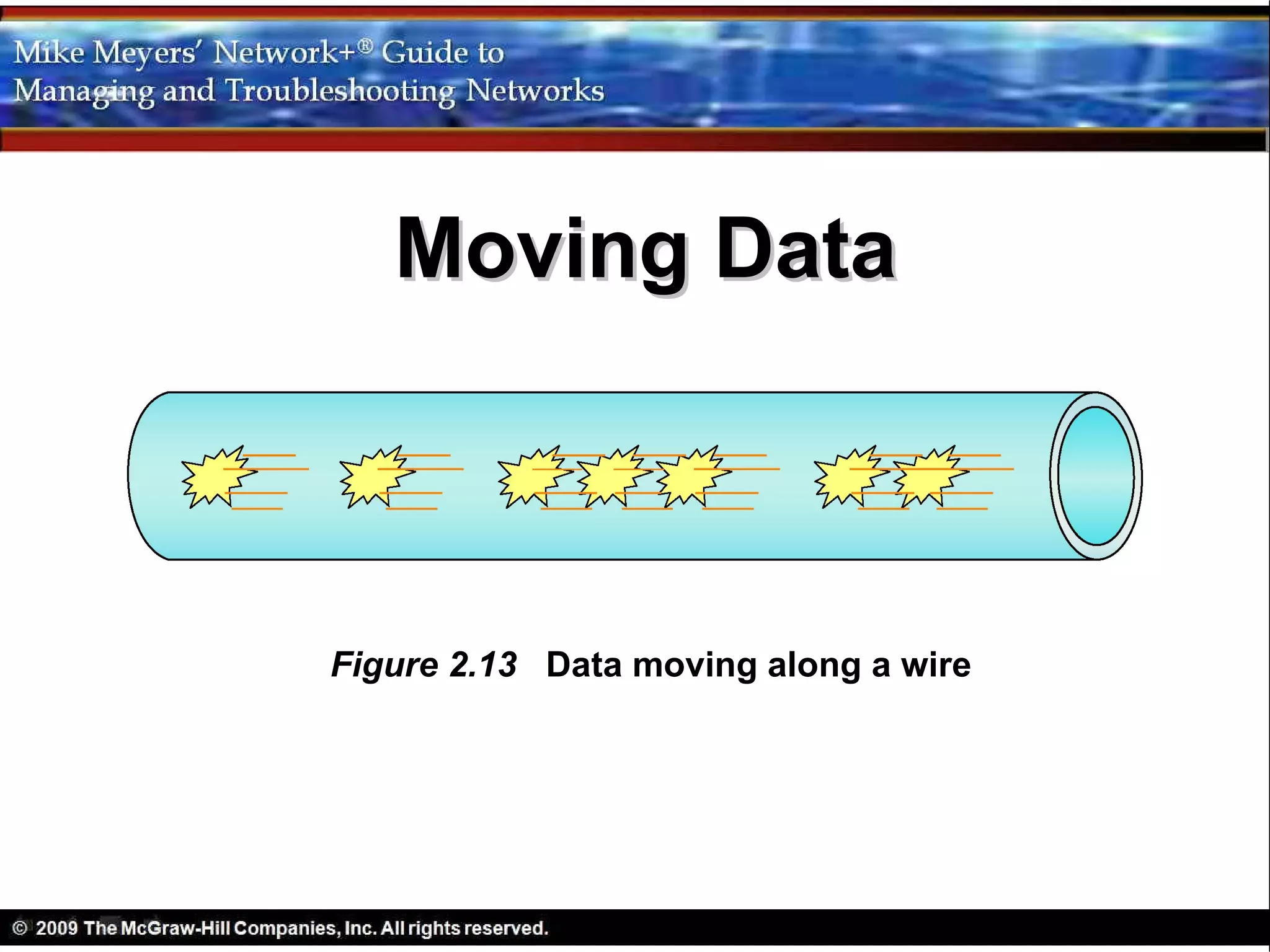

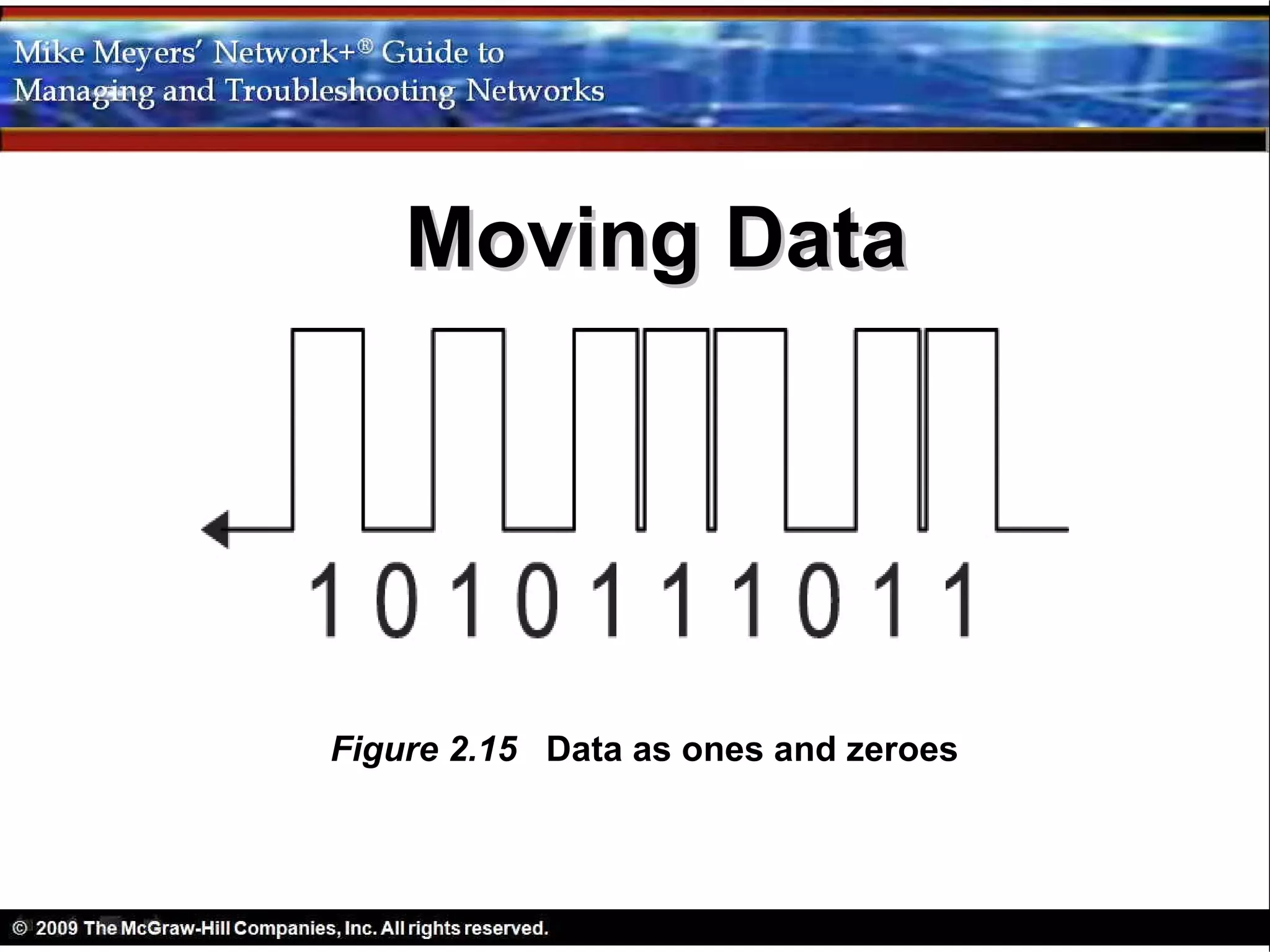

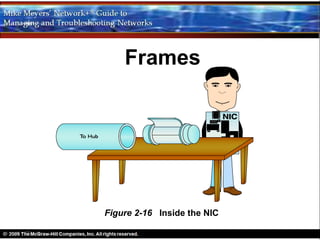

28. Inside a frame
• Frames are made up of fields that contain
information
• Frames contain the recipient’s MAC address, the
sender’s MAC address, the data itself, and a cyclic
redundancy check (CRC) for error checking
Figure 2.17 Generic frame

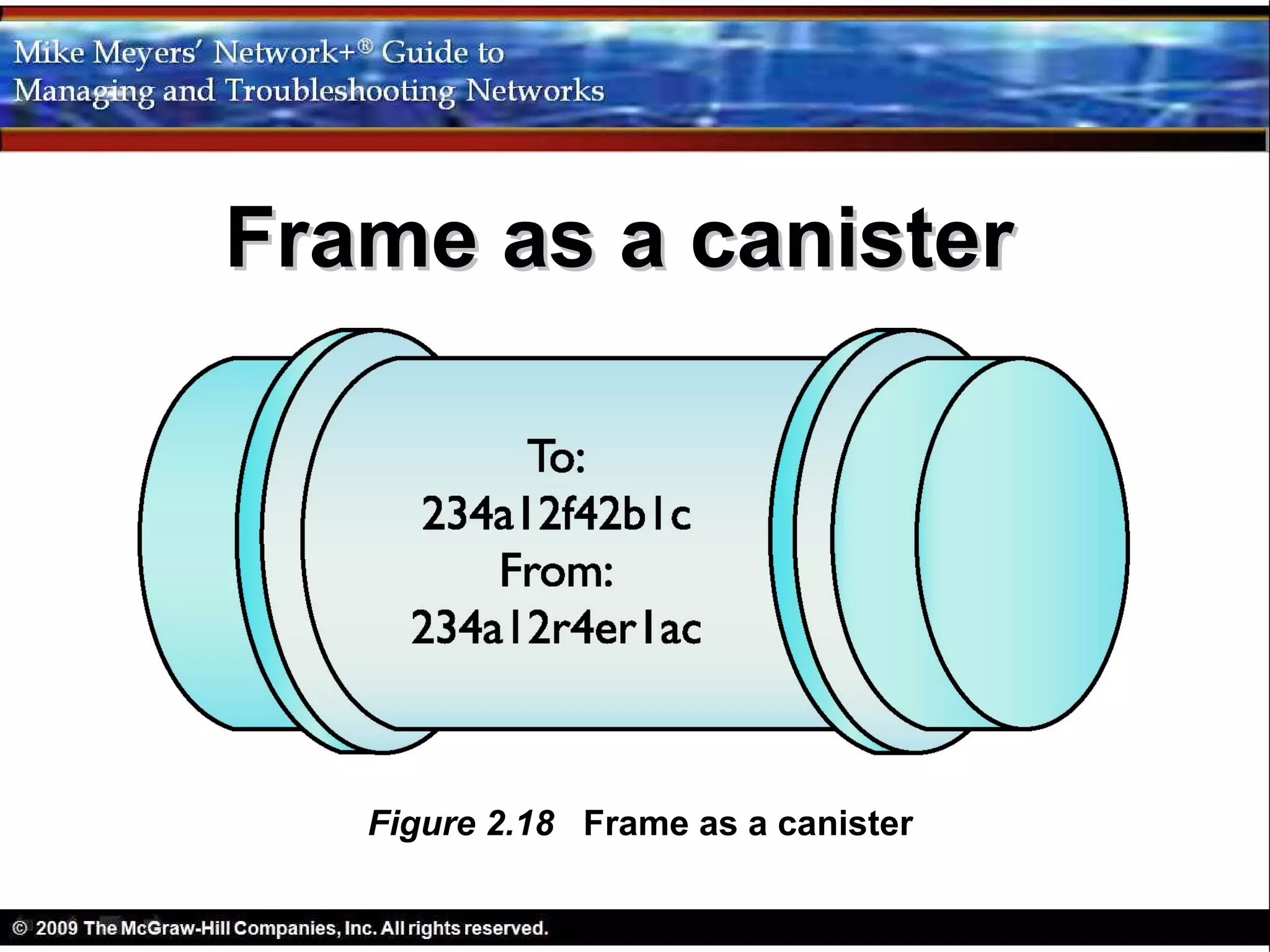

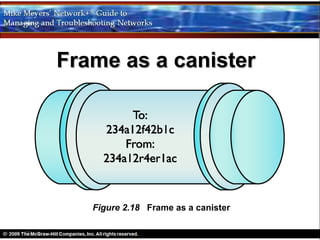

29. Frame as a canister
Figure 2.18 Frame as a canister

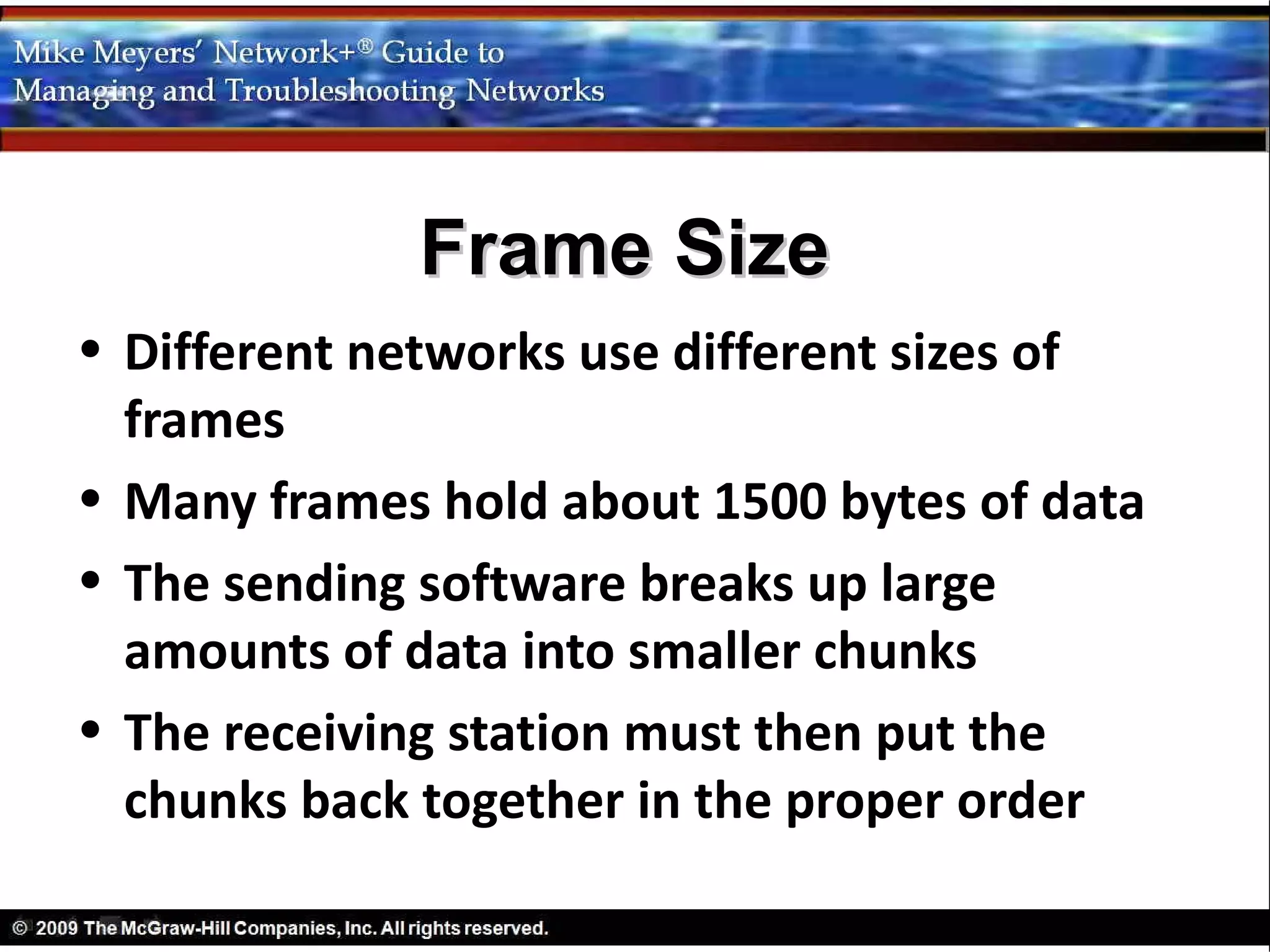

30. Frame Size
• Different networks use different sizes of
frames
• Many frames hold about 1500 bytes of data
• The sending software breaks up large
amounts of data into smaller chunks
• The receiving station must then put the
chunks back together in the proper order

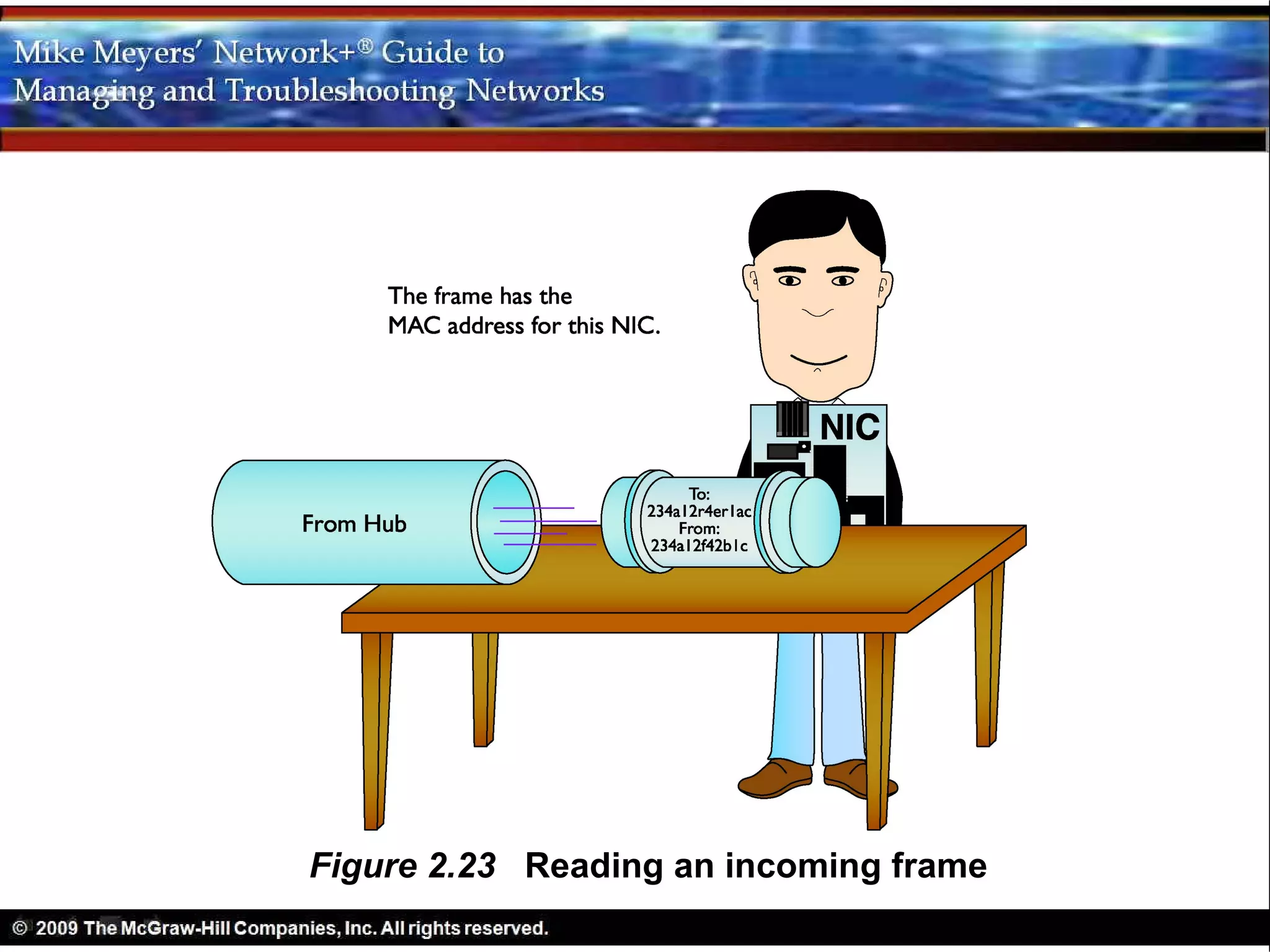

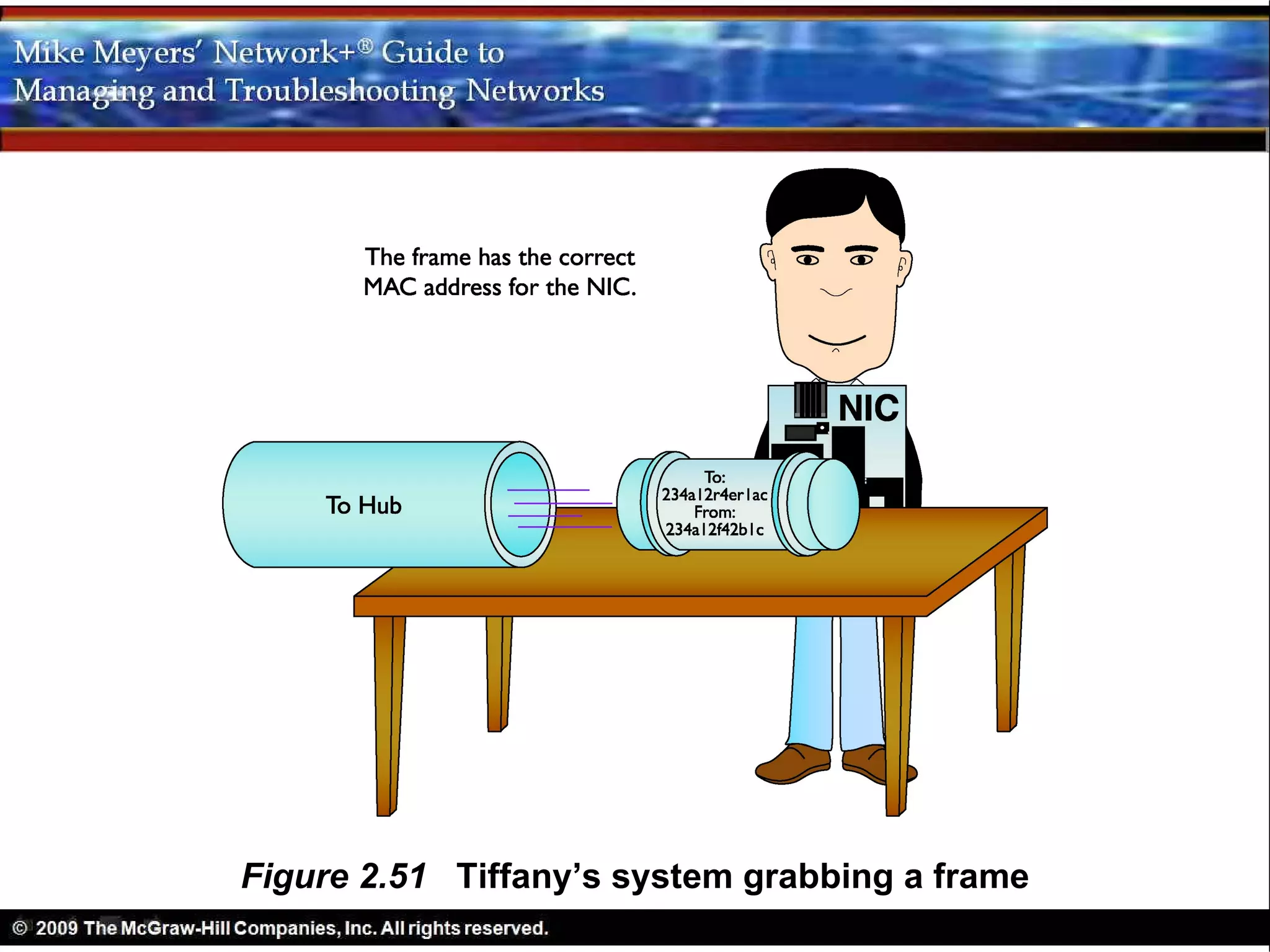

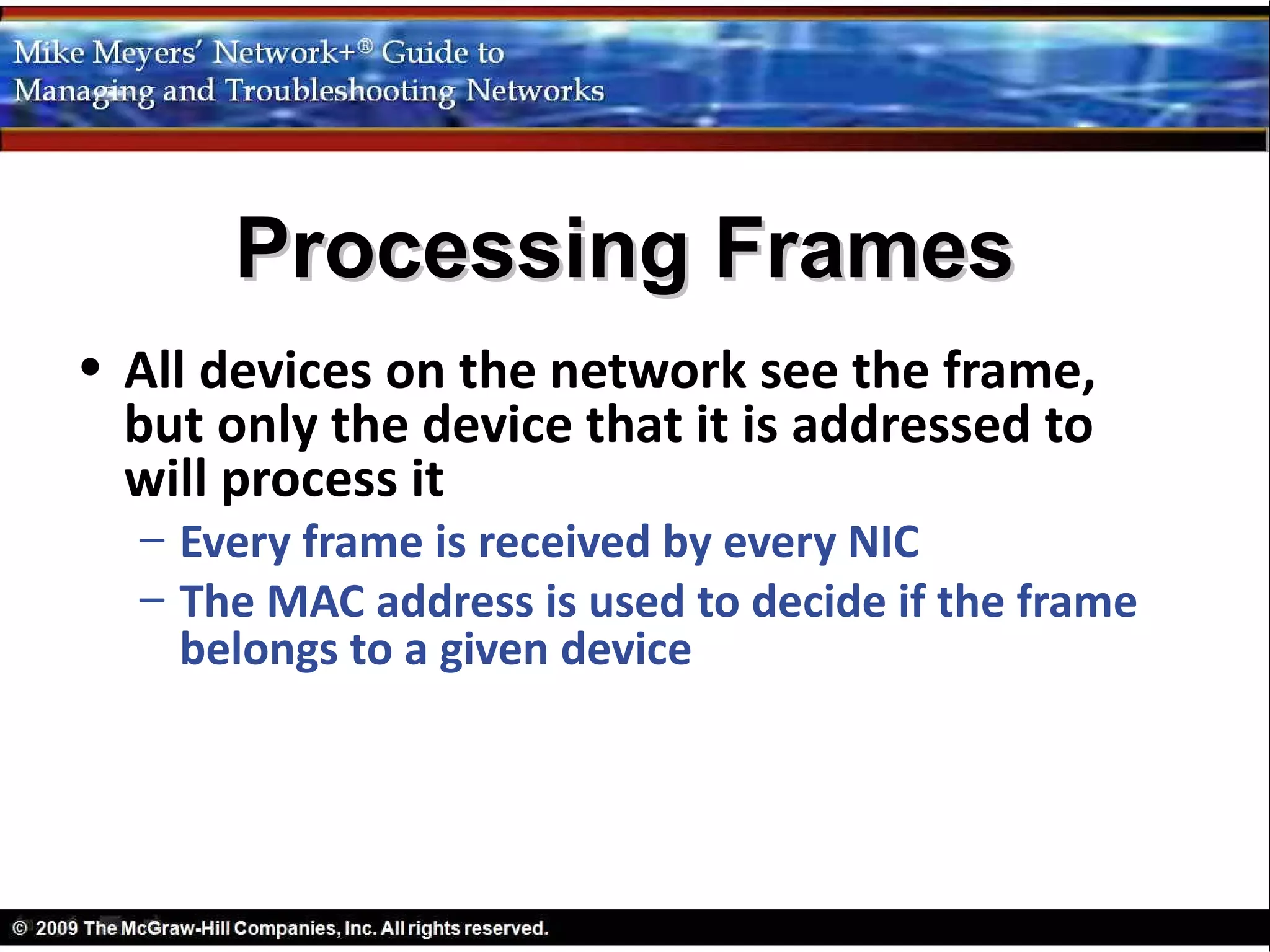

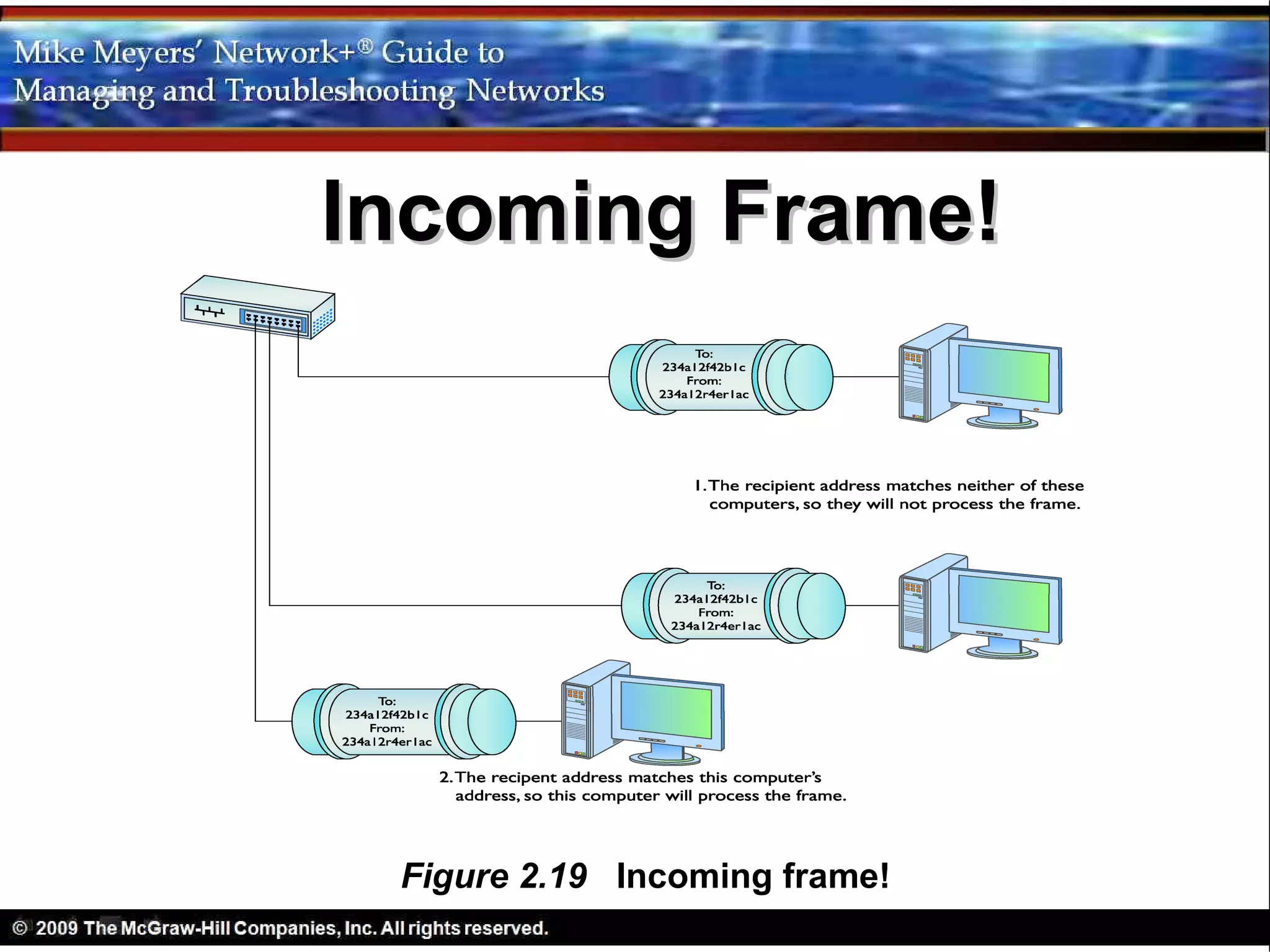

31. Processing Frames

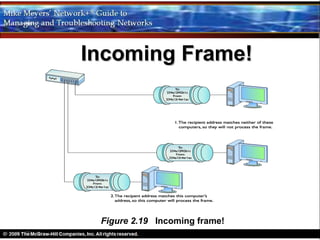

• All devices on the network see the frame,
but only the device that it is addressed to
will process it
– Every frame is received by every NIC
– The MAC address is used to decide if the frame
belongs to a given device

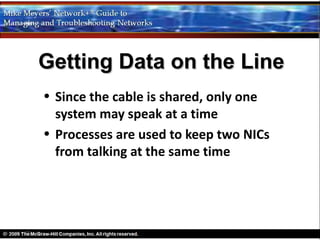

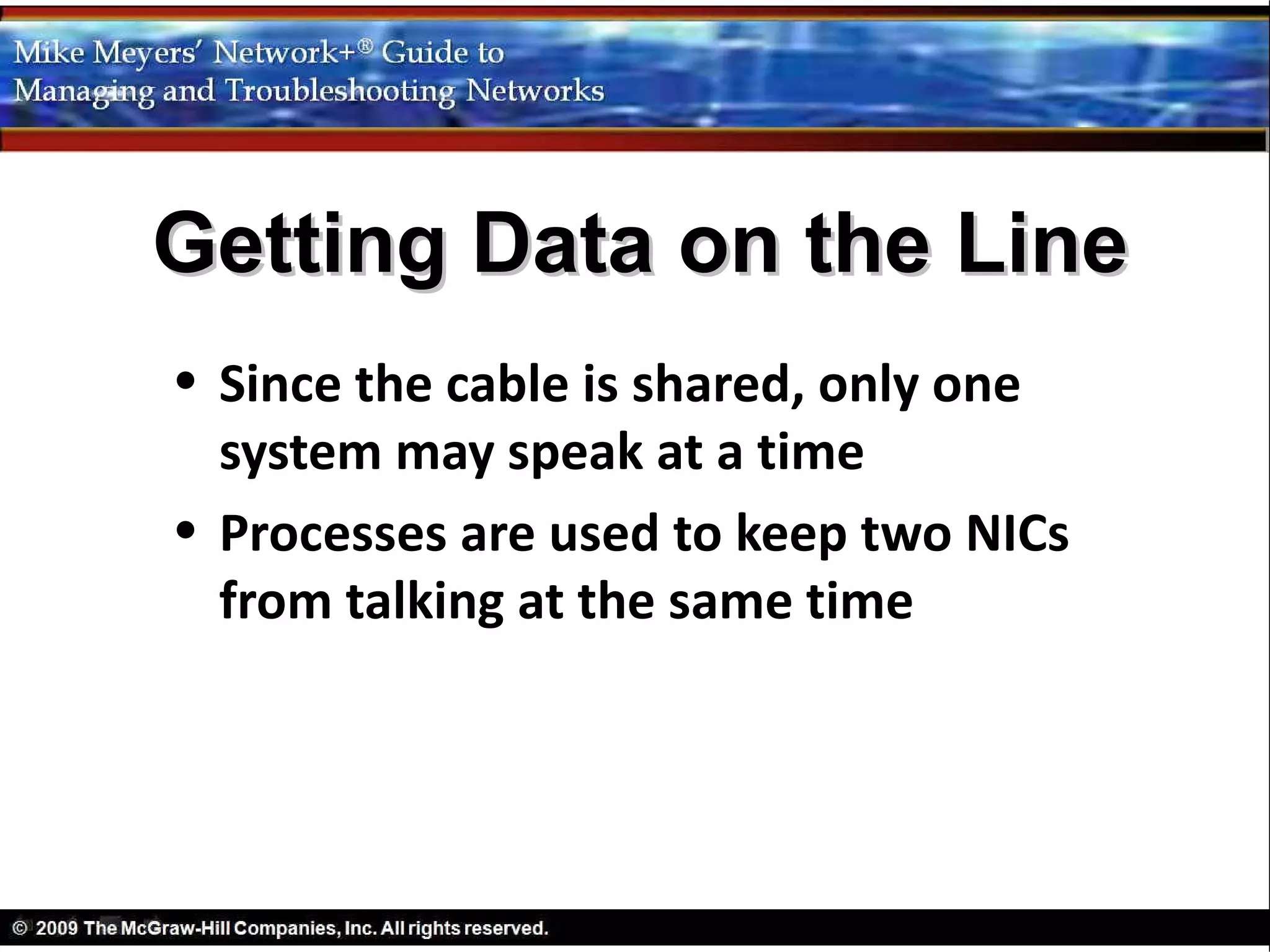

32. Getting Data on the Line
• Since the cable is shared, only one
system may speak at a time
• Processes are used to keep two NICs
from talking at the same time

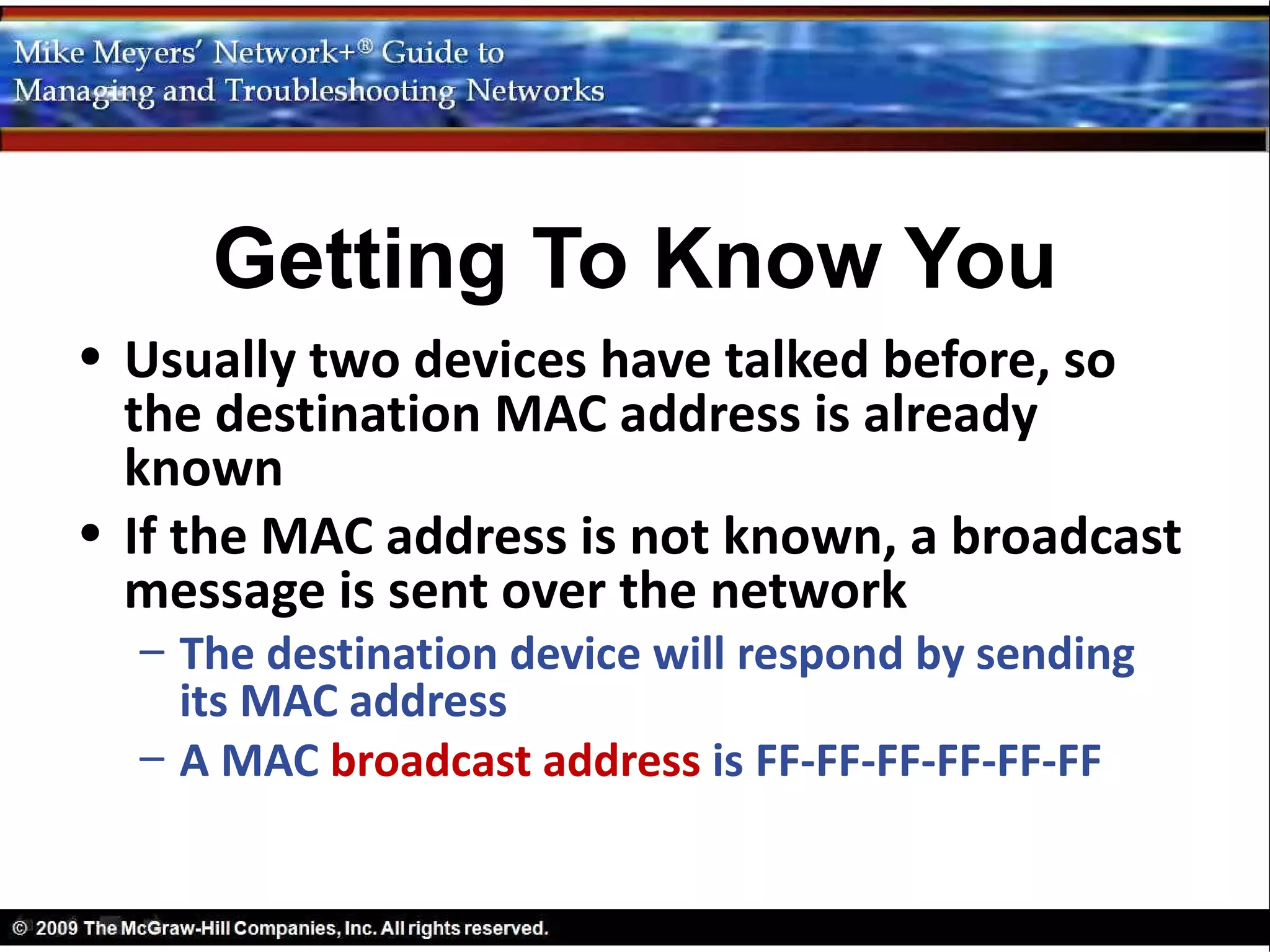

34. Getting To Know You
• Usually two devices have talked before, so
the destination MAC address is already
known
• If the MAC address is not known, a broadcast
message is sent over the network
– The destination device will respond by sending
its MAC address
– A MAC broadcast address is FF-FF-FF-FF-FF-FF

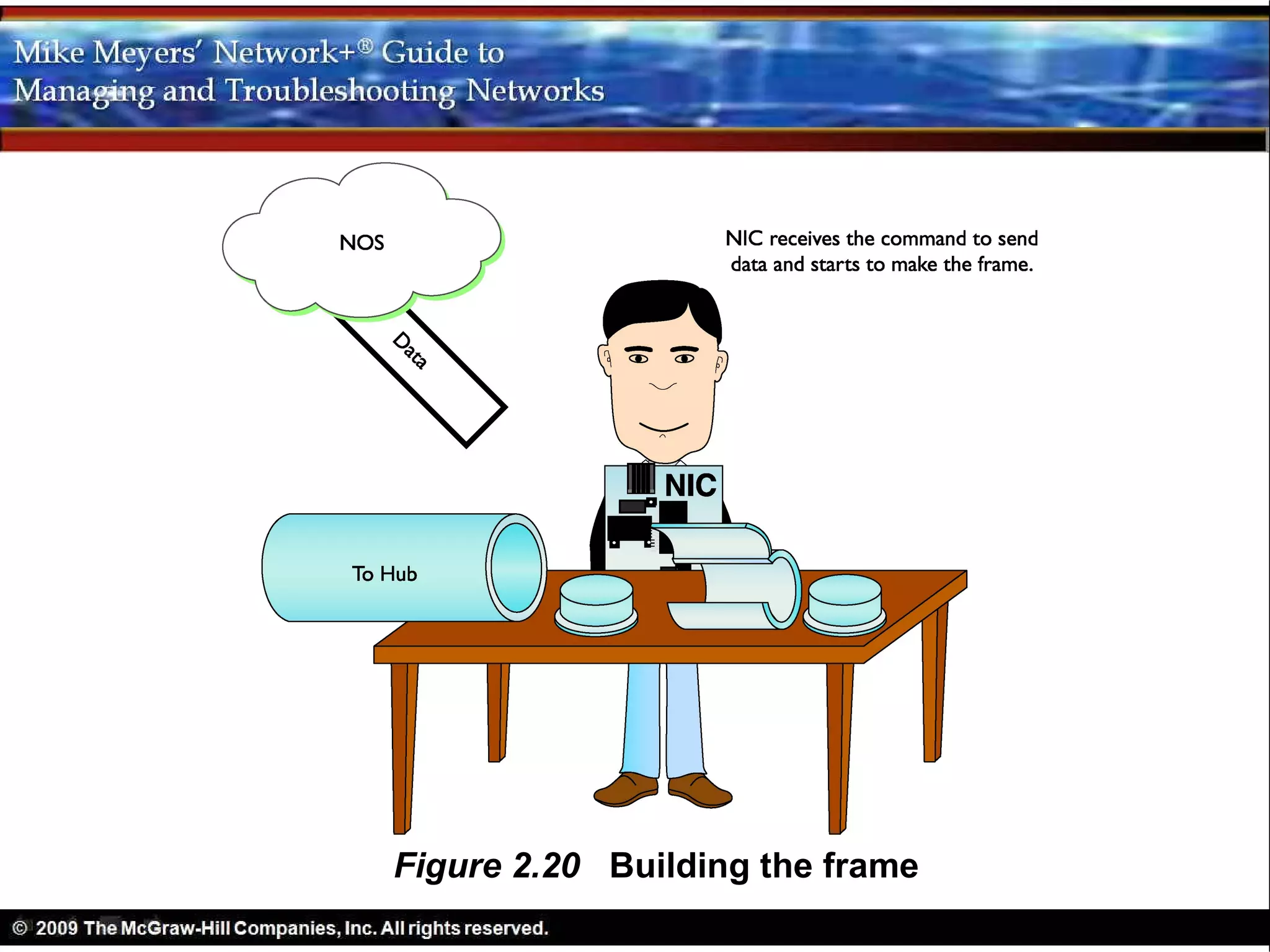

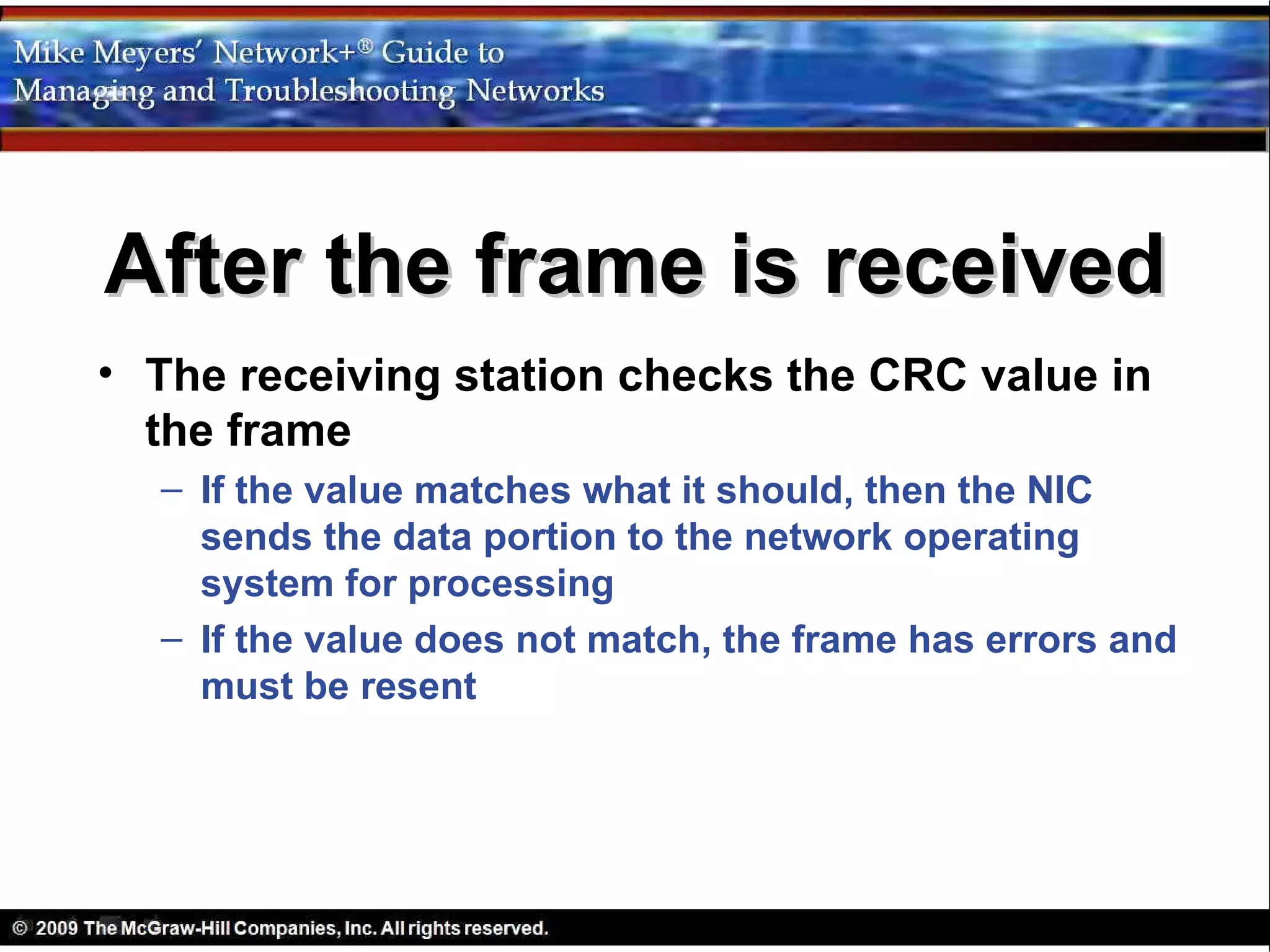

39. After the frame is received
• The receiving station checks the CRC value in
the frame
– If the value matches what it should, then the NIC
sends the data portion to the network operating
system for processing
– If the value does not match, the frame has errors and
must be resent

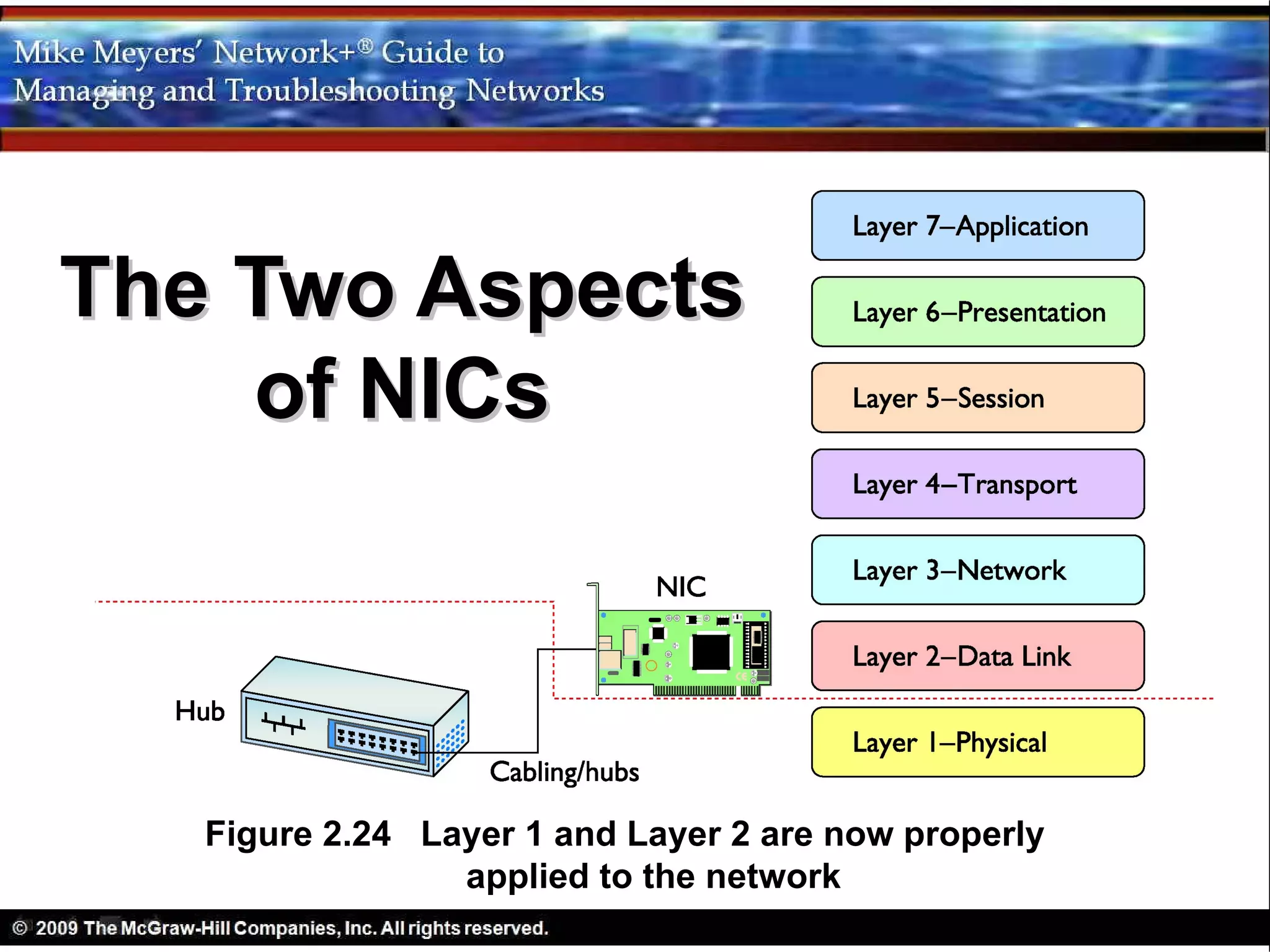

40. The Two Aspects
of NICs
Figure 2.24 Layer 1 and Layer 2 are now properly
applied to the network

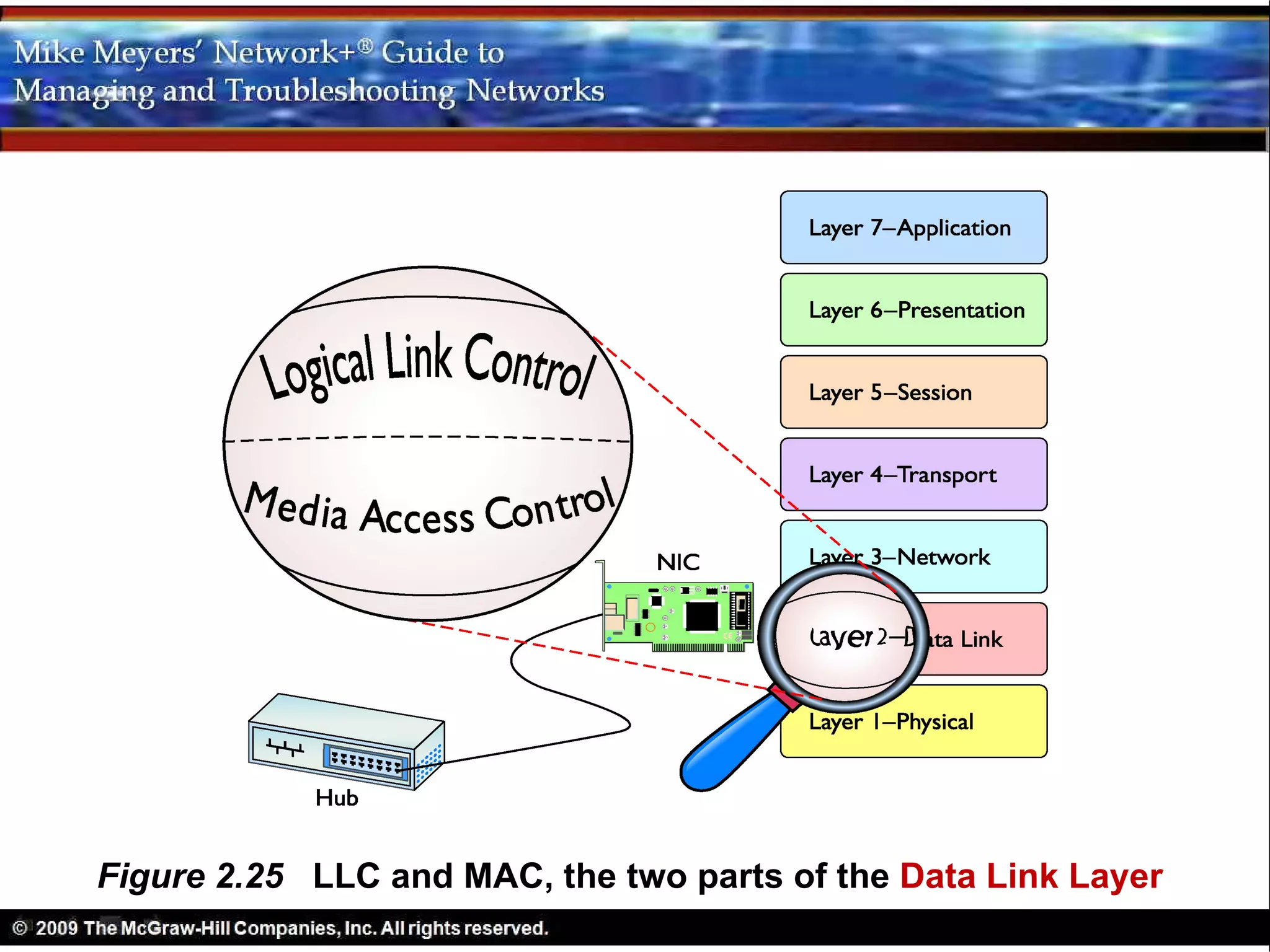

41. Figure 2.25 LLC and MAC, the two parts of the Data Link Layer

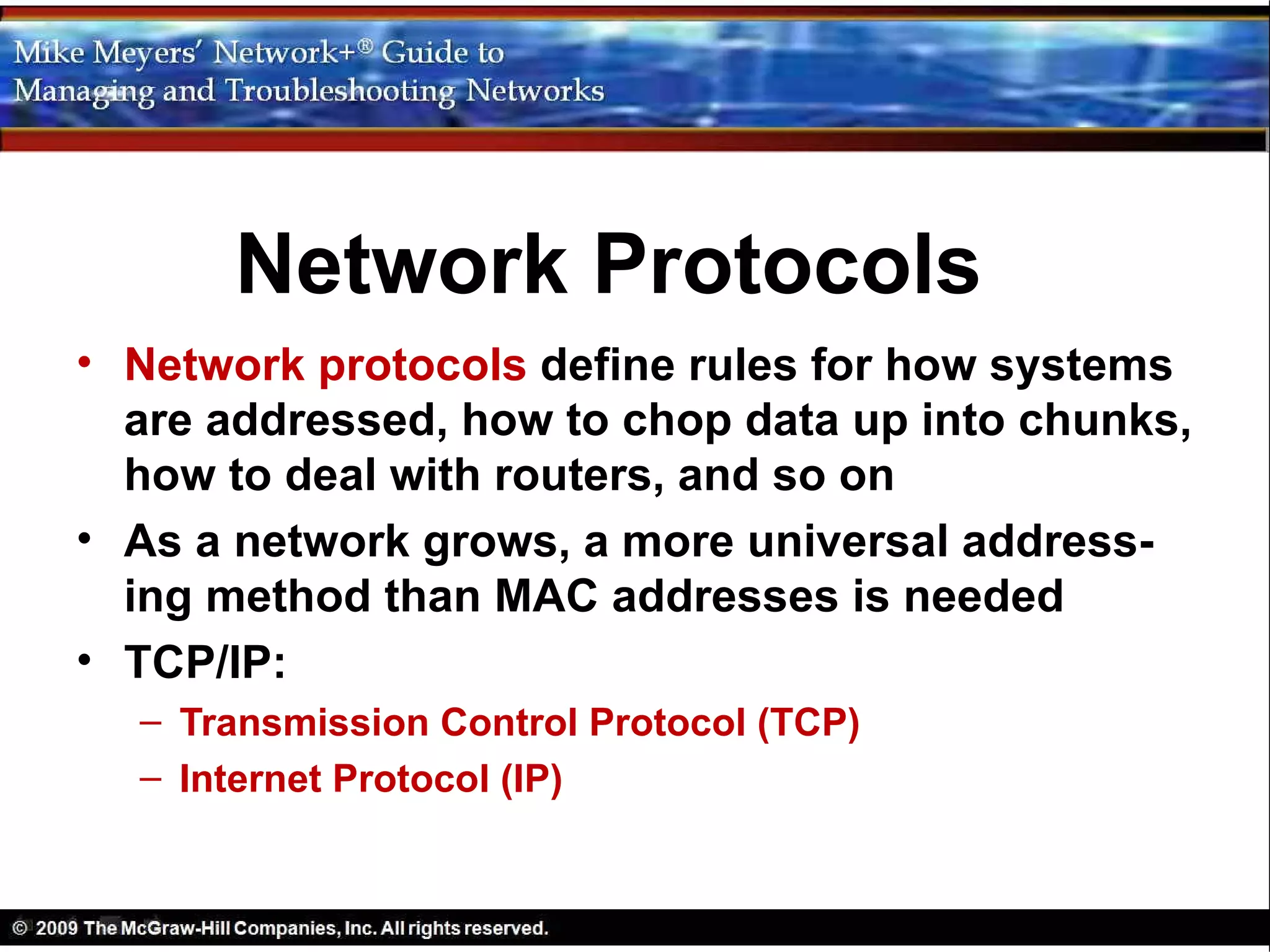

44. Network Protocols
• Network protocols define rules for how systems
are addressed, how to chop data up into chunks,
how to deal with routers, and so on
• As a network grows, a more universal address-
ing method than MAC addresses is needed
• TCP/IP:
– Transmission Control Protocol (TCP)
– Internet Protocol (IP)

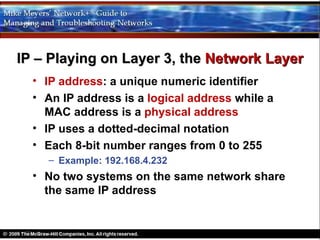

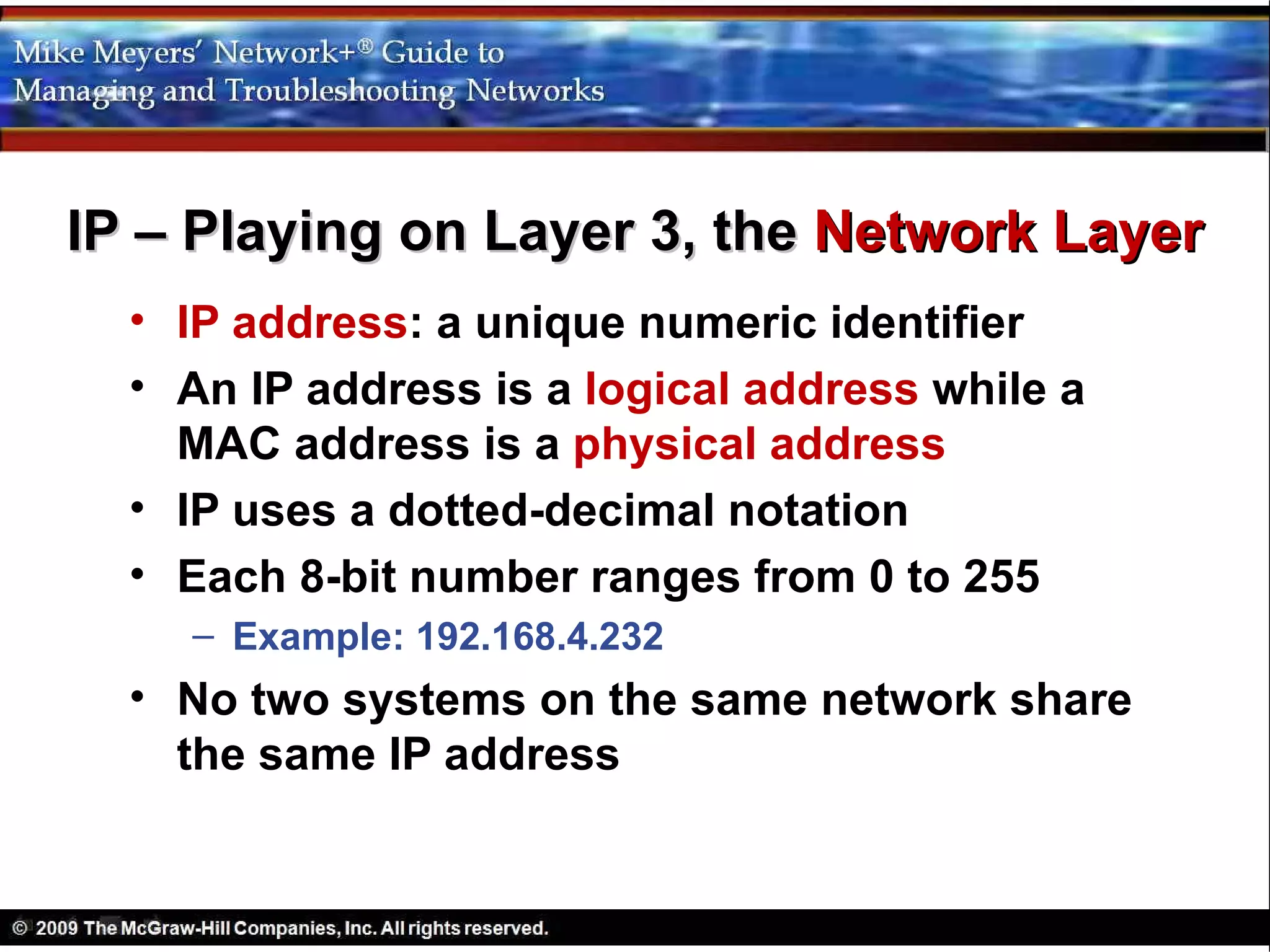

45. IP – Playing on Layer 3, the Network Layer
• IP address: a unique numeric identifier
• An IP address is a logical address while a
MAC address is a physical address
• IP uses a dotted-decimal notation
• Each 8-bit number ranges from 0 to 255
– Example: 192.168.4.232
• No two systems on the same network share
the same IP address

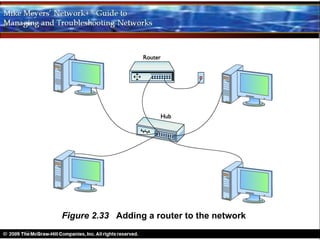

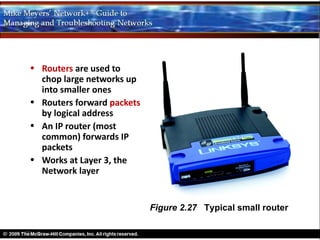

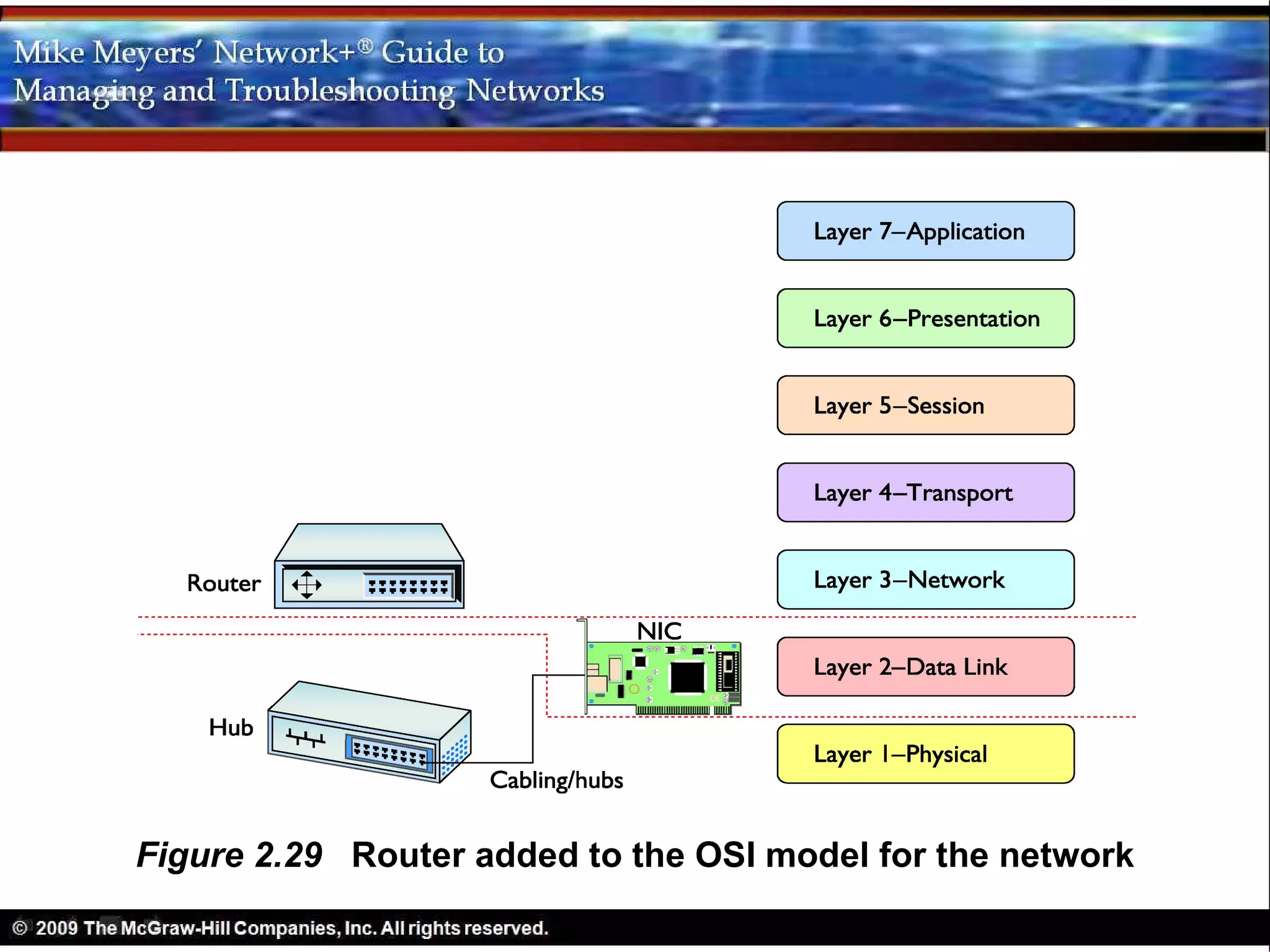

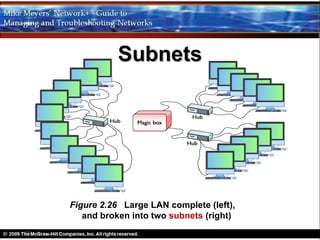

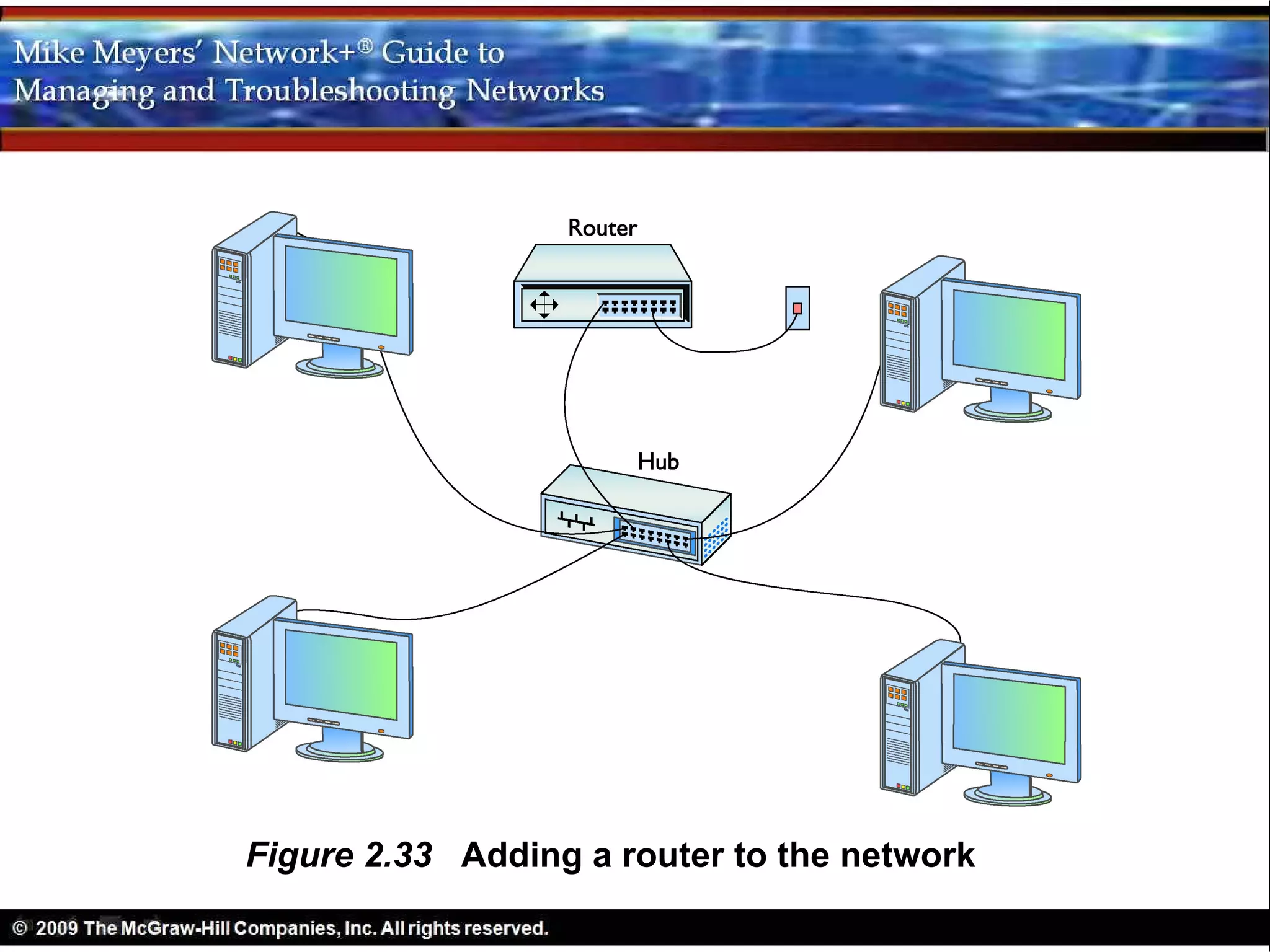

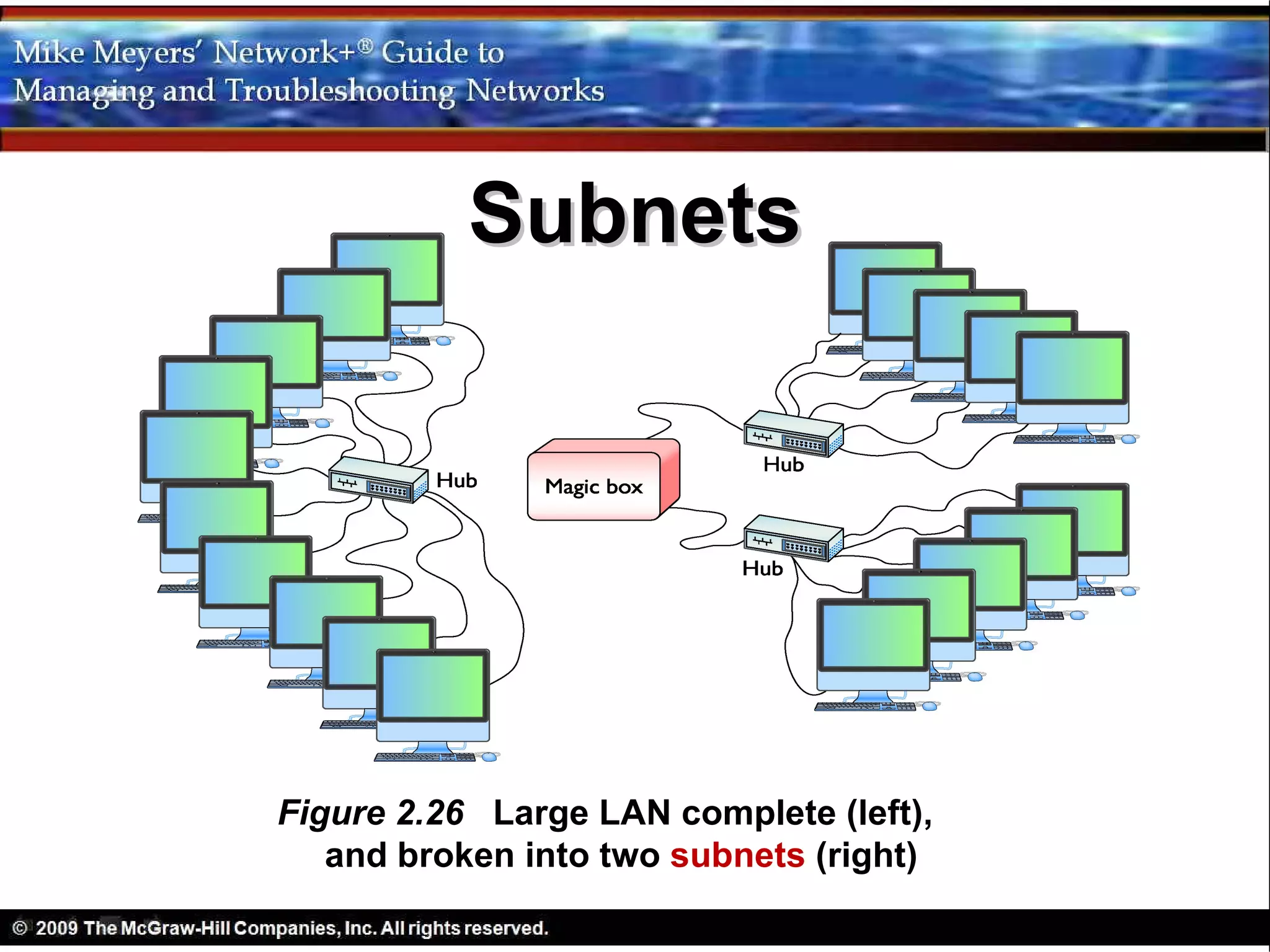

46. • Routers are used to
chop large networks up
into smaller ones
• Routers forward packets
by logical address
• An IP router (most
common) forwards IP
packets
• Works at Layer 3, the
Network layer

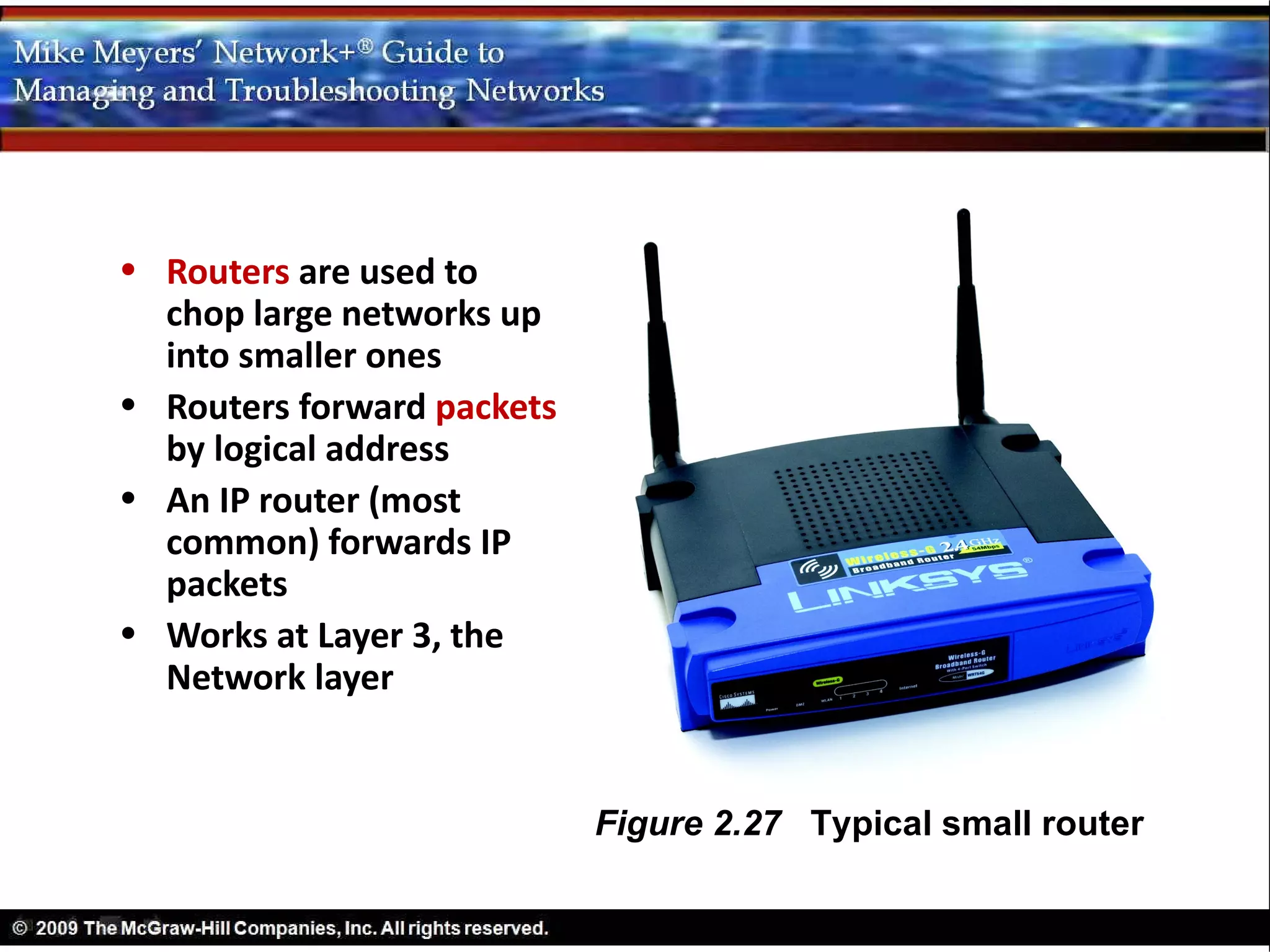

Figure 2.27 Typical small router

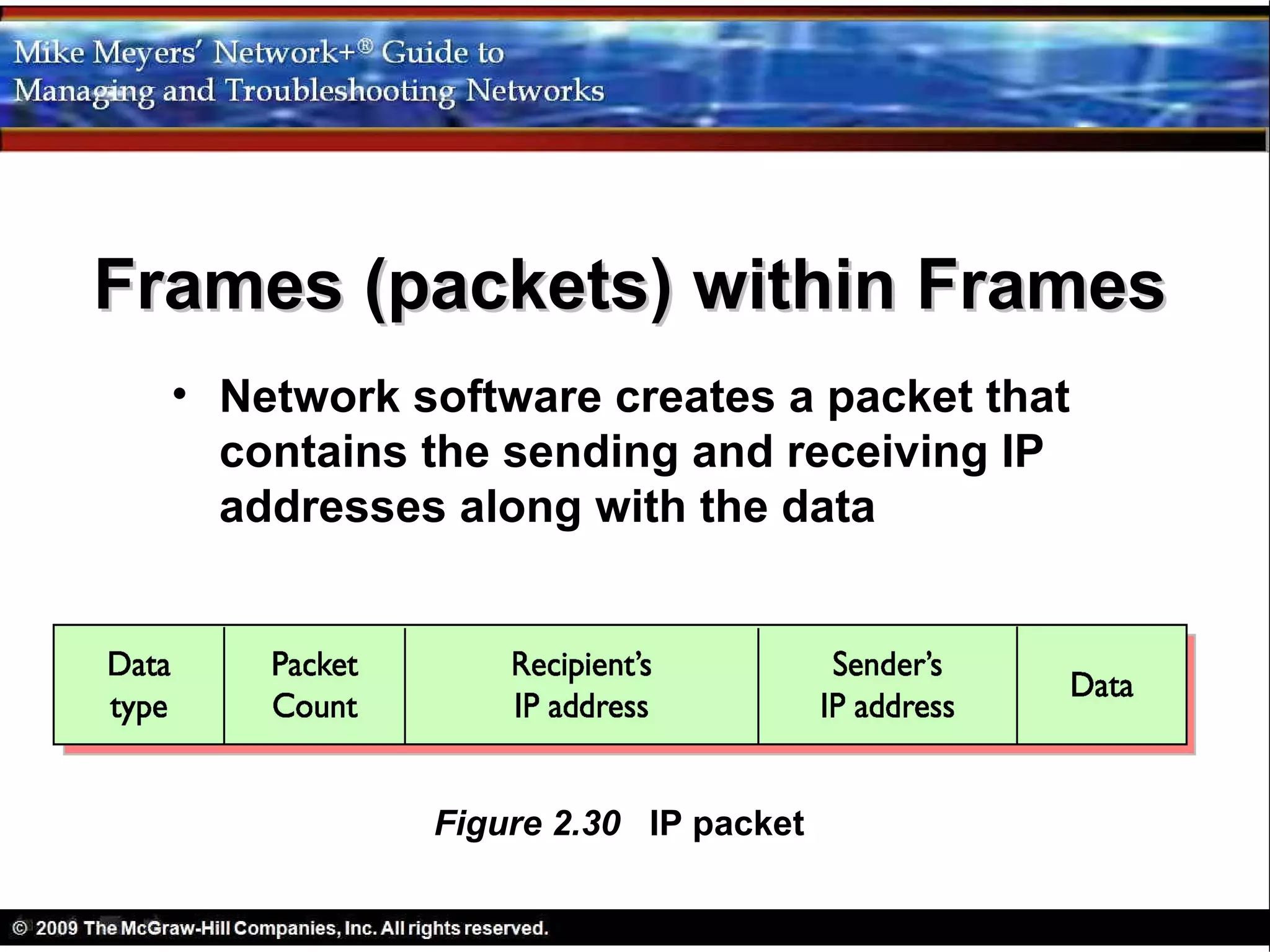

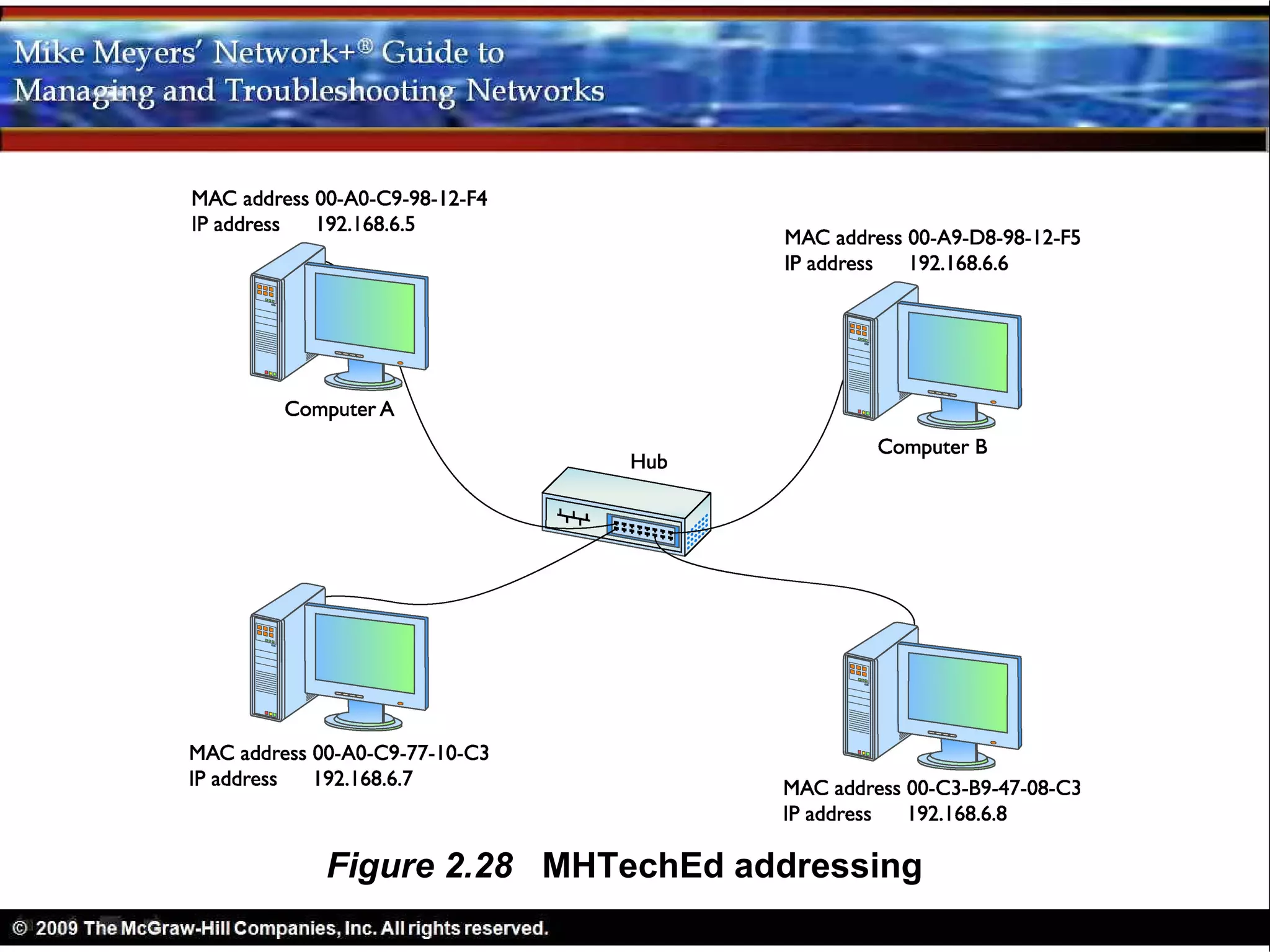

49. Frames (packets) within Frames
• Network software creates a packet that
contains the sending and receiving IP
addresses along with the data
Figure 2.30 IP packet

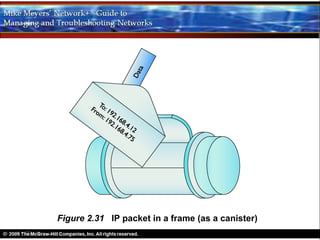

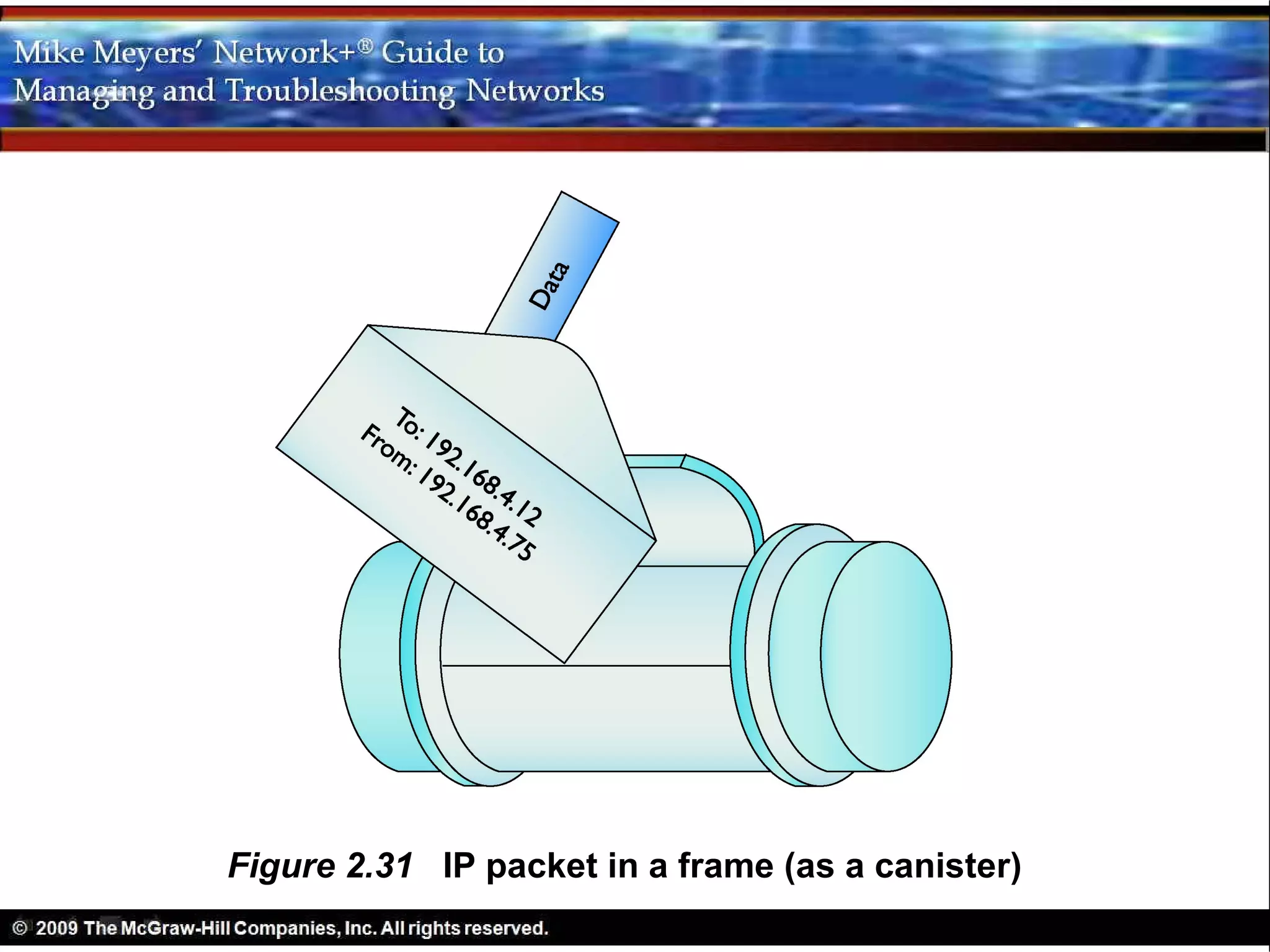

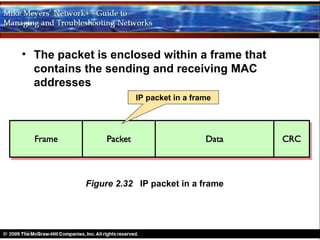

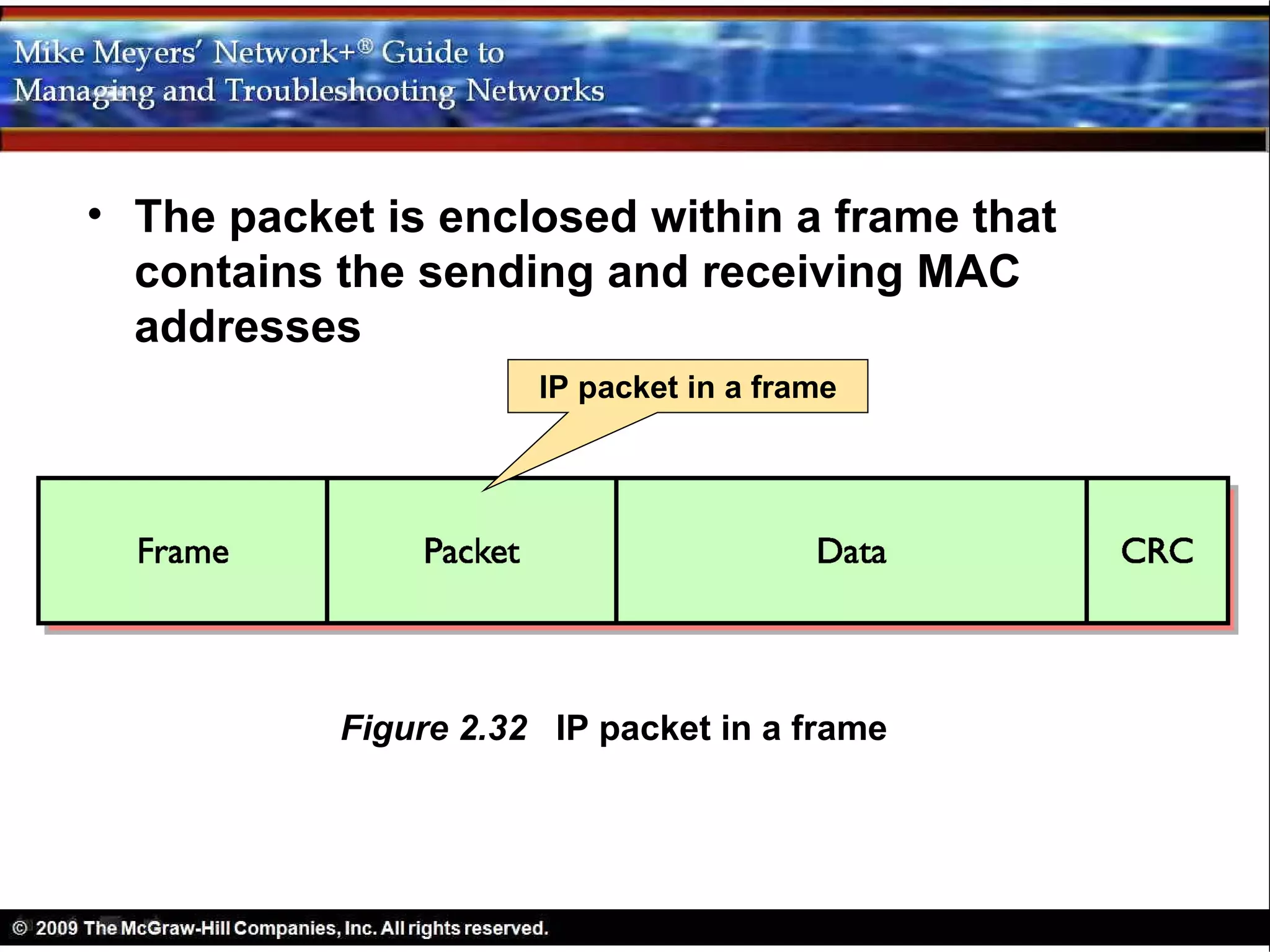

51. • The packet is enclosed within a frame that
contains the sending and receiving MAC
addresses
IP packet in a frame
Figure 2.32 IP packet in a frame

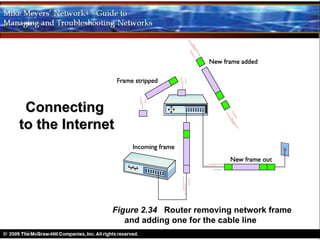

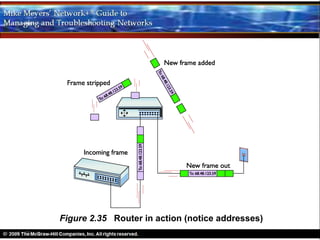

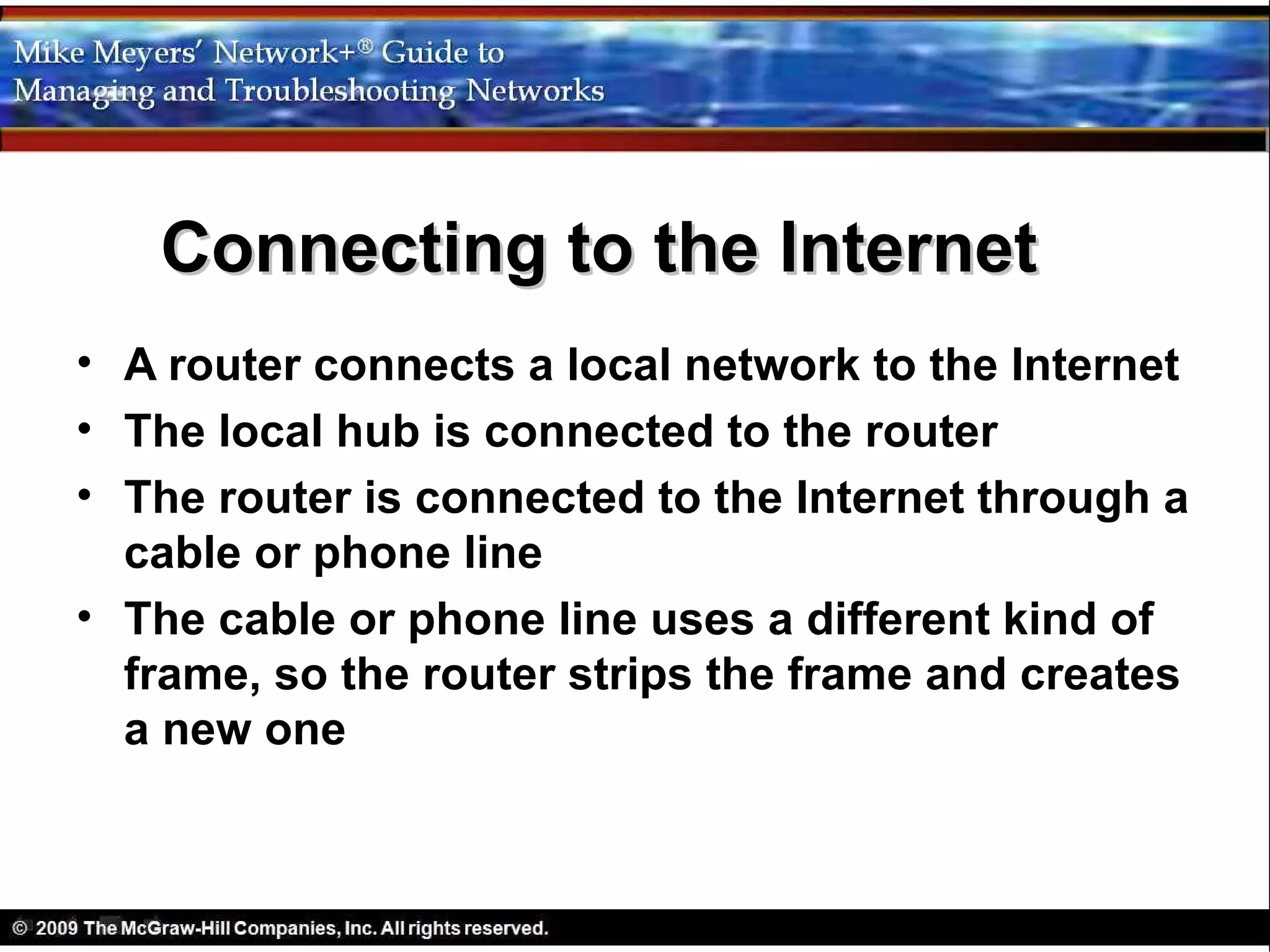

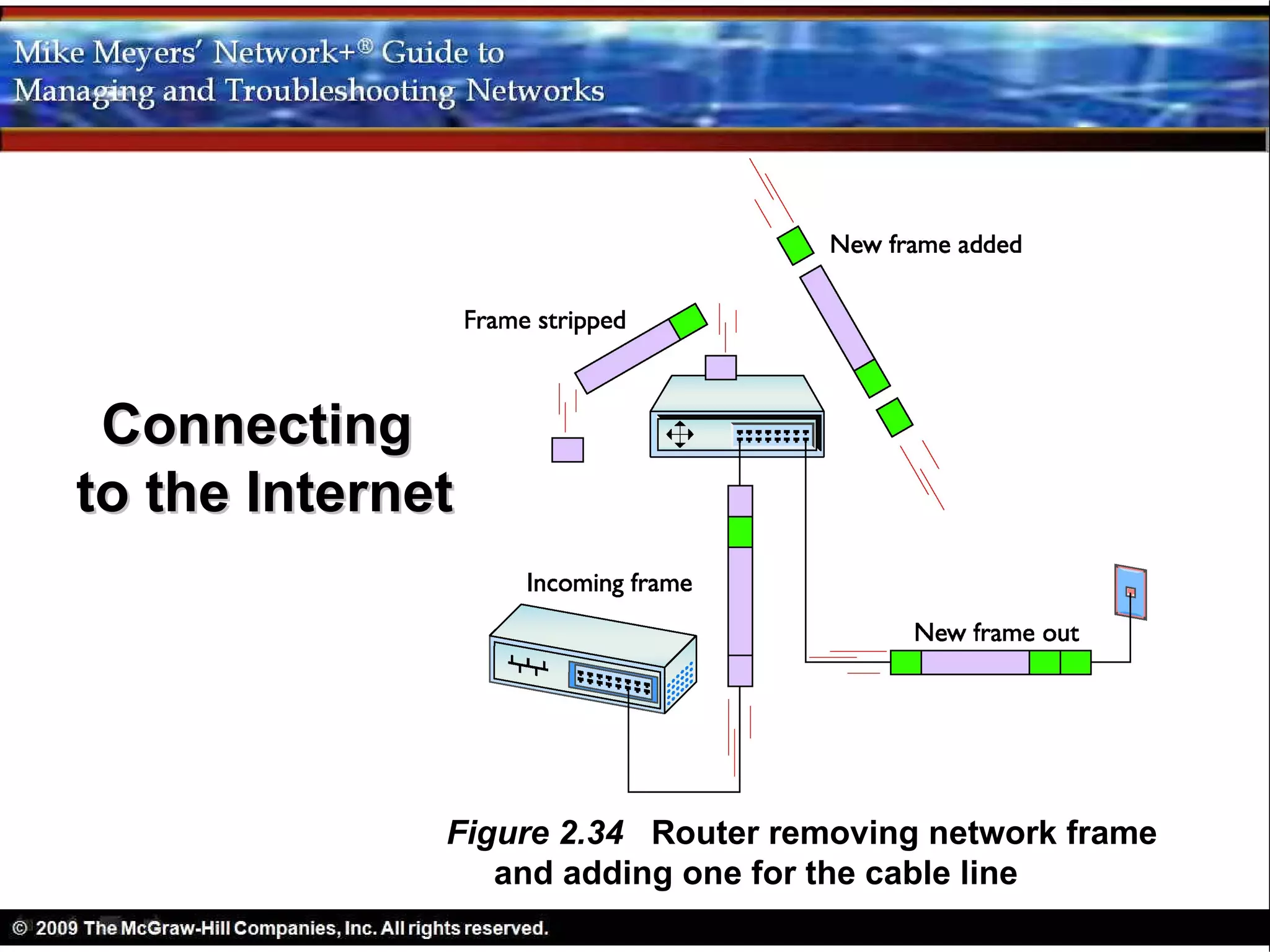

52. Connecting to the Internet
• A router connects a local network to the Internet
• The local hub is connected to the router
• The router is connected to the Internet through a
cable or phone line
• The cable or phone line uses a different kind of
frame, so the router strips the frame and creates
a new one

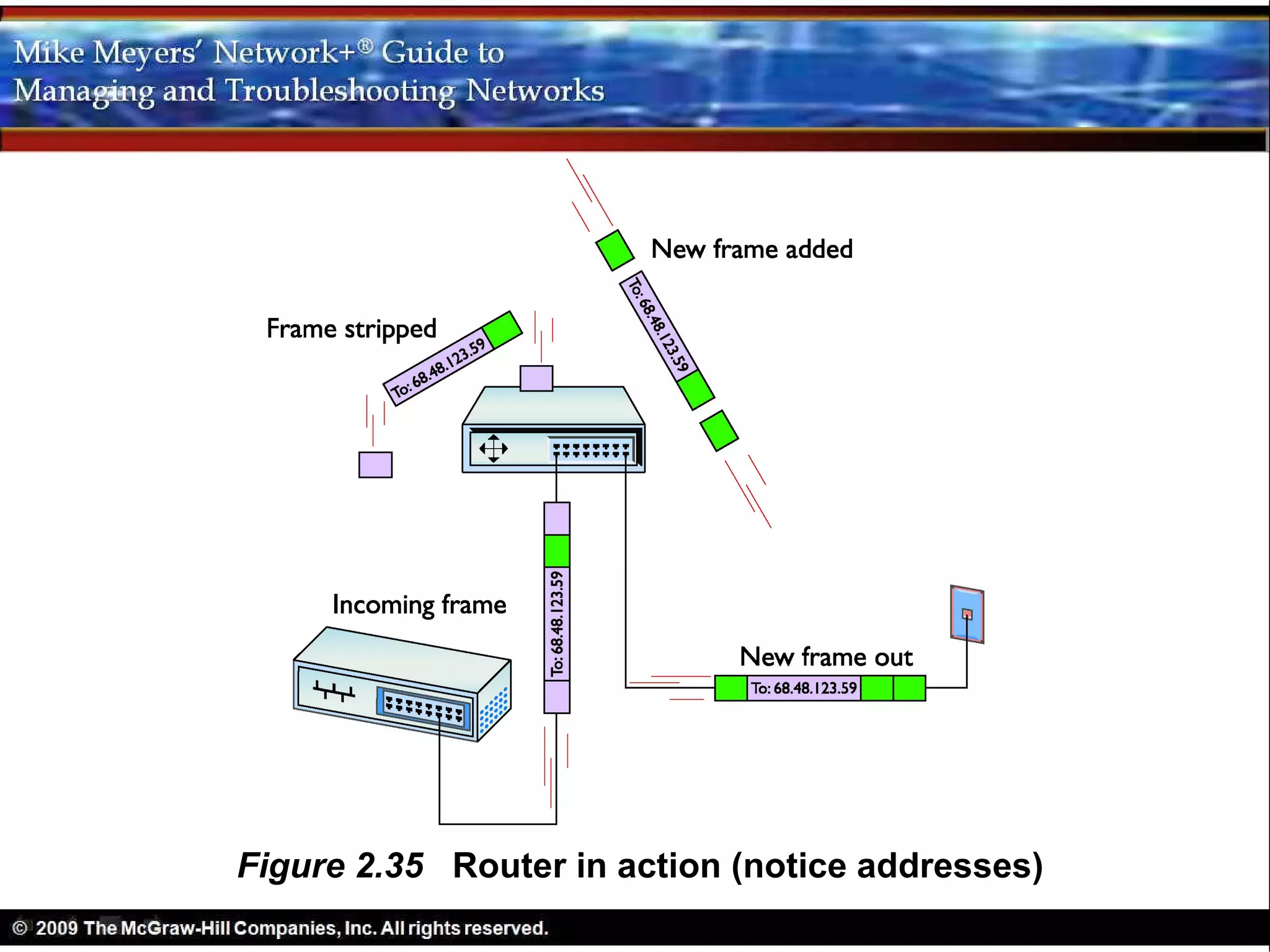

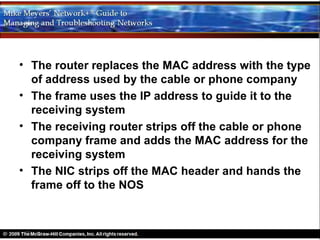

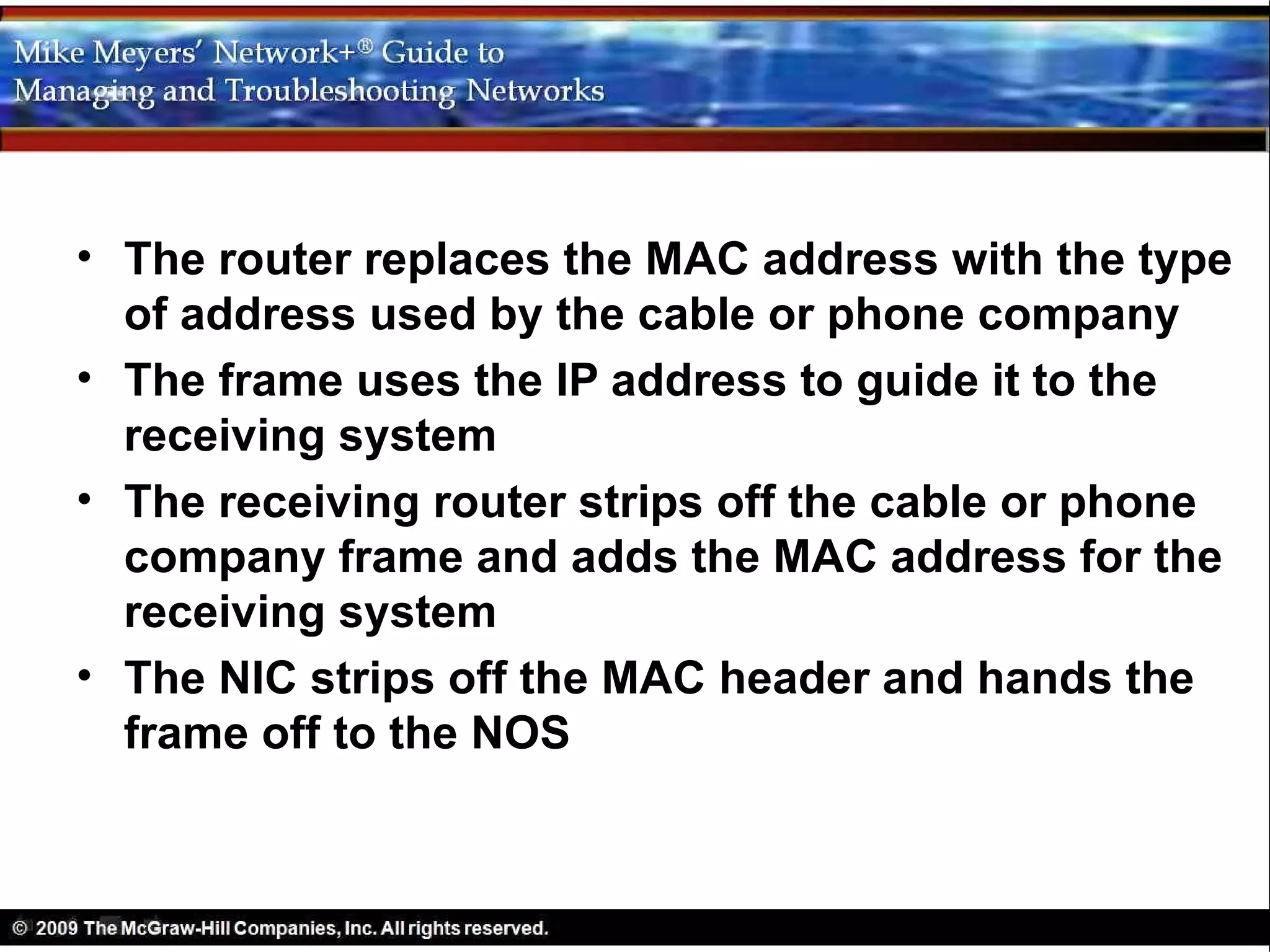

56. • The router replaces the MAC address with the type
of address used by the cable or phone company
• The frame uses the IP address to guide it to the
receiving system
• The receiving router strips off the cable or phone
company frame and adds the MAC address for the
receiving system
• The NIC strips off the MAC header and hands the
frame off to the NOS

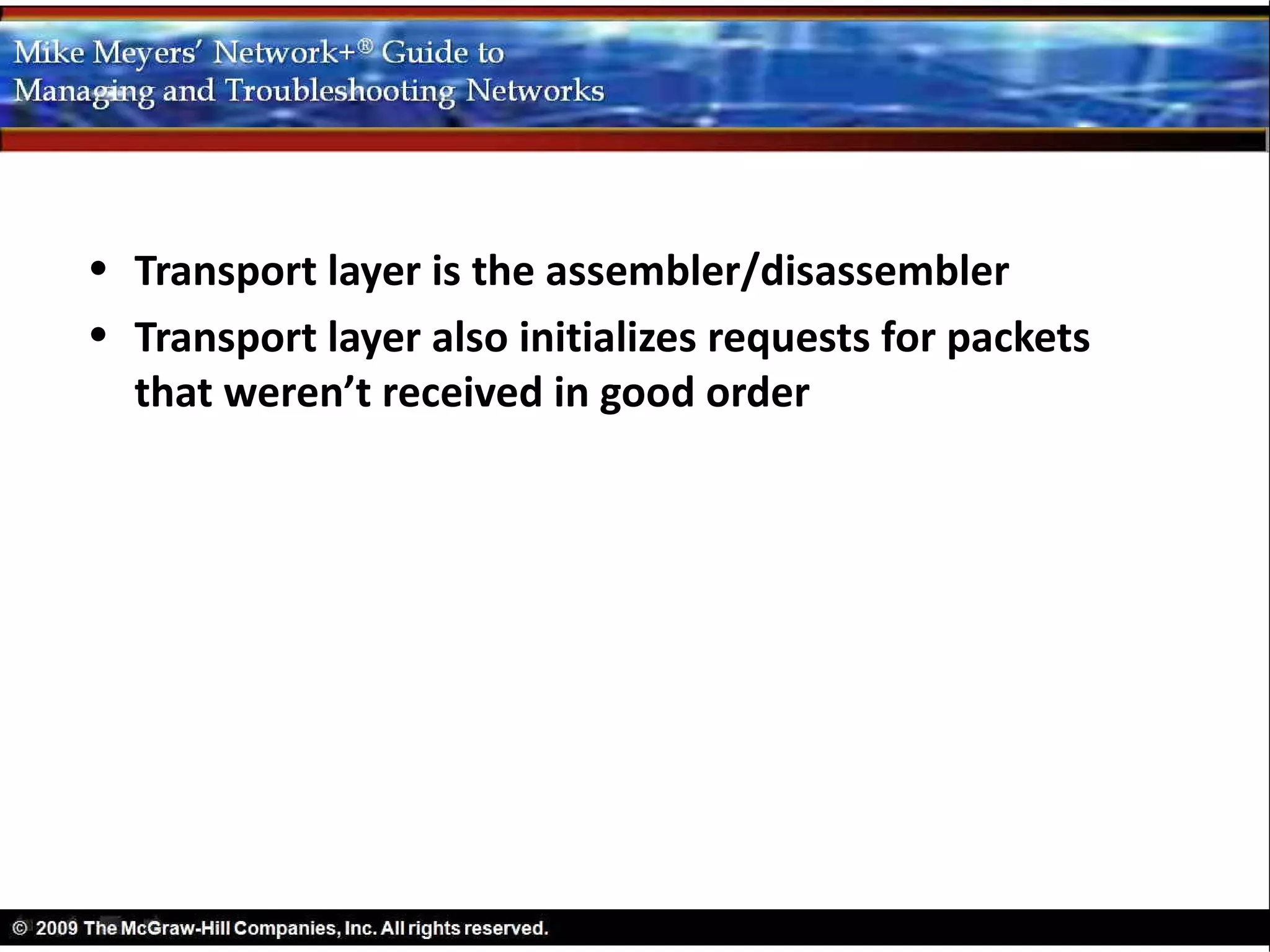

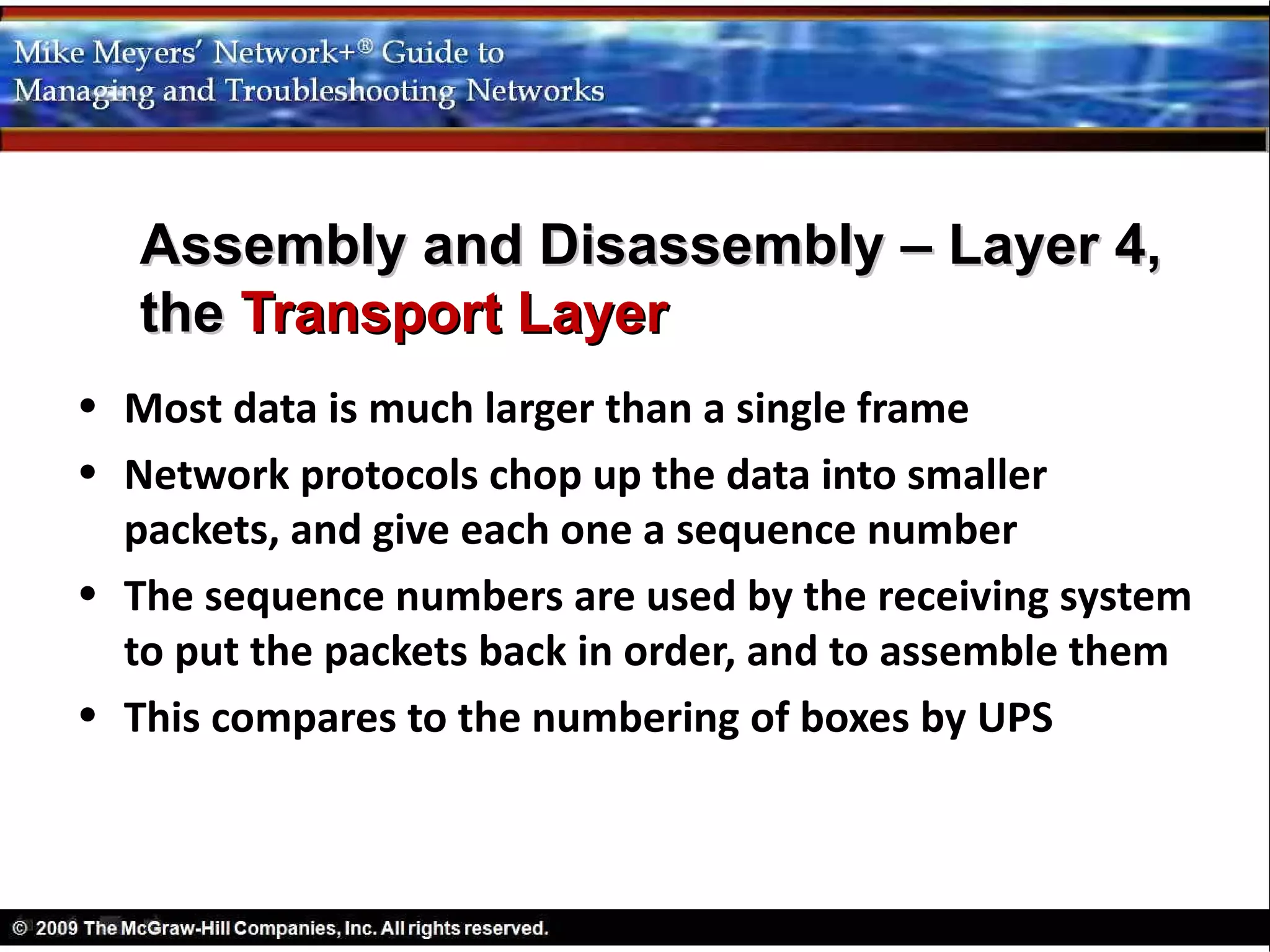

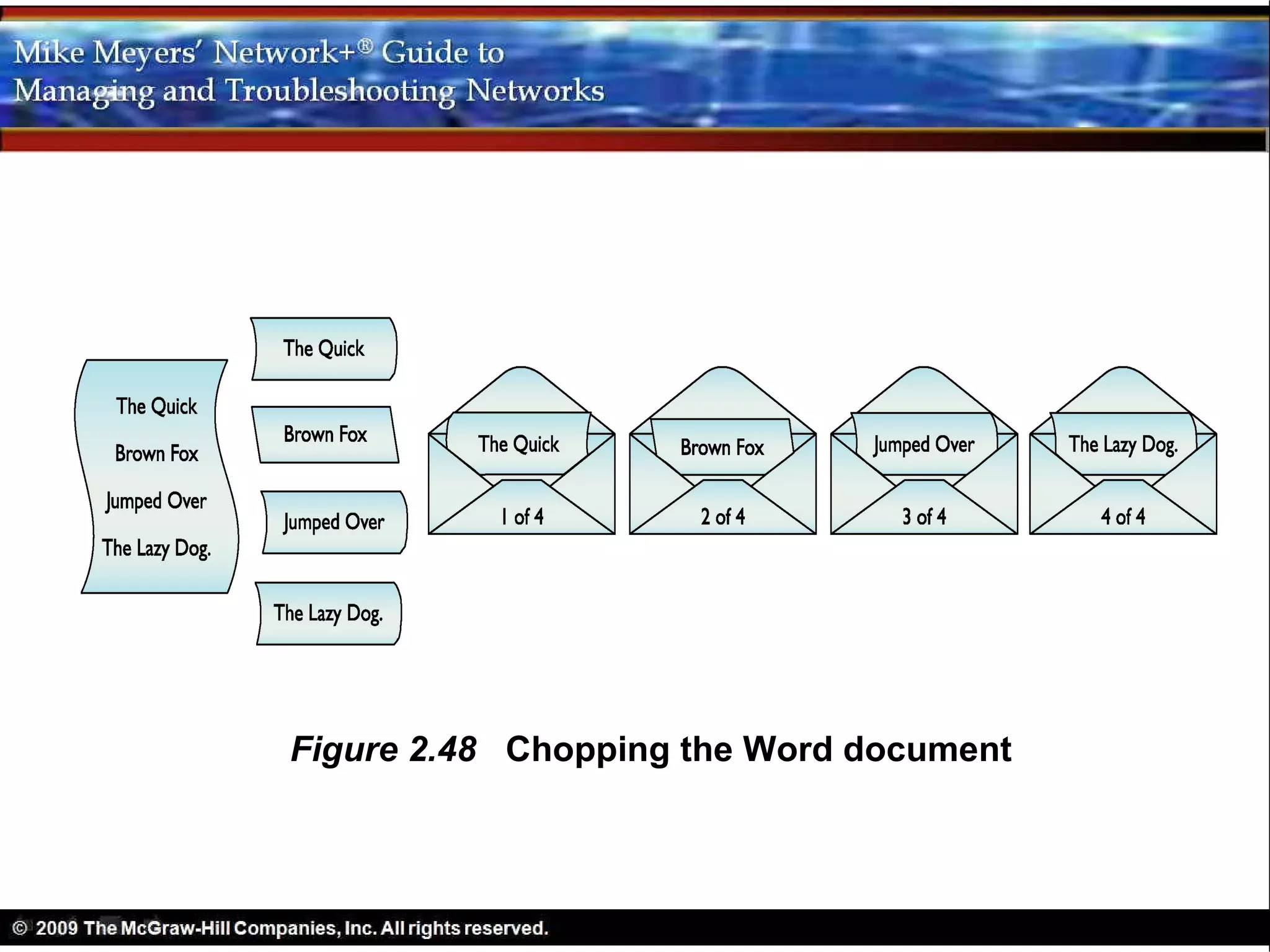

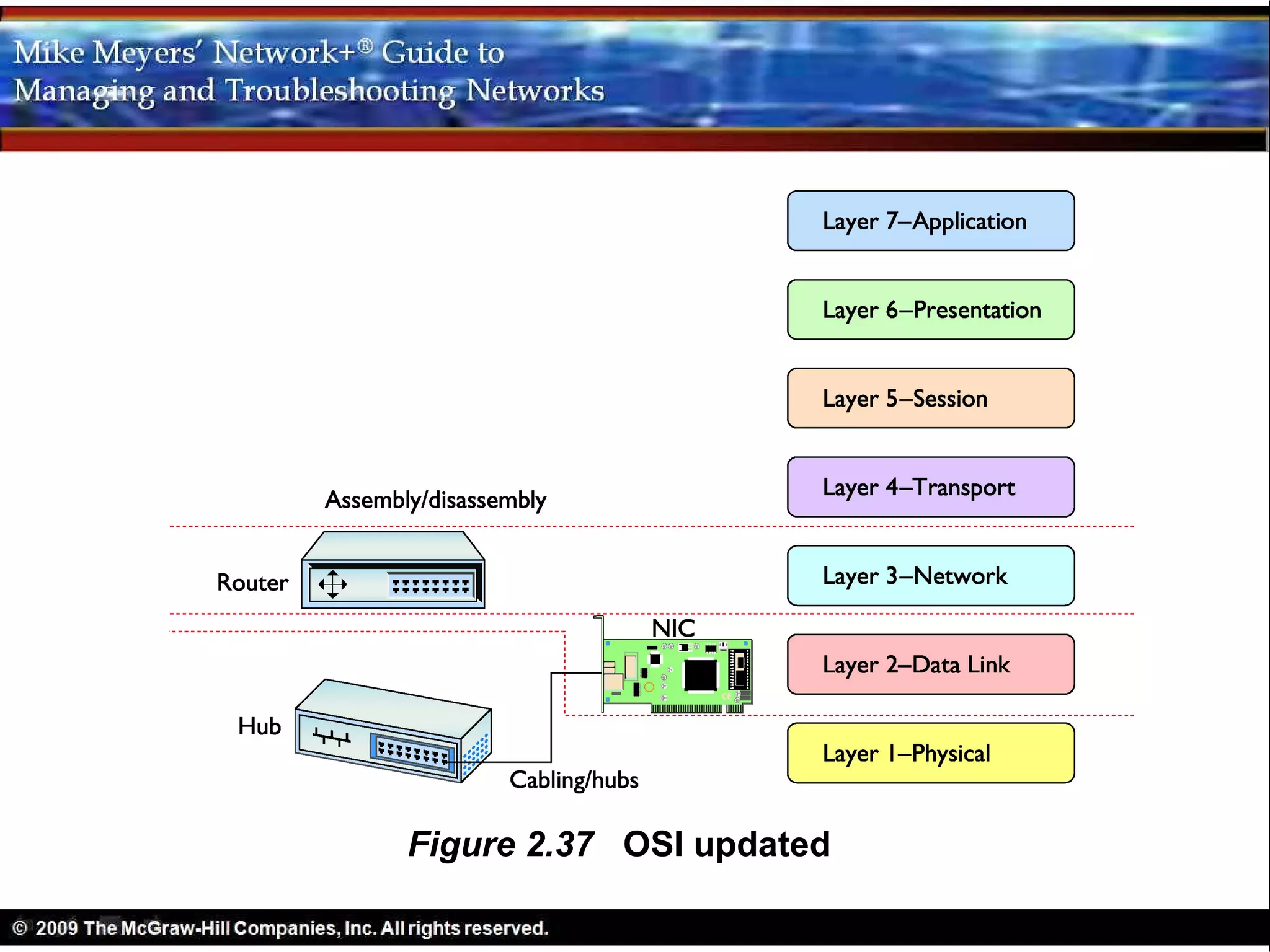

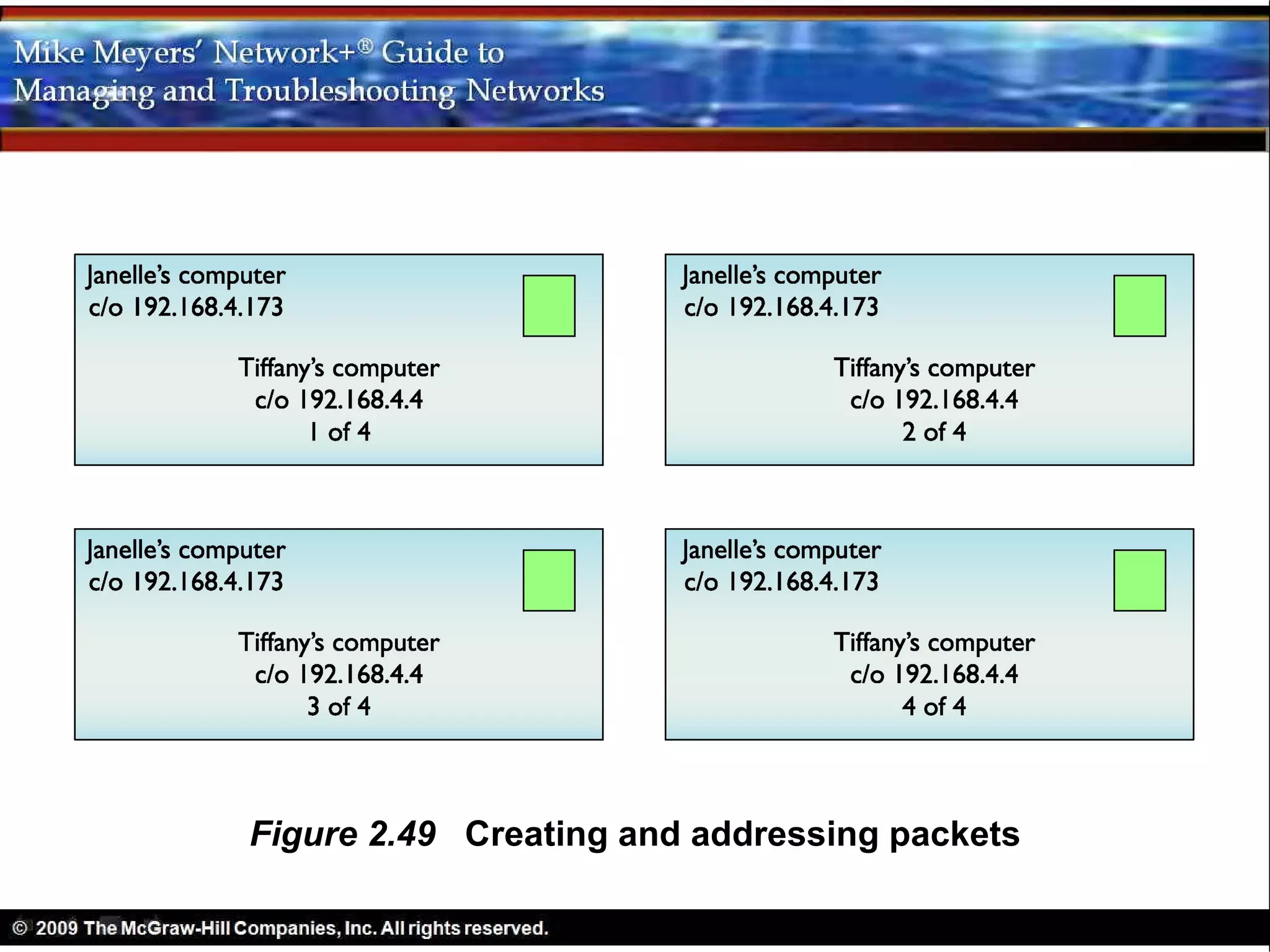

57. Assembly and Disassembly – Layer 4,
the Transport Layer
• Most data is much larger than a single frame
• Network protocols chop up the data into smaller
packets, and give each one a sequence number
• The sequence numbers are used by the receiving system
to put the packets back in order, and to assemble them
• This compares to the numbering of boxes by UPS

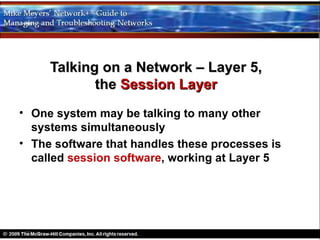

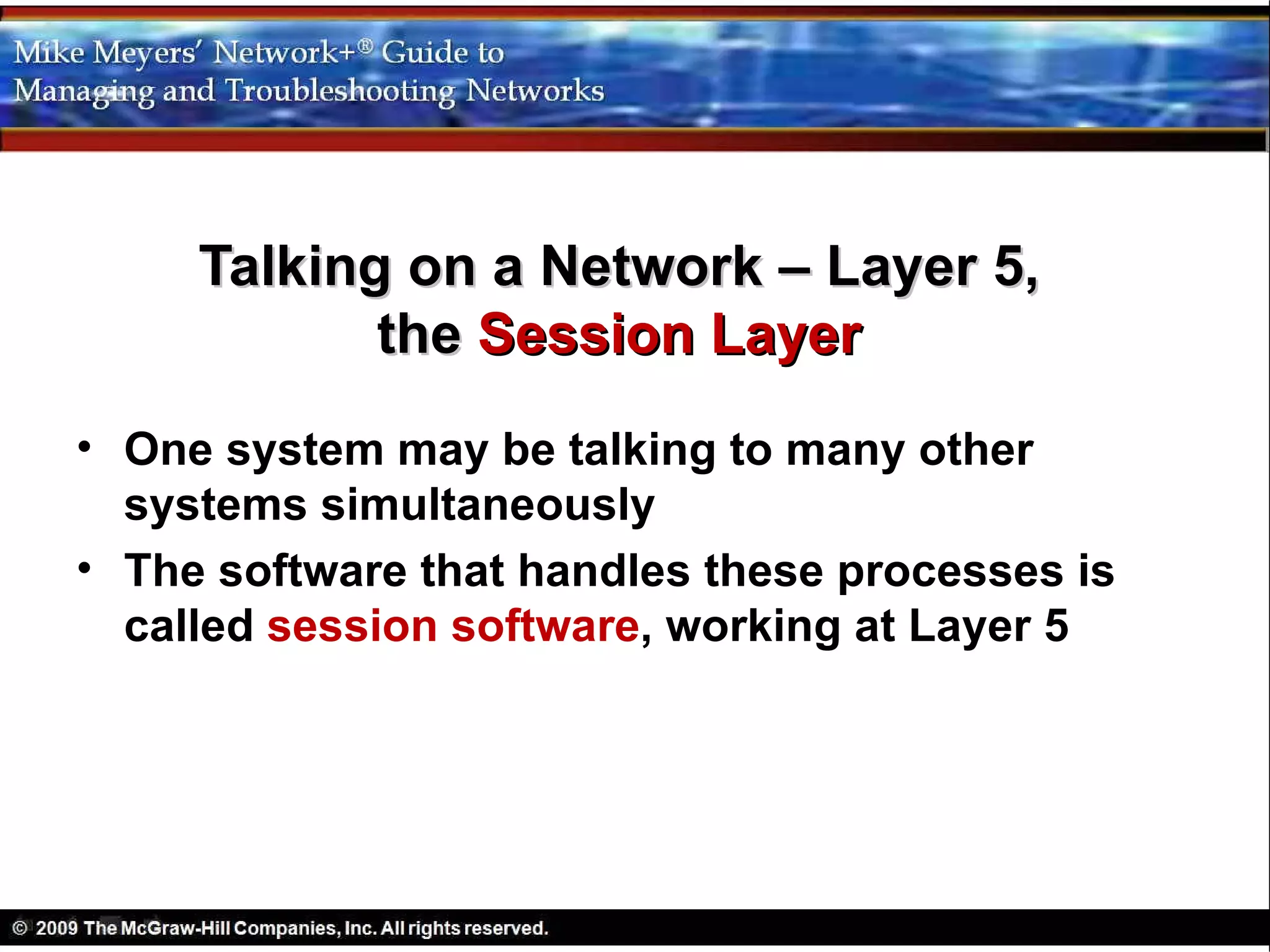

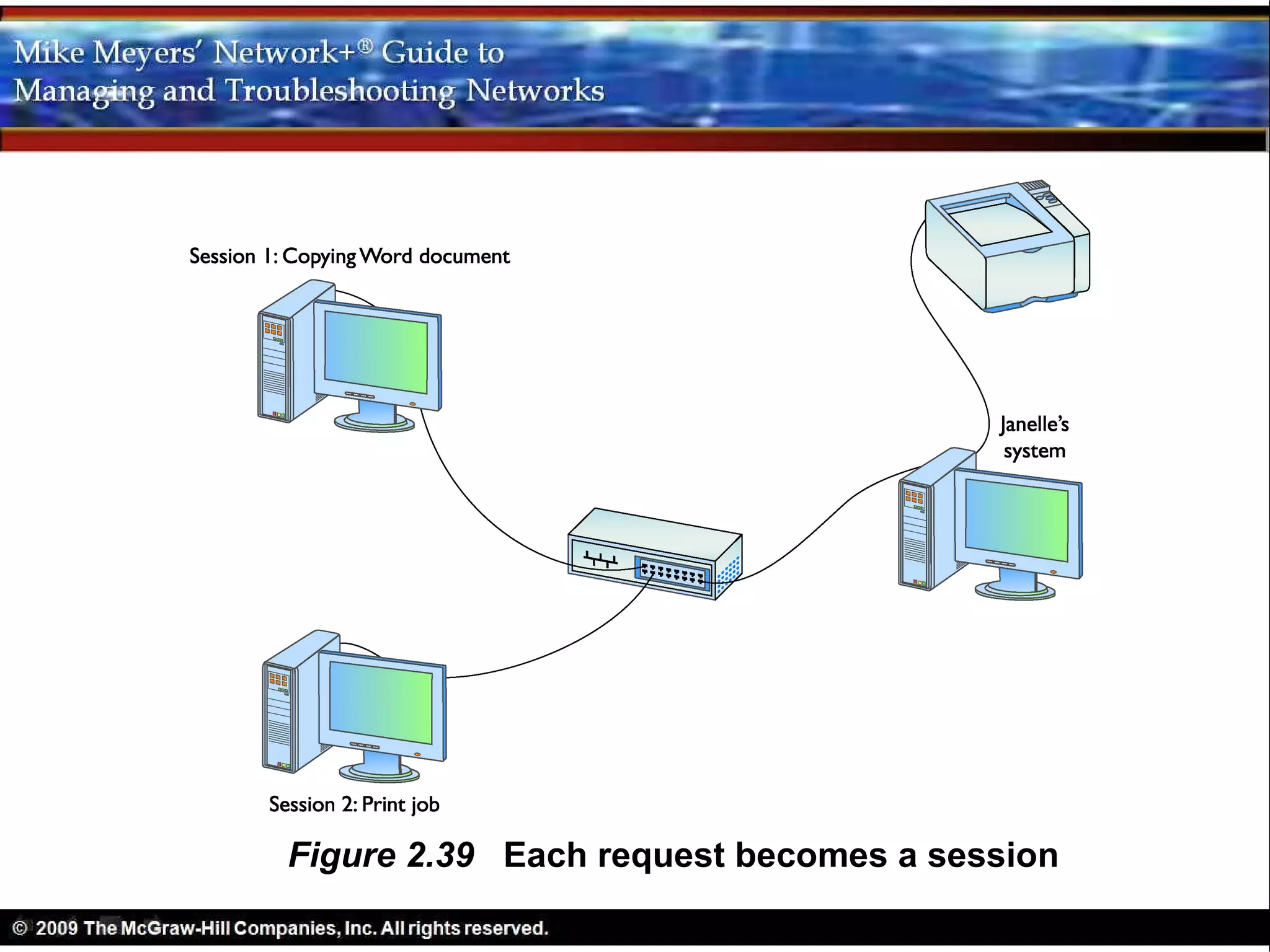

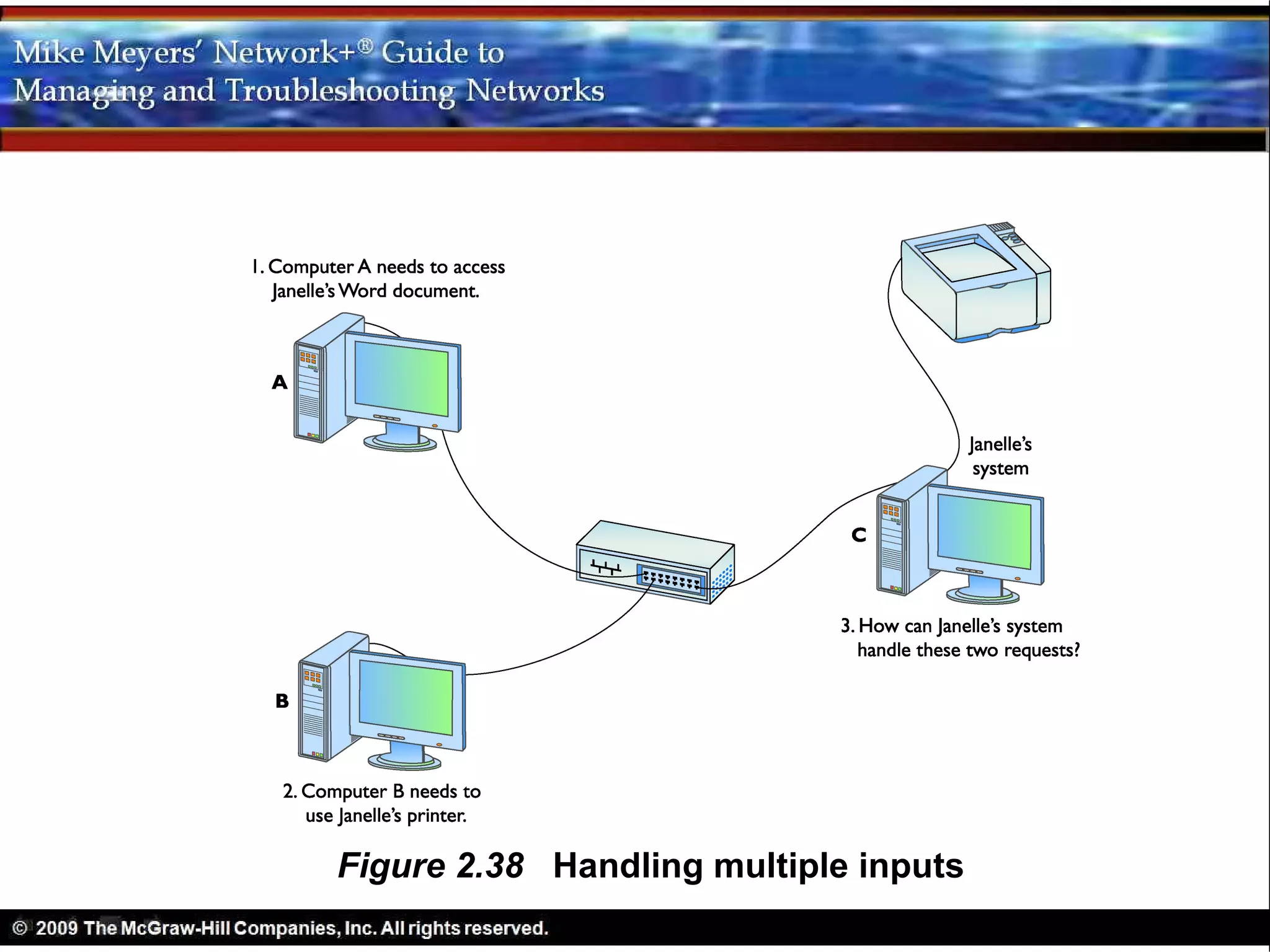

61. Talking on a Network – Layer 5,
the Session Layer
• One system may be talking to many other
systems simultaneously
• The software that handles these processes is
called session software, working at Layer 5

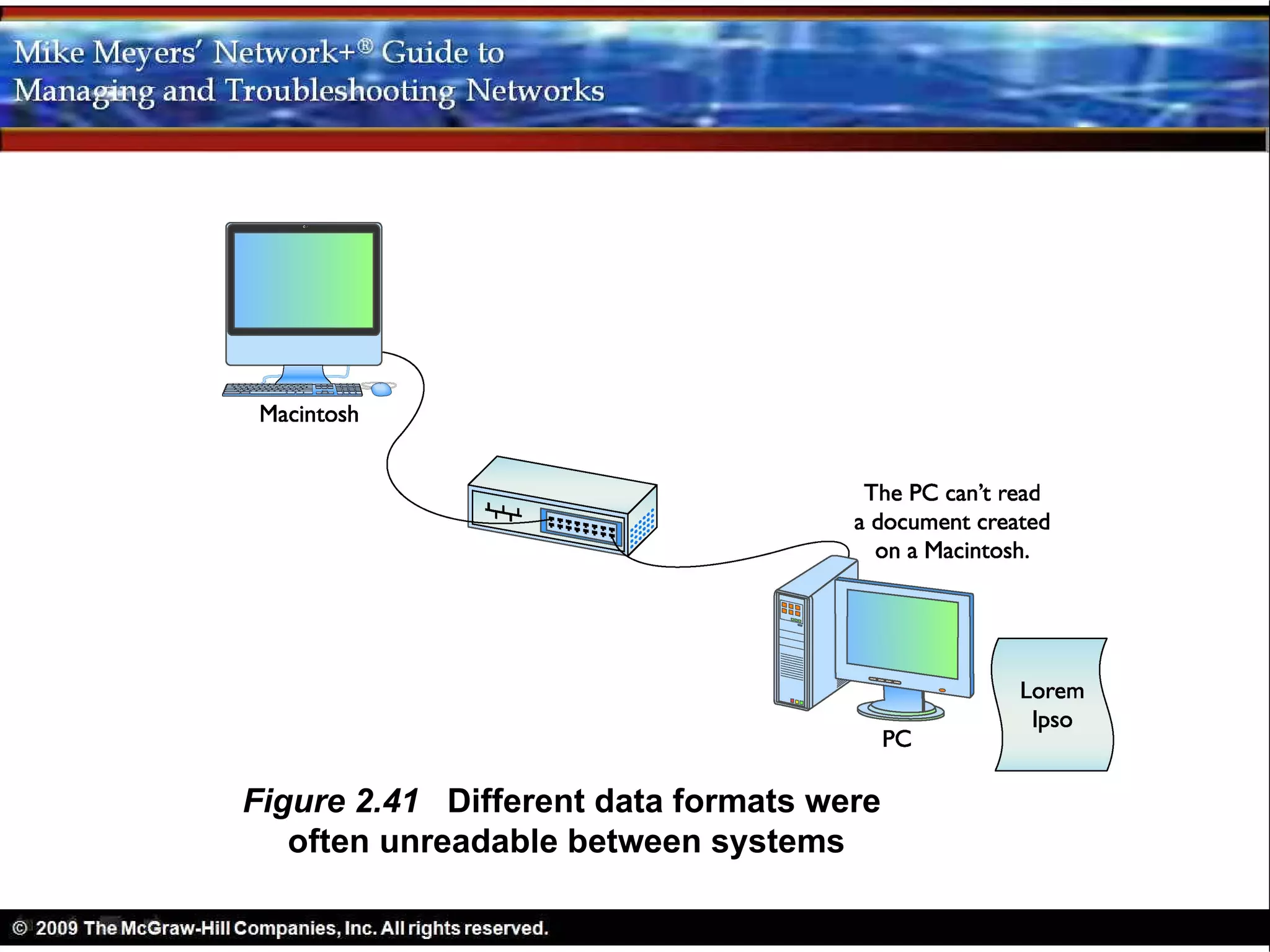

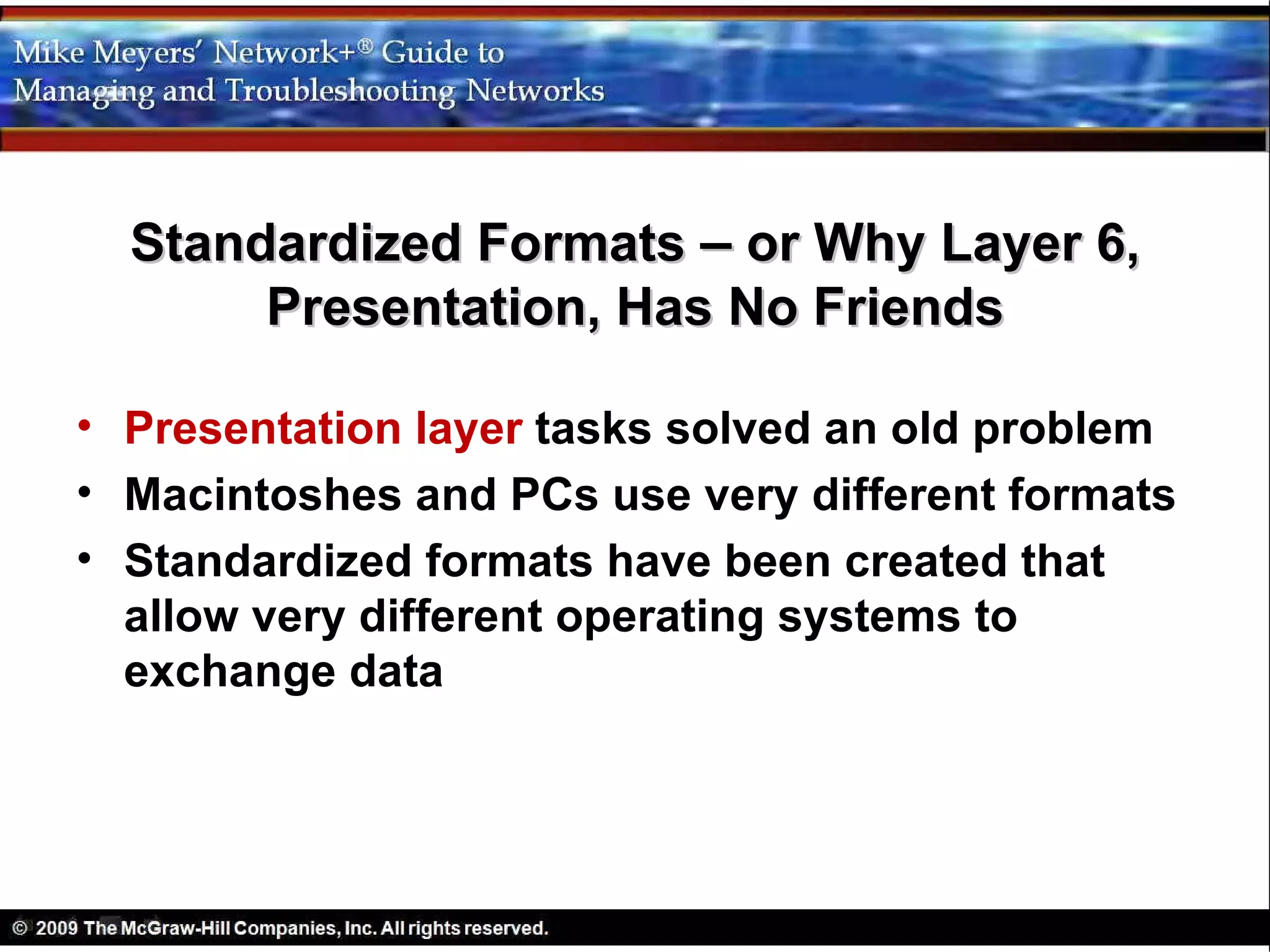

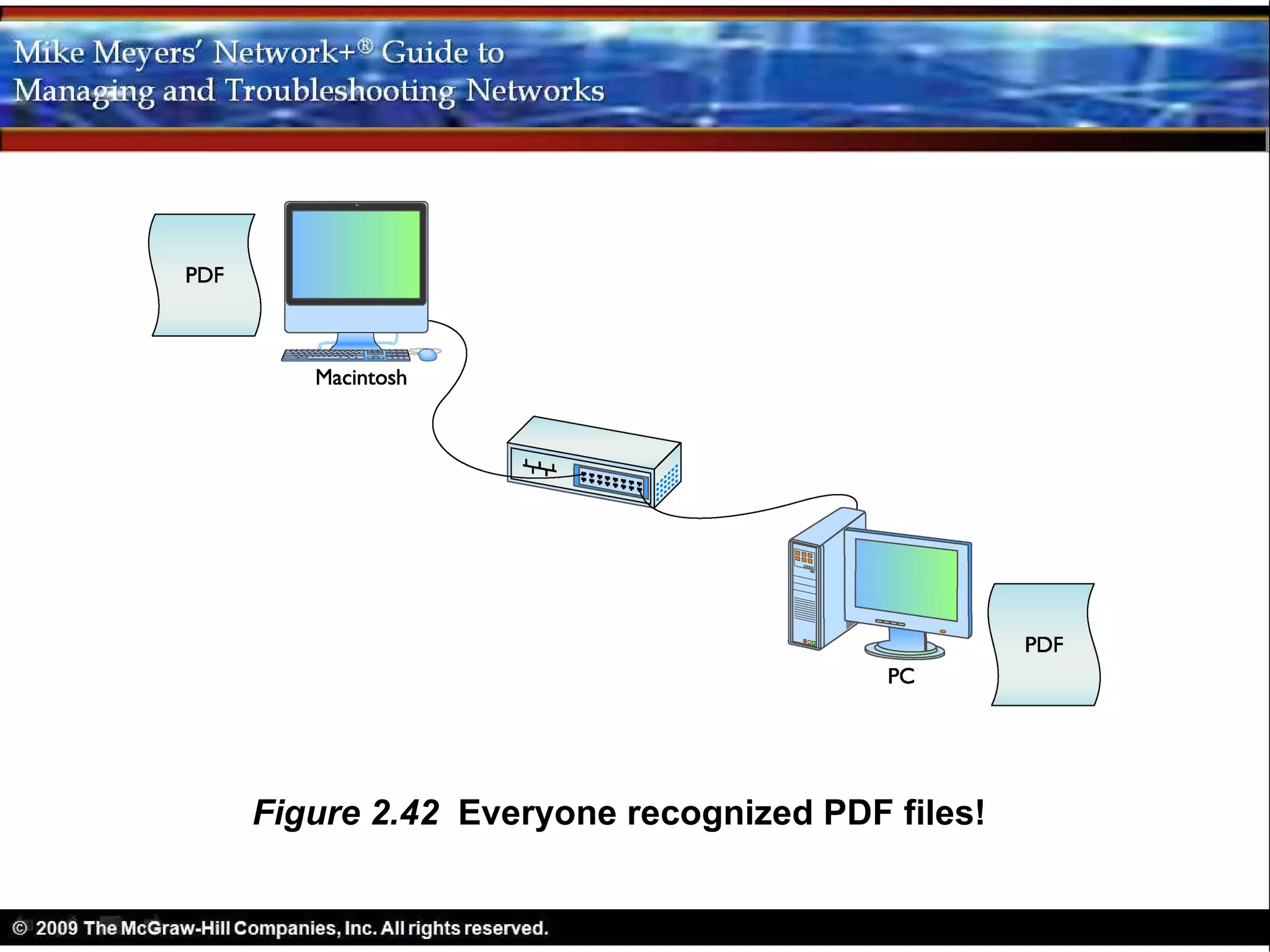

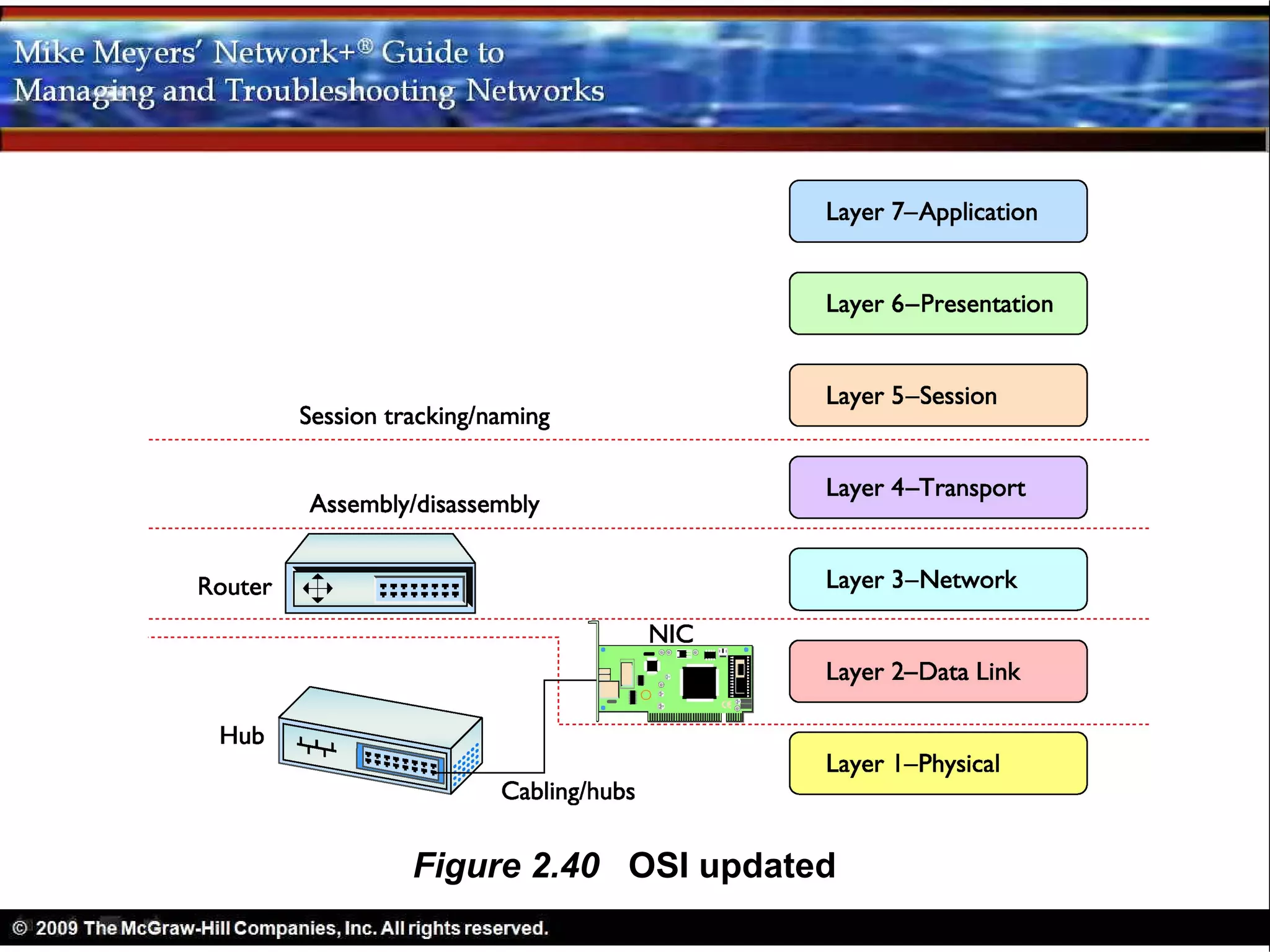

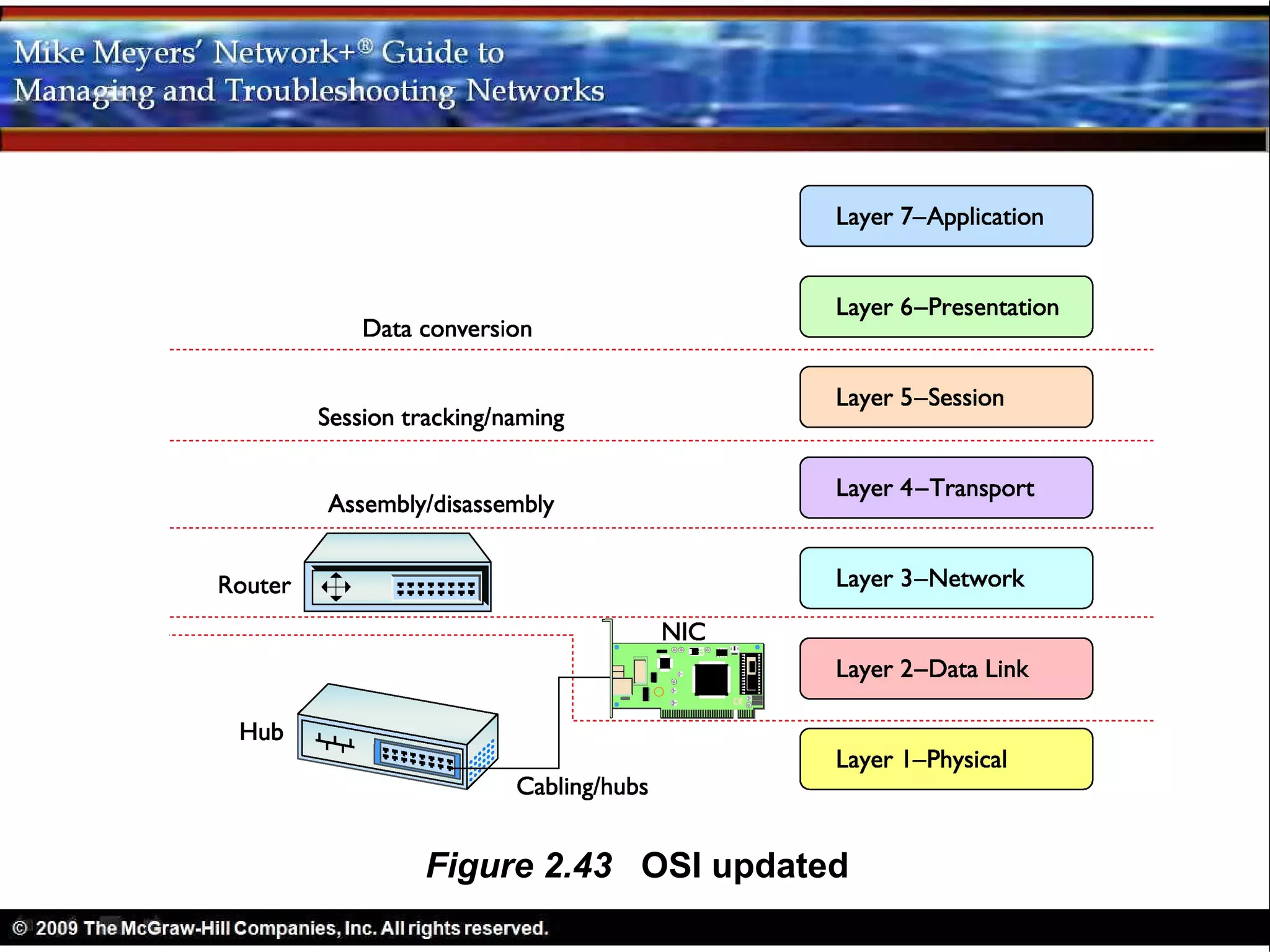

65. Standardized Formats – or Why Layer 6,
Presentation, Has No Friends
• Presentation layer tasks solved an old problem
• Macintoshes and PCs use very different formats
• Standardized formats have been created that
allow very different operating systems to
exchange data

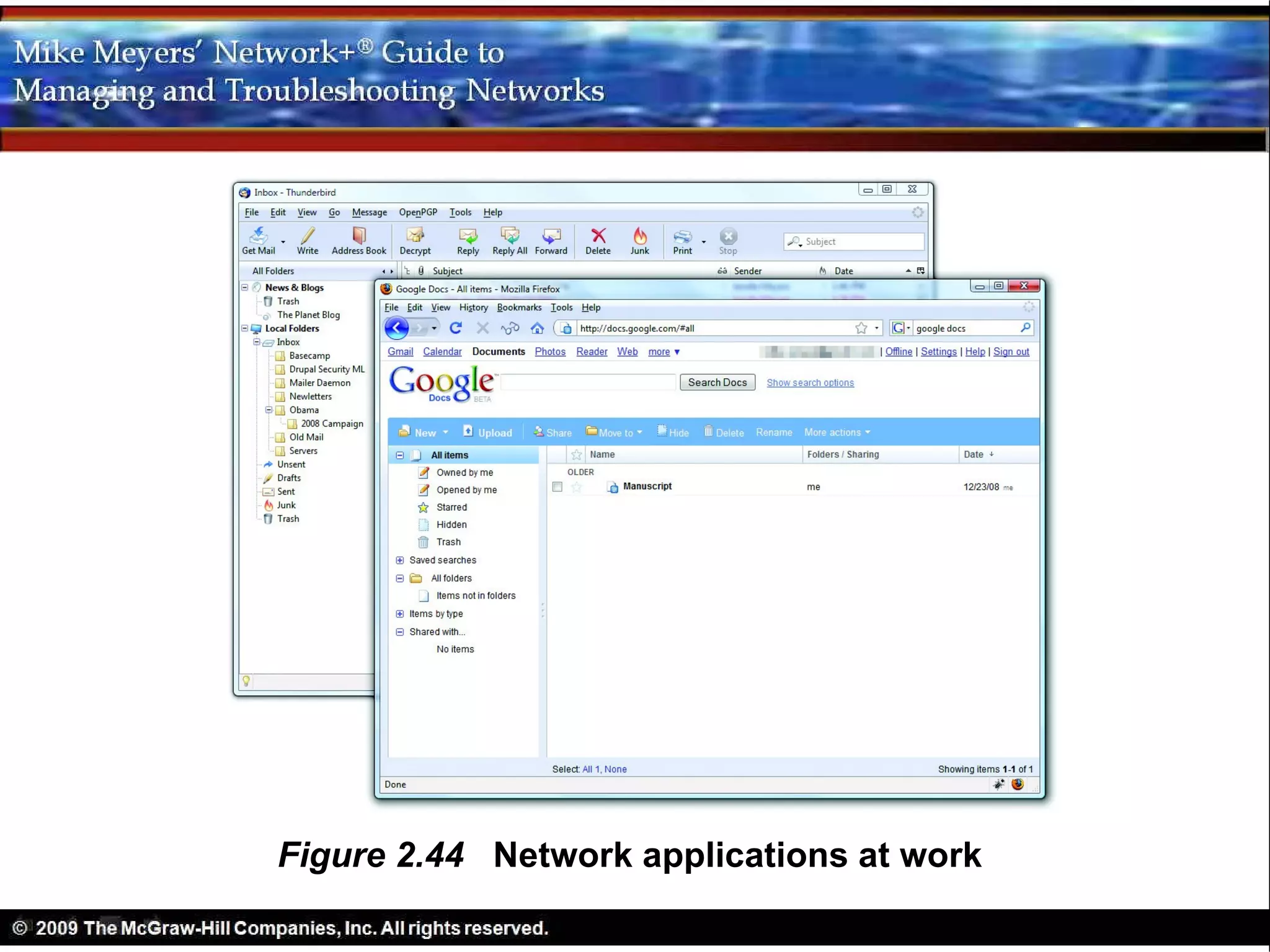

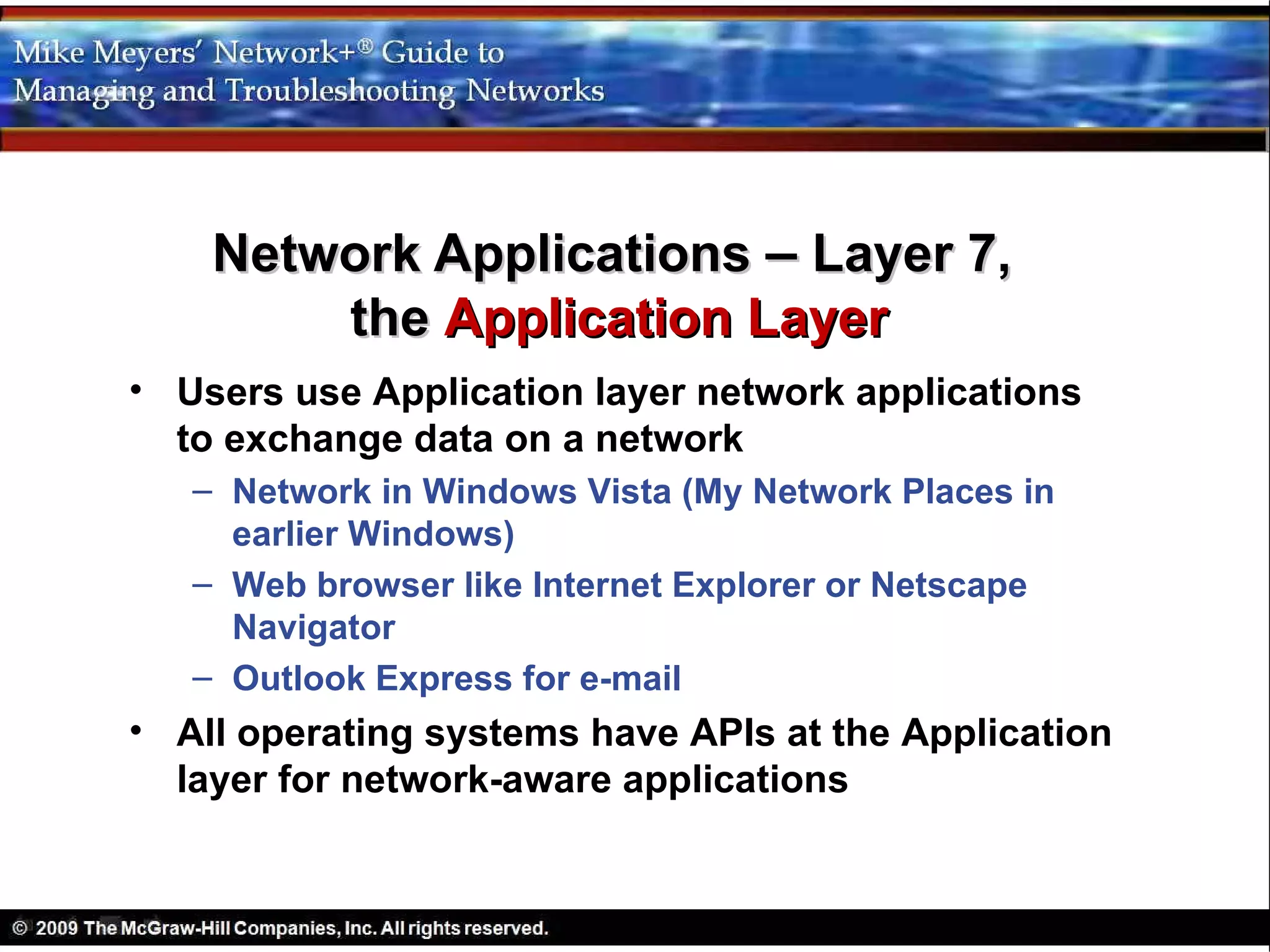

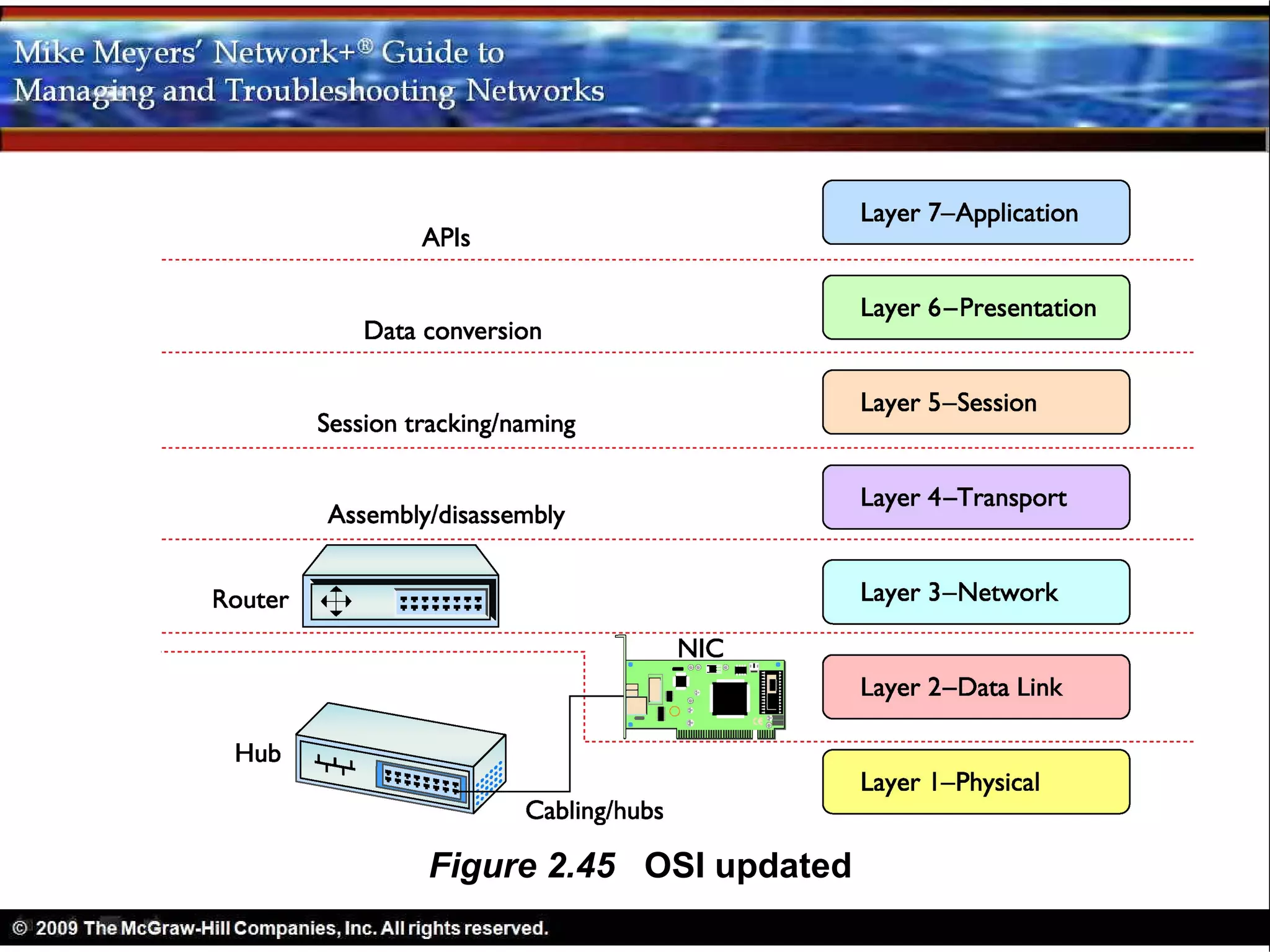

69. Network Applications – Layer 7,
the Application Layer
• Users use Application layer network applications
to exchange data on a network

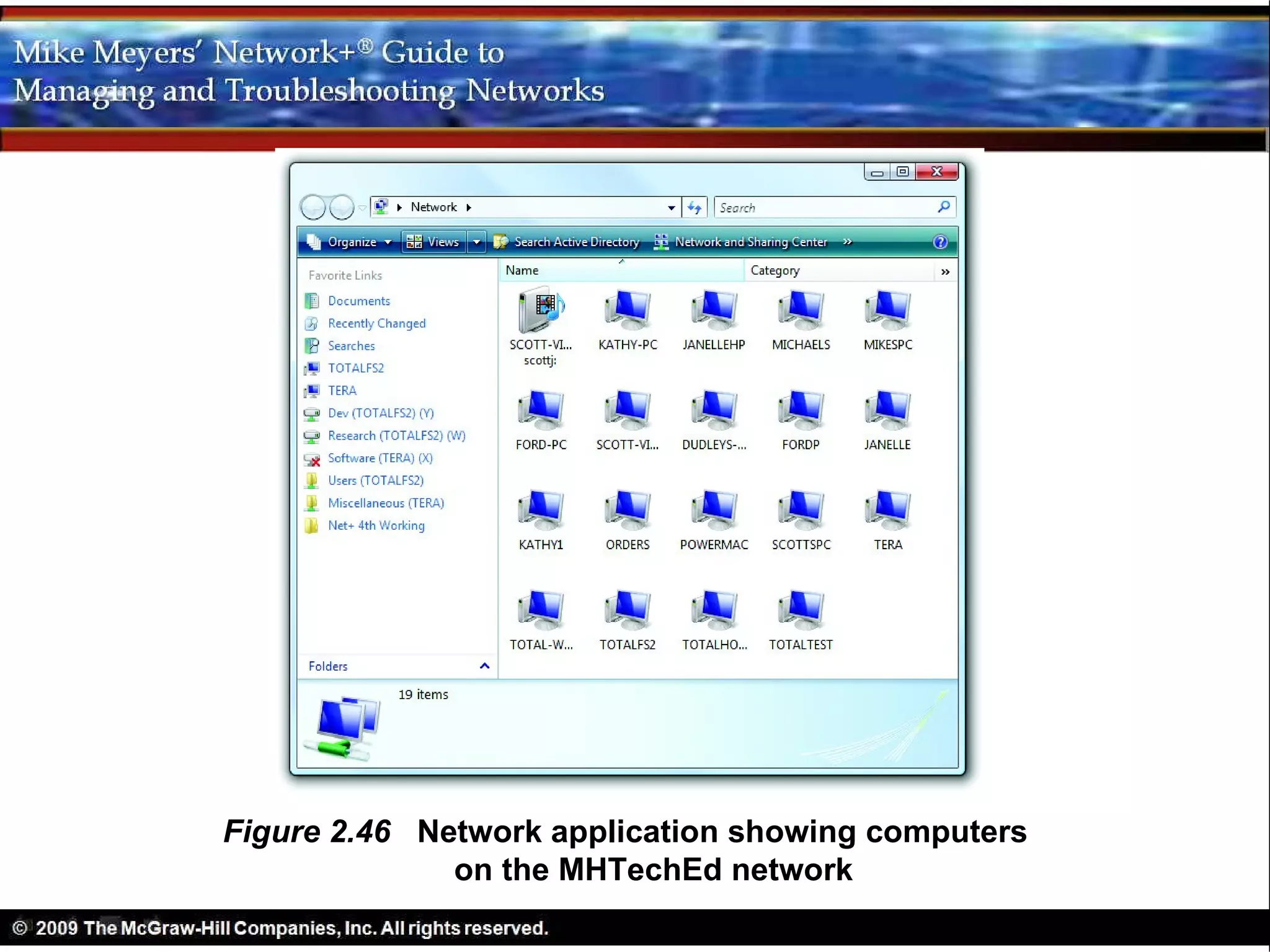

– Network in Windows Vista (My Network Places in
earlier Windows)
– Web browser like Internet Explorer or Netscape
Navigator
– Outlook Express for e-mail
• All operating systems have APIs at the Application
layer for network-aware applications

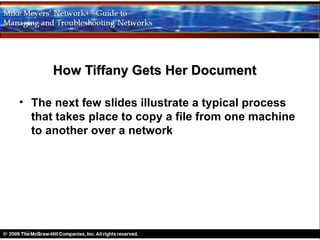

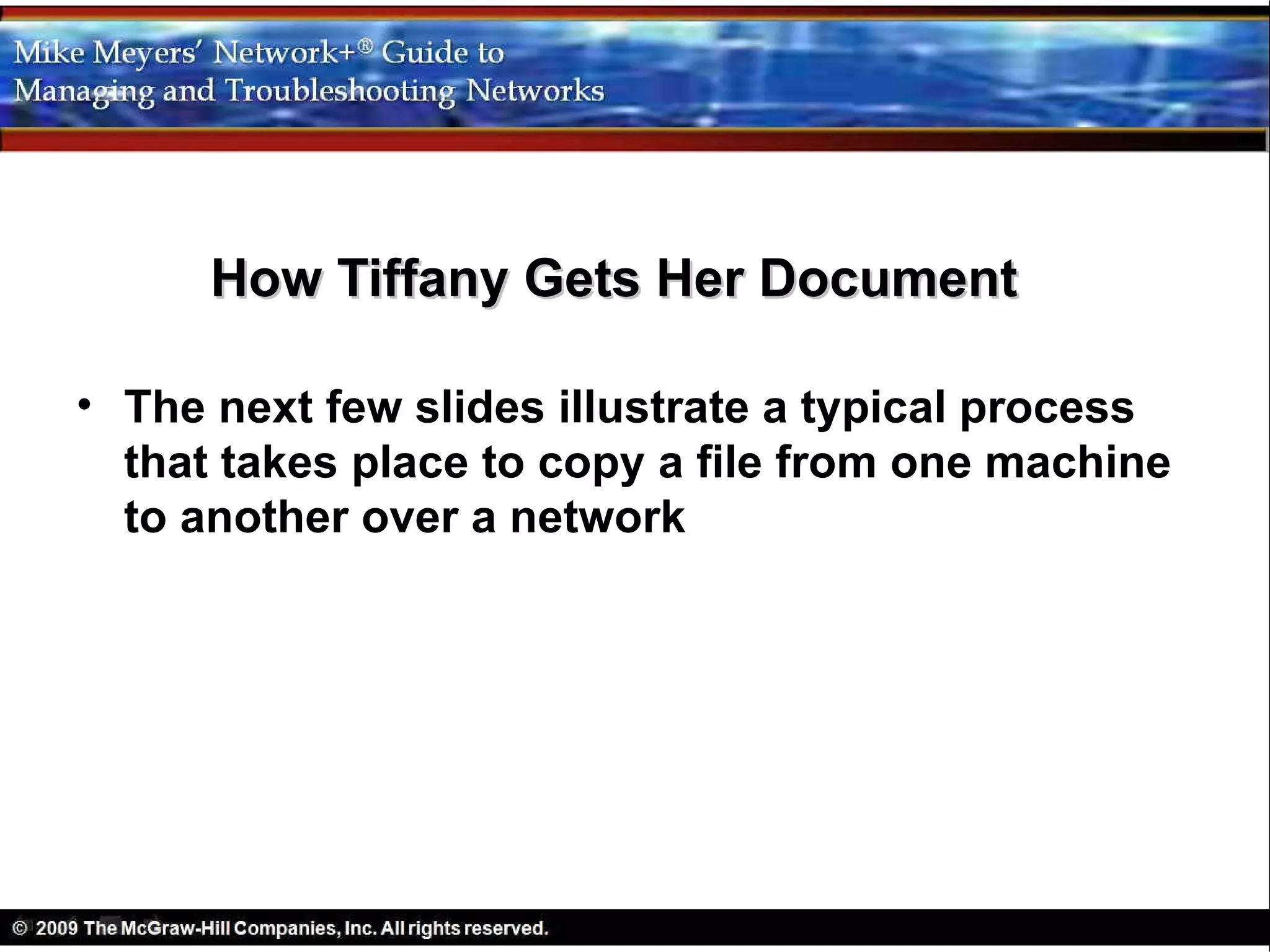

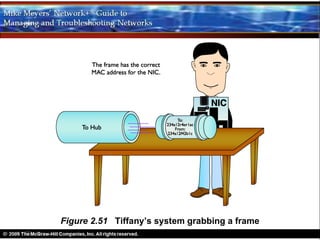

72. How Tiffany Gets Her Document
• The next few slides illustrate a typical process
that takes place to copy a file from one machine
to another over a network

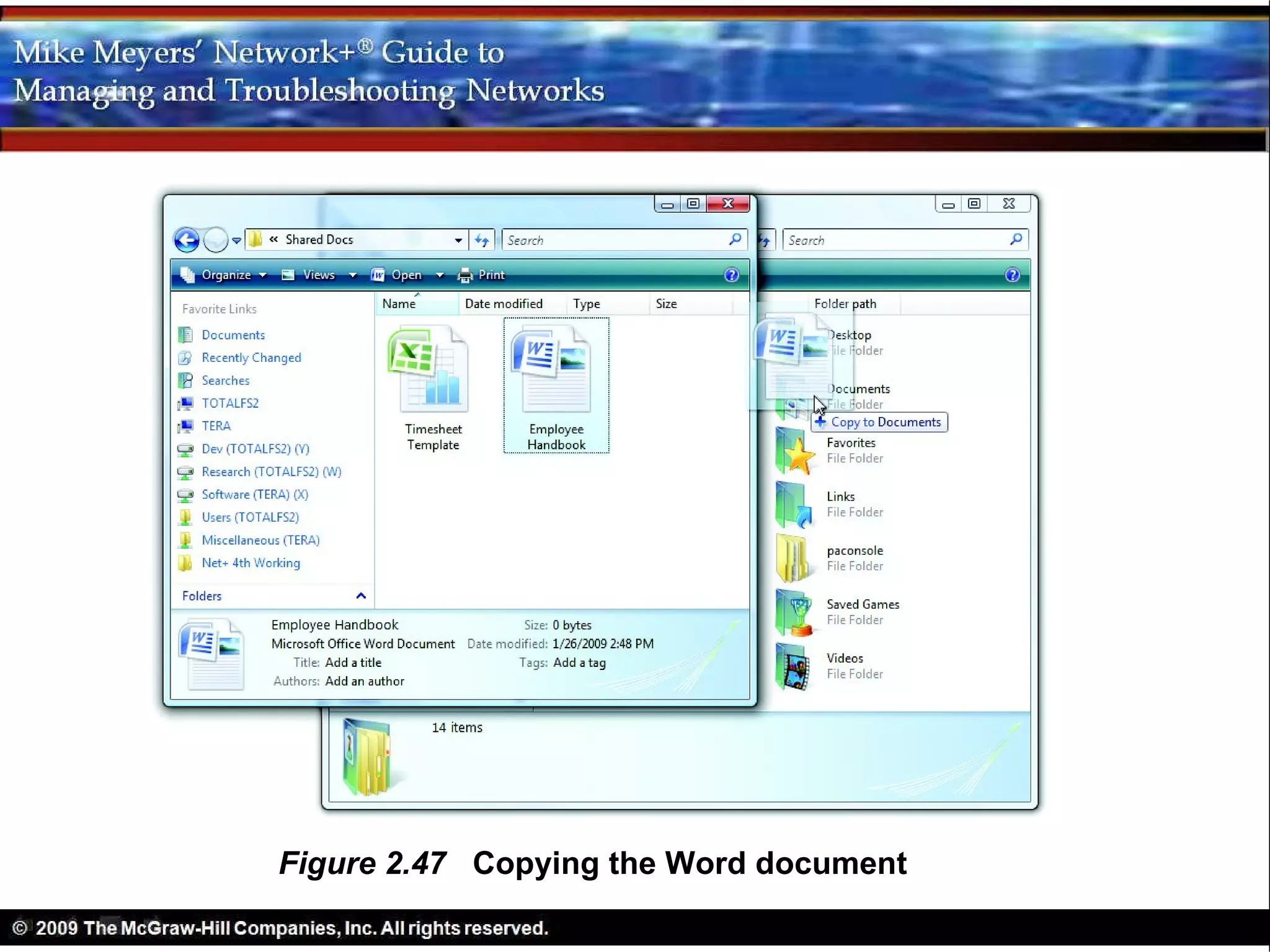

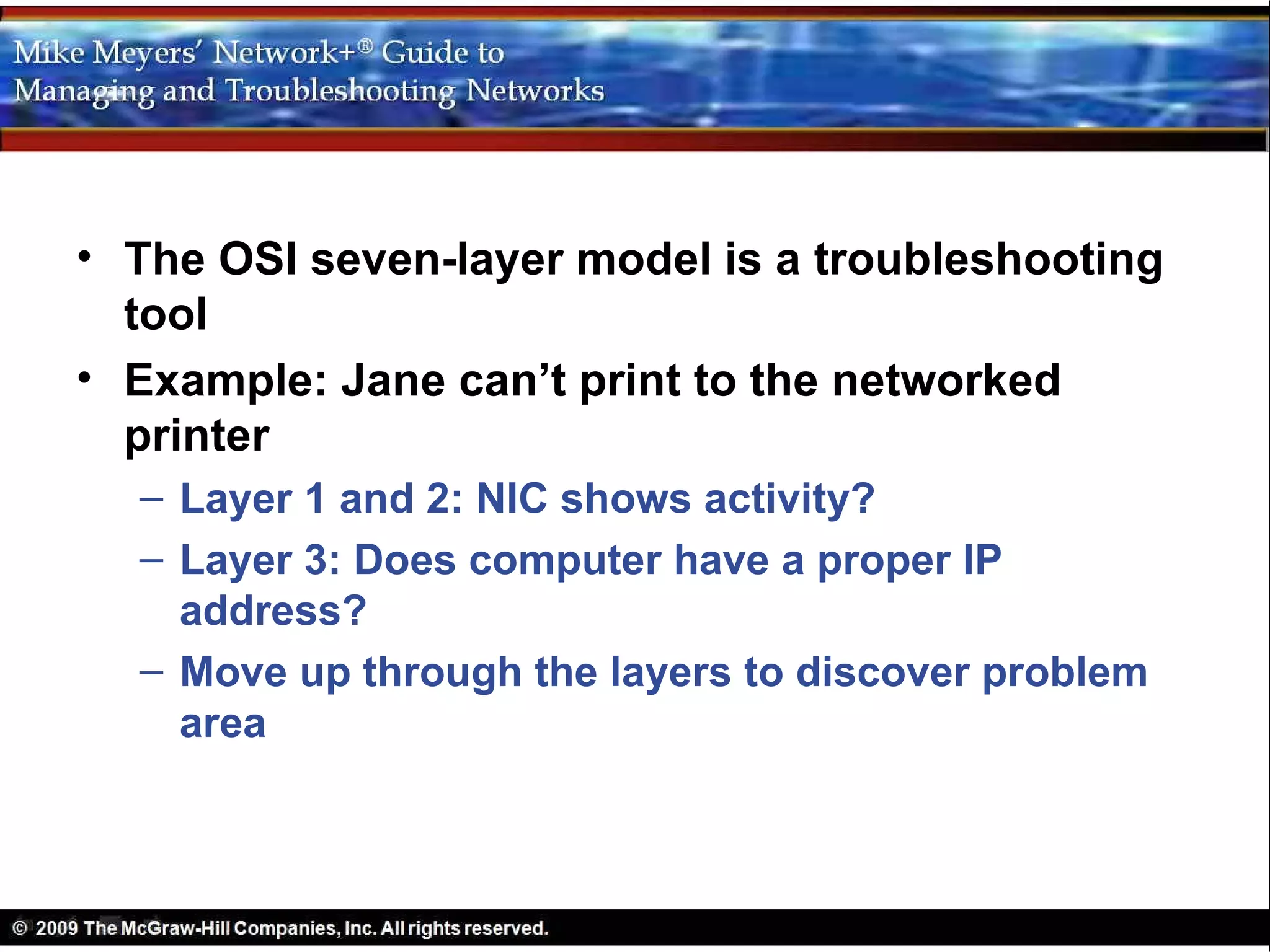

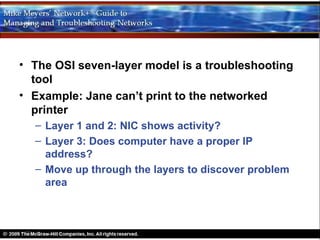

79. • The OSI seven-layer model is a troubleshooting
tool
• Example: Jane can’t print to the networked
printer
– Layer 1 and 2: NIC shows activity?
– Layer 3: Does computer have a proper IP
address?
– Move up through the layers to discover problem
area
Editor's Notes
Teaching Tip Before moving on, point out the Cross Check on Page 9, which asks the students to check their knowledge about information in Chapter 1 on Cisco. It asks, What does Cisco say about CompTIA Network+ certification? Where would you go to get more details?
Note on page 10: ISO may look like a mispelled acronym, but it’s actually a word, derived from the Greek word isos , which means equal.
Tip on Page 11: Be sure to memorize both the name and the number of each OSI layer. Network techs use terms such as “Layer 4” and “Transport layer” synonymously. Students have long used mnemonics for memorizing such lists. One of my favorites for the OSI seven-layer model is Please Do Not Throw Sausage Pizza Away. Yum! Note on Page 11: Keep in mind that these layers are not laws of physics — anybody who wants to design a network can do it any way he or she wants. While many protocols fit nearly into one of the seven layers, others do not.
Note on bottom of Page 11: This section is a conceptual overview of the hardware and software functions of a network. Your network may have different hardware or software, but it will share the same functions!
Take time to point out the Try This! On page 15, giving each student time to determine the MAC address of a NIC using IPCONFIG/ALL.
Note on Page 15: A number of different frame types are used in different networks. All NICs on the same network must use the same frame type or they will not be able to communicate with other NICs.
Tech Tip (Page 16): CRC in Depth Most CRCs are only 4 bytes long, yet the average frame carries around 1500 bytes of data. How can 4 bytes tell you if all 1500 bytes in the data are correct? That’s the magic of CRCs. Without going into the grinding details, think of the CRC as just the remainder of a division problem. (Remember learning remainders from division back in elementary school?) The NIC sending the frame does a little math to make the CRC. Using binary arithmetic, it works a division problem on the data using a divisor called a key. This key is the same on all the NICs in your network —it’s built in at the factory. The result of this division is the CRC. When the frame gets to the receiving NIC, it divides the data by the same key. If the receiving NIC’s answer is the same as the CRC, it knows the data is good.
How does the destination device know that it is the intended destination device? On most networks today, an address called an IP address is used to identify the destination device. More on IP addresses later in this chapter, and again, later in the book (Chapters 7 through 11).

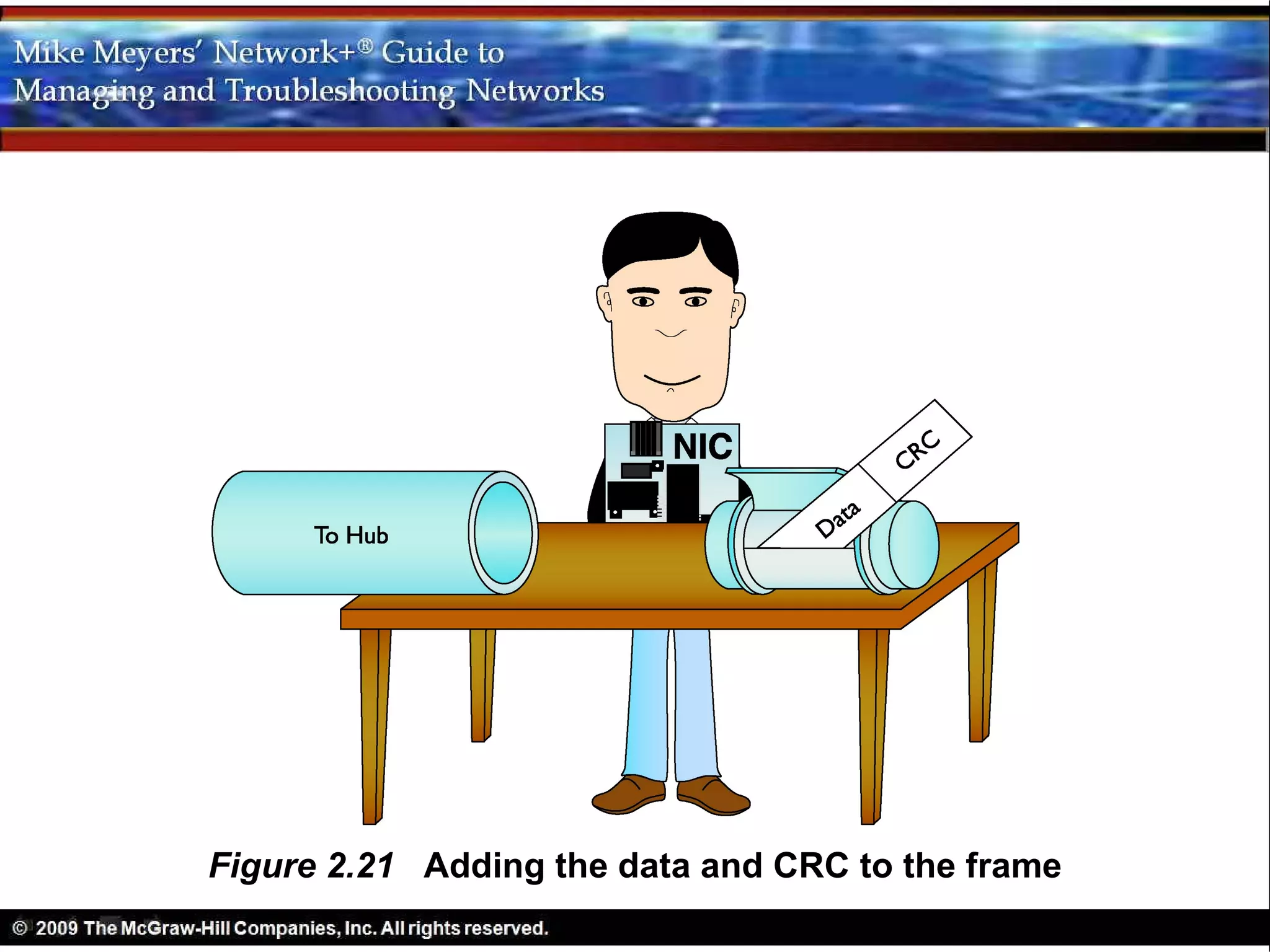

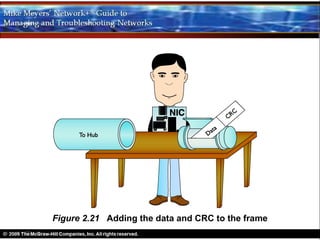

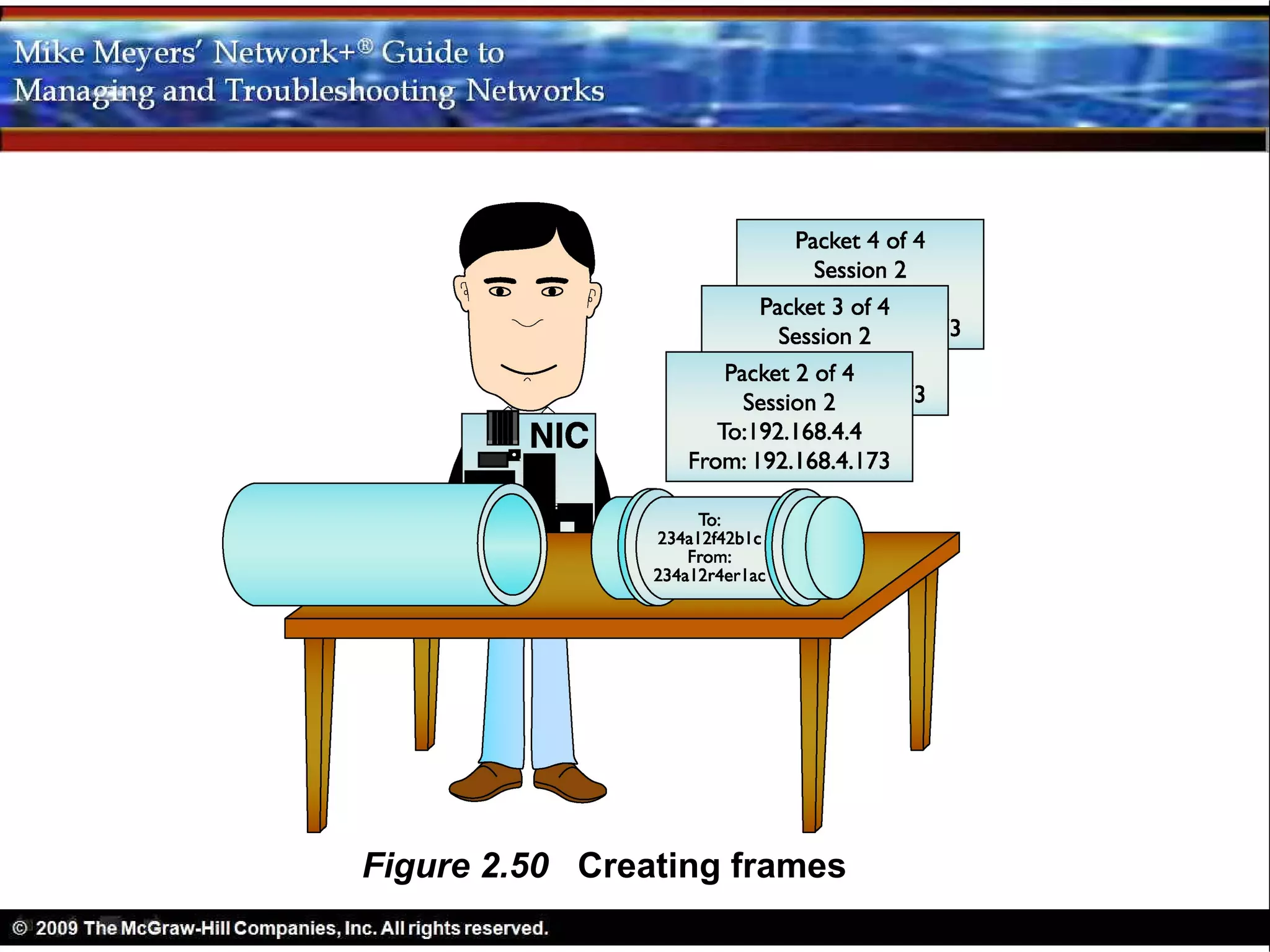

The sending system hands data to the NIC The NIC makes the frame
The NIC adds the CRC and data to the frame The NIC puts its MAC address and the destination’s MAC address in the frame

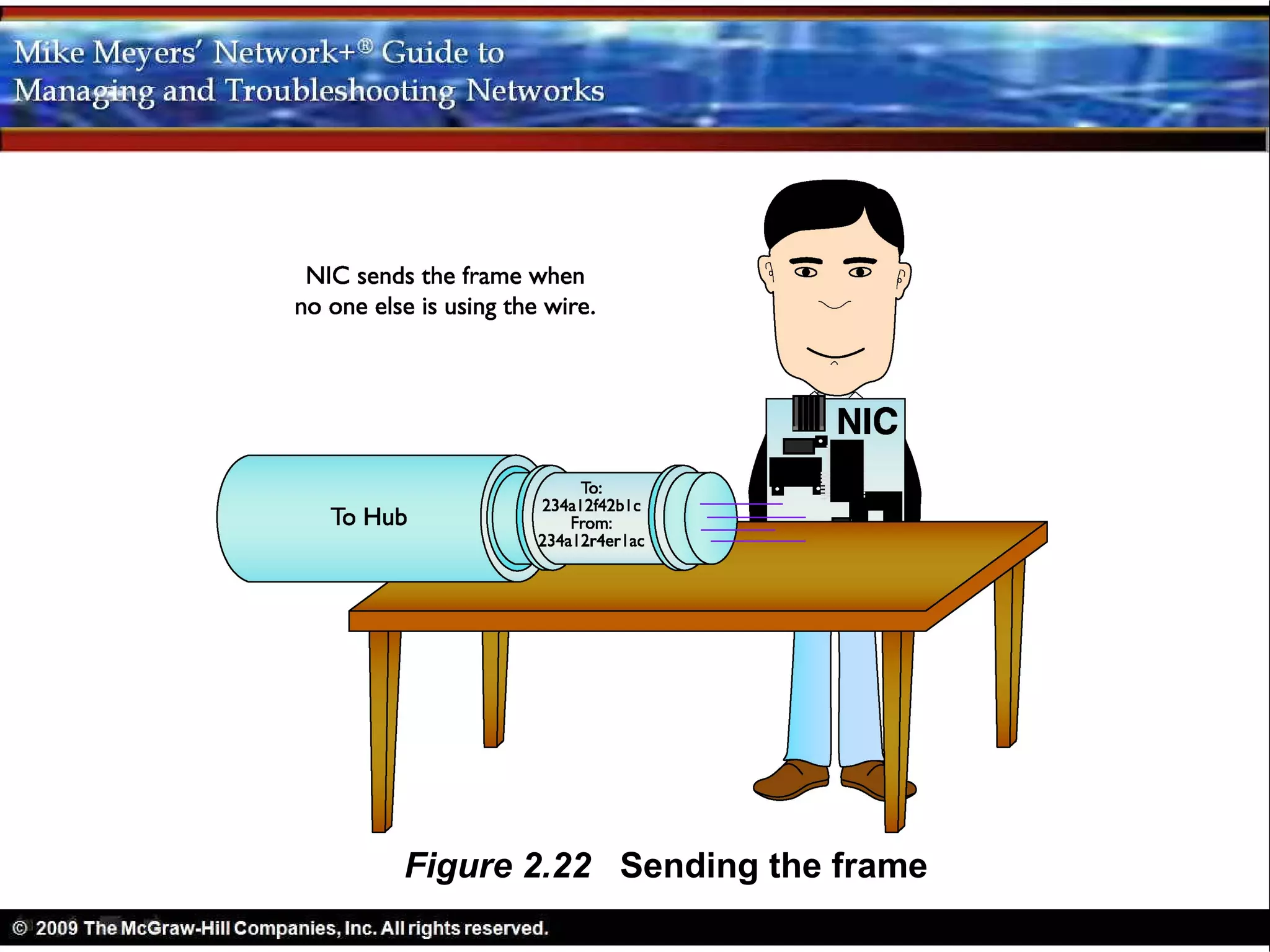

NIC sends the frame when no other NIC is using the cable
