1. The impact of Smart Devices
on the Liquid Network
Josef Lorenz
Head of Technology, West Europe
Montpellier, Nov. 16th, 2011
1 © Nokia Siemens Networks

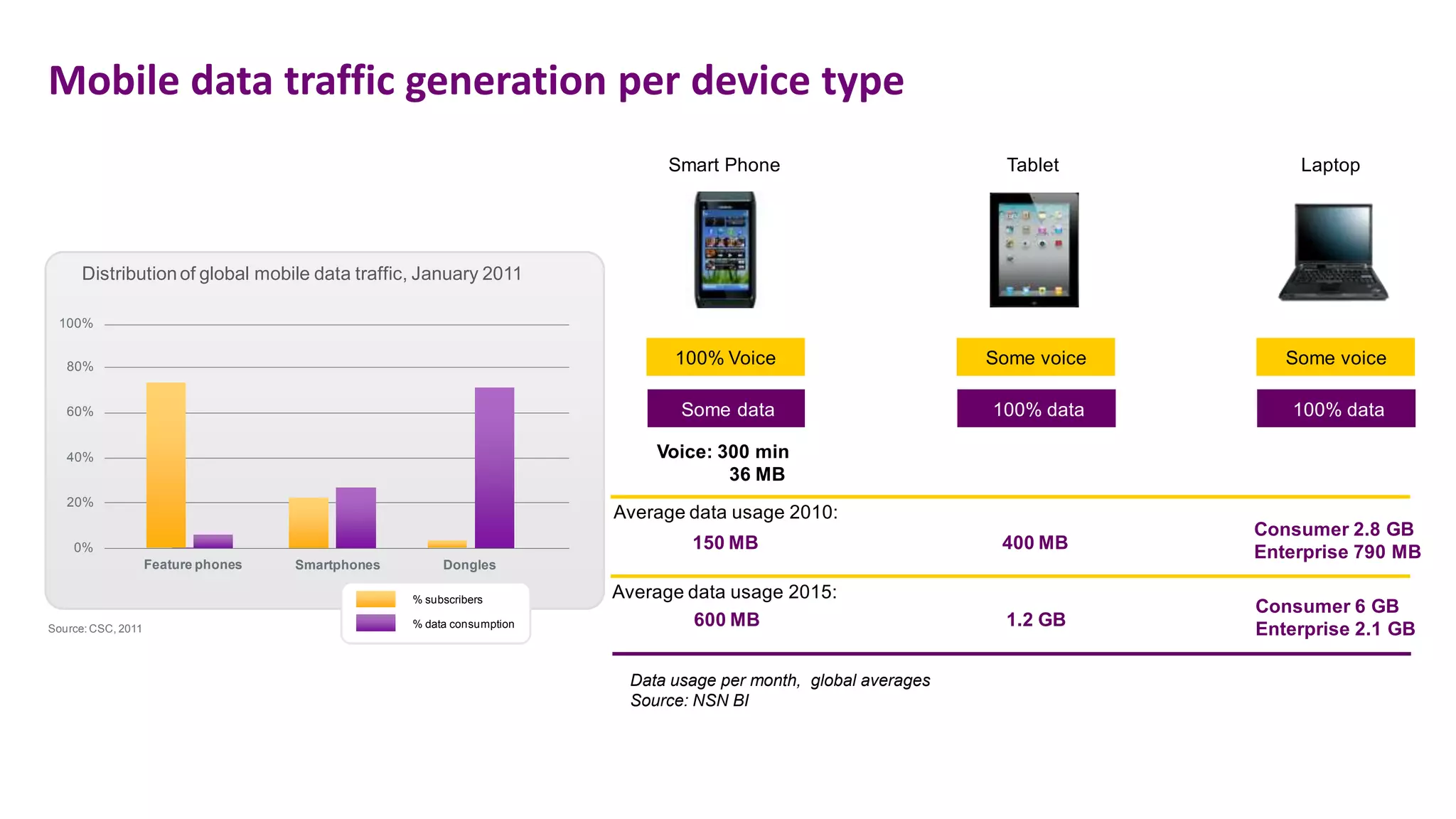

2. Mobile data traffic generation per device type
Smart Phone Tablet Laptop
Distribution of global mobile data traffic, January 2011
100%
80% 100% Voice Some voice Some voice
60% Some data 100% data 100% data
40% Voice: 300 min
36 MB
20%
Average data usage 2010:
Consumer 2.8 GB
0% 150 MB 400 MB Enterprise 790 MB
Feature phones Smartphones Dongles
% subscribers Average data usage 2015:
Consumer 6 GB
Source: CSC, 2011 % data consumption 600 MB 1.2 GB Enterprise 2.1 GB
Data usage per month, global averages
Source: NSN BI

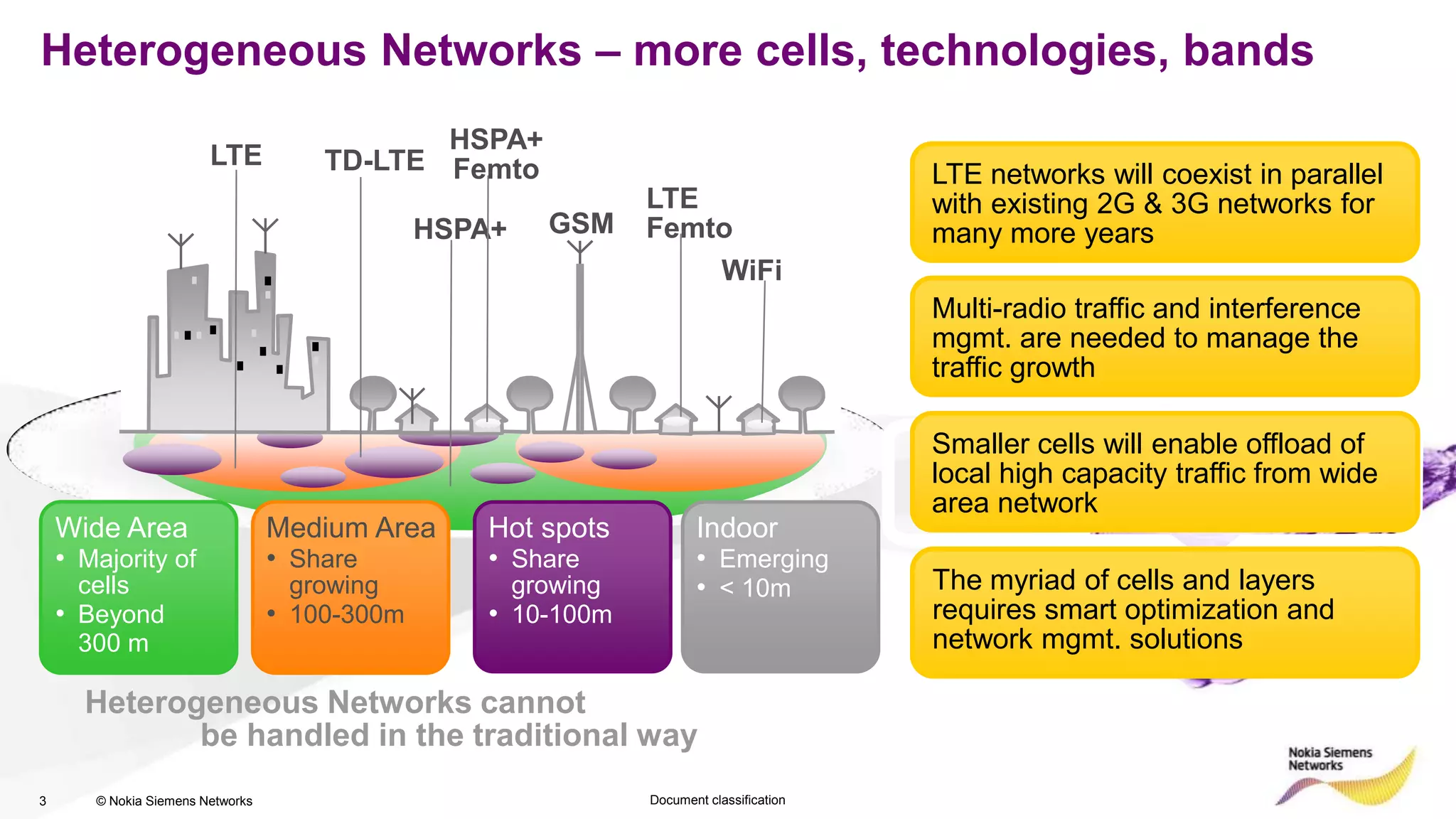

3. Heterogeneous Networks – more cells, technologies, bands
HSPA+
LTE TD-LTE Femto LTE networks will coexist in parallel
LTE with existing 2G & 3G networks for
HSPA+ GSM Femto many more years
WiFi
Multi-radio traffic and interference
mgmt. are needed to manage the
traffic growth
Smaller cells will enable offload of
local high capacity traffic from wide
area network
Wide Area Medium Area Hot spots Indoor
• Majority of • Share • Share • Emerging
cells growing growing • < 10m The myriad of cells and layers
• Beyond • 100-300m • 10-100m requires smart optimization and
300 m network mgmt. solutions
Heterogeneous Networks cannot
be handled in the traditional way
3 © Nokia Siemens Networks Document classification

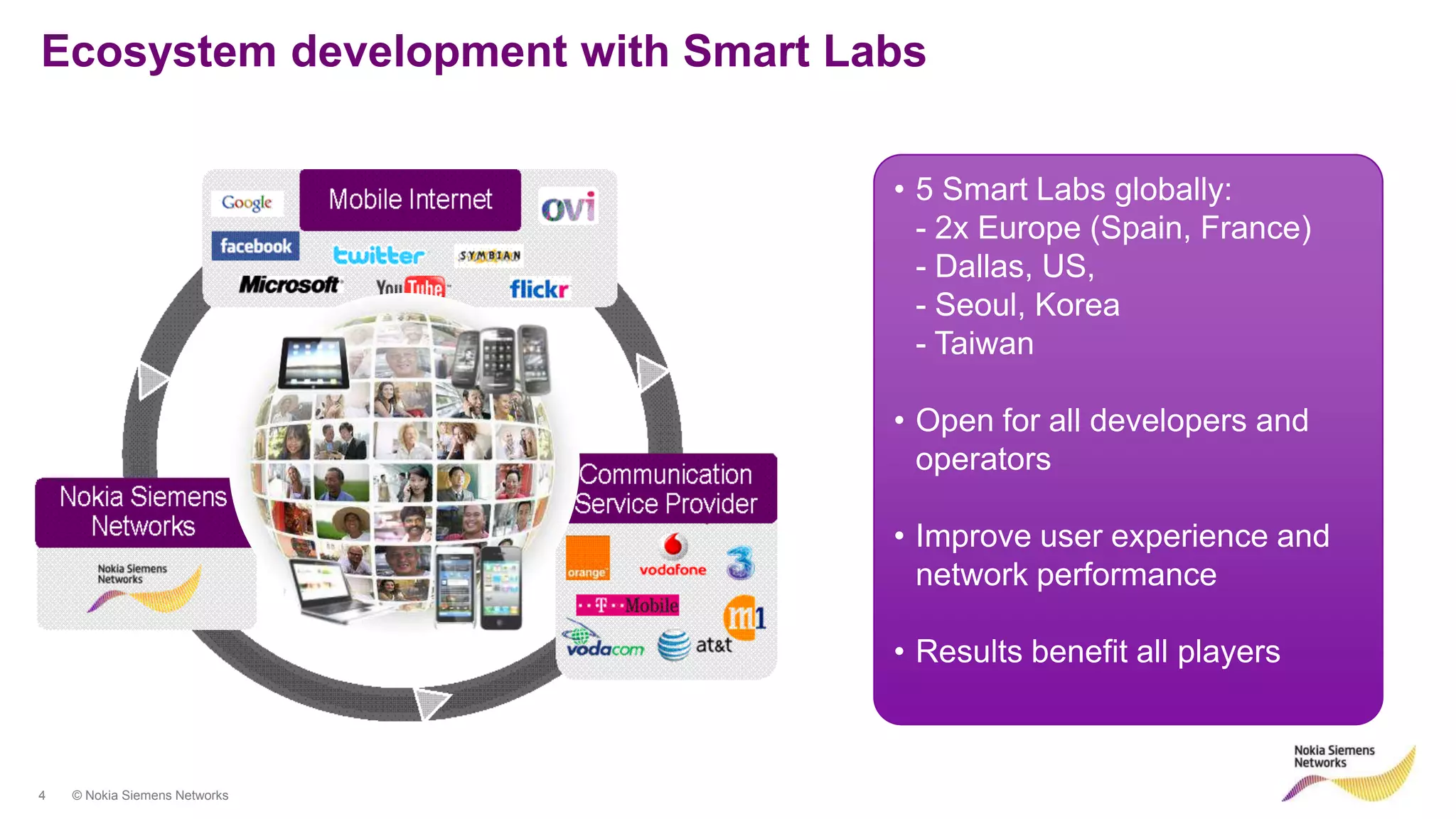

4. Ecosystem development with Smart Labs
• 5 Smart Labs globally:
- 2x Europe (Spain, France)
- Dallas, US,
- Seoul, Korea
- Taiwan
• Open for all developers and
operators
• Improve user experience and
network performance
• Results benefit all players
4 © Nokia Siemens Networks

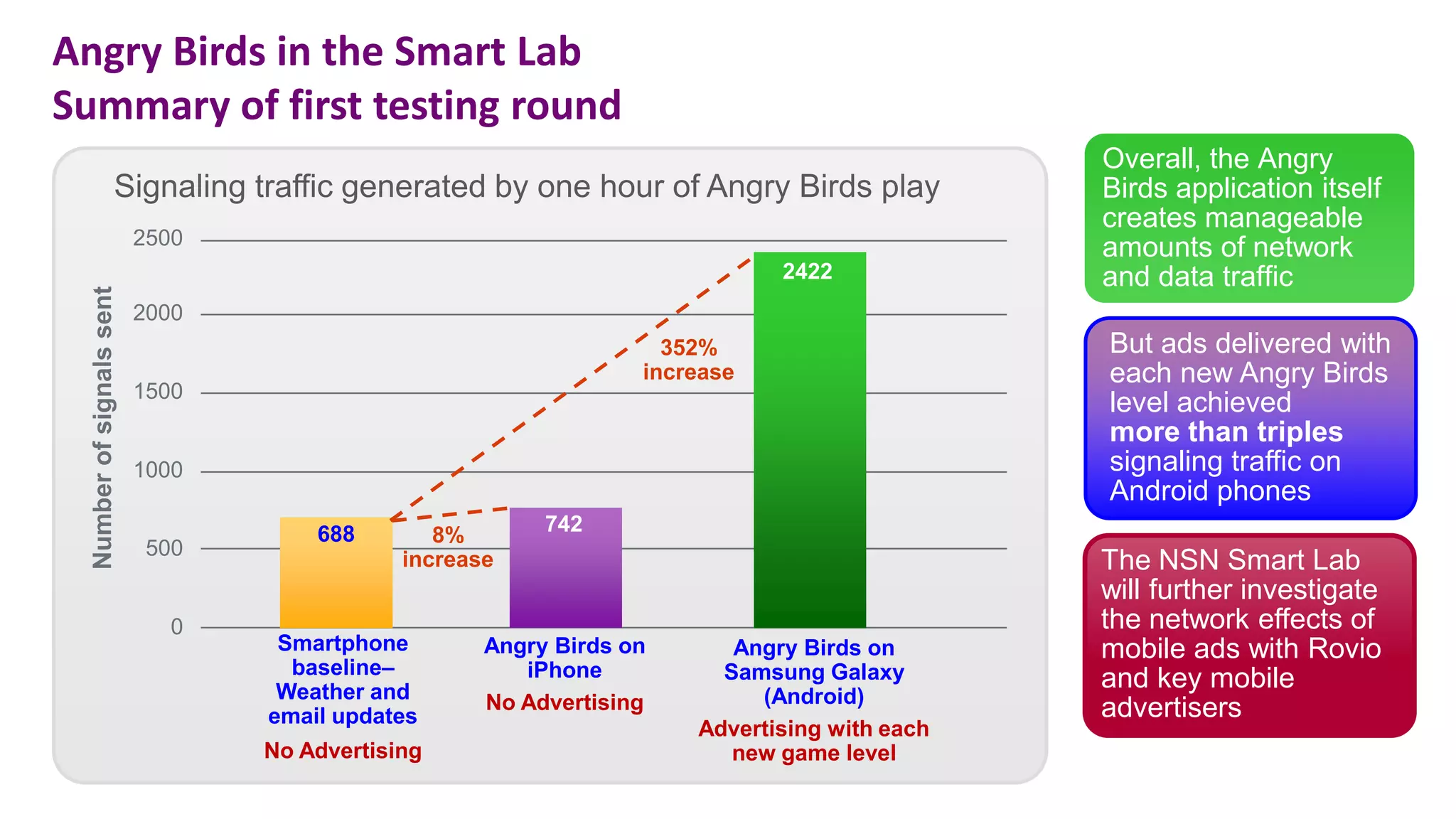

5. Angry Birds in the Smart Lab
Summary of first testing round
Overall, the Angry
Signaling traffic generated by one hour of Angry Birds play Birds application itself
creates manageable
2500 amounts of network
2422 and data traffic
Number of signals sent
2000
352% But ads delivered with
increase each new Angry Birds
1500
level achieved
more than triples
1000 signaling traffic on
Android phones
688 8% 742
500 increase The NSN Smart Lab
will further investigate
0 the network effects of
Smartphone Angry Birds on Angry Birds on mobile ads with Rovio
baseline– iPhone Samsung Galaxy
Weather and
and key mobile
No Advertising (Android)
email updates advertisers
Advertising with each
No Advertising new game level

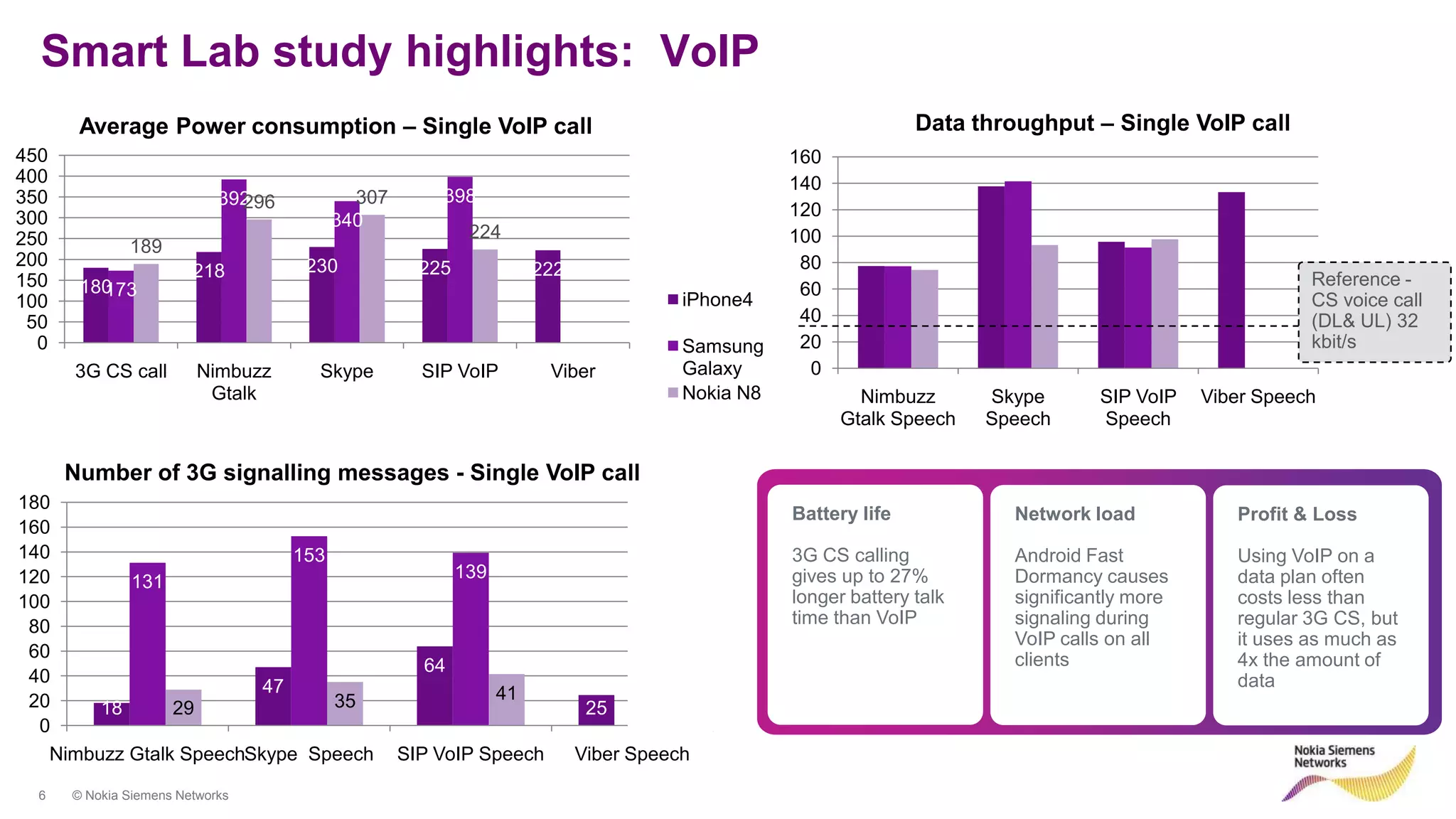

6. Smart Lab study highlights: VoIP
Average Power consumption – Single VoIP call Data throughput – Single VoIP call
450 160
400 140
350 392
296 307 398
300 120
340
250 224 100
189
200 230 225 80
218 222
150 180 Reference -
173 60
100 iPhone4 CS voice call
50 40 (DL& UL) 32
0 Samsung 20 kbit/s
3G CS call Nimbuzz Skype SIP VoIP Viber Galaxy 0
Gtalk Nokia N8 Nimbuzz Skype SIP VoIP Viber Speech
Gtalk Speech Speech Speech
Number of 3G signalling messages - Single VoIP call
180 iPhone4
Battery life Network load Profit & Loss
160
140 153 Samsung 3G CS calling Android Fast Using VoIP on a
120 139 Galaxy gives up to 27% Dormancy causes data plan often
131
100 Nokia N8 longer battery talk significantly more costs less than
80 time than VoIP signaling during regular 3G CS, but
VoIP calls on all it uses as much as
60 clients 4x the amount of
64
40 data
47 41
20 18 29 35 25
0
Nimbuzz Gtalk SpeechSkype Speech SIP VoIP Speech Viber Speech
6 © Nokia Siemens Networks
