10. 10 / 29
ビルトインTTN LoRaWANゲートウェイ LPS8v2 日本語ユーザーマニュアル

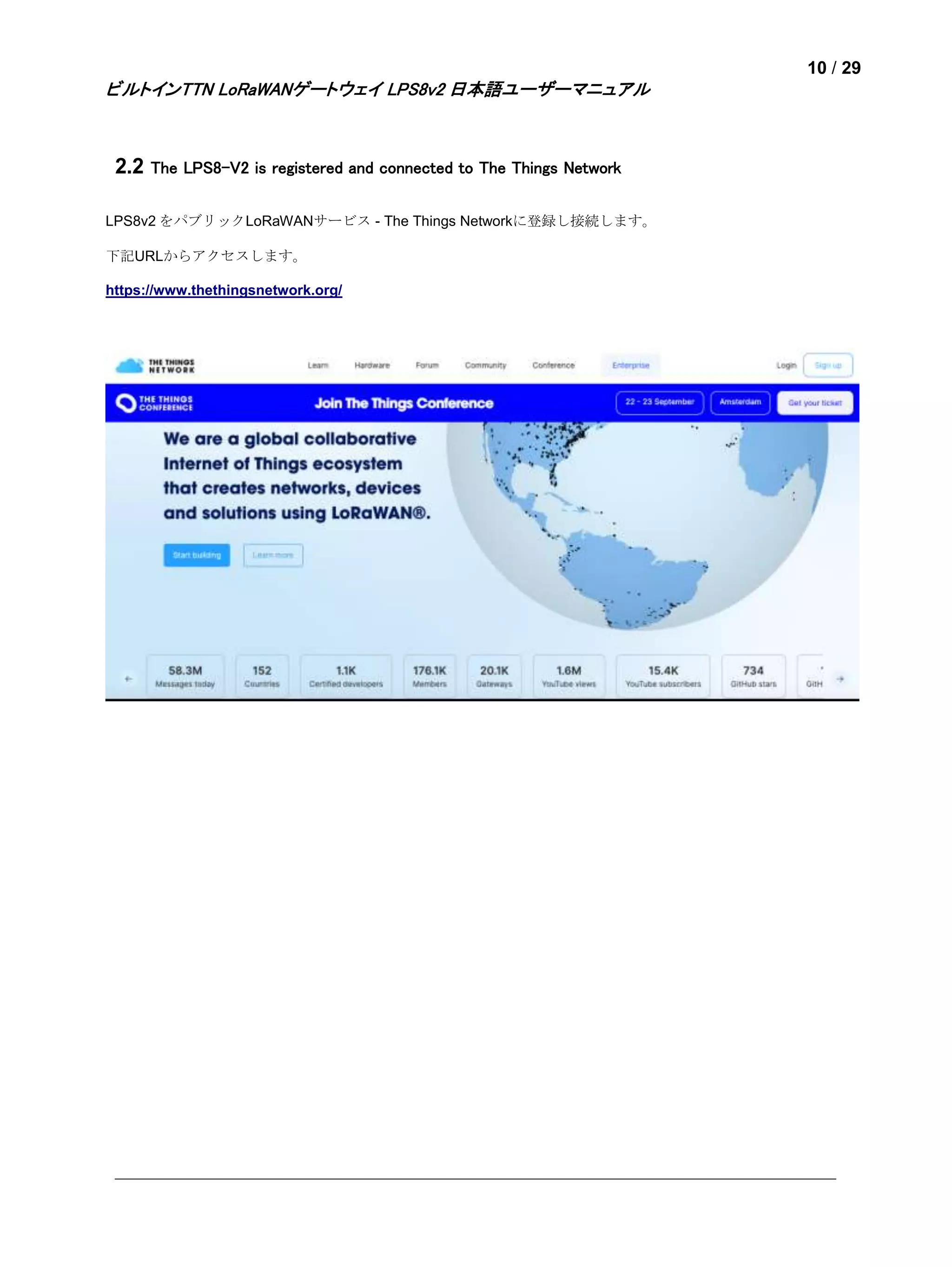

2.2 The LPS8-V2 is registered and connected to The Things Network
LPS8v2 をパブリックLoRaWANサービス - The Things Networkに登録し接続します。
下記URLからアクセスします。
https://www.thethingsnetwork.org/
20. 20 / 29
ビルトインTTN LoRaWANゲートウェイ LPS8v2 日本語ユーザーマニュアル

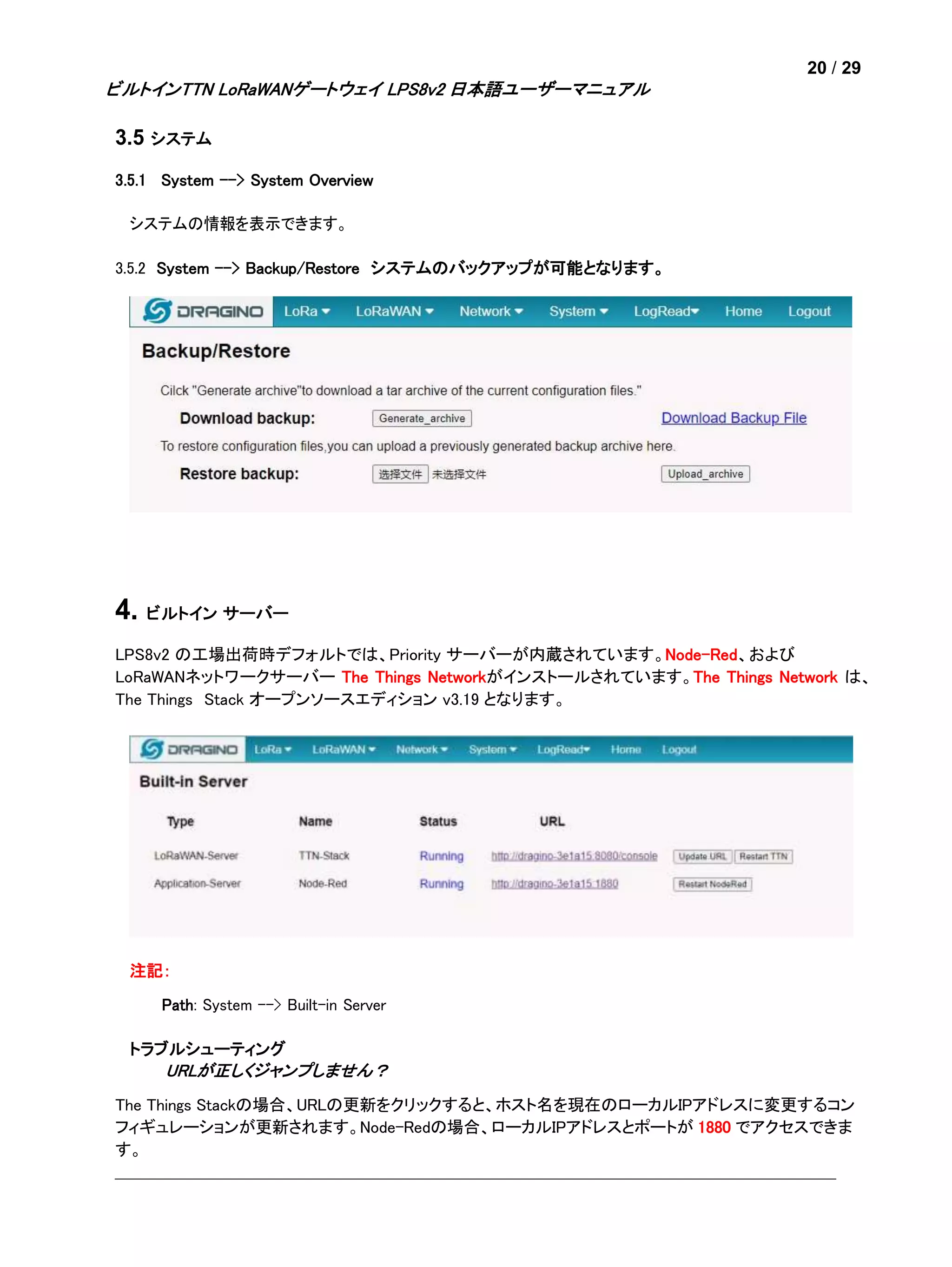

3.5 システム
3.5.1 System --> System Overview
システムの情報を表示できます。
3.5.2 System --> Backup/Restore システムのバックアップが可能となります。
4. ビルトイン サーバー
LPS8v2 の工場出荷時デフォルトでは、Priority サーバーが内蔵されています。Node-Red、および
LoRaWANネットワークサーバー The Things Networkがインストールされています。The Things Network は、
The Things Stack オープンソースエディション v3.19 となります。
注記:
Path: System --> Built-in Server
トラブルシューティング
URLが正しくジャンプしません?
The Things Stackの場合、URLの更新をクリックすると、ホスト名を現在のローカルIPアドレスに変更するコン
フィギュレーションが更新されます。Node-Redの場合、ローカルIPアドレスとポートが 1880 でアクセスできま
す。
21. 21 / 29
ビルトインTTN LoRaWANゲートウェイ LPS8v2 日本語ユーザーマニュアル

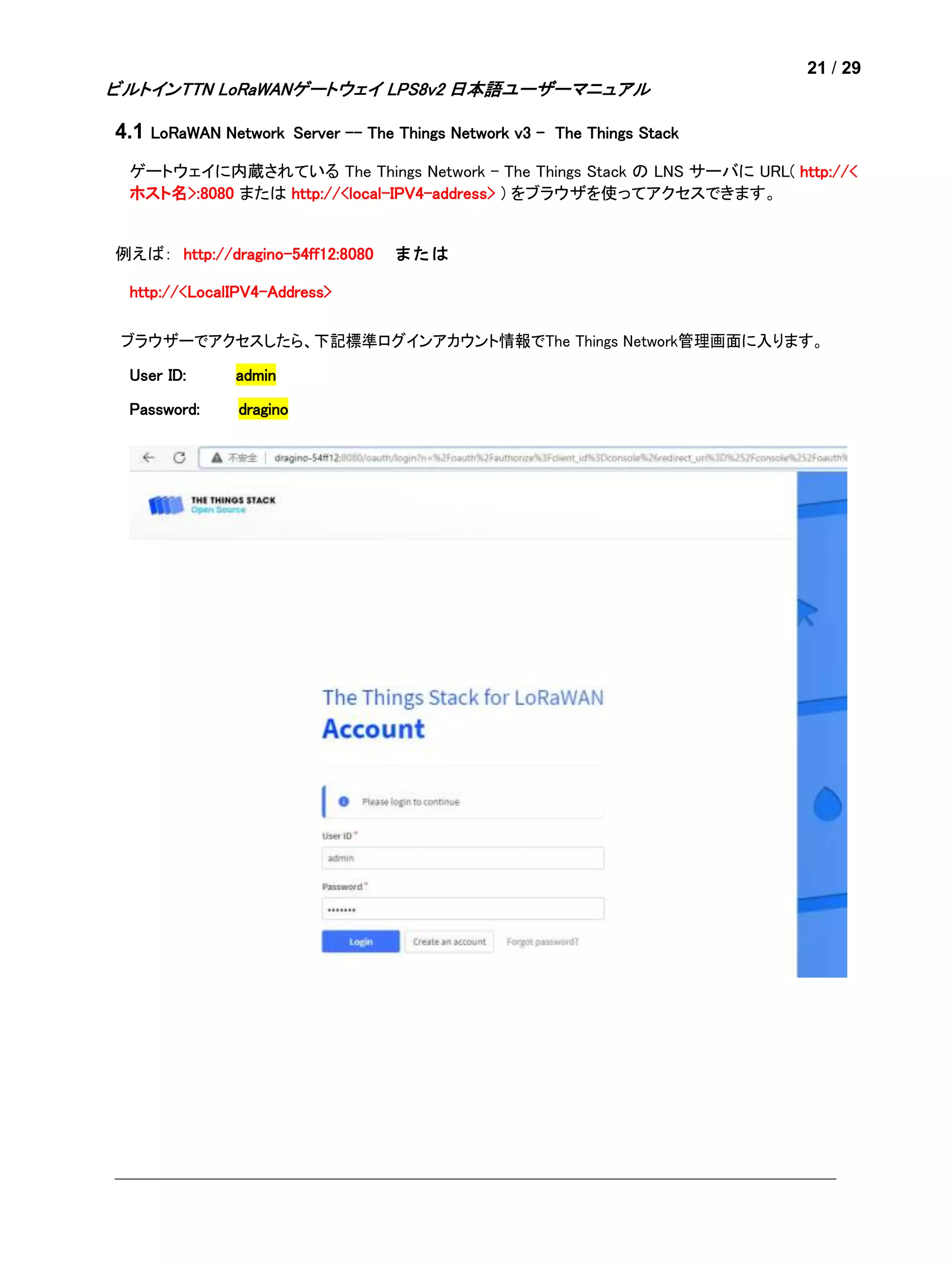

4.1 LoRaWAN Network Server -- The Things Network v3 - The Things Stack
ゲートウェイに内蔵されている The Things Network - The Things Stack の LNS サーバに URL( http://<
ホスト名>:8080 または http://<local-IPV4-address> ) をブラウザを使ってアクセスできます。
例えば: http://dragino-54ff12:8080 ま た は
http://<LocalIPV4-Address>
ブラウザーでアクセスしたら、下記標準ログインアカウント情報でThe Things Network管理画面に入ります。
User ID: admin
Password: dragino

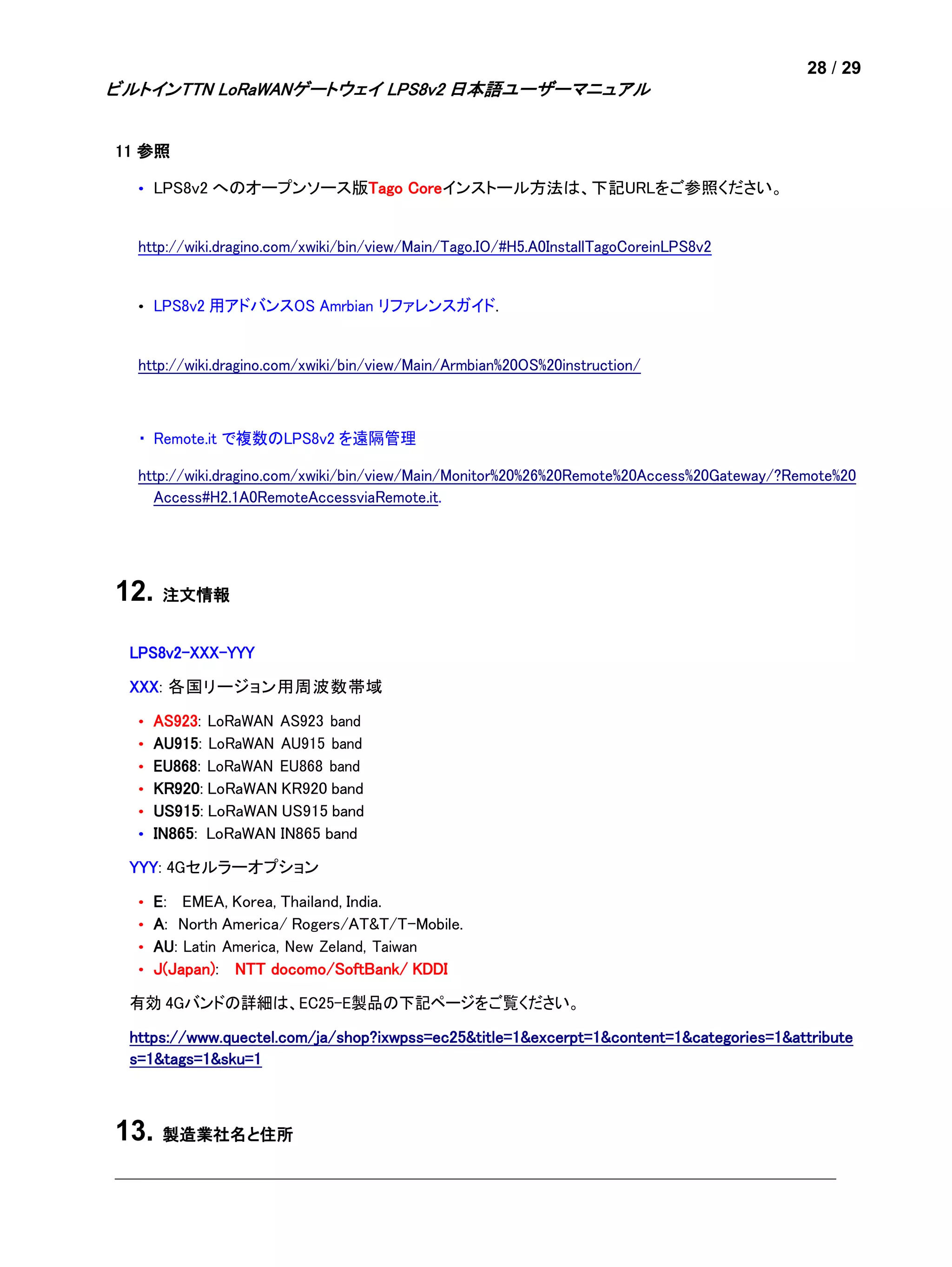

28. 28 / 29
ビルトインTTN LoRaWANゲートウェイ LPS8v2 日本語ユーザーマニュアル

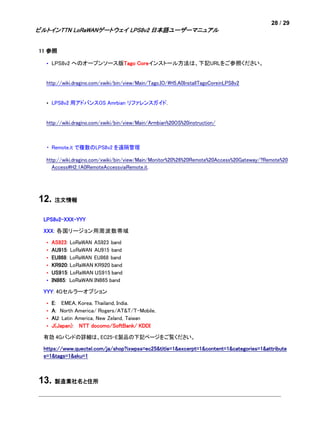

11 参照
• LPS8v2 へのオープンソース版Tago Coreインストール方法は、下記URLをご参照ください。
http://wiki.dragino.com/xwiki/bin/view/Main/Tago.IO/#H5.A0InstallTagoCoreinLPS8v2
• LPS8v2 用アドバンスOS Amrbian リファレンスガイド.
http://wiki.dragino.com/xwiki/bin/view/Main/Armbian%20OS%20instruction/
・ Remote.it で複数のLPS8v2 を遠隔管理
http://wiki.dragino.com/xwiki/bin/view/Main/Monitor%20%26%20Remote%20Access%20Gateway/?Remote%20
Access#H2.1A0RemoteAccessviaRemote.it.
12. 注文情報
LPS8v2-XXX-YYY
XXX: 各国リージョン用周波数帯域
• AS923: LoRaWAN AS923 band
• AU915: LoRaWAN AU915 band
• EU868: LoRaWAN EU868 band
• KR920: LoRaWAN KR920 band
• US915: LoRaWAN US915 band
• IN865: LoRaWAN IN865 band
YYY: 4Gセルラーオプション
• E: EMEA, Korea, Thailand, India.
• A: North America/ Rogers/AT&T/T-Mobile.
• AU: Latin America, New Zeland, Taiwan
• J(Japan): NTT docomo/SoftBank/ KDDI
有効 4Gバンドの詳細は、EC25-E製品の下記ページをご覧ください。
https://www.quectel.com/ja/shop?ixwpss=ec25&title=1&excerpt=1&content=1&categories=1&attribute
s=1&tags=1&sku=1
13. 製造業社名と住所

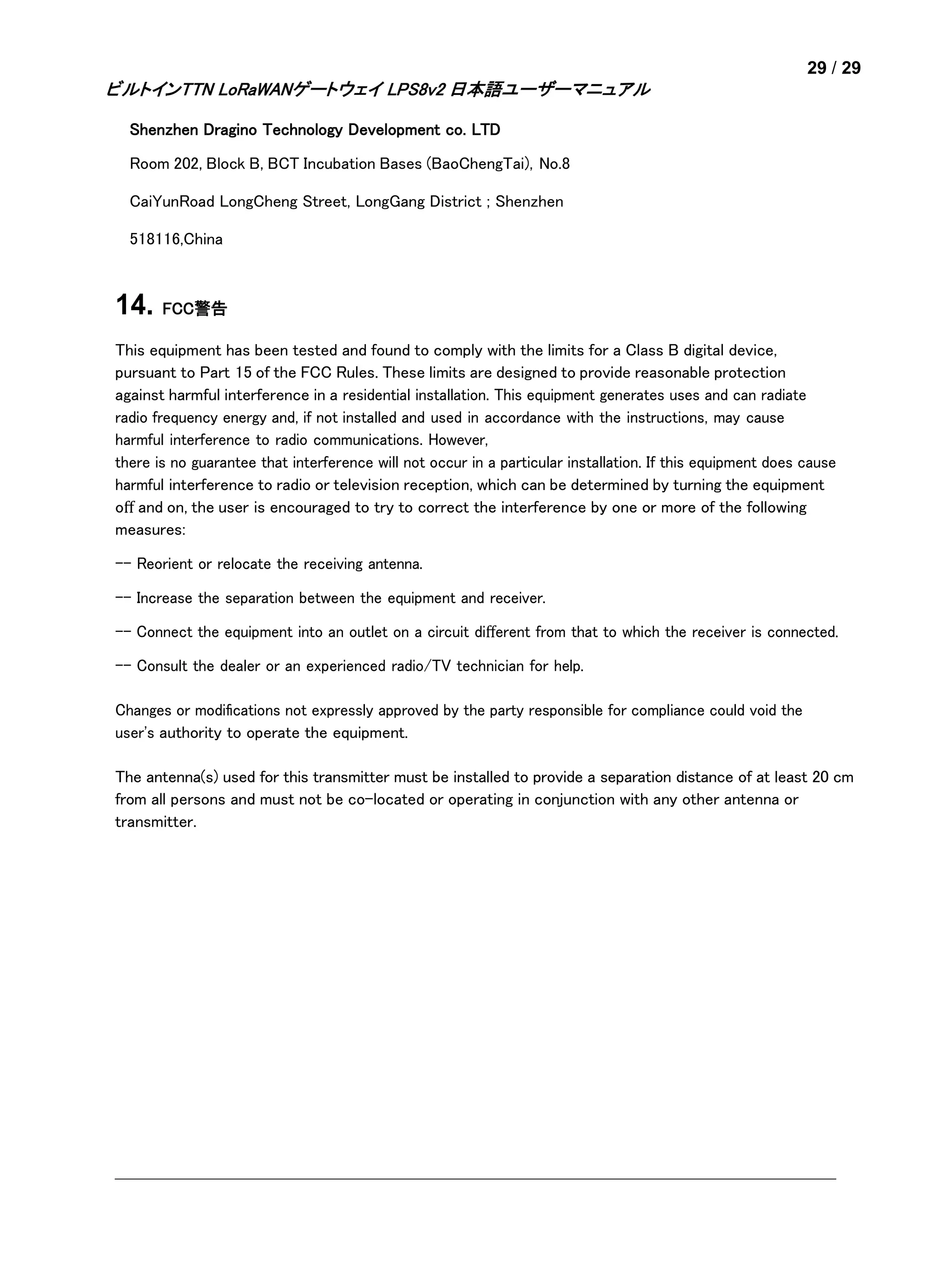

29. 29 / 29
ビルトインTTN LoRaWANゲートウェイ LPS8v2 日本語ユーザーマニュアル

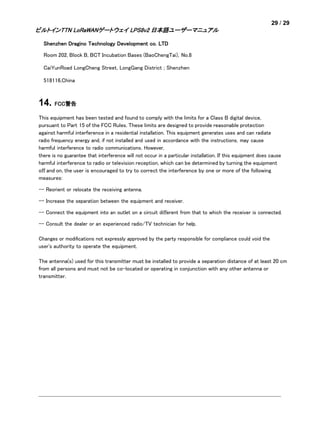

Shenzhen Dragino Technology Development co. LTD
Room 202, Block B, BCT Incubation Bases (BaoChengTai), No.8
CaiYunRoad LongCheng Street, LongGang District ; Shenzhen
518116,China
14. FCC警告
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
