(SPRING)KAFKA - ONE MORE ARSENAL IN A DISTRIBUTED TOOLBOX

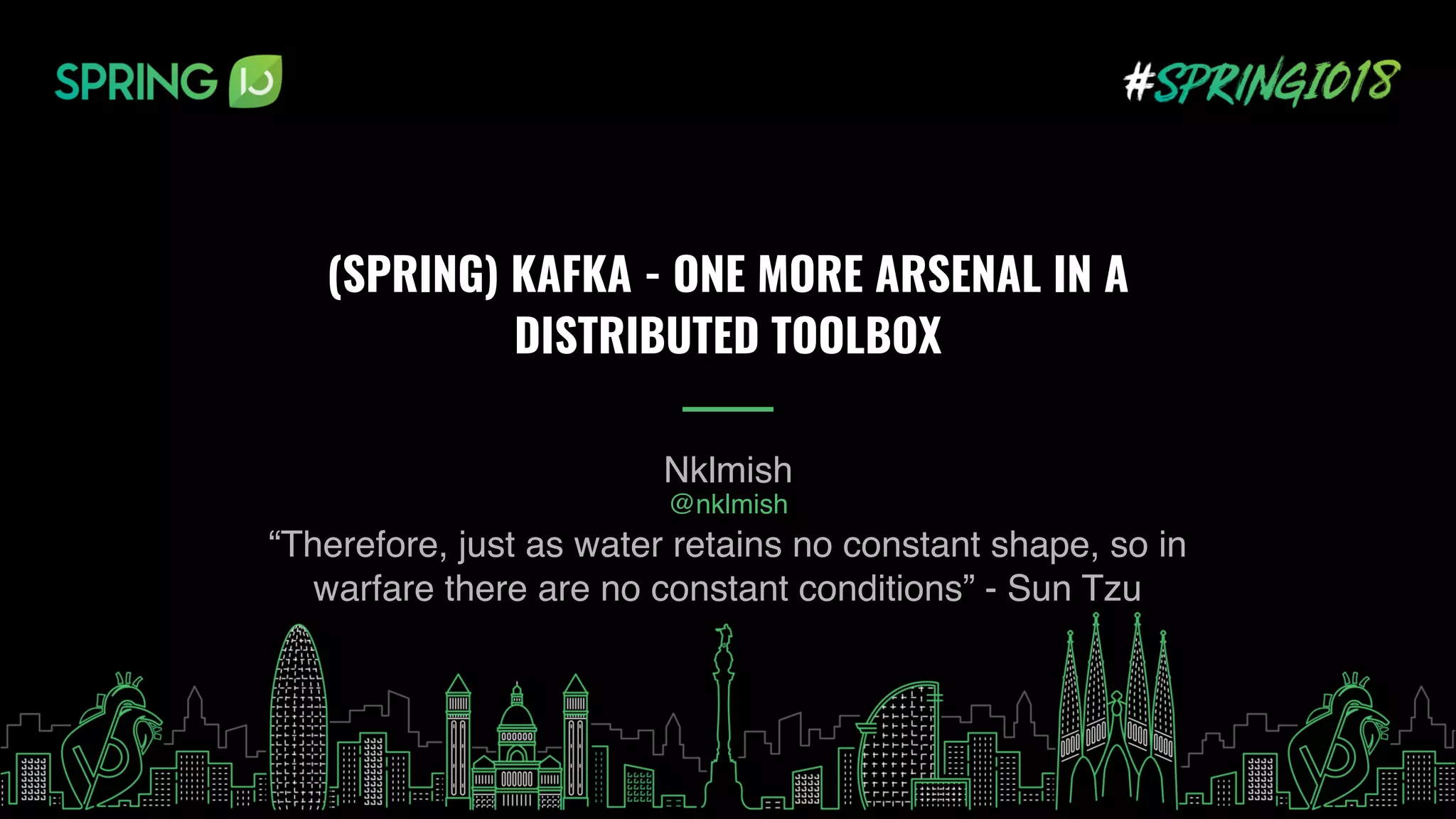

- 1. Nklmish @nklmish (SPRING) KAFKA - ONE MORE ARSENAL IN A DISTRIBUTED TOOLBOX “Therefore, just as water retains no constant shape, so in warfare there are no constant conditions” - Sun Tzu

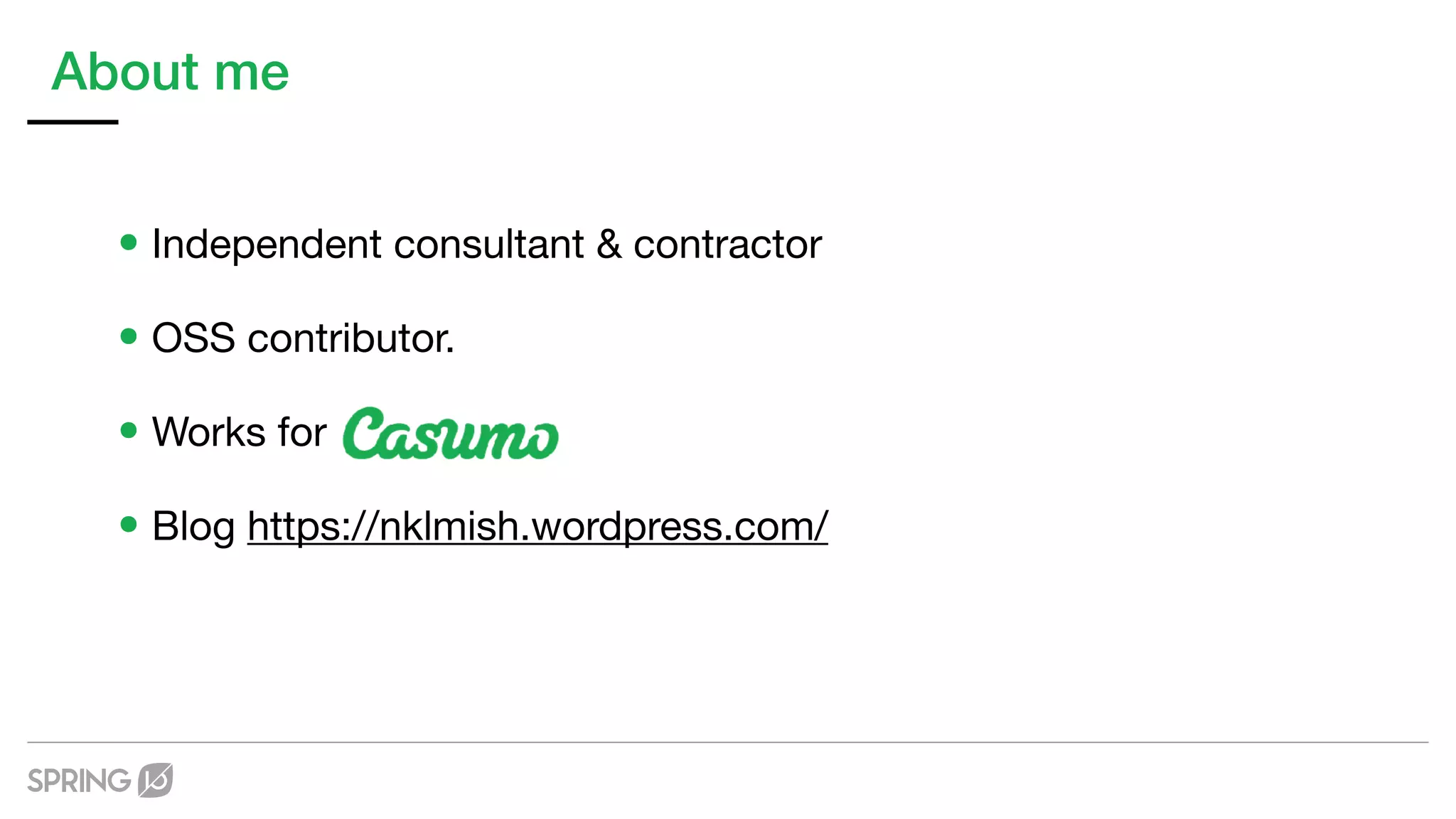

- 2. About me •Independent consultant & contractor •OSS contributor. •Works for •Blog https://nklmish.wordpress.com/
- 3. •Swedish startup founded in 2012. •Strong advocate of DDD & CQRS. •Event store with billions of events. •Millions of events every day. •Every event is EQUALLY important - “I was thinking I might win 50 pounds but when it went all the way to the jackpot I was shocked.” - Mega Fortune £2,700,000 jackpot won on the 3rd spin. •And… we have an amazing culture.
- 4. Do you Like Lego?
- 7. Simplicity is the key to complexity
- 8. You build complex system
- 9. Starting with a simple idea
- 10. Kafka in a nutshell
- 11. Kafka - NOT a service bus •ESB - Integrate legacy & off the shelf systems. •Messaging layer (Low throughput). •Central teams governance (validations, schemas, etc.). •Beware : Stay away from recreating ESB antipatterns with Kafka. •
- 12. Kafka - more than a message queue •Supports both Point-to-point & publish-subscribe •Extremely fast •Massive msg throughput •Msg replaying + retention •Doesn’t slow down as the no. of consumers increases. •Scalable •Stronger ordering guarantees than a traditional messaging system How com e?
- 13. Traditional queue, ordering guarantees C0 C1 C2 Parallelconsumption R0 R1 R2 R3 … Server side: Queue retains records in-order Async delivery t=1, R0 t=2, R2 t=0, R1 M essaging system solves this via “exclusive consum er”
- 14. Kafka, ordering guarantees R0 R1 R2 R3 … Partition- 0 R0 R1 R2 R3 … Partition- 1 R0 R1 R2 R3 … Partition- 2 R0 R1 R2 R3 … Partition- 3 Topic-X ConsumerGroup-foo C1
- 15. Kafka, ordering guarantees R0 R1 R2 R3 … Partition- 0 R0 R1 R2 R3 … Partition- 1 R0 R1 R2 R3 … Partition- 2 R0 R1 R2 R3 … Partition- 3 Topic-X ConsumerGroup-foo C1 C2
- 16. Kafka, a database inside out Kafka Commit Log Stream Processor KSQ L Kafka Caching Indexes Query engine Commit log Traditional database
- 17. Kafka Is A Streaming Platform
- 18. Kafka, a streaming platform Kafka Streaming API (can be stateful) Kafka Streams & KSQL Utilities Schema Registry, Replicator, Mirror Maker, confluent platform Communication API API Clients … Connector API Pull & push data to/from, Kafka (S3, JDBC, HDFS…)
- 19. Our Challenge
- 20. Traditional Messaging + Distributed System = Our Challenge
- 21. Three Challenges
- 23. “In the midst of chaos, there is also opportunity” Sun Tzu
- 24. MOM vs. Kafka Broker Centric Approach Client Centric Approach Index structures (Btree or Hash Tables) Log structured Retention impacts performance Designed for Retention Outrage: Significant slow down Outrage: won’t cause infrastructure to slow down significantly
- 25. Really?
- 26. “Immutability changes everything” Pat Helland
- 27. Scalability Comes From Simplicity
- 28. Simplicity - Partitioned Log Log (append only journal) Reads (single seek & scan) Writes (Append only)
- 29. Caching Comes From Simplicity - Sequential Disk Access •Relies heavily on the filesystem for storing & caching messages •Cache will stay warm even if the service is restarted.
- 30. Massive Throughput - Comes From Simplicity •Zero copy - while reading the data is copied directly from disk buffer to the network buffer; bypassing importing into JVM; In a nutshell we can saturate the network. java.nio.channels.File Channel#transferTo()
- 31. Logs Scaling - Comes From Simplicity
- 32. Writes Velocity - Comes From Simplicity Kafka Sync() Operation Avoids flushing i.e. Replication Achieves via Kafka Broker (with 64 GB of RAM) Conclusion Operates 1000x Faster Than Traditional Messaging system Replication built into the low-level design
- 33. Resiliency - Comes From Replication •In sync replicas
- 34. Spring Kafka
- 35. Spring Kafka •Spring ecosystem at disposal. (e.g. Spring Integration) •Headers improvements. •Kafka Streams Support. •Testing made easier. • Embedded Kafka. • TestUtils (conditions, helper-methods, etc).
- 36. DEMO
- 37. What we achieved so far •Parallel Consumer Reads - 3,080,000/sec •Single Producer Writes - 640,000/sec •Total events : 30+ Billion events •Replay time < 3-5 Hours •NOTE : We hit hardware limitations rather than Kafka’s.
