1. Library Information System
(To Digitalize Your Library)
21 March, 2014
1

2. Library Information System
2
Digital Library System
Content Management,
Electronic Resource,
eBook Publish
Patron Service System
Access Control, Digital Signage,
Reading Logs
Integrated Library System
Catalogue, Circulation, OPAC, Acquisition, Series
Library RFID System
Anti‐theft, Self Service, Inventory

3. Library 2.0
3
Web‐Based Application
Web‐Based Printing
N‐Tier Client‐Server + Unicode
Latest Technology
Meet Information Security Request
Support Single Sign‐on

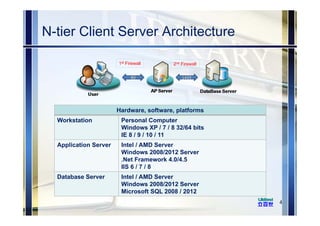

4. N-tier Client Server Architecture
4
Hardware, software, platforms
Workstation Personal Computer
Windows XP / 7 / 8 32/64 bits
IE 8 / 9 / 10 / 11
Application Server Intel / AMD Server
Windows 2008/2012 Server
.Net Framework 4.0/4.5
IIS 6 / 7 / 8
Database Server Intel / AMD Server
Windows 2008/2012 Server
Microsoft SQL 2008 / 2012
1st Firewall 2nd Firewall

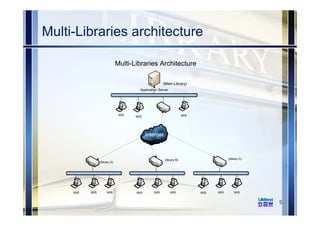

5. Multi-Libraries architecture
5

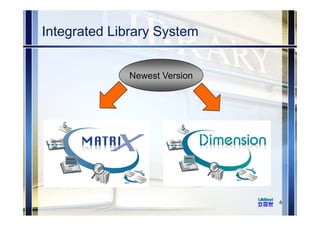

6. Integrated Library System
6
Newest Version

7. Integrated Library 2.0 System
7
Circulation
Catalogue OPAC
(Online Public Access Catalogue)
Administration
Mobile OPAC
Message Delivery
Acquisition
Series
Library 2.0

8. New functions of Library 2.0 System
• Catalogue
– Image of Book Cover
– Link to bookstore
– Book reviews
– Book Description, content
table, price
– Shelf vs. Classification
Number
– Shelf number vs. Class
number
– Periodical cover
8
 Circulation
 Check out count of book
 OPAC
 Display Book Cover
 New Books Images
 Book Rating, Description,
Review
 Display shelf of certain
book
 Most popular books

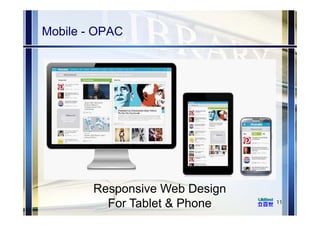

11. Mobile - OPAC
11
Responsive Web Design
For Tablet & Phone

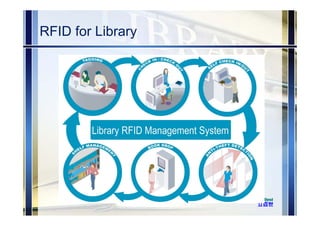

12. RFID for Library

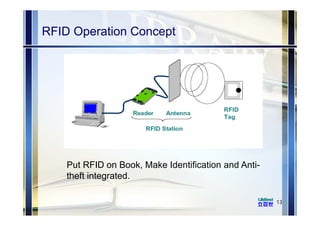

13. RFID Operation Concept
13
Put RFID on Book, Make Identification and Anti-
theft integrated.

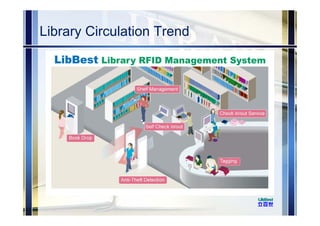

14. Library Circulation Trend

15. Suggestions
Manual
Barcode for
Circulation
EM Stripe for
Security
RFID for Circulation
RFID for Circulation &
Security
Manual
Barcode for
Circulation
RFID for
Circulation &
Security
Other’s LibBest

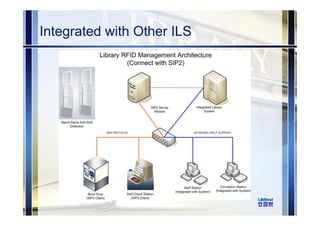

16. Integrated with Other ILS

17. Work with Dimension 800/Matrix 1000

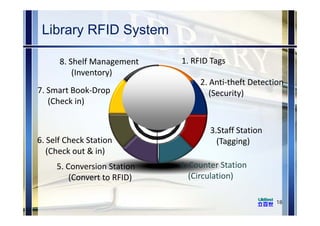

18. Library RFID System
18
1. RFID Tags
2. Anti‐theft Detection
(Security)
3.Staff Station
(Tagging)
4. Counter Station
(Circulation)
5. Conversion Station
(Convert to RFID)
6. Self Check Station
(Check out & in)
7. Smart Book‐Drop
(Check in)
8. Shelf Management
(Inventory)

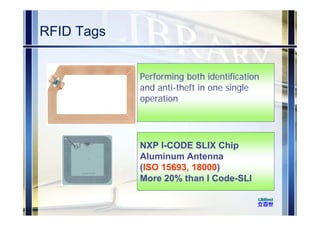

19. RFID Tags
Performing both identification
and anti-theft in one single
operation
NXP I-CODE SLIX Chip
Aluminum Antenna
(ISO 15693, 18000)
More 20% than I Code-SLI

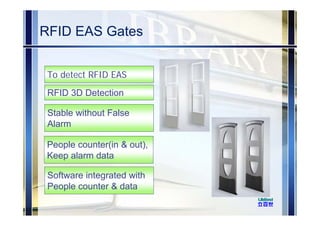

20. RFID EAS Gates
To detect RFID EAS
RFID 3D Detection
Stable without False
Alarm
People counter(in & out),
Keep alarm data
Software integrated with
People counter & data

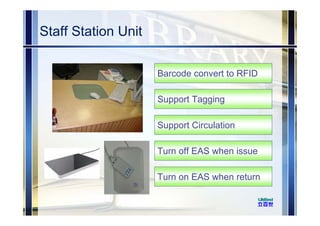

21. Staff Station Unit
Barcode convert to RFID
Support Tagging
Support Circulation
Turn off EAS when issue
Turn on EAS when return

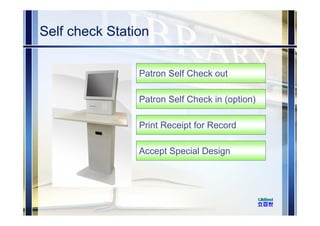

22. Self check Station
Patron Self Check out
Patron Self Check in (option)
Print Receipt for Record
Accept Special Design

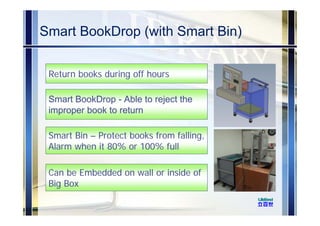

23. Smart BookDrop (with Smart Bin)
Return books during off hours
Smart BookDrop - Able to reject the
improper book to return
Smart Bin – Protect books from falling,
Alarm when it 80% or 100% full
Can be Embedded on wall or inside of
Big Box

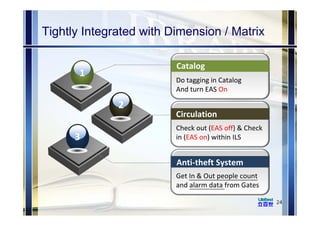

24. Tightly Integrated with Dimension / Matrix
24
Do tagging in Catalog
And turn EAS On
Catalog
Check out (EAS off) & Check
in (EAS on) within ILS
Circulation
Get In & Out people count
and alarm data from Gates
Anti‐theft System
1
2
3

25. Patron Service System
25
Digital Signage System1
Access Control System2
Reading Logs System3

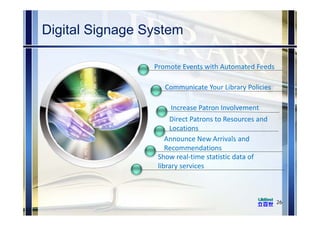

26. Digital Signage System
26
Promote Events with Automated Feeds
Communicate Your Library Policies
Increase Patron Involvement
Direct Patrons to Resources and
Locations
Announce New Arrivals and
Recommendations
Show real‐time statistic data of
library services

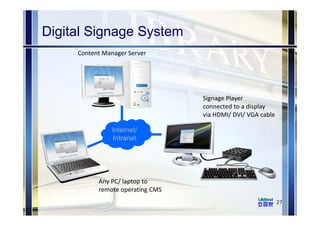

27. Digital Signage System
27
Internet/
Intranet
Content Manager Server
Any PC/ laptop to
remote operating CMS
Signage Player
connected to a display
via HDMI/ DVI/ VGA cable

28. Access Control System
• Fully Aware of Library Usage – Show the value
of library
• Make library Management Automatically –
Record the service to patron
28

29. Library 2.0 Access Control System
• Keep unauthenticated people out of
library.
• Barcode, magnetic strip or RFID patron
card are available.
• Read patron card to open the swing gates
and enter library.
• Choices for card in / free exit or card in /
card out operation mode.
• Counter computer monitor the entrance
status, support remote access status data
by browser.
• Librarian can send message to Interactive
Control Unit for patron. Patron will need to
acknowledge the message and then
he/she can enter library. (library 2.0)
29

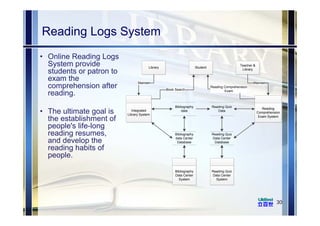

30. Reading Logs System
• Online Reading Logs
System provide
students or patron to
exam the
comprehension after
reading.
• The ultimate goal is
the establishment of
people's life-long
reading resumes,
and develop the
reading habits of
people.
30
Student
Teacher &
Library
Library
Integrated
Library System
Reading
Comprehension
Exam System
Reading Quiz
Data Center
System
Bibliography
data
Reading Quiz
Data
Maintain Maintain
Bibliography
data Center
Database
Reading Quiz
Data Center
Database
Bibliography
Data Center
System
Book Search
Reading Comprehension
Exam

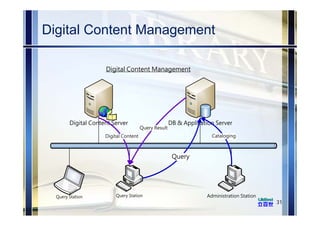

31. Digital Content Management
31
Digital Content Server DB & Application Server
Administration StationQuery Station Query Station
Cataloging
Query
Digital Content
Digital Content Management
Query Result

32. Digital Content Management
32
Bulgaria
Dubai
Brunei
Bangladesh
840
Our Clients

33. Future Development
33
Integrated with Society Website
Move to Cloud 2.0, Mobile 2.0
Single Sign On 2.0

34. The End
34
Thank you for listening!
