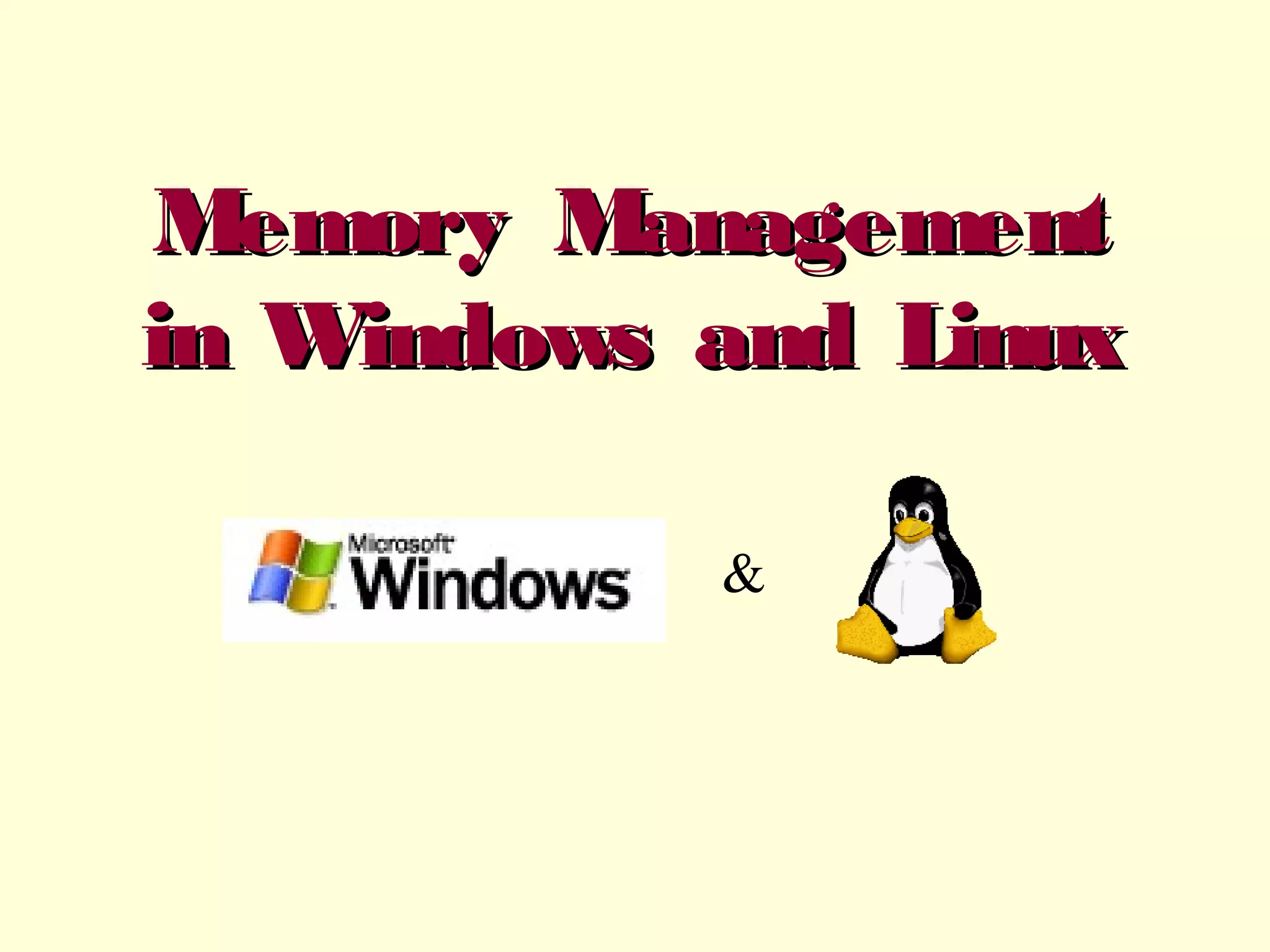

1. Memory Management
in Windows and Linux
&

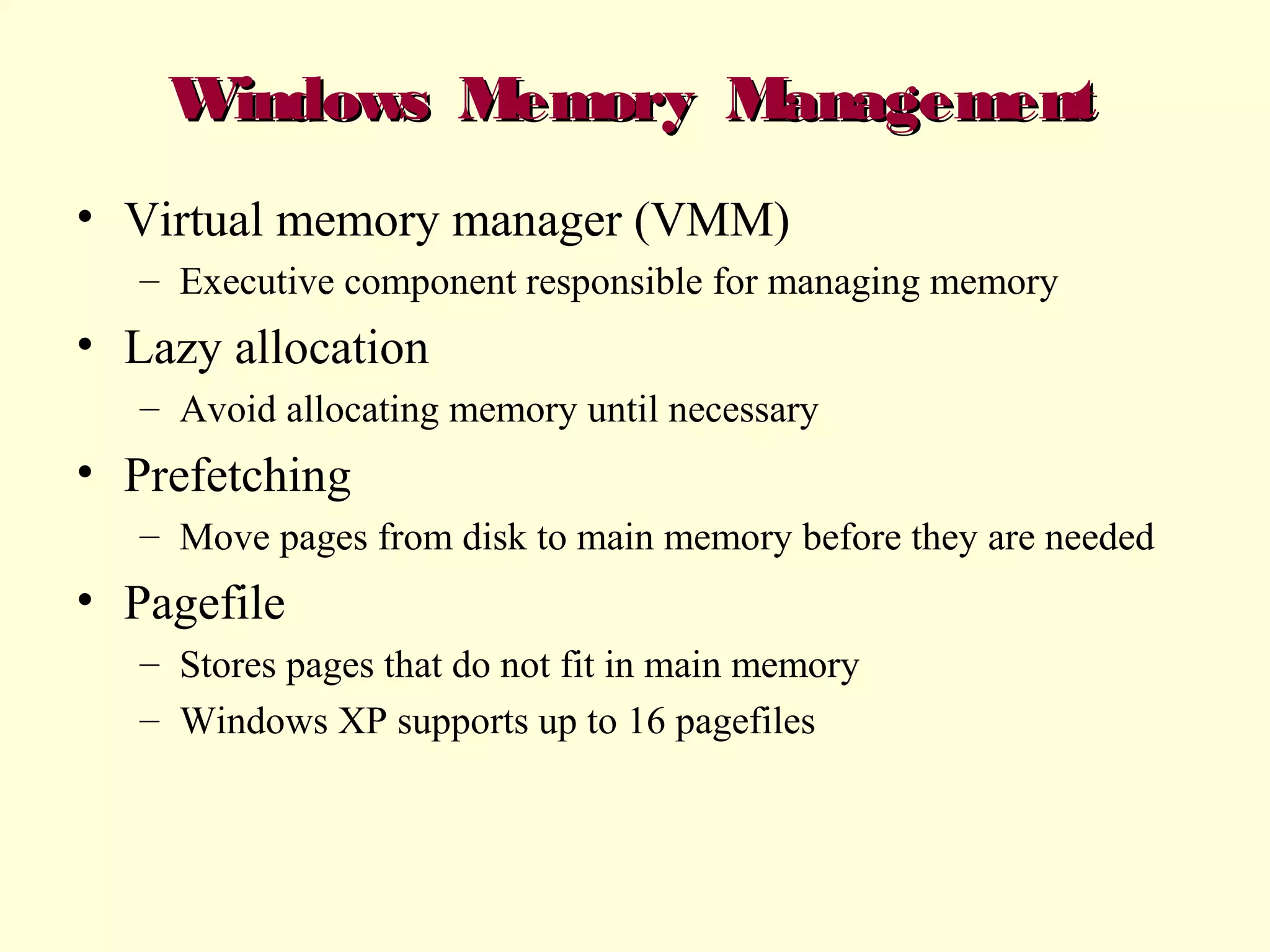

2. Windows Memory Management
• Virtual memory manager (VMM)
– Executive component responsible for managing memory
• Lazy allocation
– Avoid allocating memory until necessary
• Prefetching
– Move pages from disk to main memory before they are needed
• Pagefile
– Stores pages that do not fit in main memory
– Windows XP supports up to 16 pagefiles

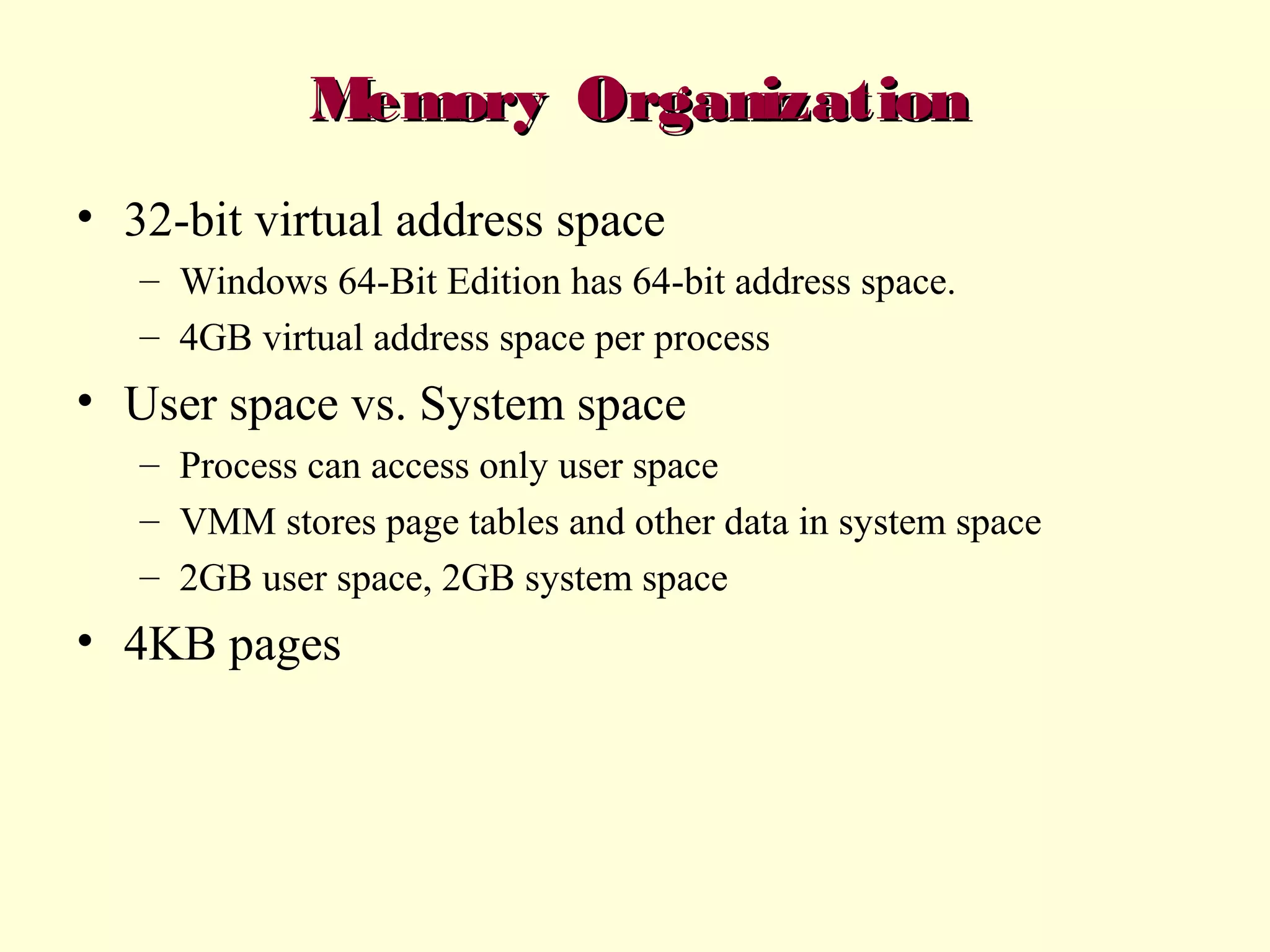

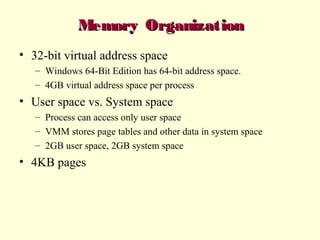

3. Memory Organization
• 32-bit virtual address space
– Windows 64-Bit Edition has 64-bit address space.
– 4GB virtual address space per process
• User space vs. System space
– Process can access only user space
– VMM stores page tables and other data in system space
– 2GB user space, 2GB system space
• 4KB pages

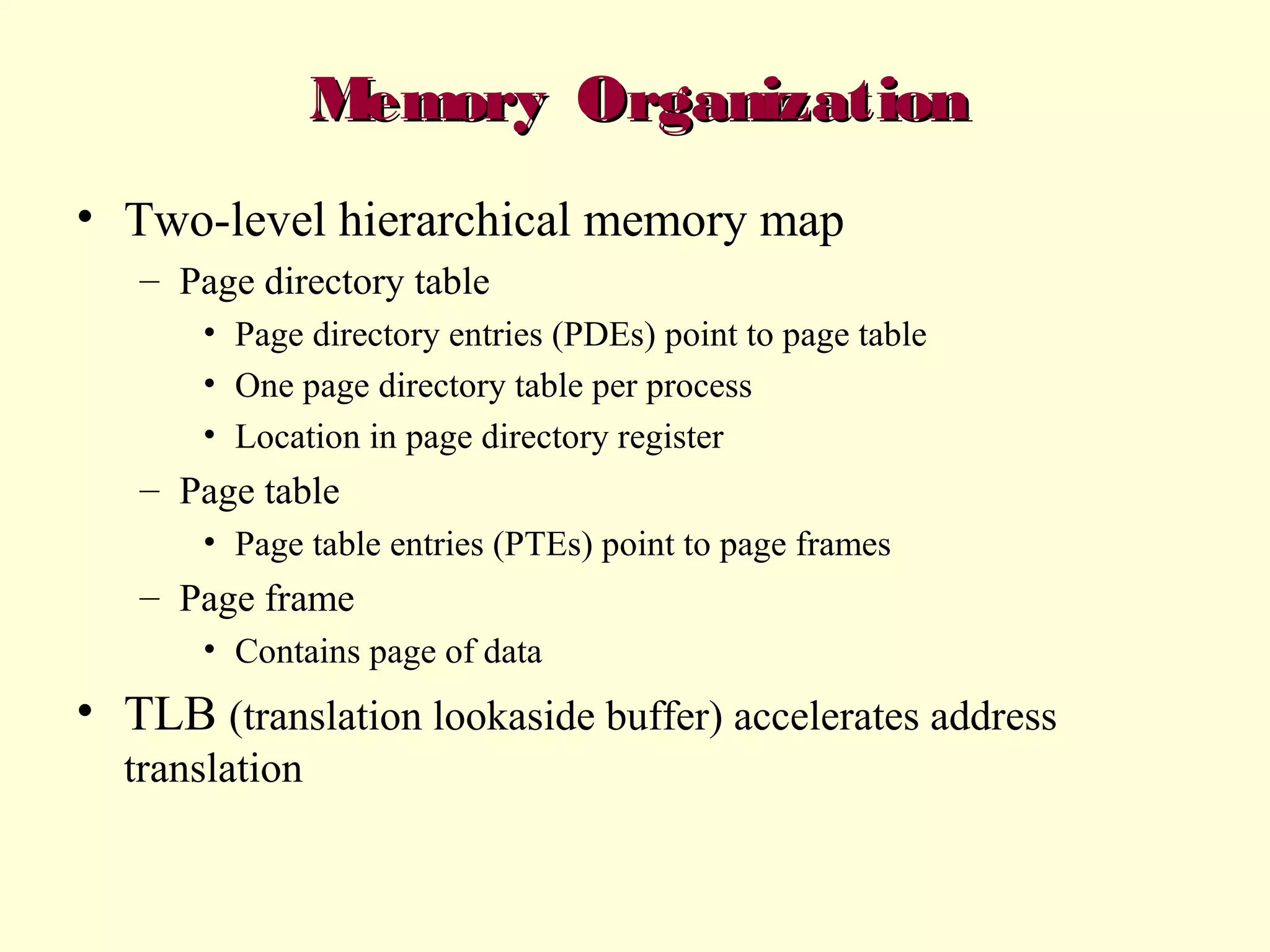

4. Memory Organization
• Two-level hierarchical memory map
– Page directory table
• Page directory entries (PDEs) point to page table
• One page directory table per process
• Location in page directory register
– Page table
• Page table entries (PTEs) point to page frames
– Page frame
• Contains page of data
• TLB (translation lookaside buffer) accelerates address
translation

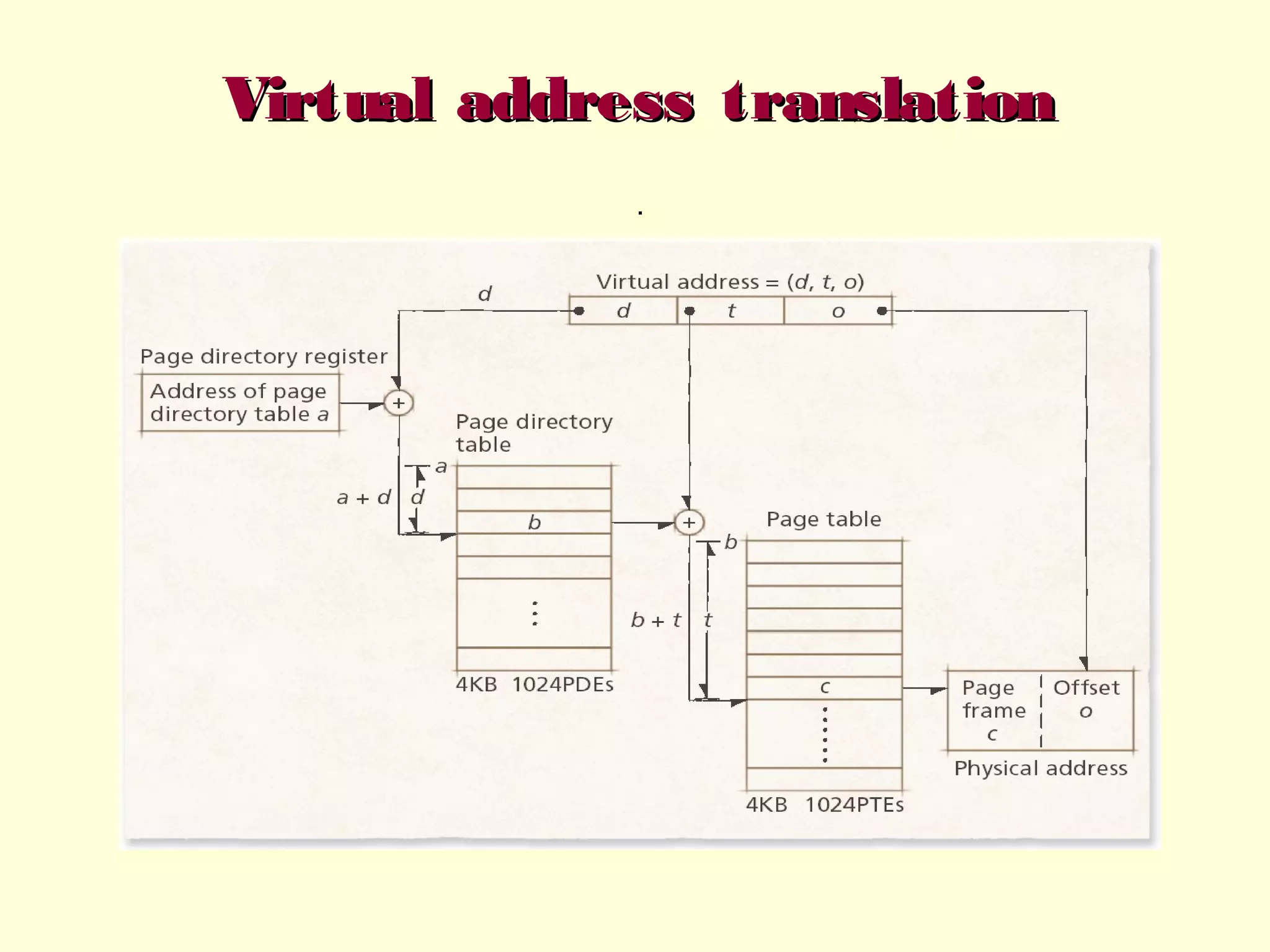

5. Virtual address translation
.

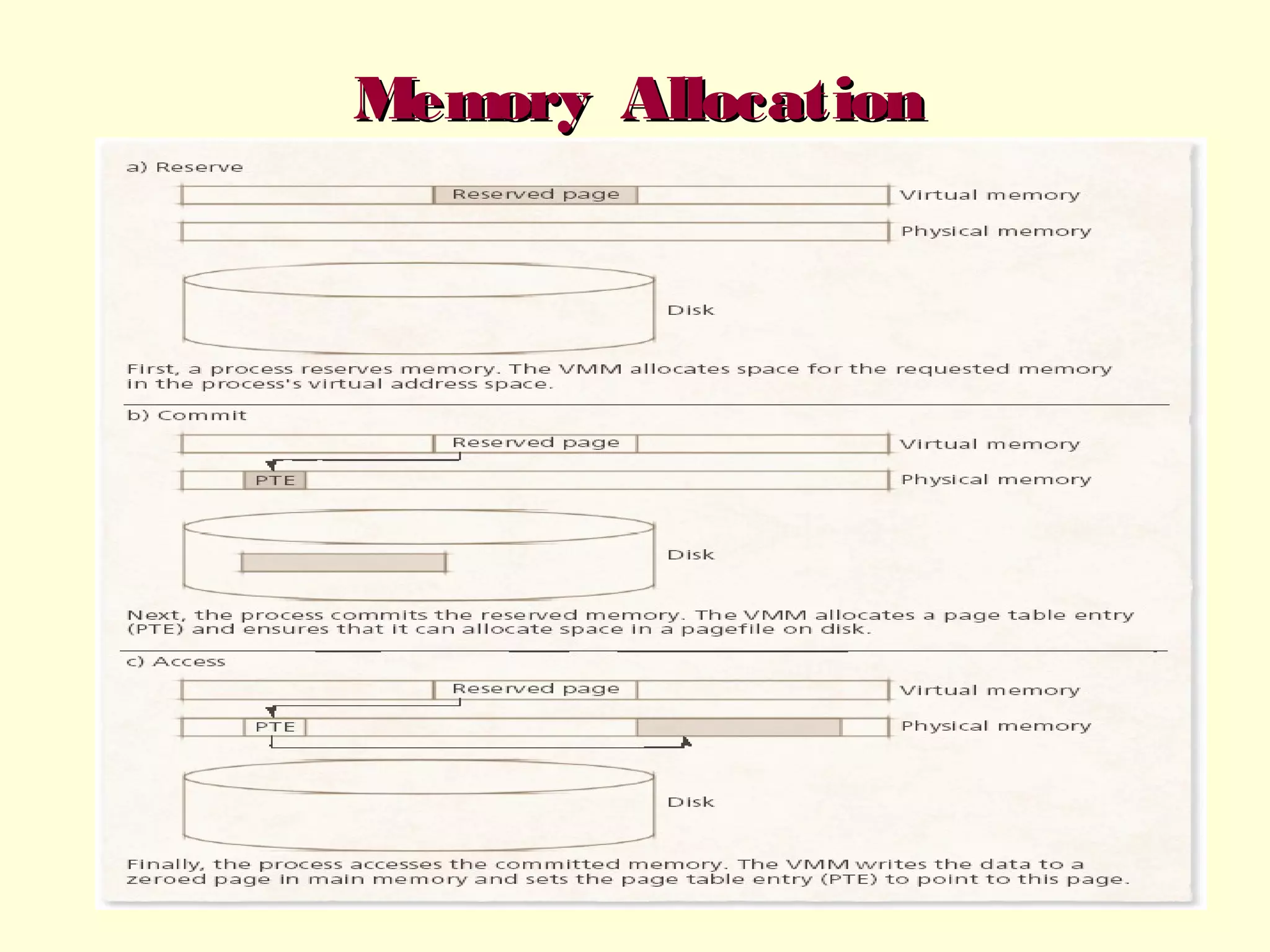

6. Memory Allocation

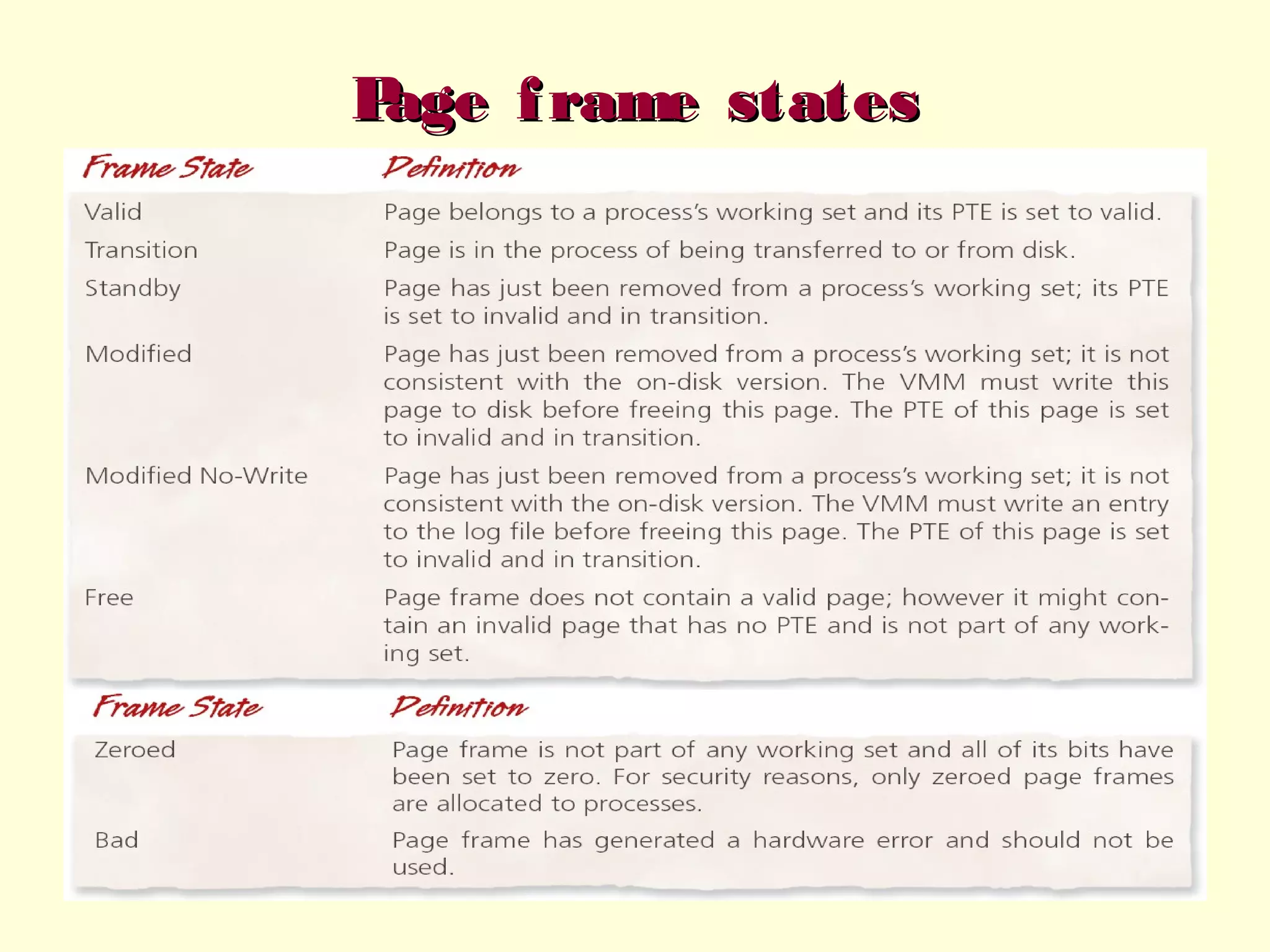

7. P
age f rame states

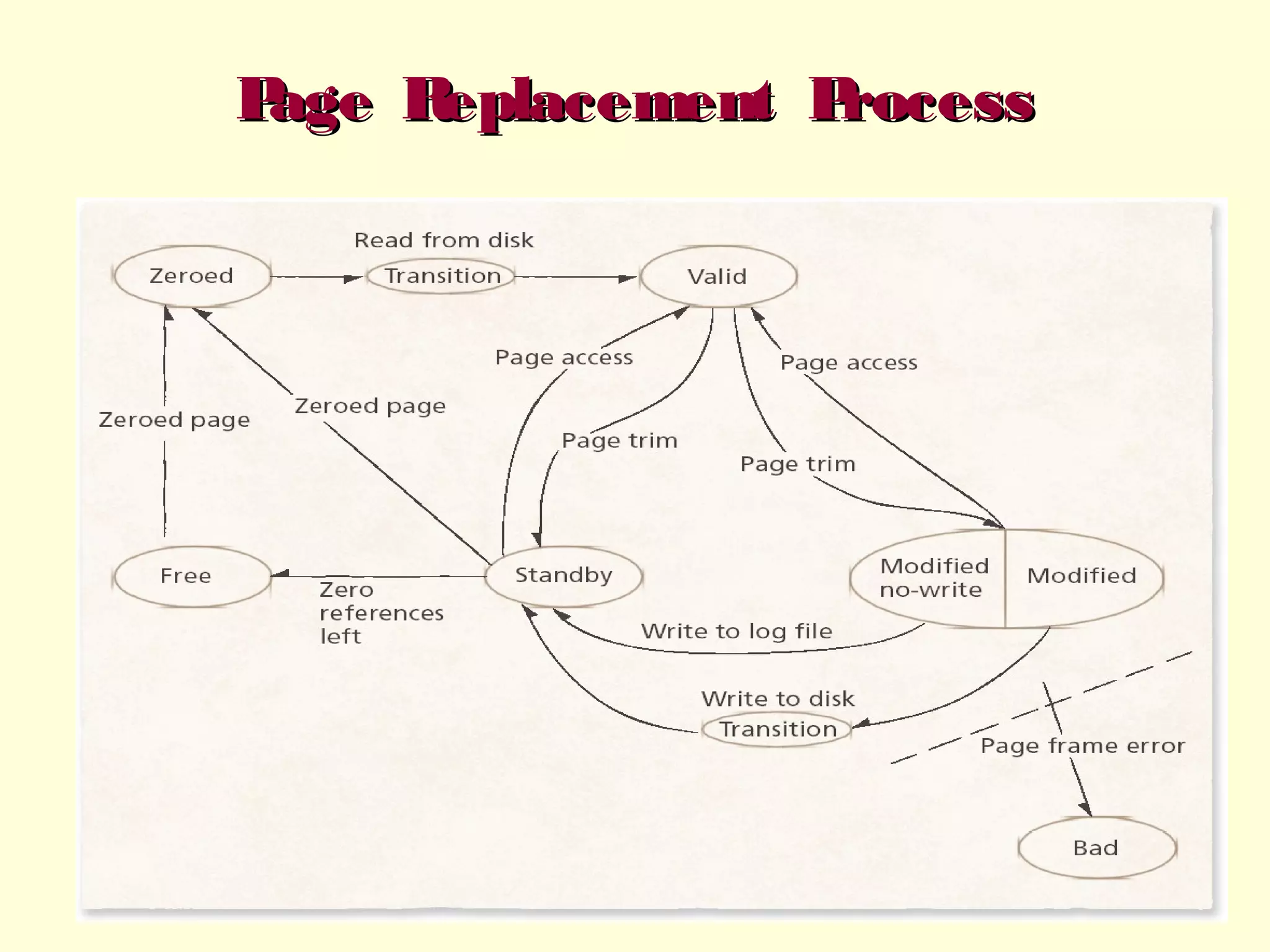

8. P
age R
eplacement P
rocess

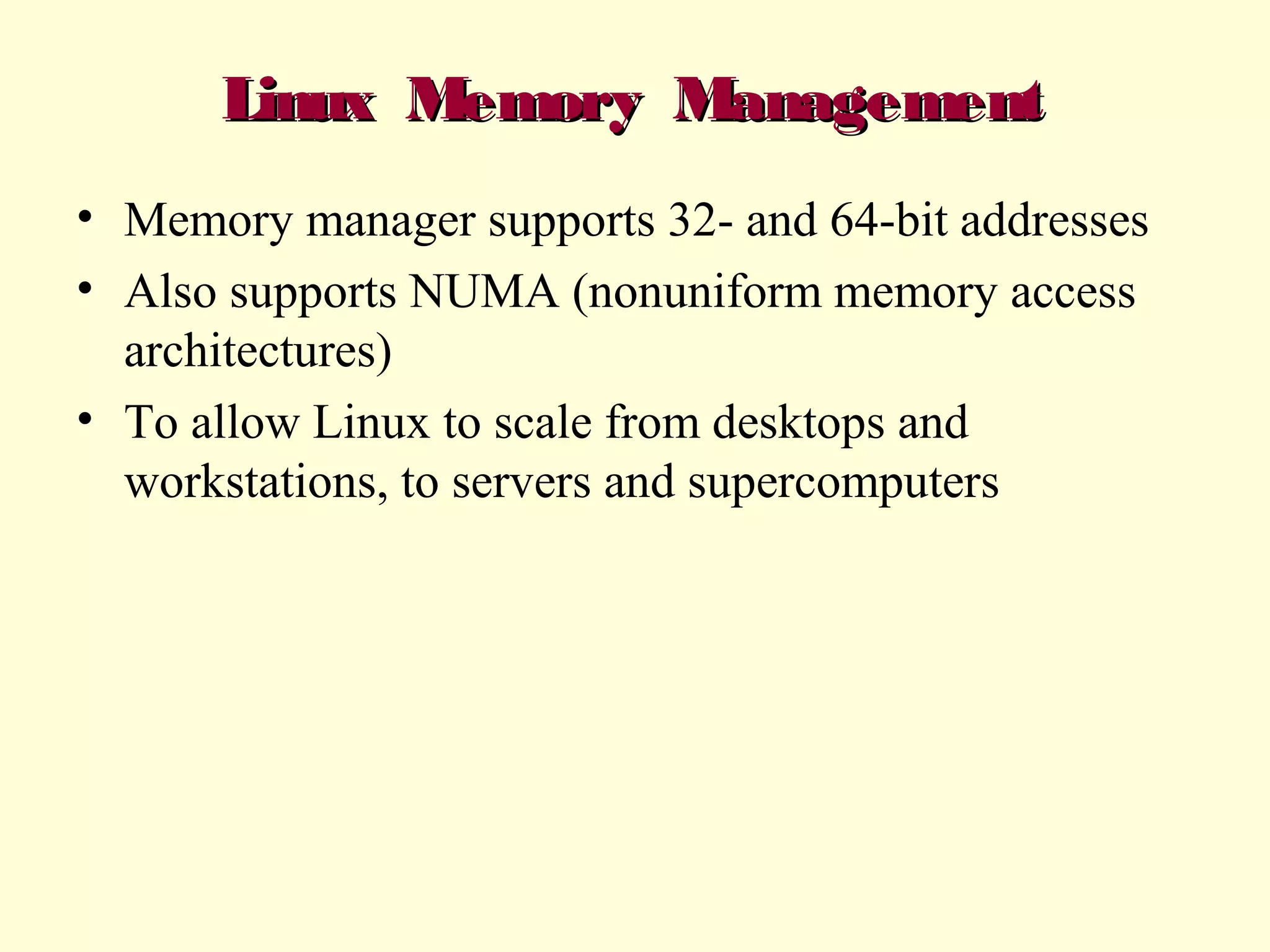

9. Linux Memory Management
• Memory manager supports 32- and 64-bit addresses
• Also supports NUMA (nonuniform memory access
architectures)
• To allow Linux to scale from desktops and
workstations, to servers and supercomputers

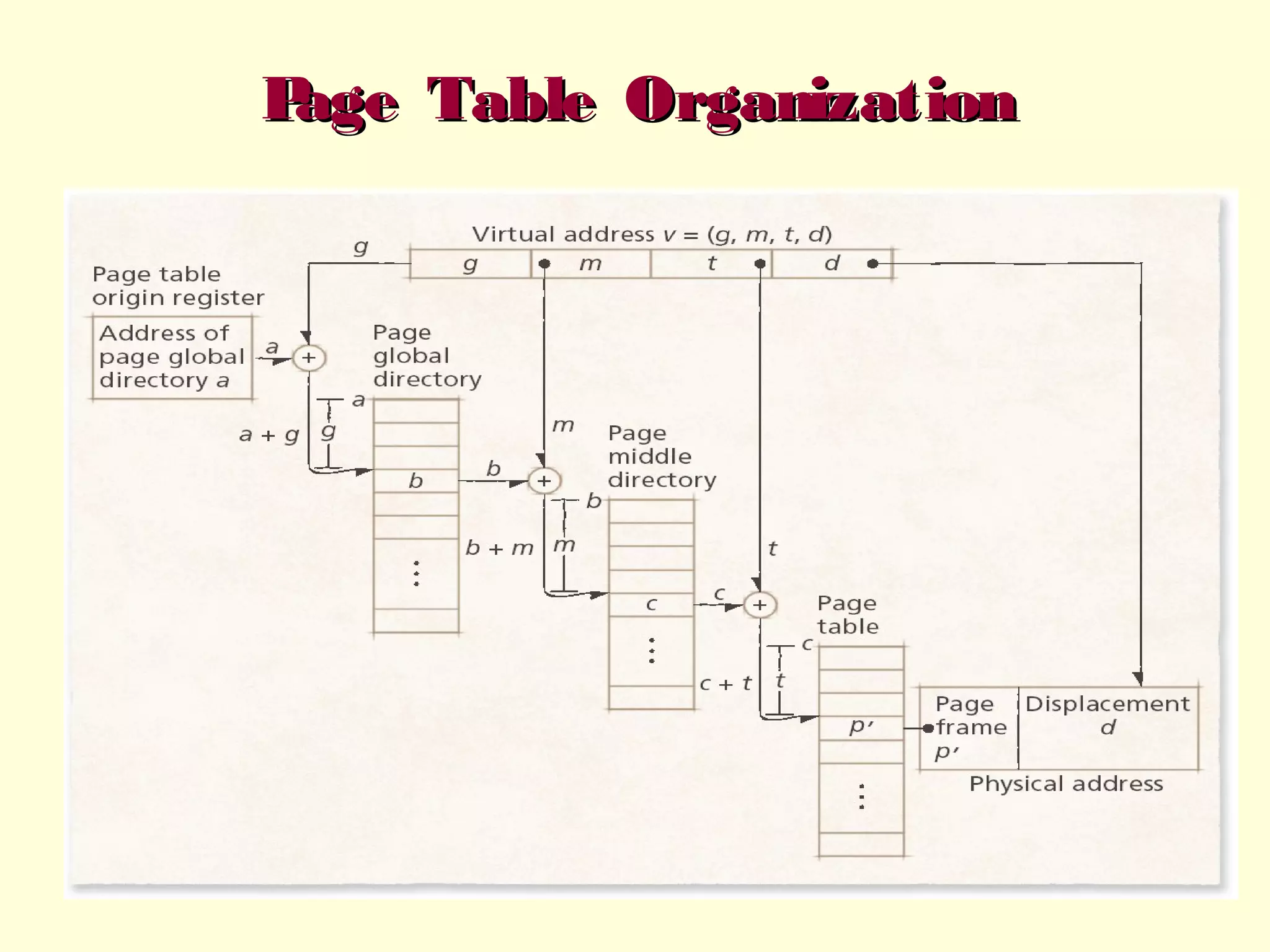

10. P
age Table Organization

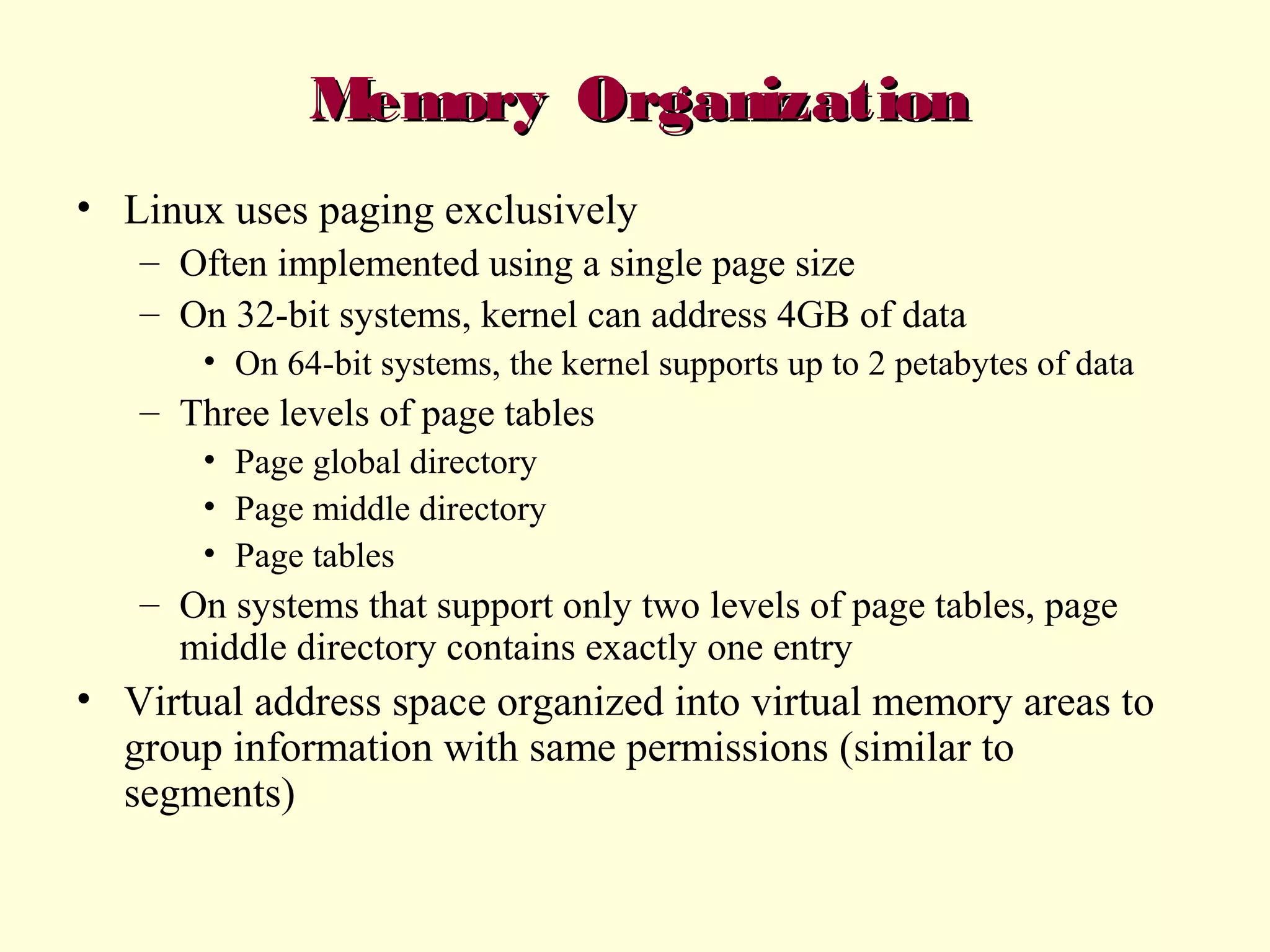

11. Memory Organization
• Linux uses paging exclusively
– Often implemented using a single page size
– On 32-bit systems, kernel can address 4GB of data
• On 64-bit systems, the kernel supports up to 2 petabytes of data
– Three levels of page tables
• Page global directory
• Page middle directory
• Page tables
– On systems that support only two levels of page tables, page
middle directory contains exactly one entry
• Virtual address space organized into virtual memory areas to
group information with same permissions (similar to
segments)

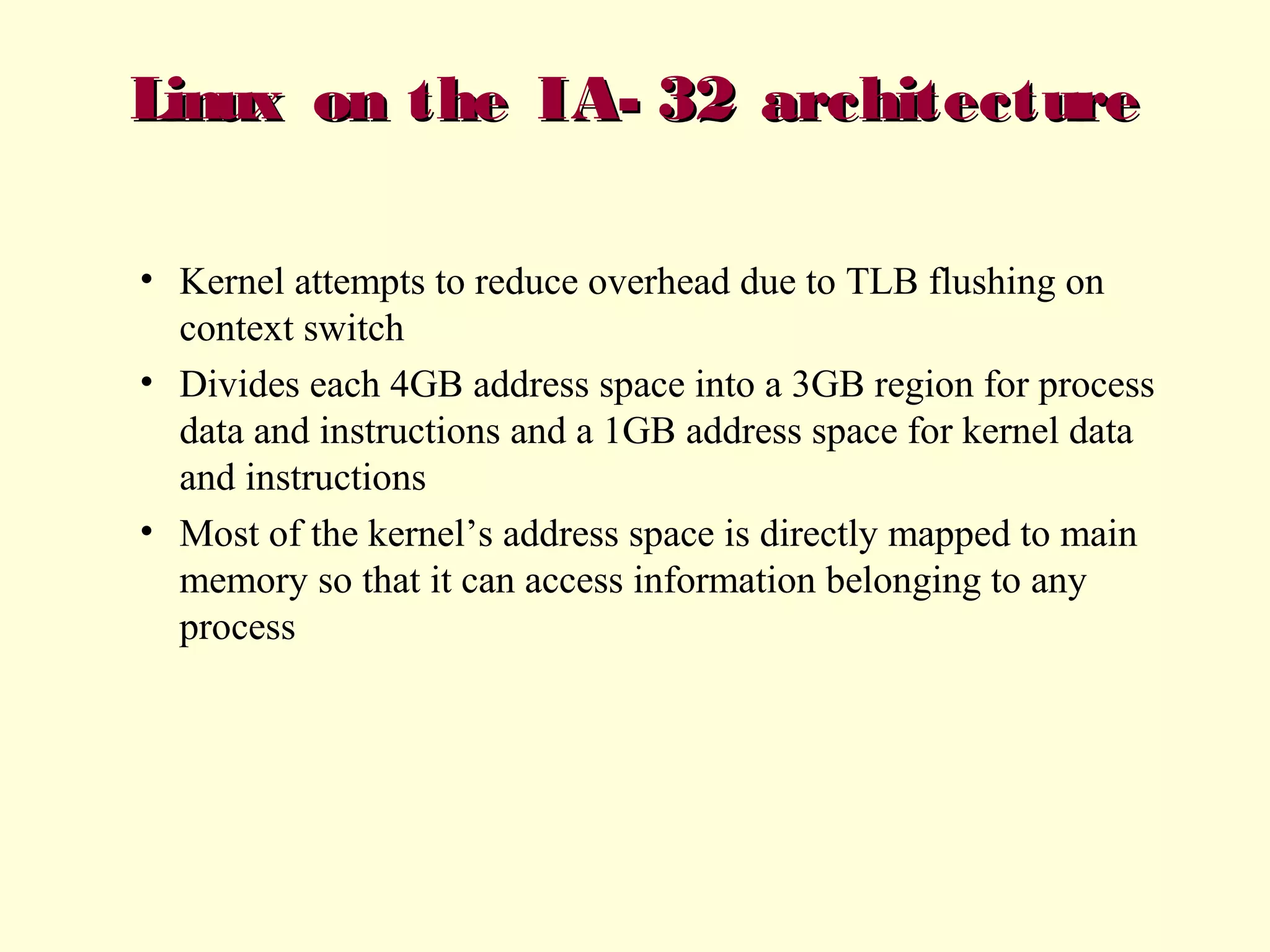

12. Linux on the IA- 32 architecture
• Kernel attempts to reduce overhead due to TLB flushing on
context switch
• Divides each 4GB address space into a 3GB region for process
data and instructions and a 1GB address space for kernel data
and instructions
• Most of the kernel’s address space is directly mapped to main
memory so that it can access information belonging to any
process

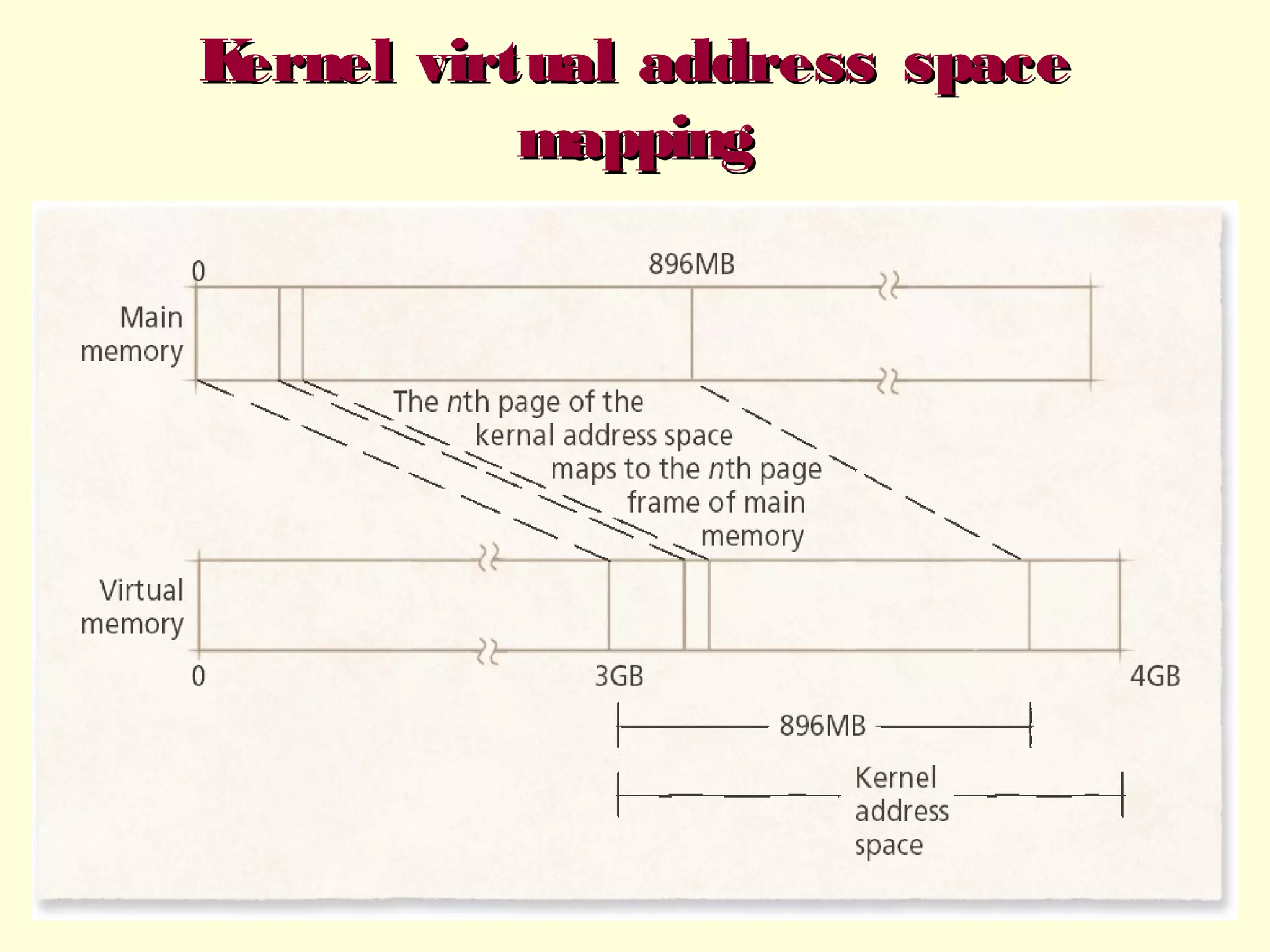

13. K
ernel virtual address space
mapping

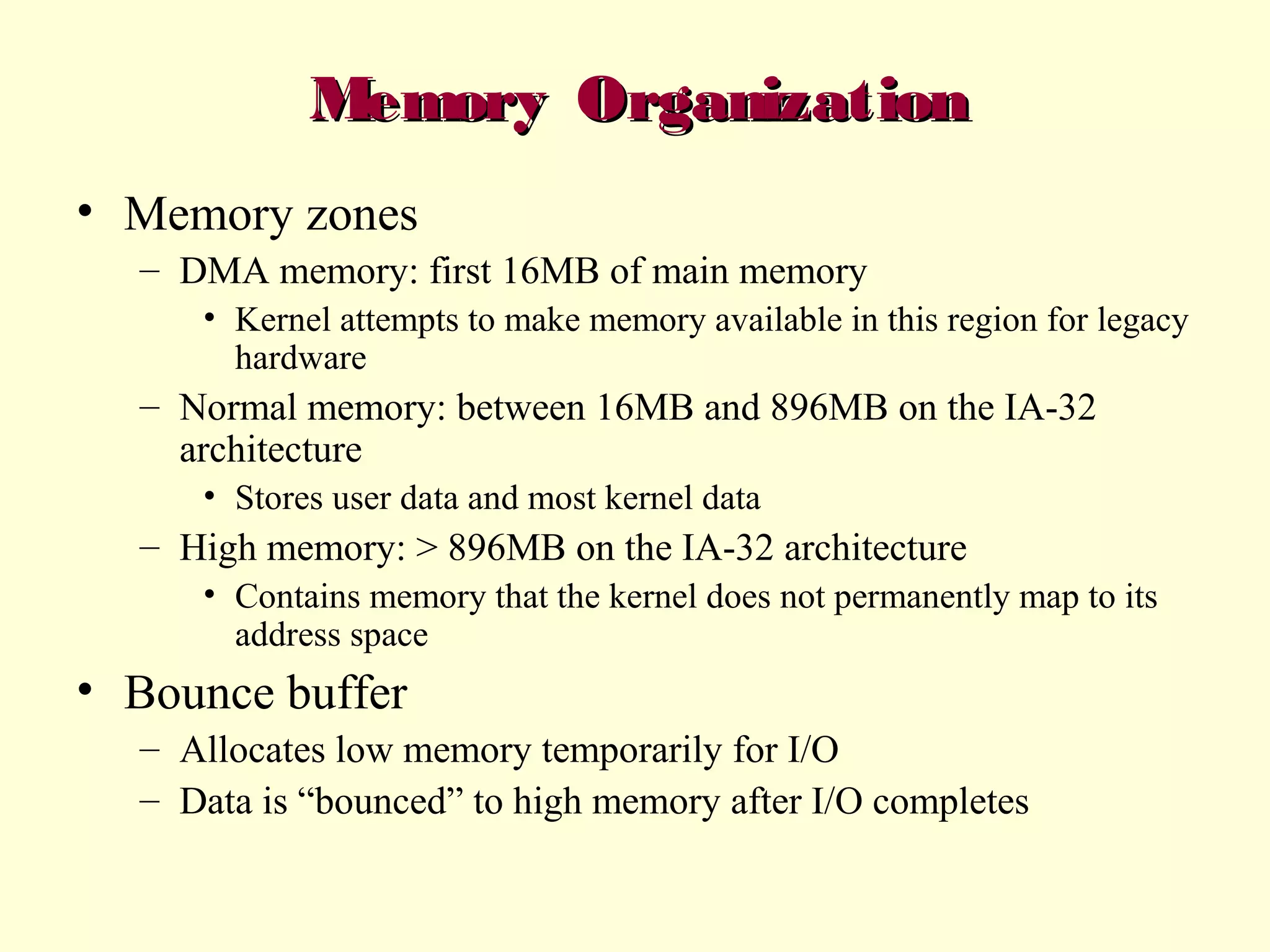

14. Memory Organization
• Memory zones
– DMA memory: first 16MB of main memory
• Kernel attempts to make memory available in this region for legacy
hardware
– Normal memory: between 16MB and 896MB on the IA-32
architecture
• Stores user data and most kernel data
– High memory: > 896MB on the IA-32 architecture
• Contains memory that the kernel does not permanently map to its
address space
• Bounce buffer
– Allocates low memory temporarily for I/O
– Data is “bounced” to high memory after I/O completes

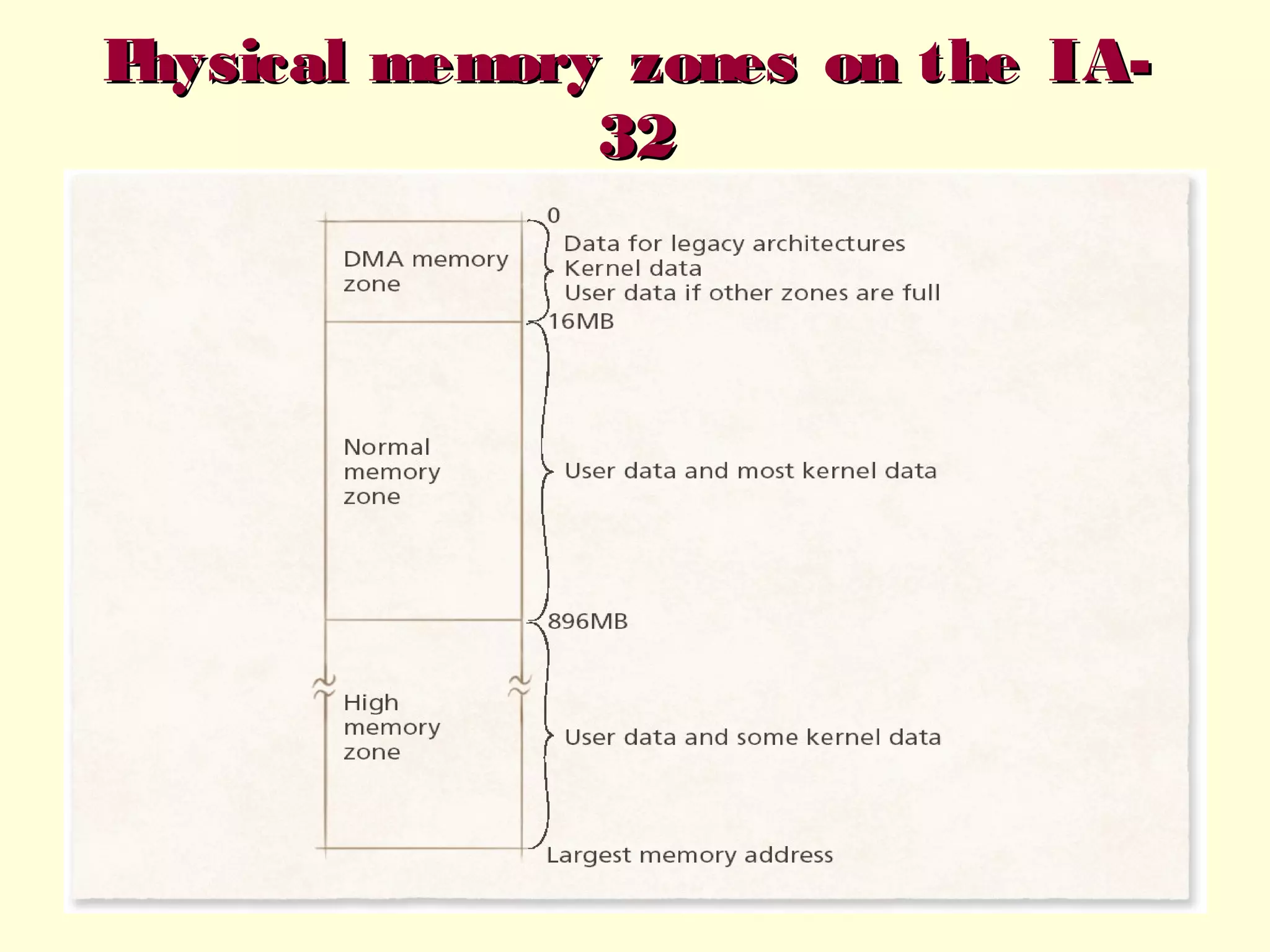

15. P
hysical memory zones on the IA32

16. P
age R
eplacement

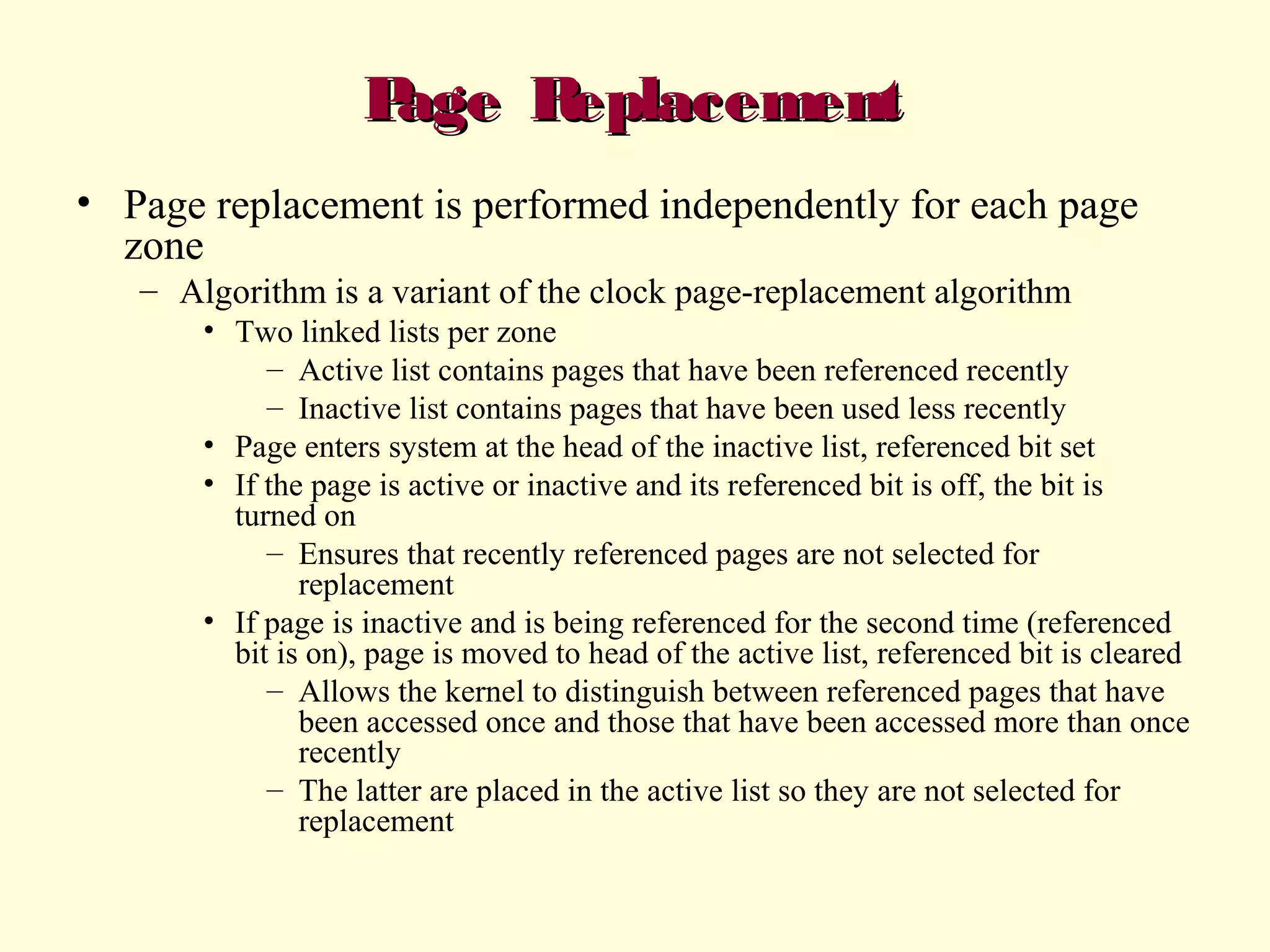

• Page replacement is performed independently for each page
zone
– Algorithm is a variant of the clock page-replacement algorithm
• Two linked lists per zone
– Active list contains pages that have been referenced recently
– Inactive list contains pages that have been used less recently
• Page enters system at the head of the inactive list, referenced bit set
• If the page is active or inactive and its referenced bit is off, the bit is
turned on
– Ensures that recently referenced pages are not selected for
replacement
• If page is inactive and is being referenced for the second time (referenced
bit is on), page is moved to head of the active list, referenced bit is cleared
– Allows the kernel to distinguish between referenced pages that have
been accessed once and those that have been accessed more than once
recently
– The latter are placed in the active list so they are not selected for
replacement

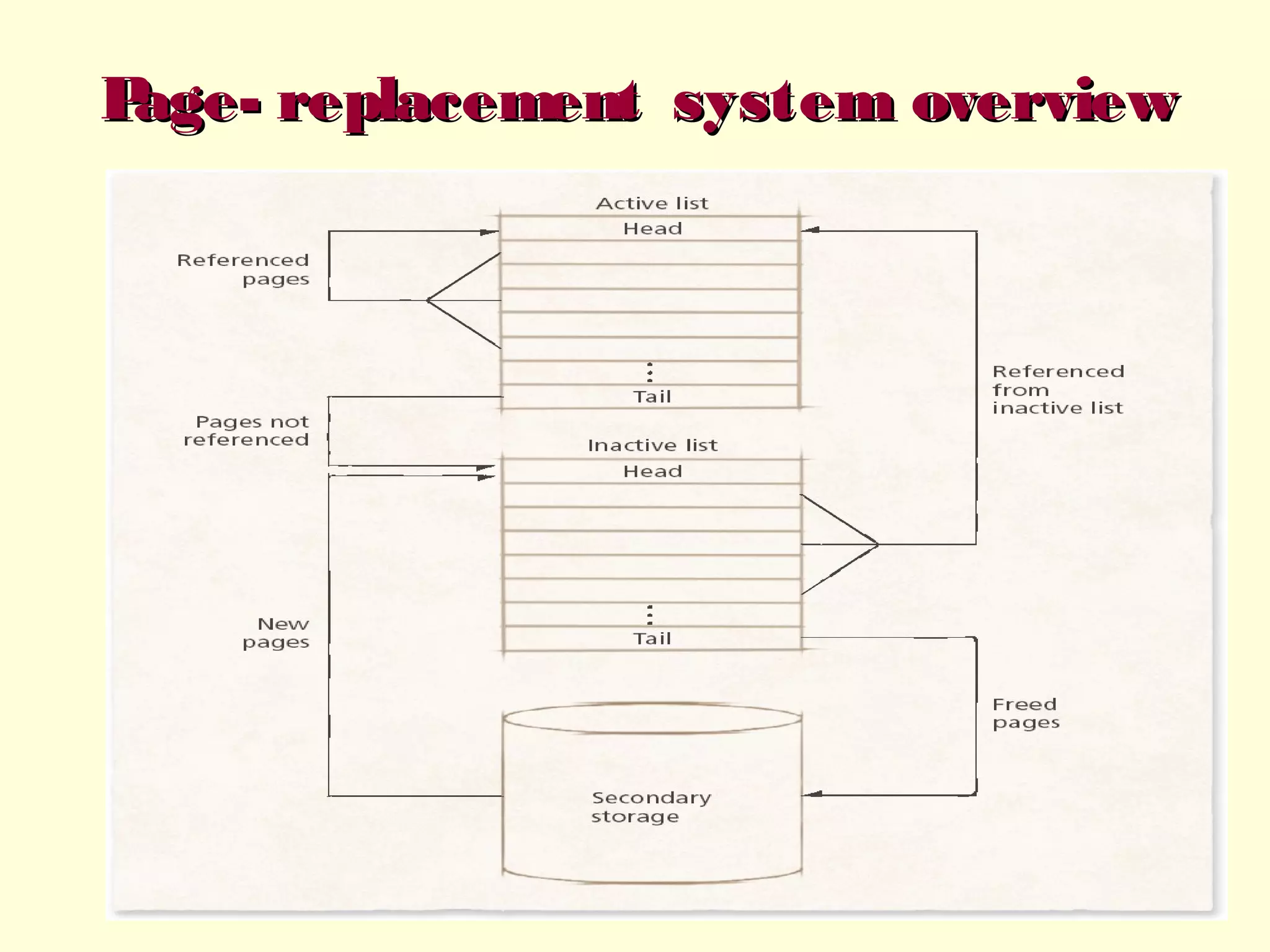

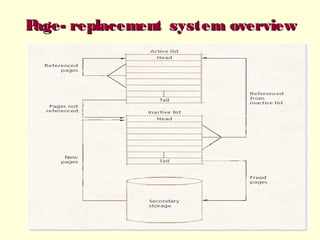

17. P
age- replacement system overview

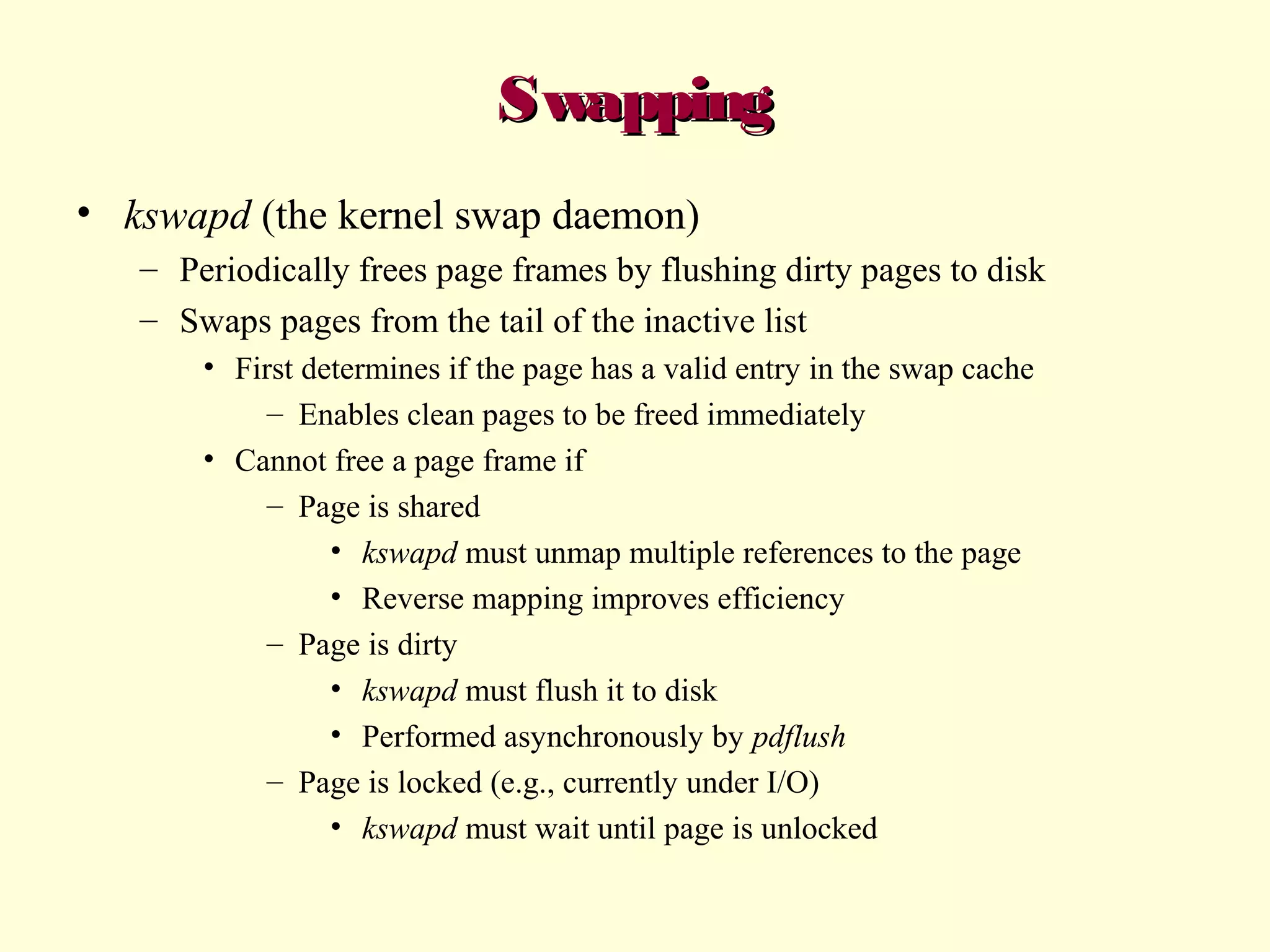

18. Swapping
• kswapd (the kernel swap daemon)
– Periodically frees page frames by flushing dirty pages to disk
– Swaps pages from the tail of the inactive list
• First determines if the page has a valid entry in the swap cache
– Enables clean pages to be freed immediately
• Cannot free a page frame if
– Page is shared
• kswapd must unmap multiple references to the page
• Reverse mapping improves efficiency
– Page is dirty
• kswapd must flush it to disk
• Performed asynchronously by pdflush
– Page is locked (e.g., currently under I/O)
• kswapd must wait until page is unlocked
