Presented at MariaDB Roadshow in Reston, VA - October 2017

1. MariaDB Server
performance tuning
&
optimization
James McLaurin
Solution Architect
MariaDB

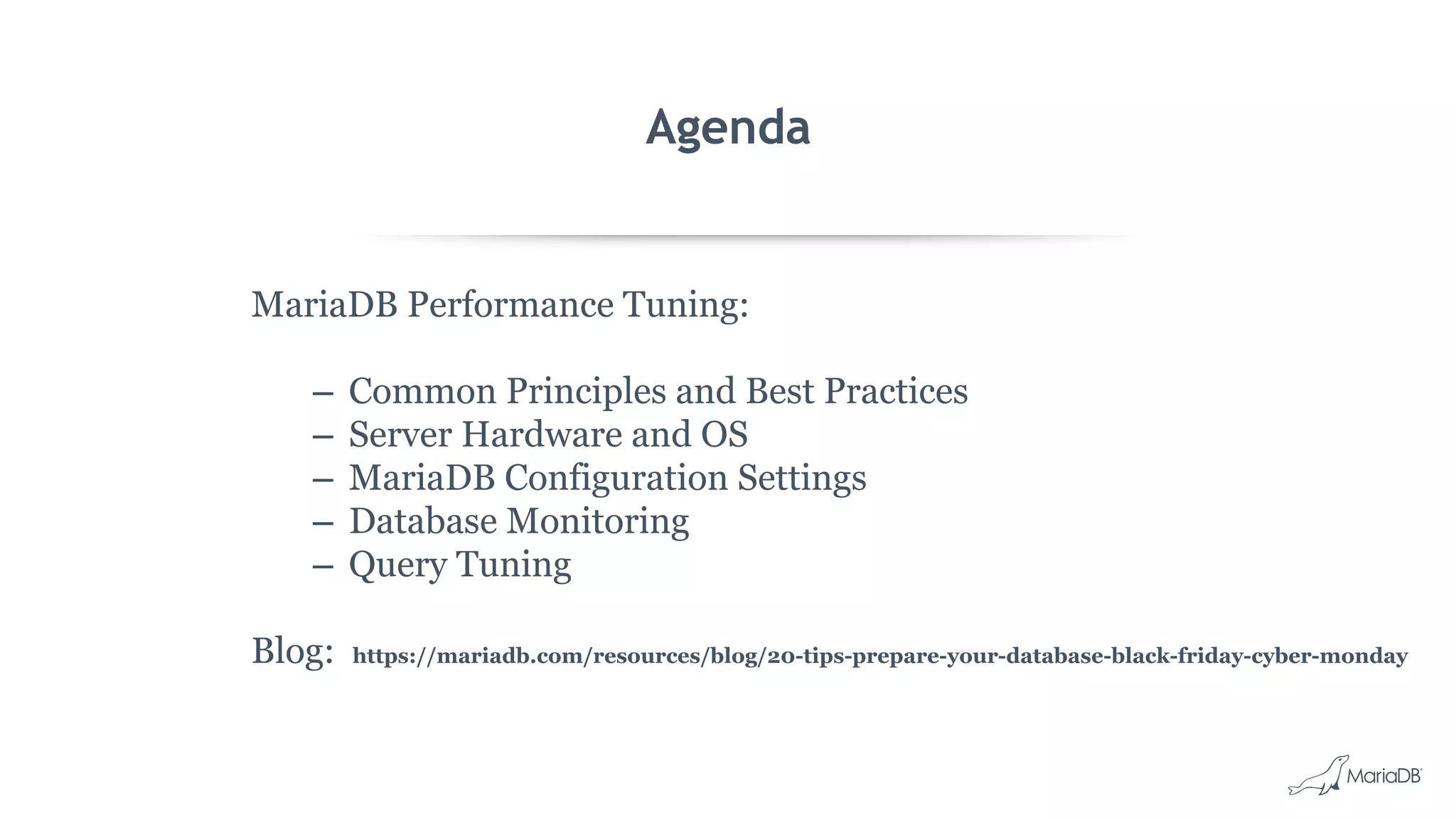

2. Agenda
MariaDB Performance Tuning:
– Common Principles and Best Practices
– Server Hardware and OS
– MariaDB Configuration Settings
– Database Monitoring

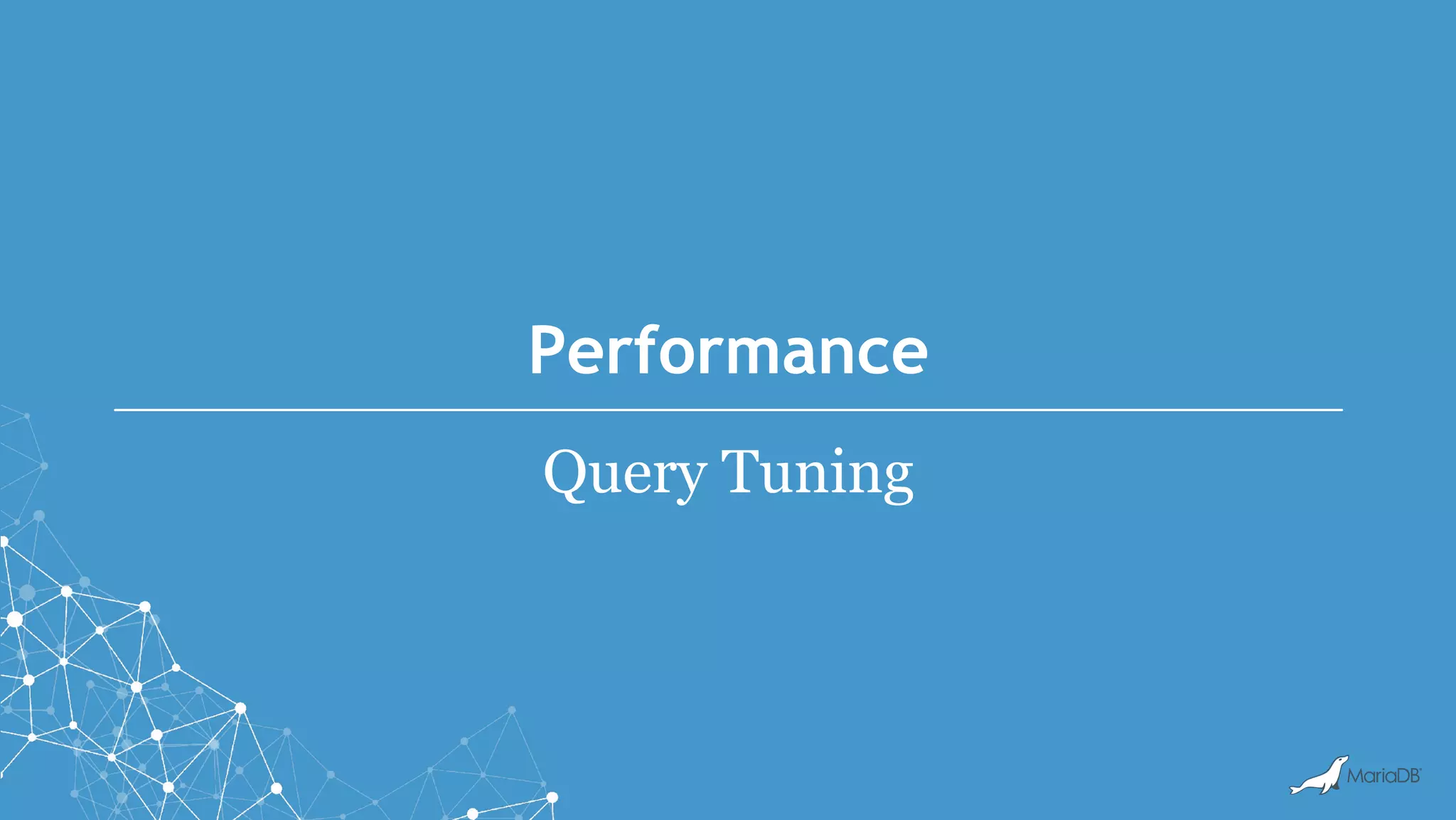

– Query Tuning
Blog: https://mariadb.com/resources/blog/20-tips-prepare-your-database-black-friday-cyber-monday

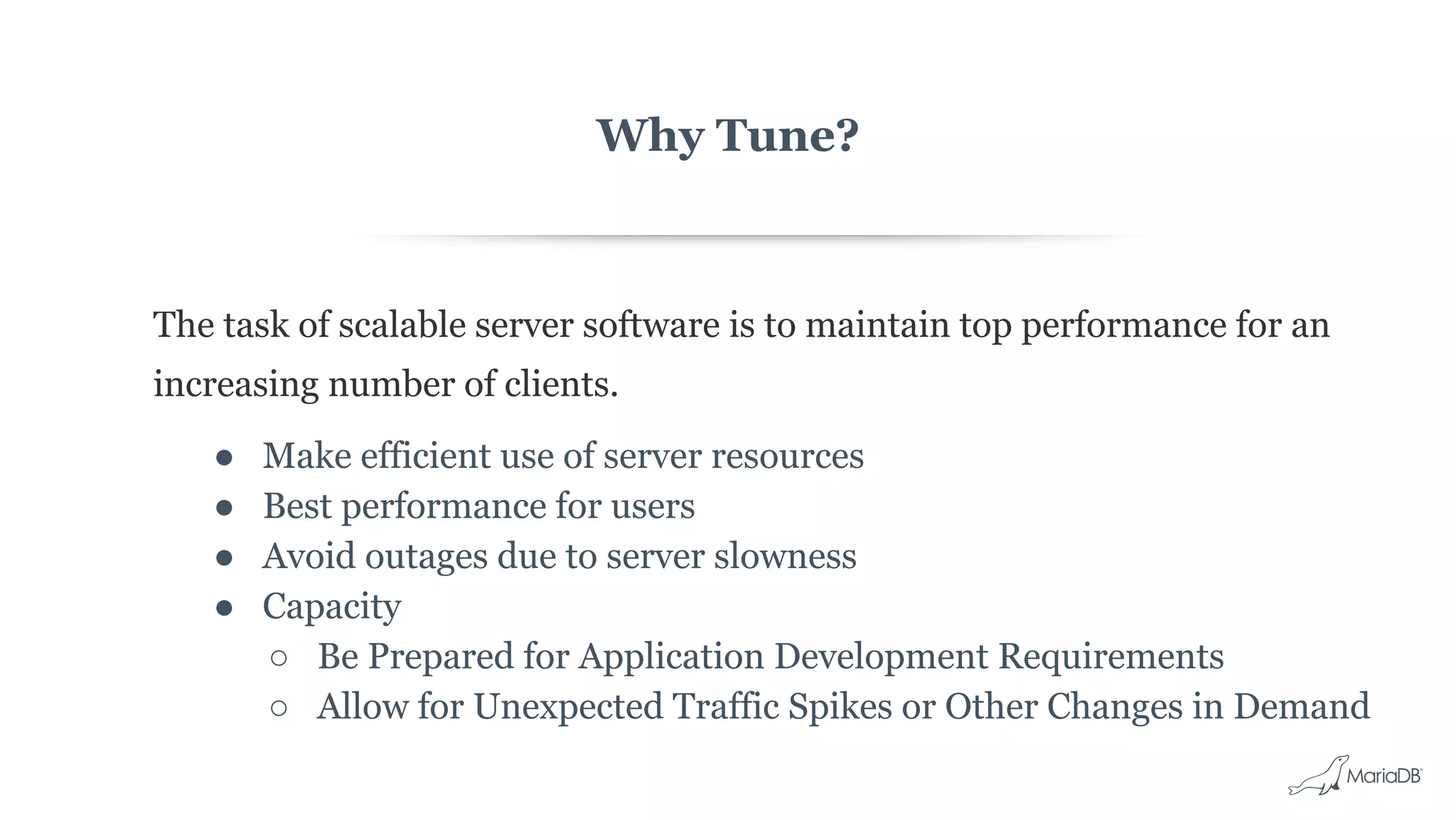

3. Why Tune?
The task of scalable server software is to maintain top performance for an
increasing number of clients.
● Make efficient use of server resources
● Best performance for users
● Avoid outages due to server slowness
● Capacity
○ Be Prepared for Application Development Requirements
○ Allow for Unexpected Traffic Spikes or Other Changes in Demand

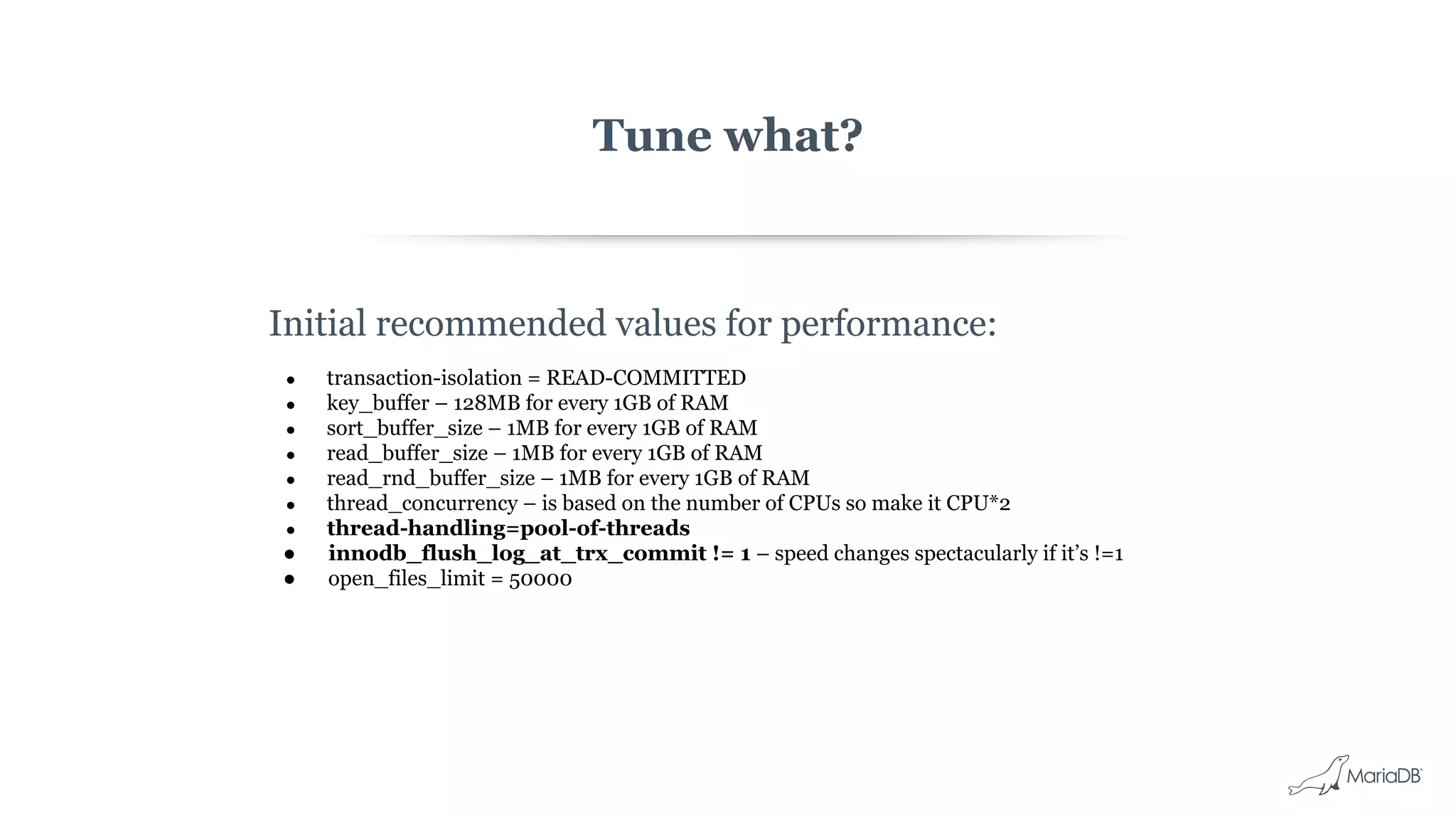

4. Tune what?
Initial recommended values for performance:
● transaction-isolation = READ-COMMITTED
● key_buffer – 128MB for every 1GB of RAM
● sort_buffer_size – 1MB for every 1GB of RAM
● read_buffer_size – 1MB for every 1GB of RAM
● read_rnd_buffer_size – 1MB for every 1GB of RAM
● thread_concurrency – is based on the number of CPUs so make it CPU*2
● thread-handling=pool-of-threads
● innodb_flush_log_at_trx_commit != 1 – speed changes spectacularly if it’s !=1
● open_files_limit = 50000

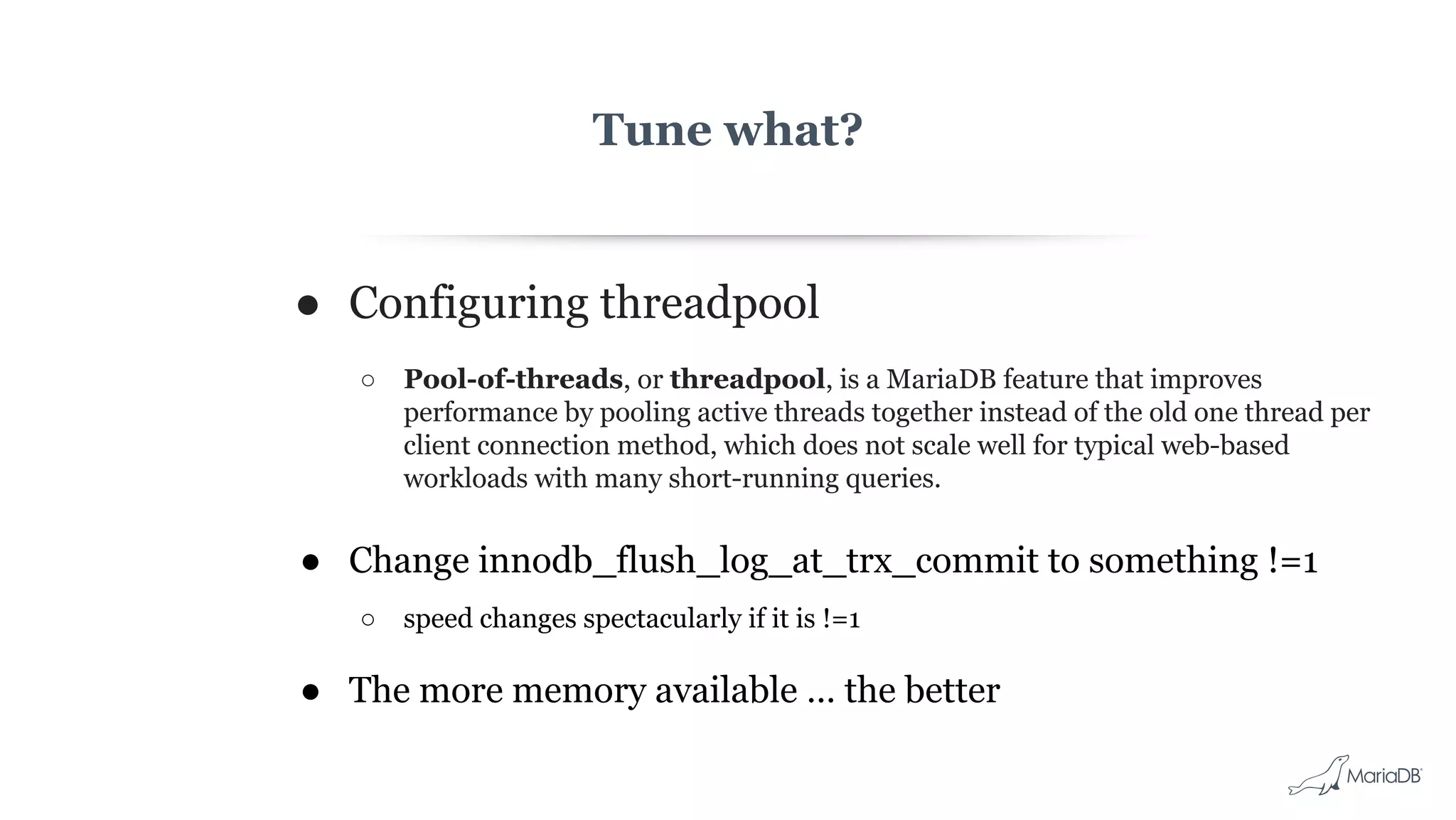

5. Tune what?
● Configuring threadpool
○ Pool-of-threads, or threadpool, is a MariaDB feature that improves
performance by pooling active threads together instead of the old one thread per
client connection method, which does not scale well for typical web-based
workloads with many short-running queries.
● Change innodb_flush_log_at_trx_commit to something !=1
○ speed changes spectacularly if it is !=1
● The more memory available … the better

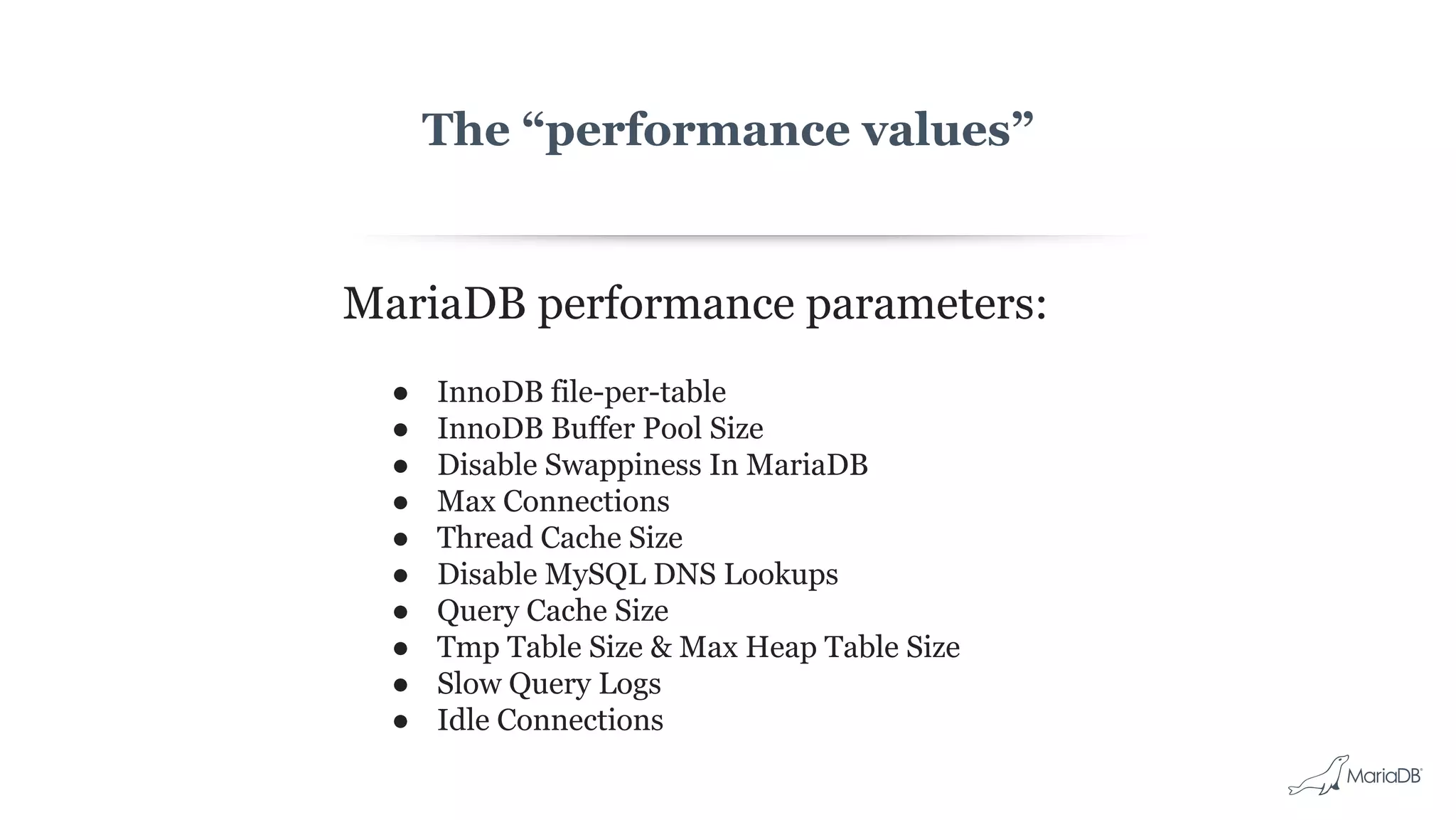

6. The “performance values”
MariaDB performance parameters:
● InnoDB file-per-table
● InnoDB Buffer Pool Size
● Disable Swappiness In MariaDB
● Max Connections
● Thread Cache Size
● Disable MySQL DNS Lookups
● Query Cache Size
● Tmp Table Size & Max Heap Table Size

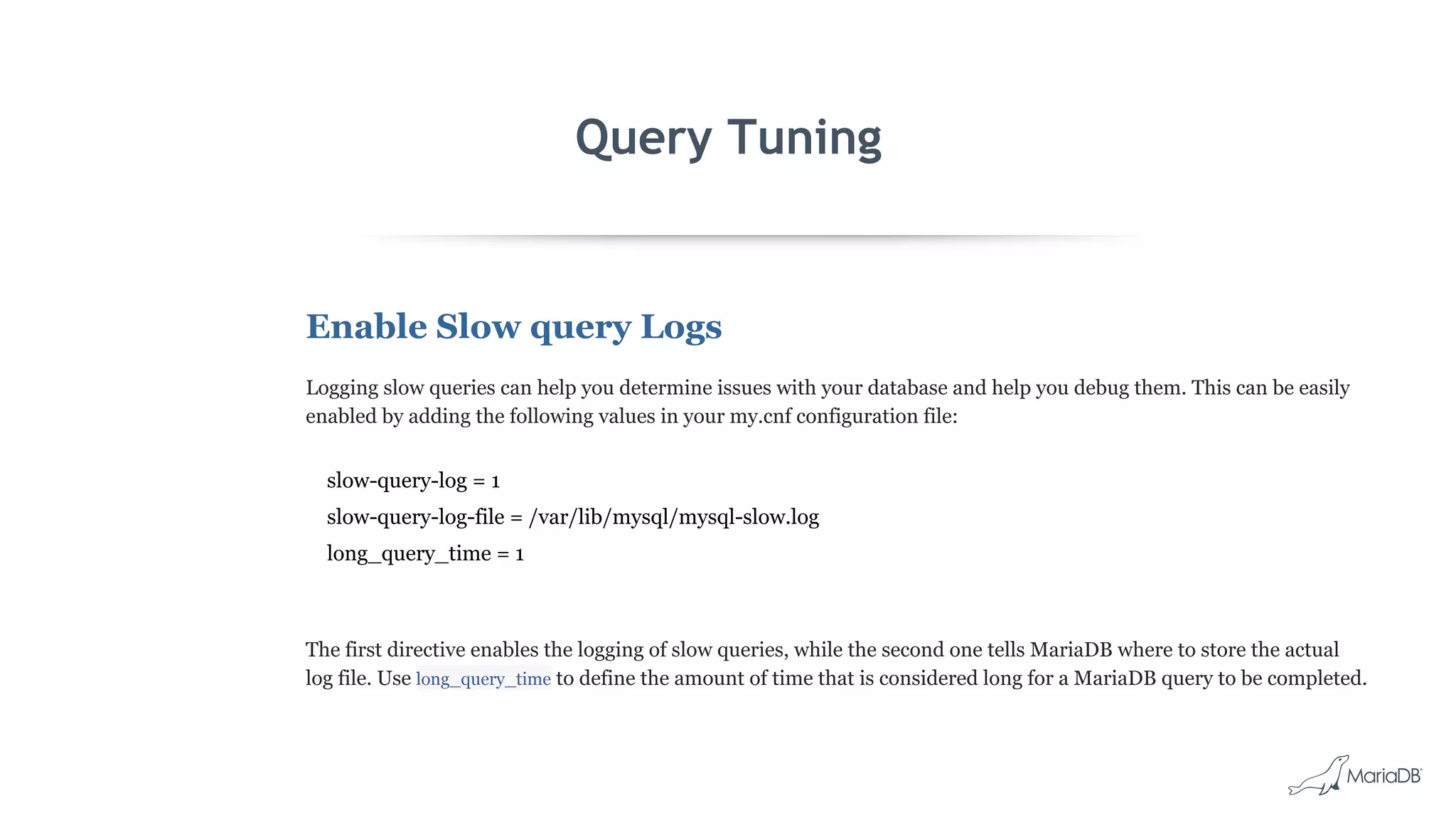

● Slow Query Logs
● Idle Connections

7. Performance
Common Principles and Best Practices

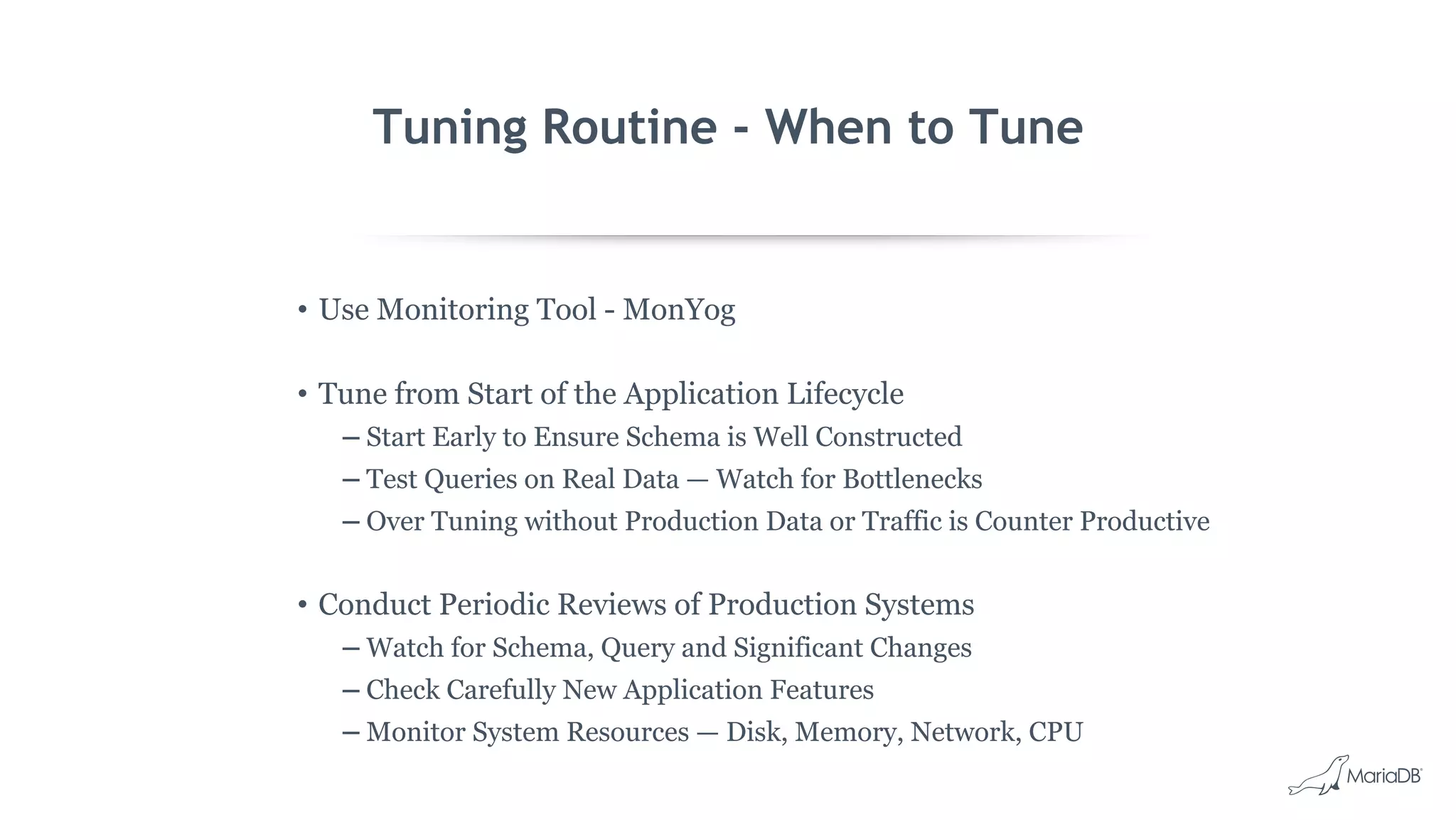

8. Tuning Routine - When to Tune
• Use Monitoring Tool - MonYog
• Tune from Start of the Application Lifecycle
– Start Early to Ensure Schema is Well Constructed
– Test Queries on Real Data — Watch for Bottlenecks
– Over Tuning without Production Data or Traffic is Counter Productive
• Conduct Periodic Reviews of Production Systems
– Watch for Schema, Query and Significant Changes
– Check Carefully New Application Features
– Monitor System Resources — Disk, Memory, Network, CPU

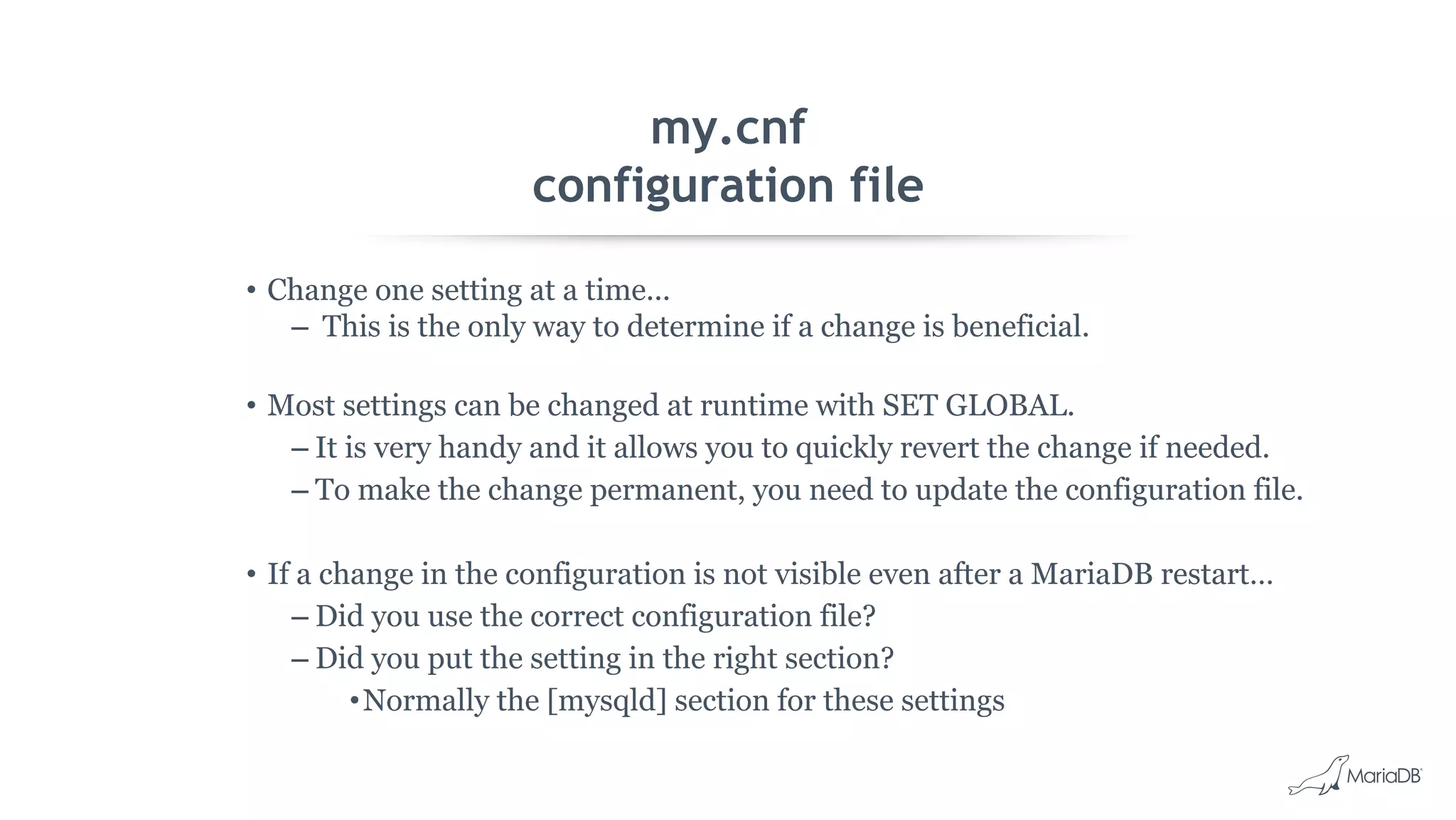

9. my.cnf
configuration file
• Change one setting at a time...
– This is the only way to determine if a change is beneficial.
• Most settings can be changed at runtime with SET GLOBAL.
– It is very handy and it allows you to quickly revert the change if needed.
– To make the change permanent, you need to update the configuration file.
• If a change in the configuration is not visible even after a MariaDB restart…
– Did you use the correct configuration file?
– Did you put the setting in the right section?
•Normally the [mysqld] section for these settings

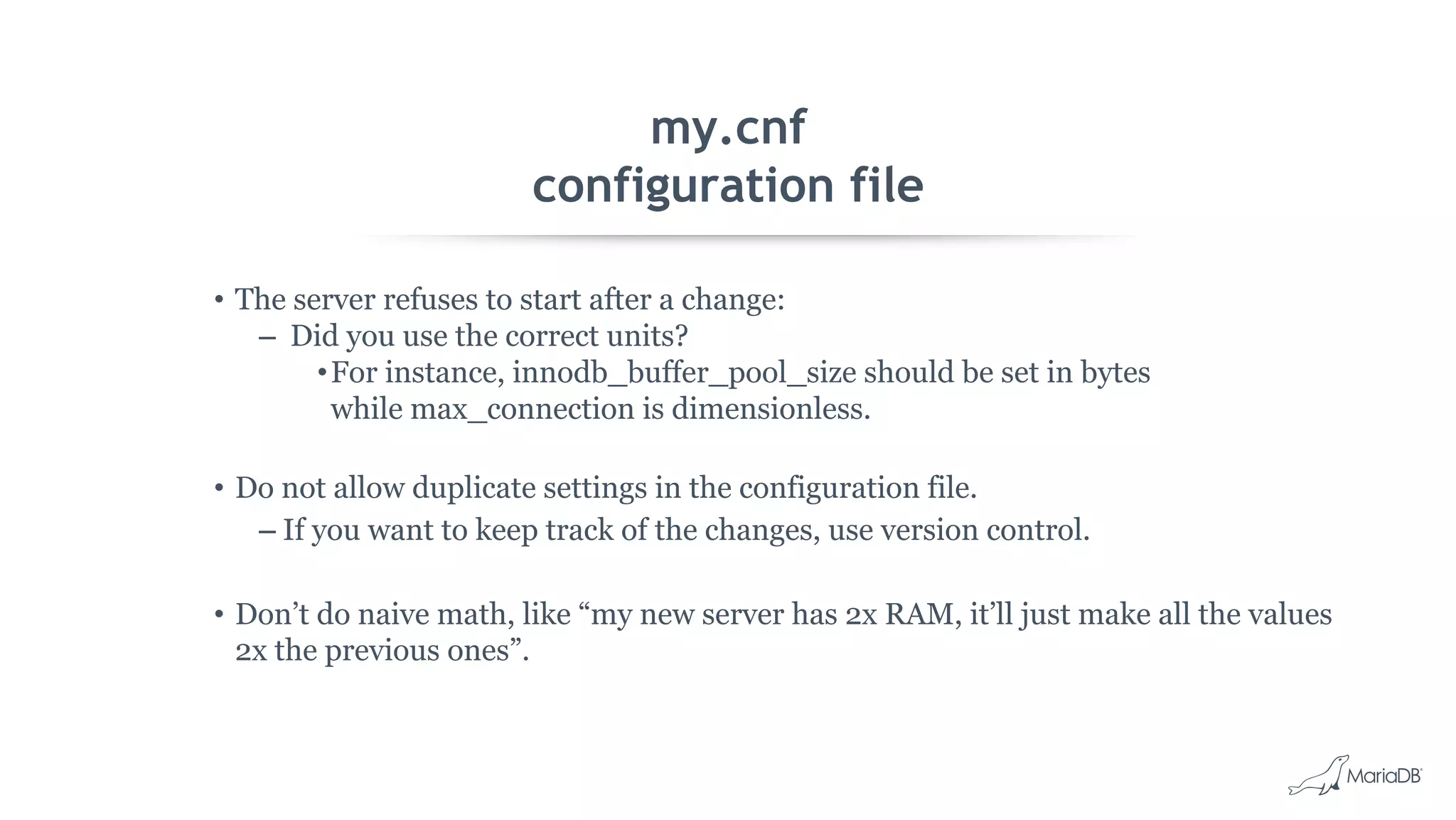

10. my.cnf
configuration file
• The server refuses to start after a change:
– Did you use the correct units?
•For instance, innodb_buffer_pool_size should be set in bytes
while max_connection is dimensionless.
• Do not allow duplicate settings in the configuration file.
– If you want to keep track of the changes, use version control.
• Don’t do naive math, like “my new server has 2x RAM, it’ll just make all the values
2x the previous ones”.

11. Performance
Server Hardware and OS Tuning

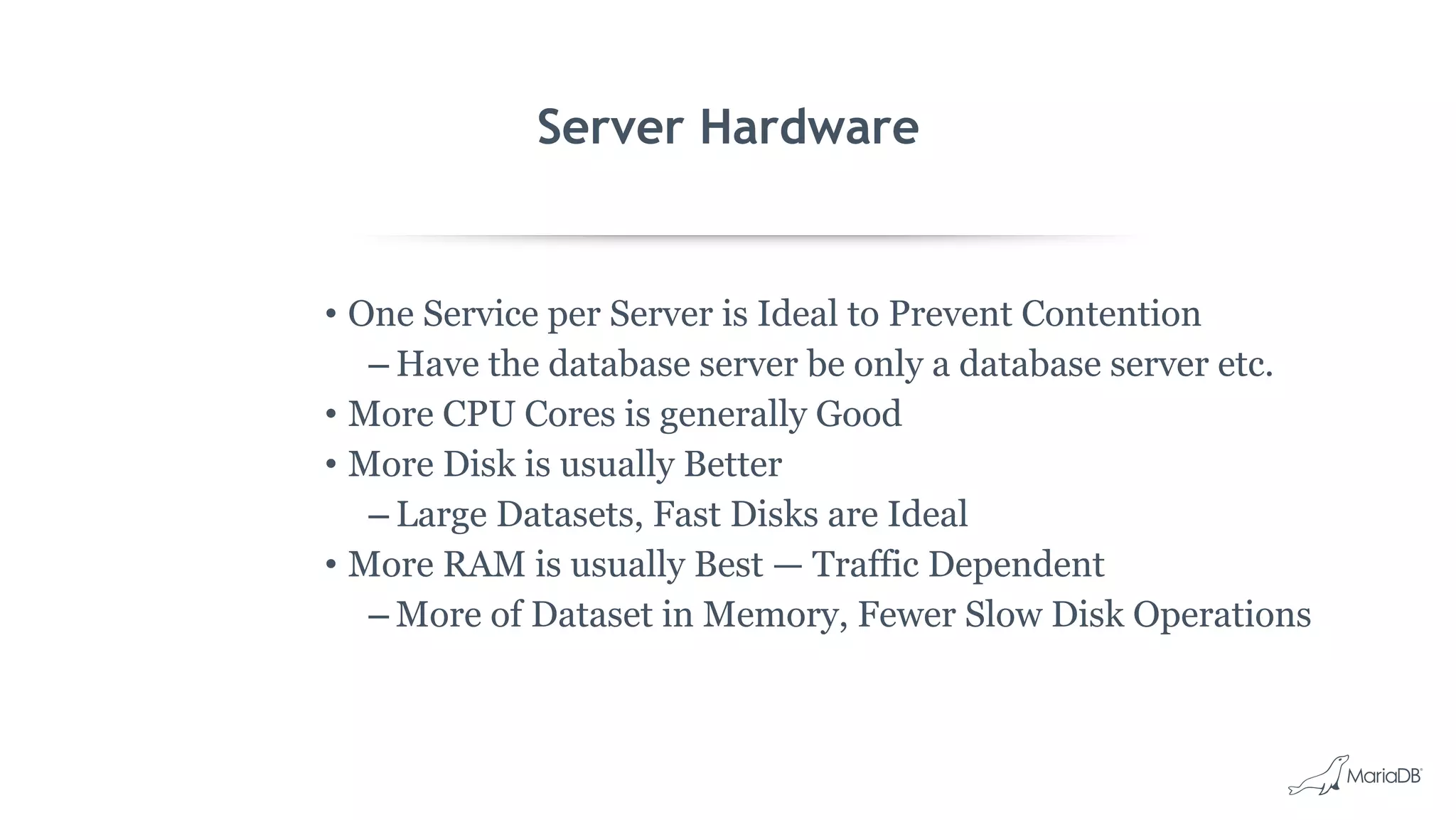

12. Server Hardware
• One Service per Server is Ideal to Prevent Contention
– Have the database server be only a database server etc.
• More CPU Cores is generally Good
• More Disk is usually Better
– Large Datasets, Fast Disks are Ideal
• More RAM is usually Best — Traffic Dependent
– More of Dataset in Memory, Fewer Slow Disk Operations

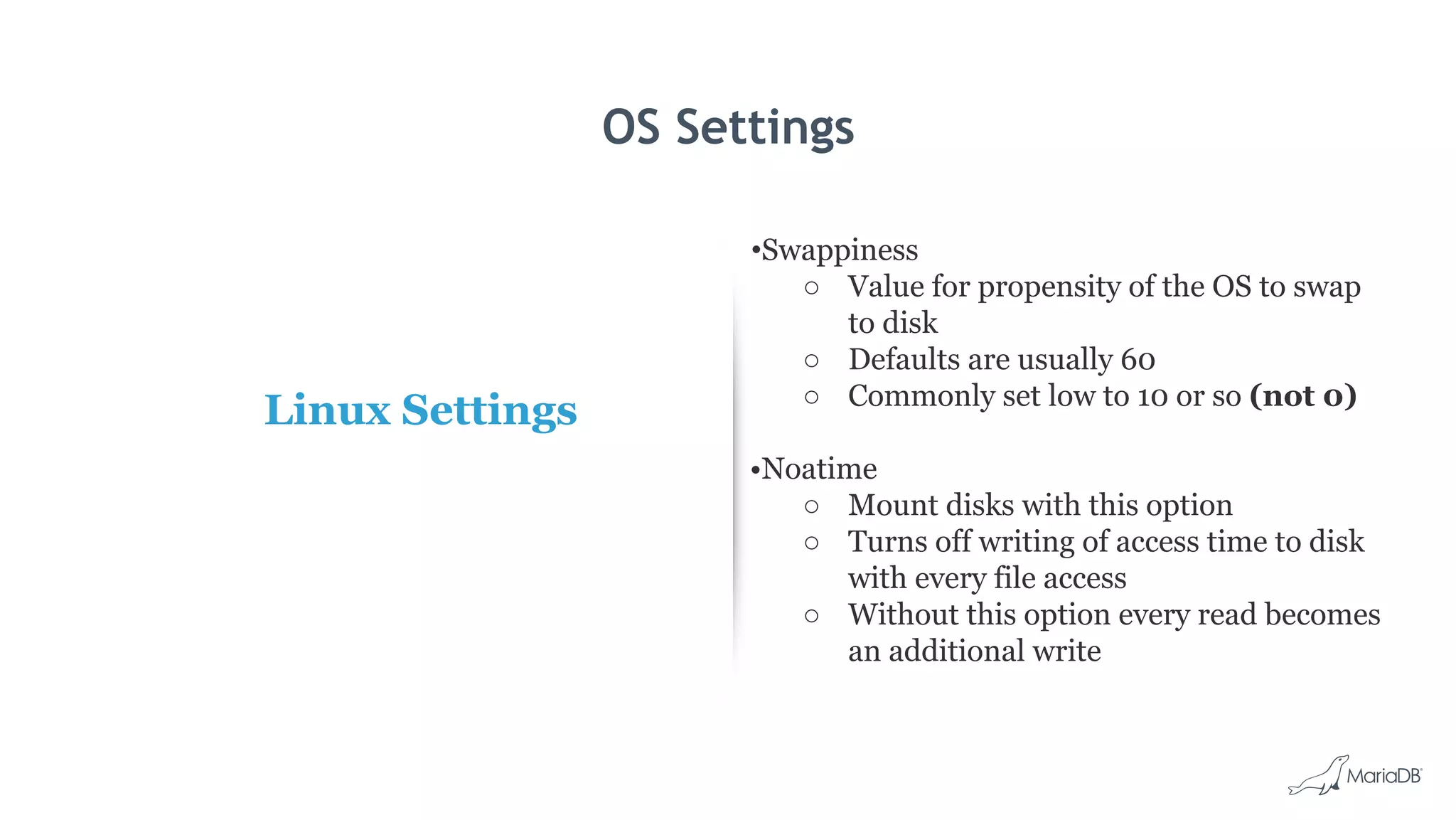

13. OS Settings
Linux Settings
•Swappiness
○ Value for propensity of the OS to swap
to disk
○ Defaults are usually 60
○ Commonly set low to 10 or so (not 0)
•Noatime
○ Mount disks with this option
○ Turns off writing of access time to disk
with every file access
○ Without this option every read becomes
an additional write

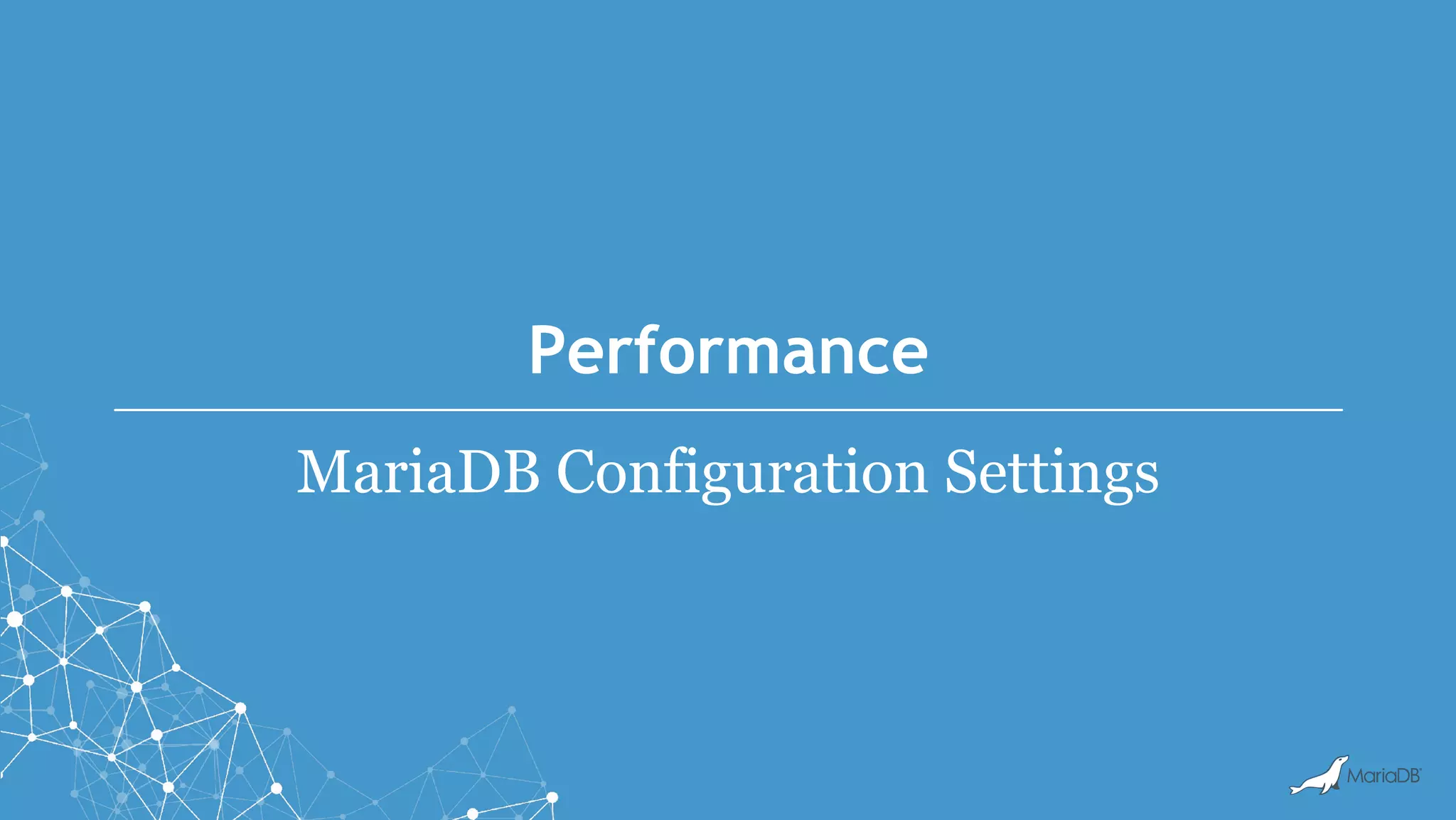

14. Performance
MariaDB Configuration Settings

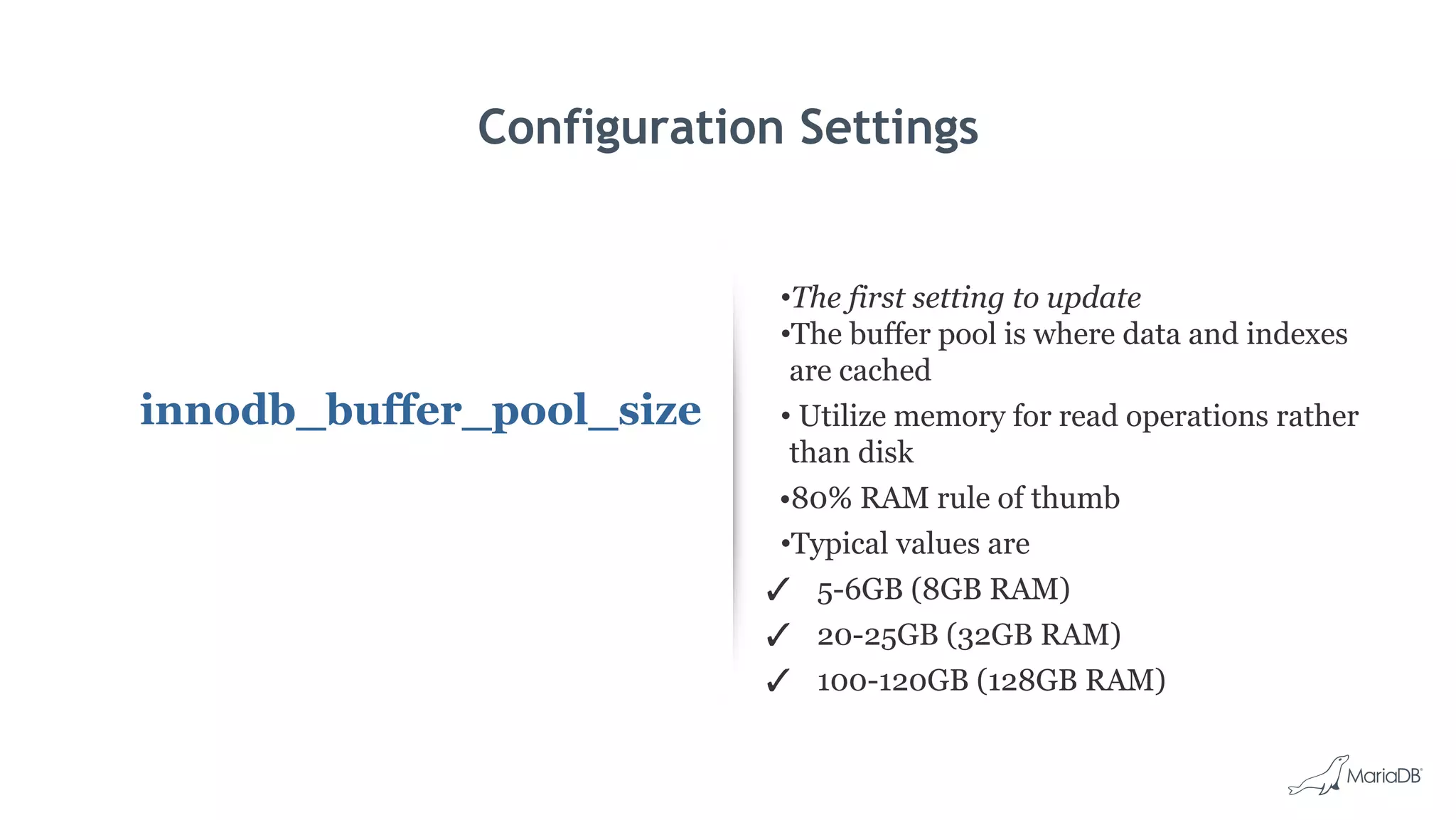

15. Configuration Settings
innodb_buffer_pool_size
•The first setting to update
•The buffer pool is where data and indexes
are cached
• Utilize memory for read operations rather
than disk
•80% RAM rule of thumb
•Typical values are
✓ 5-6GB (8GB RAM)
✓ 20-25GB (32GB RAM)
✓ 100-120GB (128GB RAM)

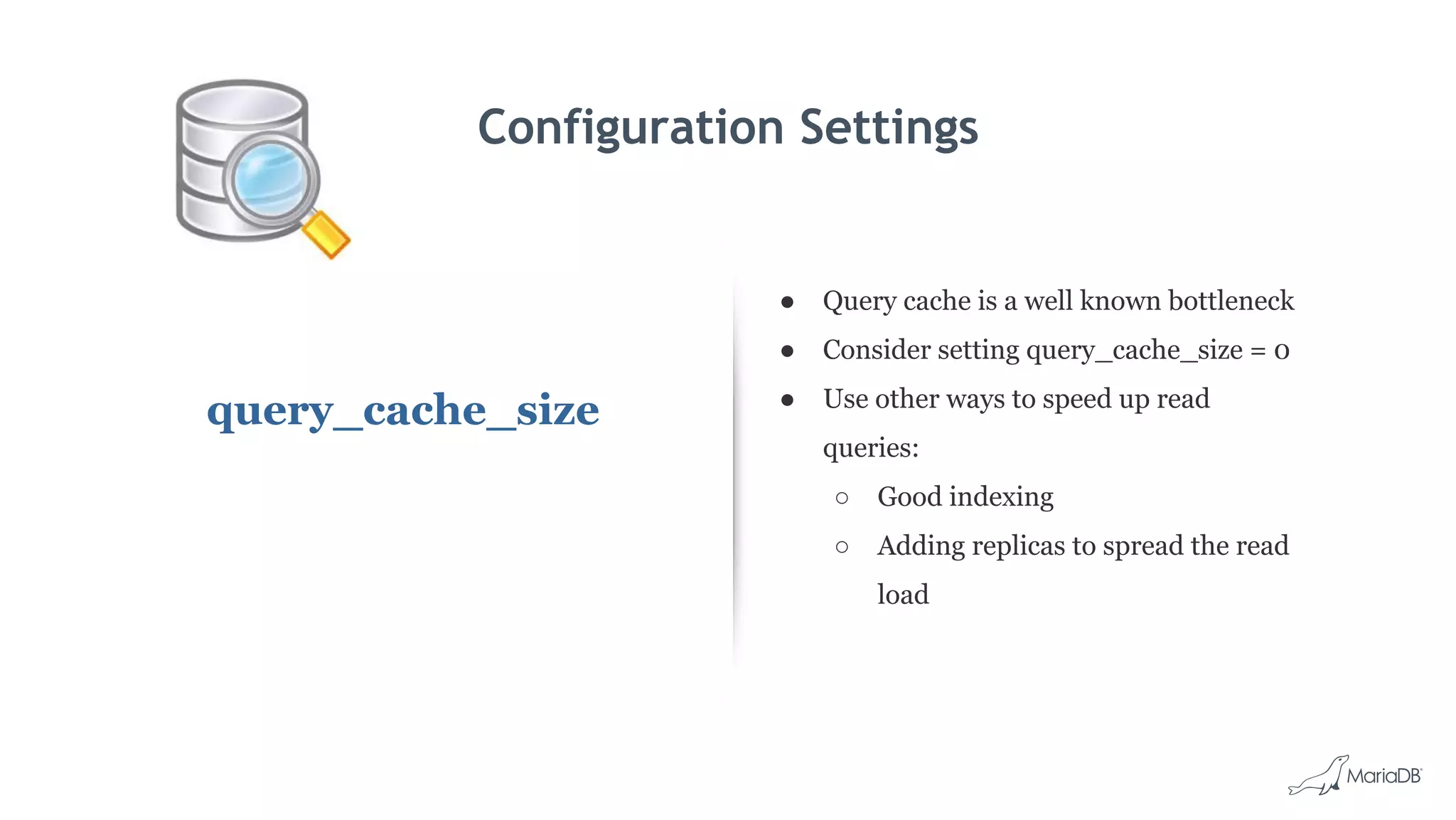

16. Configuration Settings
query_cache_size
● Query cache is a well known bottleneck
● Consider setting query_cache_size = 0
● Use other ways to speed up read
queries:
○ Good indexing
○ Adding replicas to spread the read
load

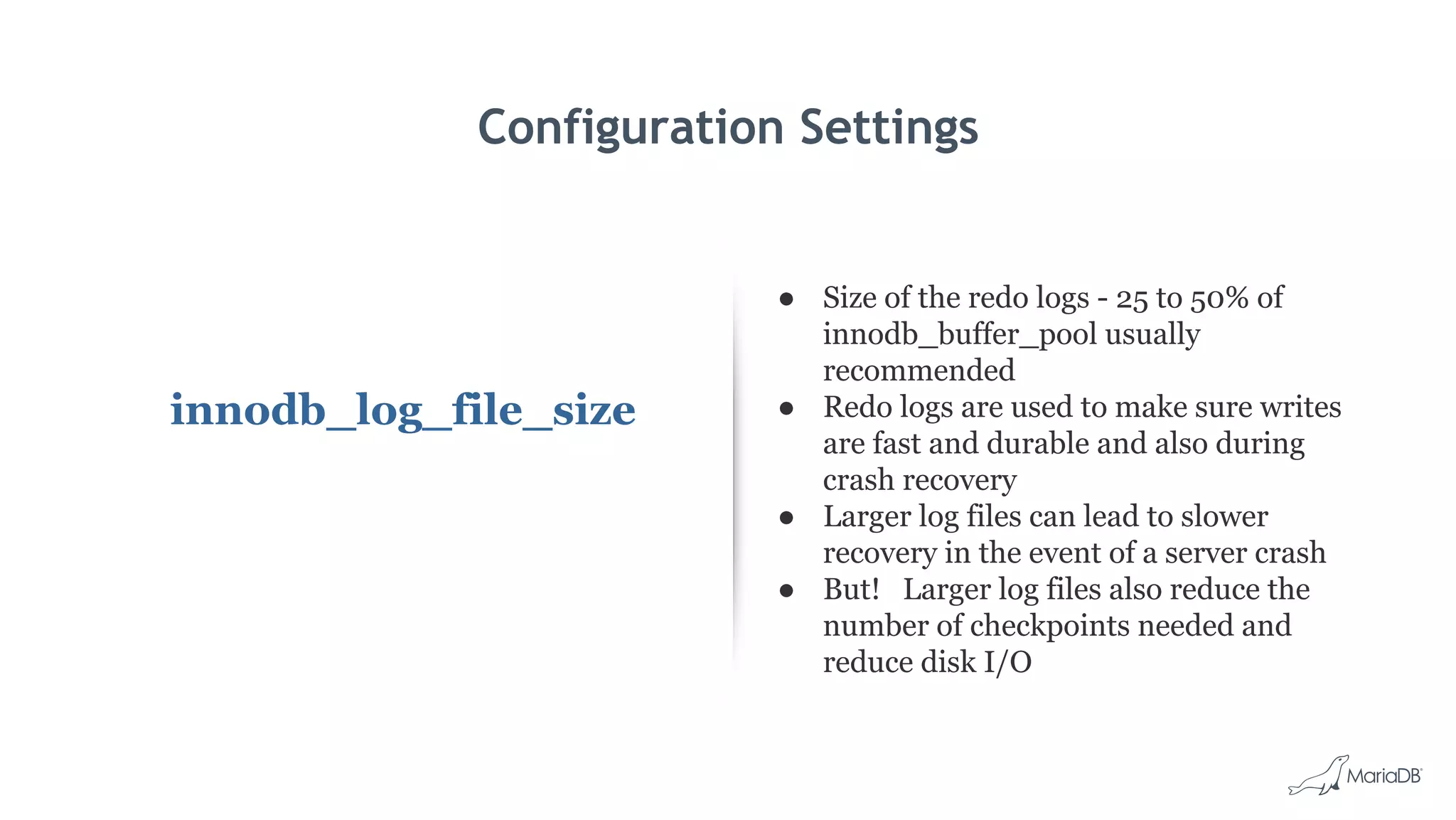

17. Configuration Settings
innodb_log_file_size
● Size of the redo logs - 25 to 50% of
innodb_buffer_pool usually
recommended
● Redo logs are used to make sure writes
are fast and durable and also during
crash recovery
● Larger log files can lead to slower
recovery in the event of a server crash
● But! Larger log files also reduce the
number of checkpoints needed and
reduce disk I/O

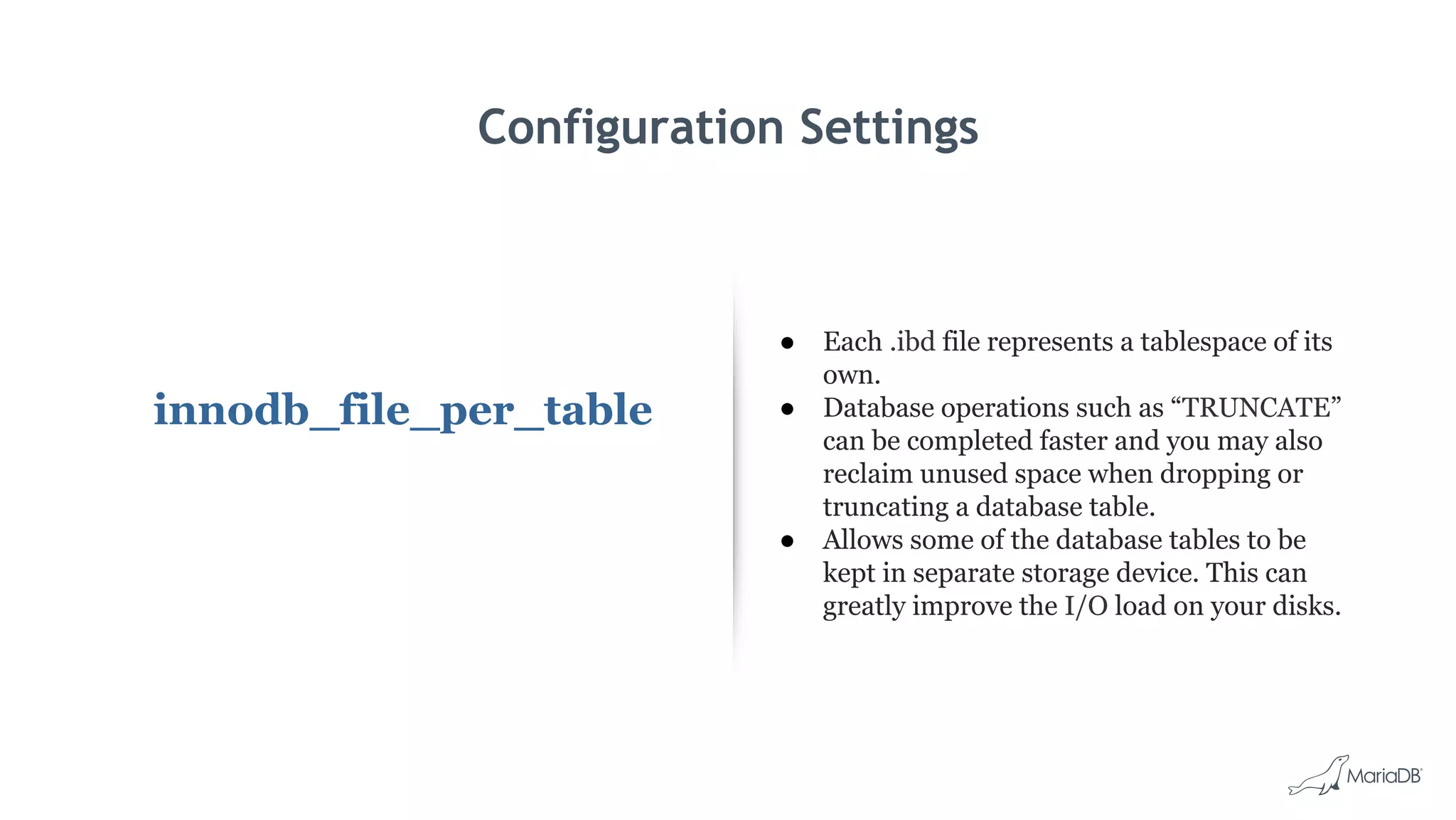

18. Configuration Settings
innodb_file_per_table
● Each .ibd file represents a tablespace of its
own.
● Database operations such as “TRUNCATE”
can be completed faster and you may also
reclaim unused space when dropping or
truncating a database table.
● Allows some of the database tables to be
kept in separate storage device. This can
greatly improve the I/O load on your disks.

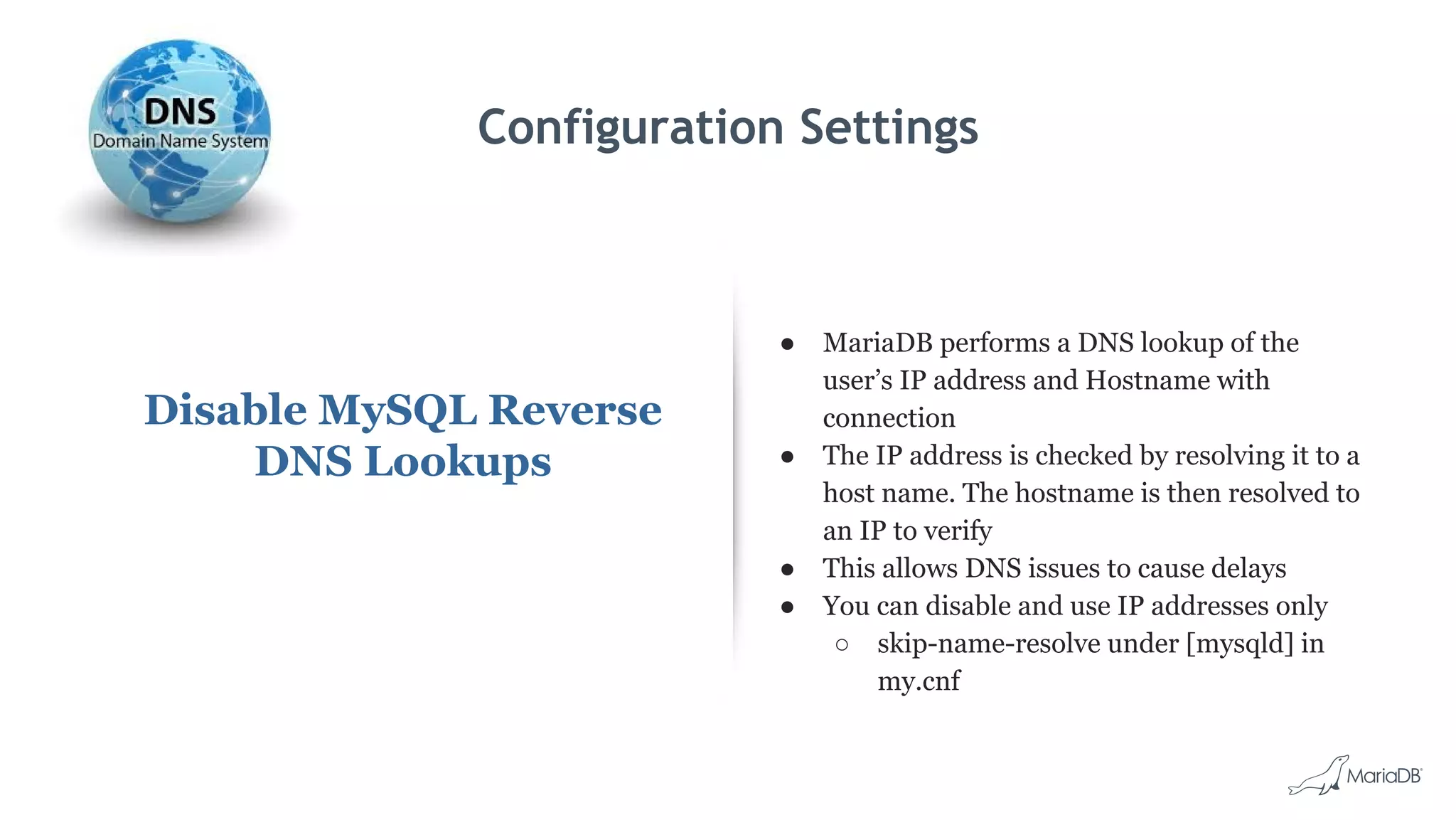

19. Configuration Settings
Disable MySQL Reverse
DNS Lookups
● MariaDB performs a DNS lookup of the
user’s IP address and Hostname with
connection
● The IP address is checked by resolving it to a
host name. The hostname is then resolved to
an IP to verify
● This allows DNS issues to cause delays
● You can disable and use IP addresses only
○ skip-name-resolve under [mysqld] in
my.cnf

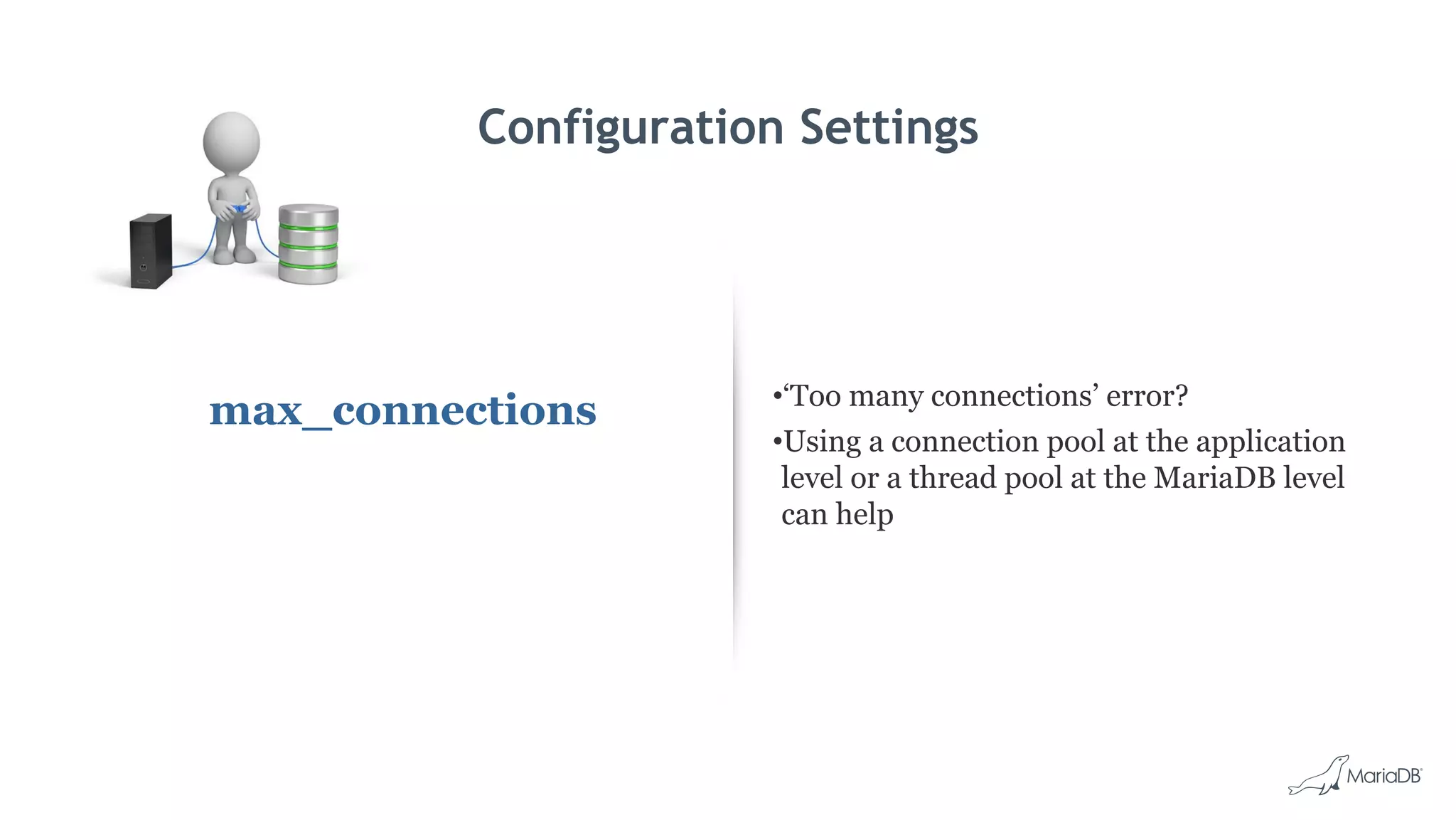

20. Configuration Settings
max_connections •‘Too many connections’ error?
•Using a connection pool at the application
level or a thread pool at the MariaDB level
can help

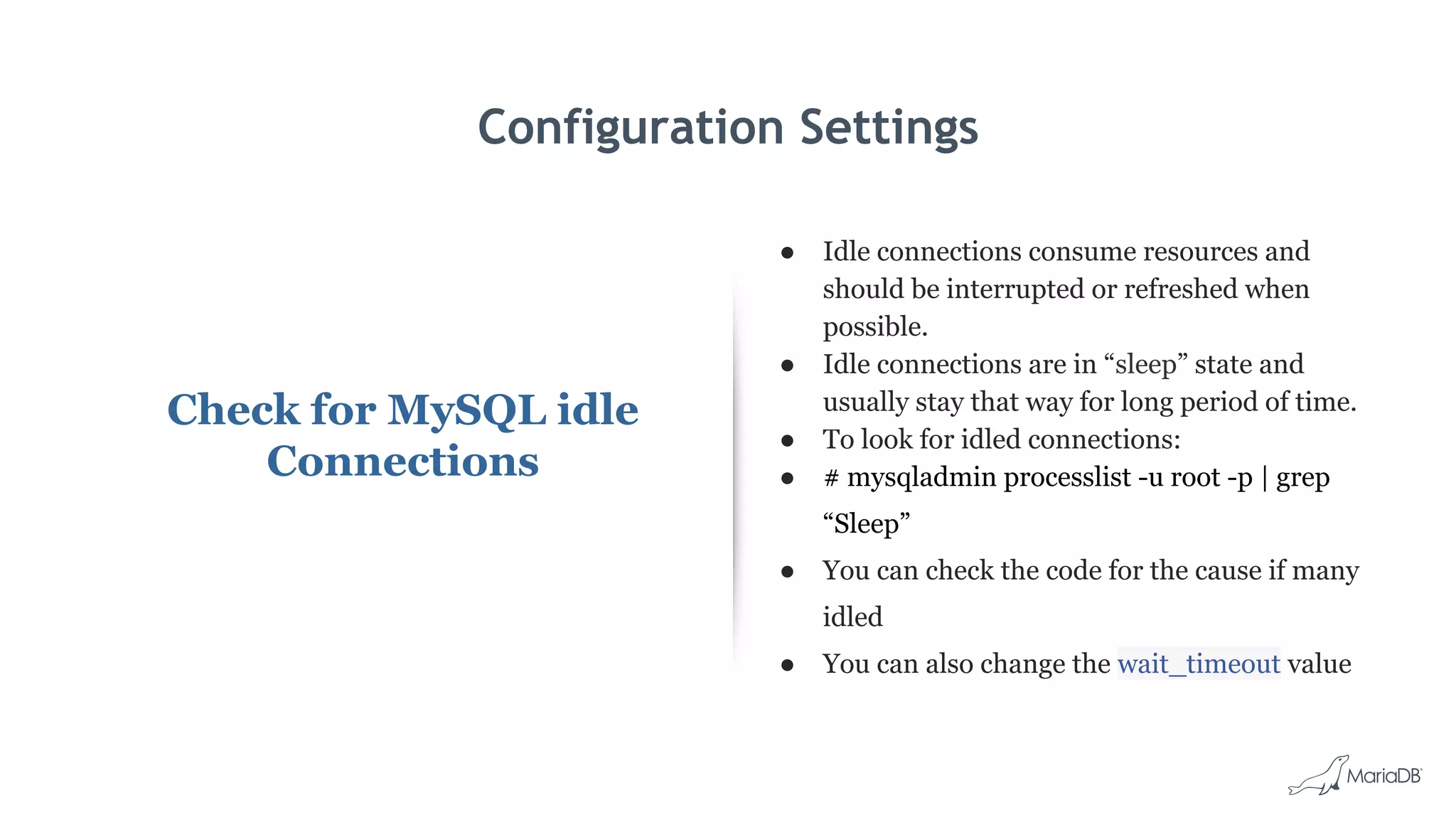

21. Configuration Settings
Check for MySQL idle
Connections
● Idle connections consume resources and
should be interrupted or refreshed when
possible.
● Idle connections are in “sleep” state and
usually stay that way for long period of time.
● To look for idled connections:
● # mysqladmin processlist -u root -p | grep
“Sleep”
● You can check the code for the cause if many
idled
● You can also change the wait_timeout value

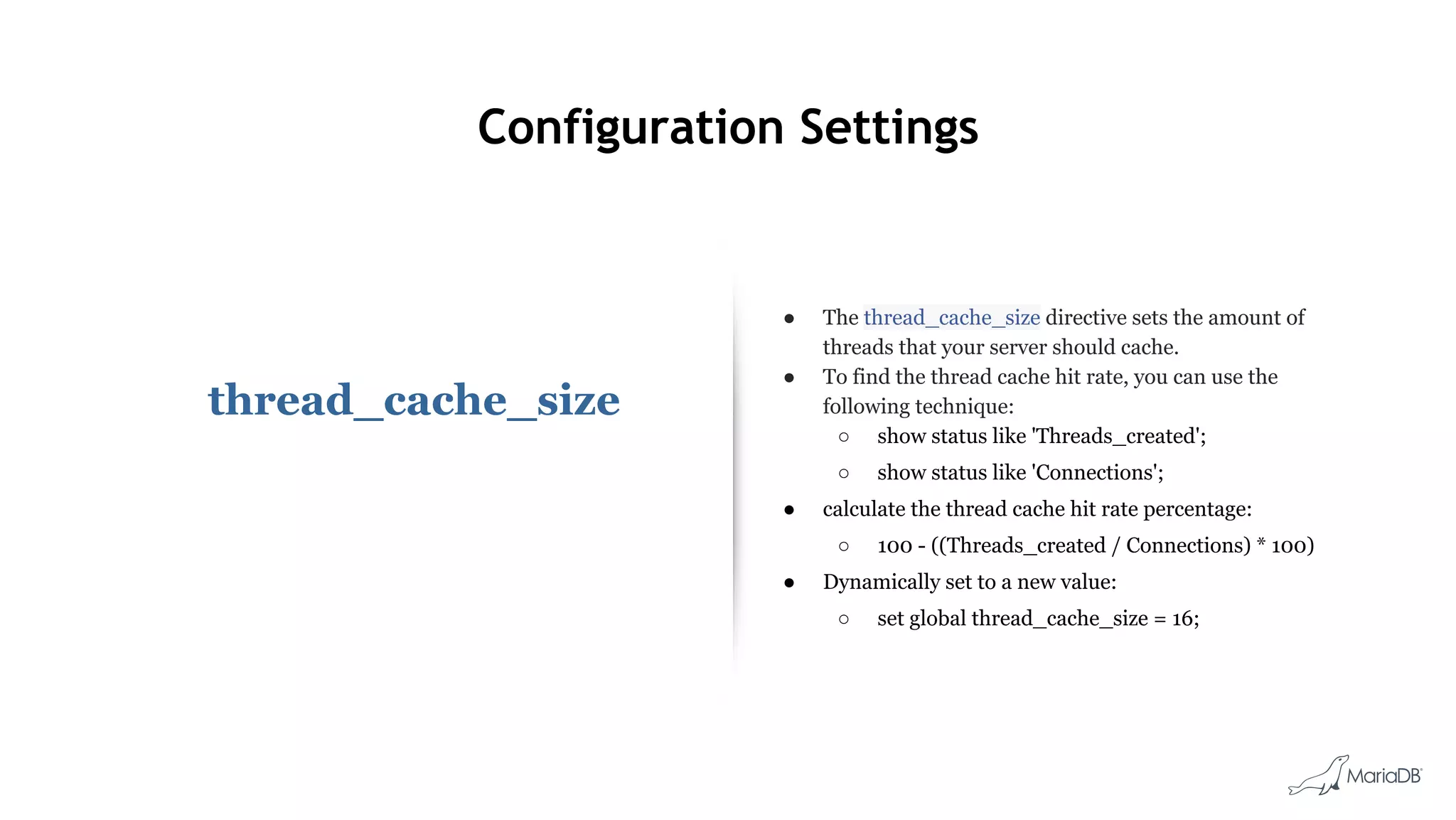

22. Configuration Settings
thread_cache_size
● The thread_cache_size directive sets the amount of
threads that your server should cache.
● To find the thread cache hit rate, you can use the
following technique:
○ show status like 'Threads_created';
○ show status like 'Connections';
● calculate the thread cache hit rate percentage:
○ 100 - ((Threads_created / Connections) * 100)
● Dynamically set to a new value:
○ set global thread_cache_size = 16;

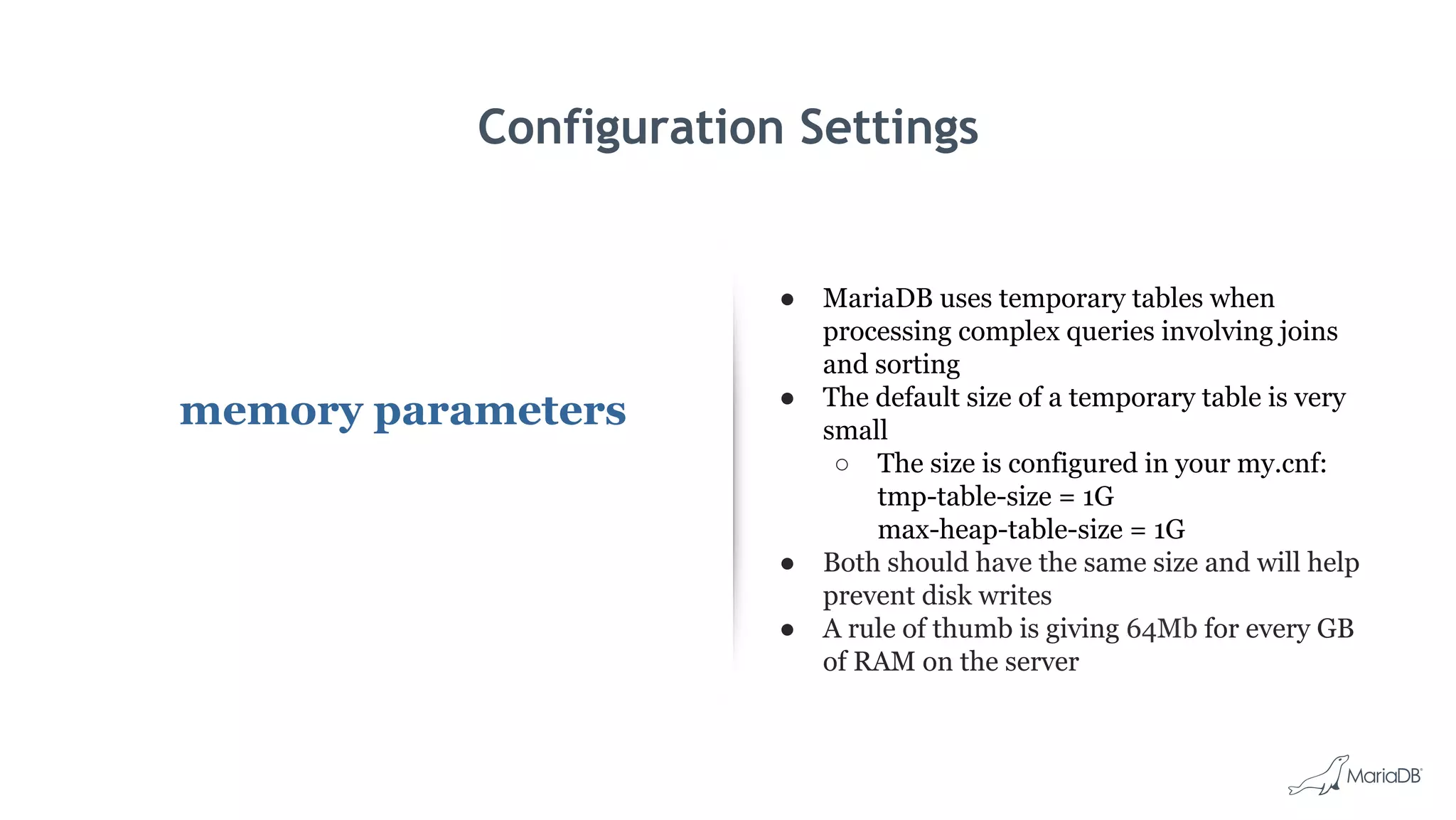

23. Configuration Settings
memory parameters
● MariaDB uses temporary tables when
processing complex queries involving joins
and sorting
● The default size of a temporary table is very
small
○ The size is configured in your my.cnf:
tmp-table-size = 1G
max-heap-table-size = 1G
● Both should have the same size and will help
prevent disk writes
● A rule of thumb is giving 64Mb for every GB
of RAM on the server

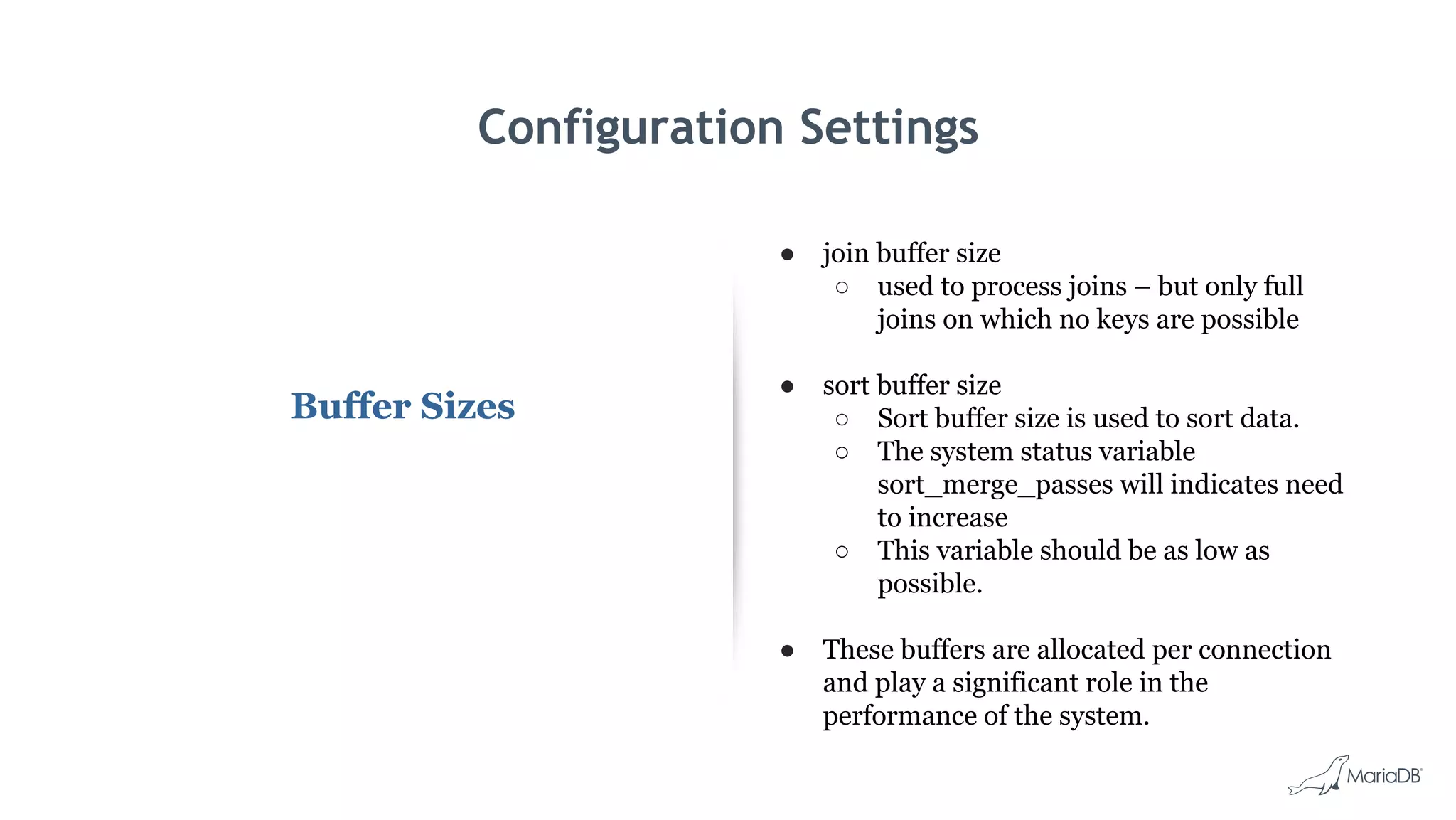

24. Configuration Settings
Buffer Sizes
● join buffer size
○ used to process joins – but only full
joins on which no keys are possible
● sort buffer size
○ Sort buffer size is used to sort data.
○ The system status variable
sort_merge_passes will indicates need
to increase
○ This variable should be as low as
possible.
● These buffers are allocated per connection
and play a significant role in the
performance of the system.

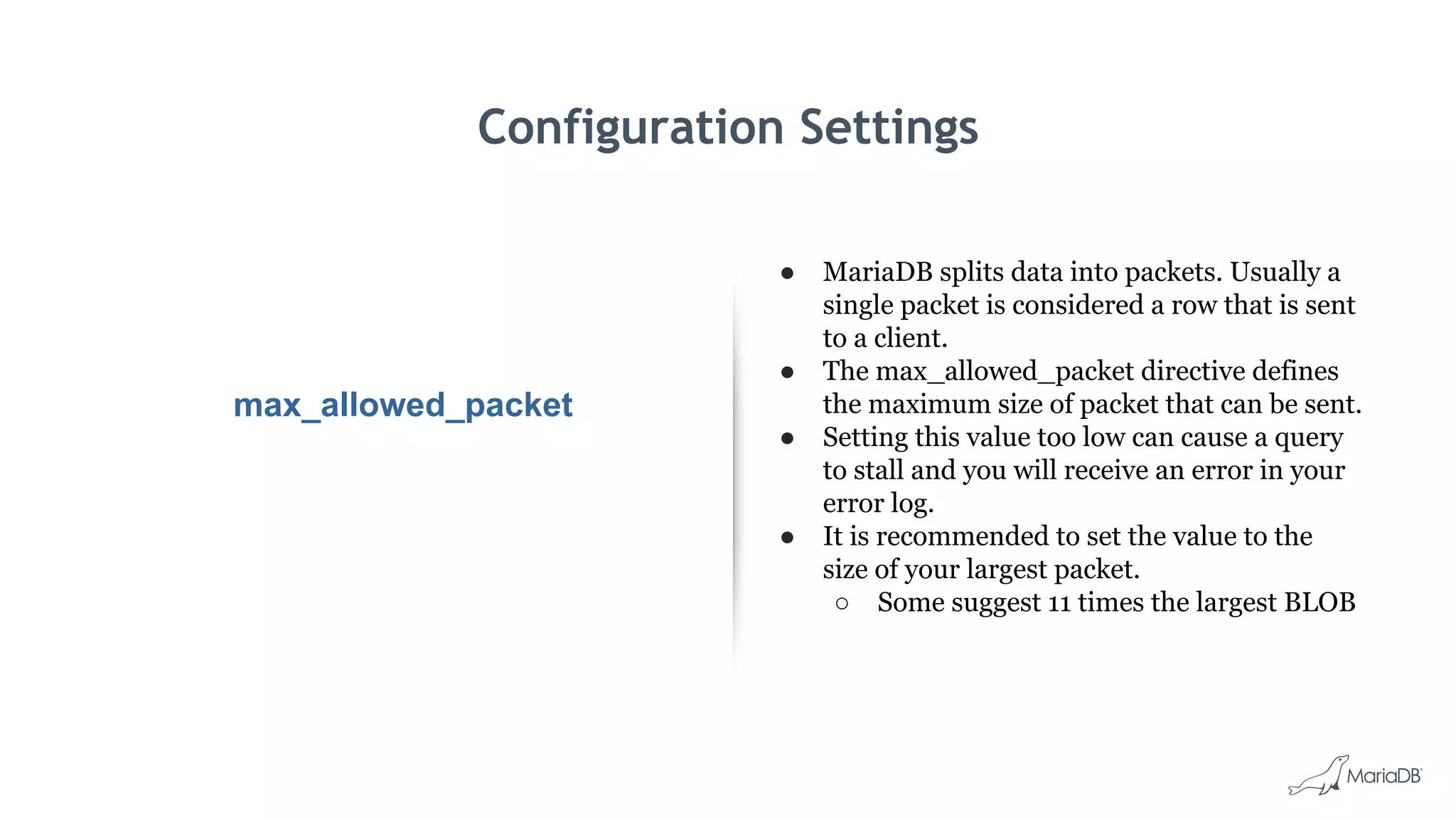

25. Configuration Settings
max_allowed_packet
● MariaDB splits data into packets. Usually a
single packet is considered a row that is sent
to a client.
● The max_allowed_packet directive defines
the maximum size of packet that can be sent.
● Setting this value too low can cause a query
to stall and you will receive an error in your
error log.
● It is recommended to set the value to the
size of your largest packet.
○ Some suggest 11 times the largest BLOB

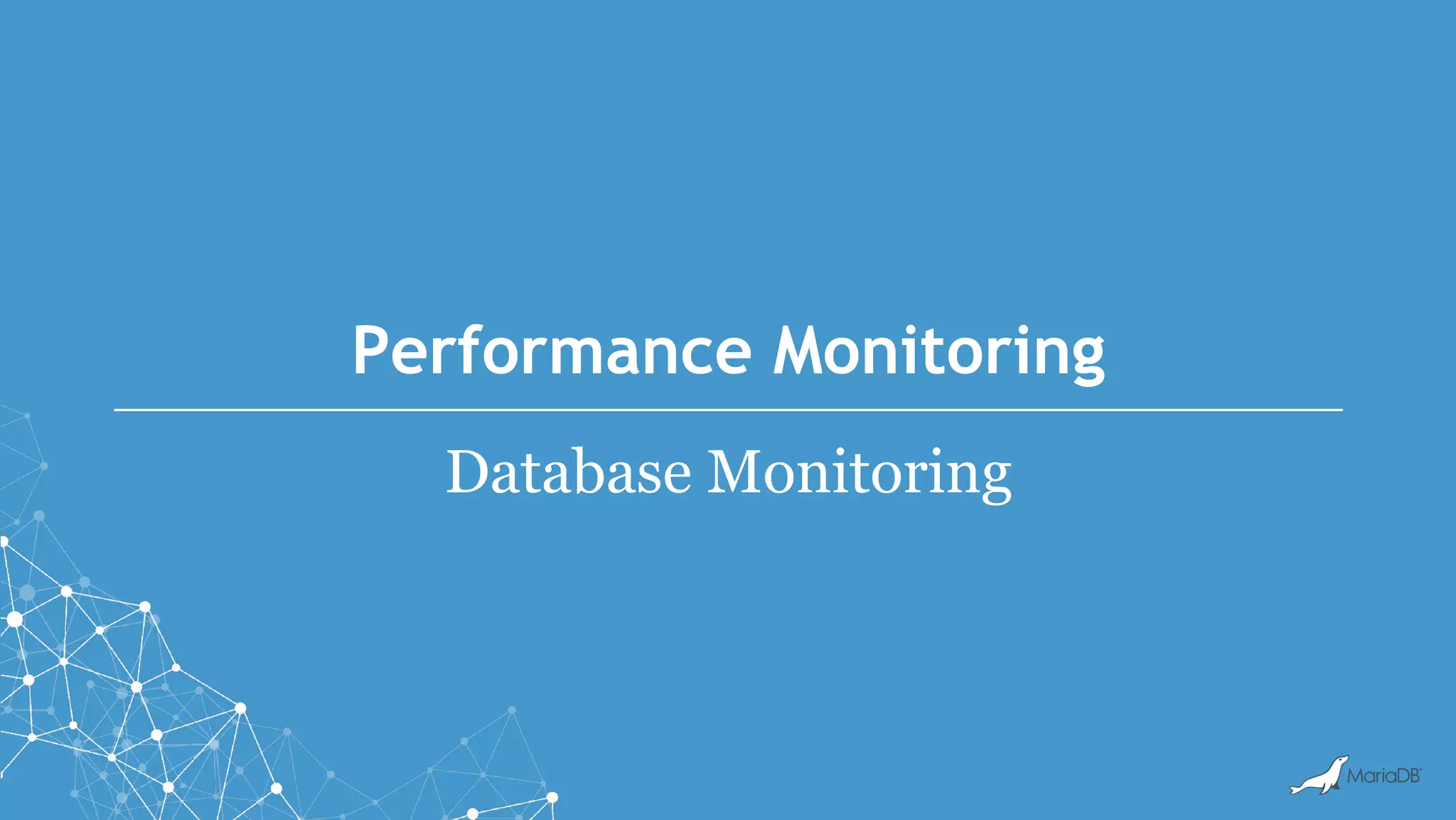

26. Performance Monitoring
Database Monitoring

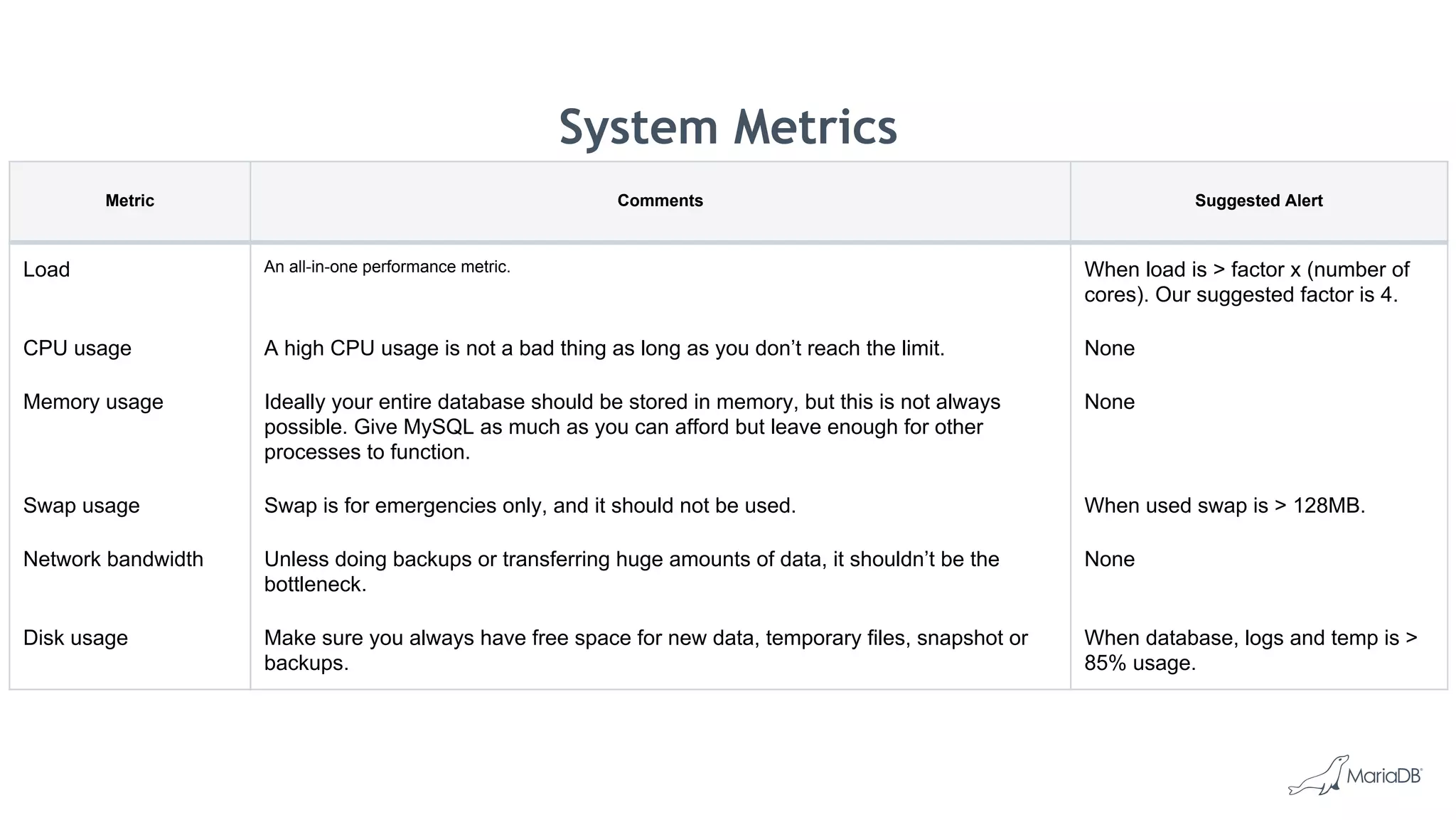

27. System Metrics
Metric Comments Suggested Alert
Load An all-in-one performance metric. When load is > factor x (number of
cores). Our suggested factor is 4.
CPU usage A high CPU usage is not a bad thing as long as you don’t reach the limit. None
Memory usage Ideally your entire database should be stored in memory, but this is not always
possible. Give MySQL as much as you can afford but leave enough for other
processes to function.
None
Swap usage Swap is for emergencies only, and it should not be used. When used swap is > 128MB.
Network bandwidth Unless doing backups or transferring huge amounts of data, it shouldn’t be the
bottleneck.
None
Disk usage Make sure you always have free space for new data, temporary files, snapshot or
backups.
When database, logs and temp is >
85% usage.

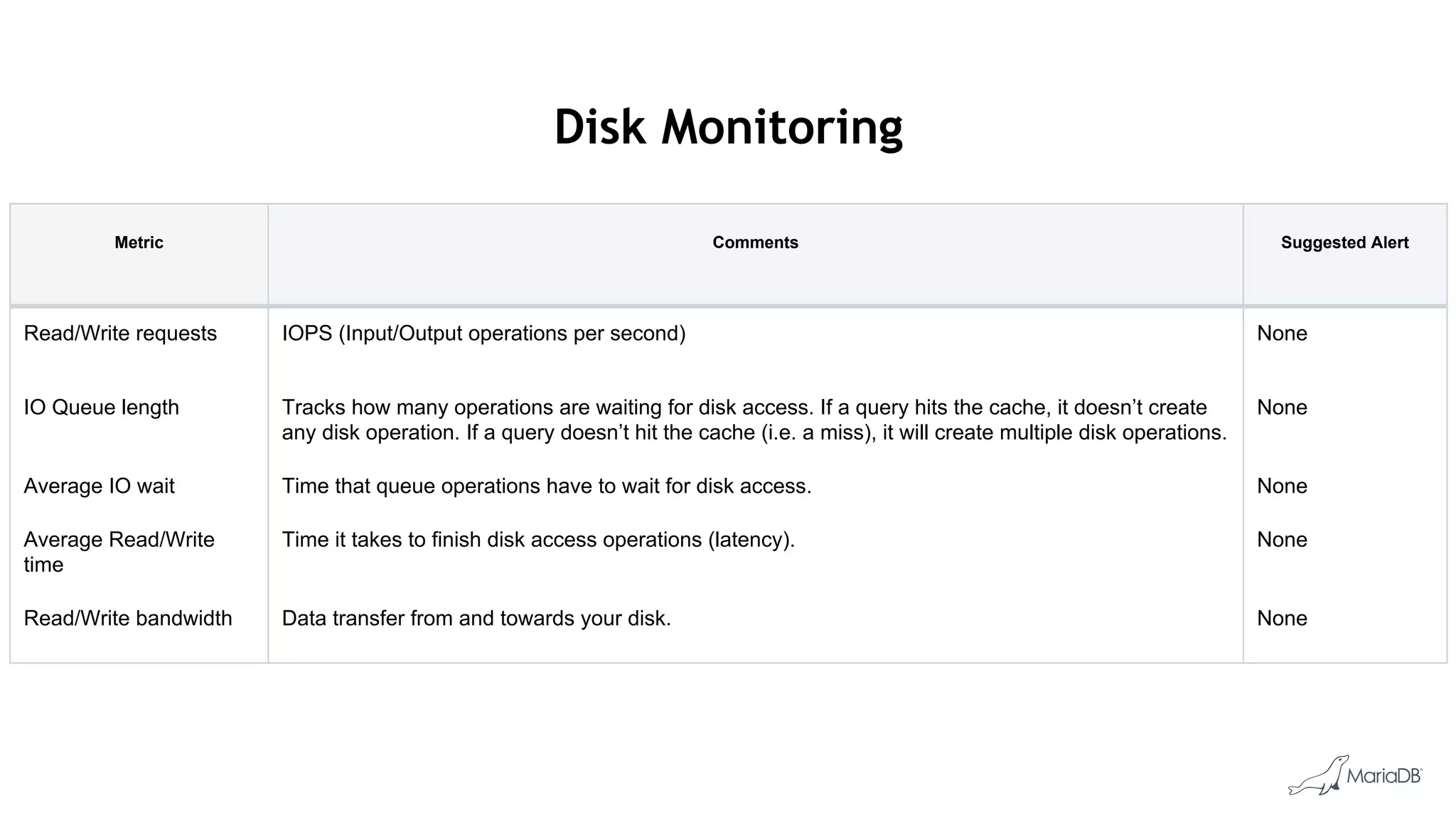

28. Disk Monitoring
Metric Comments Suggested Alert
Read/Write requests IOPS (Input/Output operations per second) None
IO Queue length Tracks how many operations are waiting for disk access. If a query hits the cache, it doesn’t create
any disk operation. If a query doesn’t hit the cache (i.e. a miss), it will create multiple disk operations.
None
Average IO wait Time that queue operations have to wait for disk access. None
Average Read/Write
time
Time it takes to finish disk access operations (latency). None
Read/Write bandwidth Data transfer from and towards your disk. None

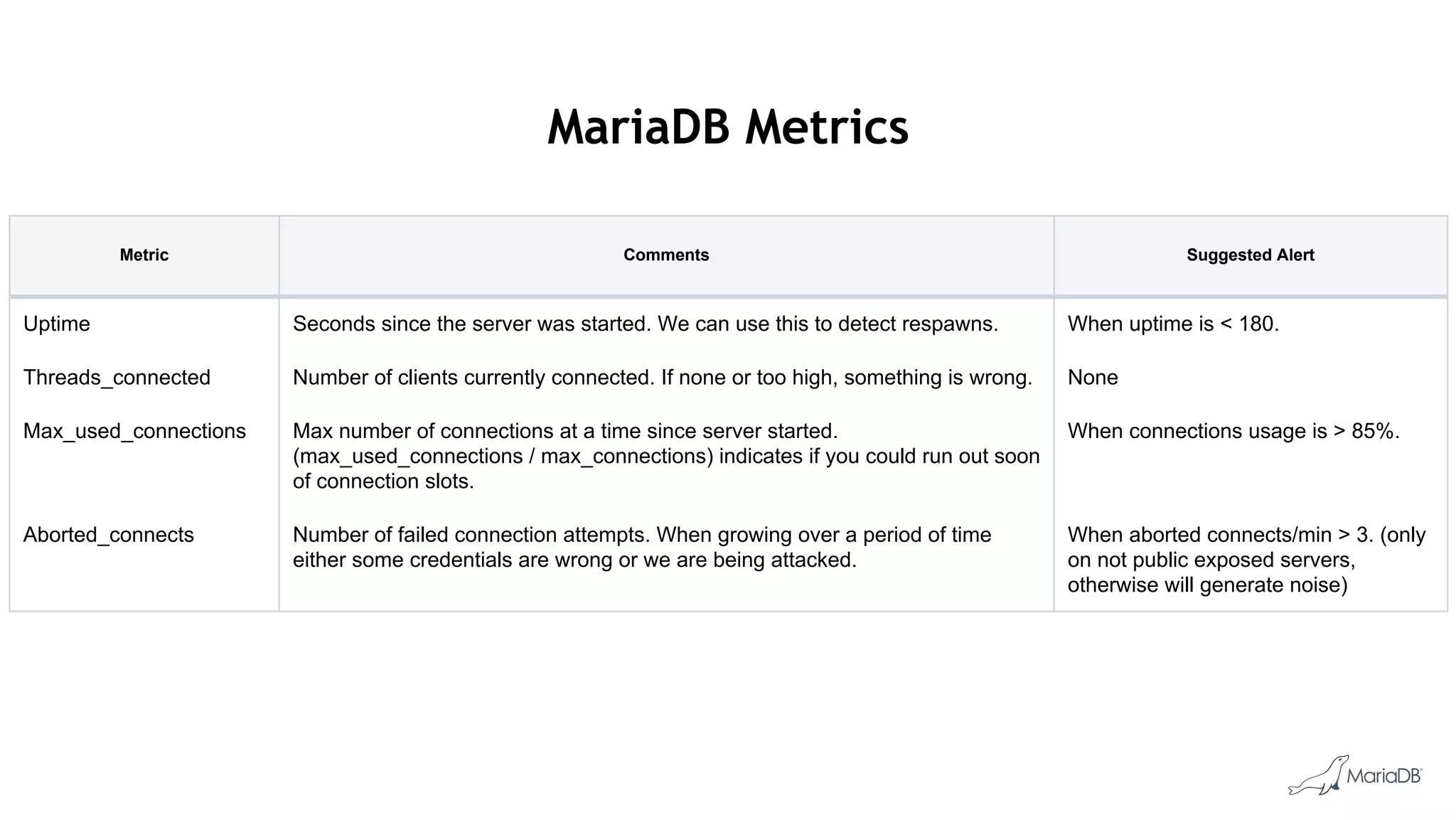

29. MariaDB Metrics
Metric Comments Suggested Alert
Uptime Seconds since the server was started. We can use this to detect respawns. When uptime is < 180.
Threads_connected Number of clients currently connected. If none or too high, something is wrong. None
Max_used_connections Max number of connections at a time since server started.
(max_used_connections / max_connections) indicates if you could run out soon
of connection slots.
When connections usage is > 85%.
Aborted_connects Number of failed connection attempts. When growing over a period of time
either some credentials are wrong or we are being attacked.
When aborted connects/min > 3. (only
on not public exposed servers,
otherwise will generate noise)

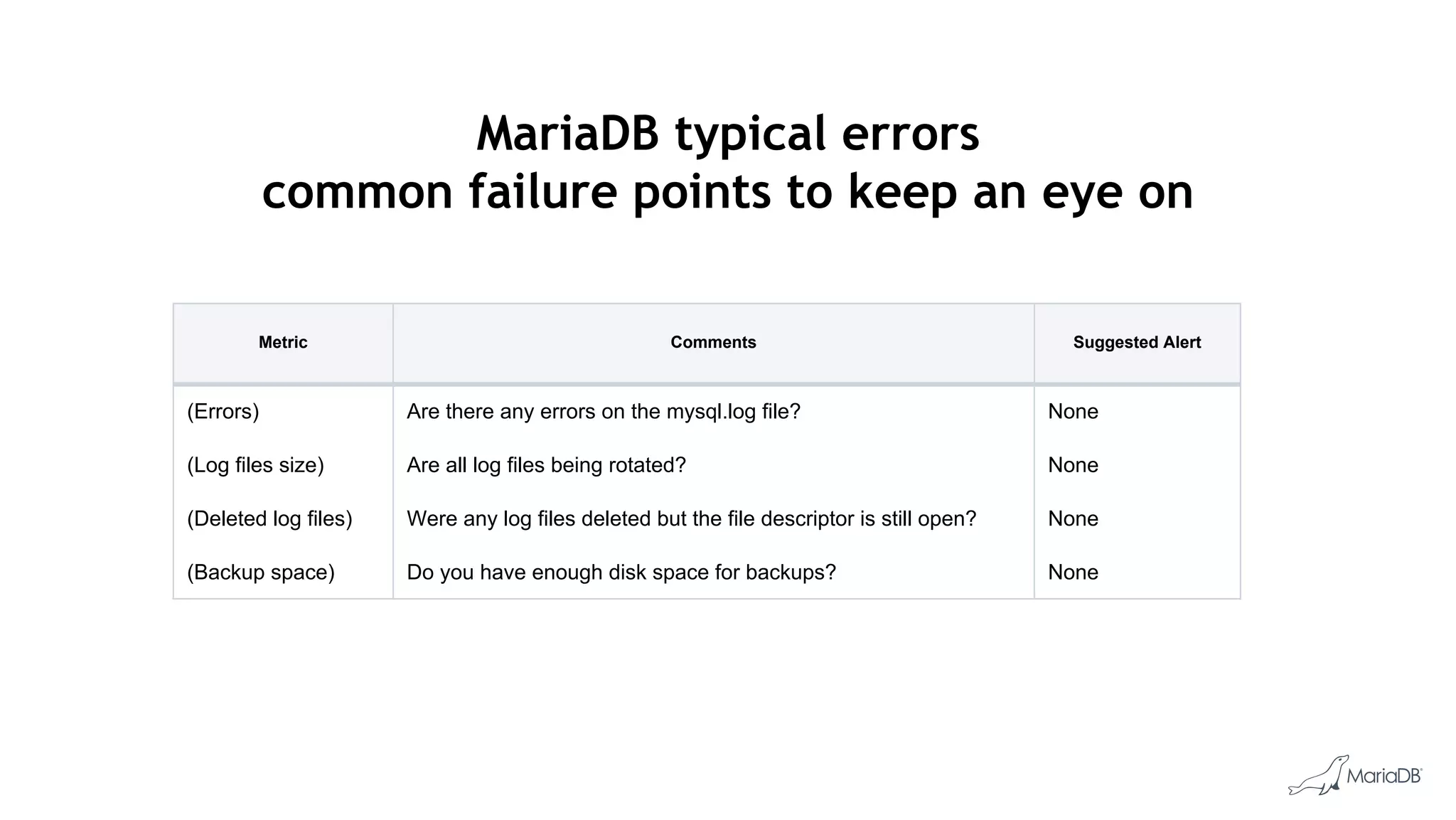

30. MariaDB typical errors
common failure points to keep an eye on
Metric Comments Suggested Alert
(Errors) Are there any errors on the mysql.log file? None
(Log files size) Are all log files being rotated? None
(Deleted log files) Were any log files deleted but the file descriptor is still open? None
(Backup space) Do you have enough disk space for backups? None

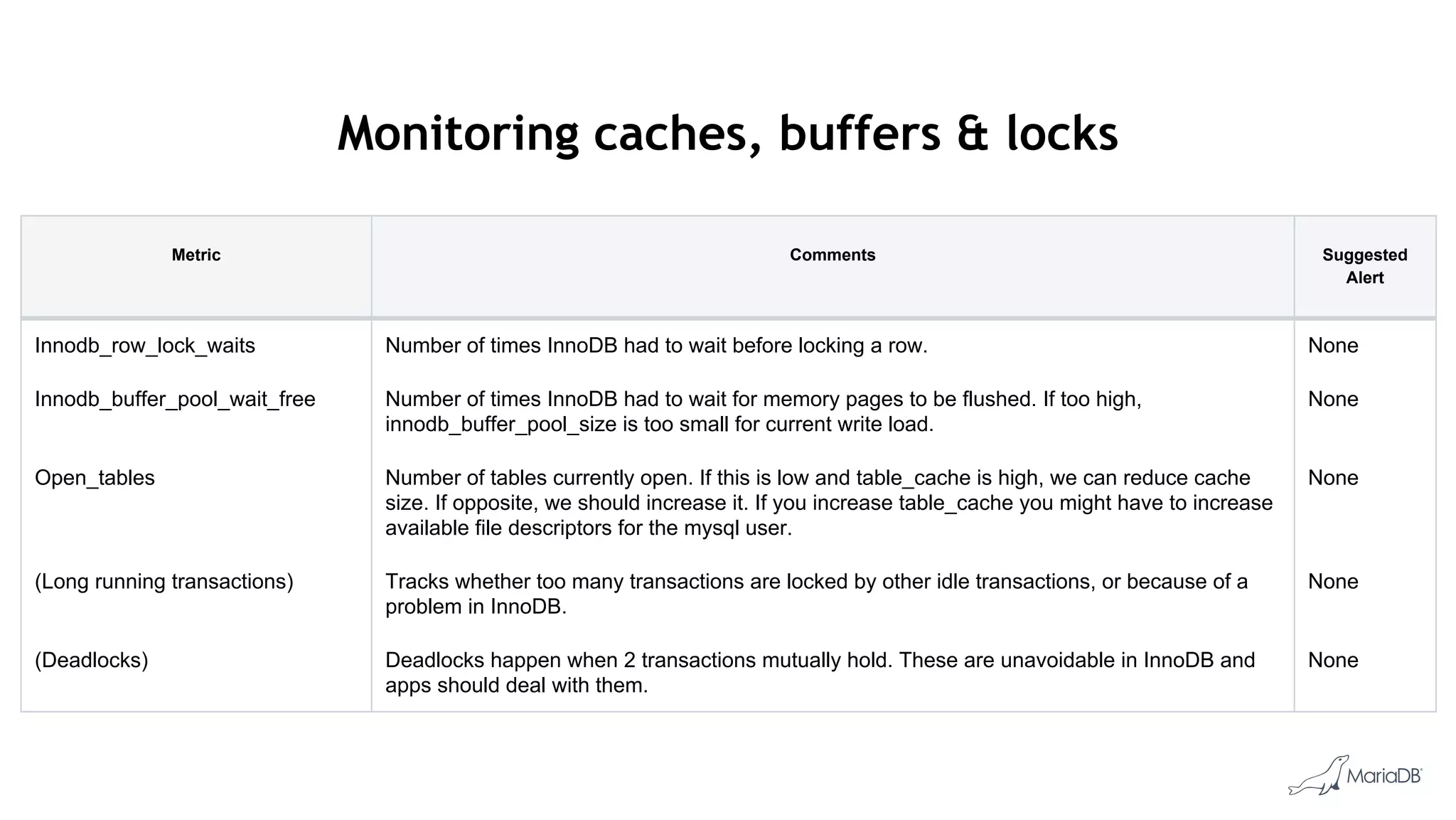

31. Monitoring caches, buffers & locks
Metric Comments Suggested
Alert
Innodb_row_lock_waits Number of times InnoDB had to wait before locking a row. None
Innodb_buffer_pool_wait_free Number of times InnoDB had to wait for memory pages to be flushed. If too high,
innodb_buffer_pool_size is too small for current write load.
None
Open_tables Number of tables currently open. If this is low and table_cache is high, we can reduce cache
size. If opposite, we should increase it. If you increase table_cache you might have to increase
available file descriptors for the mysql user.
None
(Long running transactions) Tracks whether too many transactions are locked by other idle transactions, or because of a
problem in InnoDB.
None
(Deadlocks) Deadlocks happen when 2 transactions mutually hold. These are unavoidable in InnoDB and
apps should deal with them.
None

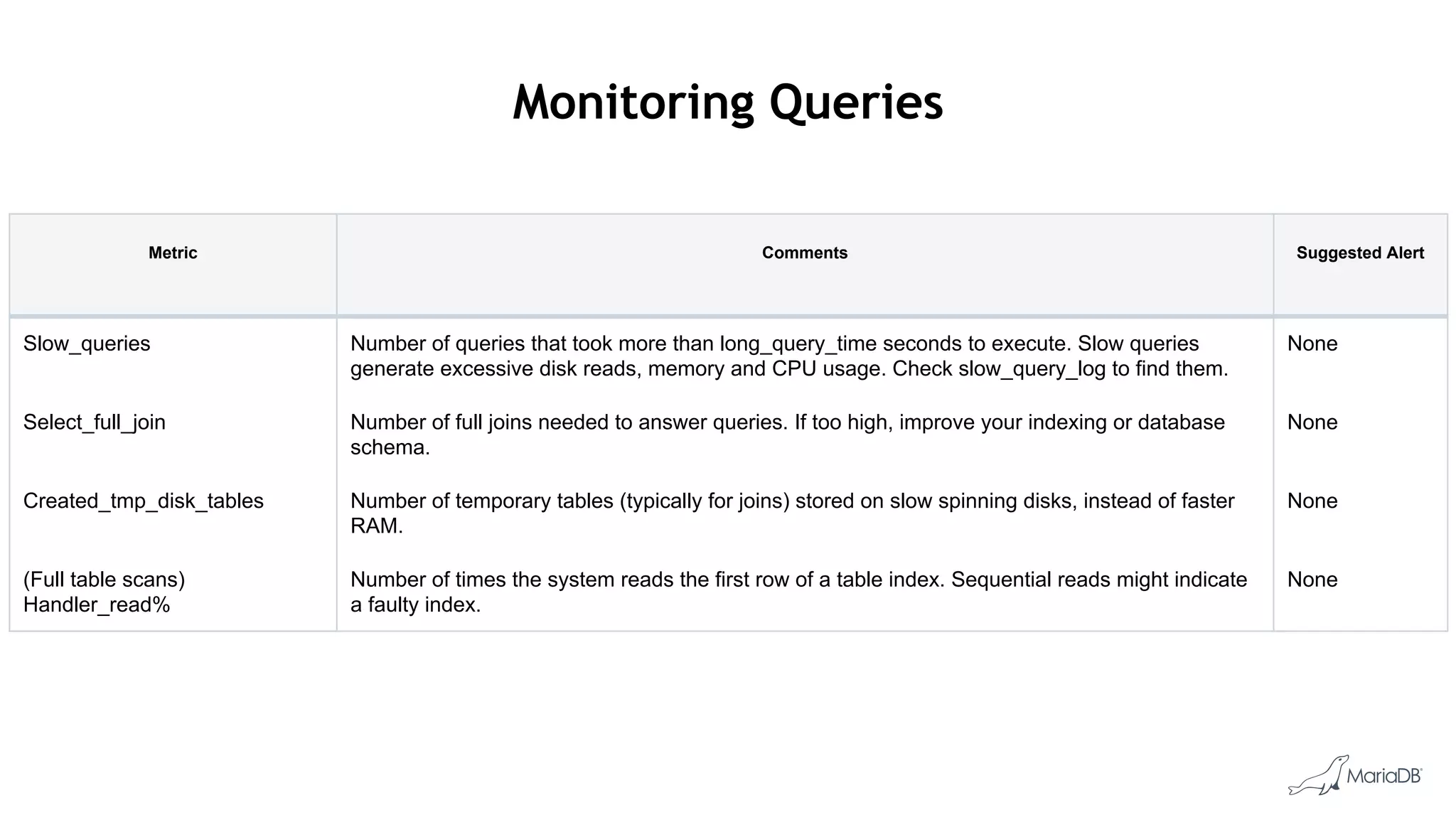

32. Monitoring Queries
Metric Comments Suggested Alert
Slow_queries Number of queries that took more than long_query_time seconds to execute. Slow queries
generate excessive disk reads, memory and CPU usage. Check slow_query_log to find them.
None
Select_full_join Number of full joins needed to answer queries. If too high, improve your indexing or database
schema.
None
Created_tmp_disk_tables Number of temporary tables (typically for joins) stored on slow spinning disks, instead of faster
RAM.
None
(Full table scans)
Handler_read%
Number of times the system reads the first row of a table index. Sequential reads might indicate
a faulty index.
None

33. Performance
Query Tuning

34. Query Tuning
Enable Slow query Logs
Logging slow queries can help you determine issues with your database and help you debug them. This can be easily
enabled by adding the following values in your my.cnf configuration file:
slow-query-log = 1
slow-query-log-file = /var/lib/mysql/mysql-slow.log
long_query_time = 1
The first directive enables the logging of slow queries, while the second one tells MariaDB where to store the actual
log file. Use long_query_time to define the amount of time that is considered long for a MariaDB query to be completed.

35. EXPLAIN SELECT *
FROM employees
WHERE
MONTH(birth_date)
= 8 G
id: 1
select_type: SIMPLE
table: employees
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 299587
Extra: Using where
Query Tuning

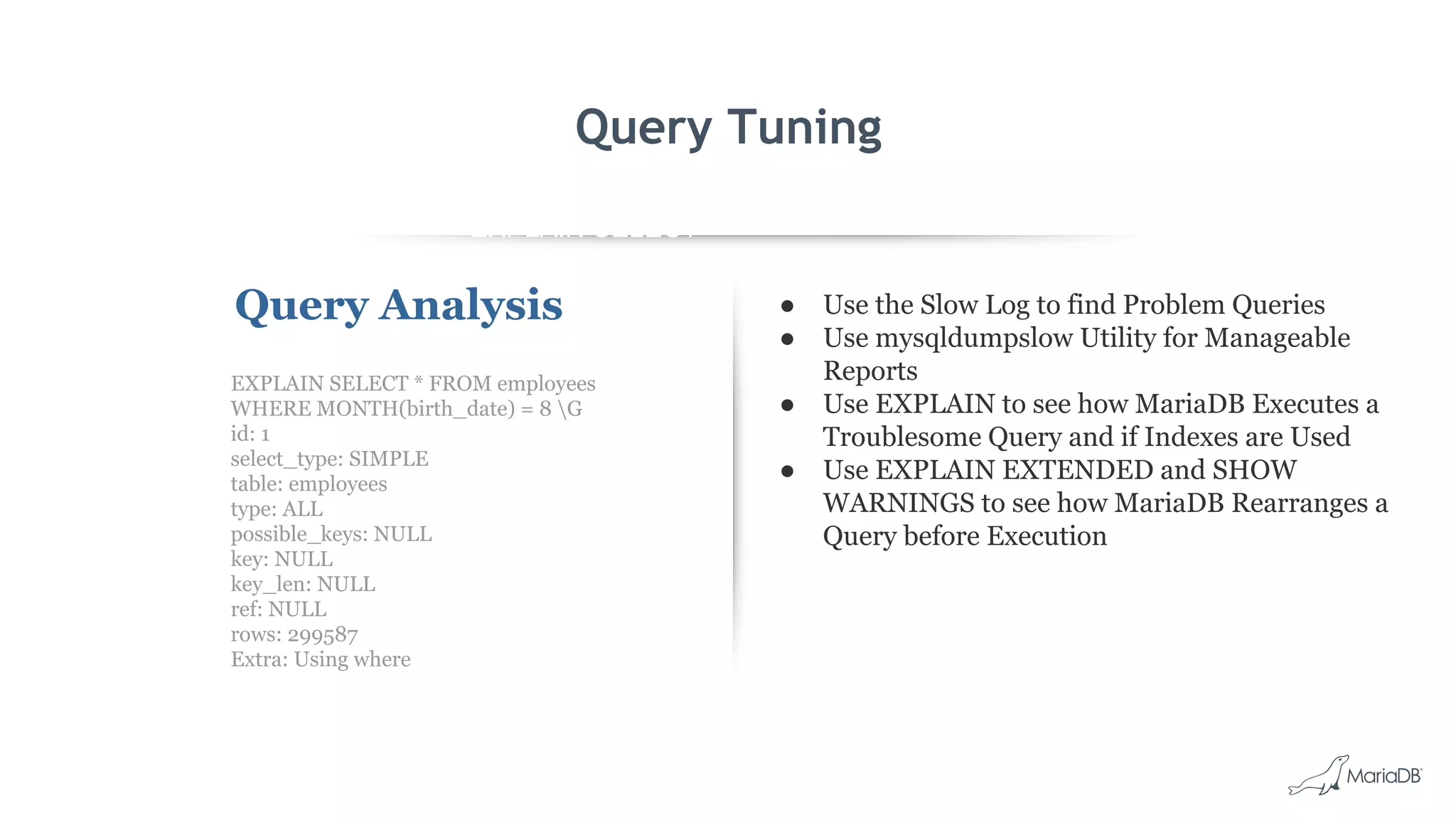

Query Analysis ● Use the Slow Log to find Problem Queries
● Use mysqldumpslow Utility for Manageable
Reports
● Use EXPLAIN to see how MariaDB Executes a
Troublesome Query and if Indexes are Used
● Use EXPLAIN EXTENDED and SHOW
WARNINGS to see how MariaDB Rearranges a
Query before Execution
EXPLAIN SELECT * FROM employees
WHERE MONTH(birth_date) = 8 G
id: 1
select_type: SIMPLE
table: employees
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 299587
Extra: Using where

36. EXPLAIN SELECT *
FROM employees
WHERE
MONTH(birth_date)
= 8 G
id: 1
select_type: SIMPLE
table: employees
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 299587
Extra: Using where
Query Tuning

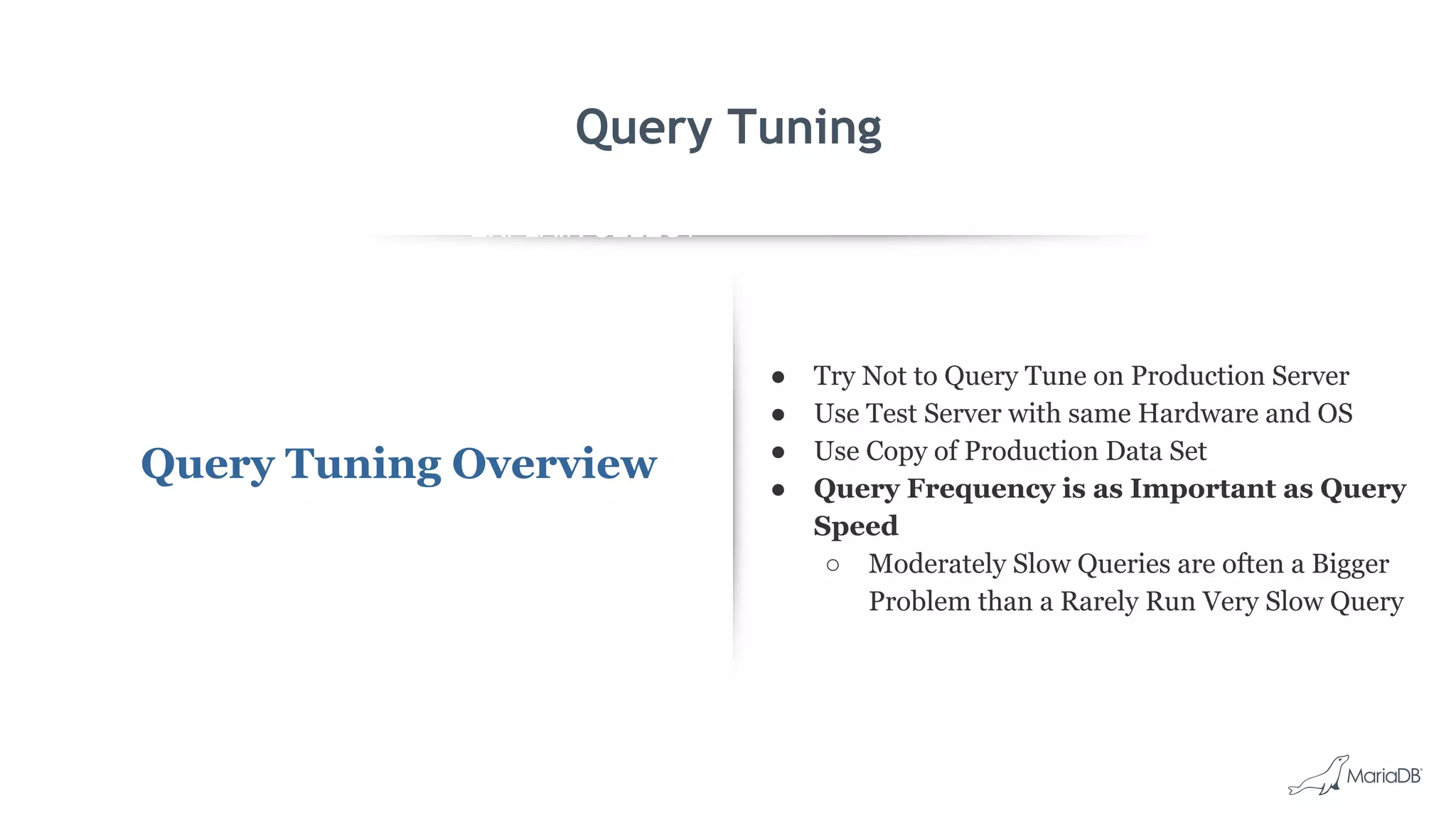

Query Tuning Overview
● Try Not to Query Tune on Production Server
● Use Test Server with same Hardware and OS
● Use Copy of Production Data Set
● Query Frequency is as Important as Query
Speed
○ Moderately Slow Queries are often a Bigger
Problem than a Rarely Run Very Slow Query

37. EXPLAIN SELECT *
FROM employees
WHERE
MONTH(birth_date)
= 8 G
id: 1
select_type: SIMPLE
table: employees
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 299587
Extra: Using where
Query Tuning

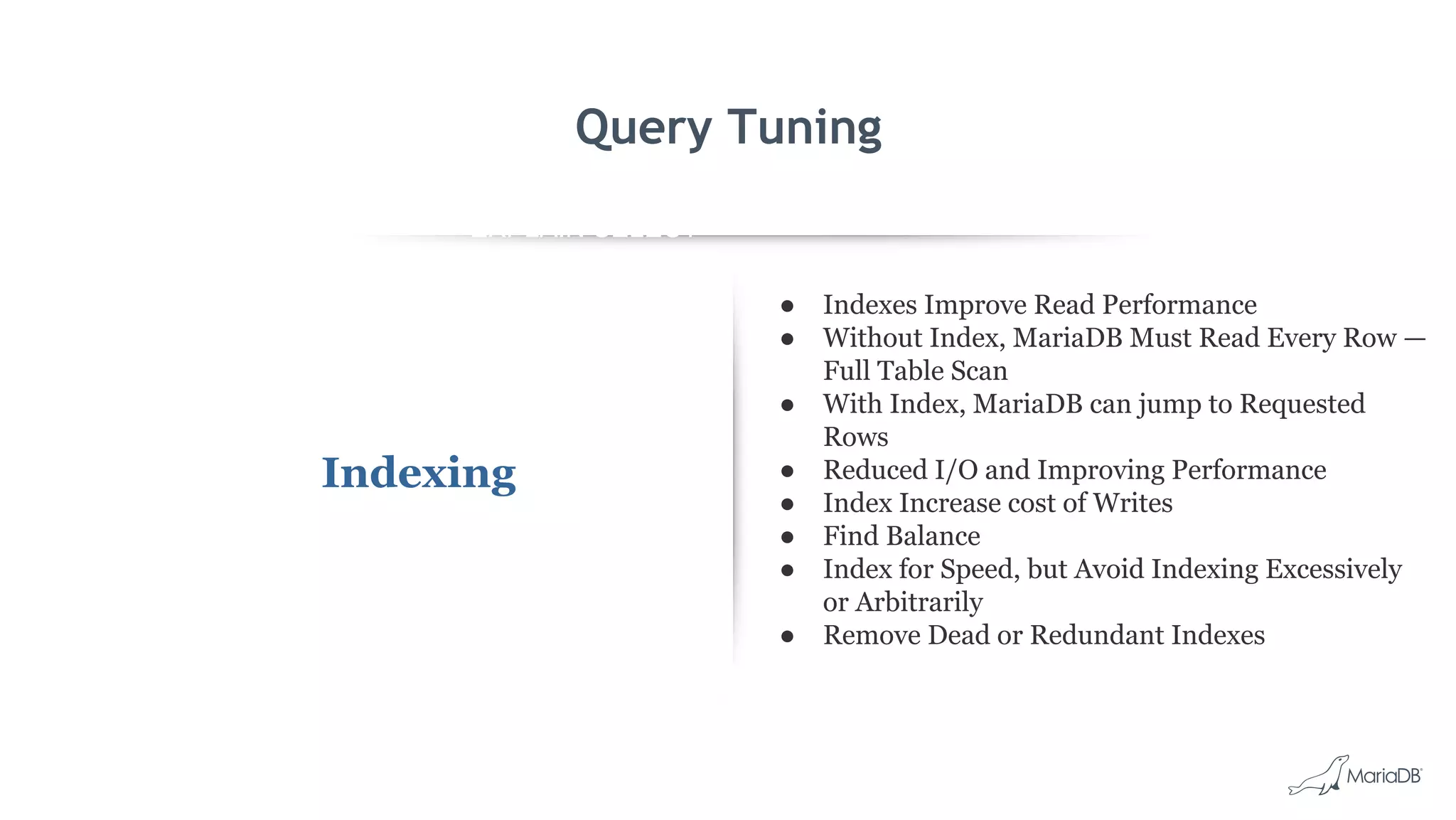

Indexing
● Indexes Improve Read Performance
● Without Index, MariaDB Must Read Every Row —
Full Table Scan
● With Index, MariaDB can jump to Requested
Rows
● Reduced I/O and Improving Performance
● Index Increase cost of Writes
● Find Balance
● Index for Speed, but Avoid Indexing Excessively
or Arbitrarily
● Remove Dead or Redundant Indexes

38. EXPLAIN SELECT *
FROM employees
WHERE
MONTH(birth_date)
= 8 G
id: 1
select_type: SIMPLE
table: employees
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 299587
Extra: Using where
Query Tuning

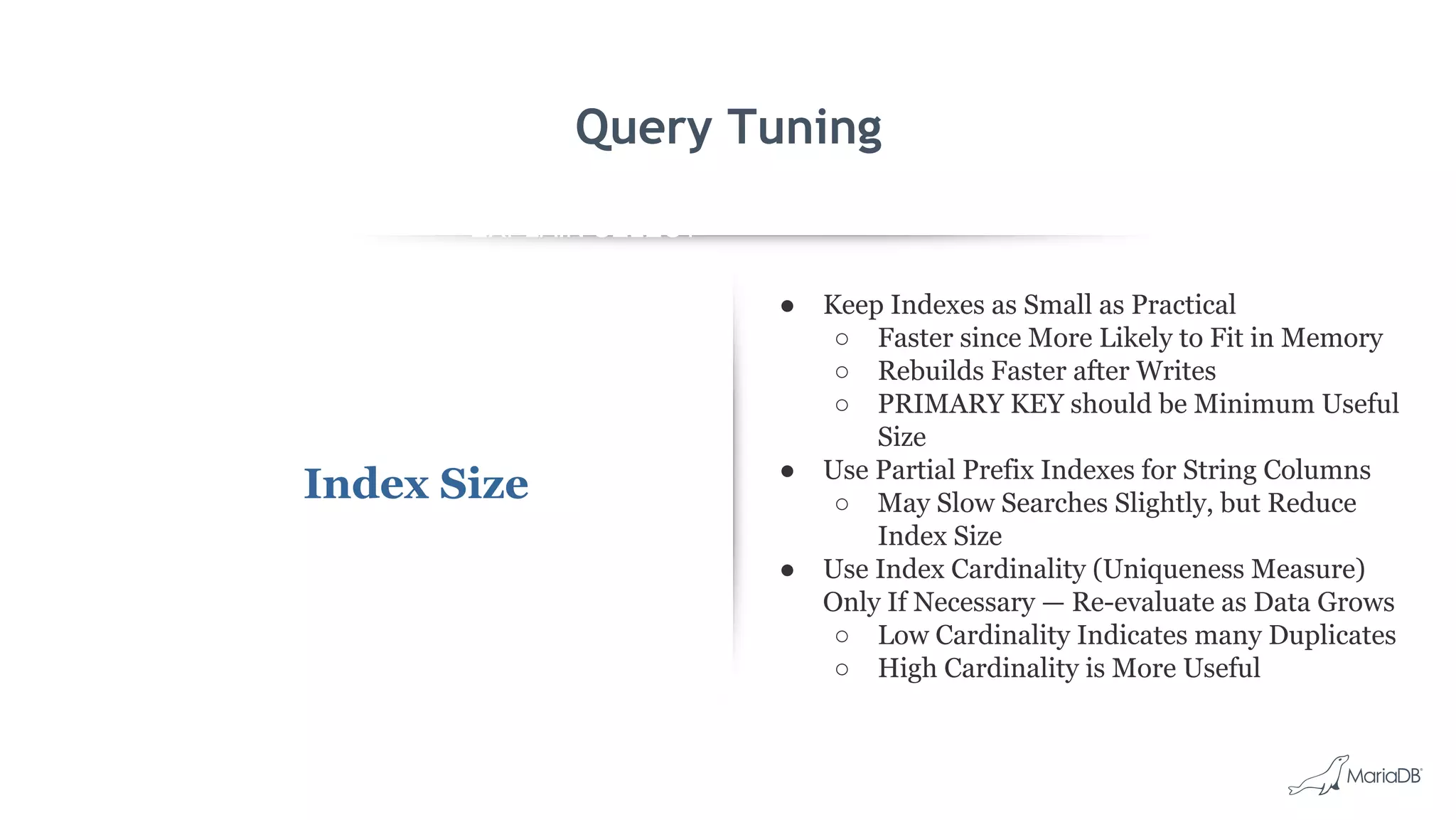

Index Size
● Keep Indexes as Small as Practical
○ Faster since More Likely to Fit in Memory
○ Rebuilds Faster after Writes
○ PRIMARY KEY should be Minimum Useful
Size
● Use Partial Prefix Indexes for String Columns
○ May Slow Searches Slightly, but Reduce
Index Size
● Use Index Cardinality (Uniqueness Measure)
Only If Necessary — Re-evaluate as Data Grows
○ Low Cardinality Indicates many Duplicates
○ High Cardinality is More Useful

39. EXPLAIN SELECT *
FROM employees
WHERE
MONTH(birth_date)
= 8 G
id: 1
select_type: SIMPLE
table: employees
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 299587
Extra: Using where
Query Tuning

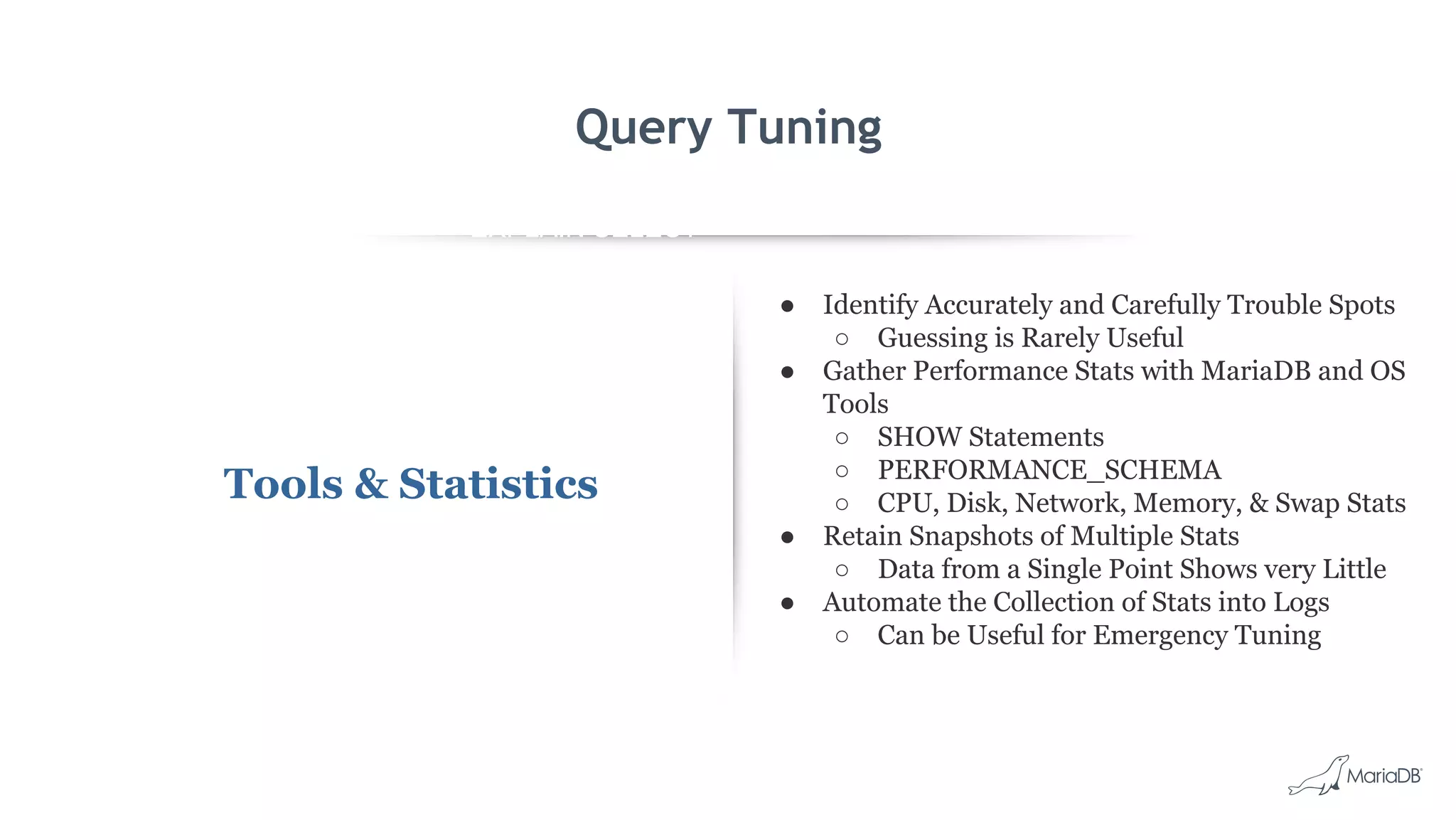

Tools & Statistics
● Identify Accurately and Carefully Trouble Spots
○ Guessing is Rarely Useful
● Gather Performance Stats with MariaDB and OS
Tools
○ SHOW Statements
○ PERFORMANCE_SCHEMA
○ CPU, Disk, Network, Memory, & Swap Stats
● Retain Snapshots of Multiple Stats
○ Data from a Single Point Shows very Little
● Automate the Collection of Stats into Logs
○ Can be Useful for Emergency Tuning

40. EXPLAIN SELECT *
FROM employees
WHERE
MONTH(birth_date)
= 8 G
id: 1
select_type: SIMPLE
table: employees
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 299587
Extra: Using where
Query Tuning

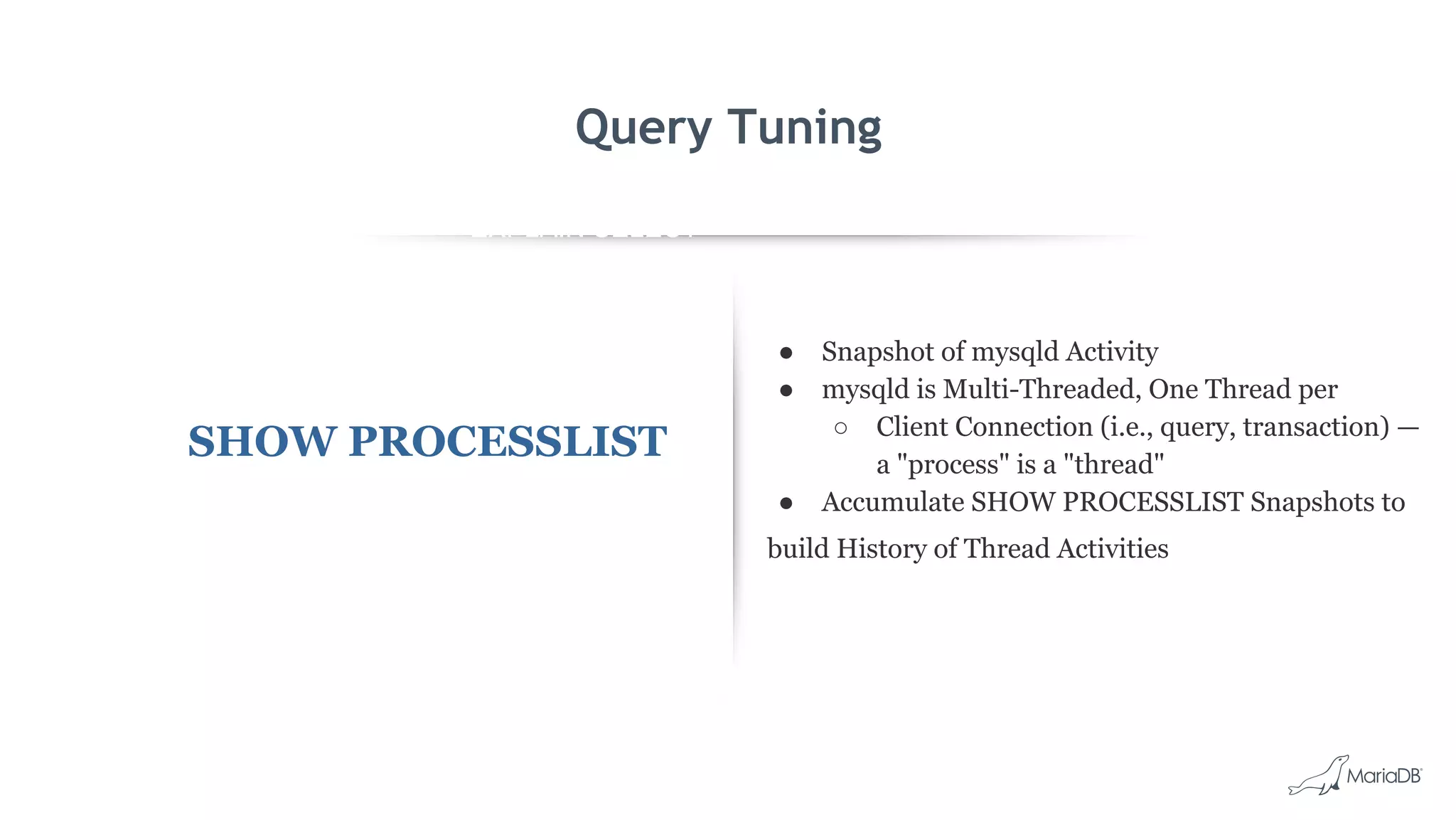

SHOW PROCESSLIST
● Snapshot of mysqld Activity
● mysqld is Multi-Threaded, One Thread per
○ Client Connection (i.e., query, transaction) —
a "process" is a "thread"
● Accumulate SHOW PROCESSLIST Snapshots to
build History of Thread Activities

41. EXPLAIN SELECT *
FROM employees
WHERE
MONTH(birth_date)
= 8 G
id: 1
select_type: SIMPLE
table: employees
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 299587
Extra: Using where
Query Tuning

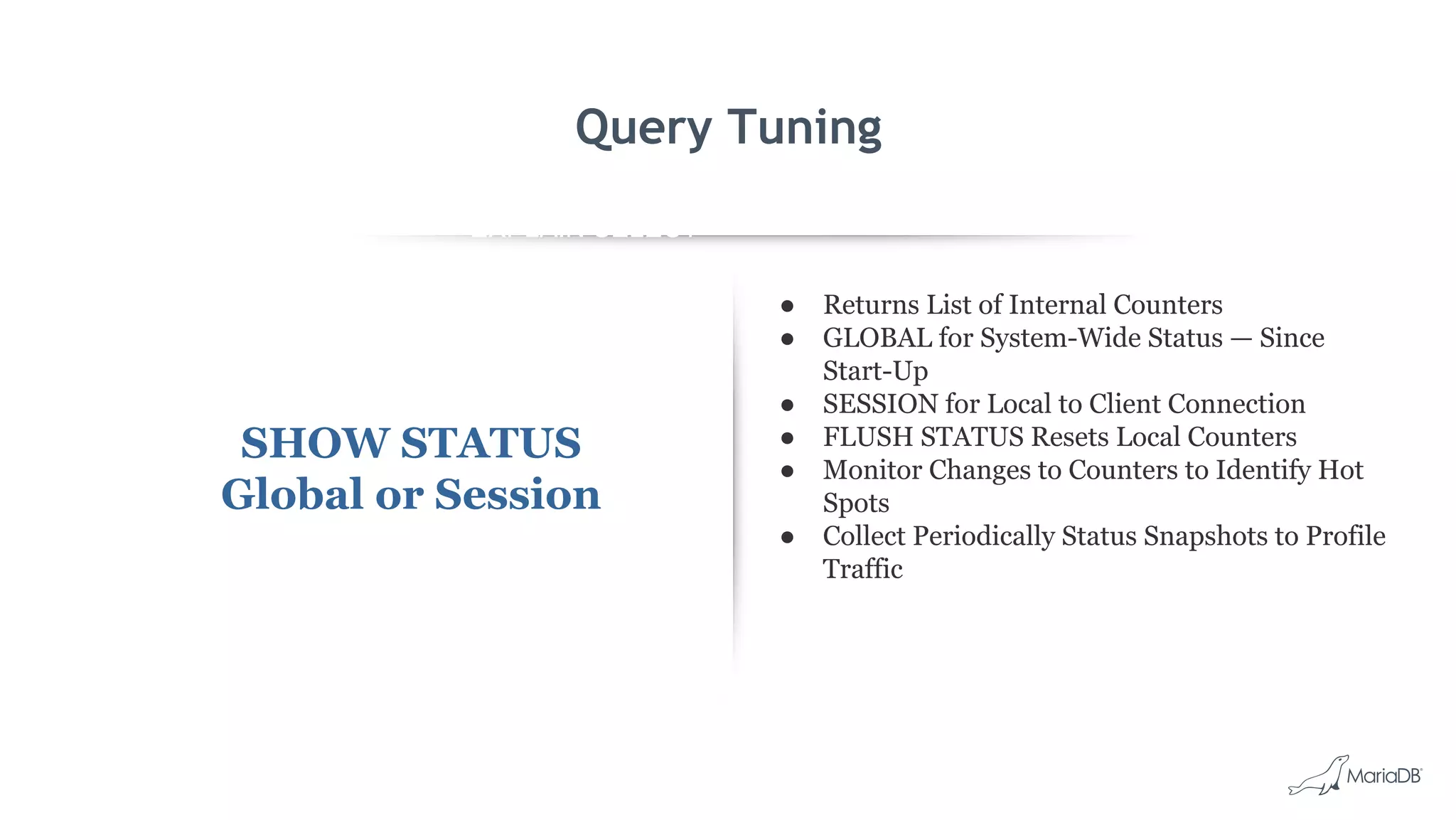

SHOW STATUS
Global or Session
● Returns List of Internal Counters
● GLOBAL for System-Wide Status — Since
Start-Up
● SESSION for Local to Client Connection
● FLUSH STATUS Resets Local Counters
● Monitor Changes to Counters to Identify Hot
Spots
● Collect Periodically Status Snapshots to Profile
Traffic

42. EXPLAIN SELECT *
FROM employees
WHERE
MONTH(birth_date)
= 8 G
id: 1
select_type: SIMPLE
table: employees
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 299587
Extra: Using where
Query Tuning

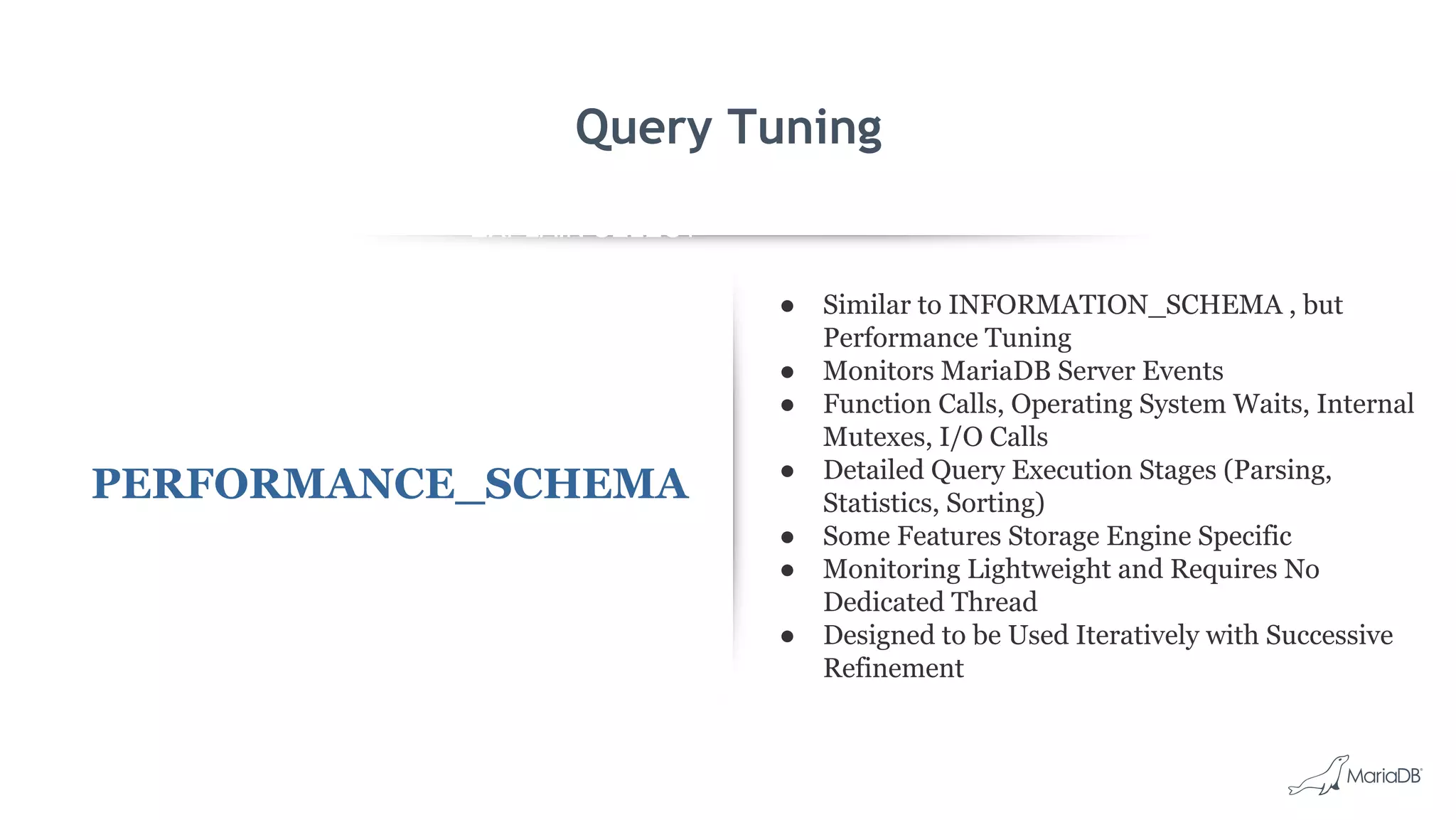

PERFORMANCE_SCHEMA
● Similar to INFORMATION_SCHEMA , but
Performance Tuning
● Monitors MariaDB Server Events
● Function Calls, Operating System Waits, Internal
Mutexes, I/O Calls
● Detailed Query Execution Stages (Parsing,
Statistics, Sorting)
● Some Features Storage Engine Specific
● Monitoring Lightweight and Requires No
Dedicated Thread
● Designed to be Used Iteratively with Successive
Refinement

43. Thank you
james.mclaurin@mariadb.com.
