The document discusses various energy efficient lighting technologies and products for reducing energy consumption, including LED products, T5 conversion kits, compact fluorescent lamps, induction lighting, and electronic ballasts. It provides details on the efficiencies and benefits of high output compact fluorescent lamps, induction fluorescent fixtures, and induction lamps and ballasts for uses such as exterior lighting, parking garages, high/low bay applications, and more. Before and after pictures show induction lighting providing better quality lighting with 45-65% less energy usage compared to other lighting types.

1. Go Free Go Green Prepared for the Reduction of America’s Energy Consumption

2. Technology LED Products T5 Conversion Kit Small Compact Fluorescent High Output Compact Fluorescent Induction Fluorescent Lamps Electronic Ballast Lighting Controls Motion Sensors Interior and Exterior Lighting Energy Surveys

3. Decorative LED products High Power LED products

4. T5 Conversion Kit 12.5% more efficient than 2 T8s, providing higher illumination levels. 25% more efficient than 3 T8s, providing equivalent illumination levels. 47% more efficient than 3 T12s, providing higher illumination levels. 60% more efficient than 4 T12s, providing equivalent illumination levels.

5. Small Compact Fluorescent

6. High Output Compact Fluorescent Exterior Lighting, Wall Packs Parking Garages Indoor/Outdoor High/Low Bay

7. High Output Compact Fluorescents • 85 to 150 Watt UL approved LUMA WP1 and WP2. • Available from 120 to 277 Volts. • 5000 K. • 85 CRI. • Electronic Ballast. • Instant strike. • Maintains 90% of initial lumen output. • Little or no glare. • Power Factor 0.99. • THD of supply current -< 10%. • Rated at 10,000 Hours of life

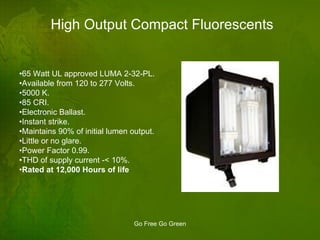

8. High Output Compact Fluorescents • 65 Watt UL approved LUMA 2-32-PL. • Available from 120 to 277 Volts. • 5000 K. • 85 CRI. • Electronic Ballast. • Instant strike. • Maintains 90% of initial lumen output. • Little or no glare. • Power Factor 0.99. • THD of supply current -< 10%. • Rated at 12,000 Hours of life

9. Under Canopy/Parking Garage High Output Fluorescent Fixtures PK2 85 to 105 Watt available. Die cast aluminum housing with bronze powder coated finish for corrosion-resistance. Anodized aluminum reflector and glass lens. Gas tight silicon rubber seal made for wet locations. 120 to 277 Volts. 5000 K. 85 CRI. Electronic Ballast. Little or no glare. Power Factor 0.99 THD of supply current -< 10%. Maintains 90% of initial lumens. Rated life 10,000 Hours.

10. Indoor High/Low Bay – LUMA HB1 85 to 150 Watt available. Great economic solution to high energy cost. Saves up to 65% of the electricity consumption in optimal conditions. Available in Anodized aluminum or acrylic reflectors 120 to 277 Volts. 5000 K. 85 CRI. Electronic Ballast. Little or no glare. Power Factor 0.99 THD of supply current -< 10%. Maintains 90% of initial lumens. Rated life 10,000 Hours.

11. Induction Fluorescent Lighting Features Rated at 100,000 Hours of life (11.5 years operating 24/7) From 12 Watt Self-ballasted to 400 Watt Remote Ballast. Average 85 Lumen/Watt. Available from 120 to 277 Volts. 5000 K. Maintains 70% of Initial Lumens at 60,000 Hrs. of operation. > 85 CRI. Electronic Ballast. Instant Strike. Little or No Glare. Power Factor 0.95. THD of Supply Current -< 10%.

12. Induction Lamps and Ballasts

13. Under Canopy Indoor/Outdoor High/Low Bay Exterior Lighting Pole Lighting Street Lighting Indirect/Decorative Lighting Warehouses Induction Fixtures

14. Under Canopy Fixtures 100 to 200 Watt

15. Indoor/Outdoor High/Low Bay Available from 70 Watt to 400 Watt

16. Exterior Lighting Available in 70 Watt and 150 Watt

17. Pole Lighting Available from 100 Watt up to 250 Watt

18. Street Lighting Available from 70 Watt to 250 Watt

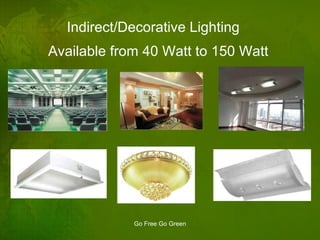

19. Indirect/Decorative Lighting Available from 40 Watt to 150 Watt

20. Warehousing Available from 40 Watt to 400 Watt

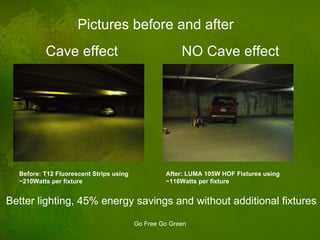

21. Pictures before and after Cave effect NO Cave effect Before: T12 Fluorescent Strips using ~210Watts per fixture After: LUMA 105W HOF Fixtures using ~116Watts per fixture Better lighting, 45% energy savings and without additional fixtures

22. Pictures before and after Dark spots between Dark spots between fixtures disappeared Before: 175W Metal Halide Street Lighting After: LUMA 105W HOF Retrofit Better lighting, 45% energy savings and without additional fixtures

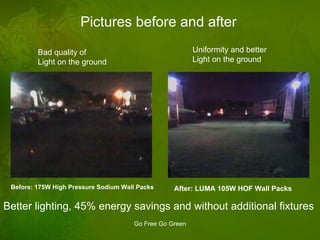

23. Pictures before and after Bad quality of Light on the ground Uniformity and better Light on the ground Before: 175W High Pressure Sodium Wall Packs After: LUMA 105W HOF Wall Packs Better lighting, 45% energy savings and without additional fixtures

24. Pictures before and after LUMA 100 Watt Induction 175 Watt Metal Halide With 50% less energy usage, the LUMA 100W fixture offers a better detail on the floor compared to the Metal Halide LUMA 100 Watt Induction 175 Watt Metal Halide With 62% less energy usage, the LUMA 70W fixture has a stronger shadow over the Metal Halide
