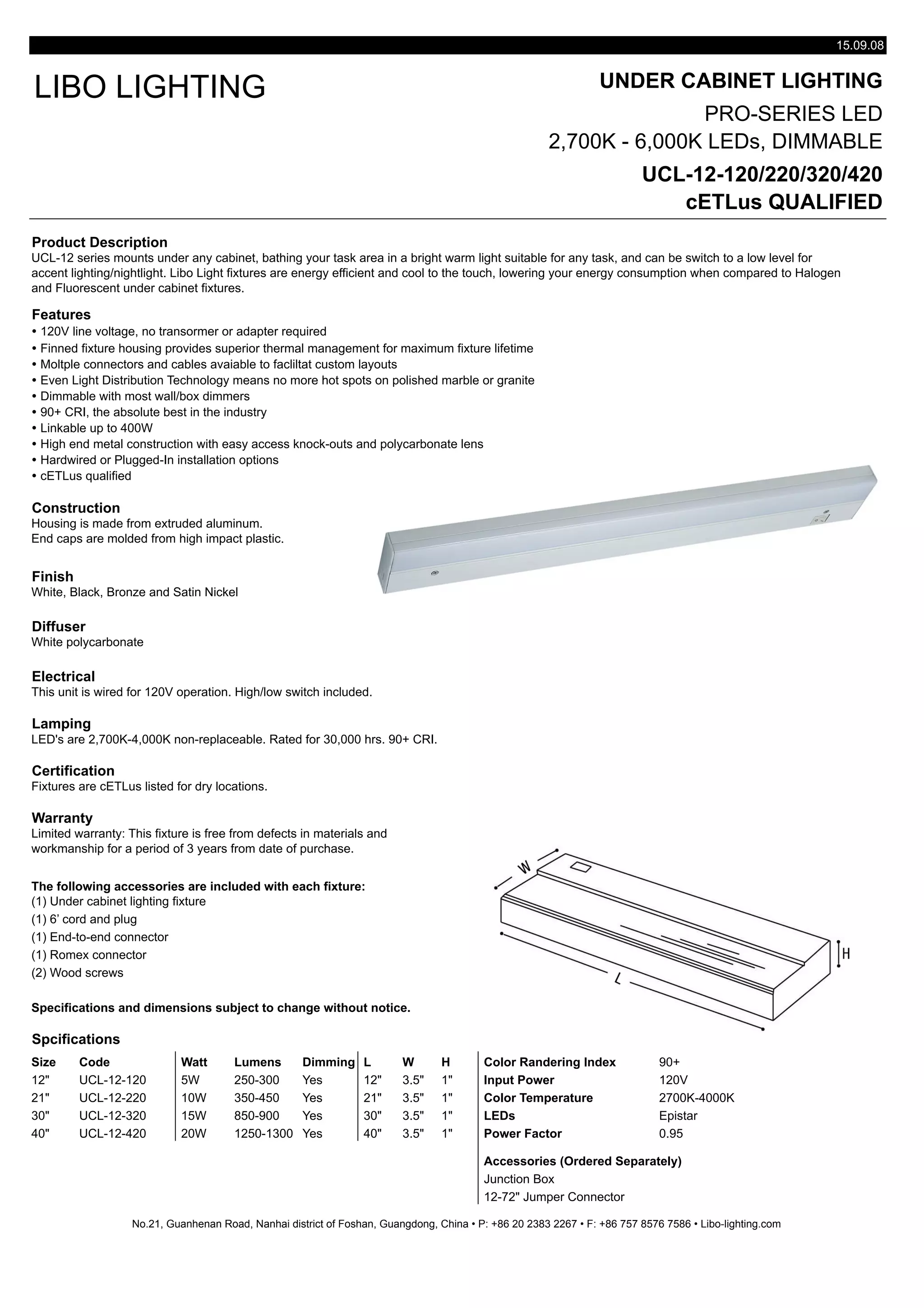

1. 15.09.08
UNDER CABINET LIGHTING
PRO-SERIES LED
2,700K - 6,000K LEDs, DIMMABLE
UCL-12-120/220/320/420
cETLus QUALIFIED
Product Description
Features
Ÿ 120V line voltage, no transormer or adapter required
Ÿ Finned fixture housing provides superior thermal management for maximum fixture lifetime
Ÿ Moltple connectors and cables avaiable to facliltat custom layouts
Ÿ Even Light Distribution Technology means no more hot spots on polished marble or granite
Ÿ Dimmable with most wall/box dimmers
Ÿ 90+ CRI, the absolute best in the industry
Ÿ Linkable up to 400W
Ÿ High end metal construction with easy access knock-outs and polycarbonate lens
Ÿ Hardwired or Plugged-In installation options
Ÿ cETLus qualified
Construction
Finish
White, Black, Bronze and Satin Nickel
Diffuser
White polycarbonate
Electrical
Lamping
LED's are 2,700K-4,000K non-replaceable. Rated for 30,000 hrs. 90+ CRI.
Certification
Warranty
The following accessories are included with each fixture:
(1) Under cabinet lighting fixture
(1) 6’ cord and plug
(1) End-to-end connector
(1) Romex connector
(2) Wood screws
Specifications and dimensions subject to change without notice.
Spcifications
Size Code Watt Lumens Dimming L W H Color Randering Index 90+
12" UCL-12-120 5W 250-300 Yes 12" 3.5" 1" Input Power 120V
21" UCL-12-220 10W 350-450 Yes 21" 3.5" 1" Color Temperature 2700K-4000K
30" UCL-12-320 15W 850-900 Yes 30" 3.5" 1" LEDs Epistar
40" UCL-12-420 20W 1250-1300 Yes 40" 3.5" 1" Power Factor 0.95
Accessories (Ordered Separately)
Junction Box
12-72" Jumper Connector
No.21, Guanhenan Road, Nanhai district of Foshan, Guangdong, China • P: +86 20 2383 2267 • F: +86 757 8576 7586 • Libo-lighting.com
Limited warranty: This fixture is free from defects in materials and
workmanship for a period of 3 years from date of purchase.
Fixtures are cETLus listed for dry locations.
This unit is wired for 120V operation. High/low switch included.
LIBO LIGHTING
Housing is made from extruded aluminum.
End caps are molded from high impact plastic.
UCL-12 series mounts under any cabinet, bathing your task area in a bright warm light suitable for any task, and can be switch to a low level for
accent lighting/nightlight. Libo Light fixtures are energy efficient and cool to the touch, lowering your energy consumption when compared to Halogen
and Fluorescent under cabinet fixtures.
