Lifecycle Modeling Language Tutorial by Dr. Dam and Dr. Vaneman

© 2014 Lifecycle Modeling Steering Committee. All Rights Reserved
A New Open Standard: Lifecycle Modeling
Language (LML) a Language for Simple,
Rapid Development, Operations and
Support
April 2014
1
Steven H. Dam, Ph.D., ESEP
President, SPEC Innovations
571-485-7805
steven.dam@specinnovations.com
Warren K. Vaneman, Ph.D.
Naval Postgraduate School
wvaneman@nps.edu

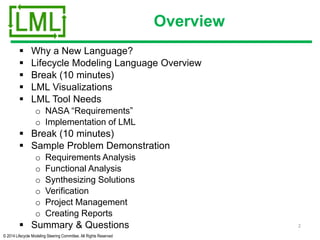

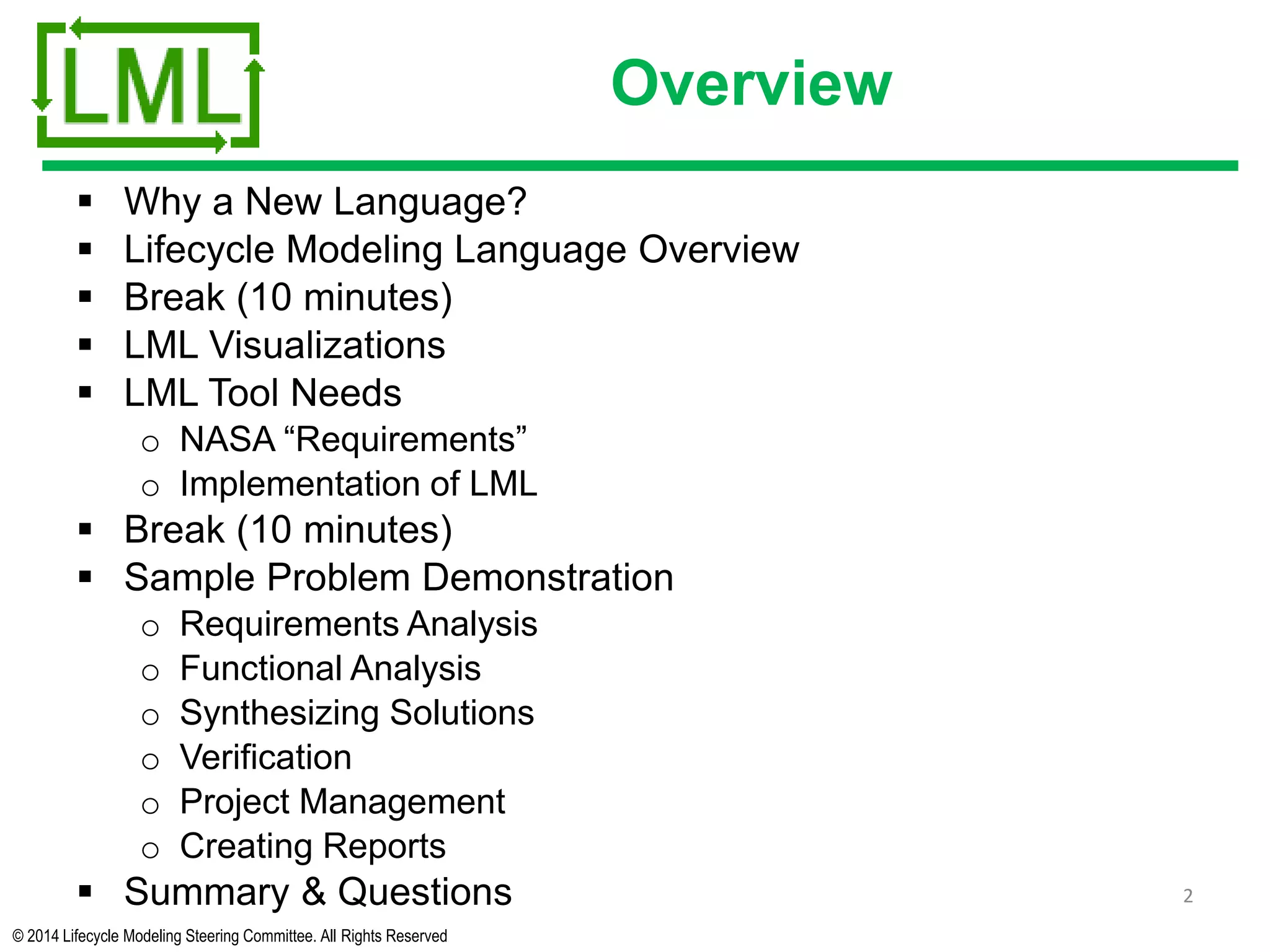

Overview
 Why a New Language?
 Lifecycle Modeling Language Overview

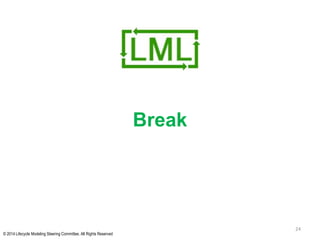

 Break (10 minutes)
 LML Visualizations
 LML Tool Needs
o NASA “Requirements”
o Implementation of LML
 Break (10 minutes)

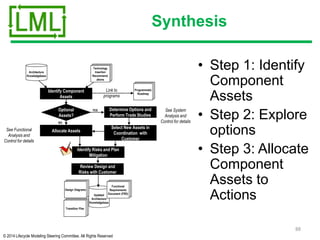

 Sample Problem Demonstration
o Requirements Analysis
o Functional Analysis
o Synthesizing Solutions
o Verification
o Project Management
o Creating Reports
 Summary & Questions 2

Why a New Language?
3

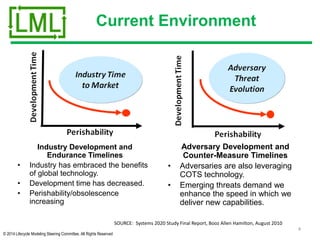

Industry Development and
Endurance Timelines
• Industry has embraced the benefits
of global technology.
• Development time has decreased.
• Perishability/obsolescence
increasing
4
Current Environment
Adversary Development and
Counter-Measure Timelines
• Adversaries are also leveraging
COTS technology.
• Emerging threats demand we
enhance the speed in which we
deliver new capabilities.

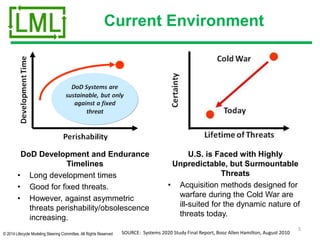

SOURCE: Systems 2020 Study Final Report, Booz Allen Hamilton, August 2010

DoD Development and Endurance
Timelines
• Long development times
• Good for fixed threats.
• However, against asymmetric
threats perishability/obsolescence
increasing.
5
Current Environment
U.S. is Faced with Highly
Unpredictable, but Surmountable
Threats
• Acquisition methods designed for
warfare during the Cold War are
ill-suited for the dynamic nature of
threats today.
SOURCE: Systems 2020 Study Final Report, Booz Allen Hamilton, August 2010

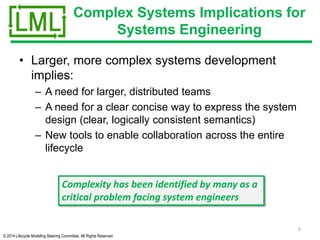

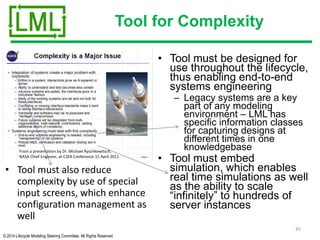

Complex Systems Implications for
Systems Engineering
• Larger, more complex systems development
implies:
– A need for larger, distributed teams
– A need for a clear concise way to express the system
design (clear, logically consistent semantics)
– New tools to enable collaboration across the entire
lifecycle
6
Complexity has been identified by many as a
critical problem facing system engineers

Complexity

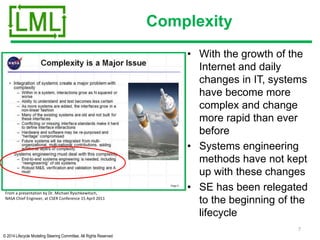

• With the growth of the
Internet and daily
changes in IT, systems
have become more
complex and change
more rapid than ever
before
• Systems engineering
methods have not kept
up with these changes
• SE has been relegated
to the beginning of the
lifecycle
7
From a presentation by Dr. Michael Ryschkewitsch,
NASA Chief Engineer, at CSER Conference 15 April 2011

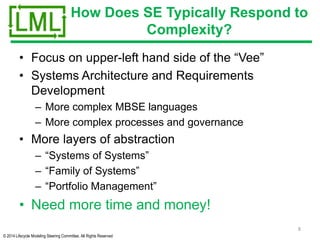

How Does SE Typically Respond to
Complexity?
• Focus on upper-left hand side of the “Vee”
• Systems Architecture and Requirements
Development
– More complex MBSE languages
– More complex processes and governance
• More layers of abstraction
– “Systems of Systems”
– “Family of Systems”
– “Portfolio Management”
• Need more time and money!
8

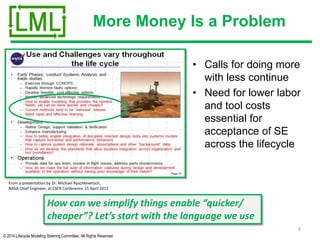

More Money Is a Problem
• Calls for doing more
with less continue
• Need for lower labor
and tool costs
essential for
acceptance of SE
across the lifecycle
9
How can we simplify things enable “quicker/
cheaper”? Let’s start with the language we use

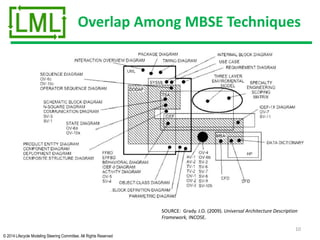

Overlap Among MBSE Techniques
10
SOURCE: Grady. J.O. (2009). Universal Architecture Description
Framework, INCOSE.

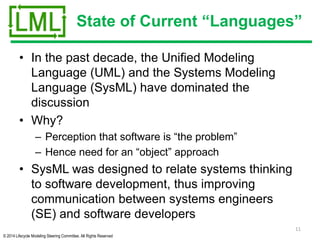

State of Current “Languages”
• In the past decade, the Unified Modeling
Language (UML) and the Systems Modeling
Language (SysML) have dominated the
discussion
• Why?
– Perception that software is “the problem”
– Hence need for an “object” approach
• SysML was designed to relate systems thinking
to software development, thus improving
communication between systems engineers
(SE) and software developers
11

Why Objects Are Not the Answer
• Although SysML may improve the communication
of design between SEs and the software
developers it does not communicate well to
anyone else
– No other discipline in the lifecycle uses object
oriented design and analysis extensively
– Users in particular have little interest/acceptance of
this technique
– Software developers who have adopted Agile
programming techniques want functional
requirements (and resent SEs trying to write software)
– Many software languages are hybrid object and
functional
12

So What Do We Do?
• Recognize that our
primary job as SEs is
to communicate
between all
stakeholders in the
lifecycle
• Be prepared to
translate between all
the disciplines
• Reduce complexity in
our language to
facilitate
communication
13

Lifecycle Modeling
Language (LML) Overview
14

Lifecycle Modeling Language
(LML)
• LML combines the logical constructs with an
ontology to capture information
– SysML – mainly constructs – limited ontology
– DoDAF Metamodel 2.0 (DM2) ontology only
• LML simplifies both the “constructs” and
“ontology” to make them more complete, yet
easier to use
15
Goal: A language that works across the full
lifecycle

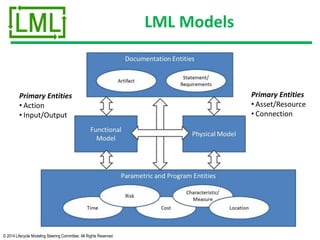

LML Models
Primary Entities
• Asset/Resource
• Connection
Primary Entities
• Action
• Input/Output

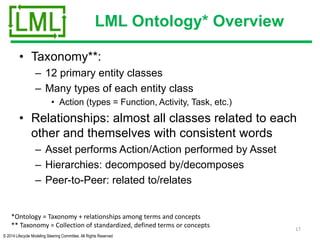

LML Ontology* Overview
• Taxonomy**:
– 12 primary entity classes
– Many types of each entity class
• Action (types = Function, Activity, Task, etc.)
• Relationships: almost all classes related to each
other and themselves with consistent words
– Asset performs Action/Action performed by Asset
– Hierarchies: decomposed by/decomposes
– Peer-to-Peer: related to/relates
17
*Ontology = Taxonomy + relationships among terms and concepts
** Taxonomy = Collection of standardized, defined terms or concepts

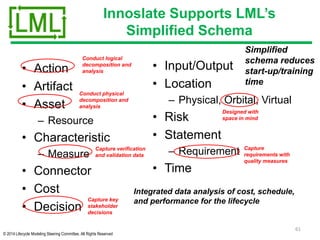

LML Schema Elements
• Action
• Artifact
• Asset
– Resource
• Characteristic
– Measure
• Connection
– Logical
– Conduit
• Cost
• Input/Output
• Location
– Physical
– Orbital
– Virtual
• Risk
• Software Interface
• Statement
– Requirement
– Decision
• Time
18

LML Primary Entities and Relationships
19
Artifact decomposed by/
decomposes
Statement
(Requirement)
Characteristic
(Measure)
source of/sourced by
Action
traced from/traced to
Asset
(Resources)
performed by/performs
Input/Output
specified by/specifies
Connection
(Conduit)
transferred by/transfers
connected by/
connects
generated by/
generates
received by/
receives
decomposed by/
decomposes
decomposed by/
decomposes
decomposed by/
decomposes
decomposed by/
decomposes
decomposed by/
decomposes
decomposed by/
decomposes

Action Artifact
Asset
(Resource)
Characteristic
(Measure)
Connection
(Conduit,
Logical)
Cost Decision Input/Output
Location
(Orbital,
Physical,
Virtual)
Risk
Statement
(Requirement)
Time
Action
decomposed by*
related to*
references
(consumes)
performed by
(produces)
(seizes)
specified by - incurs
enables
results in
generates
receives
located at
causes
mitigates
resolves
(satisfies)
traced from
(verifies)
occurs
Artifact referenced by
decomposed by*
related to*
referenced by
referenced by
specified by
defines protocol for
referenced by
incurs
referenced by
enables
referenced by
results in
referenced by located at
causes
mitigates
referenced by
resolves
referenced by
(satisfies)
source of
traced from
(verifies)
occurs
Asset
(Resource)
(consumed by)
performs
(produced by)
(seized by)
references
decomposed by*
orbited by*
related to*
specified by connected by incurs
enables
made
responds to
results in
- located at
causes
mitigates
resolves
(satisfies)
traced from
(verifies)
occurs
Characteristic
(Measure)
specifies
references
specifies
specifies
decomposed by*
related to*
specified by*
specifies
incurs
specifies
enables
results in
specifies
specifies
located at
specifies
causes
mitigates
resolves
specifies
(satisfies)
spacifies
traced from
(verifies)
occurs
specifies
Connection
(Conduit,
Logical)
-
defined protocol by
references
connects to specified by
decomposed by*
joined by*
related to*
incurs
enables
results in
transfers located at
causes
mitigates
resolves
(satisfies)
traced from
(verifies)
occurs
Cost incurred by
incurred by
references
incurred by
incurred by
specified by
incurred by
decomposed by*
related to*
enables
incurred by
results in
incurred by located at
causes
incurred by
mitigates
resolves
incurred by
(satisfies)
traced from
(verifies)
occurs
Decision
enabled by
result of
enabled by
references
result of
enabled by
made by
responded by
result of
enabled by
result of
specified by
enabled by
result of
enabled by
incurs
result of
decomposed by*
related to*
enabled by
result of
located at
causes
enabled by
mitigated by
result of
resolves
alternative
enabled by
traced from
result of
date resolved by
decision due
occurs
Input/Output
generated by
received by
references - specified by transferred by incurs
enables
results in
decomposed by*
related to*
located at
causes
mitigates
resolves
(satisfies)
traced from
(verifies)
occurs
Location
(Orbital,
Physical,
Logical)
locates locates locates
locates
specified by
locates locates locates locates
decomposed by*
related to*
locates
mitigates
locates
(satisfies)
traced from
(verifies)
occurs
Risk
caused by
mitigated by
resolved by
caused by
mitigated by
references
resolved by
caused by
mitigated by
resolved by
caused by
mitigated by
resolved by
specified by
caused by
mitigated by
resolved by
caused by
incurs
mitigated by
resolved by
caused by
enables
mitigated by
results in
resolved by
caused by
mitigated by
resolved by
located at
mitigated by
caused by*
decomposed by*
related to*
resolved by*
caused by
mitigated by
resolved by
occurs
mitigated by
Statement
(Requirement)
(satisfied by)
traced to
(verified by)
references
(satisified by)
sourced by
traced to
(verified by)
(satisified by)
traced to
(verified by)
(satisified by)
specified by
traced to
(verified by)
(satisified by)
traced to
(verified by)
incurs
(satisified by)
traced to
(verified by)
alternative of
enables
traced to
results in
(satisified by)
traced to
(verified by)
located at
(satisfied by)
traced to
(verified by)
causes
mitigates
resolves
decomposed by*
traced to*
related to*
occurs
(satisified by)
(verified by)
Time occurred by occurred by occurred by
occurred by
specified by
occurred by occurred by
date resolves
decided by
occurred by
occurred by occurred by
occurred by
mitigates
occurred by
(satisfies)
(verifies)
decomposed by*
related to*
LML Relationships Provide Linkage
Needed Between the Classes
• decomposed
by/decomposes
• orbited by/orbits
• related to/relates
20

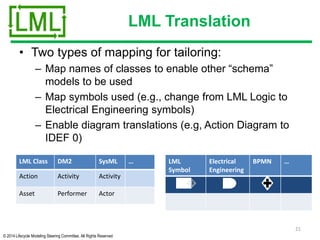

LML Translation
• Two types of mapping for tailoring:
– Map names of classes to enable other “schema”
models to be used
– Map symbols used (e.g., change from LML Logic to
Electrical Engineering symbols)
– Enable diagram translations (e.g, Action Diagram to
IDEF 0)
LML
Symbol
Electrical
Engineering
BPMN …
AND
LML Class DM2 SysML …
Action Activity Activity
Asset Performer Actor
21

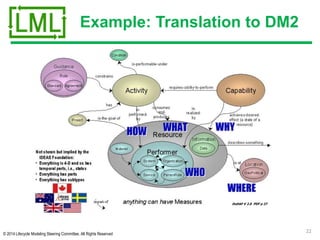

Example: Translation to DM2
22
DoDAF V 2.0 PDF p 27

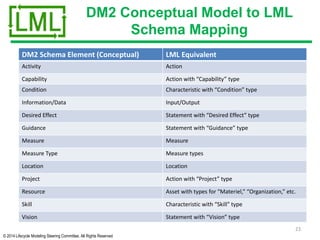

DM2 Conceptual Model to LML
Schema Mapping
DM2 Schema Element (Conceptual) LML Equivalent
Activity Action
Capability Action with “Capability” type
Condition Characteristic with “Condition” type
Information/Data Input/Output
Desired Effect Statement with “Desired Effect” type
Guidance Statement with “Guidance” type
Measure Measure
Measure Type Measure types
Location Location
Project Action with “Project” type
Resource Asset with types for “Materiel,” “Organization,” etc.
Skill Characteristic with “Skill” type
Vision Statement with “Vision” type
23

Break
24

LML Visualizations
25
Key diagrams needed to better
understand the information

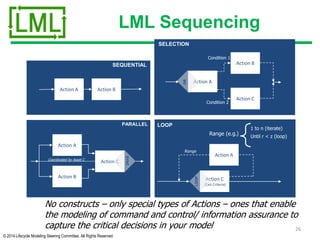

LML Sequencing
26
No constructs – only special types of Actions – ones that enable
the modeling of command and control/ information assurance to
capture the critical decisions in your model
Action A Action B
Action A
Action B
Action C
Condition 1
Condition 2
Action A
Action B
LOOP
Action A
Action C
Range
Range (e.g.)
1 to n (iterate)
Until r < z (loop)
PARALLEL
SEQUENTIAL
SELECTION
SYNC
OR
Action C
(Exit Criteria)
LOOP
Coordinated by Asset C

LML Action Diagram Captures
Functional and Data Flow
27
OR
Which path?
Action in
Parallel
Action
Start End
Trigger
SYNC
Input/Output 2
Synchronize
Information
1.2
1.3
1.7
Action
1.1 Optional Action 2 in
Loop
1.6
External Input
External
Output
Input/Output 3LOOP
Exit Criteria
1.5
Optional Action 1
1.4
Input/Output 1

Example: Sync Execution Logic
28
Action
Control Line
No trigger: Action enabled and will execute
Action Diagram Timeline
ActionDuration = x sec
0 sec x sec
Action
Control Line
With trigger: Action enabled, but will not
execute until trigger received
ActionDuration = x sec
y sec
Trigge
r
Trigger takes y
sec before
received by Action
wait
0 sec y + x sec

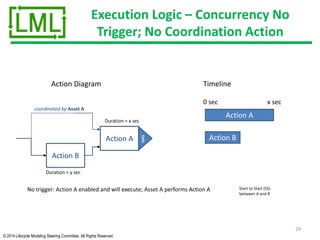

Execution Logic – Concurrency No
Trigger; No Coordination Action
29
Action A
No trigger: Action A enabled and will execute; Asset A performs Action A
Action A
Duration = x sec
0 sec x sec
sync
Action B
coordinated by Asset A
Duration = y sec
Action B
Start to Start (SS)
between A and B

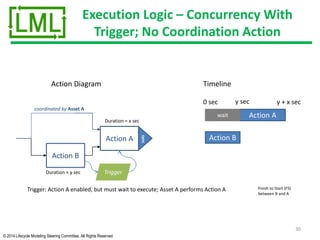

Execution Logic – Concurrency With
Trigger; No Coordination Action
30
Action A
Trigger: Action A enabled, but must wait to execute; Asset A performs Action A
Action A
Duration = x sec
0 sec y + x sec
sync
Action B
coordinated by Asset A
Duration = y sec
y sec
Action B
Trigger
wait
Finish to Start (FS)
between B and A

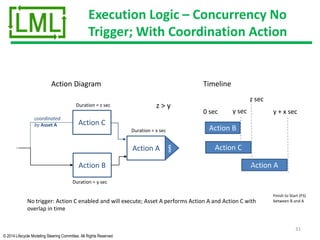

Trigger; With Coordination Action
31
Action A
No trigger: Action C enabled and will execute; Asset A performs Action A and Action C with
overlap in time
Action C
Duration = x sec
0 sec y + x sec
syncAction B
coordinated
by Asset A
Duration = y sec
y sec
Action B
Action C
Action A
Duration = z sec
z sec
z > y
between B and A

32
Action A
No trigger: Action C enabled and will execute; Asset A performs Action C and then Action A
Action B
Duration = x sec
0 sec z + x sec
syncAction B
coordinated
by Asset A
Duration = y sec
y sec
Action C
Action C
Action A
Duration = z sec
z sec
y > z
between C and A

Execution Logic – Concurrency With
33
Action A
No trigger: Action C enabled and will execute; Asset A performs Action A and Action C
Action B
Duration = x sec
0 sec y + x sec
syncAction B
coordinated
by Asset A
Duration = y sec
y sec
Action C
Action C
Action A
Duration = z sec
z sec
y > z
Trigger
wait
between B and A

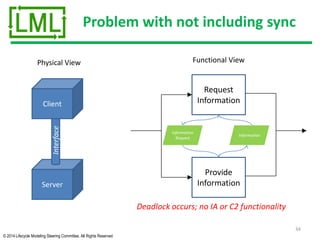

Problem with not including sync
34
Request
Information
Server
Provide
Information
Interface
Client
Physical View Functional View
Information
Request
Information
Deadlock occurs; no IA or C2 functionality

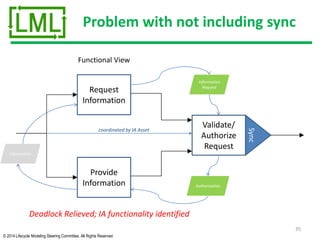

Problem with not including sync
35
Request
Information
Provide
Information
Functional View
Information
Request
Information
Deadlock Relieved; IA functionality identified
Validate/
Authorize
Request
Authorization
coordinated by IA Asset
Sync

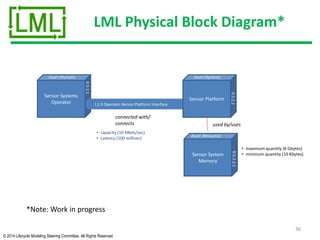

LML Physical Block Diagram*
Sensor Systems
Operator
P.5.2.1
Asset (Human)
I.1.3 Operator-Sensor Platform Interface
Sensor Platform
P.5.2.2
Asset (System)
connected with/
connects
Sensor System
Memory
R.5.2.2.1
Asset (Resource)
used by/uses
• capacity (10 Mbits/sec)
• Latency (100 millisec)
• maximum quantity (6 Gbytes)
• minimum quantity (10 Kbytes)
36
*Note: Work in progress

LML Combined Physical Behavior
Diagram* Enables Instances and Clones
37
Sensor Systems
Operator
P.5.2.1
Asset (Human)
I.1.3 Operator-Sensor Platform Interface
connected with/
connects
Sensor Platform
A(2)
P.5.2.2
Asset (System)
Asset (Resource)
Sensor Platform
A(3)
P.5.2.2
Asset (System)
Asset (Resource)
Sensor Platform
A(1)
P.5.2.2
Asset (System)
Asset (Resource)
Clonesprovidemultipleinstancesof
anAssetforuseinsimulation
A.3.1
Action (System Function)
A.3.2
Sense Targets
A.3.1
Action (System Function)
A.3.1
Deploy Sensor
input to/
input from
input to/
input from
Deploy
Command
*Note: Work in progress

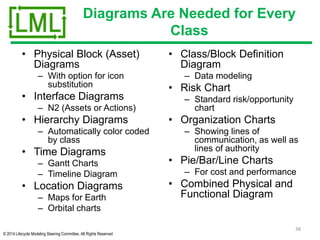

Diagrams Are Needed for Every
Class
• Physical Block (Asset)
Diagrams
– With option for icon
substitution
• Interface Diagrams
– N2 (Assets or Actions)
• Hierarchy Diagrams
– Automatically color coded
by class
• Time Diagrams
– Gantt Charts
– Timeline Diagram
• Location Diagrams
– Maps for Earth
– Orbital charts
• Class/Block Definition
Diagram
– Data modeling
• Risk Chart
– Standard risk/opportunity
chart
• Organization Charts
– Showing lines of
communication, as well as
lines of authority
• Pie/Bar/Line Charts
– For cost and performance
• Combined Physical and
Functional Diagram
38

LML Summary

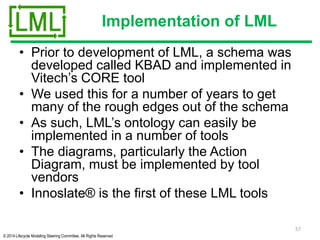

• LML provides the fundamental foundation for a
tool to support SE in the cloud
• LML contains the basic technical and
programmatic classes needed for the lifecycle
• LML defines the Action Diagram to enable better
definition of logic as functional requirements
• LML uses Physical Diagram to provide for
abstraction, instances, and clones, thus simplifying
physical models
• LML provides the “80% solution”
– It can be extended to meet specific needs (e.g.
adding Question and Answer classes for a survey tool
that feeds information into the modeling)
39

Break
40

LML Tool Needs
41
Scalability and collaboration across
the lifecycle are essential

LML Tool Needs
• At a high level, we know that any tool must
scale to accommodate a very large data set
– We are trying to capture information about the
systems of systems being developed, their
interactions, decisions, risks, cost, and many
other parameters throughout the lifecycle
• Also, collaboration is critical as a large data
set means many, many people involved, who
use different terminology and perhaps even
different languages – worldwide
42
Fortunately we have a new environment
for our LML tools – Cloud Computing

NASA “Requirements”
43

44
Tool for Vision for MBSE
• Tool must be designed as
a MBSE tool using
Lifecycle Modeling
Language (LML)
– All artifacts must be
produced from the tool
using standard reports
• Tool must enable both
seamless data flow and
distributive, collaborative
teams working on the
same model
• Implies need for ability to
scale “infinitely” on
demand

45
Tool for Complexity
• Tool must be designed for
use throughout the lifecycle,
thus enabling end-to-end
systems engineering
– Legacy systems are a key
part of any modeling
environment – LML has
specific information classes
for capturing designs at
different times in one
knowledgebase
• Tool must embed
simulation, which enables
real time simulations as well
as the ability to scale
“infinitely” to hundreds of
server instances
• Tool must also reduce
complexity by use of special
input screens, which enhance
configuration management as
well

46

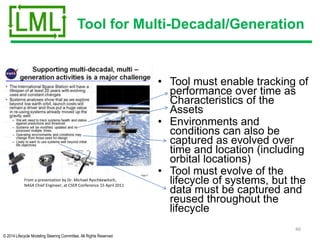

Tool for Multi-Decadal/Generation
• Tool must enable tracking of
performance over time as
Characteristics of the
Assets
• Environments and
conditions can also be
captured as evolved over
time and location (including
orbital locations)
• Tool must evolve of the
lifecycle of systems, but the
data must be captured and
reused throughout the
lifecycle

47

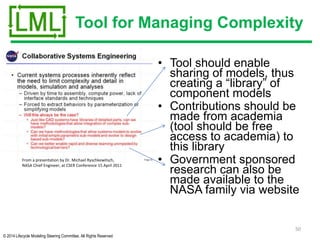

Tool for Uses and Challenges
• Tool needs to create a
CONOPS report based on
scenario modeling
• Capture Issues and
Decisions, as well as Cost
for cost, schedule and
performance tradeoffs
• TRL levels must be easily
captured in the tool
• Software as a service
provides inexpensive tool,
while scalability enables
fidelity level required; LML
method enables rapid SE
design and analysis
• Tool should automate what can
be automated to reduce
“wetware” requirements and
enhance teaming

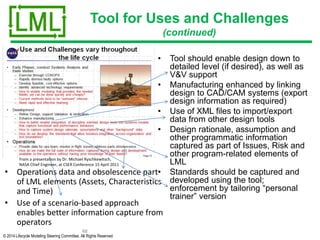

48
Tool for Uses and Challenges
(continued)
• Tool should enable design down to
detailed level (if desired), as well as
V&V support
• Manufacturing enhanced by linking
design to CAD/CAM systems (export
design information as required)
• Use of XML files to import/export
data from other design tools
• Design rationale, assumption and
other programmatic information
captured as part of Issues, Risk and
other program-related elements of
LML
• Standards should be captured and
developed using the tool;
enforcement by tailoring “personal
trainer” version
• Operations data and obsolescence part
of LML elements (Assets, Characteristics
and Time)
• Use of a scenario-based approach
enables better information capture from
operators

49

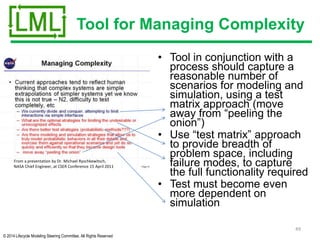

Tool for Managing Complexity
• Tool in conjunction with a
process should capture a
reasonable number of
scenarios for modeling and
simulation, using a test
matrix approach (move
away from “peeling the
onion”)
• Use “test matrix” approach
to provide breadth of
problem space, including
failure modes, to capture
the full functionality required
• Test must become even
more dependent on
simulation

50
Tool for Managing Complexity
• Tool should enable
sharing of models, thus
creating a “library” of
component models
• Contributions should be
made from academia
(tool should be free
access to academia) to
this library
• Government sponsored
research can also be
made available to the
NASA family via website

Response to Chief Engineer
51
From a presentation by Mr.
Joe Smith, NASA HQ
Program Executive for
Systems Engineering, at
INCOSE WMA Meeting, 17
September 2014

52From a presentation by Mr. Joe Smith, NASA HQ Program Executive for Systems Engineering,
at INCOSE WMA Meeting, 17 September 2014

NASA “App Store”
53
Another
DoDAF
MetaModel
2.0 (DM2)
Physical
Exchange
Specification
(PES)?

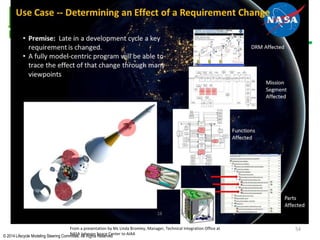

From a presentation by Ms Linda Bromley, Manager,
Technical Integration Office at NASA Johnson Space Center
to AIAA

54From a presentation by Ms Linda Bromley, Manager, Technical Integration Office at
NASA Johnson Space Center to AIAA

Organized Functional Tool
Requirements
(derived from analysis of Mike R’s presentation)
• Models (MBSE)
– Functional
– Physical
– Object
• Simulation
– Discrete event
– Monte Carlo
• Data Sharing
• Collaboration
– Worldwide access to single
database
– User interaction (e.g., Chat)
• Scalable to large datasets
• Decision/design traceability
• Cost and Schedule analysis
support
• Risk analysis support
• Explicit time evolution analysis
• Full lifecycle support
– Requirements
– Design
– Acquisition
– Verification
– Operation & Support
– Disposal
• Reports from Models
– CONOPS
– DoD or other documents
– Project-specific
• “User Friendly” & Standards
– Modern (web-like) UI
– Desktop Support (PC, Mac, Linux)
– Tablet Support (iPad, Android)
– Enforces standards via rules and
checkers
– Embedded training
• “Reasonable” tool cost
55

IMPLEMENTATION OF LML
Innoslate® is the first tool to implement LML completely
56

Implementation of LML
• Prior to development of LML, a schema was
developed called KBAD and implemented in
Vitech’s CORE tool
• We used this for a number of years to get
many of the rough edges out of the schema
• As such, LML’s ontology can easily be
implemented in a number of tools
• The diagrams, particularly the Action
Diagram, must be implemented by tool
vendors
• Innoslate® is the first of these LML tools
57

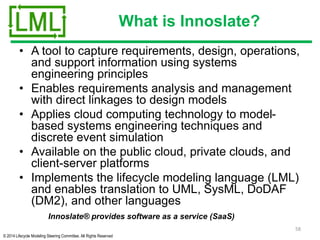

What is Innoslate?
• A tool to capture requirements, design, operations,
and support information using systems
engineering principles
• Enables requirements analysis and management
with direct linkages to design models
• Applies cloud computing technology to model-
based systems engineering techniques and
discrete event simulation
• Available on the public cloud, private clouds, and
client-server platforms
• Implements the lifecycle modeling language (LML)
and enables translation to UML, SysML, DoDAF
(DM2), and other languages
58
Innoslate® provides software as a service (SaaS)

What are the system
requirements?

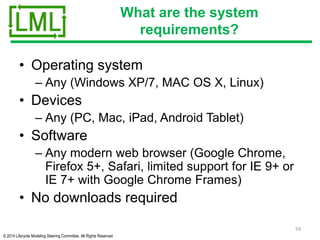

• Operating system
– Any (Windows XP/7, MAC OS X, Linux)
• Devices
– Any (PC, Mac, iPad, Android Tablet)
• Software
– Any modern web browser (Google Chrome,
Firefox 5+, Safari, limited support for IE 9+ or
IE 7+ with Google Chrome Frames)
• No downloads required
59

What Can Innoslate® Produce?
• Tool Capabilities
– Early Simulation/Design Validation
– End-to-End Design Management and Collaboration
– Repository of Analyses from Any Tool
– Traceability from Requirements to Functions to Components to Test to
Operations to Support to Disposal
• Version 2.4 Reports
– Entity Reports for each class
– Requirements Report
– Concepts of Operations (CONOPS)*
– JCIDS Documents (ICD, CDD, CPD, DCR)*
– DoDAF and MODAF products
– Test and Evaluation Plan/Report
• Reports slated for later versions
– Specifications for detailed design (in the languages of the design
engineers)
– Processes and Procedures for Operations and Training
60*These complex reports have special input wizards and user guides

Innoslate Supports LML’s
Simplified Schema
• Action
• Artifact
• Asset
– Resource
• Characteristic
– Measure
• Connector
• Cost
• Decision
• Input/Output
• Location
– Physical, Orbital, Virtual
• Risk
• Statement
– Requirement
• Time
61
Integrated data analysis of cost, schedule,
and performance for the lifecycle
Capture verification
and validation data
Conduct logical
decomposition and
analysis
Capture
requirements with
quality measures
Capture key
stakeholder
decisions
Designed with
space in mind
Simplified
schema reduces
start-up/training
time
Conduct physical
decomposition and
analysis

Requirements
62

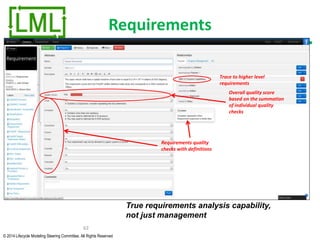

Requirements quality
checks with definitions
Trace to higher level
requirements
Overall quality score
based on the summation
of individual quality
checks
True requirements analysis capability,
not just management

Requirements View
63

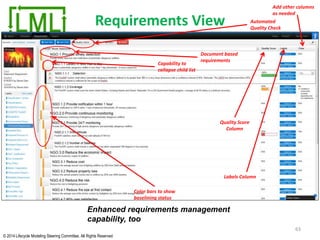

Color bars to show
baselining status
Labels Column
Quality Score
Column
Capability to
collapse child list
Document based
requirements
Add other columns
as needed
Enhanced requirements management
capability, too
Automated
Quality Check

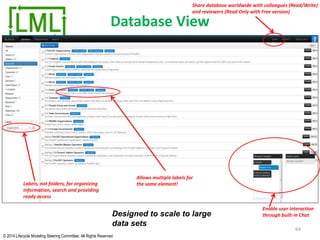

Database View
64
Labels, not folders, for organizing
information, search and providing
ready access
Allows multiple labels for
the same element!
Share database worldwide with colleagues (Read/Write)
and reviewers (Read Only with Free version)
Enable user interaction
through built-in ChatDesigned to scale to large
data sets

Entity View
65

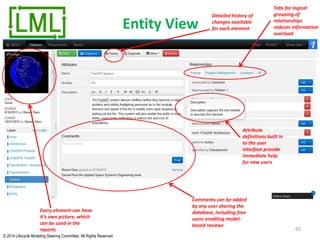

Every element can have
it’s own picture, which
can be used in the
reports
Tabs for logical
grouping of
relationships
reduces information
overload
Attribute
definitions built in
to the user
interface provide
immediate help
for new users
Detailed history of
changes available
for each element
Comments can be added
by any user sharing the
database, including free
users enabling model-
based reviews

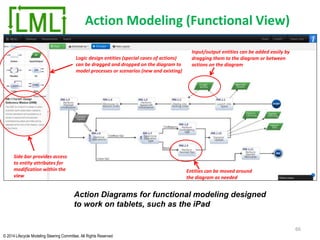

Action Modeling (Functional View)
66
Logic design entities (special cases of actions)
can be dragged and dropped on the diagram to
model processes or scenarios (new and existing)
Entities can be moved around
the diagram as needed
Input/output entities can be added easily by
dragging them to the diagram or between
actions on the diagram
Action Diagrams for functional modeling designed
to work on tablets, such as the iPad
Side bar provides access
to entity attributes for
modification within the
view

Asset Modeling (Physical View)
67
Asset Diagrams describe
physical components
and interfaces

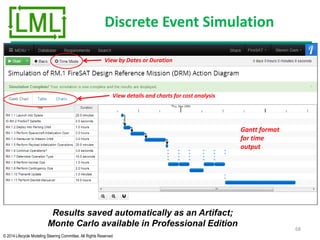

Discrete Event Simulation
68
Gantt format
for time
output
View by Dates or Duration
View details and charts for cost analysis
Results saved automatically as an Artifact;
Monte Carlo available in Professional Edition

Location

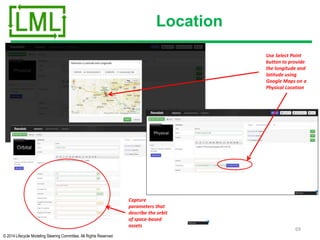

69
Use Select Point
button to provide
the longitude and
latitude using
Google Maps on a
Physical Location
Capture
parameters that
describe the orbit
of space-based
assets

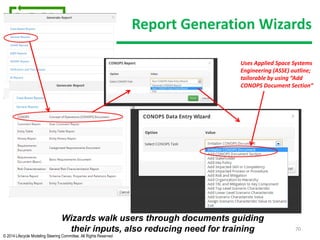

Report Generation Wizards
70
Wizards walk users through documents guiding
their inputs, also reducing need for training
Uses Applied Space Systems
Engineering (ASSE) outline;
tailorable by using “Add
CONOPS Document Section”

Schema Extension
71

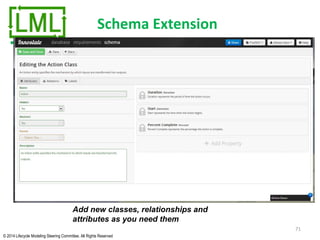

Add new classes, relationships and
attributes as you need them

Visual Representations
• Version 2.4 Diagrams
– Hierarchy charts
– Action Diagram
– Asset Diagram (Interfaces)
– N2 Chart (I/O + Actions)
– Risk charts
– Radar Diagram
– Sequence (Experimental) [Object Modeling]
– Spider Diagram (All, Custom, Traceability)
– Timelines (Experimental)
– Location (maps)
– IDEF0/ICOM
• Planned for future releases
– Other location views, including orbital
– Class, and other UML/SysML diagrams [Object Modeling]
72
For Risk Analysis Support
For Decision/Design
Traceability
For additional time evolution
analysis and presentation

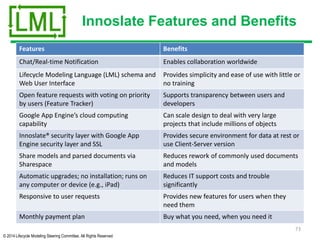

Innoslate Features and Benefits
Features Benefits
Chat/Real-time Notification Enables collaboration worldwide
Lifecycle Modeling Language (LML) schema and
Web User Interface
Provides simplicity and ease of use with little or
no training
Open feature requests with voting on priority
by users (Feature Tracker)
Supports transparency between users and
developers
Google App Engine’s cloud computing
capability
Can scale design to deal with very large
projects that include millions of objects
Innoslate® security layer with Google App
Engine security layer and SSL
Provides secure environment for data at rest or
use Client-Server version
Share models and parsed documents via
Sharespace
Reduces rework of commonly used documents
and models
Automatic upgrades; no installation; runs on
any computer or device (e.g., iPad)
Reduces IT support costs and trouble
significantly
Responsive to user requests Provides new features for users when they
need them
Monthly payment plan Buy what you need, when you need it
73

For a Complete Comparison
• Tools that Innoslate can replace
– Requirements Management (e.g., DOORS)
– Modeling (e.g., CRADLE, CORE)
– Simulation (CORESim, ARENA)
– File Sharing (e.g., Sharepoint, Windchill)
– Risk Analysis and Management
– Project Planning (e.g., MS Project)
• Be sure to compare combined cost, as
well as features
74

Sample Problem
Let’s look at an example of using
Innoslate® through the lifecycle
76

To Further Our Understanding

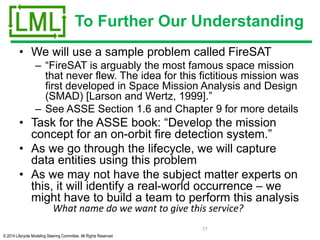

• We will use a sample problem called FireSAT
– “FireSAT is arguably the most famous space mission
that never flew. The idea for this fictitious mission was
first developed in Space Mission Analysis and Design
(SMAD) [Larson and Wertz, 1999].”
– See ASSE Section 1.6 and Chapter 9 for more details
• Task for the ASSE book: “Develop the mission
concept for an on-orbit fire detection system.”
• As we go through the lifecycle, we will capture
data entities using this problem
• As we may not have the subject matter experts on
this, it will identify a real-world occurrence – we
might have to build a team to perform this analysis
77
What name do we want to give this service?

What is Middle-Out?
It Begins with the Lifecycle
Architecture
Development
System
Design
Hardware/Software
Acquisition
Integration
and Test
Operational
T&E and
Transition
Future Operations
and Support
Demolition
and Disposal
Program
Management
Current Operations
and Support
78
Requirements
Analysis
Functional Analysis
and Allocation
Synthesis
System Analysis and
Control

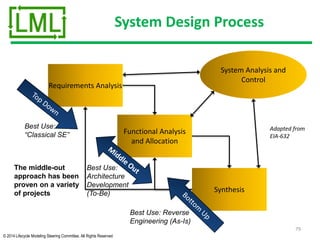

System Design Process
79
Requirements Analysis
Functional Analysis
and Allocation
Synthesis
System Analysis and
Control
Best Use:
“Classical SE”
Best Use: Reverse
Engineering (As-Is)
Best Use:
Architecture
Development
(To-Be)
Adapted from
EIA-632
The middle-out
approach has been
proven on a variety
of projects

14. Provide Options
80
System Design Process Timeline
5. Develop the Operational Context Diagram
15. Conduct Trade-off Analyses
6. Develop Operational Scenarios
1. Capture and Analyze Related Artifacts
4. Capture Constraints
3. Identify Existing/Planned Systems
2. Identify Assumptions
7. Derive Functional Behavior
8. Derive Assets
10. Prepare Interface Diagrams
12. Perform Dynamic Analysis
11. Define Resources, Error Detection & Recovery
13. Develop Operational Demonstration Master Plan
16. Generate Operational and System Architecture Graphics, Briefings and Reports
Functional Analysis
Synthesis
System Analysis
and Control
This implementation of the middle-out approach has been
proven on a variety of architecture projects
9. Allocate Actions to Assets
Time

81

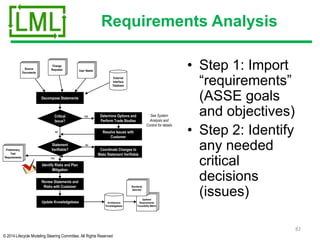

• Step 1: Import
“requirements”
(ASSE goals
and objectives)
• Step 2: Identify
any needed
critical
decisions
(issues)
82
Source
Documents
External
Interface
Database
User Needs
Decompose Statements
Critical
Issue?
Statement
Verifiable?
Determine Options and
Perform Trade Studies
See System
Analysis and
Control for details
Resolve Issues with
Customer
YES
NO
Coordinate Changes to
Make Statement Verifiable
NO
Review Statements and
Risks with Customer
Update Knowledgebase
YES
Identify Risks and Plan
Mitigation
Updated
Requirements
Traceability Matrix
Preliminary
Test
Requirements
Standards
Selected
Change
Requests
Architecture
Knowledgebase

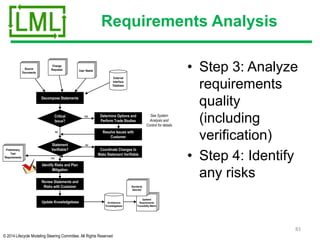

• Step 3: Analyze
requirements
quality
(including
verification)
any risks
83
Source
Documents
External
Interface
Database
User Needs
Decompose Statements
Critical
Issue?
Statement
Verifiable?
See System
Analysis and
Control for details
Resolve Issues with
Customer
YES
NO
Coordinate Changes to
Make Statement Verifiable
NO
Review Statements and
Risks with Customer
Update Knowledgebase
YES
Mitigation
Updated
Requirements
Traceability Matrix
Preliminary
Test
Requirements
Standards
Selected
Change
Requests
Architecture
Knowledgebase

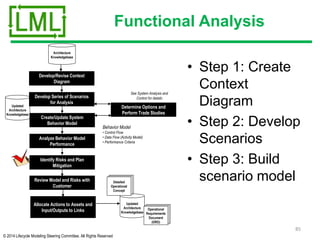

Functional Analysis
84

Functional Analysis
• Step 1: Create
Context
Diagram
• Step 2: Develop
Scenarios
• Step 3: Build
scenario model
85
Architecture
Knowledgebase
Develop/Revise Context
Diagram
See System Analysis and
Control for details
Review Model and Risks with
Customer
Mitigation
Updated
Architecture
Knowledgebase
Develop Series of Scenarios
for Analysis
Create/Update System
Behavior Model
Analyze Behavior Model
Performance
Behavior Model
• Control Flow
• Data Flow (Activity Model)
• Performance Criteria
Allocate Actions to Assets and
Input/Outputs to Links
Updated
Architecture
Knowledgebase
Detailed
Operational
Concept
Operational
Requirements
Document
(ORD)

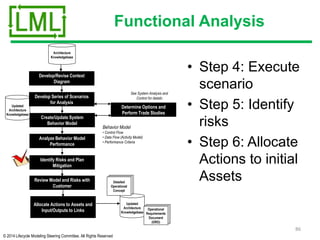

Functional Analysis
• Step 4: Execute
scenario
risks
• Step 6: Allocate
Actions to initial
Assets
86
Architecture
Knowledgebase
Develop/Revise Context
Diagram
See System Analysis and
Control for details
Review Model and Risks with
Customer
Mitigation
Updated
Architecture
Knowledgebase
Develop Series of Scenarios
for Analysis
Create/Update System
Behavior Model
Analyze Behavior Model
Performance
Behavior Model
• Control Flow
• Data Flow (Activity Model)
• Performance Criteria
Allocate Actions to Assets and
Input/Outputs to Links
Updated
Architecture
Knowledgebase
Detailed
Operational
Concept
Operational
Requirements
Document
(ORD)

Synthesizing Solutions
87

Synthesis
Component
Assets
• Step 2: Explore
options
• Step 3: Allocate
Component
Assets to
Actions
88
Architecture
Knowledgebase
Identify Component
Assets
Optional
Assets?
See System
Analysis and
Control for details
Select New Assets in
Coordination with
Customer
YES
NO
Review Design and
Risks with Customer
Mitigation
Technology
Insertion
Recommend-
ations
Allocate Assets
Updated
Architecture
Knowledgebase
Functional
Requirements
Document (FRD)
Design Diagrams
See Functional
Analysis and
Control for details
Transition Plan
Link to
programs
Programmatic
Roadmap

Verification

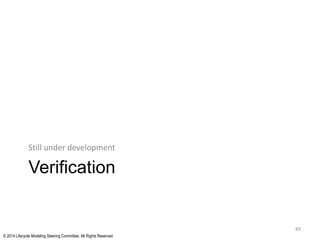

Still under development
89

Coming Up the Vee
I&V Planning
Integration
Verification
DesignMonitoring
90

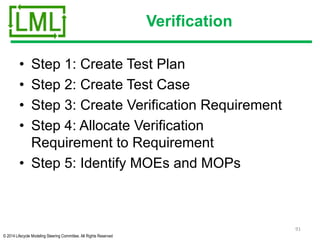

Verification
• Step 1: Create Test Plan
• Step 2: Create Test Case
• Step 3: Create Verification Requirement
• Step 4: Allocate Verification
Requirement to Requirement
• Step 5: Identify MOEs and MOPs
91

1. Introduction
1.1 Purpose
1.2 Mission Description
1.3 Architecture Overview
2. Test Strategy
2.1 Test Readiness Review
2.2 Test Verification Matrix
2.3 Testing Environment
2.4 Testing Approach
2.5 Test Data
2.6 Test Equipment and Facilities
2.7 Configuration Management
2.8 Test Cases
3. Test Management, Schedule, and Processes
3.1 Roles, Responsibilities, and Resources
3.2 Testing Schedule
3.3 Test Processes
3.4 Metrics and Reporting
3.4.1 Test Case Approval Process
3.4.2 Test Deliverables and Post Test Activities
A. Appendixes
A.1 Requirements Verification Matrix (RVTM)

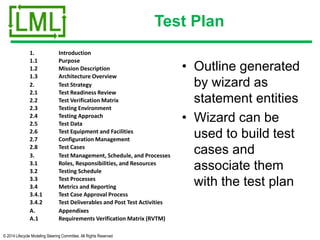

Test Plan
• Outline generated
by wizard as
statement entities
• Wizard can be
used to build test
cases and
associate them
with the test plan

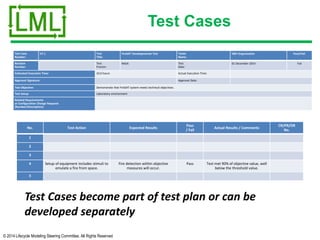

Test Cases
Test Case
Number:
VT.1 Test
Title:
FireSAT Developmental Test Tester
Name:
V&V Organization Pass/Fail:
Revision
Number:
Test
Proctor:
NASA Test
Date:
01 December 2014 Fail
Estimated Execution Time: 10.0 hours Actual Execution Time:
Approval Signature: Approval Date:
Test Objective: Demonstrate that FireSAT system meets technical objectives.
Test Setup: Laboratory environment
Related Requirements
or Configuration Change Requests
(Number/Description):
No. Test Action Expected Results
Pass
/ Fail
Actual Results / Comments
CR/PR/DR
No.
1
2
3
4 Setup of equipment includes stimuli to
emulate a fire from space.
Fire detection within objective
measures will occur.
Pass Test met 90% of objective value, well
below the threshold value.
5
Test Cases become part of test plan or can be
developed separately

Test Verification Matrix (TVM)
Test Case
Verification Requirement
Number and Name Description Criteria
VT.1 FireSAT Developmental Test SRD.3.2.2 Spectral Resolution
The space vehicle shall detect wildfire emissions
in the wavelength range of 4.2 plus or minus 0.2
micrometers. Rationale: This requirement comes
from the FireSAT wildfire definition trade study
and corresponds to a wildfire temperature of
690K. Optimum wavelength for a fire at 1000K
would be 2.9 micrometers; however, there is no
atmospheric window at that wavelength so 4.2
micrometers represents a good compromise.
Meets detection temperatures
below threshold values.
TABLE: TEST VERIFICATION MATRIX (TVM)
The TVM shows the linkage between the test cases
and the verification requirements

Project Management
95

Innoslate® Support for Project
Management
• Process Modeling (Action Diagram)
• Tracking (Action, Cost, and Decision
classes; simulation)
• Risk Analysis (Risk class and diagram)
• Timeline chart
96

Creating Reports
97

Reports in Innoslate®
• Reports for every class
• General reports
– Comments, Entity Table, etc.
• Complex reports with wizards
– CONOPS, Requirements Document
• Specialty reports
– JCIDS, DoDAF, MODAF
98

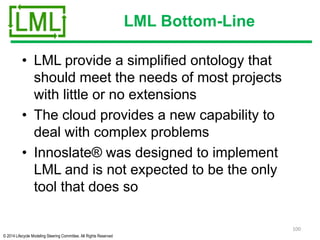

LML Bottom-Line
• LML provide a simplified ontology that
should meet the needs of most projects
with little or no extensions
• The cloud provides a new capability to
deal with complex problems
• Innoslate® was designed to implement
LML and is not expected to be the only
tool that does so
100

Lifecycle Modeling Language Tutorial by Dr. Dam and Dr. Vaneman

More Related Content

What's hot

Viewers also liked

Similar to Lifecycle Modeling Language Tutorial by Dr. Dam and Dr. Vaneman

More from Elizabeth Steiner

Recently uploaded

Lifecycle Modeling Language Tutorial by Dr. Dam and Dr. Vaneman
