The document discusses the importance of the Bill of Materials (BOM) as a strategic asset in product lifecycle management, emphasizing its role in facilitating communication between various disciplines and organizations. It outlines common practices and challenges related to BOMs, such as fragmented systems and lack of lifecycle tracking, and presents a series of steps to improve BOM management. Ultimately, the document advocates for recognizing and managing BOMs as essential for achieving comprehensive lifecycle traceability and effective supply chain integration.

1. © 2016 Aras aras.com

2. Strategic BOM Management
Rob McAveney
Chief Architect
© 2016 Aras aras.com

3. What is a BOM?
© 2016 Aras aras.com
RAW MATERIALS
ENGINEERING
VARIANTS
FUNCTIONAL

4. What is a BOM?
© 2016 Aras aras.com
RAW MATERIALS
ENGINEERING
VARIANTS
FUNCTIONAL

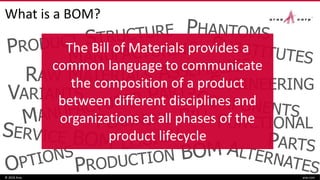

The Bill of Materials provides a
common language to communicate
the composition of a product
between different disciplines and
organizations at all phases of the
product lifecycle

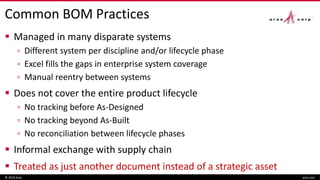

5. Common BOM Practices
 Managed in many disparate systems
▫ Different system per discipline and/or lifecycle phase
▫ Excel fills the gaps in enterprise system coverage
▫ Manual reentry between systems
 Does not cover the entire product lifecycle
▫ No tracking before As-Designed
▫ No tracking beyond As-Built
▫ No reconciliation between lifecycle phases
 Informal exchange with supply chain
 Treated as just another document instead of a strategic asset
© 2016 Aras aras.com

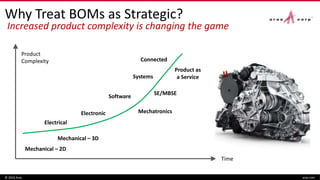

6. Why Treat BOMs as Strategic?
© 2016 Aras aras.com
Product
Complexity
Time
Mechanical – 2D
Electrical
Electronic
Software
Systems
Connected
SE/MBSE
Product as
a Service
Mechatronics
Mechanical – 3D
Increased product complexity is changing the game

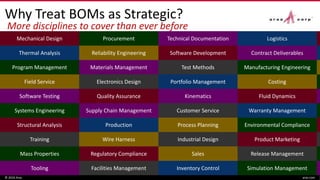

7. Why Treat BOMs as Strategic?
© 2016 Aras aras.com
Mechanical Design
Thermal Analysis
Program Management
Field Service
Tooling
Software Testing
Systems Engineering
Structural Analysis
Training
Mass Properties
Procurement
Reliability Engineering
Materials Management
Electronics Design
Facilities Management
Quality Assurance
Supply Chain Management
Production
Wire Harness
Regulatory Compliance
Technical Documentation
Software Development
Test Methods
Portfolio Management
Inventory Control
Kinematics
Customer Service
Process Planning
Industrial Design
Sales
Logistics
Contract Deliverables
Manufacturing Engineering
Costing
Simulation Management
Fluid Dynamics
Warranty Management
Environmental Compliance
Product Marketing
Release Management
More disciplines to cover than ever before

8. Why Treat BOMs as Strategic?
© 2016 Aras aras.com
OEM
Tier 1
Supplier
Tier 1
Supplier
Tier 2
Supplier
Factory B
Tier 2
Supplier
Factory A
Aftermarket
Service

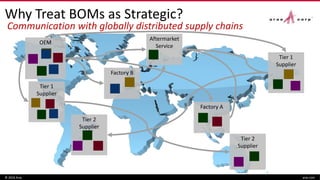

Communication with globally distributed supply chains

9. Why Treat BOMs as Strategic?
© 2016 Aras aras.com

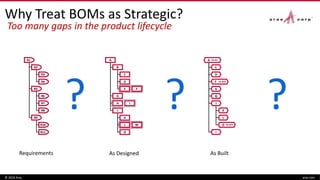

Too many gaps in the product lifecycle
R2
R7
R3
R8
R5
R6
R4
R9
R10
R11
R1
Requirements
B
C
FE
D
G
IH
K
M
O
L
A
J
As Designed
A
C
F
D
I
J
K
O
L
G
Q
SN #6
SN #89
SN #44
As Built
???

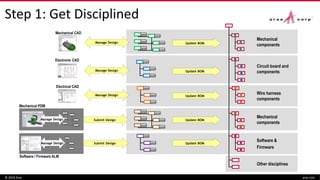

10. Step 1: Get Disciplined
© 2016 Aras aras.com
Update BOMSubmit Design
Update BOMSubmit Design
Electronic CAD
Electrical CAD
Mechanical CAD
Software / Firmware ALM
Manage Design
Manage Design
Mechanical PDM
Mechanical
components
Circuit board and
components
Wire harness
components
Other disciplines
Mechanical
components
Manage Design Update BOM
Manage Design Update BOM
Manage Design Update BOM
Software &
Firmware

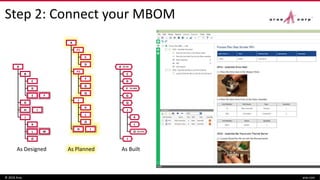

11. Step 2: Connect your MBOM
© 2016 Aras aras.com
B
C
FE
D
G
IH
K
M
O
L
A
J
As Designed
P1
C
F
D
P2
IH
J
K
O
L
G
Q
A
As Planned
A
C
F
D
I
J
K
O
L
G
Q
SN #6
SN #89
SN #44
As Built

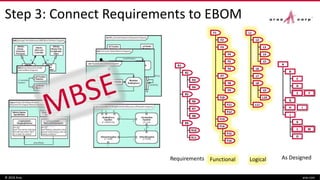

12. Step 3: Connect Requirements to EBOM
© 2016 Aras aras.com
R2
R7
R3
R8
R5
R6
R4
R9
R10
R11
R1
Requirements
B
C
FE
D
G
IH
K
M
O
L
A
J
As Designed
F2
F8
F6
F4
F11
F10
F12
F9
F1
F5
F7
F3
F13
F15
F14
F16
Functional
L1
L2
L7
L3
L8
L5
L6
L4
L9
L10
L11
Logical

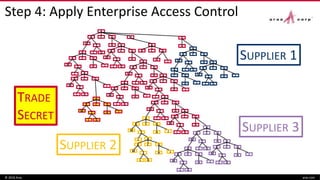

13. Step 4: Apply Enterprise Access Control
© 2016 Aras aras.com
A
CB D
HZ
GL
M
A
CB D
HZ
GL
M
A
CB D
HZ
L
M J
A
CB D
HZ
GL
M
A
CB D
HZ
L
M
J
A
CB D
HZ
GL
M J
A
CB D
Z
GL
M J
A
CB D
HZ
GL
M
A
CB D
HZ
GL
M
A
CB D
HZ
L
M J
A
CB D
HZ
GL
M
A
CB D
HZ
GL
M J
A
CB D
HZ
GL
M J
A
CB D
HZ
GL
M J
D
H
A
CB D
HZ
GL
M
A
CB D
HZ
GL
M J
A
C D
H J
H
A
CB D
H
J
A
CB D
HZ
GL
M J
SUPPLIER 1
SUPPLIER 2
SUPPLIER 3
TRADE
SECRET

14. Step 5: Extend Beyond the Factory
© 2016 Aras aras.com
A
C
F
D
I
J
K
O
L
G
Q
SN #6
SN #89
SN #44
As Built
A
C
F
D
H
J
K
O
L
G
Q
SN #6
SN #89
SN #44
As Delivered
A
C
F
D
H
J
K
O
L
G
Q
SN #6
SN #97
SN #44
As Maintained
MAINTENANCE
REPAIR
OVERHAUL
TEST
REWORK
SERVICE
OPERATIONS
DELIVERY
PREVENTIVE
CORRECTIVE
QUALITY
IOT

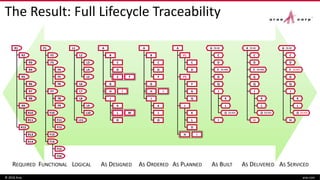

15. The Result: Full Lifecycle Traceability
© 2016 Aras aras.com
AS DELIVEREDAS BUILTAS PLANNEDAS ORDEREDAS DESIGNEDLOGICALFUNCTIONALREQUIRED AS SERVICED
B
C
FE
D
G
IH
K
M
O
L
A
J
B
C
F
D
G
IH
J
K
O
L
A
P1
C
F
D
P2
IH
J
K
O
L
G
Q
A A
C
F
D
I
J
K
O
L
G
Q
SN #6
SN #89
SN #44
A
C
F
D
H
J
K
O
L
G
Q
SN #6
SN #89
SN #44
A
C
F
D
H
J
K
O
L
G
Q
SN #6
SN #97
SN #44
R1
R2
R7
R3
R8
R5
R6
R4
R9
R10
R11
R14
R12
R13
F2
F8
F6
F4
F11
F10
F12
F9
F1
F5
F7
F3
F13
F15
F14
F16
L1
L2
L7
L3
L8
L5
L6
L4
L9
L10
L11

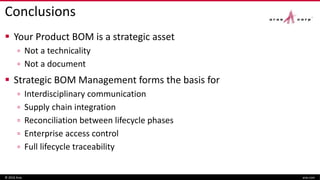

16. Conclusions
 Your Product BOM is a strategic asset
▫ Not a technicality
▫ Not a document
 Strategic BOM Management forms the basis for
▫ Interdisciplinary communication
▫ Supply chain integration
▫ Reconciliation between lifecycle phases
▫ Enterprise access control
▫ Full lifecycle traceability
© 2016 Aras aras.com
