The Legato Project, funded by the EU's Horizon 2020 program, aims to optimize various use cases in areas such as smart homes, smart cities, infection research, and machine learning. Key accomplishments include the development of efficient demonstrators and the integration of advanced hardware to improve performance, energy efficiency, and runtime across multiple applications. Evaluation metrics indicate significant optimizations have been achieved, particularly in energy consumption and processing speed for AI-based tasks.

1. The LEGaTO project has received funding from the European Union's Horizon 2020 research and
innovation programme under the grant agreement No 780681
16.10.20
Use cases
Computer Systems Week
Micha vor dem Berge
christmann informationstechnik + medien

2. Computer Systems Week
WP5 Objectives
• Develop & optimize use cases
− Build demonstrators
• Integrate all developed components
− Hardware, Firmware, Middleware, Runtime Frontend/Backend, Tools
• Evaluate project’s objectives
− Efficiency, runtime, TCO, etc

3. Computer Systems Week
WP5 and the LEGaTO Toolchain

4. Computer Systems Week
Use cases
Smart home
(UNIBI)
Smart city
(BSC)
Infection research
(HZI)
Secure IoT Gateway
(CHR)
Machine learning
(MIS)

5. Computer Systems Week 5
Use Case Smart City
• Air quality forecast for urban areas
• Running CFD simulations with Alya
• Based on real sensor data from Barcelona City
Overview

6. Computer Systems Week 6
Use Case Smart City
• Initial Optimization plan
• Allow more complex simulations: reduce execution-time
• Improve energy-efficiency: make use of FPGAs
• Improve FPGA designer productivity: port of kernels using OmpSs@FPGA
• Compute Kernels
• Explicit Momentum Solver uses ~60% of total computation time
• Sparse Matrix Vector (SpMV) uses ~10% of total computation time
• Drawbacks
• Incompatibilities between Mercurium and Alya implementation in Fortran
• Low performance of the FPGA implementation running sparse algebra algorithms
• Final Solution
• Change the LEGaTO component to NVIDIA’s Xavier GPUs
• Port the linear solver to exploit NVIDIA’s Xavier architecture
• Algebraic operations and SpMV are compatible with stream processing
• Baseline: one node of MareNostrum4
Optimizations

7. Computer Systems Week 7

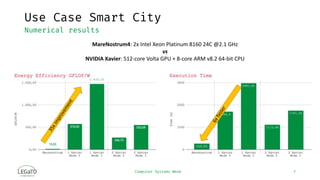

Use Case Smart City
Numerical results
MareNostrum4: 2x Intel Xeon Platinum 8160 24C @2.1 GHz
vs
NVIDIA Xavier: 512-core Volta GPU + 8-core ARM v8.2 64-bit CPU

8. Computer Systems Week
Use Case Smart Home
• Smart mirror as intuitive interaction interface for the smart home
• Displays personalized information on mirror surface
• Can be controlled by gestures or voice commands
• Neuronal networks for many modules
• YOLO for object, gesture recognition
• WiderFACE, FaceNET for face recognitons
• Mozillas DeepSpeech for Speech recognition
• Many more features are in development (e.g. user behavior prediction)
• Idea was developed based on the implementation in a research apartment
• In cooperation with industry and EU´s leading social service company
• Controls wardrobe and presents personized information for the user
8
Overview
16.10.20

9. Computer Systems Week
Use Case Smart Home
Distribution to embedded hardware - Approach with OmpSs@Cluster
16.10.20
DeepSpeech
MagicMirror²
Audio Stream
Identities
Objects &
Gestures
DisplaySpeakerMessages from/
to other devices
FaceRecognition
Camera Image
(< 1m depth range)
Camera Image
(full image range)
Object Detection
FaceNet
(face representation)
Classifier
YOLO
Gesture Detection
Smart Home
Shared Memory Object
DNN (GPU computed)
Tracker
(Kalman Filter)
WiderFace
(face detection)
Tracker
(Kalman Filter)
Person Tracking
Transcript
Peripheral Input
Camera Broadcast
Microphone Input
Combinatorial Logic
Fusion of Detections
Speech Recognition
Decision
Maker

10. Computer Systems Week
Use Case Smart Home
Distribution to embedded hardware - Approach for OmpSs
16.10.20
DeepSpeech
MagicMirror²
Audio Stream
Identities
Objects &
Gestures
DisplaySpeakerMessages from/
to other devices
FaceRecognition
Camera Image
(< 1m depth range)
Camera Image
(full image range)
Object Detection
FaceNet
(face representation)
Classifier
YOLO
Gesture Detection
Smart Home
Shared Memory Object
DNN (GPU computed)
Tracker
(Kalman Filter)
WiderFace
(face detection)
Tracker
(Kalman Filter)
Person Tracking
Transcript
Peripheral Input
Camera Broadcast
Microphone Input
Combinatorial Logic
Fusion of Detections
Speech Recognition
Decision
Maker

11. Computer Systems Week
Use Case Smart Home
• Evaluation metrics
• Performance (FPS), goal: 5 – 10 FPS
• Total power consumption (W), goal: 50 W
• Energy efficiency (FPS / W)
• First prototype (baseline)
• 2x GeForce 1080Ti, Intel i7 7700K @4.2 GHz
• 12 FPS for face, object, and gesture recognition @650 Watt
• Second prototype
• 2x GeForce 2070, i9-9900K CPU @ 3.60GHz
• 25 FPS for face, object and gesture recognition @430 Watt
• Embedded hardware prototype
• 2x Nvidia AGX Xavier modules coupled via PCIe
• 16 FPS for face, object and gesture recognition @55 Watt
11
Baseline, hardware steps and metrics
16.10.20

12. Computer Systems Week
Use Case Smart Home
12
Benchmarks
16.10.20
0 5 10 15 20 25 30
Goal (10FPS)
Dual Nvidia Xavier
Nvidia Xavier
Second Optimizations
Introduction of Tensor Cores
First Optimizations
Start Point
Frame rate (FPS)
0 100 200 300 400 500 600 700
Energy Consumption (Watt)

13. Computer Systems Week
Use Case Smart Home
13
Benchmarks
16.10.20
0 0.05 0.1 0.15 0.2 0.25 0.3
Goal (10FPS)
Dual Nvidia Xavier
Nvidia Xavier
Second Optimizations
Introduction of Tensor Cores
First Optimizations
Start Point
FPS / Watt

14. Computer Systems Week

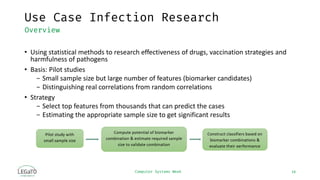

Use Case Infection Research
14
Overview
• Using statistical methods to research effectiveness of drugs, vaccination strategies and
harmfulness of pathogens
• Basis: Pilot studies
− Small sample size but large number of features (biomarker candidates)
− Distinguishing real correlations from random correlations
• Strategy
− Select top features from thousands that can predict the cases
− Estimating the appropriate sample size to get significant results

15. Computer Systems Week
Use Case Infection Research
• Optimisation goals
− Decrease simulation runtime
− Enabling to handle larger data sets and more complex problems
− Decrease energy consumption
• Evaluation metrics
− Runtime of the complete calculation
− Energy consumption for the complete calculation
15
Optimization plan

16. Computer Systems Week
Use Case Infection Research
16
Results
Evaluation whether the data contain more biomarker
candidates than would be expected in random data
Use a simple and fast filter method
(evaluation of each individual biomarker candidate)
Development of machine learning models
to evaluate (combinations of)
biomarker candidates
Find the best small combination
from the selected candidate biomarkers
1.
2.
3.
4.
Accelerated with Maxeler DFE: Speedup 822x
Accelerated with XITAO: Speedup 3x
(further optimization ongoing)
• Development enabled by LEGaTO hardware, Speedup 40x
• Transformation accelerated with OmpSs@FPGA, Speedup 10x
• Integrated with SCONE to enable data security

17. Computer Systems Week
Use Case Machine Learning
Motivation
• Deep Learning (DL), while very powerful, has a high energy consumption and computation time
due to the large amount of compute needed for a single prediction
• Has great potential, e.g. Computer Vision and Natural Language Processing
Goals, Metrics
• 10x decrease in energy consumption
• 10x increase in inference speed
− Increase throughput, reduce latency
• Showcase on several Deep Learning models
relevant to autonomous driving
• Hardware support for: Nvidia TX2 & Xavier,
ARM CPU, Intel CPU, Xilinx FPGA
17
Pixel-wise semantic segmentation of a crossing in Zurich.
Source: Cityscape dataset
Overview

18. Computer Systems Week
Use Case Machine Learning
18
Deep Learning optimisation engine

19. Computer Systems Week
Use Case Machine Learning
19
Results
Relative energy
efficiency
improvements
from DL Optimiser
Model
Platform ResNet18 VGG16 YoloV3
Intel Core i9 9900K 5.4x 8.0x 6.1x
Raspberry PI 3 b+ 10.3x 11.4x 4.3x
ZedBoard (Xilinx Zynq + ARM) - - -
NVIDIA Jetson AGX Xavier 10.7x 6.6x 10.1x
NVIDIA Jetson AGX Xavier + DLA 2.3x - 2.7x
NVIDIA Jetson TX2 7.2x 5.9x 3.0x
Model
Platform ResNet18 VGG16 YoloV3
Intel Core i9 9900K 7.4x 9.0x 3.2x
Raspberry PI 3 b+ 6.6x 11.0x 1.5x
ZedBoard (Xilinx Zynq + ARM) - - -
NVIDIA Jetson AGX Xavier 3.7x 2.6x 6.1x
NVIDIA Jetson AGX Xavier + DLA 2.2x - 1.9x
NVIDIA Jetson TX2 4.6x 4.2x 2.8x
Relative speed-up
improvements
from DL Optimiser

20. Computer Systems Week
Use Case Secure IoT Gateway
Typical IoT Scenario
Network gateway
Customer 1
Network gateway
Customer 2
Data Center

21. Computer Systems Week
Use Case Secure IoT Gateway
Secured IoT Scenario
Gateway Cluster
Network gateway
IoT bridge (WiFi)
Customer 1
IoT bridge
Network gateway
IoT bridge (WiFi)
Customer 2
IoT bridge
Data Center

22. Computer Systems Week
Use Case Secure IoT Gateway
Secured IoT Scenario
Network cockpit
Admin / Customer
Gateway Cluster
Network gateway
IoT bridge (WiFi)
Customer 1
IoT bridge
Network gateway
IoT bridge (WiFi)
Customer 2
IoT bridge
Data Center

23. Computer Systems Week
Use Case Secure IoT Gateway

24. Computer Systems Week
Use Case Secure IoT Gateway
• Evaluation of LEGaTO flow for Secure IoT Gateway
−Bottleneck is encryption for VPN
−AES encryption on CPU hardware crypt units (AES-NI) is optimal
−Not participating in the general optimization process
• Supporting the Smart Home use case
• Evaluation metrics
−Usability
−Network performance
• Throughput (MB/s)
• Ping latency (ms)
−TCO
25
Optimization plan

25. Thanks!
Micha vor dem Berge
christmann informationstechnik + medien
