"Update on Khronos Standards for Vision and Machine Learning," a Presentation from the Khronos Group
The document provides an update on the Khronos standards for vision and machine learning as of December 2017. It discusses the development of various open standards, including NNEF for neural network interoperability, OpenVX for vision processing, and OpenCL for heterogeneous parallel computing. Key announcements include the release of OpenVX 1.2 with enhanced functionality and the roadmap for OpenCL and the Vulkan API as it relates to universal 3D portability.
More Related Content
Similar to "Update on Khronos Standards for Vision and Machine Learning," a Presentation from the Khronos Group
"Update on Khronos Standards for Vision and Machine Learning," a Presentation from the Khronos Group
- 1. © Copyright KhronosGroup 2017 - Page 1 Update on Khronos Standards for Vision and Machine Learning December 2017 Neil Trevett | Khronos President NVIDIA | VP Developer Ecosystem ntrevett@nvidia.com | @neilt3d |www.khronos.org
- 2. © Copyright KhronosGroup 2017 - Page 2 Khronos Mission Software Silicon Khronos is an International Industry Consortium of over 100 companies creating royalty-free, Open Standard APIs to enable software to access hardware acceleration for 3D Graphics, Virtual and Augmented Reality, Parallel Computing, Neural Networks and Vision Processing

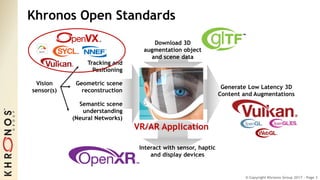

- 3. © Copyright KhronosGroup 2017 - Page 3 Khronos Open Standards Vision sensor(s) Tracking and Positioning Geometric scene reconstruction Semantic scene understanding (Neural Networks) Generate Low Latency 3D Content and Augmentations Interact with sensor, haptic and display devices Download 3D augmentation object and scene data VR/AR Application
- 4. © Copyright KhronosGroup 2017 - Page 4 Embedded/Mobile Vision/Inferencing Hardware Embedded/Mobile Vision/Inferencing Hardware Embedded/Mobile Vision/Inferencing Hardware Neural Net Training Frameworks Neural Net Training Frameworks Neural Net Training Frameworks Vision and Neural Net Inferencing Runtime Embedded/Mobile Vision/Inferencing Hardware Standards for Vision and Neural Networks Vision/AI Applications Neural Net Training Frameworks Desktop and Cloud Hardware Trained Networks

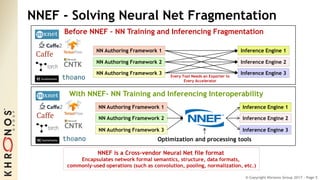

- 5. © Copyright KhronosGroup 2017 - Page 5 NNEF - Solving Neural Net Fragmentation NN Authoring Framework 1 NN Authoring Framework 2 NN Authoring Framework 3 Inference Engine 1 Inference Engine 2 Inference Engine 3 Every Tool Needs an Exporter to Every Accelerator With NNEF- NN Training and Inferencing Interoperability Before NNEF – NN Training and Inferencing Fragmentation NN Authoring Framework 1 NN Authoring Framework 2 NN Authoring Framework 3 Inference Engine 1 Inference Engine 2 Inference Engine 3 Optimization and processing tools NNEF is a Cross-vendor Neural Net file format Encapsulates network formal semantics, structure, data formats, commonly-used operations (such as convolution, pooling, normalization, etc.)

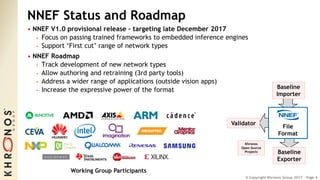

- 6. © Copyright KhronosGroup 2017 - Page 6 NNEF Status and Roadmap • NNEF V1.0 provisional release – targeting late December 2017 - Focus on passing trained frameworks to embedded inference engines - Support ‘First cut’ range of network types • NNEF Roadmap - Track development of new network types - Allow authoring and retraining (3rd party tools) - Address a wider range of applications (outside vision apps) - Increase the expressive power of the format Baseline Importer File Format Validator Working Group Participants Baseline Exporter Khronos Open Source Projects

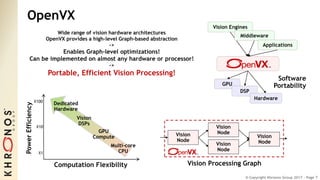

- 7. © Copyright KhronosGroup 2017 - Page 7 OpenVX PowerEfficiency Computation Flexibility Dedicated Hardware GPU Compute Multi-core CPUX1 X10 X100 Vision DSPs Wide range of vision hardware architectures OpenVX provides a high-level Graph-based abstraction -> Enables Graph-level optimizations! Can be implemented on almost any hardware or processor! -> Portable, Efficient Vision Processing! Vision Node Vision Node Vision NodeVision Node Vision Processing Graph GPU Vision Engines Middleware Applications DSP Hardware Software Portability
- 8. © Copyright KhronosGroup 2017 - Page 8 Simple Edge Detector in OpenVX vx_image input = vxCreateImage(1920, 1080); vx_image output = vxCreateImage(0, 0); vx_image horiz = vxCreateVirtualImage(); vx_image vert = vxCreateVirtualImage(); vx_image mag = vxCreateVirtualImage(); vx_graph g = vxCreateGraph(); vxSobel3x3Node(g, input, horiz, vert); vxMagnitudeNode(g, horiz, vert, mag); vxThresholdNode(g, mag, THRESH, output); status = vxVerifyGraph(g); status = vxProcessGraph(g); m h i v oS M T Compile the Graph Execute the Graph Declare Input and Output Images Declare Intermediate Images Construct the Graph topology

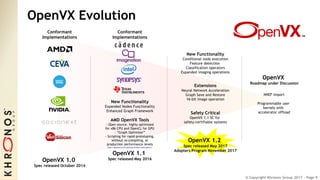

- 9. © Copyright KhronosGroup 2017 - Page 9 OpenVX Evolution OpenVX 1.0 Spec released October 2014 Conformant Implementations OpenVX 1.1 Spec released May 2016 Conformant Implementations AMD OpenVX Tools - Open source, highly optimized for x86 CPU and OpenCL for GPU - “Graph Optimizer” - Scripting for rapid prototyping, without re-compiling, at production performance levels http://gpuopen.com/compute-product/amd-openvx/ New Functionality Expanded Nodes Functionality Enhanced Graph Framework OpenVX 1.2 Spec released May 2017 Adopters Program November 2017 New Functionality Conditional node execution Feature detection Classification operators Expanded imaging operations Extensions Neural Network Acceleration Graph Save and Restore 16-bit image operation Safety Critical OpenVX 1.1 SC for safety-certifiable systems OpenVX Roadmap under Discussion NNEF Import Programmable user kernels with accelerator offload
- 10. © Copyright KhronosGroup 2017 - Page 10 New OpenVX 1.2 Functions • Feature detection: find features useful for object detection and recognition - Histogram of gradients – HOG Template matching - Local binary patterns – LBP Line finding • Classification: detect and recognize objects in an image based on a set of features - Import a classifier model trained offline - Classify objects based on a set of input features • Image Processing: transform an image - Generalized nonlinear filter: Dilate, erode, median with arbitrary kernel shapes - Non maximum suppression: Find local maximum values in an image - Edge-preserving noise reduction • Conditional execution & node predication - Selectively execute portions of a graph based on a true/false predicate • Many, many minor improvements • New Extensions - Import/export: compile a graph; save and run later - 16-bit support: signed 16-bit image data - Neural networks: Layers are represented as OpenVX nodes B C S A Condition If A then S ← B else S ← C
- 11. © Copyright KhronosGroup 2017 - Page 11© Copyright Khronos Group 2017 - Page 11 OpenVX 1.2 and Neural Net Extension • Convolution Neural Network topologies can be represented as OpenVX graphs - Layers are represented as OpenVX nodes - Layers connected by multi-dimensional tensors objects - Layer types include convolution, activation, pooling, fully-connected, soft-max - CNN nodes can be mixed with traditional vision nodes • Import/Export Extension - Efficient handling of network Weights/Biases or complete networks • OpenVX will be able to import NNEF files into OpenVX Neural Nets Vision Node Vision Node Vision Node Downstream Application Processing Native Camera Control CNN Nodes An OpenVX graph mixing CNN nodes with traditional vision nodes

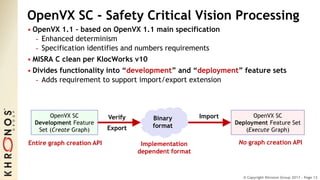

- 12. © Copyright KhronosGroup 2017 - Page 12© Copyright Khronos Group 2017 - Page 12 OpenVX SC - Safety Critical Vision Processing • OpenVX 1.1 - based on OpenVX 1.1 main specification - Enhanced determinism - Specification identifies and numbers requirements • MISRA C clean per KlocWorks v10 • Divides functionality into “development” and “deployment” feature sets - Adds requirement to support import/export extension OpenVX SC Development Feature Set (Create Graph) OpenVX SC Deployment Feature Set (Execute Graph) Binary format Verify Export Import Entire graph creation API No graph creation APIImplementation dependent format

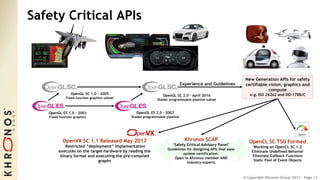

- 13. © Copyright KhronosGroup 2017 - Page 13 Safety Critical APIs New Generation APIs for safety certifiable vision, graphics and compute e.g. ISO 26262 and DO-178B/C OpenGL ES 1.0 - 2003 Fixed function graphics OpenGL ES 2.0 - 2007 Shader programmable pipeline OpenGL SC 1.0 - 2005 Fixed function graphics subset OpenGL SC 2.0 - April 2016 Shader programmable pipeline subset Experience and Guidelines OpenCL SC TSG Formed Working on OpenCL SC 1.2 Eliminate Undefined Behavior Eliminate Callback Functions Static Pool of Event Objects OpenVX SC 1.1 Released May 2017 Restricted “deployment” implementation executes on the target hardware by reading the binary format and executing the pre-compiled graphs Khronos SCAP ‘Safety Critical Advisory Panel’ Guidelines for designing APIs that ease system certification. Open to Khronos member AND industry experts
- 14. © Copyright KhronosGroup 2017 - Page 14 Embedded/Mobile Vision/Inferencing Hardware Embedded/Mobile Vision/Inferencing Hardware Embedded/Mobile Vision/Inferencing Hardware Neural Net Training Frameworks Neural Net Training Frameworks Neural Net Training Frameworks Vision and Neural Net Inferencing Runtime Embedded/Mobile Vision/Inferencing Hardware Standards for Vision and Neural Networks Vision/AI Applications Neural Net Training Frameworks Desktop and Cloud Hardware Trained Networks
- 15. © Copyright KhronosGroup 2017 - Page 15 OpenCL – Low-level Parallel Programing • Low-level, explicit programming of heterogeneous parallel compute resources - One code tree can be executed on CPUs, GPUs, DSPs and FPGA … • OpenCL C or C++ language to write kernel programs to execute on any compute device - Platform Layer API - to query, select and initialize compute devices - Runtime API - to build and execute kernels programs on multiple devices • The programmer gets to control: - What programs execute on what device - Where data is stored in various speed and size memories in the system - When programs are run, and what operations are dependent on earlier operations OpenCL Kernel Code OpenCL Kernel Code OpenCL Kernel Code OpenCL Kernel Code GPU DSP CPU CPU FPGA Kernel code compiled for devices Devices CPU Host Runtime API loads and executes kernels across devices

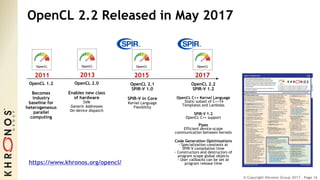

- 16. © Copyright KhronosGroup 2017 - Page 16 OpenCL 2.2 Released in May 2017 2011 OpenCL 1.2 Becomes industry baseline for heterogeneous parallel computing OpenCL 2.1 SPIR-V 1.0 SPIR-V in Core Kernel Language Flexibility OpenCL 2.2 SPIR-V 1.2 OpenCL C++ Kernel Language Static subset of C++14 Templates and Lambdas SPIR-V 1.2 OpenCL C++ support Pipes Efficient device-scope communication between kernels Code Generation Optimizations - Specialization constants at SPIR-V compilation time - Constructors and destructors of program scope global objects - User callbacks can be set at program release time 201720152013 OpenCL 2.0 Enables new class of hardware SVM Generic Addresses On-device dispatch https://www.khronos.org/opencl/

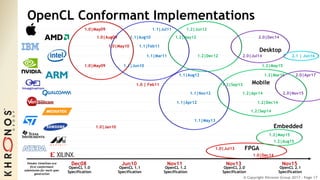

- 17. © Copyright KhronosGroup 2017 - Page 17 OpenCL Conformant Implementations OpenCL 1.0 Specification Dec08 Jun10 OpenCL 1.1 Specification Nov11 OpenCL 1.2 Specification OpenCL 2.0 Specification Nov13 1.0|Jul13 1.0|Aug09 1.0|May09 1.0|May10 1.0 | Feb11 1.0|May09 1.0|Jan10 1.1|Aug10 1.1|Jul11 1.2|May12 1.2|Jun12 1.1|Feb11 1.1|Mar11 1.1|Jun10 1.1|Aug12 1.1|Nov12 1.1|May13 1.1|Apr12 1.2|Apr14 1.2|Sep13 1.2|Dec12 Desktop Mobile FPGA 2.0|Jul14 OpenCL 2.1 Specification Nov15 1.2|May15 2.0|Dec14 1.0|Dec14 1.2|Dec14 1.2|Sep14 Vendor timelines are first conformant submission for each spec generation 1.2|May15 Embedded 1.2|Aug15 1.2|Mar16 2.0|Nov15 2.0|Apr17 2.1 | Jun16

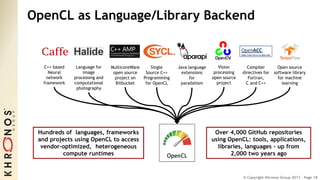

- 18. © Copyright KhronosGroup 2017 - Page 18 OpenCL as Language/Library Backend C++ based Neural network framework MulticoreWare open source project on Bitbucket Compiler directives for Fortran, C and C++ Java language extensions for parallelism Language for image processing and computational photography Single Source C++ Programming for OpenCL Hundreds of languages, frameworks and projects using OpenCL to access vendor-optimized, heterogeneous compute runtimes Vision processing open source project Open source software library for machine learning Over 4,000 GitHub repositories using OpenCL: tools, applications, libraries, languages - up from 2,000 two years ago
- 19. © Copyright KhronosGroup 2017 - Page 19 SYCL Ecosystem • Single-source heterogeneous programming using STANDARD C++ - Use C++ templates and lambda functions for host & device code - Layered over OpenCL • Fast and powerful path for bring C++ apps and libraries to OpenCL - C++ Kernel Fusion - better performance on complex software than hand-coding - Halide, Eigen, Boost.Compute, SYCLBLAS, SYCL Eigen, SYCL TensorFlow, SYCL GTX - triSYCL, ComputeCpp, VisionCpp, ComputeCpp SDK … • More information at http://sycl.tech

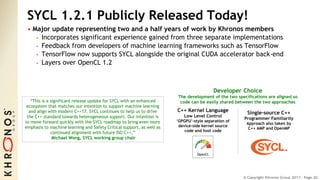

- 20. © Copyright KhronosGroup 2017 - Page 20 SYCL 1.2.1 Publicly Released Today! • Major update representing two and a half years of work by Khronos members - Incorporates significant experience gained from three separate implementations - Feedback from developers of machine learning frameworks such as TensorFlow - TensorFlow now supports SYCL alongside the original CUDA accelerator back-end - Layers over OpenCL 1.2 “This is a significant release update for SYCL with an enhanced ecosystem that matches our intention to support machine learning and align with modern C++17. SYCL continues to help us to drive the C++ standard towards heterogeneous support. Our intention is to move forward quickly with the SYCL roadmap to bring even more emphasis to machine learning and Safety Critical support, as well as continued alignment with future ISO C++,” Michael Wong, SYCL working group chair C++ Kernel Language Low Level Control ‘GPGPU’-style separation of device-side kernel source code and host code Single-source C++ Programmer Familiarity Approach also taken by C++ AMP and OpenMP Developer Choice The development of the two specifications are aligned so code can be easily shared between the two approaches

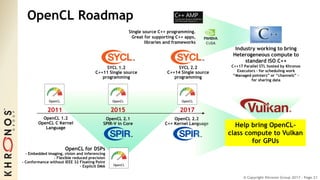

- 21. © Copyright KhronosGroup 2017 - Page 21 OpenCL Roadmap 2011 OpenCL 1.2 OpenCL C Kernel Language OpenCL 2.1 SPIR-V in Core 2015 SYCL 1.2 C++11 Single source programming OpenCL 2.2 C++ Kernel Language 2017 SYCL 2.2 C++14 Single source programming Industry working to bring Heterogeneous compute to standard ISO C++ C++17 Parallel STL hosted by Khronos Executors – for scheduling work “Managed pointers” or “channels” – for sharing data OpenCL for DSPs - Embedded imaging, vision and inferencing - Flexible reduced precision - Conformance without IEEE 32 Floating Point - Explicit DMA Single source C++ programming. Great for supporting C++ apps, libraries and frameworks Help bring OpenCL- class compute to Vulkan for GPUs

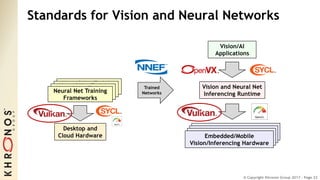

- 22. © Copyright KhronosGroup 2017 - Page 22 Embedded/Mobile Vision/Inferencing Hardware Embedded/Mobile Vision/Inferencing Hardware Embedded/Mobile Vision/Inferencing Hardware Neural Net Training Frameworks Neural Net Training Frameworks Neural Net Training Frameworks Vision and Neural Net Inferencing Runtime Embedded/Mobile Vision/Inferencing Hardware Standards for Vision and Neural Networks Vision/AI Applications Neural Net Training Frameworks Desktop and Cloud Hardware Trained Networks

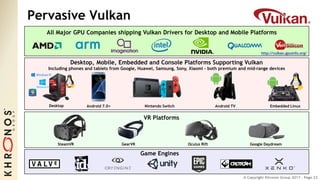

- 23. © Copyright KhronosGroup 2017 - Page 23 Pervasive Vulkan All Major GPU Companies shipping Vulkan Drivers for Desktop and Mobile Platforms Embedded LinuxAndroid TVAndroid 7.0+ Nintendo Switch http://vulkan.gpuinfo.org/ Oculus RiftSteamVR VR Platforms Desktop, Mobile, Embedded and Console Platforms Supporting Vulkan Including phones and tablets from Google, Huawei, Samsung, Sony, Xiaomi - both premium and mid-range devices GearVR Google Daydream Game Engines Desktop

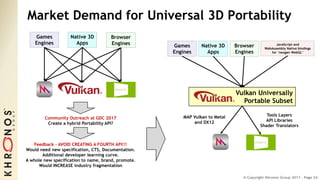

- 24. © Copyright KhronosGroup 2017 - Page 24 Market Demand for Universal 3D Portability Games Engines Native 3D Apps Browser Engines Games Engines Native 3D Apps Browser Engines Vulkan Universally Portable Subset JavaScript and WebAssembly Native bindings for ‘nexgen WebGL’ Community Outreach at GDC 2017 Create a hybrid Portability API? Feedback - AVOID CREATING A FOURTH API!!! Would need new specification, CTS, Documentation. Additional developer learning curve. A whole new specification to name, brand, promote. Would INCREASE industry fragmentation Tools Layers API Libraries Shader Translators MAP Vulkan to Metal and DX12

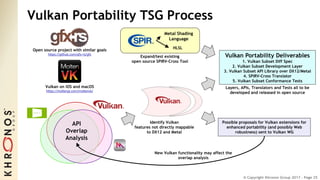

- 25. © Copyright KhronosGroup 2017 - Page 25 Vulkan Portability TSG Process API Overlap Analysis Metal Shading Language HLSL Vulkan Portability Deliverables 1. Vulkan Subset Diff Spec 2. Vulkan Subset Development Layer 3. Vulkan Subset API Library over DX12/Metal 4. SPIRV-Cross Translator 5. Vulkan Subset Conformance Tests Expand/test existing open source SPIRV-Cross Tool Possible proposals for Vulkan extensions for enhanced portability (and possibly Web robustness) sent to Vulkan WG Identify Vulkan features not directly mappable to DX12 and Metal New Vulkan functionality may affect the overlap analysis Layers, APIs, Translators and Tests all to be developed and released in open source Open source project with similar goals https://github.com/gfx-rs/gfx Vulkan on iOS and macOS https://moltengl.com/moltenvk/
- 26. © Copyright KhronosGroup 2017 - Page 26 Vulkan Evolution Feb16 Vulkan 1.0 Vulkan Extensions Maintenance updates plus additional functionality Explicit Building Blocks for VR Explicit Building Blocks for Homogeneous Multi-GPU Enhanced Windows System Integration Increased Shader Language Flexibility Enhanced Cross-Process and Cross-API Sharing Vulkan Roadmap Regular Vulkan Core Releases Integrates proven KHR extensions Roadmap Discussions Pushes forward the envelope of GPU Acceleration: Enhanced Compute and Language Flexibility Optimized Vision and Inferencing Acceleration Ray Tracing Widened Platform Support Through Vulkan Portability Initiative Including Vulkan on macOS and iOS Strengthened Ecosystem and SDK Enhanced developer and debugging tools Regression testing for SDK stability Enhanced Conformance Testing (API now has 198K test cases - up from 107K last year) Compiler robustness - including HLSL support Explicit Access to GPU Acceleration

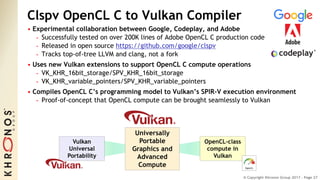

- 27. © Copyright KhronosGroup 2017 - Page 27 Clspv OpenCL C to Vulkan Compiler • Experimental collaboration between Google, Codeplay, and Adobe - Successfully tested on over 200K lines of Adobe OpenCL C production code - Released in open source https://github.com/google/clspv - Tracks top-of-tree LLVM and clang, not a fork • Uses new Vulkan extensions to support OpenCL C compute operations - VK_KHR_16bit_storage/SPV_KHR_16bit_storage - VK_KHR_variable_pointers/SPV_KHR_variable_pointers • Compiles OpenCL C’s programming model to Vulkan’s SPIR-V execution environment - Proof-of-concept that OpenCL compute can be brought seamlessly to Vulkan Vulkan Universal Portability OpenCL-class compute in Vulkan Universally Portable Graphics and Advanced Compute

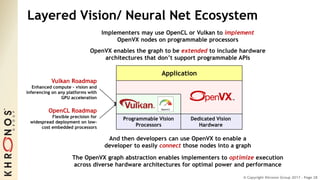

- 28. © Copyright KhronosGroup 2017 - Page 28 Dedicated Vision Hardware Layered Vision/ Neural Net Ecosystem Programmable Vision Processors Application Implementers may use OpenCL or Vulkan to implement OpenVX nodes on programmable processors And then developers can use OpenVX to enable a developer to easily connect those nodes into a graph The OpenVX graph abstraction enables implementers to optimize execution across diverse hardware architectures for optimal power and performance OpenVX enables the graph to be extended to include hardware architectures that don’t support programmable APIs Vulkan Roadmap Enhanced compute – vision and inferencing on any platforms with GPU acceleration OpenCL Roadmap Flexible precision for widespread deployment on low- cost embedded processors

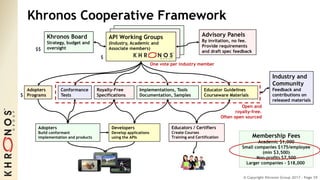

- 29. © Copyright KhronosGroup 2017 - Page 29 Khronos Cooperative Framework Royalty-Free Specifications Adopters Programs Implementations, Tools Documentation, Samples Adopters Build conformant implementation and products Developers Develop applications using the APIs Educators / Certifiers Create Courses Training and Certification Educator Guidelines Courseware Materials API Working Groups (Industry, Academic and Associate members) $ $ Khronos Board Strategy, budget and oversight$$ One vote per industry member Conformance Tests Open and royalty-free. Often open sourced Advisory Panels By invitation, no fee. Provide requirements and draft spec feedback Industry and Community Feedback and contributions on released materials Membership Fees Academic $1,000 Small companies $175/employee (min $3,500) Non-profits $7,500 Larger companies - $18,000

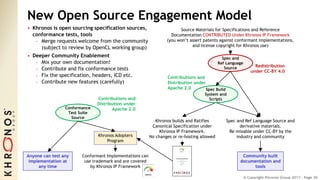

- 30. © Copyright KhronosGroup 2017 - Page 30 New Open Source Engagement Model • Khronos is open sourcing specification sources, conformance tests, tools - Merge requests welcome from the community (subject to review by OpenCL working group) • Deeper Community Enablement - Mix your own documentation! - Contribute and fix conformance tests - Fix the specification, headers, ICD etc. - Contribute new features (carefully) Khronos builds and Ratifies Canonical Specification under Khronos IP Framework. No changes or re-hosting allowed Spec and Ref Language Source and derivative materials. Re-mixable under CC-BY by the industry and community Source Materials for Specifications and Reference Documentation CONTRIBUTED Under Khronos IP Framework (you won’t assert patents against conformant implementations, and license copyright for Khronos use) Contributions and Distribution under Apache 2.0 Spec Build System and Scripts Spec and Ref Language Source Redistribution under CC-BY 4.0 Conformance Test Suite Source Community built documentation and tools Contributions and Distribution under Apache 2.0 Anyone can test any implementation at any time Khronos Adopters Program Conformant Implementations can use trademark and are covered by Khronos IP Framework

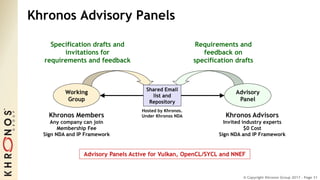

- 31. © Copyright KhronosGroup 2017 - Page 31 Khronos Advisory Panels Working Group Advisory Panel Shared Email list and Repository Khronos Members Any company can join Membership Fee Sign NDA and IP Framework Khronos Advisors Invited industry experts $0 Cost Sign NDA and IP Framework Specification drafts and invitations for requirements and feedback Requirements and feedback on specification drafts Hosted by Khronos. Under Khronos NDA Advisory Panels Active for Vulkan, OpenCL/SYCL and NNEF

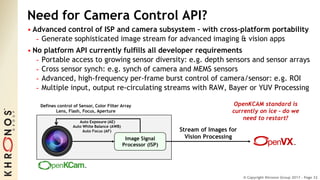

- 32. © Copyright KhronosGroup 2017 - Page 32© Copyright Khronos Group 2017 - Page 32 Need for Camera Control API? • Advanced control of ISP and camera subsystem – with cross-platform portability - Generate sophisticated image stream for advanced imaging & vision apps • No platform API currently fulfills all developer requirements - Portable access to growing sensor diversity: e.g. depth sensors and sensor arrays - Cross sensor synch: e.g. synch of camera and MEMS sensors - Advanced, high-frequency per-frame burst control of camera/sensor: e.g. ROI - Multiple input, output re-circulating streams with RAW, Bayer or YUV Processing Image Signal Processor (ISP) Defines control of Sensor, Color Filter Array Lens, Flash, Focus, Aperture Auto Exposure (AE) Auto White Balance (AWB) Auto Focus (AF) Stream of Images for Vision Processing OpenKCAM standard is currently on ice – do we need to restart?

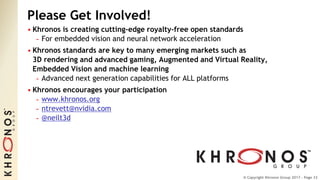

- 33. © Copyright KhronosGroup 2017 - Page 33© Copyright Khronos Group 2017 - Page 33 Please Get Involved! • Khronos is creating cutting-edge royalty-free open standards - For embedded vision and neural network acceleration • Khronos standards are key to many emerging markets such as 3D rendering and advanced gaming, Augmented and Virtual Reality, Embedded Vision and machine learning - Advanced next generation capabilities for ALL platforms • Khronos encourages your participation - www.khronos.org - ntrevett@nvidia.com - @neilt3d

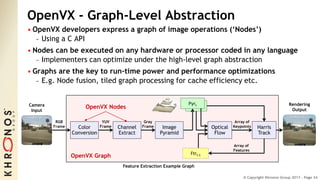

- 34. © Copyright KhronosGroup 2017 - Page 34© Copyright Khronos Group 2017 - Page 34 OpenVX - Graph-Level Abstraction • OpenVX developers express a graph of image operations (‘Nodes’) - Using a C API • Nodes can be executed on any hardware or processor coded in any language - Implementers can optimize under the high-level graph abstraction • Graphs are the key to run-time power and performance optimizations - E.g. Node fusion, tiled graph processing for cache efficiency etc. Array of Keypoints YUV Frame Gray Frame Camera Input Rendering Output Pyrt Color Conversion Channel Extract Optical Flow Harris Track Image Pyramid RGB Frame Array of Features Ftrt-1OpenVX Graph OpenVX Nodes Feature Extraction Example Graph

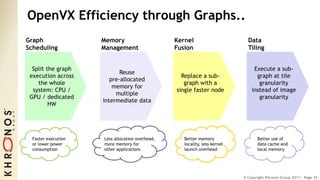

- 35. © Copyright KhronosGroup 2017 - Page 35 OpenVX Efficiency through Graphs.. Reuse pre-allocated memory for multiple intermediate data Memory Management Less allocation overhead, more memory for other applications Replace a sub- graph with a single faster node Kernel Fusion Better memory locality, less kernel launch overhead Split the graph execution across the whole system: CPU / GPU / dedicated HW Graph Scheduling Faster execution or lower power consumption Execute a sub- graph at tile granularity instead of image granularity Data Tiling Better use of data cache and local memory

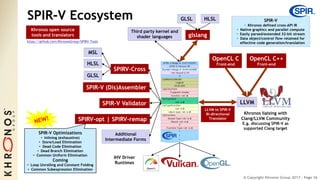

- 36. © Copyright KhronosGroup 2017 - Page 36 SPIR-V Ecosystem LLVM Third party kernel and shader languages SPIR-V • Khronos defined cross-API IR • Native graphics and parallel compute • Easily parsed/extended 32-bit stream • Data object/control flow retained for effective code generation/translation OpenCL C++ Front-end OpenCL C Front-end glslang Khronos open source tools and translators IHV Driver Runtimes Additional Intermediate Forms SPIR-V Validator SPIR-V (Dis)Assembler LLVM to SPIR-V Bi-directional Translator https://github.com/KhronosGroup/SPIRV-Tools GLSL HLSL Khronos liaising with Clang/LLVM Community E.g. discussing SPIR-V as supported Clang target SPIRV-Cross GLSL HLSL MSL SPIRV-opt | SPIRV-remap SPIR-V Optimizations • Inlining (exhaustive) • Store/Load Elimination • Dead Code Elimination • Dead Branch Elimination • Common Uniform Elimination Coming • Loop Unrolling and Constant Folding • Common Subexpression Elimination
- 37. © Copyright KhronosGroup 2017 - Page 37 Vulkan and New Generation 3D APIs Only AppleOnly Windows 10 Cross Platform Clean, modern architecture | Low overhead, explicit GPU access Portable across desktop and mobile | Multi-thread / multi-core friendly Efficient, low-latency, predictable performance

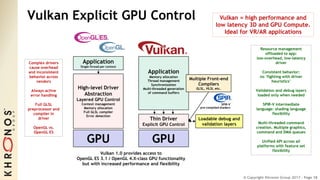

- 38. © Copyright KhronosGroup 2017 - Page 38 Vulkan Explicit GPU Control GPU High-level Driver Abstraction Layered GPU Control Context management Memory allocation Full GLSL compiler Error detection Application Single thread per context GPU Thin Driver Explicit GPU Control Application Memory allocation Thread management Synchronization Multi-threaded generation of command buffers Multiple Front-end Compilers GLSL, HLSL etc. Loadable debug and validation layers Vulkan 1.0 provides access to OpenGL ES 3.1 / OpenGL 4.X-class GPU functionality but with increased performance and flexibility SPIR-V pre-compiled shaders Complex drivers cause overhead and inconsistent behavior across vendors Always active error handling Full GLSL preprocessor and compiler in driver OpenGL vs. OpenGL ES Resource management offloaded to app: low-overhead, low-latency driver Consistent behavior: no ‘fighting with driver heuristics’ Validation and debug layers loaded only when needed SPIR-V intermediate language: shading language flexibility Multi-threaded command creation. Multiple graphics, command and DMA queues Unified API across all platforms with feature set flexibility Vulkan = high performance and low latency 3D and GPU Compute. Ideal for VR/AR applications

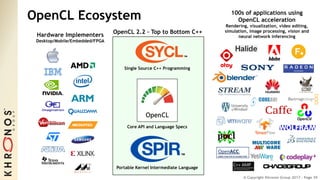

- 39. © Copyright KhronosGroup 2017 - Page 39 OpenCL Ecosystem Hardware Implementers Desktop/Mobile/Embedded/FPGA 100s of applications using OpenCL acceleration Rendering, visualization, video editing, simulation, image processing, vision and neural network inferencing Single Source C++ Programming Portable Kernel Intermediate Language Core API and Language Specs OpenCL 2.2 – Top to Bottom C++
