![HiPEAC CSW Autumn 2020HiPEAC CSW Autumn 2020
OmpSs with SMP, OpenCL and FPGA
#pragma omp target device(smp) copy_ deps
#pragma omp task depend(in:a, b) depend(inout:c)
void matrix_ multiply(float a[BS][BS], float b[BS][BS],
float c[BS][BS]);
SMP
GPGPU or
OpenCL FPGA
#pragma omp target device(opencl) ndrange(2, NB, NB, 16, 16)
implements(matrix_ multiply)
#pragma omp task depend(in:a, b) depend(inout:c)
_ _ kernel void matrix_ multiply_ opencl(float a[BS][BS],
float b[BS][BS],
float c[BS][BS]);
FPGA
#pragma omp target device(fpga) implements(matrix_ multiply)
num_ instances(3)
#pragma omp task depend(in:a, b) depend(inout:c)
void matrix_ multiply_ fpga(float a[BS][BS], float b[BS][BS],
float c[BS][BS]);](https://image.slidesharecdn.com/legatohipeac2020softwarestackprogmodels-final-2-201016144311/85/LEGaTO-Software-Stack-Programming-Models-7-320.jpg)
Uploaded byLEGATO project
LEGaTO: Software Stack Programming Models
The Legato project, funded by the EU's Horizon 2020, focuses on creating a unified programming model for various computing targets, emphasizing energy efficiency and fault tolerance. Key achievements include support for OMPSs-2 with GPUs and FPGAs, development of a high-productivity hardware description language (DFIANT), and tools for task-based parallel programming. The project aims to enhance programmer productivity and runtime efficiency through advanced scheduling and runtime computation techniques.
More Related Content
Similar to LEGaTO: Software Stack Programming Models
![Human Reproduction [ Reproductive System ] Notes @irfanullah_mehar Irfanullah...](https://cdn.slidesharecdn.com/ss_thumbnails/humanreproductionreproductivesystemnotesirfanullahmeharirfanullahmeharjanantantra-260111172350-56e85778-thumbnail.jpg?width=640&height=640&fit=bounds)
LEGaTO: Software Stack Programming Models
- 1. HiPEAC CSW Autumn2020 The LEGaTO project has received funding from the European Union's Horizon 2020 research and innovation programme under the grant agreement No 780681 16.10.2020 LEGaTO: Software Stack Programming Models HiPEAC 2020 Computer Systems Week 16-10-2020 Pascal Felber University of Neuchatel
- 2. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 Outline • Programming models in LEGaTO’s big picture • Common programming model for different targets • Energy efficiency • High-level dataflow hardware description language • Kernel identification and dataflow engine mapping • Fault tolerance and security
- 3. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 LEGaTO big picture LEGaTO aspects Smart Home USE CASES PROGRAMMING MODEL COMPILER & HLS RUNTIME MIDDLEWARE HARDWARE Smart City Secure IOT Gateway Sequential Task-Based OmpSs programs C and HLS SourceCode CPU/GPU Binaries Bitstream Deployment, Monitoring, Control OpenStack Middleware C Source Code RTL Native compiler and Linker FPGA Synthesis Runtime Microserver Hardware Platform XiTAO Runtime MercuriumCompilation XiTAO Front-End SCONE Compiler MaxCompiler AutoAit DFiant HLS Machine Learning CPU Node Composition Redfish API Monitoring and Control REST API GPU FPGA/DFE Healthcare SecurityProgrammabilityEnergy- Efficiency Fault - tolerance SCONE Runtime HEATSNanos Runtime Fault-Tolerance Interface OmpSs Eclipse IDE Plug-In
- 4. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 Main achievements • Programming model, annotations • Compiler support for OmpSs-2 with GPUs and FPGAs, annotated task model, LLVM code generation • IDE plugin for Eclipse • Task groups, resource partitioning • Energy efficiency in task scheduling (XiTao, HEATS, DiAS) • DFiant high-productivity HDL • Mapping of OmpSs tasks onto MaxJ • Fault-tolerance through compiler-based error detection, co-scheduling, checkpointing, secure task execution in TEE
- 5. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 Towards a single source for any target • New architectures continue to appear − Common programming model − Increase programmers’ productivity − Develop once → run everywhere • Performance and energy efficiency • Key concept behind OmpSs − Sequential task based program on single address/name space + directionality annotations − Executed in parallel: automatic runtime computation of dependences among tasks − LEGaTO: extend tasks with resource requirements, propagate through the stack to find the most energy efficient solution at run time
- 6. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 Front-end tool box Front-end
- 7. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 OmpSs with SMP, OpenCL and FPGA #pragma omp target device(smp) copy_ deps #pragma omp task depend(in:a, b) depend(inout:c) void matrix_ multiply(float a[BS][BS], float b[BS][BS], float c[BS][BS]); SMP GPGPU or OpenCL FPGA #pragma omp target device(opencl) ndrange(2, NB, NB, 16, 16) implements(matrix_ multiply) #pragma omp task depend(in:a, b) depend(inout:c) _ _ kernel void matrix_ multiply_ opencl(float a[BS][BS], float b[BS][BS], float c[BS][BS]); FPGA #pragma omp target device(fpga) implements(matrix_ multiply) num_ instances(3) #pragma omp task depend(in:a, b) depend(inout:c) void matrix_ multiply_ fpga(float a[BS][BS], float b[BS][BS], float c[BS][BS]);
- 8. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 OmpSs with FPGA experiments IPs configuration 1*256, 3*128 Number of instances * size Frequency (MHz) 200, 250, 300 Working frequency of the FPGA Number of SMP cores SMP: 1 to 4 FPGA: 3+1 helper, 2+2 helpers Combination of SMP and helper threads Number of FPGA helper threads SMP: 0; FPGA: 1, 2 Helper threads are used to manage tasks on the FPGA Number of pending tasks 4, 8, 16 and 32 Number of tasks sent to the IP cores before waiting for their finalization
- 9. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 IDE plug-in • OpenMP and OmpSs support in Eclipse − Support for most of the programming models directives and clauses − Including small help descriptions − Based on context, auto- completion
- 10. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 DFiant HDL • Aims to bridge the programmability gap by combining constructs and semantics from software, hardware and dataflow languages • Programming model accommodates a middle-ground between low-level HDL and high-level sequential programming High-Level Synthesis Languages and Tools (e.g., C and Vivado HLS) Register-Transfer Level HDLs (e.g., VHDL) DFiant: A Dataflow HDL Automatic pipelining Not an HDL Problem with state Separating timing from functionality Concurrency Fine-grain control Automatic pipelining Concurrency Fine-grain control Bound to clock Explicit pipelining
- 11. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 Task-based kernel identification for DFE mapping • OmpSs identifies “static” task graphs while running • Annotation of I/O and compute help to create DFE task model • Instantiate static, customized, ultra-deep (>1,000 stages) computing pipelines

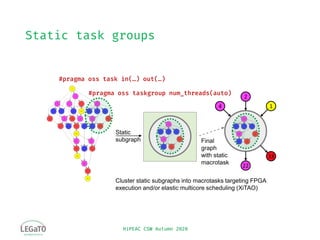

- 12. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 Static task groups 1 Cluster static subgraphs into macrotasks targeting FPGA execution and/or elastic multicore scheduling (XiTAO) Static subgraph Final graph with static macrotask #pragma oss task in(…) out(…) 2 4 22 33 #pragma oss taskgroup num_threads(auto)
- 13. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 XiTAO data parallel nodes • Energy Efficient − Data parallel nodes hide internal task parallelism and can be scheduled with XiTAO’s energy efficient scheduler • Programmable − C++ based interface, and requires minimal application code changes • Task/Data Parallel − Easy and intuitive nesting of data parallel nodes in a coarser TAO-DAG • Granularity/Slackness Control − User-level control on the granularity of internal parallelism (control of the BLOCK_LENGTH for dynamically scheduled TAOs)
- 14. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 26.11.2019 13 Energy efficiency for large jobs HEATS: heterogeneity- and energy-aware task scheduling • Exploit the requirements of a given task to identify the most efficient configuration of nodes • Monitoring tasks and nodes in real time to perform the best fitting placement and migrations when necessary • Prototype in Kubernetes
- 15. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 Energy efficiency for large jobs • Big data production systems usually implement priority scheduling − Job streams with different characteristics, latency requirements − Jobs with varying numbers tasks − High-priority jobs are promptly served with little queueing − Low-priority jobs suffer from repetitive evictions − Pre-emptive priority scheduling = significant resource waste • DiAS: differentially approximate and sprint CPU frequency • DiAS improves the latency for all priorities and eliminates waste from re-executing the evicted low-priority jobs
- 16. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 Fault tolerance and security • Fault tolerance front-end (compiler annotations) − Initial work that translates pragma annotations to FTI API calls #pragma chk init Initialize the fault tolerance interface (FTI) library #pragma chk load(data-expr-list) Protect variables in expr-list & recover from file #pragma chk store(data-expr-list) Protect variables in expr-list & create a checkpoint file #pragma chk shutdown Finalize/de-allocate the internal FTI data structures • Fault tolerance back-end − Implemented incremental checkpoint on FTI, to be used to partially update checkpoint files − Implemented partial recovery from checkpoint files, to be used on recovery to extract output data of a task from the checkpoint file
- 17. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 SCONE platform • Enables native applications to run inside Intel SGX enclaves without code changes • Transparently attests applications • Supports network and file system shields • Manages secrets and configuration • Supports secure multi-stakeholder machine learning computations: − Code, data, and models are encrypted − Tensorflow, PyTorch, OpenVino, OpenCV, etc.
- 18. HiPEAC CSW Autumn2020HiPEAC CSW Autumn 2020 Summary • Heterogeneity − Integrated programming model around OmpSs • Energy efficiency − XiTAO scheduling • Programming models in LEGaTO’s big picture • Common programming model for different targets • High-level dataflow hardware description language • Kernel identification and dataflow engine mapping • Fault tolerance and security
- 19.
Editor's Notes
- #4 HLS: High Level Synthesis HDL: Hardware Description Language AutoAit: mapping of OmpSs to Vivado
- #7 Overall software toolchain for the cluster runtime. The LEGaTO programming model front-end is shown on the left-hand side of the figure. The LEGaTO front-end consists of the tools that process the source code and generate the LEGaTO binary targeting the heterogeneous platforms. These tools include extensions to Mercurium (previously developed by BSC) to analyze OmpSs source code and generate Nanos/XiTAO/FPGA/GPU binaries, and two high level programming methodologies to generate dataflow kernels: DFiant and MaxJ.
- #8 OmpSs Provides tasking to SMP cores Usual scheduling policies/techniques: FIFO, Cilk, Immediate successor “Implements” provides different targets for the same task Kernel provided in CUDA or OpenCL Data transfers automatically issued by OmpSs Single source parallel programming with FPGA acceleration “Implements” technique available “num_instances(N)” allows to generate the indicated number of IP accelerators
- #9 AXIOM board: Xilinx Zynq Ultrascale+ chip, with 4 ARM Cortex-A53 cores, and the ZU9EG FPGA.
- #12 DFE: Data Flow Engine Task-based kernel identification/DFE mapping The purpose of Task T4.6 is to identify static sub-graphs in the OmpSs task graph and map them to kernels on a Maxeler FPGA-based Dataflow Engine (DFE). The rational is that the OmpSs tasks appear naturally suitable for FPGA mapping: They have clearly defined inputs and outputs and have self-contained state. Maxeler's programming model is based on dataflow where large dataflow graphs, described in MaxJ, are mapped and optimised to generate FPGA configurations. These dataflow graphs are essentially static, highly customised and ultra-deep pipelines that achieve very high computational throughput. Generating these dataflow graphs is supported by Maxeler's MaxCompiler toolchain and runtime execution from a host application is enabled through the MaxelerOS runtime. A task-based programming model such as OmpSs is a good match to act as a front end for the dataflow graph generation. However, due to high context switching overhead of FPGAs, tasks graphs mapped to FPGAs need to be static. SLiC: interface into Maxeler HW allowing to spawn tasks.
- #14 Granularity of internal parallelism: thread to core mapping
- #15 We have further improved HEATS by designing an updated version of it where not only migrations across heterogeneous nodes are exploited but also across the three layers of the deployment architecture (edge, fog and cloud). The prototype implementation and test of the system update is currently under development. On top of that, we have also observed performance and energy improvements when tuning the CPU frequency of the nodes. Based on this, we have developed a sprinting approach which runs jobs at a higher frequency for as long as a predefined budget is not used up. In this work we also take into account that jobs might have different priorities. The system was implemented in Go and tested using Spark. The outcome of this work has been submitted to Middleware’19 in a paper called “Differential Approximation and Sprinting for Multi-Priority Big Data Engines” which is currently under revision.
- #16 Trick: Reduce a fraction of data load for low-priority jobs Temporarily increase the CPU frequency for high-priority jobs. Differential approximation Controllable approximation level that discriminates among priority classes: Drop different fractions of data Better latencies for low-priority jobs at the cost of their accuracy loss Less latency increase for high-priority jobs Stochastic models to control approximation and and sprinting Adjusts the frequency levels Accelerate high-priority jobs after temporarily waiting behind low-priority ones Result: reduce tail latencies (90% low-pri, 60% high-pri) and energy (20%)
- #17 FTI: fault tolerance interface. Fault Tolerance Mechanisms In order to improve the availability of the platform we implemented a secure checkpointing mechanism. Our first version was implemented using the file system shield available in SCONE. Moreover, we added support for the systems calls vfork() and fork() in the SCONE toolchain in order to provide additional fault tolerance mechanisms such as rejuvenation which is a commonly implemented fault tolerance techniques. Providing fork support for applications running in Trusted Execution Environments is a non-trivial problem. First it requires to create a new enclave and copy the whole application state to the new enclave including running an attestation. Furthermore, the state must be consistent when using multiple enclave threads. It also requires pre-emption of non-forking threads. We have recently completed the implementation of this functionality which is currently under testing at the point of writing of this report.
