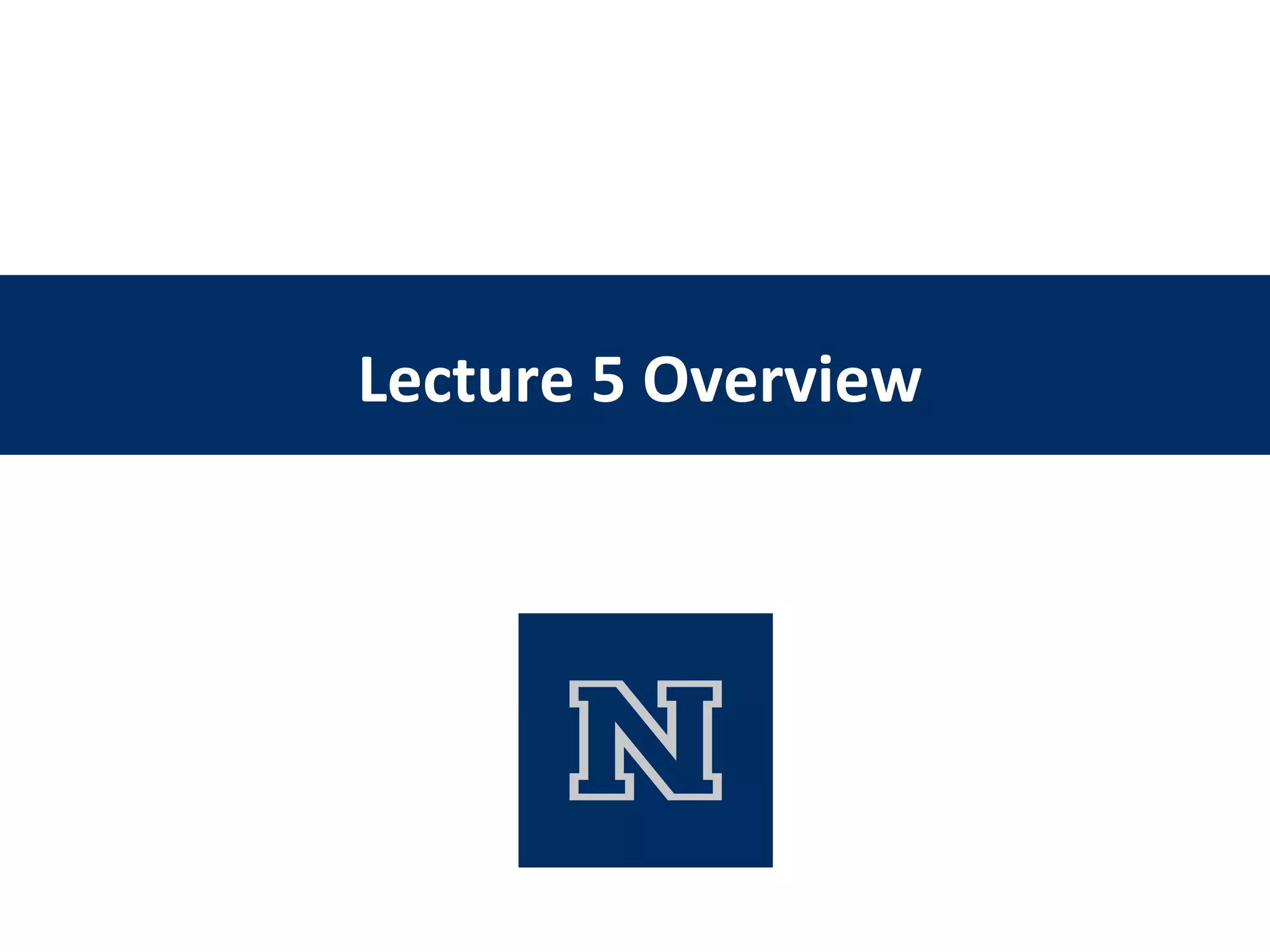

1. Lecture 5 Overview

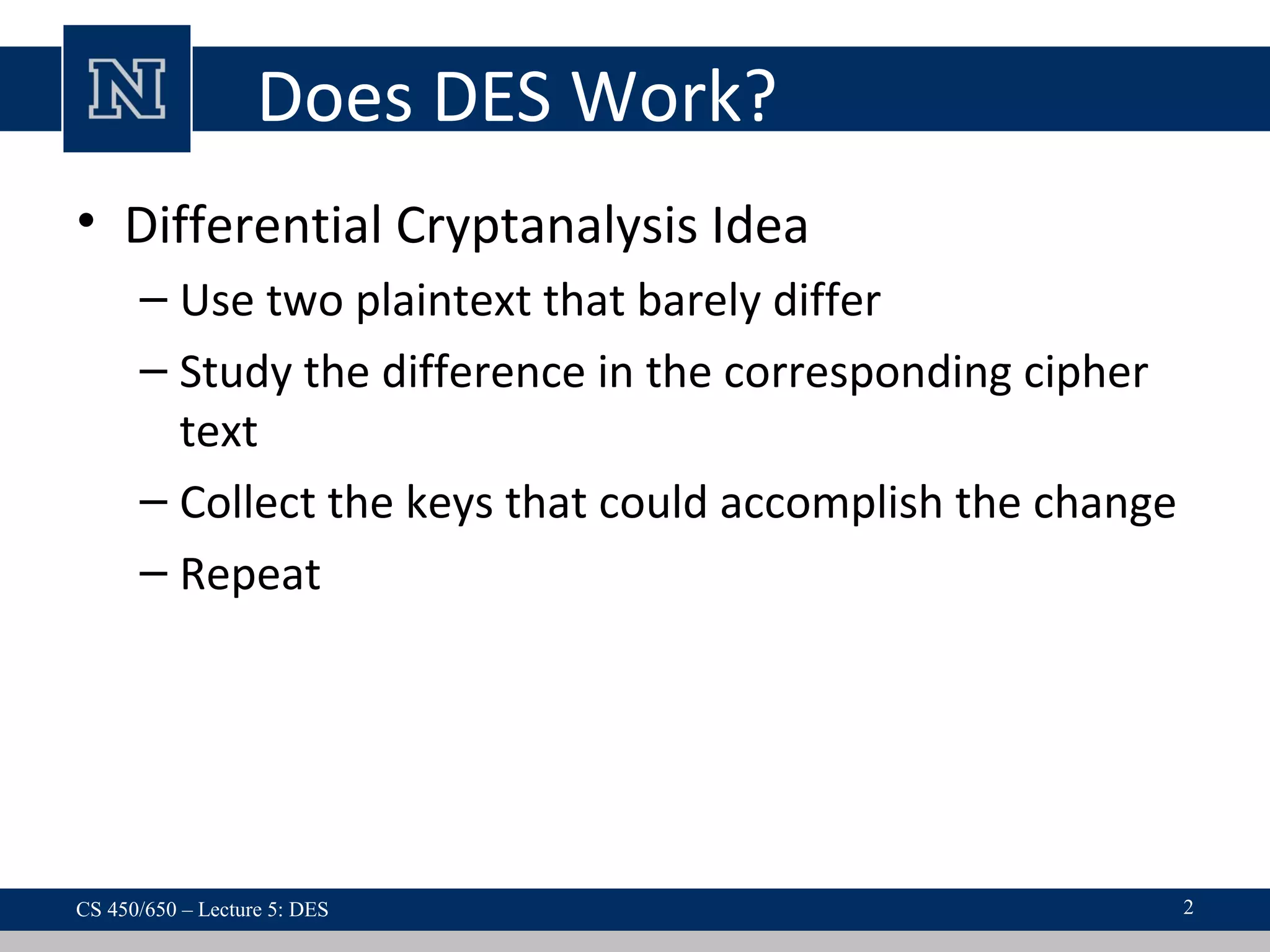

2. Does DES Work?
• Differential Cryptanalysis Idea
– Use two plaintext that barely differ
– Study the difference in the corresponding cipher
text
– Collect the keys that could accomplish the change
– Repeat
2CS 450/650 – Lecture 5: DES

3. Cracking DES
• Diffie and Hellman then outlined a "brute
force" attack on DES
– By "brute force" is meant that you try as many of
the 256
possible keys as you have to before
decrypting the ciphertext into a sensible plaintext
message
– They proposed a special purpose "parallel
computer using one million chips to try one
million keys each" per second
3CS 450/650 – Lecture 5: DES

4. Cracking DES (cont.)
• In 1998, Electronic Frontier Foundation spent
$220K and built a machine that could go
through the entire 56-bit DES key space in an
average of 4.5 days
– On July 17, 1998, they announced they had
cracked a 56-bit key in 56 hours
– The computer, called Deep Crack
• used 27 boards each containing 64 chips
• was capable of testing 90 billion keys a second
4CS 450/650 – Lecture 5: DES

5. Cracking DES (cont.)
• In early 1999, Distributed. Net used the DES Cracker
and a worldwide network of nearly 100K PCs to
break DES in 22 hours
– combined they were testing 245 billion keys per second
• This just serves to illustrate that any organization
with moderate resources can break through DES with
very little effort these days
5CS 450/650 – Lecture 5: DES

6. Double DES
• E(k1, E(k2, M) )
– As strong as 57-bit key !
– Given message M and ciphertext c
– Encrypt M with all possible keys
• 256
steps
– Decrypt c with all possible keys and match Ms
• 256
steps
CS 450/650 Fundamentals of Integrated Computer Security 6

7. Triple DES – Two keys
• E(k1, D(k2, E(k1, M) ) )
• The first key is used to DES-encrypt the message
• The second key is used to DES-decrypt the encrypted
message
– Since the second key is not the right key, this decryption
just scrambles the data further
• The twice-scrambled message is then encrypted
again with the first key to yield the final ciphertext
• As strong as 80-bit key !
7CS 450/650 – Lecture 5: DES

8. Triple DES – Three keys
• E(k3, D(k2, E(k1, M) ) )
• The first key is used to DES-encrypt the message
• The second key is used to DES-decrypt the encrypted
message
– Since the second key is not the right key, this decryption
just scrambles the data further
• The twice-scrambled message is then encrypted with
the third key to yield the final ciphertext
• As strong as 112-bit key !
8CS 450/650 – Lecture 5: DES

9. Analysis of Algorithms
• Algorithms
– Time Complexity
– Space Complexity
• An algorithm whose time complexity is
bounded by a polynomial is called a
polynomial-time algorithm
– An algorithm is considered to be efficient if it runs
in polynomial time.
CS 450/650 Lecture 5: Algorithm Background 9

10. Growth Rate
 T(n) = O(f(n)): T is bounded above by f
The growth rate of T(n) <= growth rate of f(n)
 T(n) = Ω (g(n)): T is bounded below by g
The growth rate of T(n) >= growth rate of g(n)
 T(n) = Θ(h(n)): T is bounded both above and below by h
The growth rate of T(n) = growth rate of h(n)
 T(n) = o(p(n)): T is dominated by p
The growth rate of T(n) < growth rate of p(n)
10CS 450/650 Lecture 5: Algorithm Background

11. Time Complexity
 C
 O(n)
 O(log n)
 O(nlogn)
 O(n2
)
 …
 O(nk
)
 O(2n
)
 O(kn
)
 O(nn
)
11CS 450/650 Lecture 5: Algorithm Background
Polynomial
Exponential

12. P, NP, NP-hard, NP-complete
• A problem belongs to the class P if the problem can be
solved by a polynomial-time algorithm
• A problem belongs to the class NP if the correctness of
the problem’s solution can be verified by a polynomial-
time algorithm
• A problem is NP-hard if it is as hard as any problem in NP
– Existence of a polynomial-time algorithm for an NP-hard
problem implies the existence of polynomial solutions for every
problem in NP
• NP-complete problems are the NP-hard problems that
are also in NP
12CS 450/650 Lecture 5: Algorithm Background

13. Relationships between different classes
NP
P
NP-complete
NP-hard
13CS 450/650 Lecture 5: Algorithm Background

14. Partitioning Problem
• Given a set of n integers, partition the integers
into two subsets such that the difference
between the sum of the elements in the two
subsets is minimum
– NP-complete
13, 37, 42, 59, 86, 100
14CS 450/650 Lecture 5: Algorithm Background
Sum 165 172
86 100
42 59
37 13

15. Bin Packing Problem
• Suppose you are given n items of sizes
s1, s2,..., sn
• All sizes satisfy 0 ≤ si ≤ 1
• The problem is to pack these items in the
fewest number of bins,
– given that each bin has unit capacity
– NP-hard
15CS 450/650 Lecture 5: Algorithm Background

16. Lecture 6
RSA
CS 450/650
Fundamentals of
Integrated Computer Security
Slides are modified from Hesham El-Rewini

17. RSA
• Invented by Cocks (GCHQ), independently,
by Rivest, Shamir and Adleman (MIT)
• Two keys e and d used for Encryption and
Decryption
– The keys are interchangeable
• M = D(d, E(e, M) ) = D(e, E(d, M) )
– Public key encryption
• Based on problem of factoring large numbers
– Not in NP-complete
– Best known algorithm is exponential 17CS 450/650 Lecture 6: RSA

18. RSA
• To encrypt message M compute
– c = Me
mod N
• To decrypt ciphertext c compute
– M = cd
mod N
18CS 450/650 Lecture 6: RSA

19. • Let p and q be two large prime numbers
• Let N = pq
• Choose e relatively prime to (p−1)(q−1)
– a prime number larger than p-1 and q-1
• Find d such that ed mod (p−1)(q−1) = 1
Key Choice
19CS 450/650 Lecture 6: RSA

20. RSA
• Recall that e and N are public
• If attacker can factor N, he can use e to easily
find d
– since ed mod (p−1)(q−1) = 1
• Factoring the modulus breaks RSA
• It is not known whether factoring is the only
way to break RSA
20CS 450/650 Lecture 6: RSA

21. Does RSA Really Work?
• Given c = Me
mod N we must show
– M = cd
mod N = Med
mod N
• We’ll use Euler’s Theorem
– If x is relatively prime to N then xϕ(N)
mod N =1
• ϕ(n): number of positive integers less than n that are
relatively prime to n.
• If p is prime then, ϕ(p) = p-1
21CS 450/650 Lecture 6: RSA

22. Does RSA Really Work?
• Facts:
– ed mod (p − 1)(q − 1) = 1
– ed = k(p − 1)(q − 1) + 1 by definition of mod
– ϕ(N) = (p − 1)(q − 1)
– Then ed − 1 = k(p − 1)(q − 1) = kϕ(N)
• Med
= M(ed-1)+1
= M⋅Med-1
= M⋅Mkϕ(N)
= M⋅(Mϕ(N)
)k
mod N = M⋅1k
mod N
= M mod N
22CS 450/650 Lecture 6: RSA

23. Example
• Select primes p=11, q=3.
• N = p* q = 11*3 = 33
• Choose e = 3
• check gcd(e, p-1) = gcd(3, 10) = 1
– i.e. 3 and 10 have no common factors except 1
• check gcd(e, q-1) = gcd(3, 2) = 1
• therefore gcd(e, (p-1)(q-1)) = gcd(3, 20) = 1
23CS 450/650 Lecture 6: RSA

24. Example (cont.)
• p-1 * q-1 = 10 * 2 = 20
• Compute d such that
e * d mod (p-1)*(q-1) = 1
3 * d mod 20 = 1
d = 7
Public key = (N, e) = (33, 3)
Private key = (N, d) = (33, 7)
24CS 450/650 Lecture 6: RSA

25. Example (cont.)
• Now say we want to encrypt message m = 7
• c = Me
mod N = 73
mod 33 = 343 mod 33 = 13
– Hence the ciphertext c = 13
• To check decryption, we compute
M' = cd
mod N = 137
mod 33 = 7
25CS 450/650 Lecture 6: RSA

26. More Efficient RSA
• Modular exponentiation example
– 520
= 95367431640625 = 25 mod 35
• A better way: repeated squaring
– Note that 20 = 2 ⋅ 10, 10 = 2 ⋅ 5, 5 = 2 ⋅ 2 + 1, 2 = 1⋅ 2
– 51
= 5 mod 35
– 52
= (51
)2
= 52
= 25 mod 35
– 55
= (52
)2
⋅ 51
= 252
⋅ 5 = 3125 = 10 mod 35
– 510
= (55
)2
= 102
= 100 = 30 mod 35
– 520
= (510
)2
= 302
= 900 = 25 mod 35
• No huge numbers and it’s efficient!
CS 450/650 Lecture 6: RSA 26

27. RSA key-length strength
• RSA has challenges for different key-lengths
– RSA-140
• Factored in 1 month using 200 machines in 1999
– RSA-155 (512-bit)
• Factored in 3.7 months using 300 machines in 1999
– RSA-160
• Factored in 20 days in 2003
– RSA-200
• Factored in 18 month in 2005
– RSA-210, RSA-220, RSA-232, … RSA-2048
27CS 450/650 Lecture 6: RSA

28. Group Work
Find keys d and e for the RSA cryptosystem with
p = 7 and q = 11
Solution
– p*q = 77
– (p-1) * (q-1) = 60
– e = 37
– d = 13
– n = 13 * 37 = 481 = 1 mod 60
28CS 450/650 Lecture 6: RSA
