1. Java Programming
Manish Kumar
(manish87it@gmail.com)
Lecture- 6

2. Contents
 Introduction to Inheritance
 Importance of Inheritance & Sample code
 Types of Inheritance
 Aggregation in java
 Method Overriding
 Rules for Method Overriding
 Constructor in Inheritance
 Static and Dynamic Binding

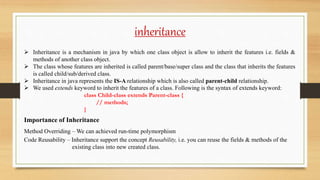

3. inheritance
 Inheritance is a mechanism in java by which one class object is allow to inherit the features i.e. fields &
methods of another class object.
 The class whose features are inherited is called parent/base/super class and the class that inherits the features
is called child/sub/derived class.
 Inheritance in java represents the IS-A relationship which is also called parent-child relationship.
 We used extends keyword to inherit the features of a class. Following is the syntax of extends keyword:
class Child-class extends Parent-class {
// methods;
}
Importance of Inheritance
Method Overriding – We can achieved run-time polymorphism
Code Reusability – Inheritance support the concept Reusability, i.e. you can reuse the fields & methods of the
existing class into new created class.

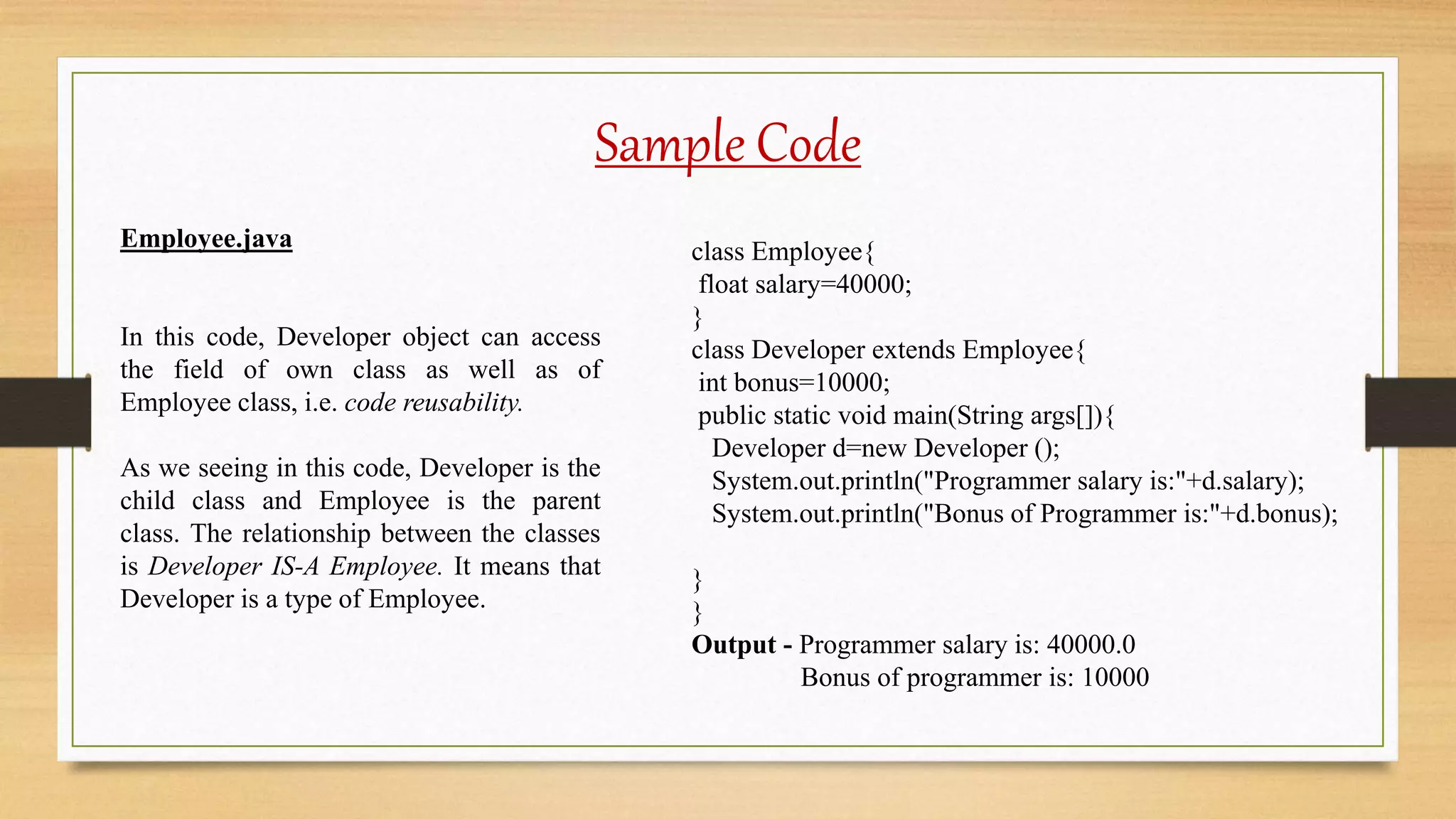

4. Sample Code
class Employee{
float salary=40000;
}
class Developer extends Employee{
int bonus=10000;
public static void main(String args[]){
Developer d=new Developer ();
System.out.println("Programmer salary is:"+d.salary);
System.out.println("Bonus of Programmer is:"+d.bonus);
}
}
Output - Programmer salary is: 40000.0
Bonus of programmer is: 10000
Employee.java
In this code, Developer object can access
the field of own class as well as of
Employee class, i.e. code reusability.
As we seeing in this code, Developer is the
child class and Employee is the parent
class. The relationship between the classes
is Developer IS-A Employee. It means that
Developer is a type of Employee.

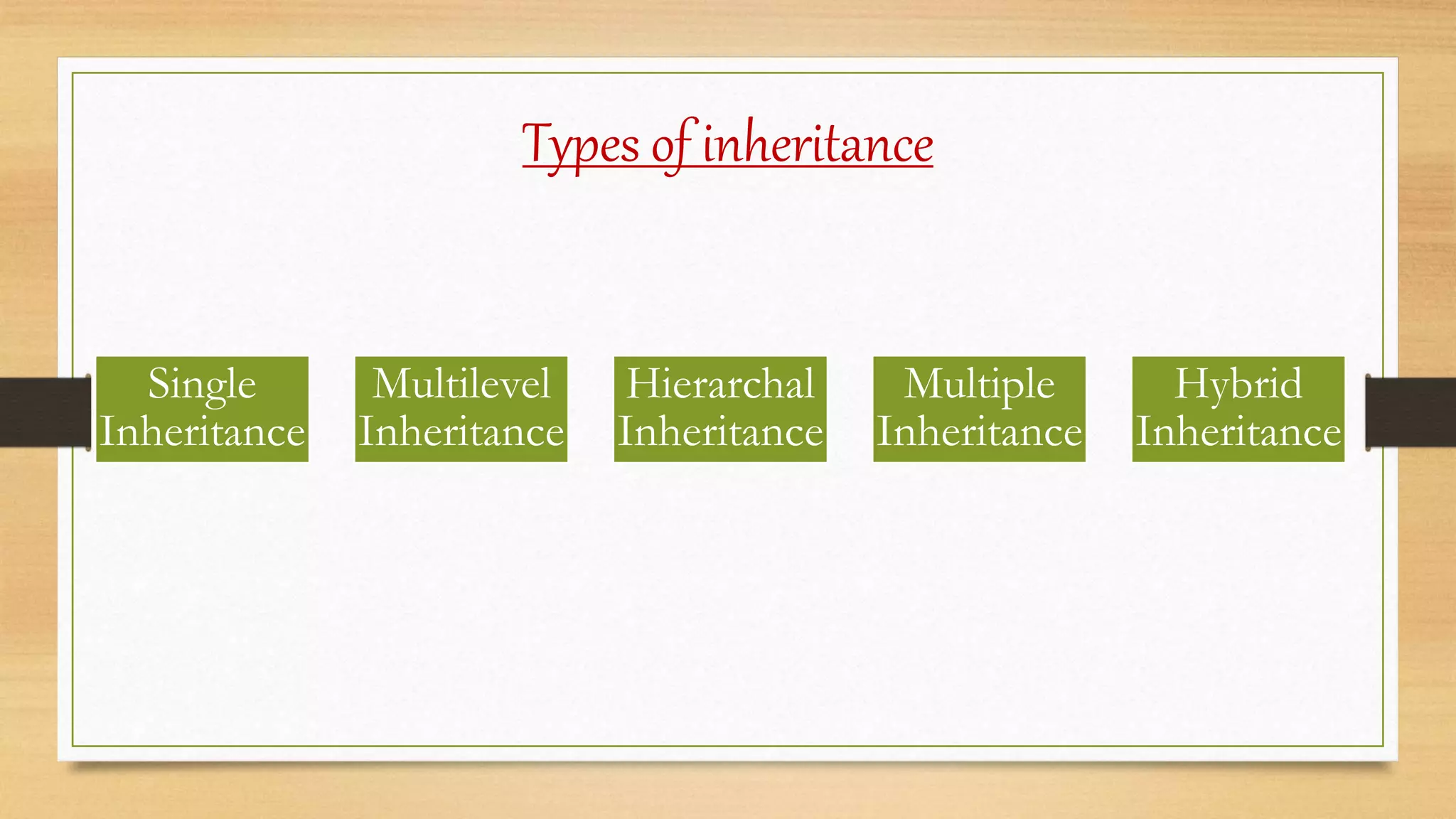

5. Types of inheritance
Single
Inheritance
Multilevel
Inheritance
Hierarchal
Inheritance
Multiple
Inheritance
Hybrid
Inheritance

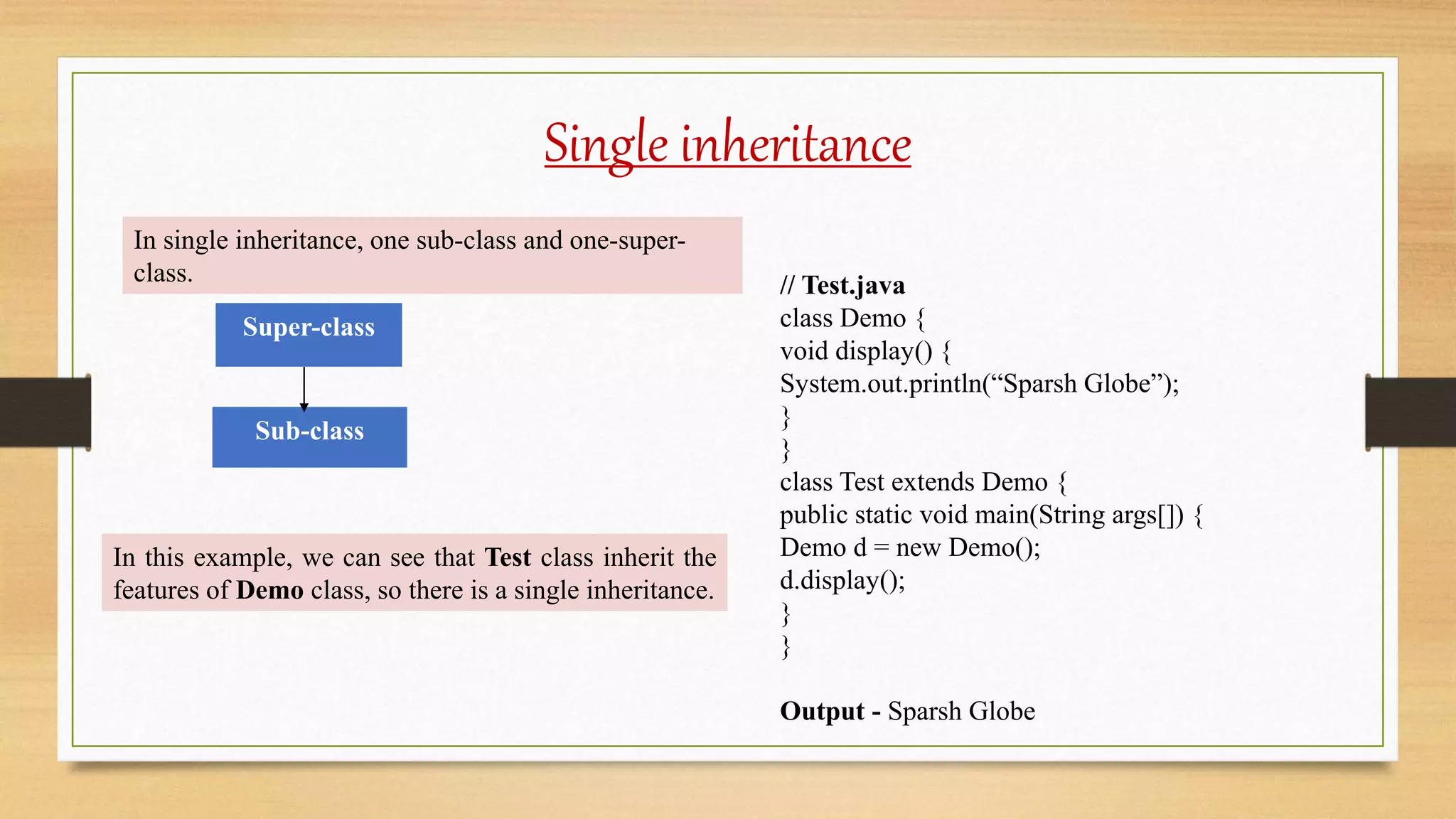

6. Single inheritance
In single inheritance, one sub-class and one-super-
class.
Super-class
Sub-class
// Test.java
class Demo {
void display() {
System.out.println(“Sparsh Globe”);
}
}
class Test extends Demo {
public static void main(String args[]) {
Demo d = new Demo();
d.display();
}
}
Output - Sparsh Globe
In this example, we can see that Test class inherit the
features of Demo class, so there is a single inheritance.

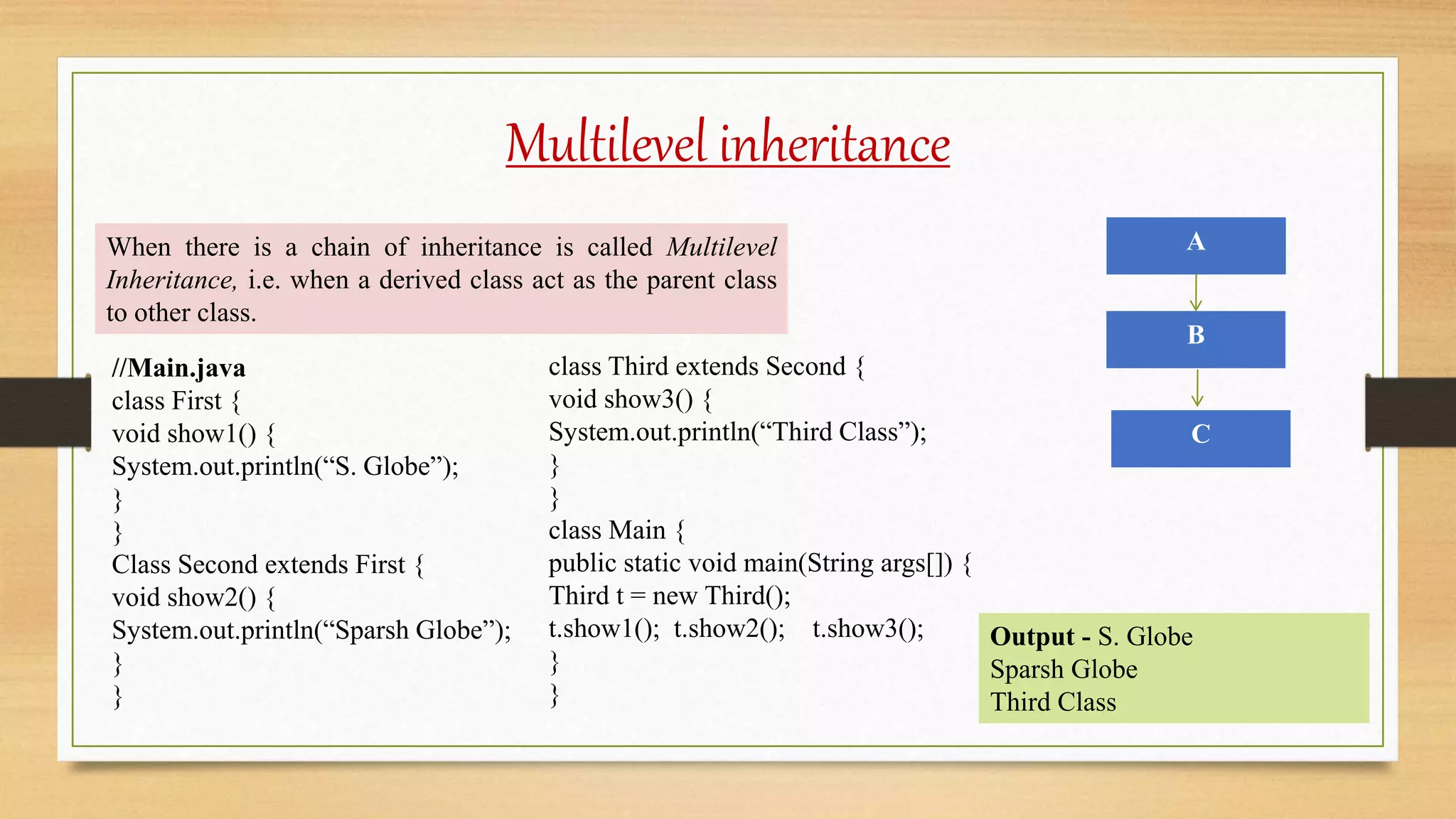

7. Multilevel inheritance
When there is a chain of inheritance is called Multilevel
Inheritance, i.e. when a derived class act as the parent class
to other class.
//Main.java
class First {
void show1() {
System.out.println(“S. Globe”);
}
}
Class Second extends First {
void show2() {
System.out.println(“Sparsh Globe”);
}
}
class Third extends Second {
void show3() {
System.out.println(“Third Class”);
}
}
class Main {
public static void main(String args[]) {
Third t = new Third();
t.show1(); t.show2(); t.show3();
}
}
Output - S. Globe
Sparsh Globe
Third Class
A
B
C

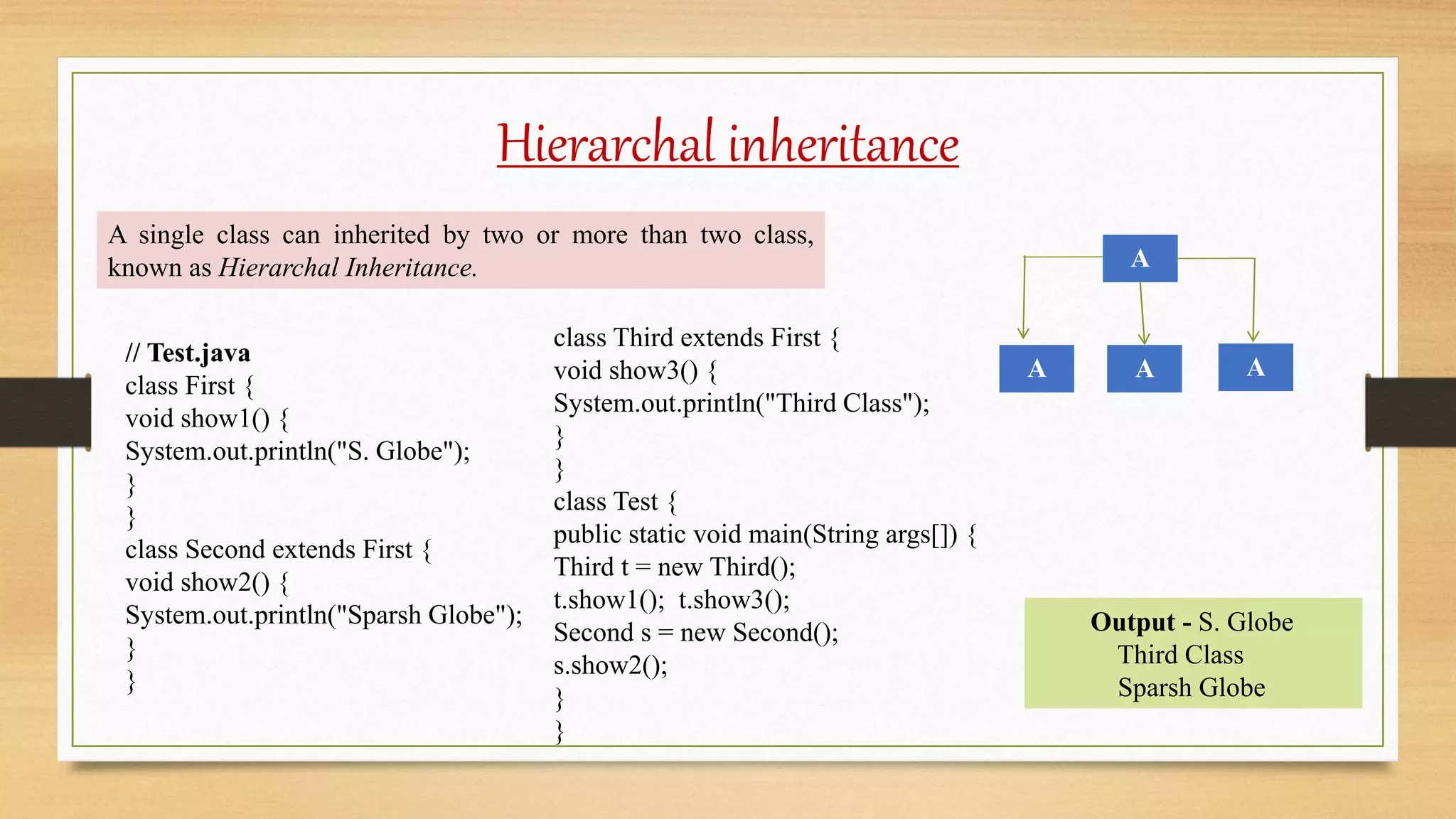

8. Hierarchal inheritance
A single class can inherited by two or more than two class,
known as Hierarchal Inheritance. A
AAA
// Test.java
class First {
void show1() {
System.out.println("S. Globe");
}
}
class Second extends First {
void show2() {
System.out.println("Sparsh Globe");
}
}
class Third extends First {
void show3() {
System.out.println("Third Class");
}
}
class Test {
public static void main(String args[]) {
Third t = new Third();
t.show1(); t.show3();
Second s = new Second();
s.show2();
}
}
Output - S. Globe
Third Class
Sparsh Globe

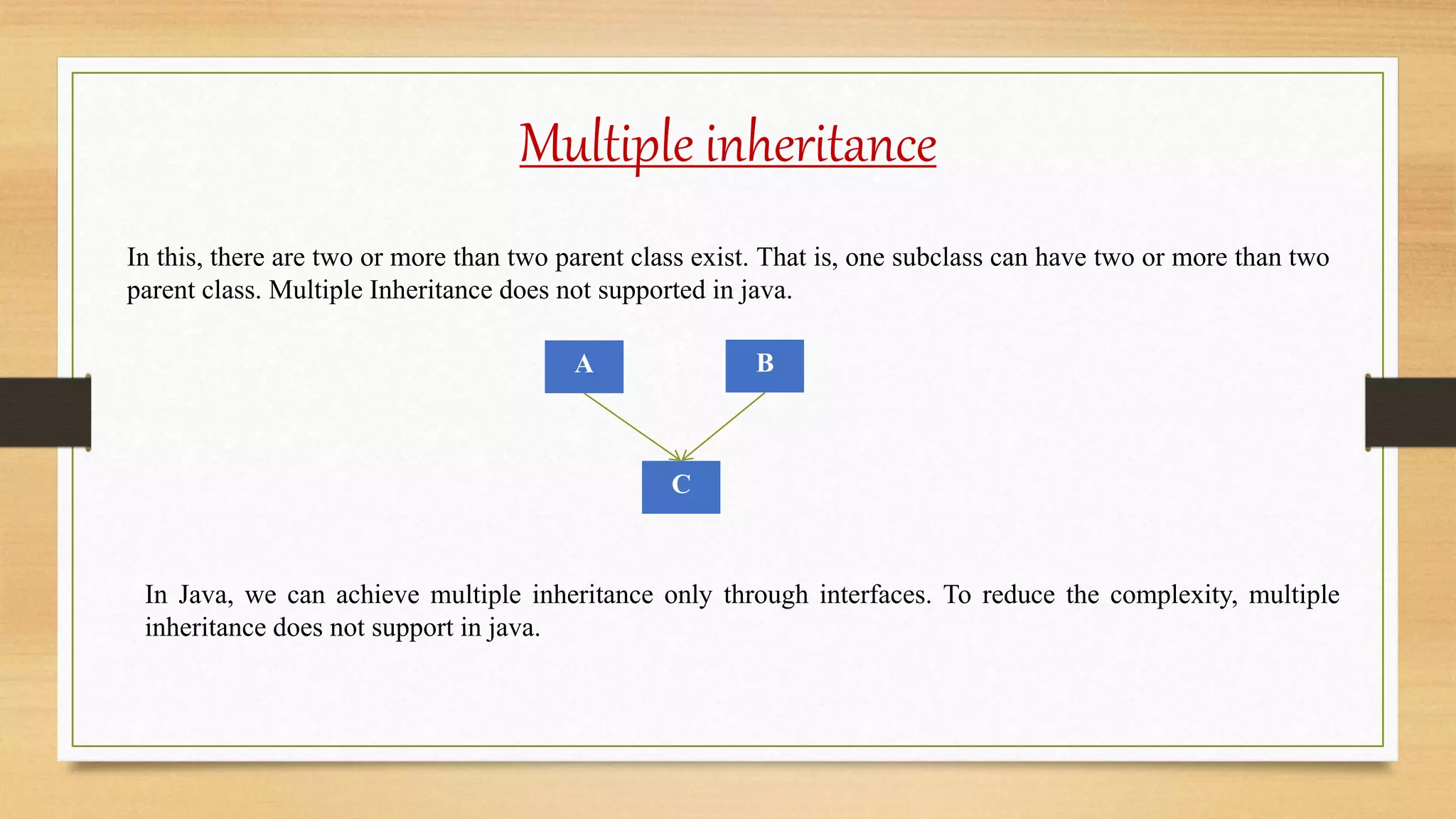

9. Multiple inheritance
In this, there are two or more than two parent class exist. That is, one subclass can have two or more than two
parent class. Multiple Inheritance does not supported in java.
A
C
B
In Java, we can achieve multiple inheritance only through interfaces. To reduce the complexity, multiple
inheritance does not support in java.

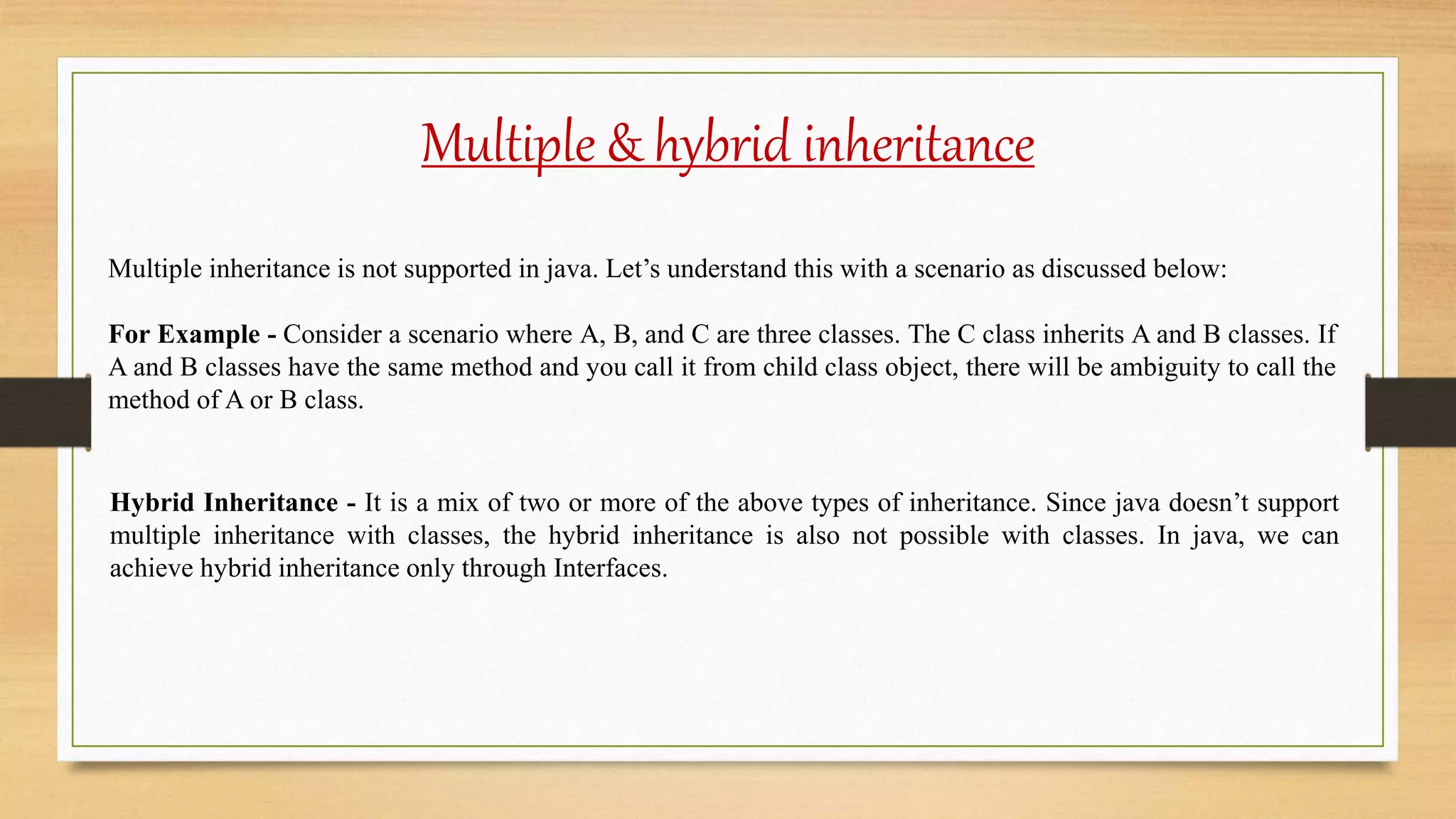

10. Multiple & hybrid inheritance
Multiple inheritance is not supported in java. Let’s understand this with a scenario as discussed below:
For Example - Consider a scenario where A, B, and C are three classes. The C class inherits A and B classes. If
A and B classes have the same method and you call it from child class object, there will be ambiguity to call the
method of A or B class.
Hybrid Inheritance - It is a mix of two or more of the above types of inheritance. Since java doesn’t support
multiple inheritance with classes, the hybrid inheritance is also not possible with classes. In java, we can
achieve hybrid inheritance only through Interfaces.

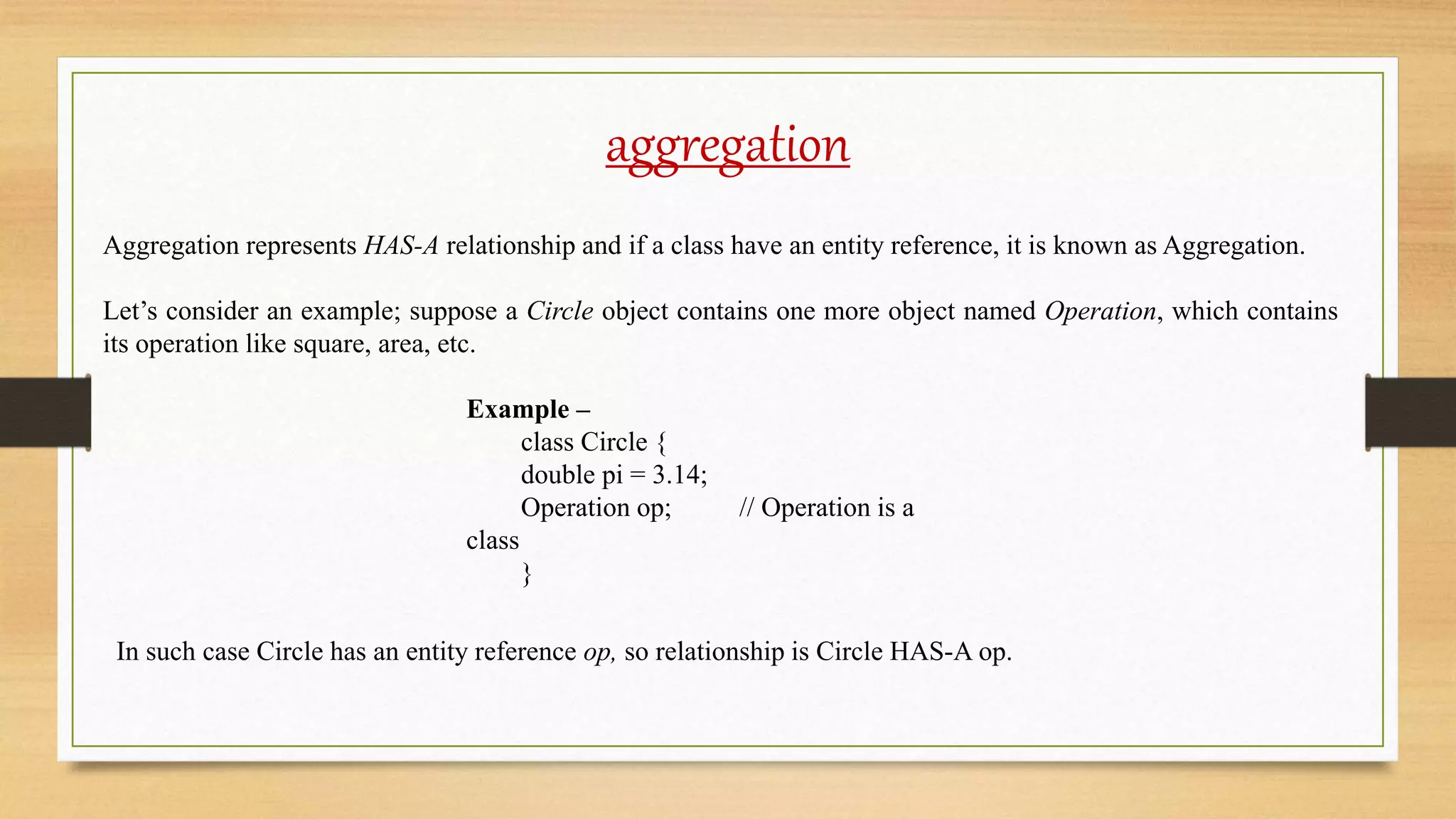

11. aggregation
Aggregation represents HAS-A relationship and if a class have an entity reference, it is known as Aggregation.
Let’s consider an example; suppose a Circle object contains one more object named Operation, which contains
its operation like square, area, etc.
Example –
class Circle {
double pi = 3.14;
Operation op; // Operation is a
class
}
In such case Circle has an entity reference op, so relationship is Circle HAS-A op.

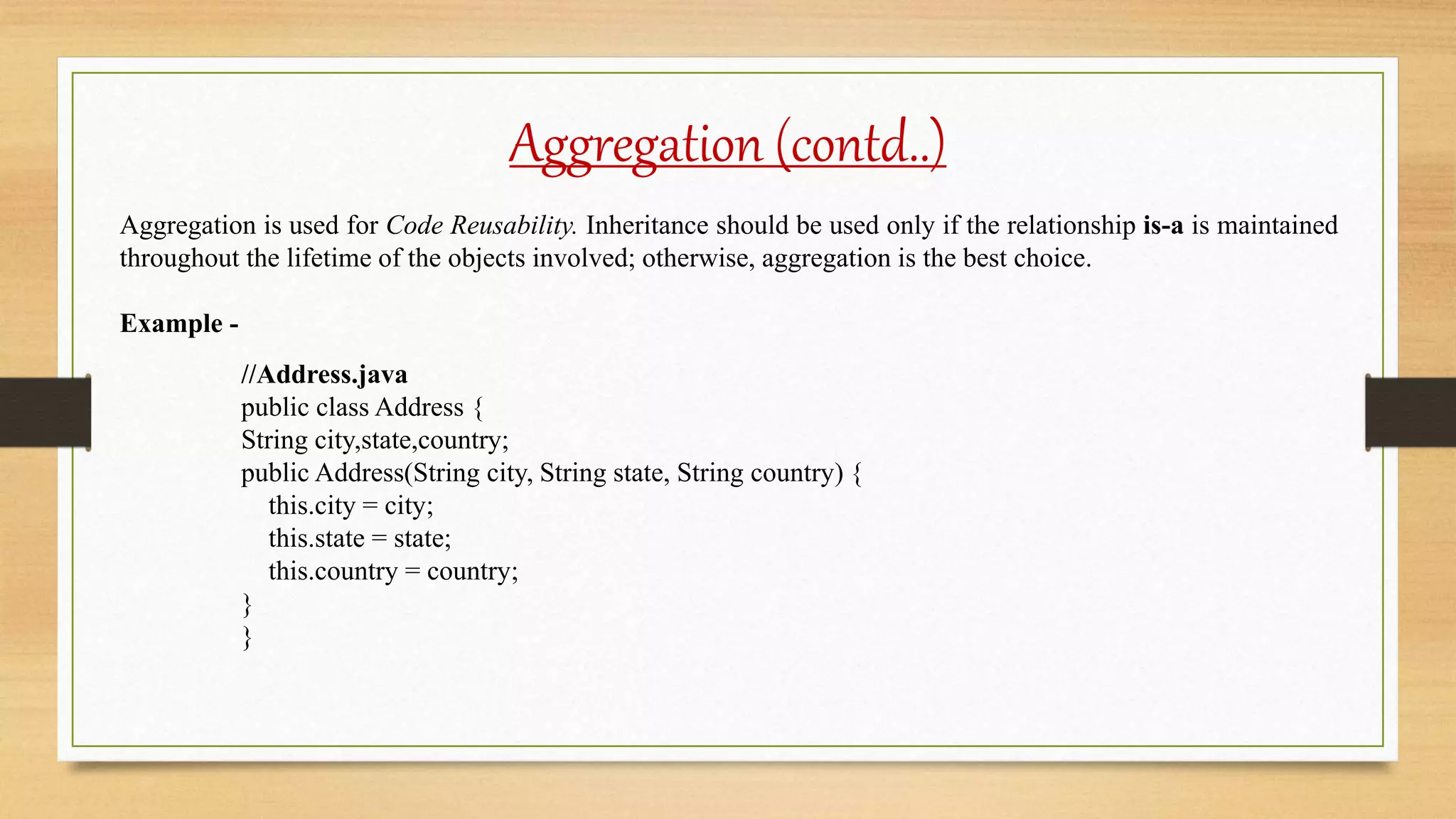

12. Aggregation (contd..)
Aggregation is used for Code Reusability. Inheritance should be used only if the relationship is-a is maintained
throughout the lifetime of the objects involved; otherwise, aggregation is the best choice.
Example -
//Address.java
public class Address {
String city,state,country;
public Address(String city, String state, String country) {
this.city = city;
this.state = state;
this.country = country;
}
}

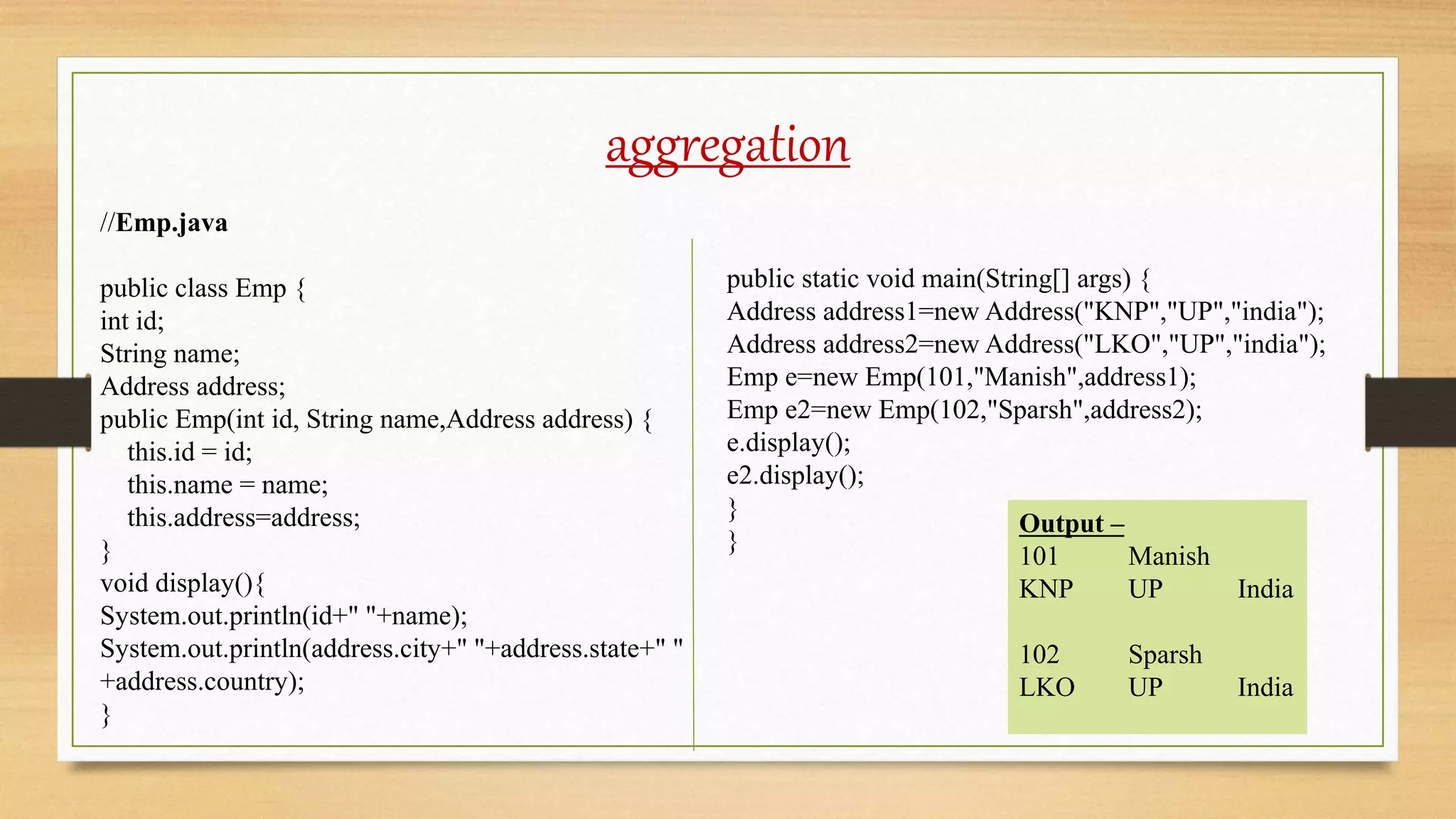

13. aggregation
//Emp.java
public class Emp {
int id;
String name;
Address address;
public Emp(int id, String name,Address address) {
this.id = id;
this.name = name;
this.address=address;
}
void display(){
System.out.println(id+" "+name);
System.out.println(address.city+" "+address.state+" "
+address.country);
}
public static void main(String[] args) {
Address address1=new Address("KNP","UP","india");
Address address2=new Address("LKO","UP","india");
Emp e=new Emp(101,"Manish",address1);
Emp e2=new Emp(102,"Sparsh",address2);
e.display();
e2.display();
}
}
Output –
101 Manish
KNP UP India
102 Sparsh
LKO UP India

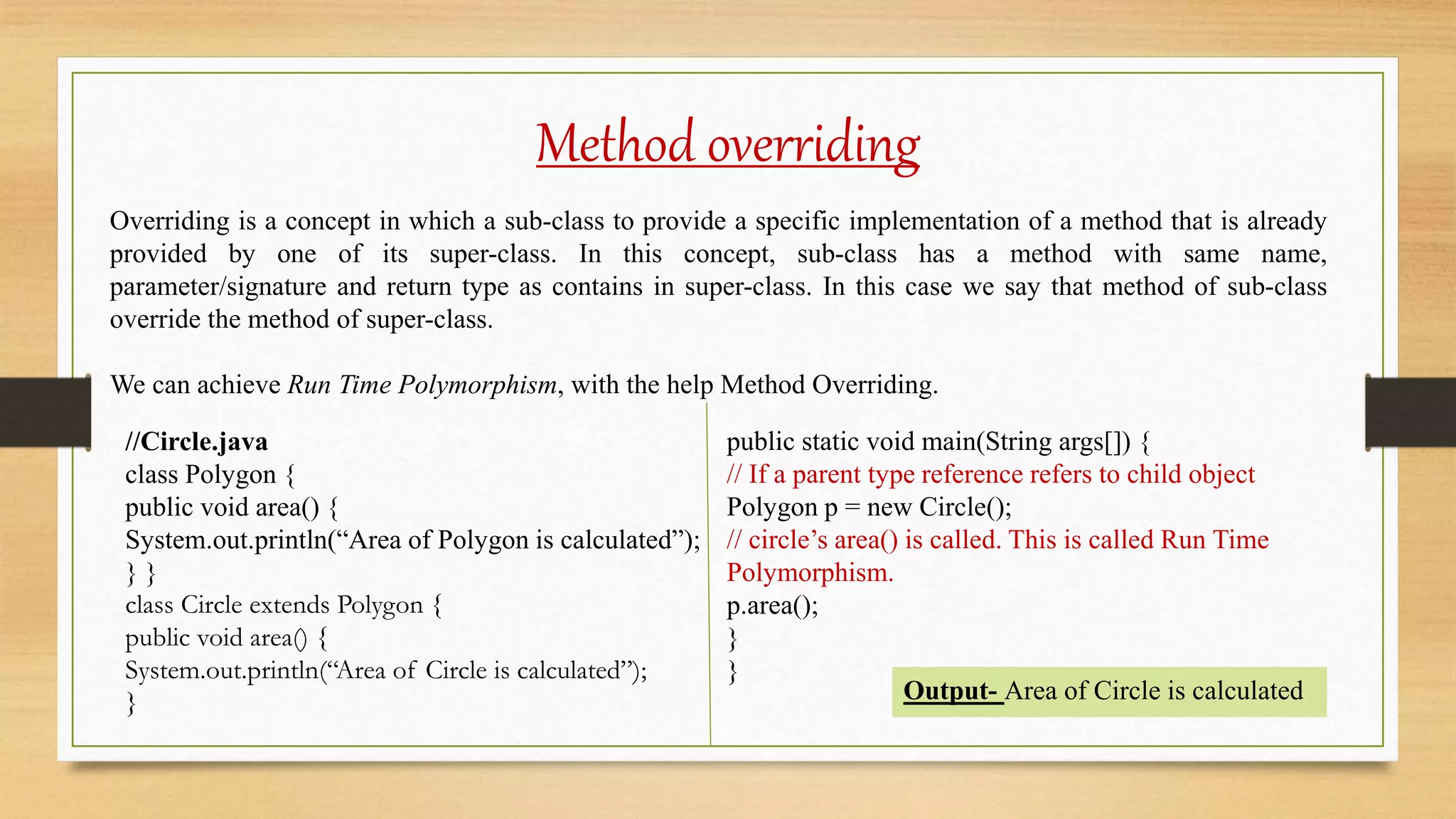

14. Method overriding
Overriding is a concept in which a sub-class to provide a specific implementation of a method that is already
provided by one of its super-class. In this concept, sub-class has a method with same name,
parameter/signature and return type as contains in super-class. In this case we say that method of sub-class
override the method of super-class.
We can achieve Run Time Polymorphism, with the help Method Overriding.
//Circle.java
class Polygon {
public void area() {
System.out.println(“Area of Polygon is calculated”);
} }
class Circle extends Polygon {
public void area() {
System.out.println(“Area of Circle is calculated”);
}
public static void main(String args[]) {
// If a parent type reference refers to child object
Polygon p = new Circle();
// circle’s area() is called. This is called Run Time
Polymorphism.
p.area();
}
}
Output- Area of Circle is calculated

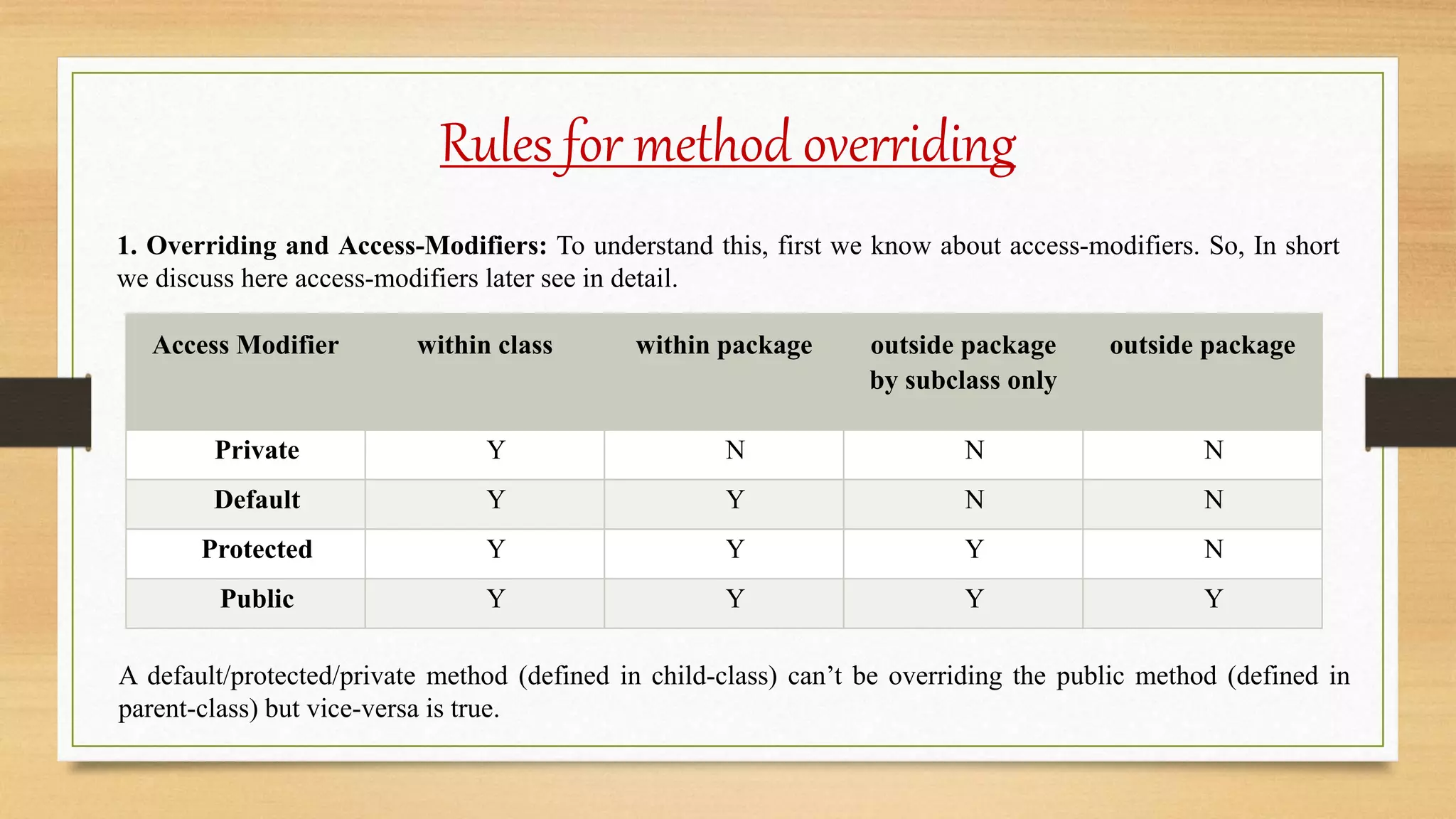

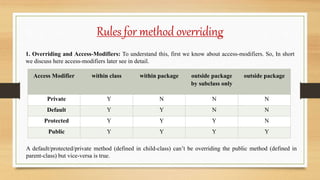

15. Rules for method overriding
1. Overriding and Access-Modifiers: To understand this, first we know about access-modifiers. So, In short
we discuss here access-modifiers later see in detail.
Access Modifier within class within package outside package
by subclass only
outside package
Private Y N N N
Default Y Y N N
Protected Y Y Y N
Public Y Y Y Y
A default/protected/private method (defined in child-class) can’t be overriding the public method (defined in
parent-class) but vice-versa is true.

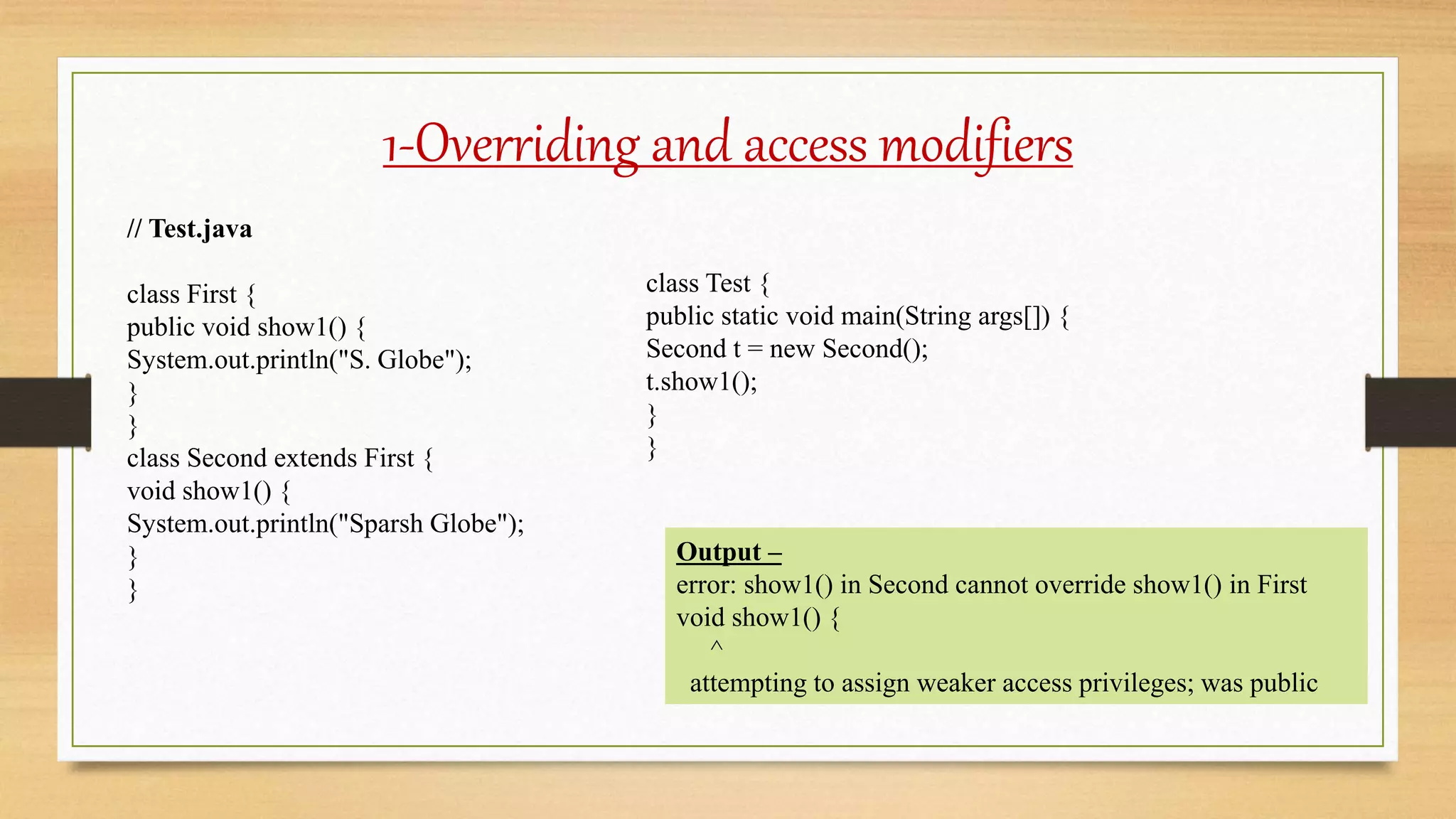

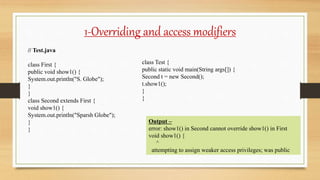

16. 1-Overriding and access modifiers
// Test.java
class First {
public void show1() {
System.out.println("S. Globe");
}
}
class Second extends First {
void show1() {
System.out.println("Sparsh Globe");
}
}
class Test {
public static void main(String args[]) {
Second t = new Second();
t.show1();
}
}
Output –
error: show1() in Second cannot override show1() in First
void show1() {
^
attempting to assign weaker access privileges; was public

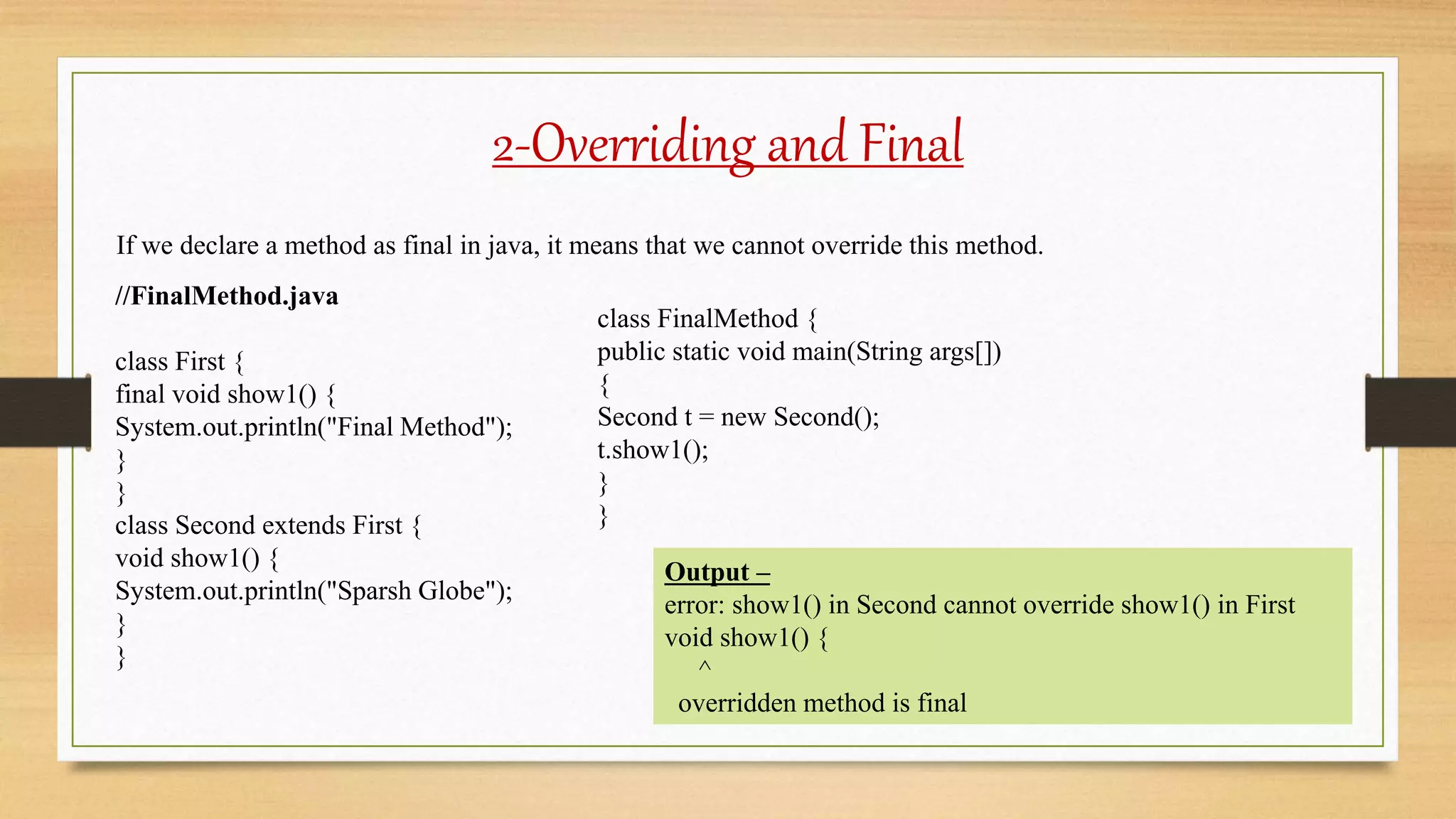

17. 2-Overriding and Final
If we declare a method as final in java, it means that we cannot override this method.
//FinalMethod.java
class First {
final void show1() {
System.out.println("Final Method");
}
}
class Second extends First {
void show1() {
System.out.println("Sparsh Globe");
}
}
class FinalMethod {
public static void main(String args[])
{
Second t = new Second();
t.show1();
}
}
Output –
error: show1() in Second cannot override show1() in First
void show1() {
^
overridden method is final

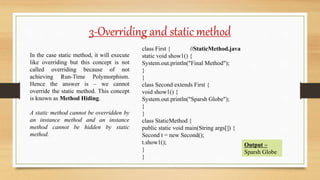

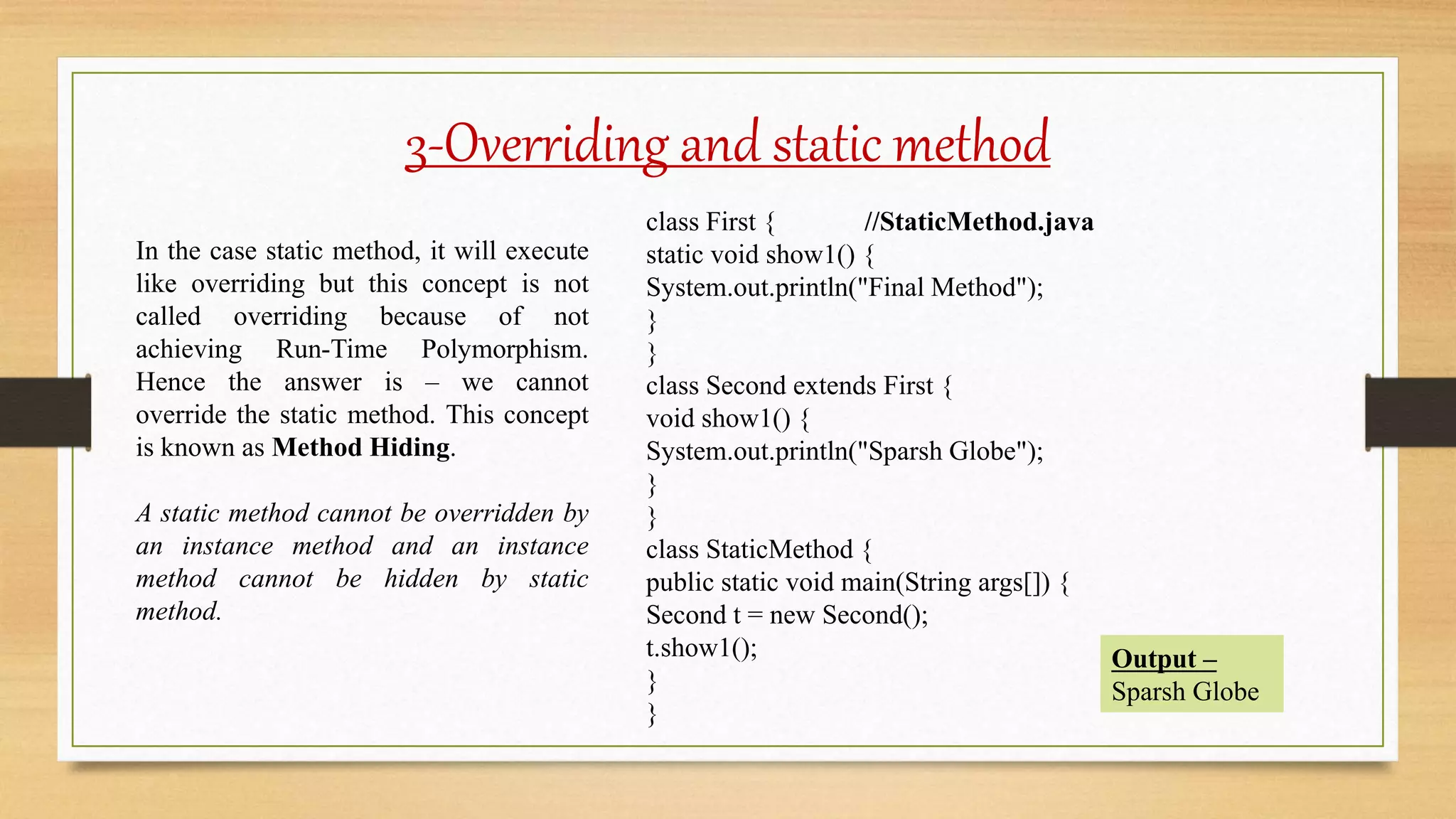

18. 3-Overriding and static method
In the case static method, it will execute
like overriding but this concept is not
called overriding because of not
achieving Run-Time Polymorphism.
Hence the answer is – we cannot
override the static method. This concept
is known as Method Hiding.
A static method cannot be overridden by
an instance method and an instance
method cannot be hidden by static
method.
class First { //StaticMethod.java
static void show1() {
System.out.println("Final Method");
}
}
class Second extends First {
void show1() {
System.out.println("Sparsh Globe");
}
}
class StaticMethod {
public static void main(String args[]) {
Second t = new Second();
t.show1();
}
}
Output –
Sparsh Globe

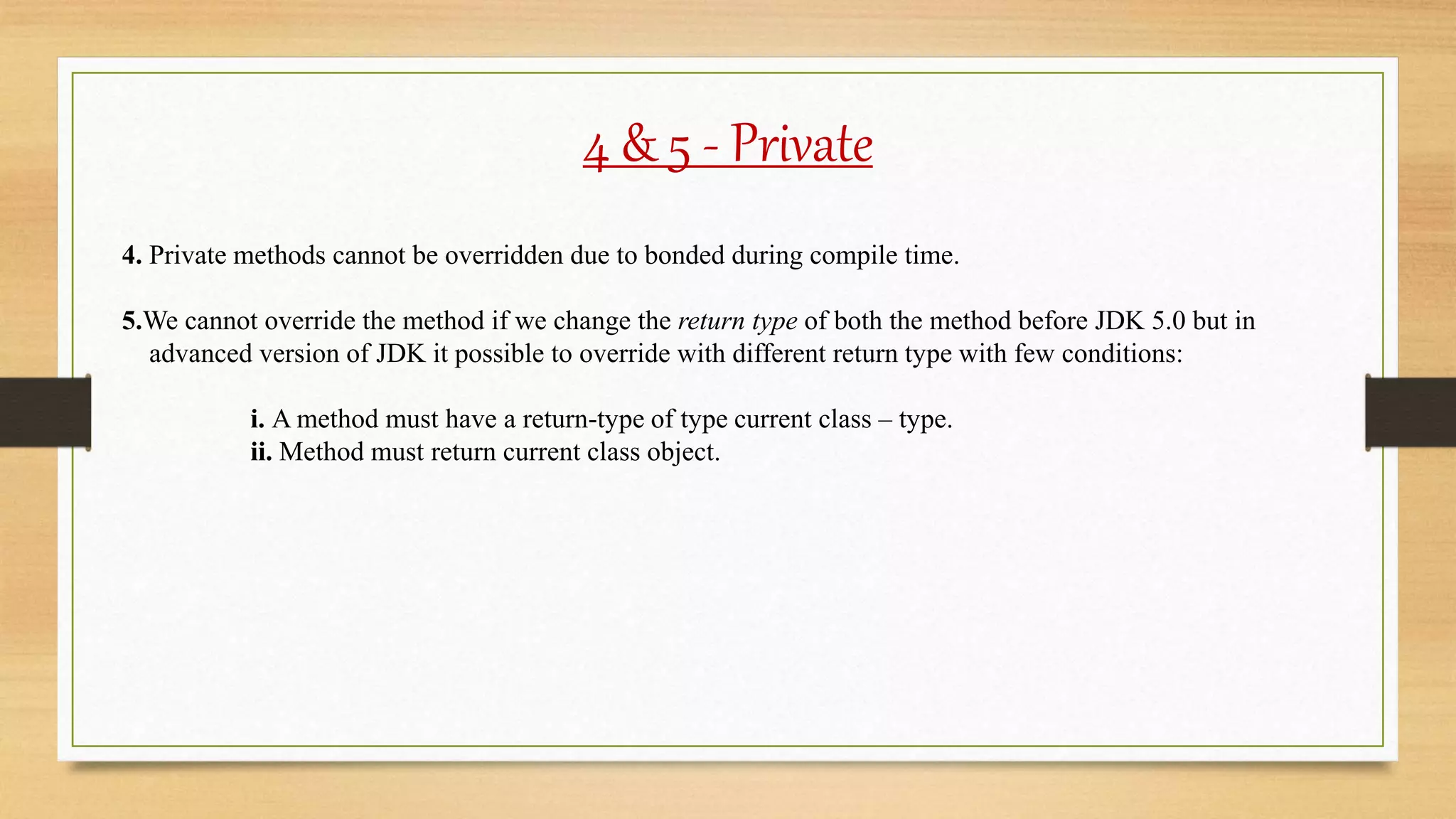

19. 4 & 5 - Private
4. Private methods cannot be overridden due to bonded during compile time.
5.We cannot override the method if we change the return type of both the method before JDK 5.0 but in
advanced version of JDK it possible to override with different return type with few conditions:
i. A method must have a return-type of type current class – type.
ii. Method must return current class object.

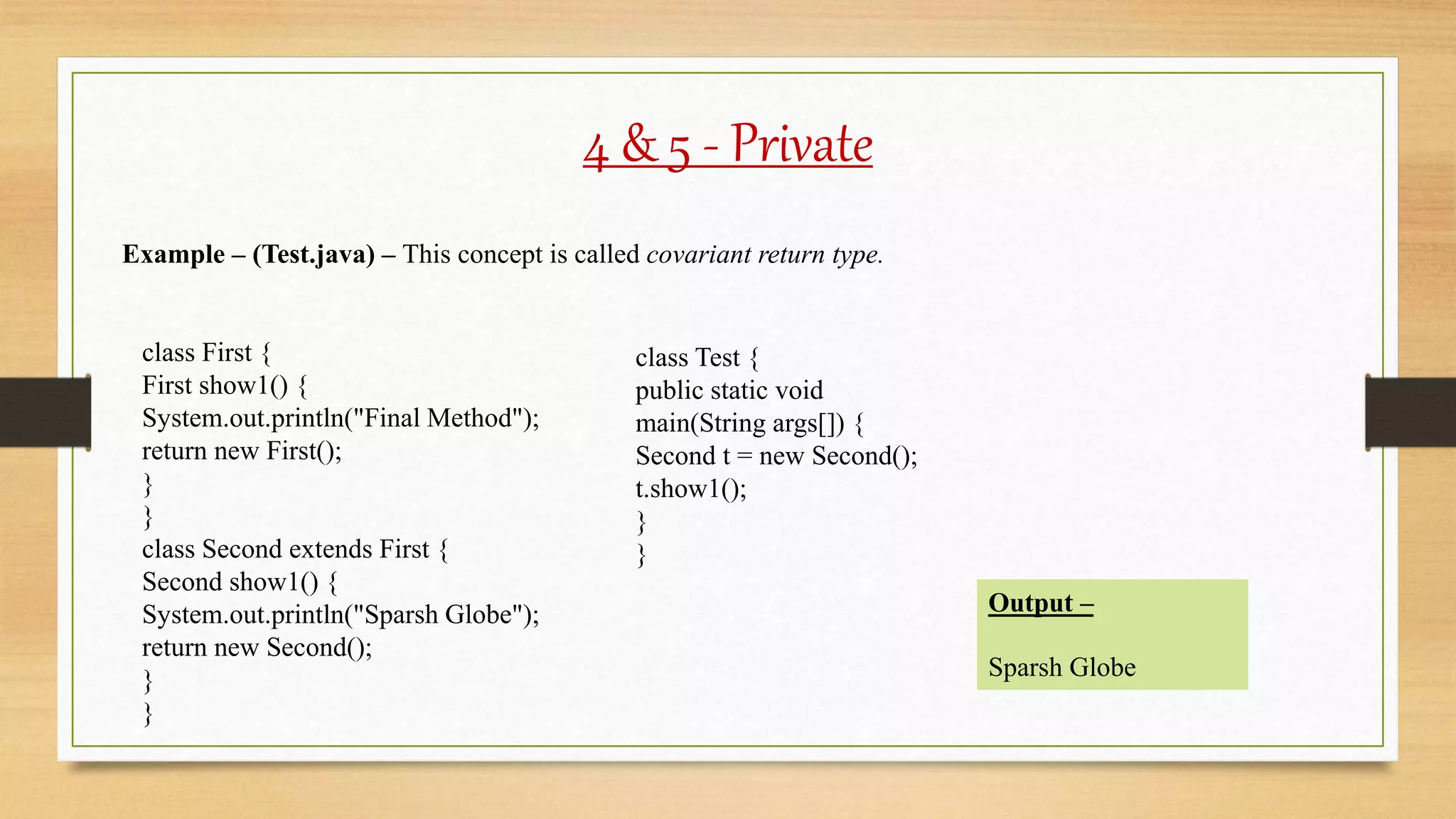

20. 4 & 5 - Private
Example – (Test.java) – This concept is called covariant return type.
class First {
First show1() {
System.out.println("Final Method");
return new First();
}
}
class Second extends First {
Second show1() {
System.out.println("Sparsh Globe");
return new Second();
}
}
class Test {
public static void
main(String args[]) {
Second t = new Second();
t.show1();
}
}
Output –
Sparsh Globe

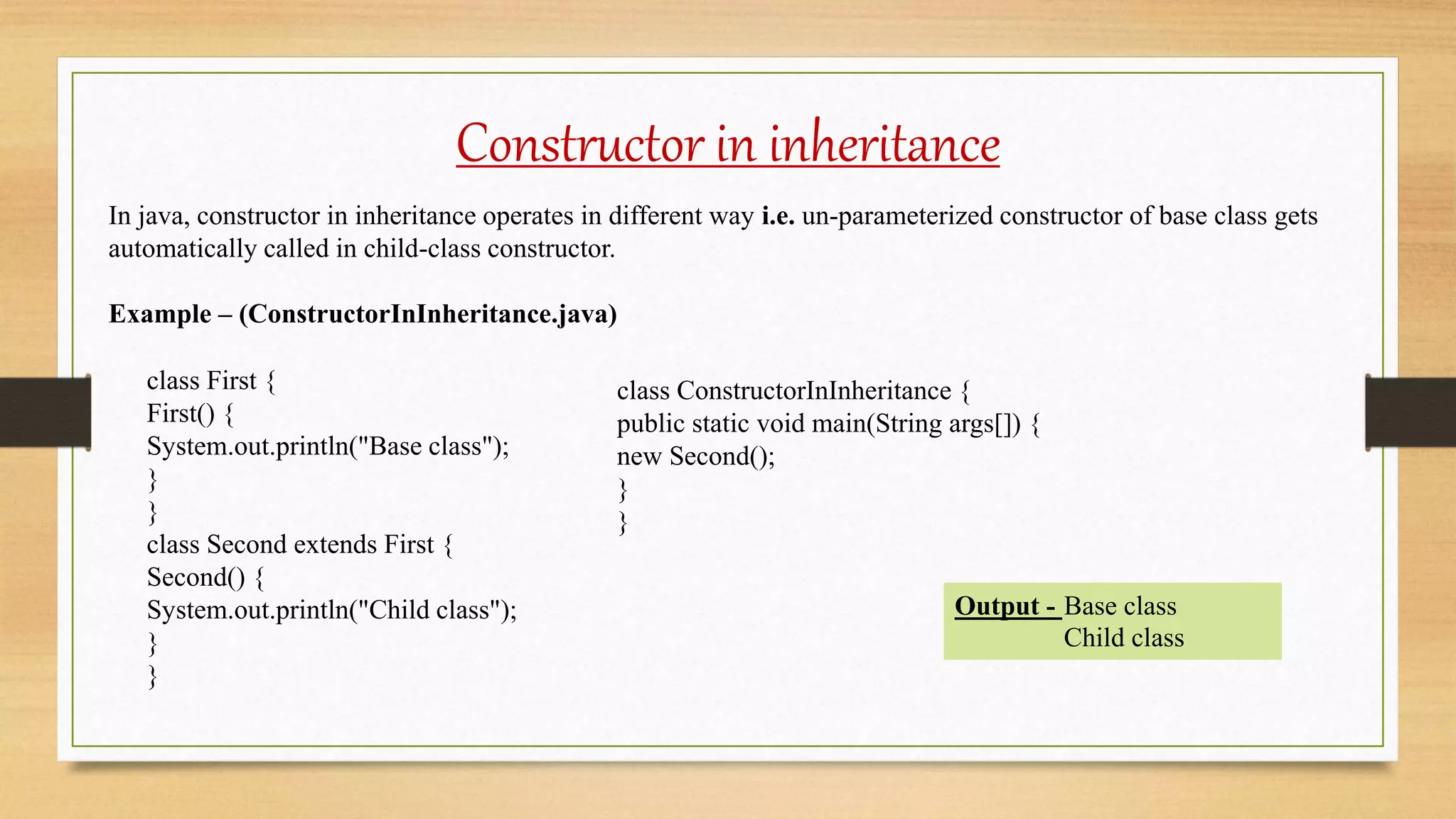

21. Constructor in inheritance
In java, constructor in inheritance operates in different way i.e. un-parameterized constructor of base class gets
automatically called in child-class constructor.
Example – (ConstructorInInheritance.java)
class First {
First() {
System.out.println("Base class");
}
}
class Second extends First {
Second() {
System.out.println("Child class");
}
}
class ConstructorInInheritance {
public static void main(String args[]) {
new Second();
}
}
Output - Base class
Child class

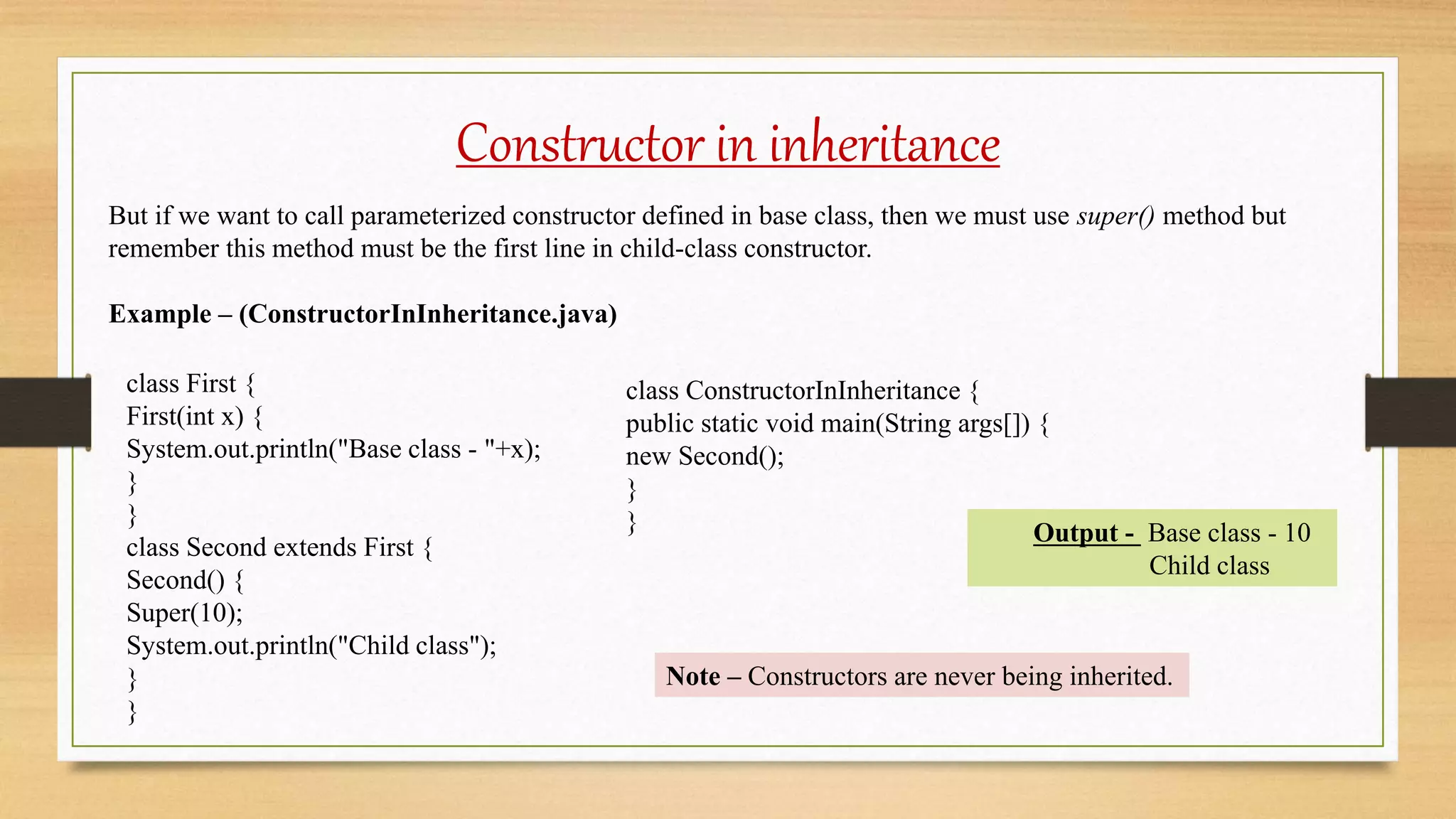

22. Constructor in inheritance
But if we want to call parameterized constructor defined in base class, then we must use super() method but
remember this method must be the first line in child-class constructor.
Example – (ConstructorInInheritance.java)
class First {
First(int x) {
System.out.println("Base class - "+x);
}
}
class Second extends First {
Second() {
Super(10);
System.out.println("Child class");
}
}
class ConstructorInInheritance {
public static void main(String args[]) {
new Second();
}
} Output - Base class - 10
Child class
Note – Constructors are never being inherited.

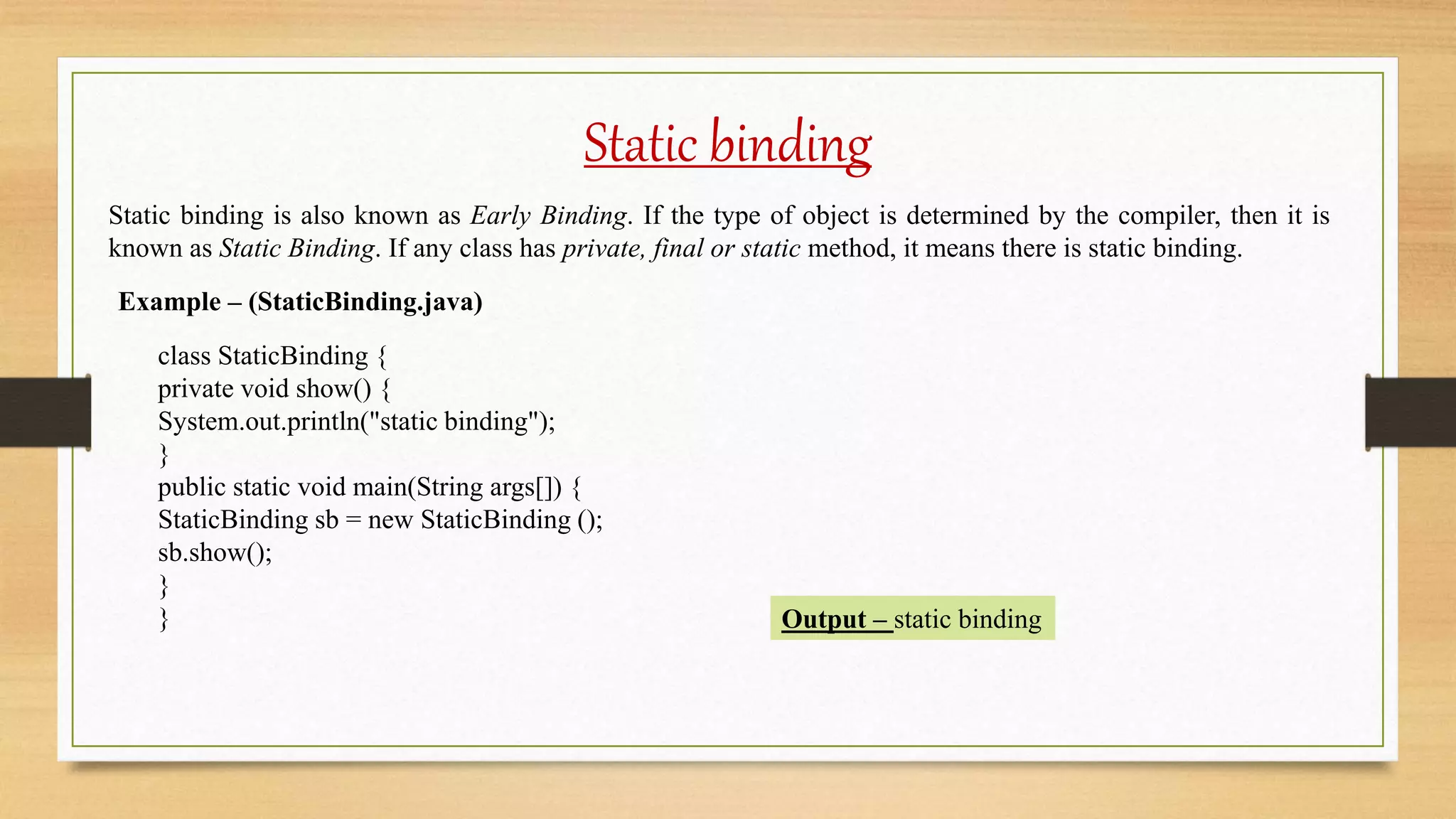

23. Static binding
Static binding is also known as Early Binding. If the type of object is determined by the compiler, then it is
known as Static Binding. If any class has private, final or static method, it means there is static binding.
Example – (StaticBinding.java)
class StaticBinding {
private void show() {
System.out.println("static binding");
}
public static void main(String args[]) {
StaticBinding sb = new StaticBinding ();
sb.show();
}
} Output – static binding

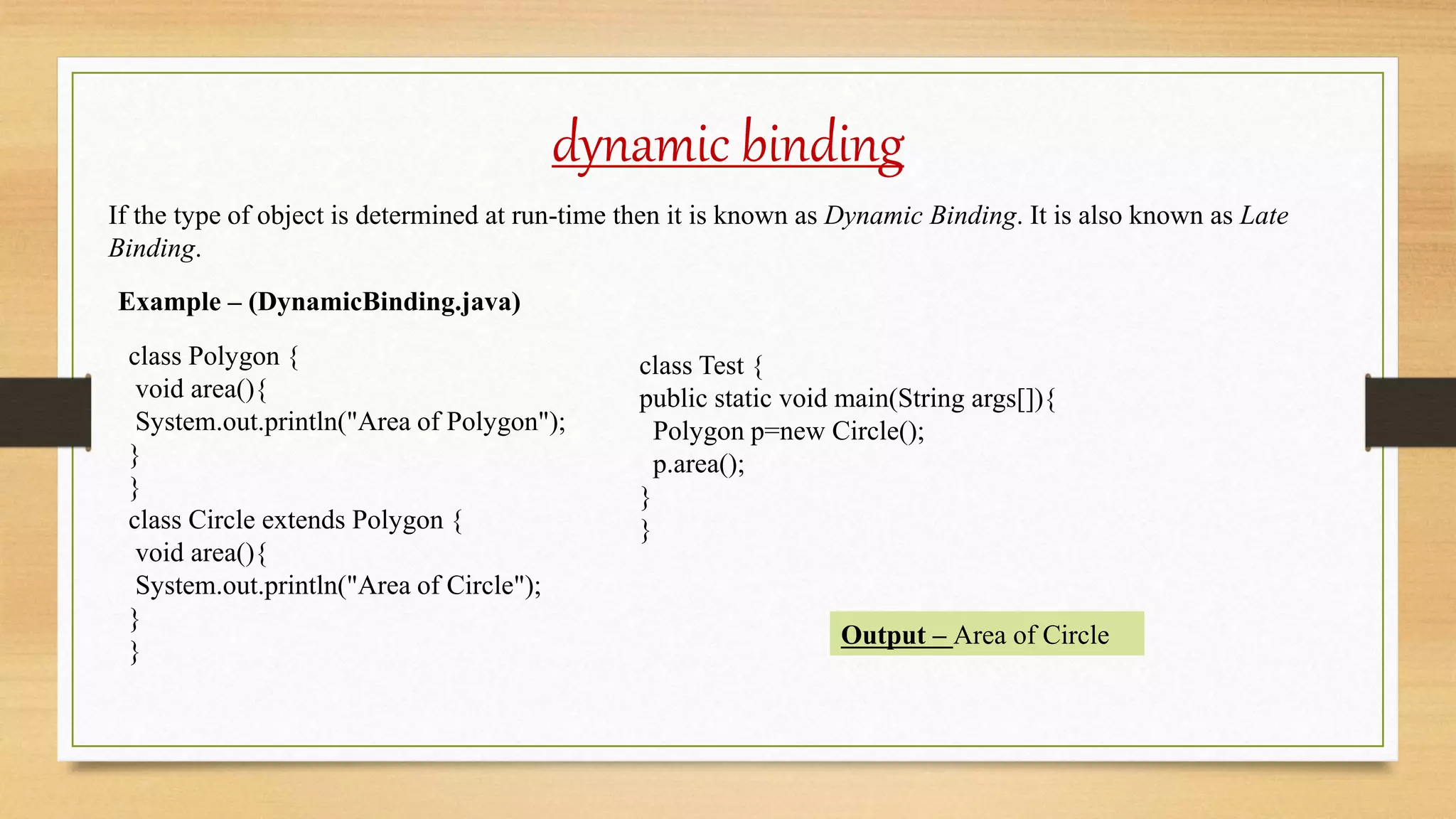

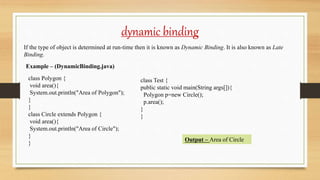

24. dynamic binding
If the type of object is determined at run-time then it is known as Dynamic Binding. It is also known as Late
Binding.
Example – (DynamicBinding.java)
class Polygon {
void area(){
System.out.println("Area of Polygon");
}
}
class Circle extends Polygon {
void area(){
System.out.println("Area of Circle");
}
}
class Test {
public static void main(String args[]){
Polygon p=new Circle();
p.area();
}
}
Output – Area of Circle
