Object Oriented Programming with Java

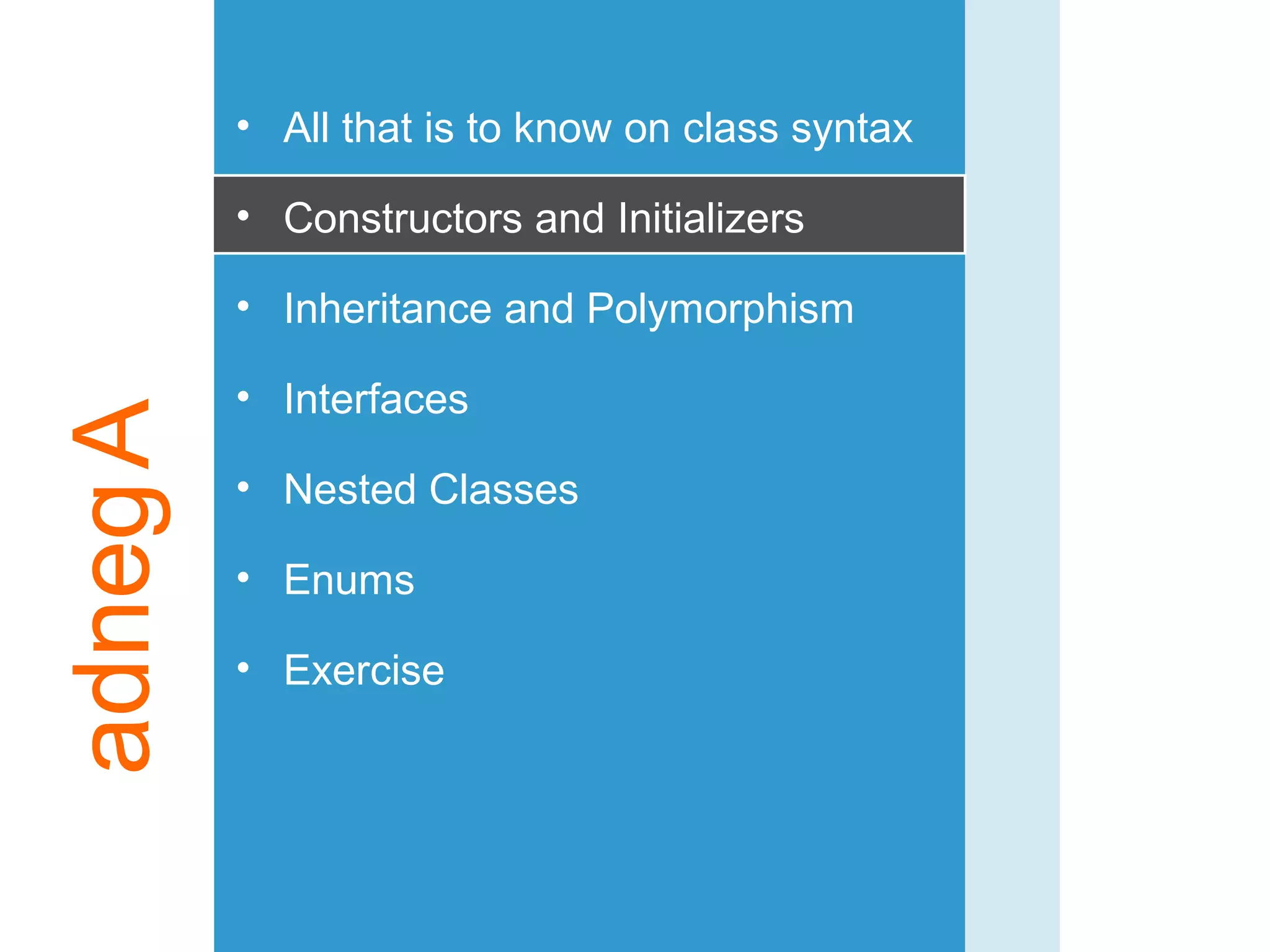

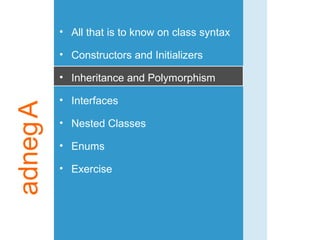

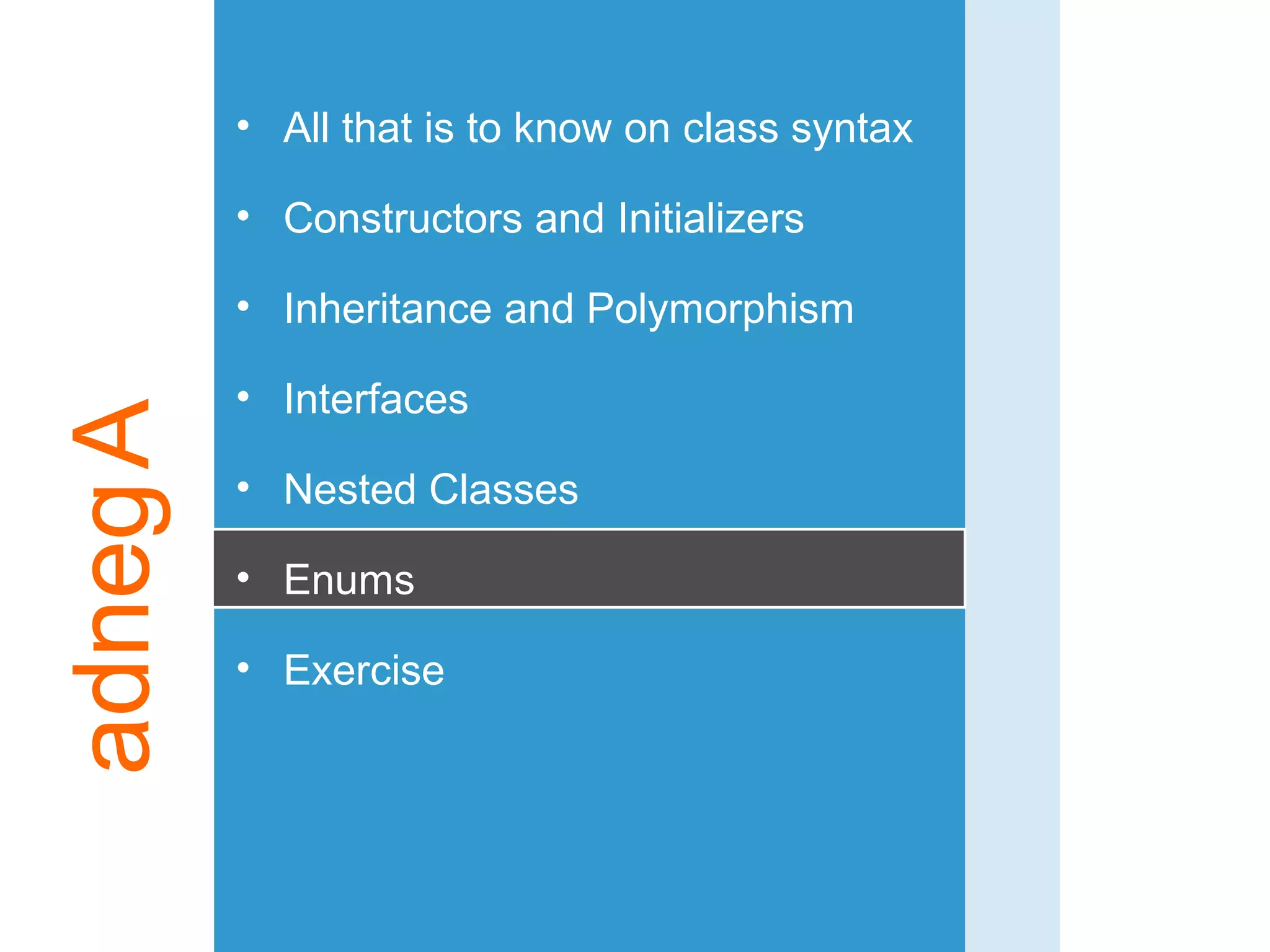

Agenda • All that is to know on class syntax
• Constructors and Initializers
• Inheritance and Polymorphism
• Interfaces
• Nested Classes
• Enums
• Exercise

3

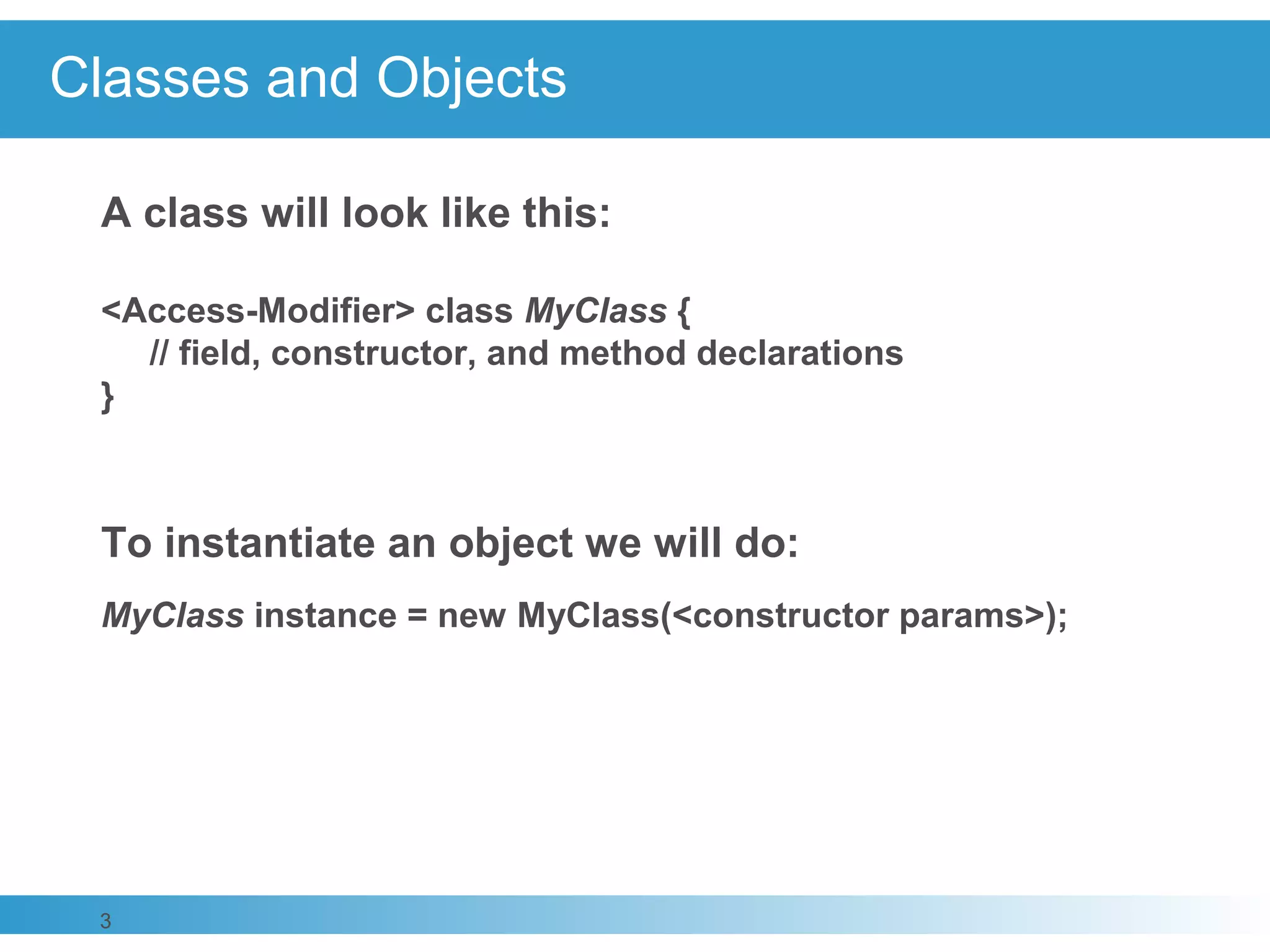

Classes and Objects
A class will look like this:
<Access-Modifier> class MyClass {
// field, constructor, and method declarations
}
To instantiate an object we will do:
MyClass instance = new MyClass(<constructor params>);

4

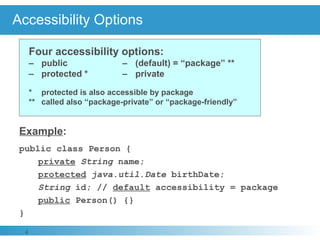

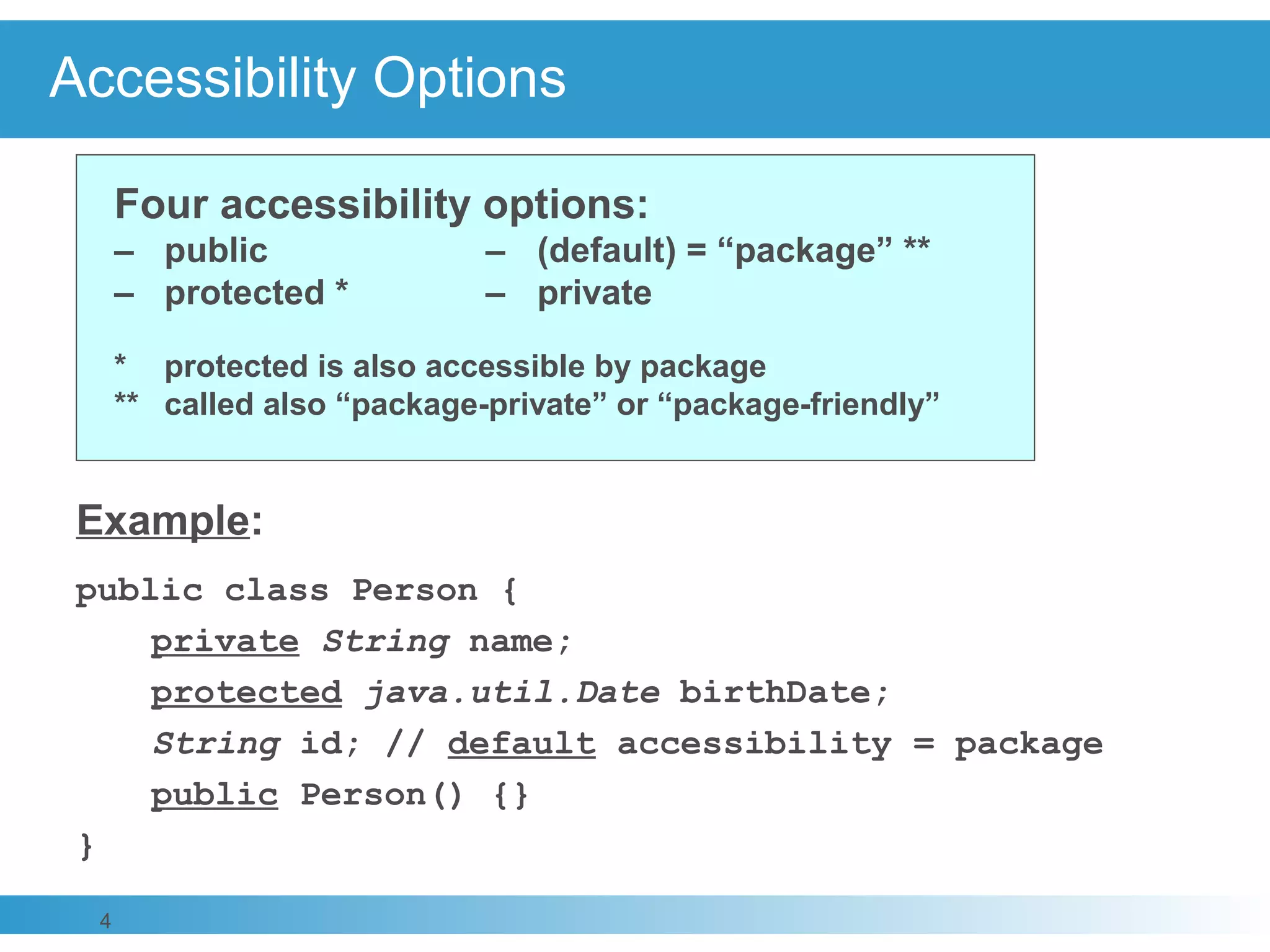

Accessibility Options
Example:
public class Person {
private String name;
protected java.util.Date birthDate;
String id; // default accessibility = package
public Person() {}
}
Four accessibility options:
– public – (default) = “package” **
– protected * – private
* protected is also accessible by package
** called also “package-private” or “package-friendly”

5

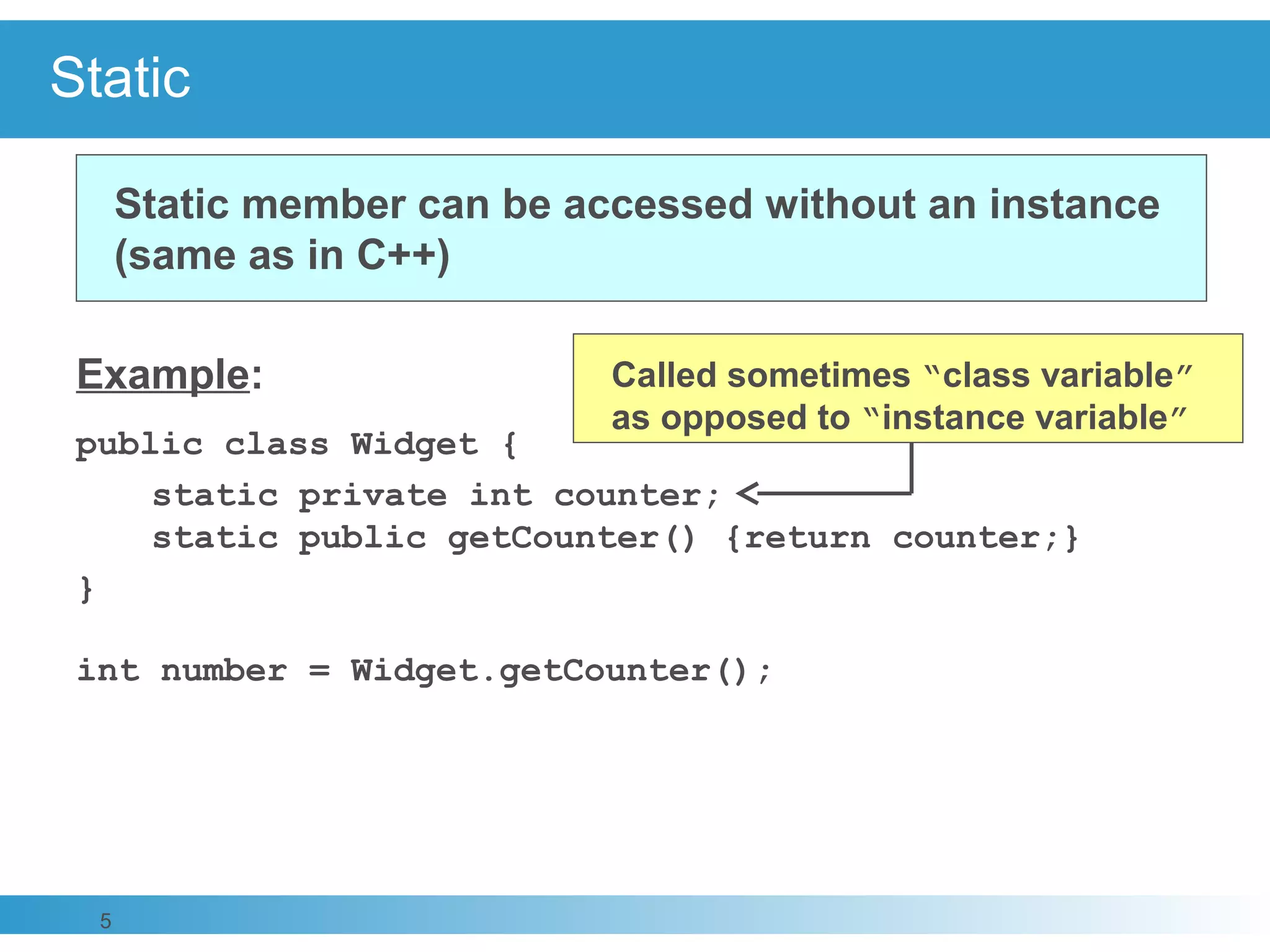

Static
Example:
public class Widget {
static private int counter;
static public getCounter() {return counter;}
}
int number = Widget.getCounter();
Static member can be accessed without an instance
(same as in C++)
Called sometimes “class variable”
as opposed to “instance variable”

6

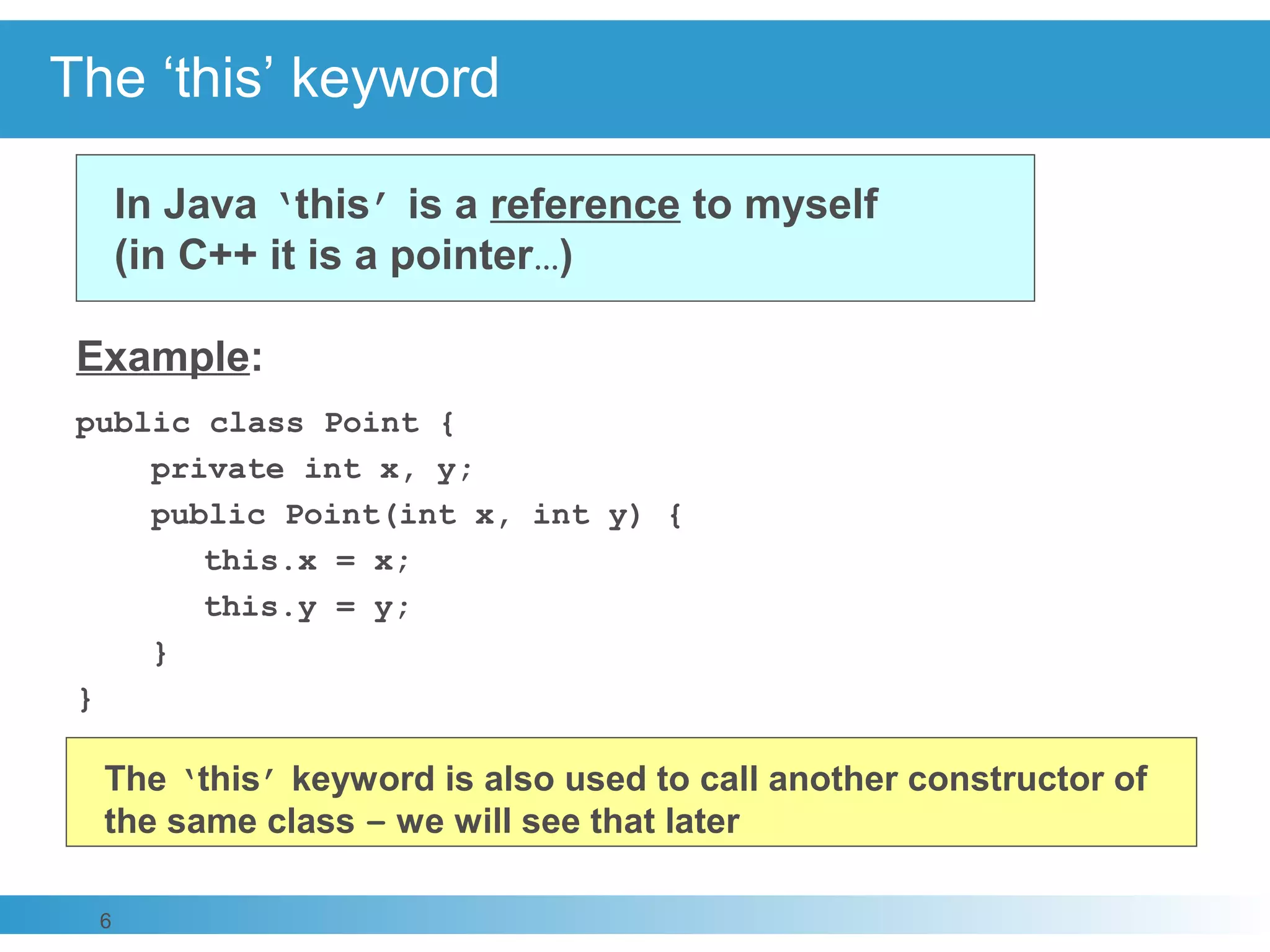

The ‘this’ keyword
Example:
public class Point {
private int x, y;
public Point(int x, int y) {
this.x = x;
this.y = y;
}
}
In Java ‘this’ is a reference to myself
(in C++ it is a pointer…)
The ‘this’ keyword is also used to call another constructor of
the same class – we will see that later

7

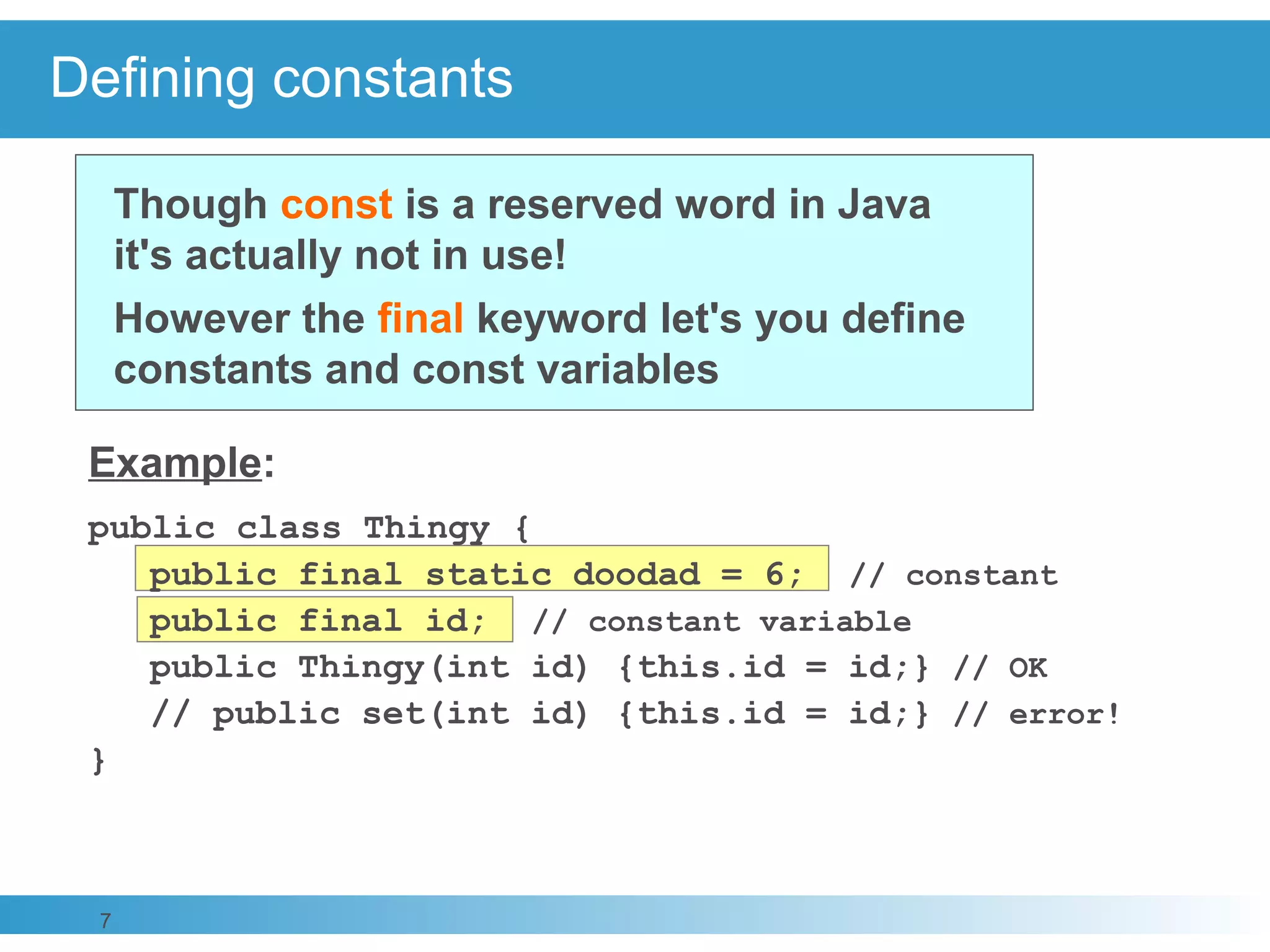

Defining constants
Example:
public class Thingy {
public final static doodad = 6; // constant
public final id; // constant variable
public Thingy(int id) {this.id = id;} // OK
// public set(int id) {this.id = id;} // error!
}
Though const is a reserved word in Java
it's actually not in use!
However the final keyword let's you define
constants and const variables

9

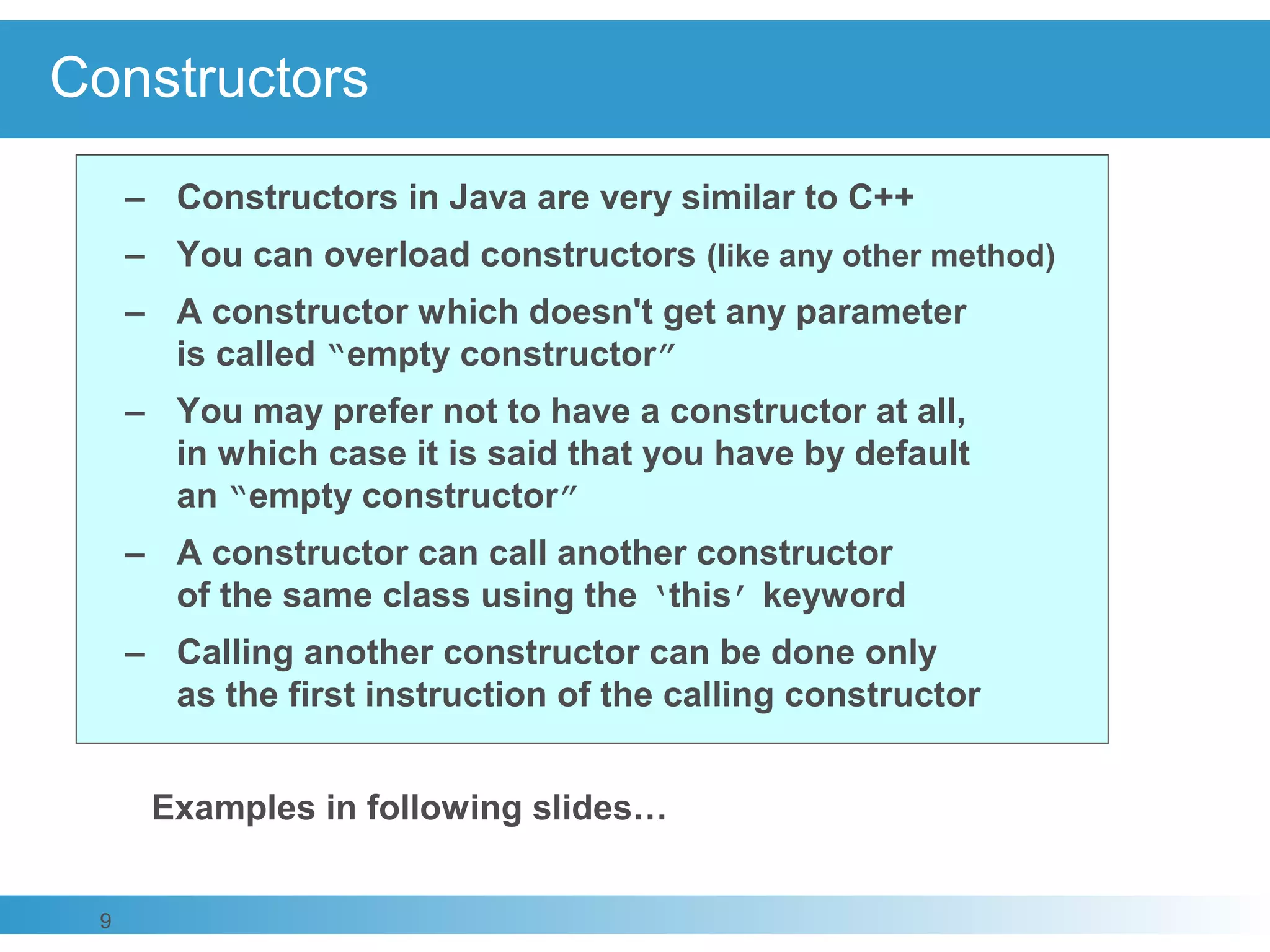

Constructors
Examples in following slides…
– Constructors in Java are very similar to C++
– You can overload constructors (like any other method)
– A constructor which doesn't get any parameter
is called “empty constructor”
– You may prefer not to have a constructor at all,
in which case it is said that you have by default
an “empty constructor”
– A constructor can call another constructor
of the same class using the ‘this’ keyword
– Calling another constructor can be done only
as the first instruction of the calling constructor

10

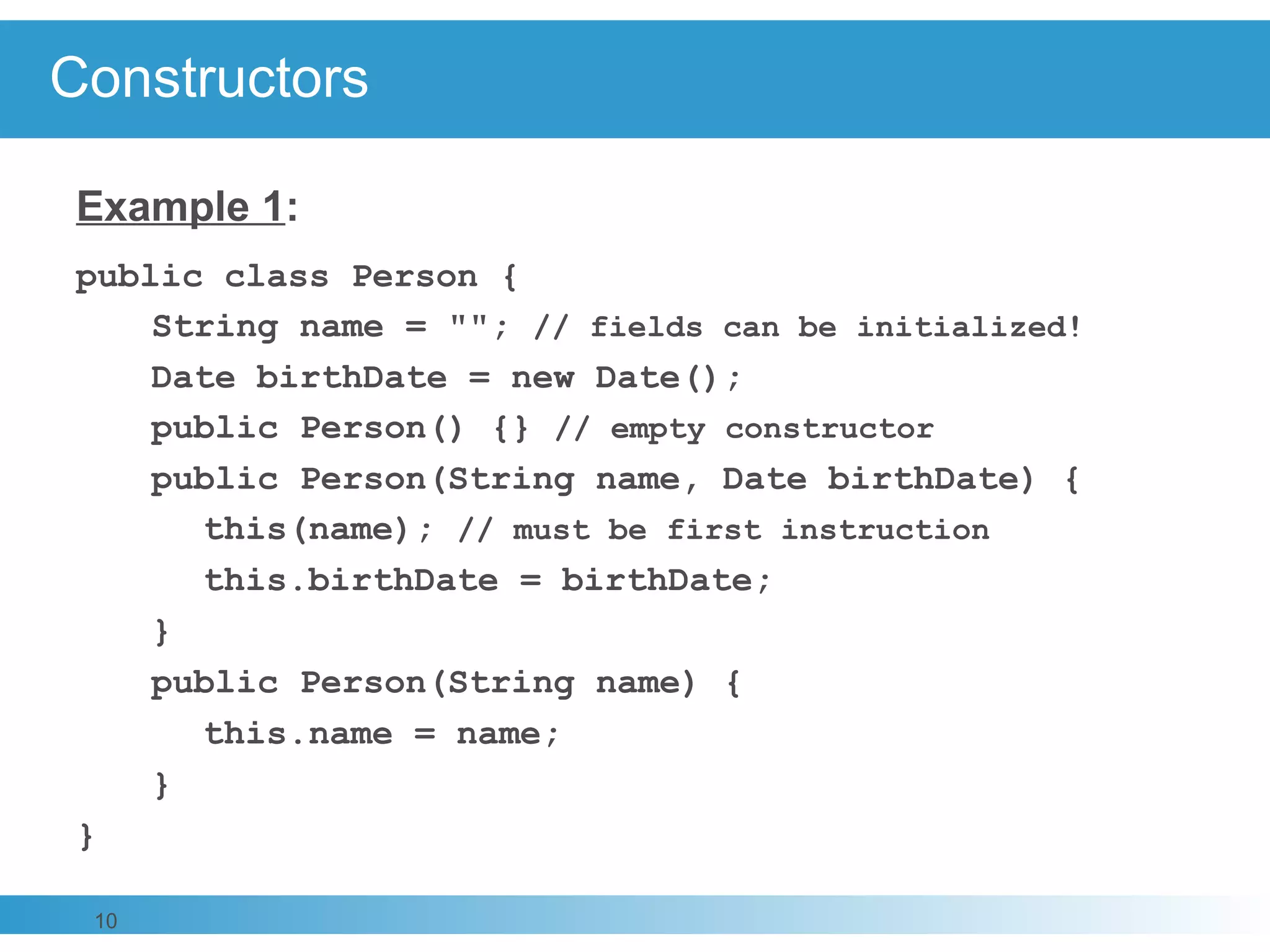

Constructors
Example 1:
String name = ""; // fields can be initialized!
Date birthDate = new Date();
public Person() {} // empty constructor
public Person(String name, Date birthDate) {
this(name); // must be first instruction
this.birthDate = birthDate;
}
public Person(String name) {
this.name = name;
}
}

11

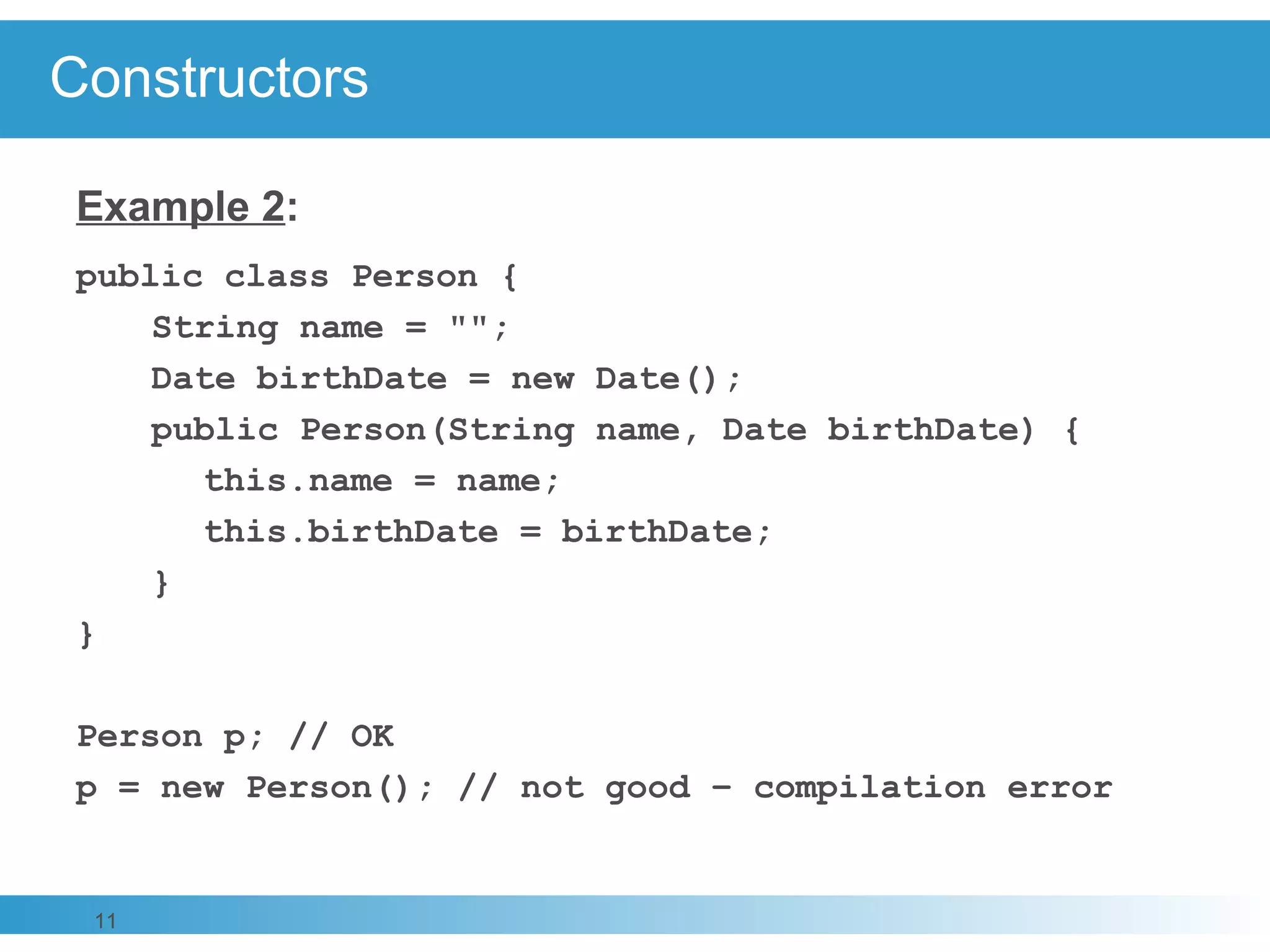

Constructors
Example 2:
String name = "";
Date birthDate = new Date();
public Person(String name, Date birthDate) {
this.name = name;
this.birthDate = birthDate;
}
}
Person p; // OK
p = new Person(); // not good – compilation error

12

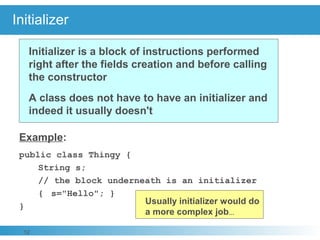

Initializer
Initializer is a block of instructions performed
right after the fields creation and before calling
the constructor
A class does not have to have an initializer and
indeed it usually doesn't
Example:
String s;
// the block underneath is an initializer
{ s="Hello"; }
}
Usually initializer would do
a more complex job…

13

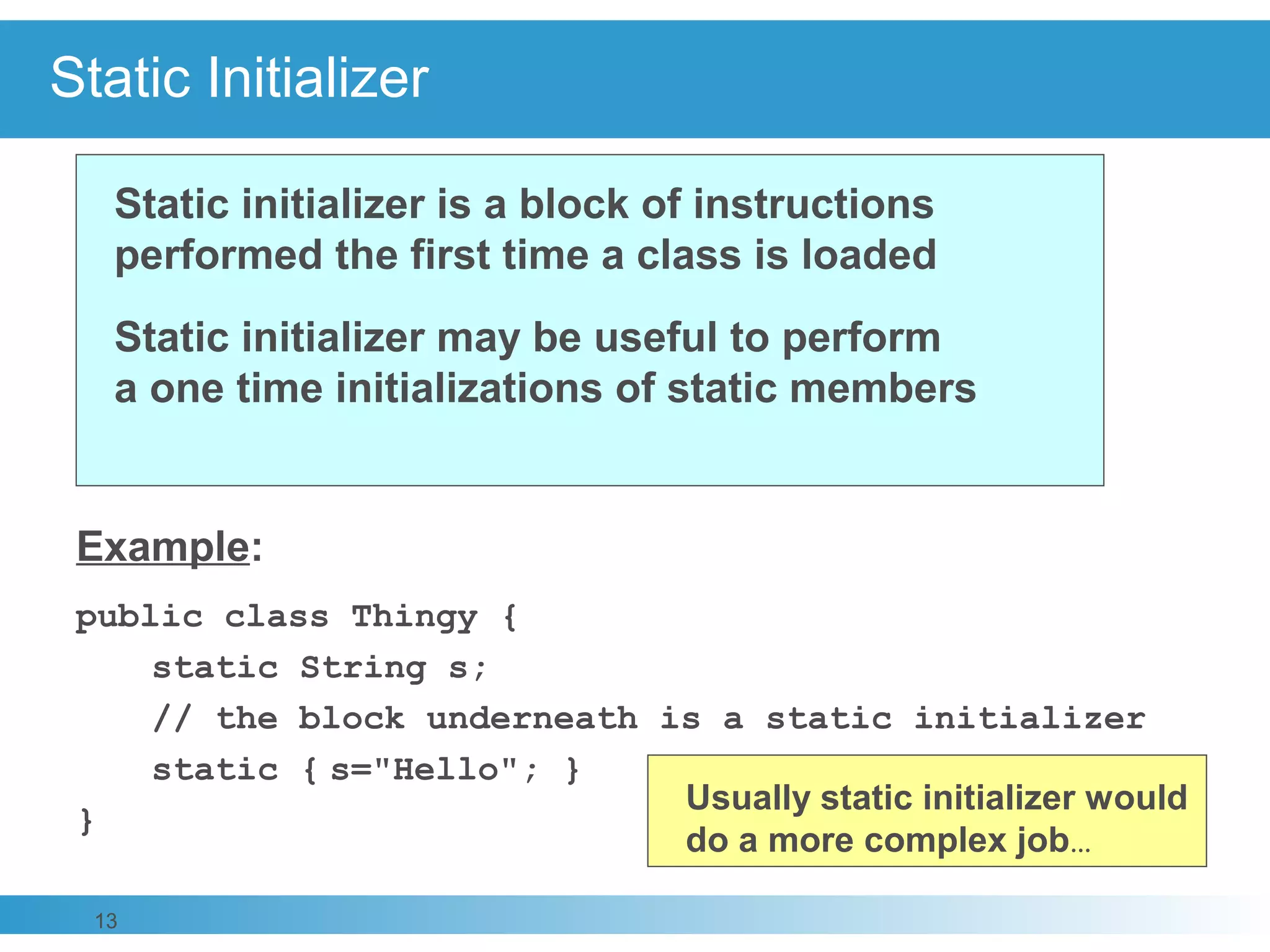

Static Initializer
Static initializer is a block of instructions
performed the first time a class is loaded
Static initializer may be useful to perform
a one time initializations of static members
Example:
static String s;
// the block underneath is a static initializer
static { s="Hello"; }
}
Usually static initializer would
do a more complex job…

15

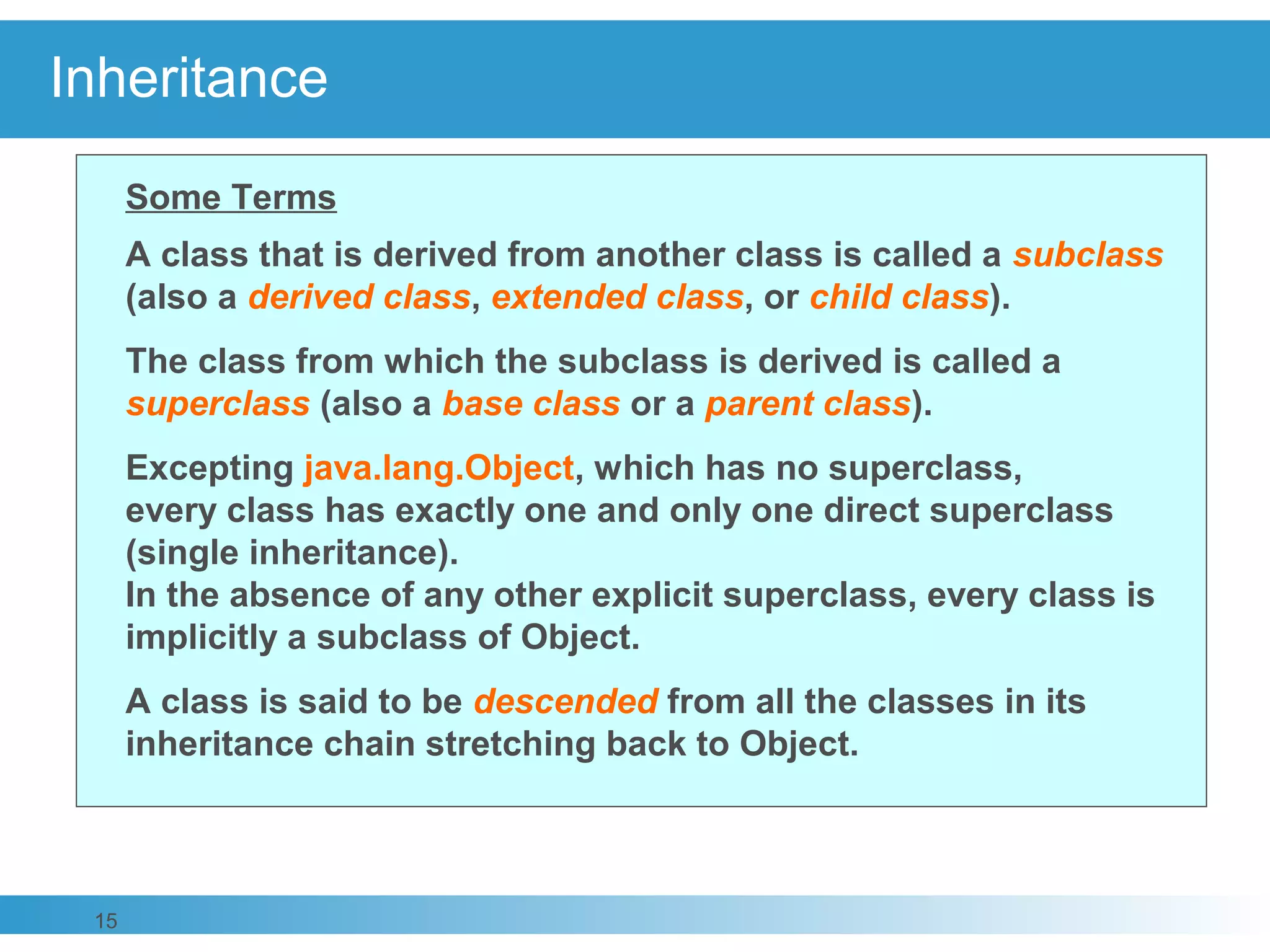

Inheritance
Some Terms
A class that is derived from another class is called a subclass
(also a derived class, extended class, or child class).
The class from which the subclass is derived is called a
superclass (also a base class or a parent class).
Excepting java.lang.Object, which has no superclass,
every class has exactly one and only one direct superclass
(single inheritance).
In the absence of any other explicit superclass, every class is
implicitly a subclass of Object.
A class is said to be descended from all the classes in its
inheritance chain stretching back to Object.

16

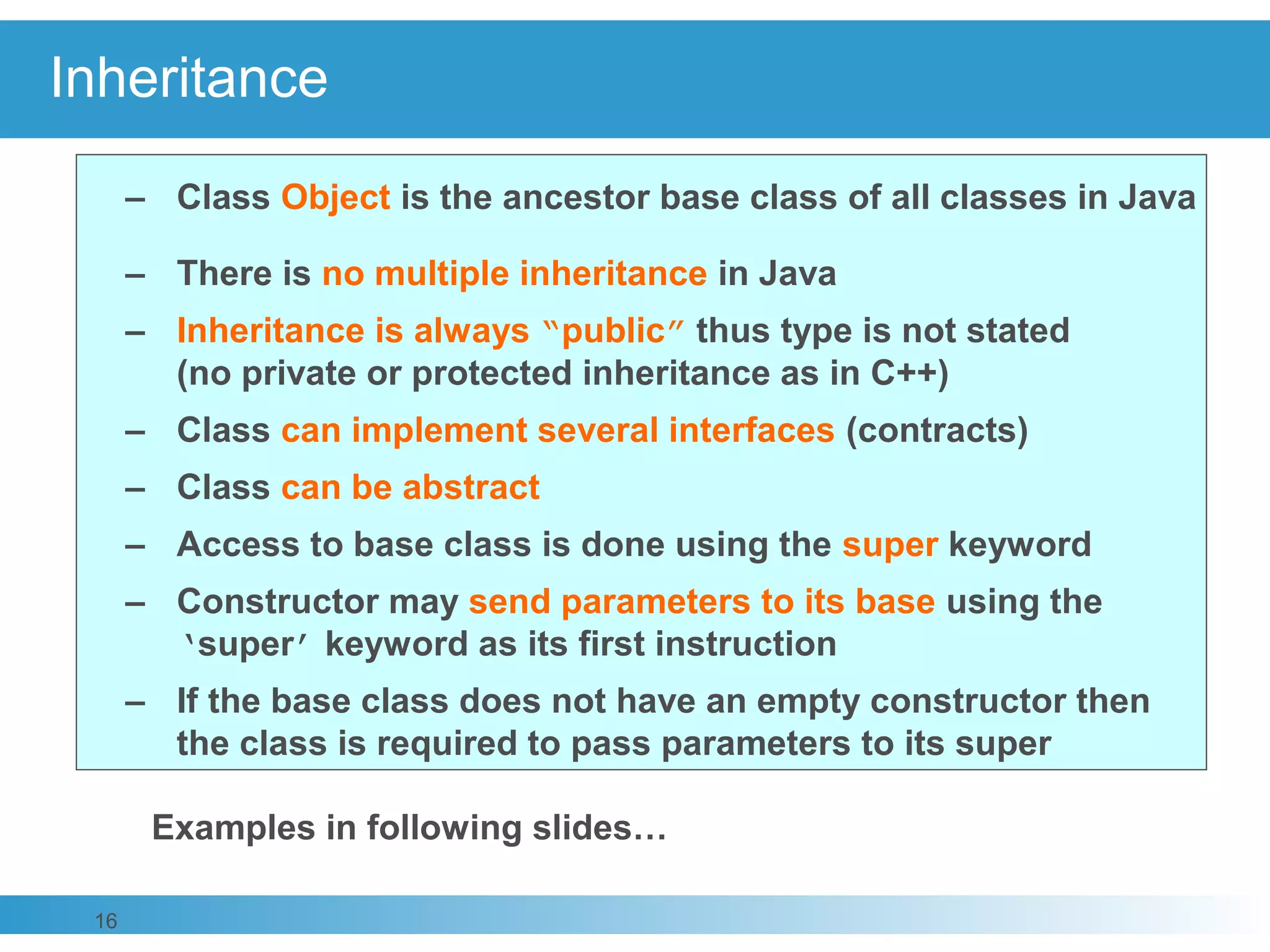

Inheritance
– Class Object is the ancestor base class of all classes in Java
– There is no multiple inheritance in Java
– Inheritance is always “public” thus type is not stated
(no private or protected inheritance as in C++)
– Class can implement several interfaces (contracts)
– Class can be abstract
– Access to base class is done using the super keyword
– Constructor may send parameters to its base using the
‘super’ keyword as its first instruction
– If the base class does not have an empty constructor then
the class is required to pass parameters to its super

17
Inheritance
Example 1:
private String name;
public Person(String name) {
this.name = name;
}
// Override toString in class Object
public String toString() {
return name;
}
}

18

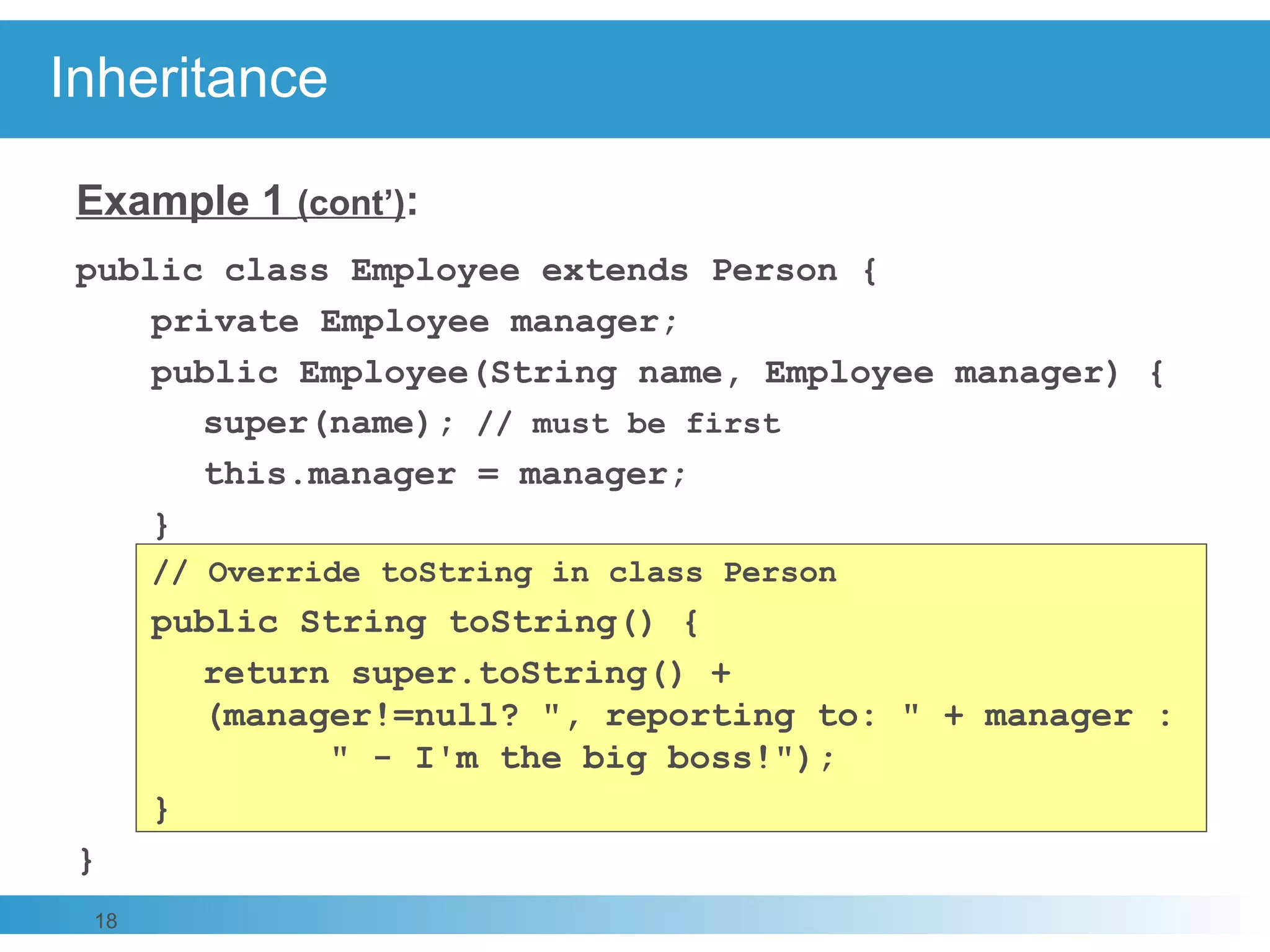

Inheritance
Example 1 (cont’):
public class Employee extends Person {
private Employee manager;
public Employee(String name, Employee manager) {
super(name); // must be first
this.manager = manager;
}
// Override toString in class Person
public String toString() {
return super.toString() +
(manager!=null? ", reporting to: " + manager :
" - I'm the big boss!");
}
}

19

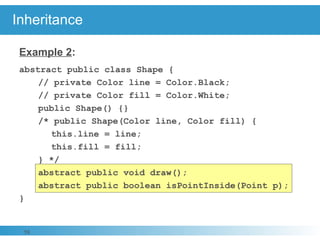

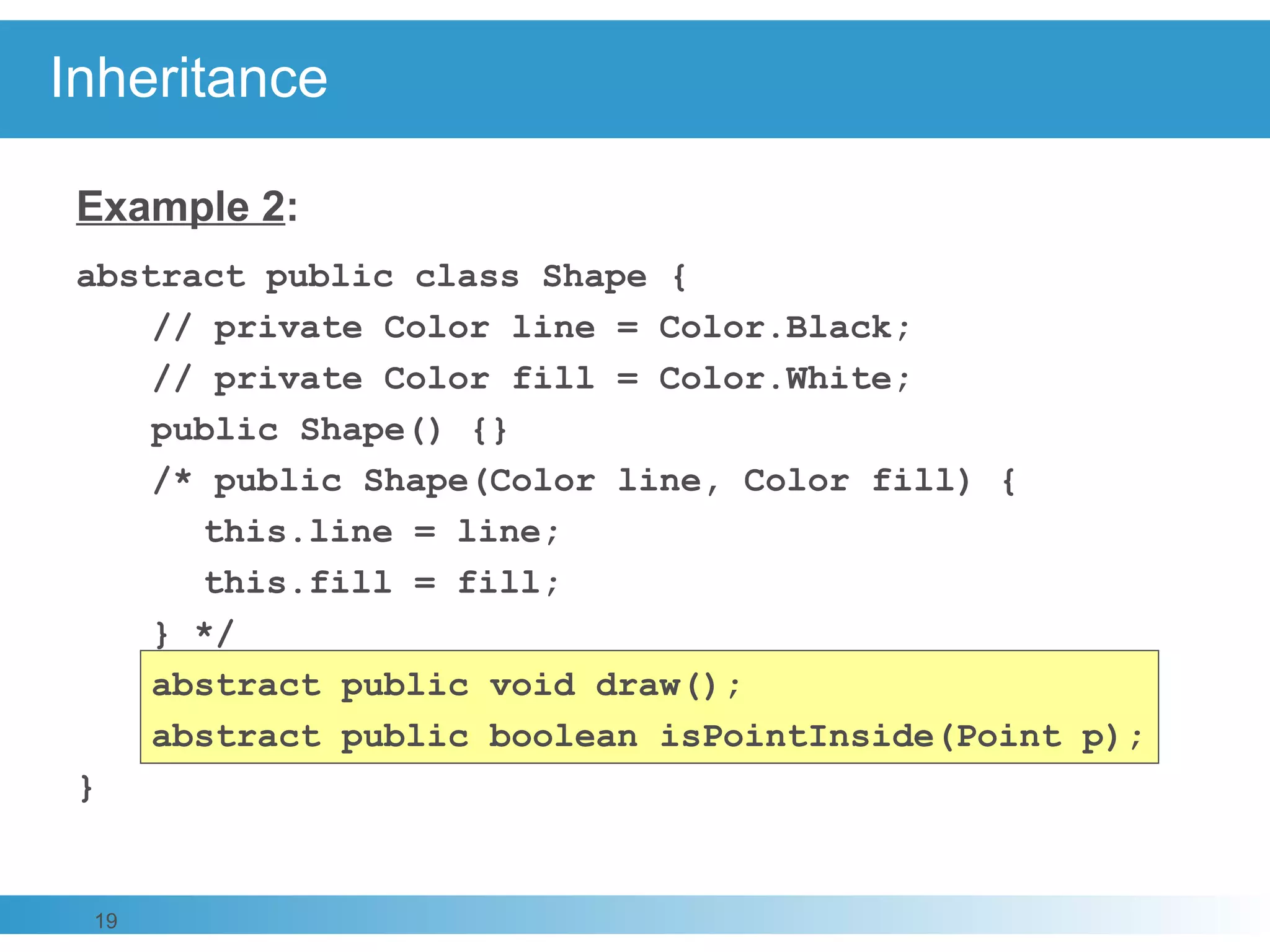

Inheritance
Example 2:
abstract public class Shape {
// private Color line = Color.Black;
// private Color fill = Color.White;
public Shape() {}
/* public Shape(Color line, Color fill) {
this.line = line;
this.fill = fill;
} */
abstract public void draw();
abstract public boolean isPointInside(Point p);
}

20

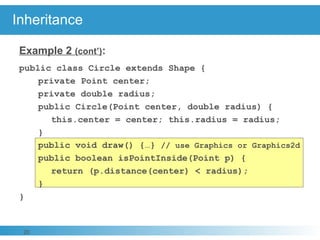

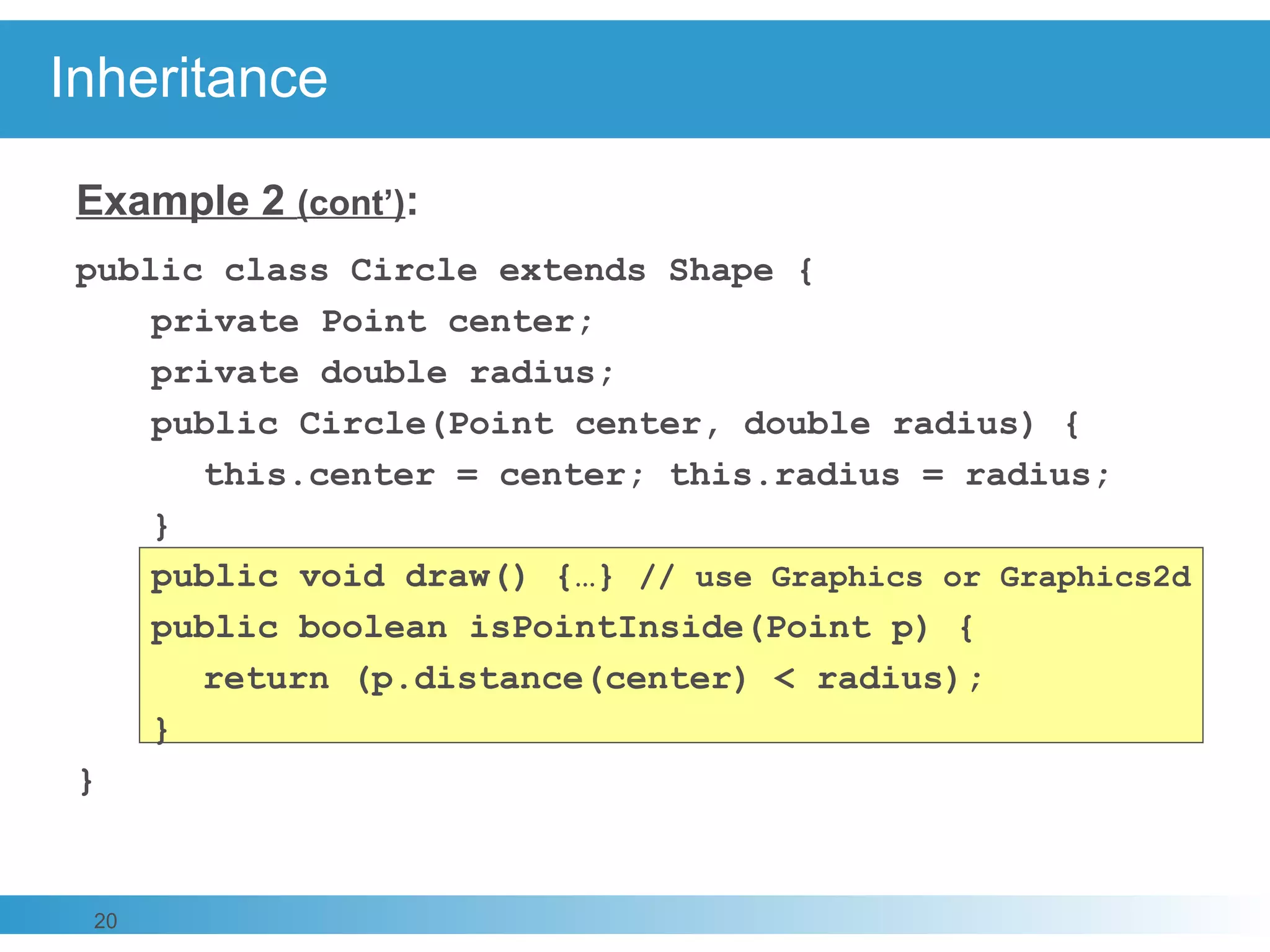

Inheritance
public class Circle extends Shape {
private Point center;
private double radius;
public Circle(Point center, double radius) {
this.center = center; this.radius = radius;
}
public void draw() {…} // use Graphics or Graphics2d
public boolean isPointInside(Point p) {
return (p.distance(center) < radius);
}
}

21
Inheritance

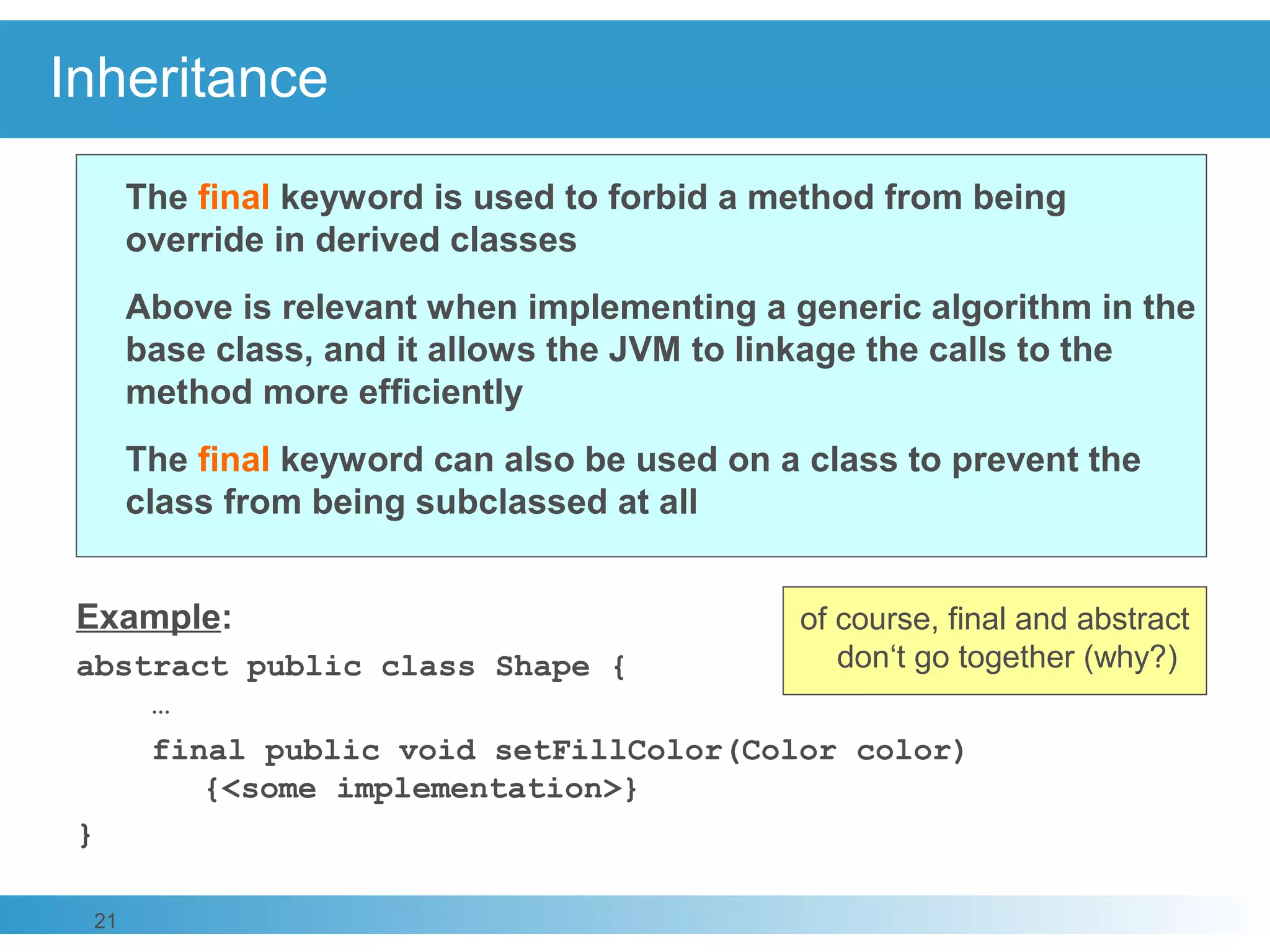

Example:
abstract public class Shape {
…
final public void setFillColor(Color color)
{<some implementation>}
}
The final keyword is used to forbid a method from being
override in derived classes
Above is relevant when implementing a generic algorithm in the
base class, and it allows the JVM to linkage the calls to the
method more efficiently
The final keyword can also be used on a class to prevent the
class from being subclassed at all
of course, final and abstract
don‘t go together (why?)

23

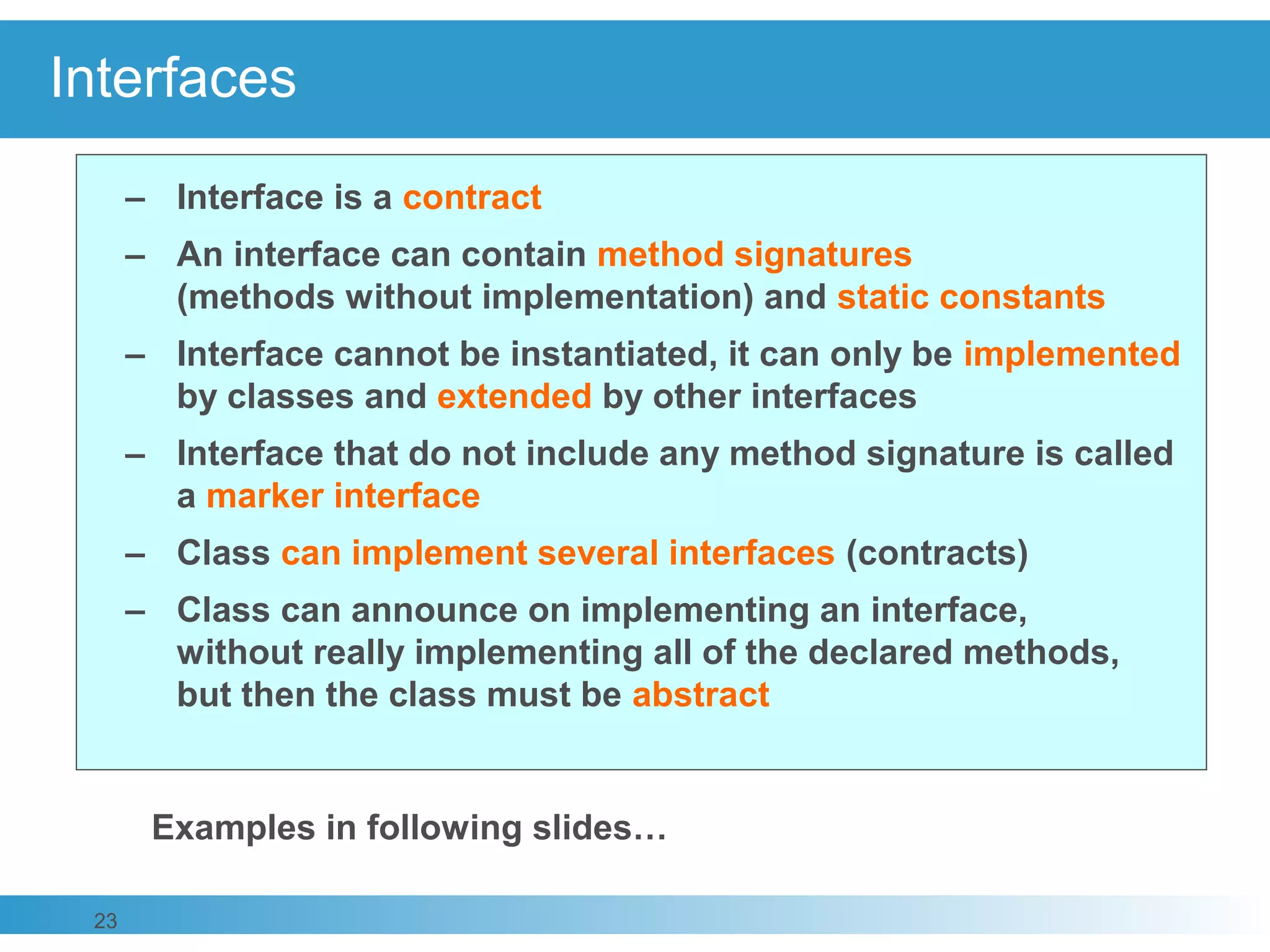

Interfaces
– Interface is a contract
– An interface can contain method signatures
(methods without implementation) and static constants
– Interface cannot be instantiated, it can only be implemented
by classes and extended by other interfaces
– Interface that do not include any method signature is called
a marker interface
– Class can implement several interfaces (contracts)
– Class can announce on implementing an interface,
without really implementing all of the declared methods,
but then the class must be abstract

24
Interfaces

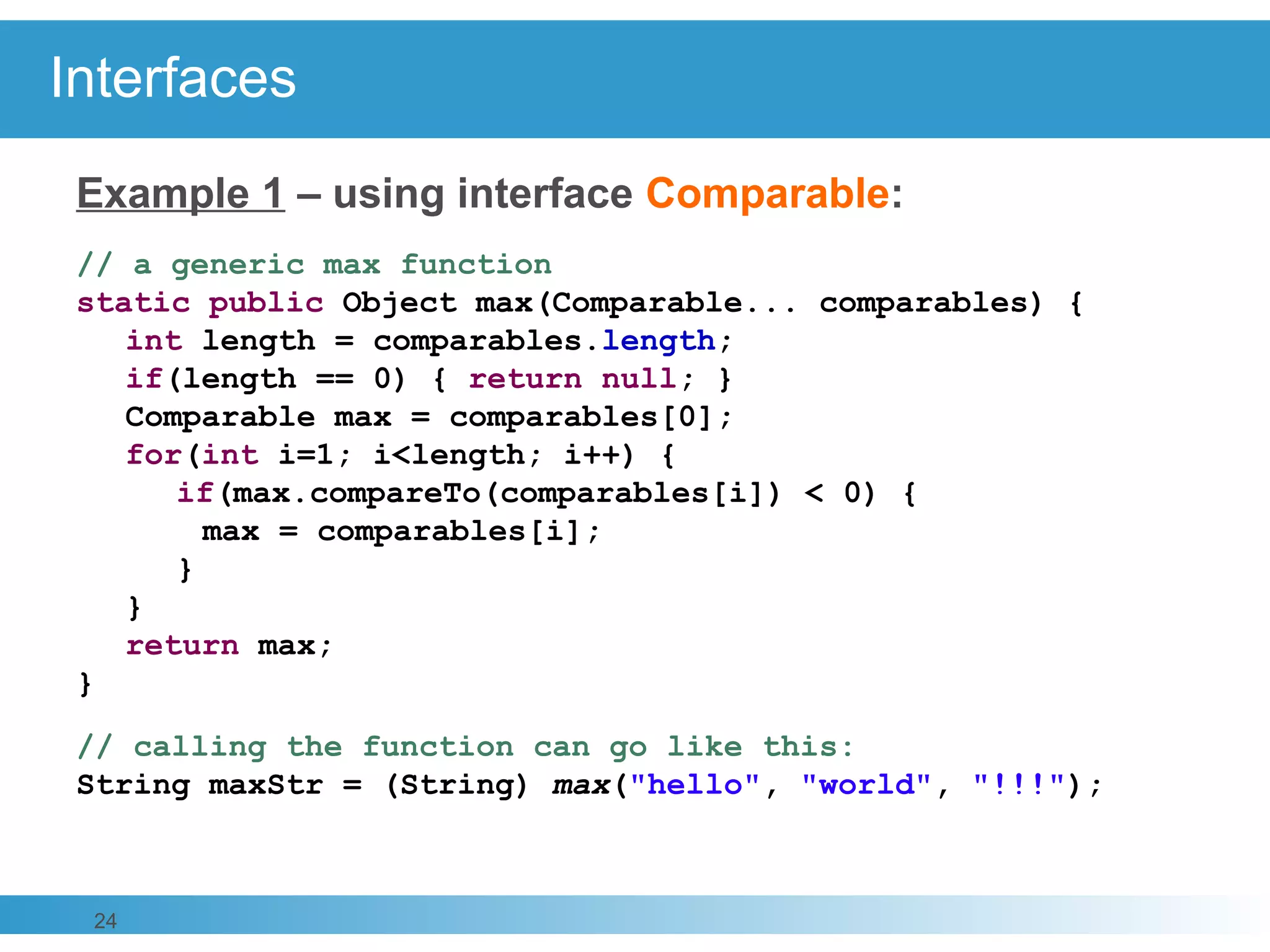

Example 1 – using interface Comparable:
// a generic max function
static public Object max(Comparable... comparables) {
int length = comparables.length;
if(length == 0) { return null; }
Comparable max = comparables[0];
for(int i=1; i<length; i++) {
if(max.compareTo(comparables[i]) < 0) {
max = comparables[i];
}
}
return max;
}
// calling the function can go like this:
String maxStr = (String) max("hello", "world", "!!!");

25

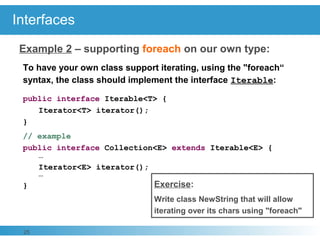

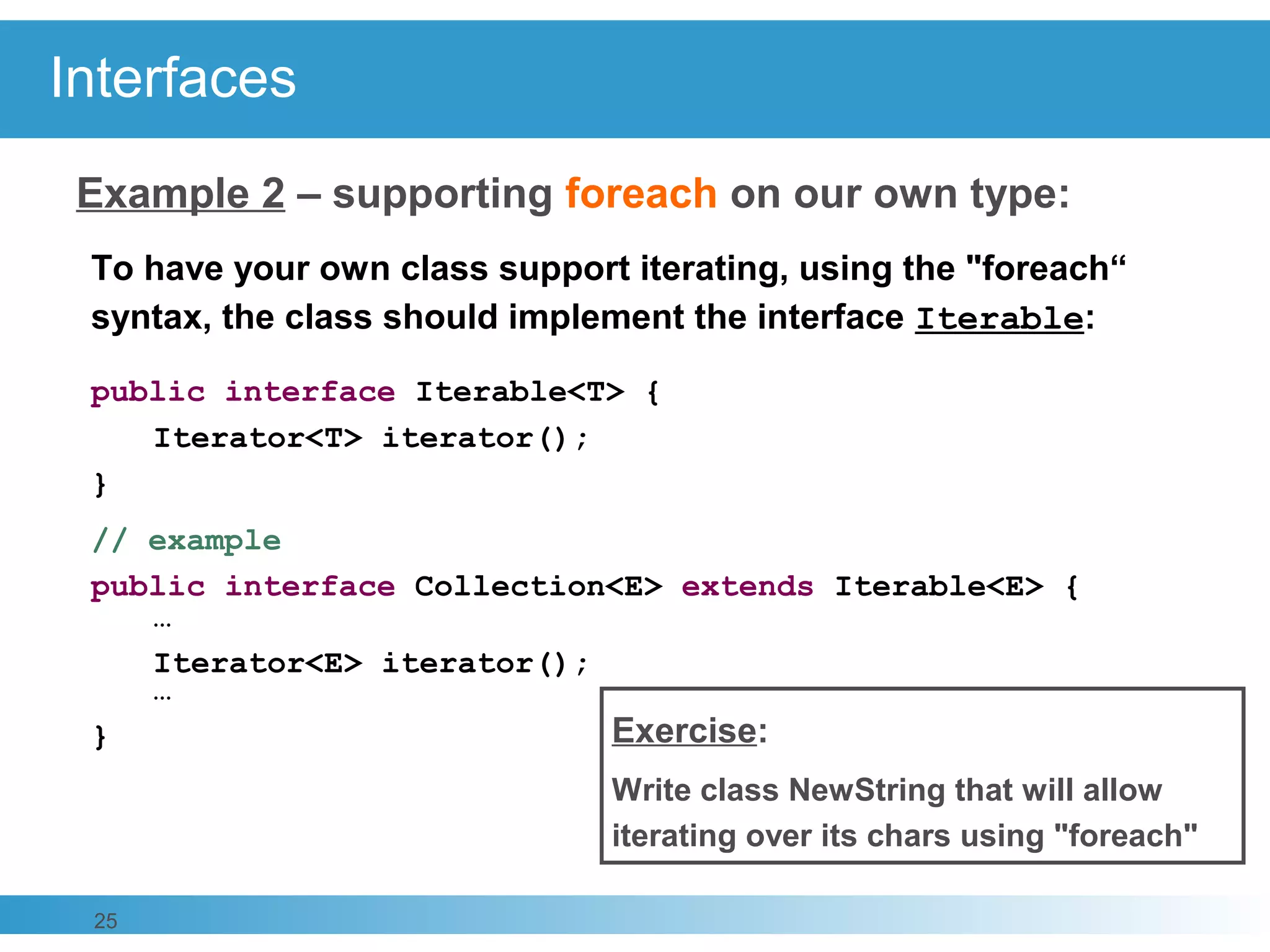

Interfaces
Example 2 – supporting foreach on our own type:
public interface Iterable<T> {
Iterator<T> iterator();
}
// example
public interface Collection<E> extends Iterable<E> {
…
Iterator<E> iterator();
…
} Exercise:
Write class NewString that will allow
iterating over its chars using "foreach"
To have your own class support iterating, using the "foreach“
syntax, the class should implement the interface Iterable:

26

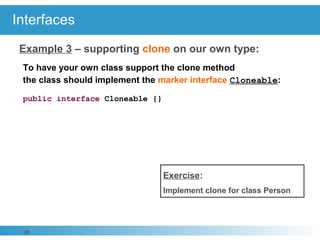

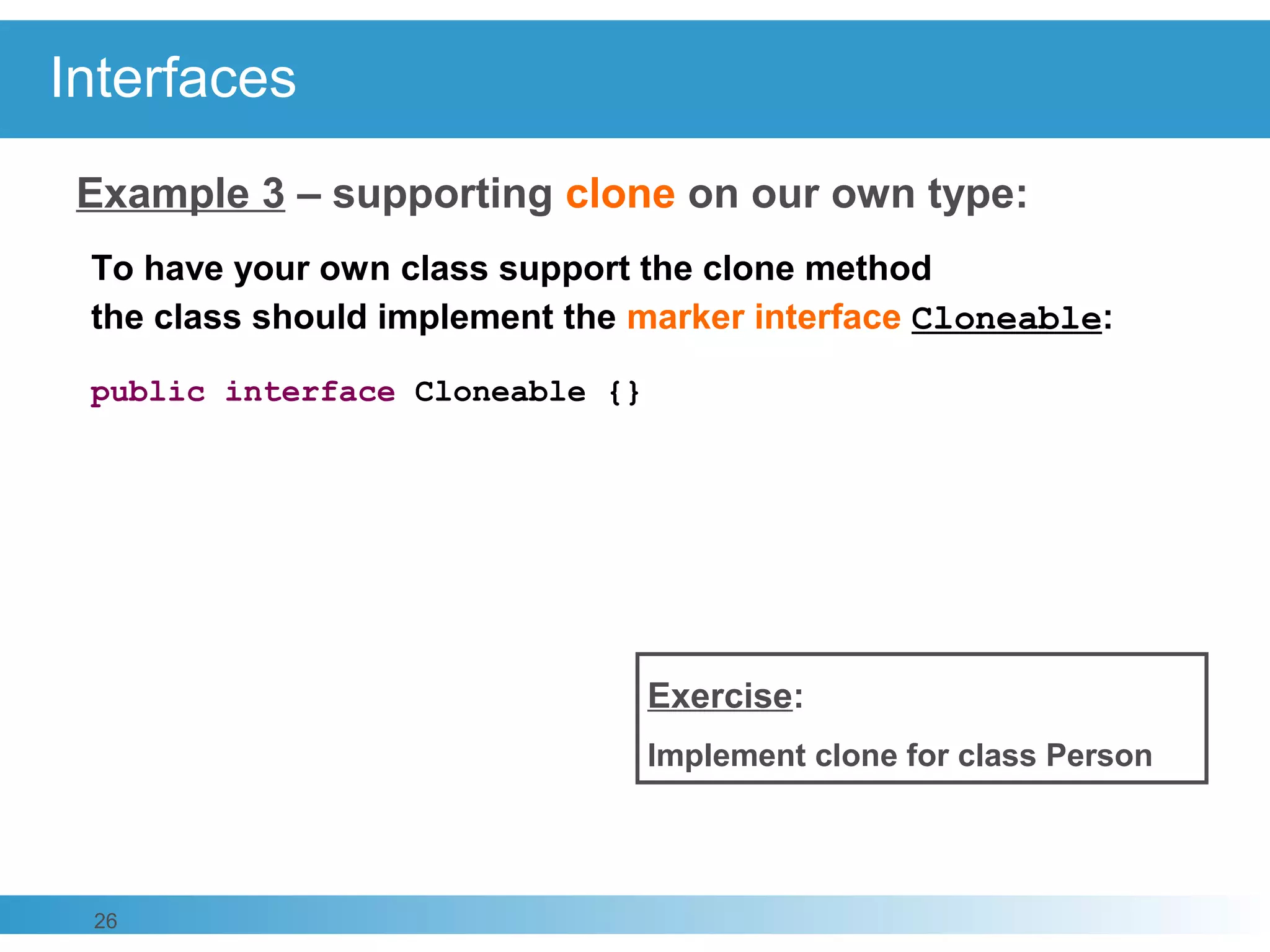

Interfaces
Example 3 – supporting clone on our own type:
public interface Cloneable {}
Exercise:
Implement clone for class Person
To have your own class support the clone method
the class should implement the marker interface Cloneable:

27

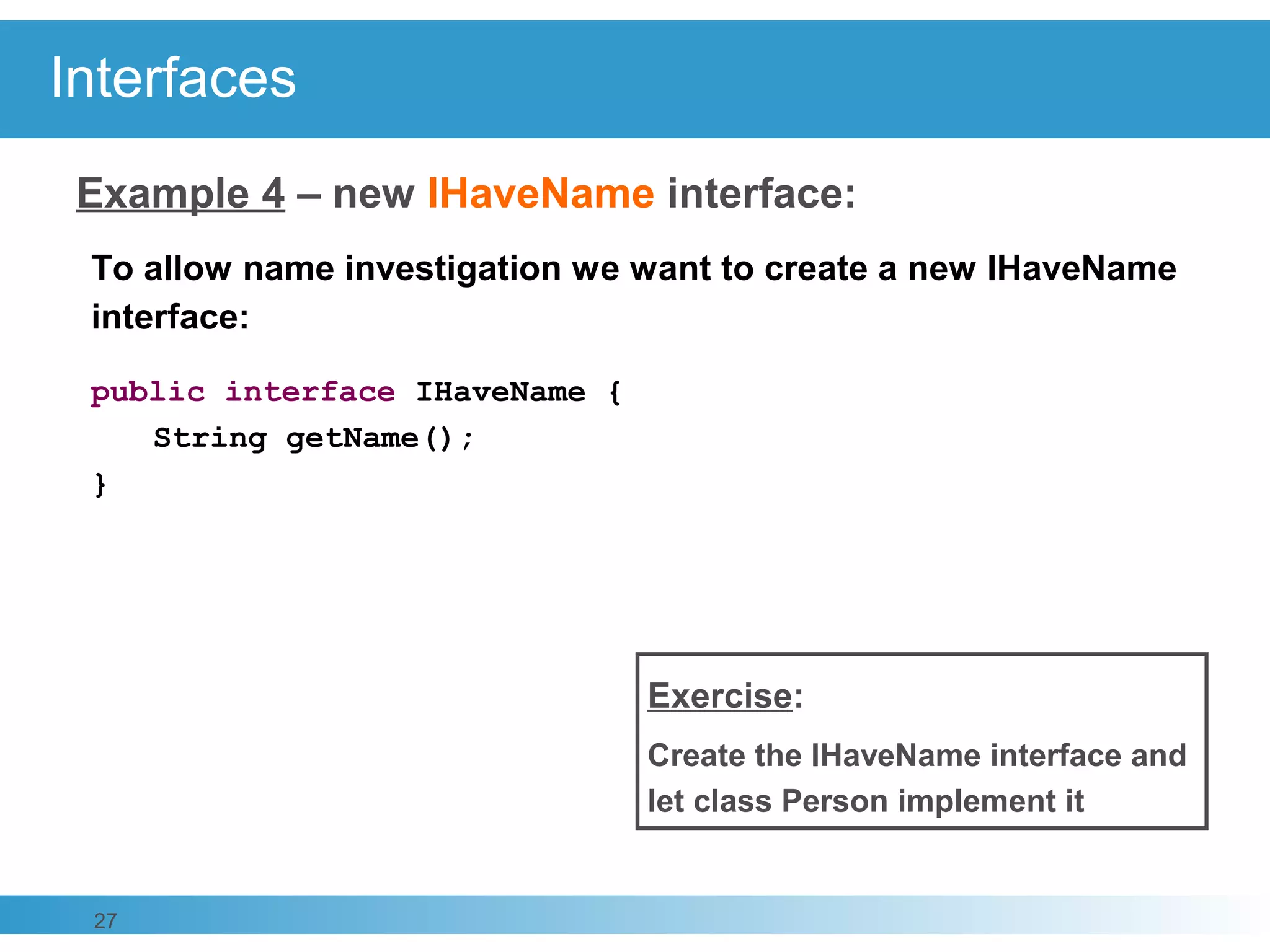

Interfaces
Example 4 – new IHaveName interface:
public interface IHaveName {
String getName();
}
Exercise:
Create the IHaveName interface and
let class Person implement it
To allow name investigation we want to create a new IHaveName
interface:

29

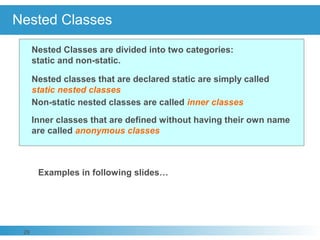

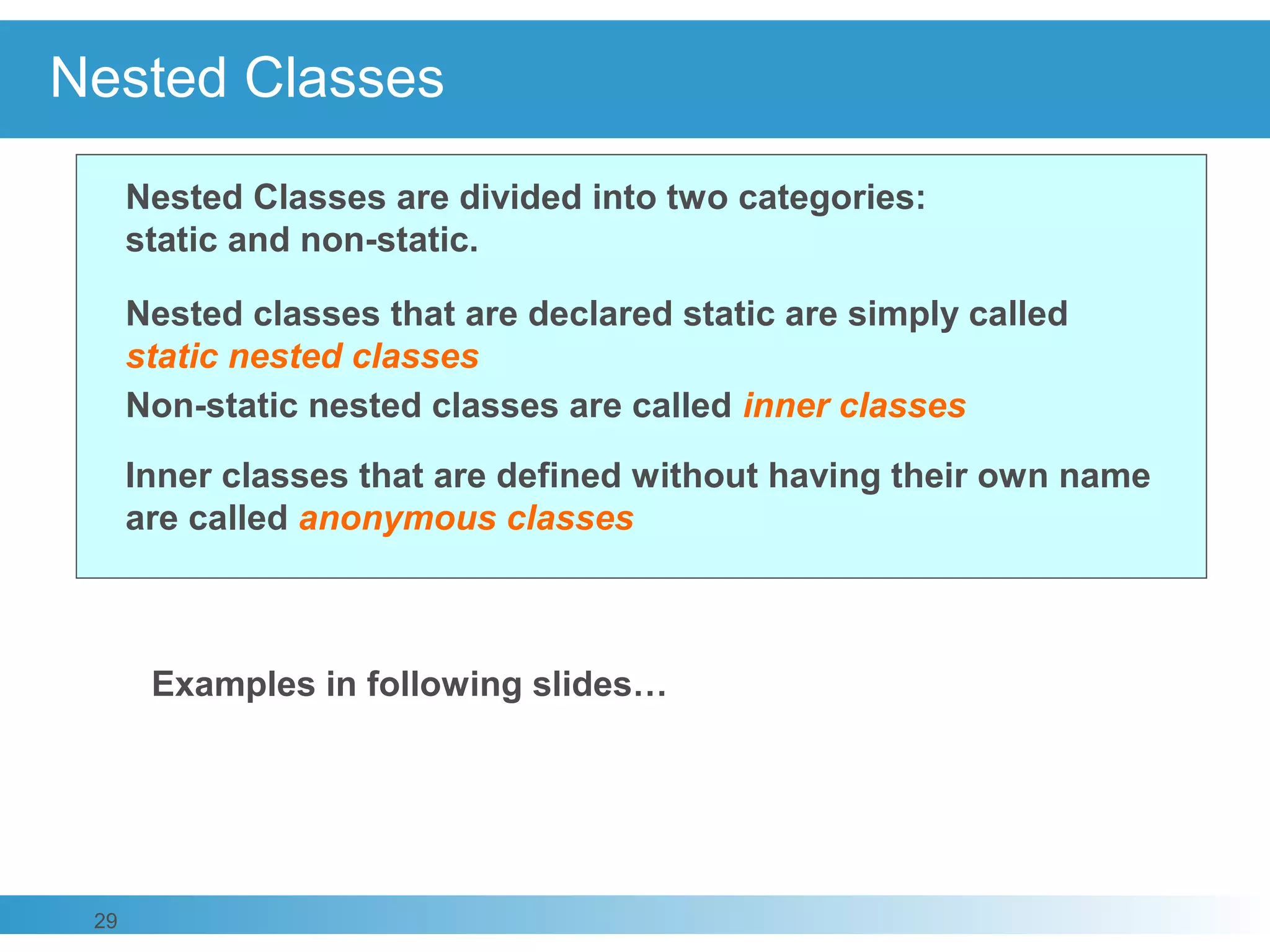

Nested Classes
Nested Classes are divided into two categories:
static and non-static.
Nested classes that are declared static are simply called
static nested classes
Non-static nested classes are called inner classes
Inner classes that are defined without having their own name
are called anonymous classes

30

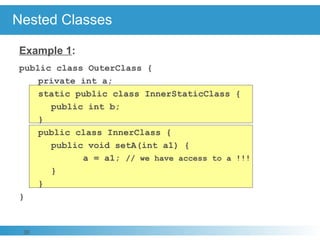

Nested Classes
Example 1:
public class OuterClass {
private int a;
static public class InnerStaticClass {
public int b;
}
public class InnerClass {
public void setA(int a1) {
a = a1; // we have access to a !!!
}
}
}

31

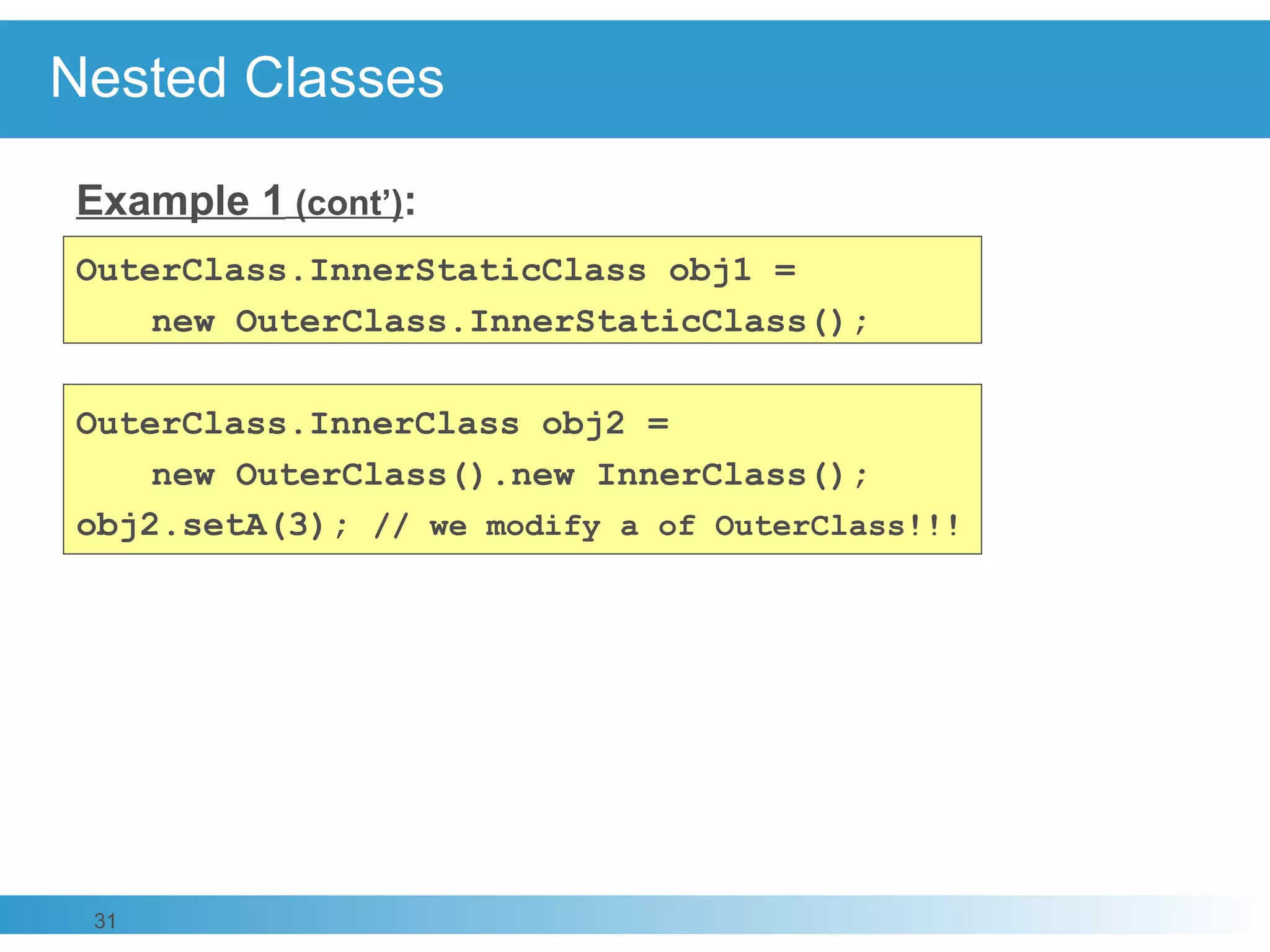

Nested Classes
OuterClass.InnerStaticClass obj1 =
new OuterClass.InnerStaticClass();
OuterClass.InnerClass obj2 =
new OuterClass().new InnerClass();
obj2.setA(3); // we modify a of OuterClass!!!

32
Nested Classes

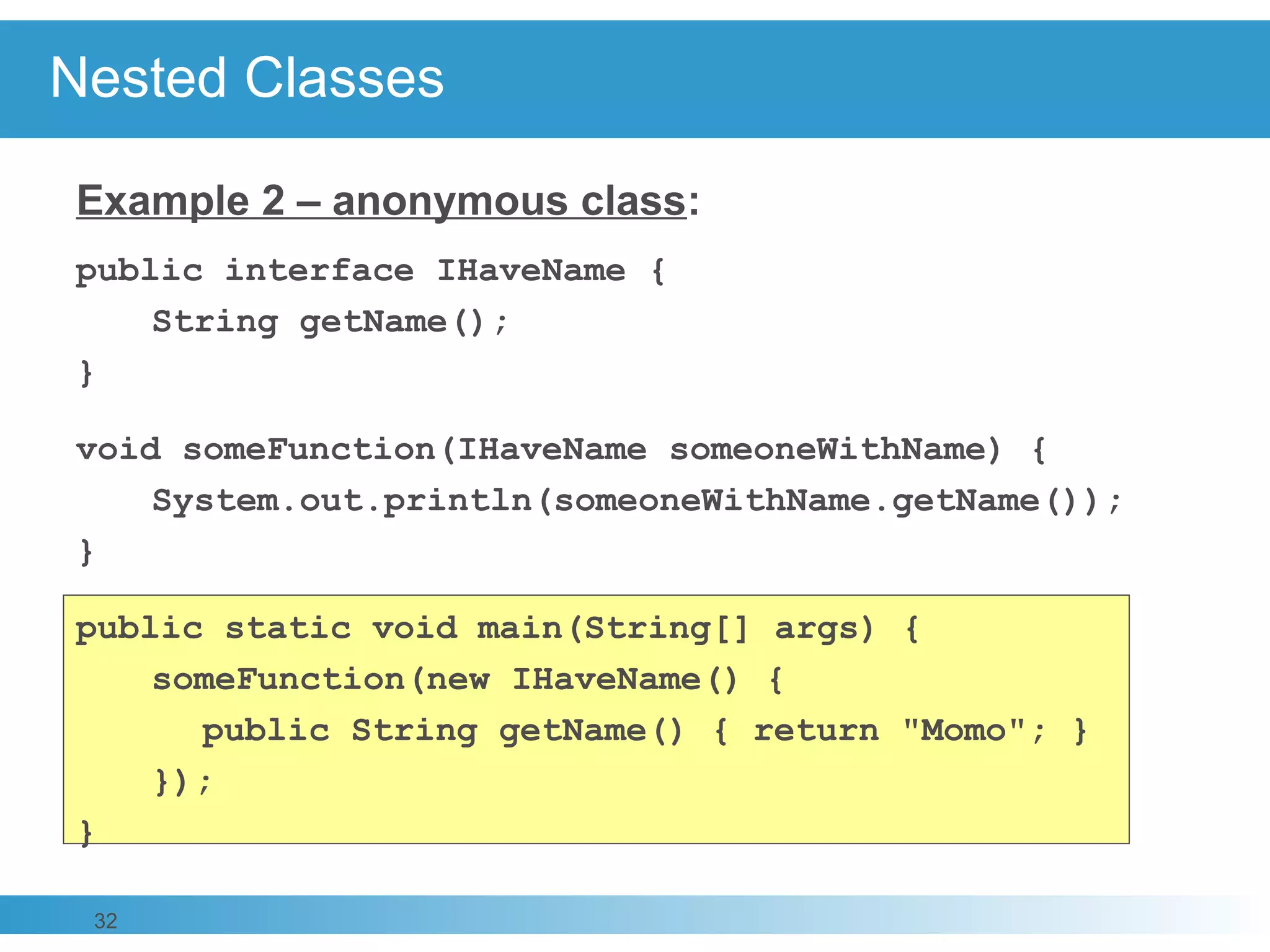

Example 2 – anonymous class:
public interface IHaveName {
String getName();
}
void someFunction(IHaveName someoneWithName) {
System.out.println(someoneWithName.getName());
}
public static void main(String[] args) {
someFunction(new IHaveName() {
public String getName() { return "Momo"; }
});
}

34

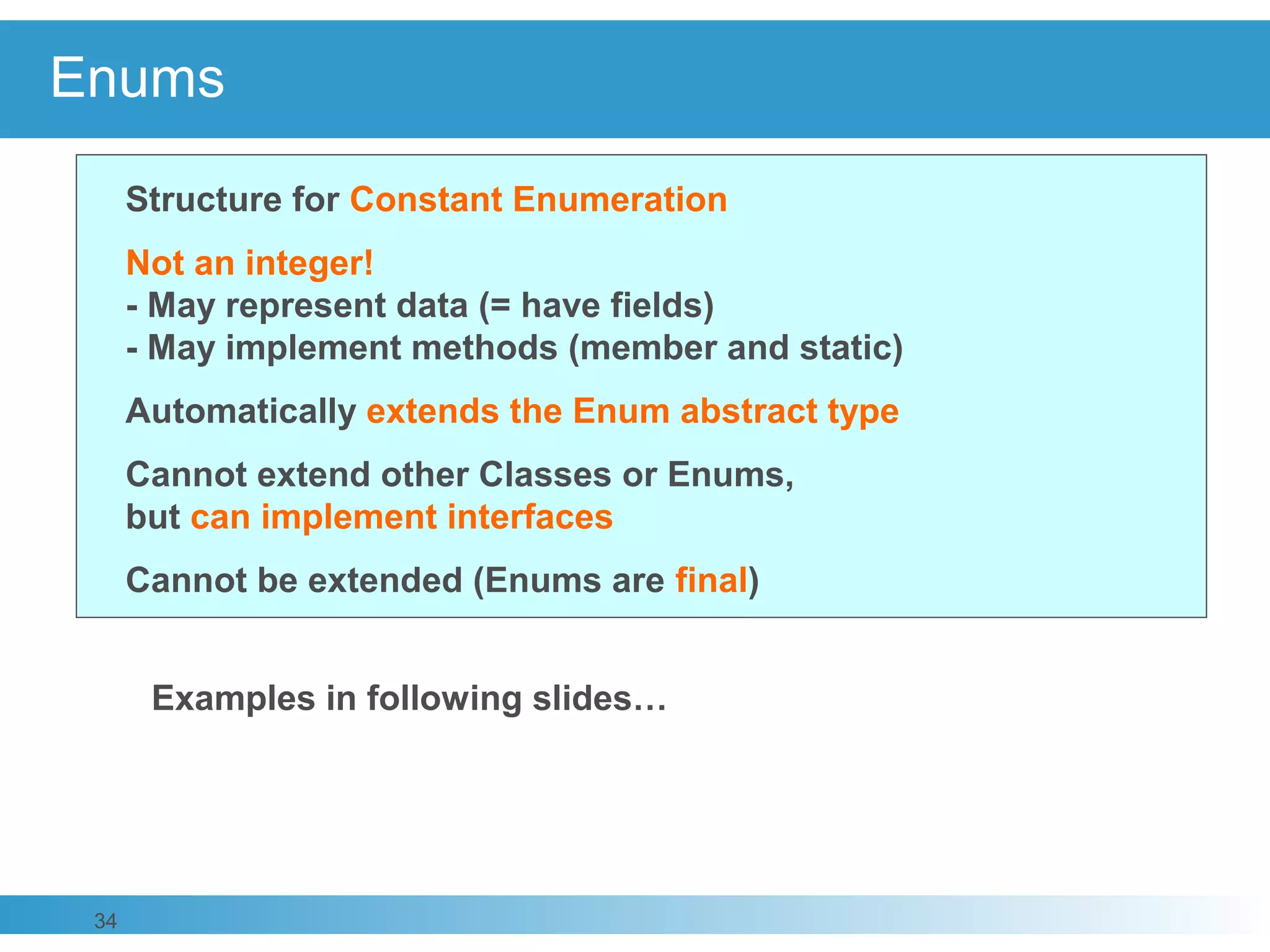

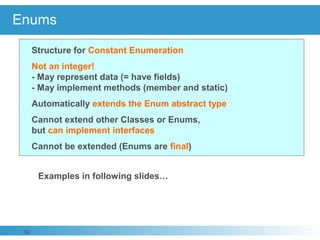

Enums
Structure for Constant Enumeration
Not an integer!
- May represent data (= have fields)
- May implement methods (member and static)
Automatically extends the Enum abstract type
Cannot extend other Classes or Enums,
but can implement interfaces
Cannot be extended (Enums are final)

35

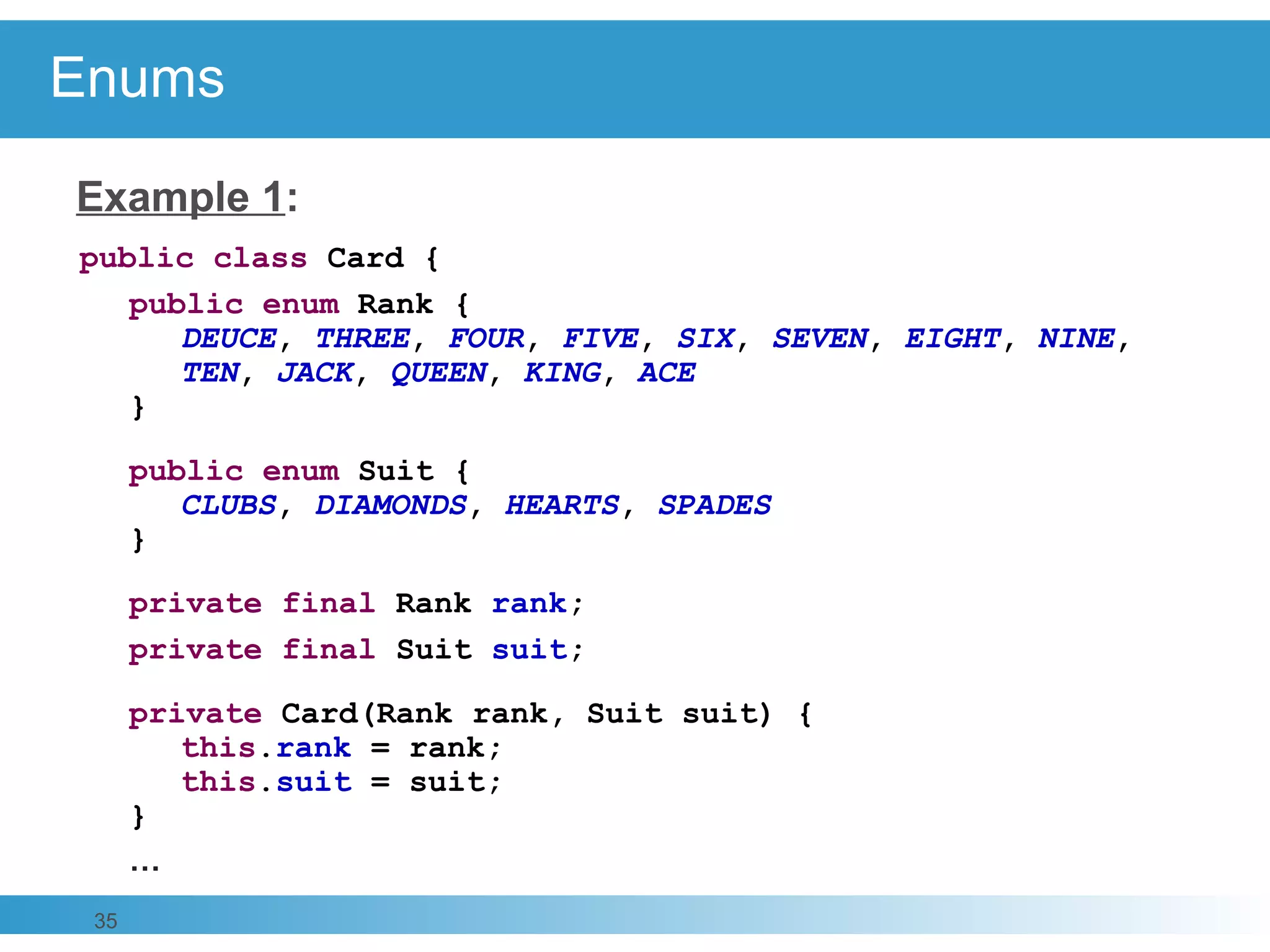

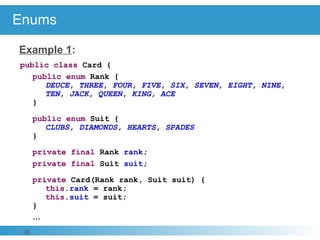

Enums
Example 1:
public class Card {
public enum Rank {
DEUCE, THREE, FOUR, FIVE, SIX, SEVEN, EIGHT, NINE,
TEN, JACK, QUEEN, KING, ACE
}
public enum Suit {
CLUBS, DIAMONDS, HEARTS, SPADES
}
private final Rank rank;
private final Suit suit;
private Card(Rank rank, Suit suit) {
this.rank = rank;
this.suit = suit;
}
…

36

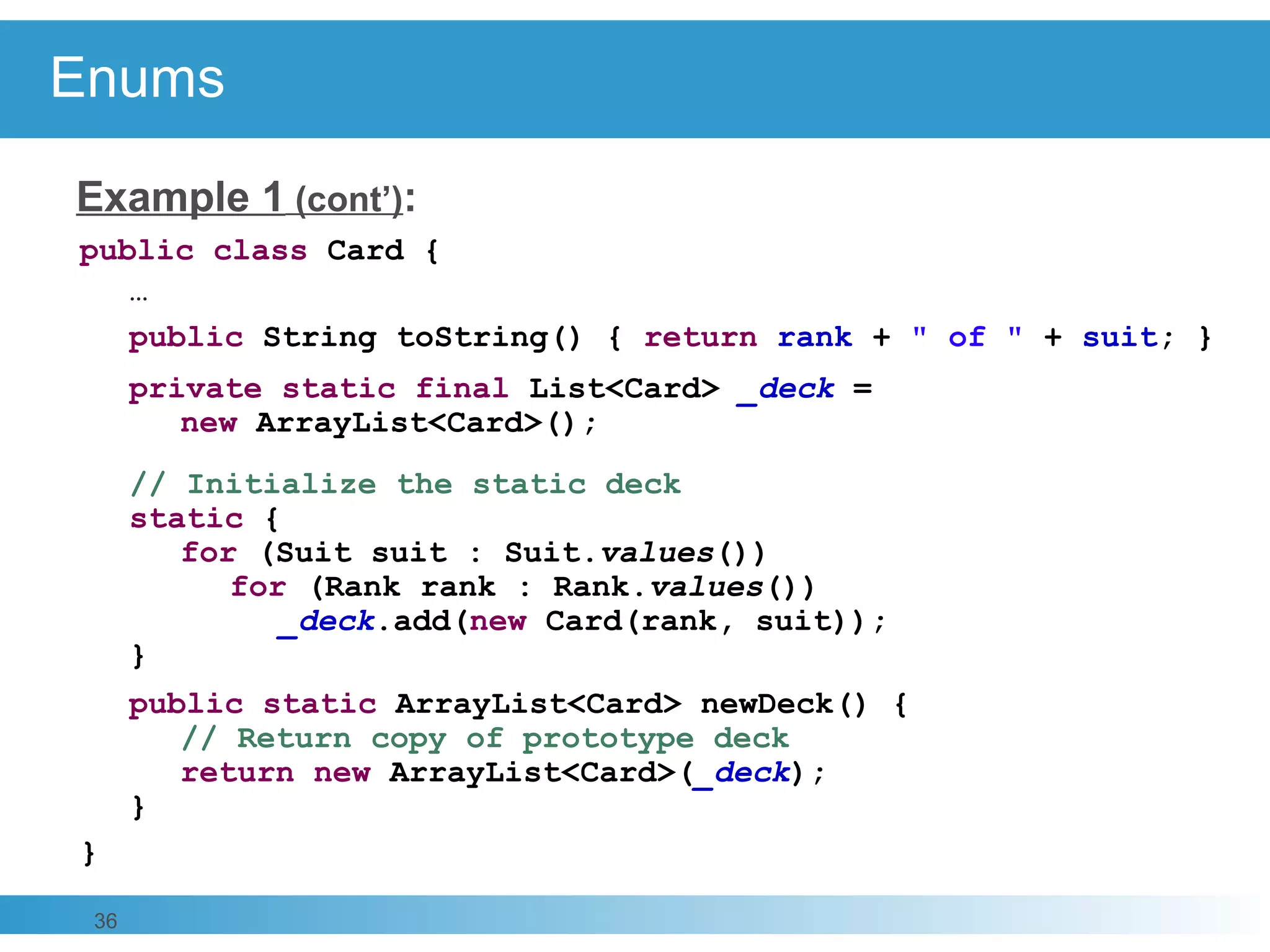

Enums
public class Card {
…
public String toString() { return rank + " of " + suit; }
private static final List<Card> _deck =
new ArrayList<Card>();
// Initialize the static deck
static {
for (Suit suit : Suit.values())
for (Rank rank : Rank.values())
_deck.add(new Card(rank, suit));
}
public static ArrayList<Card> newDeck() {
// Return copy of prototype deck
return new ArrayList<Card>(_deck);
}
}

37

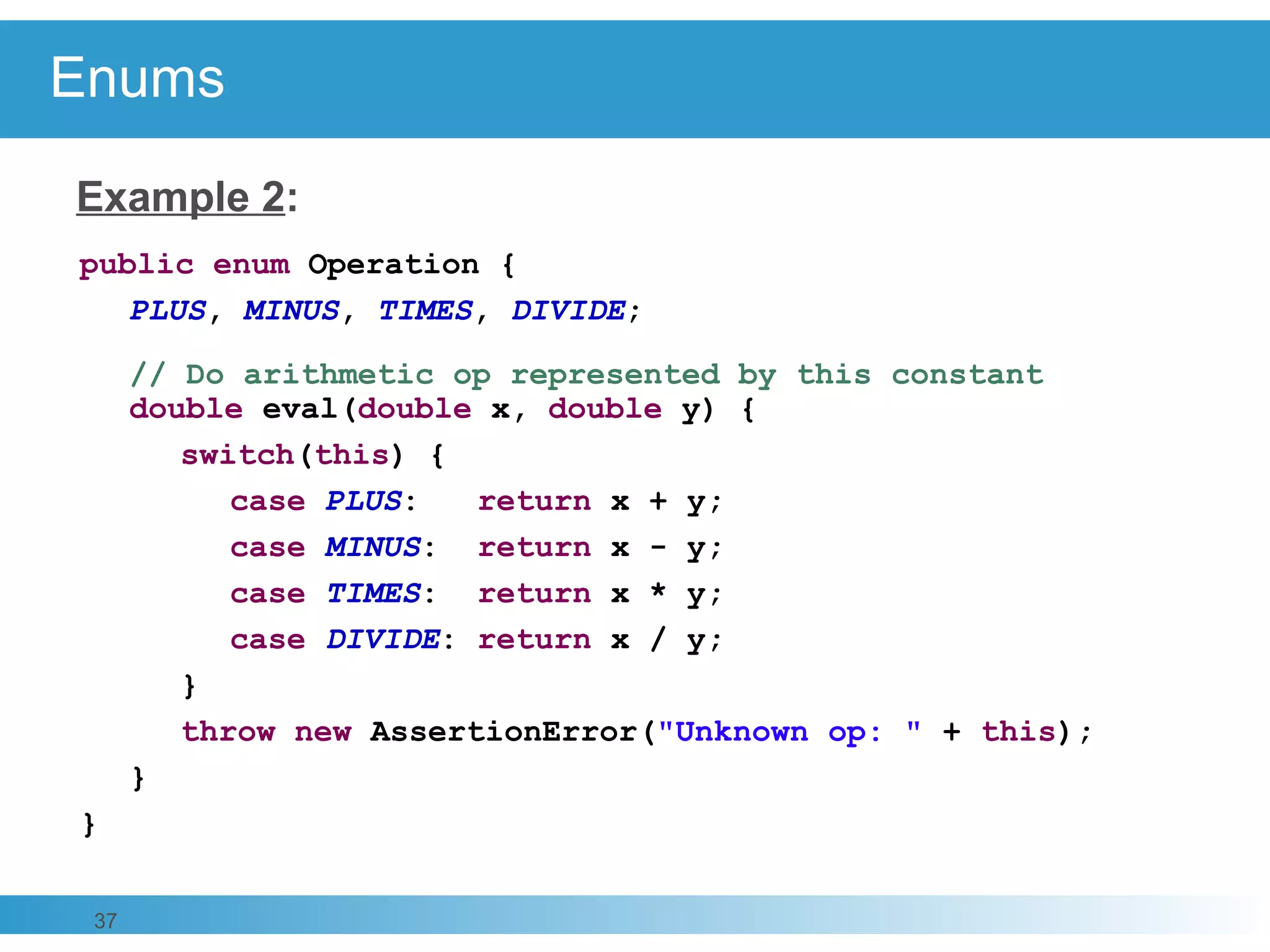

Enums
Example 2:
public enum Operation {
PLUS, MINUS, TIMES, DIVIDE;
// Do arithmetic op represented by this constant
double eval(double x, double y) {
switch(this) {
case PLUS: return x + y;
case MINUS: return x - y;
case TIMES: return x * y;
case DIVIDE: return x / y;
}
throw new AssertionError("Unknown op: " + this);
}
}

38

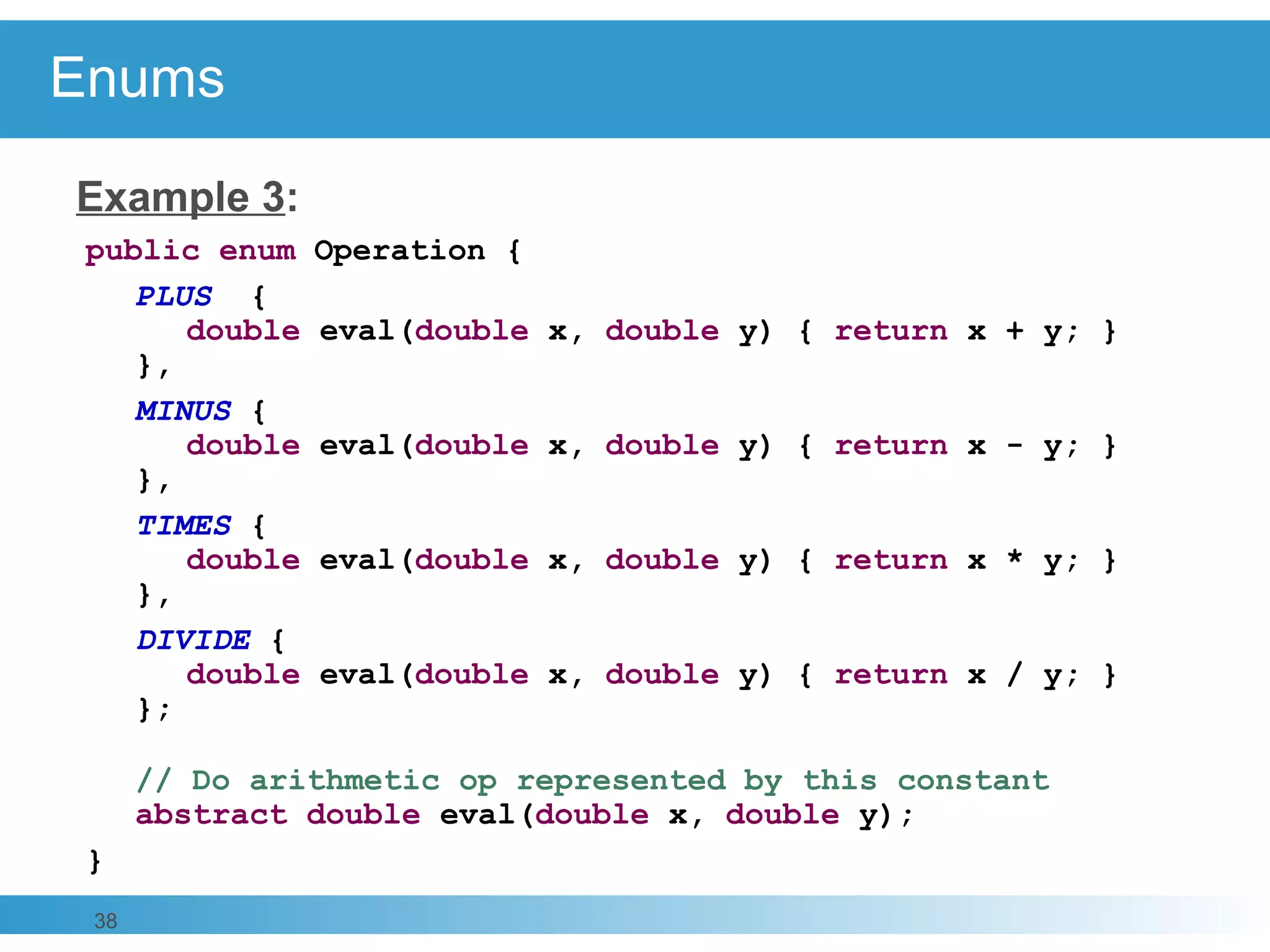

Enums
Example 3:
public enum Operation {
PLUS {
double eval(double x, double y) { return x + y; }
},
MINUS {
double eval(double x, double y) { return x - y; }
},
TIMES {
double eval(double x, double y) { return x * y; }
},
DIVIDE {
double eval(double x, double y) { return x / y; }
};
// Do arithmetic op represented by this constant
abstract double eval(double x, double y);
}

40

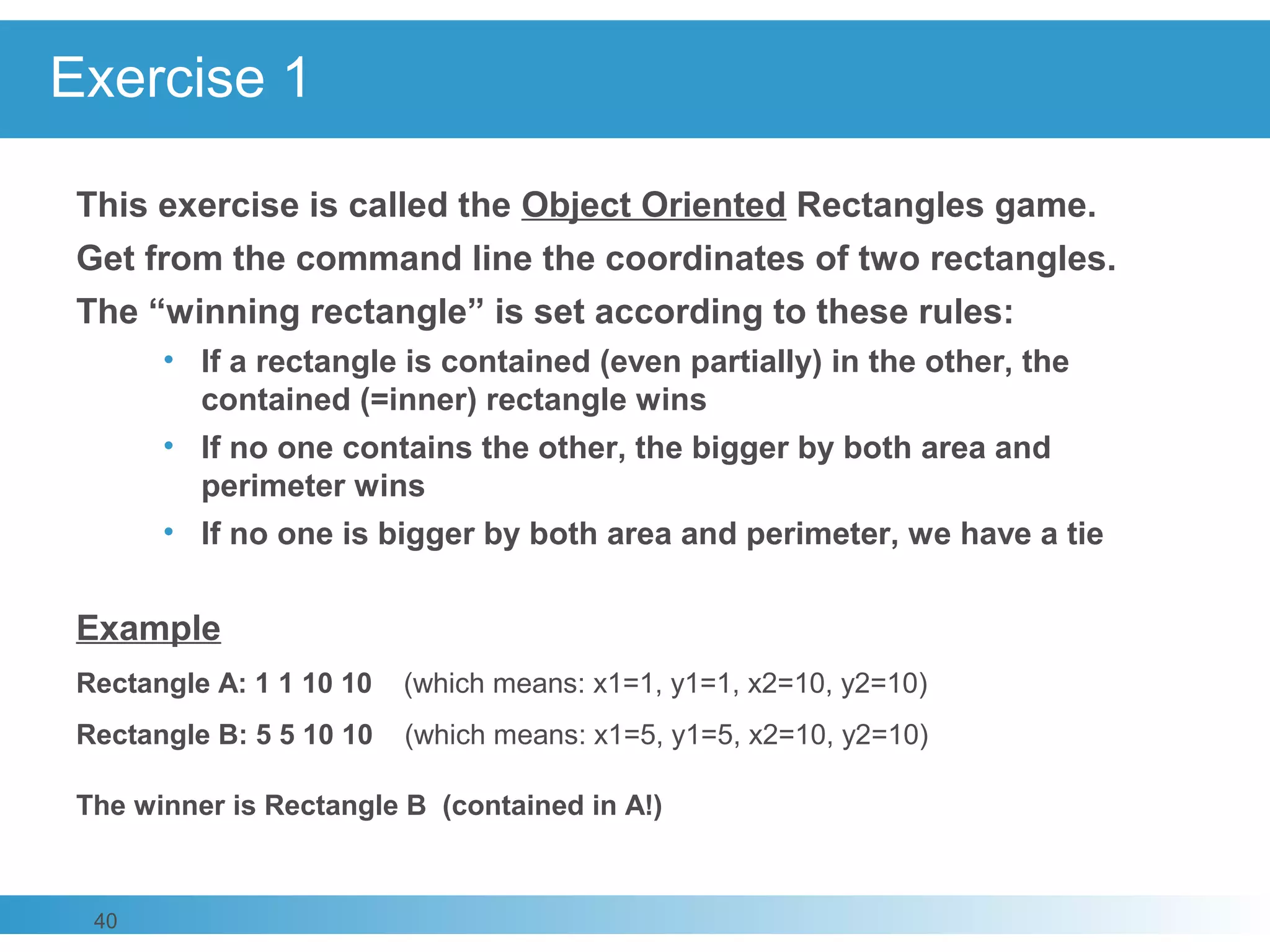

Exercise 1
This exercise is called the Object Oriented Rectangles game.
Get from the command line the coordinates of two rectangles.
The “winning rectangle” is set according to these rules:
• If a rectangle is contained (even partially) in the other, the
contained (=inner) rectangle wins
• If no one contains the other, the bigger by both area and
perimeter wins
• If no one is bigger by both area and perimeter, we have a tie
Example
Rectangle A: 1 1 10 10 (which means: x1=1, y1=1, x2=10, y2=10)
Rectangle B: 5 5 10 10 (which means: x1=5, y1=5, x2=10, y2=10)
The winner is Rectangle B (contained in A!)

41

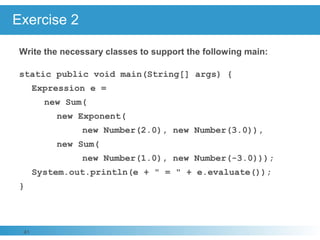

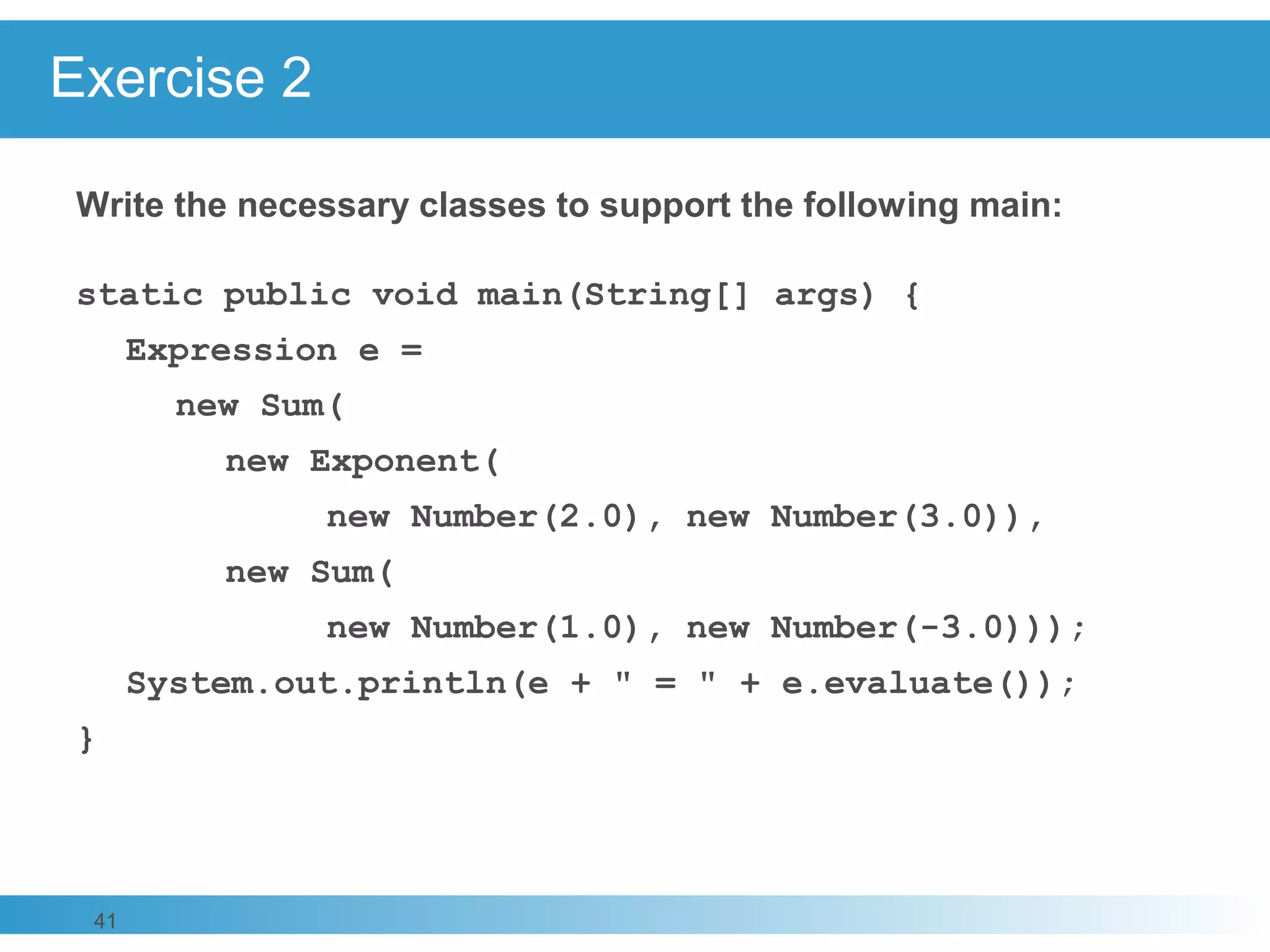

Exercise 2
Write the necessary classes to support the following main:
static public void main(String[] args) {
Expression e =
new Sum(
new Exponent(
new Number(2.0), new Number(3.0)),
new Sum(
new Number(1.0), new Number(-3.0)));
System.out.println(e + " = " + e.evaluate());
}

Java oops PPT

More Related Content

What's hot

Similar to Java oops PPT

Recently uploaded

Java oops PPT
