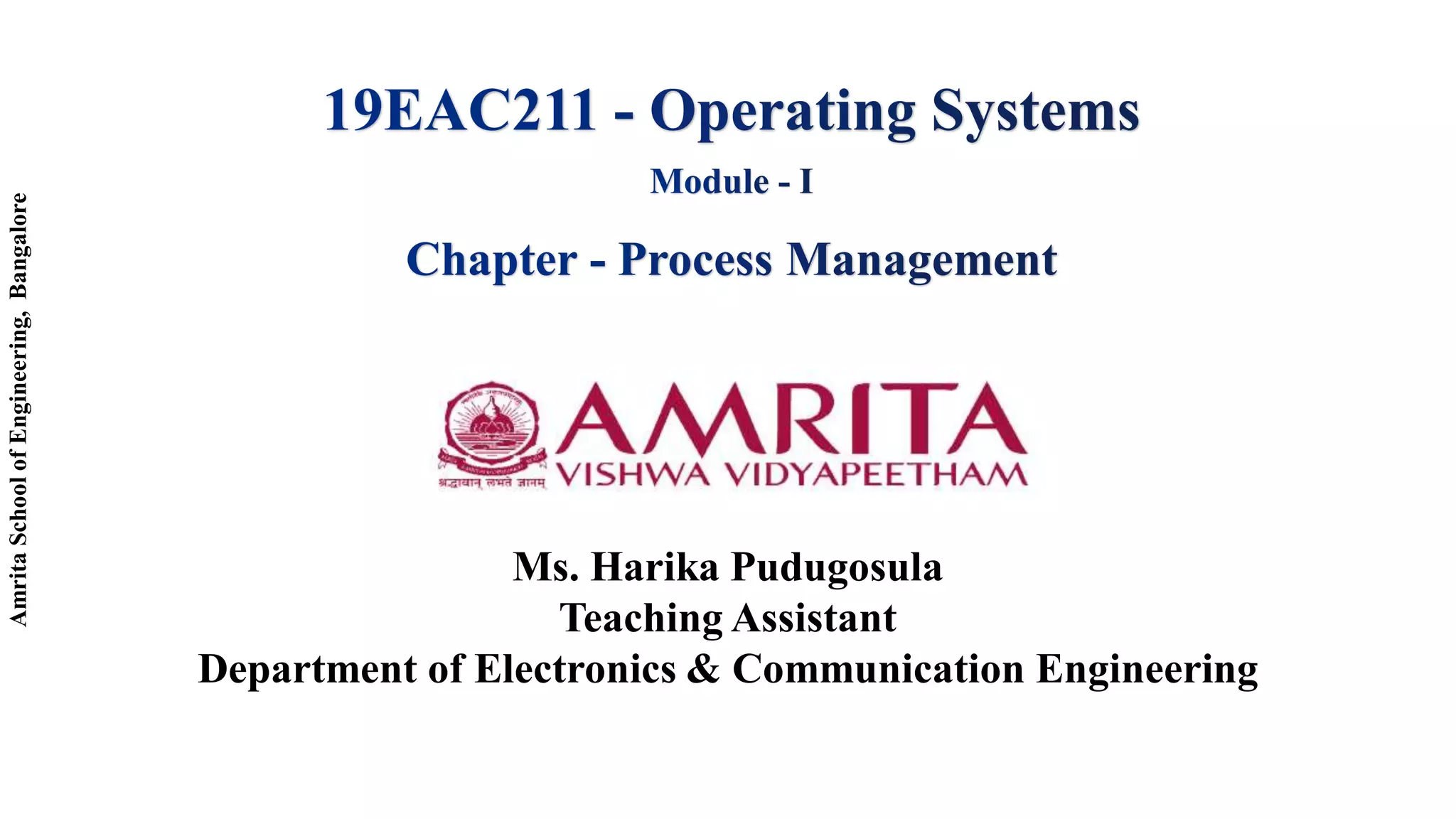

1. Amrita
School
of
Engineering,
Bangalore
Ms. Harika Pudugosula
Teaching Assistant
Department of Electronics & Communication Engineering

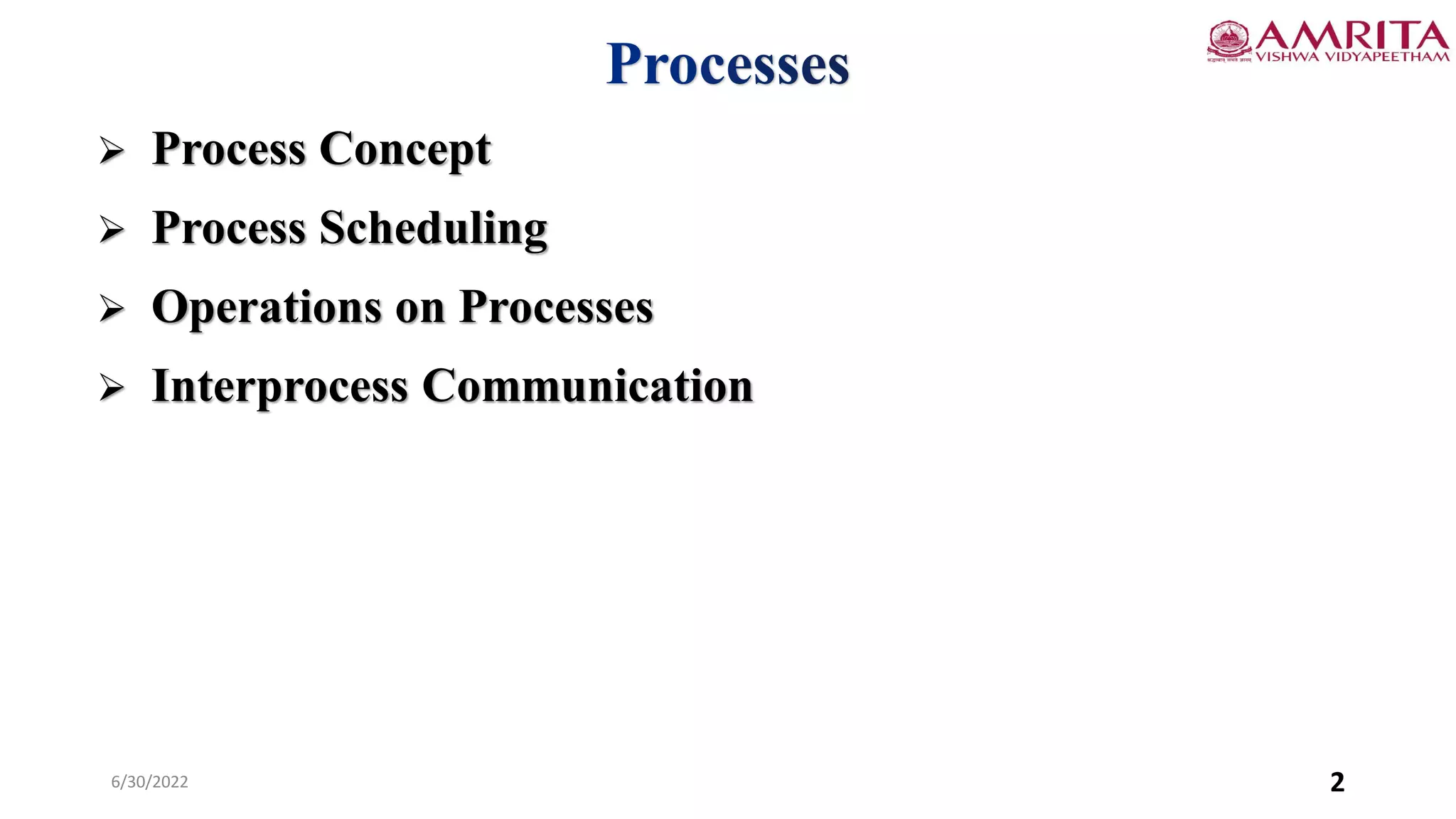

2. 6/30/2022 2
 Process Concept
 Process Scheduling
 Operations on Processes
 Interprocess Communication

3. 6/30/2022 3

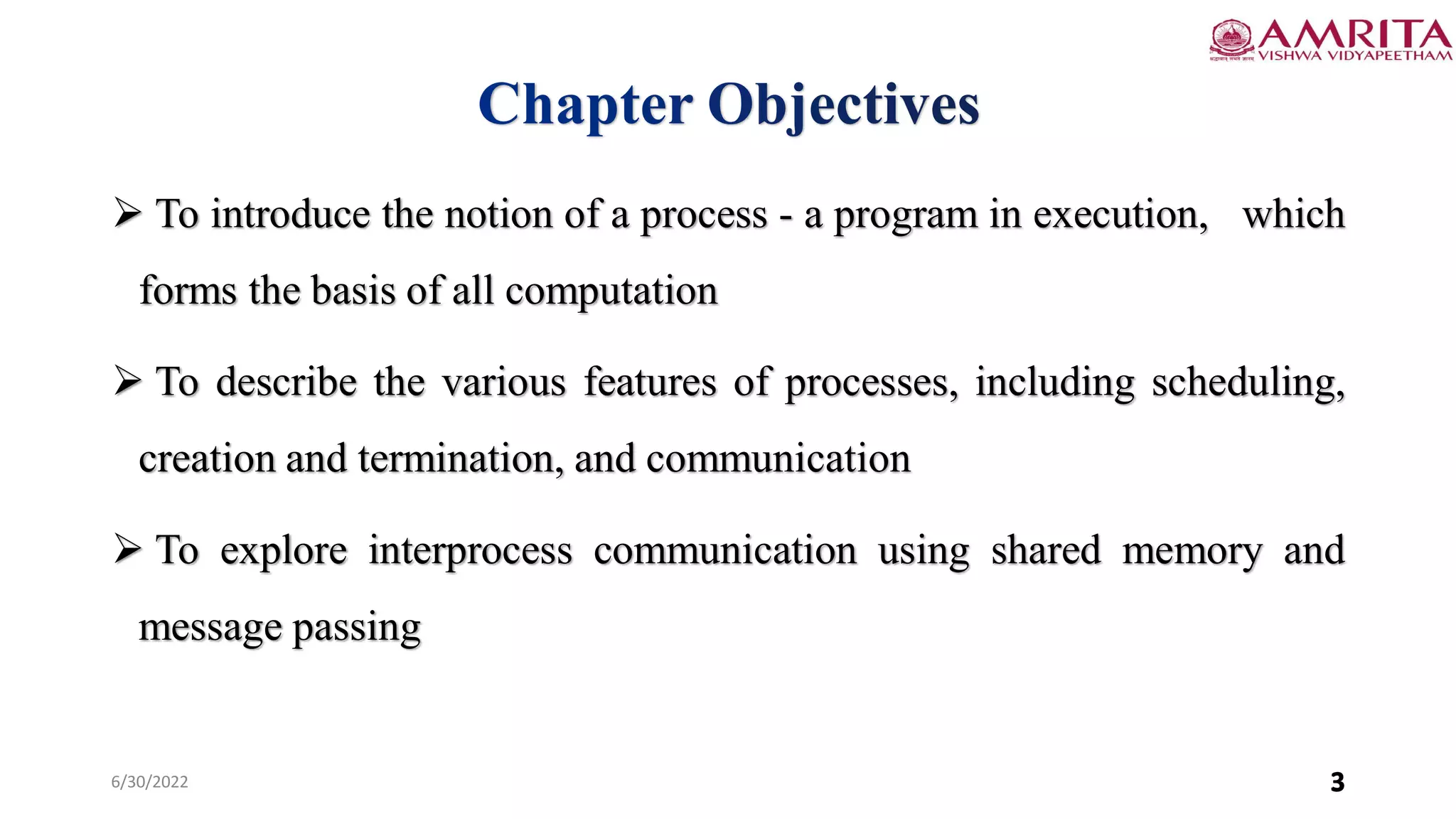

 To introduce the notion of a process - a program in execution, which
forms the basis of all computation
 To describe the various features of processes, including scheduling,
creation and termination, and communication
 To explore interprocess communication using shared memory and
message passing
3

4. 6/30/2022 4

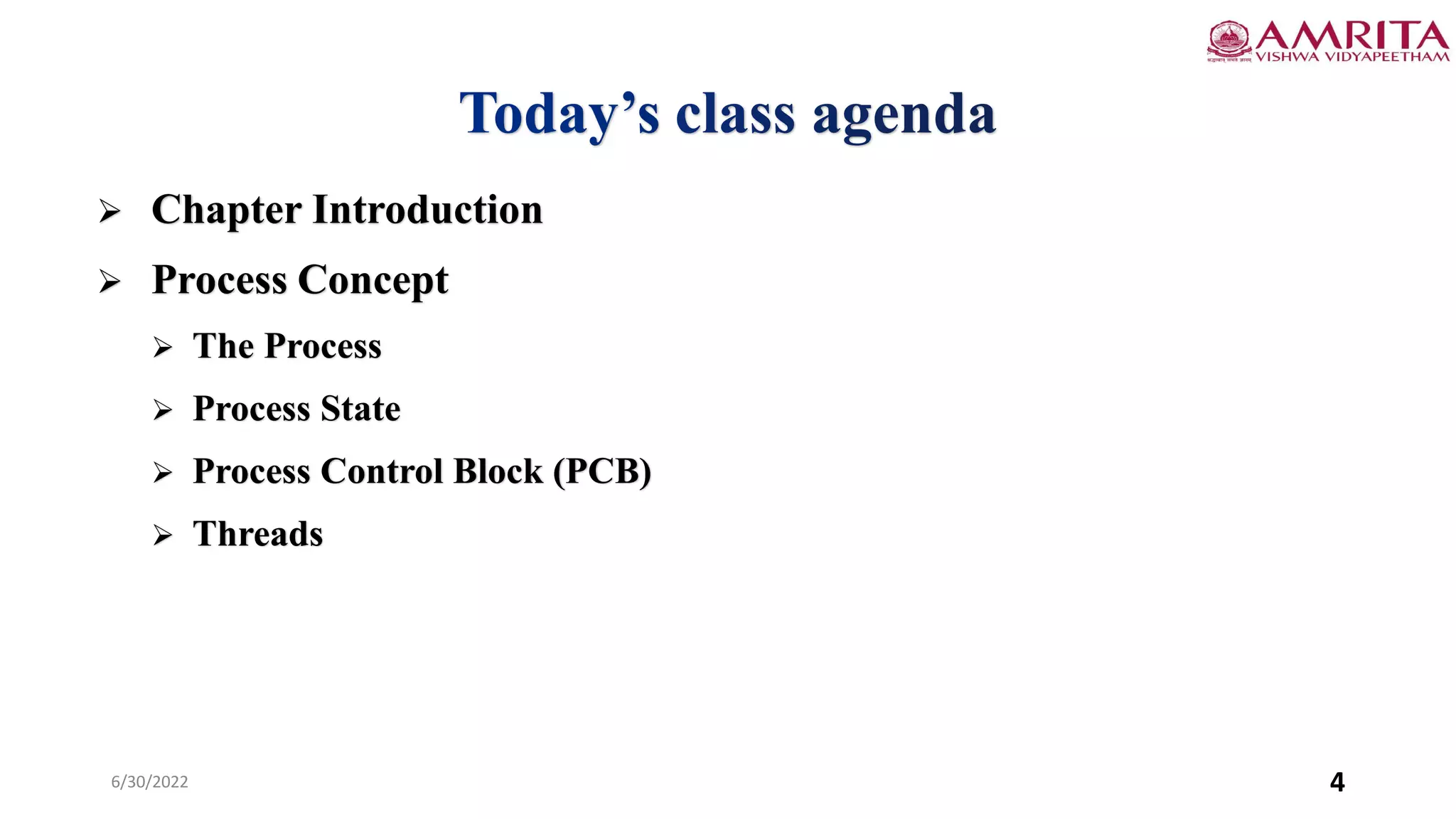

 Chapter Introduction
 Process Concept
 The Process
 Process State
 Process Control Block (PCB)
 Threads

5. 30-Jun-22 5

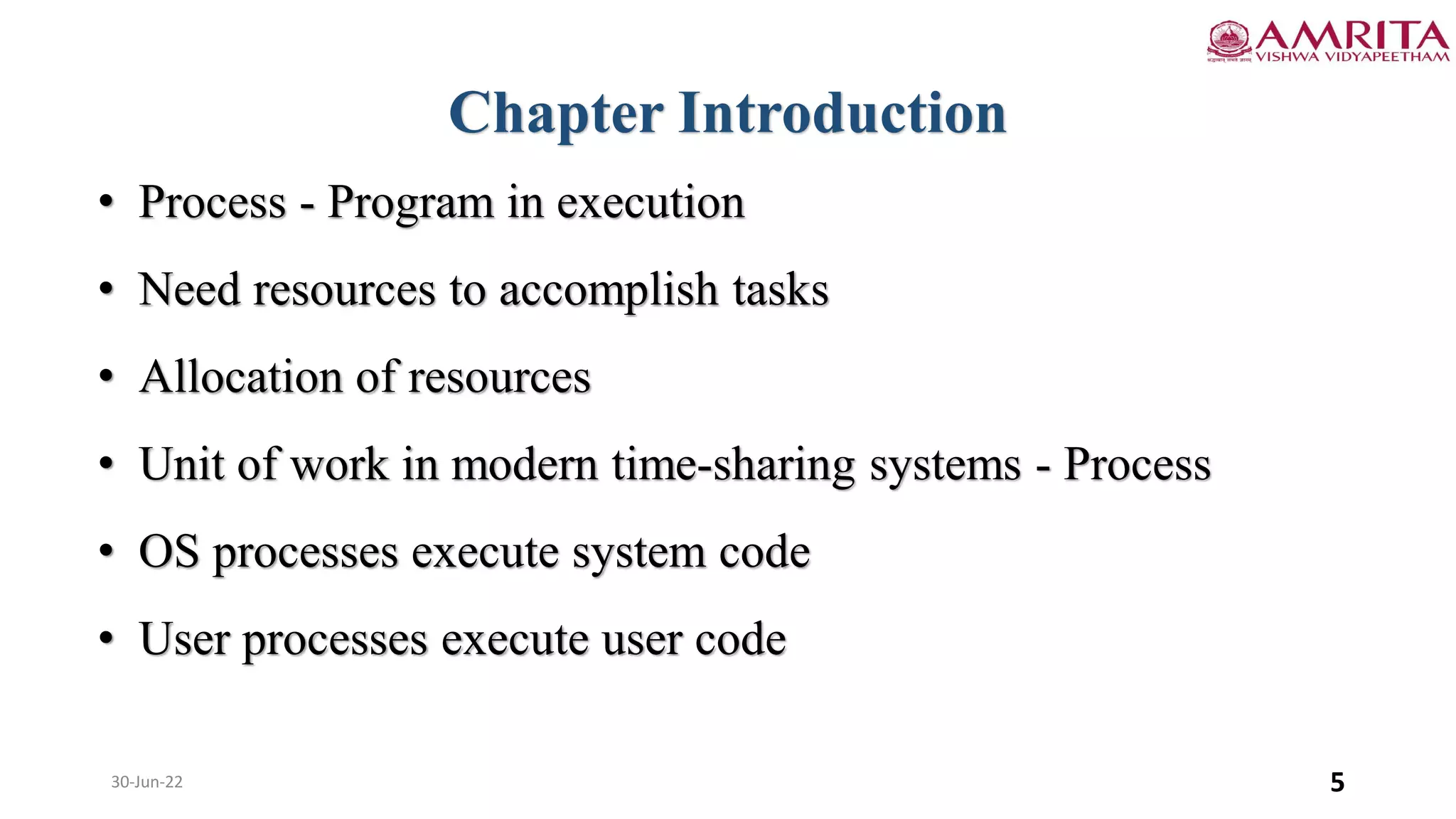

Chapter Introduction
• Process - Program in execution
• Need resources to accomplish tasks
• Allocation of resources
• Unit of work in modern time-sharing systems - Process
• OS processes execute system code
• User processes execute user code

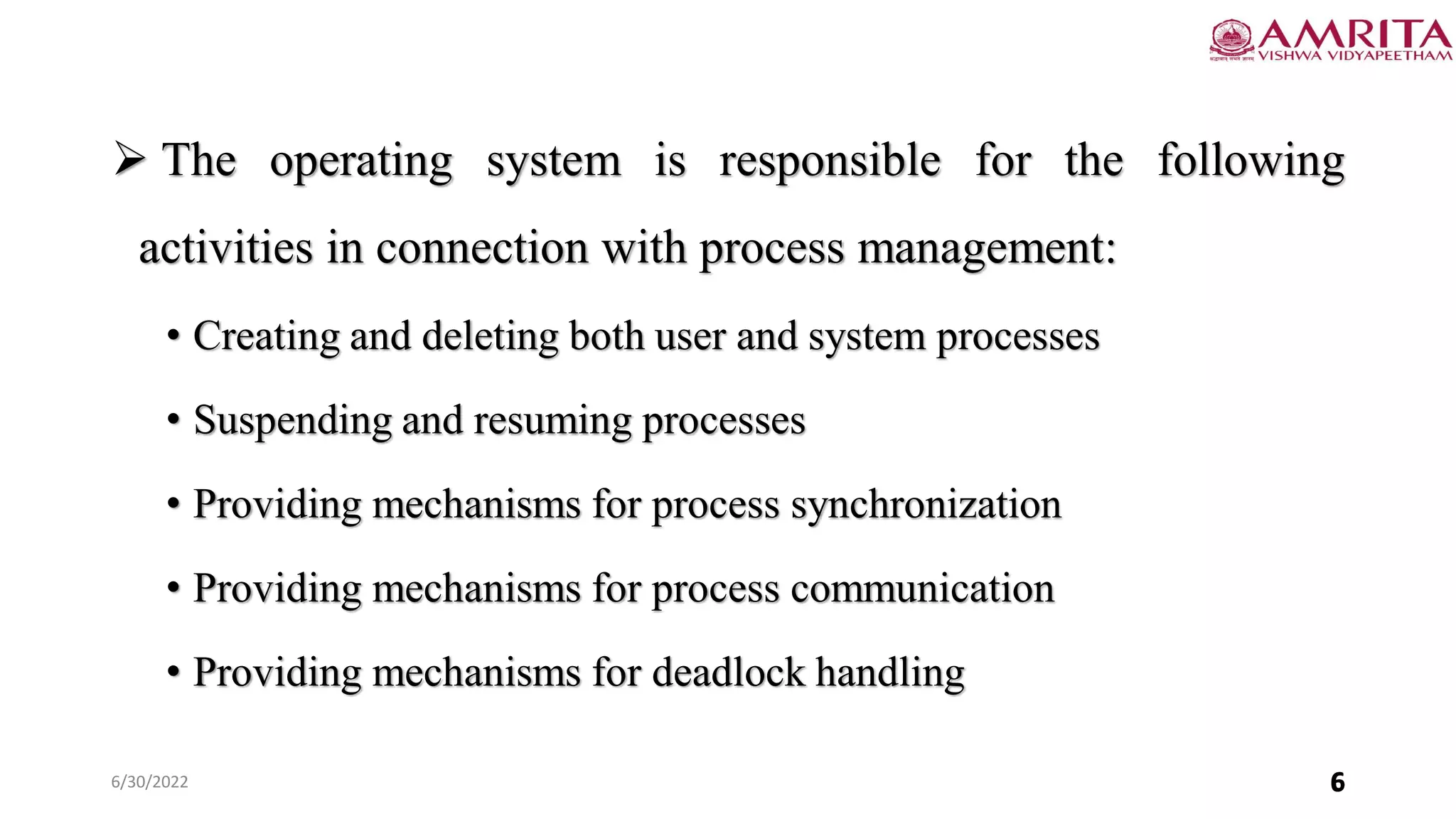

6. 6/30/2022 6
 The operating system is responsible for the following
activities in connection with process management:
• Creating and deleting both user and system processes
• Suspending and resuming processes
• Providing mechanisms for process synchronization
• Providing mechanisms for process communication
• Providing mechanisms for deadlock handling
6

7. 30-Jun-22 7

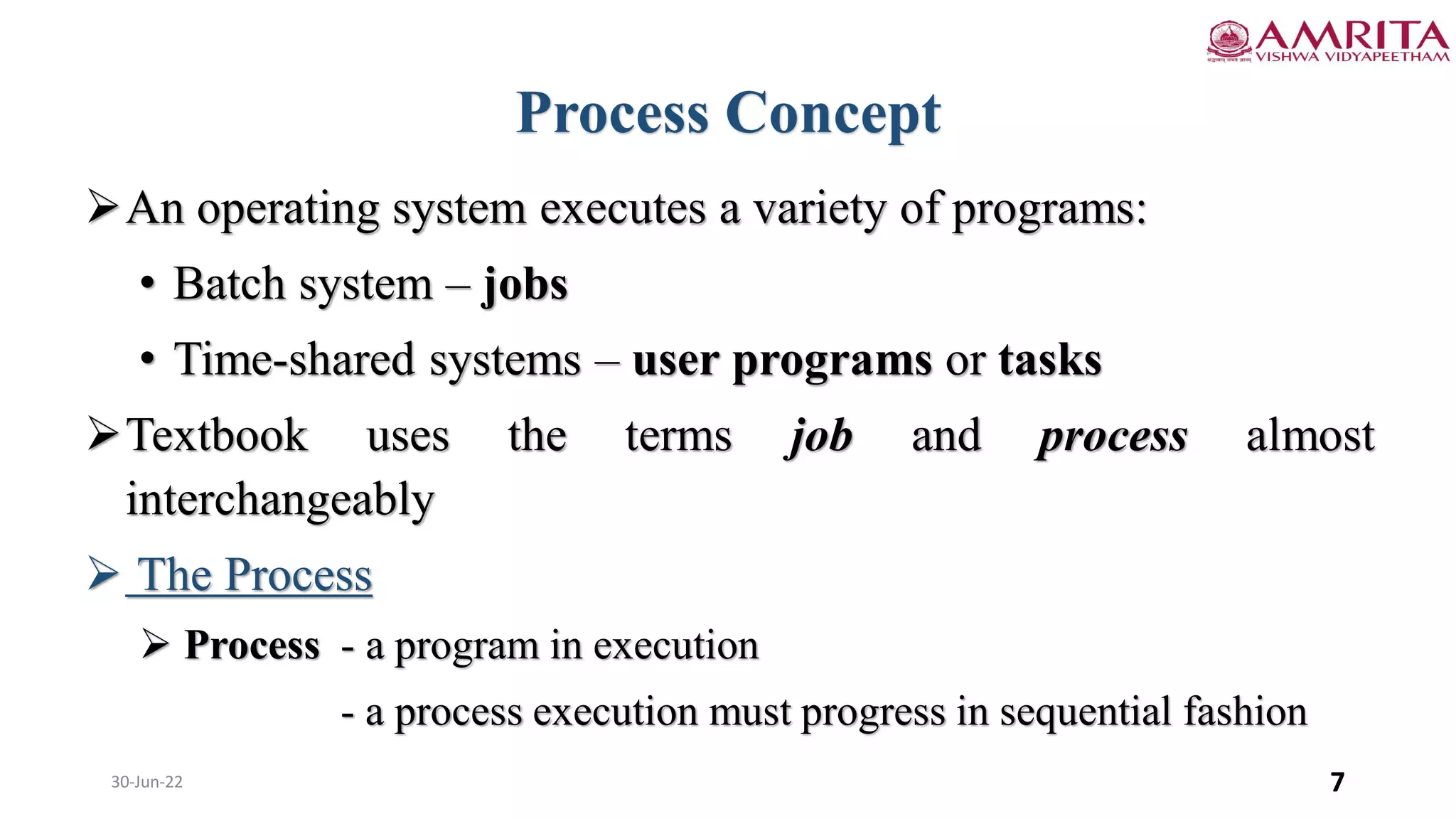

Process Concept
An operating system executes a variety of programs:
• Batch system – jobs
• Time-shared systems – user programs or tasks
Textbook uses the terms job and process almost
interchangeably
 The Process
 Process - a program in execution
- a process execution must progress in sequential fashion

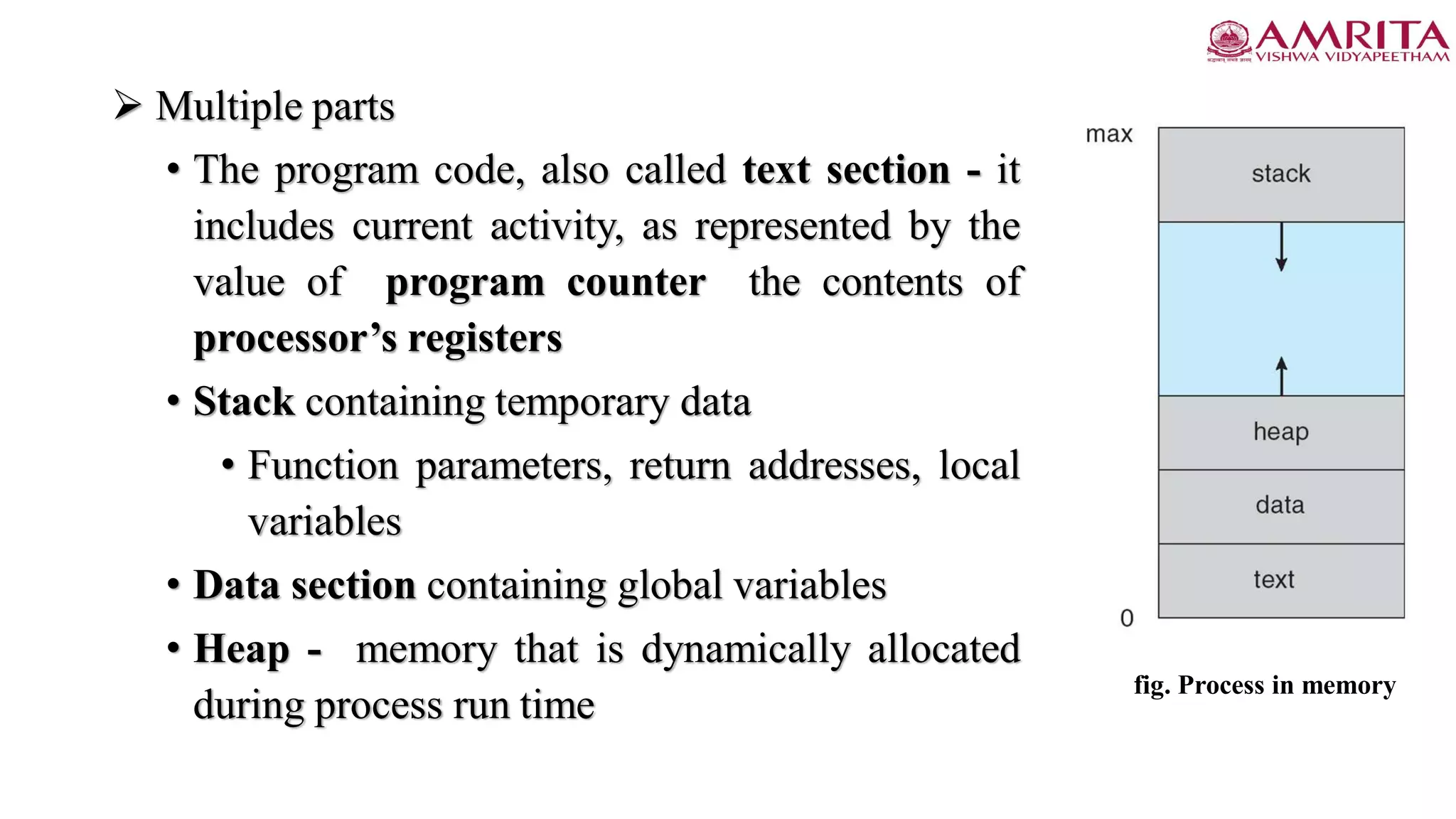

8.  Multiple parts
• The program code, also called text section - it
includes current activity, as represented by the
value of program counter the contents of
processor’s registers
• Stack containing temporary data
• Function parameters, return addresses, local
variables
• Data section containing global variables
• Heap - memory that is dynamically allocated
during process run time
fig. Process in memory

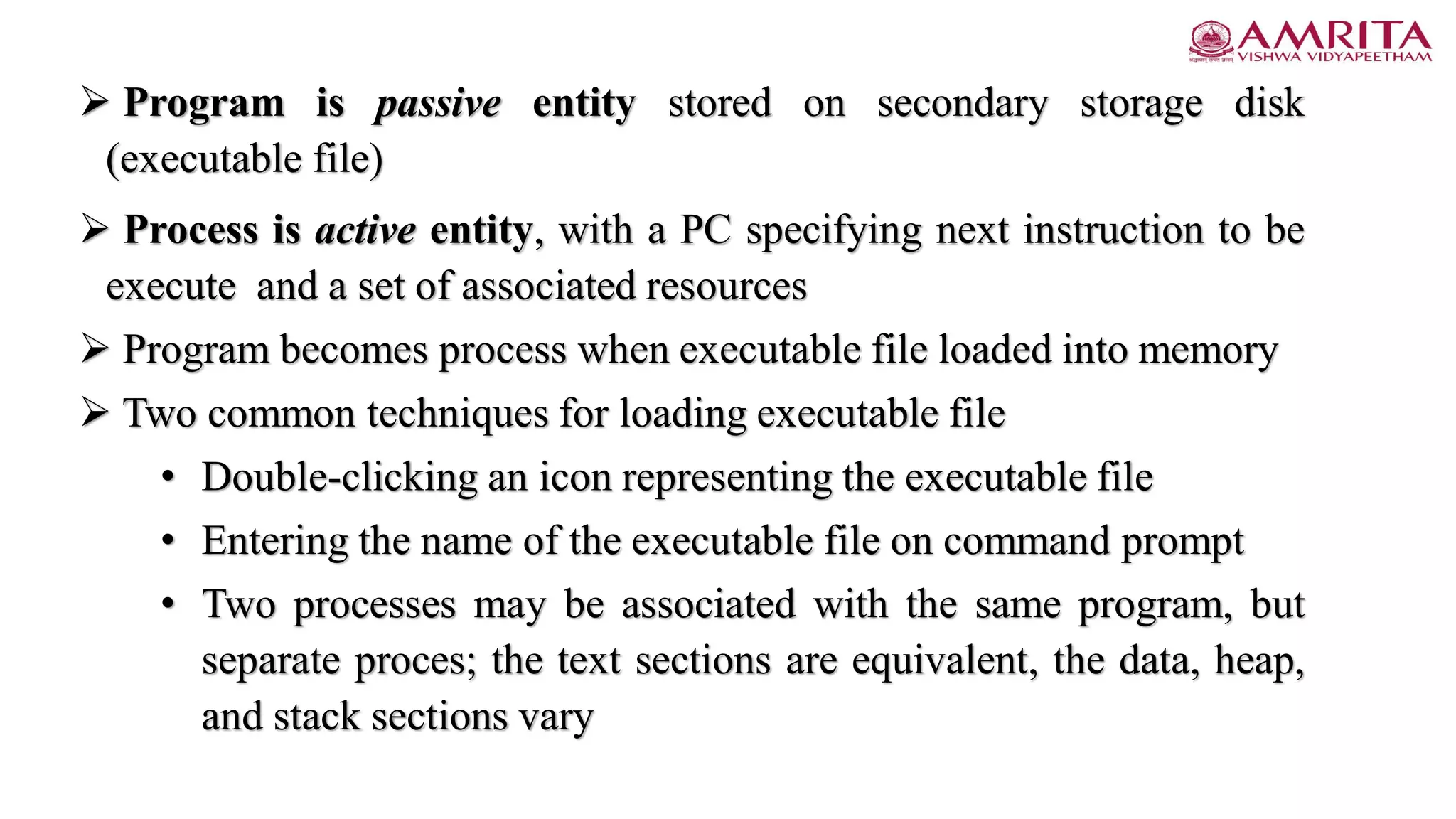

9.  Program is passive entity stored on secondary storage disk
(executable file)
 Process is active entity, with a PC specifying next instruction to be
execute and a set of associated resources
 Program becomes process when executable file loaded into memory
 Two common techniques for loading executable file
• Double-clicking an icon representing the executable file
• Entering the name of the executable file on command prompt
• Two processes may be associated with the same program, but
separate proces; the text sections are equivalent, the data, heap,
and stack sections vary

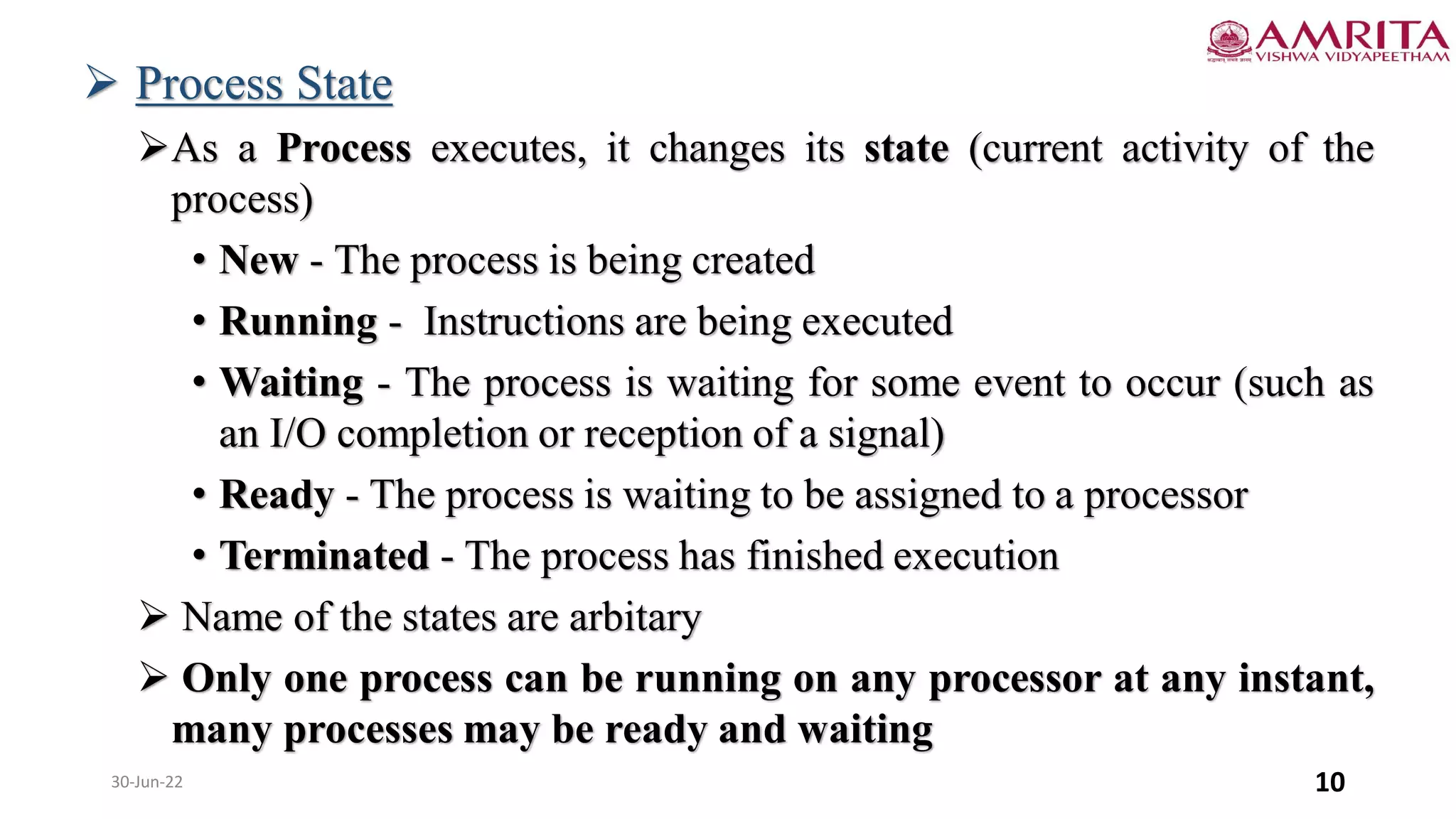

10. 30-Jun-22 10

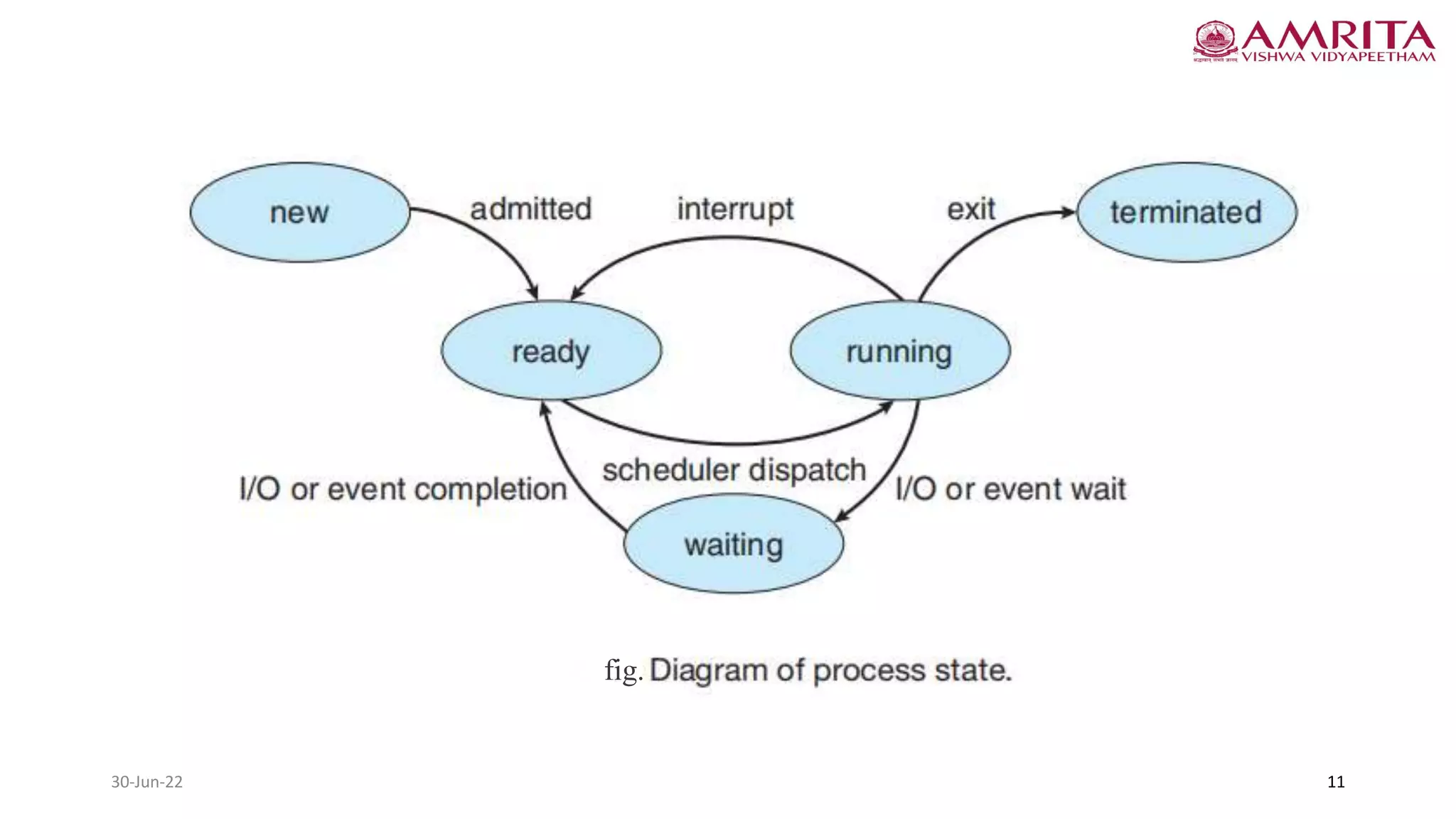

 Process State
As a Process executes, it changes its state (current activity of the
process)
• New - The process is being created
• Running - Instructions are being executed
• Waiting - The process is waiting for some event to occur (such as
an I/O completion or reception of a signal)
• Ready - The process is waiting to be assigned to a processor
• Terminated - The process has finished execution
 Name of the states are arbitary
 Only one process can be running on any processor at any instant,
many processes may be ready and waiting

11. 30-Jun-22 11
fig.

12. 30-Jun-22 12

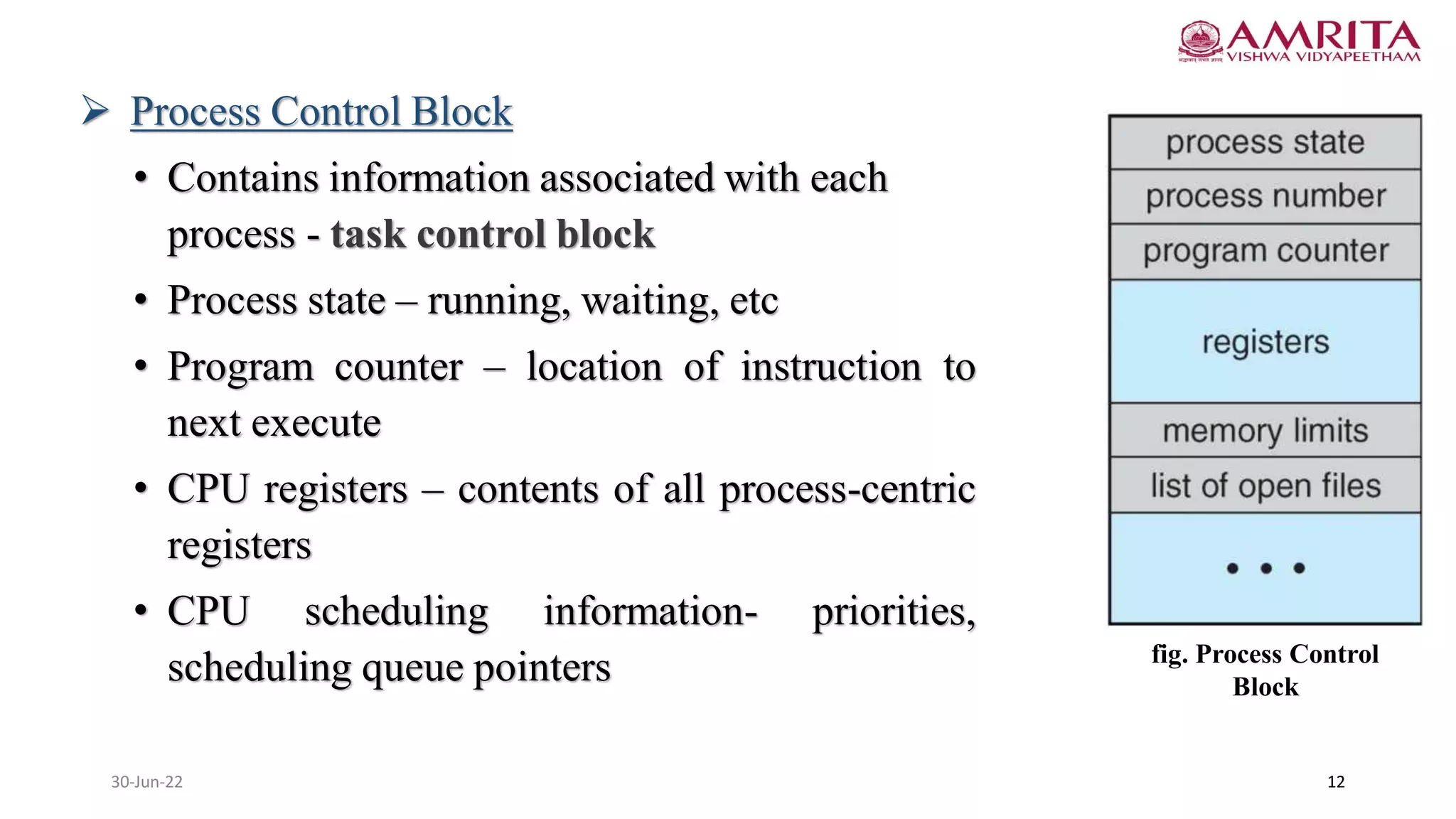

 Process Control Block
• Contains information associated with each
process - task control block
• Process state – running, waiting, etc
• Program counter – location of instruction to
next execute
• CPU registers – contents of all process-centric
registers
• CPU scheduling information- priorities,
scheduling queue pointers fig. Process Control
Block

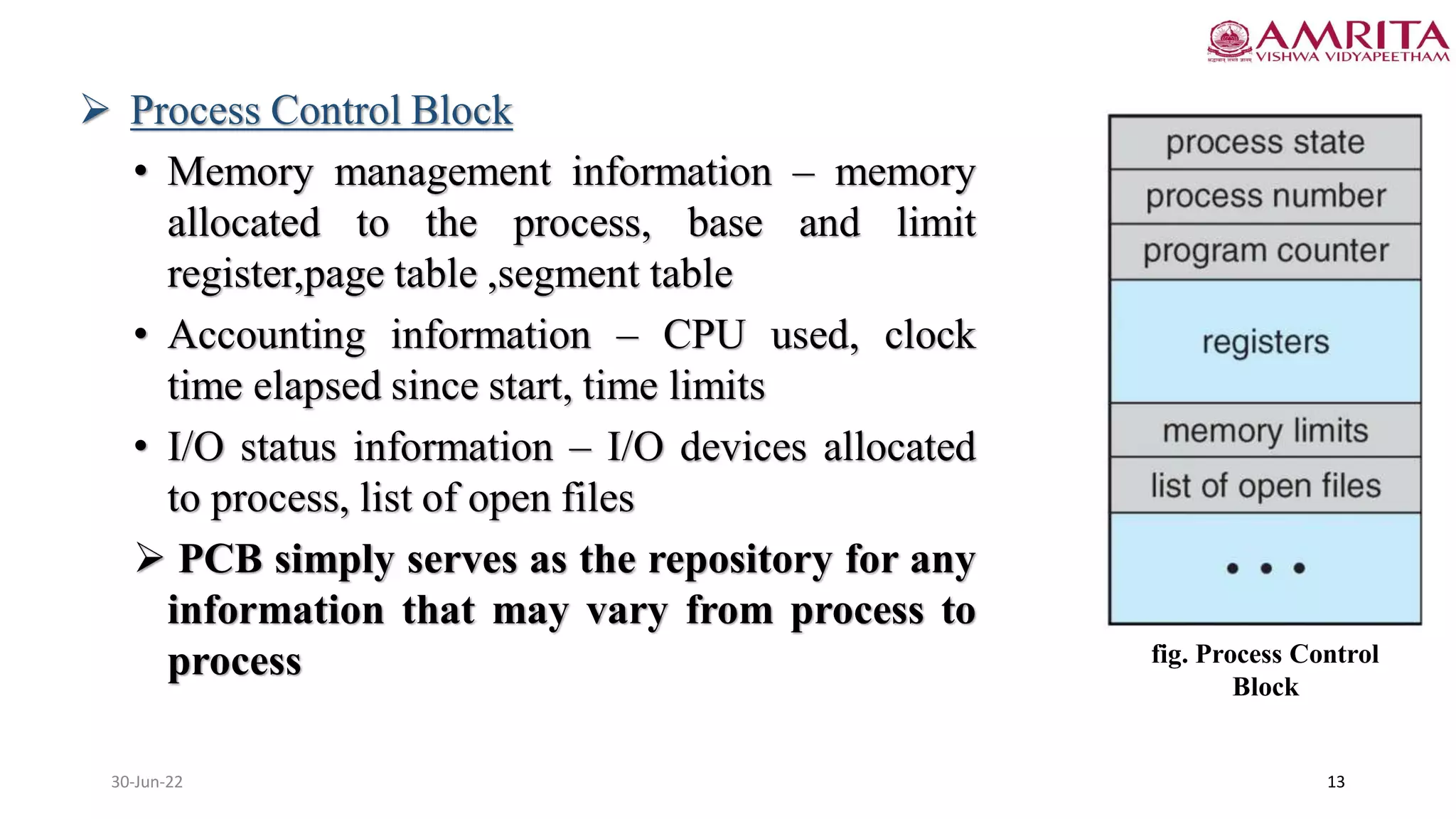

13. 30-Jun-22 13

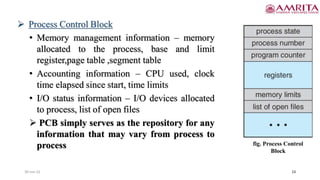

 Process Control Block
• Memory management information – memory
allocated to the process, base and limit
register,page table ,segment table
• Accounting information – CPU used, clock
time elapsed since start, time limits
• I/O status information – I/O devices allocated
to process, list of open files
 PCB simply serves as the repository for any
information that may vary from process to
process fig. Process Control
Block

14. 30-Jun-22 14

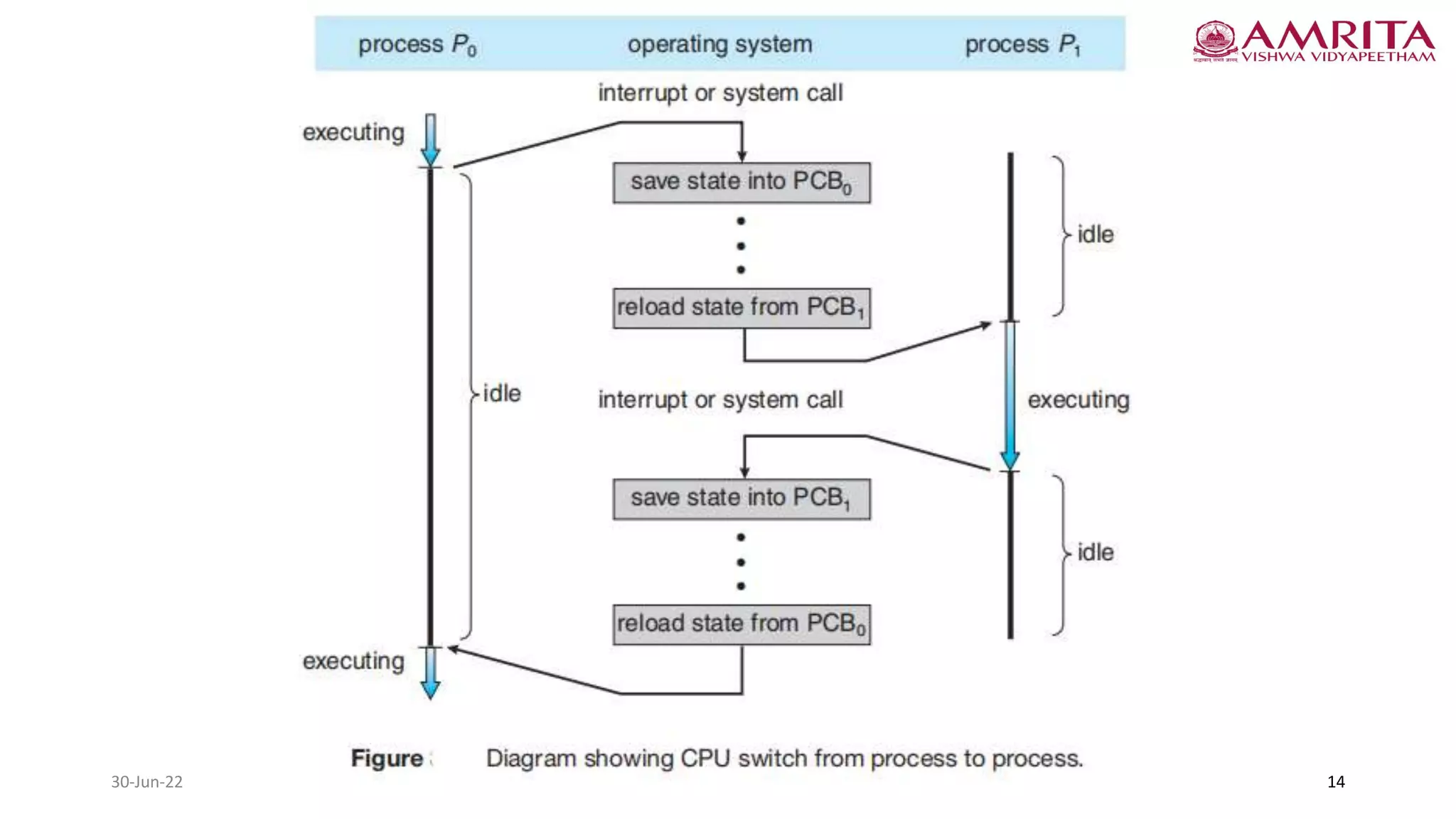

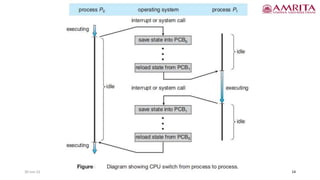

fig.

15. 30-Jun-22 15

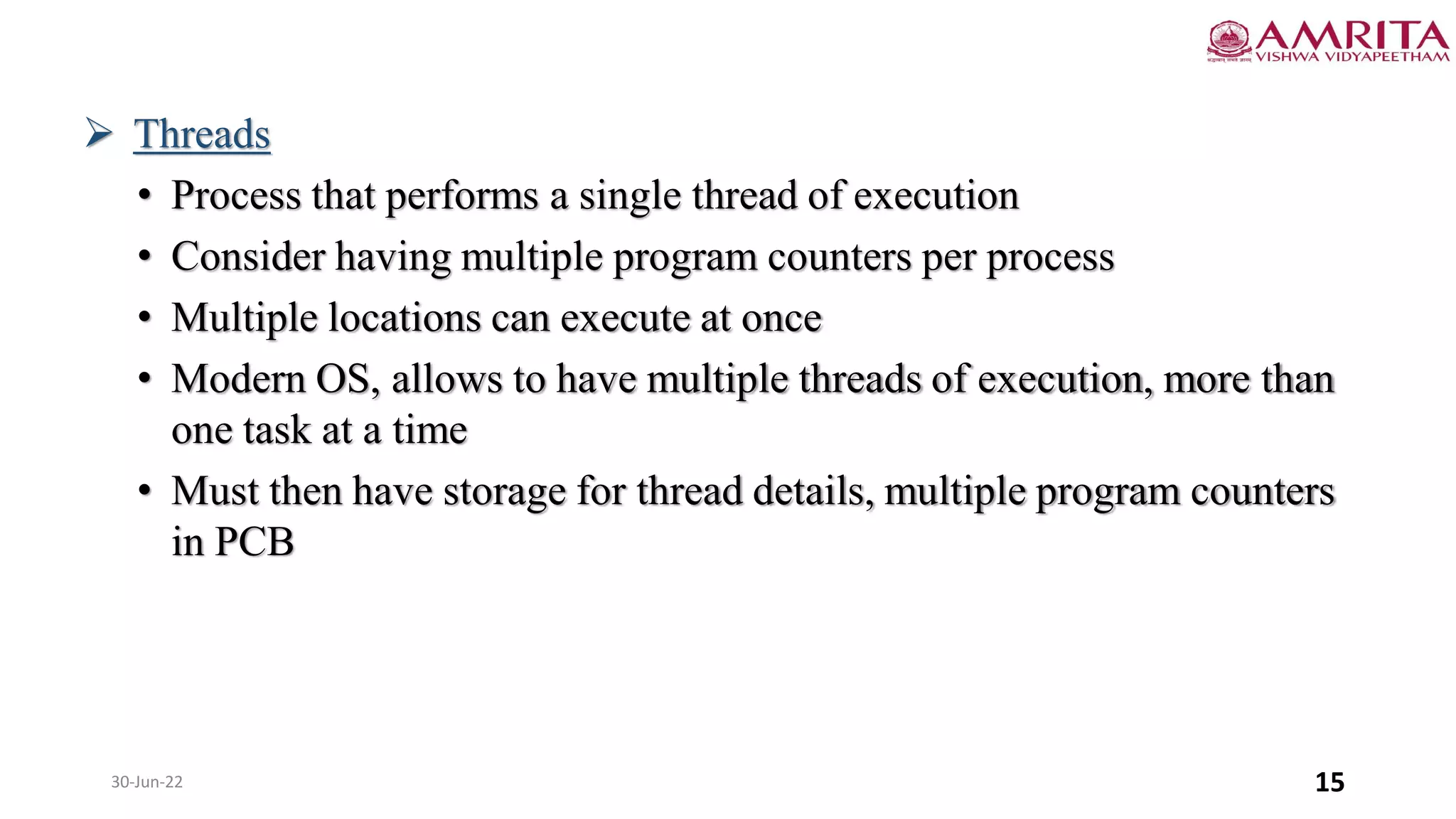

 Threads
• Process that performs a single thread of execution
• Consider having multiple program counters per process
• Multiple locations can execute at once
• Modern OS, allows to have multiple threads of execution, more than
one task at a time
• Must then have storage for thread details, multiple program counters
in PCB

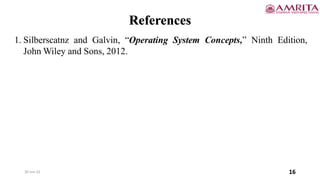

16. 30-Jun-22 16
References
1. Silberscatnz and Galvin, “Operating System Concepts,” Ninth Edition,
John Wiley and Sons, 2012.
