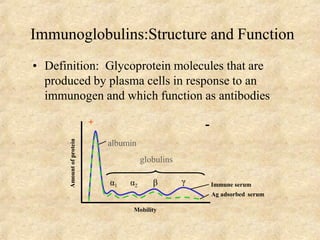

3. Immunoglobulins:Structure and Function
• Definition: Glycoprotein molecules that are
produced by plasma cells in response to an
immunogen and which function as antibodies
Immune serum
Ag adsorbed serum
α1 α2 β γ
+ -
albumin
globulins
Mobility
Amountofprotein

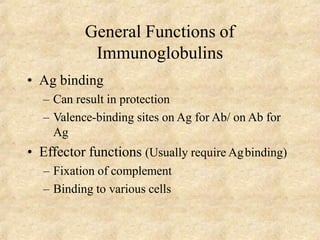

4. General Functions of
Immunoglobulins
• Ag binding
– Can result in protection
– Valence-binding sites on Ag for Ab/ on Ab for
Ag
• Effector functions (Usually require Agbinding)
– Fixation of complement
– Binding to various cells

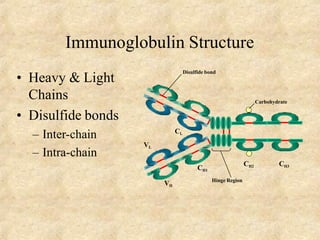

6. Immunoglobulin Structure
• Heavy & Light
Chains
• Disulfide bonds
– Inter-chain
– Intra-chain
CH1
VL
CL
VH
CH2 CH3
Hinge Region
Carbohydrate
Disulfide bond

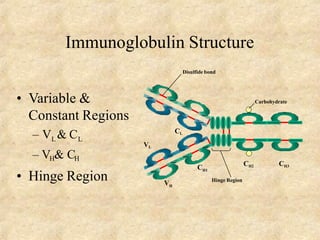

7. Immunoglobulin Structure
• Variable &
Constant Regions
– V & CL L
– VH& CH
• Hinge Region
CH1
VL
CL
VH
CH2 CH3
Hinge Region
Carbohydrate
Disulfide bond

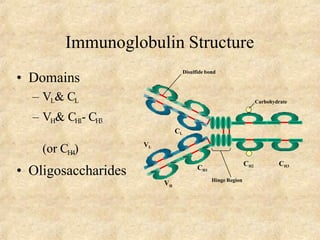

8. Immunoglobulin Structure
• Domains
– VL& CL
– VH& CH1- CH3
(or CH4)
• Oligosaccharides CH1
VL
CL
VH
CH2 CH3
Hinge Region
Carbohydrate
Disulfide bond

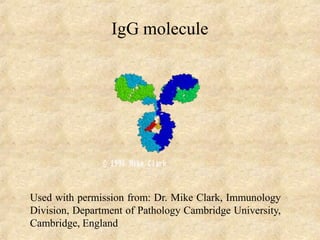

9. IgG molecule
Used with permission from: Dr. Mike Clark, Immunology
Division, Department of Pathology Cambridge University,
Cambridge, England
10. Structure of the Variable Region
• Hypervariable (HVR) or complimentarity
determining regions (CDR) HVR3
FR1 FR2 FR3 FR4
HVR2
VariabilityIndex
25 75 10050
Amino acid residue
150
100
HVR1
50
0
• Framework regions

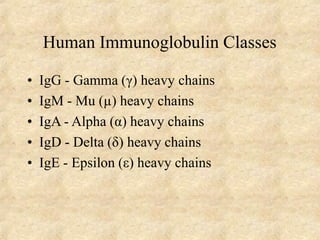

14. Human Immunoglobulin Classes
• IgG - Gamma (γ) heavy chains
• IgM - Mu (µ) heavy chains
• IgA - Alpha (α) heavy chains
• IgD - Delta (δ) heavy chains
• IgE - Epsilon (ε) heavy chains

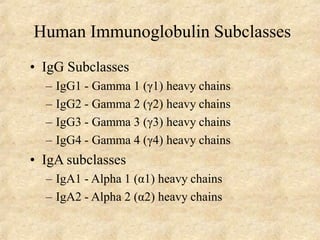

15. Human Immunoglobulin Subclasses
• IgG Subclasses
– IgG1 - Gamma 1 (γ1) heavy chains
– IgG2 - Gamma 2 (γ2) heavy chains
– IgG3 - Gamma 3 (γ3) heavy chains
– IgG4 - Gamma 4 (γ4) heavy chains
• IgA subclasses
– IgA1 - Alpha 1 (α1) heavy chains
– IgA2 - Alpha 2 (α2) heavy chains

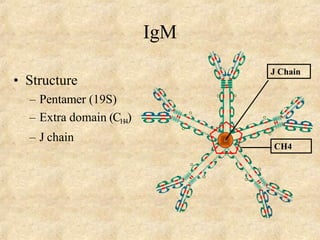

22. IgM
• Structure
• Properties
– 3rd highest serum Ig
– First Ig made by fetus and B cells in
acute infection
– Fixes complement

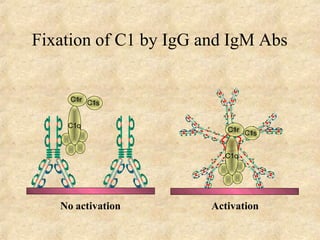

23. Fixation of C1 by IgG and IgM Abs
C1q
C1q
No activation Activation
24. IgM
Tail
Piece
• Structure
• Properties
– 3rd highest serum Ig
– First Ig made by fetus
and B cells
– Fixes complement
– Agglutinating Ig
– Binds to Fc receptors
– B cell surface Ig

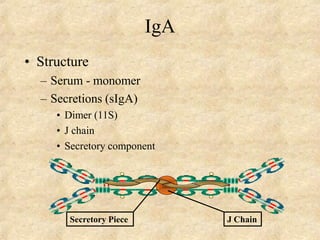

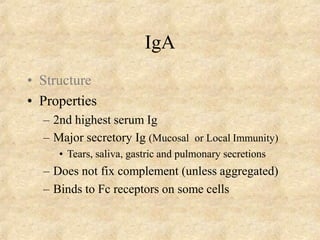

28. IgA
• Structure
• Properties
– 2nd highest serum Ig
– Major secretory Ig (Mucosal or Local Immunity)
• Tears, saliva, gastric and pulmonary secretions
– Does not fix complement (unless aggregated)
– Binds to Fc receptors on some cells
32. IgE
• Structure
• Properties
– Least common serum Ig
• Binds to basophils and mast cells (Does not require
Ag binding)
– Allergic reactions
– Parasitic infections (Helminths)
• Binds to Fc receptor on eosinophils
– Does not fix complement
