- A mass m is attached to one end of a horizontal spring, while the other end is anchored to a wall. The extension x(t) of the spring from its unstretched length determines the horizontal displacement of the mass.
- When undisturbed, the mass is at rest and the spring is unextended. But if displaced from this equilibrium, the spring exerts a restoring force f(x) = -kx on the mass according to Hooke's law, where k is the spring constant.
- Using Newton's second law, F=ma, this results in the mass undergoing simple harmonic motion described by the equation x(t) = A cos(ωt + Φ), where the frequency
This topic is about Free Oscillation.
Spring-Mass system is an application of Simple Harmonic Motion (SHM).
This topic is Depend on the Ordinary Differential Equation.
Topic of computational methods for mechanical engineering. Information about spring mass system. Mathematical modelling of spring mass system. free mass spring system. Damped vibration. Forced damped system. Free oscillation.
This topic is about Free Oscillation.
Spring-Mass system is an application of Simple Harmonic Motion (SHM).
This topic is Depend on the Ordinary Differential Equation.
Topic of computational methods for mechanical engineering. Information about spring mass system. Mathematical modelling of spring mass system. free mass spring system. Damped vibration. Forced damped system. Free oscillation.
Phyisics explaination on simple harmonic motion for first and second year university students , includes practical and theory about waves and some practical applications
Phyisics explaination on simple harmonic motion for first and second year university students , includes practical and theory about waves and some practical applications
A detailed analysis of wave equation regarding its formulation solutionSheharBano31
Give a detailed analysis of wave equation regarding its formulation solution and interpretation and also give an expression for forced vibrating membranes
Introduction to oscillations and simple harmonic motionMichael Marty
Physics presentation about Simple Harmonic Motion of Hooke's Law springs and pendulums with derivation of formulas and connections to Uniform Circular Motion.
References include links to illustrative youtube clips and other powerpoints that contributed to this peresentation.
Sharpen existing tools or get a new toolbox? Contemporary cluster initiatives...Orkestra
UIIN Conference, Madrid, 27-29 May 2024
James Wilson, Orkestra and Deusto Business School
Emily Wise, Lund University
Madeline Smith, The Glasgow School of Art
This presentation, created by Syed Faiz ul Hassan, explores the profound influence of media on public perception and behavior. It delves into the evolution of media from oral traditions to modern digital and social media platforms. Key topics include the role of media in information propagation, socialization, crisis awareness, globalization, and education. The presentation also examines media influence through agenda setting, propaganda, and manipulative techniques used by advertisers and marketers. Furthermore, it highlights the impact of surveillance enabled by media technologies on personal behavior and preferences. Through this comprehensive overview, the presentation aims to shed light on how media shapes collective consciousness and public opinion.
Have you ever wondered how search works while visiting an e-commerce site, internal website, or searching through other types of online resources? Look no further than this informative session on the ways that taxonomies help end-users navigate the internet! Hear from taxonomists and other information professionals who have first-hand experience creating and working with taxonomies that aid in navigation, search, and discovery across a range of disciplines.
0x01 - Newton's Third Law: Static vs. Dynamic AbusersOWASP Beja
f you offer a service on the web, odds are that someone will abuse it. Be it an API, a SaaS, a PaaS, or even a static website, someone somewhere will try to figure out a way to use it to their own needs. In this talk we'll compare measures that are effective against static attackers and how to battle a dynamic attacker who adapts to your counter-measures.
About the Speaker
===============
Diogo Sousa, Engineering Manager @ Canonical
An opinionated individual with an interest in cryptography and its intersection with secure software development.
This presentation by Morris Kleiner (University of Minnesota), was made during the discussion “Competition and Regulation in Professions and Occupations” held at the Working Party No. 2 on Competition and Regulation on 10 June 2024. More papers and presentations on the topic can be found out at oe.cd/crps.
This presentation was uploaded with the author’s consent.
Acorn Recovery: Restore IT infra within minutesIP ServerOne
Introducing Acorn Recovery as a Service, a simple, fast, and secure managed disaster recovery (DRaaS) by IP ServerOne. A DR solution that helps restore your IT infra within minutes.

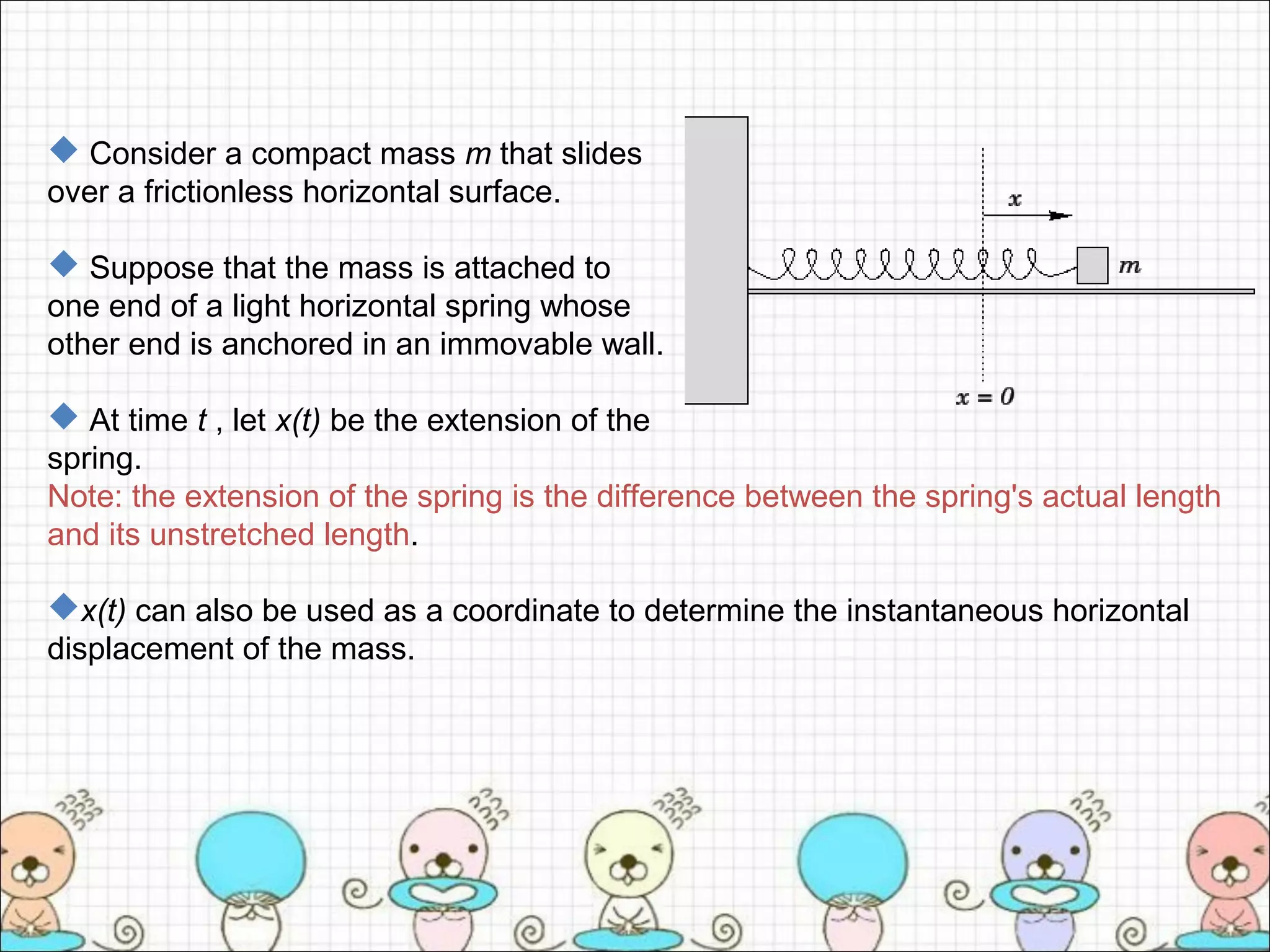

2. Consider a compact mass m that slides
over a frictionless horizontal surface.
Suppose that the mass is attached to
one end of a light horizontal spring whose
other end is anchored in an immovable wall.
At time t , let x(t) be the extension of the
spring.
Note: the extension of the spring is the difference between the spring's actual length
and its unstretched length.
x(t) can also be used as a coordinate to determine the instantaneous horizontal
displacement of the mass.

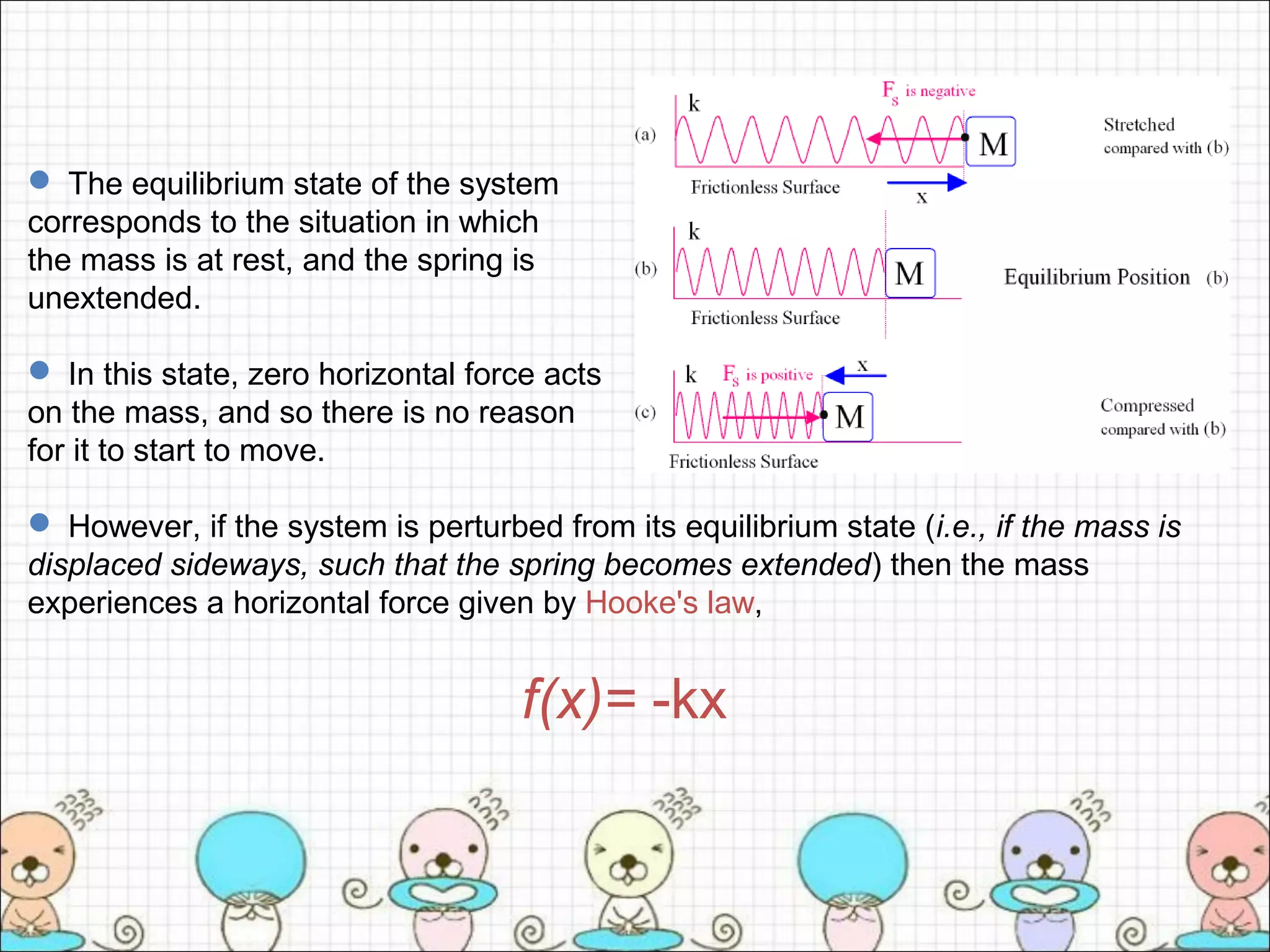

3. The equilibrium state of the system
corresponds to the situation in which
the mass is at rest, and the spring is
unextended.
In this state, zero horizontal force acts
on the mass, and so there is no reason
for it to start to move.
However, if the system is perturbed from its equilibrium state (i.e., if the mass is
displaced sideways, such that the spring becomes extended) then the mass
experiences a horizontal force given by Hooke's law,
f(x)= -kx

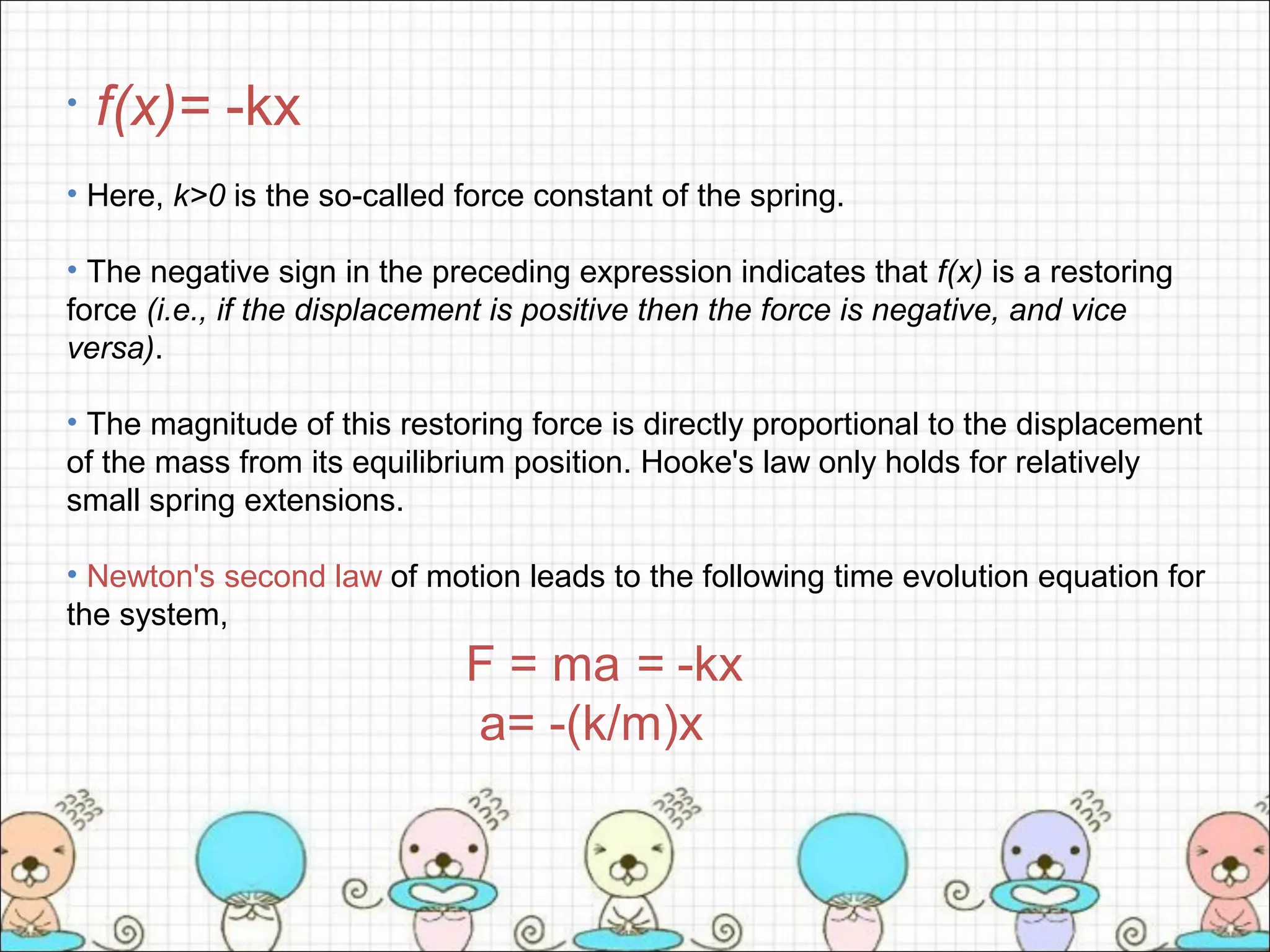

4. • f(x)= -kx
• Here, k>0 is the so-called force constant of the spring.
• The negative sign in the preceding expression indicates that f(x) is a restoring
force (i.e., if the displacement is positive then the force is negative, and vice
versa).
• The magnitude of this restoring force is directly proportional to the displacement
of the mass from its equilibrium position. Hooke's law only holds for relatively
small spring extensions.
• Newton's second law of motion leads to the following time evolution equation for
the system,
F = ma = -kx
a= -(k/m)x

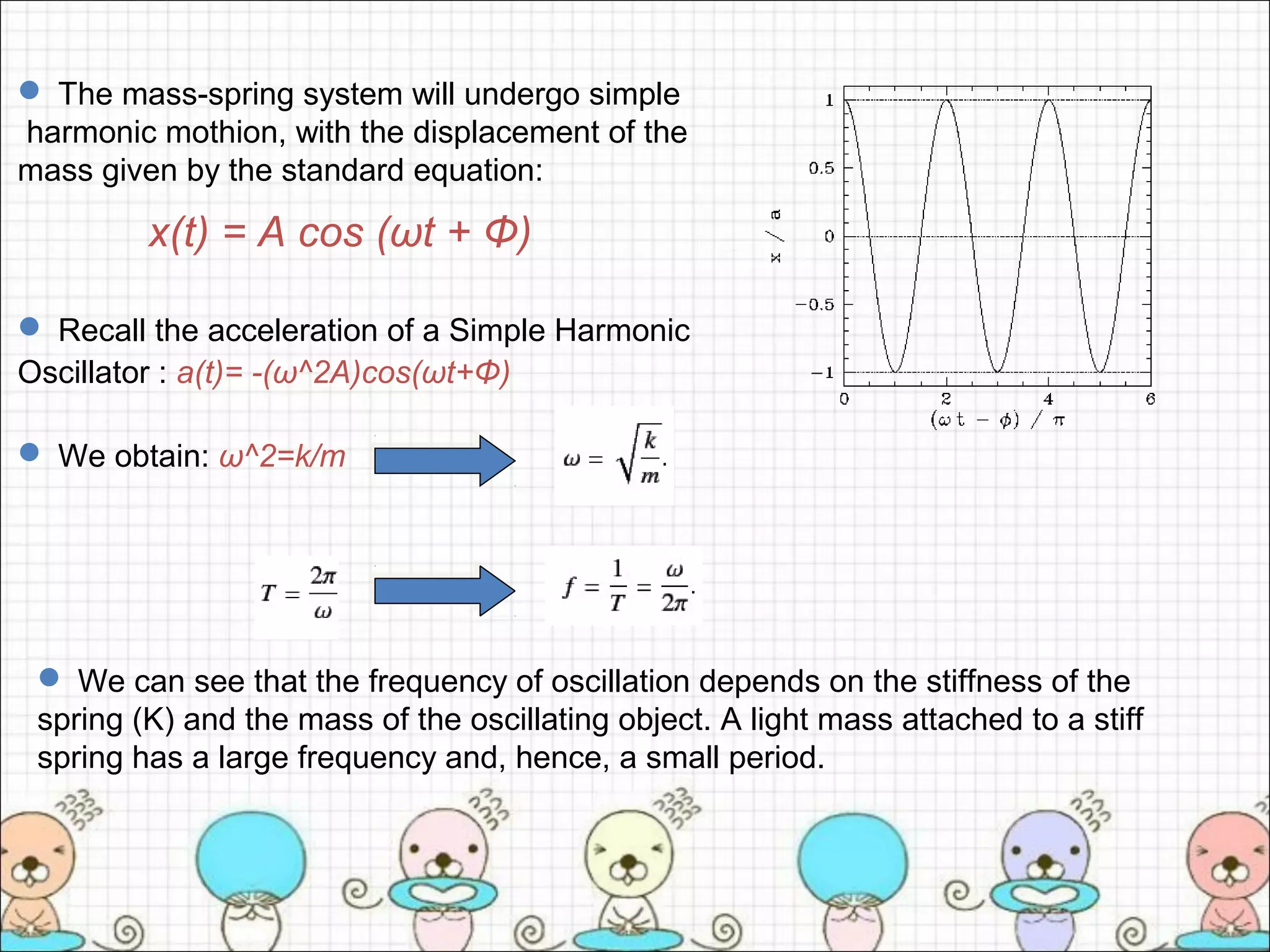

5. The mass-spring system will undergo simple
harmonic mothion, with the displacement of the
mass given by the standard equation:
x(t) = A cos (ωt + Φ)
Recall the acceleration of a Simple Harmonic
Oscillator : a(t)= -(ω^2A)cos(ωt+Φ)
We obtain: ω^2=k/m
We can see that the frequency of oscillation depends on the stiffness of the
spring (K) and the mass of the oscillating object. A light mass attached to a stiff
spring has a large frequency and, hence, a small period.
