1. Your systems. Working as one.
FACE Aligned Reference Platform:
RTI TSS Reference Implementation
built on Connext DDS Cert
Dave Stringer, RTI
April 2016

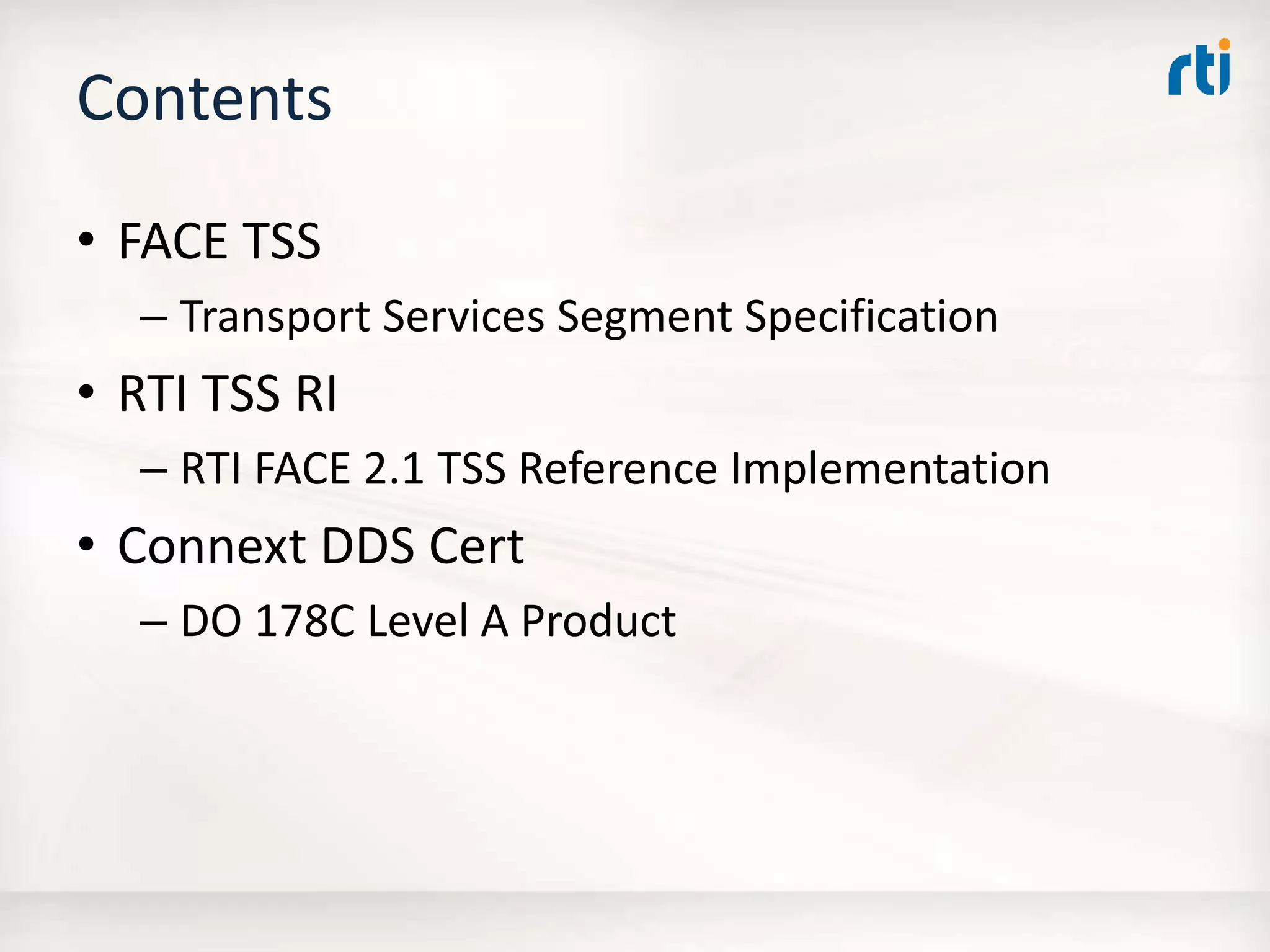

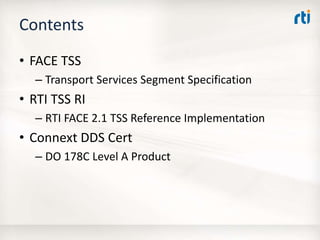

2. Contents
• FACE TSS
– Transport Services Segment Specification
• RTI TSS RI
– RTI FACE 2.1 TSS Reference Implementation
• Connext DDS Cert
– DO 178C Level A Product

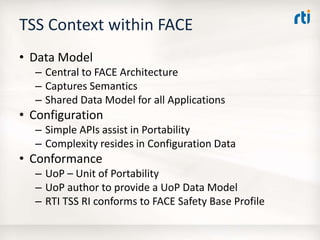

3. TSS Context within FACE
• Data Model
– Central to FACE Architecture
– Captures Semantics
– Shared Data Model for all Applications
• Configuration
– Simple APIs assist in Portability
– Complexity resides in Configuration Data
• Conformance
– UoP – Unit of Portability
– UoP author to provide a UoP Data Model
– RTI TSS RI conforms to FACE Safety Base Profile

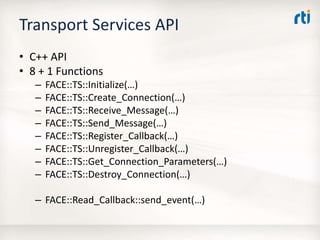

4. Transport Services API
• C++ API
• 8 + 1 Functions
– FACE::TS::Initialize(…)
– FACE::TS::Create_Connection(…)
– FACE::TS::Receive_Message(…)
– FACE::TS::Send_Message(…)
– FACE::TS::Register_Callback(…)
– FACE::TS::Unregister_Callback(…)
– FACE::TS::Get_Connection_Parameters(…)
– FACE::TS::Destroy_Connection(…)
– FACE::Read_Callback::send_event(…)

5. RTI TSS Reference Implementation
RTI TSS Type
Plugin
Config
Plugin
QoS
Plugin
Configuration Mgr
ConfigEntry
ConfigEntry
Config Entry
Connection Mgr
ConfigEntry
ConfigEntryConnection
Entry
Logger
Connext DDS Pro / Connext DDS Micro / Connext DDS Cert
FACE UoP
FACE TS API
DDS Databus
DDS RTPS

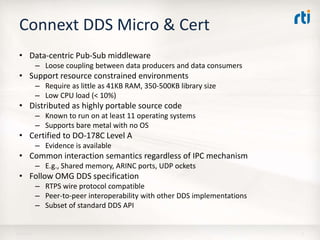

6. Connext DDS Micro & Cert
• Data-centric Pub-Sub middleware
– Loose coupling between data producers and data consumers
• Support resource constrained environments
– Require as little as 41KB RAM, 350-500KB library size
– Low CPU load (< 10%)
• Distributed as highly portable source code
– Known to run on at least 11 operating systems
– Supports bare metal with no OS
• Certified to DO-178C Level A
– Evidence is available
• Common interaction semantics regardless of IPC mechanism
– E.g., Shared memory, ARINC ports, UDP ockets
• Follow OMG DDS specification
– RTPS wire protocol compatible
– Peer-to-peer interoperability with other DDS implementations
– Subset of standard DDS API
18-Apr-16 6

7. Modular and Configurable Architecture
User Application
DDS API Subset
Transport API
Base-line configuration
OS API Queue API Discovery API
Listeners
Reliability
Durability &
History
Other QoS
Optional
APIs
Compile-timeoptions
Fully Dynamic
Discovery
UDPv4 Linux
Mobile
Static Endpoint
Discovery
Plug-in components
Linear Queue
Keyed QueueShared
memory
RTOS
RTPS Windows
18-Apr-16 7

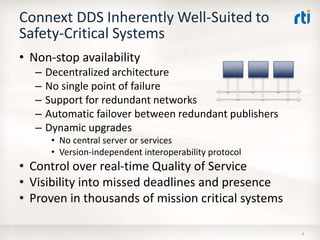

8. Connext DDS Inherently Well-Suited to
Safety-Critical Systems
• Non-stop availability
– Decentralized architecture
– No single point of failure
– Support for redundant networks
– Automatic failover between redundant publishers
– Dynamic upgrades
• No central server or services
• Version-independent interoperability protocol
• Control over real-time Quality of Service
• Visibility into missed deadlines and presence
• Proven in thousands of mission critical systems
818-Apr-16

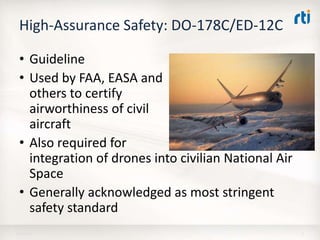

9. High-Assurance Safety: DO-178C/ED-12C
• Guideline
• Used by FAA, EASA and
others to certify
airworthiness of civil
aircraft
• Also required for
integration of drones into civilian National Air
Space
• Generally acknowledged as most stringent
safety standard
18-Apr-16 9

10. DO-178C Level A Certification Evidence
• Plan for Software Aspects of
Certification (PSAC)
• Software Development Plan (SDP)
– Requirements standards
– Design standards
– Code standards
• Software Verification Plan (SVP)
• Software Configuration
Management Plan (SCM)
• Software Quality Assurance Plan
• Software Requirements Data
• Design Description
• Traceability
• SQA Records
• SCM Records
• Software Configuration Index
• Software Verification Cases and
Procedures
• Software Verification Results
• Software Accomplishment
Summary
Certification evidence can be re-used across programs
18-Apr-16 10

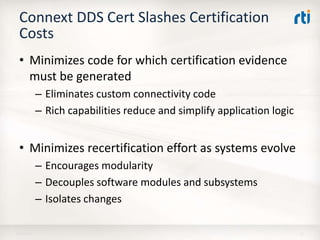

11. Connext DDS Cert Slashes Certification
Costs
• Minimizes code for which certification evidence
must be generated
– Eliminates custom connectivity code
– Rich capabilities reduce and simplify application logic
• Minimizes recertification effort as systems evolve
– Encourages modularity
– Decouples software modules and subsystems
– Isolates changes
18-Apr-16 11

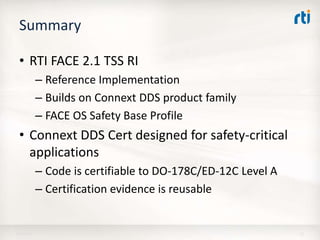

12. Summary
• RTI FACE 2.1 TSS RI
– Reference Implementation
– Builds on Connext DDS product family
– FACE OS Safety Base Profile
• Connext DDS Cert designed for safety-critical
applications
– Code is certifiable to DO-178C/ED-12C Level A
– Certification evidence is reusable
18-Apr-16 12
