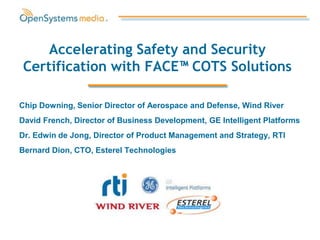

1. Accelerating Safety and Security
Certification with FACE™ COTS Solutions
Chip Downing, Senior Director of Aerospace and Defense, Wind River
David French, Director of Business Development, GE Intelligent Platforms
Dr. Edwin de Jong, Director of Product Management and Strategy, RTI
Bernard Dion, CTO, Esterel Technologies

2. Quick Introduction
to FACE™
NAVAIR Public Release 2012-1233
Distribution Statement A Chip Downing, Wind River
"Approved for public release FACE Outreach Working Group Chair
distribution is unlimited”
FACE™ is a Trademark of The Open Group

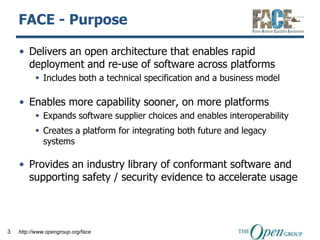

3. FACE - Purpose
• Delivers an open architecture that enables rapid
deployment and re-use of software across platforms
 Includes both a technical specification and a business model
• Enables more capability sooner, on more platforms
 Expands software supplier choices and enables interoperability
 Creates a platform for integrating both future and legacy
systems
• Provides an industry library of conformant software and
supporting safety / security evidence to accelerate usage
3 http://www.opengroup.org/face

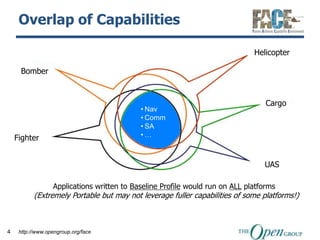

4. Overlap of Capabilities
Helicopter
Bomber
Cargo
• Nav
• Comm
• SA
Fighter •…
UAS
Applications written to Baseline Profile would run on ALL platforms
(Extremely Portable but may not leverage fuller capabilities of some platforms!)
4 http://www.opengroup.org/face

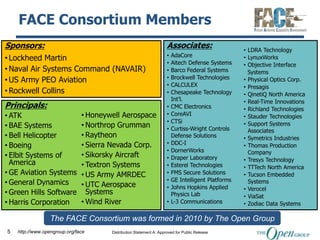

5. FACE Consortium Members
Sponsors: Associates: • LDRA Technology
• AdaCore
• Lockheed Martin • LynuxWorks
• Aitech Defense Systems • Objective Interface
• Naval Air Systems Command (NAVAIR) • Barco Federal Systems Systems
• Brockwell Technologies
• US Army PEO Aviation • Physical Optics Corp.
• CALCULEX • Presagis
• Rockwell Collins • Chesapeake Technology • QinetiQ North America
Int’l. • Real-Time Innovations
Principals: • CMC Electronics • Richland Technologies
• ATK • Honeywell Aerospace • CoreAVI • Stauder Technologies
• CTSi
• BAE Systems • Northrop Grumman • Curtiss-Wright Controls
• Support Systems
Associates
• Bell Helicopter • Raytheon Defense Solutions • Symetrics Industries
• Boeing • Sierra Nevada Corp. • DDC-I • Thomas Production
• DornerWorks Company
• Elbit Systems of • Sikorsky Aircraft • Draper Laboratory • Tresys Technology
America • Textron Systems • Esterel Technologies • TTTech North America
• GE Aviation Systems • US Army AMRDEC • FMS Secure Solutions • Tucson Embedded
• GE Intelligent Platforms
• General Dynamics • UTC Aerospace Systems
• Johns Hopkins Applied • Verocel
• Green Hills Software Systems Physics Lab • ViaSat
• Harris Corporation • Wind River • L-3 Communications • Zodiac Data Systems
The FACE Consortium was formed in 2010 by The Open Group
5 http://www.opengroup.org/face Distribution Statement A: Approved for Public Release

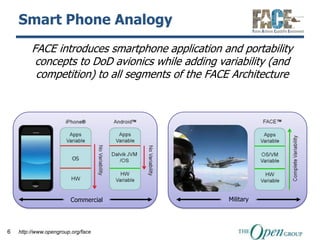

6. Smart Phone Analogy
FACE introduces smartphone application and portability
concepts to DoD avionics while adding variability (and
competition) to all segments of the FACE Architecture
TM
Commercial Military
6 http://www.opengroup.org/face

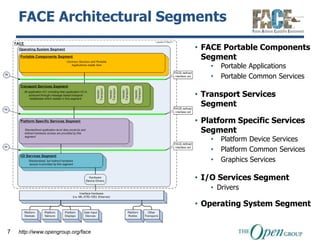

7. FACE Architectural Segments
• FACE Portable Components
Segment
• Portable Applications
• Portable Common Services
• Transport Services
Segment
• Platform Specific Services
Segment
• Platform Device Services
• Platform Common Services
• Graphics Services
• I/O Services Segment
• Drivers
• Operating System Segment
7 http://www.opengroup.org/face

8. FACE™ COTS Solution Segments

9. FACE – Program Adoption
• Although only formed in June, 2010 FACE already has significant
program support:
• Navy Next Generation Jammer Technology Development
• Navy C-130T
• Army Airborne Radio Control Display Unit (CDU) Replacement
• Navy H-1 HMD
• Navy ADDS
• Navy Full Motion Video
• Navy RNP/RNAV Portable Software Component
• Army Joint Multi-Role Technology Generator Phase 2
• Navy AACUS
• Army Air-to-Air Targeting of Turreted Systems
• Navy FACE Software Reference Architecture
• Navy AMCD/MSC 2nd OSP Upgrade
See current program tracking at: http://www.opengroup.org/FACE/procurements
9 http://www.opengroup.org/face

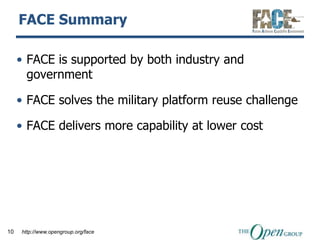

10. FACE Summary
• FACE is supported by both industry and
government
• FACE solves the military platform reuse challenge
• FACE delivers more capability at lower cost
10 http://www.opengroup.org/face

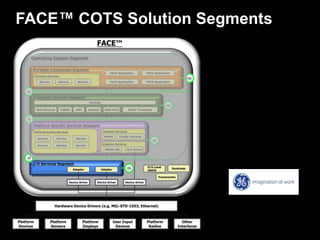

11. FACE™ COTS Solution Segments

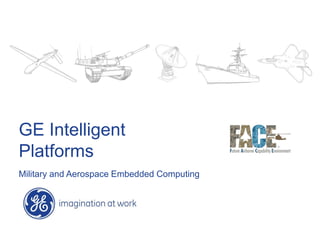

12. GE Intelligent
Platforms
Military and Aerospace Embedded Computing
June 2011

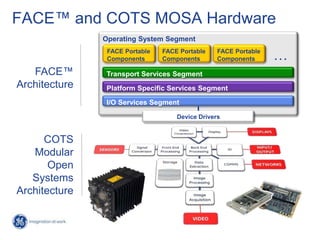

13. FACE™ and COTS MOSA Hardware
Operating System Segment
FACE Portable
Components
FACE Portable
Components
FACE Portable
Components …
FACE™ Transport Services Segment
Architecture Platform Specific Services Segment
I/O Services Segment
Device Drivers
COTS
Modular
Open
Systems
Architecture

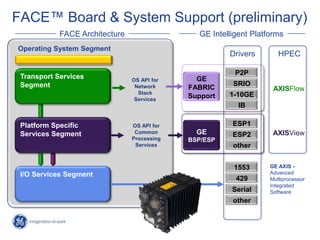

14. FACE™ Board & System Support (preliminary)
FACE Architecture GE Intelligent Platforms
Operating System Segment
Drivers HPEC
P2P
Transport Services OS API for GE
Segment Network SRIO
FABRIC AXISFlow
Stack 1-10GE
Services
Support
IB
Platform Specific OS API for ESP1
Services Segment Common GE ESP2 AXISView
Processing BSP/ESP
Services other
1553 GE AXIS -
I/O Services Segment Advanced
429 Multiprocessor
Integrated
Serial Software
other

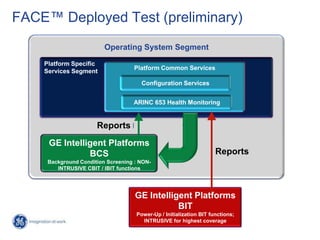

15. FACE™ Deployed Test (preliminary)
Operating System Segment
Platform Specific
Platform Common Services
Services Segment
Configuration Services
ARINC 653 Health Monitoring
Reports
GE Intelligent Platforms
BCS Reports
Background Condition Screening : NON-
INTRUSIVE CBIT / IBIT functions
GE Intelligent Platforms
BIT
Power-Up / Initialization BIT functions;
INTRUSIVE for highest coverage

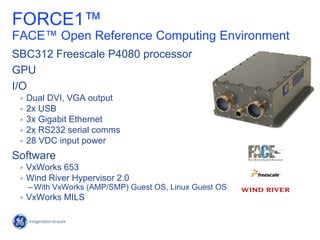

16. FORCE1™
FACE™ Open Reference Computing Environment
SBC312 Freescale P4080 processor
GPU
I/O
 Dual DVI, VGA output
 2x USB
 3x Gigabit Ethernet
 2x RS232 serial comms
 28 VDC input power
Software
 VxWorks 653
 Wind River Hypervisor 2.0
– With VxWorks (AMP/SMP) Guest OS, Linux Guest OS
 VxWorks MILS

17. FORCE1™ Block Diagram
FACE Open Reference Computing Environment
DDR 2x DVI
3 2x VGA
DDR GPU
3 PCIe-
PCI-X
x4 PCIe Filter
PSU
DDR
DDR
DDR
3
DDR
33 2x USB
3
DDR
DDR P4080 2x RS232
DDR
3
DDR 3x 1000BASE-T
333 PHY

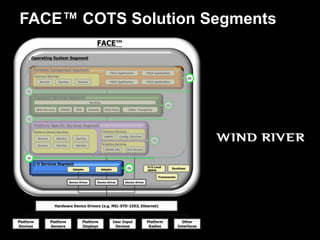

19. FACE™ COTS Solution Segments

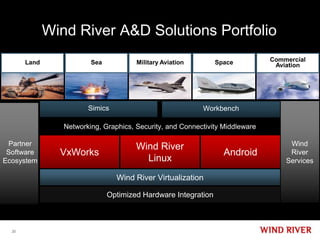

20. Wind River A&D Solutions Portfolio
Land Sea Military Aviation Space Commercial
Aviation
Simics Workbench
Networking, Graphics, Security, and Connectivity Middleware
Partner Wind River Wind
Software VxWorks Android River
Ecosystem Linux Services
Wind River Virtualization
Optimized Hardware Integration
20

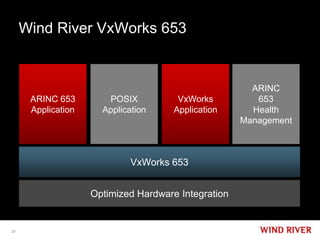

21. Wind River VxWorks 653
ARINC
ARINC 653 POSIX VxWorks 653
Application Application Application Health
Management
VxWorks 653
Optimized Hardware Integration
21

22. Wind River Hypervisor Vision
FACE ARINC FACE
Minimum Linux Android
653 VxWorks General
Safety Purpose
Profile Profile
Guest Guest Guest
Guest Guest Guest
OS OS OS
OS OS OS
Wind River Hypervisor
Optimized Hardware Integration
22

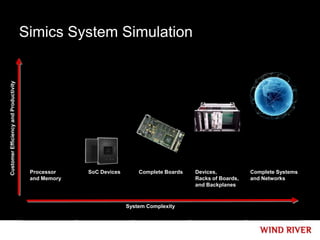

23. Simics System Simulation
Customer Efficiency and Productivity
Processor SoC Devices Complete Boards Devices, Complete Systems
and Memory Racks of Boards, and Networks
and Backplanes
System Complexity

24. Wind River  Proven leader in aerospace
and defense
 Wide range of COTS solutions
 Ready to respond to large
industry trends and migrations

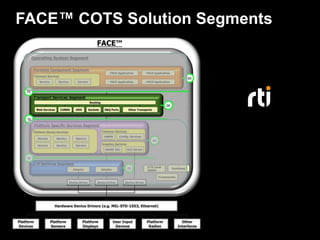

25. FACE™ COTS Solution Segments

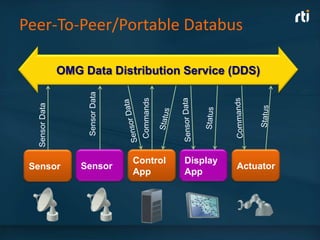

26. Peer-To-Peer/Portable Databus
OMG Data Distribution Service (DDS)
Sensor Data
Commands
Sensor Data
Control Display
Sensor Sensor Actuator
App App

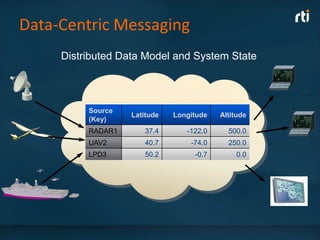

27. Data-Centric Messaging
Distributed Data Model and System State
Source
Latitude Longitude Altitude
(Key)
RADAR1 37.4 -122.0 500.0
UAV2 40.7 -74.0 250.0
LPD3 50.2 -0.7 0.0

28. Hundreds Of DDS Applications

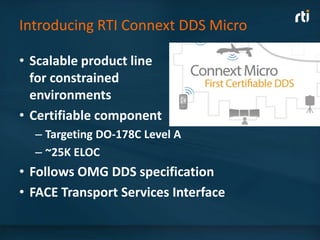

29. Introducing RTI Connext DDS Micro
• Scalable product line
for constrained
environments
• Certifiable component
– Targeting DO-178C Level A
– ~25K ELOC
• Follows OMG DDS specification
• FACE Transport Services Interface

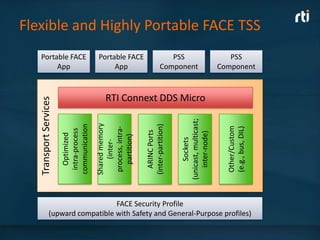

30. Flexible and Highly Portable FACE TSS
Portable FACE Portable FACE PSS PSS
App App Component Component
RTI Connext DDS Micro
Transport Services
(unicast, multicast;
Shared memory
communication
(inter-partition)
Other/Custom
process, intra-
(e.g., bus, DIL)
intra-process
ARINC Ports
inter-node)
Optimized
partition)
Sockets
(inter-
FACE Security Profile
(upward compatible with Safety and General-Purpose profiles)

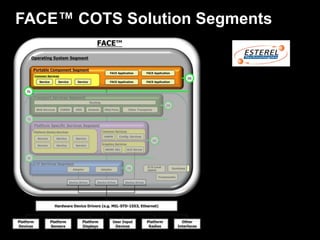

31. FACE™ COTS Solution Segments

32. Esterel Technologies mission
Provide critical system and software developers
with model-based development solutions
that reduce cost, risk and time-to-certification
32 © 2013 ANSYS, Inc. March 27, 2013 © Esterel Technologies - An ISO 9001:2008 Certified Company - Confidential & Proprietary

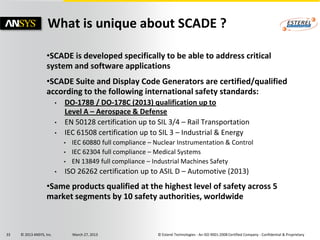

33. What is unique about SCADE ?
•SCADE is developed specifically to be able to address critical
system and software applications
•SCADE Suite and Display Code Generators are certified/qualified
according to the following international safety standards:
• DO-178B / DO-178C (2013) qualification up to
Level A – Aerospace & Defense
• EN 50128 certification up to SIL 3/4 – Rail Transportation
• IEC 61508 certification up to SIL 3 – Industrial & Energy
• IEC 60880 full compliance – Nuclear Instrumentation & Control
• IEC 62304 full compliance – Medical Systems
• EN 13849 full compliance – Industrial Machines Safety
• ISO 26262 certification up to ASIL D – Automotive (2013)
•Same products qualified at the highest level of safety across 5
market segments by 10 safety authorities, worldwide
33 © 2013 ANSYS, Inc. March 27, 2013 © Esterel Technologies - An ISO 9001:2008 Certified Company - Confidential & Proprietary

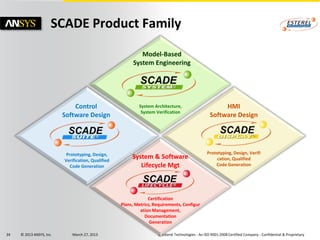

34. SCADE Product Family
Model-Based
System Engineering
Control System Architecture, HMI
System Verification
Software Design Software Design
Prototyping, Design, Prototyping, Design, Verifi
Verification, Qualified
System & Software cation, Qualified
Code Generation Lifecycle Mgt Code Generation
Certification
Plans, Metrics, Requirements, Configur
ation Management,
Documentation
Generation
34 © 2013 ANSYS, Inc. March 27, 2013 © Esterel Technologies - An ISO 9001:2008 Certified Company - Confidential & Proprietary

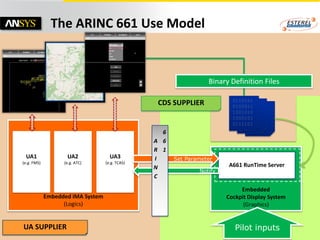

35. The ARINC 661 Use Model
Binary Definition Files
0110101
CDS SUPPLIER 0100011
1001010
1000101
0111101
6
A 6
R 1
UA1 UA2 UA3 I Set Parameter
(e.g. FMS) (e.g. ATC) (e.g. TCAS)
N A661 RunTime Server
Notify
C
Embedded
Embedded IMA System Cockpit Display System
(Logics) (Graphics)
UA SUPPLIER Pilot inputs
35 © 2013 ANSYS, Inc. March 27, 2013 © Esterel Technologies - An ISO 9001:2008 Certified Company - Confidential & Proprietary

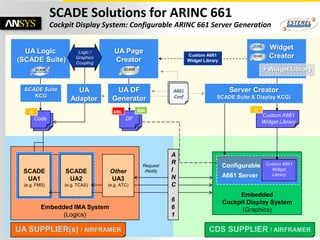

36. SCADE Solutions for ARINC 661
Cockpit Display System: Configurable ARINC 661 Server Generation
Widget
UA Logic Logic / UA Page
Graphics
Custom A661 Creator
(SCADE Suite) Coupling
Creator Widget Library
+ Widget Library
SCADE Suite UA UA DF A661 Server Creator
KCG Conf SCADE Suite & Display KCG)
Adaptor Generator
C XML BIN C
Custom A661
Code DF
Widget Library
A
R Custom A661
A661
Request Configurable
Embedded
SCADE SCADE Other /Notify I Widget
Widget
A661Server
A661 Server Library
UA1 UA2 UA3 N Library
(e.g. FMS) (e.g. TCAS) (e.g. ATC) C
Embedded
6 Cockpit Display System
Embedded IMA System 6 (Graphics)
(Logics) 1
UA SUPPLIER(s) / AIRFRAMER CDS SUPPLIER / AIRFRAMER
36 © 2013 ANSYS, Inc. March 27, 2013 © Esterel Technologies - An ISO 9001:2008 Certified Company - Confidential & Proprietary

37. SCADE Solutions for IMA
Manual or
legacy Code
Application1 Application2 Application3
(e.g. FMS) (e.g. FCS) (e.g. TCAS)
IMA
Partitions Partitions Partitions Configuration
Table
IMA Usage Domain
A653 API
(Platform Constraints)
IMA Operating System
IMA Platform provider
IMA HW Platform
(CPU, I/O, Networks: AFDX, ARINC 429…)
37 © 2013 ANSYS, Inc. March 27, 2013 © Esterel Technologies - An ISO 9001:2008 Certified Company - Confidential & Proprietary

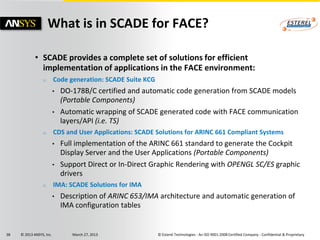

38. What is in SCADE for FACE?
• SCADE provides a complete set of solutions for efficient
implementation of applications in the FACE environment:
o Code generation: SCADE Suite KCG
• DO-178B/C certified and automatic code generation from SCADE models
(Portable Components)
• Automatic wrapping of SCADE generated code with FACE communication
layers/API (i.e. TS)
o CDS and User Applications: SCADE Solutions for ARINC 661 Compliant Systems
• Full implementation of the ARINC 661 standard to generate the Cockpit
Display Server and the User Applications (Portable Components)
• Support Direct or In-Direct Graphic Rendering with OPENGL SC/ES graphic
drivers
o IMA: SCADE Solutions for IMA
• Description of ARINC 653/IMA architecture and automatic generation of
IMA configuration tables
38 © 2013 ANSYS, Inc. March 27, 2013 © Esterel Technologies - An ISO 9001:2008 Certified Company - Confidential & Proprietary

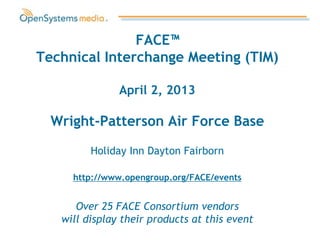

39. FACE™
Technical Interchange Meeting (TIM)
April 2, 2013
Wright-Patterson Air Force Base
Holiday Inn Dayton Fairborn
http://www.opengroup.org/FACE/events
Over 25 FACE Consortium vendors
will display their products at this event

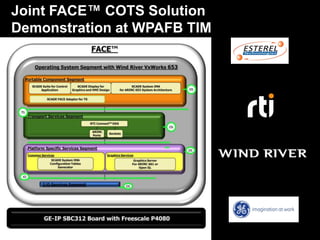

40. Joint FACE™ COTS Solution
Demonstration at WPAFB TIM

41. Audience Q & A
Chip Downing, Senior Director of Aerospace and Defense, Wind River
David French, Director of Business Development, GE Intelligent Platforms
Dr. Edwin de Jong, Director of Product Management and Strategy, RTI
Bernard Dion, CTO, Esterel Technologies

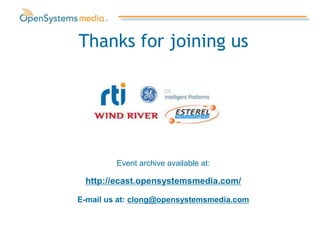

42. Thanks for joining us
Event archive available at:
http://ecast.opensystemsmedia.com/
E-mail us at: clong@opensystemsmedia.com

43. The FACE Consortium
Steering Committee
Chair: Bob Matthews
Advisory 50+ FACE
(NAVAIR) 575 Individual
Board Consortium
Vice Chair: Jeff Howington Members Participants
(Rockwell Collins)
Judy Cerenzia
(The Open Group)
Enterprise Architecture
Business Working Group Steve Davidson Technical Working Group
Chair: Dennis Stevens (Raytheon) Chair: Rob Sweeney
(Lockheed Martin) (NAVAIR)
Vice Chair: David Boyett Vice Chair: Kirk Avery
(US Army AMRDEC) (Lockheed Martin)
FACE / UCS
Alignment
Bill Antypas
(Real Time Innovations)
Conformance Library Outreach Verification Data Model & Reference Security
Business Model
Subcommittee Subcommittee Subcommittee Matrix Data Definition Implementation Subcommittee
Subcommittee
Steve Goetz David Boyett Chip Downing Marcell Padilla Jeff Hegedus Guide Joe Neal
Gabriel Flores
(US Army (US Army (Wind River) (NAVAIR) (Raytheon) Kirk Avery (Harris)
(Northrop Grumman)
AMRDEC) AMRDEC) (Lockheed Martin)

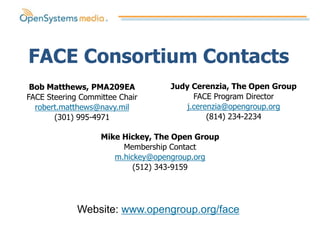

44. FACE Consortium Contacts
Bob Matthews, PMA209EA Judy Cerenzia, The Open Group
FACE Steering Committee Chair FACE Program Director
robert.matthews@navy.mil j.cerenzia@opengroup.org
(301) 995-4971 (814) 234-2234
Mike Hickey, The Open Group
Membership Contact
m.hickey@opengroup.org
(512) 343-9159
Website: www.opengroup.org/face
