1. LDAP AND SAML
IN HUE
Abraham Elmahrek

2. WHAT
IS HUE?
WEB INTERFACE FOR MAKING
HADOOP EASIER TO USE
Suite of apps for each Hadoop component,
like Hive, Pig, Impala, Oozie, Solr, Sqoop2,
HBase...

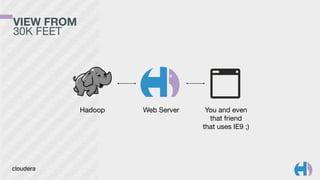

3. VIEW FROM
30K FEET
Hadoop Web Server You and even
that friend
that uses IE9 ;)

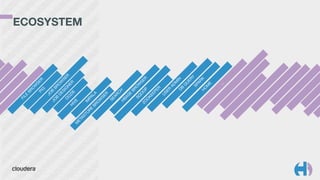

4. ECOSYSTEM
PIG
JO
B
BRO
W
SER
JO
B
DESIG
N
ER
O
O
ZIEH
IVE
IM
PALA
M
ETASTO
RE
BRO
W
SER
SEARC
HH
BASE
BRO
W
SER
SQ
O
O
P
ZO
O
KEEPER
U
SER
ADM
INDB
Q
U
ERY
SPARKH
O
M
E
...
FILE
BRO
W
SER

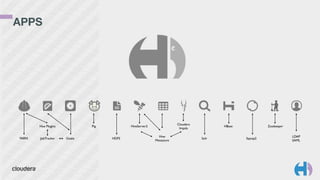

5. YARN JobTracker Oozie
Pig
HDFS
HiveServer2
Hive
Metastore
Cloudera
Impala
Solr
HBase
Sqoop2
Zookeeper
LDAP
SAML
Hue Plugins
APPS

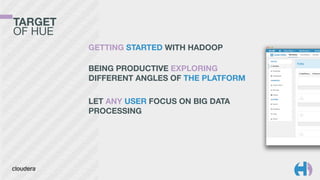

6. TARGET
OF HUE
GETTING STARTED WITH HADOOP
BEING PRODUCTIVE EXPLORING
DIFFERENT ANGLES OF THE PLATFORM
!
LET ANY USER FOCUS ON BIG DATA
PROCESSING

7. THE CORE
TEAM PLAYERS
team.gethue.com
ABRAHAM ELMAHREK
ROMAIN RIGAUX
ENRICO BERTI
CHANG BEER

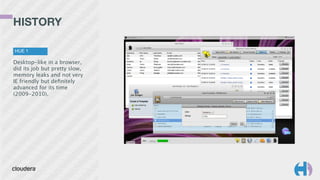

8. HISTORY
HUE 1
Desktop-like in a browser,
did its job but pretty slow,
memory leaks and not very
IE friendly but definitely
advanced for its time
(2009-2010).

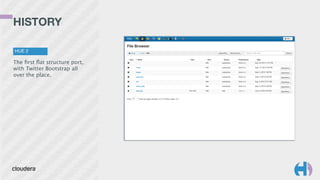

9. HISTORY
HUE 2
The first flat structure port,
with Twitter Bootstrap all
over the place.

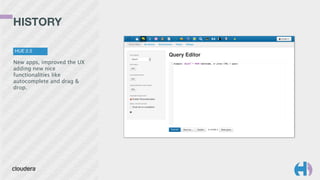

10. HISTORY
HUE 2.5
New apps, improved the UX
adding new nice
functionalities like
autocomplete and drag &
drop.

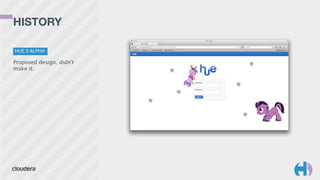

11. HISTORY
HUE 3 ALPHA
Proposed design, didn’t
make it.

12. HISTORY
HUE 3
Transition to the new UI,
major improvements and
new apps.

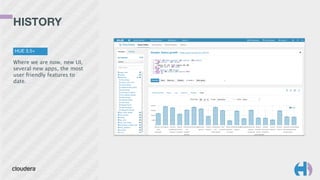

13. HISTORY
HUE 3.5+
Where we are now, new UI,
several new apps, the most
user friendly features to
date.

14. LDAP

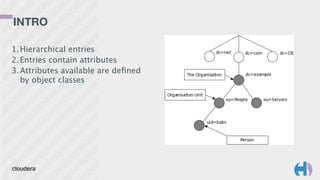

15. INTRO
1.Hierarchical entries
2.Entries contain attributes
3.Attributes available are defined
by object classes

16. TWO KINDS OF PROBLEMS
DIRECT BIND
Authenticate against a
directory service using
simple direct bind.
SEARCH
Authenticate, import,
synchronize, etc. against an
LDAP service by searching
for a particular entry

17. EXISTING FEATURES
LOGIN
Authenticate against a
directory service using
simple direct bind or search
for the distinguished name
to bind with.
USERADMIN
Add new users and groups;
Synchronize existing users
and groups; Support posix
accounts, posix groups, DN
import, general LDAP search,
etc.
CLI
Command line interface for
synchronizing LDAP users
and groups.
SUBGROUPS
Import subgroups and
members of subgroups when
synchronizing a group.
Subgroup defined as a
subordinate group.
LOWERCASE
Force usernames to lower
case.
CONFIGURABLE
User filter, user name
attribute, group filter, group
name attribute

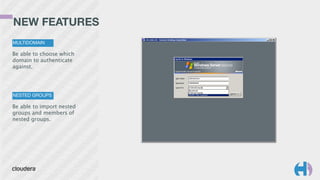

18. NEW FEATURES
MULTIDOMAIN
Be able to choose which
domain to authenticate
against.
NESTED GROUPS
Be able to import nested
groups and members of
nested groups.

19. EXAMPLE CONFIGURATIONS - BASIC
[[ldap]]
[[[ldap_servers]]]
[[[[mycompany]]]]
base_dn="DC=hue-search,DC=ent,DC=cloudera,DC=com"
ldap_url=ldap://hue-search.ent.cloudera.com
bind_dn="CN=Directory Manager"
bind_password=cloudera
!
[[[[[users]]]]]
user_filter=“objectclass=Person"
user_name_attr=uid
!
[[[[[groups]]]]]
group_filter="objectclass=groupOfNames"

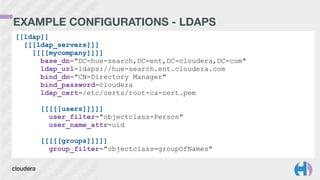

20. EXAMPLE CONFIGURATIONS - LDAPS
[[ldap]]
[[[ldap_servers]]]
[[[[mycompany]]]]
base_dn="DC=hue-search,DC=ent,DC=cloudera,DC=com"
ldap_url=ldaps://hue-search.ent.cloudera.com
bind_dn="CN=Directory Manager"
bind_password=cloudera
ldap_cert=/etc/certs/root-ca-cert.pem
!
[[[[[users]]]]]
user_filter="objectclass=Person"
user_name_attr=uid
!
[[[[[groups]]]]]
group_filter="objectclass=groupOfNames"

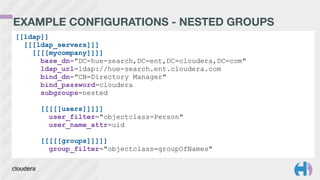

21. EXAMPLE CONFIGURATIONS - NESTED GROUPS
[[ldap]]
[[[ldap_servers]]]
[[[[mycompany]]]]
base_dn="DC=hue-search,DC=ent,DC=cloudera,DC=com"
ldap_url=ldap://hue-search.ent.cloudera.com
bind_dn="CN=Directory Manager"
bind_password=cloudera
subgroups=nested
!
[[[[[users]]]]]
user_filter="objectclass=Person"
user_name_attr=uid
!
[[[[[groups]]]]]
group_filter="objectclass=groupOfNames"

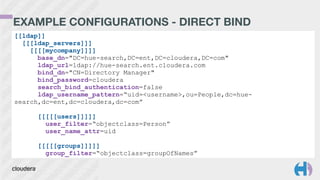

22. EXAMPLE CONFIGURATIONS - DIRECT BIND
[[ldap]]
[[[ldap_servers]]]
[[[[mycompany]]]]
base_dn="DC=hue-search,DC=ent,DC=cloudera,DC=com"
ldap_url=ldap://hue-search.ent.cloudera.com
bind_dn="CN=Directory Manager"
bind_password=cloudera
search_bind_authentication=false
ldap_username_pattern=“uid=<username>,ou=People,dc=hue-
search,dc=ent,dc=cloudera,dc=com”
!
[[[[[users]]]]]
user_filter=“objectclass=Person”
user_name_attr=uid
!
[[[[[groups]]]]]
group_filter=“objectclass=groupOfNames”

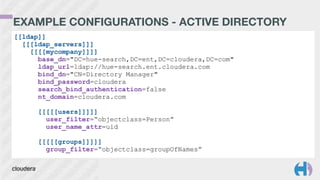

23. EXAMPLE CONFIGURATIONS - ACTIVE DIRECTORY
[[ldap]]
[[[ldap_servers]]]
[[[[mycompany]]]]
base_dn="DC=hue-search,DC=ent,DC=cloudera,DC=com"
ldap_url=ldap://hue-search.ent.cloudera.com
bind_dn="CN=Directory Manager"
bind_password=cloudera
search_bind_authentication=false
nt_domain=cloudera.com
!
[[[[[users]]]]]
user_filter=“objectclass=Person”
user_name_attr=uid
!
[[[[[groups]]]]]
group_filter=“objectclass=groupOfNames”

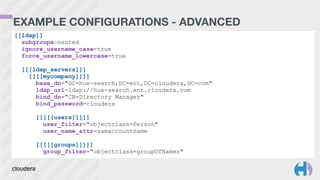

24. EXAMPLE CONFIGURATIONS - ADVANCED
[[ldap]]
subgroups=nested
ignore_username_case=true
force_username_lowercase=true
!
[[[ldap_servers]]]
[[[[mycompany]]]]
base_dn="DC=hue-search,DC=ent,DC=cloudera,DC=com"
ldap_url=ldap://hue-search.ent.cloudera.com
bind_dn="CN=Directory Manager"
bind_password=cloudera
!
[[[[[users]]]]]
user_filter="objectclass=Person"
user_name_attr=samaccountname
!
[[[[[groups]]]]]
group_filter="objectclass=groupOfNames"

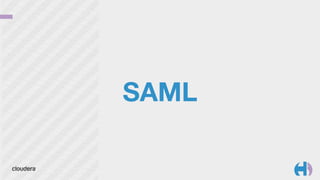

25. SAML

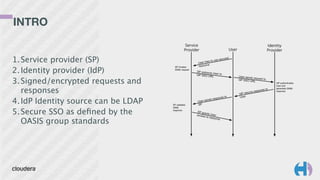

26. INTRO
1.Service provider (SP)
2.Identity provider (IdP)
3.Signed/encrypted requests and
responses
4.IdP Identity source can be LDAP
5.Secure SSO as defined by the
OASIS group standards

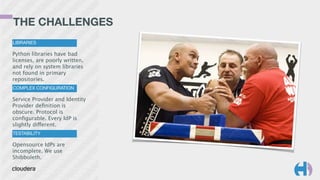

27. THE CHALLENGES
LIBRARIES
Python libraries have bad
licenses, are poorly written,
and rely on system libraries
not found in primary
repositories.
COMPLEX CONFIGURATION
Service Provider and Identity
Provider definition is
obscure. Protocol is
configurable. Every IdP is
slightly different.
TESTABILITY
Opensource IdPs are
incomplete. We use
Shibboleth.

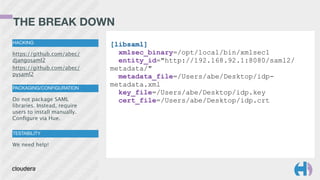

28. THE BREAK DOWN
HACKING
https://github.com/abec/
djangosaml2
https://github.com/abec/
pysaml2
PACKAGING/CONFIGURATION
Do not package SAML
libraries. Instead, require
users to install manually.
Configure via Hue.
TESTABILITY
We need help!
[libsaml]
xmlsec_binary=/opt/local/bin/xmlsec1
entity_id="http://192.168.92.1:8080/saml2/
metadata/"
metadata_file=/Users/abe/Desktop/idp-
metadata.xml
key_file=/Users/abe/Desktop/idp.key
cert_file=/Users/abe/Desktop/idp.crt

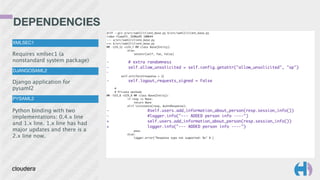

29. DEPENDENCIES
XMLSEC1
Requires xmlsec1 (a
nonstandard system package)
DJANGOSAML2
Django application for
pysaml2
PYSAML2
Python binding with two
implementations: 0.4.x line
and 1.x line. 1.x line has had
major updates and there is a
2.x line now.
diff --git a/src/saml2/client_base.py b/src/saml2/client_base.py
index f1aadf3..9206a95 100644
--- a/src/saml2/client_base.py
+++ b/src/saml2/client_base.py
@@ -124,11 +124,7 @@ class Base(Entity):
else:
setattr(self, foo, False)
- # extra randomness
- self.allow_unsolicited = self.config.getattr("allow_unsolicited", "sp")
-
self.artifact2response = {}
- self.logout_requests_signed = False
#
# Private methods
@@ -533,8 +529,8 @@ class Base(Entity):
if resp is None:
return None
elif isinstance(resp, AuthnResponse):
- #self.users.add_information_about_person(resp.session_info())
- #logger.info("--- ADDED person info ----")
+ self.users.add_information_about_person(resp.session_info())
+ logger.info("--- ADDED person info ----")
pass
else:
logger.error("Response type not supported: %s" % (

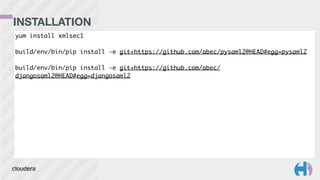

30. INSTALLATION
yum install xmlsec1
!
build/env/bin/pip install -e git+https://github.com/abec/pysaml2@HEAD#egg=pysaml2
!
build/env/bin/pip install -e git+https://github.com/abec/
djangosaml2@HEAD#egg=djangosaml2

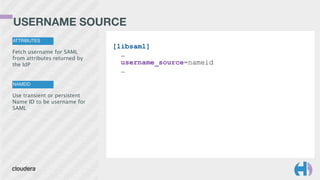

31. USERNAME SOURCE
ATTRIBUTES
Fetch username for SAML
from attributes returned by
the IdP
NAMEID
Use transient or persistent
Name ID to be username for
SAML
[libsaml]
…
username_source=nameid
…

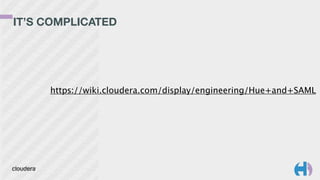

32. IT’S COMPLICATED
https://wiki.cloudera.com/display/engineering/Hue+and+SAML

33. FRESH IDEAS
REPLACE XMLSEC1
Python libraries have bad
licenses, are poorly written,
and rely on system libraries
not found in primary
repositories.
REPLACE PYSAML2
Pysaml2 doesn’t use
intelligent libraries, uses
xmlsec1, code base is messy.
SINGLE LOGOUT
Some IdPs provides single
logout. Needs to be tested.
DOCUMENTATION
More documentation
around all the various
IdPs and how to support
them is necessary.
TEST ON SITEMINDER
Many customers seem to be
using SiteMinder and every
IdP is slightly different.
SYSTEM LEVEL TESTS
More system level
testing as customers
start to use SAML.

34. DEMO
TIME

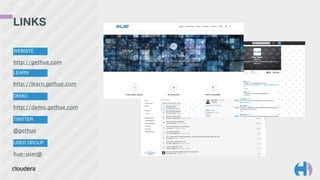

35. LINKS
DEMO
http://demo.gethue.com
TWITTER
@gethue
USER GROUP
hue-user@
WEBSITE
http://gethue.com
LEARN
http://learn.gethue.com

36. !
THANK YOU
www.gethue.com
