Introduction to SAML 2.0

Mika Koivisto
Senior Software Engineer

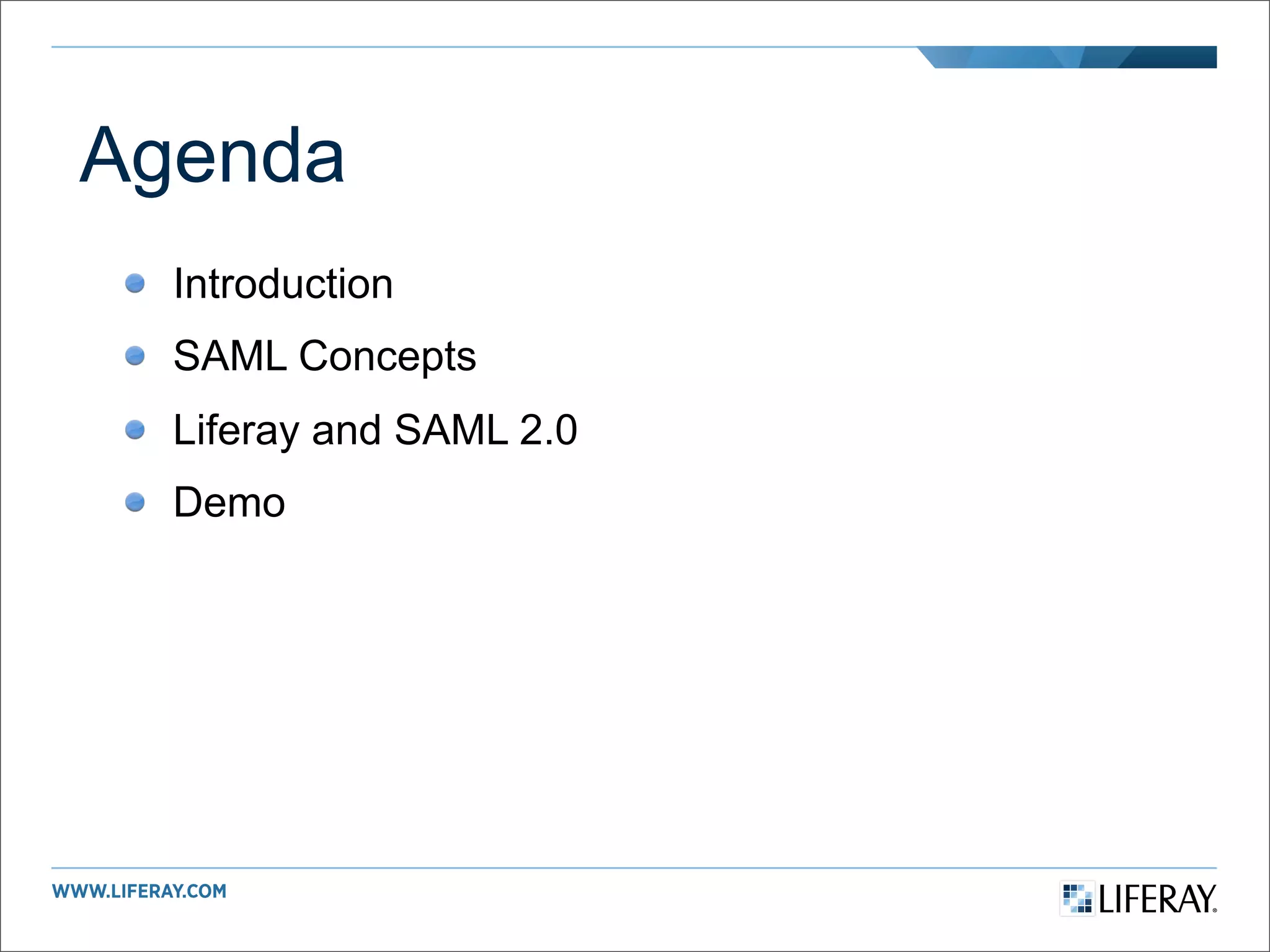

Agenda
  Introduction
  SAML Concepts
  Liferay and SAML 2.0
  Demo

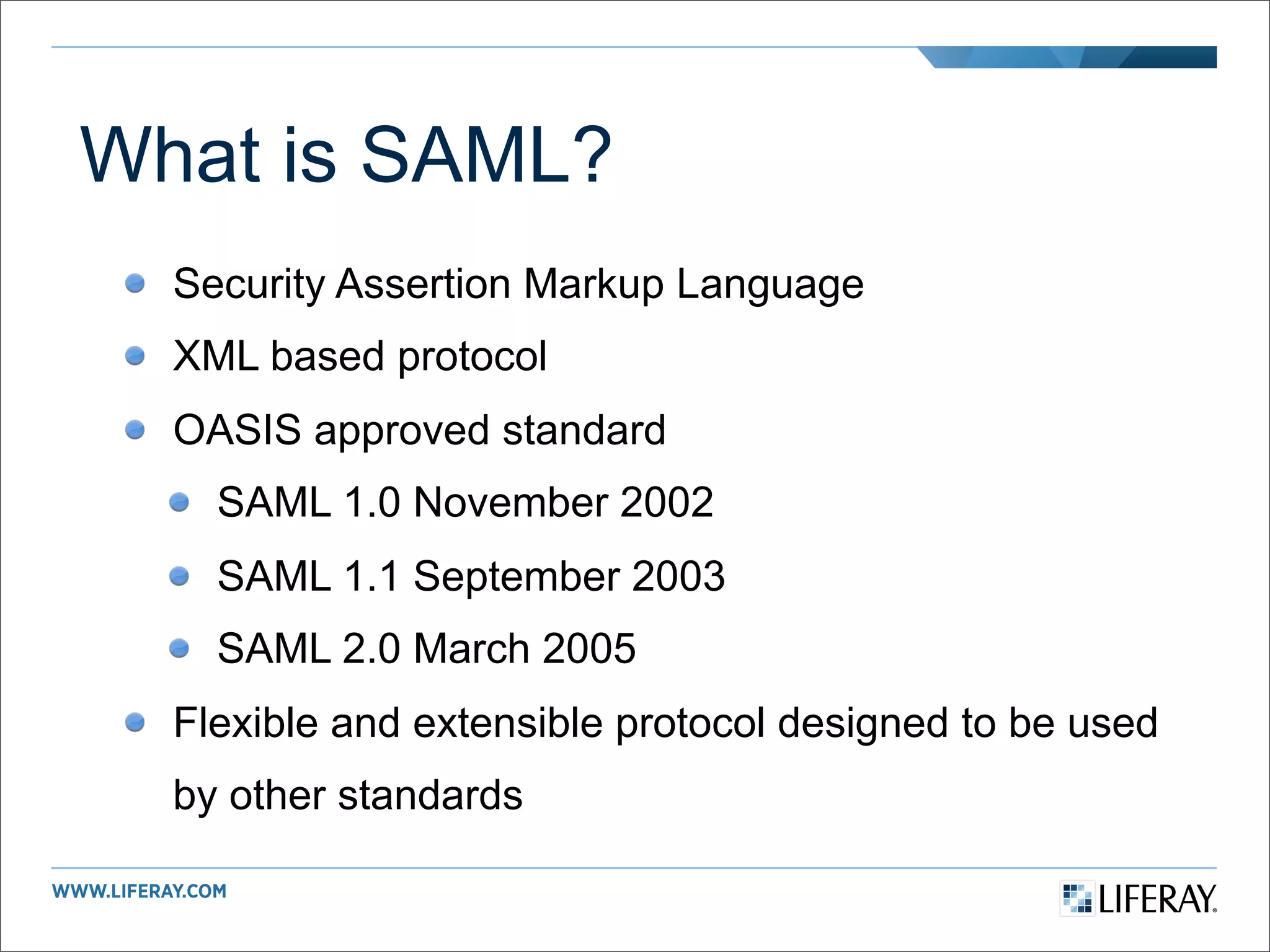

What is SAML?
  Security Assertion Markup Language
  XML based protocol
  OASIS approved standard
    SAML 1.0 November 2002
    SAML 1.1 September 2003
    SAML 2.0 March 2005
  Flexible and extensible protocol designed to be used
  by other standards

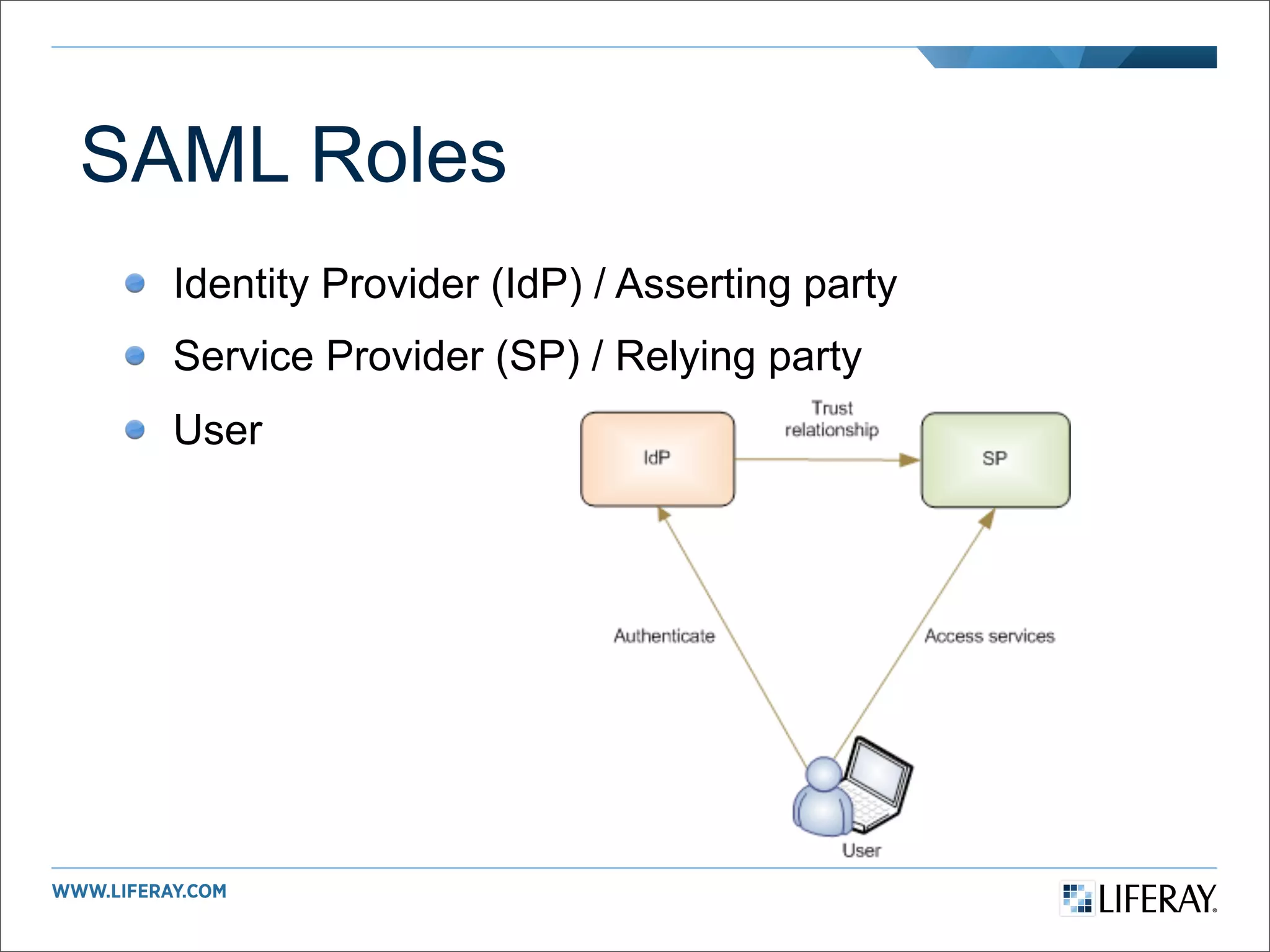

SAML Roles
  Identity Provider (IdP) / Asserting party
  Service Provider (SP) / Relying party
  User

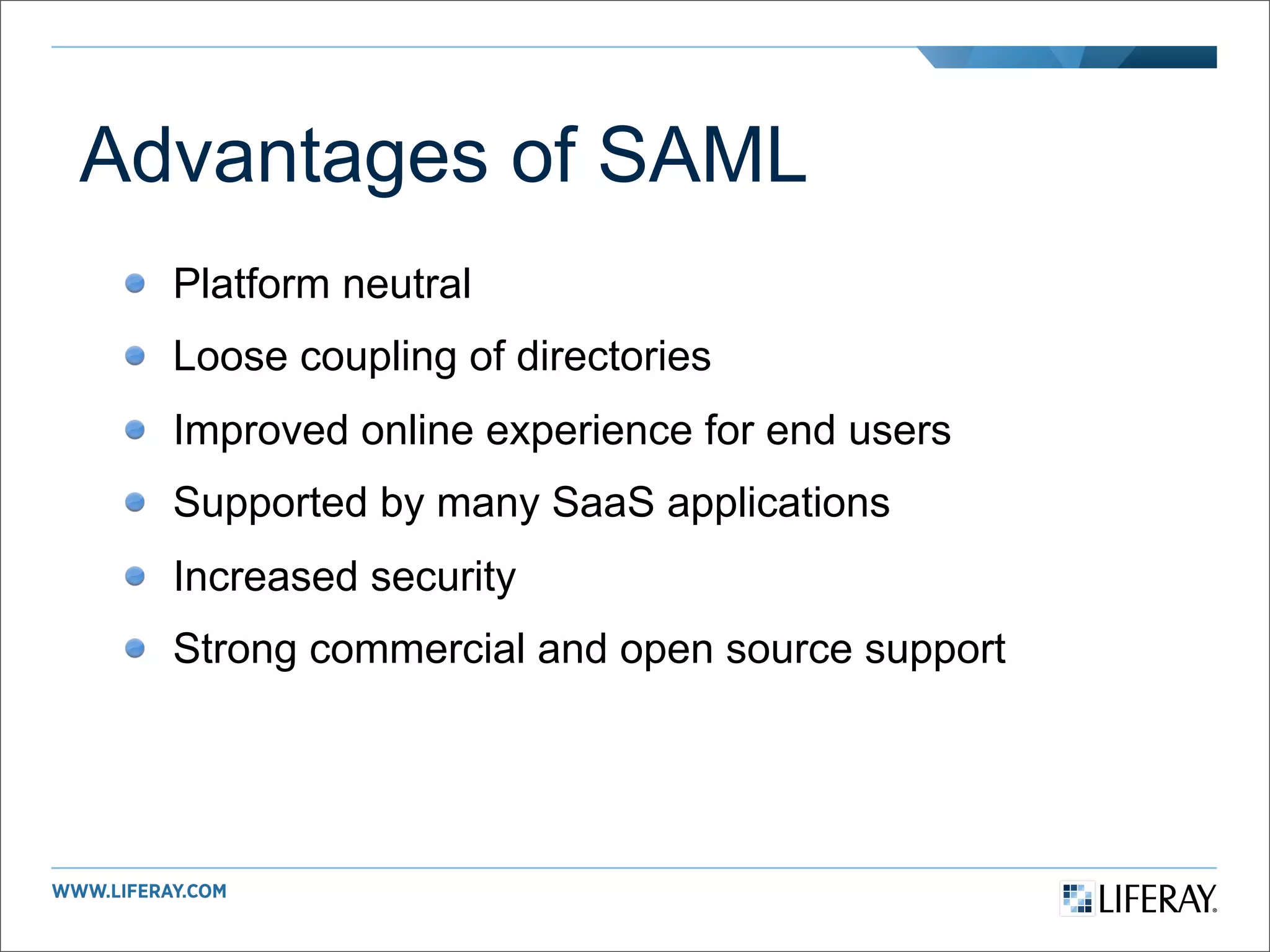

Advantages of SAML
  Platform neutral
  Loose coupling of directories
  Improved online experience for end users
  Supported by many SaaS applications
  Increased security
  Strong commercial and open source support

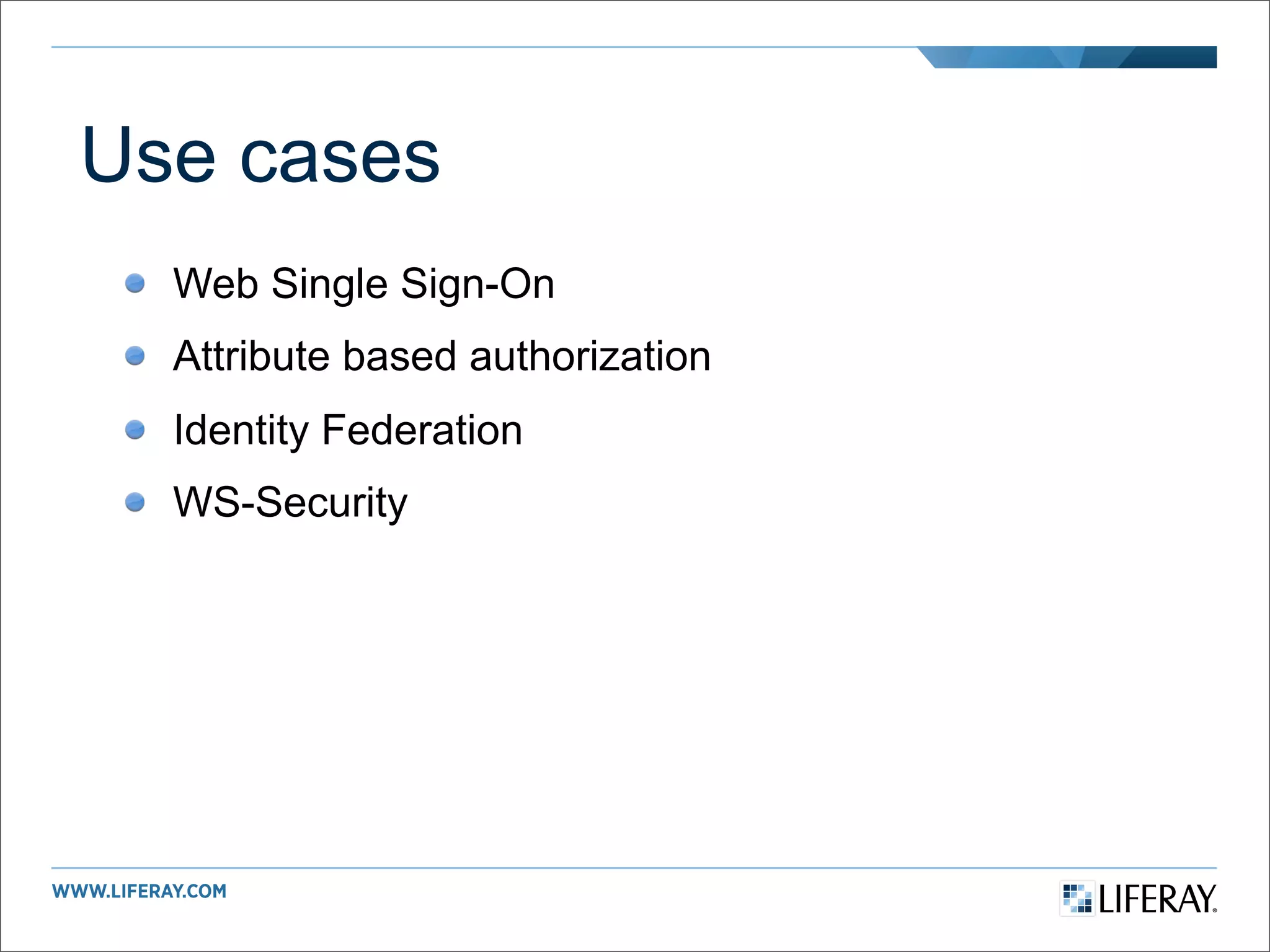

Use cases
  Web Single Sign-On
  Attribute based authorization
  Identity Federation
  WS-Security

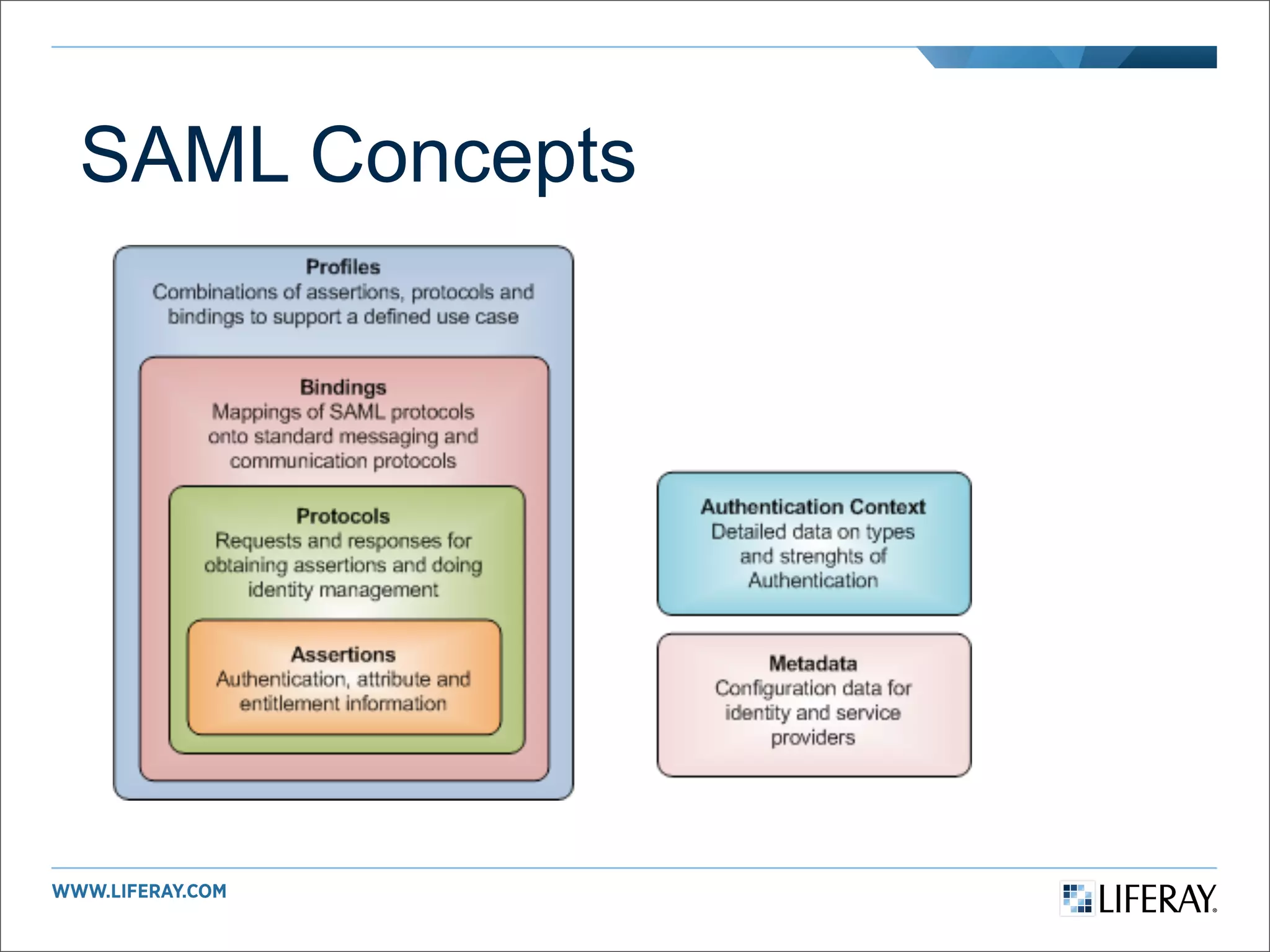

SAML Concepts

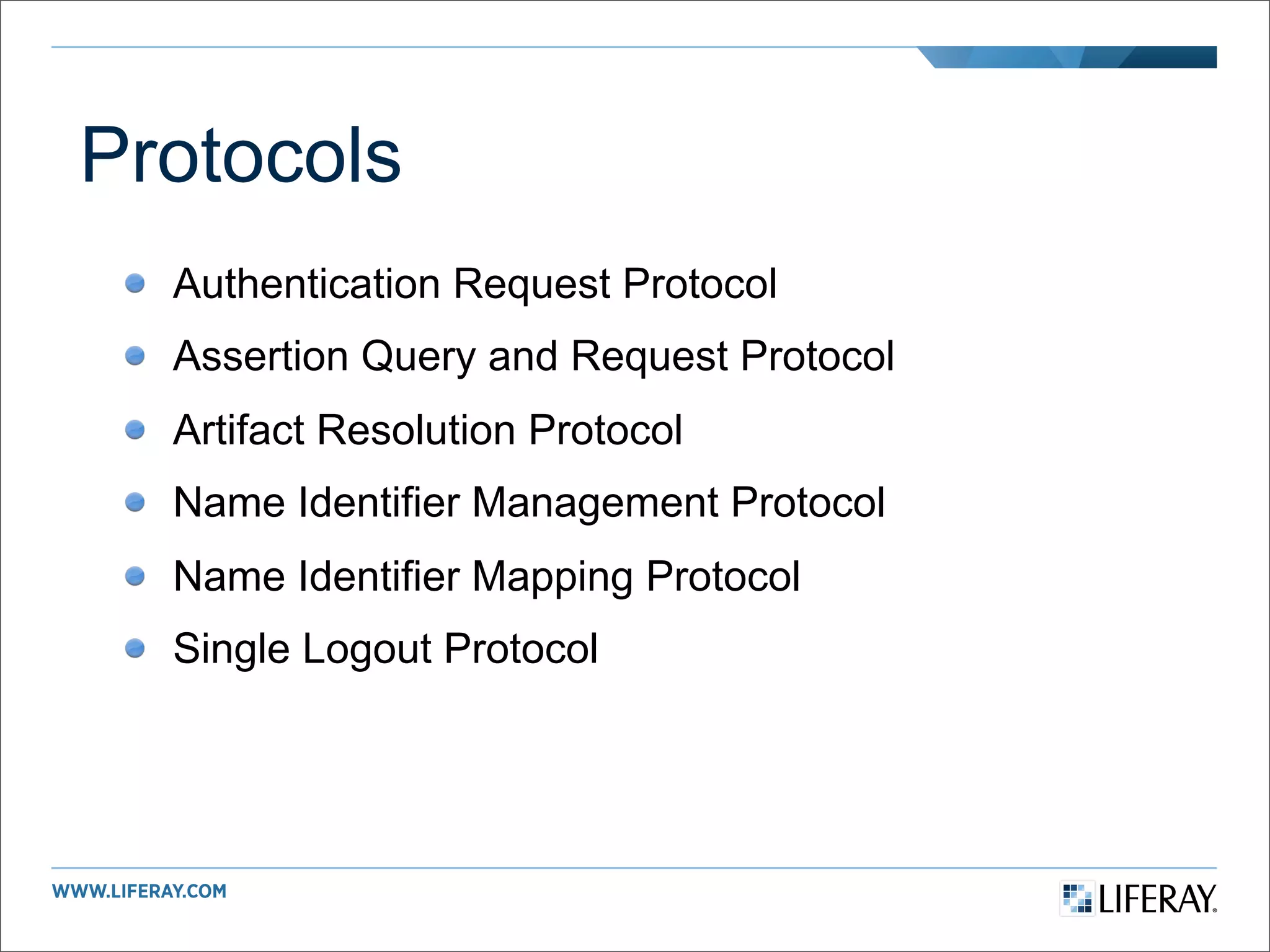

Protocols
  Authentication Request Protocol
  Assertion Query and Request Protocol
  Artifact Resolution Protocol
  Name Identifier Management Protocol
  Name Identifier Mapping Protocol
  Single Logout Protocol

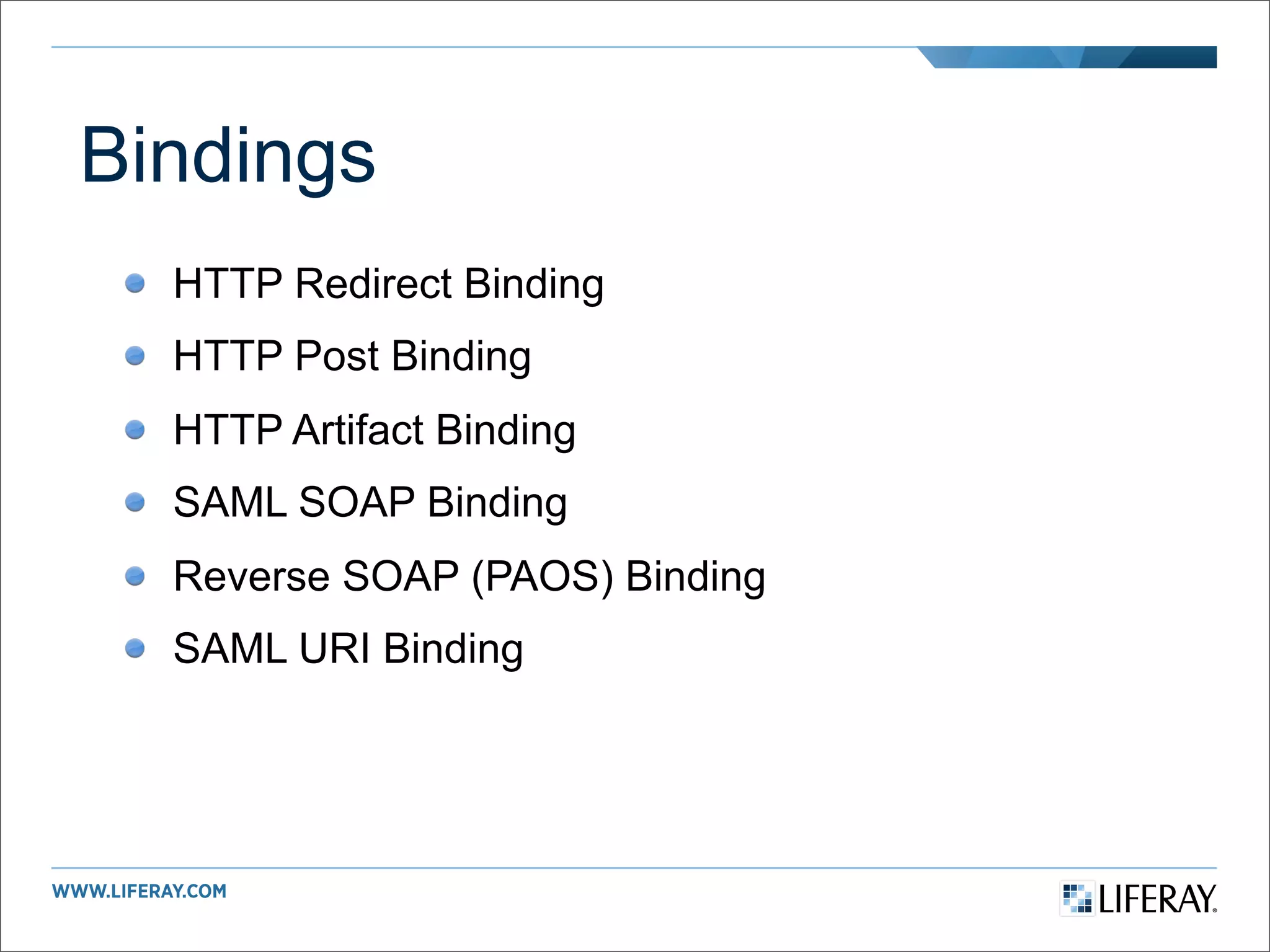

Bindings
  HTTP Redirect Binding
  HTTP Post Binding
  HTTP Artifact Binding
  SAML SOAP Binding
  Reverse SOAP (PAOS) Binding
  SAML URI Binding

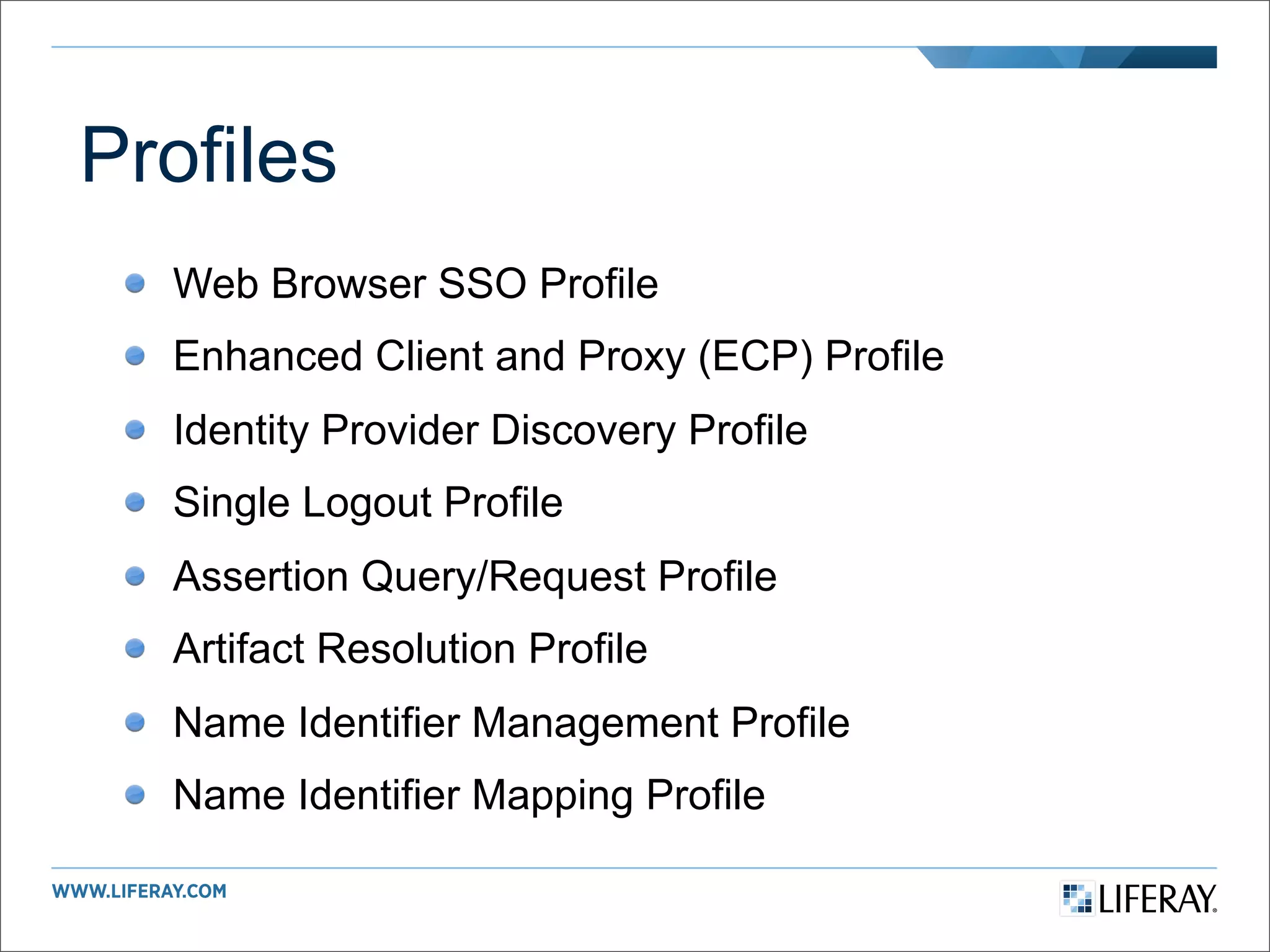

Profiles
  Web Browser SSO Profile
  Enhanced Client and Proxy (ECP) Profile
  Identity Provider Discovery Profile
  Single Logout Profile
  Assertion Query/Request Profile
  Artifact Resolution Profile
  Name Identifier Management Profile
  Name Identifier Mapping Profile

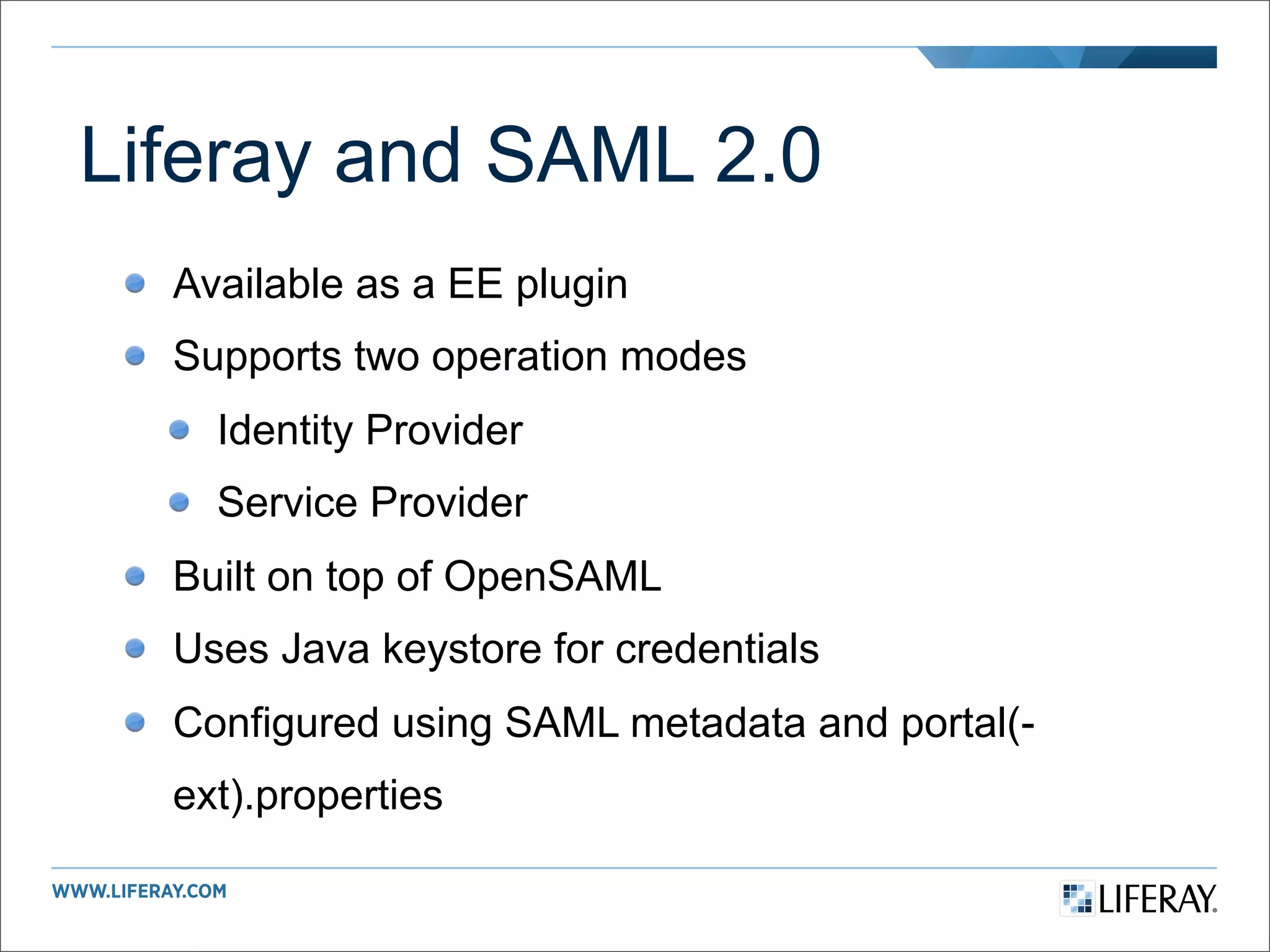

Liferay and SAML 2.0
  Available as a EE plugin
  Supports two operation modes
    Identity Provider
    Service Provider
  Built on top of OpenSAML
  Uses Java keystore for credentials
  Configured using SAML metadata and portal(-
  ext).properties

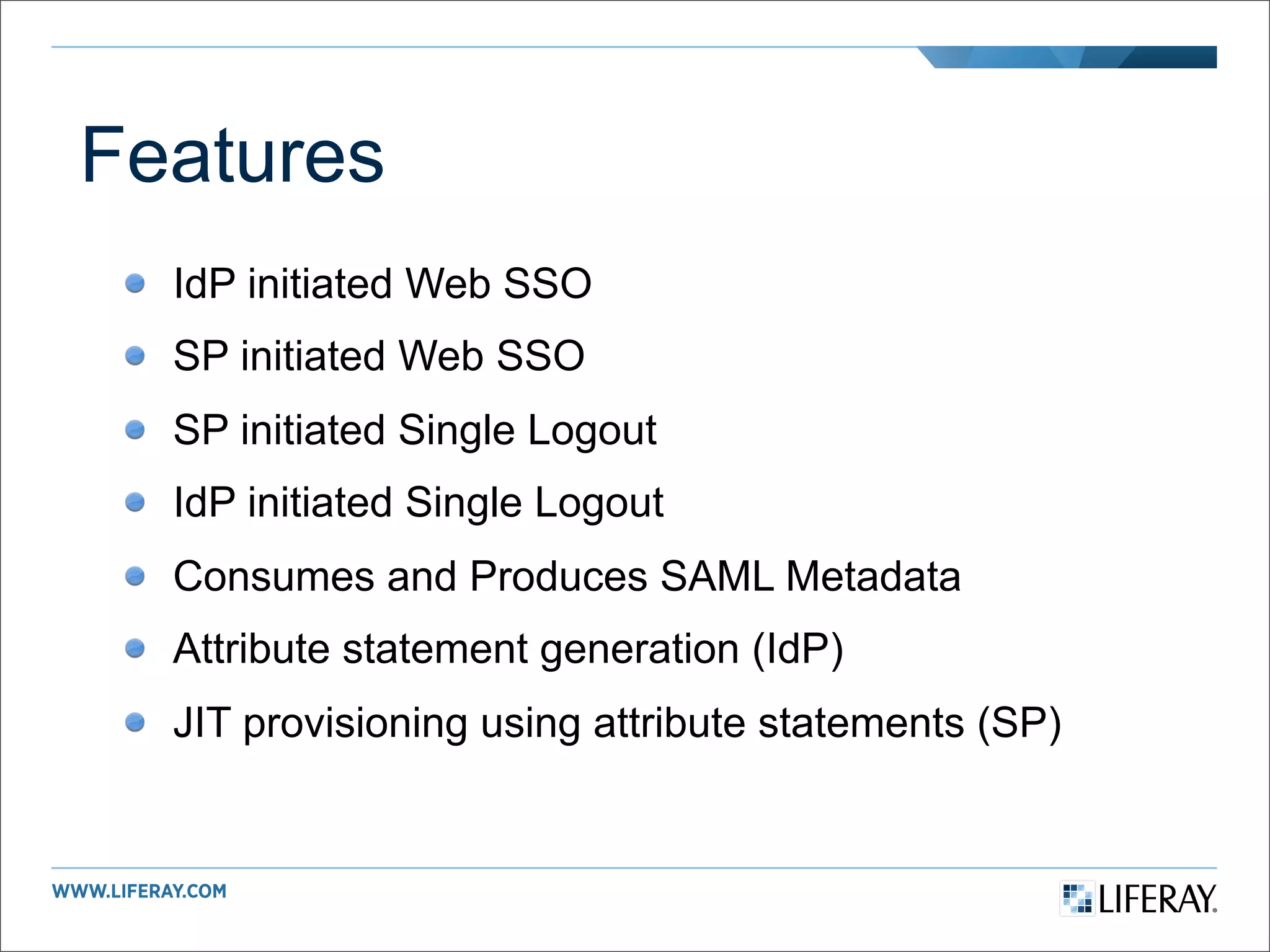

Features
  IdP initiated Web SSO
  SP initiated Web SSO
  SP initiated Single Logout
  IdP initiated Single Logout
  Consumes and Produces SAML Metadata
  Attribute statement generation (IdP)
  JIT provisioning using attribute statements (SP)

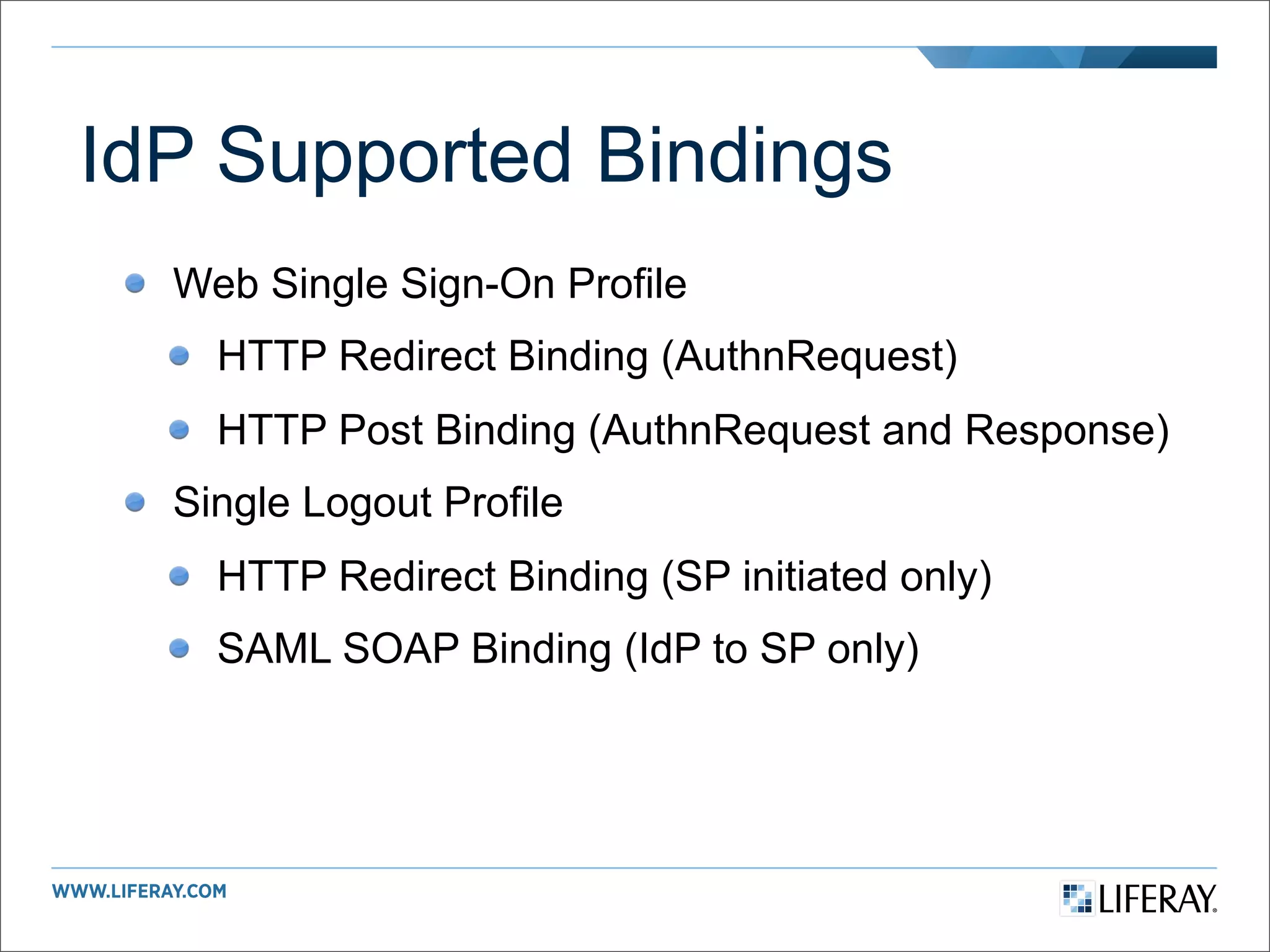

IdP Supported Bindings
  Web Single Sign-On Profile
    HTTP Redirect Binding (AuthnRequest)
    HTTP Post Binding (AuthnRequest and Response)
  Single Logout Profile
    HTTP Redirect Binding (SP initiated only)
    SAML SOAP Binding (IdP to SP only)

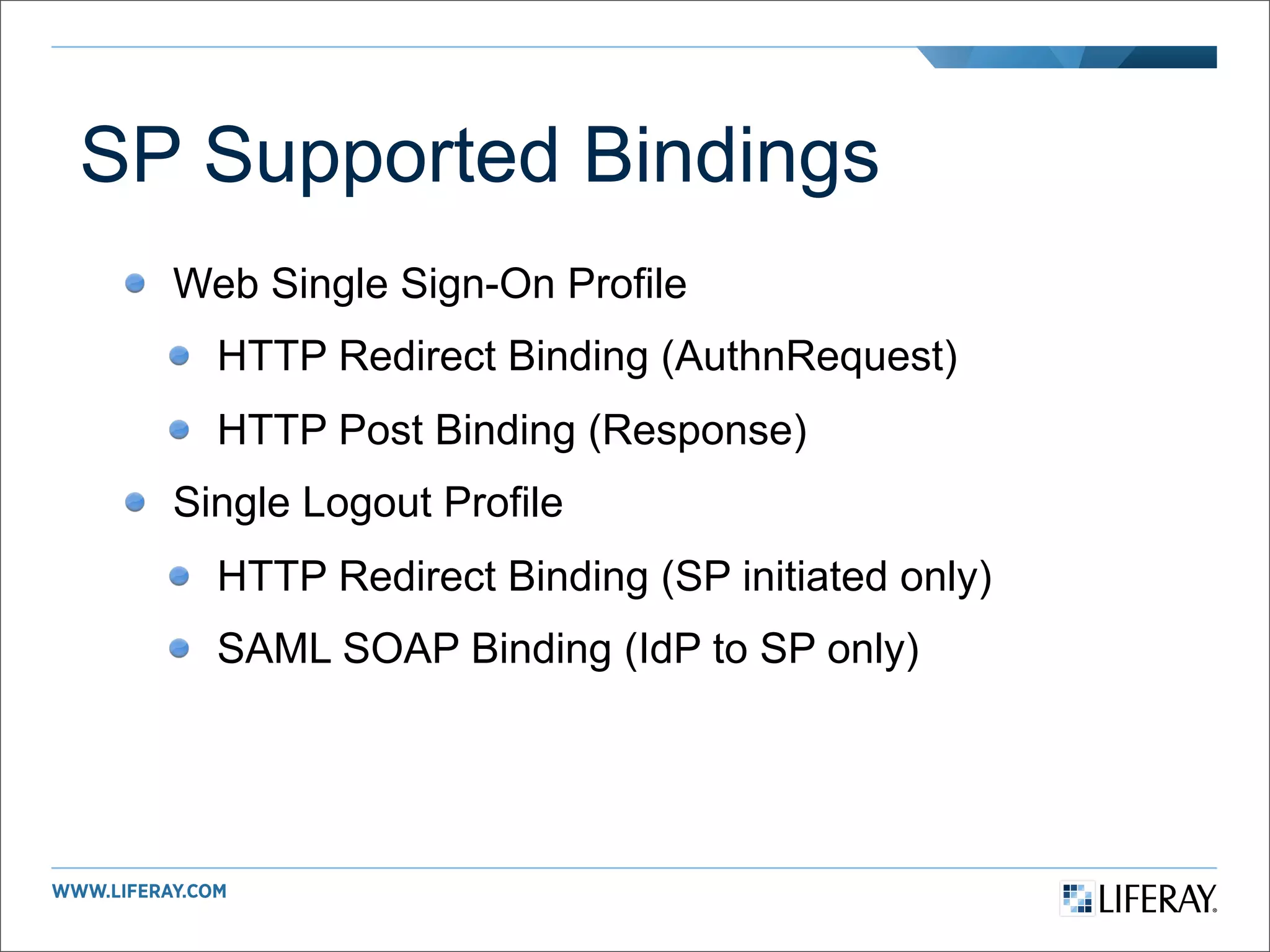

SP Supported Bindings
  Web Single Sign-On Profile
    HTTP Redirect Binding (AuthnRequest)
    HTTP Post Binding (Response)
  Single Logout Profile
    HTTP Redirect Binding (SP initiated only)
    SAML SOAP Binding (IdP to SP only)

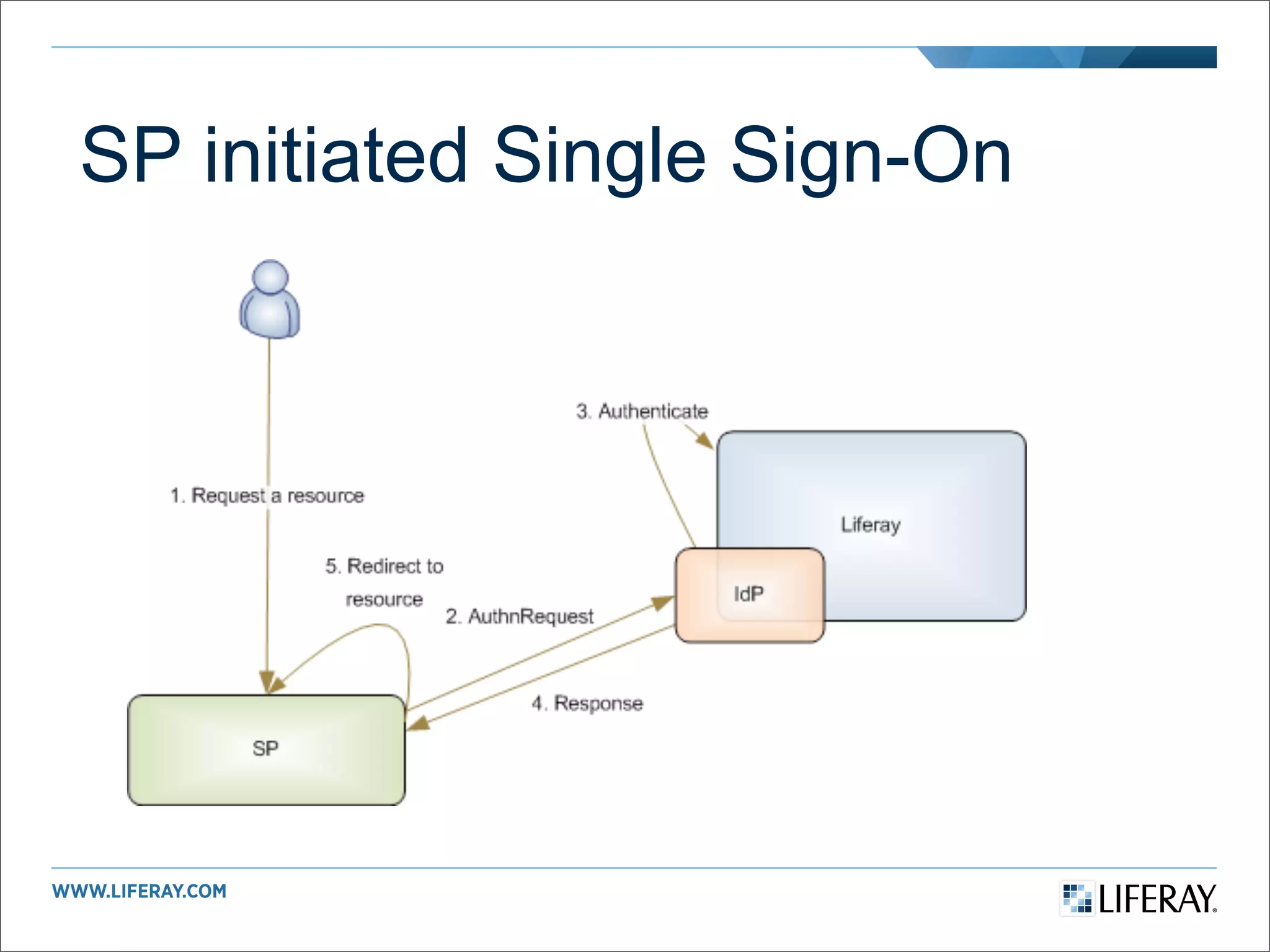

SP initiated Single Sign-On

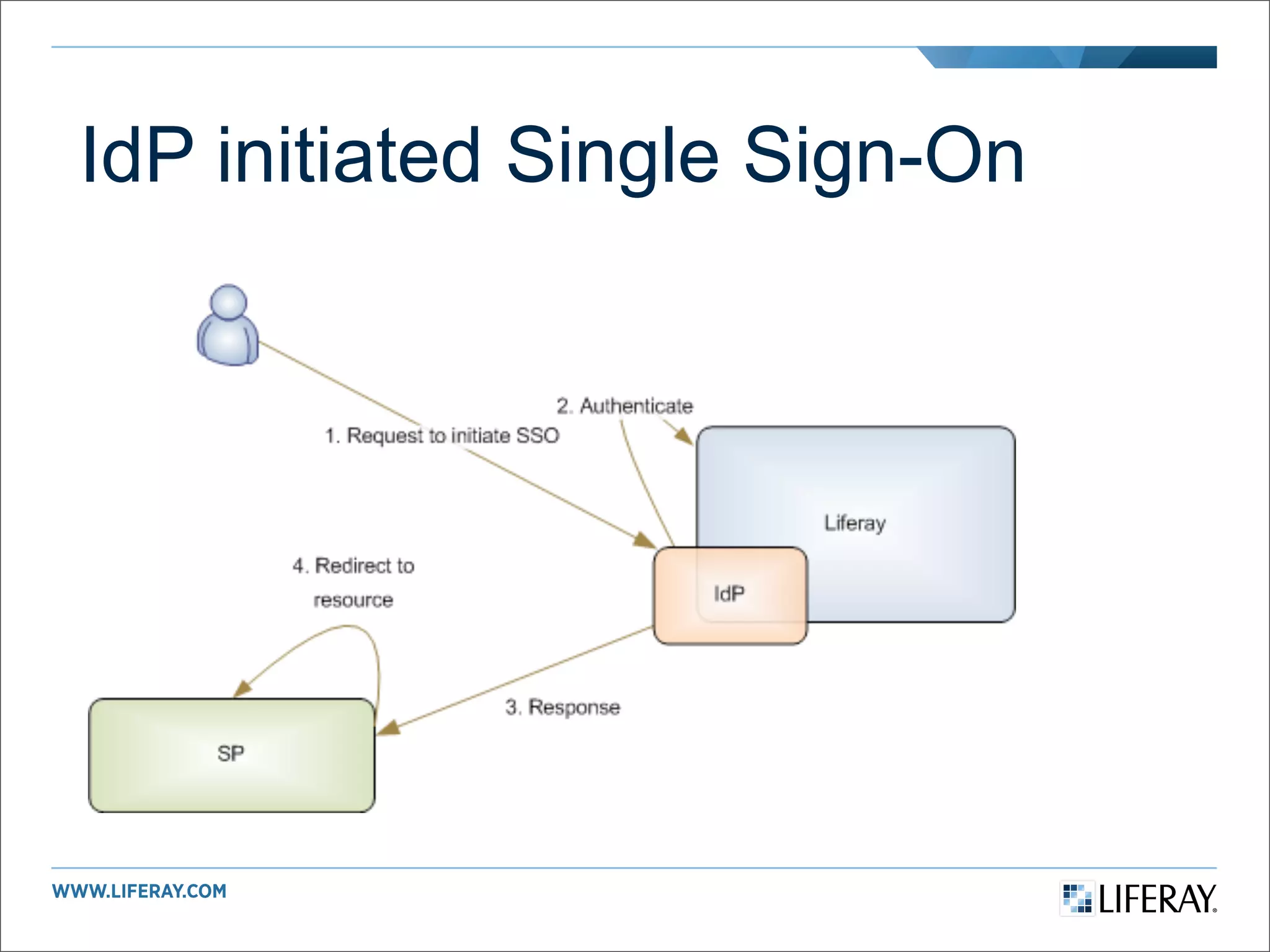

IdP initiated Single Sign-On

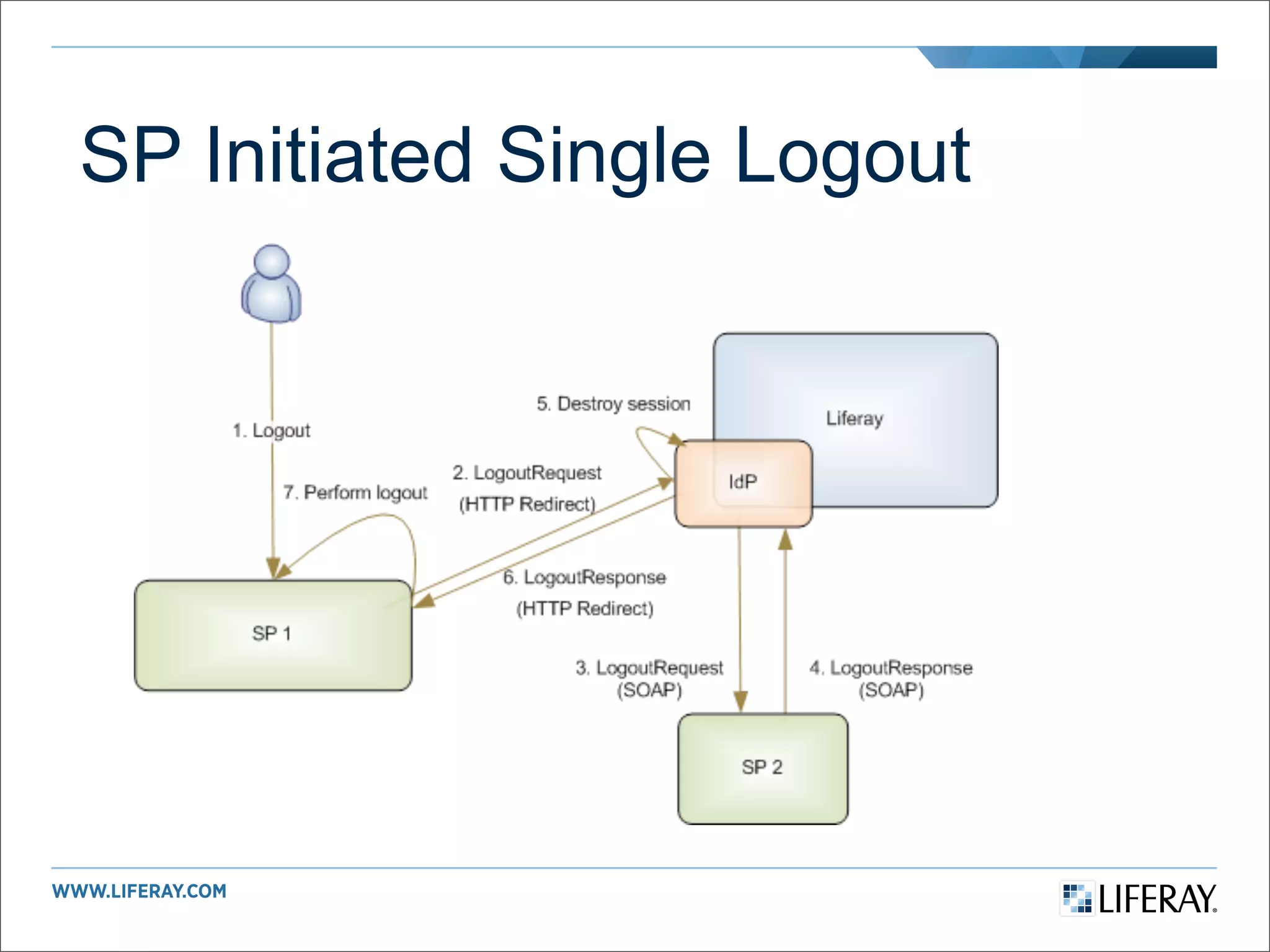

SP Initiated Single Logout

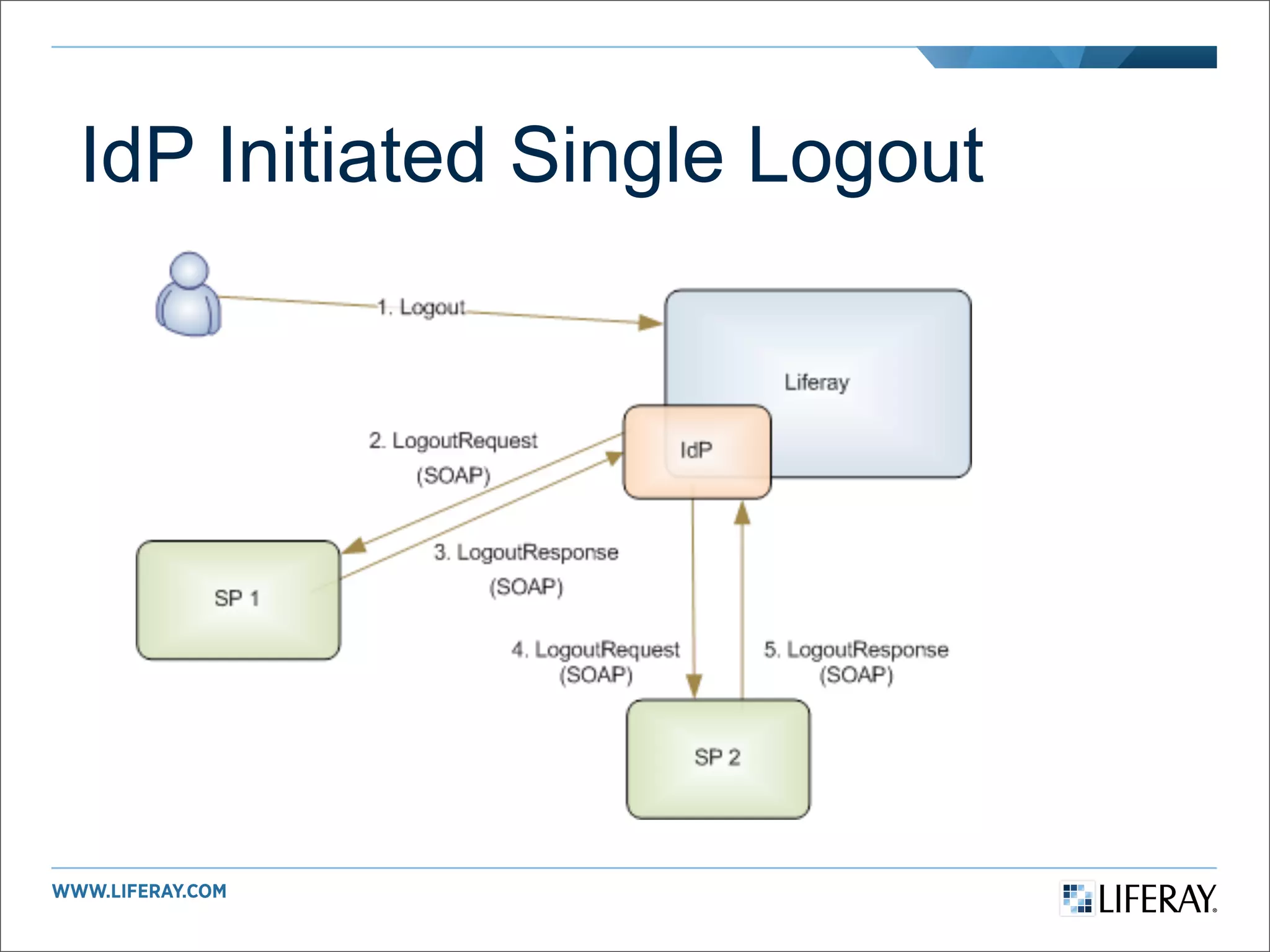

IdP Initiated Single Logout

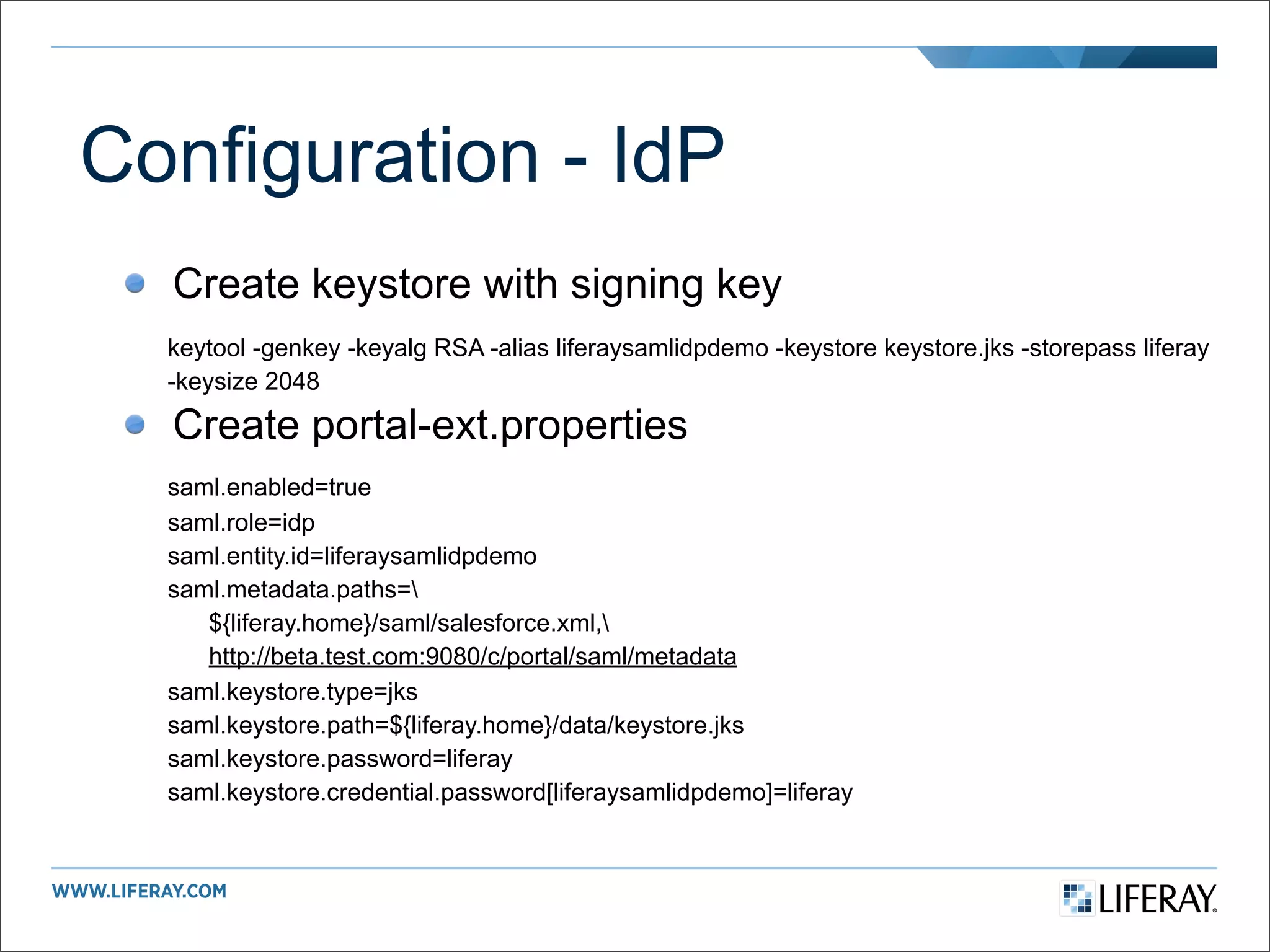

Configuration - IdP
  Create keystore with signing key
  keytool -genkey -keyalg RSA -alias liferaysamlidpdemo -keystore keystore.jks -storepass liferay
  -keysize 2048

  Create portal-ext.properties
  saml.enabled=true
  saml.role=idp
  saml.entity.id=liferaysamlidpdemo
  saml.metadata.paths=
     ${liferay.home}/saml/salesforce.xml,
     http://beta.test.com:9080/c/portal/saml/metadata
  saml.keystore.type=jks
  saml.keystore.path=${liferay.home}/data/keystore.jks
  saml.keystore.password=liferay
  saml.keystore.credential.password[liferaysamlidpdemo]=liferay

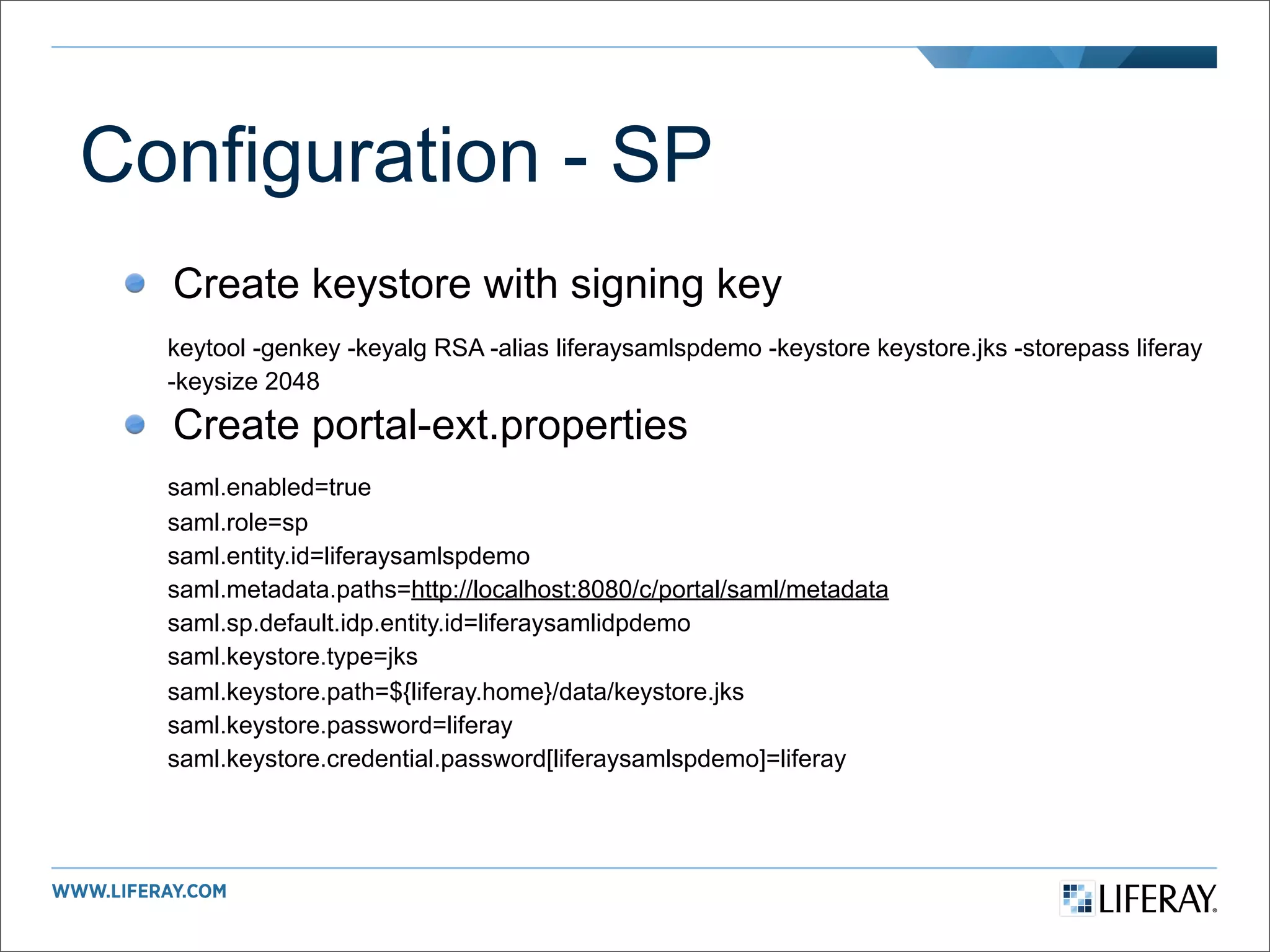

Configuration - SP
  Create keystore with signing key
  keytool -genkey -keyalg RSA -alias liferaysamlspdemo -keystore keystore.jks -storepass liferay
  -keysize 2048

  Create portal-ext.properties
  saml.enabled=true
  saml.role=sp
  saml.entity.id=liferaysamlspdemo
  saml.metadata.paths=http://localhost:8080/c/portal/saml/metadata
  saml.sp.default.idp.entity.id=liferaysamlidpdemo
  saml.keystore.type=jks
  saml.keystore.path=${liferay.home}/data/keystore.jks
  saml.keystore.password=liferay
  saml.keystore.credential.password[liferaysamlspdemo]=liferay

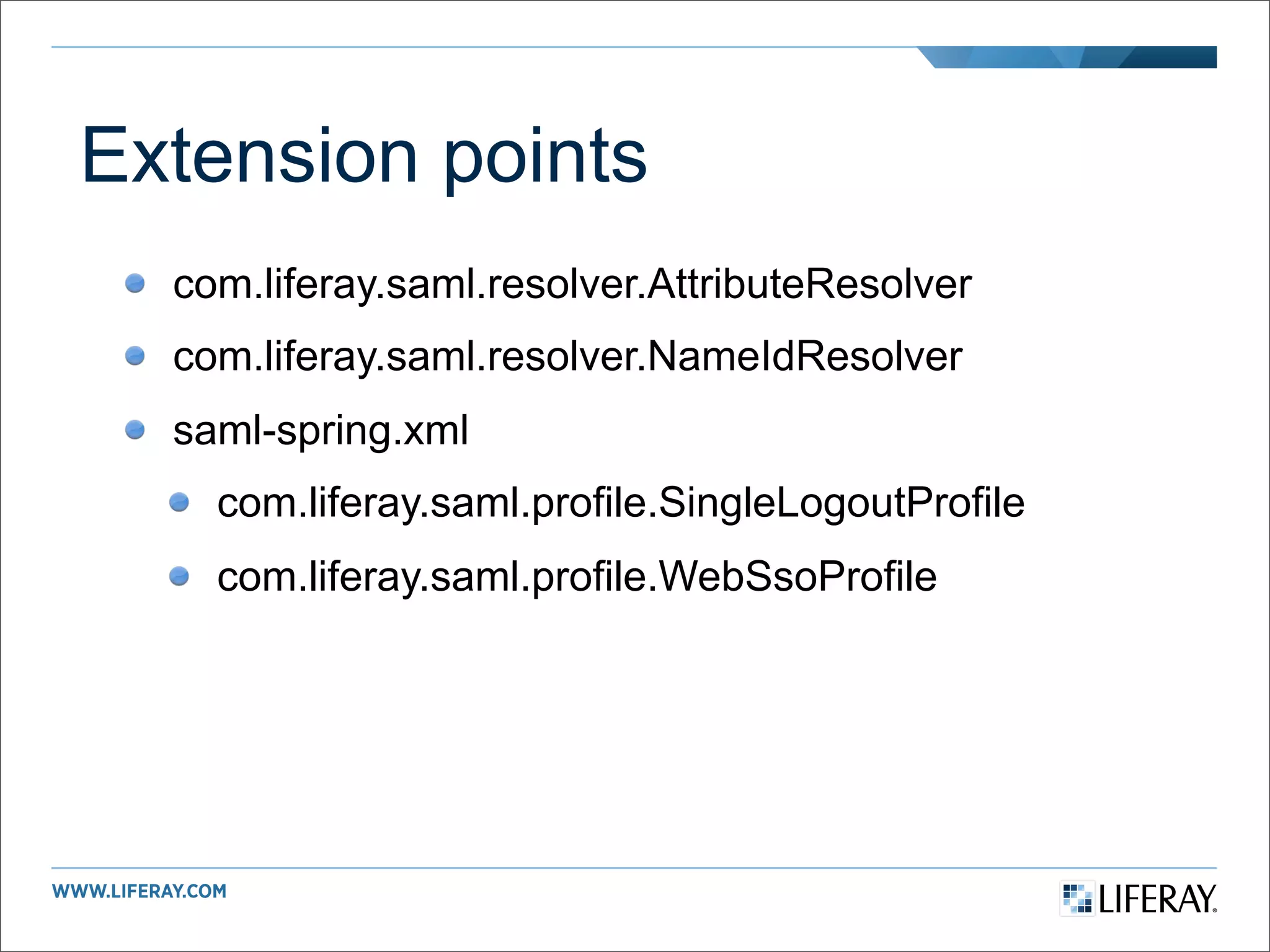

Extension points
  com.liferay.saml.resolver.AttributeResolver
  com.liferay.saml.resolver.NameIdResolver
  saml-spring.xml
    com.liferay.saml.profile.SingleLogoutProfile
    com.liferay.saml.profile.WebSsoProfile

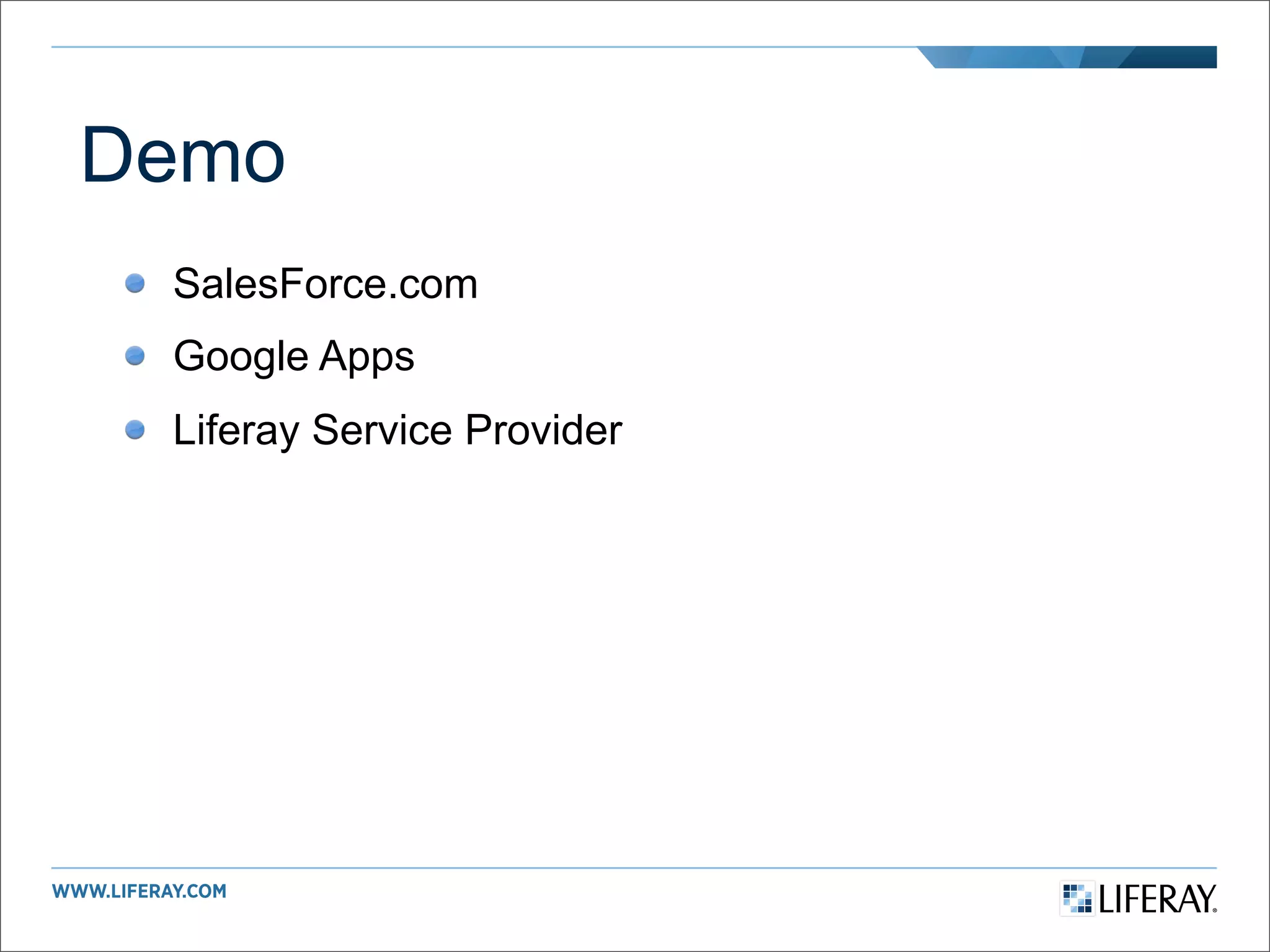

Demo
 SalesForce.com
 Google Apps
 Liferay Service Provider

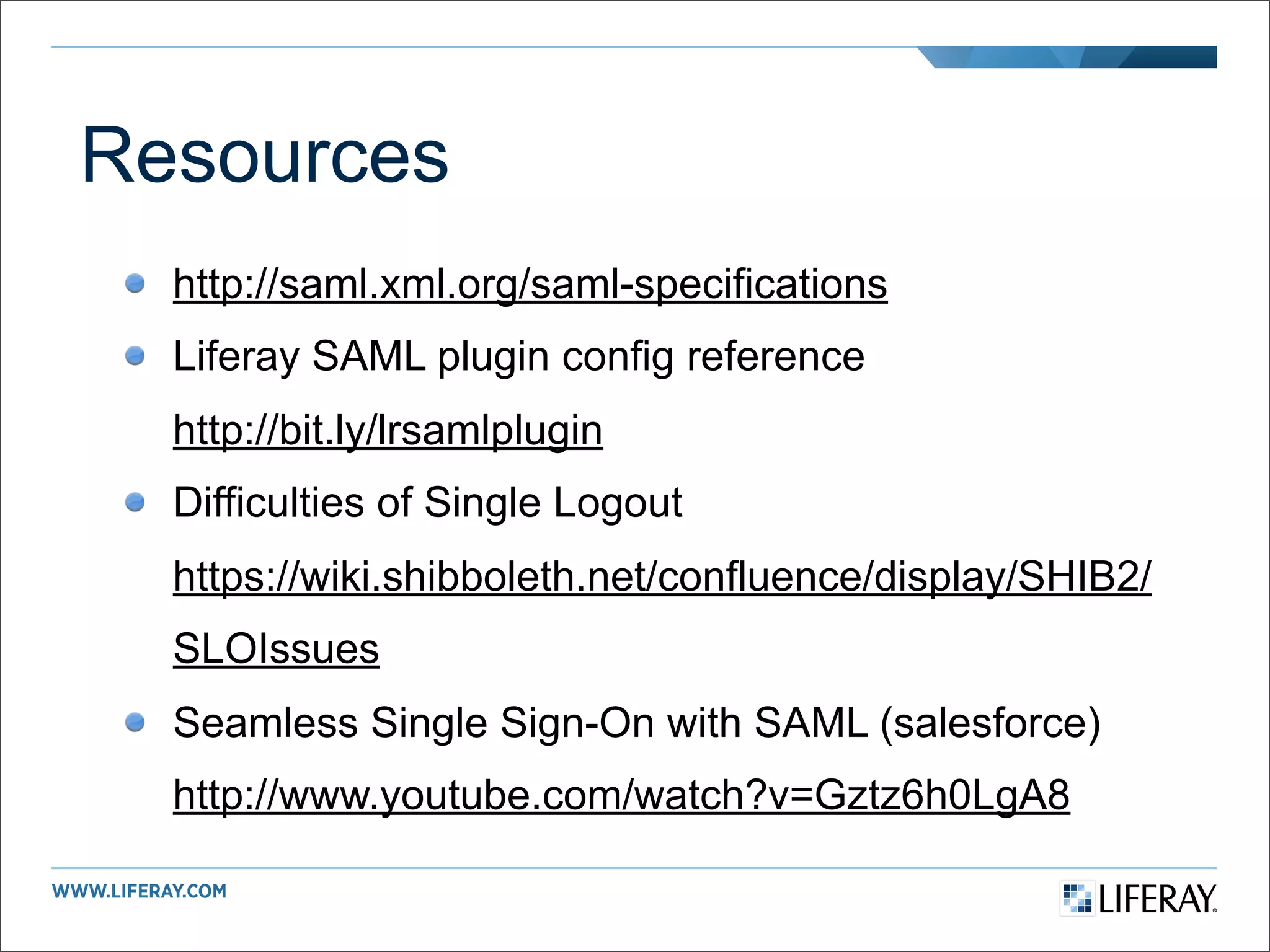

Resources
  http://saml.xml.org/saml-specifications
  Liferay SAML plugin config reference
  http://bit.ly/lrsamlplugin
  Difficulties of Single Logout
  https://wiki.shibboleth.net/confluence/display/SHIB2/
  SLOIssues
  Seamless Single Sign-On with SAML (salesforce)
  http://www.youtube.com/watch?v=Gztz6h0LgA8
Thank You!
