Interactively Search and Visualize Your Big Data
The document outlines goals for enhancing user interaction with Solr and Hadoop through a web application, focusing on a user-friendly interface for data visualization and querying. It discusses various features like drag-and-drop dashboards, widget life cycles, and adding configurable components to the search application. Additional topics include enterprise features such as security, indexing capabilities, and future development plans for improved functionality.
More Related Content
Similar to Interactively Search and Visualize Your Big Data
Interactively Search and Visualize Your Big Data
- 2. Interactively search and visualize your data Romain Rigaux

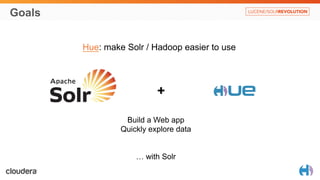

- 3. Goals Hue: makeSolr / Hadoop easier to use + Build a Web app Quickly explore data … with Solr

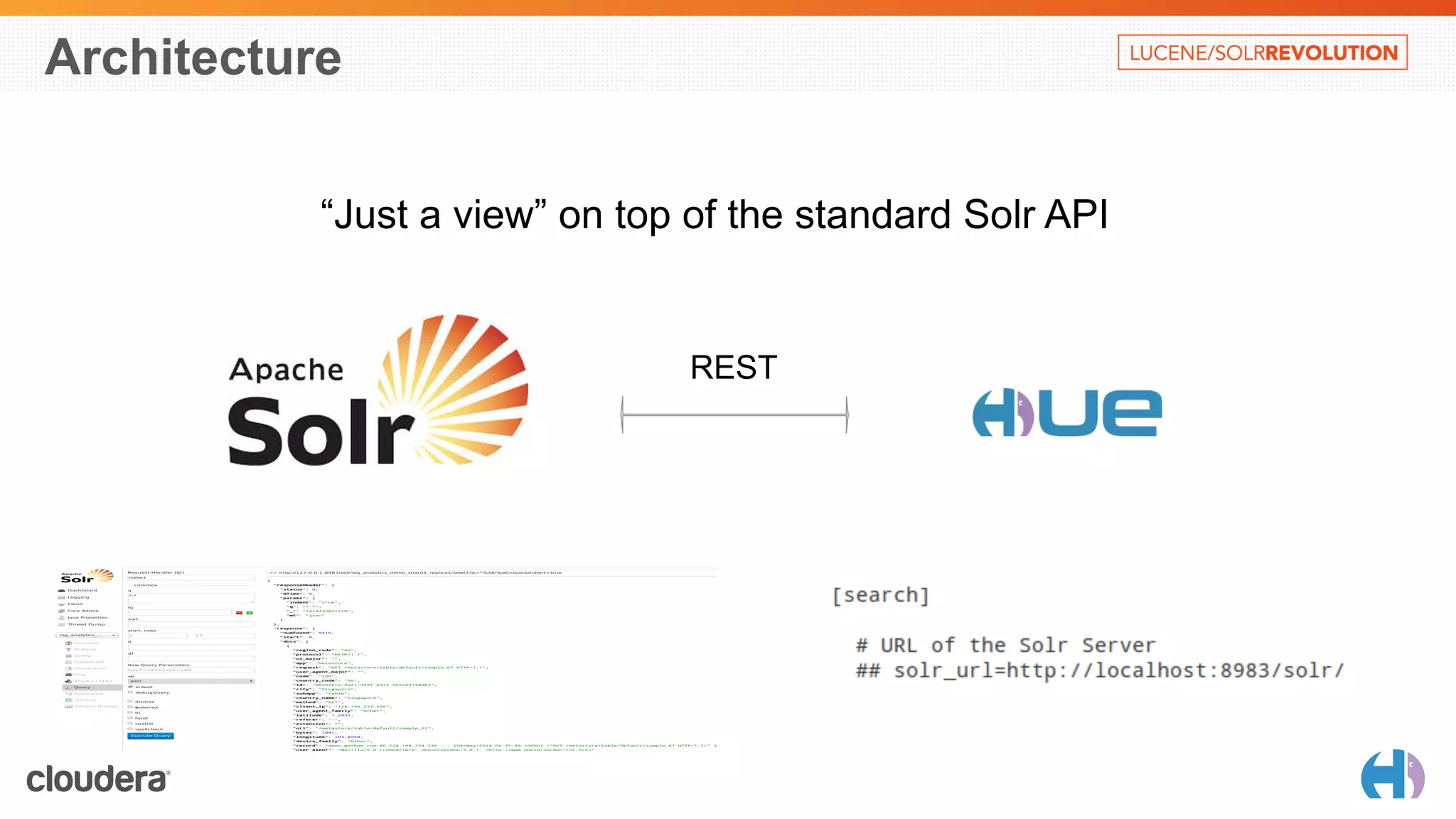

- 4. Architecture “Just aview” on top of the standard Solr API REST
- 5.

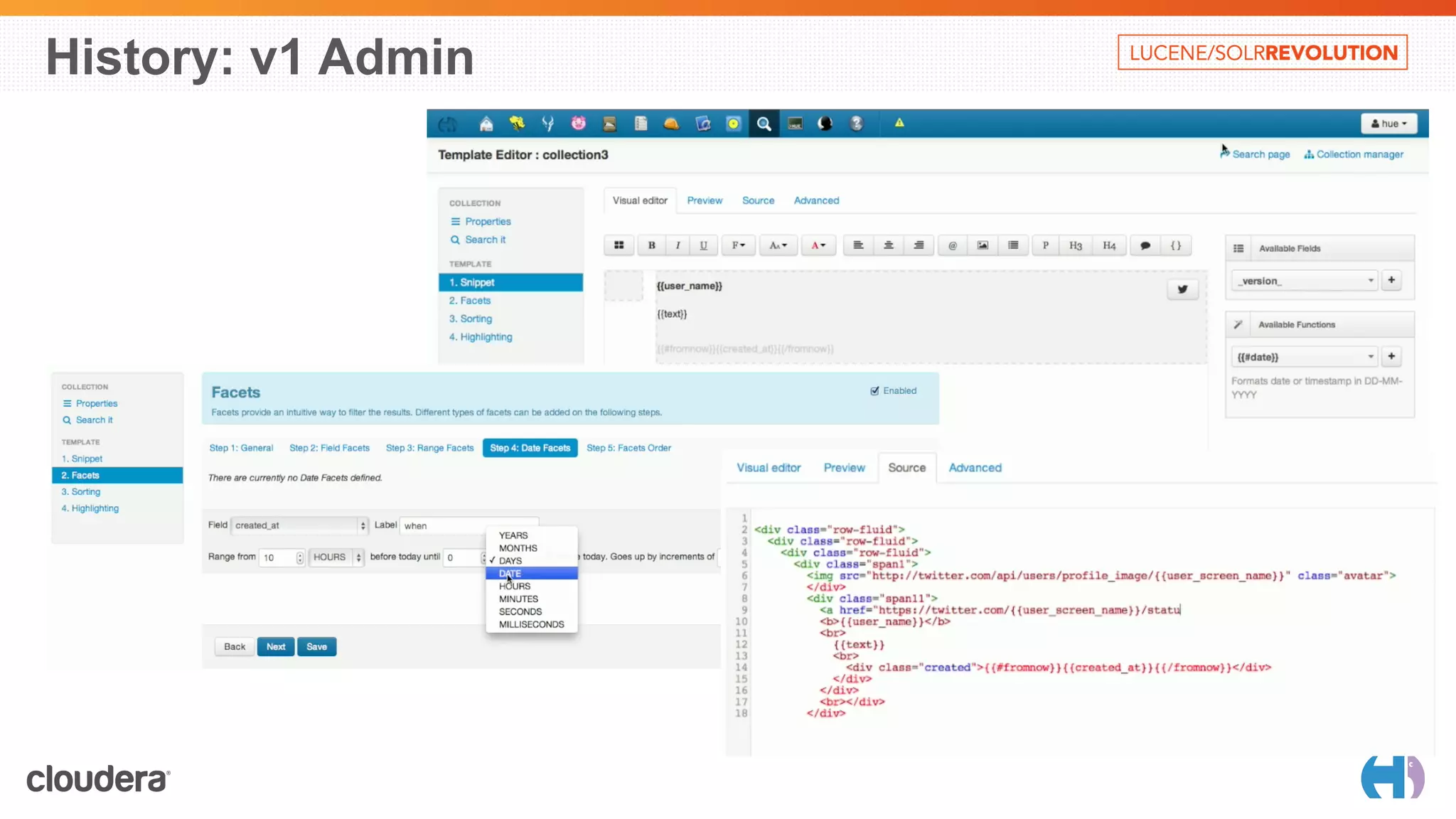

- 6.

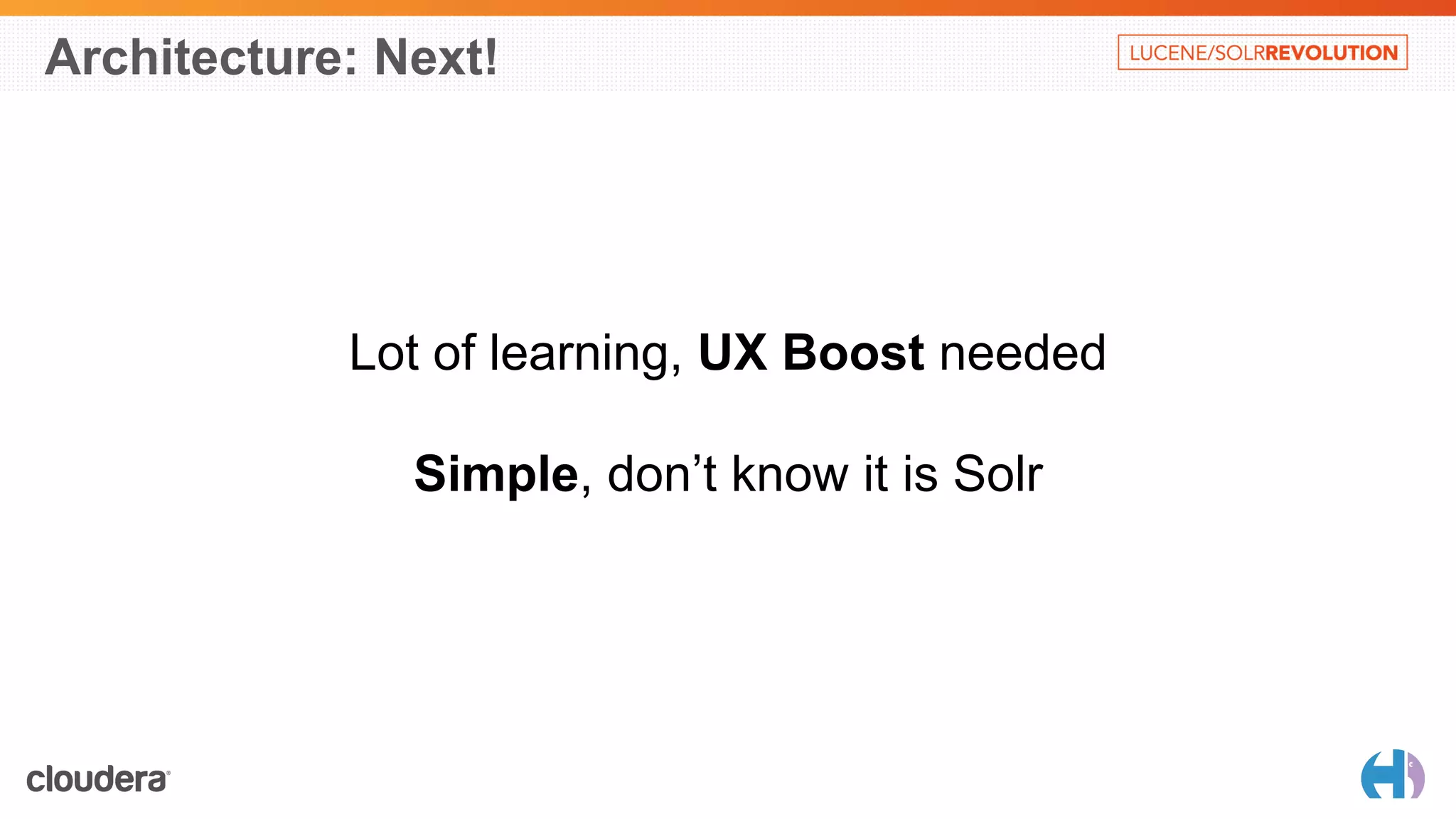

- 7. Architecture: Next! Lotof learning, UX Boost needed Simple, don’t know it is Solr

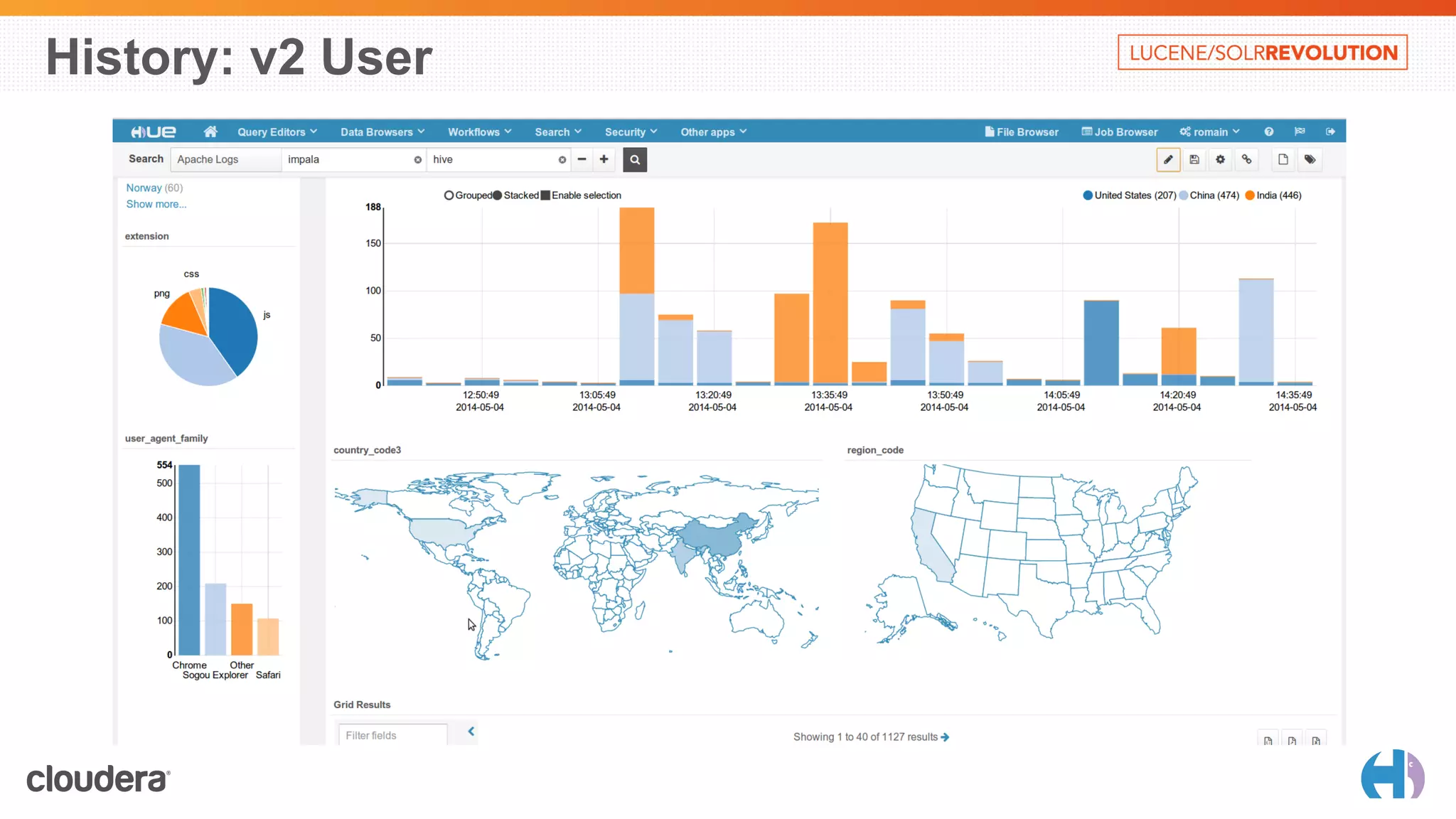

- 8.

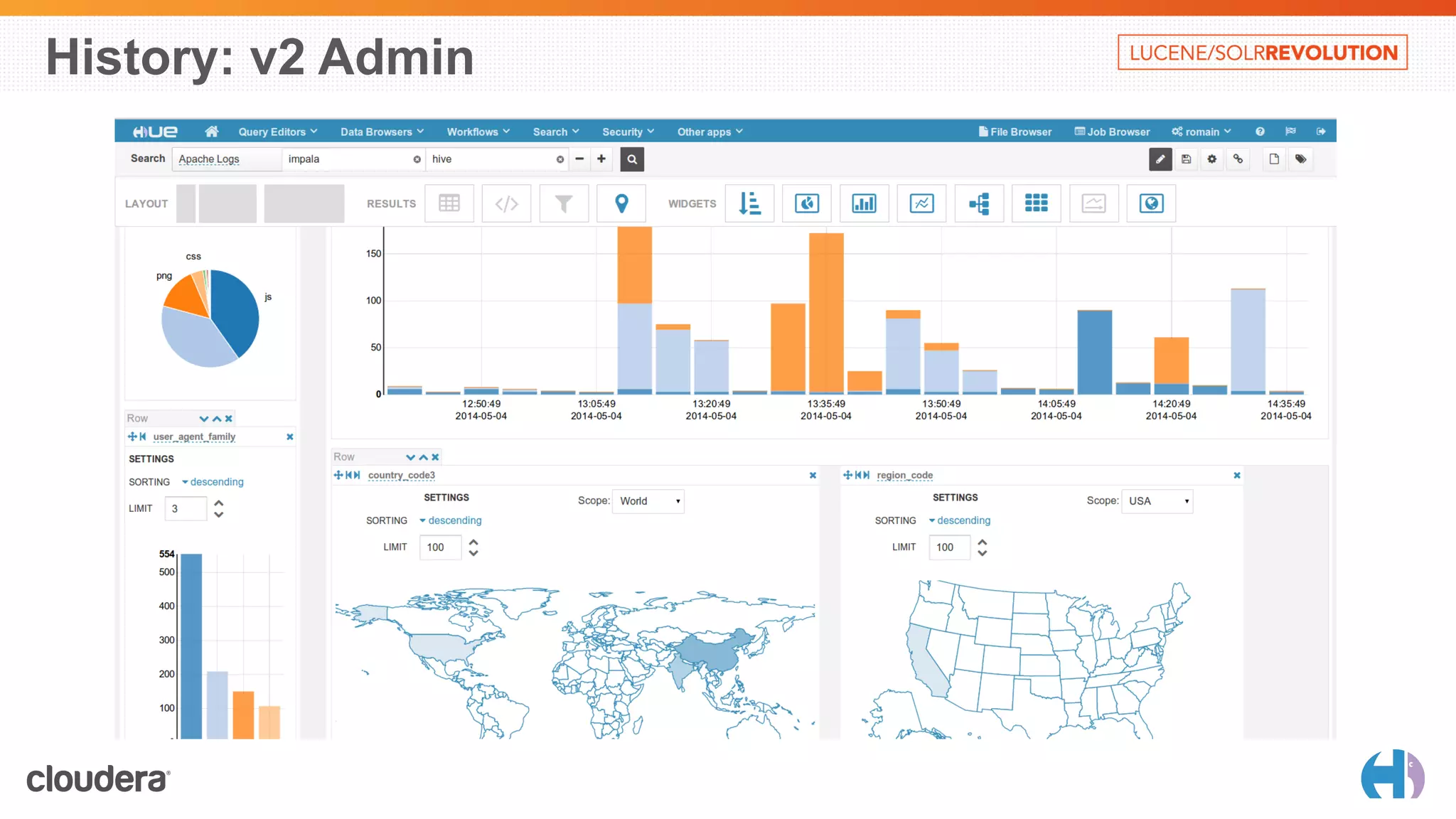

- 9.

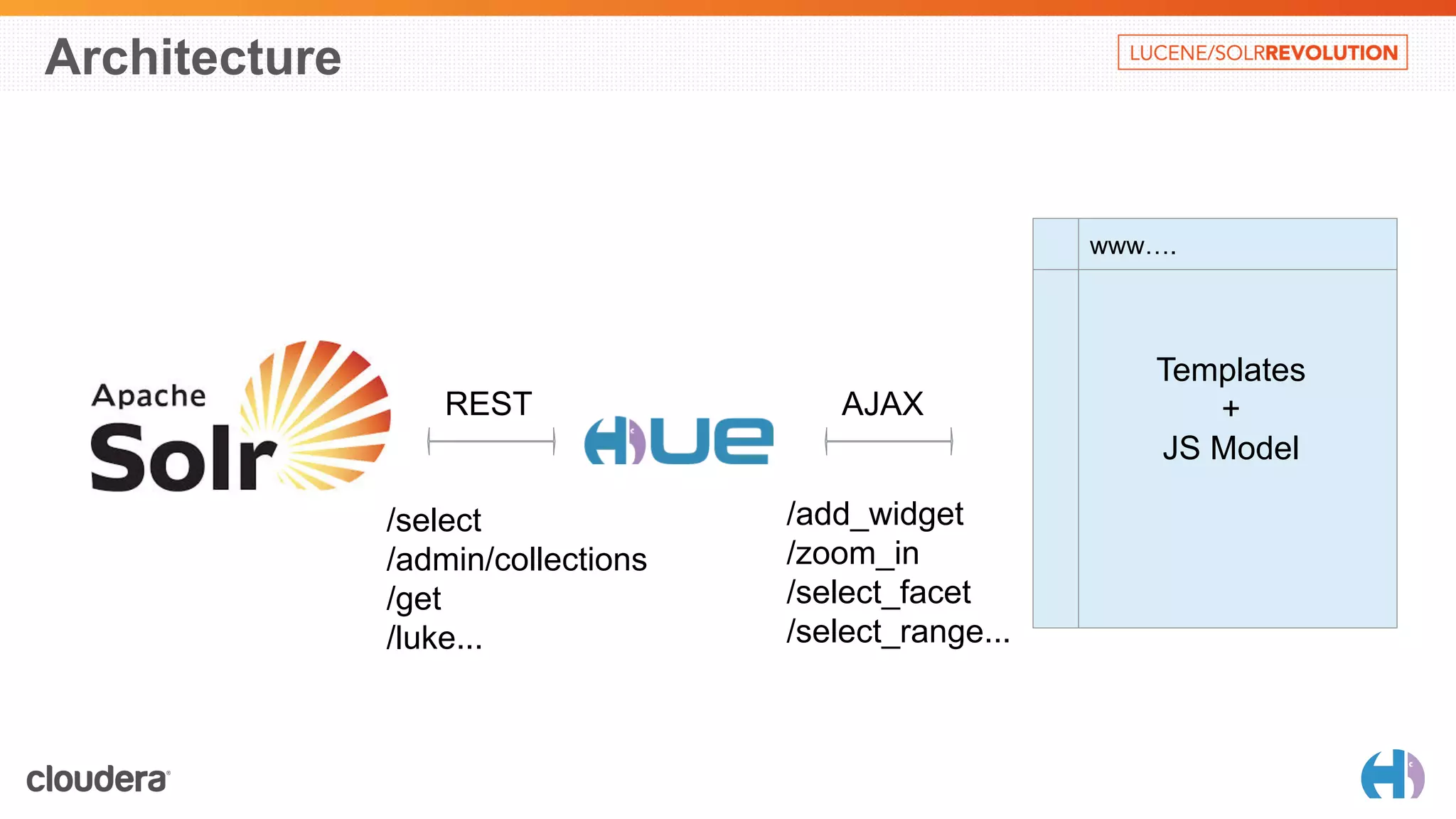

- 10. Architecture REST AJAX /select /admin/collections /get /luke... /add_widget /zoom_in /select_facet /select_range... www…. Templates + JS Model

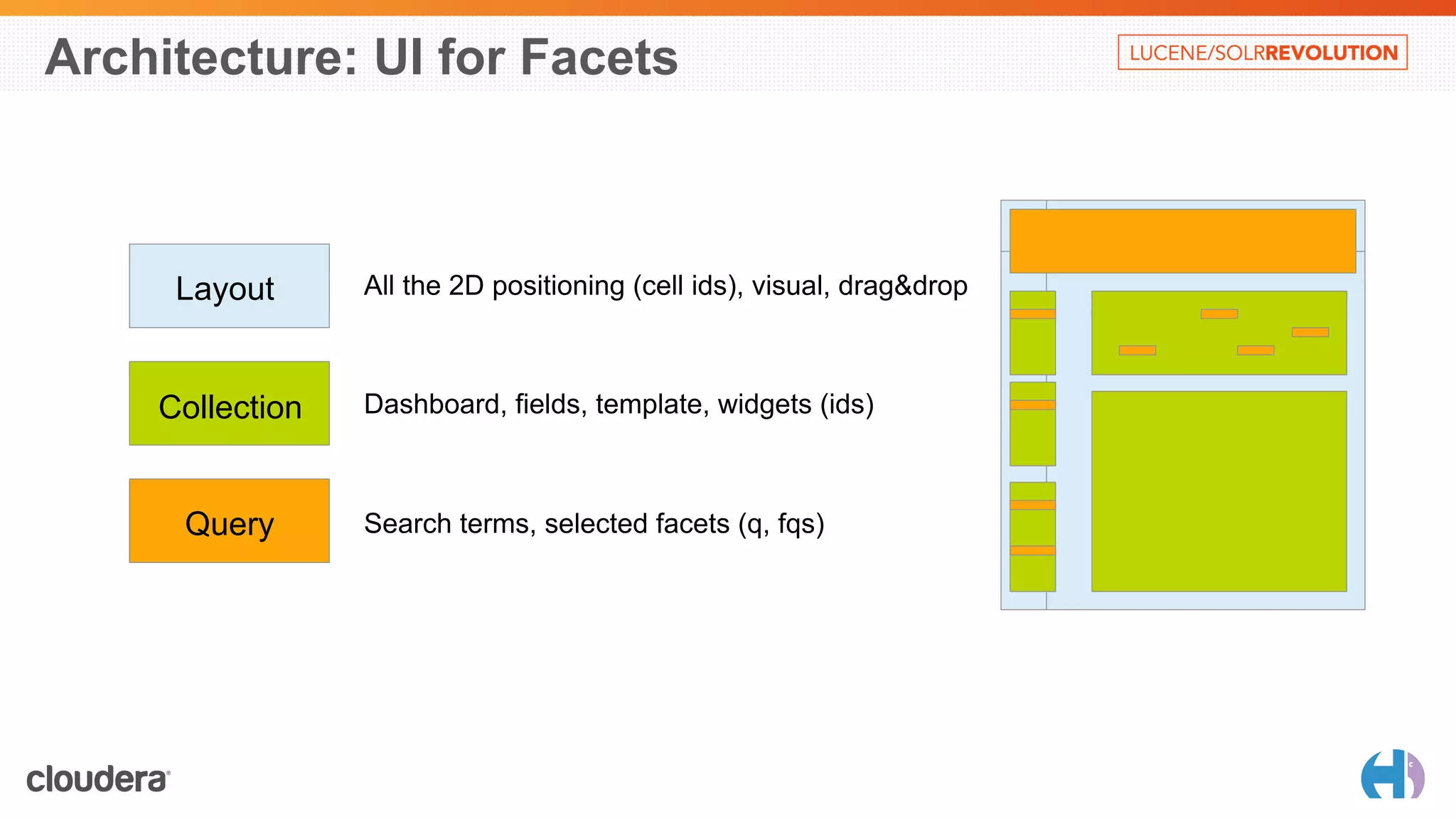

- 11. Architecture: UI forFacets Layout Collection Query All the 2D positioning (cell ids), visual, drag&drop Dashboard, fields, template, widgets (ids) Search terms, selected facets (q, fqs)

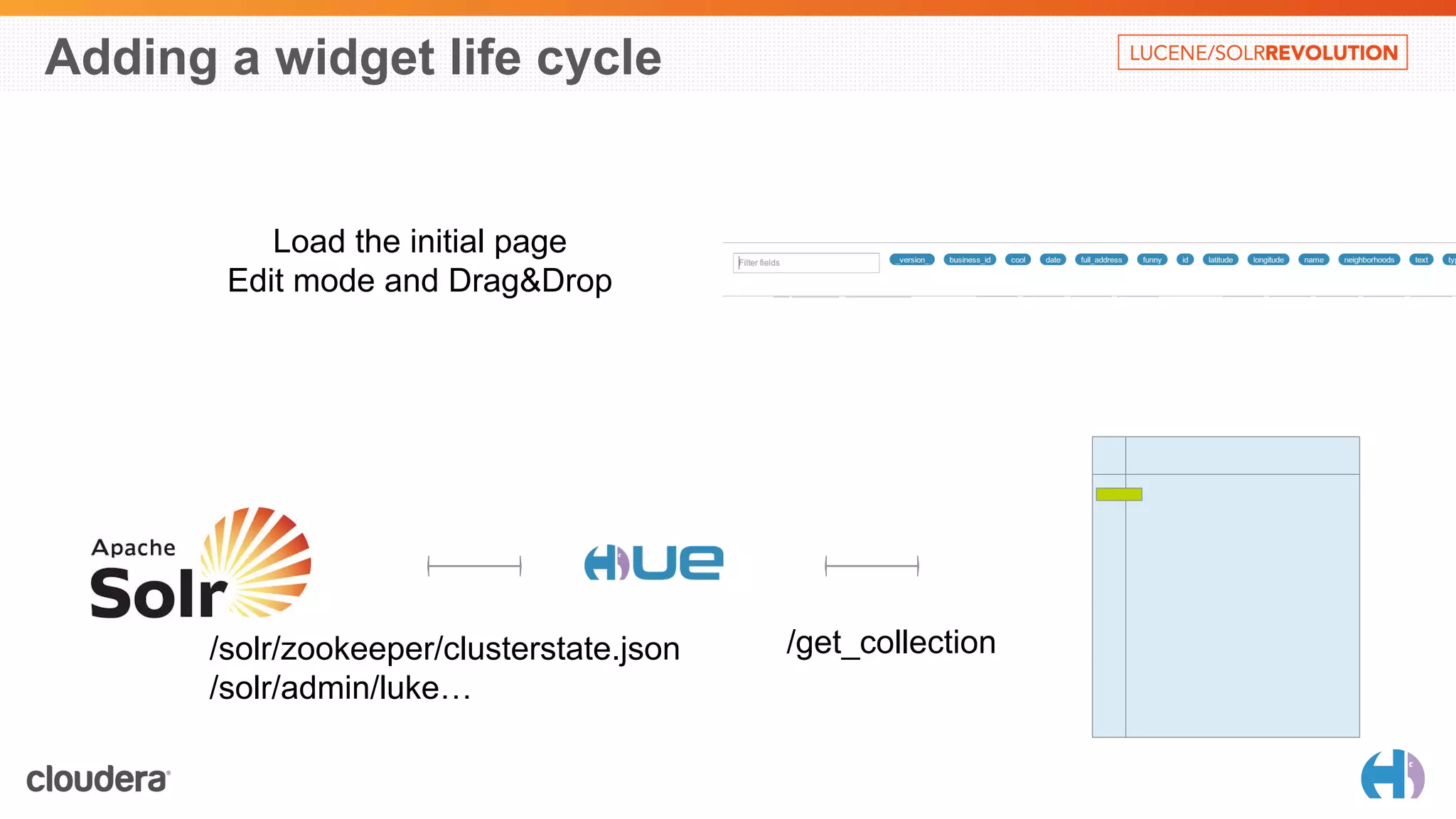

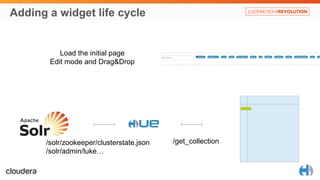

- 12. Adding a widgetlife cycle Load the initial page Edit mode and Drag&Drop /solr/zookeeper/clusterstate.json /solr/admin/luke… /get_collection

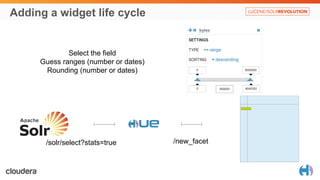

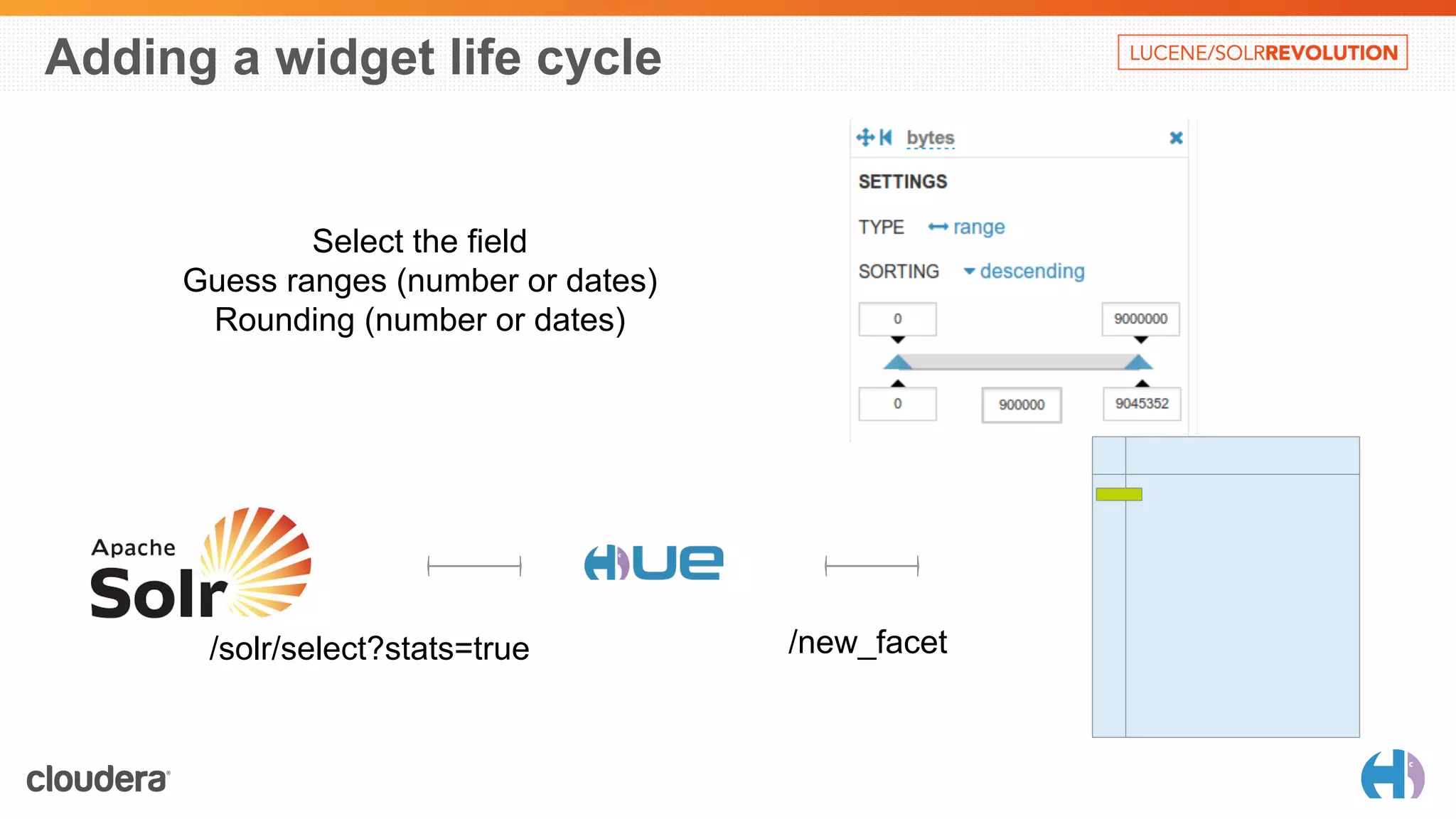

- 13. Adding a widgetlife cycle Select the field Guess ranges (number or dates) Rounding (number or dates) /solr/select?stats=true /new_facet

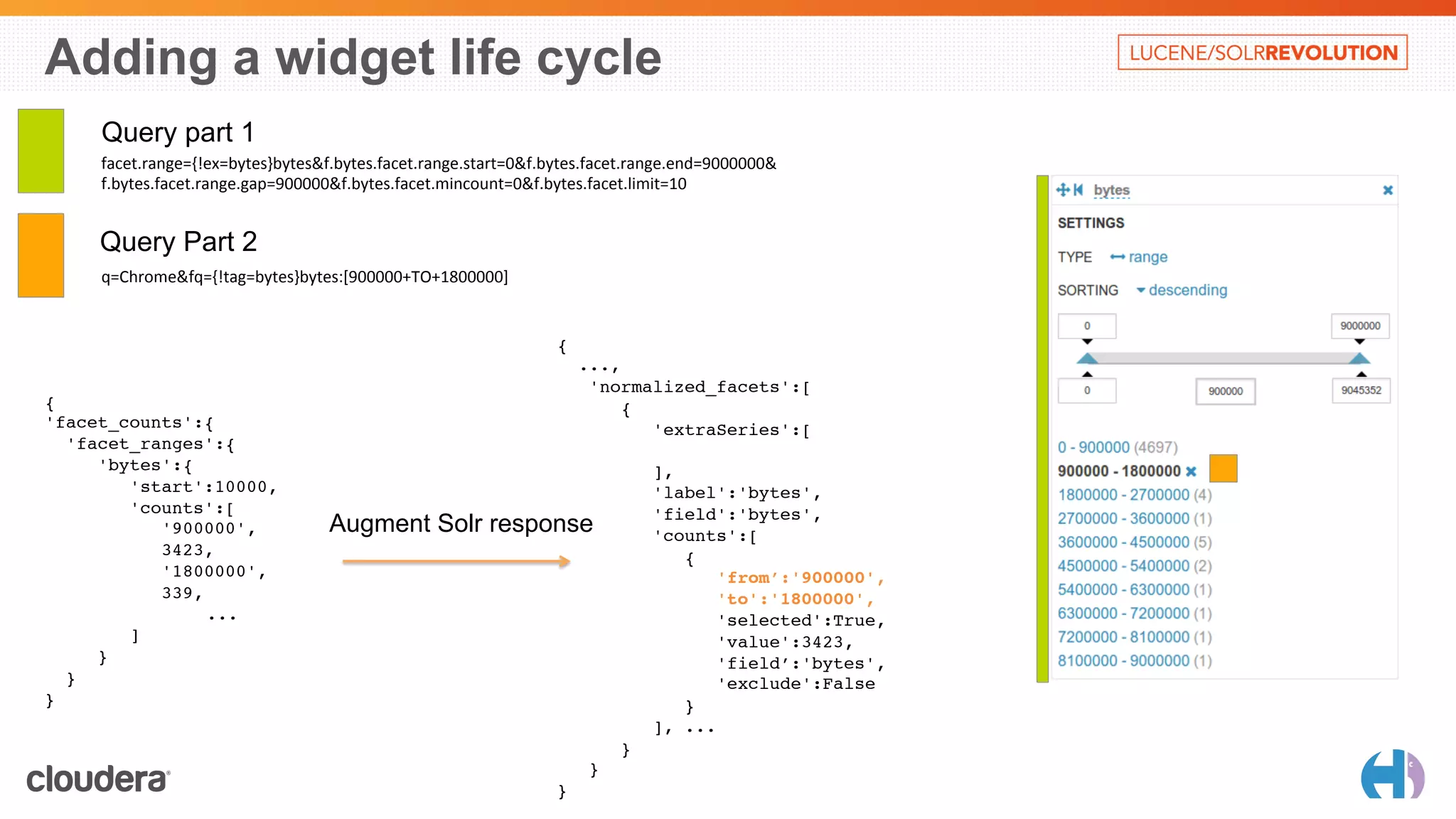

- 14. Adding a widgetlife cycle Query part 1 facet.range={!ex=bytes}bytes&f.bytes.facet.range.start=0&f.bytes.facet.range.end=9000000& f.bytes.facet.range.gap=900000&f.bytes.facet.mincount=0&f.bytes.facet.limit=10 Query Part 2 q=Chrome&fq={!tag=bytes}bytes:[900000+TO+1800000] Augment Solr response { ! 'facet_counts':{ ! 'facet_ranges':{ ! 'bytes':{ ! 'start':10000,! 'counts':[ ! '900000',! 3423,! '1800000',! 339,! ! ! ...! ]! }! }! }! {! ...,! 'normalized_facets':[ ! { ! 'extraSeries':[ ! ! ],! 'label':'bytes',! 'field':'bytes',! 'counts':[ ! { ! 'from’:'900000',! 'to':'1800000',! 'selected':True,! 'value':3423,! 'field’:'bytes',! 'exclude':False! }! ], ...! }! }! }!

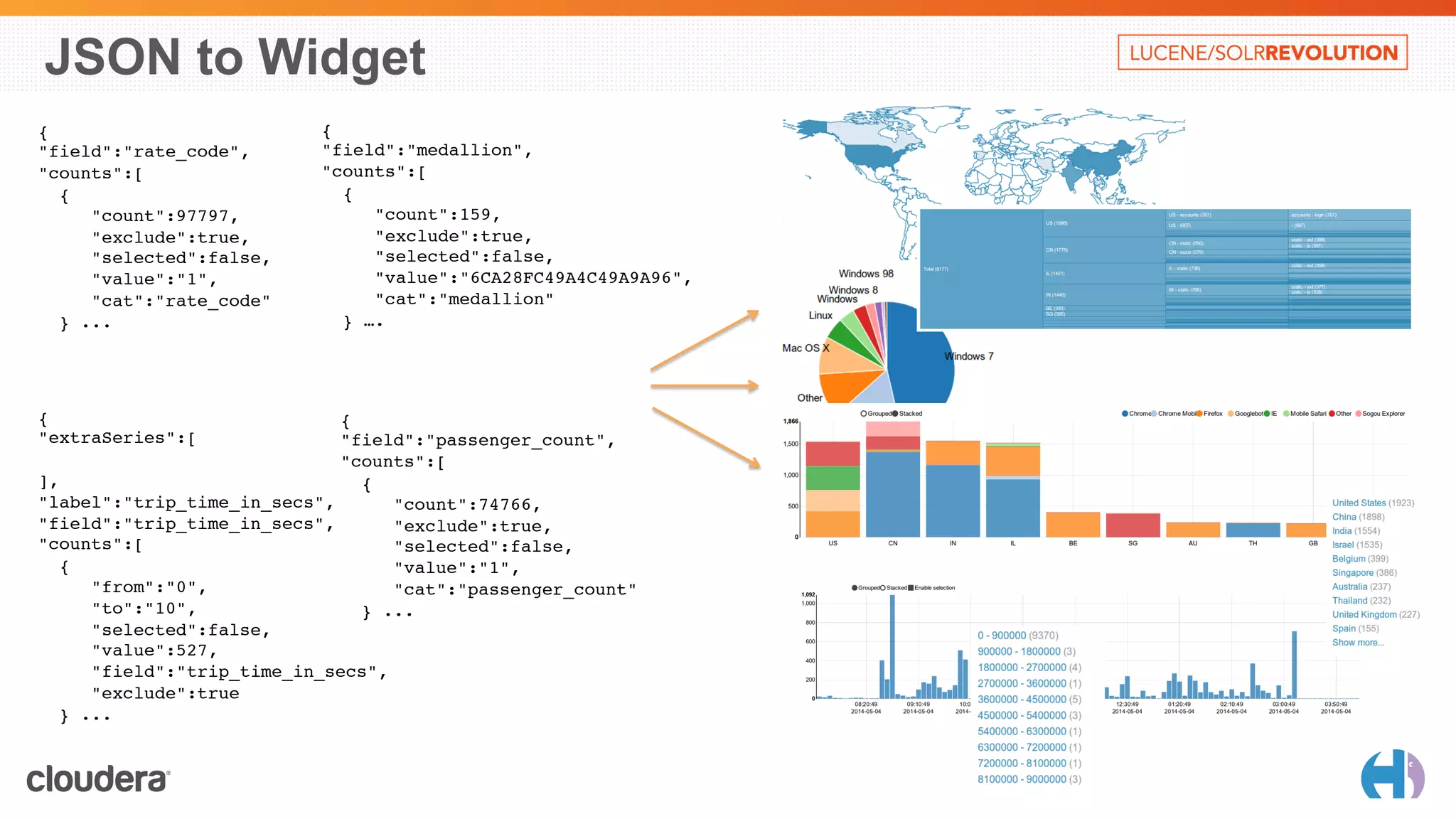

- 15. JSON to Widget { ! "field":"rate_code",! "counts":[ ! { ! "count":97797,! "exclude":true,! "selected":false,! "value":"1",! "cat":"rate_code"! } ...! { ! "field":"medallion",! "counts":[ ! { ! "count":159,! "exclude":true,! "selected":false,! "value":"6CA28FC49A4C49A9A96",! "cat":"medallion"! } ….! { ! "extraSeries":[ ! ! ],! "label":"trip_time_in_secs",! "field":"trip_time_in_secs",! "counts":[ ! { ! "from":"0",! "to":"10",! "selected":false,! "value":527,! "field":"trip_time_in_secs",! "exclude":true! } ...! { ! "field":"passenger_count",! "counts":[ ! { ! "count":74766,! "exclude":true,! "selected":false,! "value":"1",! "cat":"passenger_count"! } ...!
- 16.

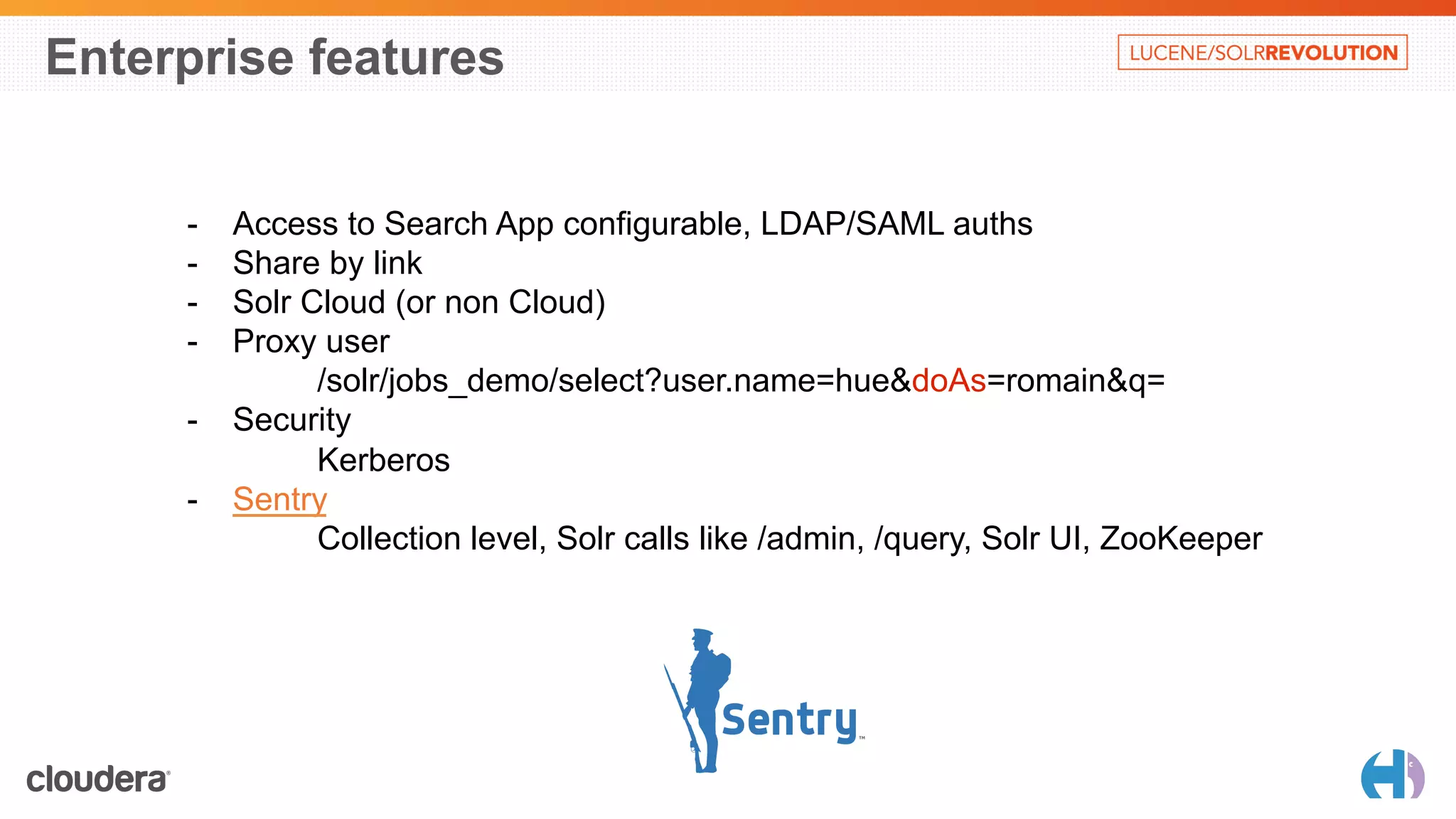

- 17. Enterprise features -Access to Search App configurable, LDAP/SAML auths - Share by link - Solr Cloud (or non Cloud) - Proxy user /solr/jobs_demo/select?user.name=hue&doAs=romain&q= - Security Kerberos - Sentry Collection level, Solr calls like /admin, /query, Solr UI, ZooKeeper

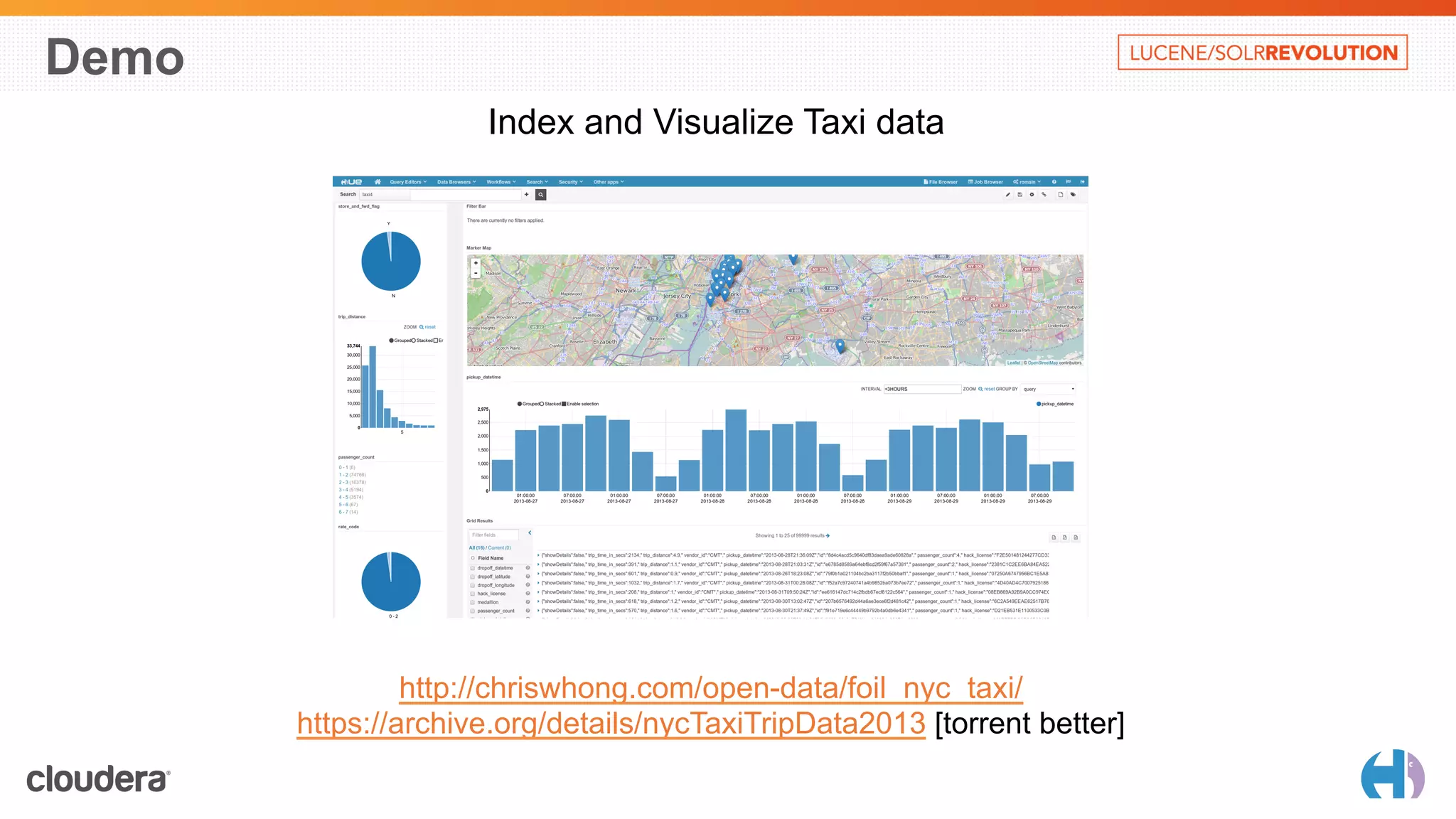

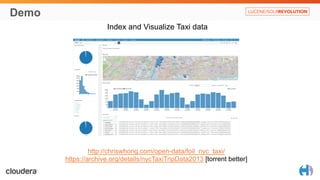

- 18. Demo Index andVisualize Taxi data http://chriswhong.com/open-data/foil_nyc_taxi/ https://archive.org/details/nycTaxiTripData2013 [torrent better]
- 19.

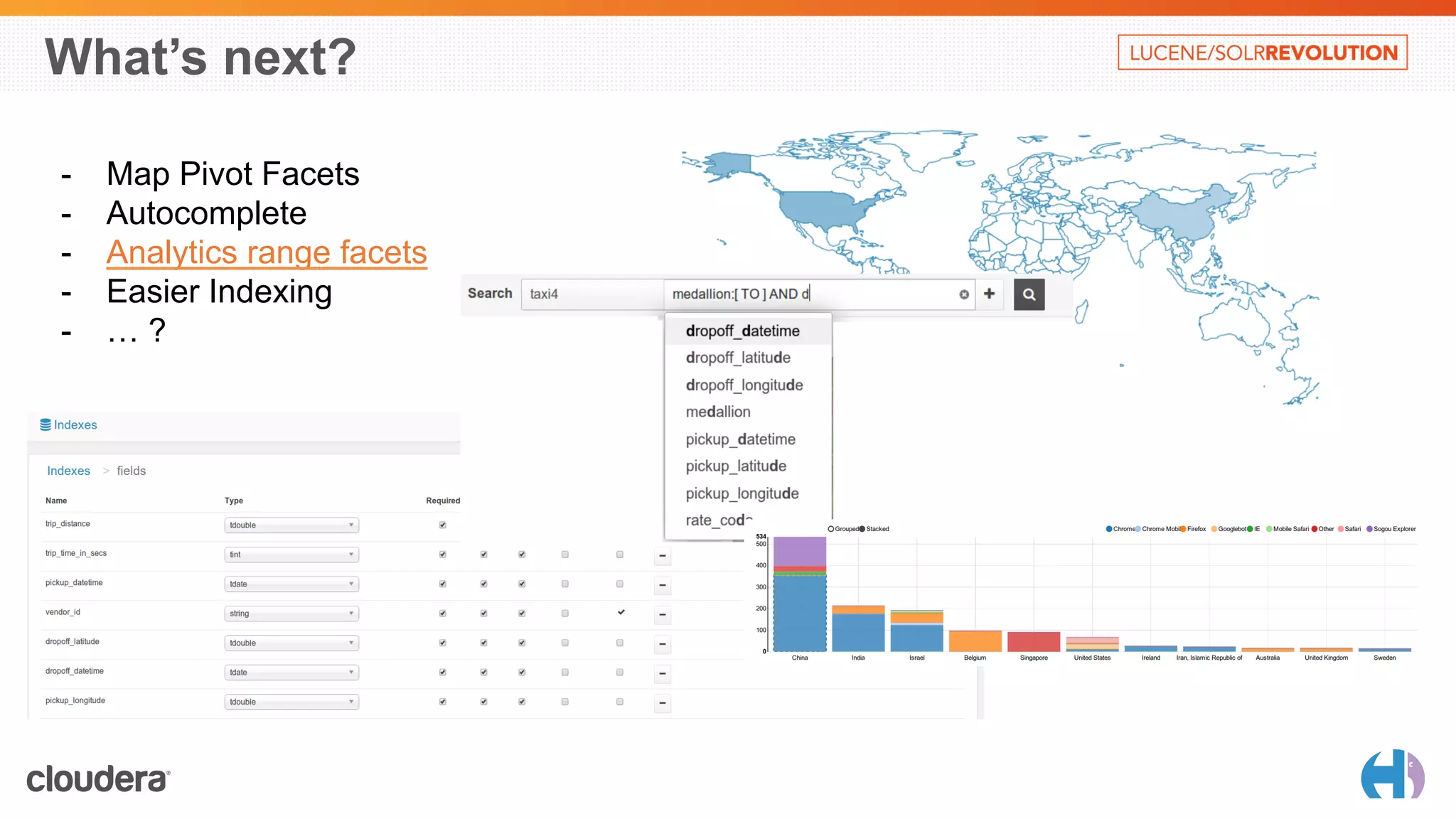

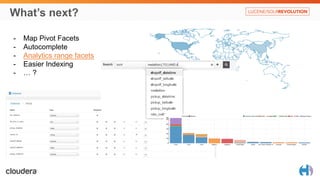

- 20. What’s next? -Map Pivot Facets - Autocomplete - Analytics range facets - Easier Indexing - … ?

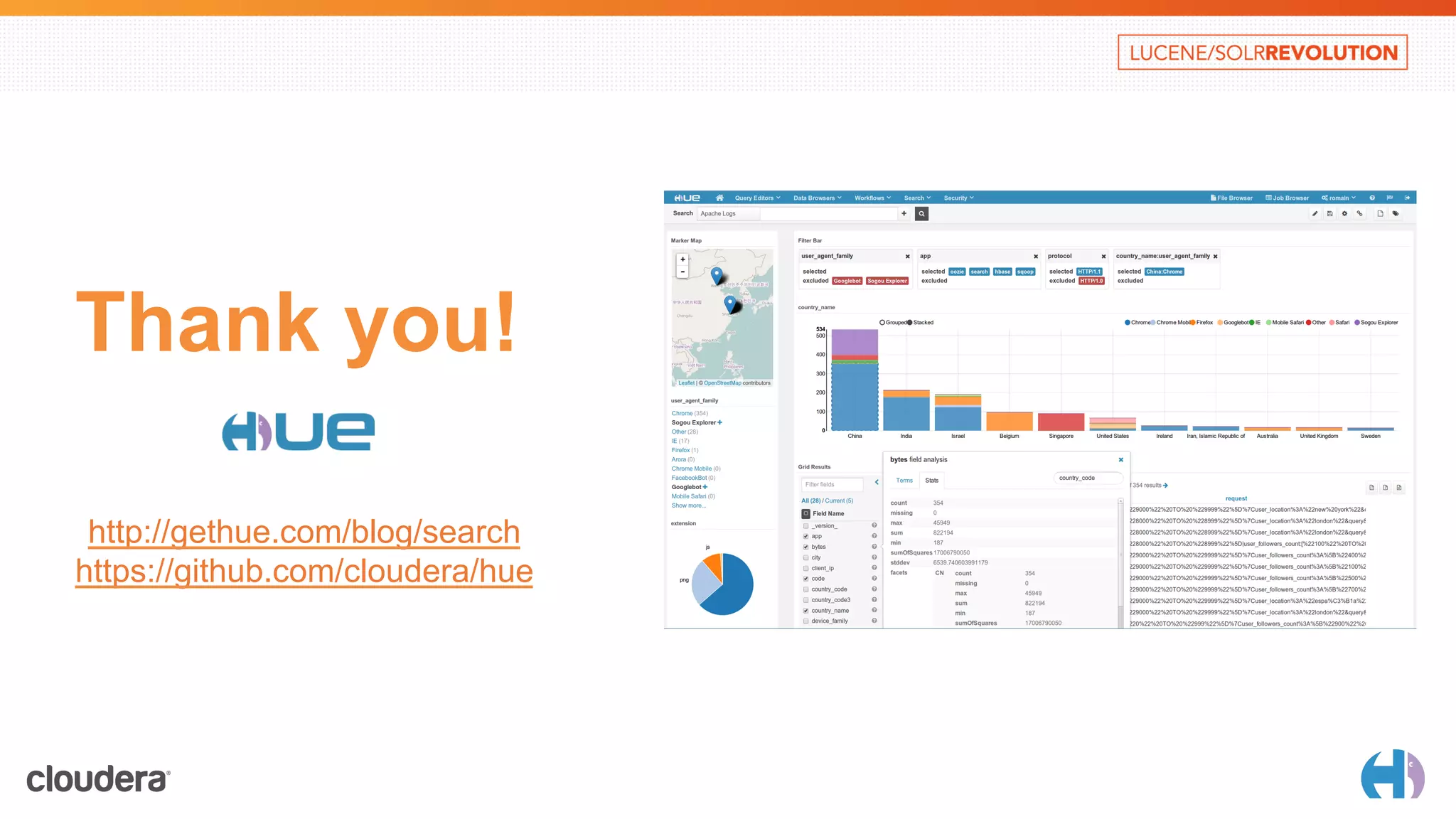

- 21. Thank you! http://gethue.com/blog/search https://github.com/cloudera/hue
