1. Luc Bors, june 2013, ODTUG KScope 2013 New Orleans
Best Practices for Developing Applications
with Oracle ADF Mobile
Oracle ADF Mobile

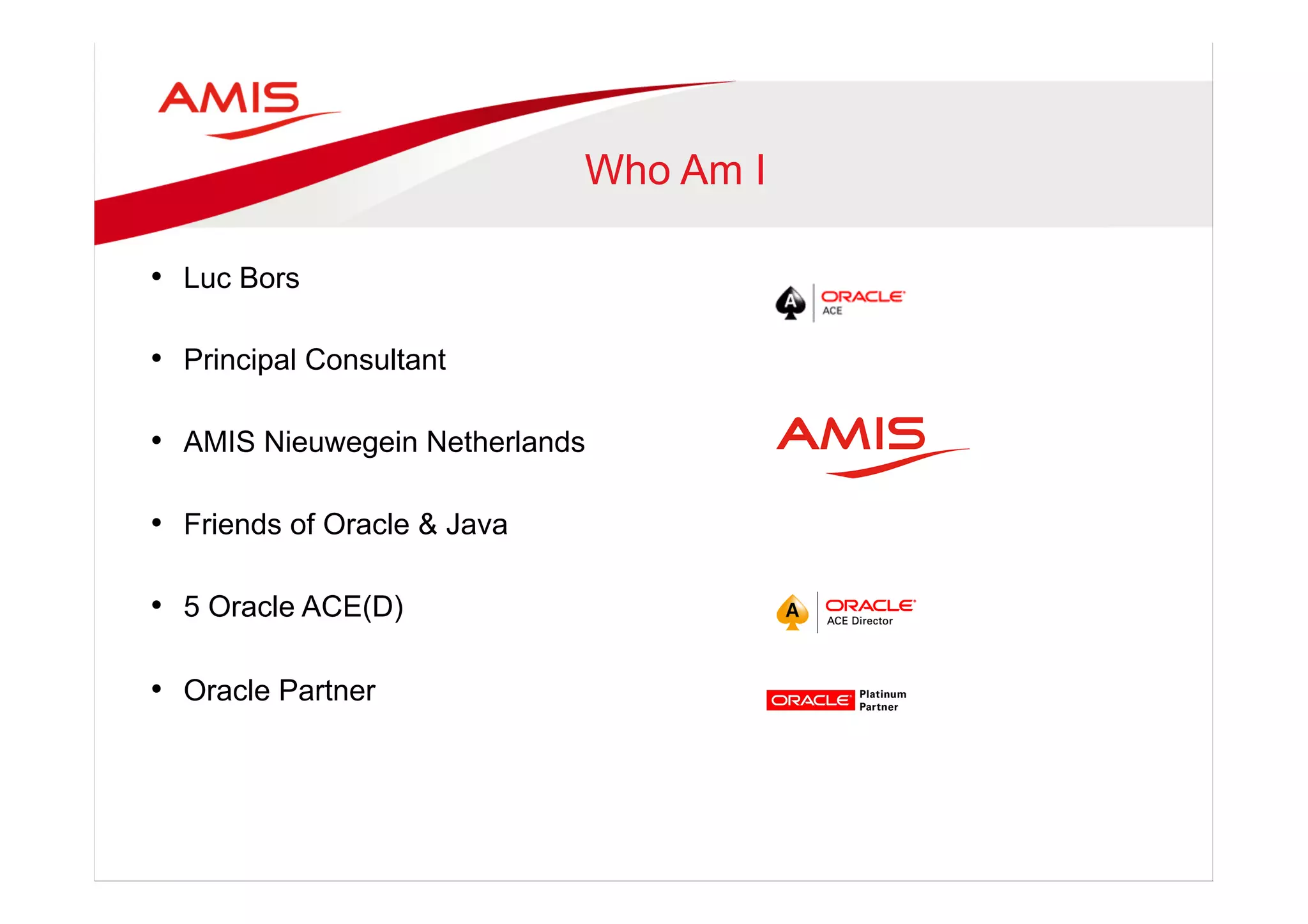

2. Who Am I
• Luc Bors
• Principal Consultant
• AMIS Nieuwegein Netherlands
• Friends of Oracle & Java
• 5 Oracle ACE(D)
• Oracle Partner

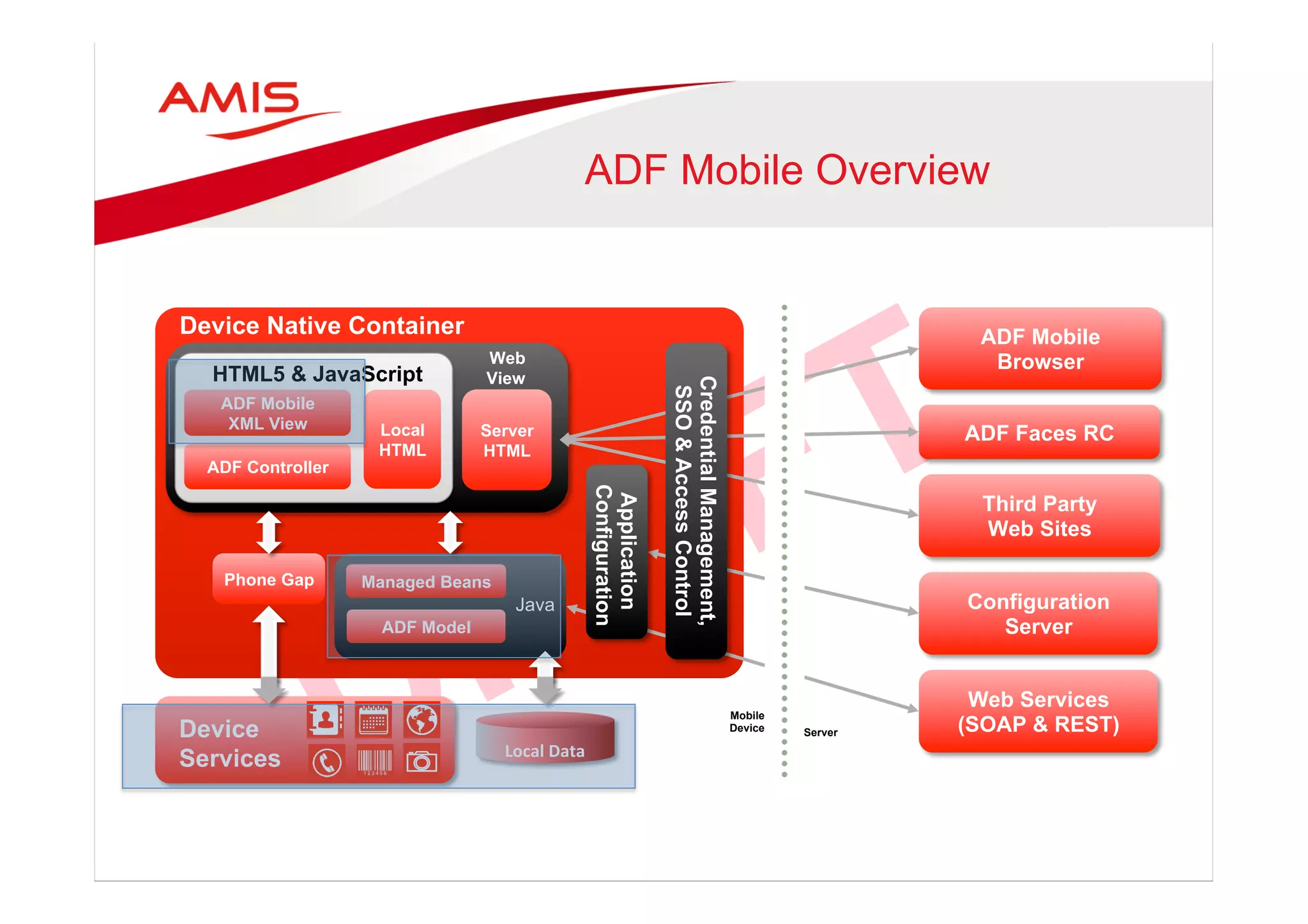

3. ADF Mobile Overview
17 Copyright © 2011, Oracle and/or its affiliates. All rights reserved.
Device
Services
How It Works?
Phone Gap
Device Native Container
Web
View
Server
HTML
ADF Mobile
XML View
Java
Managed Beans
ADF Model
Third Party
Web Sites
ADF Faces RC
ADF Mobile
Browser
Mobile
Device
Web Services
(SOAP & REST)
Local
HTML
HTML5 & JavaScript
Configuration
Server
ADF Controller
Local'Data'
CredentialManagement,
SSO&AccessControl
Application
Configuration
Server

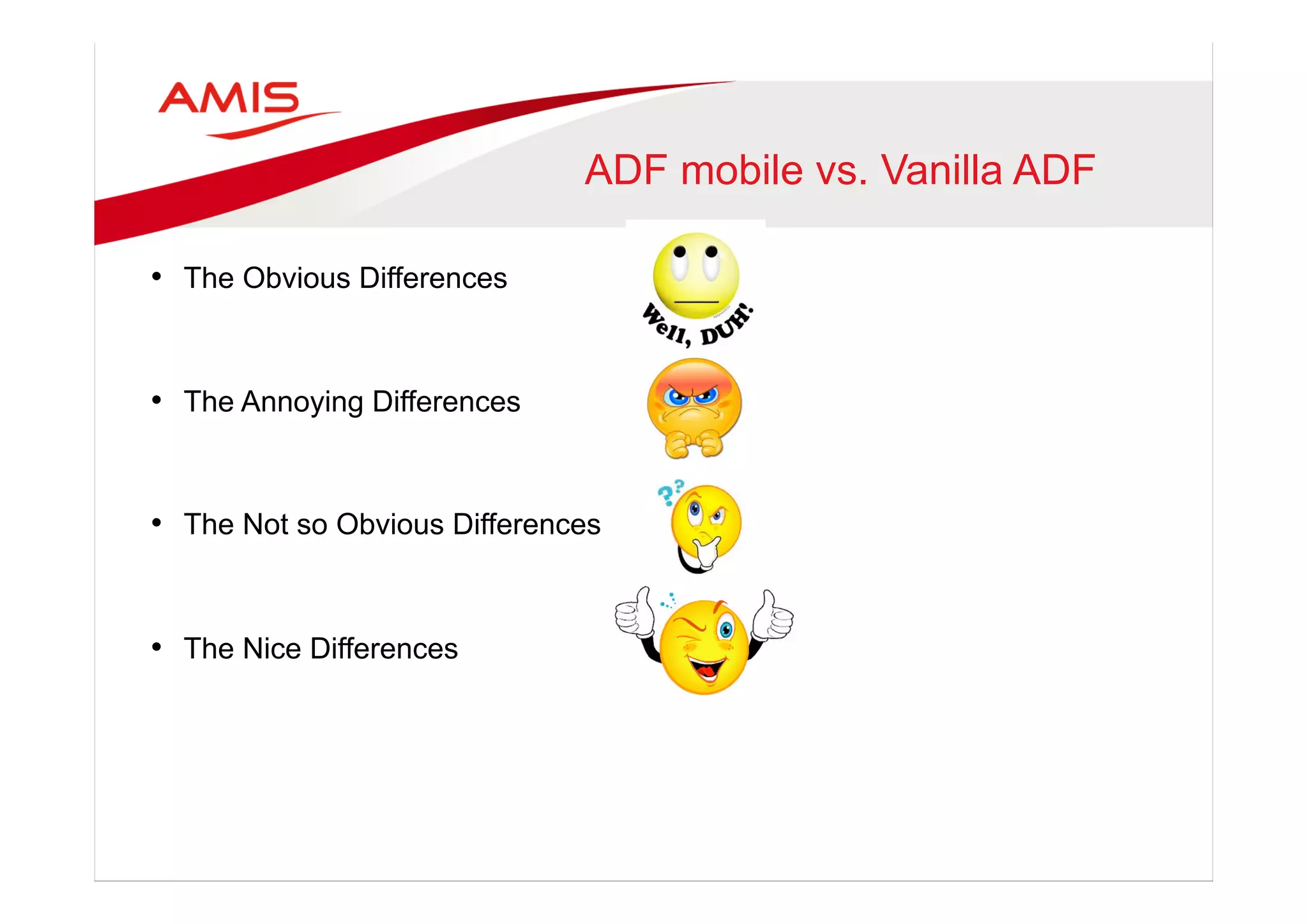

4. ADF mobile vs. Vanilla ADF
• The Obvious Differences
• The Annoying Differences
• The Not so Obvious Differences
• The Nice Differences

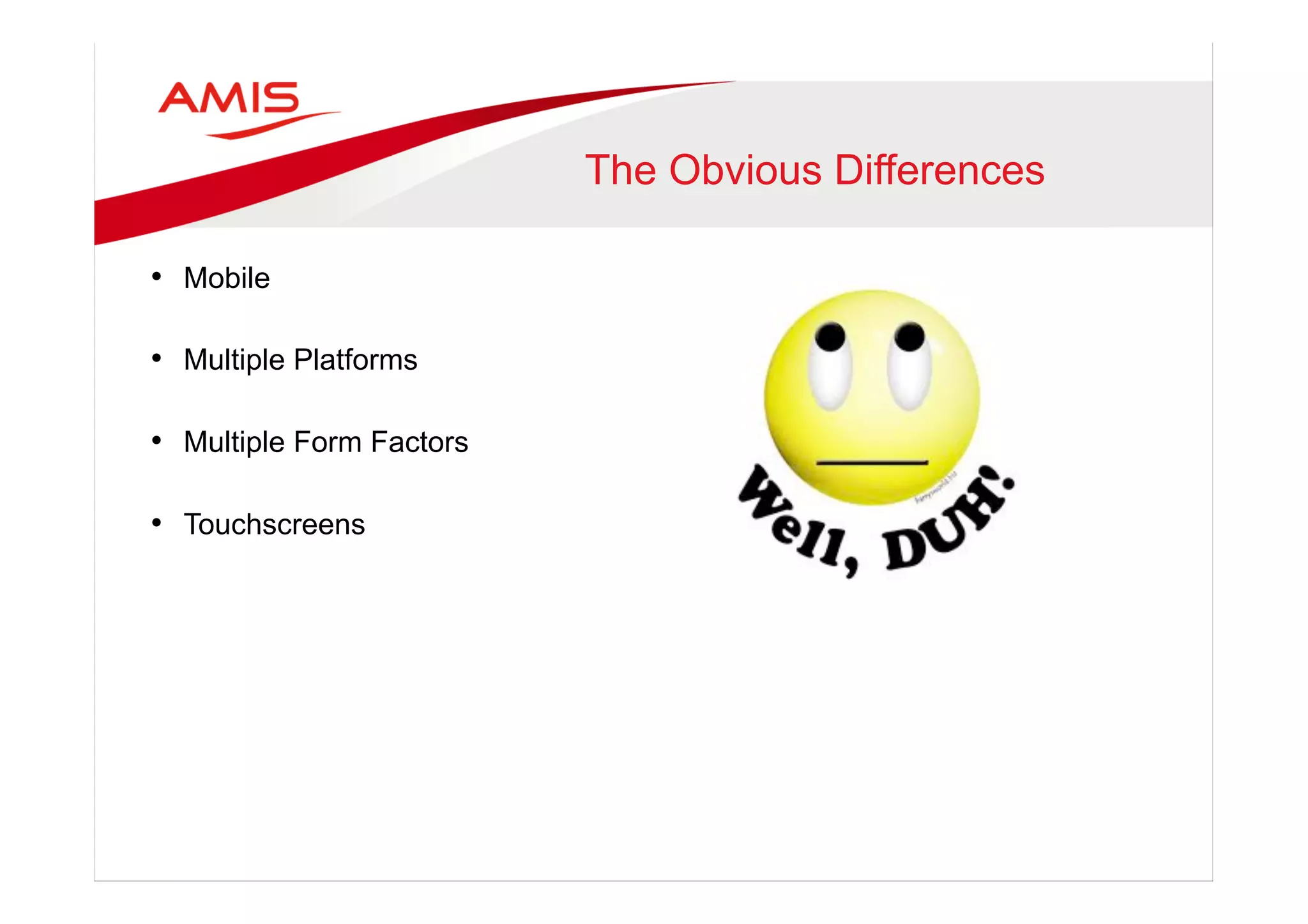

5. The Obvious Differences
• Mobile
• Multiple Platforms
• Multiple Form Factors
• Touchscreens

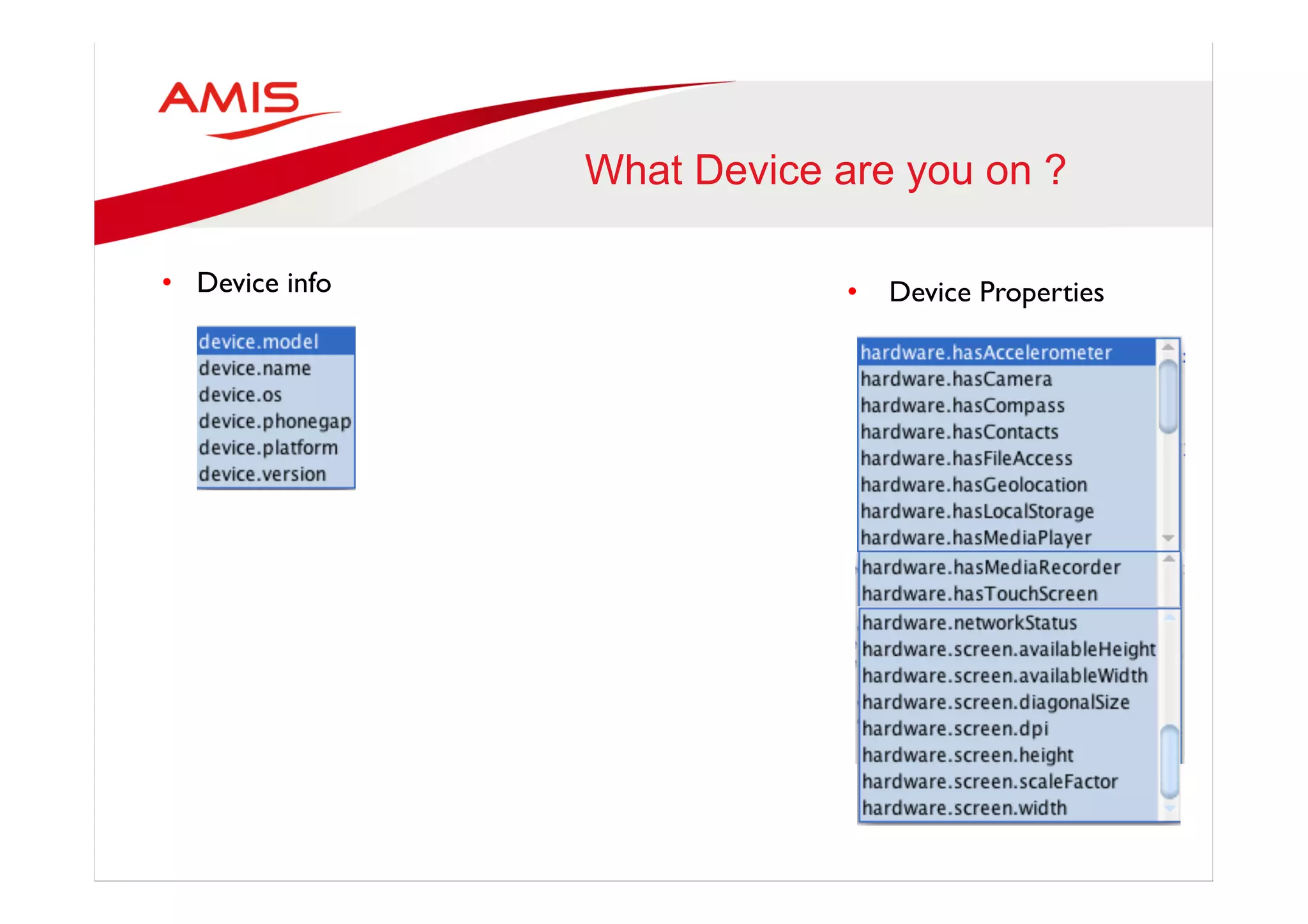

6. What Device are you on ?
• Device info
• Device Properties

7. Work With Form Factors
• Respond to Form Factors
• Conditionally Render Different content

8. Demo

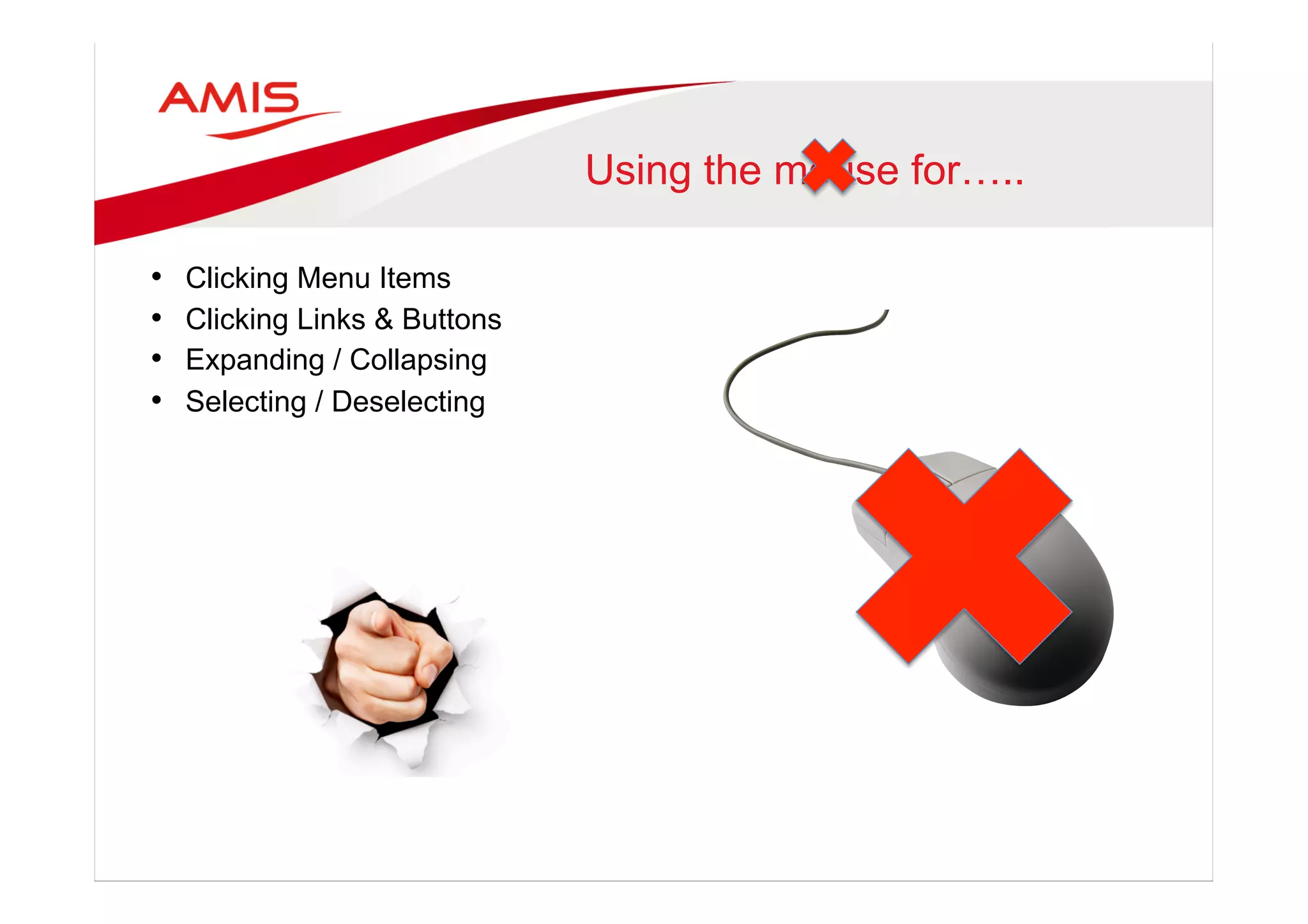

9. Using the mouse for…..
• Clicking Menu Items
• Clicking Links & Buttons
• Expanding / Collapsing
• Selecting / Deselecting

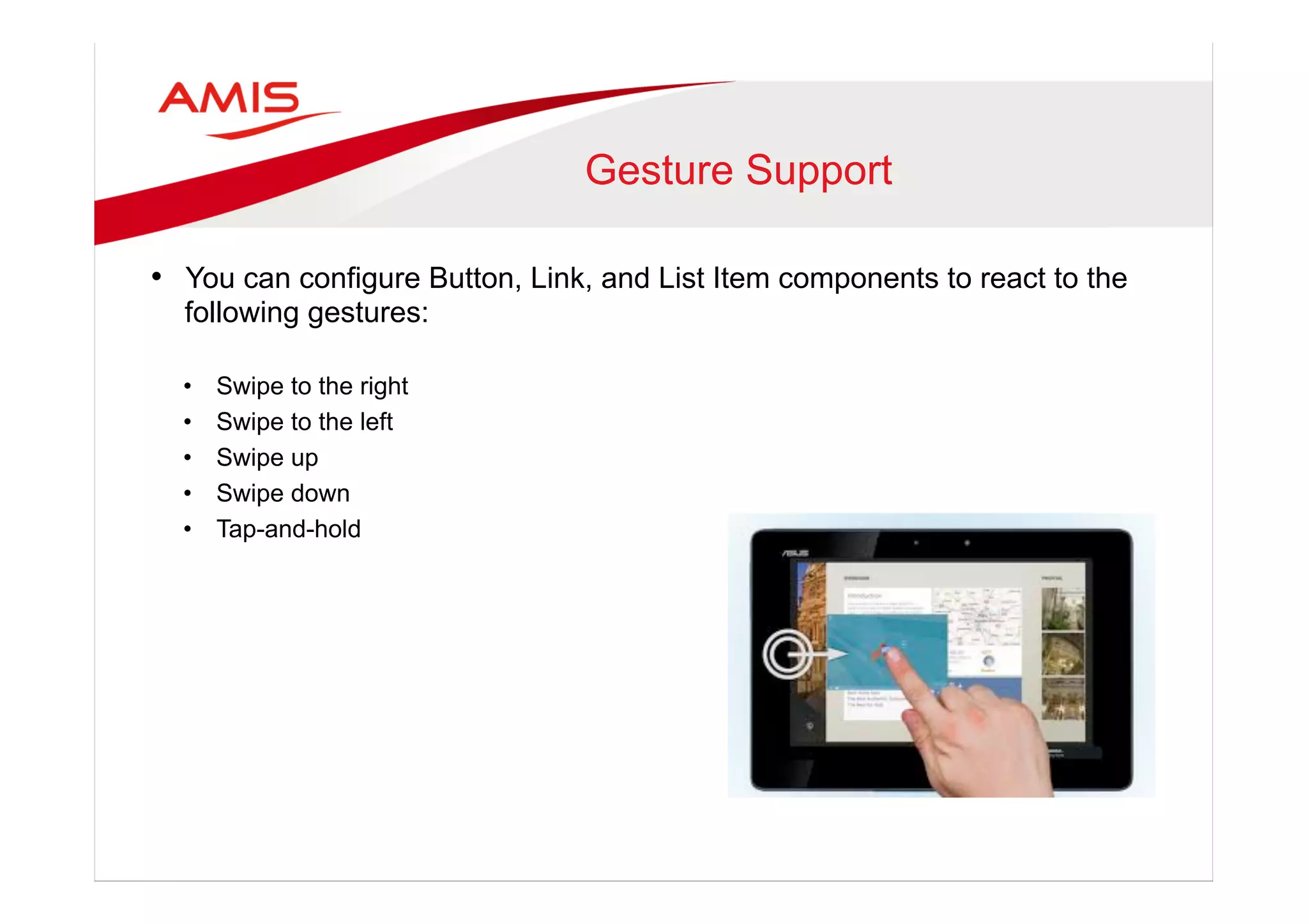

10. Gesture Support
• You can configure Button, Link, and List Item components to react to the
following gestures:
• Swipe to the right
• Swipe to the left
• Swipe up
• Swipe down
• Tap-and-hold

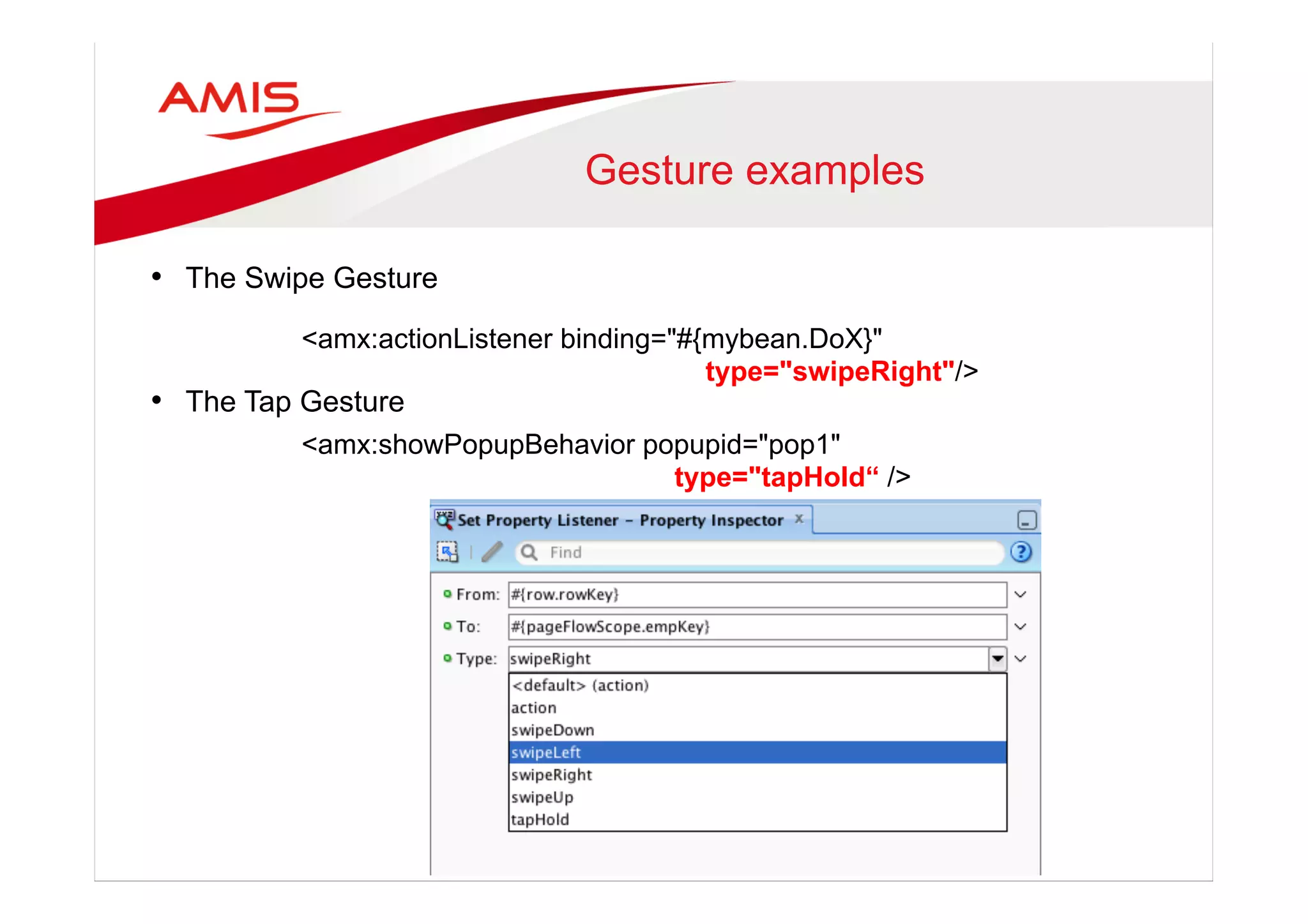

11. Gesture examples
• The Swipe Gesture
• The Tap Gesture
<amx:actionListener binding="#{mybean.DoX}"
type="swipeRight"/>
<amx:showPopupBehavior popupid="pop1"
type="tapHold“ />

13. Annoying differences

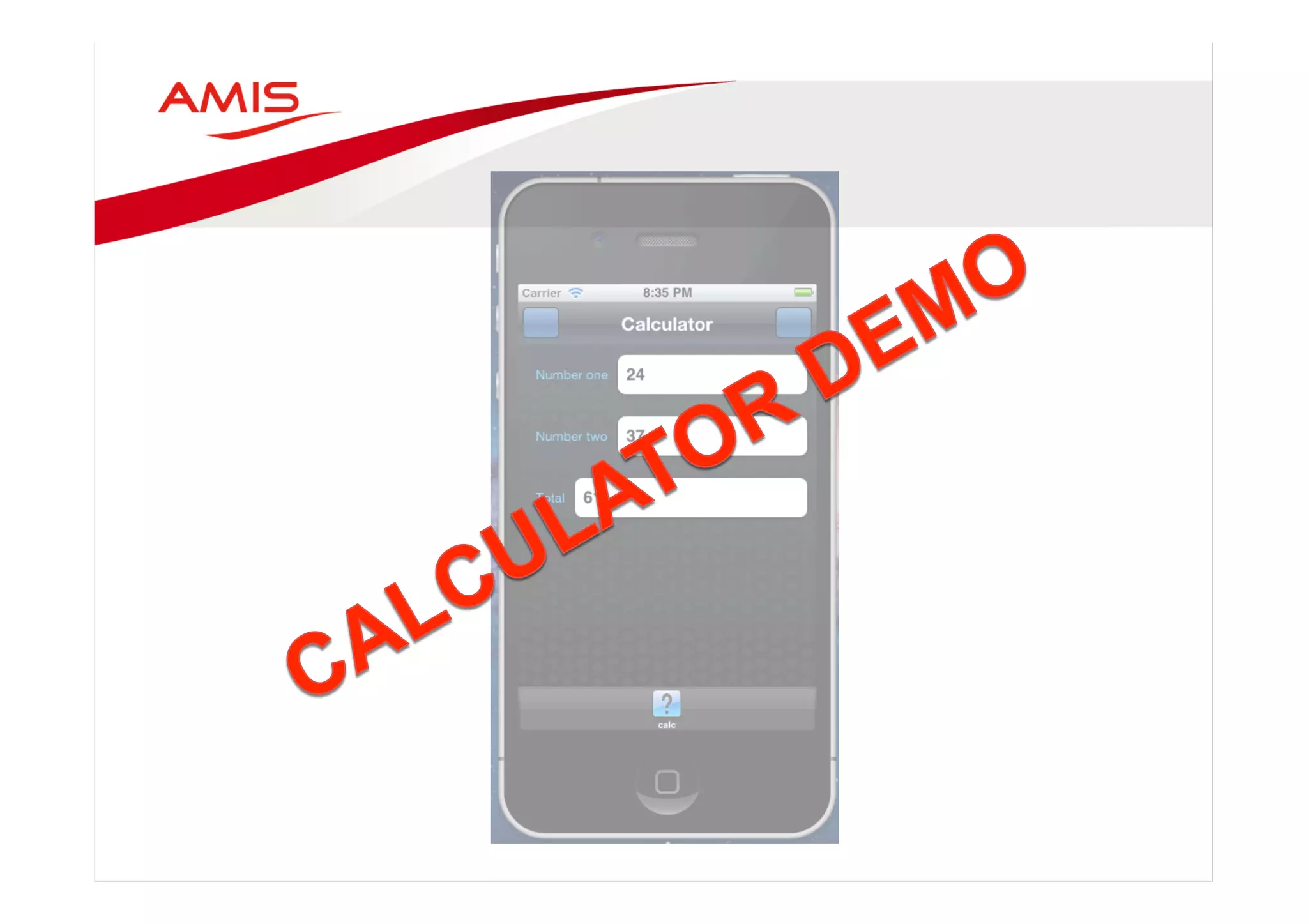

14. A simple calculator….
• In Vanilla ADF…… • InputText for Value
• Autosubmit
• OutputText for Result
• PartialTriggers
• Managed Bean
• Holds the values

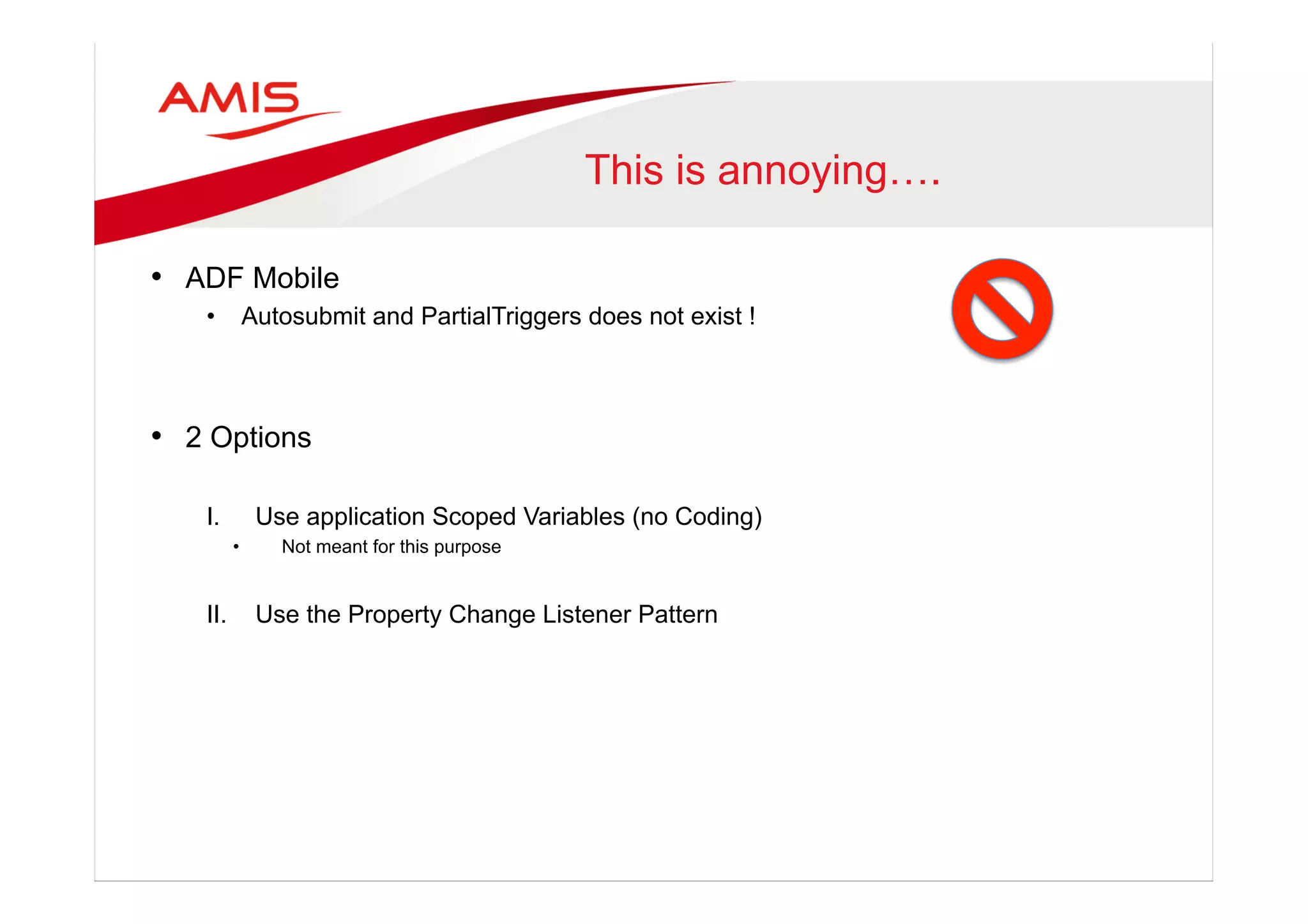

15. This is annoying….
• ADF Mobile
• Autosubmit and PartialTriggers does not exist !
• 2 Options
I. Use application Scoped Variables (no Coding)
• Not meant for this purpose
II. Use the Property Change Listener Pattern

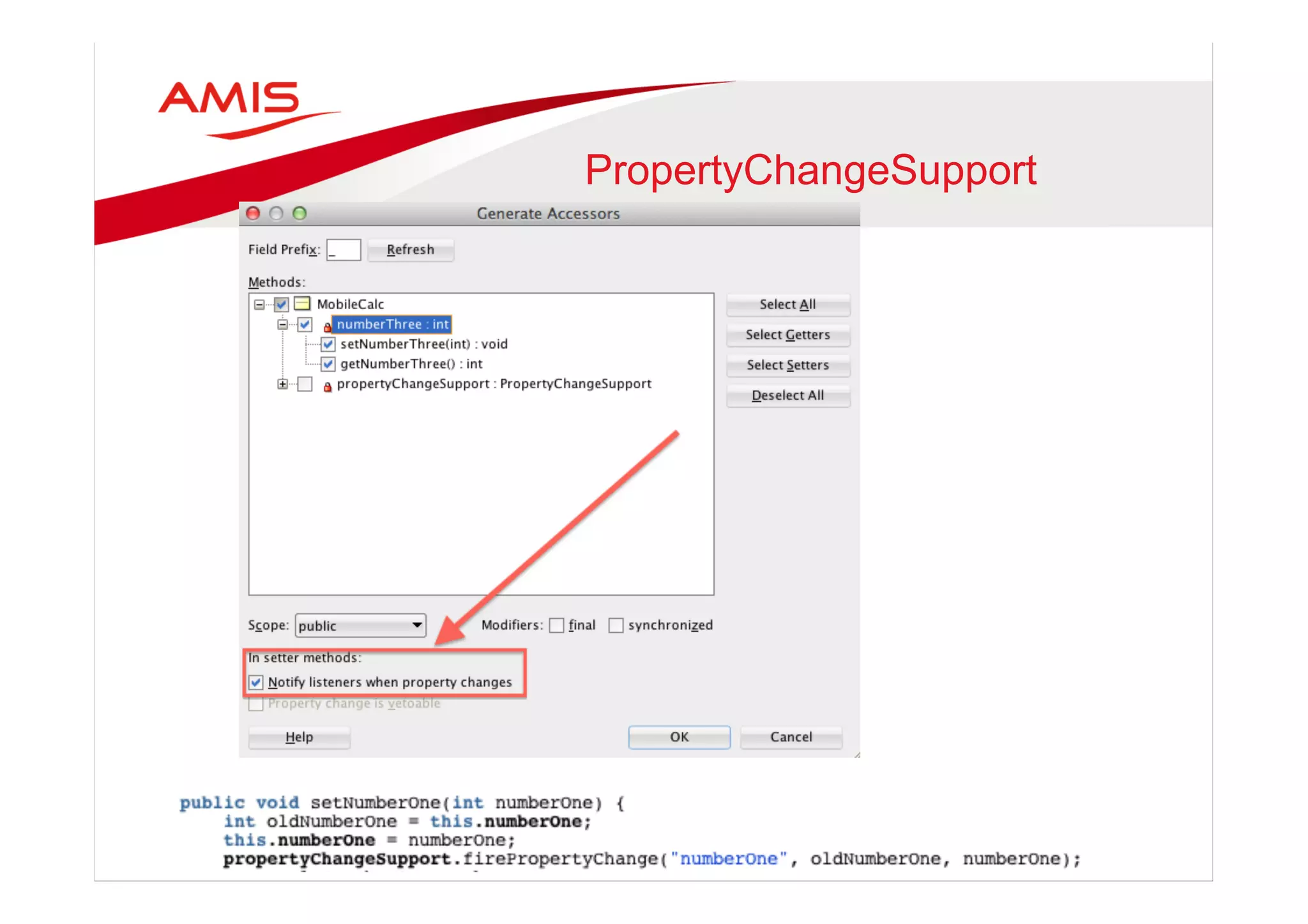

16. PropertyChangeSupport

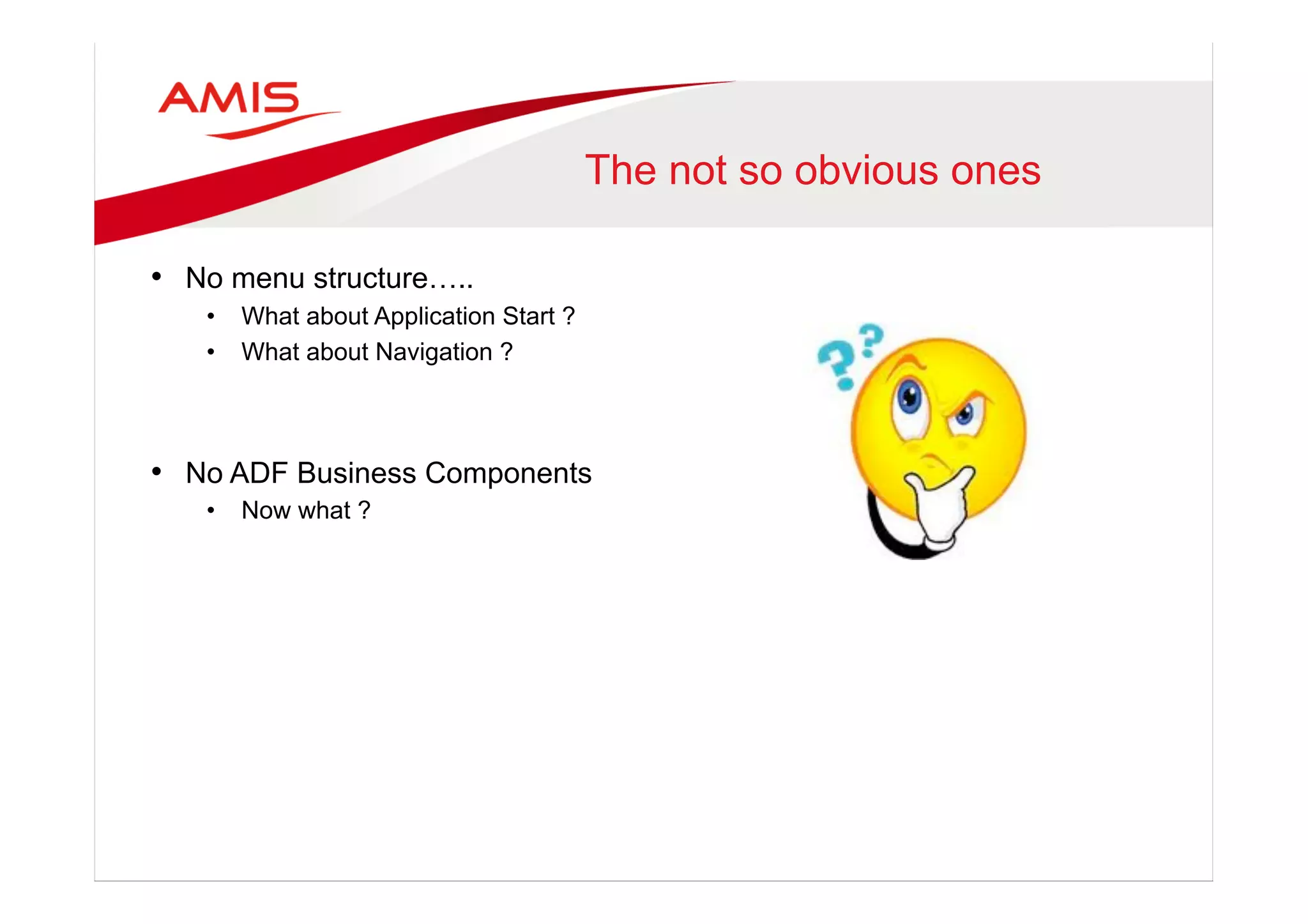

18. The not so obvious ones
• No menu structure…..
• What about Application Start ?
• What about Navigation ?
• No ADF Business Components
• Now what ?

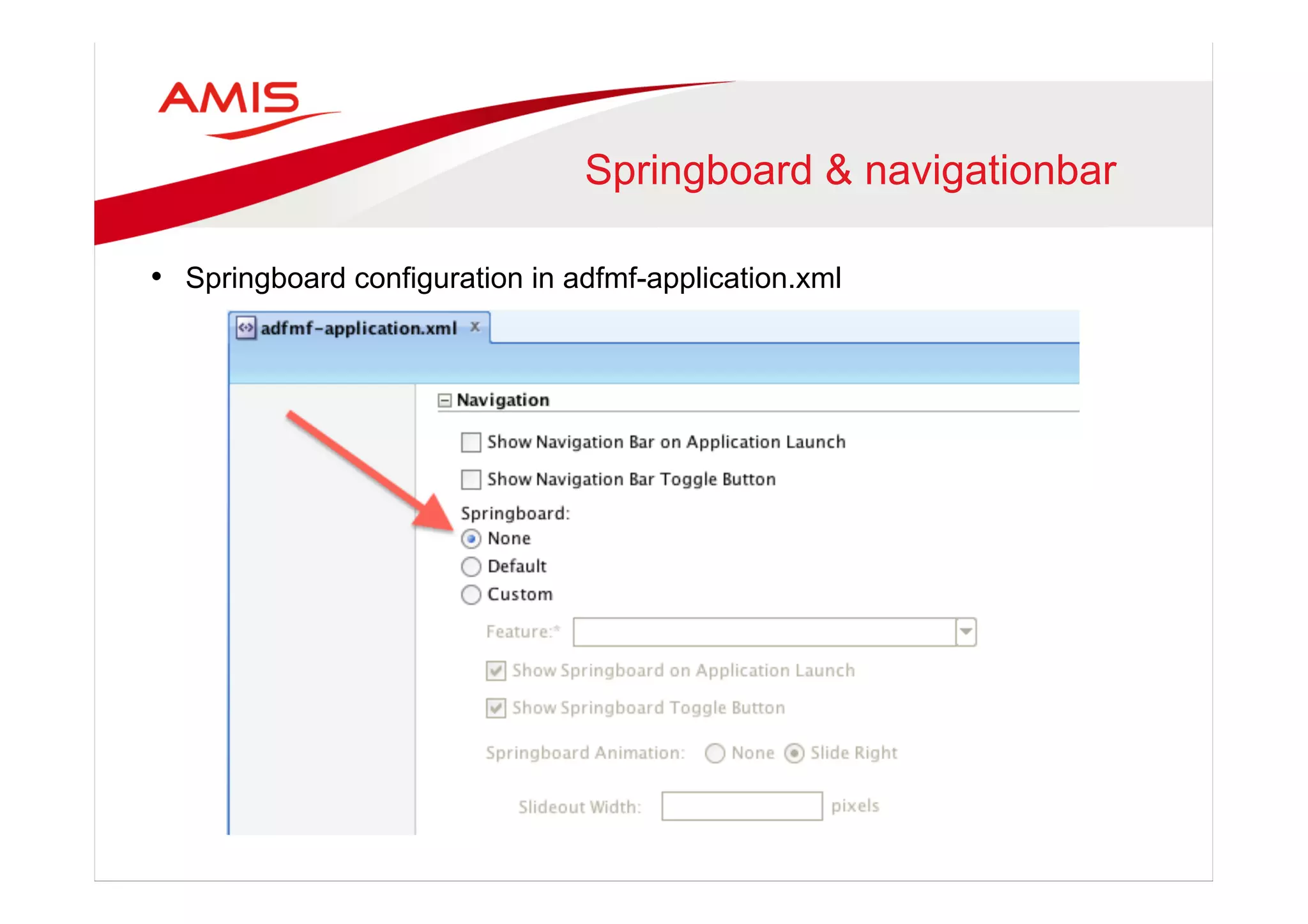

19. Springboard & navigationbar
• Springboard configuration in adfmf-application.xml

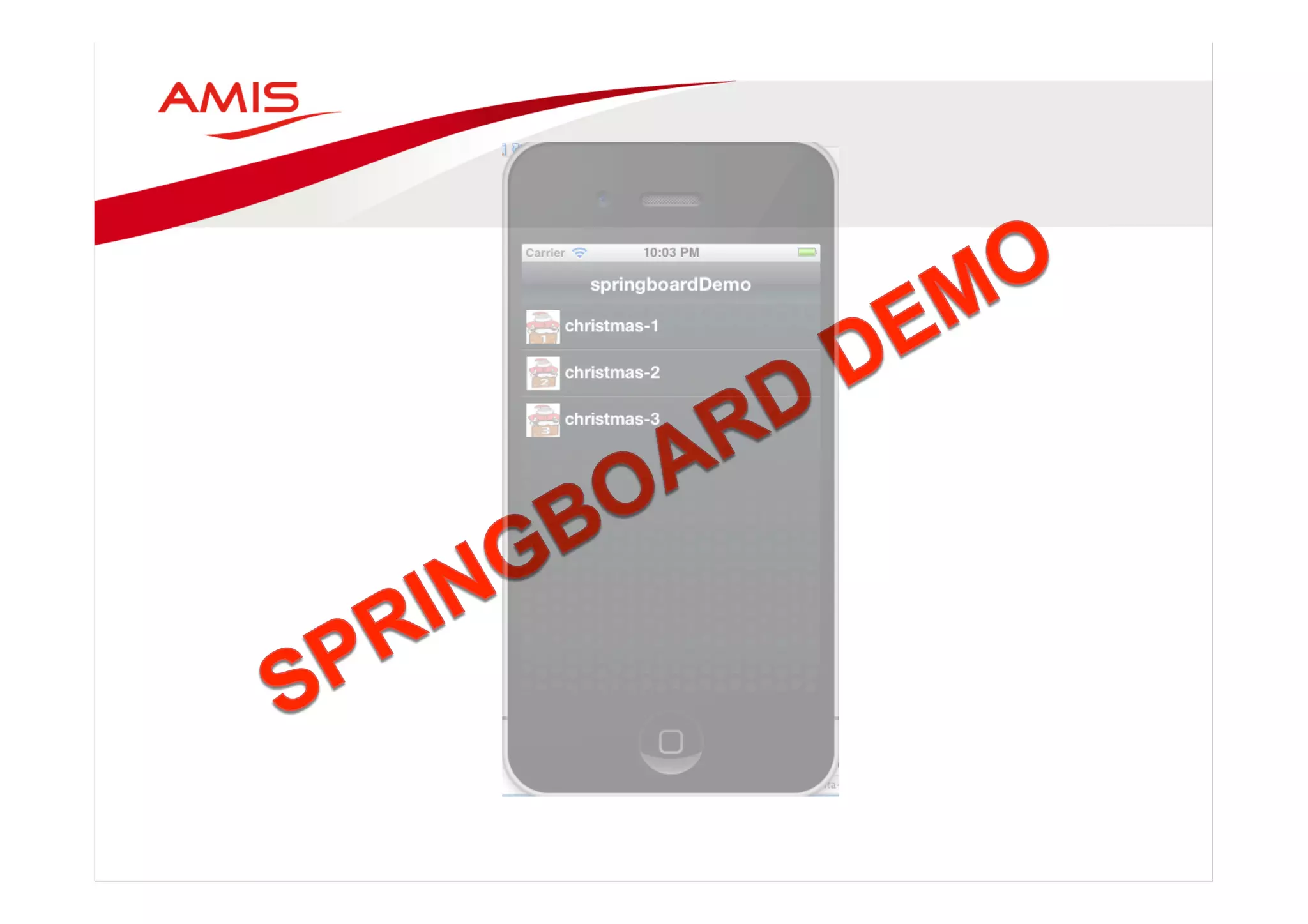

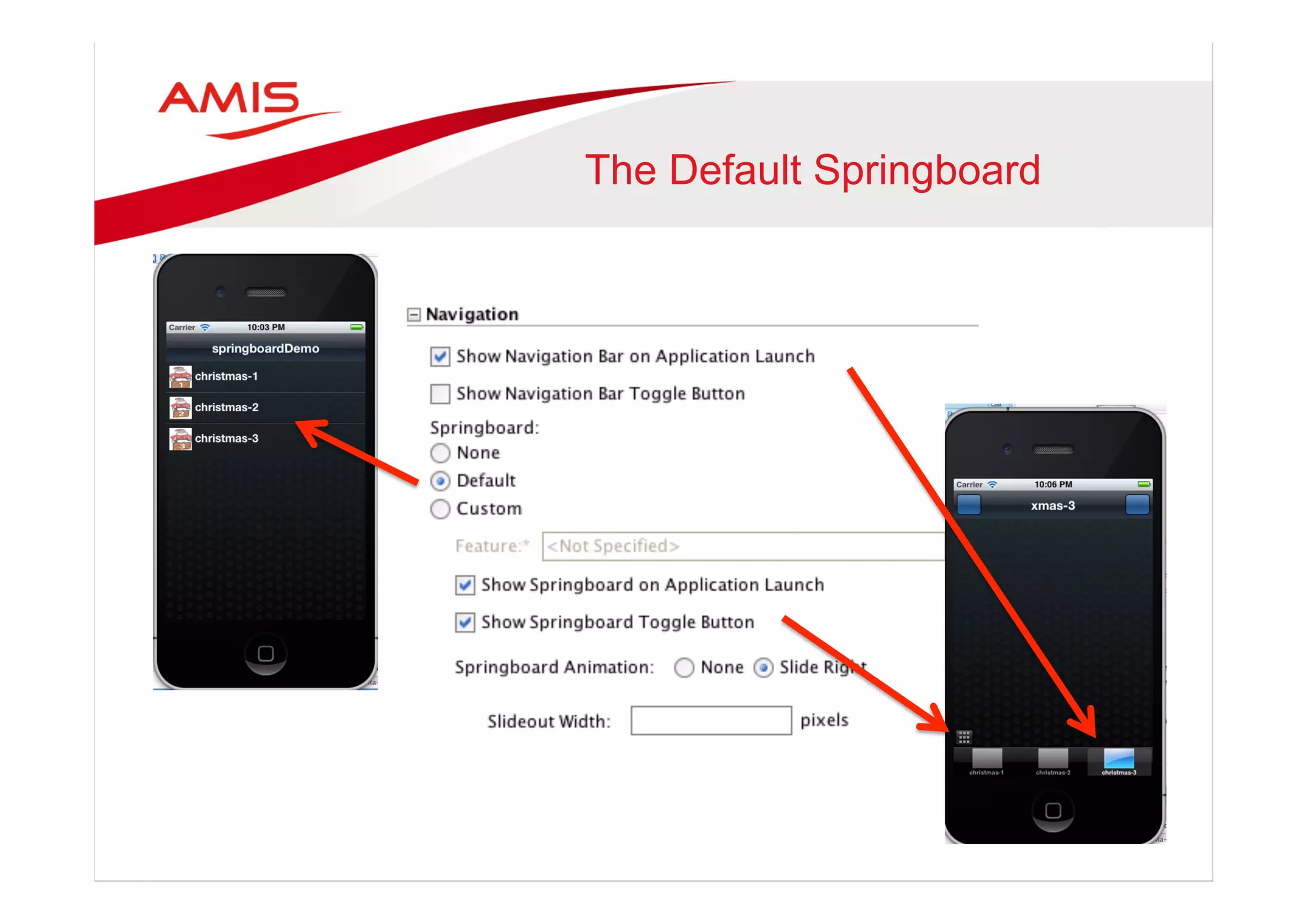

20. The Default Springboard

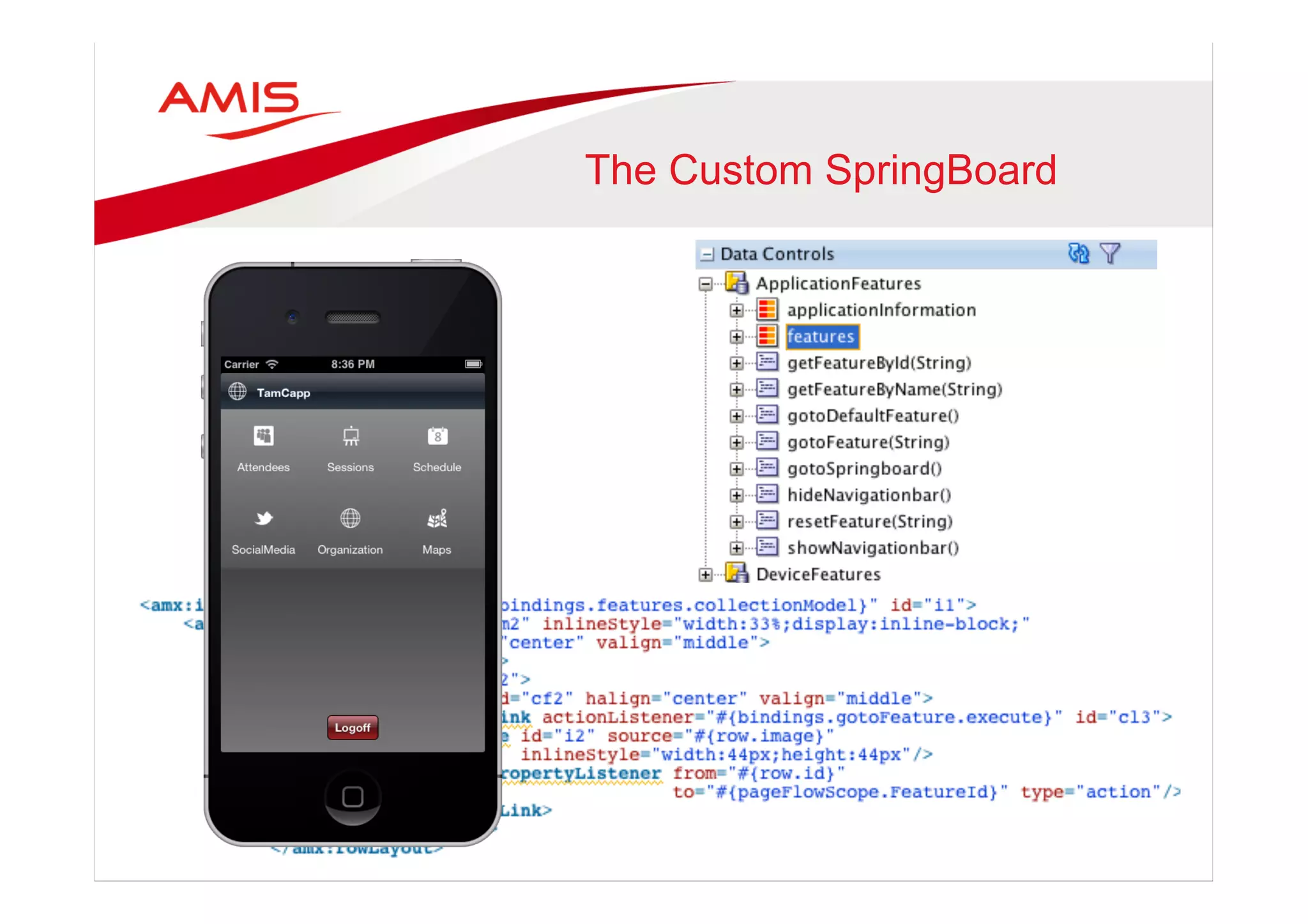

21. The Custom SpringBoard

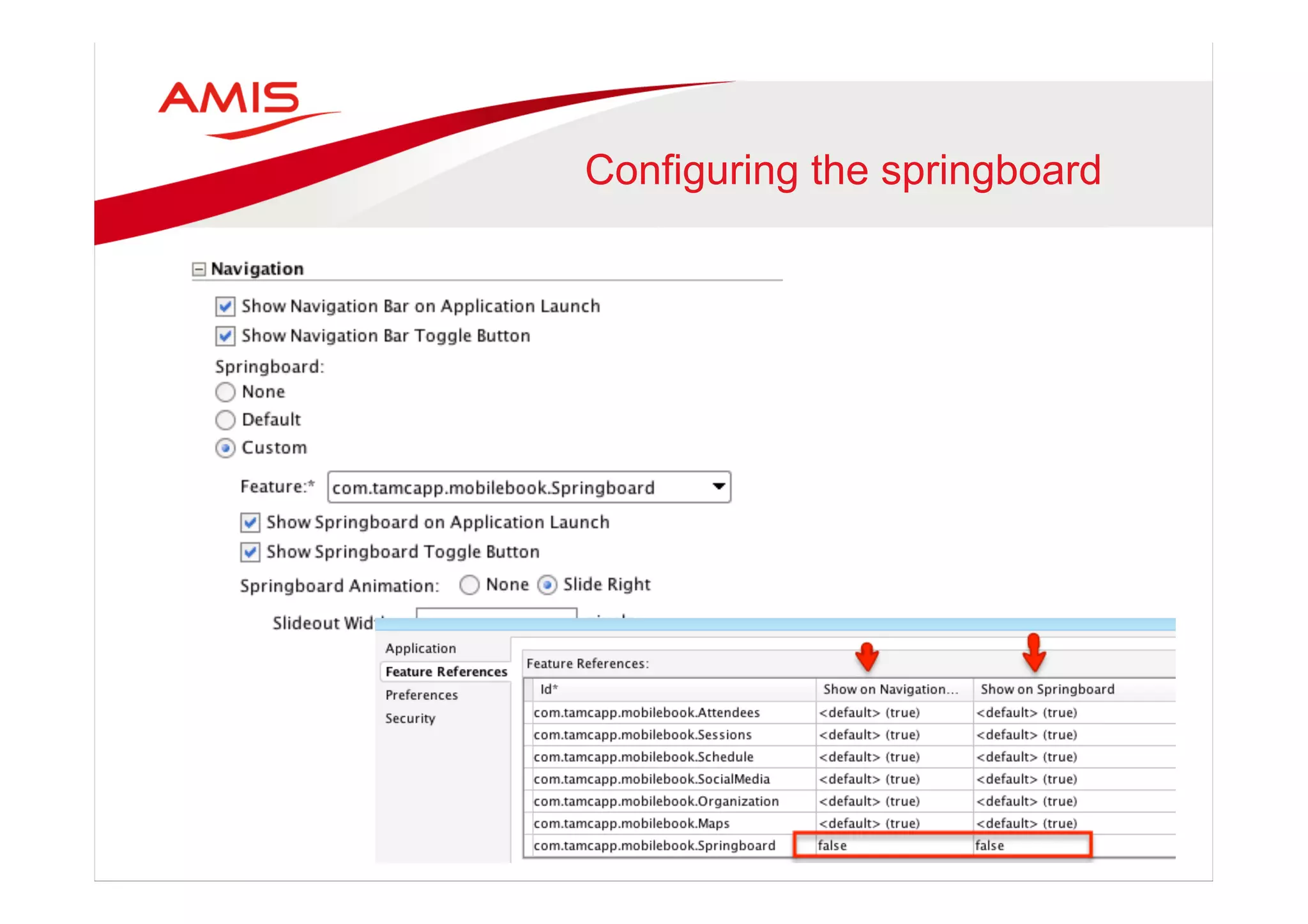

22. Configuring the springboard

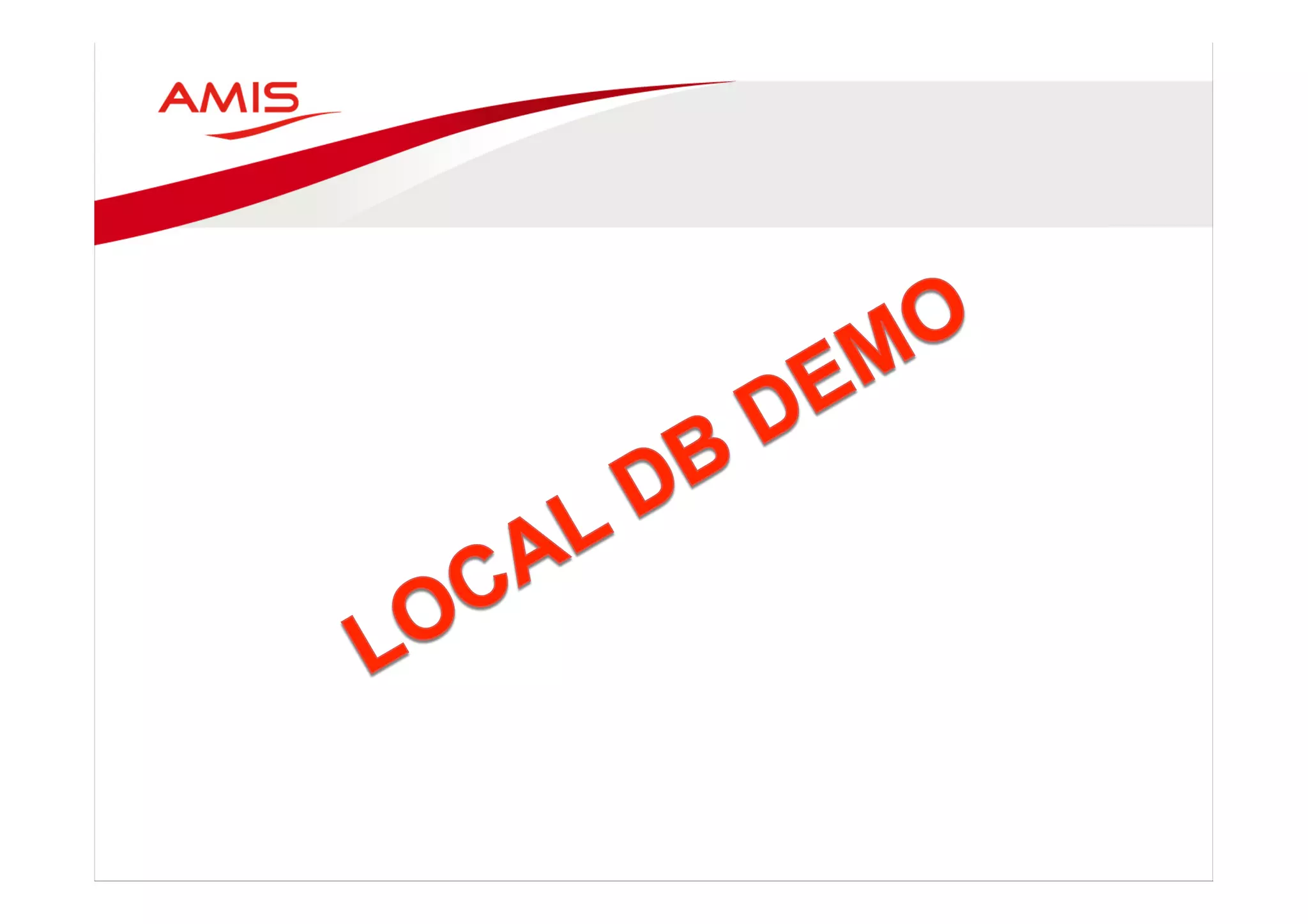

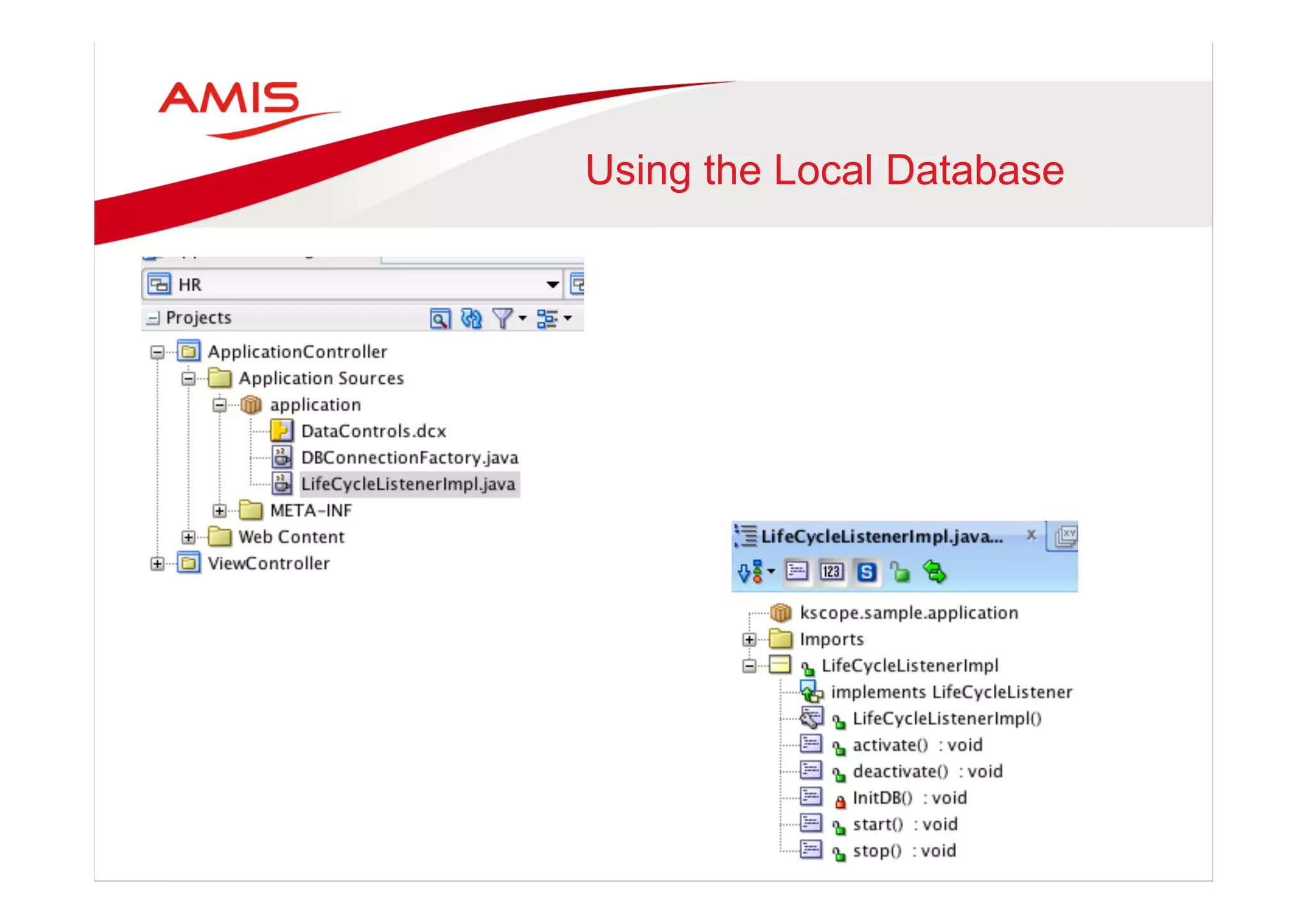

24. Using the Local Database

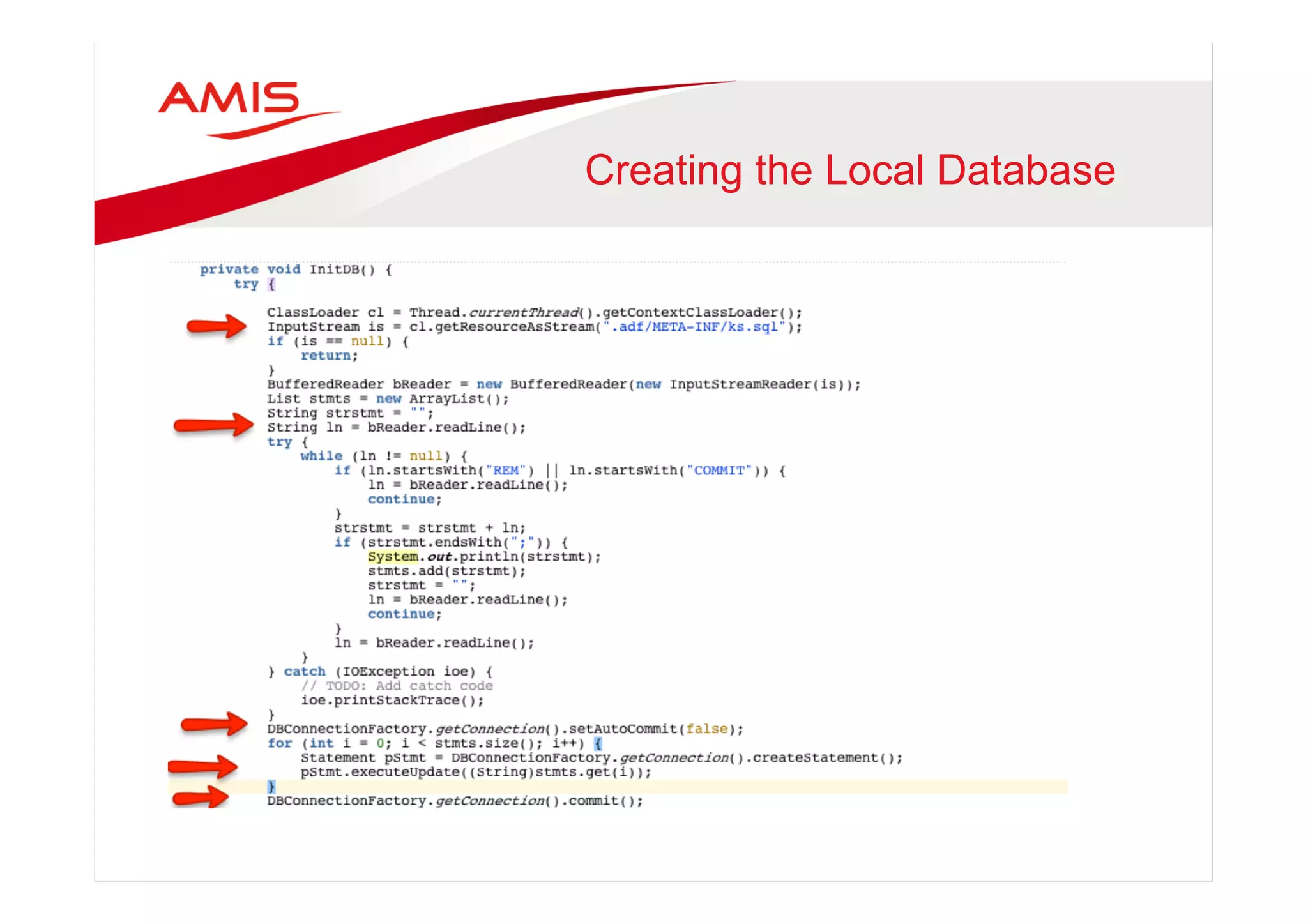

25. Creating the Local Database

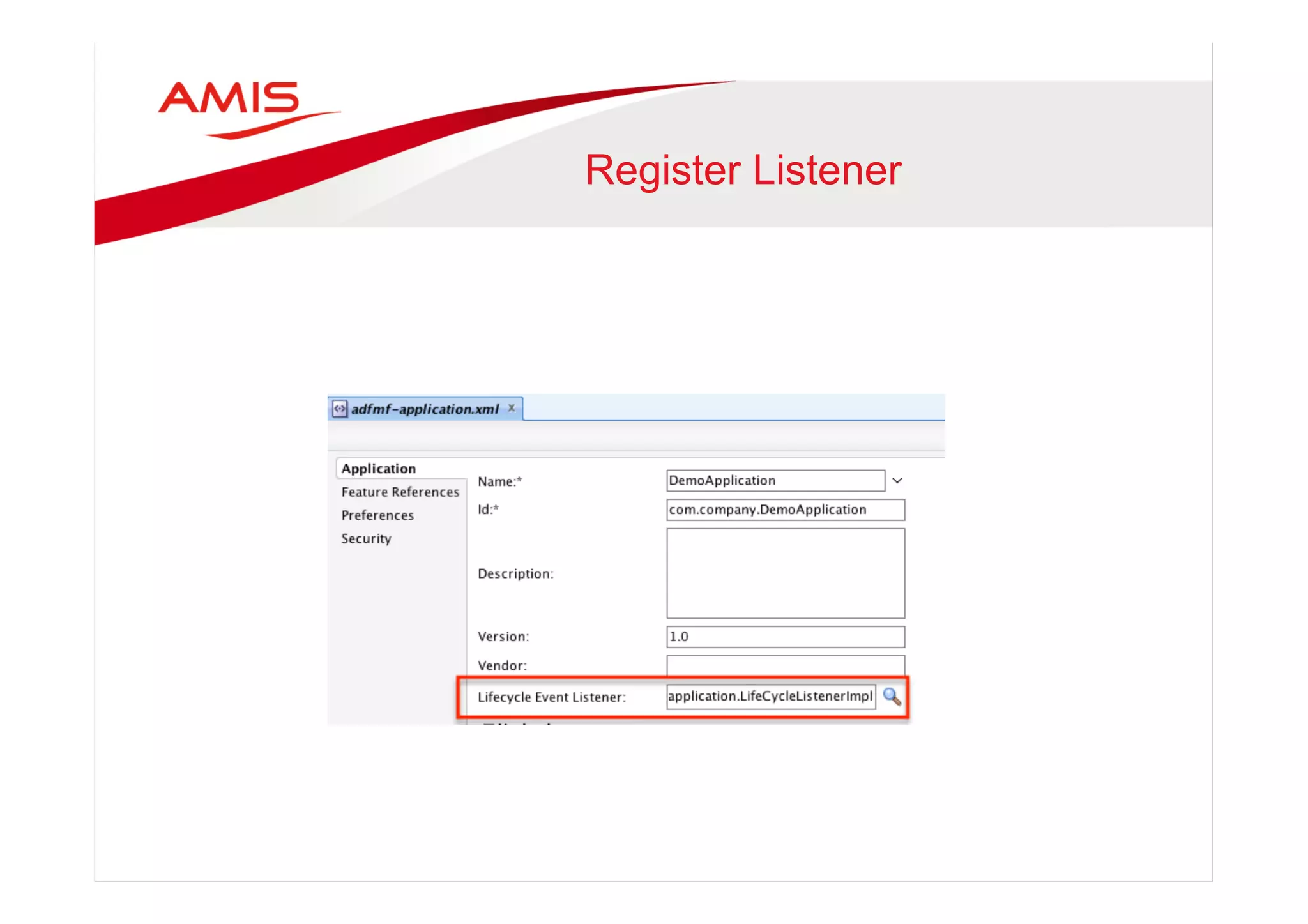

26. Register Listener

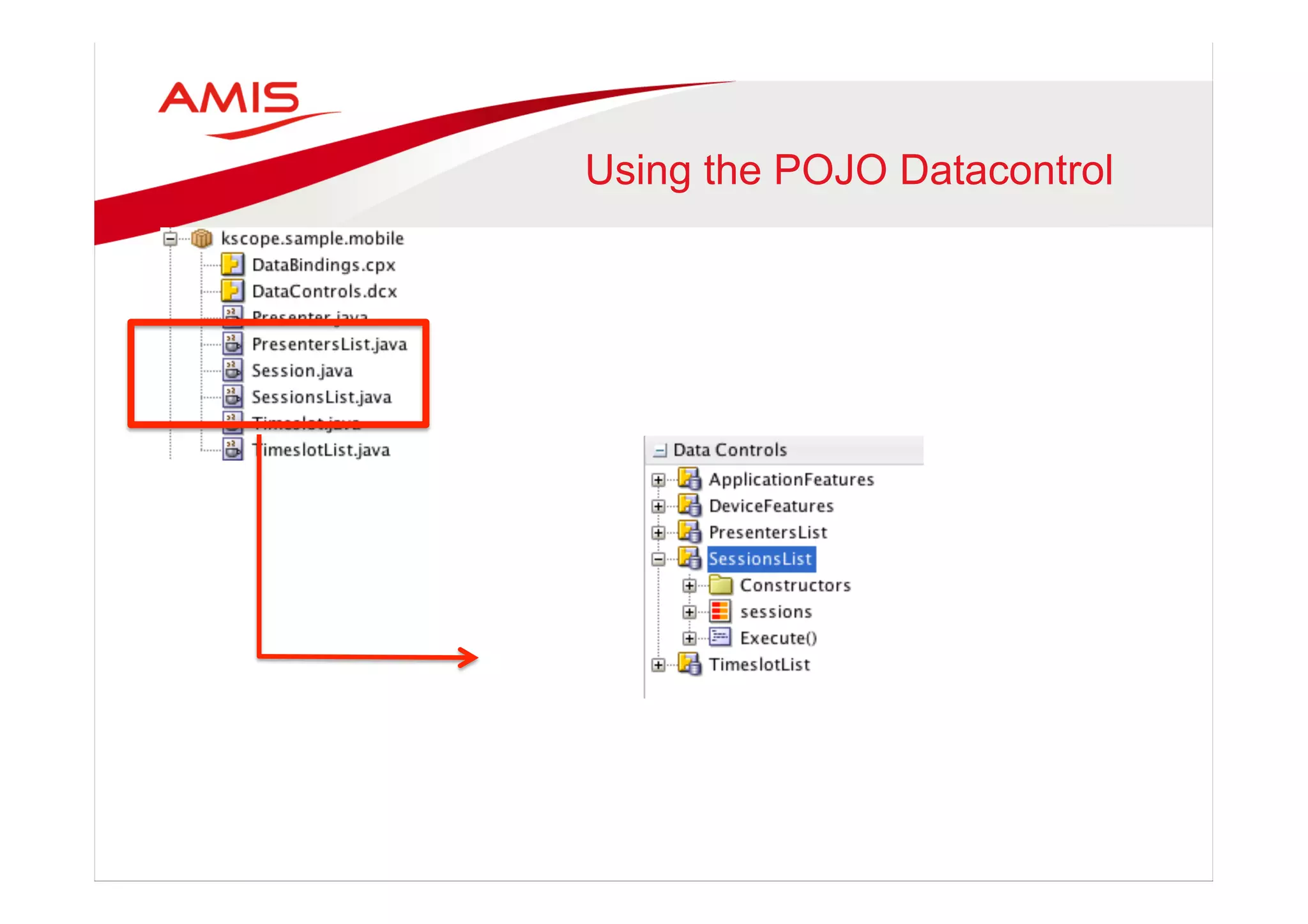

27. Using the POJO Datacontrol

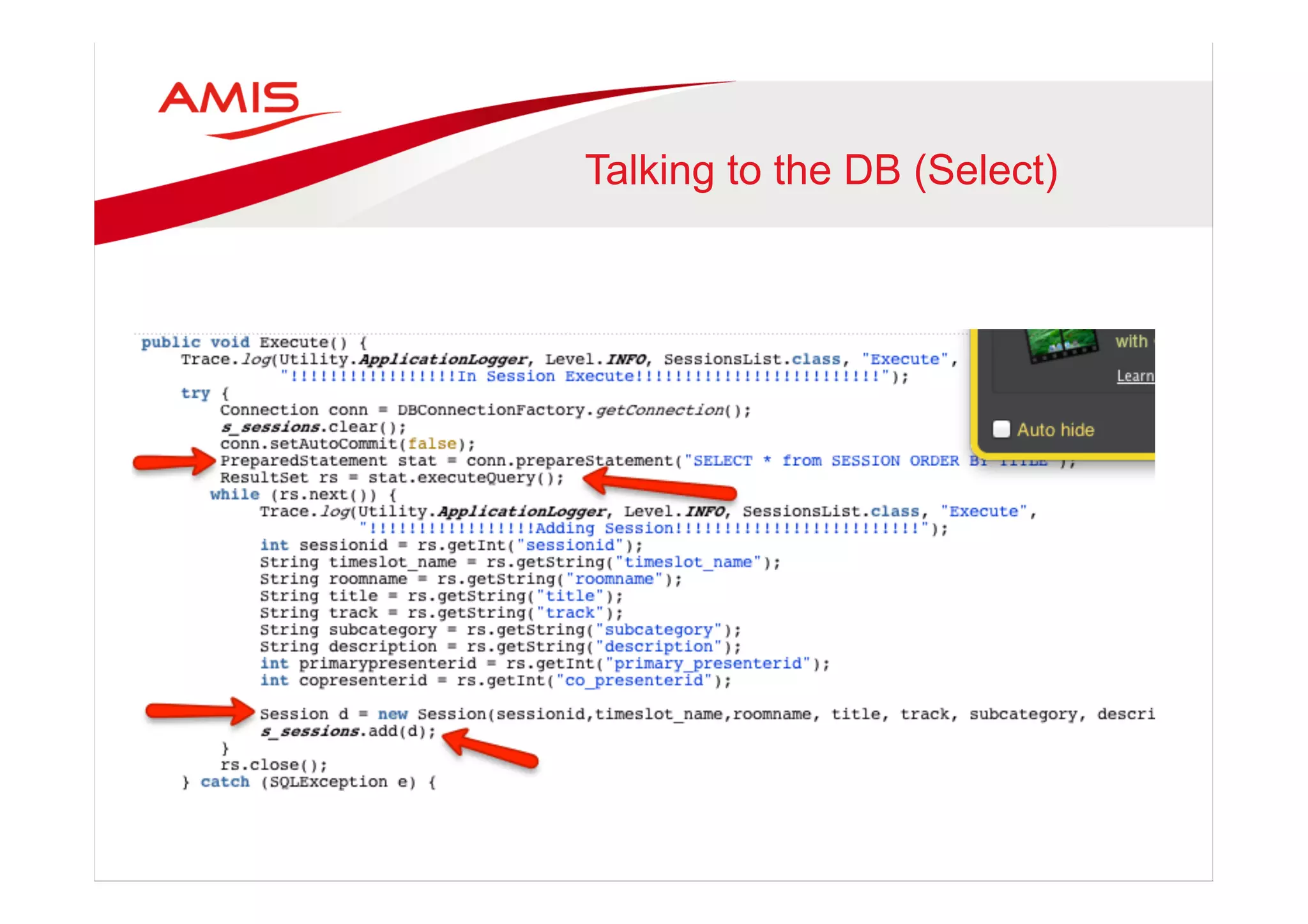

28. Talking to the DB (Select)

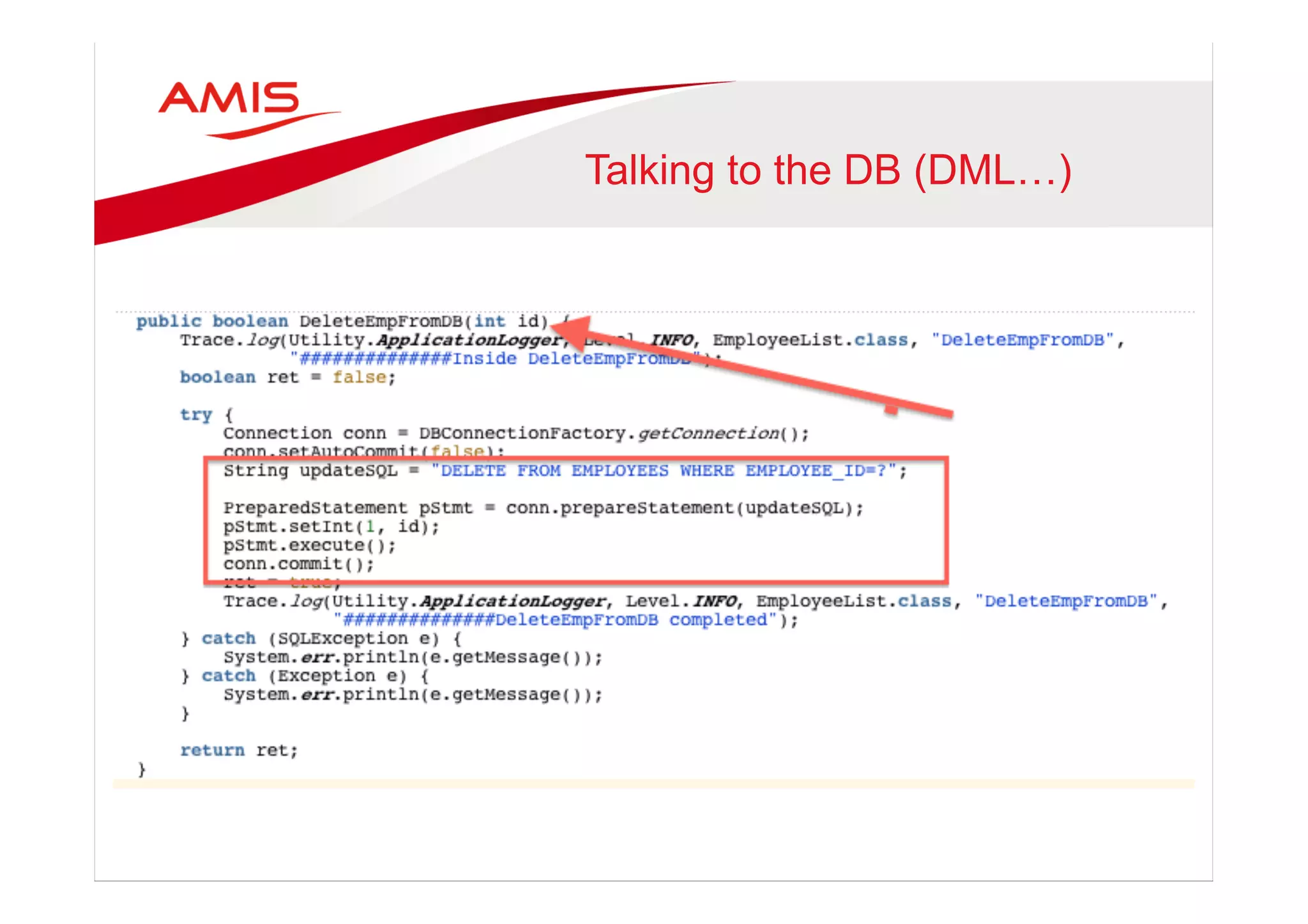

29. Talking to the DB (DML…)

31. Using Webservices
• Create a Webserivce Datacontrol

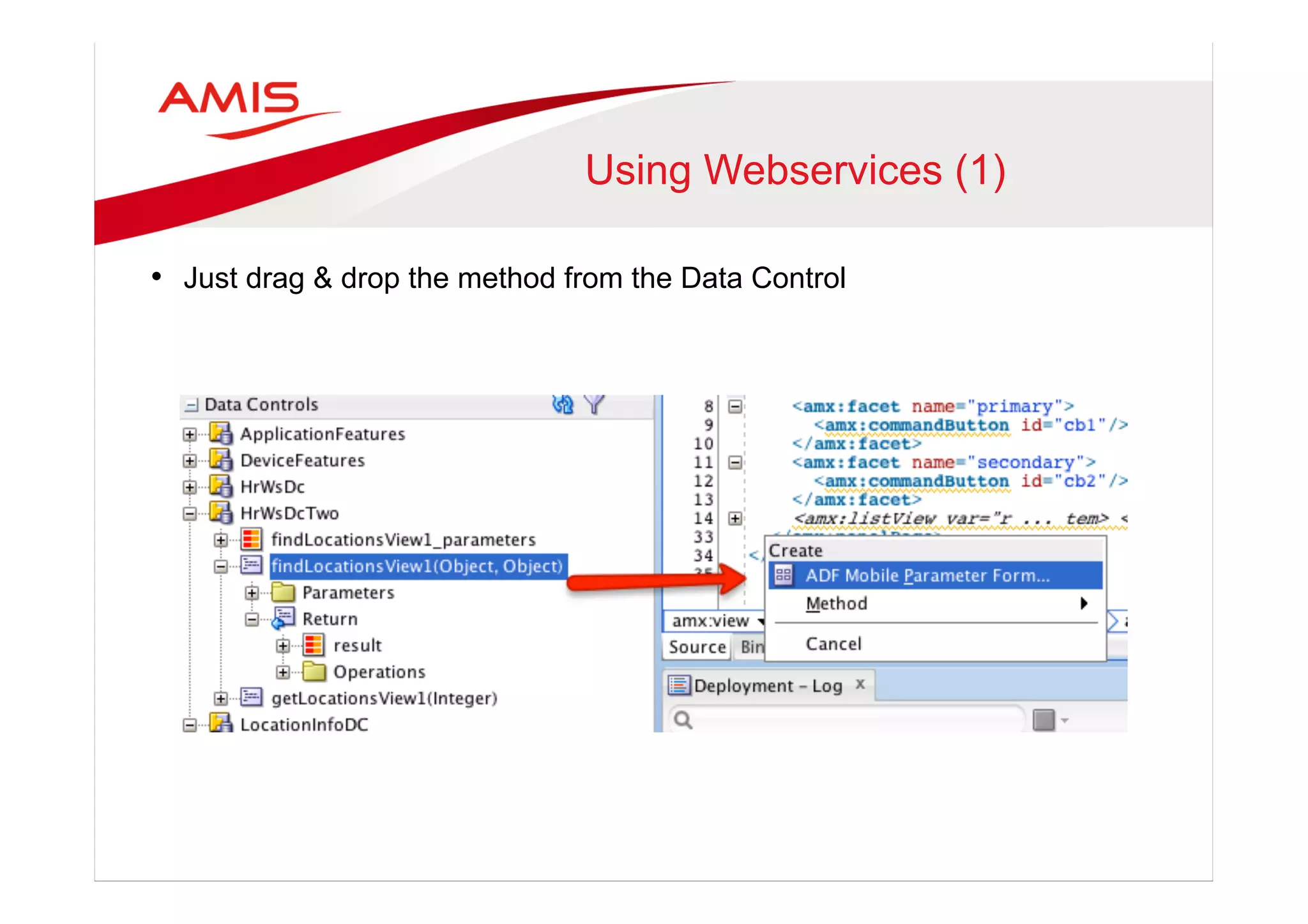

32. Using Webservices (1)
• Just drag & drop the method from the Data Control

33. Using Webservices (1)
• The PageDefinition File
• The PageDefinition

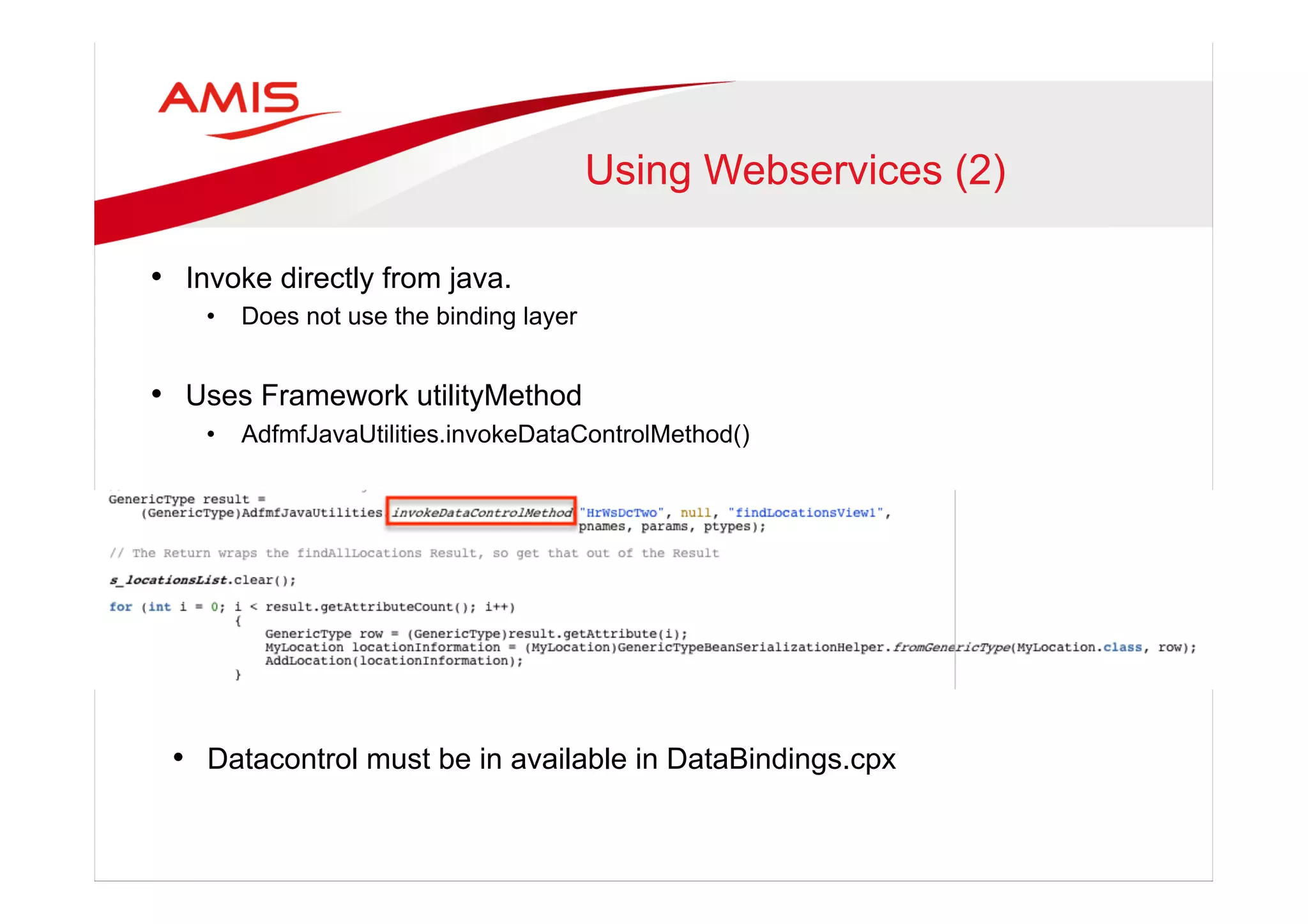

34. Using Webservices (2)
• Invoke directly from java.
• Does not use the binding layer
• Uses Framework utilityMethod
• AdfmfJavaUtilities.invokeDataControlMethod()
• Datacontrol must be in available in DataBindings.cpx

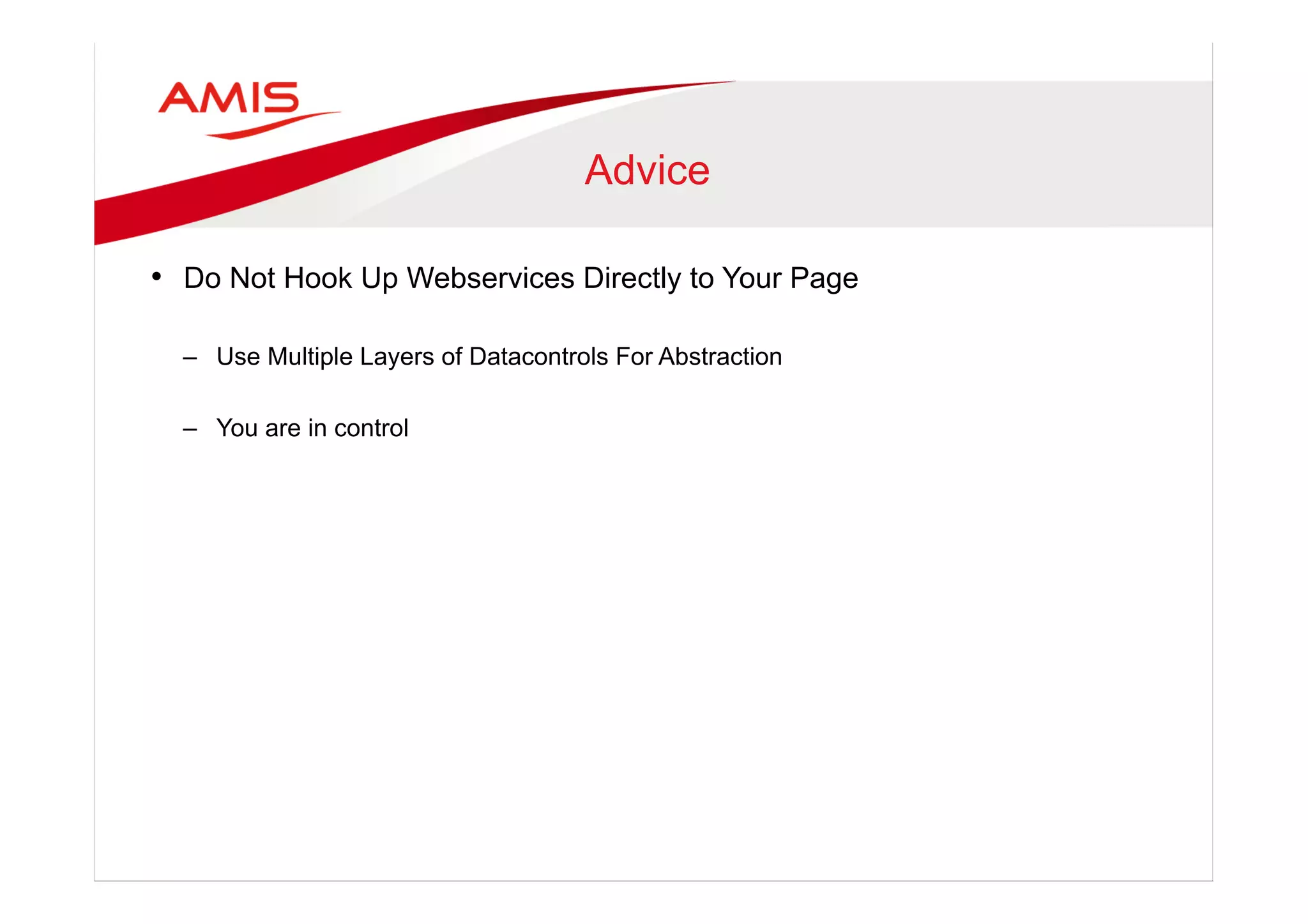

35. Advice
• Do Not Hook Up Webservices Directly to Your Page
– Use Multiple Layers of Datacontrols For Abstraction
– You are in control

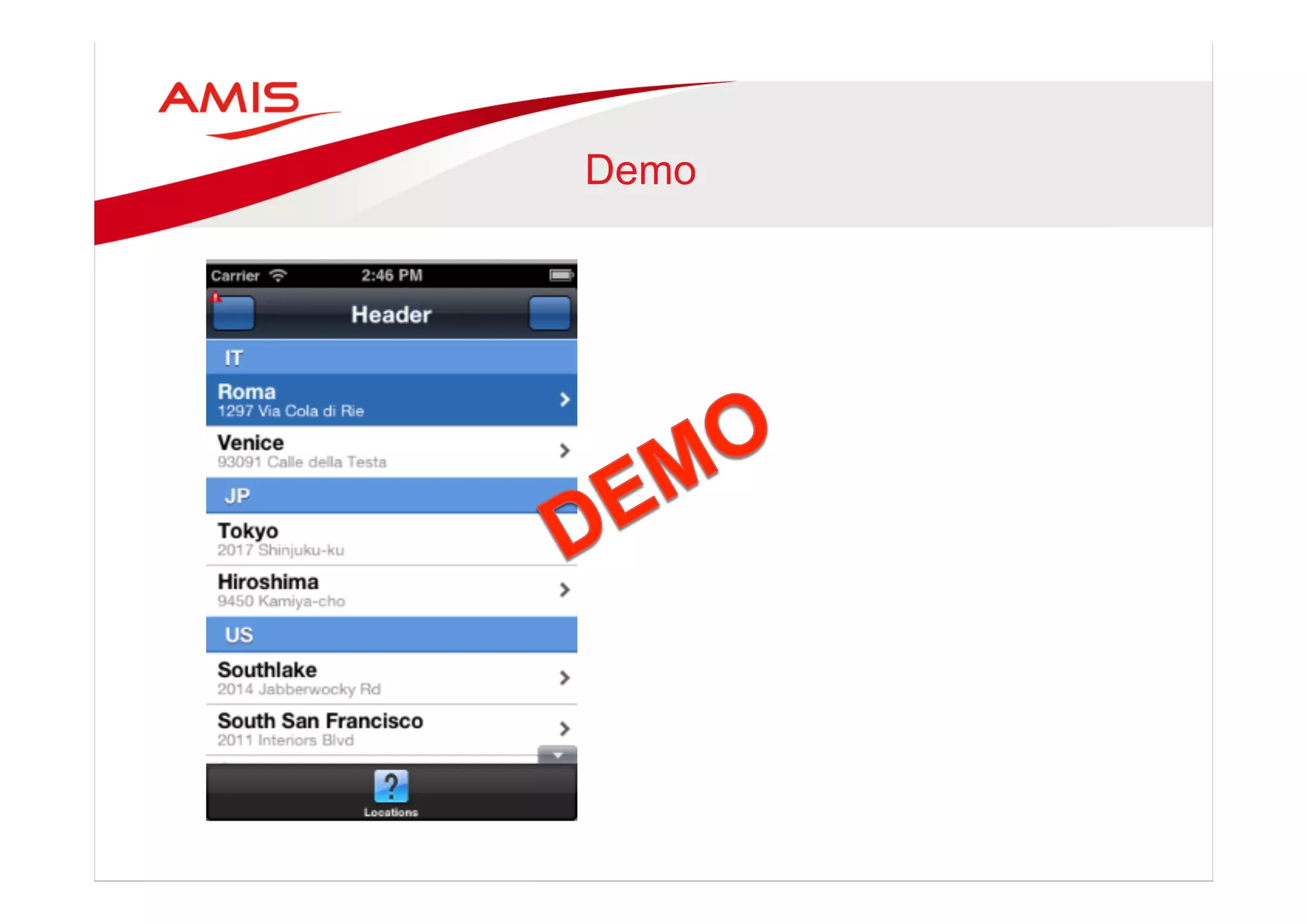

36. Demo

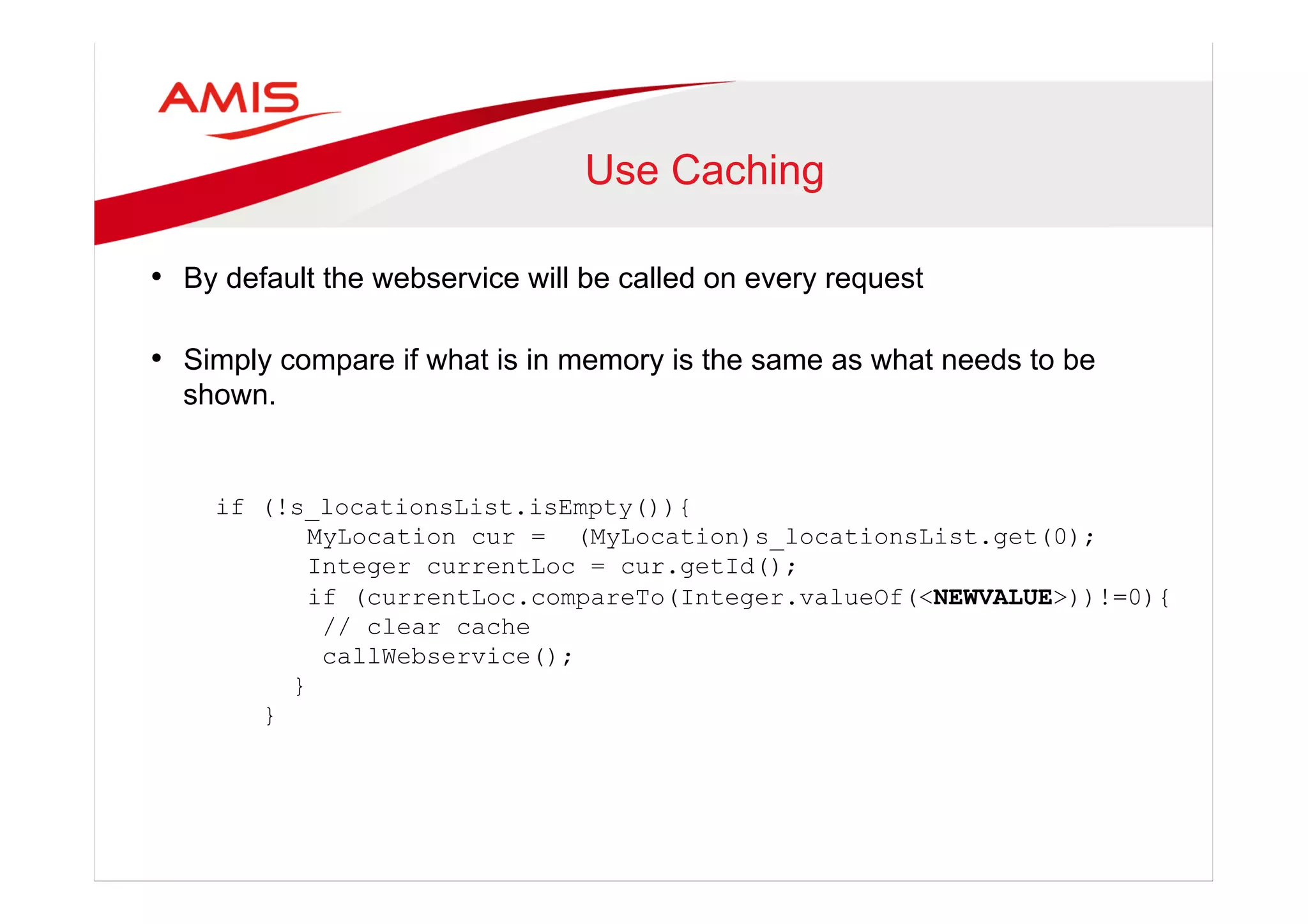

37. Use Caching
• By default the webservice will be called on every request
• Simply compare if what is in memory is the same as what needs to be
shown.
if (!s_locationsList.isEmpty()){
MyLocation cur = (MyLocation)s_locationsList.get(0);
Integer currentLoc = cur.getId();
if (currentLoc.compareTo(Integer.valueOf(<NEWVALUE>))!=0){
// clear cache
callWebservice();
}
}

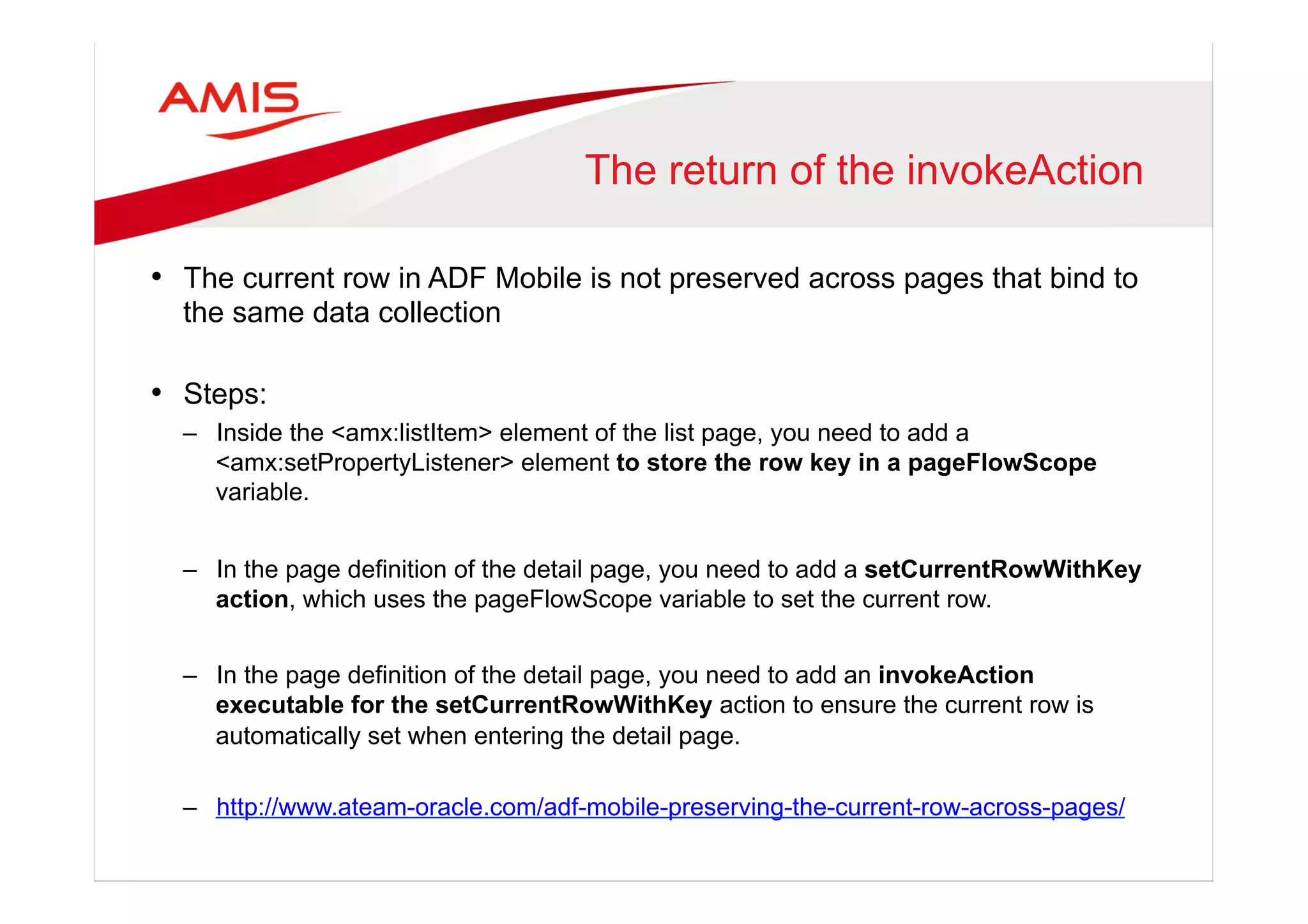

38. The return of the invokeAction
• The current row in ADF Mobile is not preserved across pages that bind to
the same data collection
• Steps:
– Inside the <amx:listItem> element of the list page, you need to add a
<amx:setPropertyListener> element to store the row key in a pageFlowScope
variable.
– In the page definition of the detail page, you need to add a setCurrentRowWithKey
action, which uses the pageFlowScope variable to set the current row.
– In the page definition of the detail page, you need to add an invokeAction
executable for the setCurrentRowWithKey action to ensure the current row is
automatically set when entering the detail page.
– http://www.ateam-oracle.com/adf-mobile-preserving-the-current-row-across-pages/

39. The Nice Differences
• Device Interaction
• Thematic Maps

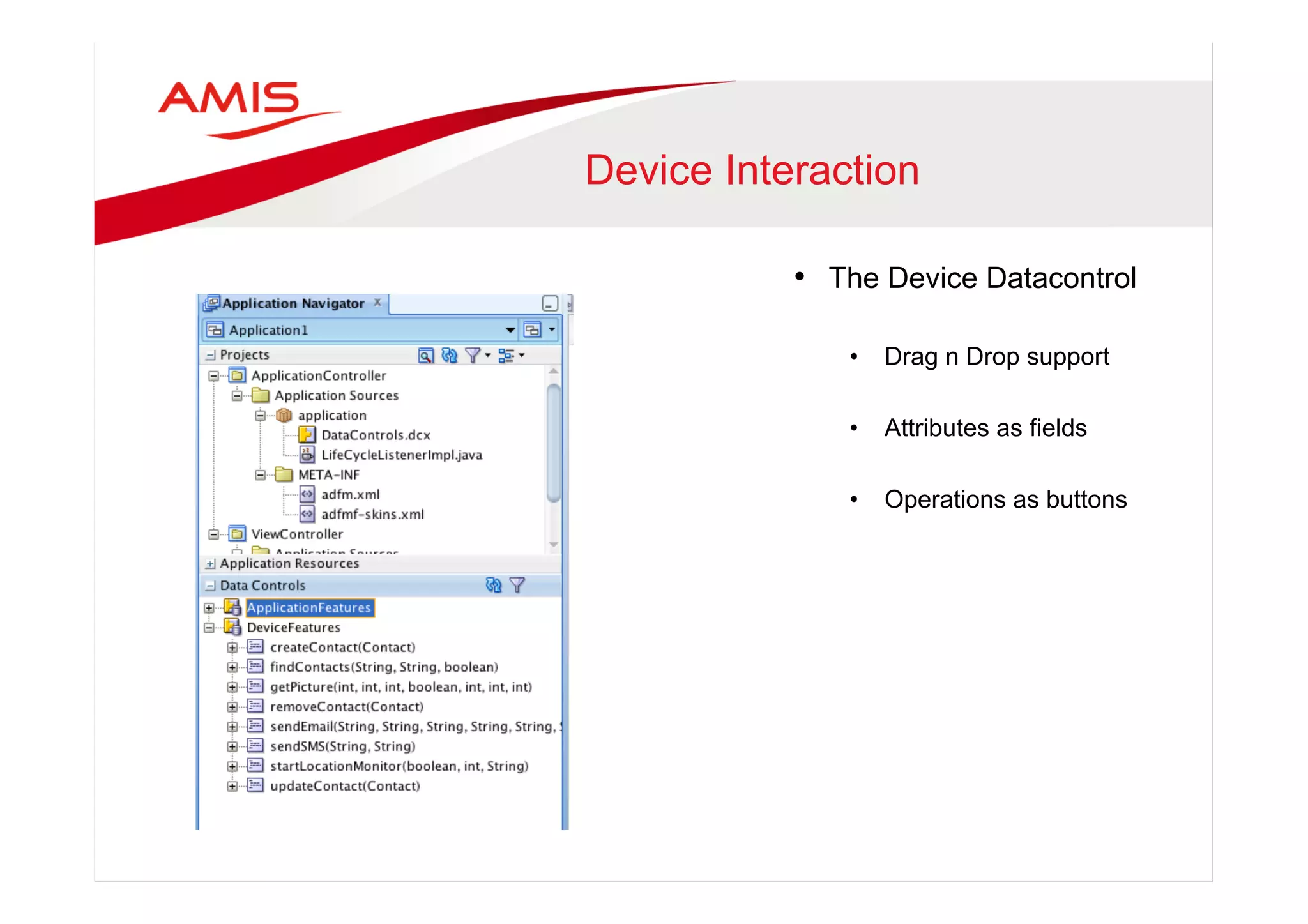

40. Device Interaction
• The Device Datacontrol
• Drag n Drop support
• Attributes as fields
• Operations as buttons

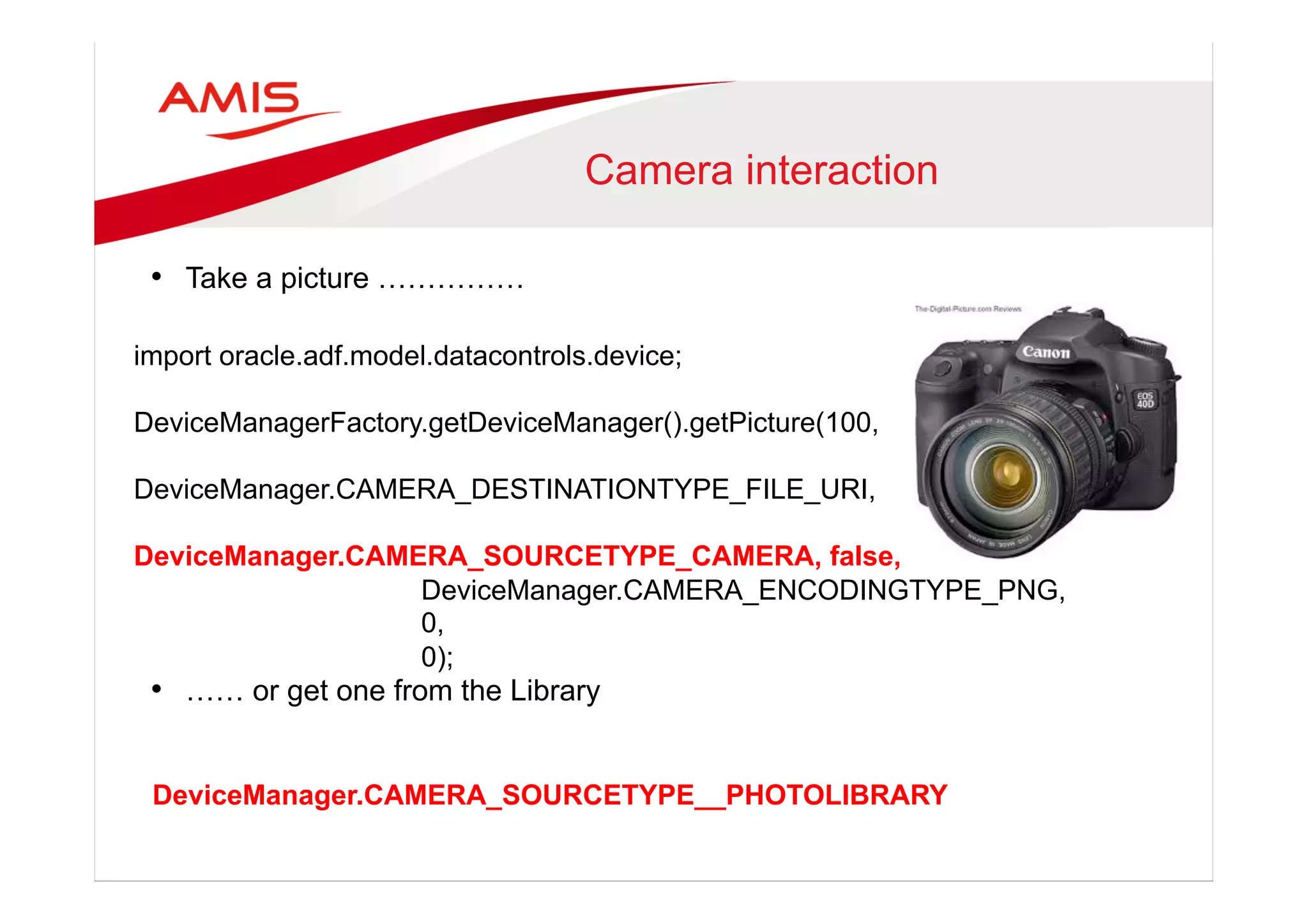

41. Camera interaction
• Take a picture ……………
• …… or get one from the Library
import oracle.adf.model.datacontrols.device;
DeviceManagerFactory.getDeviceManager().getPicture(100,
DeviceManager.CAMERA_DESTINATIONTYPE_FILE_URI,
DeviceManager.CAMERA_SOURCETYPE_CAMERA, false,
DeviceManager.CAMERA_ENCODINGTYPE_PNG,
0,
0);
DeviceManager.CAMERA_SOURCETYPE__PHOTOLIBRARY

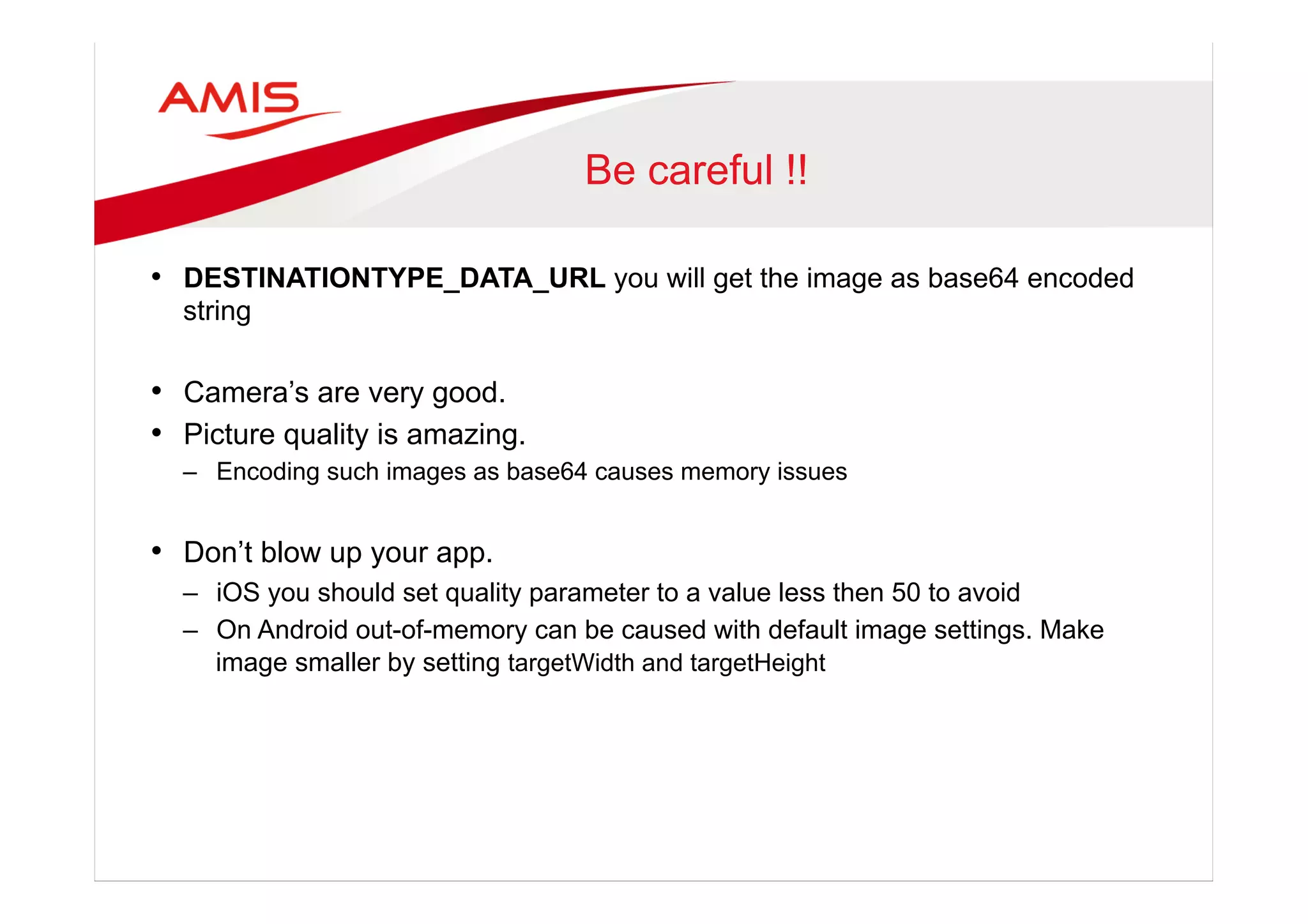

42. Be careful !!
• DESTINATIONTYPE_DATA_URL you will get the image as base64 encoded
string
• Camera’s are very good.
• Picture quality is amazing.
– Encoding such images as base64 causes memory issues
• Don’t blow up your app.
– iOS you should set quality parameter to a value less then 50 to avoid
– On Android out-of-memory can be caused with default image settings. Make
image smaller by setting targetWidth and targetHeight

43. Demo

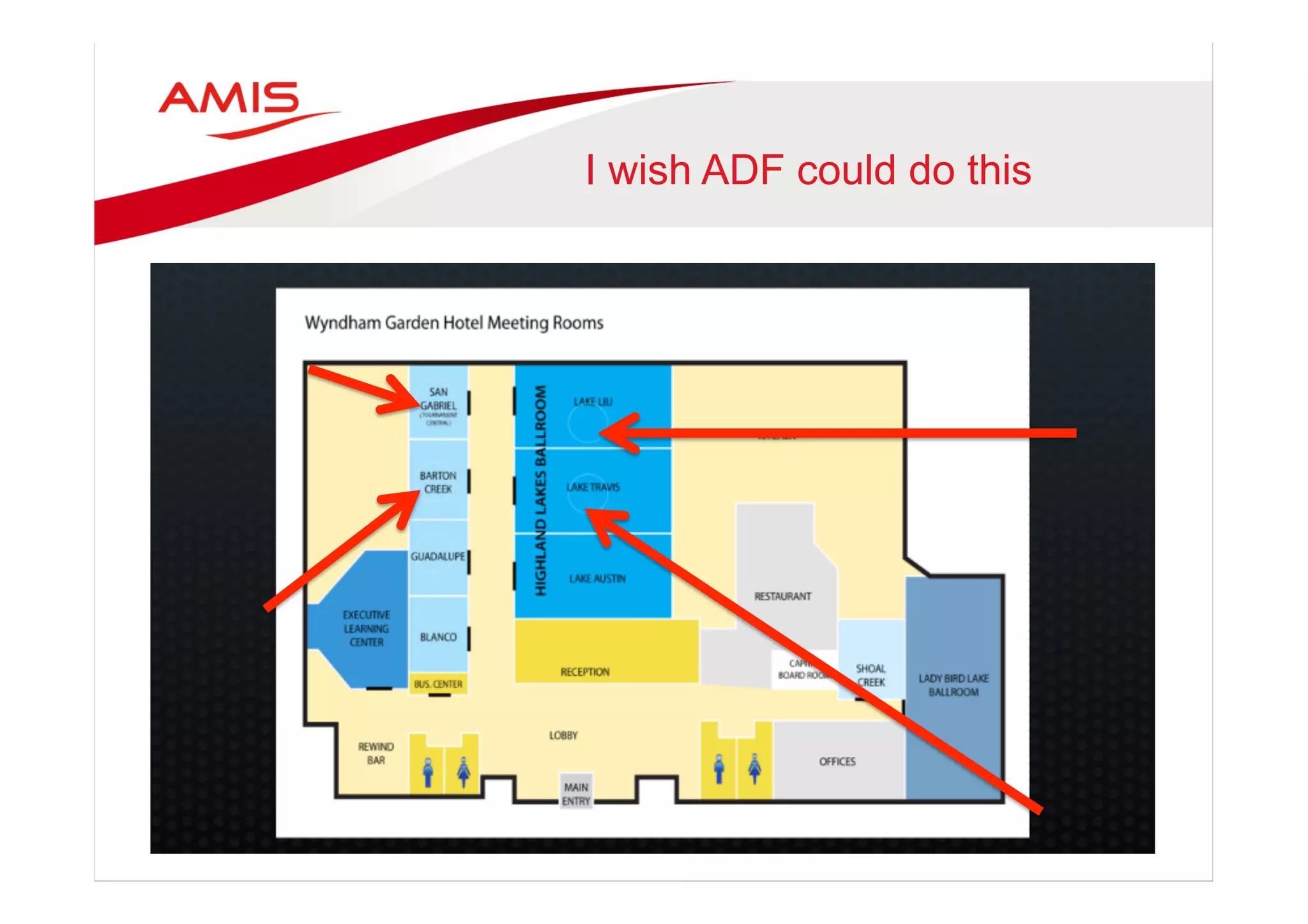

44. I wish ADF could do this

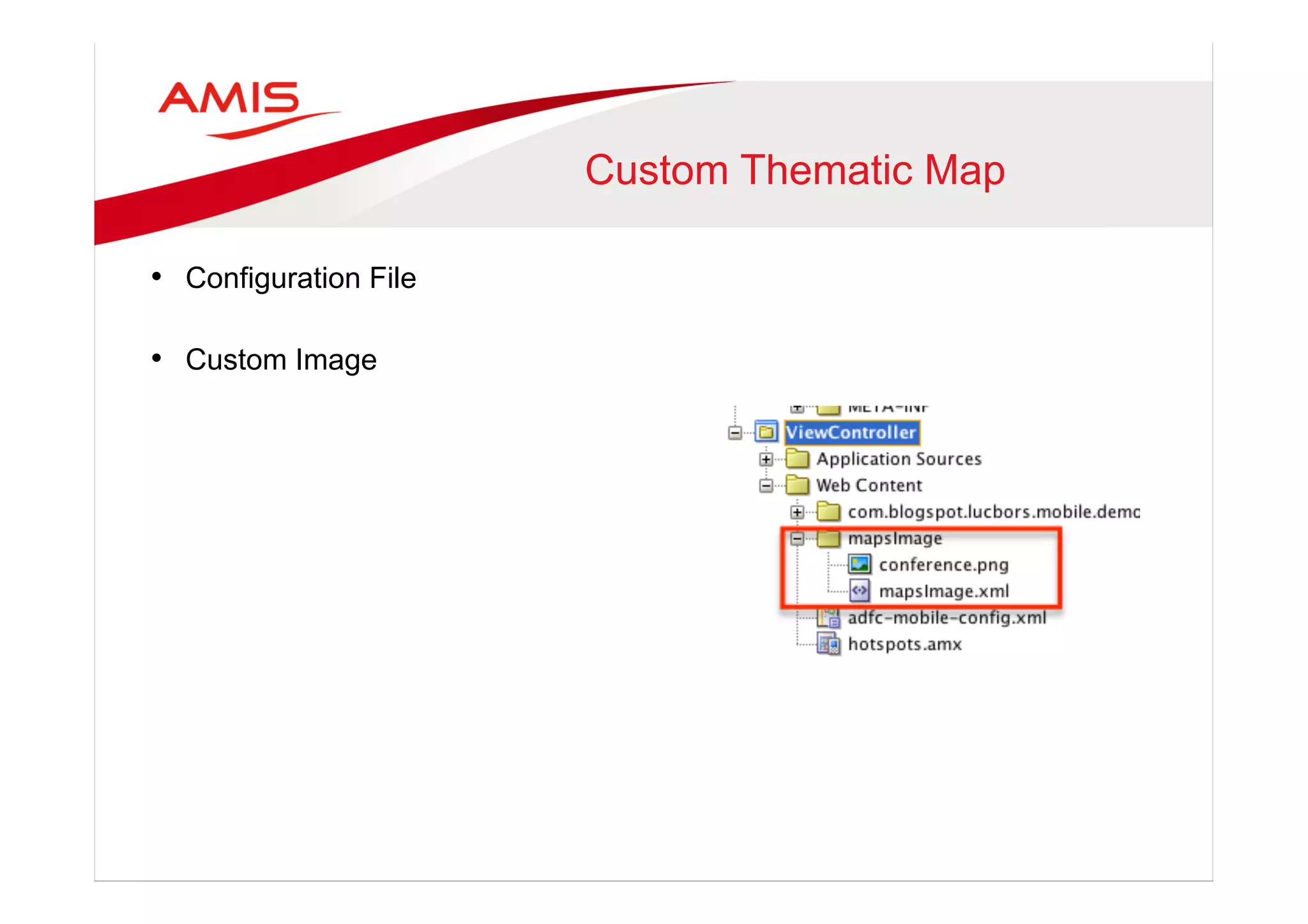

45. Custom Thematic Map
• Configuration File
• Custom Image

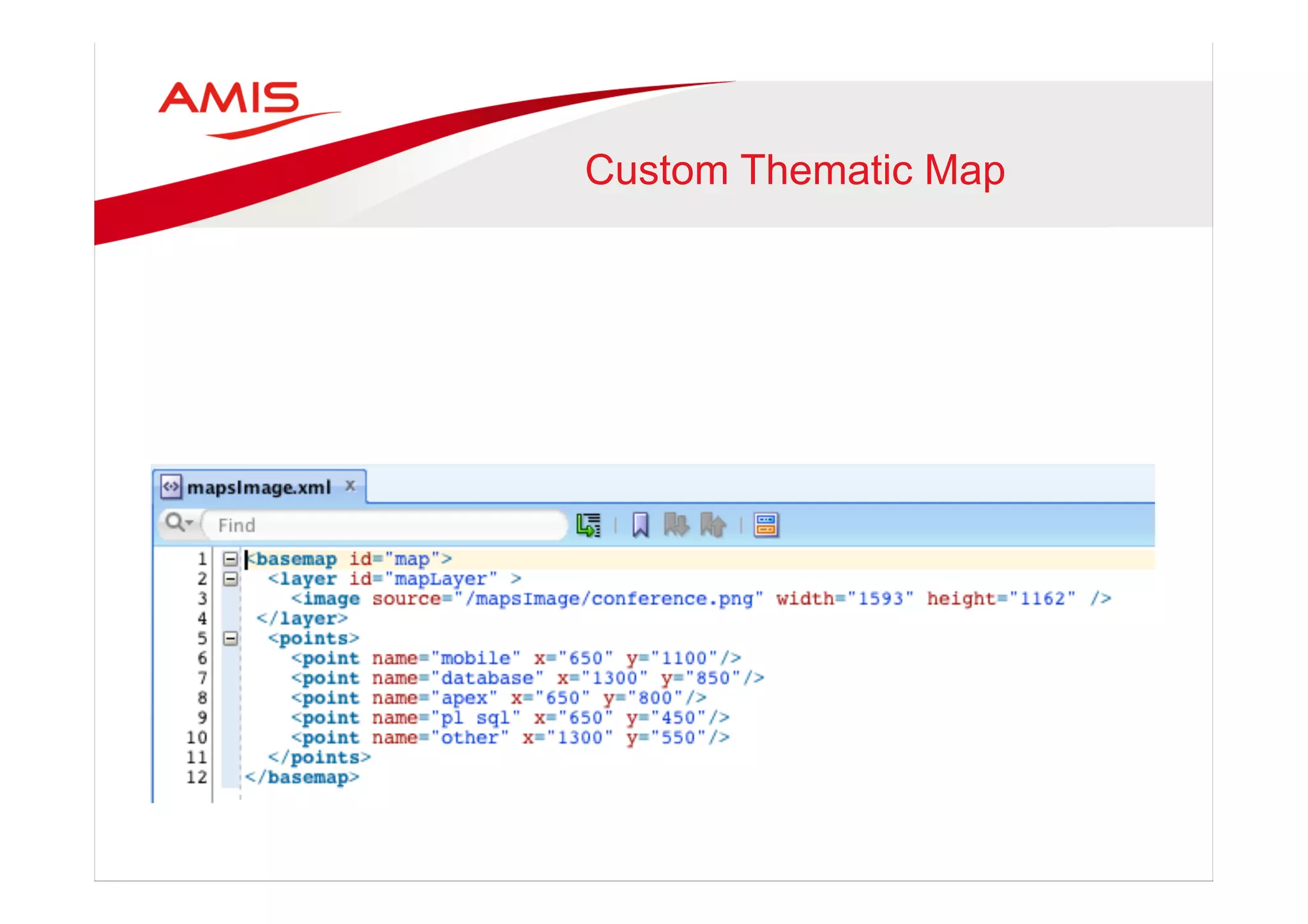

46. Custom Thematic Map

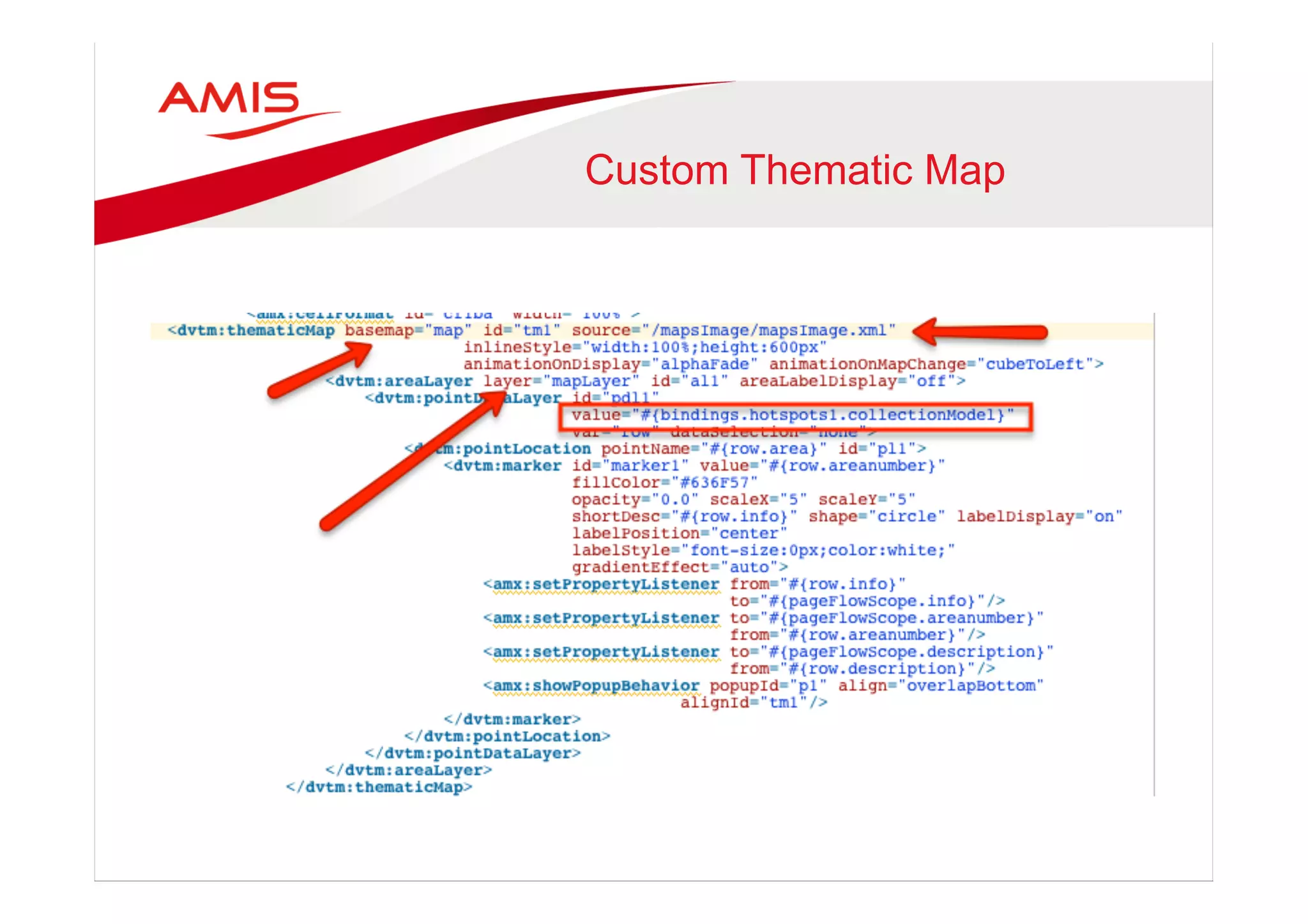

47. Custom Thematic Map

48. Demo

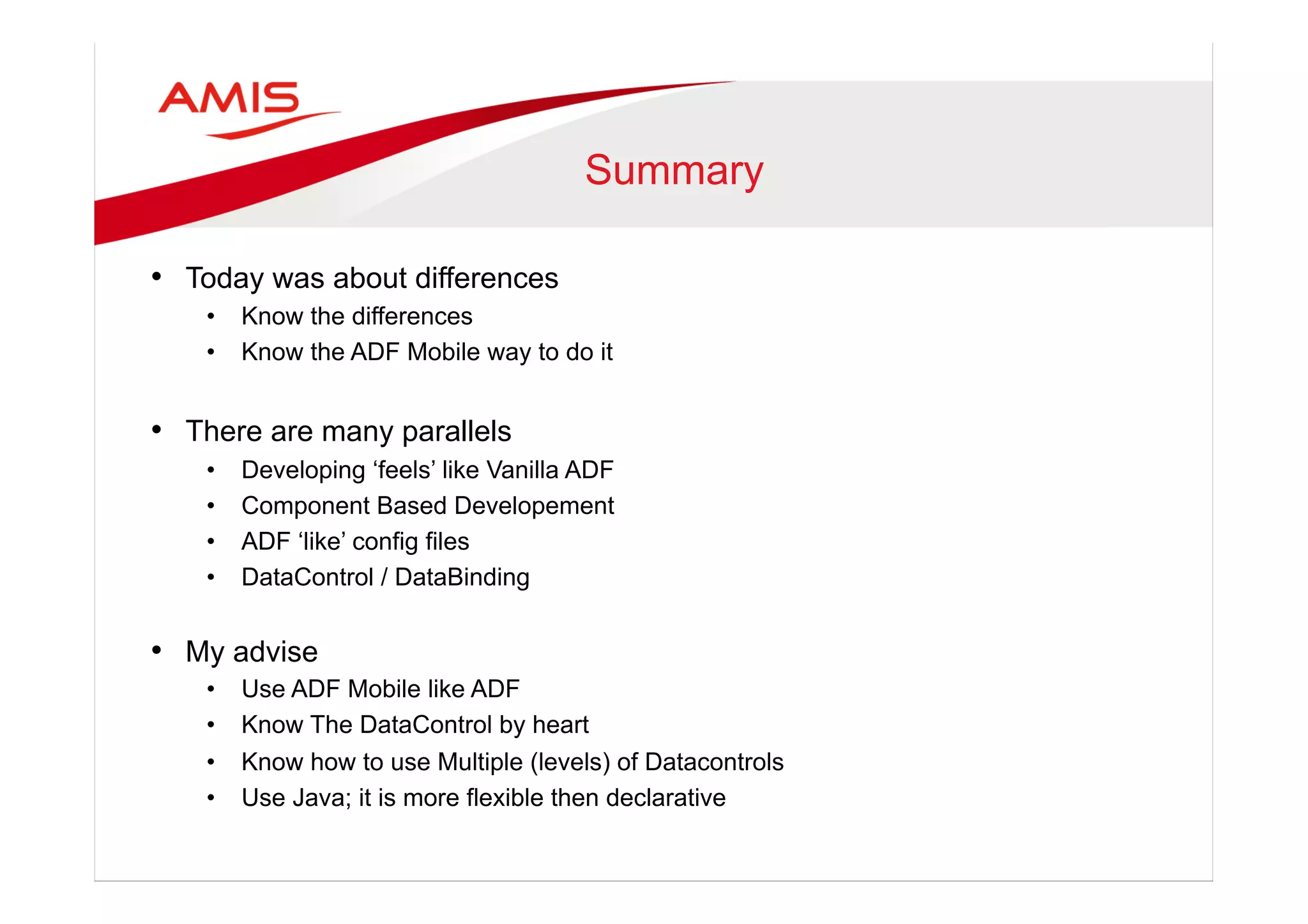

49. Summary
• Today was about differences
• Know the differences
• Know the ADF Mobile way to do it
• There are many parallels
• Developing ‘feels’ like Vanilla ADF
• Component Based Developement
• ADF ‘like’ config files
• DataControl / DataBinding
• My advise
• Use ADF Mobile like ADF
• Know The DataControl by heart
• Know how to use Multiple (levels) of Datacontrols
• Use Java; it is more flexible then declarative

50. Questions ?
