This document provides an overview of Oracle's ADF Mobile Framework. It discusses: - Building mobile apps that run on multiple platforms using Java business logic and HTML5/JavaScript UIs - Developing apps in JDeveloper and Eclipse with device simulators - Creating UIs with AMX pages that generate HTML/JS on devices - Accessing data through web services, SQLite databases, and device features like the camera - Enabling push notifications using registration tokens from APNs/GCM messaging services

1. Mobile First
Oracle’s ADF Mobile Framework
AMIS Enterprise to Mobility Oracle ADF Conference, Nieuwegein, May 21st 2014

2. Who Am I
• Luc Bors
• Principal Consultant
• AMIS, Netherlands

3. Agenda
• ADF Mobile Overview
• Preparing for Development
• Creating your ADF Mobile Application
• Building the UI
• Data (and) Services
• Device Interaction
• Push Notifications
• Stuff I cannot talk about (but Chris can)

4. Oracle ADF Mobile
• Build Once, Run on Multiple-Platforms – Phones, Tablets, iOS, Android, …
• Java for business logic
• HTML5/JavaScript user interface
• Consistent business logic & data model
• Disconnected: SQLite with encryption
• Full access to native device features
• Modular, reusable application components
• JDeveloper and soon Eclipse

5. Native Mobile User Experience
• Device native user experience
• Spring board and tab bar for feature navigation
• Advanced HTML5-based UI
• Full animation, gesture, and touch interaction support
• Interactive Data Visualization Components
• Device Interaction using Cordova

6. ADF Mobile Overview
Device
Native
Container
SQLite
Database
Java
VM
Configuration
Server
Business
Logic
Model
JDBC
Apache
Cordova
SQLite
Web
View
Server
HTML
HTML5
and
Javascript
Presentation
AMX
View
Local
HTML
Controller
Push
Handler
Server
Generated
HTML
APN/GCM
Push
Services
SOAP
and
REST
Services
Device
Services
App
Config
Credential
Management
SSO
and
Access
Control

7. Development Environment
• Development Machine:
– Mac is required if you intend to support iOS devices
• Mobile development SDKs and simulators
– Used by JDeveloper to compile device native
binaries
• Mobile developer program membership
– Needed to deploy to an actual device
• Install JDev and download/install the
ADF Mobile extension
• Configure ADF Mobile extension preferences

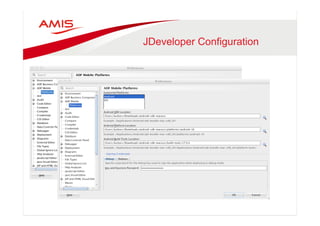

8. JDeveloper Configuration

9. ADF Mobile Deployment

10. ADF Mobile Application Config
• Feature configuration
– Constraints
– Content
– Feature Level Preferences
– Security
• Application configuration
– Configuration (ALCL)
– Available Features
– Application Level Preferences
– Security

11. ADF Mobile Features
•

12. ADF mobile – UI content
• Local AMX File
– JSF-like file built visually in JDeveloper
– Generated into HTML/JS on device at RT
– Based on HTML5
• Remote URL
– ADF Trinidad for Smartphones
– ADF Faces on Tablets
– Any third-party site
• Local HTML File
– Hand-coded HTML5 pages

13. AMX View and Controller
Device
Native
Container
SQLite
Database
Java
VM
Configuration
Server
Business
Logic
Model
JDBC
Apache
Cordova
SQLite
Web
View
Server
HTML
HTML5
and
Javascript
Presentation
AMX
View
Local
HTML
Controller
Push
Handler
Server
Generated
HTML
APN/GCM
Push
Services
SOAP
and
REST
Services
Device
Services
App
Config
Credential
Management
SSO
and
Access
Control

14. Building AMX Pages
•

15. Building AMX Pages

16. Using Layout Components

17. Swimming-lanes
• Make all ‘content’ available in a continuously
scrolling swimlane
• Use panelGroupLayout
– Width 100%
<amx:panelGroupLayout layout="horizontal”
inlineStyle="width:100%;">"

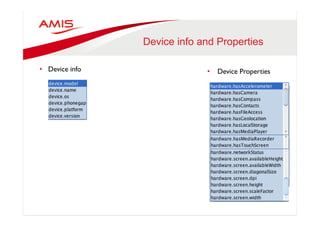

18. Device info and Properties
• Device info
• Device Properties

19. Work With Form Factors
• Respond to Form Factors
• Conditionally Render Different content

20. Gesture Support
• You can configure Button, Link, and List Item components to react to the
following gestures:
• Swipe to the right
• Swipe to the left
• Swipe up
• Swipe down
• Tap-and-hold

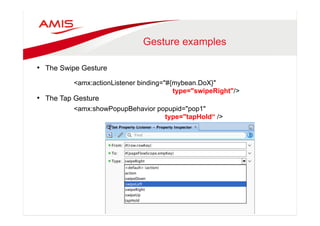

21. Gesture examples
• The Swipe Gesture
<amx:actionListener binding="#{mybean.DoX}"
• The Tap Gesture
type="swipeRight"/>
<amx:showPopupBehavior popupid="pop1"
type="tapHold“ />

22. Navigation (Declarative)
• Declarative Navigation
– Button/Link/ListItem
<amx:listItem id="li1" action="detail" showLinkIcon="true">"
<amx:setPropertyListener id="x" from="#{row.rowKey}”
to="#{pageFlowScope.myBean.currentStadium}" "
type="action"/>"

23. Navigation (Programmatic)
• Declarative Navigation
– Button/Link/ListItem
• Programmatic Navigation
– JavaCode
AdfmfContainerUtilities.invokeContainerJavaScriptFunction("
AdfmfJavaUtilities.getFeatureName(), "
"adf.mf.api.amx.doNavigation", "
new Object[] { ”detail" });
} "

24. Controlling your application
• Springboard configuration in adfmf-application.xml

25. The Default Springboard

26. The Custom SpringBoard

27. Configuring the springboard

28. Feature Archives
• Feature Archives can be reused
• Deploy ADF Mobile app as FAR
• Consume features from FAR in other apps

29. Server HTML (Remote URL)
Device
Native
Container
SQLite
Database
Java
VM
Configuration
Server
Business
Logic
Model
JDBC
Apache
Cordova
SQLite
Web
View
Server
HTML
HTML5
and
Javascript
Presentation
AMX
View
Local
HTML
Controller
Push
Handler
Server
Generated
HTML
APN/GCM
Push
Services
SOAP
and
REST
Services
Device
Services
App
Config
Credential
Management
SSO
and
Access
Control

30. Remote URLs
• For embedding existing web pages in your
ADF Mobile app.
• For instance:
– News Website
– Existing enterprise app Mobile Browser Pages
• Note:
– Best use Optimized Mobile Browser Pages
– Apache Trinidad components
– Oracle recommends using ADF Mobile browser

31. Feature as Remote URL
• Create New Feature as
Remote URL
• Create URL Connection

32. Whitelisting
• Why do we need to do this ?
• Mobile device is
redirected to m.uefa.com

33. Device Interaction
Device
Native
Container
SQLite
Database
Java
VM
Configuration
Server
Business
Logic
Model
JDBC
Apache
Cordova
SQLite
Web
View
Server
HTML
HTML5
and
Javascript
Presentation
AMX
View
Local
HTML
Controller
Push
Handler
Server
Generated
HTML
APN/GCM
Push
Services
SOAP
and
REST
Services
Device
Services
App
Config
Credential
Management
SSO
and
Access
Control

34. Device Interaction
• The Device Datacontrol
• Drag n Drop support
• Attributes as fields
• Operations as buttons
• Or as a link

35. Behind the scenes
• Now where is the catch ?

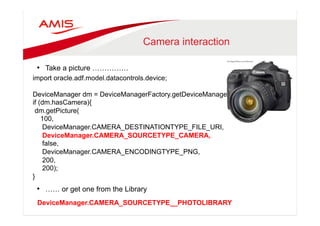

36. Camera interaction
• Take a picture ……………
import oracle.adf.model.datacontrols.device;
DeviceManager dm = DeviceManagerFactory.getDeviceManager();
if (dm.hasCamera){
dm.getPicture(
100,
DeviceManager.CAMERA_DESTINATIONTYPE_FILE_URI,
DeviceManager.CAMERA_SOURCETYPE_CAMERA,
false,
DeviceManager.CAMERA_ENCODINGTYPE_PNG,
200,
200);
• …… or get one from the Library
}
DeviceManager.CAMERA_SOURCETYPE__PHOTOLIBRARY

37. Data (and) Services
Device
Native
Container
SQLite
Database
Java
VM
Configuration
Server
Business
Logic
Model
JDBC
Apache
Cordova
SQLite
Web
View
Server
HTML
HTML5
and
Javascript
Presentation
AMX
View
Local
HTML
Controller
Push
Handler
Server
Generated
HTML
APN/GCM
Push
Services
SOAP
and
REST
Services
Device
Services
App
Config
Credential
Management
SSO
and
Access
Control

38. Using Webservices
• The Webservice Datacontrol for SOAP-XML and REST-XML

39. Using Webservices directly
• Just drag & drop the method from the Data Control

40. Using Webservices from Java
• Invoke directly from java.
• Does not use the page Definition
• Uses Framework utilityMethod
• AdfmfJavaUtilities.invokeDataControlMethod()
• Datacontrol must be in available in DataBindings.cpx

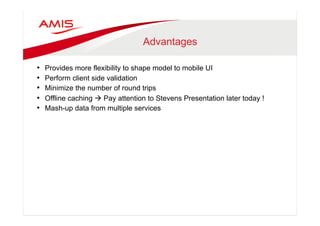

41. Advantages
• Provides more flexibility to shape model to mobile UI
• Perform client side validation
• Minimize the number of round trips
• Offline caching à Pay attention to Stevens Presentation later today !
• Mash-up data from multiple services

42. Patterns…
• SOAP/REST XML Webservice
– Needs WebServiceDataControl and invokeDataControlMethod()

43. Patterns…
• REST-JSON Webservice
– Needs URL Connection and RestServiceAdapter

44. Patterns….
• SQLiteDatabase
– Needs Plain JDBC

45. Obviously all the same……
• Service Object Data Control Pattern
– Whatever “back end” data source you use…..
– It is completely transparent for your UI

46. Push Notifications
Device
Native
Container
SQLite
Database
Java
VM
Configuration
Server
Business
Logic
Model
JDBC
Apache
Cordova
SQLite
Web
View
Server
HTML
HTML5
and
Javascript
Presentation
AMX
View
Local
HTML
Controller
Push
Handler
Server
Generated
HTML
APN/GCM
Push
Services
SOAP
and
REST
Services
Device
Services
App
Config
Credential
Management
SSO
and
Access
Control

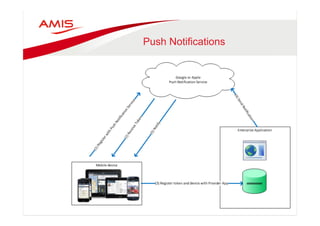

47. Push Notifications
•

48. Push Notifications
• Subscribe to Messaging Service
• Receive token
• Register with Enterprise app
• Enterprise app Pushes message to
Messaging Service
• Messaging Service delegates
message to device(s)

49. Start The ADF Mobile App
• ApplicationLifeCycleListener
– In the Start() Method create a new PushNotificationListener()
public void start() {
// Add code here...
EventSource evtSource =
EventSourceFactory.getEventSource(
NativePushNotificationEventSource.
NATIVE_PUSH_NOTIFICATION_REMOTE_EVENT_SOURCE_NAME);
evtSource.addListener(new PushNotificationListener());
}

50. Open the application
• In the PushNotificationListener
– OnOpen() // receive token
– OnMessage() // handle notification
– OnError()
public void onOpen(String token) {
// Invoked during the Push Notification registration process.
// The parameter "token" contains the token received from APNs or GCMs
// that uniquely identifies a specific device-application combination.
ValueExpression ve = AdfmfJavaUtilities.getValueExpression(
"#{applicationScope.deviceToken}", String.class);
if (token != null){
ve.setValue(AdfmfJavaUtilities.getAdfELContext(), token);
}
else{
ve.setValue(AdfmfJavaUtilities.getAdfELContext(), "dummy Token");
}
}

51. Working with the Notification
public void onMessage(Event event) {
PayloadServiceResponse serviceResponse =
(PayloadServiceResponse)jsonHelper.fromJSON(
PayloadServiceResponse.class, event.getPayload());
String message = serviceResponse.getCustomMessage();
ValueExpression notificationPayloadBinding =
AdfmfJavaUtilities.getValueExpression(
"#{applicationScope.notificationSessionId}", String.class);
ValueExpression ve = AdfmfJavaUtilities.getValueExpression(
"#{applicationScope.notified}", Boolean.class);
ve.setValue(AdfmfJavaUtilities.getAdfELContext(), Boolean.TRUE);
// also, lets decrease the application icon badge by one
int currentBadge =
AdfmfContainerUtilities.getApplicationIconBadgeNumber();
if (currentBadge > 0){
AdfmfContainerUtilities.
setApplicationIconBadgeNumber(currentBadge - 1);
}
AdfmfContainerUtilities.gotoFeature(
"com.tamcapp.mobilebook.ses.ConferenceSessions");
}
}

52. Example
• Select device
• Send message
• Get notified

53. Nothing more I can say……
