1. Building add-ons using
add-ons
DANIEL WESTER • CO-FOUNDER • WITTIFIED • @DWESTER42A

2. Building add-ons using
add-ons
DANIEL WESTER • CO-FOUNDER • WITTIFIED • @DWESTER42A

3. About me

4. 20%

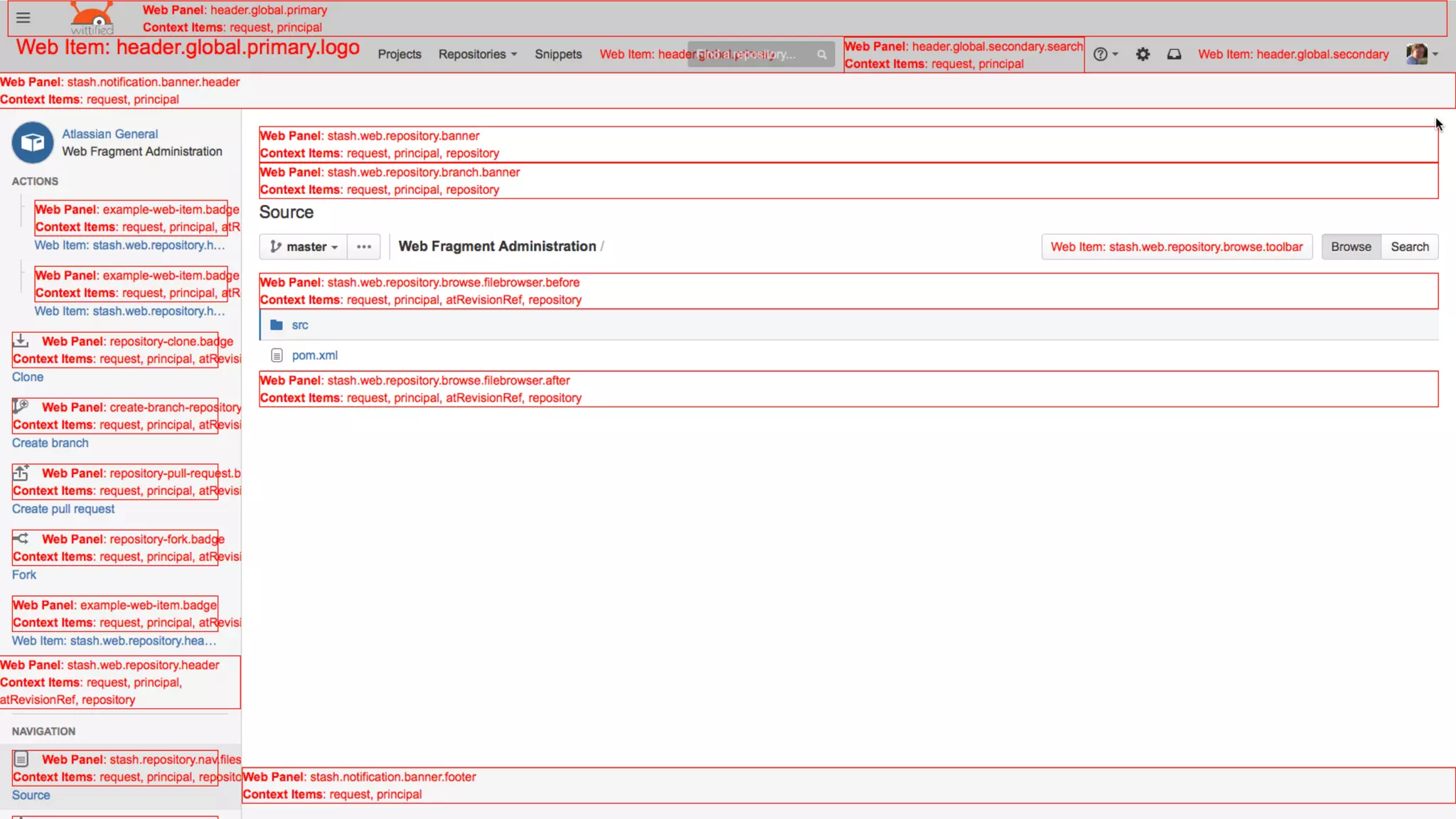

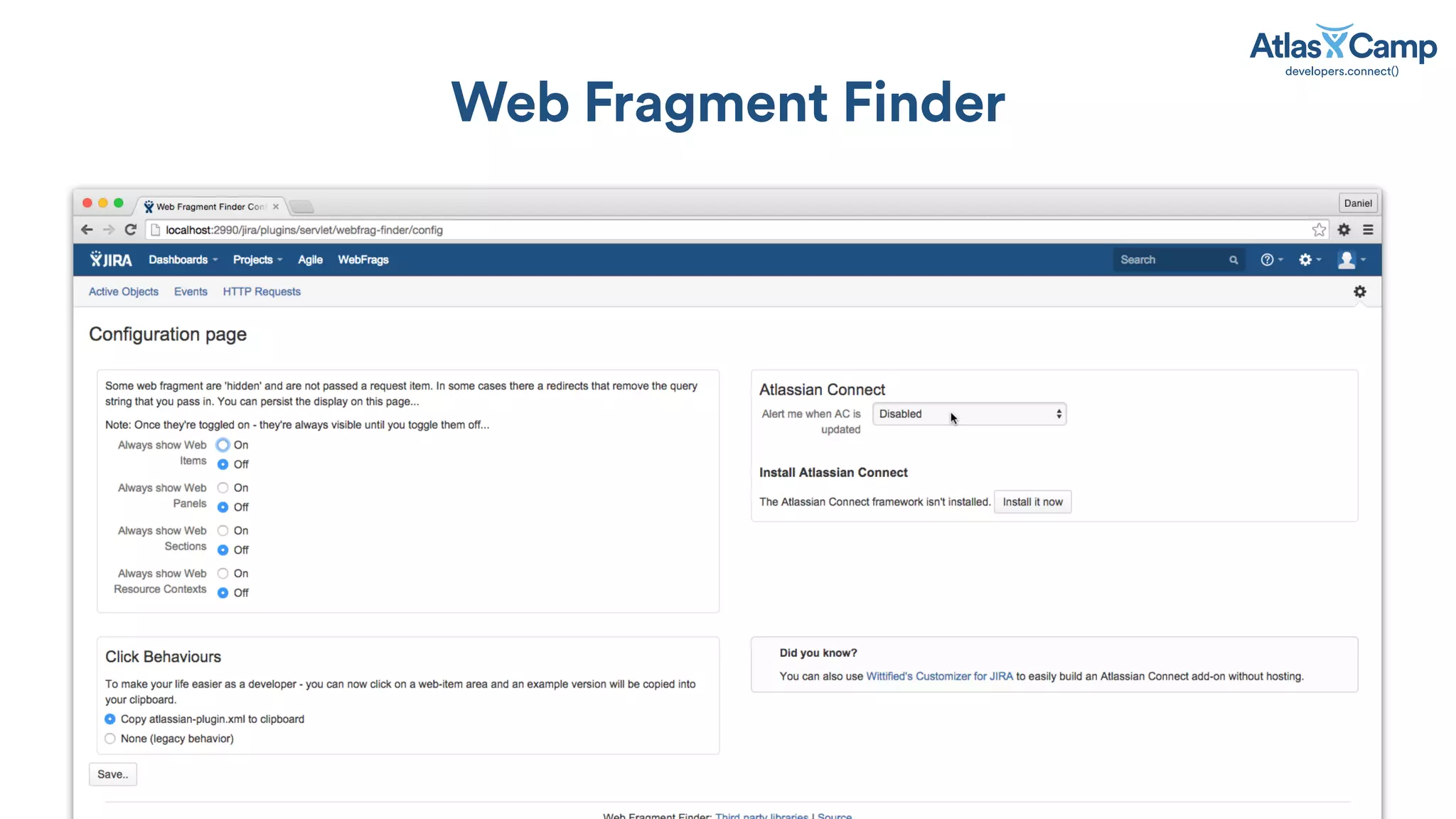

6. Web Fragment Finder

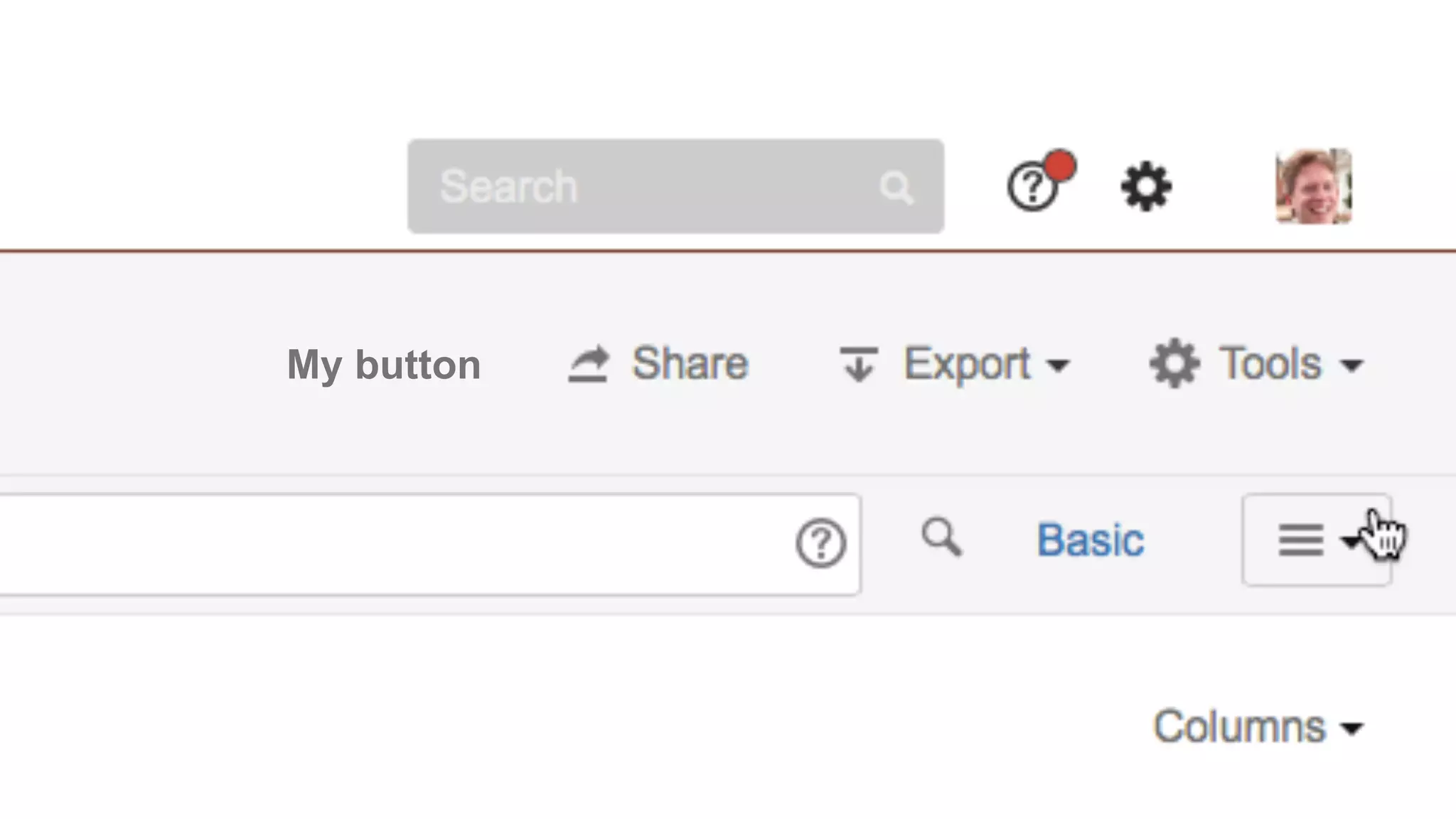

8. My button

12. ACTIVE OBJECTS
p2 addon
ADDING A WEB ITEM
WEB RESOURCES
EVENTS
GETTING STARTED

13. ACTIVE OBJECTS
GETTING STARTED
p2 addon
ADDING A WEB ITEM
WEB RESOURCES
EVENTS

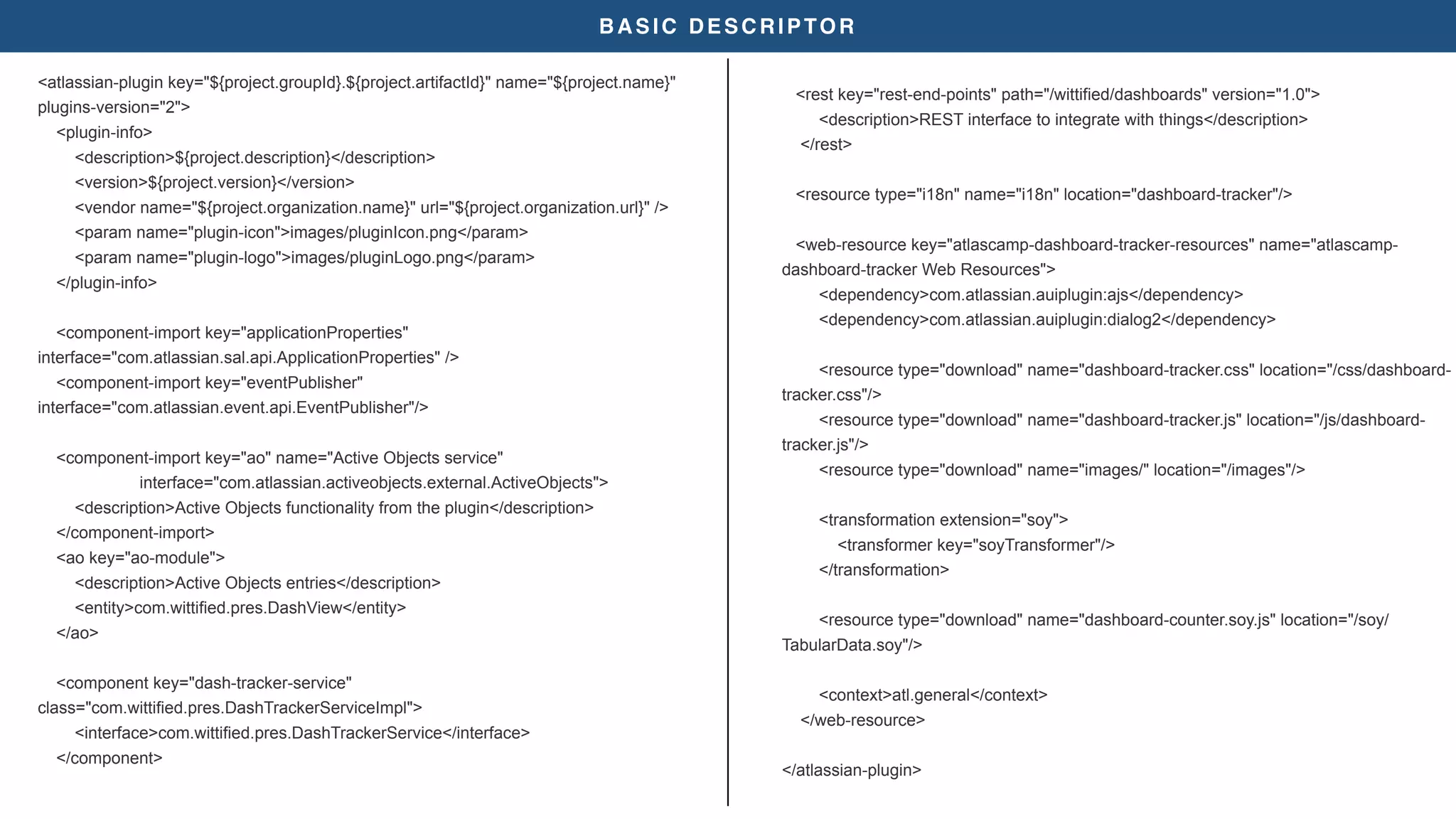

14. BASIC DESCRIPTOR
<atlassian-plugin key="${project.groupId}.${project.artifactId}" name="${project.name}"
plugins-version="2">
<plugin-info>
<description>${project.description}</description>
<version>${project.version}</version>
<vendor name="${project.organization.name}" url="${project.organization.url}" />
<param name="plugin-icon">images/pluginIcon.png</param>
<param name="plugin-logo">images/pluginLogo.png</param>
</plugin-info>
<component-import key="applicationProperties"
interface="com.atlassian.sal.api.ApplicationProperties" />
<component-import key="eventPublisher"
interface="com.atlassian.event.api.EventPublisher"/>
<component-import key="ao" name="Active Objects service"
interface="com.atlassian.activeobjects.external.ActiveObjects">
<description>Active Objects functionality from the plugin</description>
</component-import>
<ao key="ao-module">
<description>Active Objects entries</description>
<entity>com.wittified.pres.DashView</entity>
</ao>
<component key="dash-tracker-service"
class="com.wittified.pres.DashTrackerServiceImpl">
<interface>com.wittified.pres.DashTrackerService</interface>
</component>
<rest key="rest-end-points" path="/wittified/dashboards" version="1.0">
<description>REST interface to integrate with things</description>
</rest>
<resource type="i18n" name="i18n" location="dashboard-tracker"/>
<web-resource key="atlascamp-dashboard-tracker-resources" name="atlascamp-
dashboard-tracker Web Resources">
<dependency>com.atlassian.auiplugin:ajs</dependency>
<dependency>com.atlassian.auiplugin:dialog2</dependency>
<resource type="download" name="dashboard-tracker.css" location="/css/dashboard-
tracker.css"/>

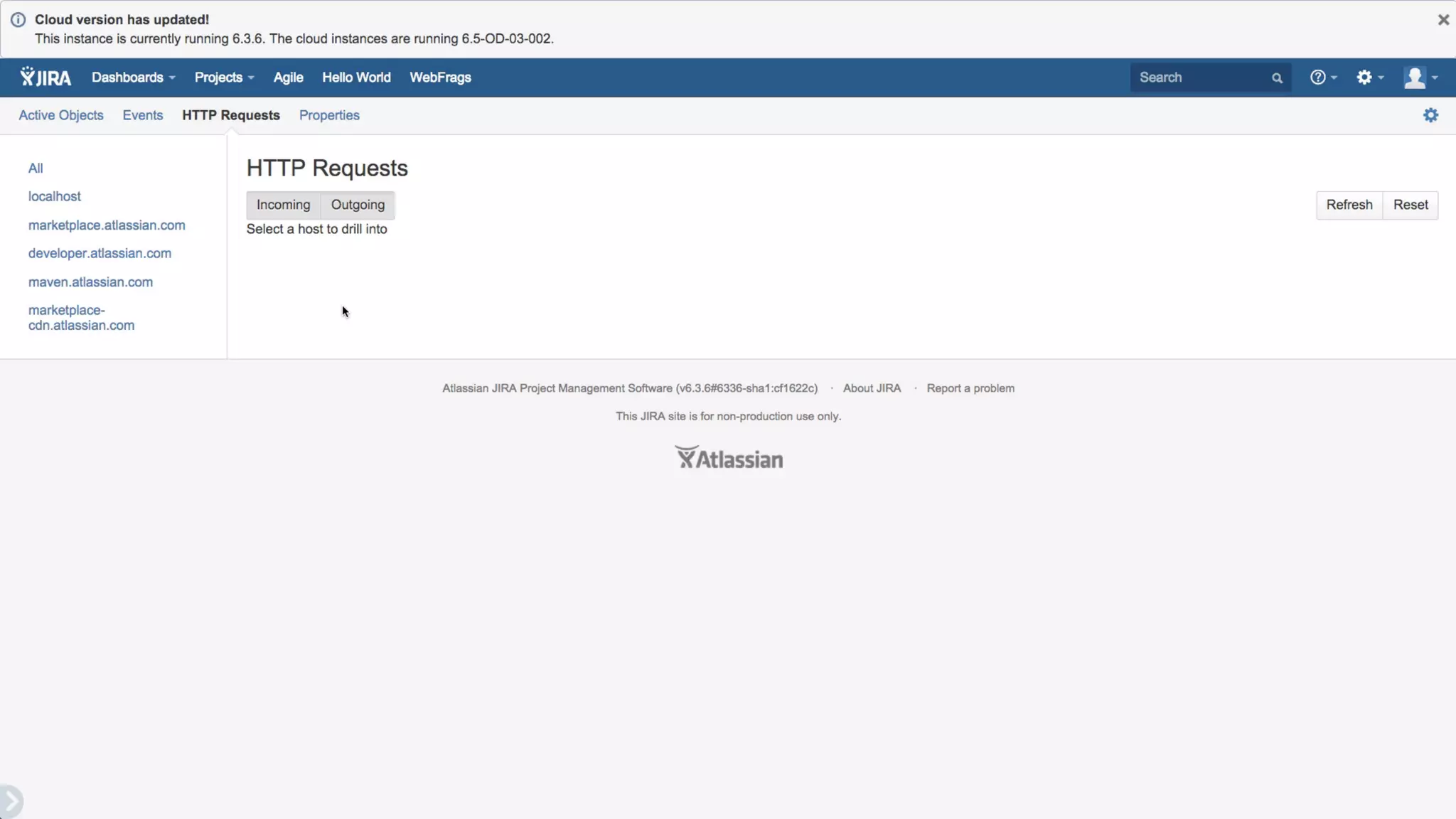

<resource type="download" name="dashboard-tracker.js" location="/js/dashboard-
tracker.js"/>
<resource type="download" name="images/" location="/images"/>
<transformation extension="soy">
<transformer key="soyTransformer"/>
</transformation>

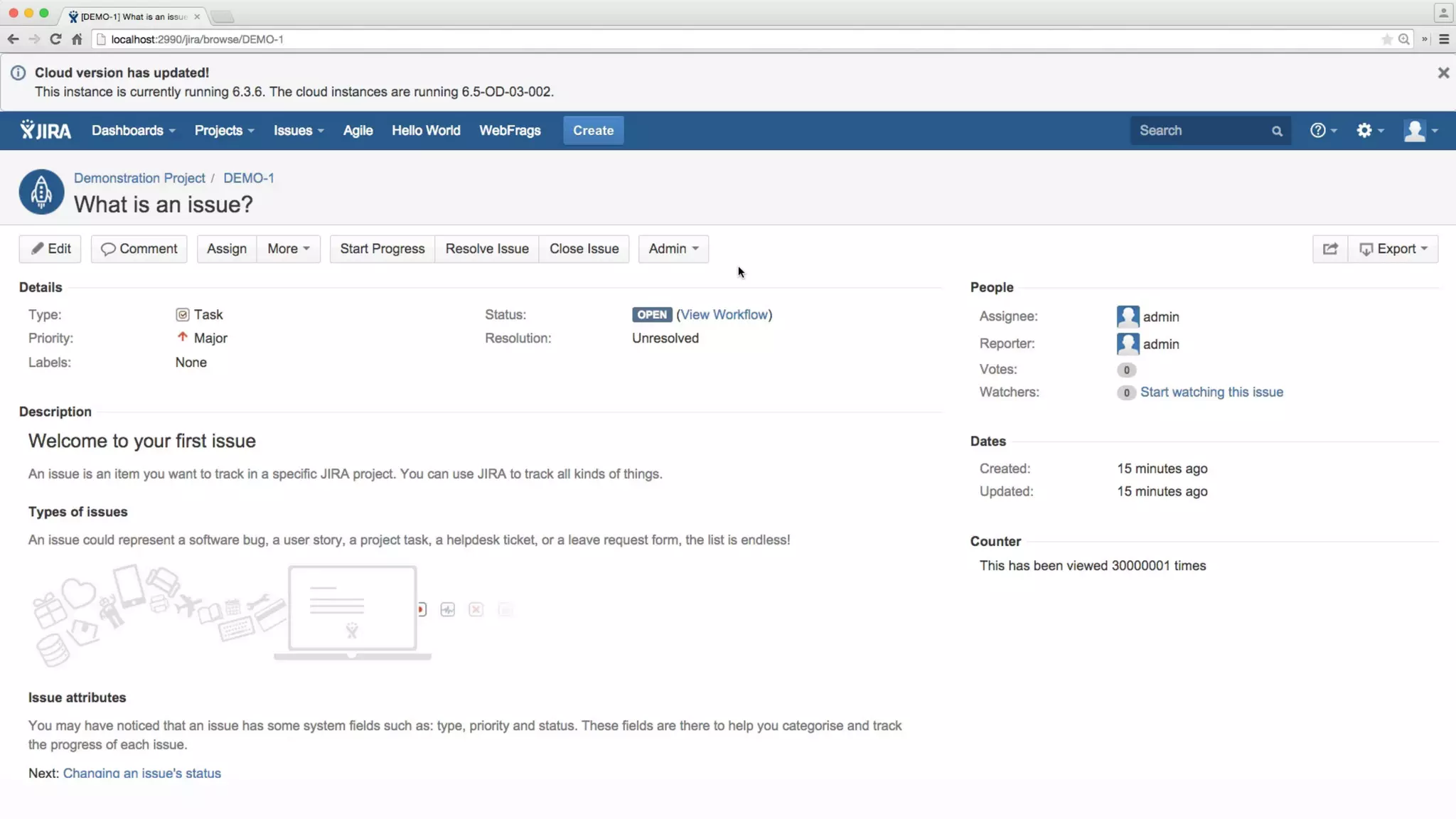

<resource type="download" name="dashboard-counter.soy.js" location="/soy/
TabularData.soy"/>
<context>atl.general</context>
</web-resource>
</atlassian-plugin>

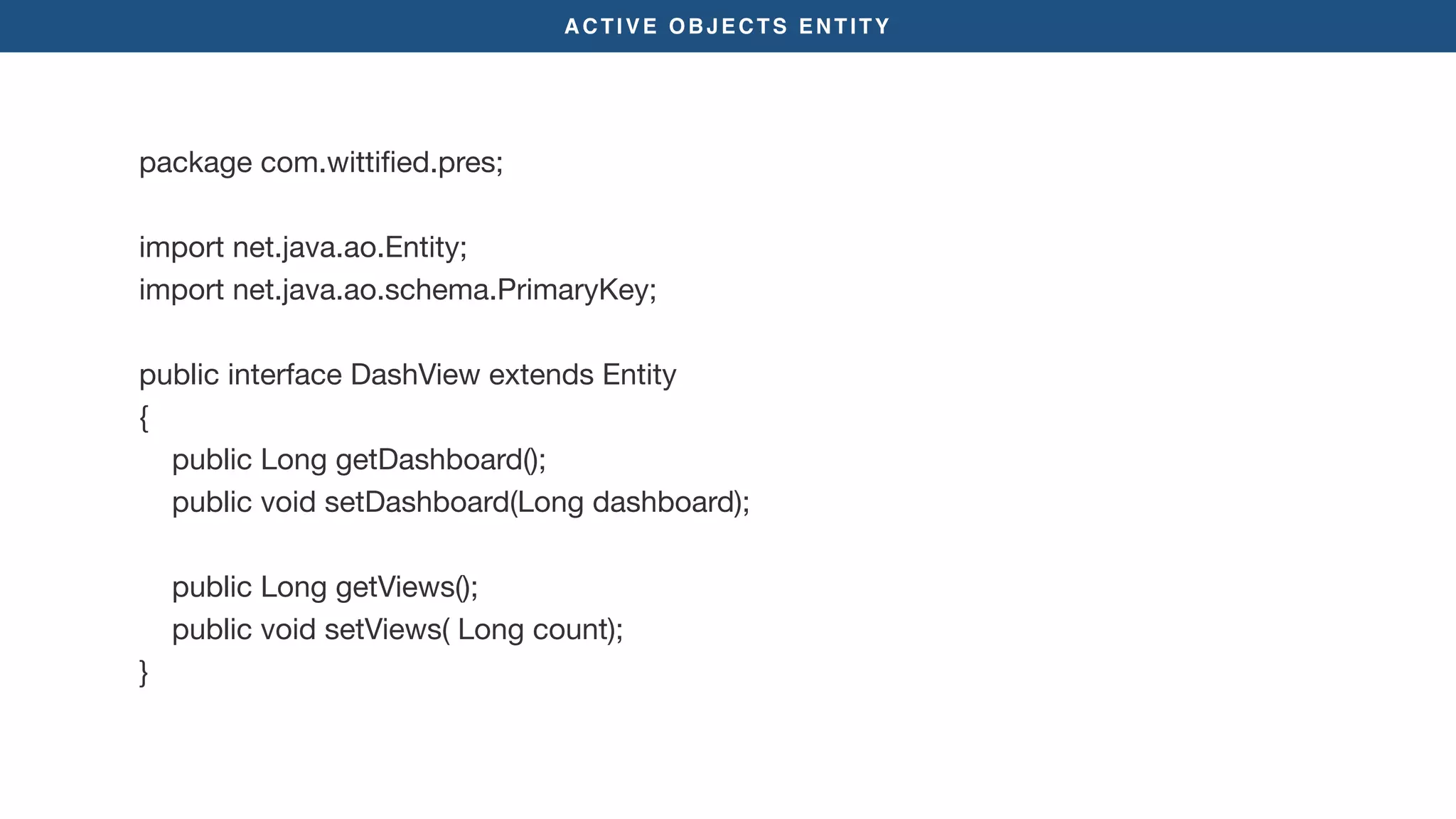

15. ACTIVE OBJECTS ENTITY
package com.wittified.pres;
import net.java.ao.Entity;
import net.java.ao.schema.PrimaryKey;
public interface DashView extends Entity
{
public Long getDashboard();
public void setDashboard(Long dashboard);
public Long getViews();
public void setViews( Long count);
}

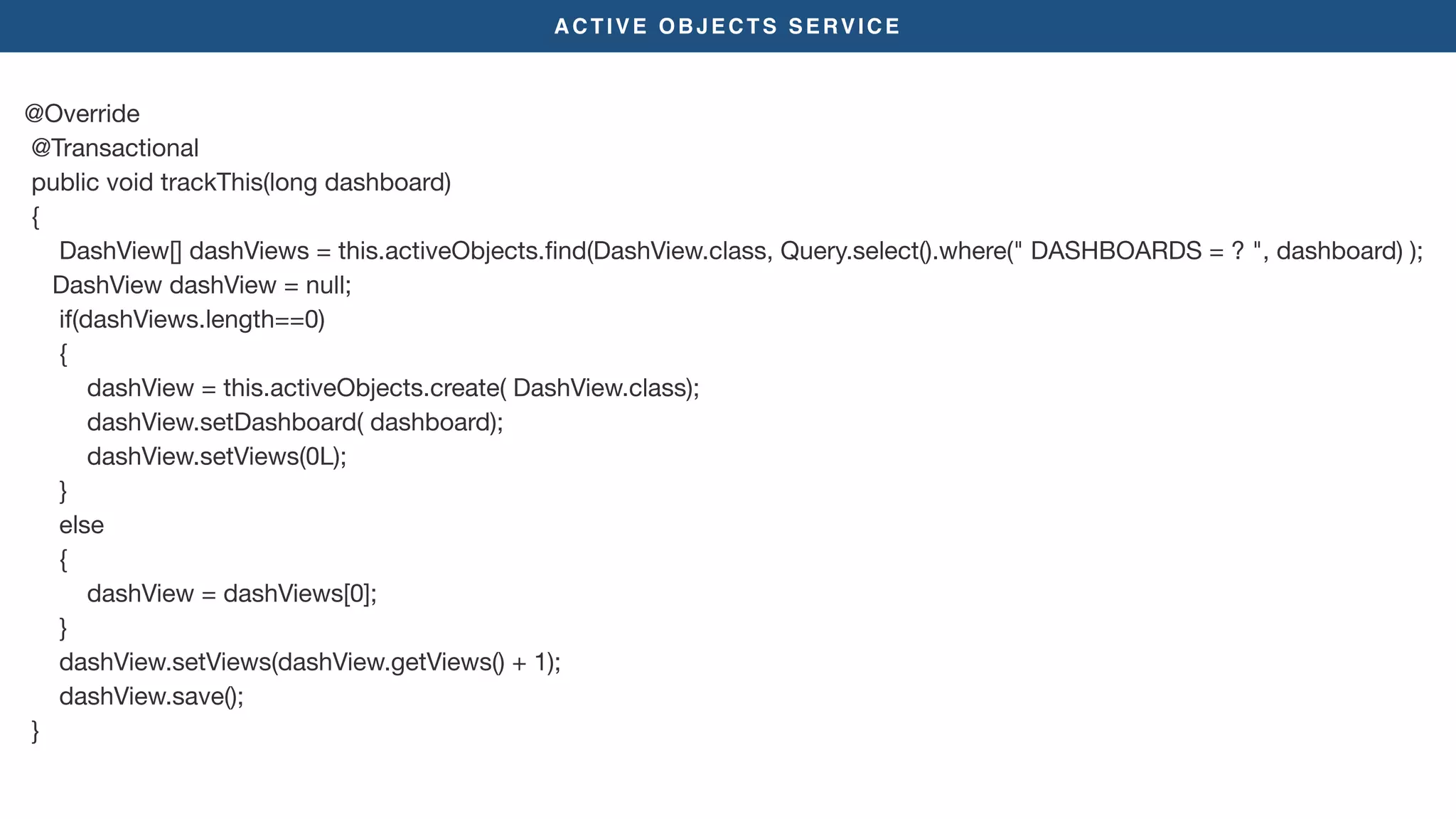

16. ACTIVE OBJECTS SERVICE
@Override
@Transactional
public void trackThis(long dashboard)
{
DashView[] dashViews = this.activeObjects.find(DashView.class, Query.select().where(" DASHBOARDS = ? ", dashboard) );
DashView dashView = null;
if(dashViews.length==0)
{
dashView = this.activeObjects.create( DashView.class);
dashView.setDashboard( dashboard);
dashView.setViews(0L);
}
else
{
dashView = dashViews[0];
}
dashView.setViews(dashView.getViews() + 1);
dashView.save();
}

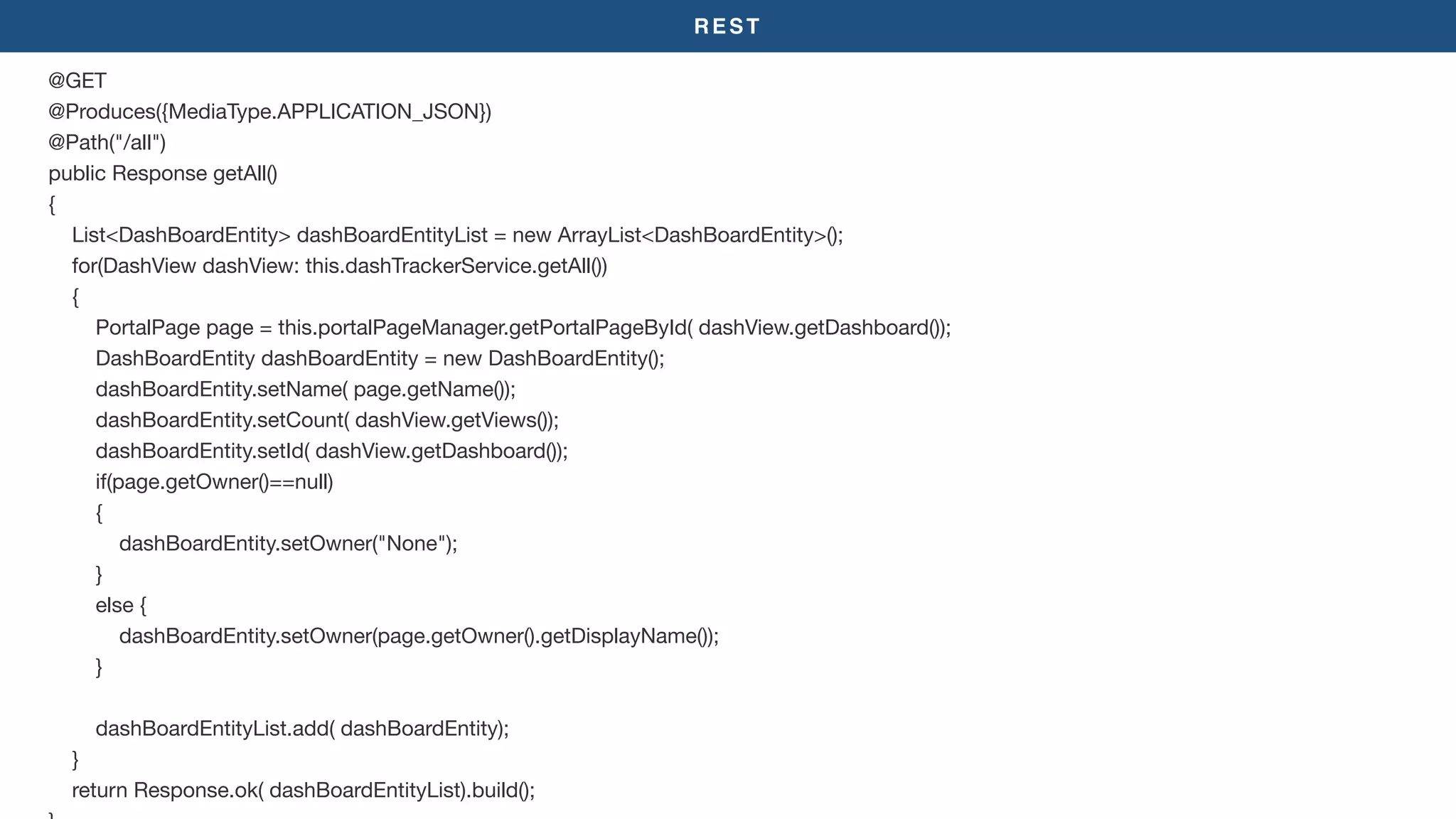

17. REST
@GET
@Produces({MediaType.APPLICATION_JSON})
@Path("/all")
public Response getAll()
{
List<DashBoardEntity> dashBoardEntityList = new ArrayList<DashBoardEntity>();
for(DashView dashView: this.dashTrackerService.getAll())
{
PortalPage page = this.portalPageManager.getPortalPageById( dashView.getDashboard());
DashBoardEntity dashBoardEntity = new DashBoardEntity();
dashBoardEntity.setName( page.getName());
dashBoardEntity.setCount( dashView.getViews());
dashBoardEntity.setId( dashView.getDashboard());
if(page.getOwner()==null)
{
dashBoardEntity.setOwner("None");
}
else {
dashBoardEntity.setOwner(page.getOwner().getDisplayName());
}
dashBoardEntityList.add( dashBoardEntity);
}
return Response.ok( dashBoardEntityList).build();

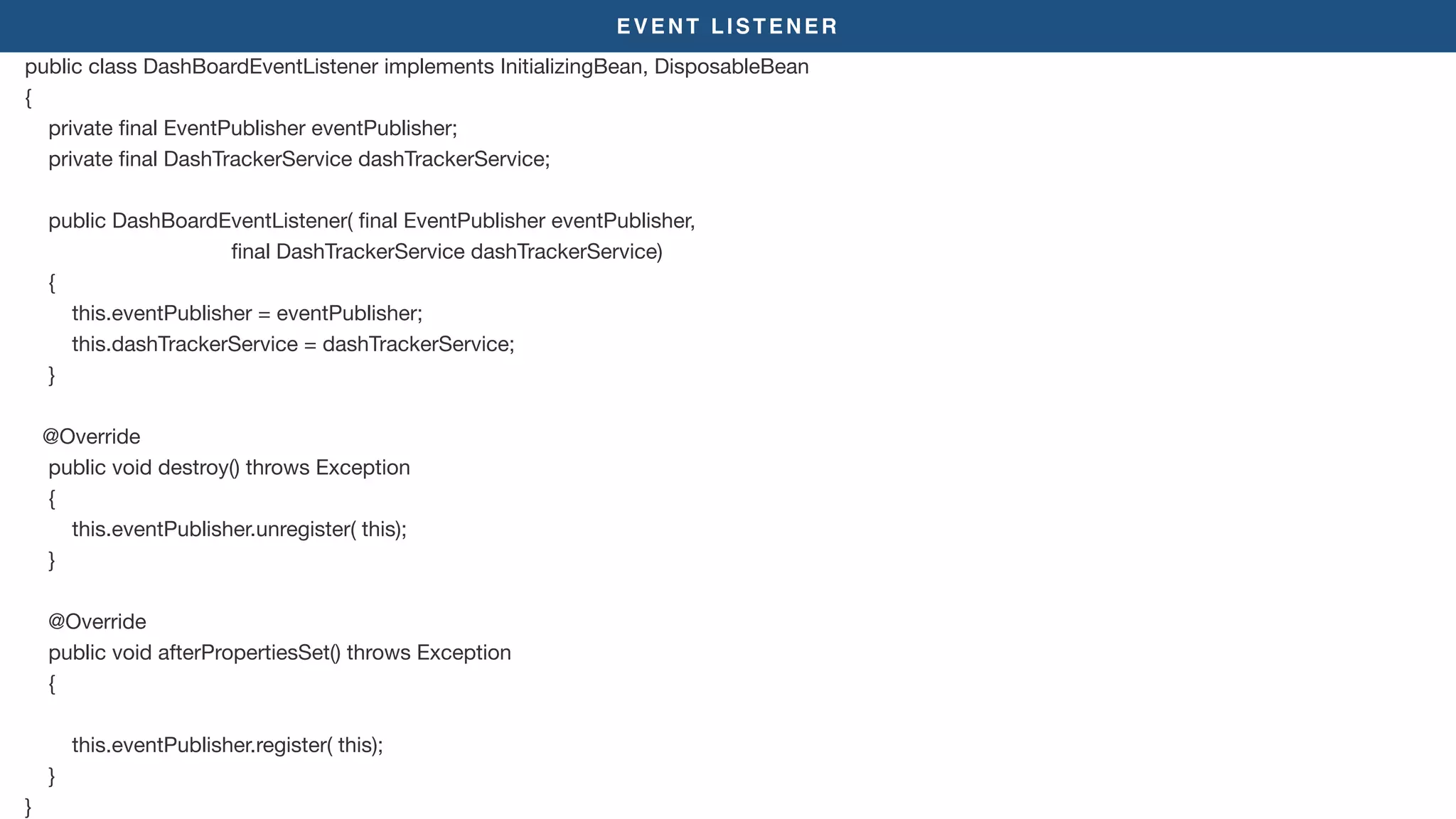

18. EVENT LISTENER
public class DashBoardEventListener implements InitializingBean, DisposableBean
{
private final EventPublisher eventPublisher;
private final DashTrackerService dashTrackerService;
public DashBoardEventListener( final EventPublisher eventPublisher,
final DashTrackerService dashTrackerService)
{
this.eventPublisher = eventPublisher;
this.dashTrackerService = dashTrackerService;
}
@Override
public void destroy() throws Exception
{
this.eventPublisher.unregister( this);
}
@Override
public void afterPropertiesSet() throws Exception
{
this.eventPublisher.register( this);
}
}

19. ACTIVE OBJECTS
EVENTS
p2 addon
ADDING A WEB ITEM
WEB RESOURCES
GETTING STARTED

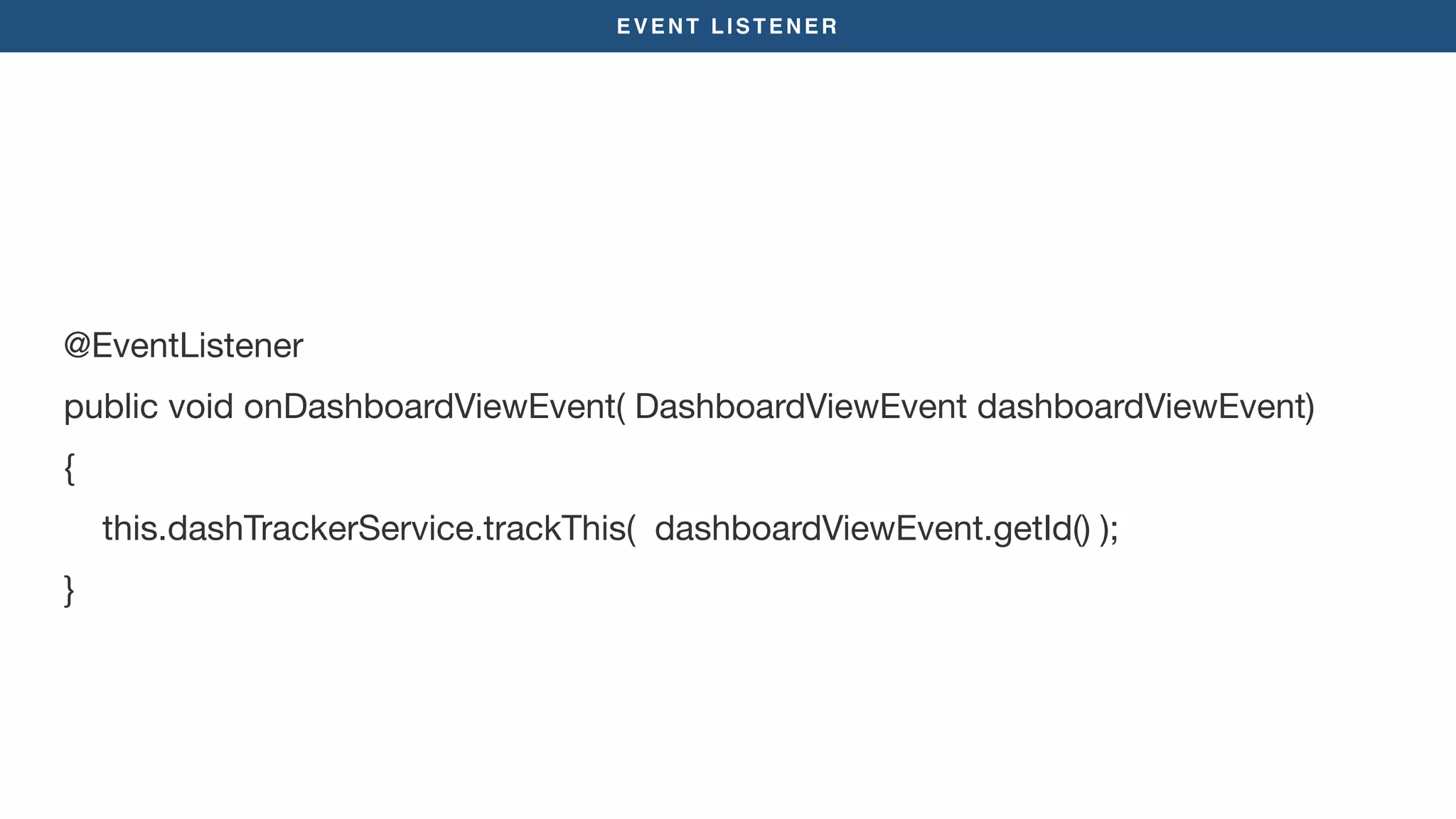

21. EVENT LISTENER
@EventListener
public void onDashboardViewEvent( DashboardViewEvent dashboardViewEvent)
{
this.dashTrackerService.trackThis( dashboardViewEvent.getId() );
}

22. EVENTS
ACTIVE OBJECTS
p2 addon
ADDING A WEB ITEM
WEB RESOURCES
GETTING STARTED

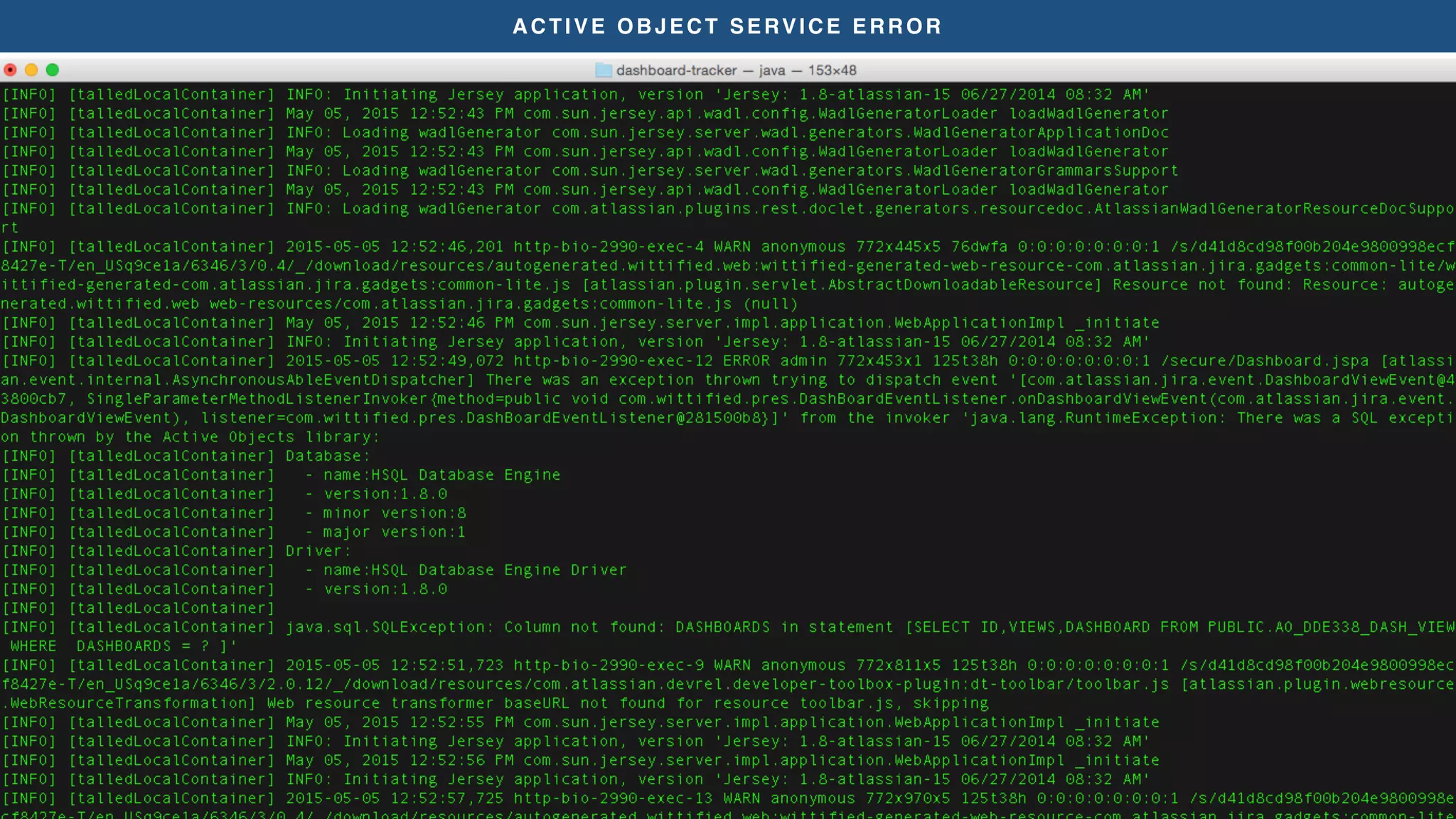

24. ACTIVE OBJECT SERVICE ERROR

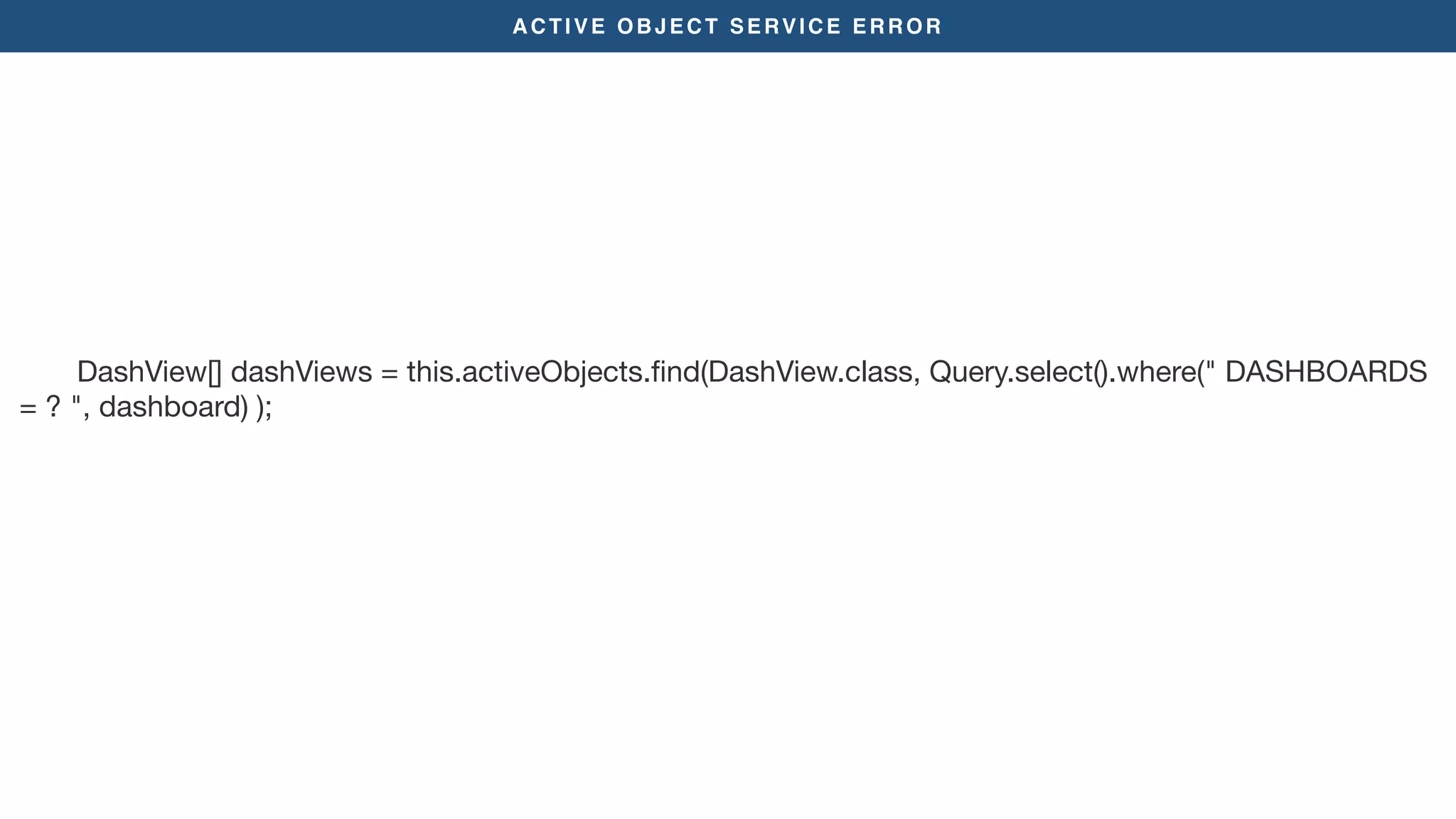

27. ACTIVE OBJECT SERVICE ERROR
DashView[] dashViews = this.activeObjects.find(DashView.class, Query.select().where(" DASHBOARDS
= ? ", dashboard) );

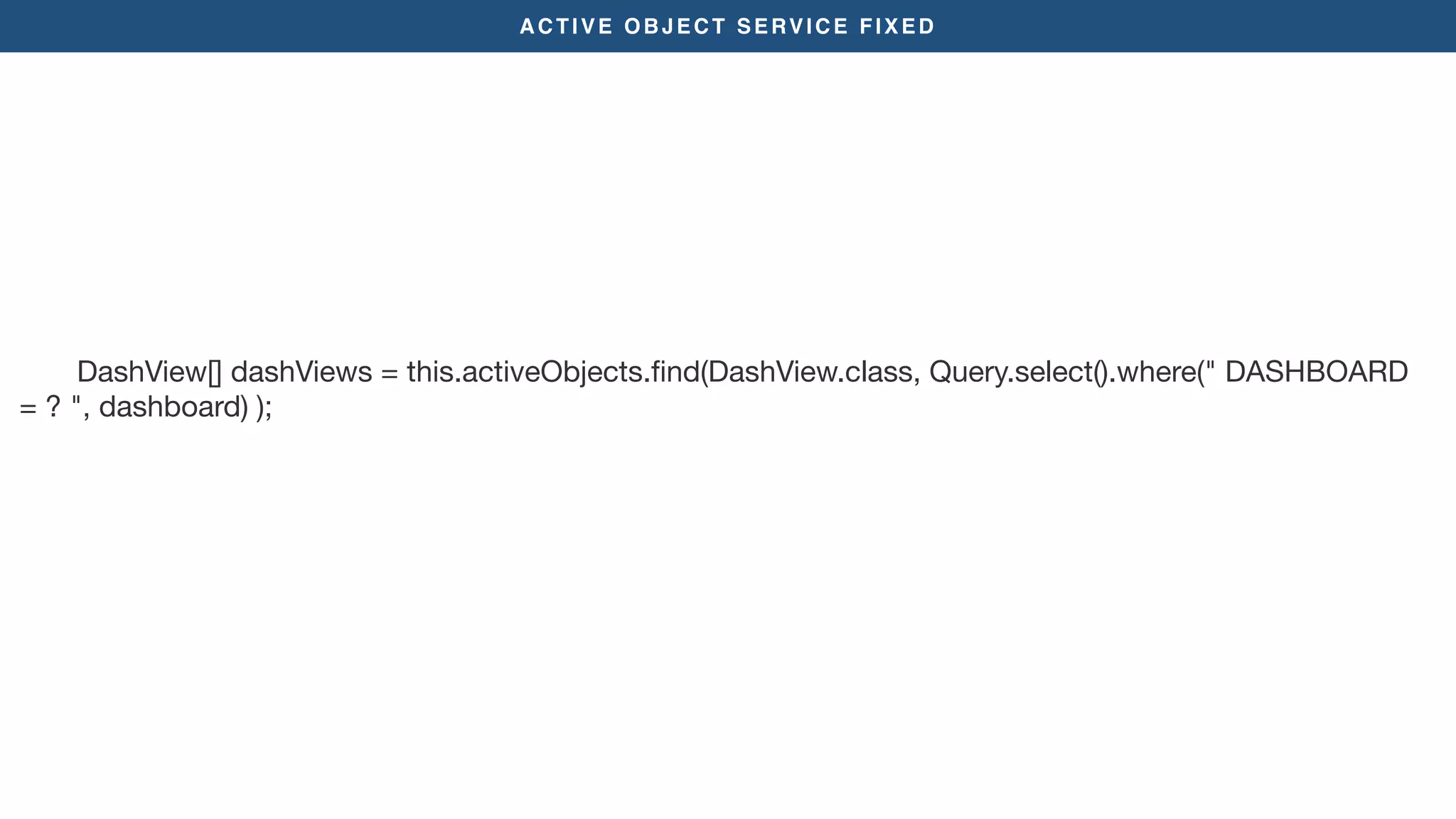

28. ACTIVE OBJECT SERVICE FIXED
DashView[] dashViews = this.activeObjects.find(DashView.class, Query.select().where(" DASHBOARD
= ? ", dashboard) );

30. ACTIVE OBJECTS
ADDING A WEB ITEM
p2 addon
EVENTS
WEB RESOURCES
GETTING STARTED

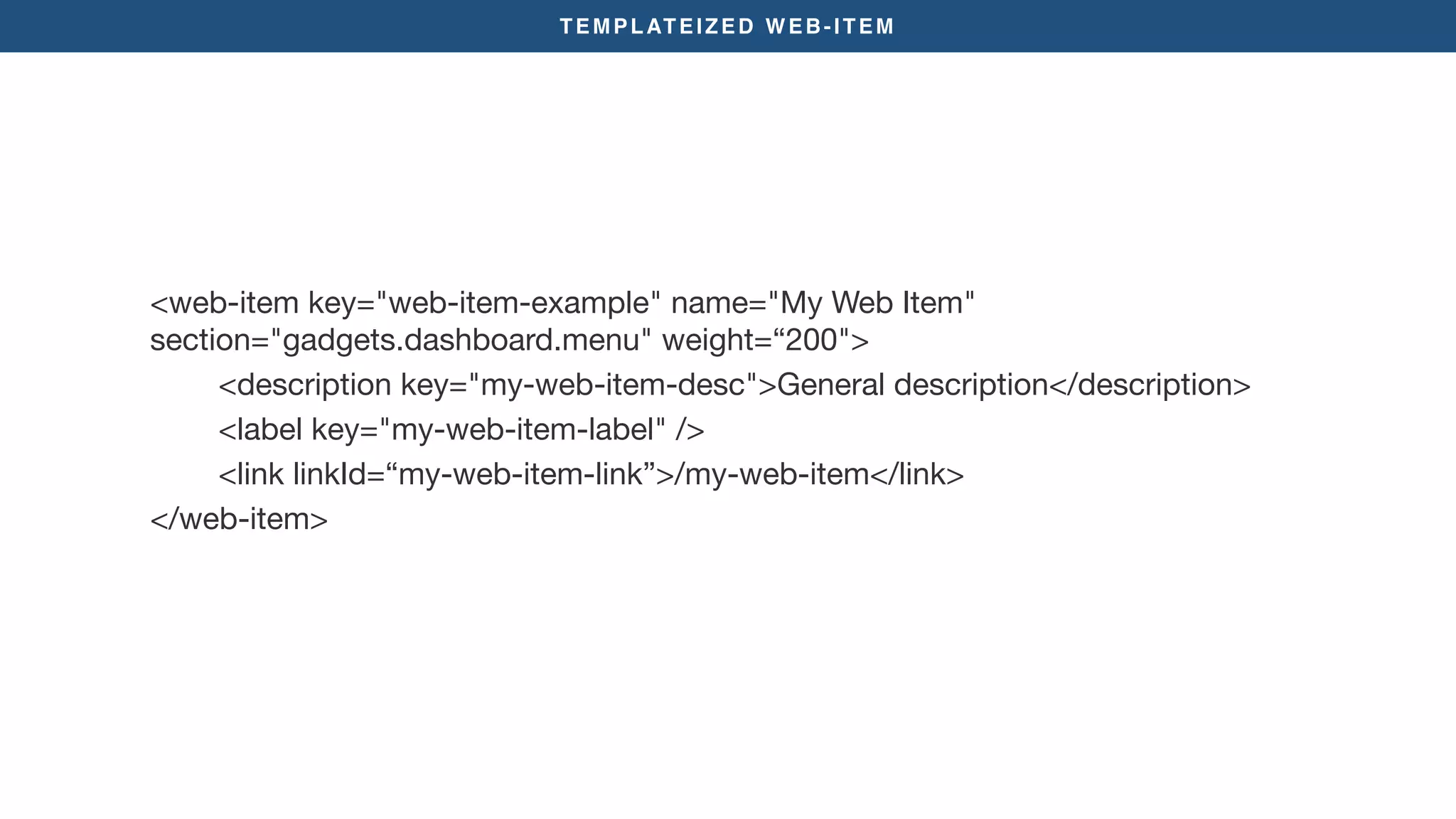

32. TEMPLATEIZED WEB-ITEM
<web-item key="web-item-example" name="My Web Item"
section="gadgets.dashboard.menu" weight=“200">
<description key="my-web-item-desc">General description</description>
<label key="my-web-item-label" />
<link linkId=“my-web-item-link”>/my-web-item</link>
</web-item>

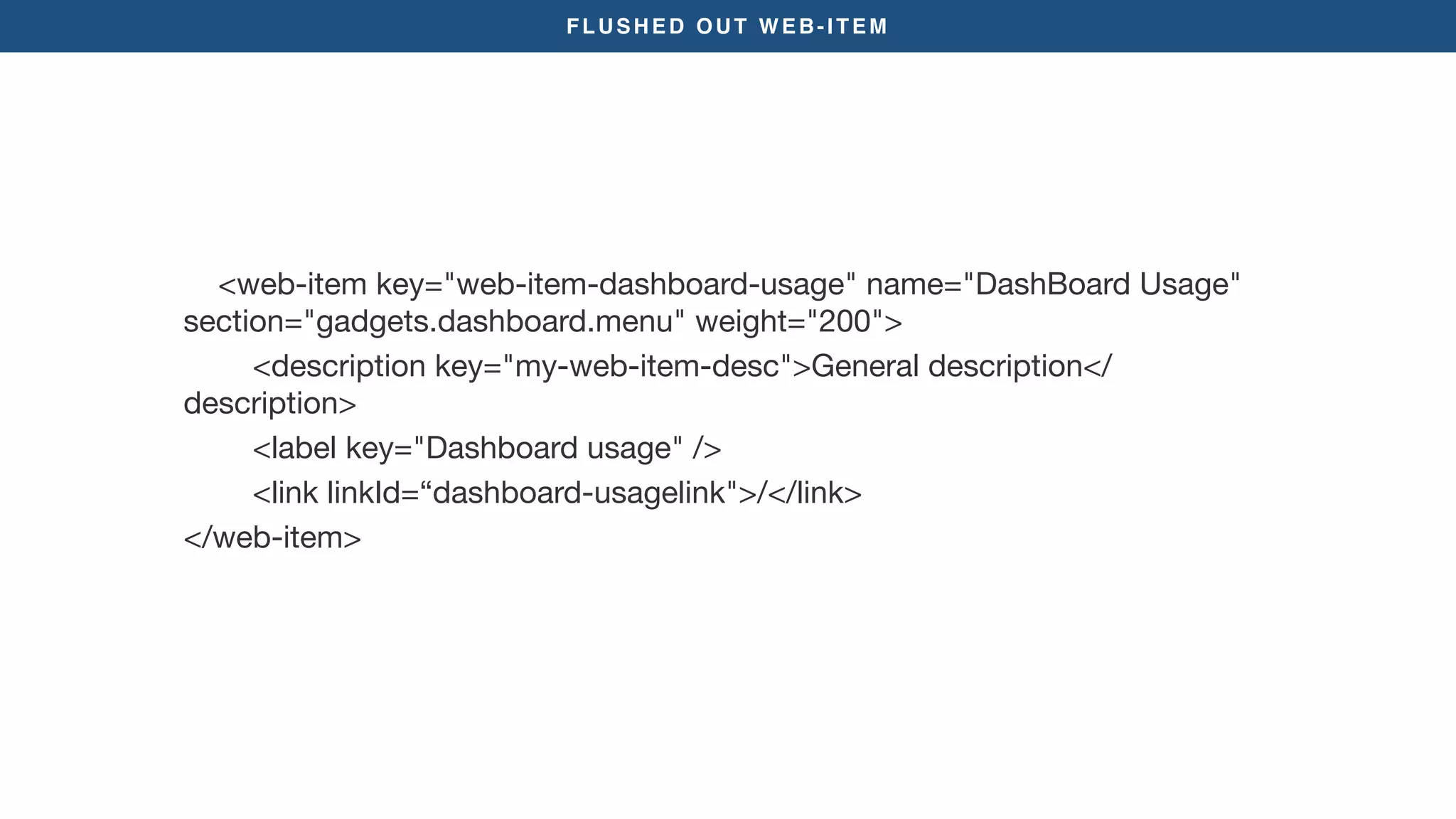

33. FLUSHED OUT WEB-ITEM
<web-item key="web-item-dashboard-usage" name="DashBoard Usage"
section="gadgets.dashboard.menu" weight="200">
<description key="my-web-item-desc">General description</
description>
<label key="Dashboard usage" />
<link linkId=“dashboard-usagelink">/</link>
</web-item>

34. ACTIVE OBJECTS
WEB RESOURCES
p2 addon
EVENTS
ADDING A WEB ITEM
GETTING STARTED

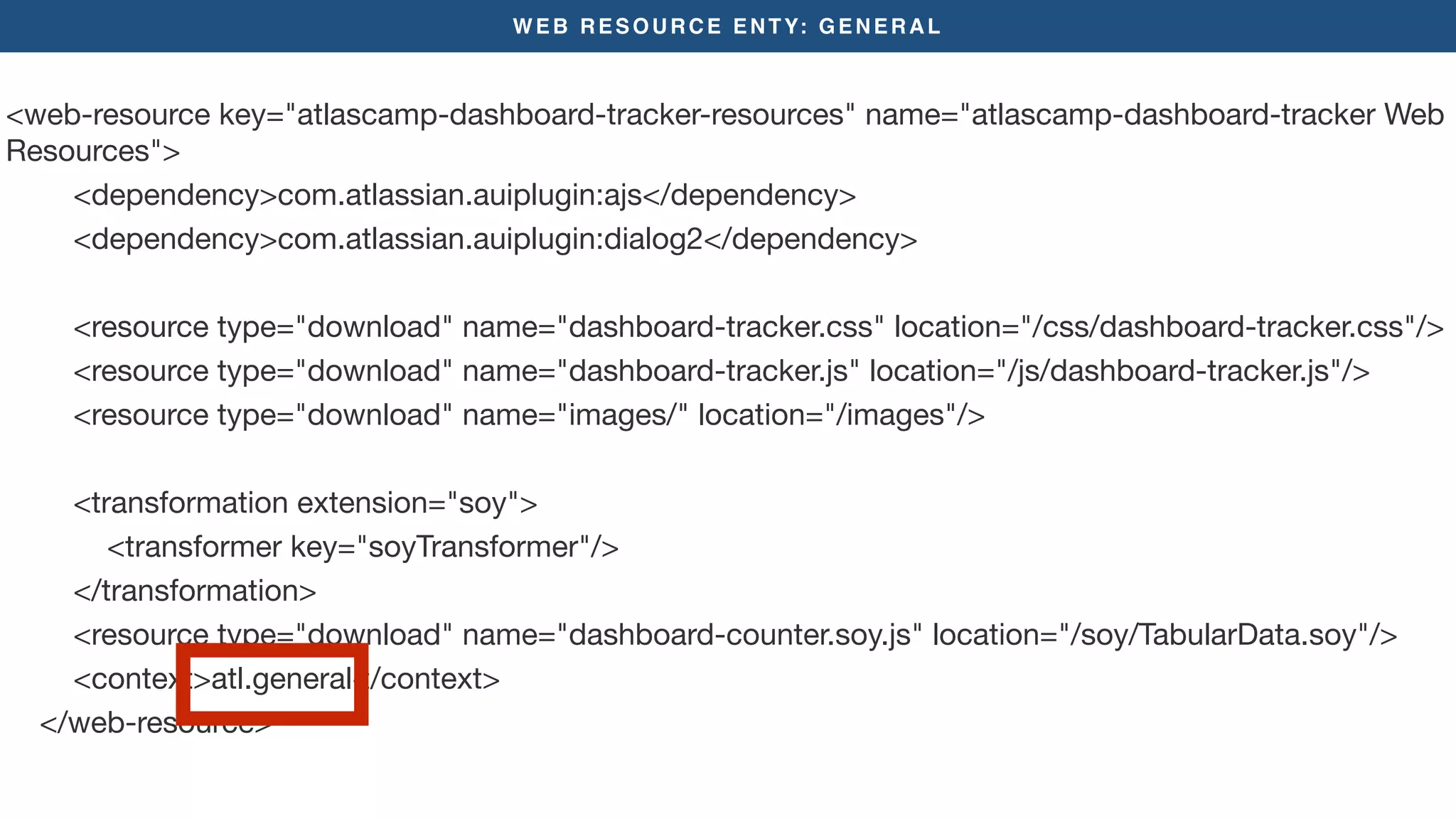

35. WEB RESOURCE ENTY: GENERAL
<web-resource key="atlascamp-dashboard-tracker-resources" name="atlascamp-dashboard-tracker Web
Resources">
<dependency>com.atlassian.auiplugin:ajs</dependency>
<dependency>com.atlassian.auiplugin:dialog2</dependency>
<resource type="download" name="dashboard-tracker.css" location="/css/dashboard-tracker.css"/>
<resource type="download" name="dashboard-tracker.js" location="/js/dashboard-tracker.js"/>
<resource type="download" name="images/" location="/images"/>
<transformation extension="soy">
<transformer key="soyTransformer"/>
</transformation>
<resource type="download" name="dashboard-counter.soy.js" location="/soy/TabularData.soy"/>
<context>atl.general</context>
</web-resource>

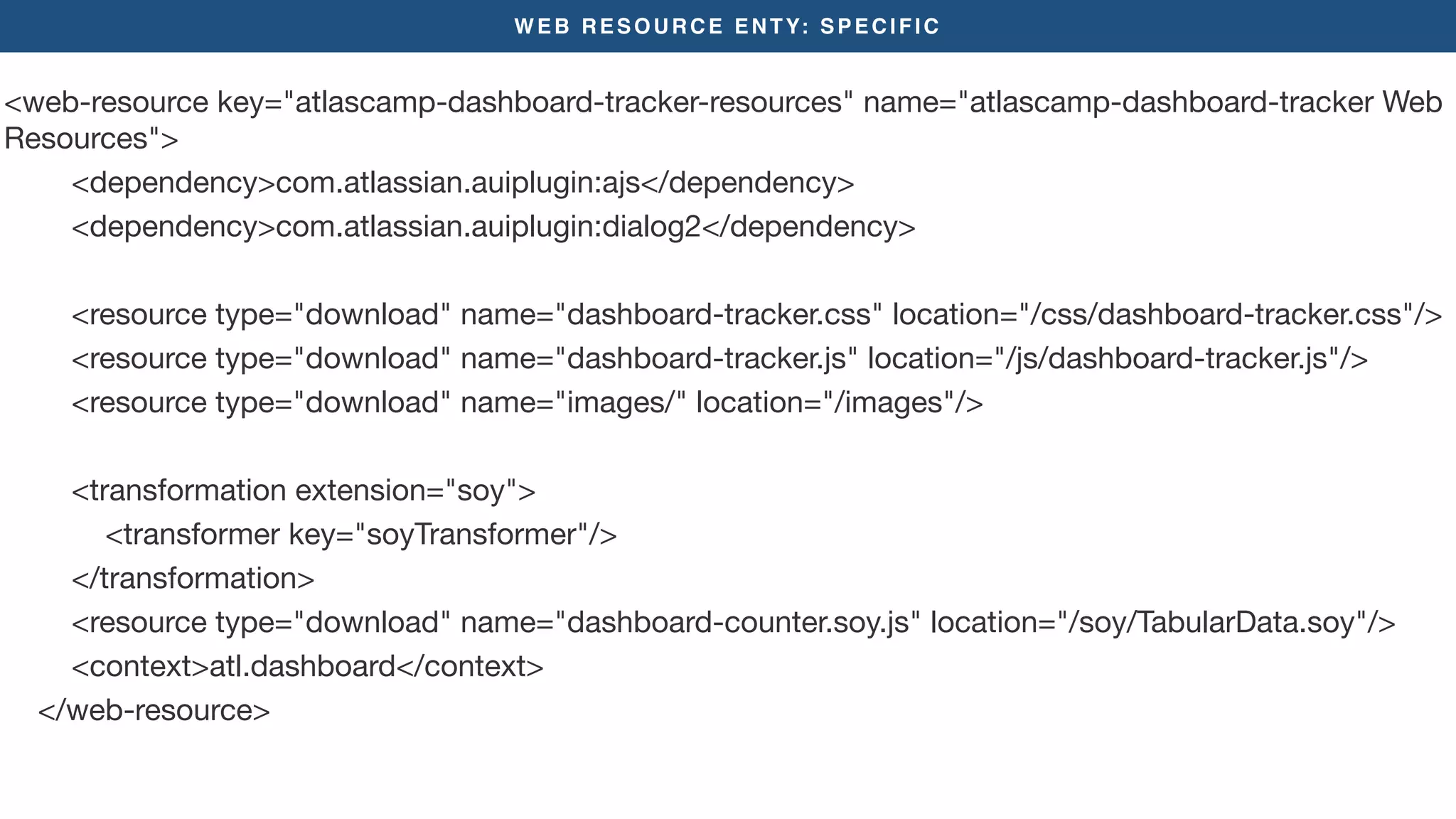

38. WEB RESOURCE ENTY: SPECIFIC
<web-resource key="atlascamp-dashboard-tracker-resources" name="atlascamp-dashboard-tracker Web
Resources">
<dependency>com.atlassian.auiplugin:ajs</dependency>
<dependency>com.atlassian.auiplugin:dialog2</dependency>
<resource type="download" name="dashboard-tracker.css" location="/css/dashboard-tracker.css"/>
<resource type="download" name="dashboard-tracker.js" location="/js/dashboard-tracker.js"/>
<resource type="download" name="images/" location="/images"/>
<transformation extension="soy">
<transformer key="soyTransformer"/>
</transformation>
<resource type="download" name="dashboard-counter.soy.js" location="/soy/TabularData.soy"/>
<context>atl.dashboard</context>
</web-resource>

39. ACTIVE OBJECTS
p2 addon
EVENTS
ADDING A WEB ITEM
GETTING STARTED
WEB RESOURCES

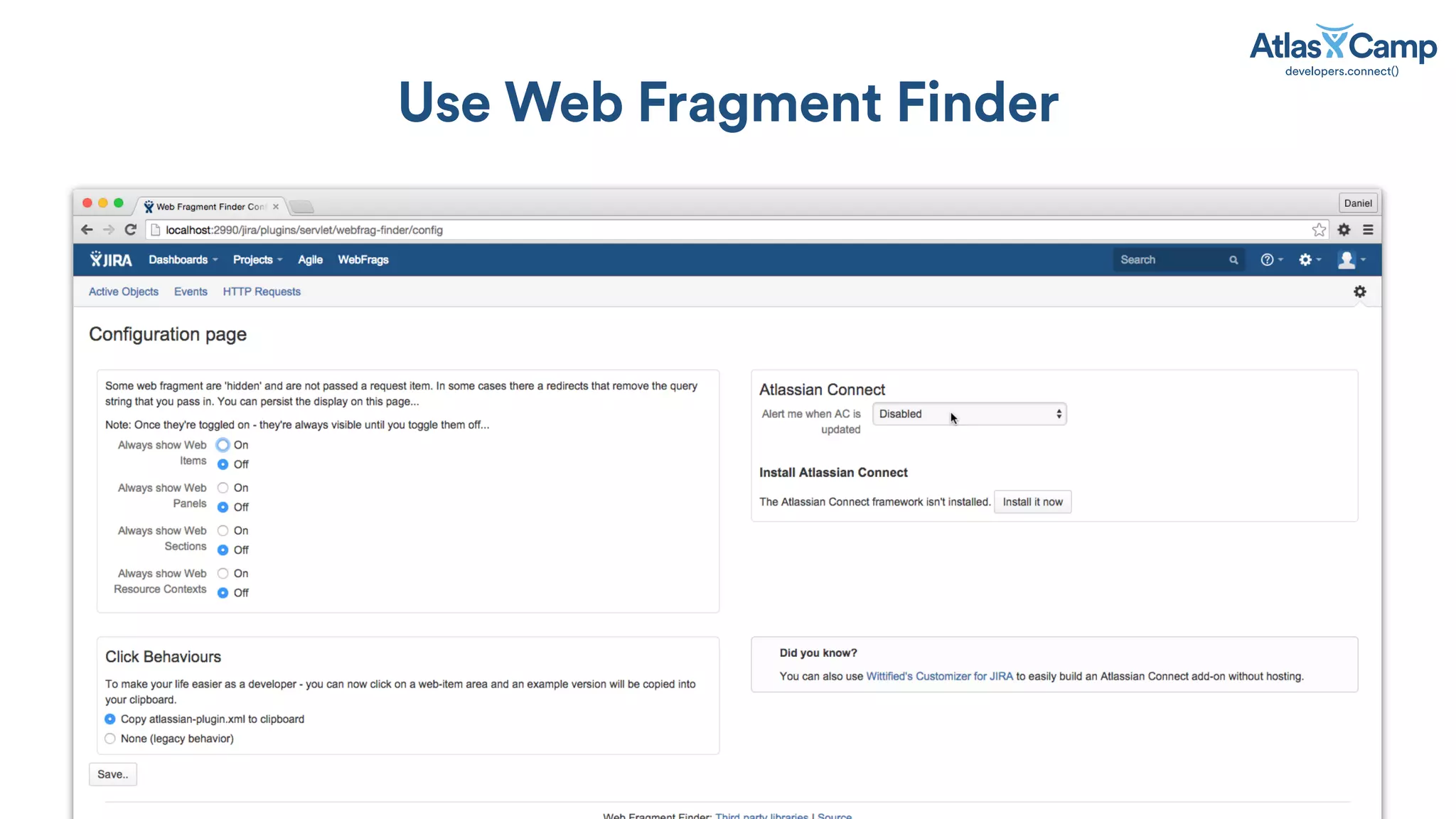

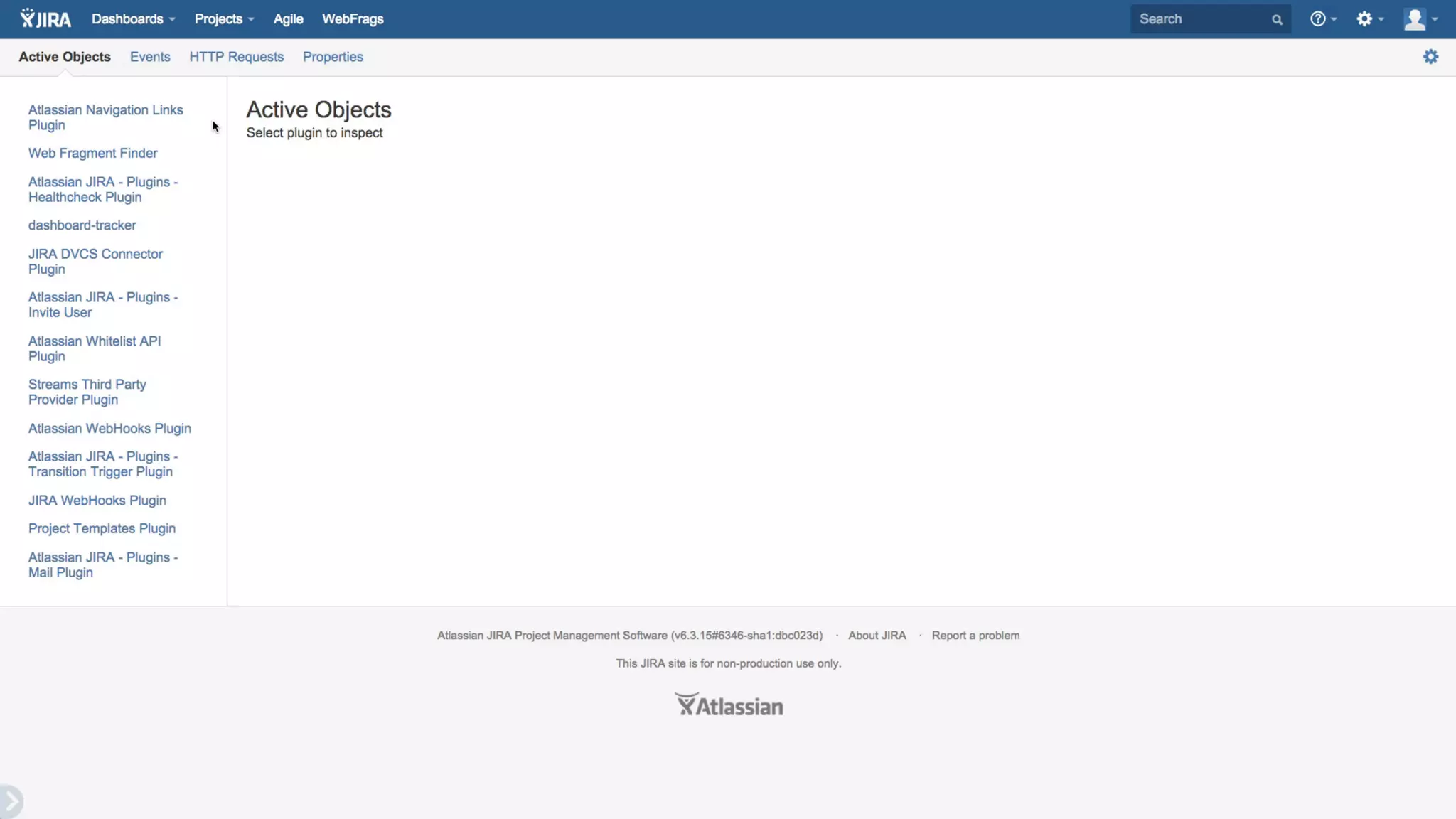

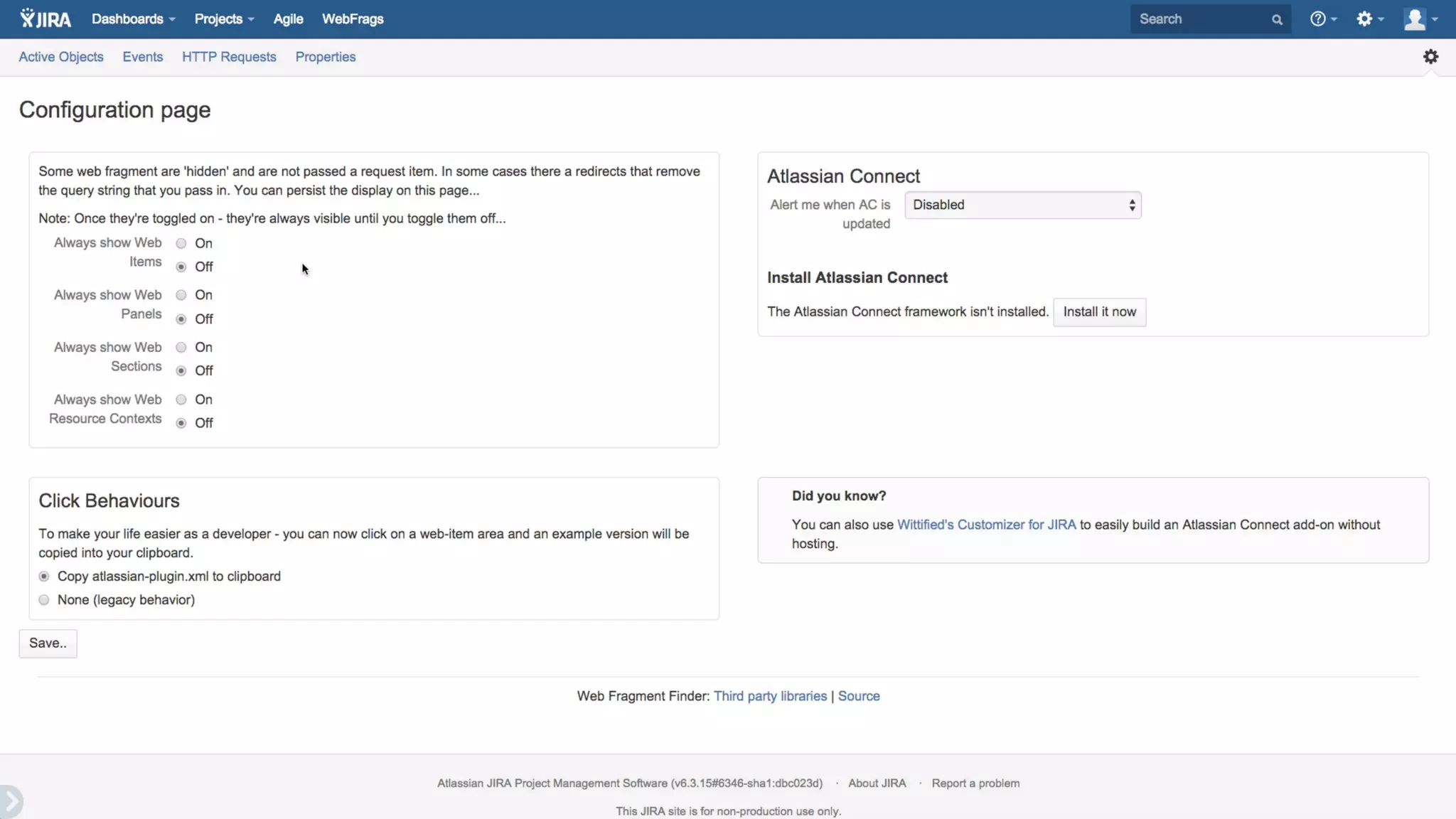

41. Web Fragment Finder functionality
• Identify Web Items/Panels/Sections/Resource locations
• Click to copy xml

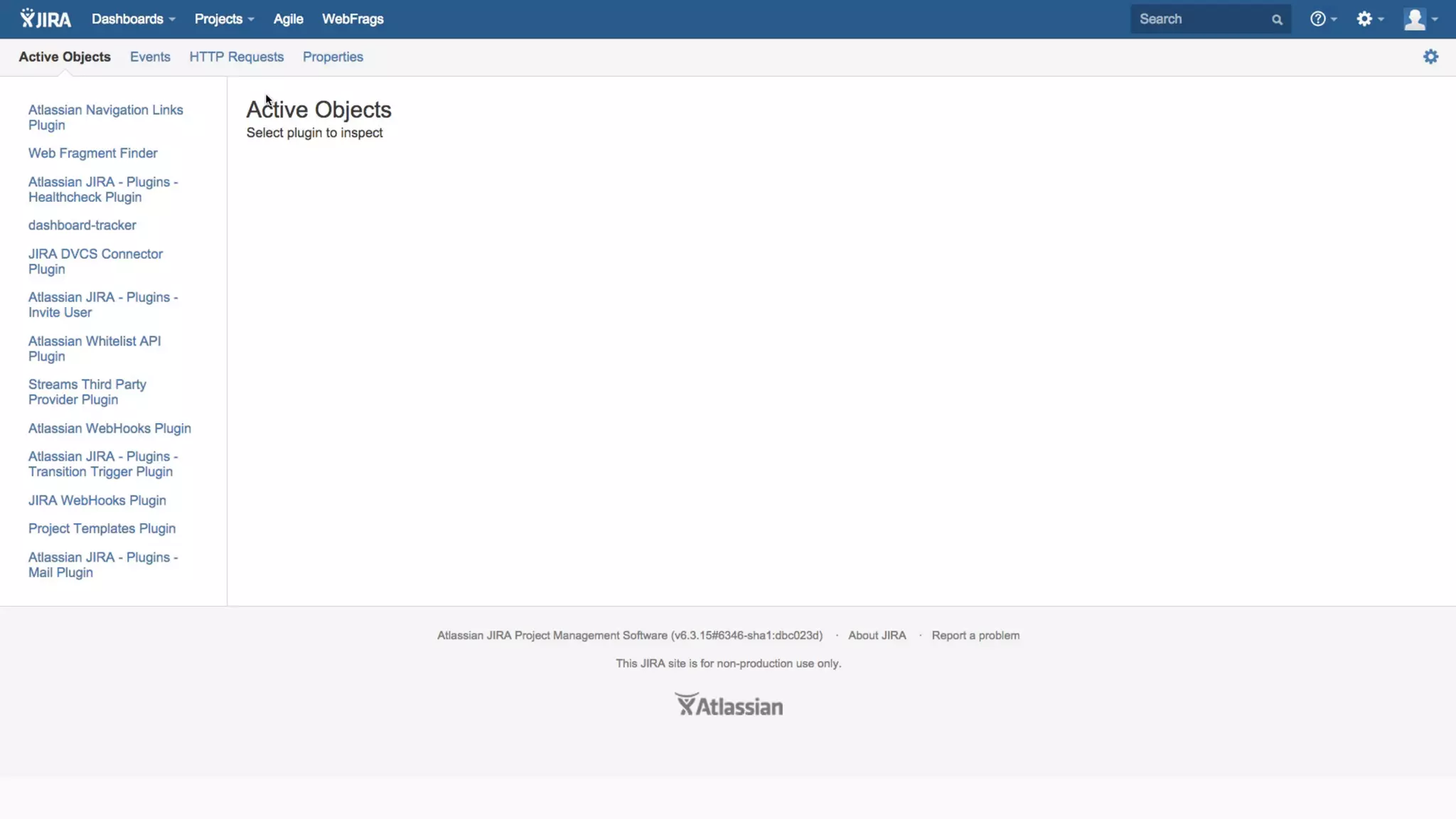

• Active Objects Inspector
• Event inspector

42. But what about Atlassian Connect?
SOMEBODY FROM ATLASSIAN
”“

43. BASIC WEB ITEMS
Atlassian Connect
WORKING WITH P2 ADD ONS
MANAGING AC ADDONS
HTTP
ADDING WEB PANELS
ISSUE PROPERTIES
ADVANCED WEB ITEMS
INSTALL ATLASSIAN CONNECT

44. BASIC WEB ITEMS
INSTALL ATLASSIAN CONNECT
Atlassian Connect
WORKING WITH P2 ADD ONS
MANAGING AC ADDONS
HTTP
ADDING WEB PANELS
ISSUE PROPERTIES
ADVANCED WEB ITEMS

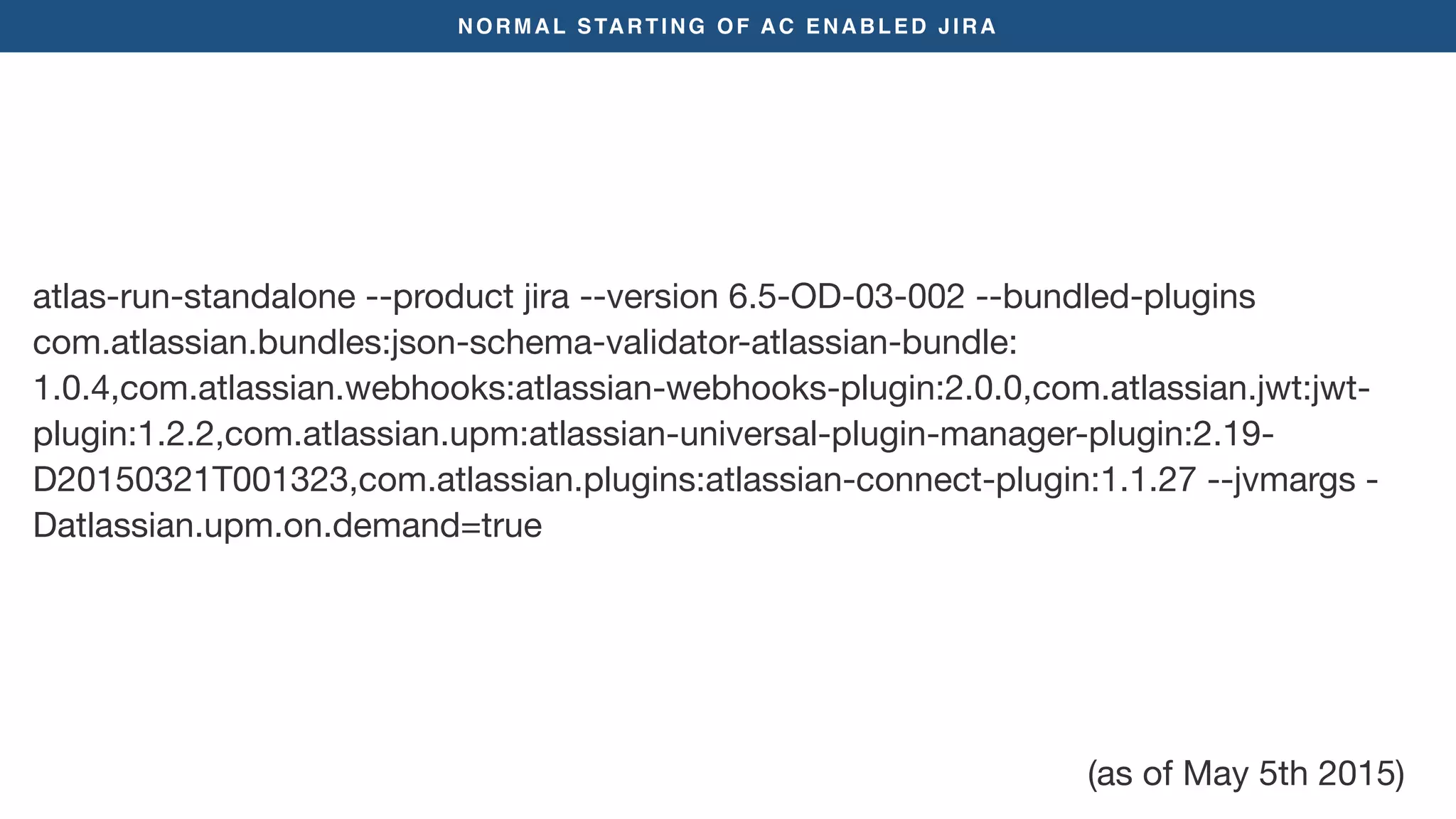

45. NORMAL STARTING OF AC ENABLED JIRA
atlas-run-standalone --product jira --version 6.5-OD-03-002 --bundled-plugins
com.atlassian.bundles:json-schema-validator-atlassian-bundle:
1.0.4,com.atlassian.webhooks:atlassian-webhooks-plugin:2.0.0,com.atlassian.jwt:jwt-
plugin:1.2.2,com.atlassian.upm:atlassian-universal-plugin-manager-plugin:2.19-
D20150321T001323,com.atlassian.plugins:atlassian-connect-plugin:1.1.27 --jvmargs -
Datlassian.upm.on.demand=true
(as of May 5th 2015)

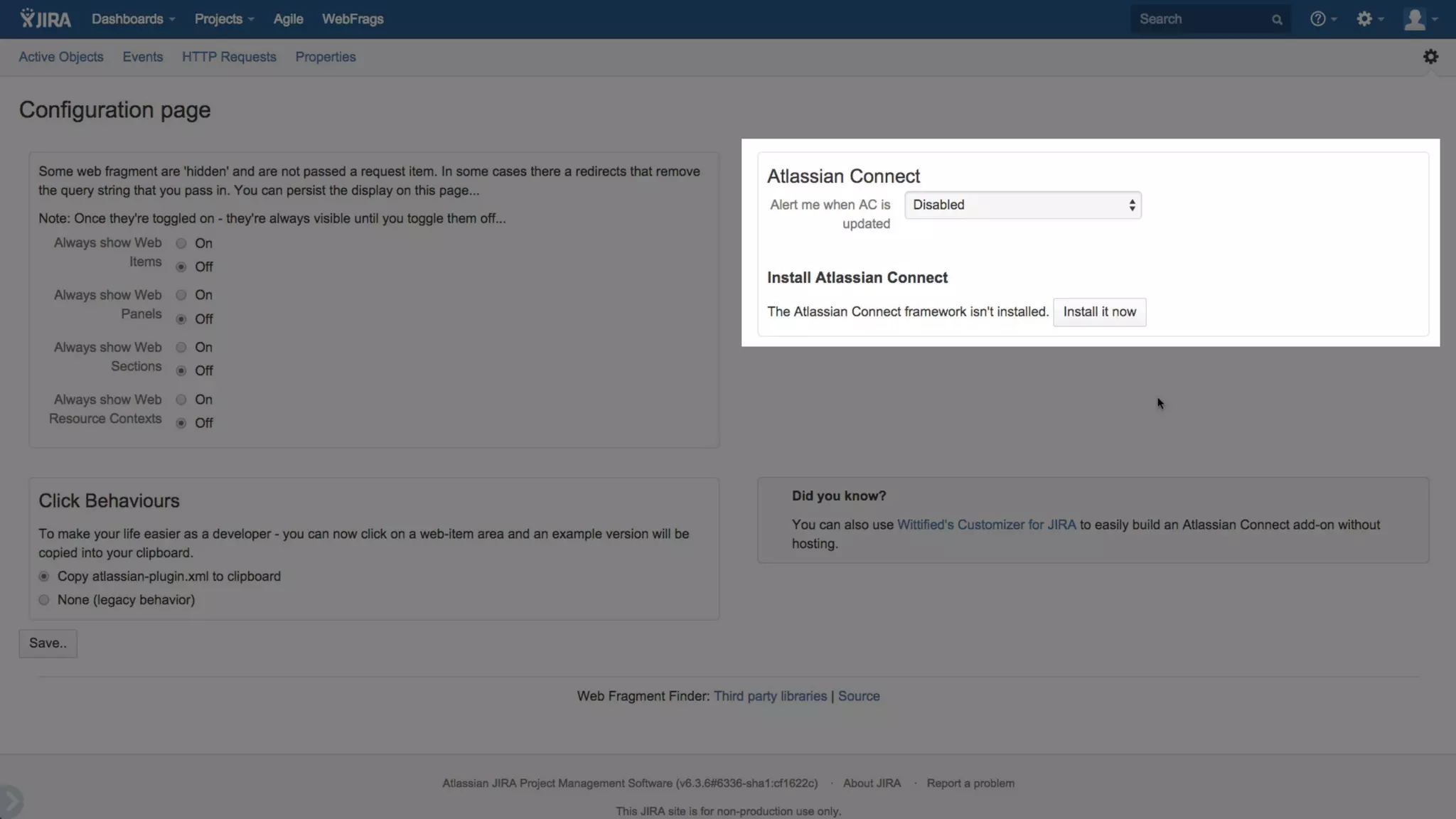

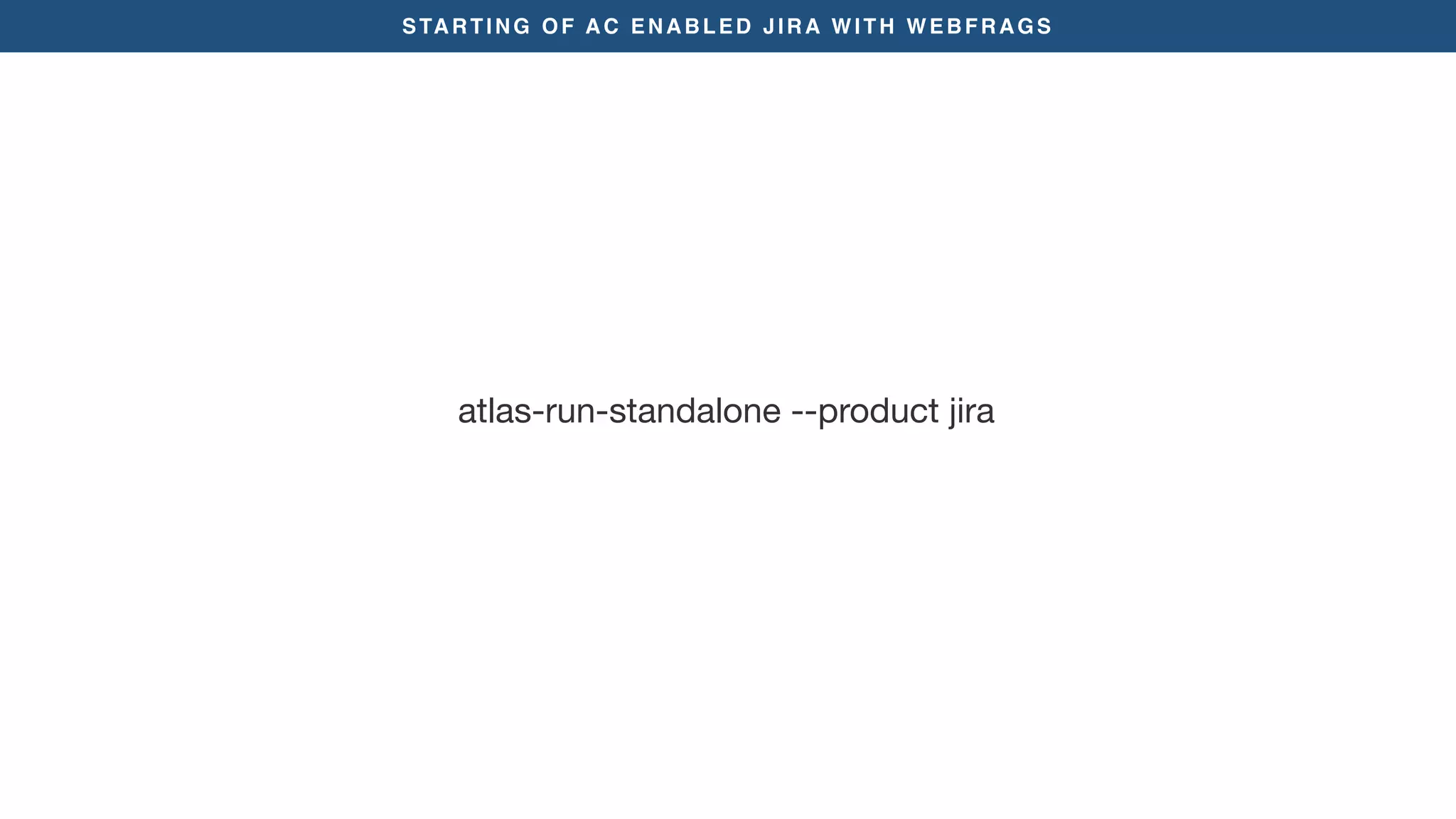

46. STARTING OF AC ENABLED JIRA WITH WEBFRAGS
atlas-run-standalone --product jira

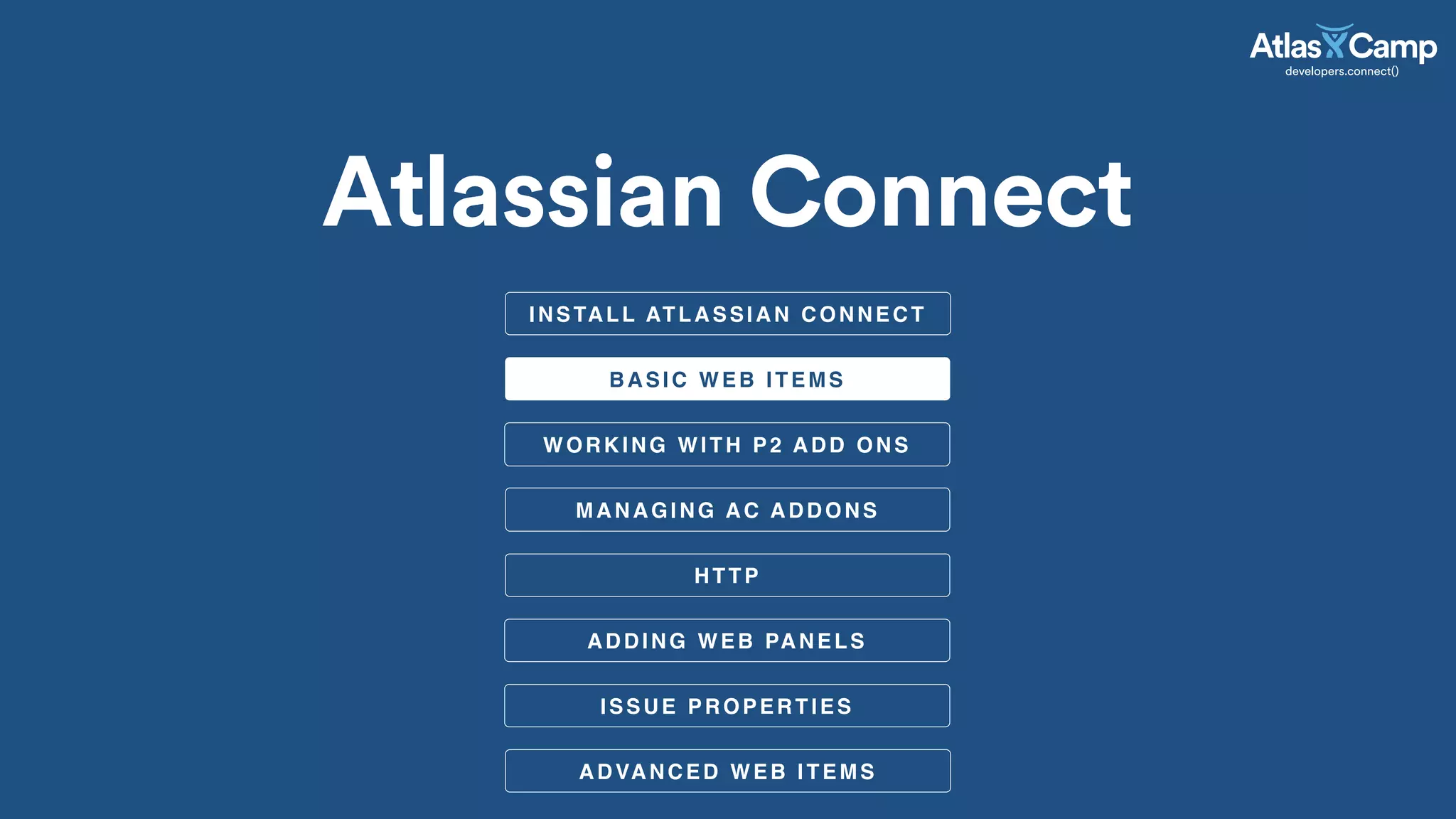

50. INSTALL ATLASSIAN CONNECT
BASIC WEB ITEMS
Atlassian Connect
WORKING WITH P2 ADD ONS
MANAGING AC ADDONS
HTTP
ADDING WEB PANELS
ISSUE PROPERTIES
ADVANCED WEB ITEMS

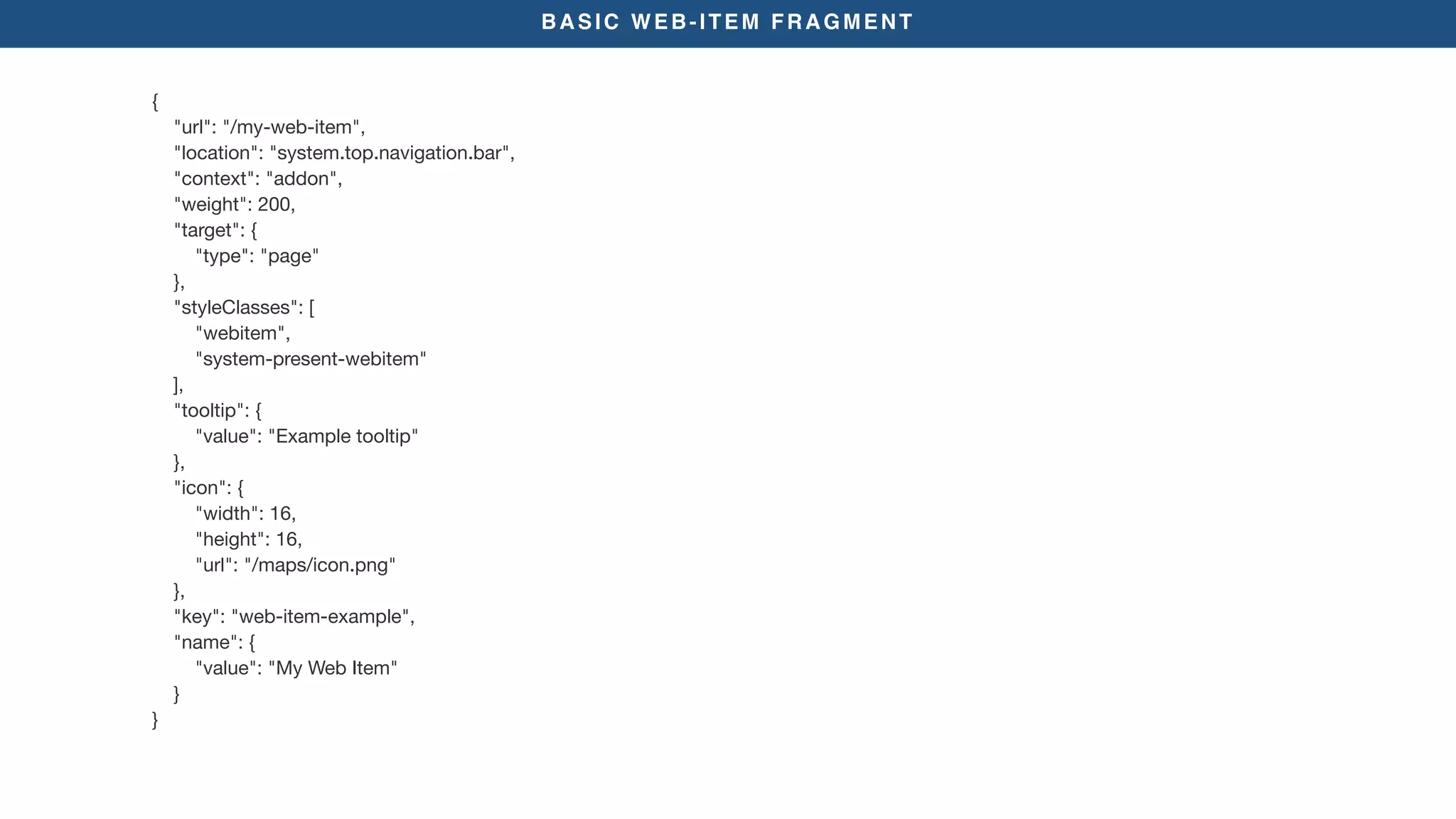

52. BASIC WEB-ITEM FRAGMENT
{
"url": "/my-web-item",
"location": "system.top.navigation.bar",
"context": "addon",
"weight": 200,
"target": {
"type": "page"
},
"styleClasses": [
"webitem",
"system-present-webitem"
],
"tooltip": {
"value": "Example tooltip"
},
"icon": {
"width": 16,
"height": 16,
"url": "/maps/icon.png"
},
"key": "web-item-example",
"name": {
"value": "My Web Item"
}
}

53. BASIC WEB ITEMS
WORKING WITH P2 ADD ONS
Atlassian Connect
MANAGING AC ADDONS
HTTP
ADDING WEB PANELS
ISSUE PROPERTIES
ADVANCED WEB ITEMS
INSTALL ATLASSIAN CONNECT

56. BASIC WEB ITEMS
MANAGING AC ADDONS
Atlassian Connect
WORKING WITH P2 ADD ONS
HTTP
ADDING WEB PANELS
ISSUE PROPERTIES
ADVANCED WEB ITEMS
INSTALL ATLASSIAN CONNECT

60. BASIC WEB ITEMS
HTTP
Atlassian Connect
WORKING WITH P2 ADD ONS
MANAGING AC ADDONS
ADDING WEB PANELS
ISSUE PROPERTIES
ADVANCED WEB ITEMS
INSTALL ATLASSIAN CONNECT

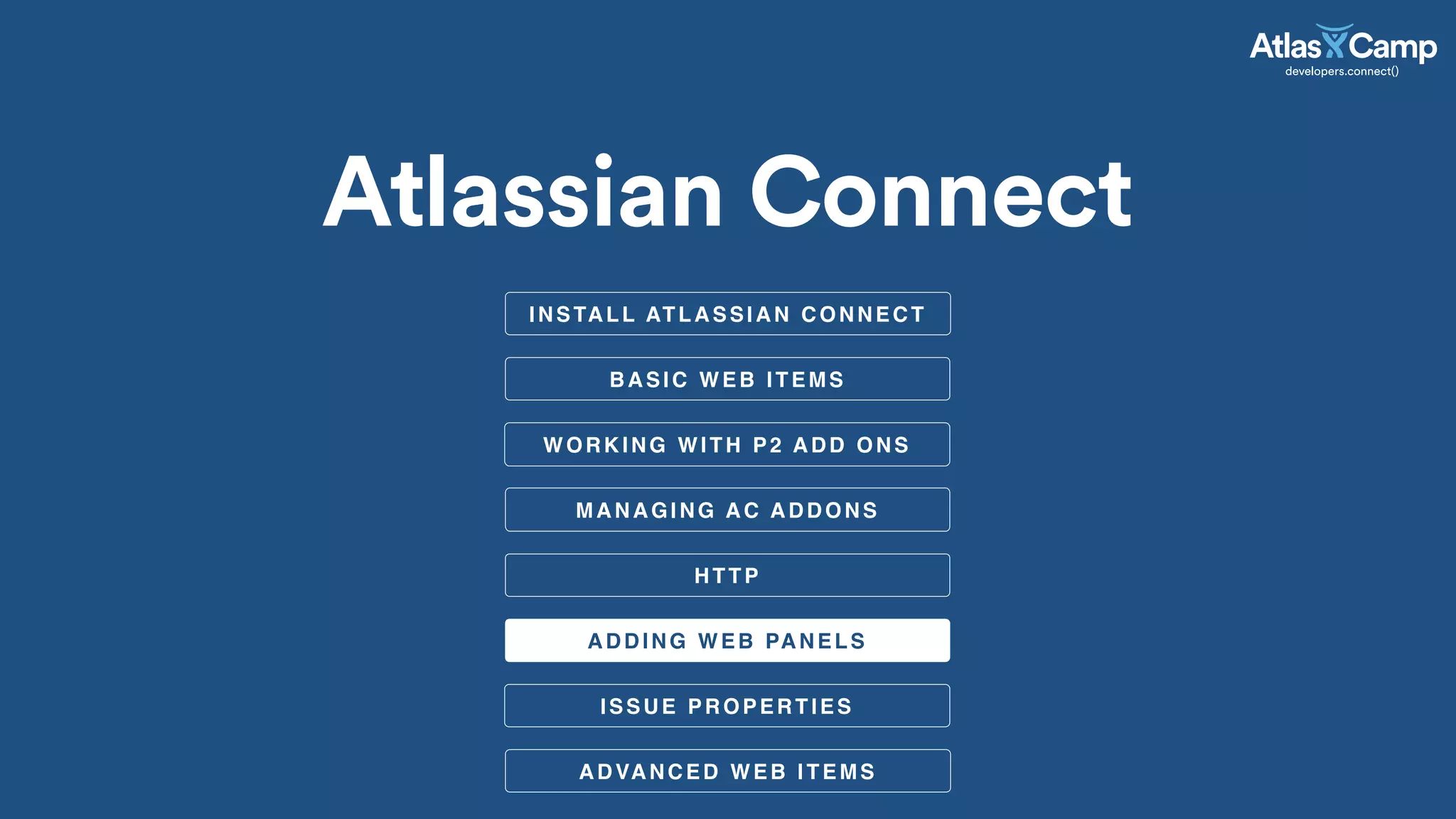

62. BASIC WEB ITEMS
ADDING WEB PANELS
Atlassian Connect
WORKING WITH P2 ADD ONS
MANAGING AC ADDONS
HTTP
ISSUE PROPERTIES
ADVANCED WEB ITEMS
INSTALL ATLASSIAN CONNECT

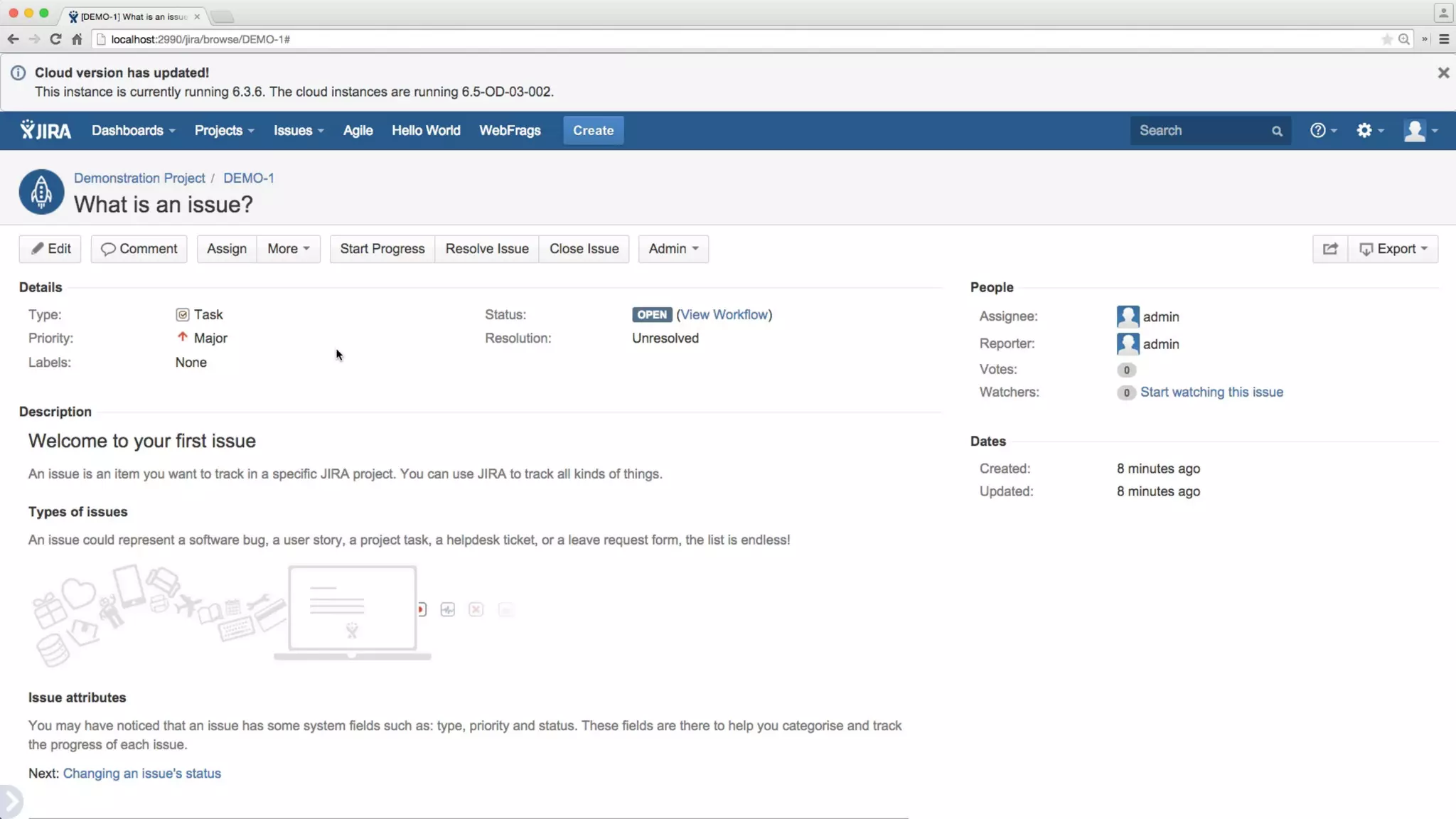

66. BASIC WEB ITEMS
ISSUE PROPERTIES
Atlassian Connect
WORKING WITH P2 ADD ONS
MANAGING AC ADDONS
HTTP
ADDING WEB PANELS
ADVANCED WEB ITEMS
INSTALL ATLASSIAN CONNECT

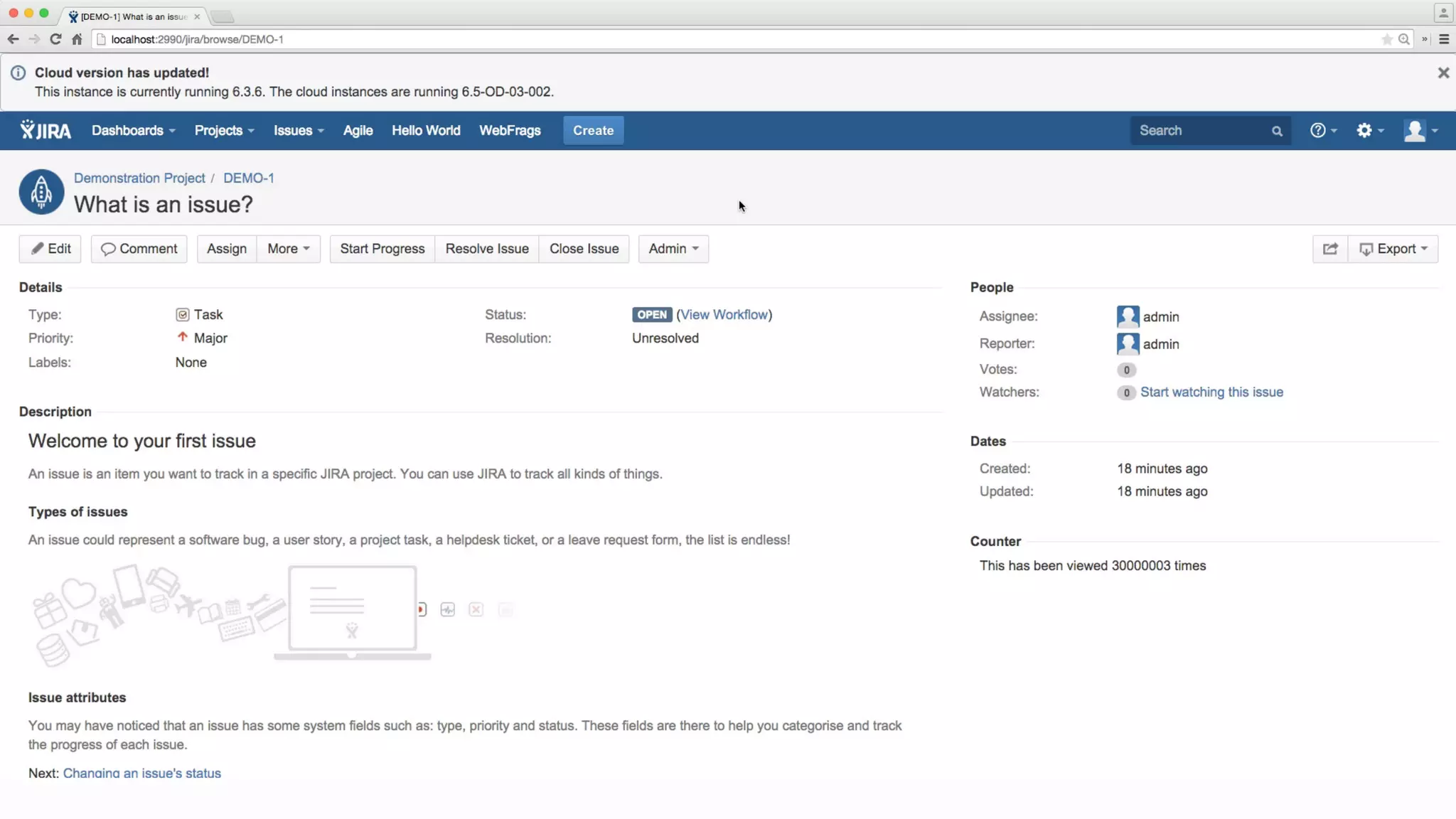

68. BASIC WEB ITEMS
ADVANCED WEB ITEMS
Atlassian Connect
WORKING WITH P2 ADD ONS
MANAGING AC ADDONS
HTTP
ADDING WEB PANELS
ISSUE PROPERTIES
INSTALL ATLASSIAN CONNECT

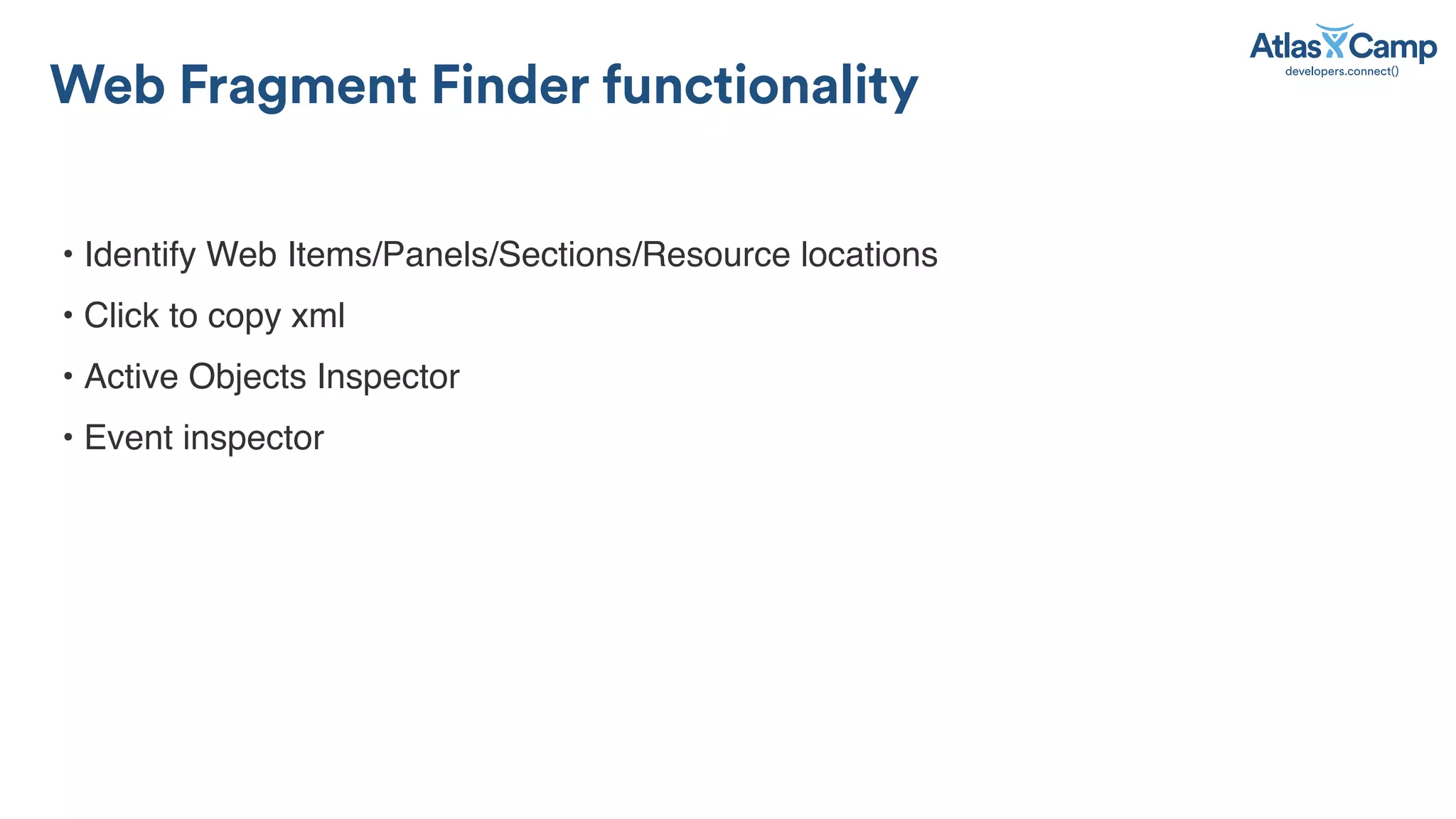

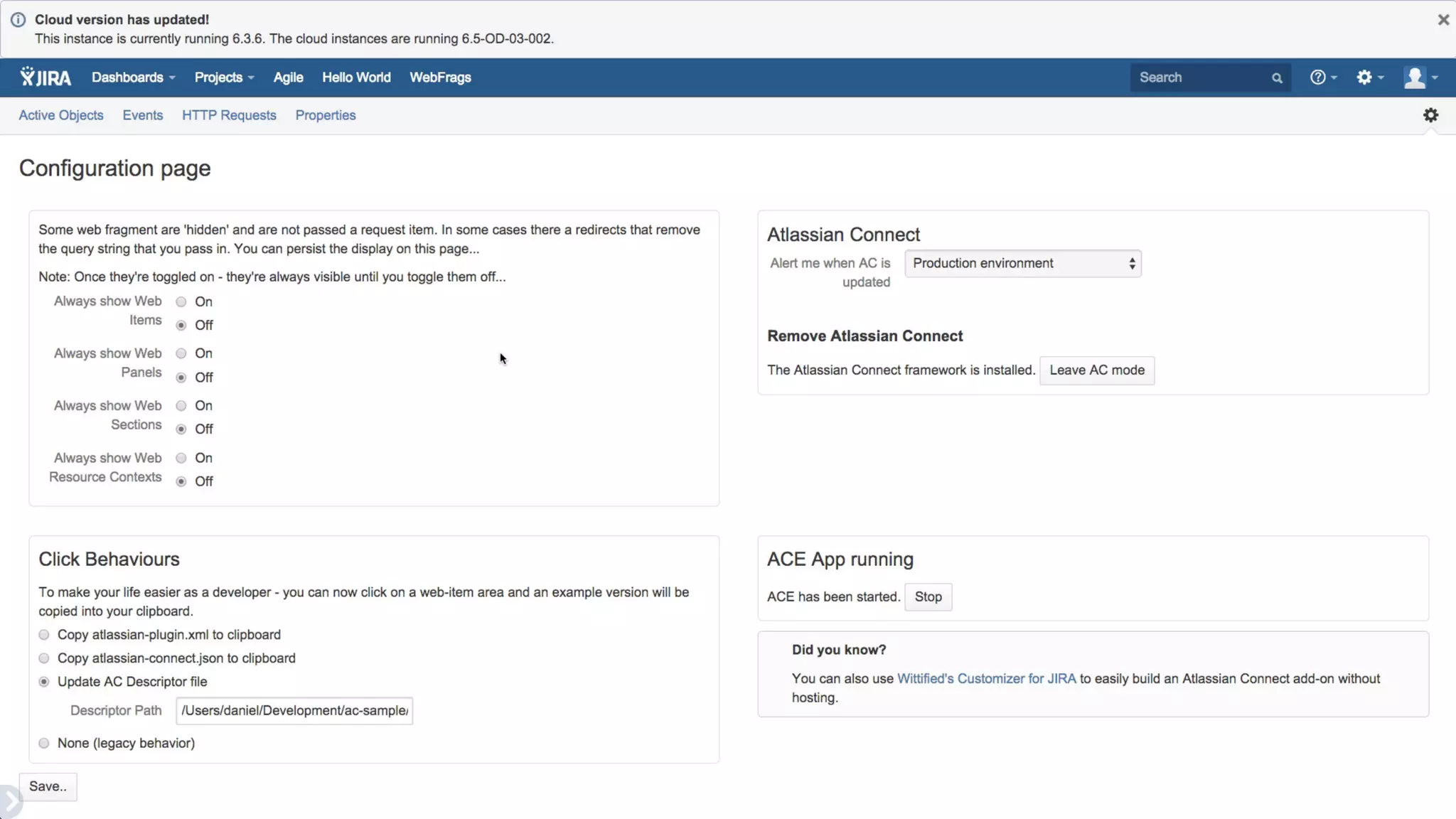

72. Web Fragment Finder functionality
• Identify Web Items/Panels/Sections/Resource locations
• Click to copy xml
• Active Objects Inspector
• Event inspector

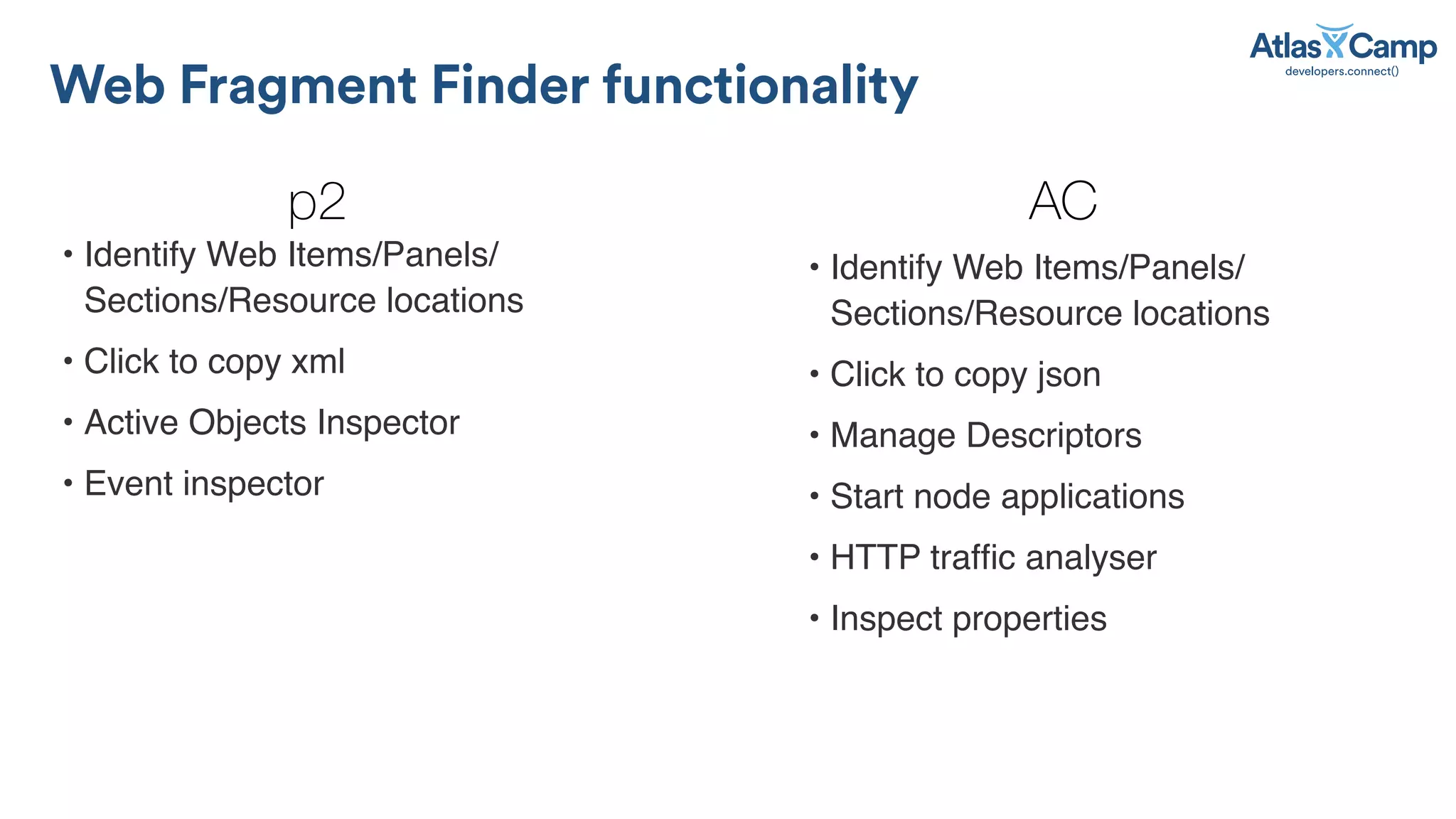

73. Web Fragment Finder functionality
• Identify Web Items/Panels/
Sections/Resource locations
• Click to copy xml
• Active Objects Inspector
• Event inspector
• Identify Web Items/Panels/
Sections/Resource locations
• Click to copy json
• Manage Descriptors
• Start node applications
• HTTP traffic analyser
• Inspect properties
p2 AC

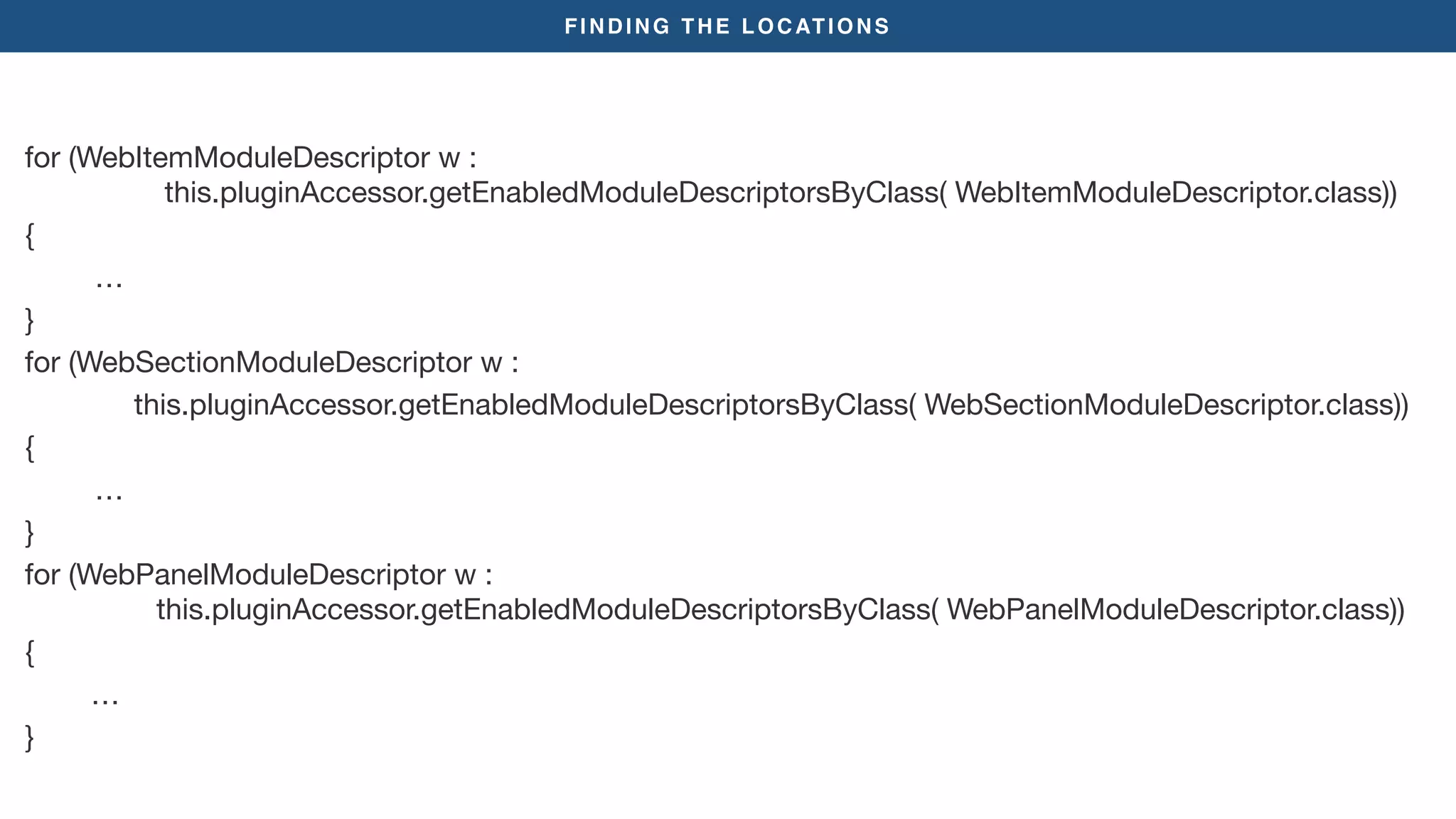

74. FINDING THE LOCATIONS
for (WebItemModuleDescriptor w :
this.pluginAccessor.getEnabledModuleDescriptorsByClass( WebItemModuleDescriptor.class))
{
…
}
for (WebSectionModuleDescriptor w :
this.pluginAccessor.getEnabledModuleDescriptorsByClass( WebSectionModuleDescriptor.class))
{
…
}
for (WebPanelModuleDescriptor w :
this.pluginAccessor.getEnabledModuleDescriptorsByClass( WebPanelModuleDescriptor.class))
{
…
}

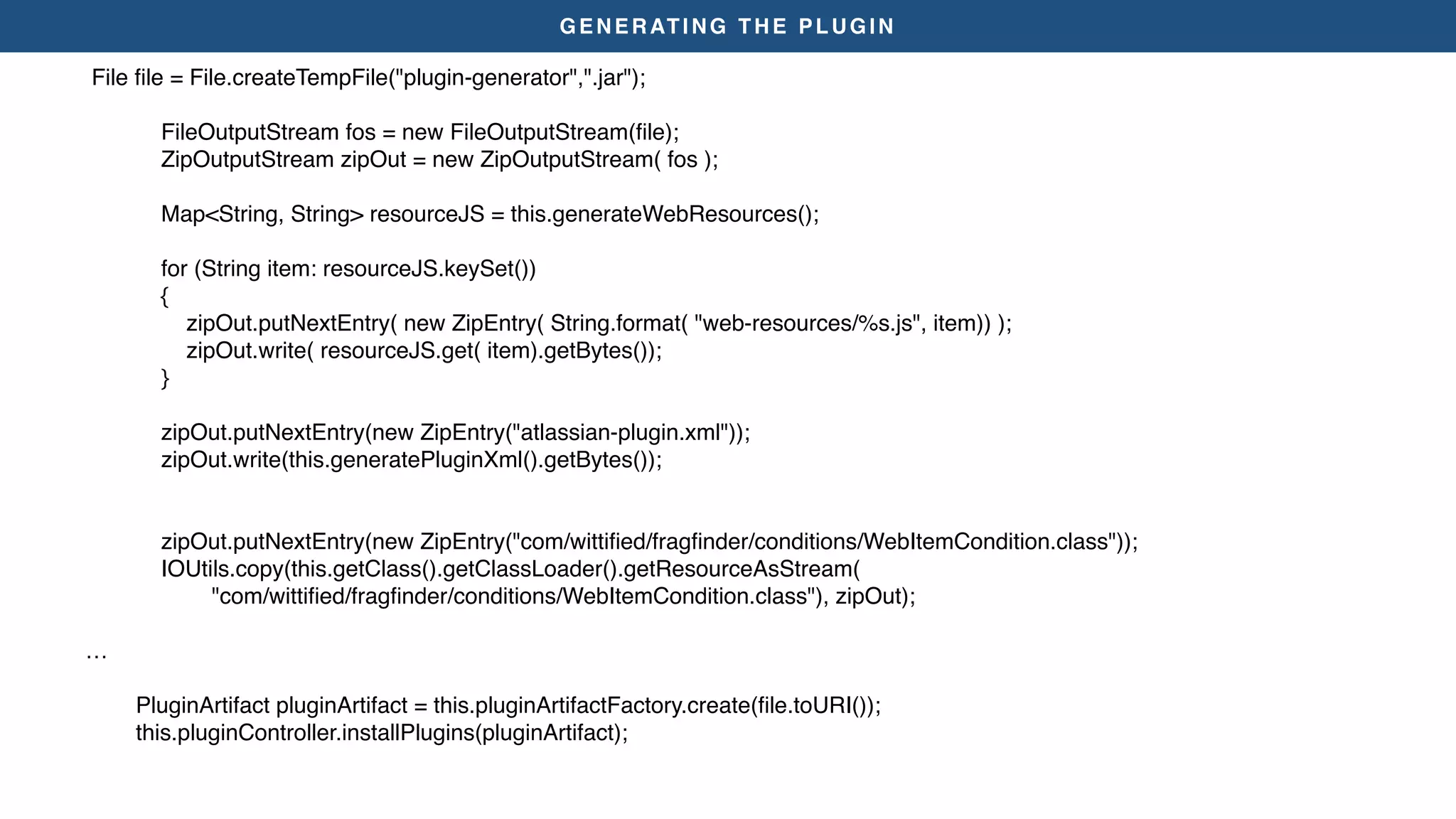

75. GENERATING THE PLUGIN
File file = File.createTempFile("plugin-generator",".jar");
FileOutputStream fos = new FileOutputStream(file);
ZipOutputStream zipOut = new ZipOutputStream( fos );
Map<String, String> resourceJS = this.generateWebResources();
for (String item: resourceJS.keySet())
{
zipOut.putNextEntry( new ZipEntry( String.format( "web-resources/%s.js", item)) );
zipOut.write( resourceJS.get( item).getBytes());
}
zipOut.putNextEntry(new ZipEntry("atlassian-plugin.xml"));
zipOut.write(this.generatePluginXml().getBytes());
zipOut.putNextEntry(new ZipEntry("com/wittified/fragfinder/conditions/WebItemCondition.class"));
IOUtils.copy(this.getClass().getClassLoader().getResourceAsStream(
"com/wittified/fragfinder/conditions/WebItemCondition.class"), zipOut);
…
PluginArtifact pluginArtifact = this.pluginArtifactFactory.create(file.toURI());
this.pluginController.installPlugins(pluginArtifact);

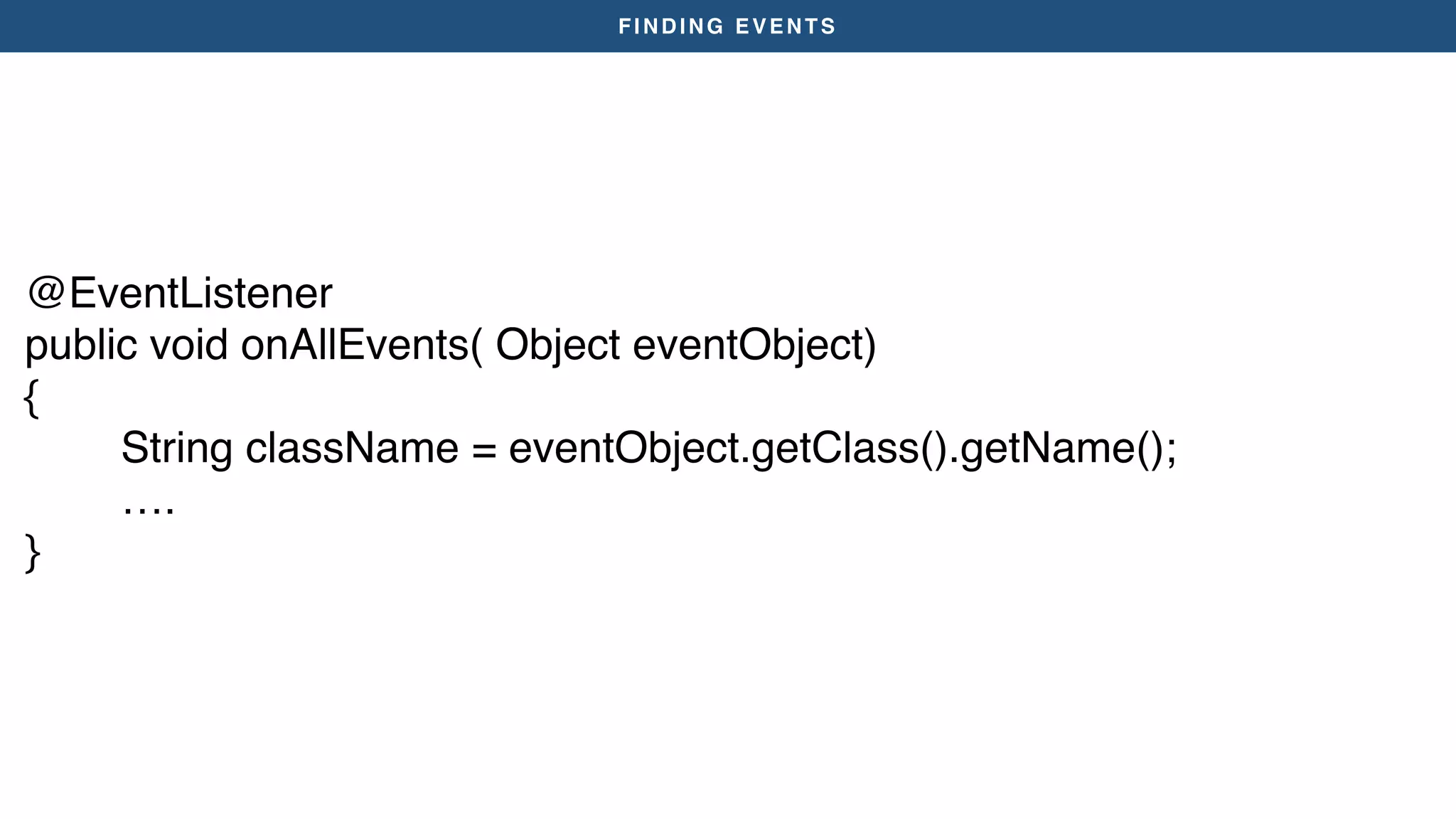

76. FINDING EVENTS
@EventListener
public void onAllEvents( Object eventObject)
{
String className = eventObject.getClass().getName();
….
}

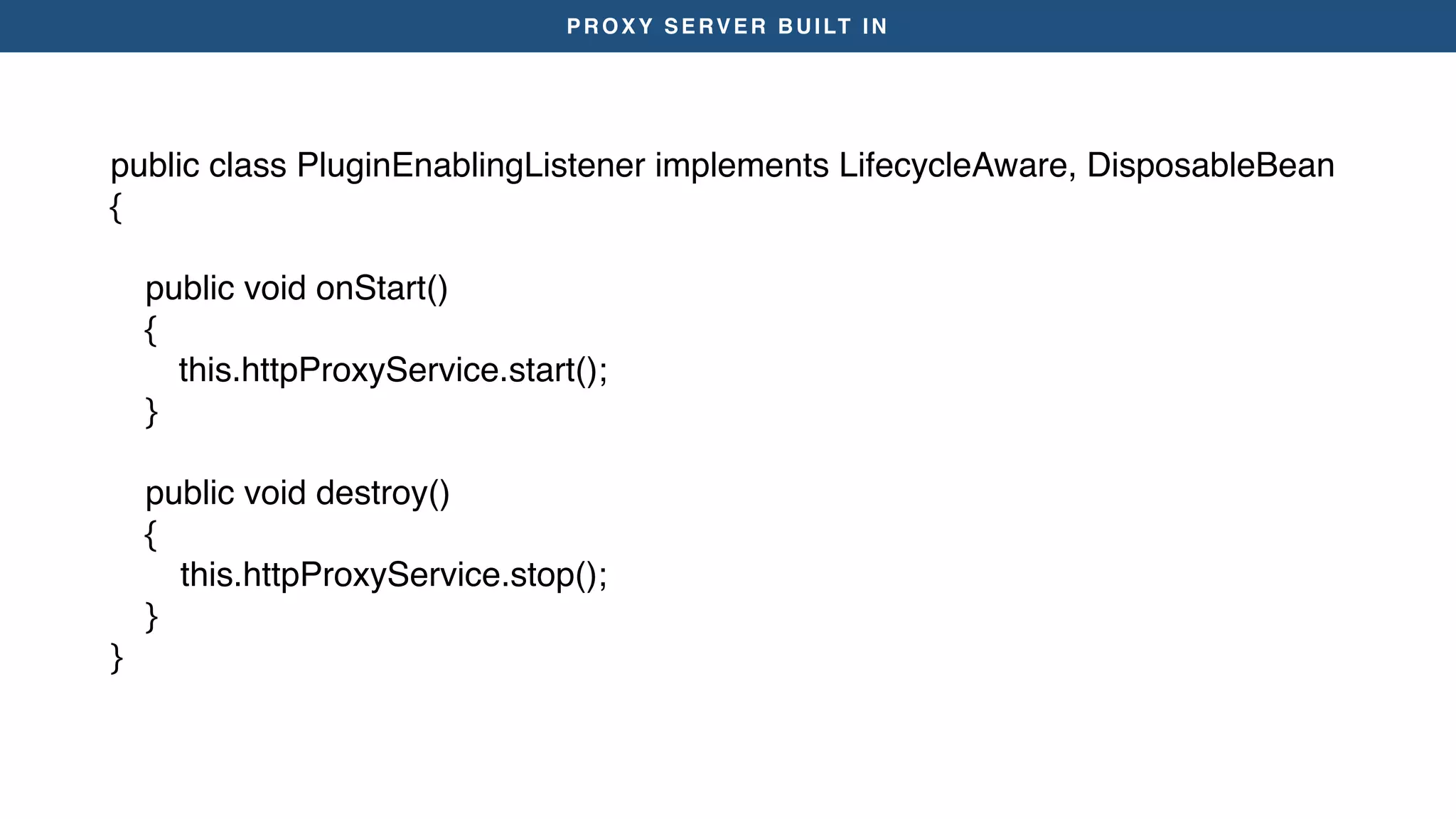

77. PROXY SERVER BUILT IN
public class PluginEnablingListener implements LifecycleAware, DisposableBean
{
public void onStart()
{
this.httpProxyService.start();
}
public void destroy()
{
this.httpProxyService.stop();
}
}

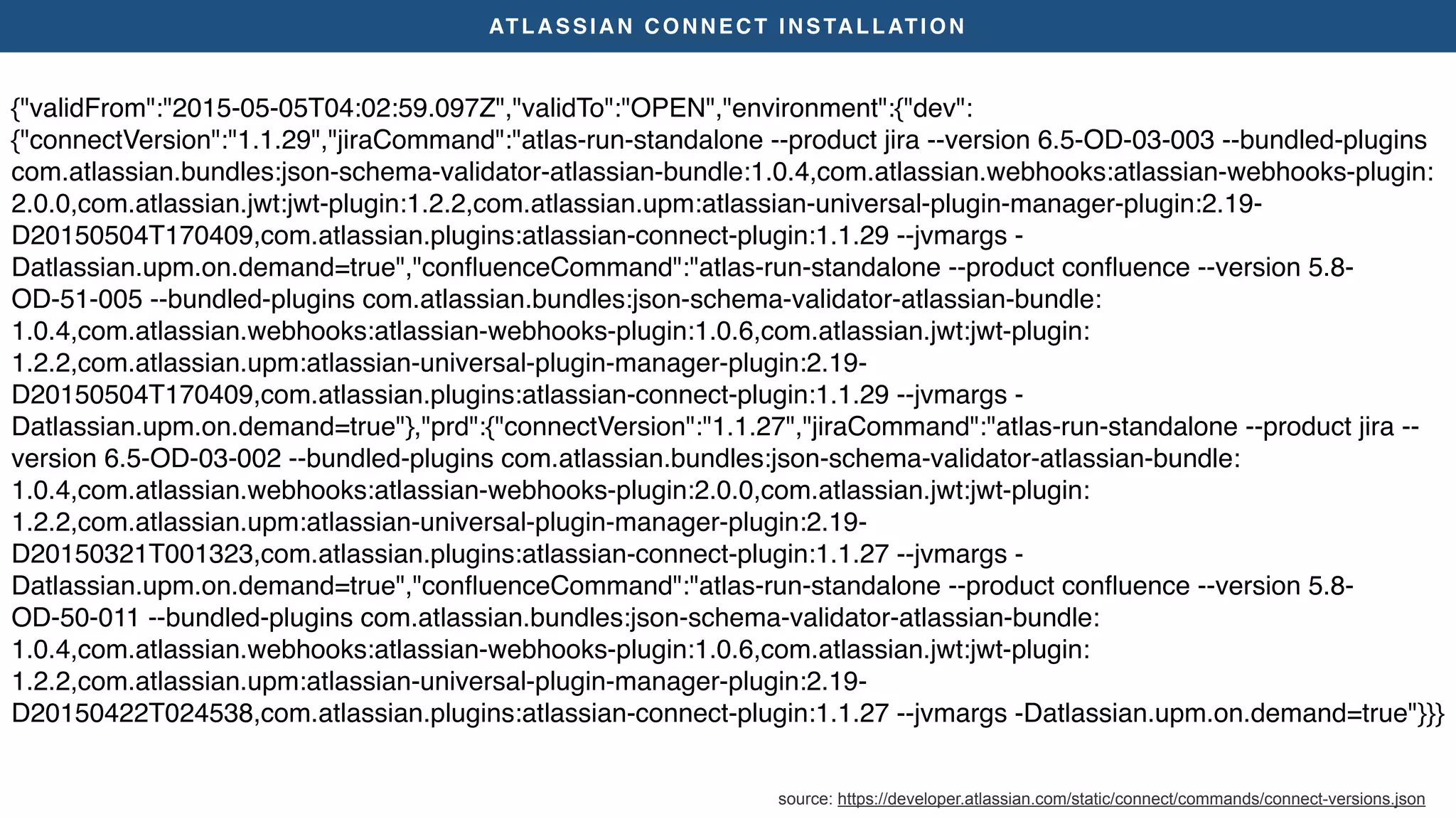

78. ATLASSIAN CONNECT INSTALLATION
{"validFrom":"2015-05-05T04:02:59.097Z","validTo":"OPEN","environment":{"dev":
{"connectVersion":"1.1.29","jiraCommand":"atlas-run-standalone --product jira --version 6.5-OD-03-003 --bundled-plugins
com.atlassian.bundles:json-schema-validator-atlassian-bundle:1.0.4,com.atlassian.webhooks:atlassian-webhooks-plugin:
2.0.0,com.atlassian.jwt:jwt-plugin:1.2.2,com.atlassian.upm:atlassian-universal-plugin-manager-plugin:2.19-
D20150504T170409,com.atlassian.plugins:atlassian-connect-plugin:1.1.29 --jvmargs -
Datlassian.upm.on.demand=true","confluenceCommand":"atlas-run-standalone --product confluence --version 5.8-
OD-51-005 --bundled-plugins com.atlassian.bundles:json-schema-validator-atlassian-bundle:
1.0.4,com.atlassian.webhooks:atlassian-webhooks-plugin:1.0.6,com.atlassian.jwt:jwt-plugin:
1.2.2,com.atlassian.upm:atlassian-universal-plugin-manager-plugin:2.19-
D20150504T170409,com.atlassian.plugins:atlassian-connect-plugin:1.1.29 --jvmargs -
Datlassian.upm.on.demand=true"},"prd":{"connectVersion":"1.1.27","jiraCommand":"atlas-run-standalone --product jira --
version 6.5-OD-03-002 --bundled-plugins com.atlassian.bundles:json-schema-validator-atlassian-bundle:
1.0.4,com.atlassian.webhooks:atlassian-webhooks-plugin:2.0.0,com.atlassian.jwt:jwt-plugin:
1.2.2,com.atlassian.upm:atlassian-universal-plugin-manager-plugin:2.19-
D20150321T001323,com.atlassian.plugins:atlassian-connect-plugin:1.1.27 --jvmargs -
Datlassian.upm.on.demand=true","confluenceCommand":"atlas-run-standalone --product confluence --version 5.8-
OD-50-011 --bundled-plugins com.atlassian.bundles:json-schema-validator-atlassian-bundle:
1.0.4,com.atlassian.webhooks:atlassian-webhooks-plugin:1.0.6,com.atlassian.jwt:jwt-plugin:
1.2.2,com.atlassian.upm:atlassian-universal-plugin-manager-plugin:2.19-
D20150422T024538,com.atlassian.plugins:atlassian-connect-plugin:1.1.27 --jvmargs -Datlassian.upm.on.demand=true"}}}
source: https://developer.atlassian.com/static/connect/commands/connect-versions.json

79. * Sorry Crowd
Available for almost all apps*

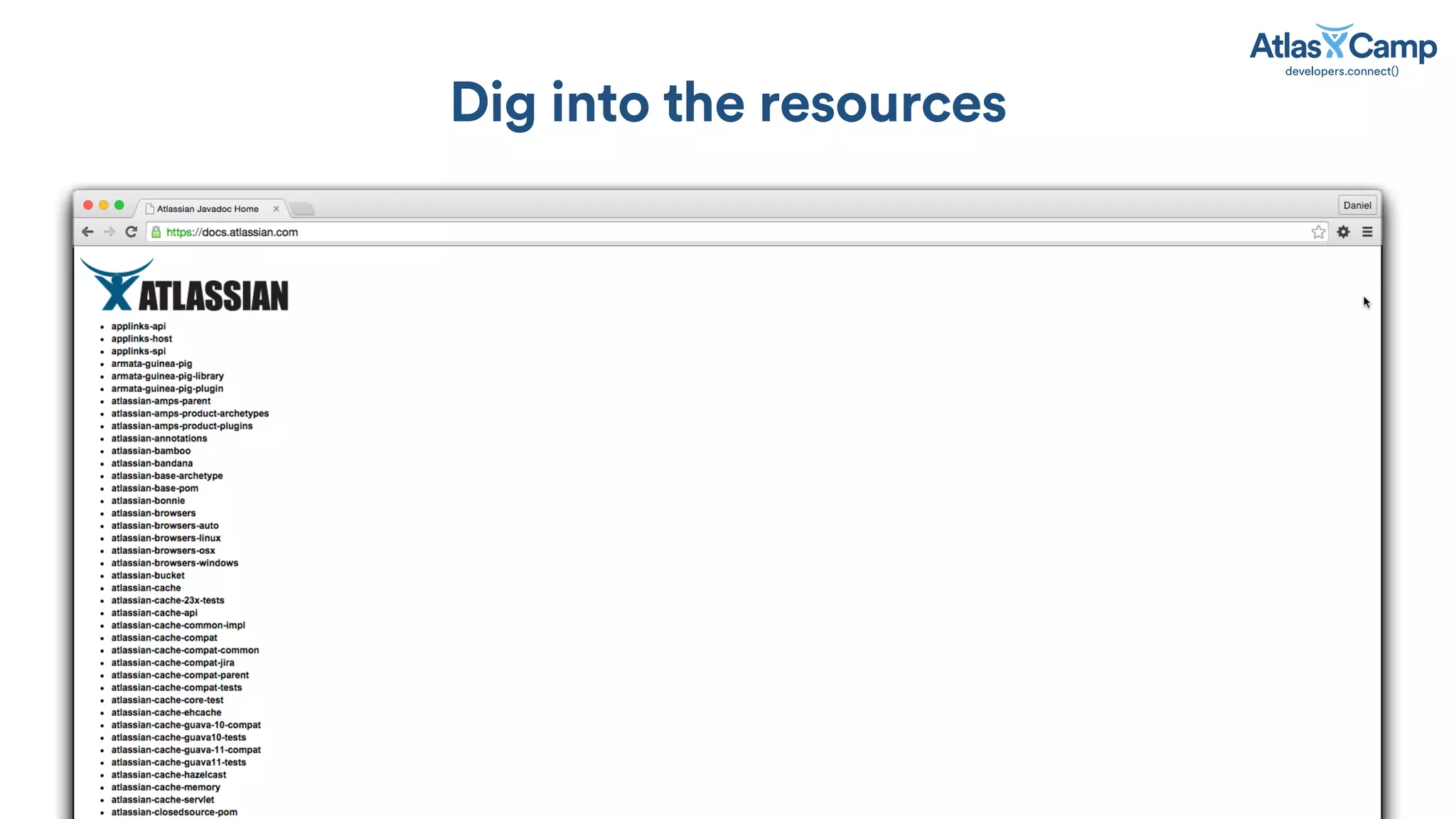

80. Dig into the resources

82. Use Web Fragment Finder

83. Thank you!
DANIEL WESTER • CO-FOUNDER • WITTIFIED • @DWESTER42A
