5. Electrons in the atoms of the laser medium are first
pumped to excited state by external energy source.
Electrons are stimulated by external photon to emit
their stored energy in form of photons –
STIMULATED EMISSION

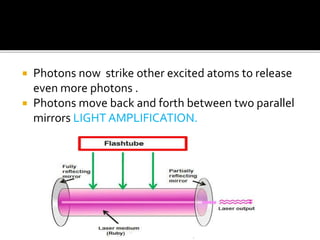

6. Photons now strike other excited atoms to release
even more photons .
Photons move back and forth between two parallel
mirrors LIGHT AMPLIFICATION.

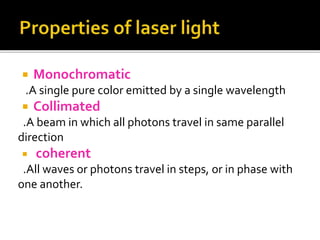

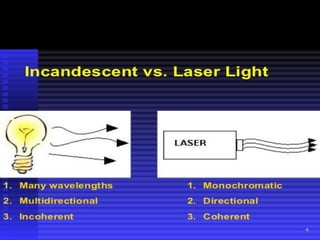

7. Monochromatic
.A single pure color emitted by a single wavelength
Collimated
.A beam in which all photons travel in same parallel
direction
coherent
.All waves or photons travel in steps, or in phase with
one another.

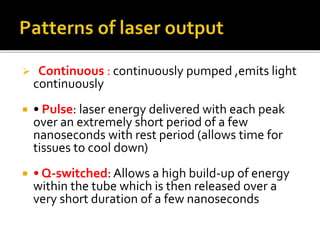

10. Continuous : continuously pumped ,emits light
continuously
• Pulse: laser energy delivered with each peak
over an extremely short period of a few
nanoseconds with rest period (allows time for
tissues to cool down)
• Q-switched: Allows a high build-up of energy
within the tube which is then released over a
very short duration of a few nanoseconds
11. Cavity dumped Lasers- produces slightly
shorter pulse of light
Mode locked lasers-produces pulses of light
as short as few pico seconds.

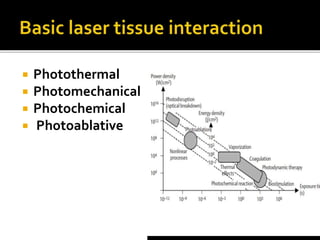

15. •When laser radiation strikes a tissue, the
temperature begins to rise
• 10 0 C – 45 0 C : Conformation change of
proteins
• 50 0 C : Reduction of enzyme activity
• 60 0 - 99°C : Coagulation begins
• 100°C and above :Vaporization starts
• 400 0 -500°C : Char starts to burn

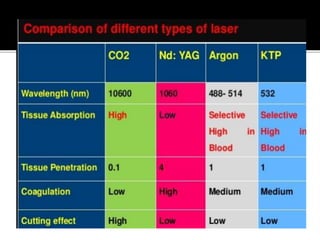

16.

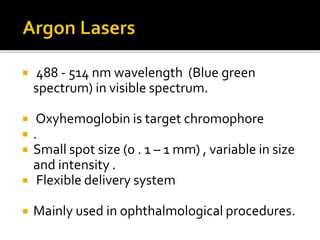

17. 488 - 514 nm wavelength (Blue green
spectrum) in visible spectrum.
Oxyhemoglobin is target chromophore
.
Small spot size (0 . 1 – 1 mm) , variable in size
and intensity .
Flexible delivery system
Mainly used in ophthalmological procedures.

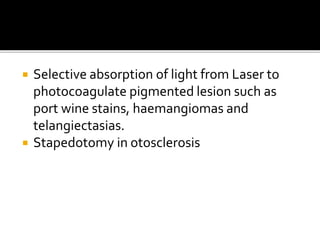

18. Selective absorption of light from Laser to
photocoagulate pigmented lesion such as
port wine stains, haemangiomas and
telangiectasias.

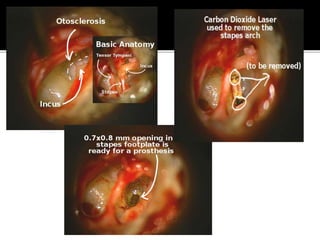

Stapedotomy in otosclerosis

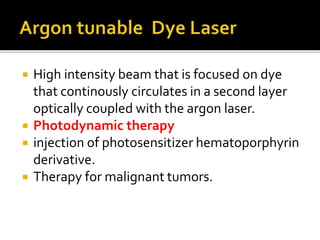

19. High intensity beam that is focused on dye
that continously circulates in a second layer
optically coupled with the argon laser.
Photodynamic therapy
injection of photosensitizer hematoporphyrin
derivative.
Therapy for malignant tumors.

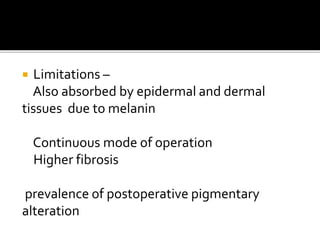

20. Limitations –
Also absorbed by epidermal and dermal
tissues due to melanin
Continuous mode of operation
Higher fibrosis
prevalence of postoperative pigmentary
alteration
21. 10,600 nm wavelength
Built –in coaxial helium neon Laser is necessary.
Highest power continuous wave laser used for cutting
or ablating tool using water as target chromophore
Focus to <500 mm and seals blood vessels less than
0.5 mm
Pulsed to accommodate thermal relaxation time (less
pain and less edema)
Used in majority of procedures except those requiring
coagulation of larger vessel

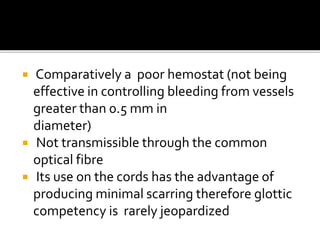

22. Comparatively a poor hemostat (not being
effective in controlling bleeding from vessels
greater than 0.5 mm in
diameter)
Not transmissible through the common
optical fibre
Its use on the cords has the advantage of
producing minimal scarring therefore glottic
competency is rarely jeopardized
23. Laser stapedotomy
Recurrent respiratory papillomatosis
In paediatric patients surgery for web ,
subglottic stenosis, capillary hemangiomas.
Laser cordotomy , arytenoidectomy.
Malignant & benign laryngeal tumours.
Transoral robotic surgery.

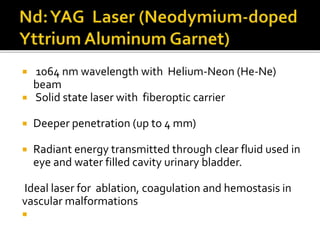

24. 1064 nm wavelength with Helium-Neon (He-Ne)
beam
Solid state laser with fiberoptic carrier
Deeper penetration (up to 4 mm)
Radiant energy transmitted through clear fluid used in
eye and water filled cavity urinary bladder.
Ideal laser for ablation, coagulation and hemostasis in
vascular malformations

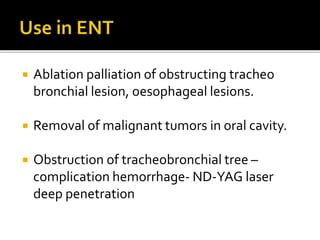

25. Ablation palliation of obstructing tracheo
bronchial lesion, oesophageal lesions.
Removal of malignant tumors in oral cavity.
Obstruction of tracheobronchial tree –
complication hemorrhage- ND-YAG laser
deep penetration

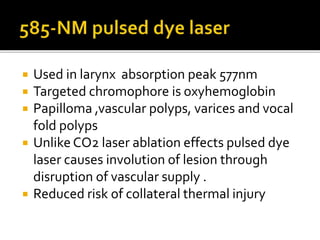

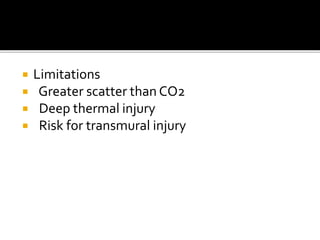

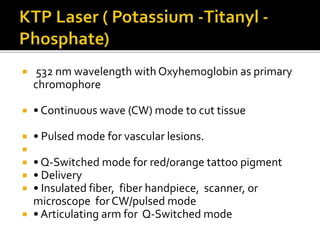

29. Used in larynx absorption peak 577nm
Targeted chromophore is oxyhemoglobin

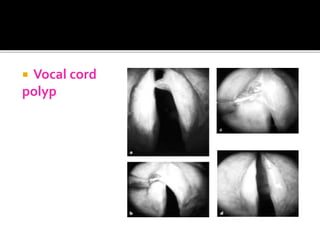

Papilloma ,vascular polyps, varices and vocal
fold polyps
Unlike CO2 laser ablation effects pulsed dye
laser causes involution of lesion through
disruption of vascular supply .
Reduced risk of collateral thermal injury

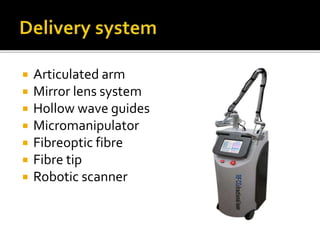

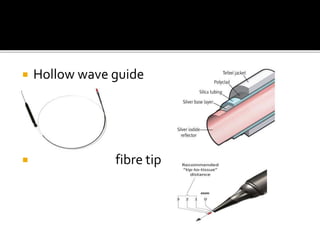

30. Articulated arm
Mirror lens system
Hollow wave guides
Micromanipulator
Fibreoptic fibre
Fibre tip
Robotic scanner
31. Articulated arm
use system of hollow
Tubes & mirrors to direct
Laser beam to tissue.
Micromanipulator
Focussing device connected
To microscope create an
Accurate &reproducible spot
On target tissue

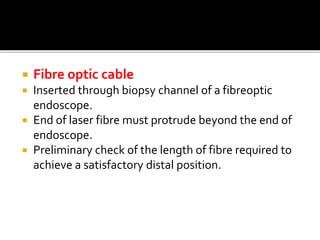

32. Fibre optic cable
Inserted through biopsy channel of a fibreoptic
endoscope.
End of laser fibre must protrude beyond the end of
endoscope.
Preliminary check of the length of fibre required to
achieve a satisfactory distal position.

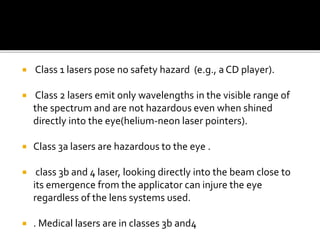

34. Class 1 lasers pose no safety hazard (e.g., a CD player).
Class 2 lasers emit only wavelengths in the visible range of
the spectrum and are not hazardous even when shined
directly into the eye(helium-neon laser pointers).
Class 3a lasers are hazardous to the eye .
class 3b and 4 laser, looking directly into the beam close to
its emergence from the applicator can injure the eye
regardless of the lens systems used.
. Medical lasers are in classes 3b and4

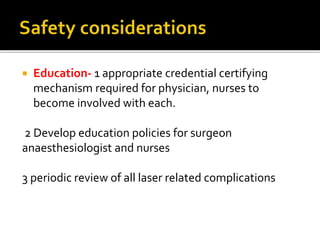

35. Education- 1 appropriate credential certifying
mechanism required for physician, nurses to
become involved with each.
2 Develop education policies for surgeon
anaesthesiologist and nurses
3 periodic review of all laser related complications
36. Lasers absorbed by water (e.g., CO2) damage the
anterior portions of the eye (cornea, lens)
wavelengths in the visible and NIR range (e.g., argon
and Nd:YAG lasers) pass through the optical media of
the eye and damage the retina.
Wavelenght specific protected eye glass with side
protectors
Double layer of saline moistened eye pad
.
Saline saturated surgical towel completely drape
37.
38. Seperated suction set up in aerodigestive tract
One for Smoke and steam evacuation from
operative field
Constant suctioning prevent inhalation by patient
surgeon or personnel.

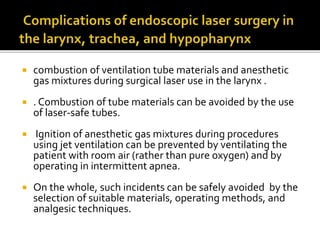

39. ET tube ignition & injury to larngotracheal
mucosa
.Tubes are made laser safe in two ways by
using:
noncombustible or fire-resistant materials
such as a metal spiral tube
compressed foam (Merocel Laser-Guard),
which is made laser resistant by moistening.
Methylene blue colored saline to inflate cuff
40. 1. An endotracheal tube should be kept out of the
operating field if at all possible
2. If this cannot be done, a laser-resistant tube
should be used
3. . If a laser-resistant tube cannot be used, the
surgeon should be able to identify the tube in
the operative field at any time.
4. In this case the part of the tube closest to the
surgical site can be protected by covering it
with wet neurosurgical cotton.
5. Wrapping the tube with aluminum foil can give
a false sense of security and is not advised.
41. 50ml bulb syringe and basin of saline should
be available
Stop ventilation immediately
Withdraw tube and flush saline
Re establish airway immediately
Bronchoscopy to assess degree of injury
I/V steroids
Remain intubated
Repeat bronchoscopy

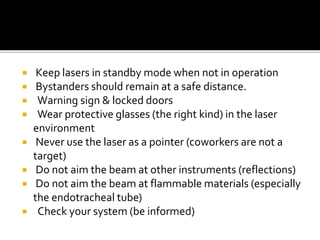

42. Keep lasers in standby mode when not in operation
Bystanders should remain at a safe distance.
Warning sign & locked doors
Wear protective glasses (the right kind) in the laser
environment
Never use the laser as a pointer (coworkers are not a
target)
Do not aim the beam at other instruments (reflections)
Do not aim the beam at flammable materials (especially
the endotracheal tube)
Check your system (be informed)

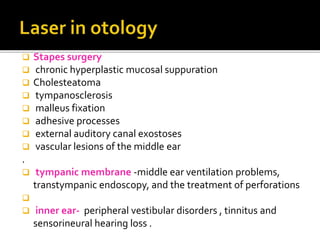

43. Stapes surgery
chronic hyperplastic mucosal suppuration
Cholesteatoma
tympanosclerosis
malleus fixation
adhesive processes
external auditory canal exostoses
vascular lesions of the middle ear
.
tympanic membrane -middle ear ventilation problems,
transtympanic endoscopy, and the treatment of perforations
inner ear- peripheral vestibular disorders , tinnitus and
sensorineural hearing loss .

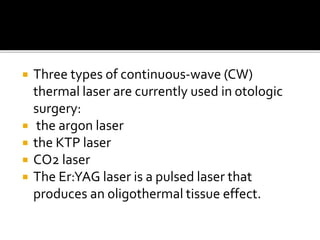

44. Three types of continuous-wave (CW)
thermal laser are currently used in otologic
surgery:
the argon laser
the KTP laser
CO2 laser
The Er:YAG laser is a pulsed laser that
produces an oligothermal tissue effect.

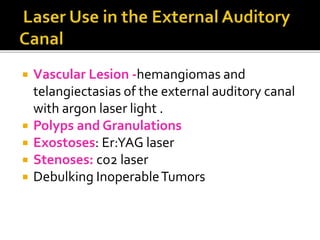

45. Vascular Lesion -hemangiomas and
telangiectasias of the external auditory canal
with argon laser light .
Polyps and Granulations
Exostoses: Er:YAG laser
Stenoses: co2 laser
Debulking InoperableTumors

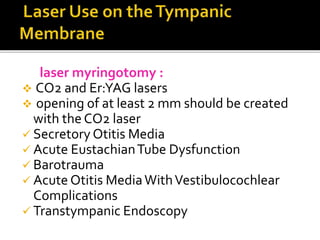

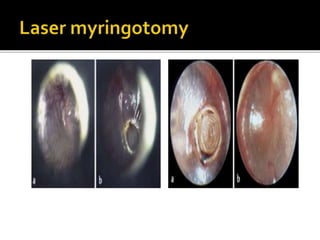

46. laser myringotomy :
CO2 and Er:YAG lasers
opening of at least 2 mm should be created
with the CO2 laser
Secretory Otitis Media
Acute EustachianTube Dysfunction
Barotrauma
Acute Otitis MediaWithVestibulocochlear
Complications
Transtympanic Endoscopy
47.

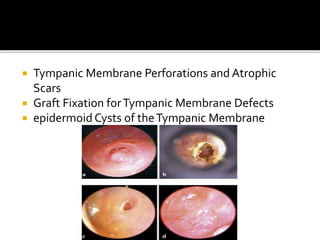

48. Tympanic Membrane Perforations and Atrophic
Scars
Graft Fixation forTympanic Membrane Defects
epidermoid Cysts of theTympanic Membrane

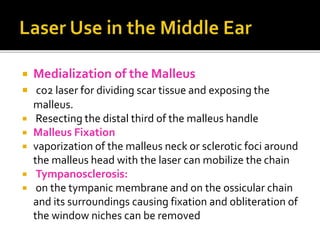

49. Medialization of the Malleus
co2 laser for dividing scar tissue and exposing the
malleus.
Resecting the distal third of the malleus handle
Malleus Fixation
vaporization of the malleus neck or sclerotic foci around
the malleus head with the laser can mobilize the chain
Tympanosclerosis:
on the tympanic membrane and on the ossicular chain
and its surroundings causing fixation and obliteration of
the window niches can be removed

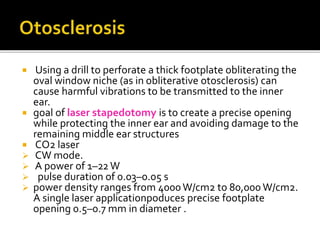

52. Using a drill to perforate a thick footplate obliterating the
oval window niche (as in obliterative otosclerosis) can
cause harmful vibrations to be transmitted to the inner
ear.
goal of laser stapedotomy is to create a precise opening
while protecting the inner ear and avoiding damage to the
remaining middle ear structures
CO2 laser
CW mode.
A power of 1–22W
pulse duration of 0.03–0.05 s
power density ranges from 4000W/cm2 to 80,000 W/cm2.
A single laser applicationpoduces precise footplate
opening 0.5–0.7 mm in diameter .
53.
54.
55. Obliterative Otosclerosis-The CO2 laser can vaporize a
fenestra in the stapes footplate, regardless of its thickness
or degree of fixation, without mechanical trauma to the
inner ear.
Overhanging Facial Nerve
CO2 laser beam can be carefully applied tangentially at
low power (1–2 W), using short pulse lengths of 0.05 s, to
remove the bone.
a conventional stapedotomy with a curved perforator.
redirect the CO2 laser beam with a mirror.

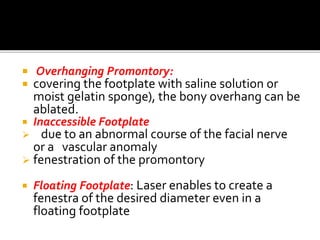

56. Overhanging Promontory:
covering the footplate with saline solution or
moist gelatin sponge), the bony overhang can be
ablated.
Inaccessible Footplate
due to an abnormal course of the facial nerve
or a vascular anomaly
fenestration of the promontory
Floating Footplate: Laser enables to create a
fenestra of the desired diameter even in a
floating footplate

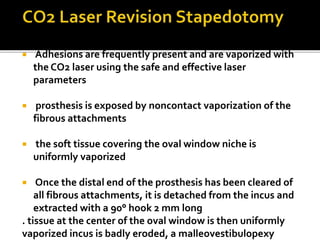

57. Adhesions are frequently present and are vaporized with
the CO2 laser using the safe and effective laser
parameters
prosthesis is exposed by noncontact vaporization of the
fibrous attachments
the soft tissue covering the oval window niche is
uniformly vaporized
Once the distal end of the prosthesis has been cleared of
all fibrous attachments, it is detached from the incus and
extracted with a 90° hook 2 mm long
. tissue at the center of the oval window is then uniformly
vaporized incus is badly eroded, a malleovestibulopexy

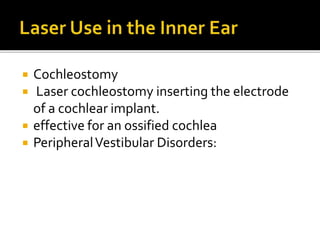

58. Cochleostomy
Laser cochleostomy inserting the electrode
of a cochlear implant.
effective for an ossified cochlea
PeripheralVestibular Disorders:

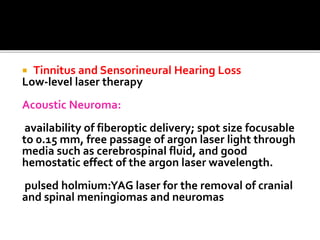

59. Tinnitus and Sensorineural Hearing Loss
Low-level laser therapy
Acoustic Neuroma:
availability of fiberoptic delivery; spot size focusable
to 0.15 mm, free passage of argon laser light through
media such as cerebrospinal fluid, and good
hemostatic effect of the argon laser wavelength.
pulsed holmium:YAG laser for the removal of cranial
and spinal meningiomas and neuromas

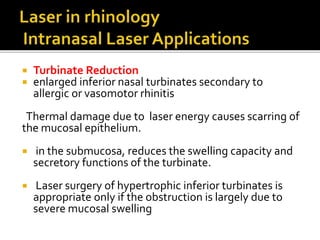

60. Turbinate Reduction
enlarged inferior nasal turbinates secondary to
allergic or vasomotor rhinitis
Thermal damage due to laser energy causes scarring of
the mucosal epithelium.
in the submucosa, reduces the swelling capacity and
secretory functions of the turbinate.

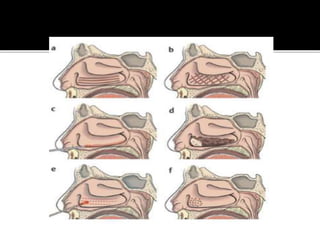

Laser surgery of hypertrophic inferior turbinates is
appropriate only if the obstruction is largely due to
severe mucosal swelling

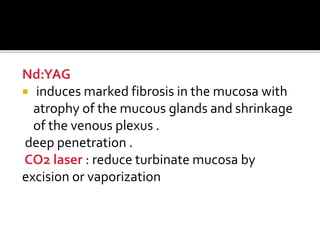

61. Nd:YAG
induces marked fibrosis in the mucosa with
atrophy of the mucous glands and shrinkage
of the venous plexus .
deep penetration .
CO2 laser : reduce turbinate mucosa by
excision or vaporization

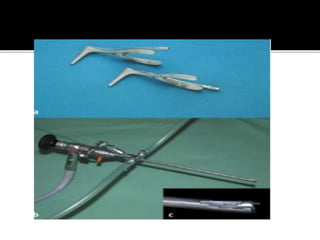

62.
63.
64.

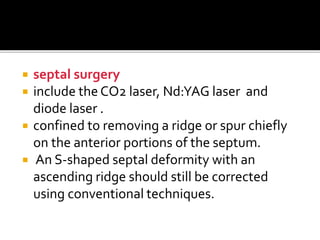

65. septal surgery
include the CO2 laser, Nd:YAG laser and
diode laser .
confined to removing a ridge or spur chiefly
on the anterior portions of the septum.
An S-shaped septal deformity with an
ascending ridge should still be corrected
using conventional techniques.

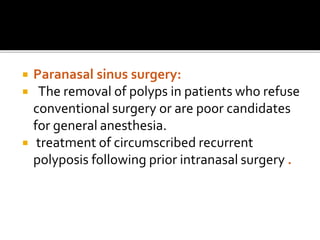

66. Paranasal sinus surgery:
The removal of polyps in patients who refuse
conventional surgery or are poor candidates
for general anesthesia.
treatment of circumscribed recurrent
polyposis following prior intranasal surgery .

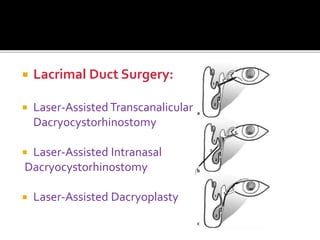

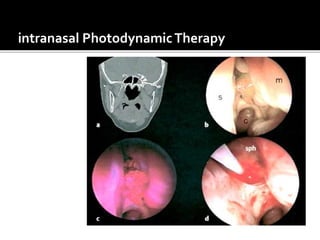

74. The (CO2), (Nd:YAG), (KTP), and argon lasers are
most commonly used for soft-tissue surgery in the
oral cavity and oropharynx.
occlusion of small transected vessels, providing
hemostasis
bloodless field;
no-touch operating technique;
precise incisions
no need for sutures.

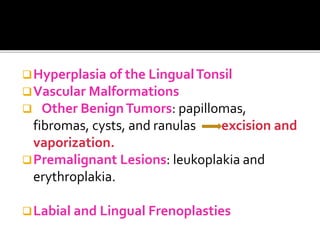

75. Hyperplasia of the LingualTonsil
Vascular Malformations
Other BenignTumors: papillomas,
fibromas, cysts, and ranulas excision and
vaporization.
Premalignant Lesions: leukoplakia and
erythroplakia.
Labial and Lingual Frenoplasties

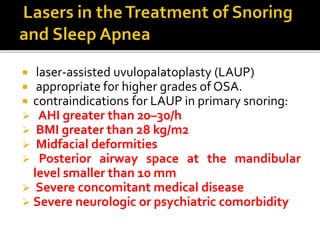

76. laser-assisted uvulopalatoplasty (LAUP)
appropriate for higher grades of OSA.
contraindications for LAUP in primary snoring:
AHI greater than 20–30/h
BMI greater than 28 kg/m2
Midfacial deformities
Posterior airway space at the mandibular
level smaller than 10 mm
Severe concomitant medical disease
Severe neurologic or psychiatric comorbidity
77.
78.

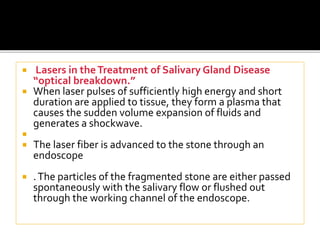

79. Lasers in theTreatment of Salivary Gland Disease
“optical breakdown.”
When laser pulses of sufficiently high energy and short
duration are applied to tissue, they form a plasma that
causes the sudden volume expansion of fluids and
generates a shockwave.
The laser fiber is advanced to the stone through an
endoscope
.The particles of the fragmented stone are either passed
spontaneously with the salivary flow or flushed out
through the working channel of the endoscope.
80. Laser Surgery of theVocal Cords
epithelial changes (vocal nodules, leukoplakia,
hyperkeratosis, acanthosis, dysplasia, etc.),
exudative changes in the Reinke space (vocal
cord polyps, Reinke edema).
granulomas: (contact granuloma, intubation
granuloma), scarring, and subepithelial lesions
(cysts)

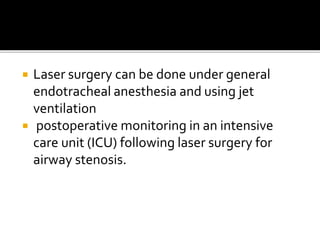

81. Laser surgery can be done under general
endotracheal anesthesia and using jet
ventilation
postoperative monitoring in an intensive
care unit (ICU) following laser surgery for
airway stenosis.

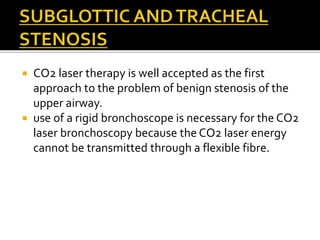

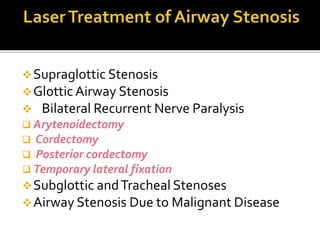

89. CO2 laser therapy is well accepted as the first
approach to the problem of benign stenosis of the
upper airway.
use of a rigid bronchoscope is necessary for the CO2
laser bronchoscopy because the CO2 laser energy
cannot be transmitted through a flexible fibre.
90. combustion of ventilation tube materials and anesthetic
gas mixtures during surgical laser use in the larynx .
. Combustion of tube materials can be avoided by the use
of laser-safe tubes.
Ignition of anesthetic gas mixtures during procedures
using jet ventilation can be prevented by ventilating the
patient with room air (rather than pure oxygen) and by
operating in intermittent apnea.
On the whole, such incidents can be safely avoided by the
selection of suitable materials, operating methods, and
analgesic techniques.

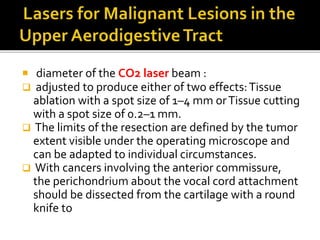

91. diameter of the CO2 laser beam :
adjusted to produce either of two effects:Tissue
ablation with a spot size of 1–4 mm orTissue cutting
with a spot size of 0.2–1 mm.
The limits of the resection are defined by the tumor
extent visible under the operating microscope and
can be adapted to individual circumstances.
With cancers involving the anterior commissure,
the perichondrium about the vocal cord attachment
should be dissected from the cartilage with a round
knife to

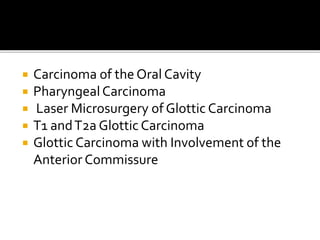

92. Carcinoma of the Oral Cavity
PharyngealCarcinoma

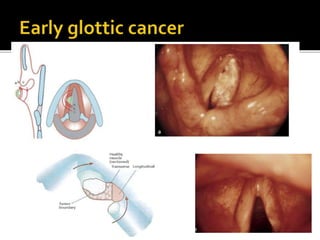

Laser Microsurgery of Glottic Carcinoma
T1 andT2a Glottic Carcinoma
Glottic Carcinoma with Involvement of the
Anterior Commissure
93.

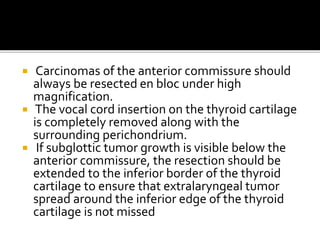

94. Carcinomas of the anterior commissure should
always be resected en bloc under high
magnification.
The vocal cord insertion on the thyroid cartilage
is completely removed along with the
surrounding perichondrium.
If subglottic tumor growth is visible below the
anterior commissure, the resection should be
extended to the inferior border of the thyroid
cartilage to ensure that extralaryngeal tumor
spread around the inferior edge of the thyroid
cartilage is not missed

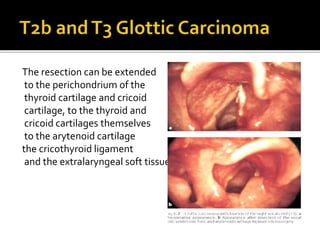

95. The resection can be extended
to the perichondrium of the
thyroid cartilage and cricoid
cartilage, to the thyroid and
cricoid cartilages themselves
to the arytenoid cartilage
the cricothyroid ligament
and the extralaryngeal soft tissues

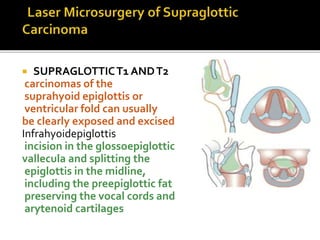

96. SUPRAGLOTTICT1 ANDT2
carcinomas of the
suprahyoid epiglottis or
ventricular fold can usually
be clearly exposed and excised
Infrahyoidepiglottis
incision in the glossoepiglottic
vallecula and splitting the
epiglottis in the midline,
including the preepiglottic fat
preserving the vocal cords and
arytenoid cartilages
97. poorest prognosis .
High rate of local tumor recurrence
High cervical lymph node metastases at the
time of diagnosis
metachronous distant metastases
high incidence of metachronous second primary
tumors.
Laser surgery appears to be effective forT1
T2 hypopharyngeal cancer treatment as long as
clear surgical margins can be achieved.

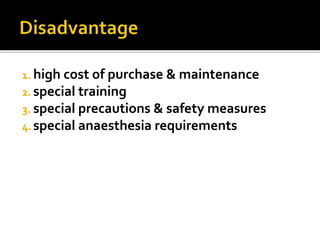

98. 1. high cost of purchase & maintenance
2. special training
3. special precautions & safety measures
4. special anaesthesia requirements
