KALPATARU RIVERSIDE
Akshar Kawale
Mrudula Shinde
Mrudul Narnaware
Riddhesh Varik
Saudnya Mane
Shraddha Gaikwad

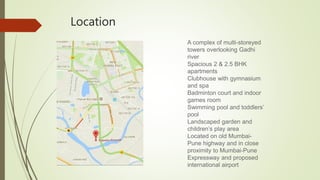

Location
A complex of multi-storeyed
towers overlooking Gadhi
river
Spacious 2 & 2.5 BHK
apartments
Clubhouse with gymnasium
and spa
Badminton court and indoor
games room
Swimming pool and toddlers’
pool
Landscaped garden and
children’s play area
Located on old Mumbai-
Pune highway and in close
proximity to Mumbai-Pune
Expressway and proposed
international airport
Satellite view

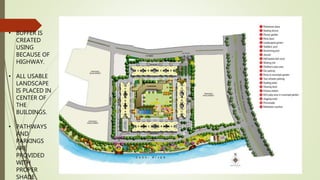

Site plan
• BUFFER IS
CREATED
USING
BECAUSE OF
HIGHWAY.
• ALL USABLE
LANDSCAPE
IS PLACED IN
CENTER OF
THE
BUILDINGS.
• PATHWAYS
AND
PARKINGS
ARE
PROVIDED
WITH
PROPER
SHADE
Segregated into
1. Entrance Area
2. Central landscape area
3. Play area
4. Hardscape
5. Sculptures
Entrance area

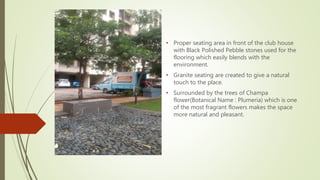

• Proper seating area in front of the club house
with Black Polished Pebble stones used for the
flooring which easily blends with the
environment.
• Granite seating are created to give a natural
touch to the place.
• Surrounded by the trees of Champa
flower(Botanical Name : Plumeria) which is one
of the most fragrant flowers makes the space
more natural and pleasant.

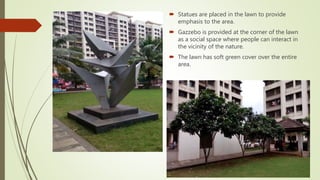

 Statues are placed in the lawn to provide
emphasis to the area.
 Gazzebo is provided at the corner of the lawn
as a social space where people can interact in
the vicinity of the nature.
 The lawn has soft green cover over the entire
area.
 Avenues are created along the lawn using palm trees along
with the seating platforms made of granite stone that easily
blends with the nature.
 The avenue therefore provides an hierarchy to the lawn as
well as a shaded space for those seating under them.
 The flooring for the pathway is also made up of stone so
that it maintains its natural property as well as creates a
difference between the pathway and the soft green cover.
 The pathways are thereby used as jogging tracks as it is
huge in scale and all along the clubhouse.
 Low level and dense shrubs runs adjacent throughout the
pathway to create a buffer between two spaces as well as
hides the services running through it.
 Proper shaded spaces are provided for people for
them to feel the calmness and enjoy the beauty of
nature through landscaping.
 Wooden benches provided along on the stone
pathways adjacent to the huge lawn.
 Solar power LED lights are provided in the lawn to
illuminate the lawn in the nightime.
 Proper gutters are provided in the lawns for the
disposal of excess water.
 Flooring is used as the medium of segregation of
spaces.
 The grey Pavel blocks are used for the purpose of
parking and the red herringbone pattern is used for
the vehicular and pedestrian circulation.
 Bays are created for parking with low level
plantations for the segregation of spaces as well as
plantations are made to segregate childrens play
area and parking for safety purpose.

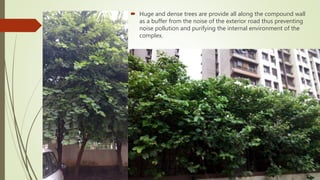

 Huge and dense trees are provide all along the compound wall
as a buffer from the noise of the exterior road thus preventing
noise pollution and purifying the internal environment of the
complex.

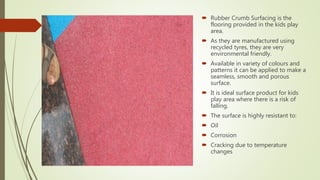

 Rubber Crumb Surfacing is the
flooring provided in the kids play
area.
 As they are manufactured using
recycled tyres, they are very
environmental friendly.
 Available in variety of colours and
patterns it can be applied to make a
seamless, smooth and porous
surface.
 It is ideal surface product for kids
play area where there is a risk of
falling.
 The surface is highly resistant to:
 Oil
 Corrosion
 Cracking due to temperature
changes

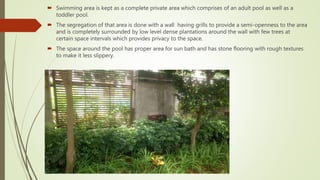

 Swimming area is kept as a complete private area which comprises of an adult pool as well as a
toddler pool.
 The segregation of that area is done with a wall having grills to provide a semi-openness to the area
and is completely surrounded by low level dense plantations around the wall with few trees at
certain space intervals which provides privacy to the space.
 The space around the pool has proper area for sun bath and has stone flooring with rough textures
to make it less slippery.
