1. Lecture 06
Using Design Patterns

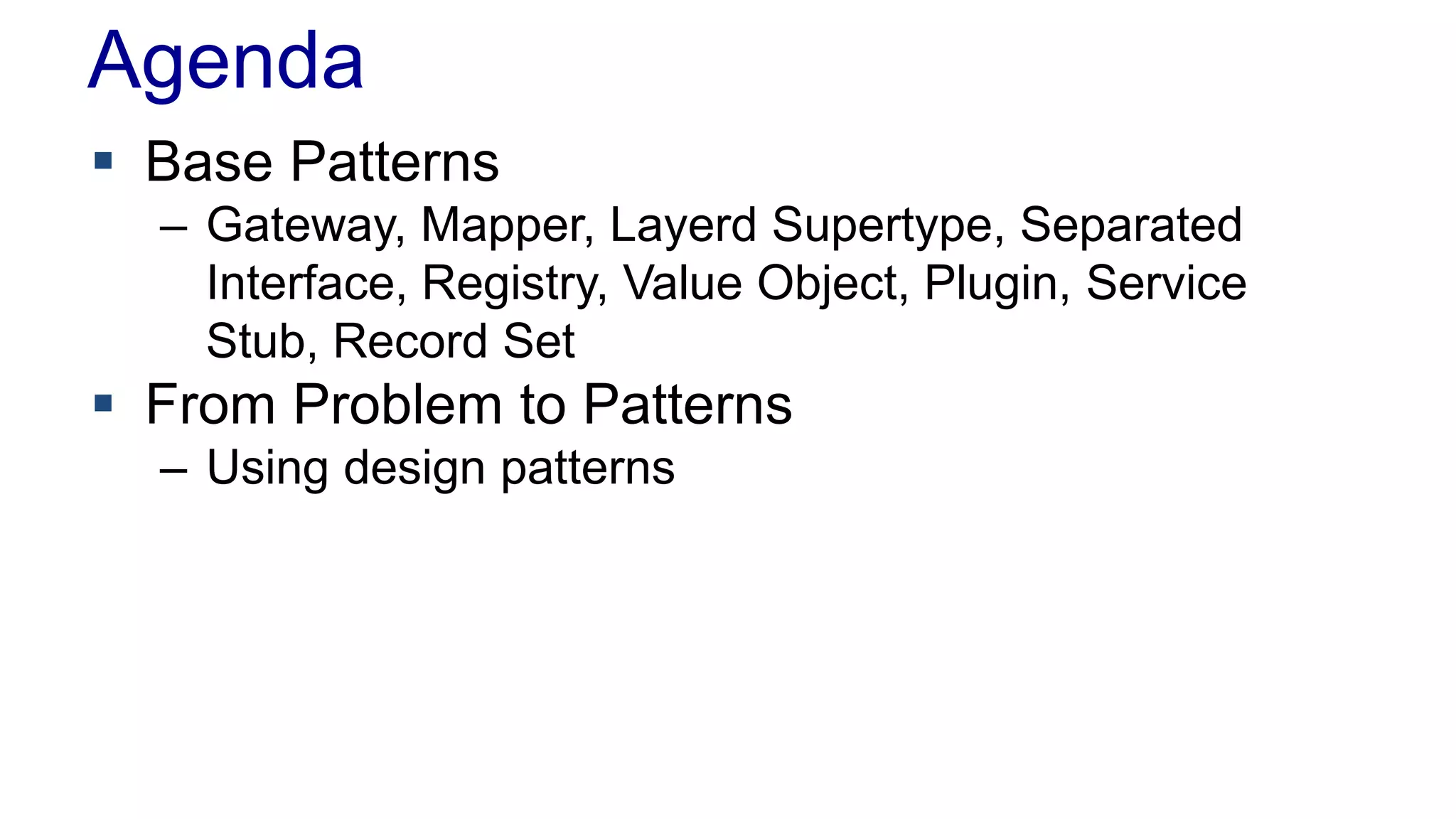

2. Agenda
 Base Patterns
– Gateway, Mapper, Layerd Supertype, Separated
Interface, Registry, Value Object, Plugin, Service
Stub, Record Set
 From Problem to Patterns
– Using design patterns

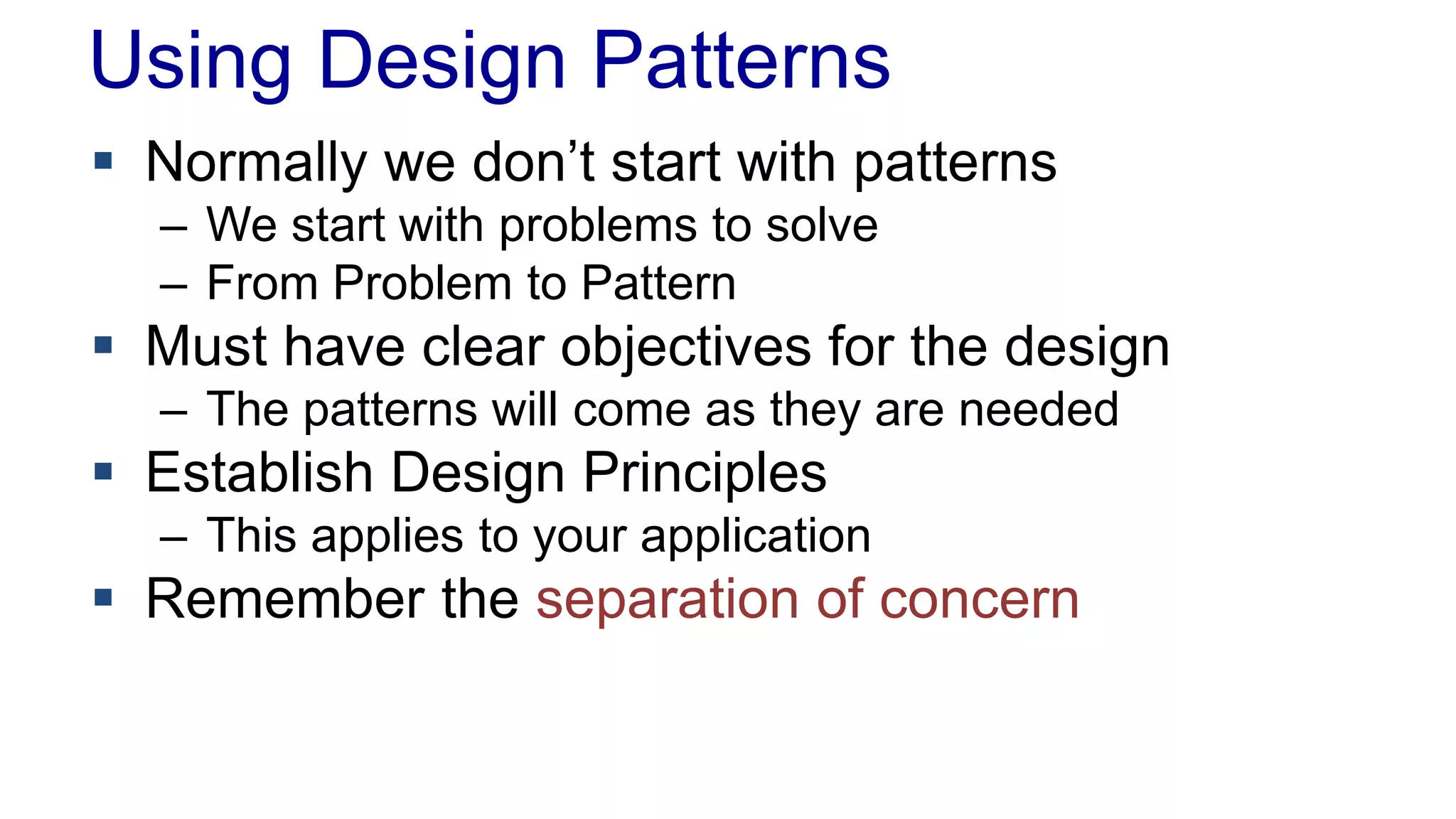

3. Using Design Patterns
 Normally we don’t start with patterns
– We start with problems to solve
– From Problem to Pattern
 Must have clear objectives for the design
– The patterns will come as they are needed
 Establish Design Principles
– This applies to your application
 Remember the separation of concern

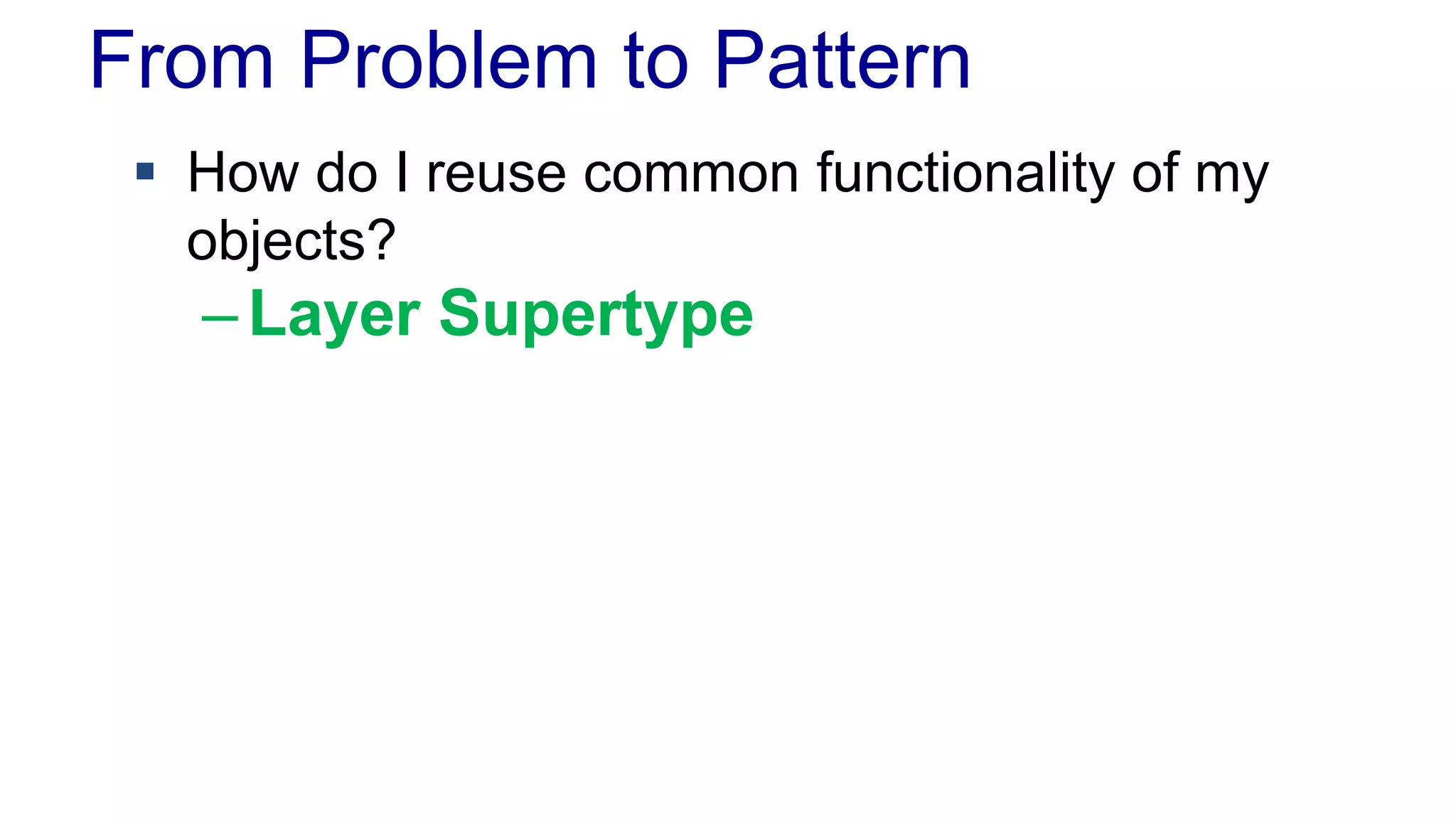

4. From Problem to Pattern
 How do I reuse common functionality of my
objects?
– Layer Supertype

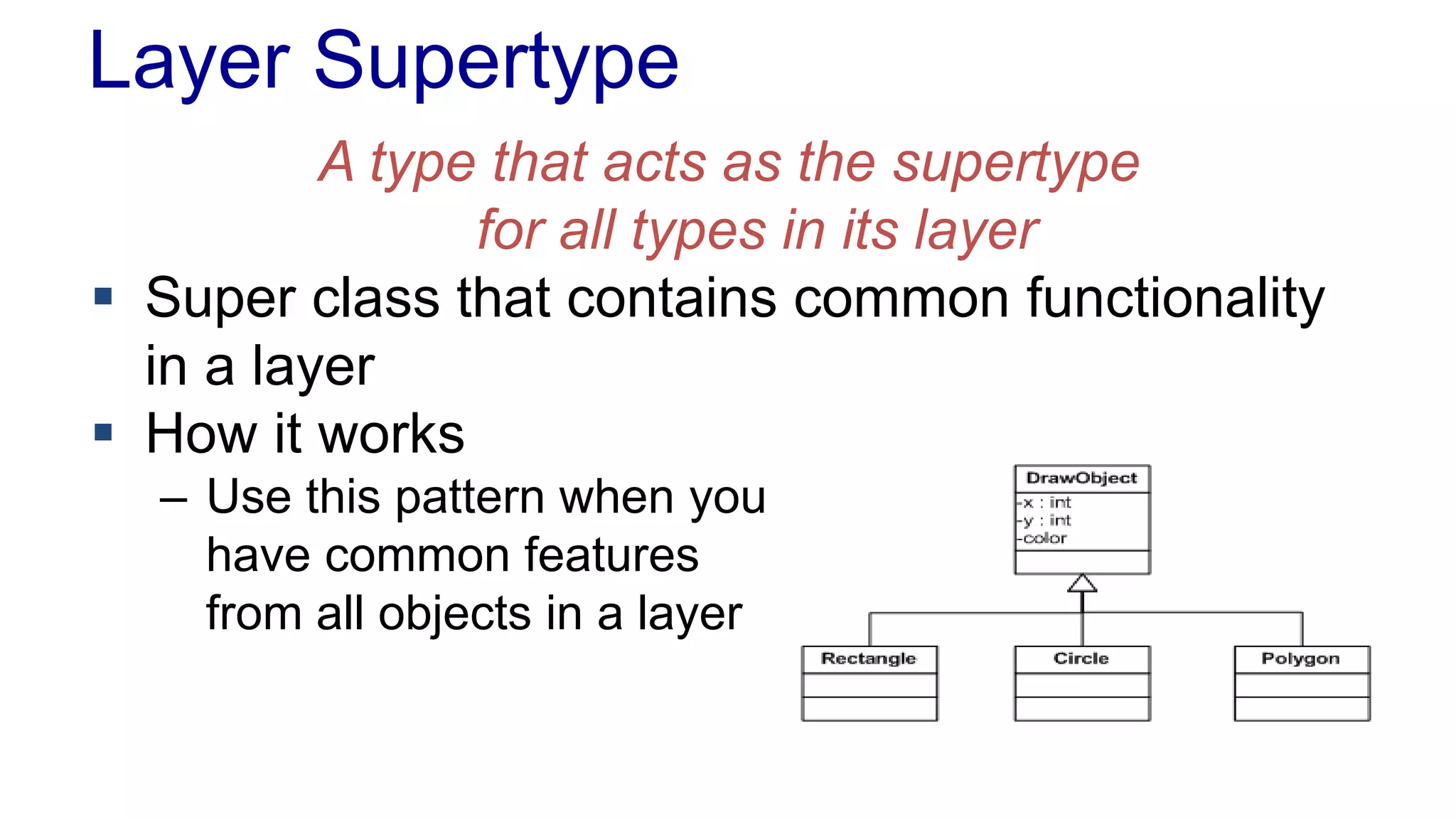

5. Layer Supertype
A type that acts as the supertype
for all types in its layer
 Super class that contains common functionality
in a layer
 How it works
– Use this pattern when you
have common features
from all objects in a layer

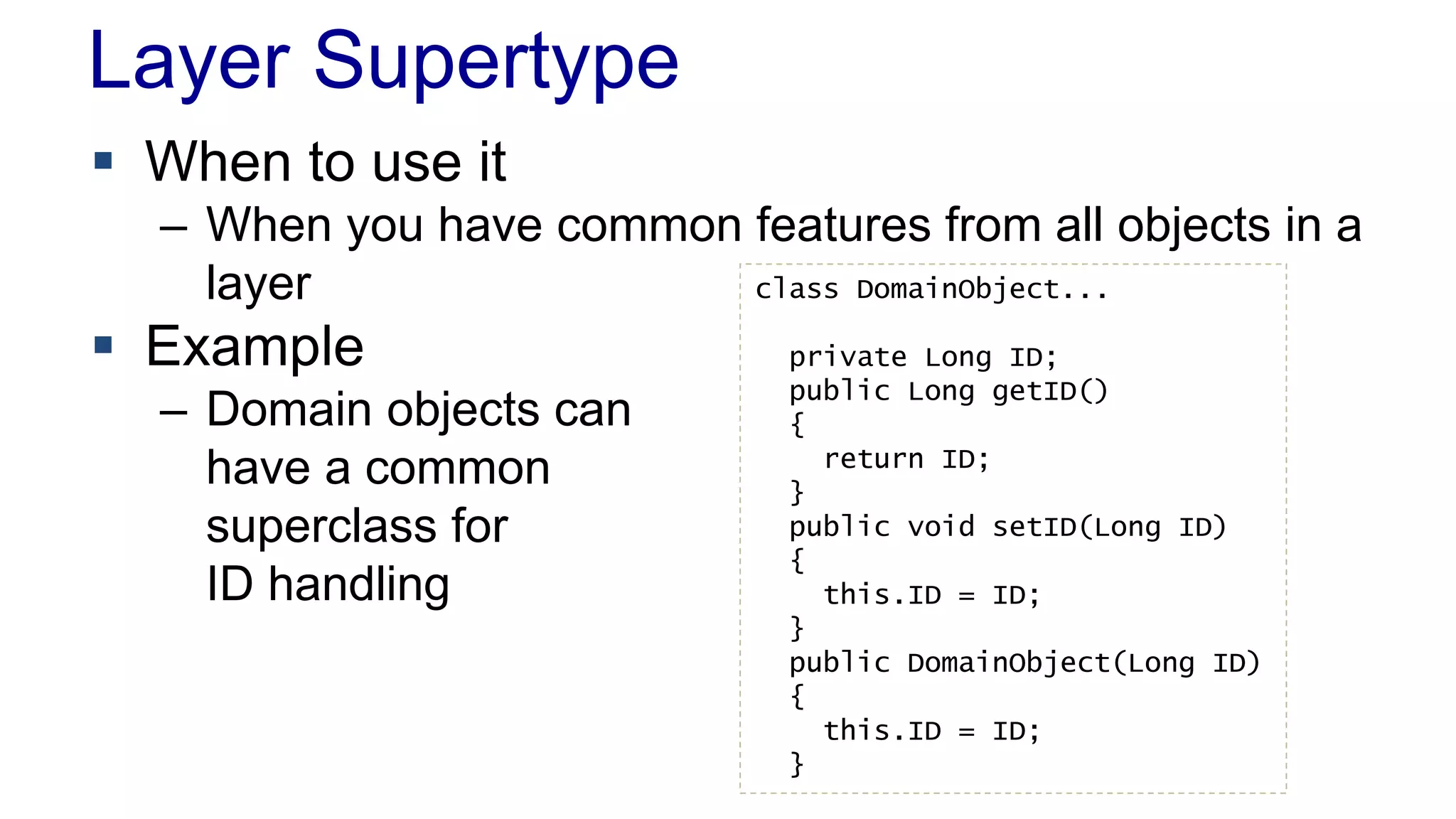

6. Layer Supertype
 When to use it
– When you have common features from all objects in a
layer
 Example
– Domain objects can
have a common
superclass for
ID handling
class DomainObject...
private Long ID;
public Long getID()
{
return ID;
}
public void setID(Long ID)
{
this.ID = ID;
}
public DomainObject(Long ID)
{
this.ID = ID;
}

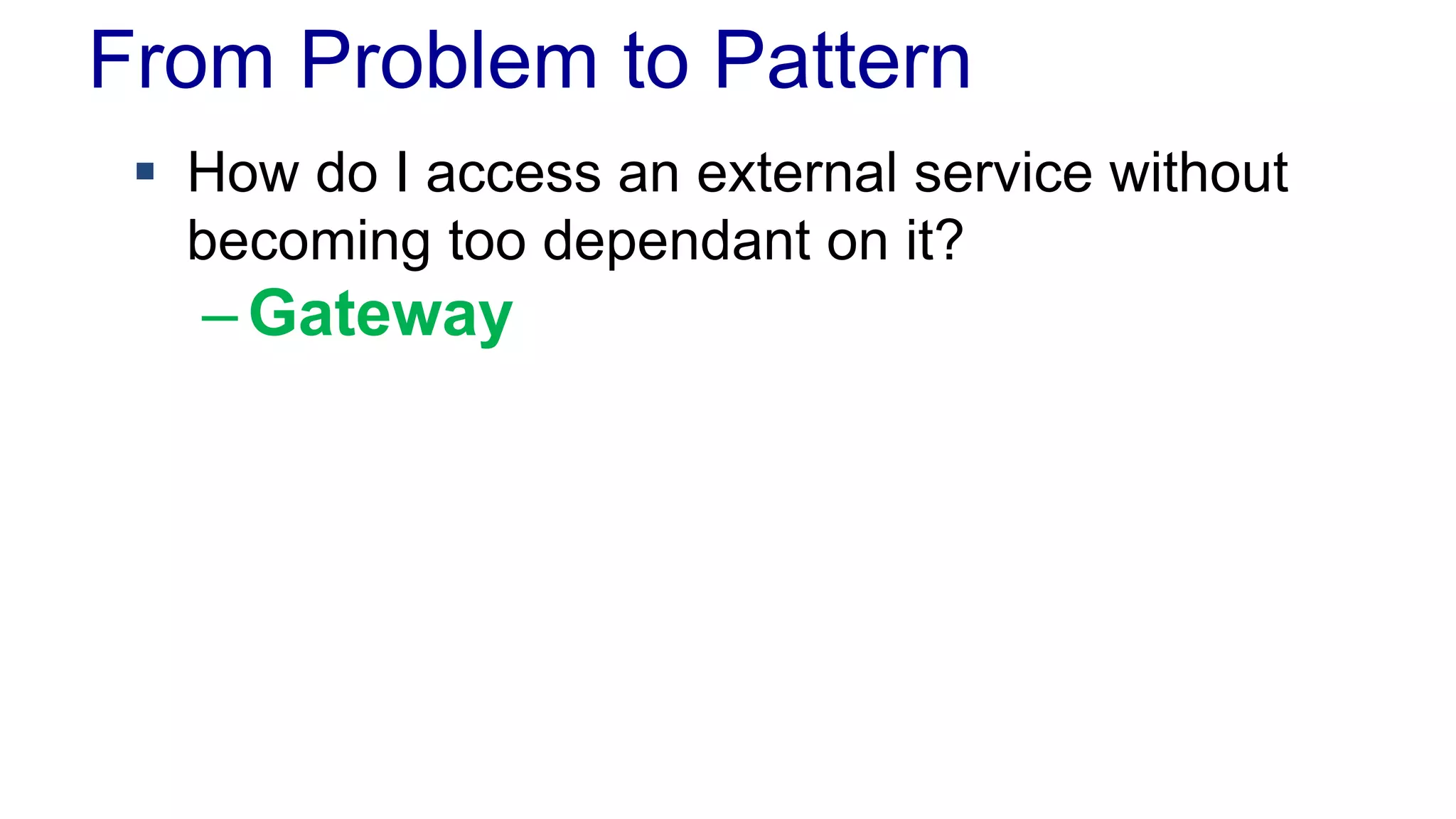

7. From Problem to Pattern
 How do I access an external service without
becoming too dependant on it?
– Gateway

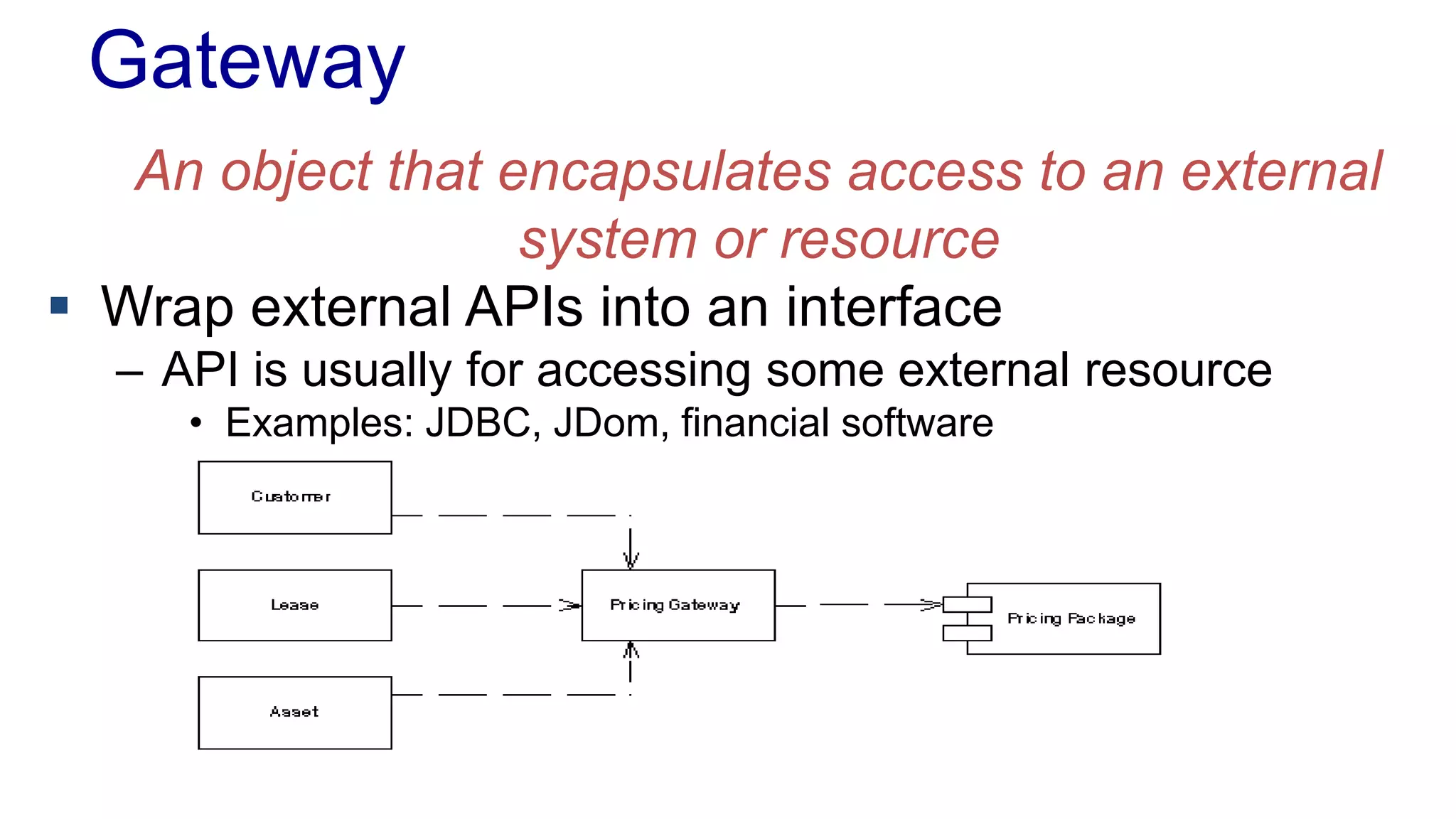

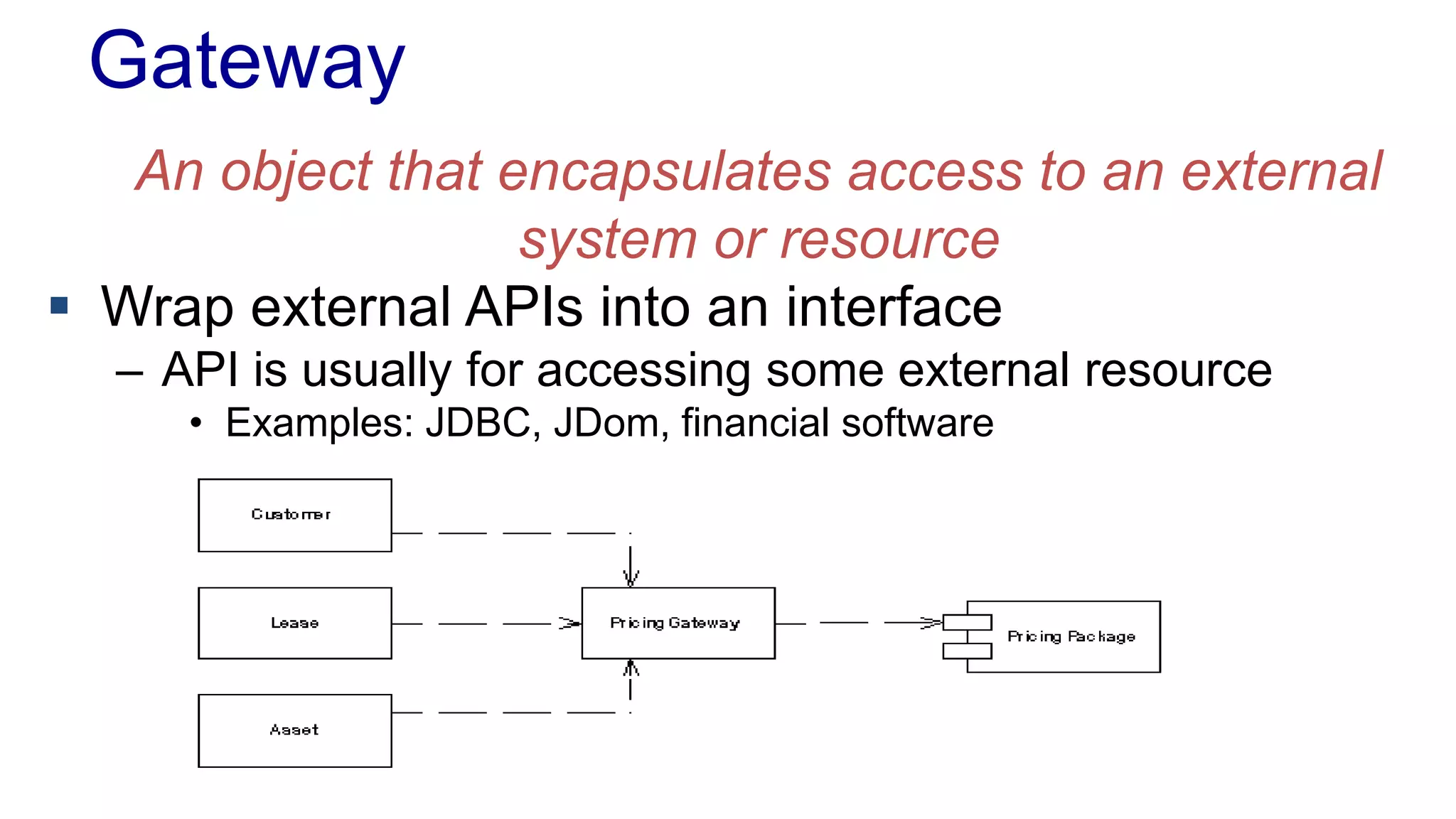

8. Gateway
An object that encapsulates access to an external
system or resource
 Wrap external APIs into an interface
– API is usually for accessing some external resource
• Examples: JDBC, JDom, financial software

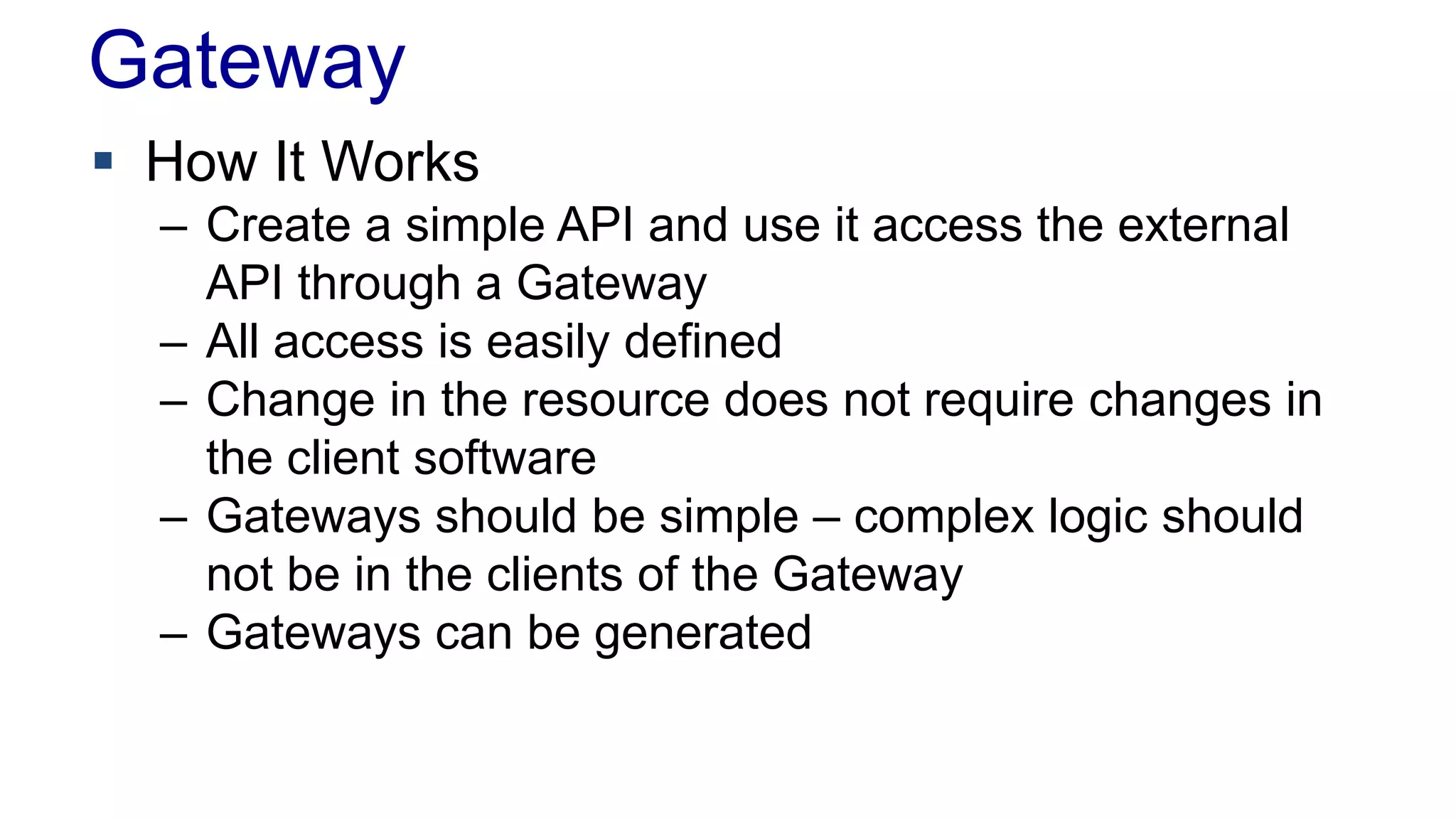

9. Gateway
 How It Works
– Create a simple API and use it access the external
API through a Gateway
– All access is easily defined
– Change in the resource does not require changes in
the client software
– Gateways should be simple – complex logic should
not be in the clients of the Gateway
– Gateways can be generated

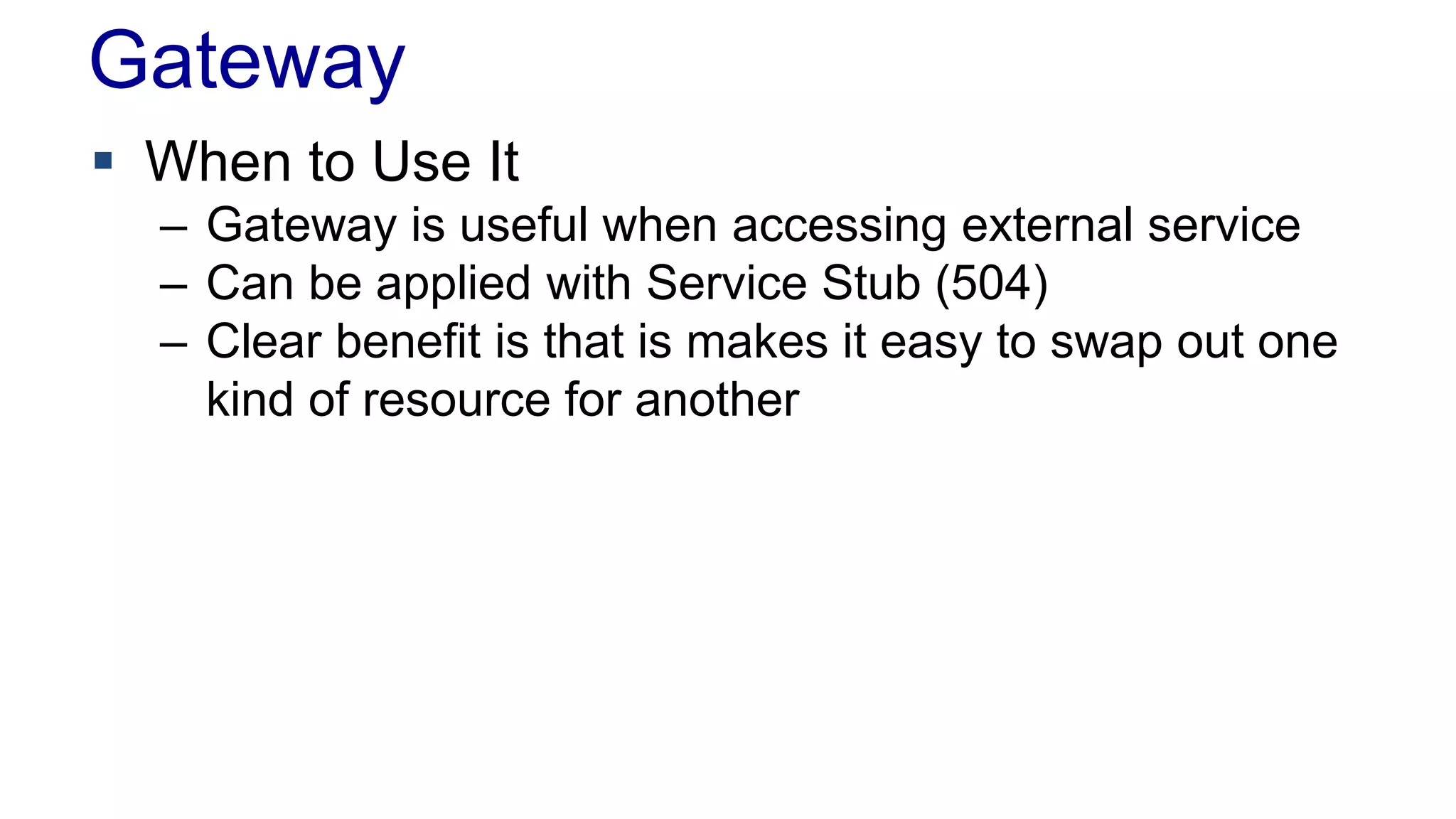

10. Gateway
 When to Use It
– Gateway is useful when accessing external service
– Can be applied with Service Stub (504)
– Clear benefit is that is makes it easy to swap out one
kind of resource for another

11. From Problem to Pattern
 How do I avoid creating unwanted
dependencies?
–Separated Interface

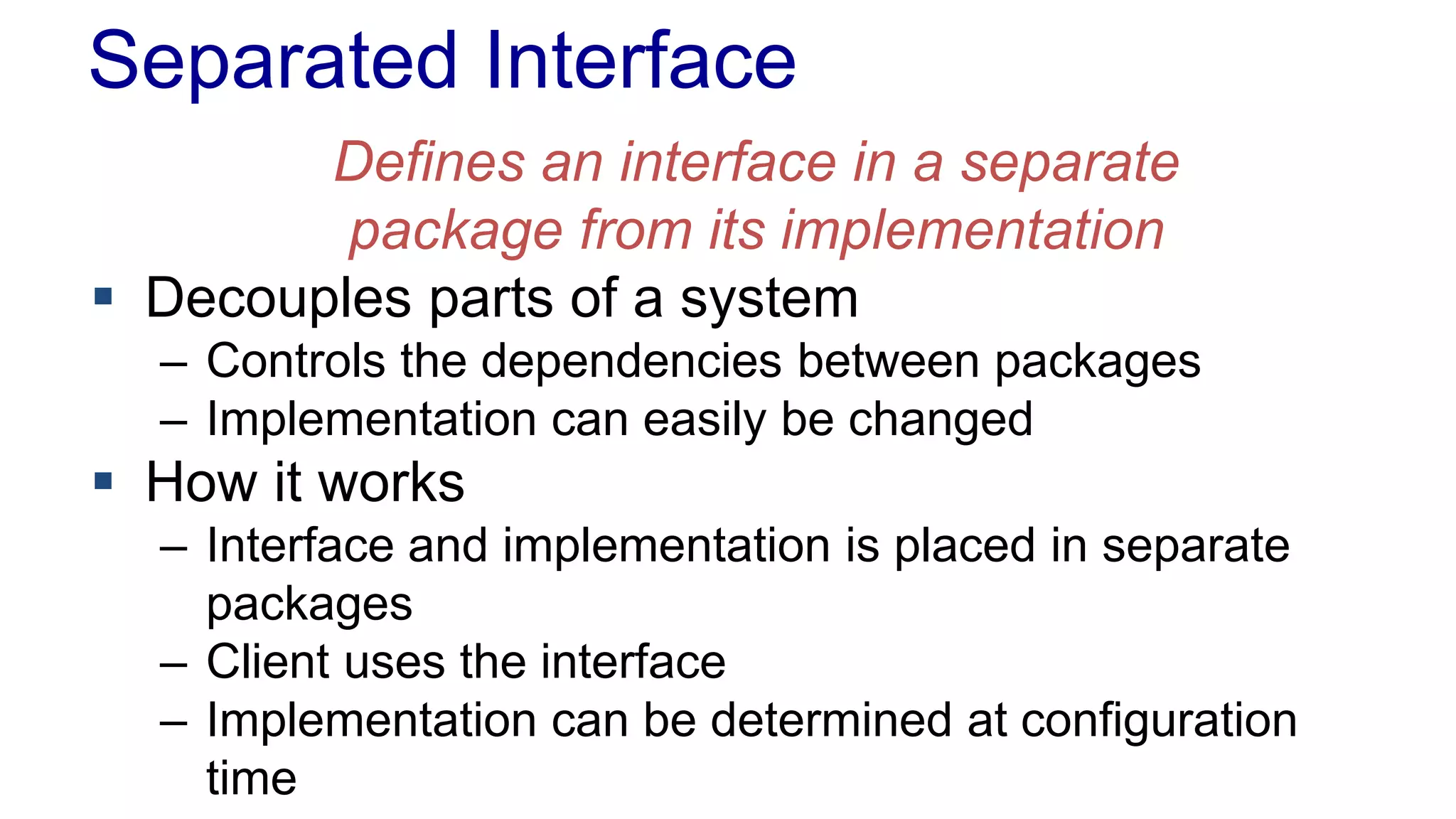

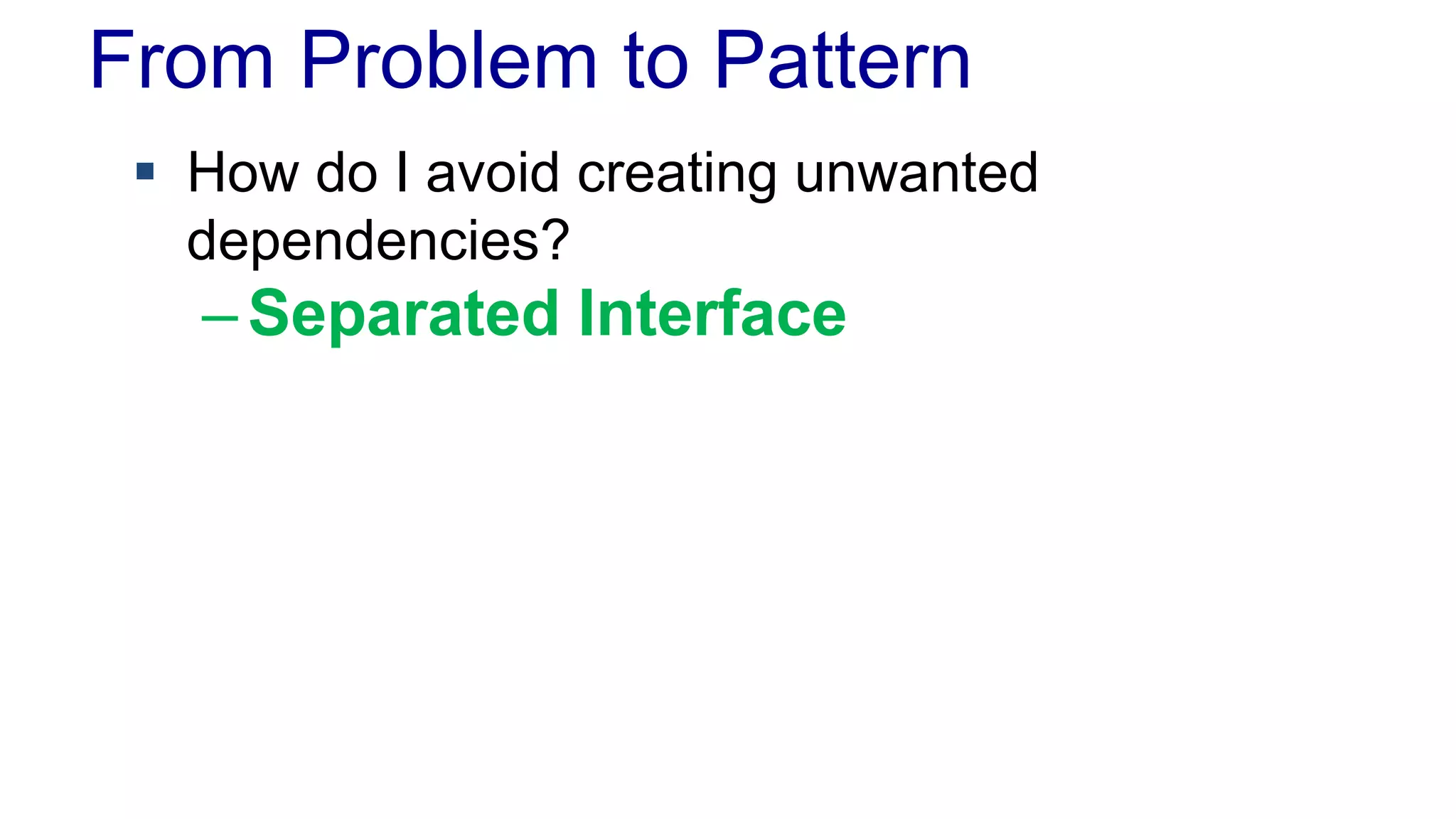

12. Separated Interface
Defines an interface in a separate
package from its implementation
 Decouples parts of a system
– Controls the dependencies between packages
– Implementation can easily be changed
 How it works
– Interface and implementation is placed in separate
packages
– Client uses the interface
– Implementation can be determined at configuration
time

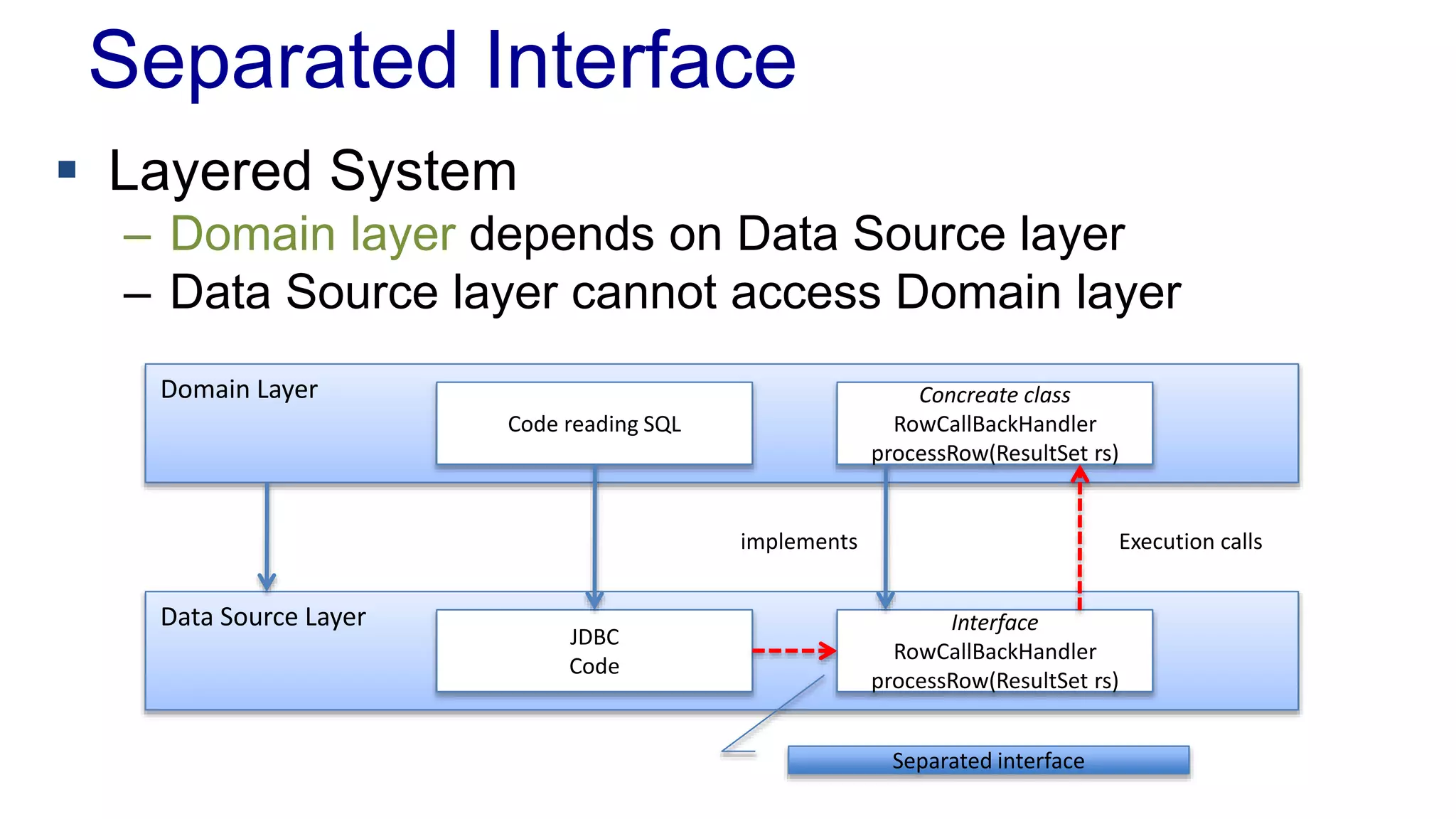

13. Separated Interface
 Layered System
– Domain layer depends on Data Source layer
– Data Source layer cannot access Domain layer
Domain Layer
Data Source Layer
JDBC
Code
Concreate class
RowCallBackHandler
processRow(ResultSet rs)
Interface
RowCallBackHandler
processRow(ResultSet rs)
implements
Code reading SQL
Execution calls
Separated interface

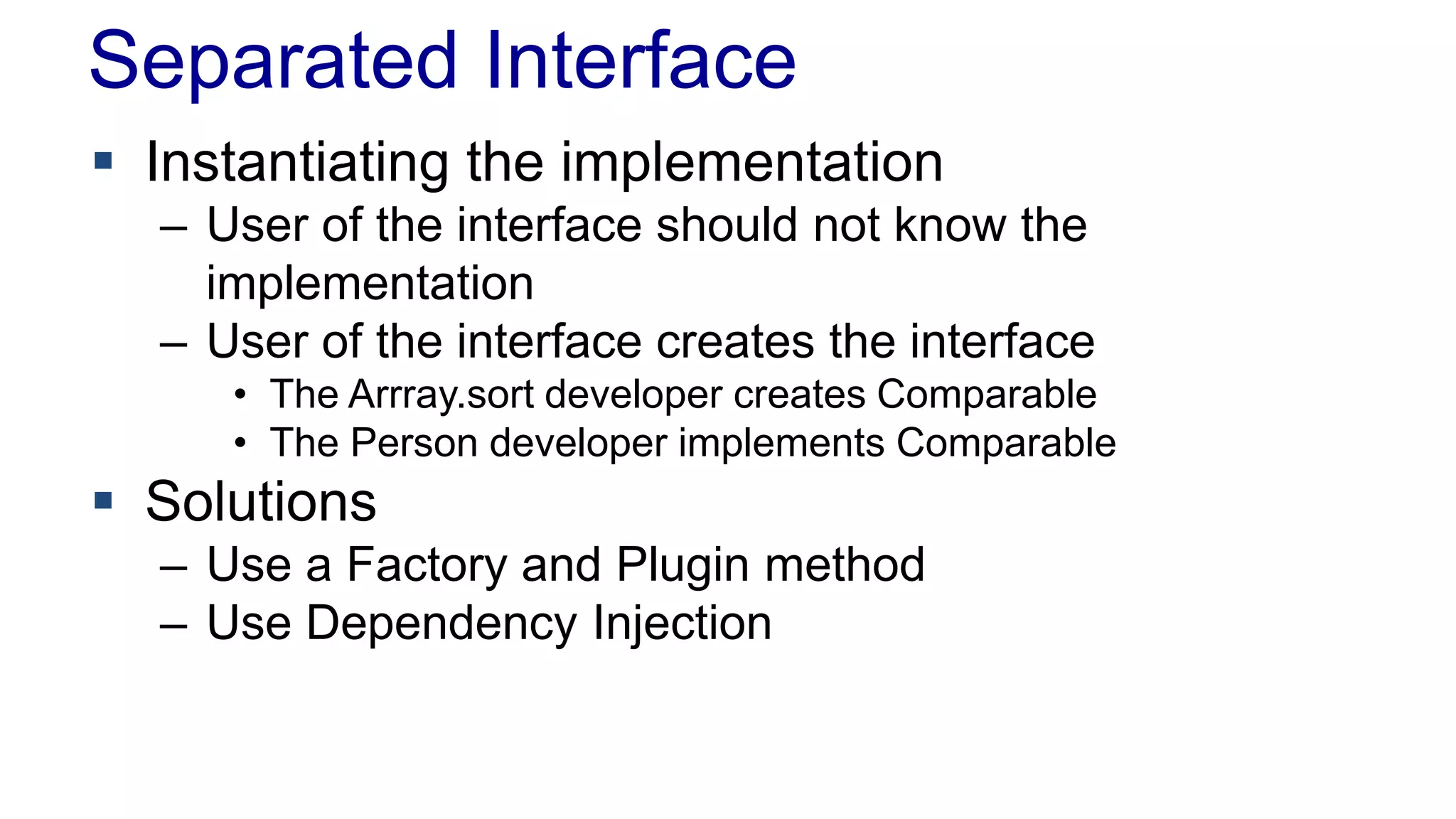

14. Separated Interface
 Instantiating the implementation
– User of the interface should not know the
implementation
– User of the interface creates the interface
• The Arrray.sort developer creates Comparable
• The Person developer implements Comparable
 Solutions
– Use a Factory and Plugin method
– Use Dependency Injection

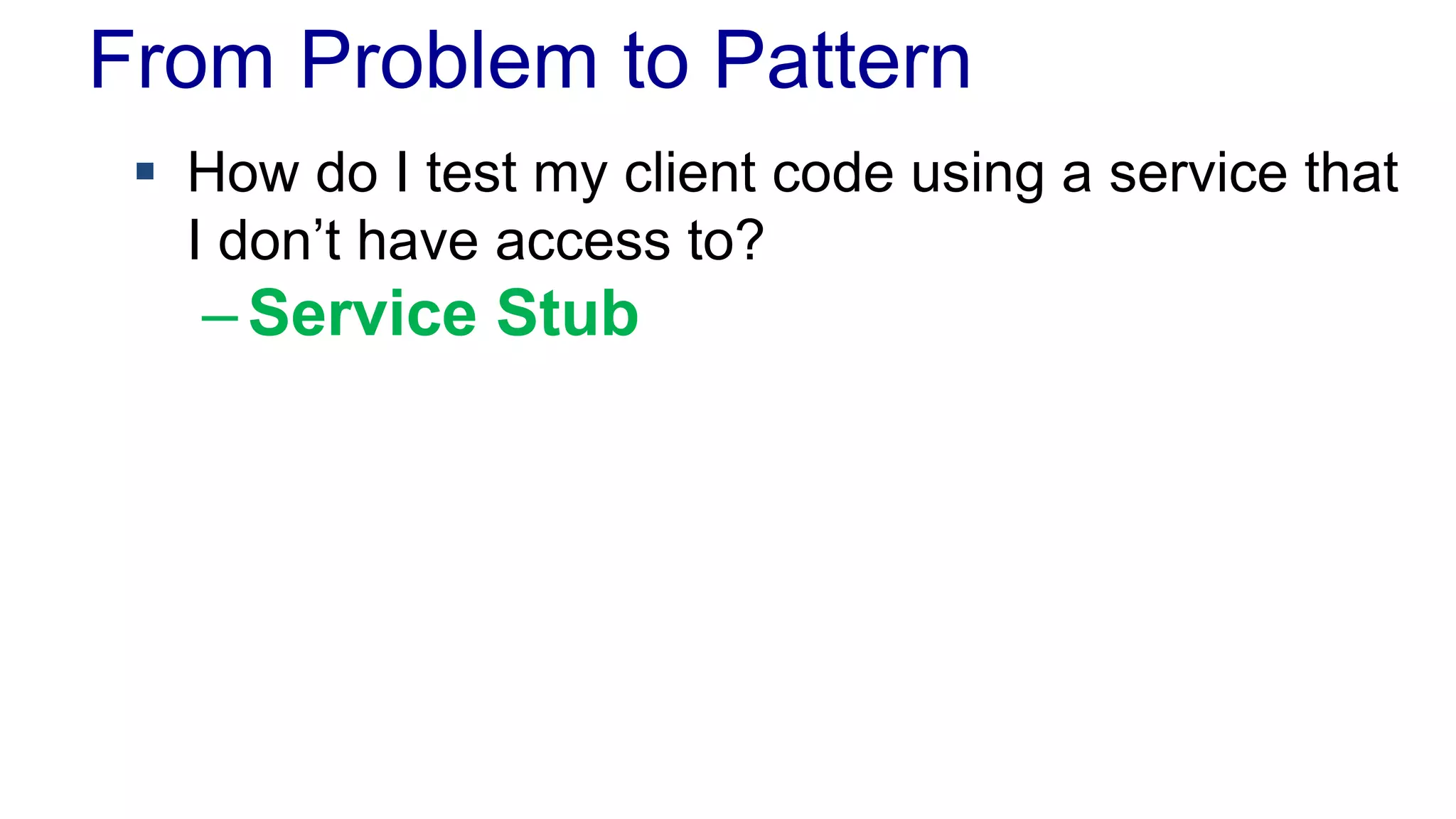

15. From Problem to Pattern
 How do I test my client code using a service that
I don’t have access to?
– Service Stub

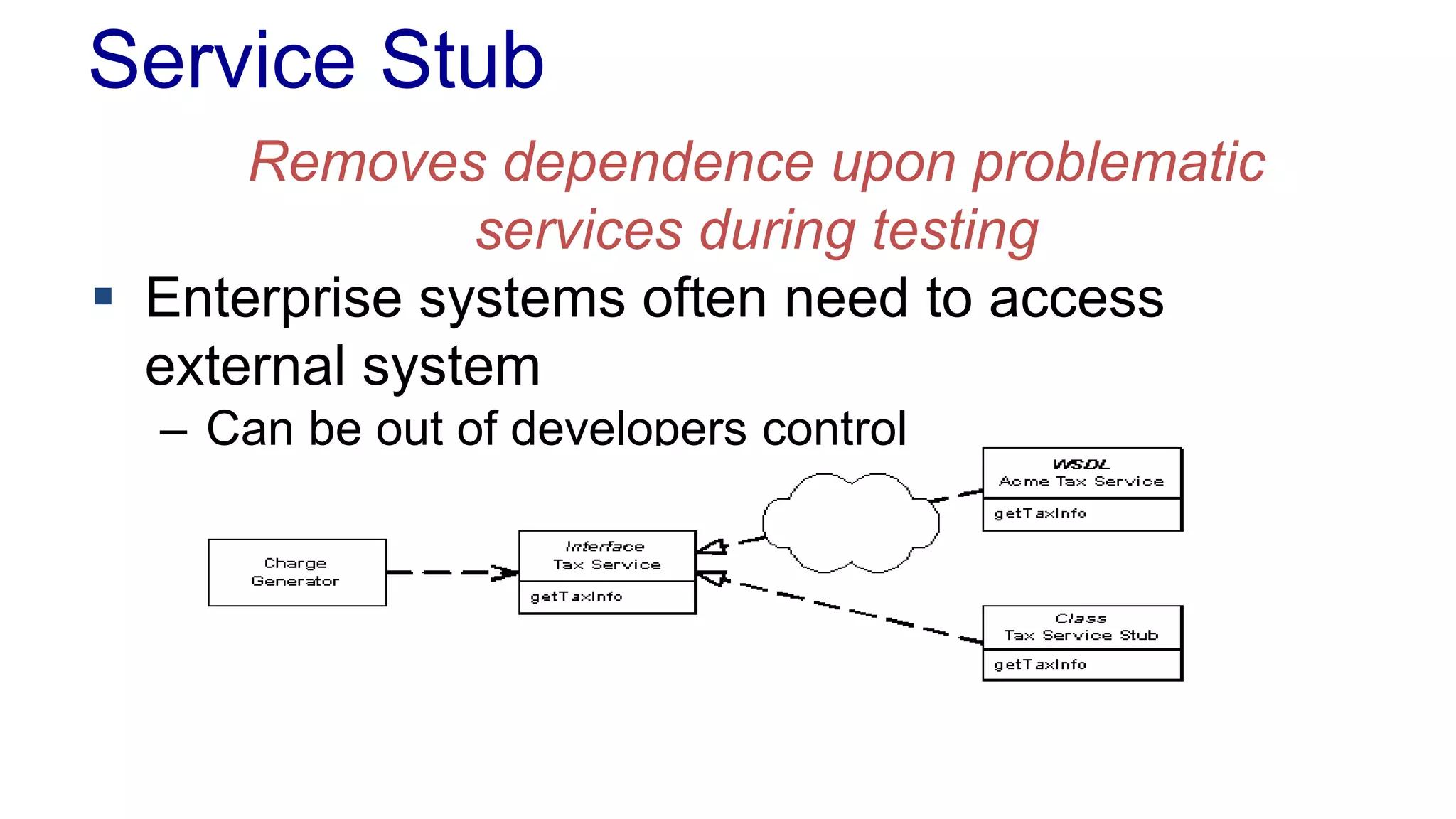

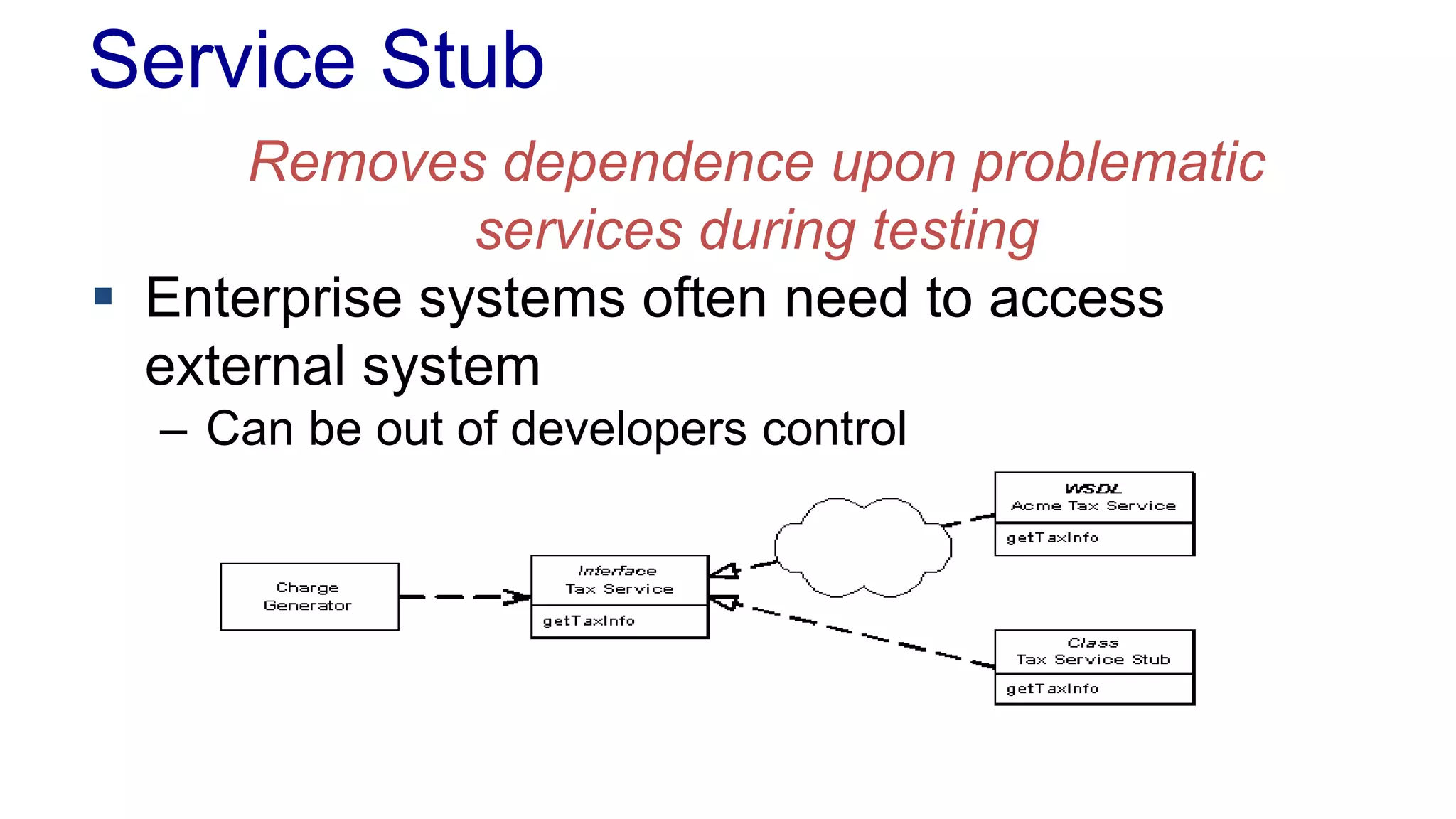

16. Service Stub
Removes dependence upon problematic
services during testing
 Enterprise systems often need to access
external system
– Can be out of developers control

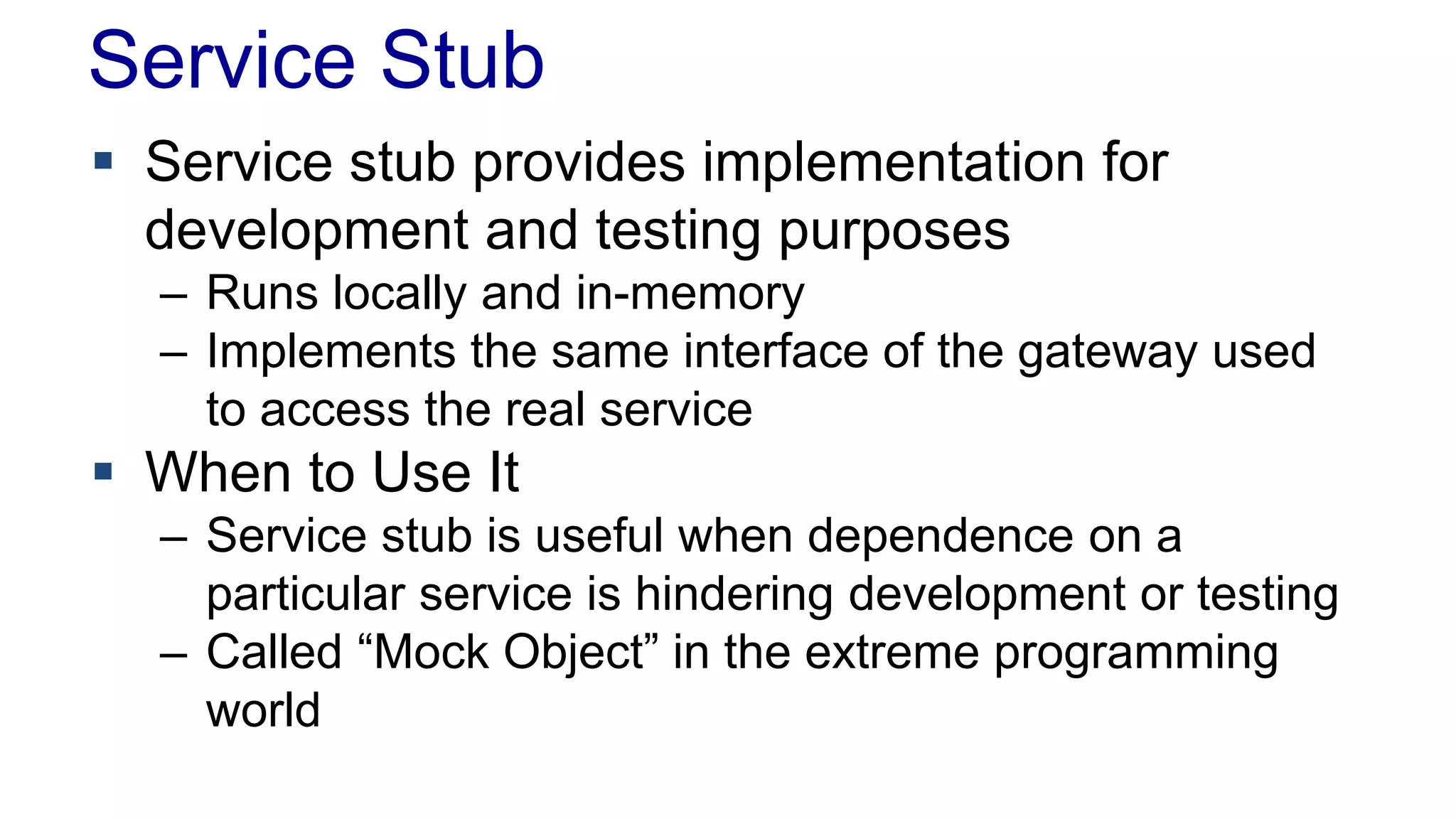

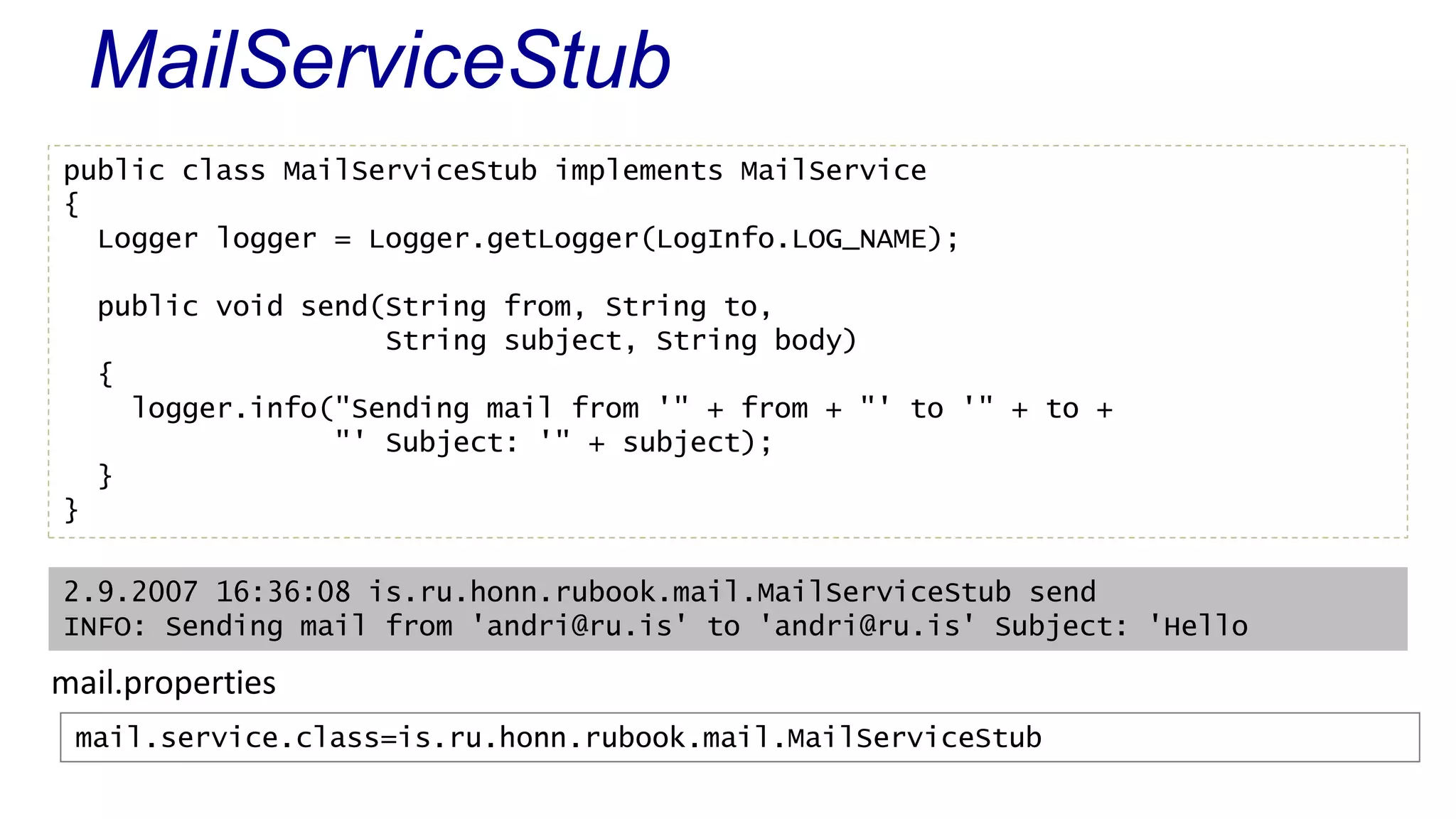

17. Service Stub
 Service stub provides implementation for
development and testing purposes
– Runs locally and in-memory
– Implements the same interface of the gateway used
to access the real service
 When to Use It
– Service stub is useful when dependence on a
particular service is hindering development or testing
– Called “Mock Object” in the extreme programming
world

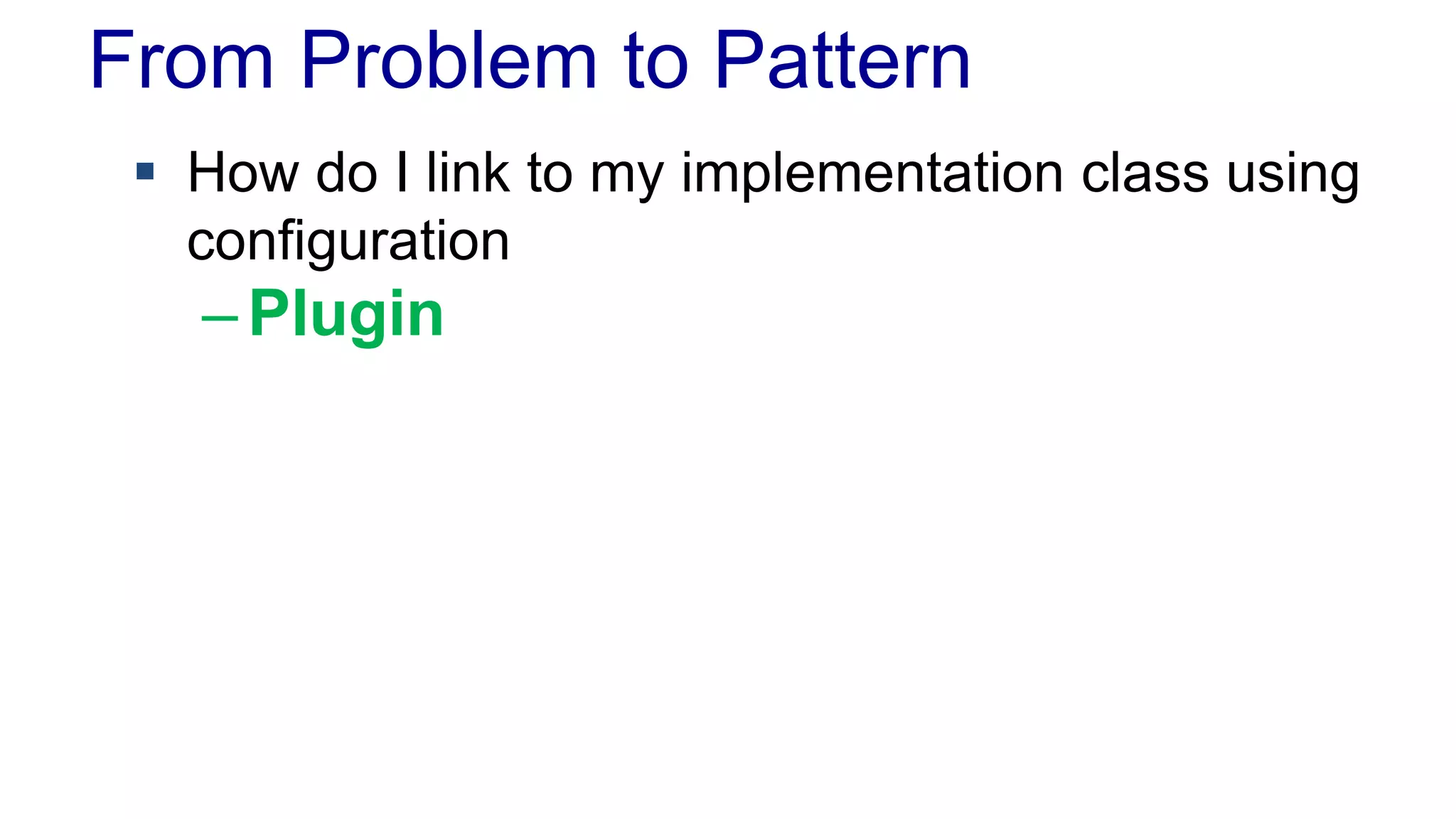

18. From Problem to Pattern
 How do I link to my implementation class using
configuration
– Plugin

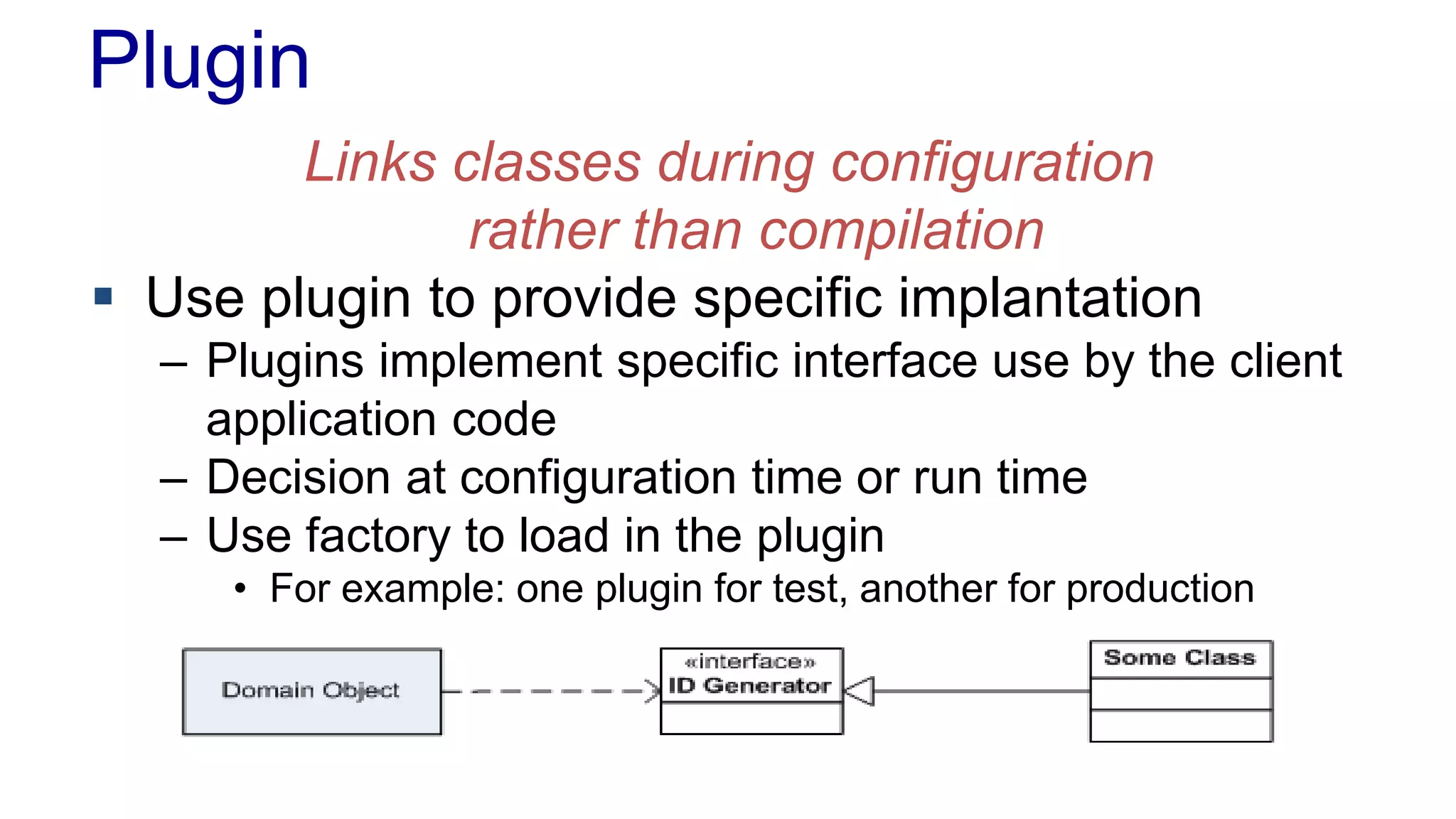

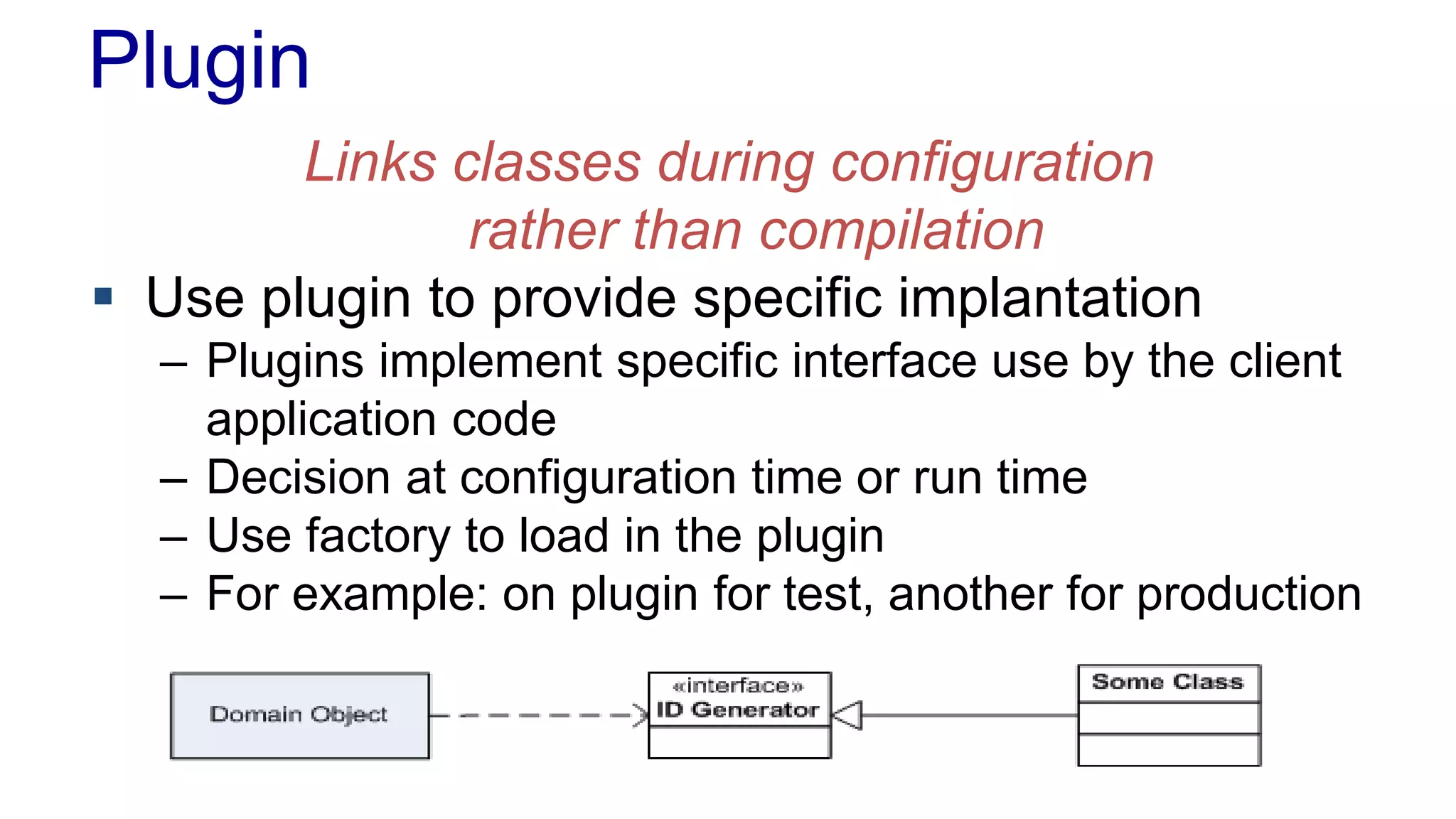

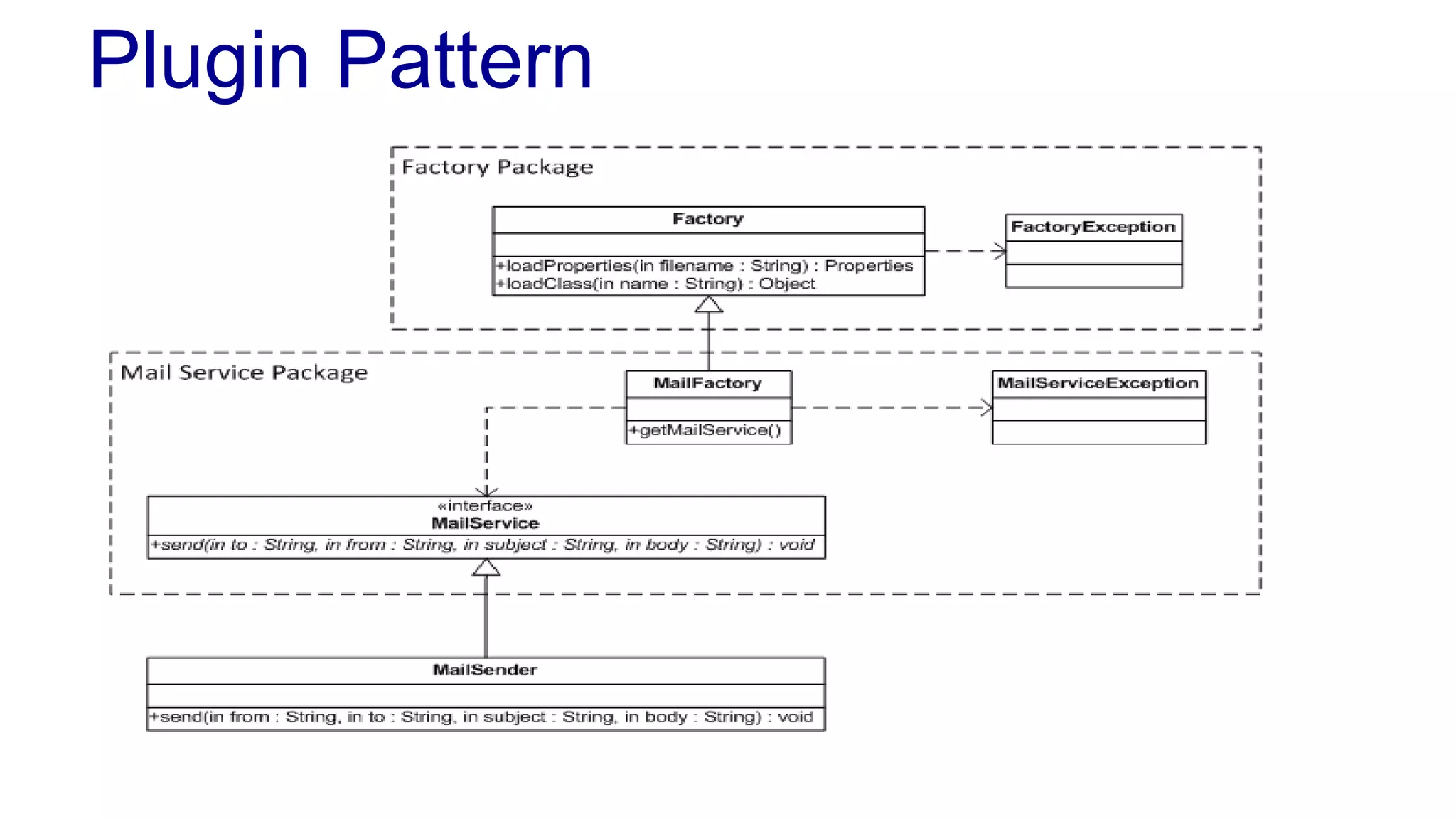

19. Plugin
Links classes during configuration
rather than compilation
 Use plugin to provide specific implantation
– Plugins implement specific interface use by the client
application code
– Decision at configuration time or run time
– Use factory to load in the plugin
– For example: on plugin for test, another for production

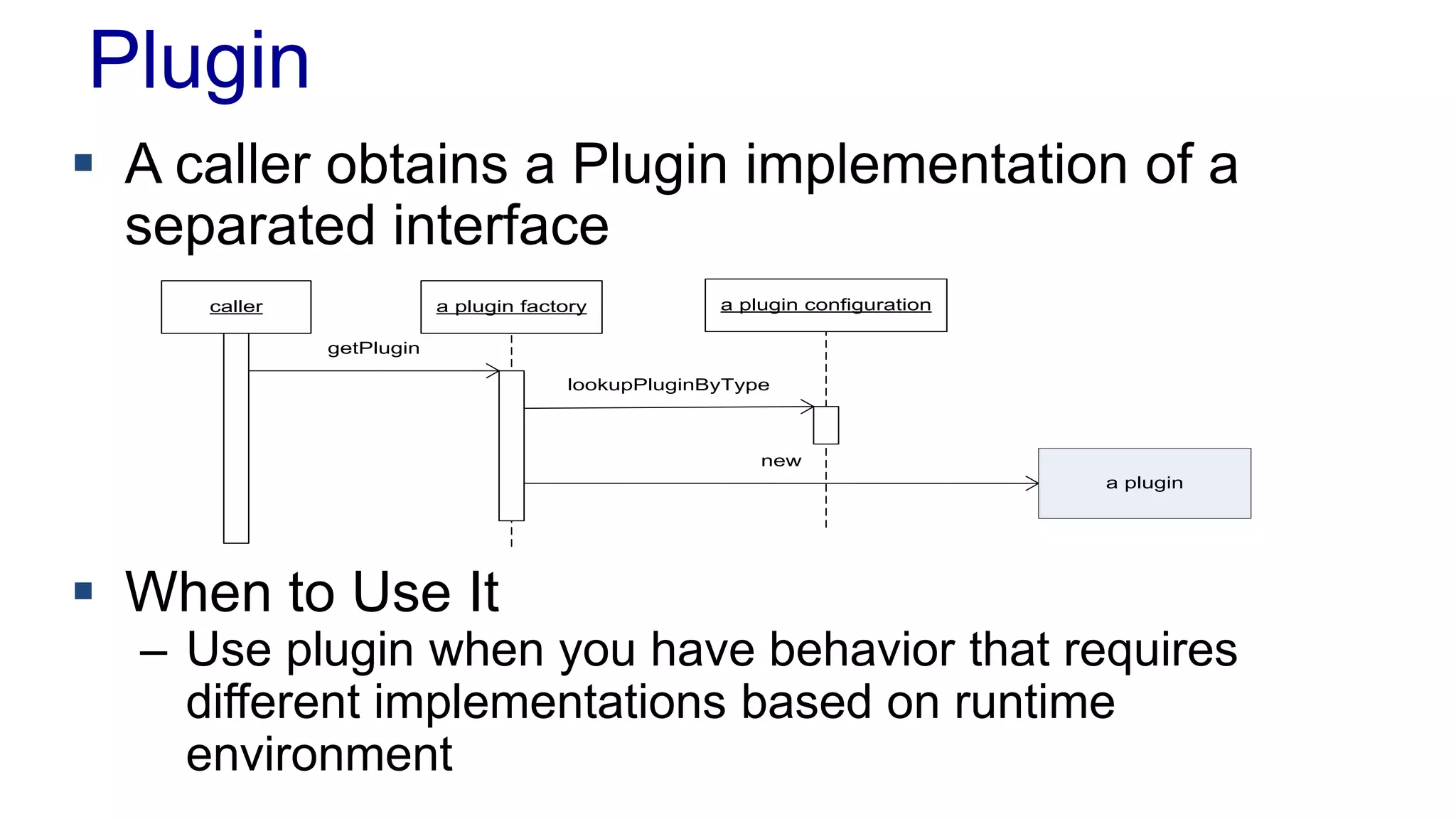

20. Plugin
 A caller obtains a Plugin implementation of a
caller a plugin factory a plugin configuration
getPlugin
lookupPluginByType
new
a plugin
separated interface
 When to Use It
– Use plugin when you have behavior that requires
different implementations based on runtime
environment

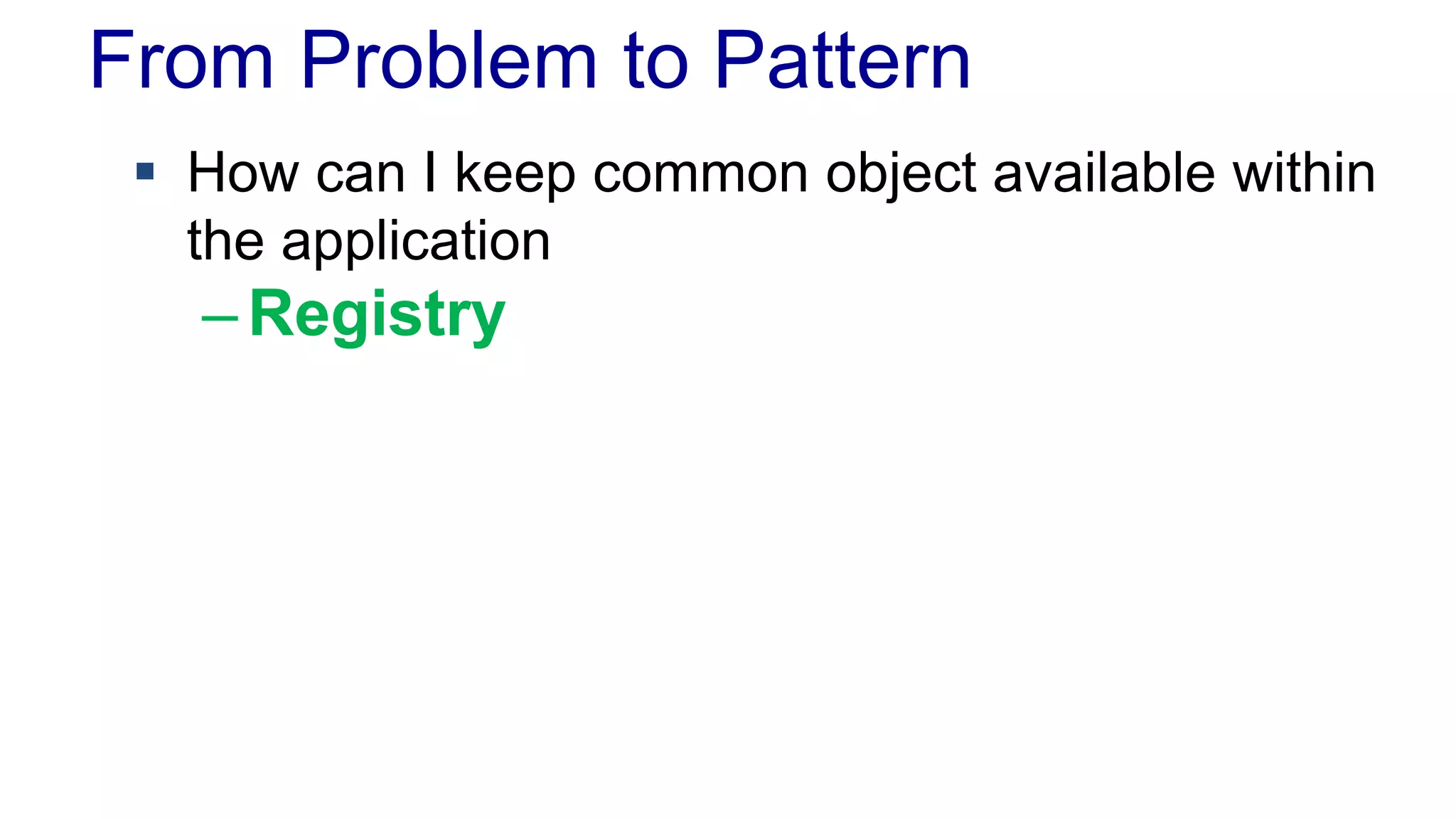

21. From Problem to Pattern
 How can I keep common object available within
the application
– Registry

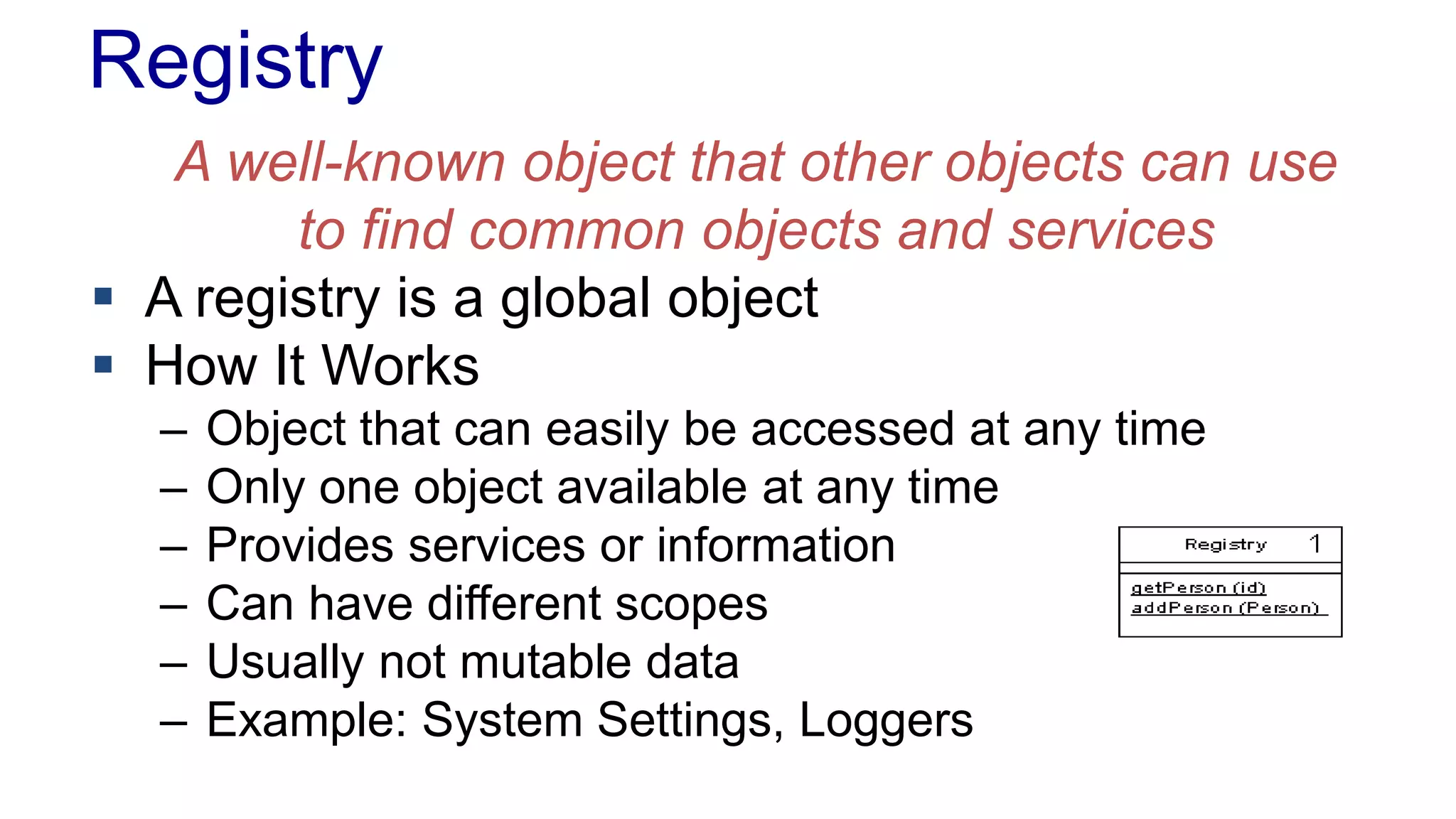

22. Registry
A well-known object that other objects can use
to find common objects and services
 A registry is a global object
 How It Works
– Object that can easily be accessed at any time
– Only one object available at any time
– Provides services or information
– Can have different scopes
– Usually not mutable data
– Example: System Settings, Loggers

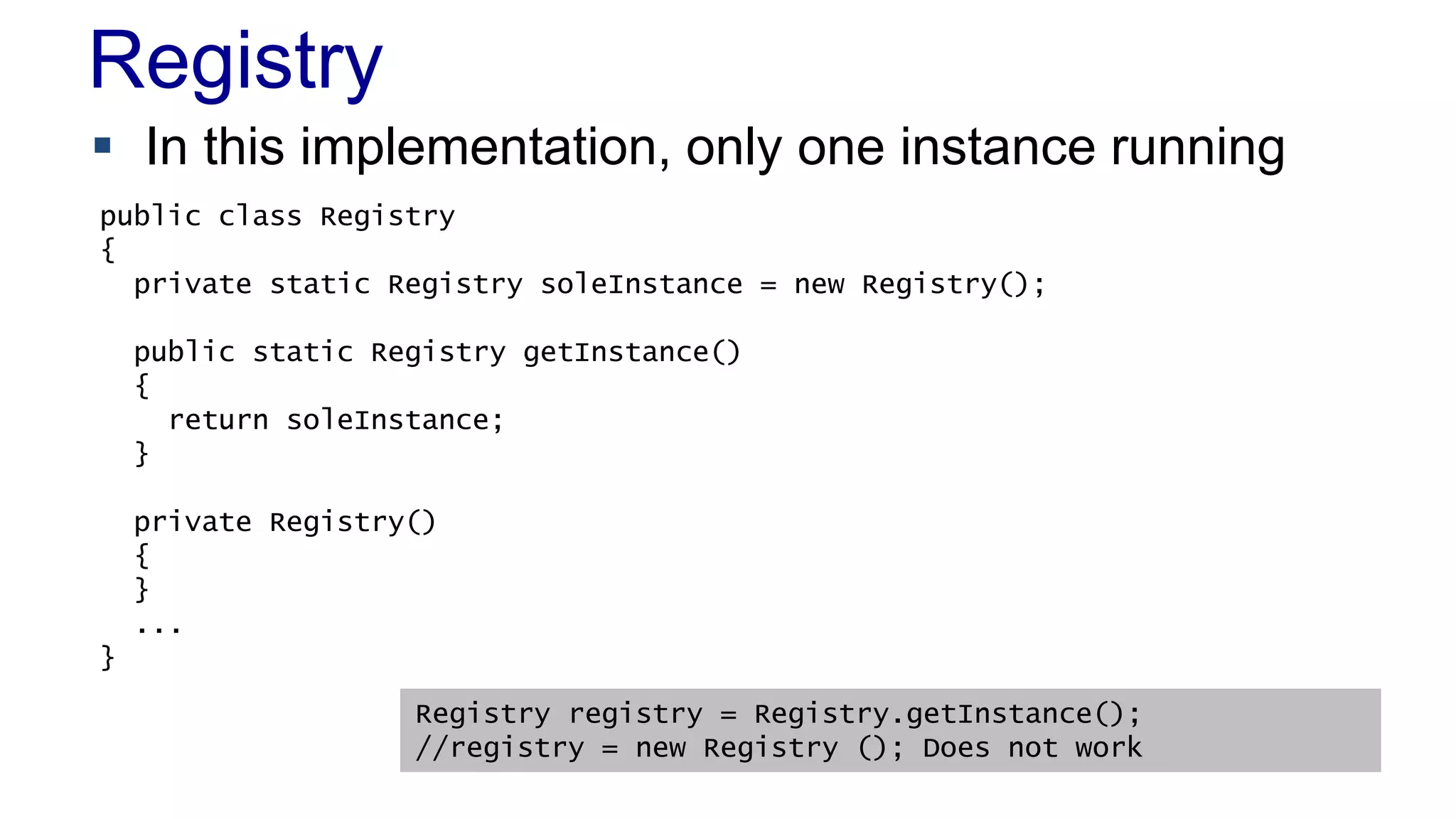

23. Registry
 In this implementation, only one instance running
public class Registry
{
private static Registry soleInstance = new Registry();
public static Registry getInstance()
{
return soleInstance;
 When to Use It
– As a last resort
}
private Registry()
{
}
...
}
Registry registry = Registry.getInstance();
//registry = new Registry (); Does not work

24. From Problem to Pattern
 I need to set up communication between two
independent objects
–Mapper

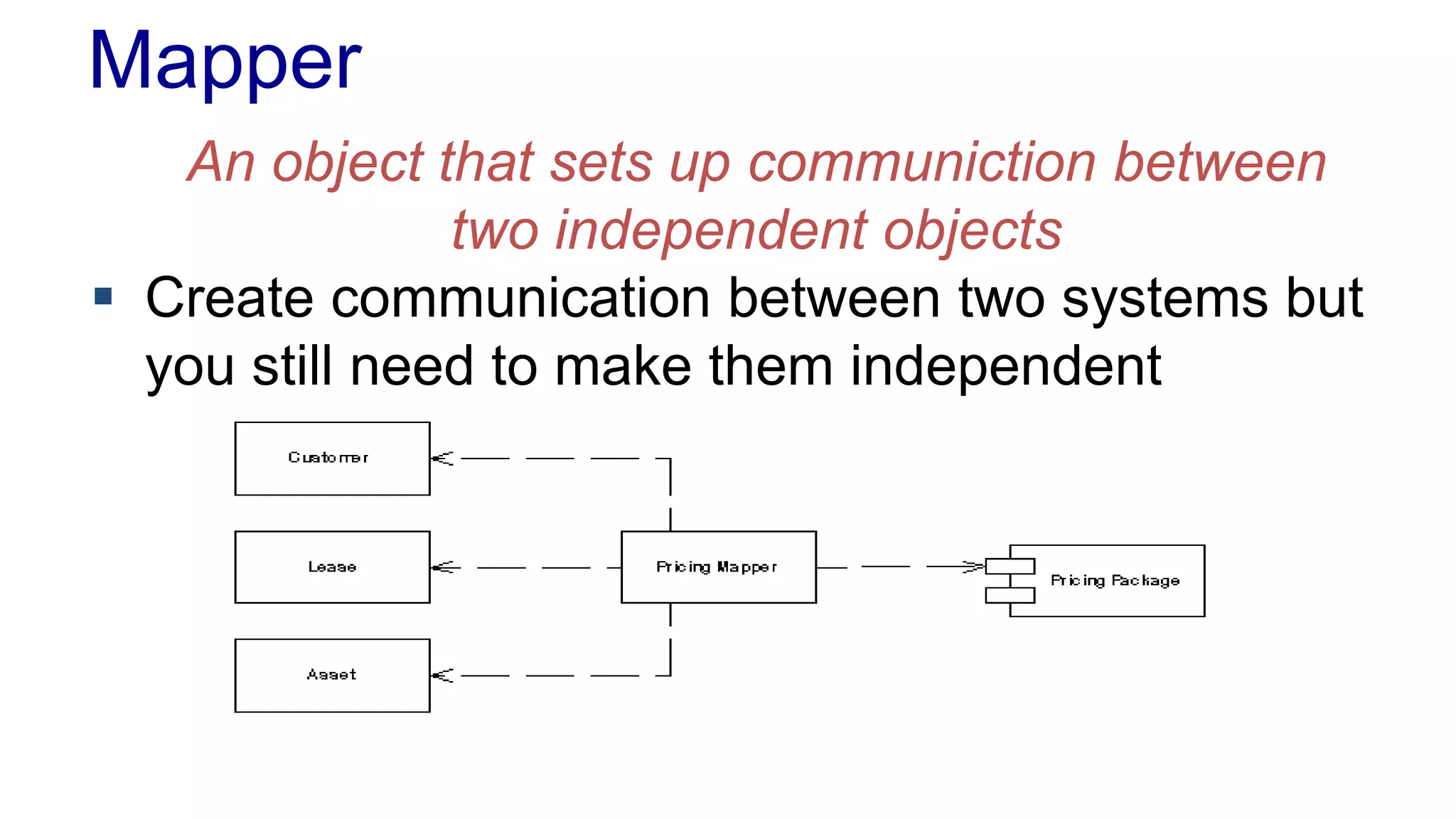

25. Mapper
An object that sets up communiction between
two independent objects
 Create communication between two systems but
you still need to make them independent

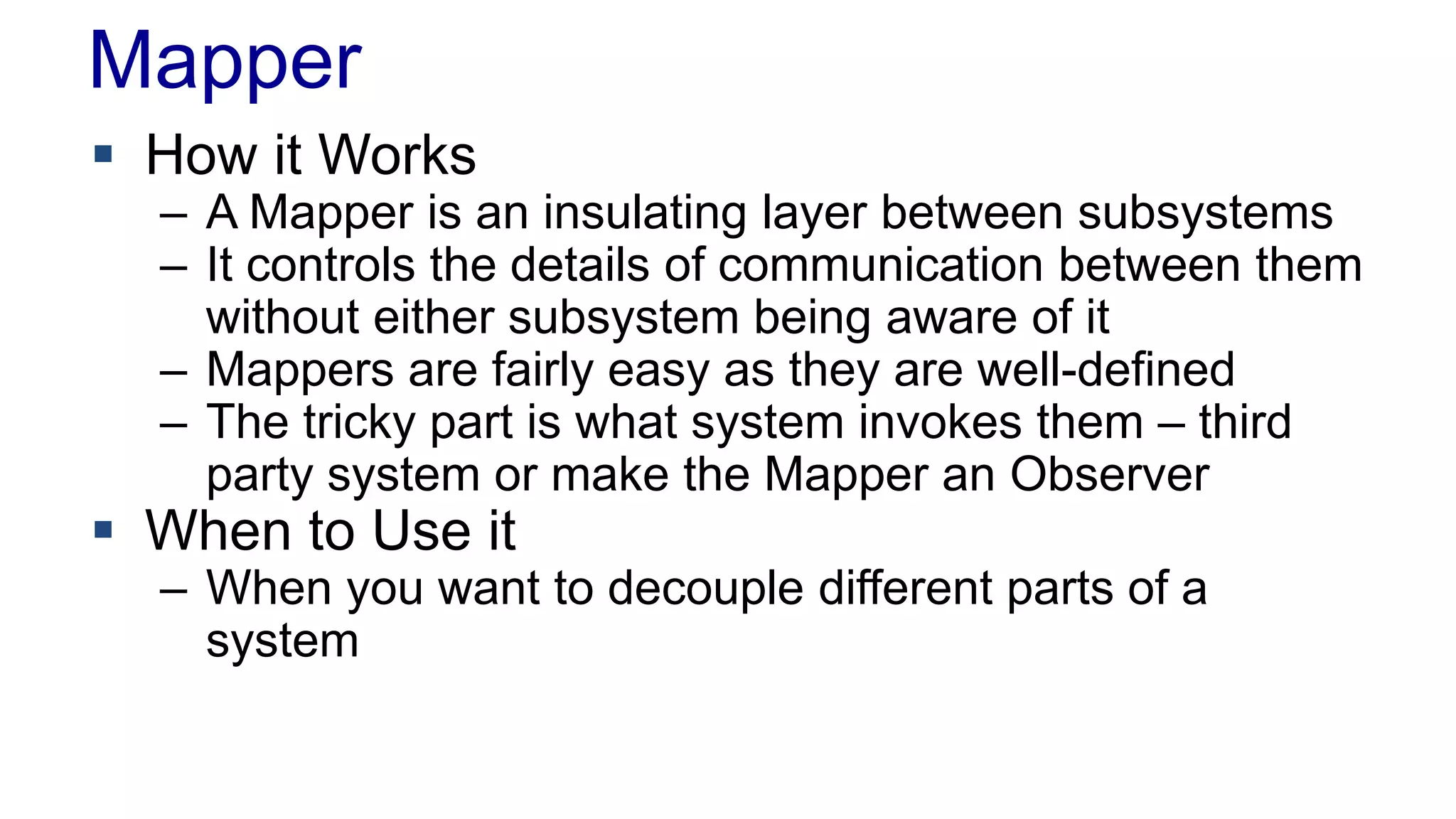

26. Mapper
 How it Works
– A Mapper is an insulating layer between subsystems
– It controls the details of communication between them
without either subsystem being aware of it
– Mappers are fairly easy as they are well-defined
– The tricky part is what system invokes them – third
party system or make the Mapper an Observer
 When to Use it
– When you want to decouple different parts of a
system

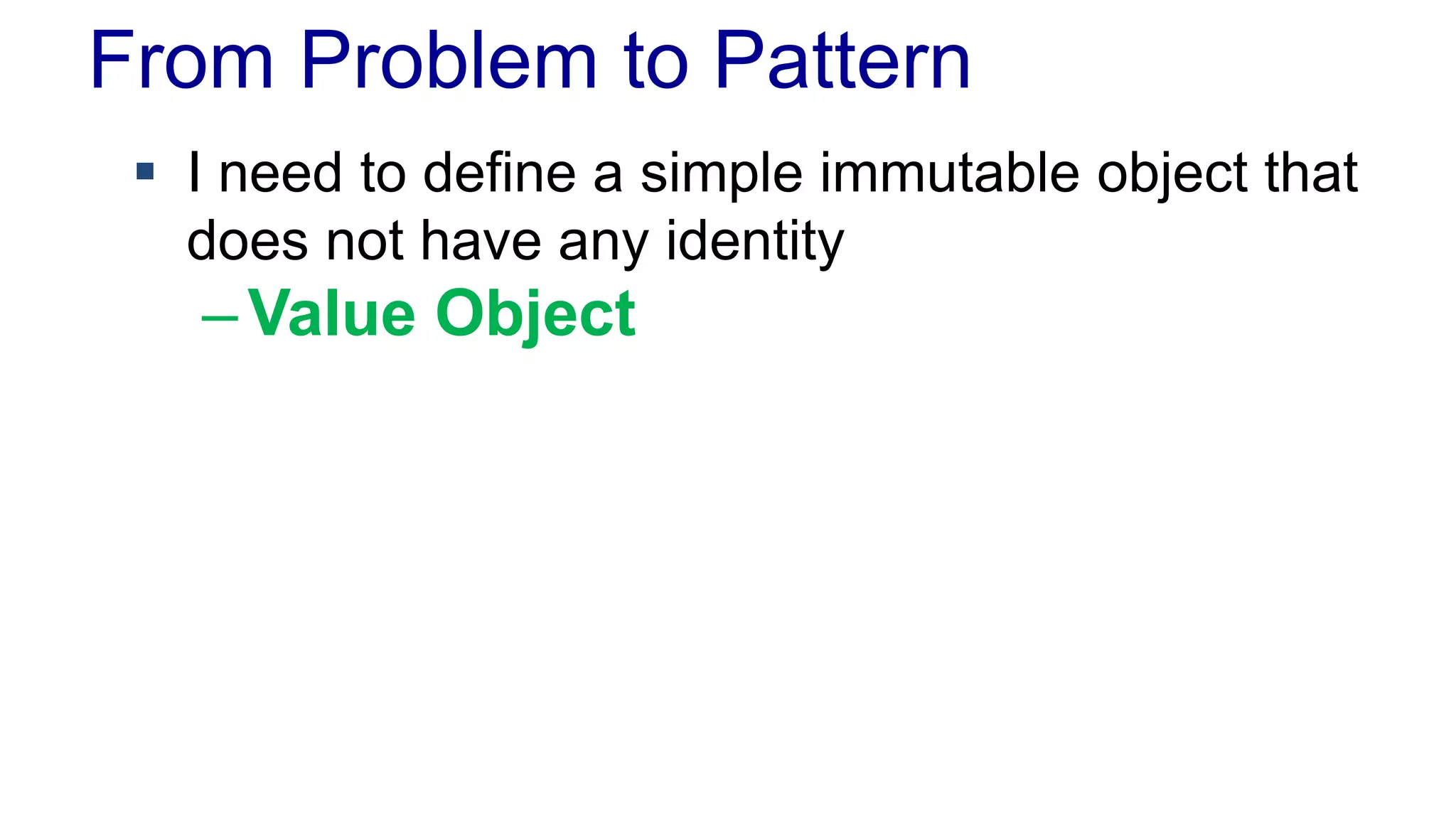

27. From Problem to Pattern
 I need to define a simple immutable object that
does not have any identity
–Value Object

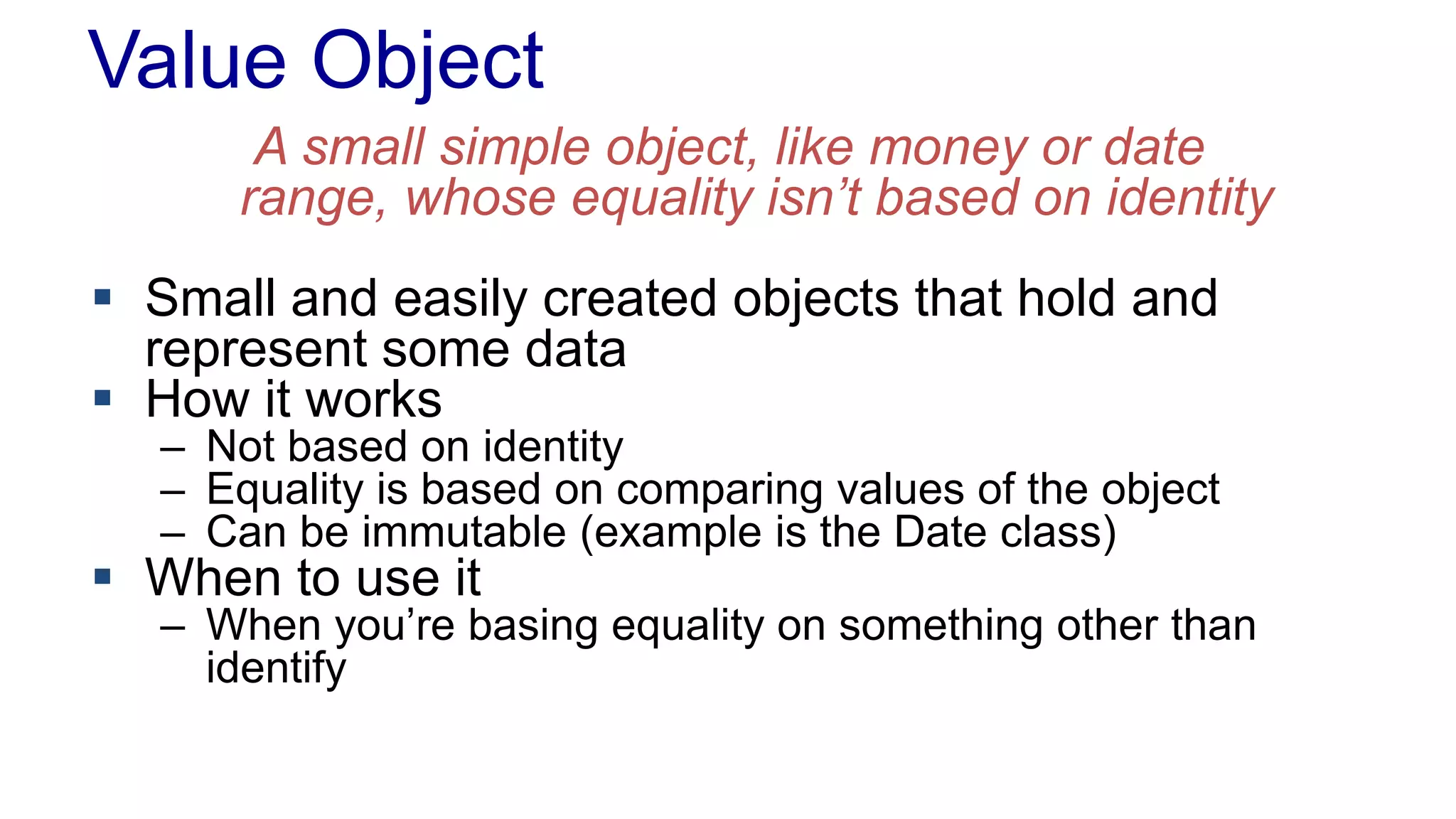

28. Value Object
A small simple object, like money or date
range, whose equality isn’t based on identity
 Small and easily created objects that hold and
represent some data
 How it works
– Not based on identity
– Equality is based on comparing values of the object
– Can be immutable (example is the Date class)
 When to use it
– When you’re basing equality on something other than
identify

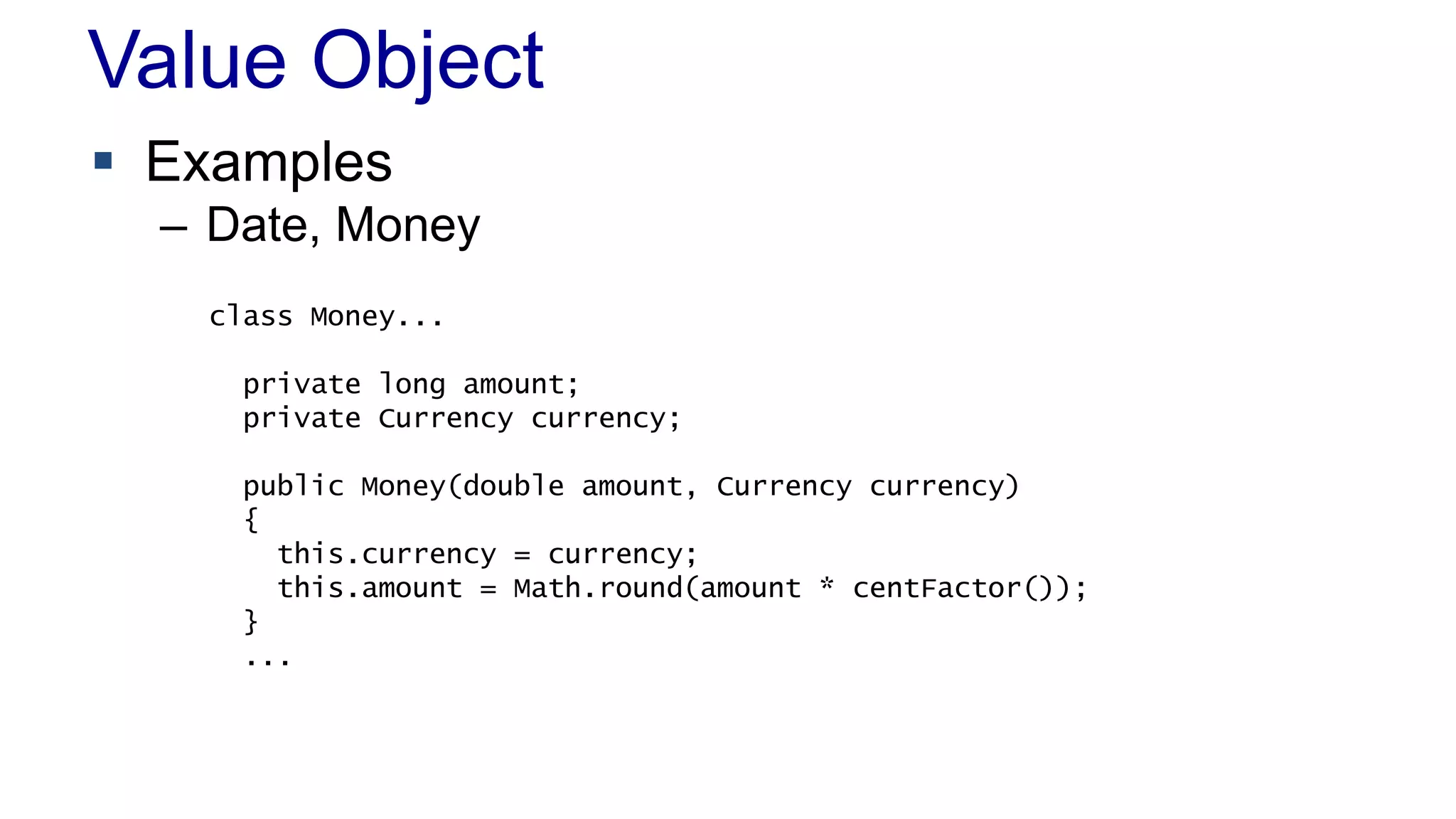

29. Value Object
 Examples
– Date, Money
class Money...
private long amount;
private Currency currency;
public Money(double amount, Currency currency)
{
this.currency = currency;
this.amount = Math.round(amount * centFactor());
}
...

30. MailService

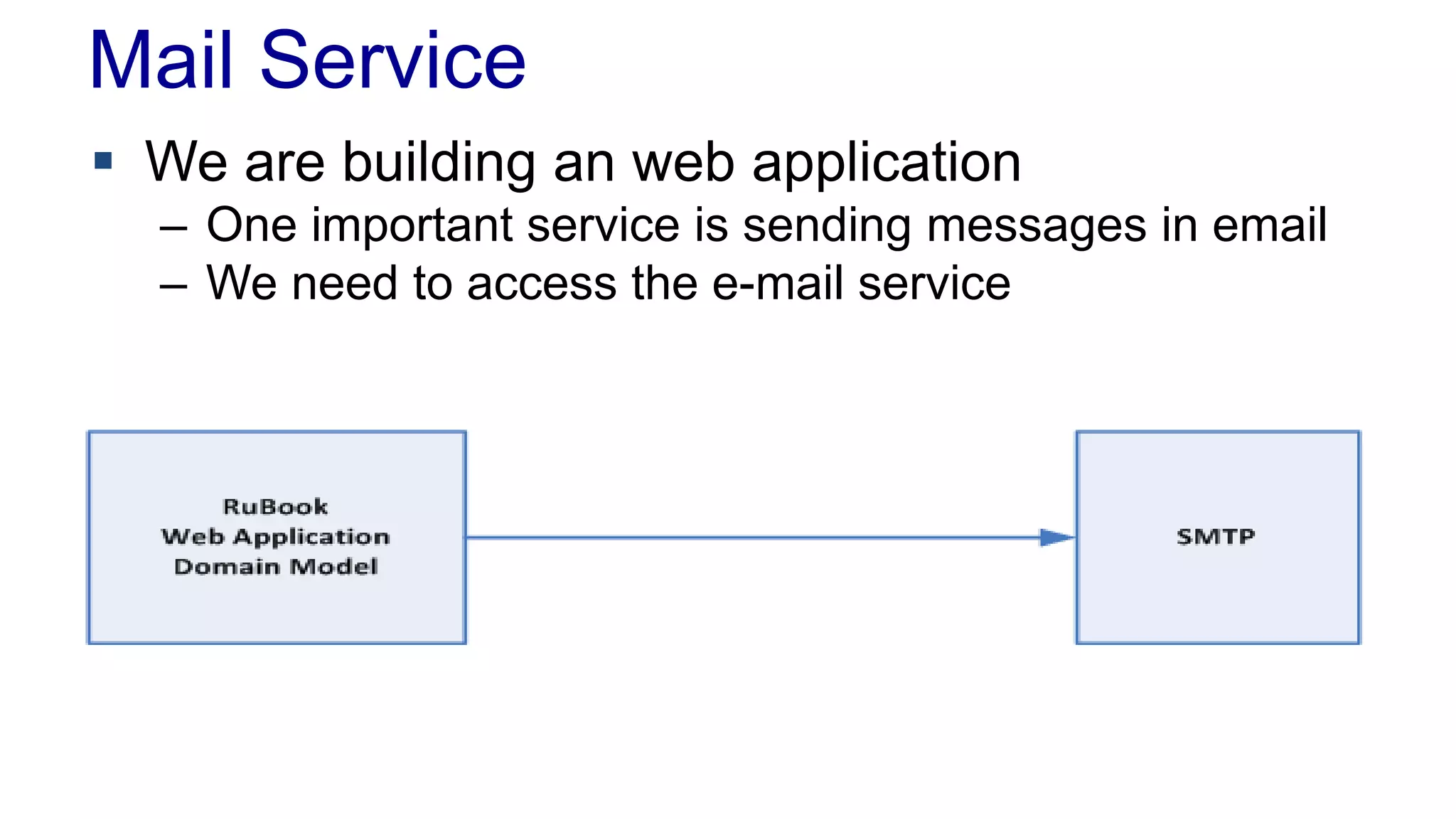

31. Mail Service
 We are building an web application
– One important service is sending messages in email
– We need to access the e-mail service

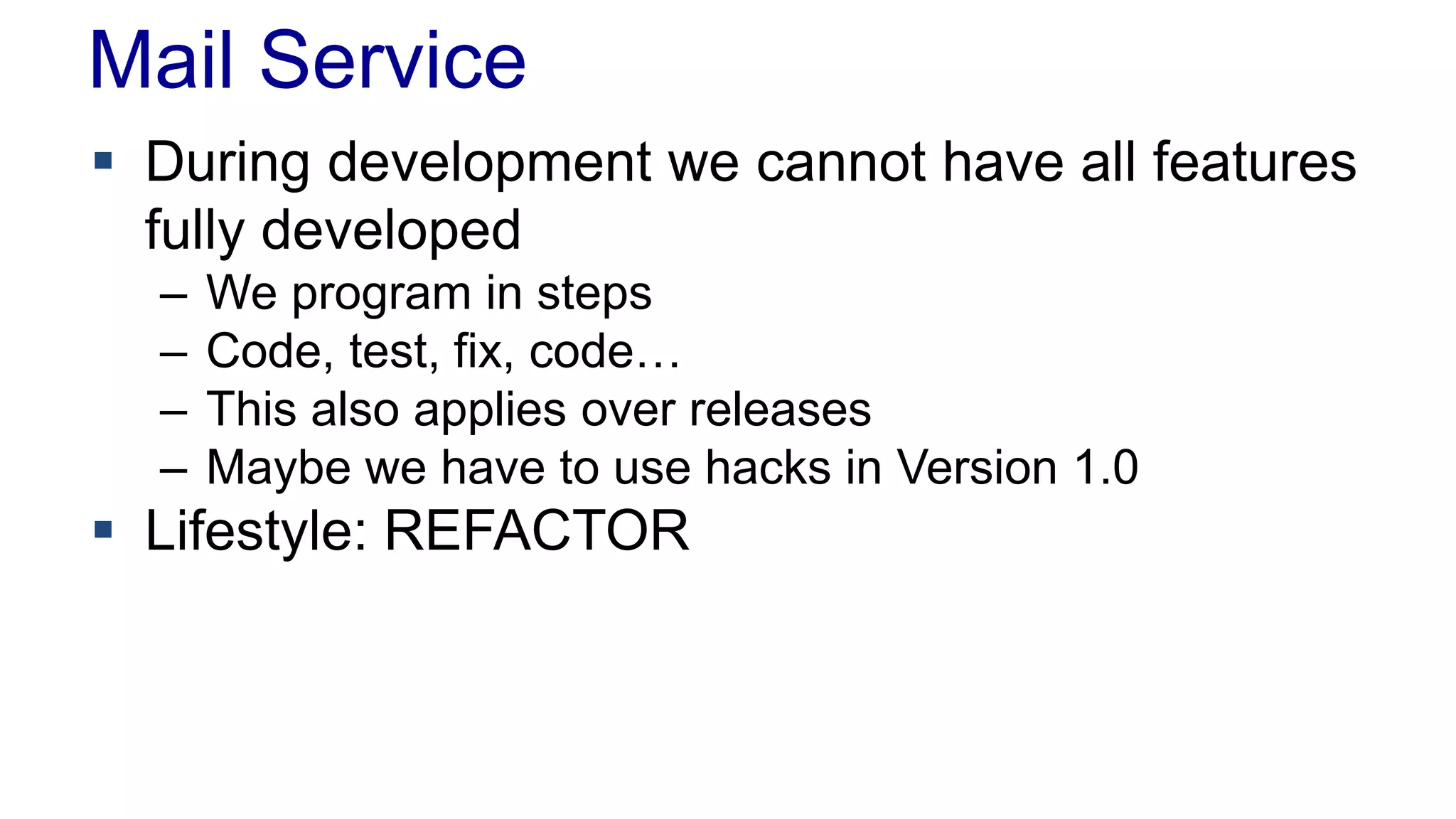

32. Mail Service
 During development we cannot have all features
fully developed
– We program in steps
– Code, test, fix, code…
– This also applies over releases
– Maybe we have to use hacks in Version 1.0
 Lifestyle: REFACTOR

33. Refactoring
 Design, redesign, refactor
– Make the design as complete as possible
– But be prepared to change design as you code
– Unit tests become very important
 Code Smell
– Think of your code as a baby:
“If it smells, change it!”

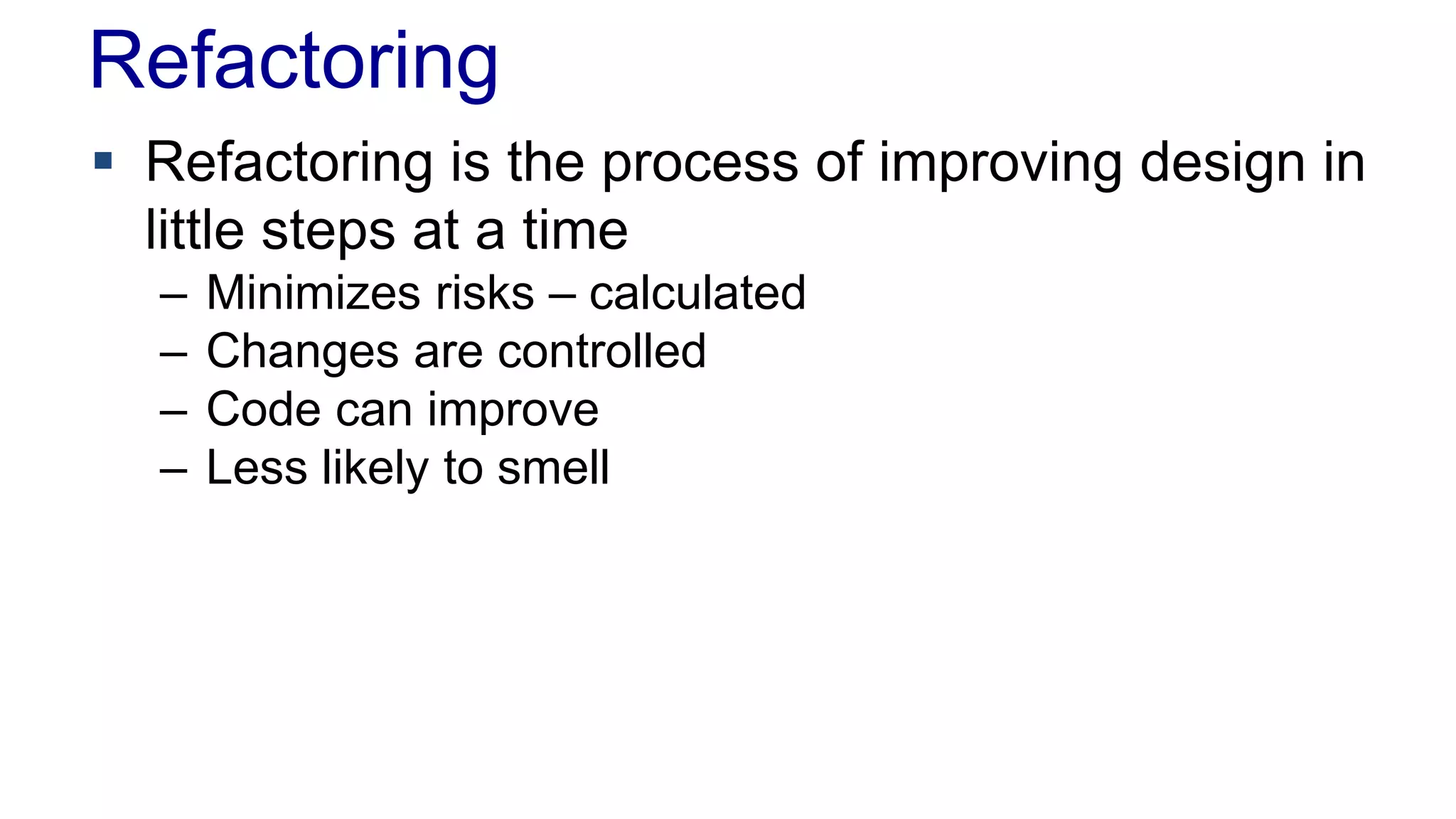

34. Refactoring
 Refactoring is the process of improving design in
little steps at a time
– Minimizes risks – calculated
– Changes are controlled
– Code can improve
– Less likely to smell

35. The Danger
 Technical Dept
“I’ll fix it later”
The four most dangerous and expensive words in
programming

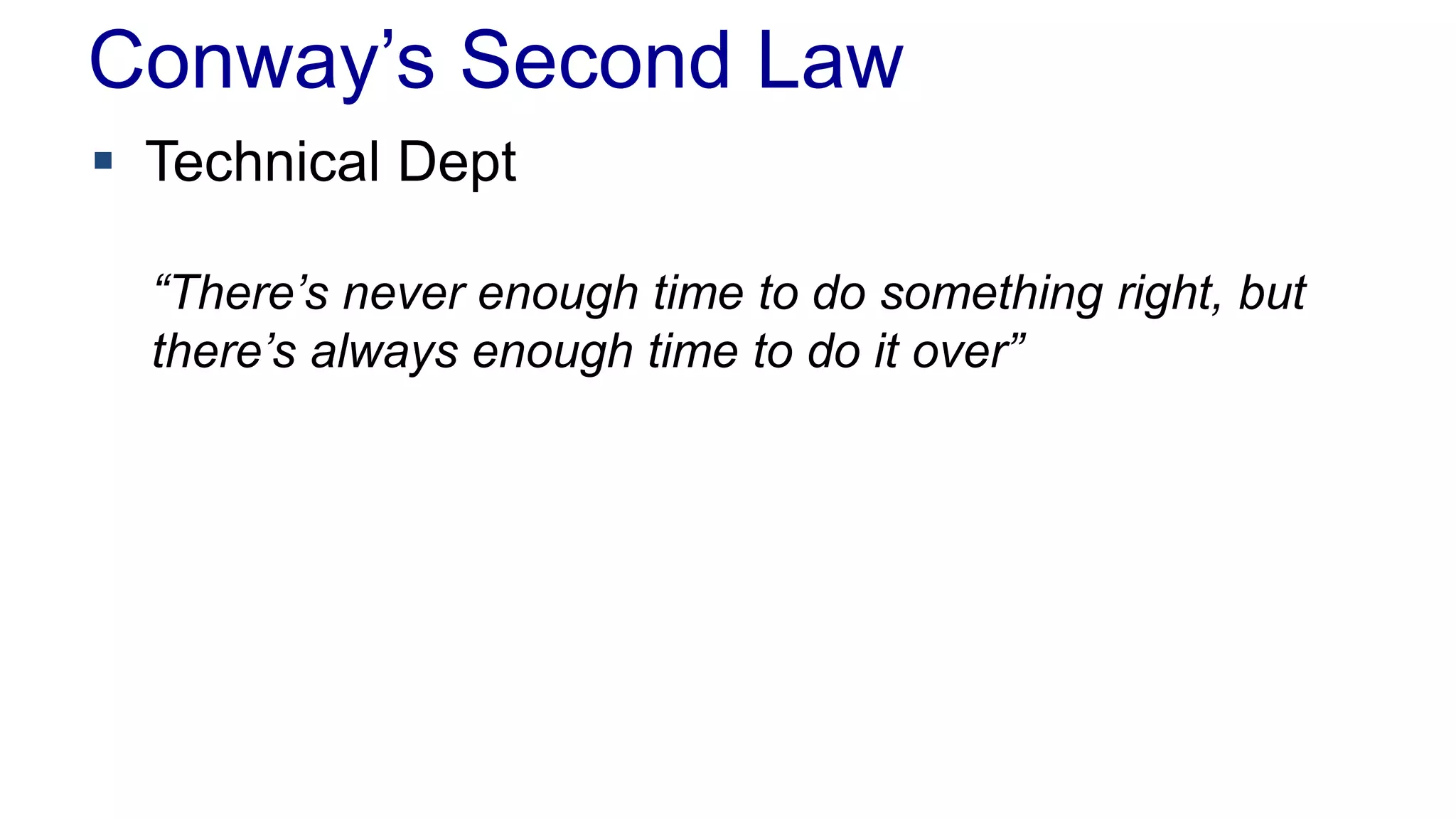

36. Conway’s Second Law
 Technical Dept
“There’s never enough time to do something right, but
there’s always enough time to do it over”

37. Mail Service
 We are building an web application
– One important service is sending messages in email
– We need to access the e-mail service

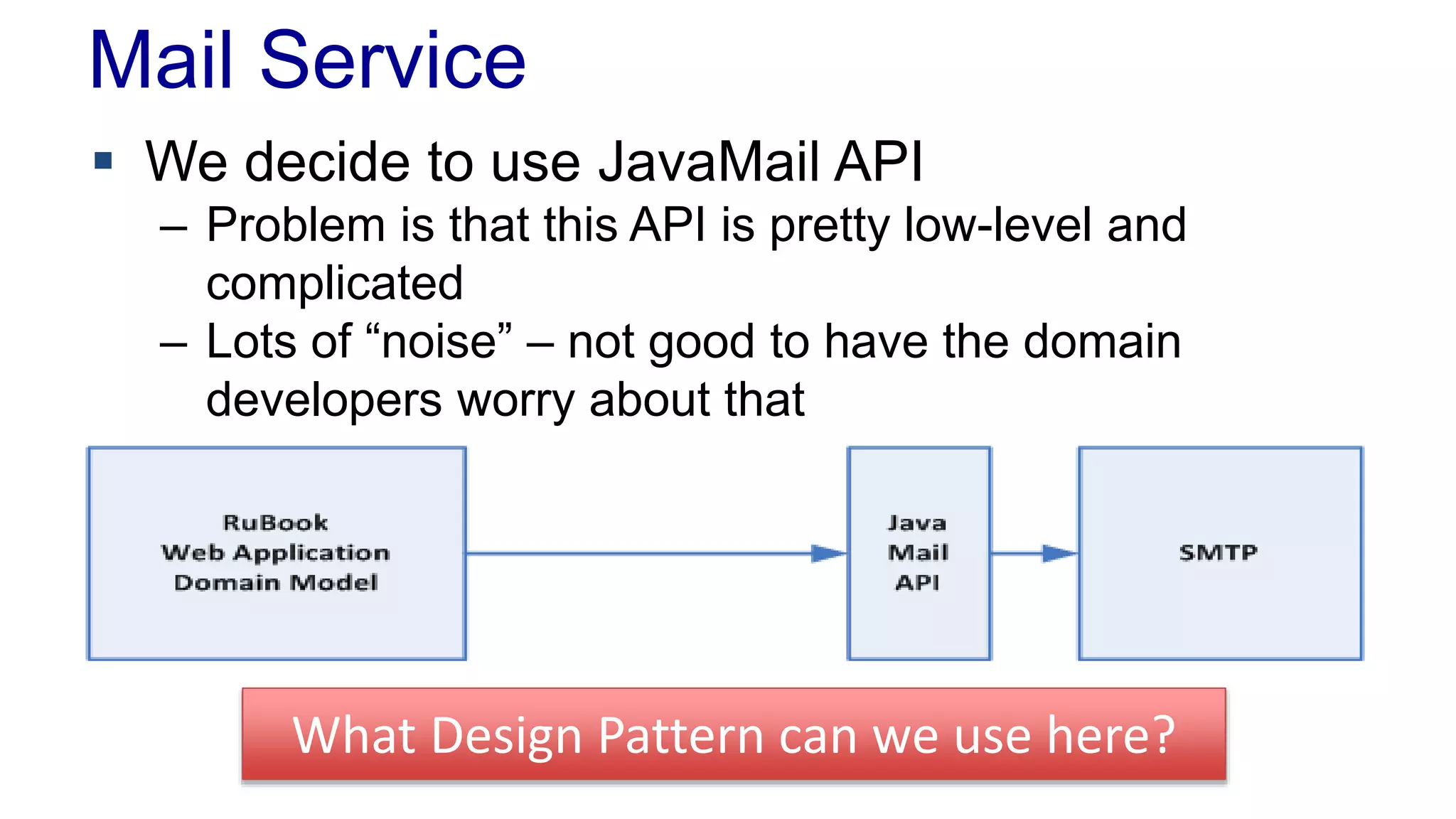

38. Mail Service
 We decide to use JavaMail API
– Problem is that this API is pretty low-level and
complicated
– Lots of “noise” – not good to have the domain
developers worry about that
What Design Pattern can we use here?

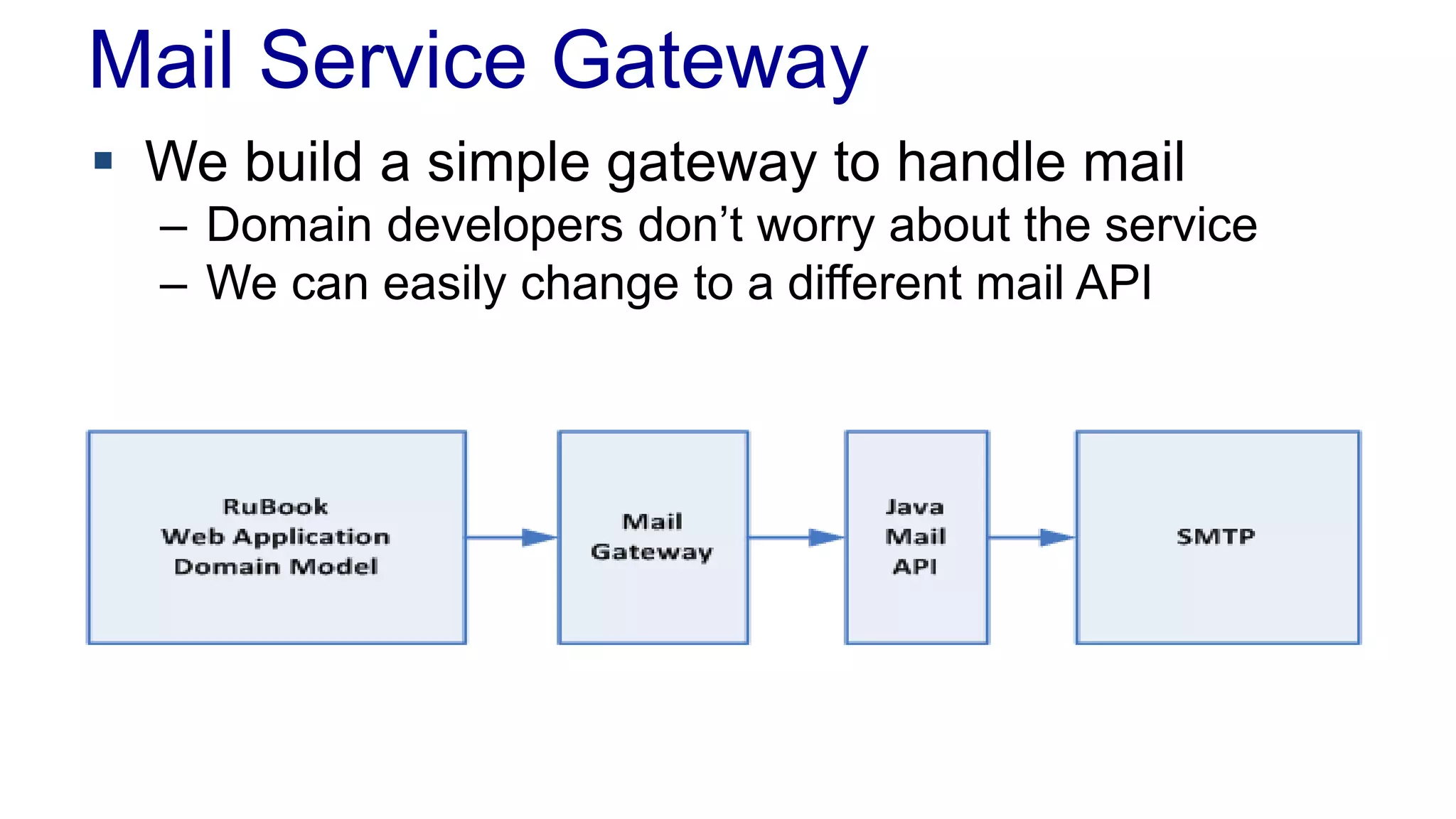

39. Mail Service Gateway
 We build a simple gateway to handle mail
– Domain developers don’t worry about the service
– We can easily change to a different mail API

40. Gateway
An object that encapsulates access to an external
system or resource
 Wrap external APIs into an interface
– API is usually for accessing some external resource
• Examples: JDBC, JDom, financial software

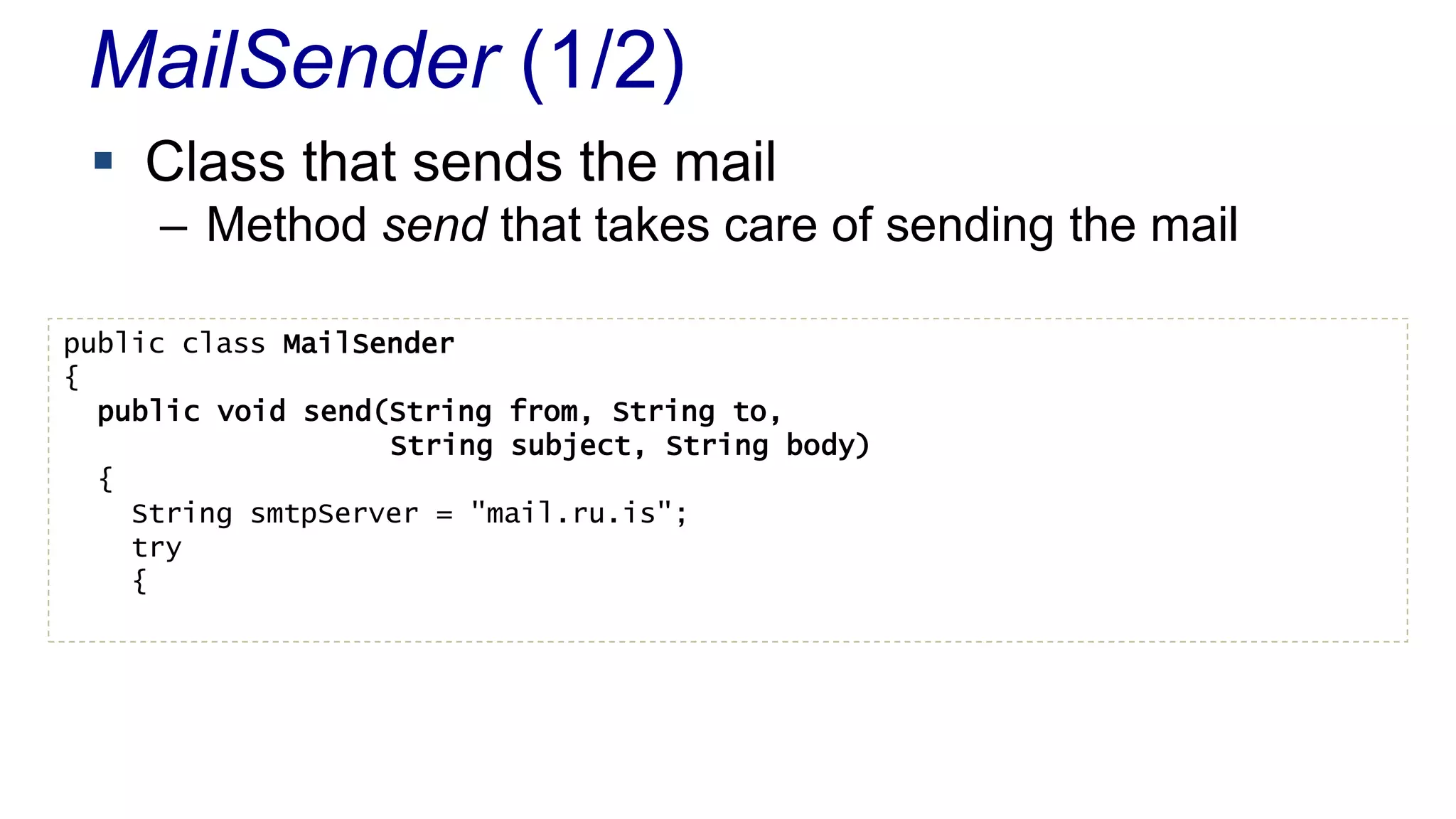

41. MailSender (1/2)
 Class that sends the mail
– Method send that takes care of sending the mail
public class MailSender
{
public void send(String from, String to,
String subject, String body)
{
String smtpServer = "mail.ru.is";
try
{

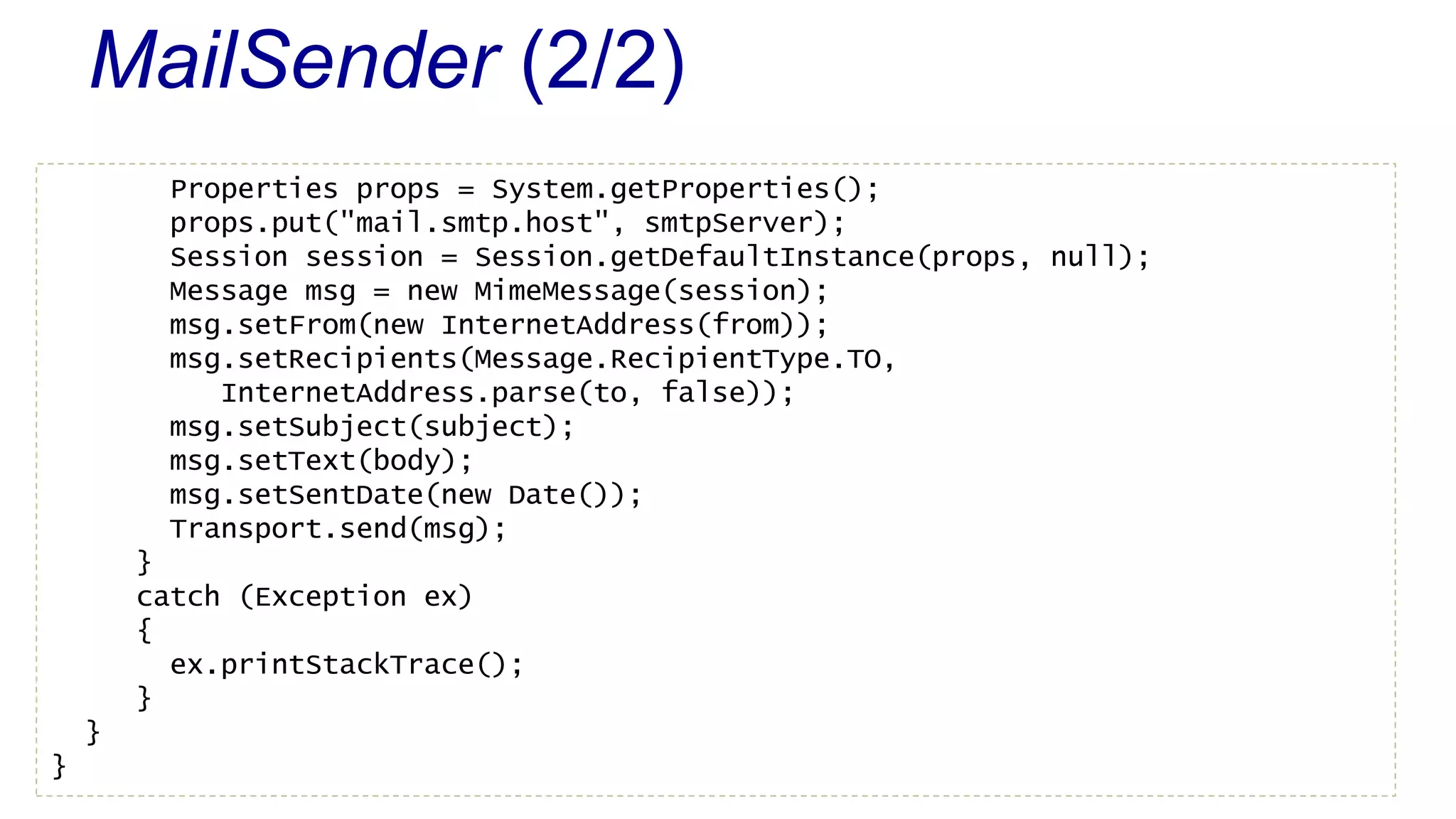

42. MailSender (2/2)
Properties props = System.getProperties();
props.put("mail.smtp.host", smtpServer);
Session session = Session.getDefaultInstance(props, null);
Message msg = new MimeMessage(session);
msg.setFrom(new InternetAddress(from));
msg.setRecipients(Message.RecipientType.TO,
InternetAddress.parse(to, false));
msg.setSubject(subject);
msg.setText(body);
msg.setSentDate(new Date());
Transport.send(msg);
}
catch (Exception ex)
{
ex.printStackTrace();
}
}
}

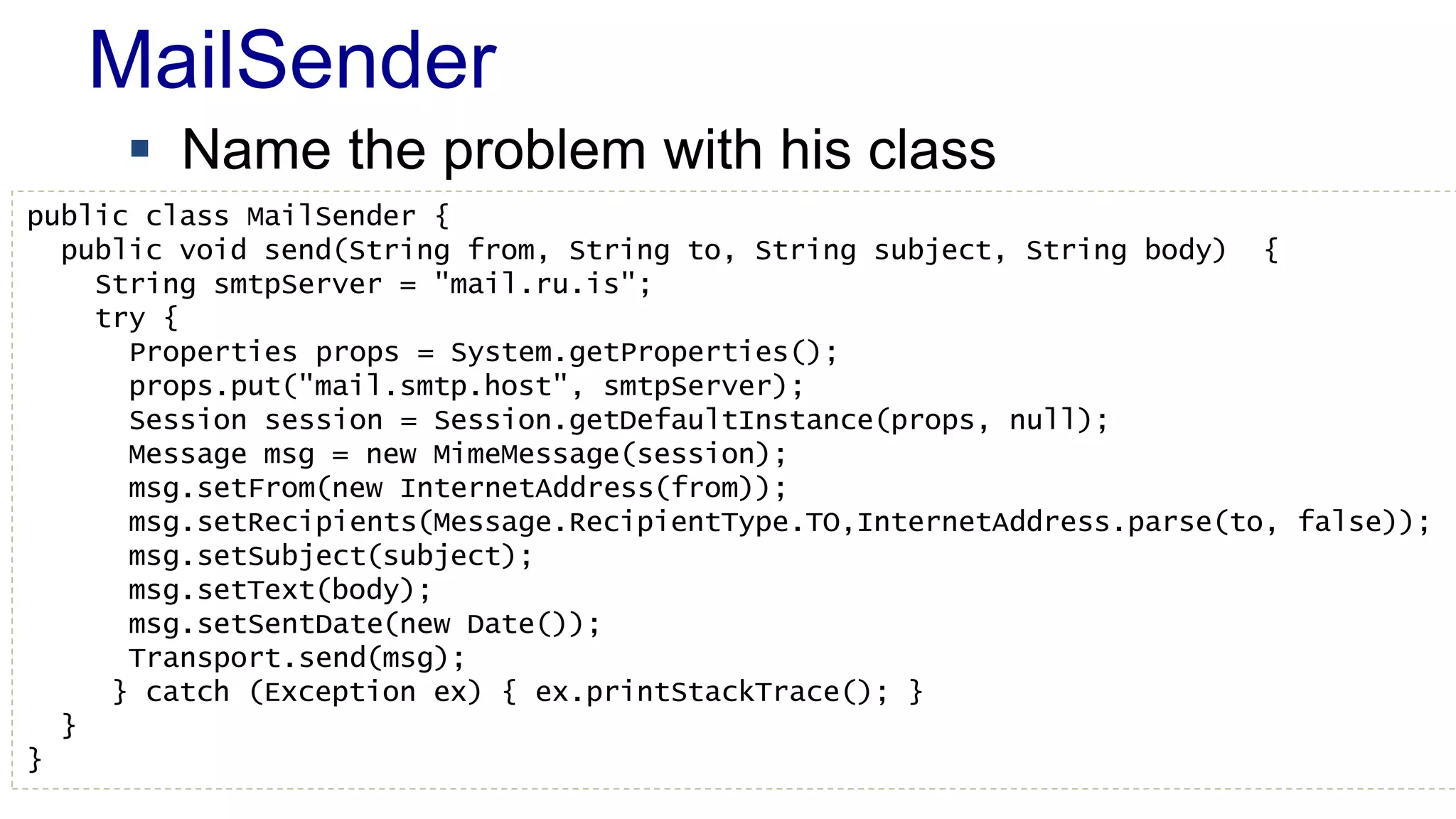

43. MailSender
 Name the problem with his class
public class MailSender {
public void send(String from, String to, String subject, String body) {
String smtpServer = "mail.ru.is";
try {
Properties props = System.getProperties();
props.put("mail.smtp.host", smtpServer);
Session session = Session.getDefaultInstance(props, null);
Message msg = new MimeMessage(session);
msg.setFrom(new InternetAddress(from));
msg.setRecipients(Message.RecipientType.TO,InternetAddress.parse(to, false));
msg.setSubject(subject);
msg.setText(body);
msg.setSentDate(new Date());
Transport.send(msg);
} catch (Exception ex) { ex.printStackTrace(); }
}
}

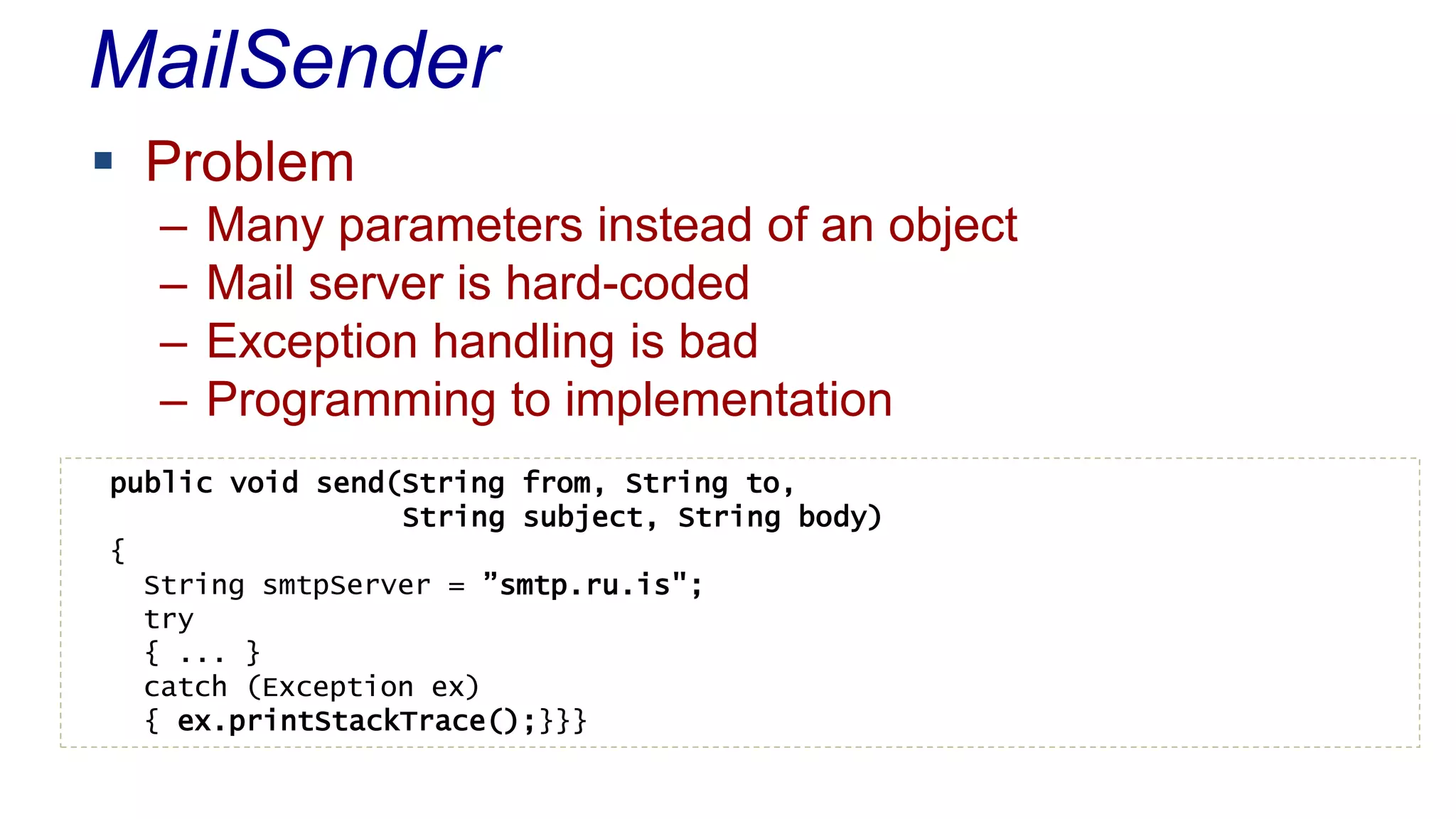

44. MailSender
 Problem
– Many parameters instead of an object
– Mail server is hard-coded
– Exception handling is bad
– Programming to implementation
public void send(String from, String to,
String subject, String body)
{
String smtpServer = ”smtp.ru.is";
try
{ ... }
catch (Exception ex)

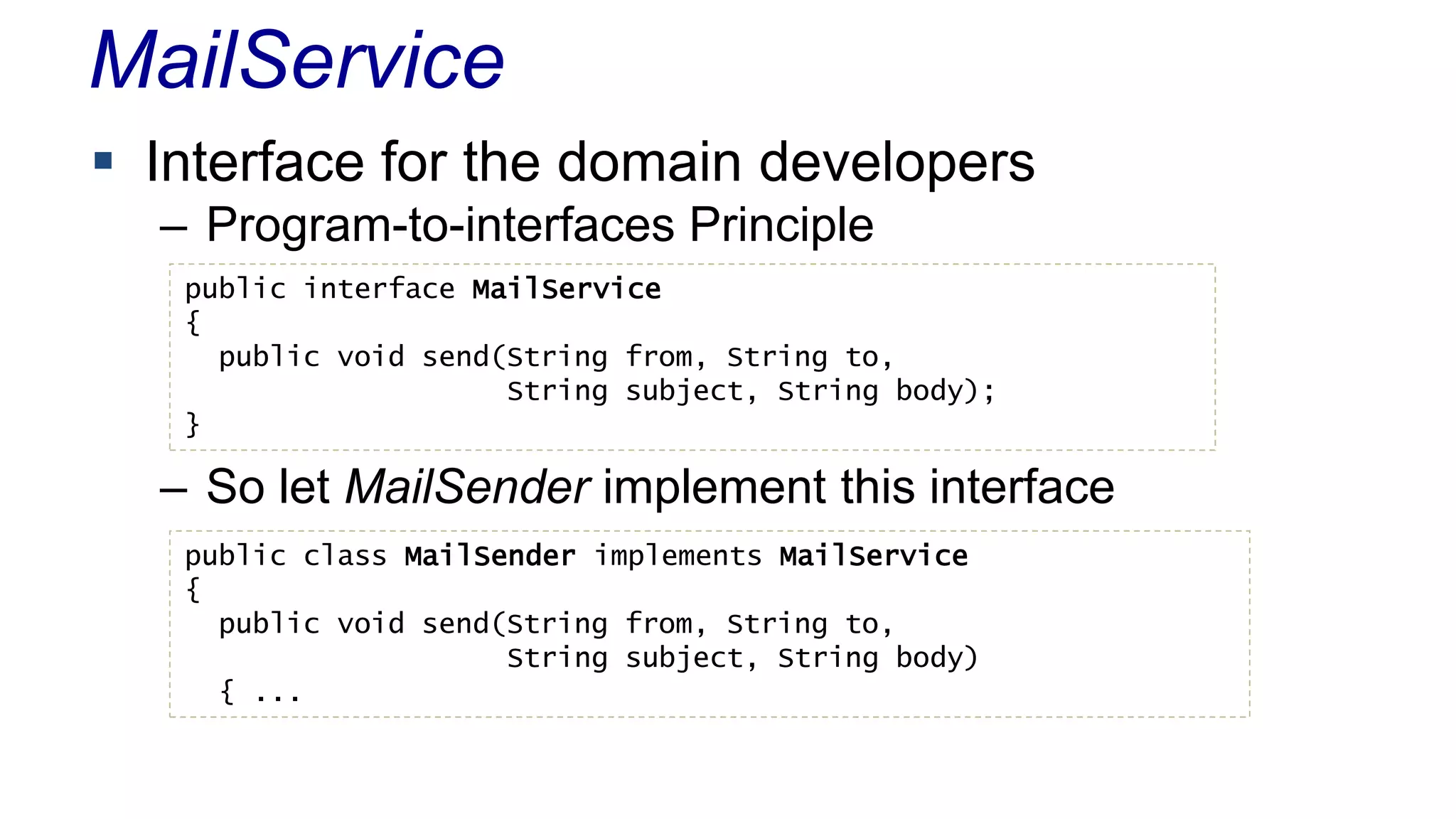

{ ex.printStackTrace();}}}

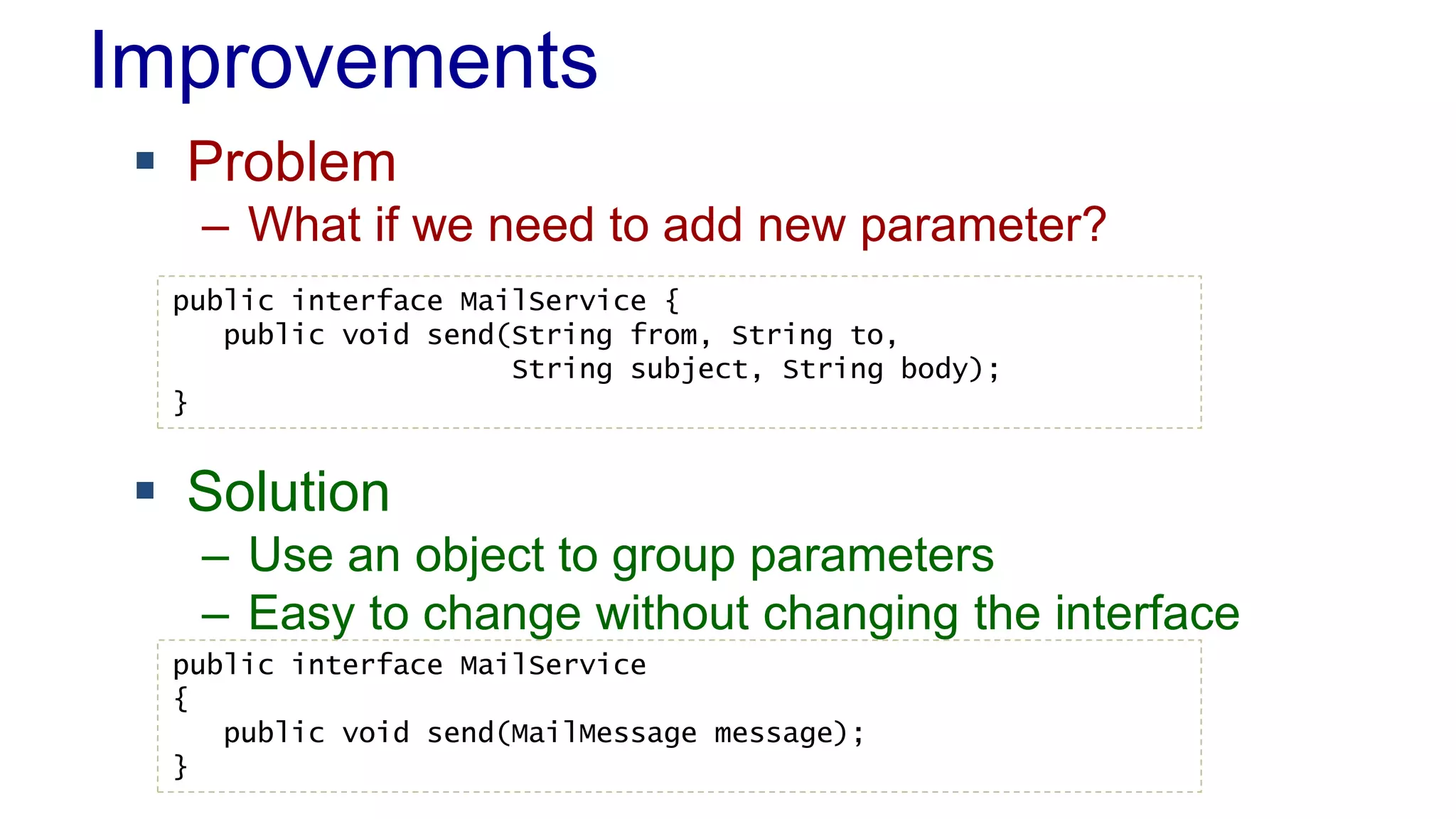

45. MailService
 Interface for the domain developers
– Program-to-interfaces Principle
public interface MailService
{
public void send(String from, String to,
String subject, String body);
}
– So let MailSender implement this interface
public class MailSender implements MailService
{
public void send(String from, String to,
String subject, String body)
{ ...

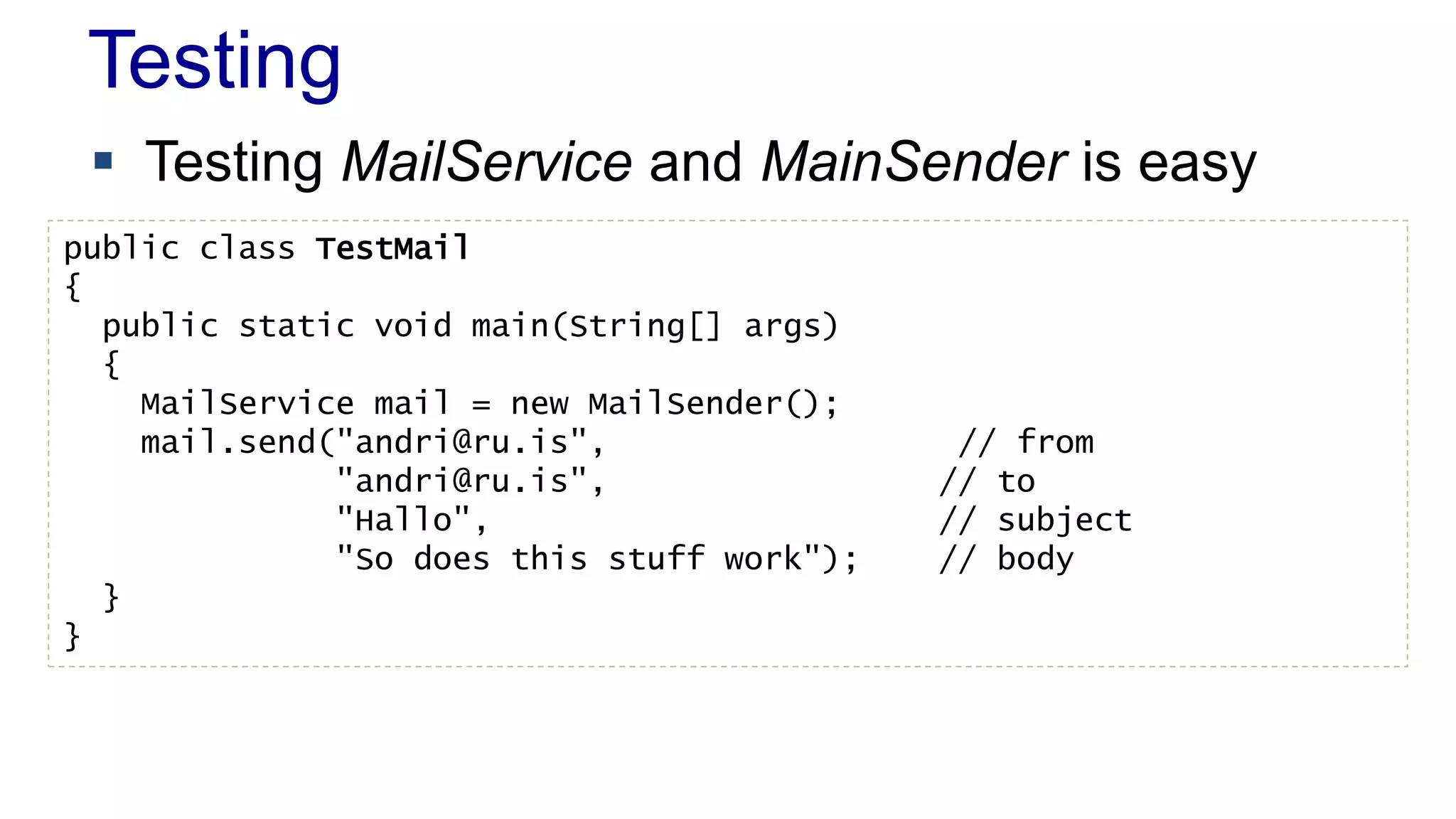

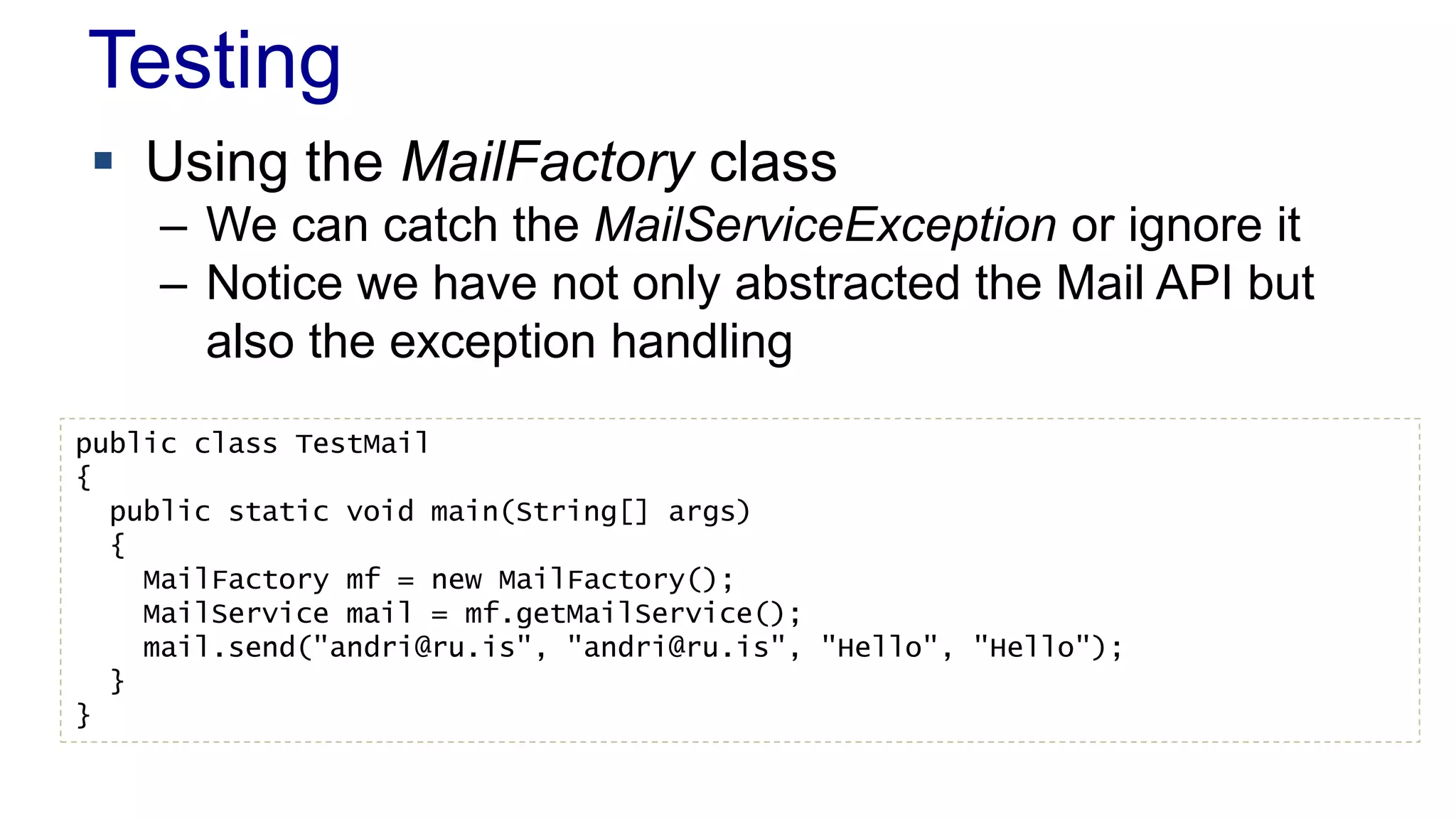

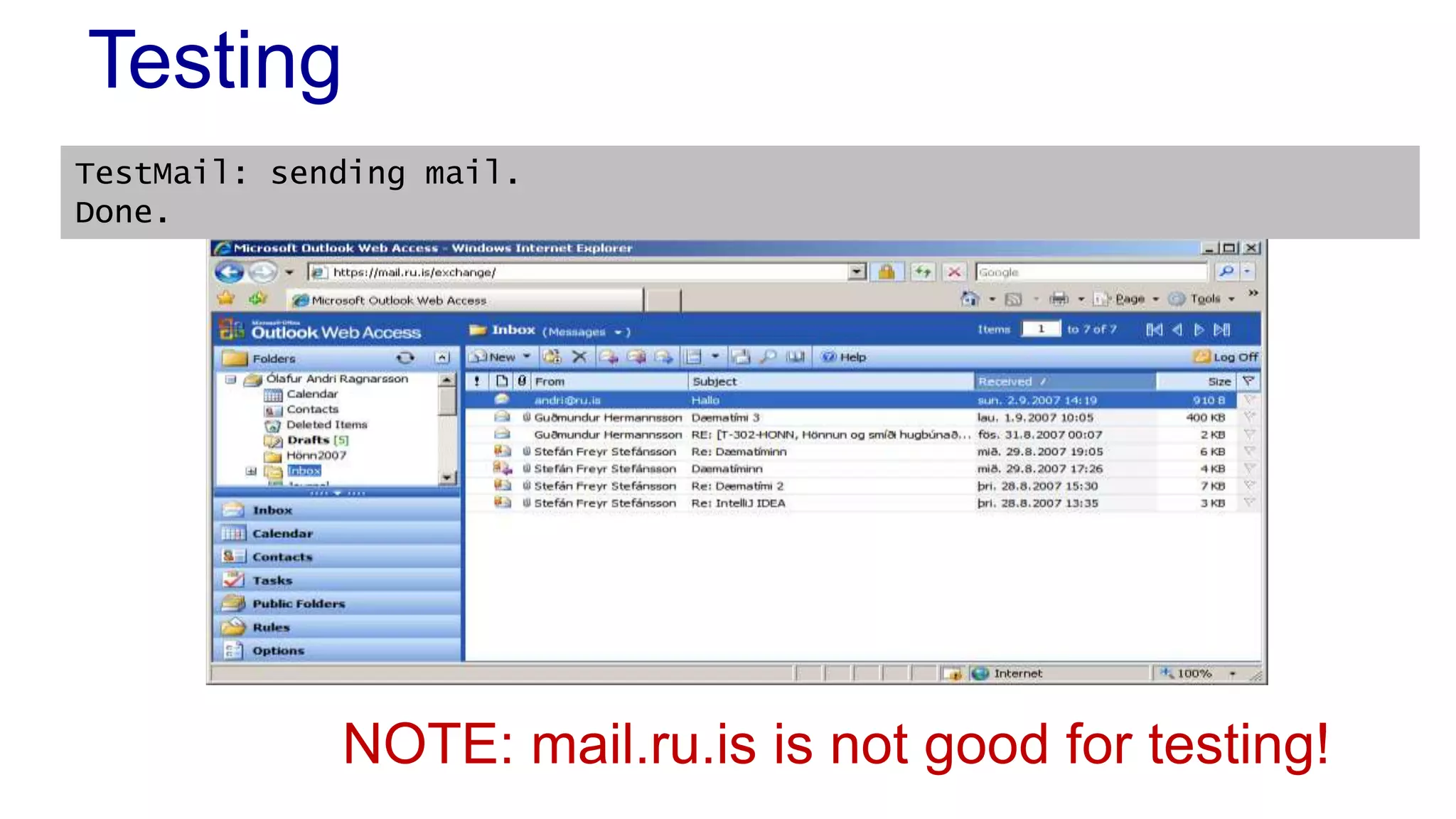

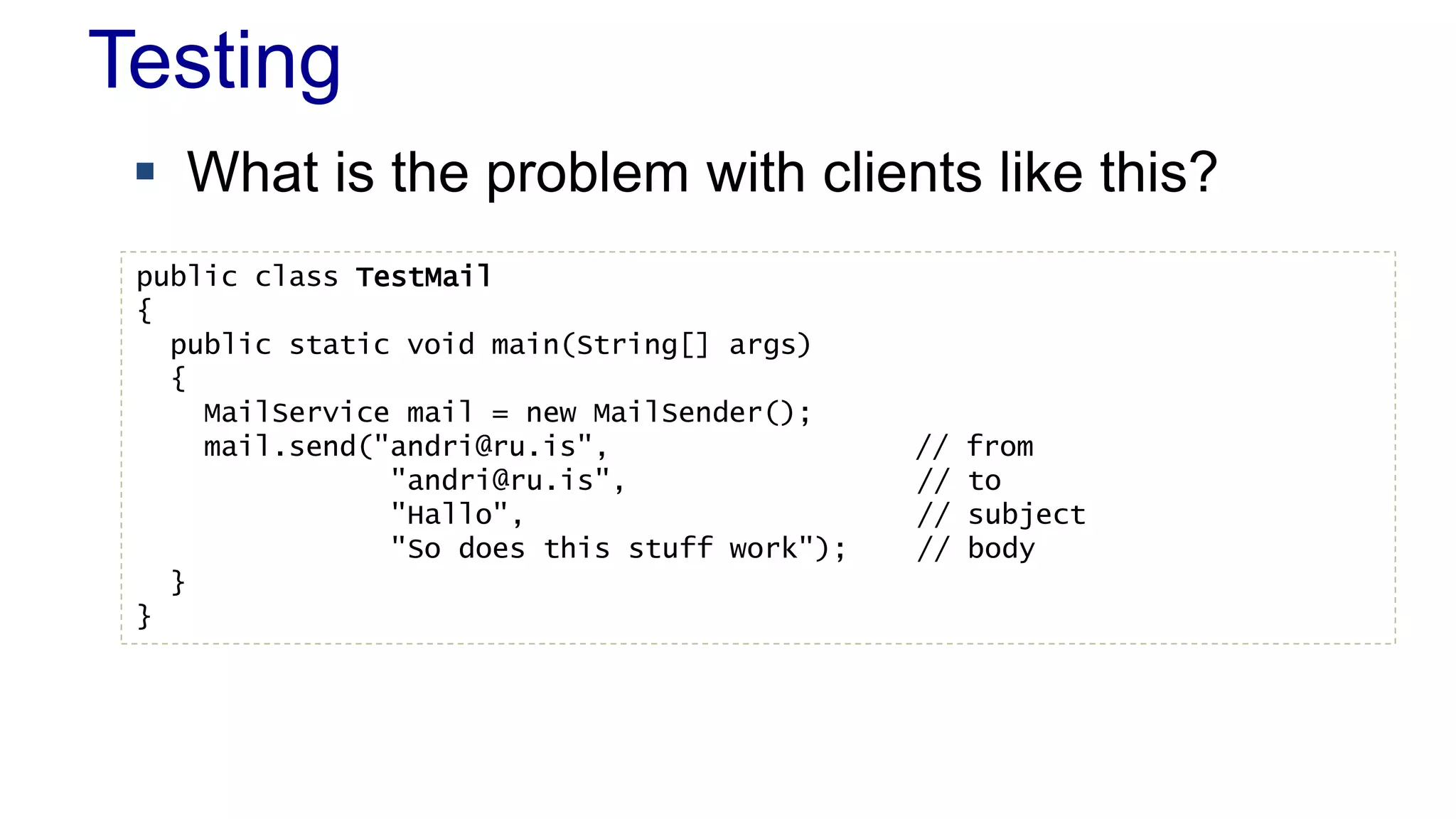

46. Testing
 Testing MailService and MainSender is easy
public class TestMail
{
public static void main(String[] args)
{
MailService mail = new MailSender();
mail.send("andri@ru.is", // from
"andri@ru.is", // to
"Hallo", // subject
"So does this stuff work"); // body
}
}

47. Testing
TestMail: sending mail.
Done.
NOTE: mail.ru.is is not good for testing!

48. Testing
 What is the problem with clients like this?
public class TestMail
{
public static void main(String[] args)
{
MailService mail = new MailSender();
mail.send("andri@ru.is", // from
"andri@ru.is", // to
"Hallo", // subject
"So does this stuff work"); // body
}
}

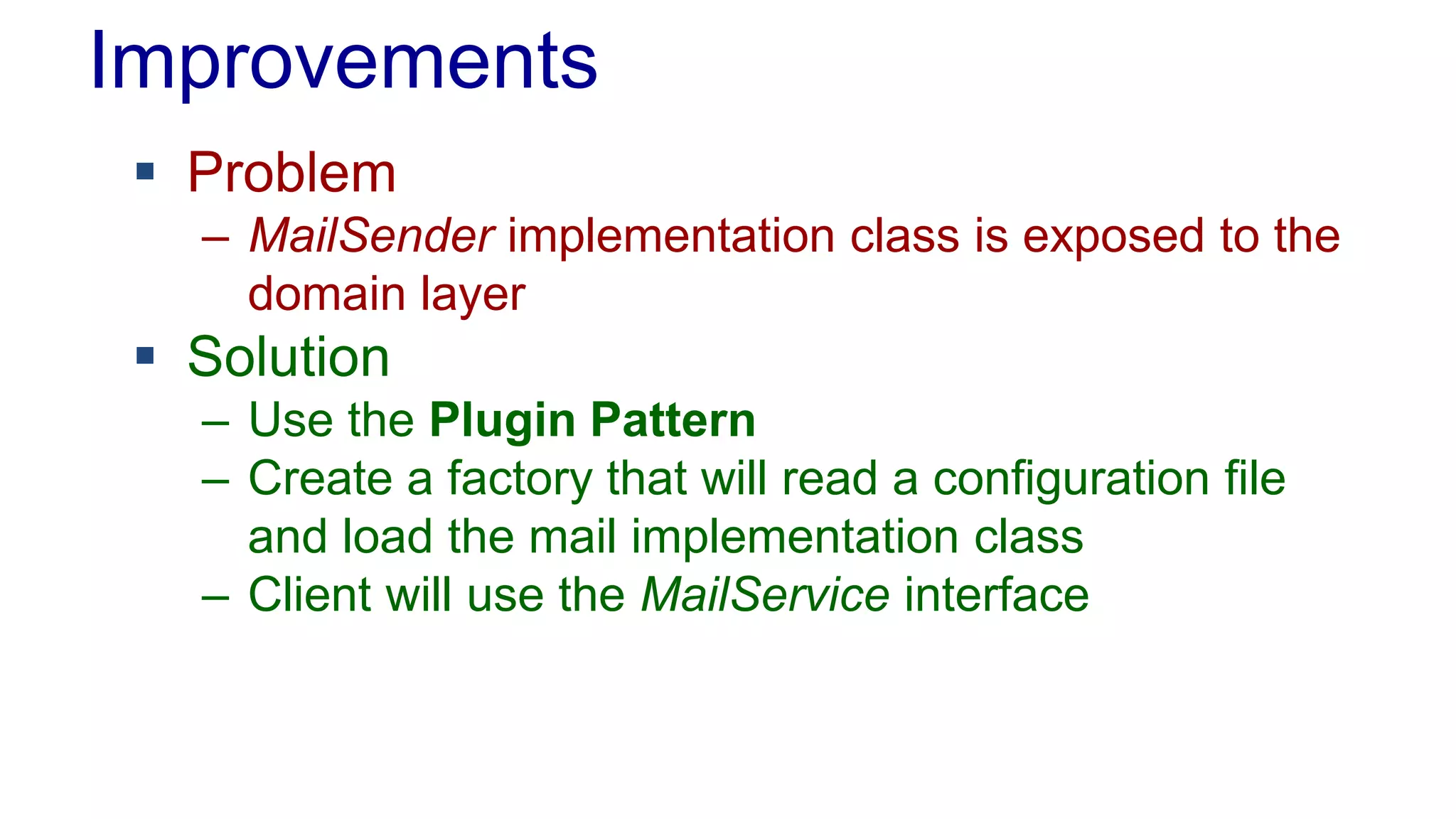

49. Improvements
 Problem
– MailSender implementation class is exposed to the
domain layer
 Solution
– Use the Plugin Pattern
– Create a factory that will read a configuration file
and load the mail implementation class
– Client will use the MailService interface

50. Plugin
Links classes during configuration
rather than compilation
 Use plugin to provide specific implantation
– Plugins implement specific interface use by the client
application code
– Decision at configuration time or run time
– Use factory to load in the plugin
• For example: one plugin for test, another for production

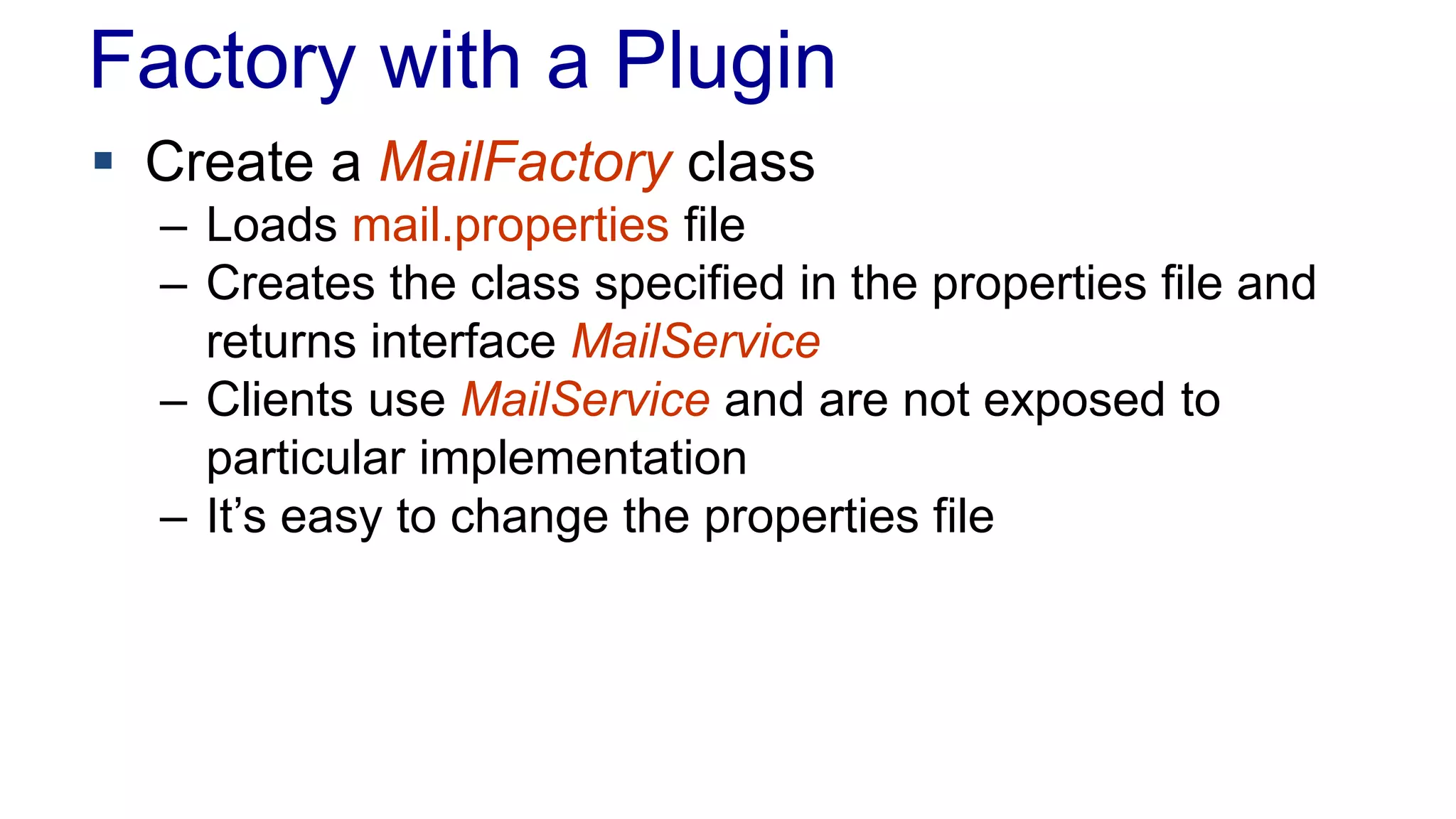

51. Factory with a Plugin
 Create a MailFactory class
– Loads mail.properties file
– Creates the class specified in the properties file and
returns interface MailService
– Clients use MailService and are not exposed to
particular implementation
– It’s easy to change the properties file

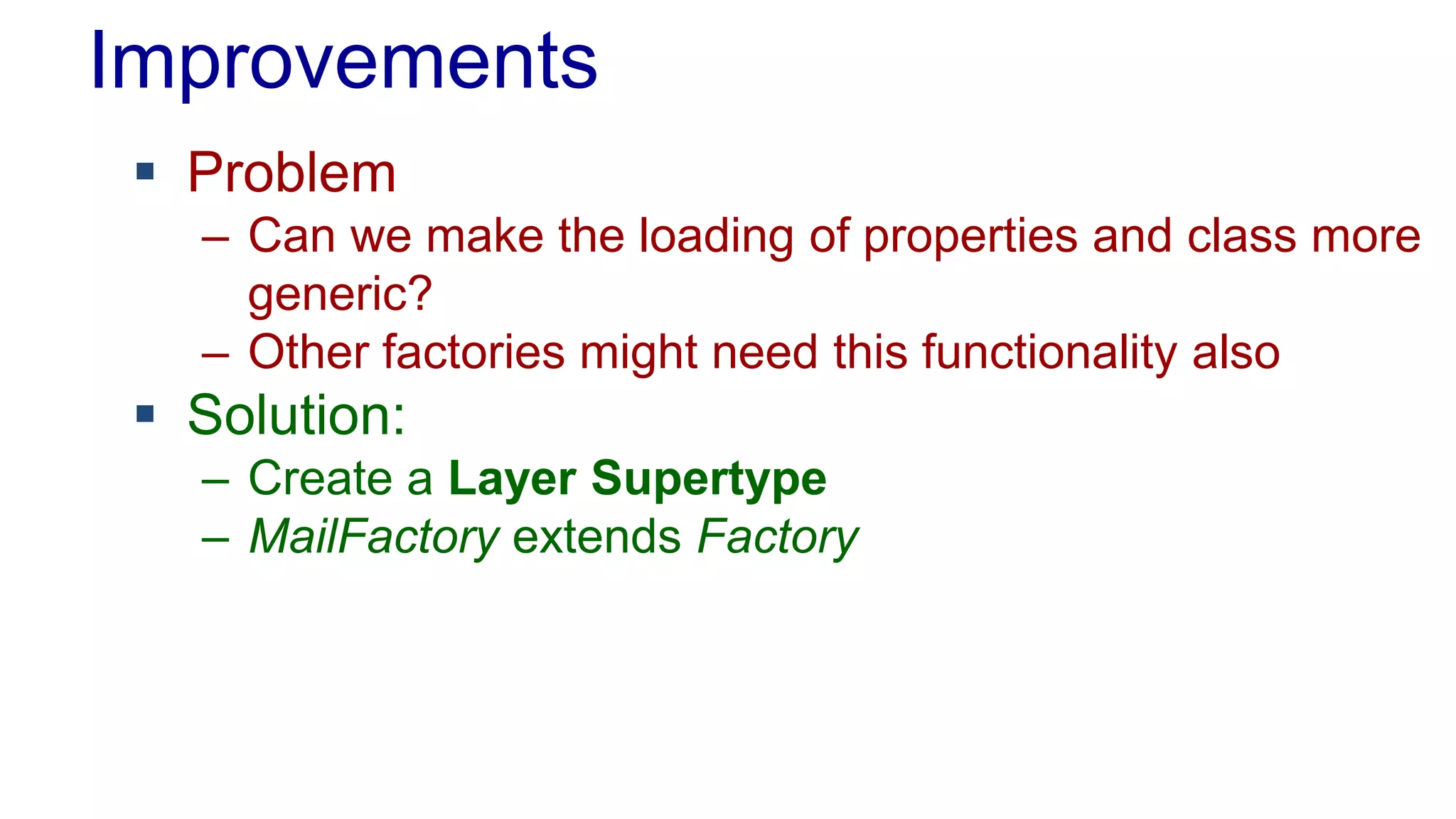

52. Improvements
 Problem
– Can we make the loading of properties and class more
generic?
– Other factories might need this functionality also
 Solution:
– Create a Layer Supertype
– MailFactory extends Factory

53. Layer Supertype
A type that acts as the supertype
for all types in its layer
 Super class that contains common functionality
in a layer
 How it works
– Use this pattern when you
have common features
from all objects in a layer

54. Layer Supertype
A type that acts as the supertype
for all types in its layer
 Super class that contains common functionality
in a layer
 How it works
– Use this pattern when you
have common features
from all objects in a layer

55. Plugin Pattern

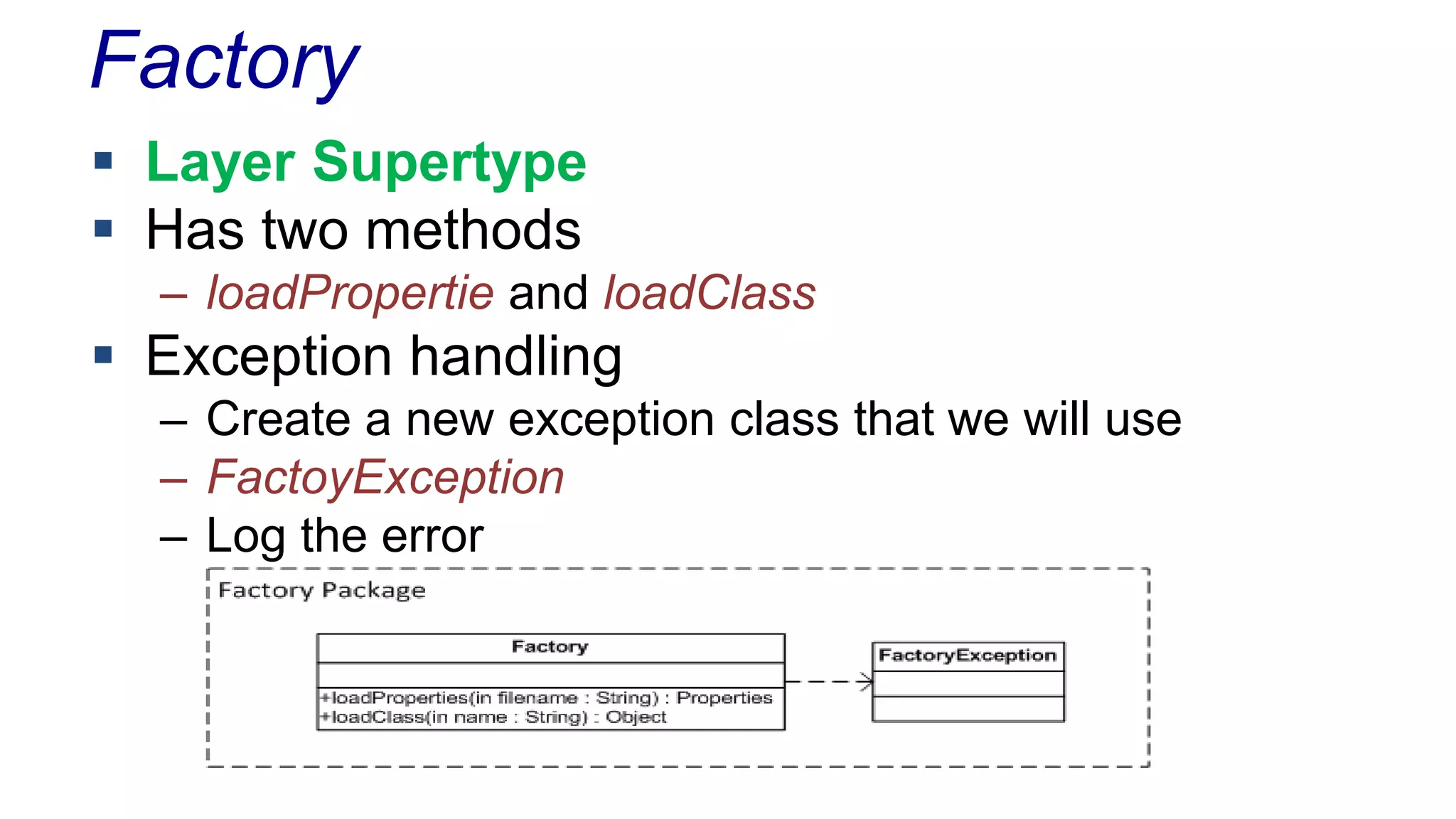

56. Factory
 Layer Supertype
 Has two methods
– loadPropertie and loadClass
 Exception handling
– Create a new exception class that we will use
– FactoyException
– Log the error

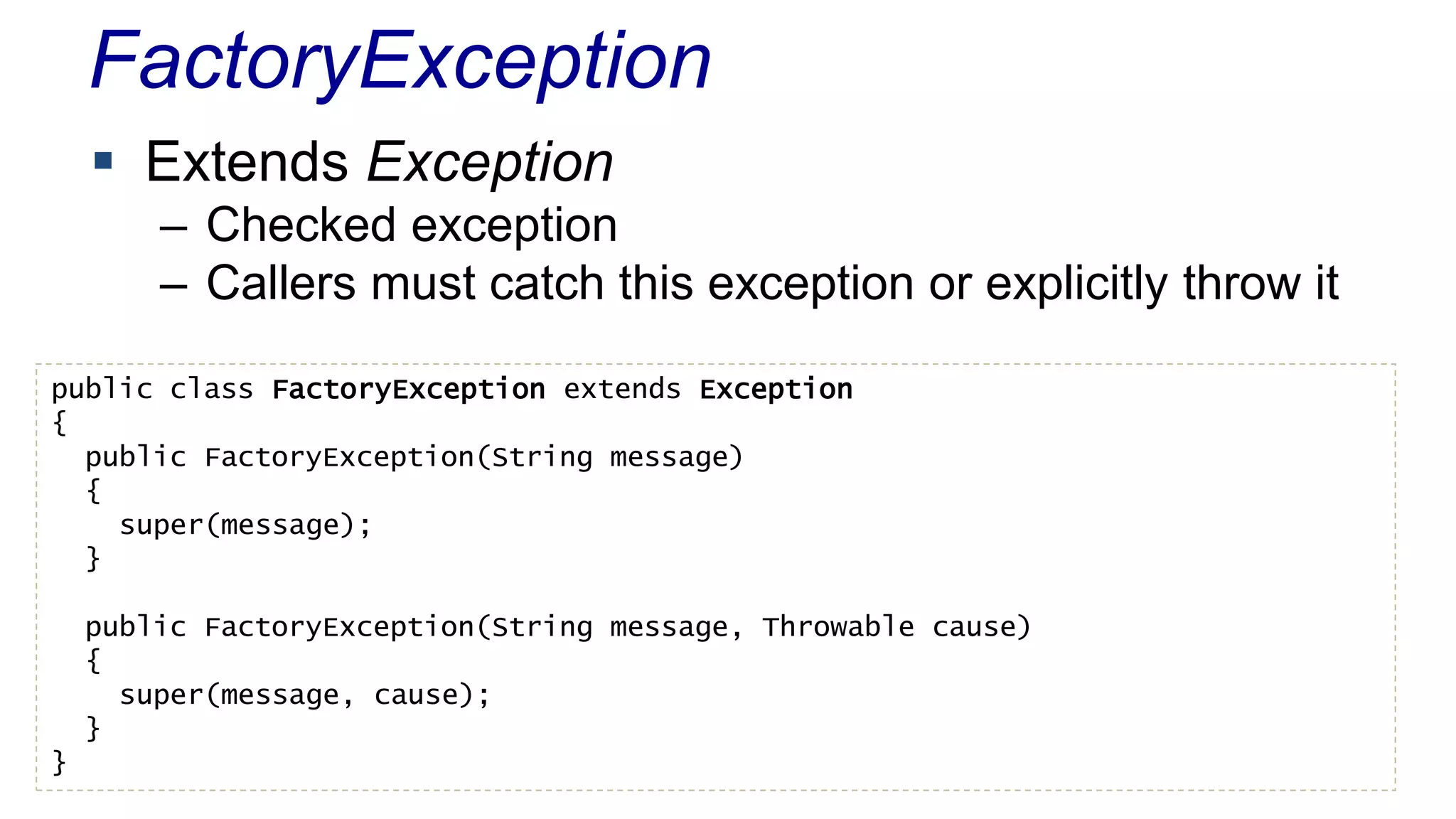

57. FactoryException
 Extends Exception
– Checked exception
– Callers must catch this exception or explicitly throw it
public class FactoryException extends Exception
{
public FactoryException(String message)
{
super(message);
}
public FactoryException(String message, Throwable cause)
{
super(message, cause);
}
}

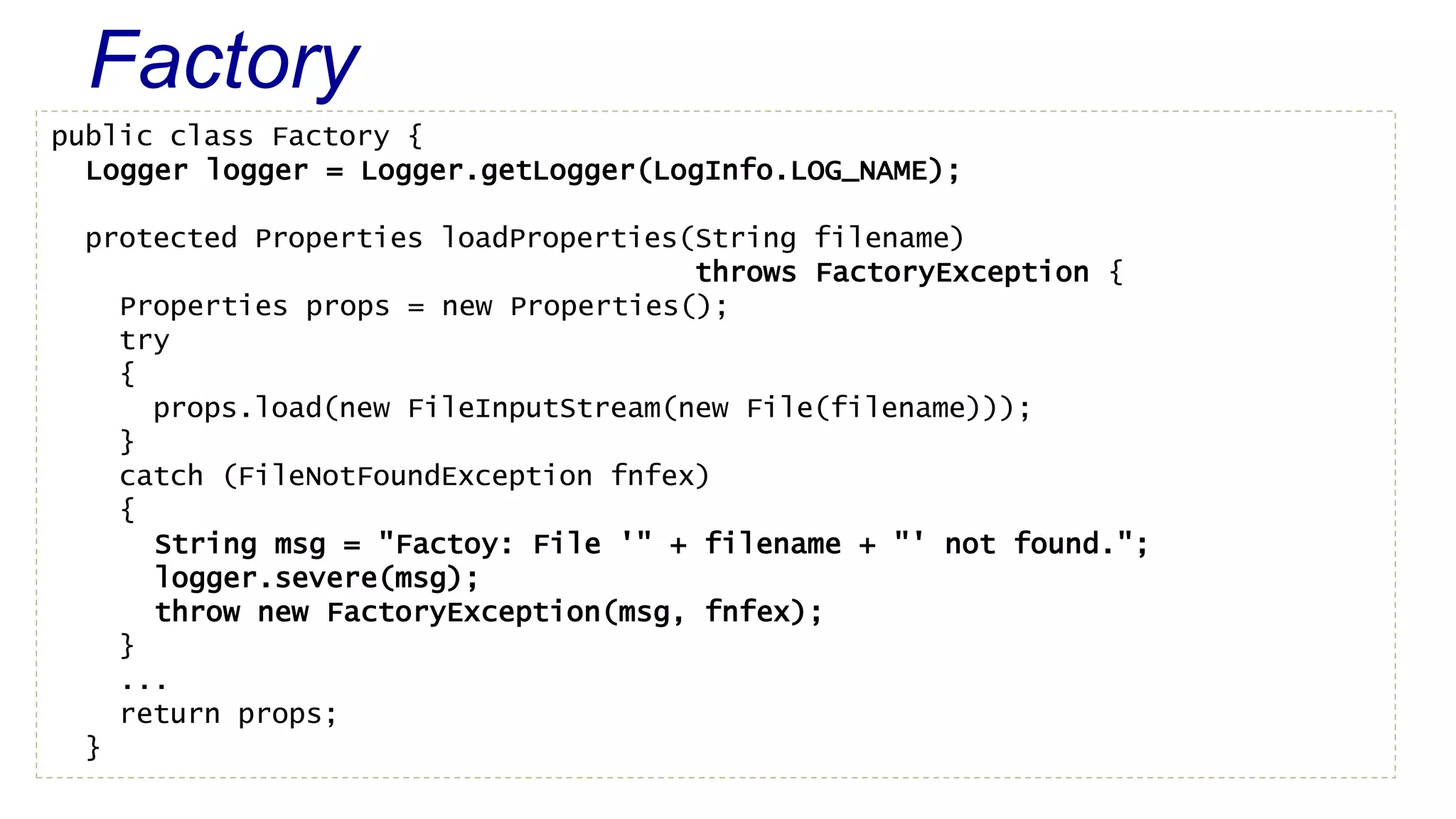

58. Factory
public class Factory {
Logger logger = Logger.getLogger(LogInfo.LOG_NAME);
protected Properties loadProperties(String filename)
throws FactoryException {
Properties props = new Properties();
try
{
props.load(new FileInputStream(new File(filename)));
}
catch (FileNotFoundException fnfex)
{
String msg = "Factoy: File '" + filename + "' not found.";
logger.severe(msg);
throw new FactoryException(msg, fnfex);
}
...
return props;
}

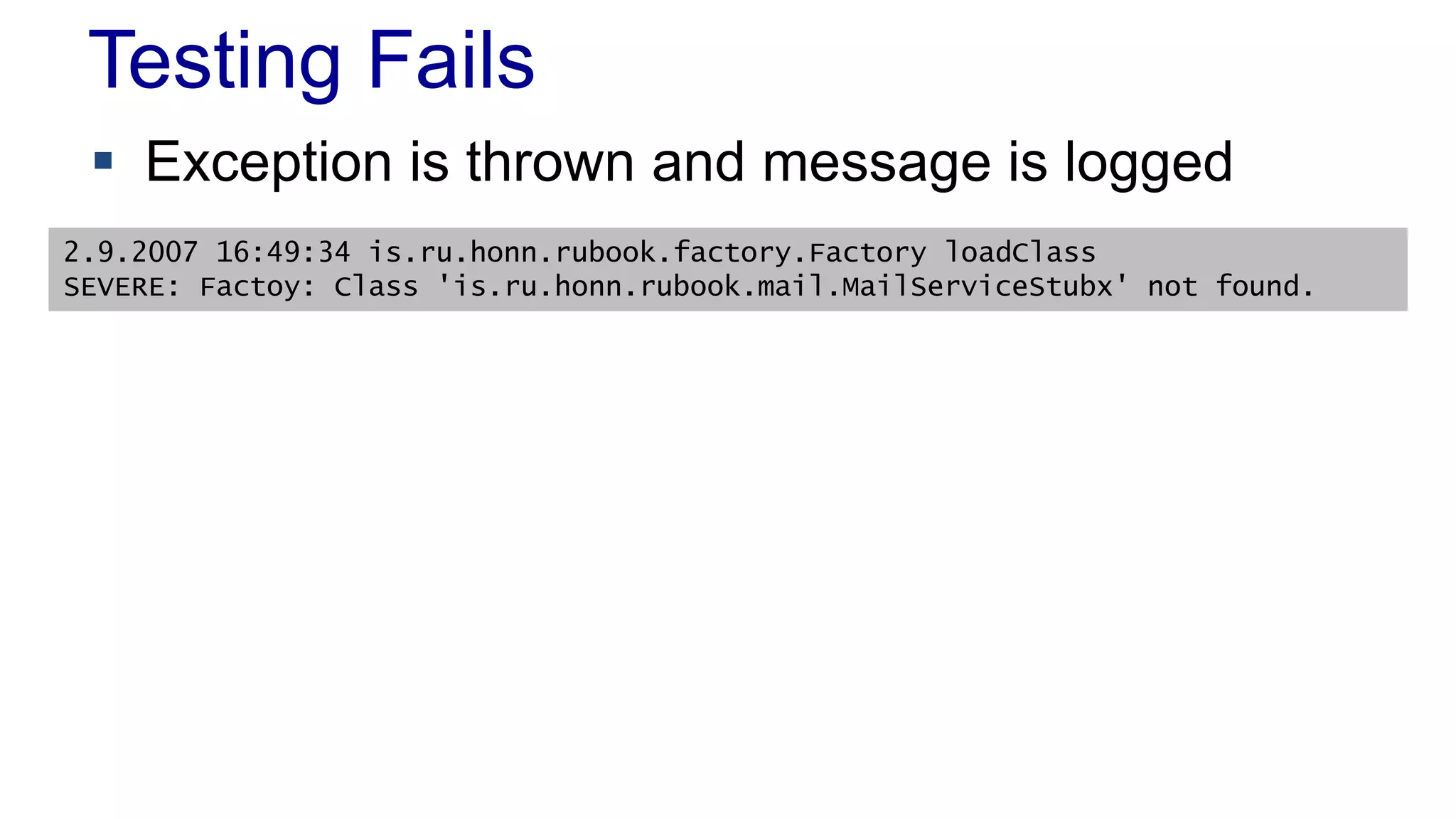

59. Testing Fails
 Exception is thrown and message is logged
2.9.2007 16:49:34 is.ru.honn.rubook.factory.Factory loadClass
SEVERE: Factoy: Class 'is.ru.honn.rubook.mail.MailServiceStubx' not found.

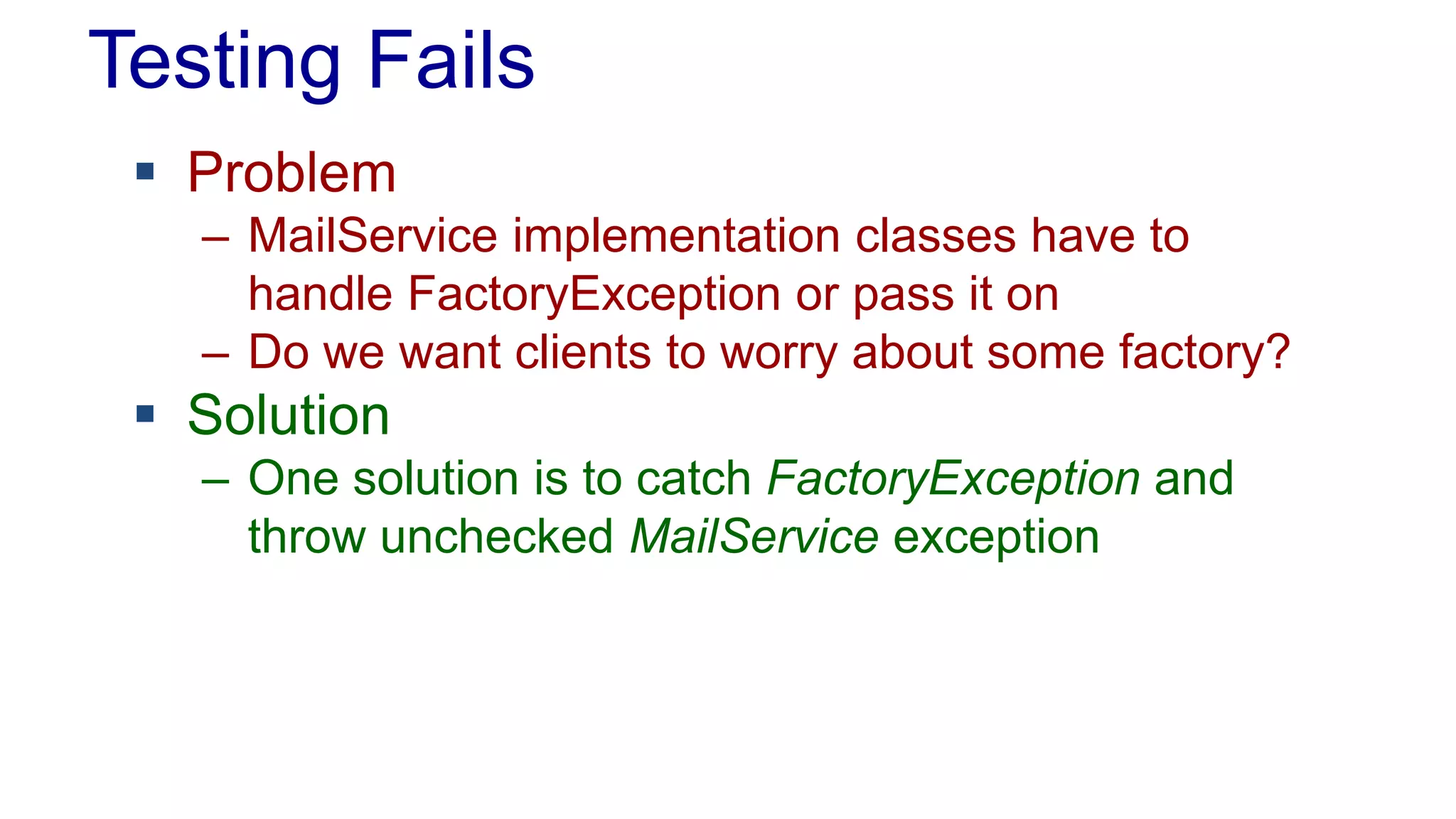

60. Testing Fails
 Problem
– MailService implementation classes have to
handle FactoryException or pass it on
– Do we want clients to worry about some factory?
 Solution
– One solution is to catch FactoryException and
throw unchecked MailService exception

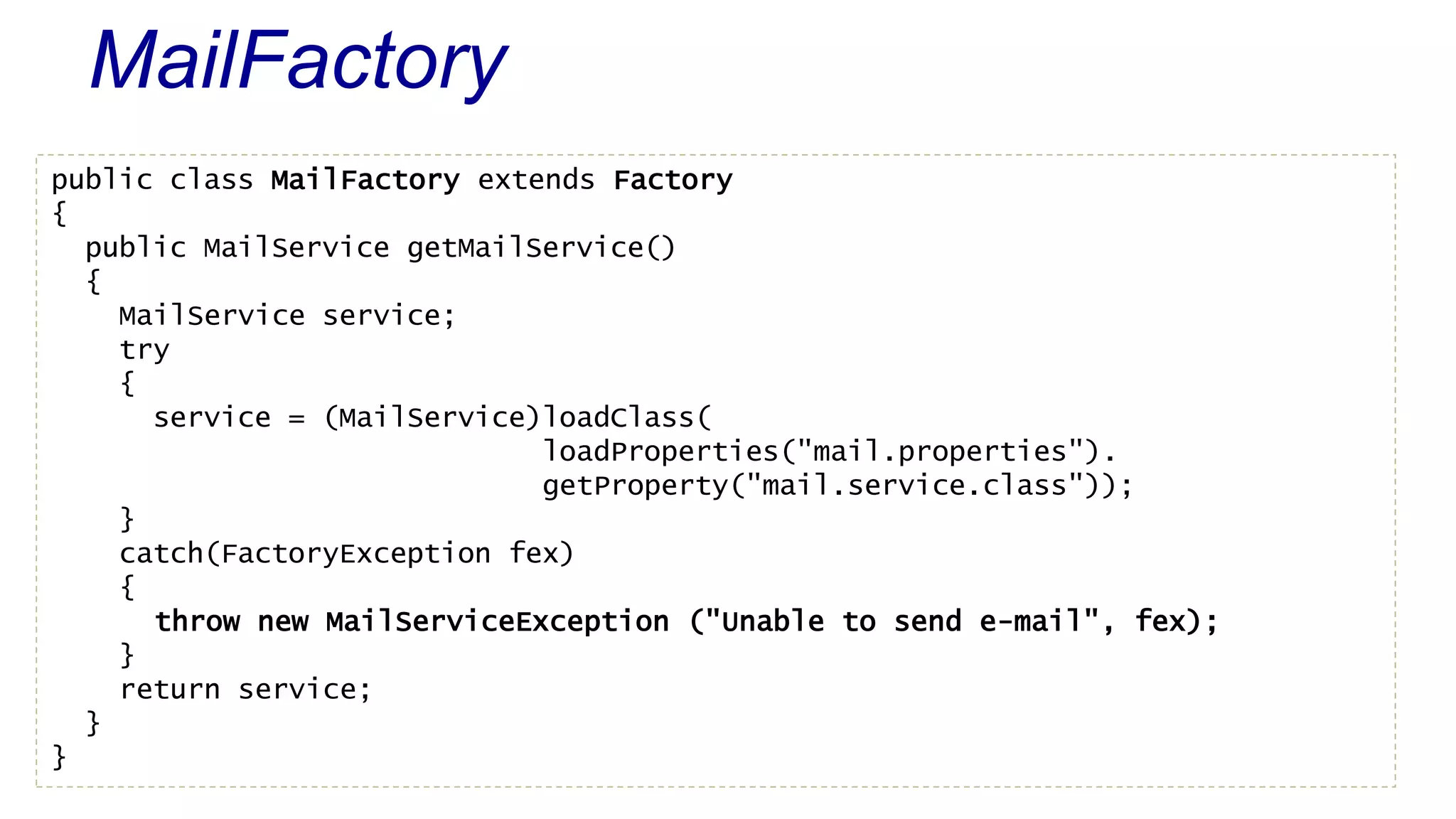

61. MailFactory
public class MailFactory extends Factory
{
public MailService getMailService()
{
MailService service;
try
{
service = (MailService)loadClass(
loadProperties("mail.properties").
getProperty("mail.service.class"));
}
catch(FactoryException fex)
{
throw new MailServiceException ("Unable to send e-mail", fex);
}
return service;
}
}

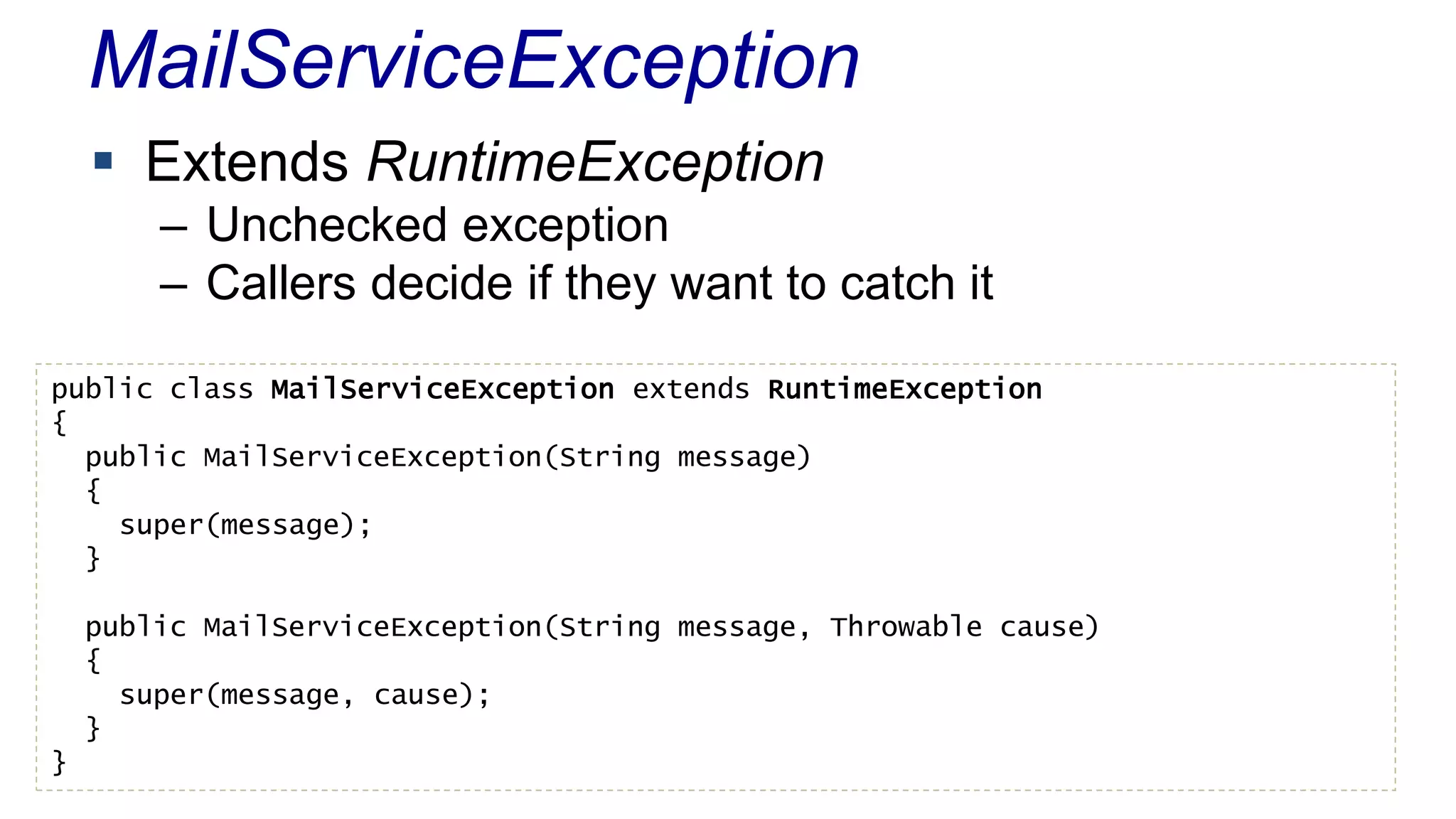

62. MailServiceException
 Extends RuntimeException
– Unchecked exception
– Callers decide if they want to catch it
public class MailServiceException extends RuntimeException
{
public MailServiceException(String message)
{
super(message);
}
public MailServiceException(String message, Throwable cause)
{
super(message, cause);
}
}

63. Testing
 Using the MailFactory class
– We can catch the MailServiceException or ignore it
– Notice we have not only abstracted the Mail API but
also the exception handling
public class TestMail
{
public static void main(String[] args)
{
MailFactory mf = new MailFactory();
MailService mail = mf.getMailService();
mail.send("andri@ru.is", "andri@ru.is", "Hello", "Hello");
}
}

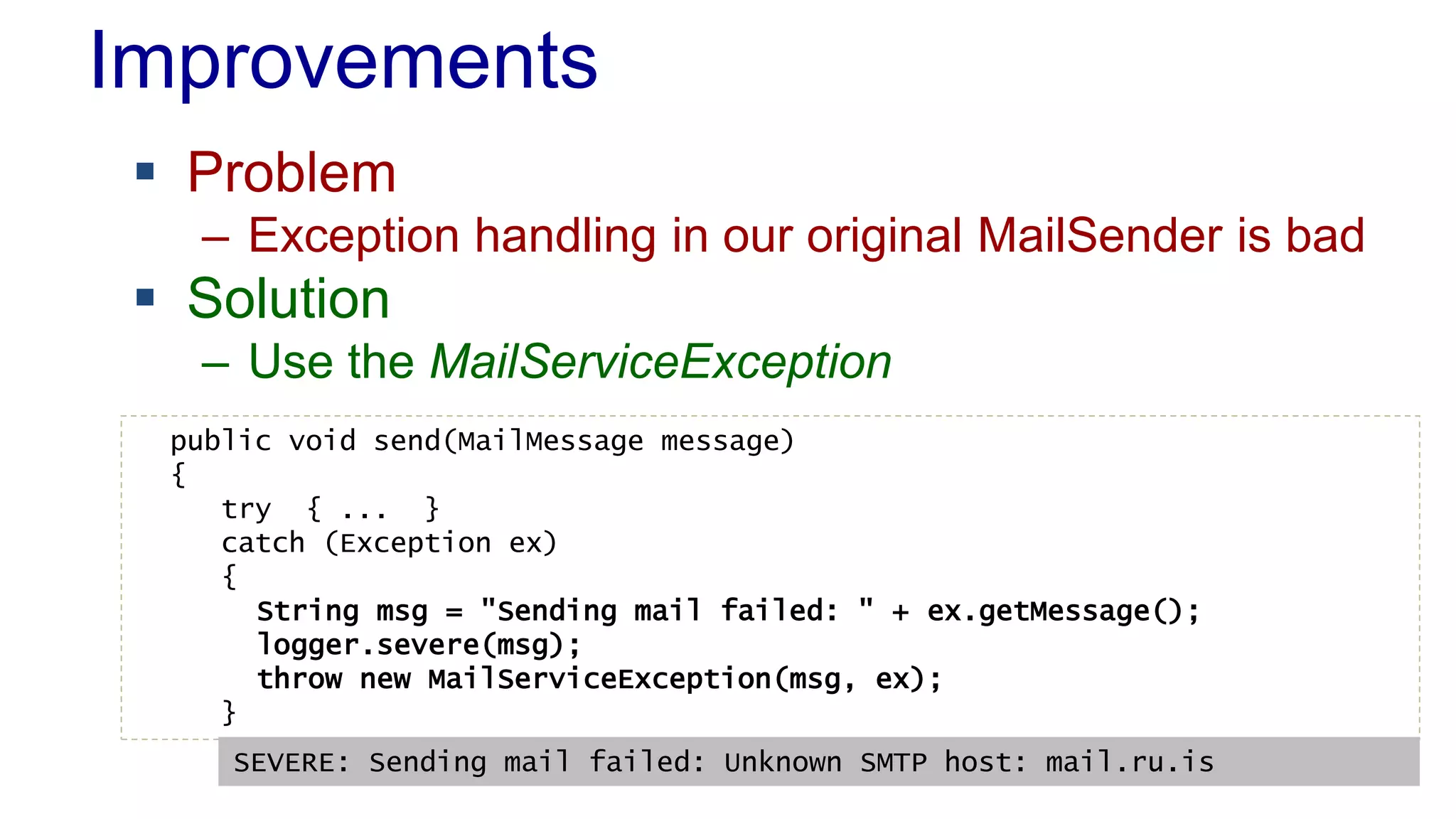

64. Improvements
 Problem
– Exception handling in our original MailSender is bad
 Solution
– Use the MailServiceException
public void send(MailMessage message)
{
try { ... }
catch (Exception ex)
{
String msg = "Sending mail failed: " + ex.getMessage();
logger.severe(msg);
throw new MailServiceException(msg, ex);
}
SEVERE: Sending mail failed: Unknown SMTP host: mail.ru.is

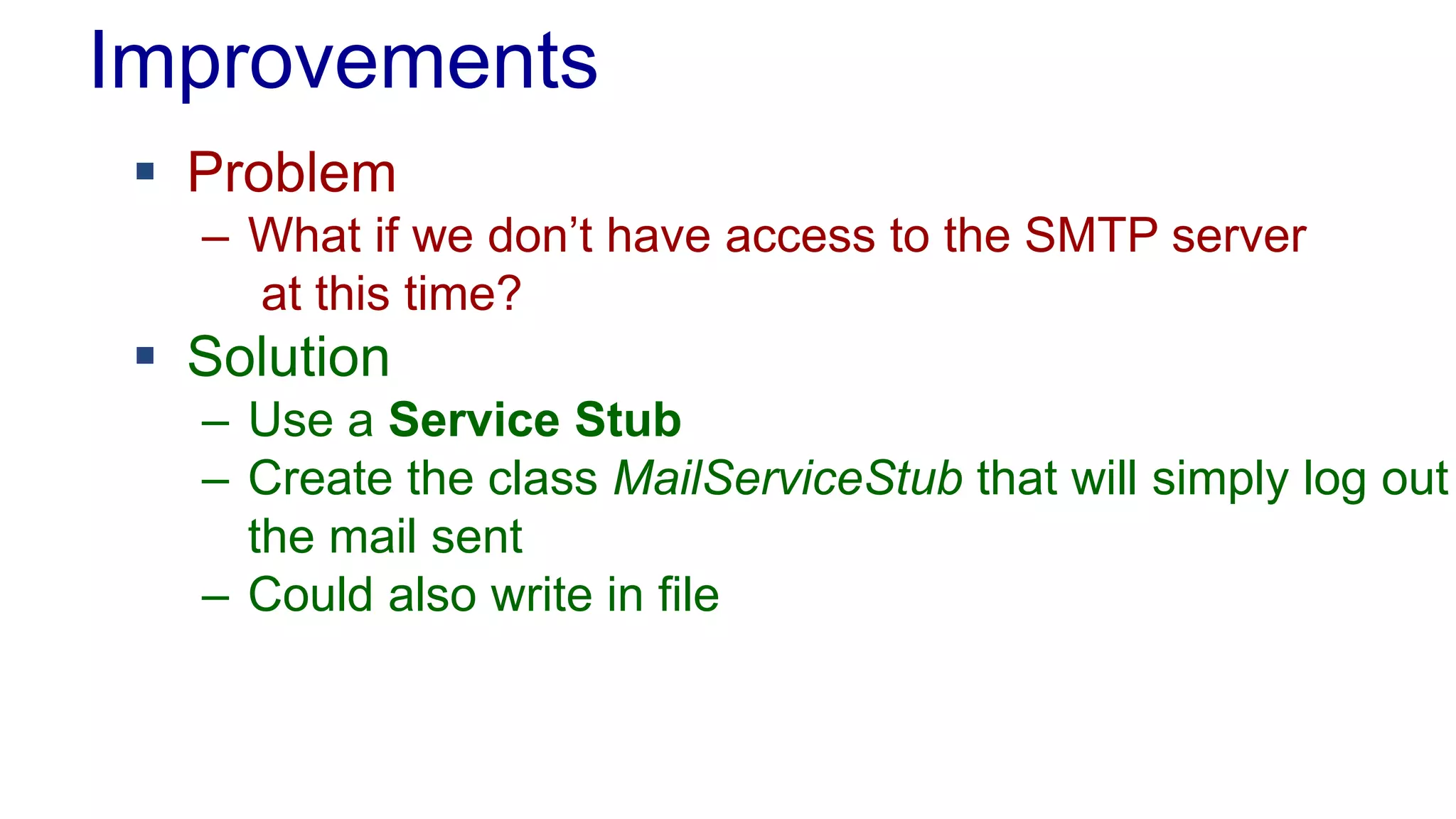

65. Improvements
 Problem
– What if we don’t have access to the SMTP server
at this time?
 Solution
– Use a Service Stub
– Create the class MailServiceStub that will simply log out
the mail sent
– Could also write in file

66. Service Stub
Removes dependence upon problematic
services during testing
 Enterprise systems often need to access
external system
– Can be out of developers control

67. MailServiceStub
public class MailServiceStub implements MailService
{
Logger logger = Logger.getLogger(LogInfo.LOG_NAME);
public void send(String from, String to,
String subject, String body)
{
logger.info("Sending mail from '" + from + "' to '" + to +
"' Subject: '" + subject);
}
}
2.9.2007 16:36:08 is.ru.honn.rubook.mail.MailServiceStub send
INFO: Sending mail from 'andri@ru.is' to 'andri@ru.is' Subject: 'Hello
mail.properties
mail.service.class=is.ru.honn.rubook.mail.MailServiceStub

68. Improvements
 Problem
– What if we need to add new parameter?
public interface MailService {
public void send(String from, String to,
 Solution
String subject, String body);
– Use an object to group parameters
– Easy to change without changing the interface
}
public interface MailService
{
public void send(MailMessage message);
}

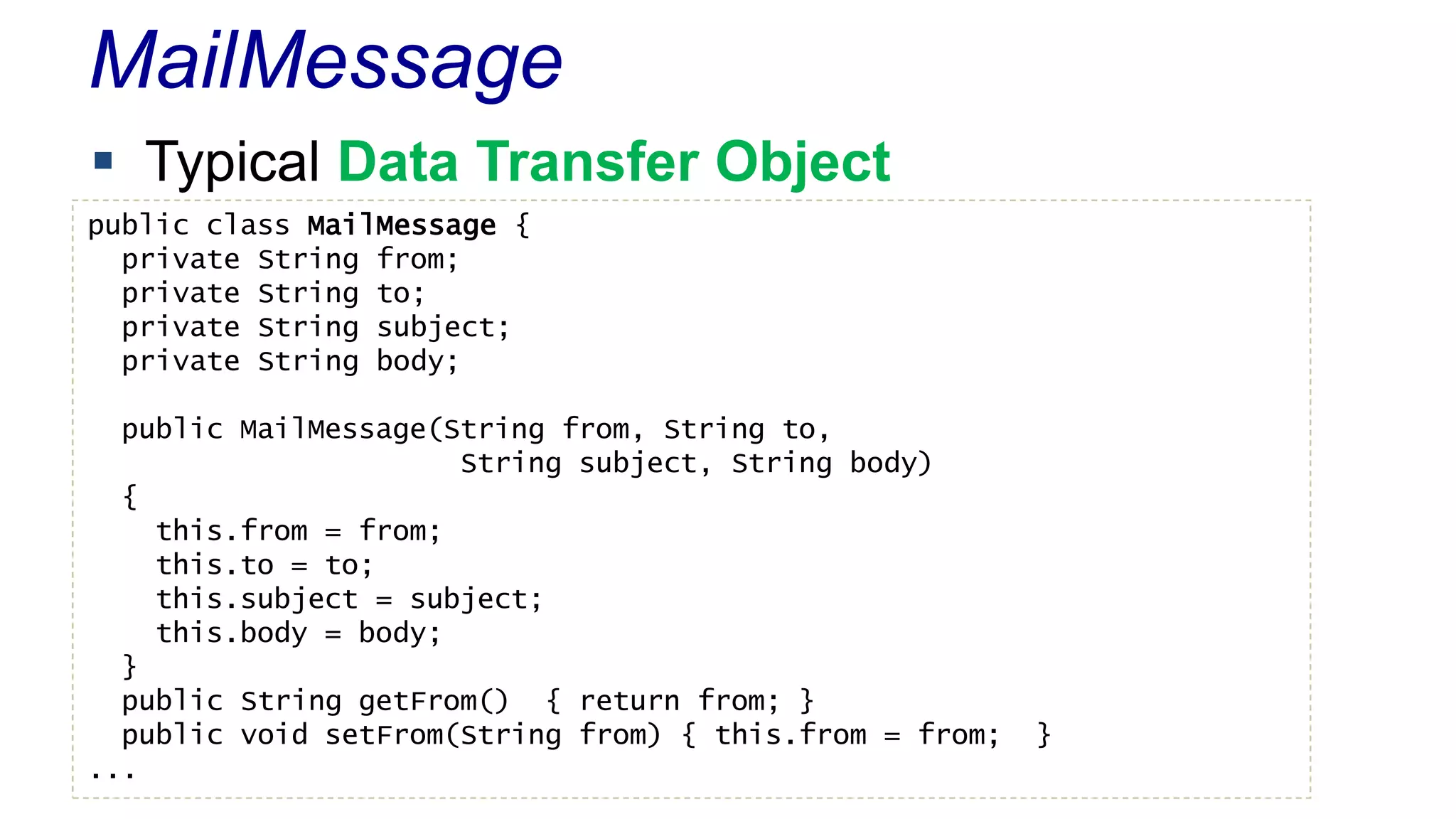

69. MailMessage
 Typical Data Transfer Object
public class MailMessage {
private String from;
private String to;
private String subject;
private String body;
public MailMessage(String from, String to,
String subject, String body)
{
this.from = from;
this.to = to;
this.subject = subject;
this.body = body;
}
public String getFrom() { return from; }
public void setFrom(String from) { this.from = from; }
...

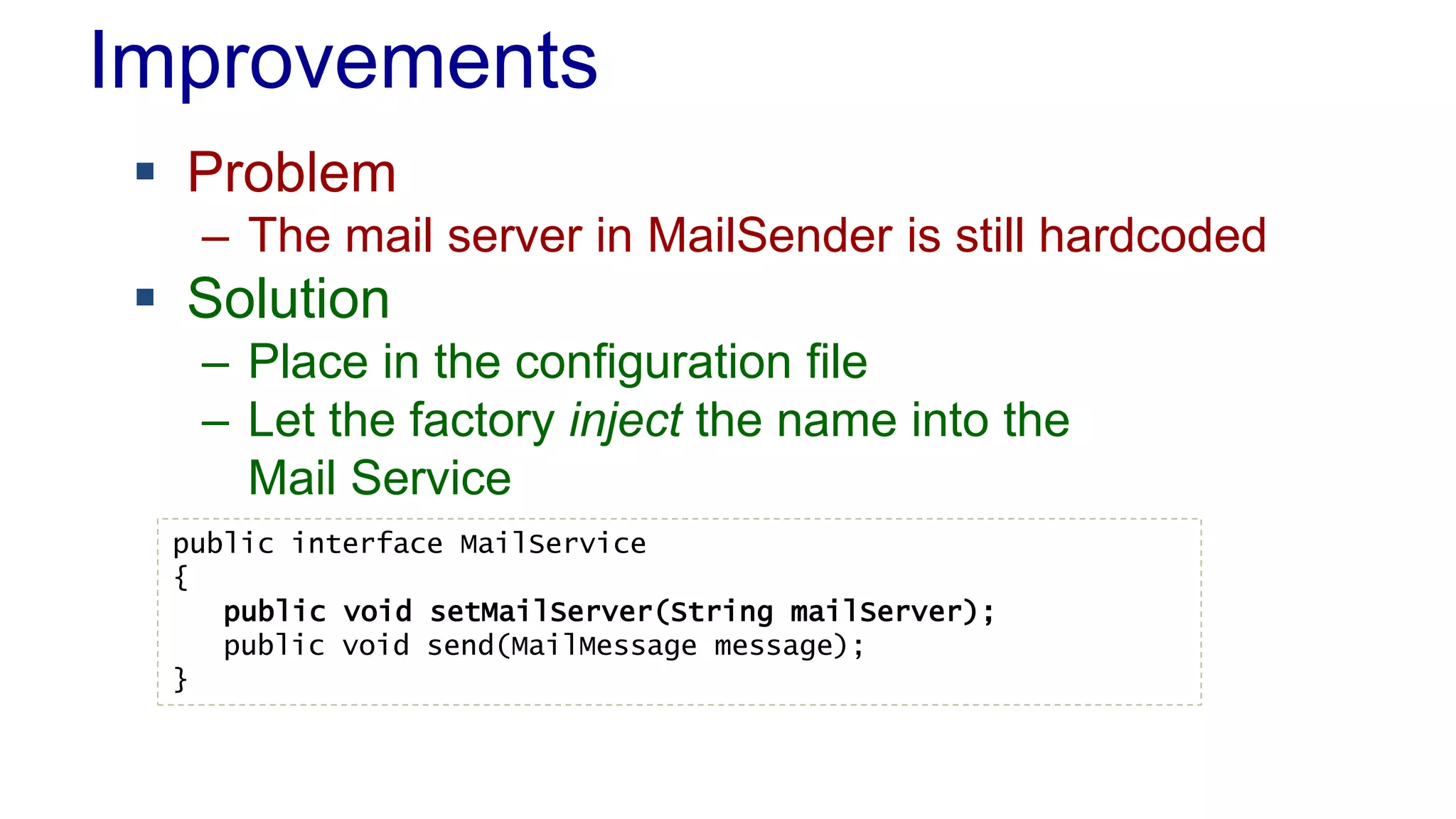

70. Improvements
 Problem
– The mail server in MailSender is still hardcoded
 Solution
– Place in the configuration file
– Let the factory inject the name into the
Mail Service
public interface MailService
{
public void setMailServer(String mailServer);
public void send(MailMessage message);
}

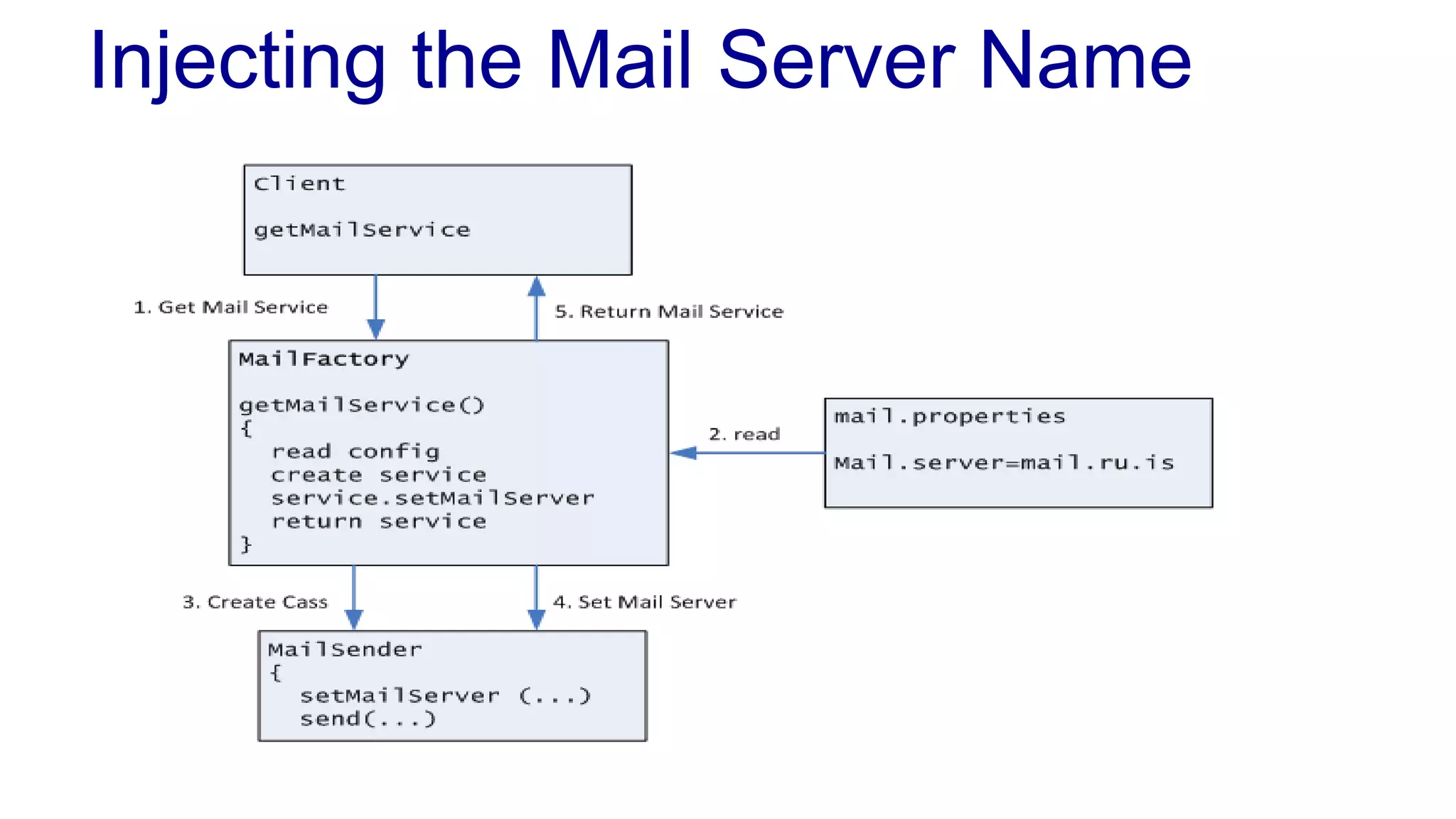

71. Injecting the Mail Server Name

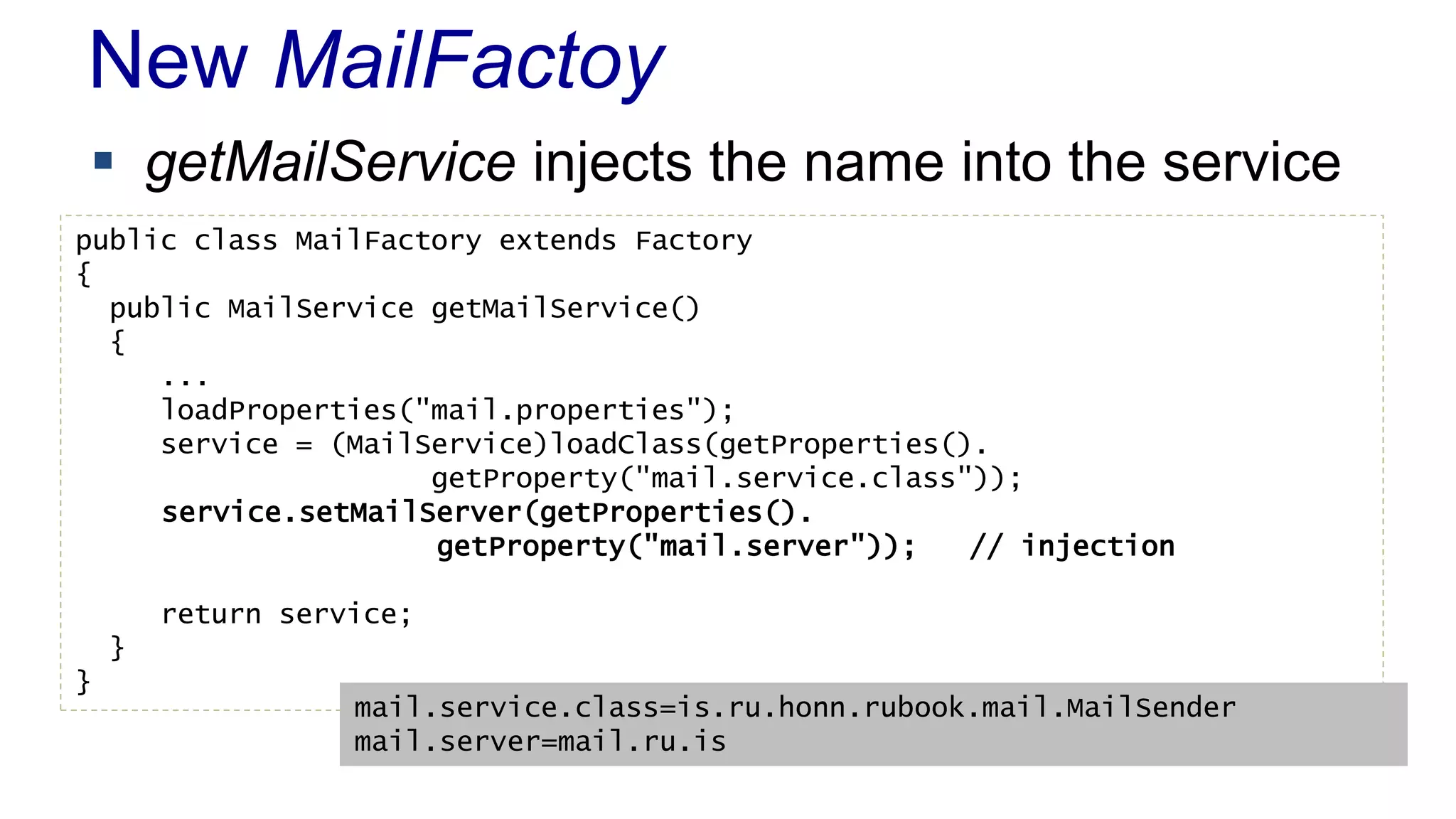

72. New MailFactoy
 getMailService injects the name into the service
public class MailFactory extends Factory
{
public MailService getMailService()
{
...
loadProperties("mail.properties");
service = (MailService)loadClass(getProperties().
getProperty("mail.service.class"));
service.setMailServer(getProperties().
getProperty("mail.server")); // injection
return service;
}
}
mail.service.class=is.ru.honn.rubook.mail.MailSender
mail.server=mail.ru.is

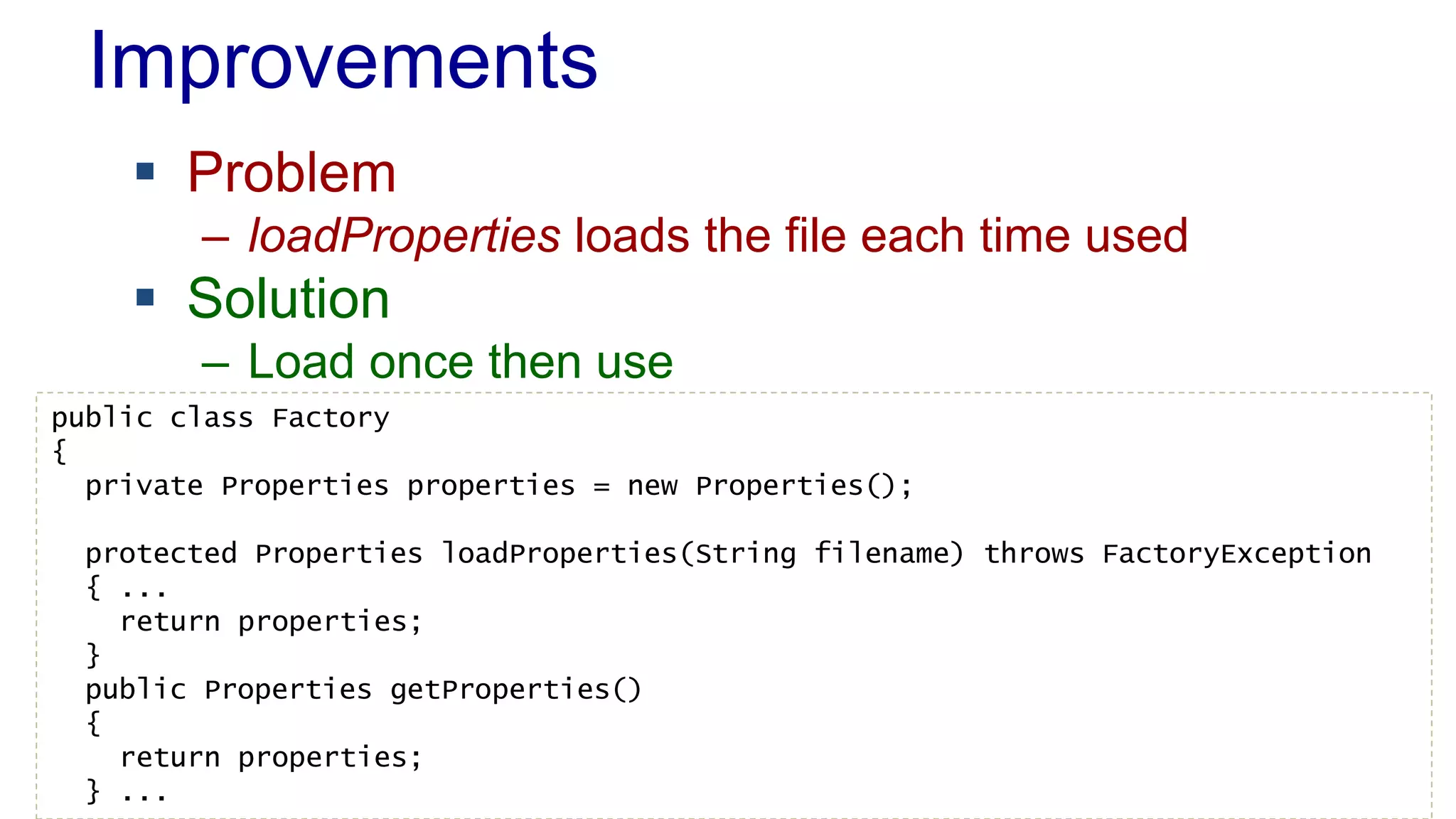

73. Improvements
 Problem
– loadProperties loads the file each time used
 Solution
– Load once then use
public class Factory
{
private Properties properties = new Properties();
protected Properties loadProperties(String filename) throws FactoryException
{ ...
return properties;
}
public Properties getProperties()
{
return properties;
} ...

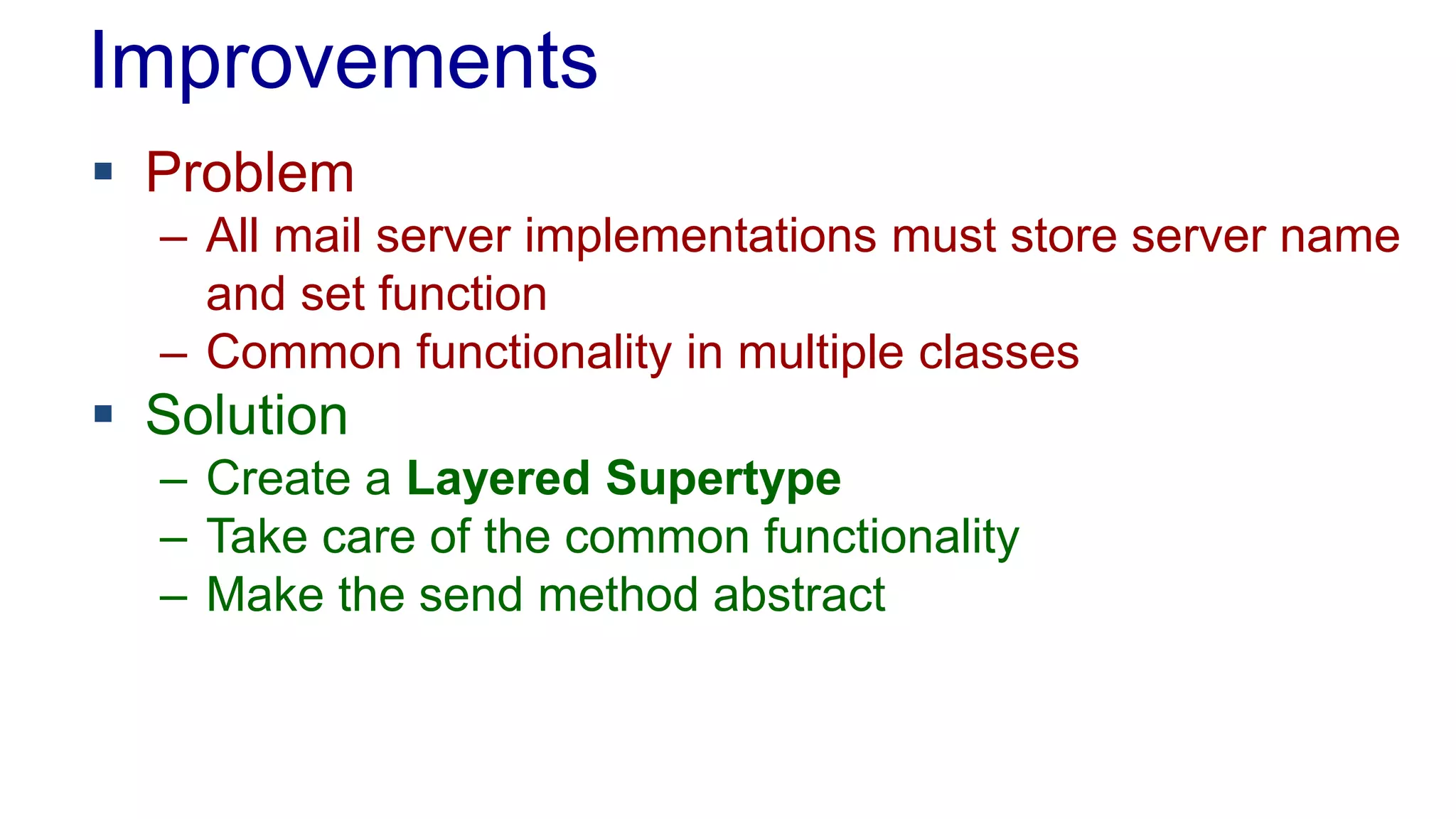

74. Improvements
 Problem
– All mail server implementations must store server name
and set function
– Common functionality in multiple classes
 Solution
– Create a Layered Supertype
– Take care of the common functionality
– Make the send method abstract

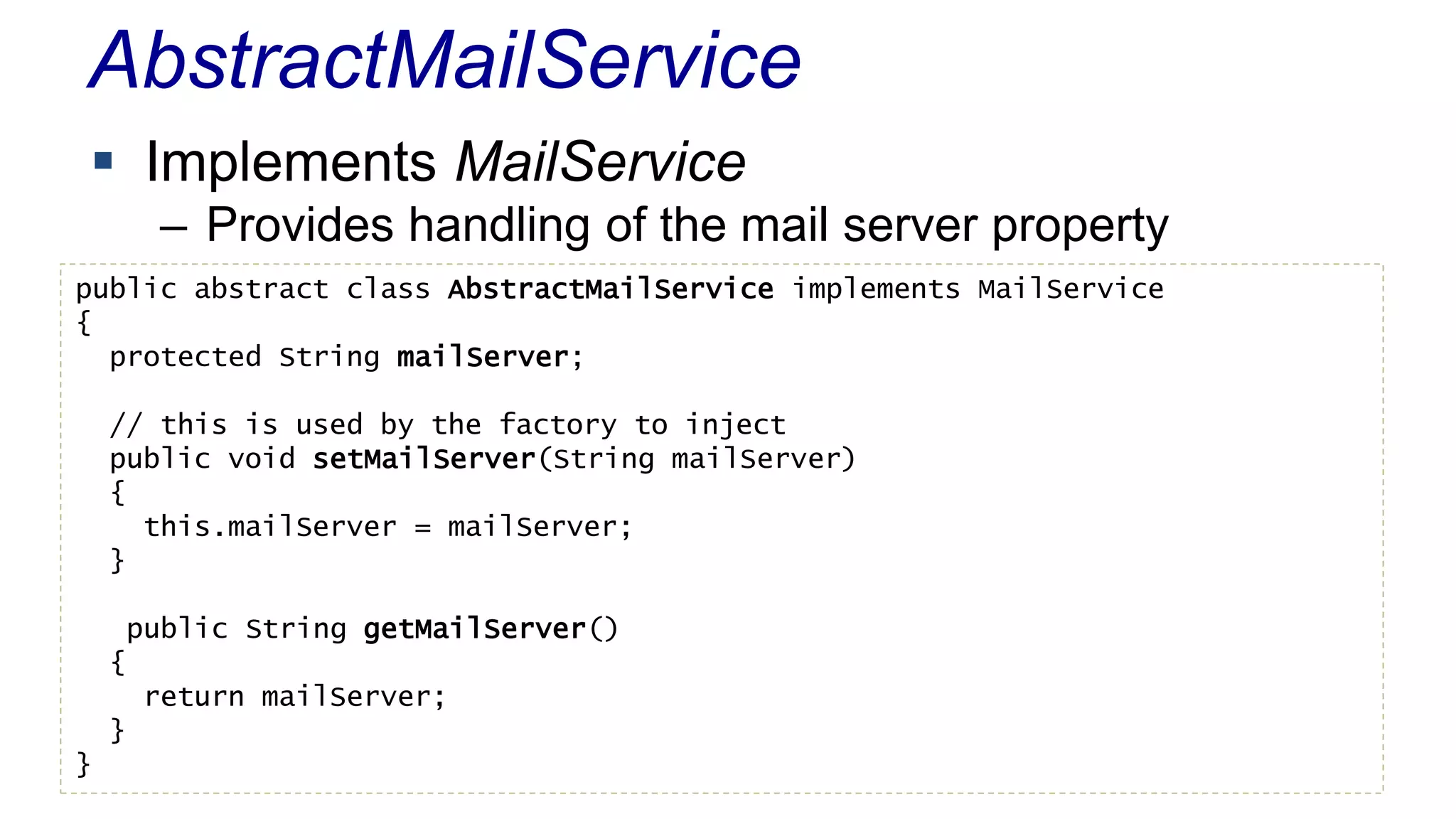

75. AbstractMailService
 Implements MailService
– Provides handling of the mail server property
public abstract class AbstractMailService implements MailService
{
protected String mailServer;
// this is used by the factory to inject
public void setMailServer(String mailServer)
{
this.mailServer = mailServer;
}
public String getMailServer()
{
return mailServer;
}
}

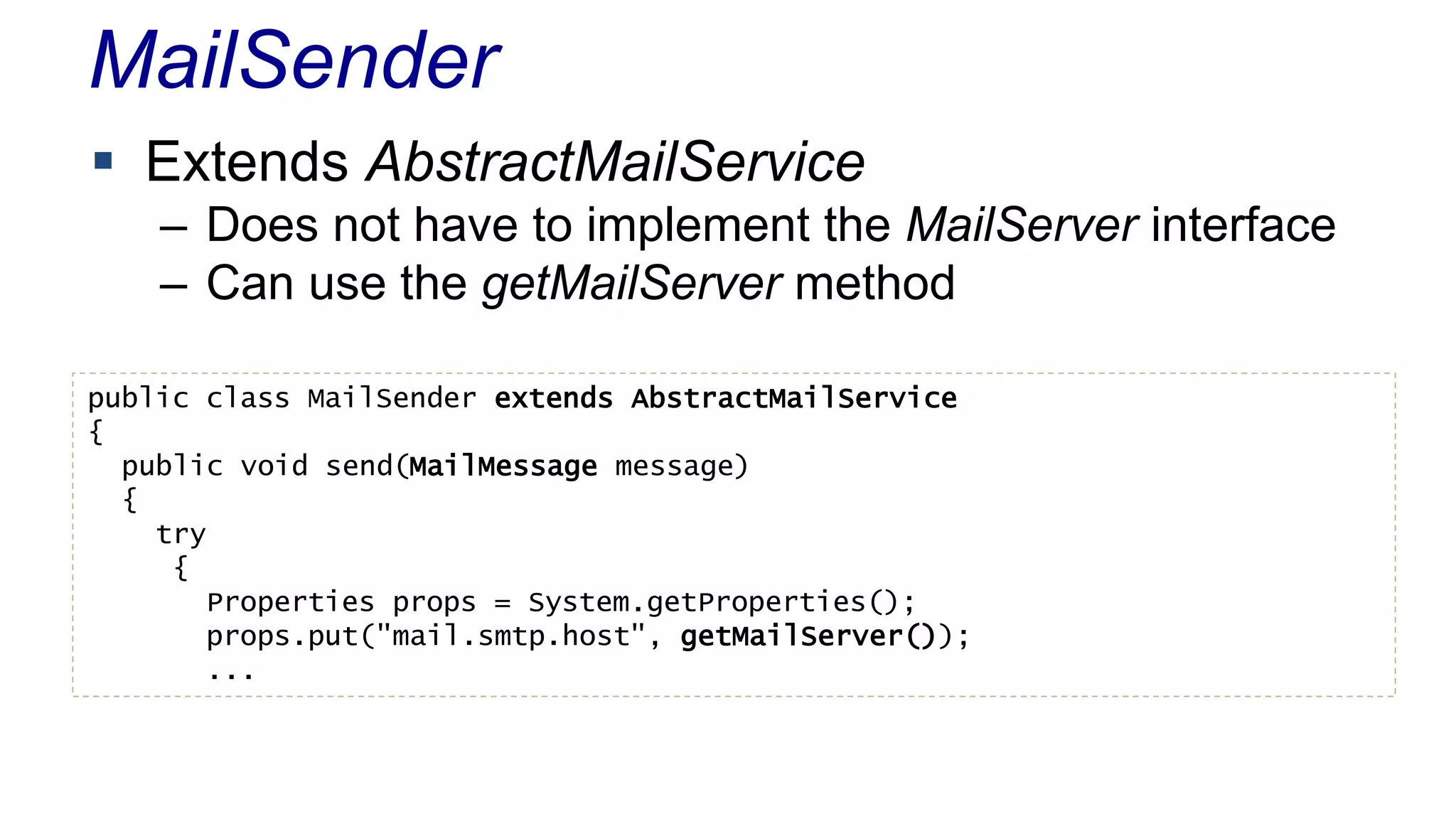

76. MailSender
 Extends AbstractMailService
– Does not have to implement the MailServer interface
– Can use the getMailServer method
public class MailSender extends AbstractMailService
{
public void send(MailMessage message)
{
try
{
Properties props = System.getProperties();
props.put("mail.smtp.host", getMailServer());
...

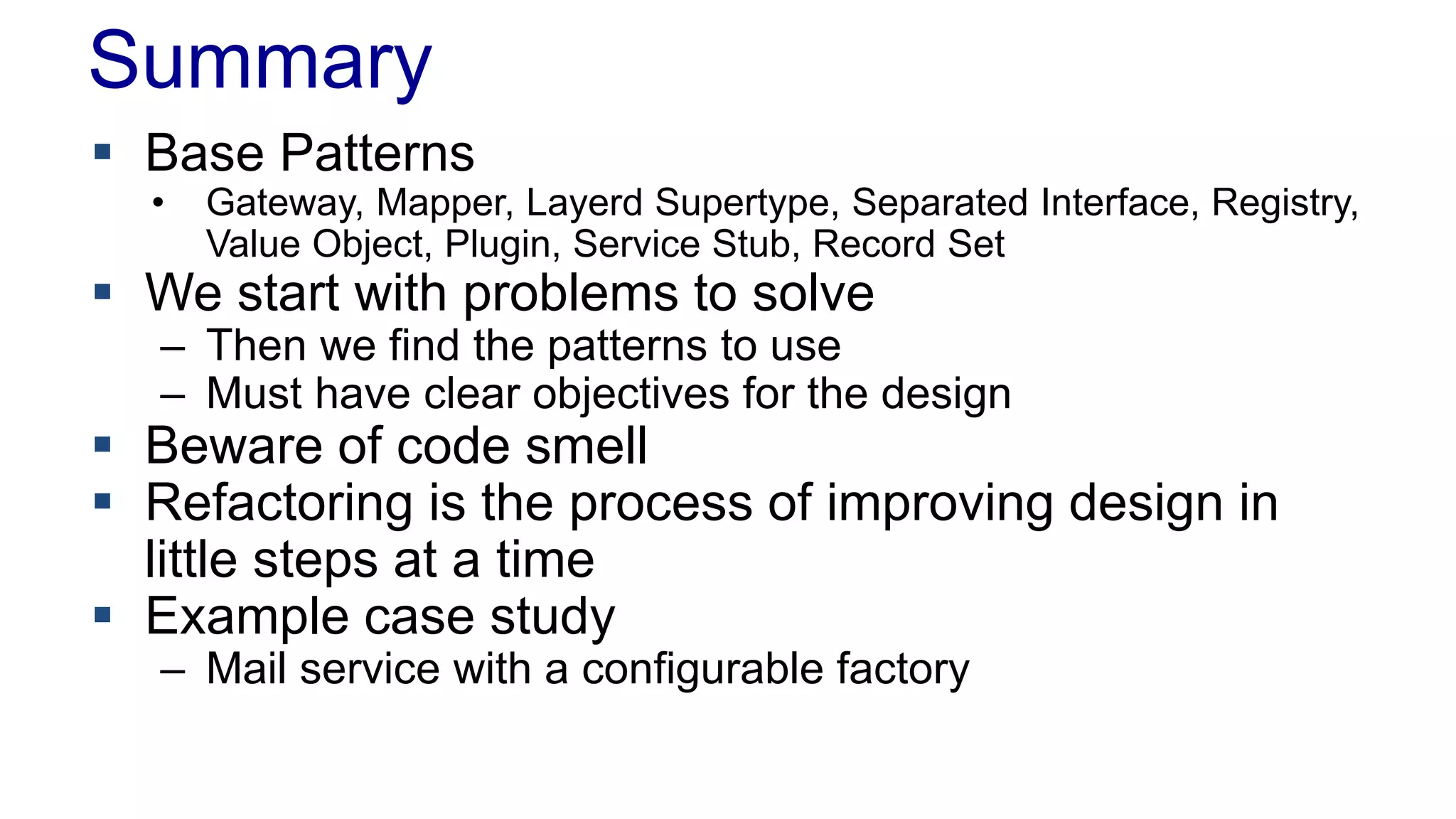

77. Summary
 Base Patterns
• Gateway, Mapper, Layerd Supertype, Separated Interface, Registry,
Value Object, Plugin, Service Stub, Record Set
 We start with problems to solve
– Then we find the patterns to use
– Must have clear objectives for the design
 Beware of code smell
 Refactoring is the process of improving design in
little steps at a time
 Example case study
– Mail service with a configurable factory
