P Training Presentation

Java Design Patterns By Gaurav Tyagi

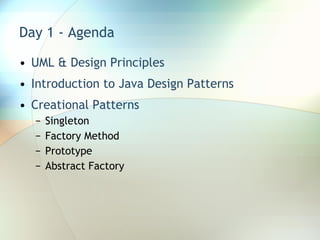

Day 1 - Agenda UML & Design Principles Introduction to Java Design Patterns Creational Patterns Singleton Factory Method Prototype Abstract Factory

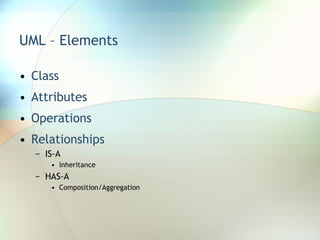

UML – Elements Class Attributes Operations Relationships IS-A Inheritance HAS-A Composition/Aggregation

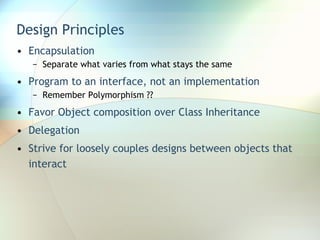

Design Principles Encapsulation Separate what varies from what stays the same Program to an interface, not an implementation Remember Polymorphism ?? Favor Object composition over Class Inheritance Delegation Strive for loosely couples designs between objects that interact

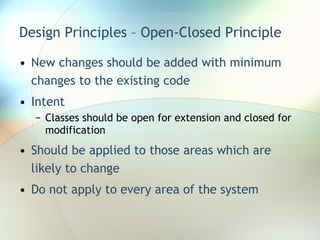

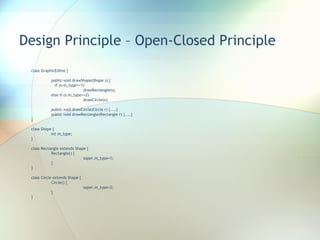

Design Principles – Open-Closed Principle New changes should be added with minimum changes to the existing code Intent Classes should be open for extension and closed for modification Should be applied to those areas which are likely to change Do not apply to every area of the system

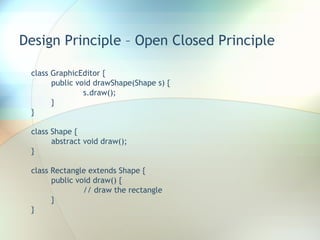

Design Principle – Open-Closed Principle class GraphicEditor { public void drawShape(Shape s) { if (s.m_type==1) drawRectangle(s); else if (s.m_type==2) drawCircle(s); public void drawCircle(Circle r) {....} public void drawRectangle(Rectangle r) {....} } class Shape { int m_type; } class Rectangle extends Shape { Rectangle() { super.m_type=1; } } class Circle extends Shape { Circle() { super.m_type=2; } }

Design Principle – Open Closed Principle class GraphicEditor { public void drawShape(Shape s) { s.draw(); } } class Shape { abstract void draw(); } class Rectangle extends Shape { public void draw() { // draw the rectangle } }

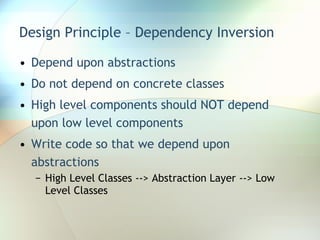

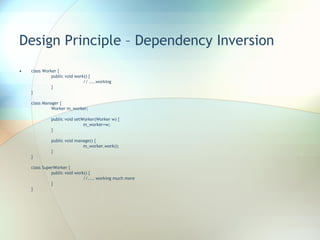

Design Principle – Dependency Inversion Depend upon abstractions Do not depend on concrete classes High level components should NOT depend upon low level components Write code so that we depend upon abstractions High Level Classes --> Abstraction Layer --> Low Level Classes

Design Principle – Dependency Inversion class Worker { public void work() { // ....working } } class Manager { Worker m_worker; public void setWorker(Worker w) { m_worker=w; } public void manage() { m_worker.work(); } } class SuperWorker { public void work() { //.... working much more } }

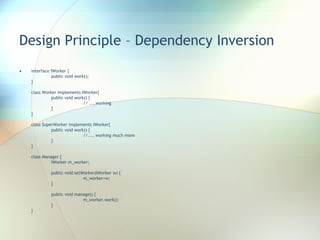

Design Principle – Dependency Inversion interface IWorker { public void work(); } class Worker implements IWorker{ public void work() { // ....working } } class SuperWorker implements IWorker{ public void work() { //.... working much more } } class Manager { IWorker m_worker; public void setWorker(IWorker w) { m_worker=w; } public void manage() { m_worker.work(); } }

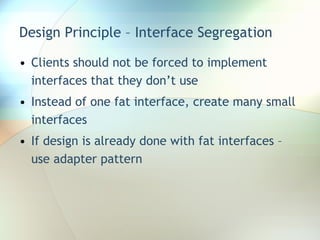

Design Principle – Interface Segregation Clients should not be forced to implement interfaces that they don’t use Instead of one fat interface, create many small interfaces If design is already done with fat interfaces – use adapter pattern

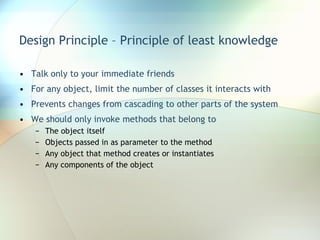

Design Principle – Principle of least knowledge Talk only to your immediate friends For any object, limit the number of classes it interacts with Prevents changes from cascading to other parts of the system We should only invoke methods that belong to The object itself Objects passed in as parameter to the method Any object that method creates or instantiates Any components of the object

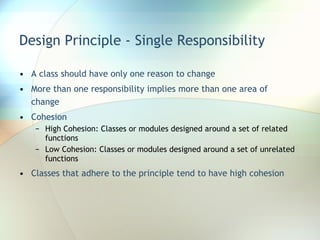

Design Principle - Single Responsibility A class should have only one reason to change More than one responsibility implies more than one area of change Cohesion High Cohesion: Classes or modules designed around a set of related functions Low Cohesion: Classes or modules designed around a set of unrelated functions Classes that adhere to the principle tend to have high cohesion

Don’t Repeat yourself (DRY) One Requirement in one place Each piece of information and behavior in a single sensible place

Liskov Substitution Principle (LSP) Subtypes must be substitutable for their base types

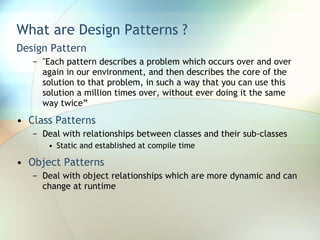

What are Design Patterns ? Design Pattern "Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution to that problem, in such a way that you can use this solution a million times over, without ever doing it the same way twice” Class Patterns Deal with relationships between classes and their sub-classes Static and established at compile time Object Patterns Deal with object relationships which are more dynamic and can change at runtime

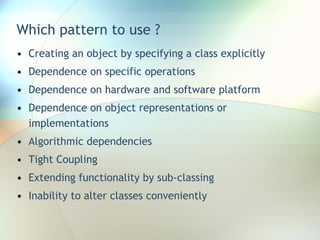

Which pattern to use ? Creating an object by specifying a class explicitly Dependence on specific operations Dependence on hardware and software platform Dependence on object representations or implementations Algorithmic dependencies Tight Coupling Extending functionality by sub-classing Inability to alter classes conveniently

Types of Java Pattern Creational Patterns Concern with the process of Object Creation Class Patterns Defer some part of object creation to subclasses Object Patterns Defer creation to another object Structural Patterns Deal with composition of classes or objects Class Patterns Use inheritance to compose classes Object Patterns Describe ways to assemble objects

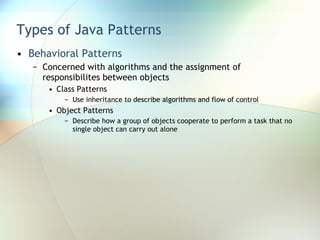

Types of Java Patterns Behavioral Patterns Concerned with algorithms and the assignment of responsibilites between objects Class Patterns Use inheritance to describe algorithms and flow of control Object Patterns Describe how a group of objects cooperate to perform a task that no single object can carry out alone

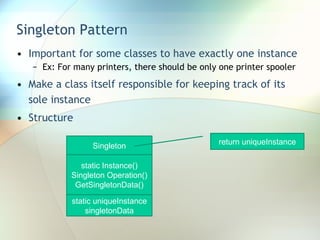

Singleton Pattern Important for some classes to have exactly one instance Ex: For many printers, there should be only one printer spooler Make a class itself responsible for keeping track of its sole instance Structure Singleton static Instance() Singleton Operation() GetSingletonData() static uniqueInstance singletonData return uniqueInstance

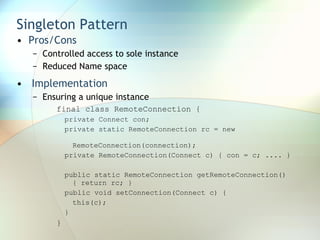

Singleton Pattern Pros/Cons Controlled access to sole instance Reduced Name space Implementation Ensuring a unique instance final class RemoteConnection { private Connect con; private static RemoteConnection rc = new RemoteConnection(connection); private RemoteConnection(Connect c) { con = c; .... } public static RemoteConnection getRemoteConnection() { return rc; } public void setConnection(Connect c) { this(c); } }

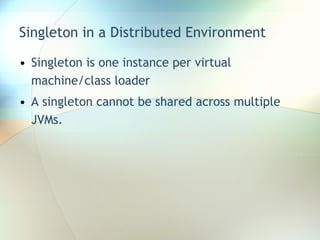

Singleton in a Distributed Environment Singleton is one instance per virtual machine/class loader A singleton cannot be shared across multiple JVMs.

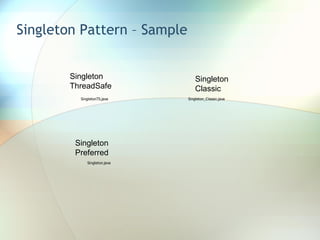

Singleton Pattern – Sample Singleton ThreadSafe Singleton Classic Singleton Preferred

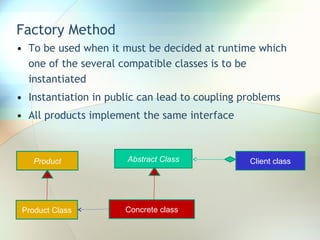

Factory Method To be used when it must be decided at runtime which one of the several compatible classes is to be instantiated Instantiation in public can lead to coupling problems All products implement the same interface Abstract Class Client class Concrete class Product Product Class

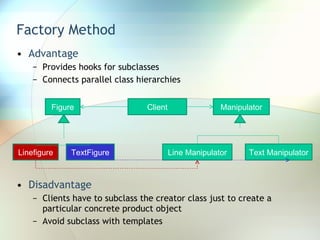

Factory Method Advantage Provides hooks for subclasses Connects parallel class hierarchies Disadvantage Clients have to subclass the creator class just to create a particular concrete product object Avoid subclass with templates Figure TextFigure Linefigure Client Manipulator Text Manipulator Line Manipulator

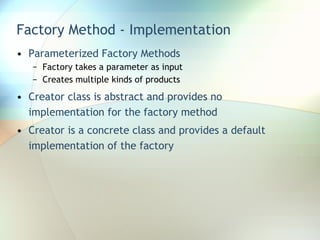

Factory Method - Implementation Parameterized Factory Methods Factory takes a parameter as input Creates multiple kinds of products Creator class is abstract and provides no implementation for the factory method Creator is a concrete class and provides a default implementation of the factory

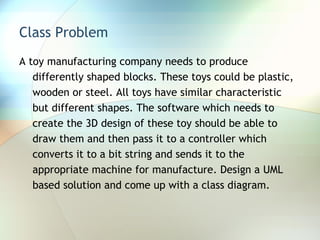

Class Problem A toy manufacturing company needs to produce differently shaped blocks. These toys could be plastic, wooden or steel. All toys have similar characteristic but different shapes. The software which needs to create the 3D design of these toy should be able to draw them and then pass it to a controller which converts it to a bit string and sends it to the appropriate machine for manufacture. Design a UML based solution and come up with a class diagram.

Factory Method – Sample Code Toy Bus Cycle SimpleToyFactory Car ToyStore Scooter

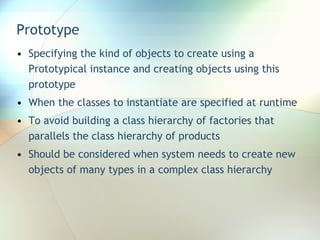

Prototype Specifying the kind of objects to create using a Prototypical instance and creating objects using this prototype When the classes to instantiate are specified at runtime To avoid building a class hierarchy of factories that parallels the class hierarchy of products Should be considered when system needs to create new objects of many types in a complex class hierarchy

Prototype - Structure Client Prototype clone() ConcretePrototype1 clone() ConcretePrototype2 clone()

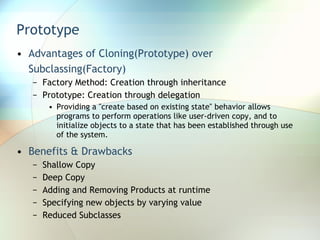

Prototype Advantages of Cloning(Prototype) over Subclassing(Factory) Factory Method: Creation through inheritance Prototype: Creation through delegation Providing a "create based on existing state" behavior allows programs to perform operations like user-driven copy, and to initialize objects to a state that has been established through use of the system. Benefits & Drawbacks Shallow Copy Deep Copy Adding and Removing Products at runtime Specifying new objects by varying value Reduced Subclasses

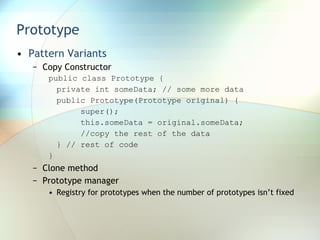

Prototype Pattern Variants Copy Constructor public class Prototype { private int someData; // some more data public Prototype(Prototype original) { super(); this.someData = original.someData; //copy the rest of the data } // rest of code } Clone method Prototype manager Registry for prototypes when the number of prototypes isn’t fixed

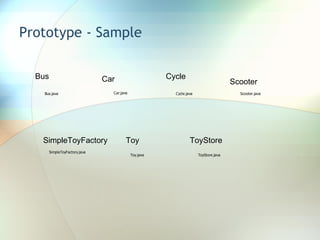

Prototype - Sample Bus Car Cycle Scooter SimpleToyFactory Toy ToyStore

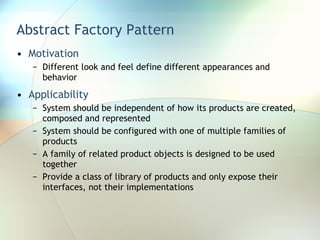

Abstract Factory Pattern Motivation Different look and feel define different appearances and behavior Applicability System should be independent of how its products are created, composed and represented System should be configured with one of multiple families of products A family of related product objects is designed to be used together Provide a class of library of products and only expose their interfaces, not their implementations

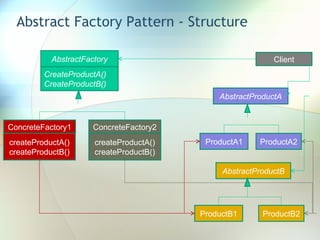

Abstract Factory Pattern - Structure CreateProductA() CreateProductB() AbstractFactory createProductA() createProductB() ConcreteFactory1 createProductA() createProductB() ConcreteFactory2 Client AbstractProductA AbstractProductB ProductA1 ProductA2 ProductB1 ProductB2

Abstract Factory Pattern Pros/Cons Isolates concrete Classes Makes exchanging product Families easy Promotes consistency among products Supporting new kind of products is difficult Implementation Factories as Singletons Product Creation Factory Method for each product Requires a new factory for each product family For mulitple product families, use Prototype pattern. Eliminates the need for a new concrete factory class for each product family

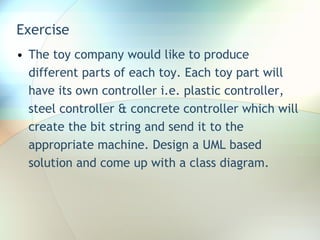

Exercise The toy company would like to produce different parts of each toy. Each toy part will have its own controller i.e. plastic controller, steel controller & concrete controller which will create the bit string and send it to the appropriate machine. Design a UML based solution and come up with a class diagram.

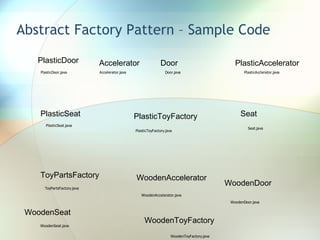

Abstract Factory Pattern – Sample Code PlasticDoor Accelerator Door PlasticAccelerator PlasticSeat PlasticToyFactory Seat ToyPartsFactory WoodenAccelerator WoodenDoor WoodenSeat WoodenToyFactory

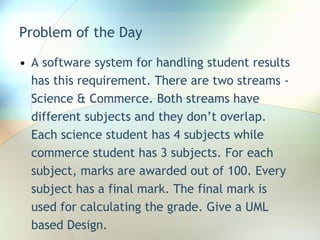

Problem of the Day A software system for handling student results has this requirement. There are two streams - Science & Commerce. Both streams have different subjects and they don’t overlap. Each science student has 4 subjects while commerce student has 3 subjects. For each subject, marks are awarded out of 100. Every subject has a final mark. The final mark is used for calculating the grade. Give a UML based Design.

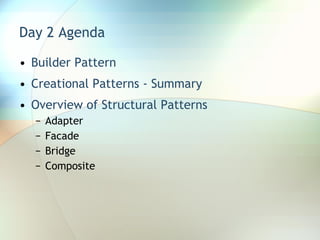

Day 2 Agenda Builder Pattern Creational Patterns - Summary Overview of Structural Patterns Adapter Facade Bridge Composite

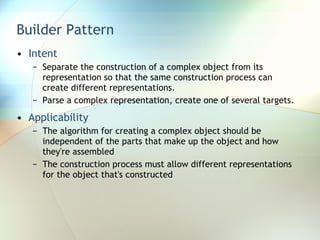

Builder Pattern Intent Separate the construction of a complex object from its representation so that the same construction process can create different representations. Parse a complex representation, create one of several targets. Applicability The algorithm for creating a complex object should be independent of the parts that make up the object and how they're assembled The construction process must allow different representations for the object that's constructed

Builder Pattern - Structure Director Builder ConcreteBuilder builder Construct() BuildPart() BuildPart() GetResult()

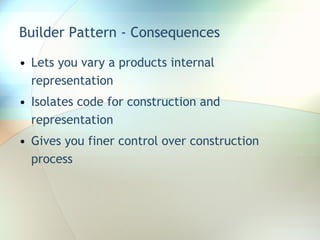

Builder Pattern - Consequences Lets you vary a products internal representation Isolates code for construction and representation Gives you finer control over construction process

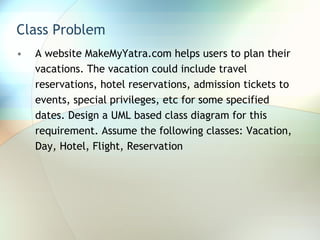

Class Problem A website MakeMyYatra.com helps users to plan their vacations. The vacation could include travel reservations, hotel reservations, admission tickets to events, special privileges, etc for some specified dates. Design a UML based class diagram for this requirement. Assume the following classes: Vacation, Day, Hotel, Flight, Reservation

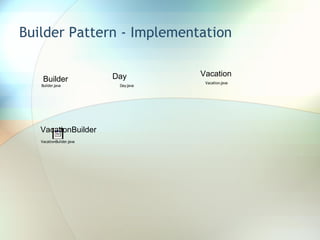

Builder Pattern - Implementation Builder Day Vacation VacationBuilder

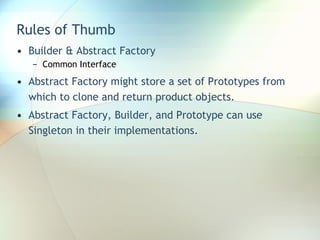

Rules of Thumb Builder & Abstract Factory Common Interface Abstract Factory might store a set of Prototypes from which to clone and return product objects. Abstract Factory, Builder, and Prototype can use Singleton in their implementations.

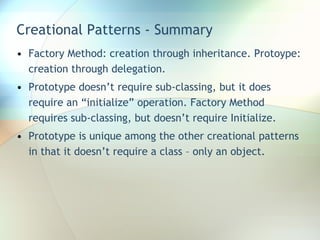

Creational Patterns - Summary Factory Method: creation through inheritance. Protoype: creation through delegation. Prototype doesn’t require sub-classing, but it does require an “initialize” operation. Factory Method requires sub-classing, but doesn’t require Initialize. Prototype is unique among the other creational patterns in that it doesn’t require a class – only an object.

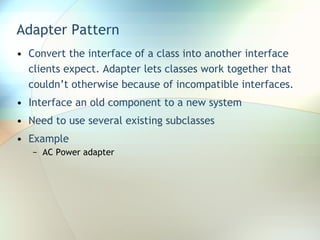

Adapter Pattern Convert the interface of a class into another interface clients expect. Adapter lets classes work together that couldn’t otherwise because of incompatible interfaces. Interface an old component to a new system Need to use several existing subclasses Example AC Power adapter

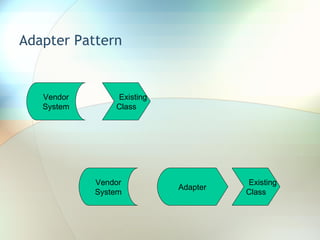

Adapter Pattern Vendor System Adapter Existing Class Vendor System Existing Class

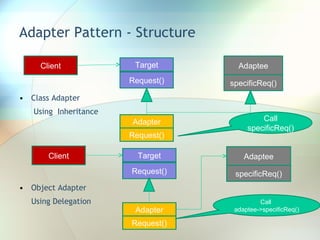

Adapter Pattern - Structure Class Adapter Using Inheritance Object Adapter Using Delegation Client Target Adaptee Adapter Request() specificReq() Request() Call specificReq() Client Target Request() Adaptee specificReq() Adapter Request() Call adaptee->specificReq()

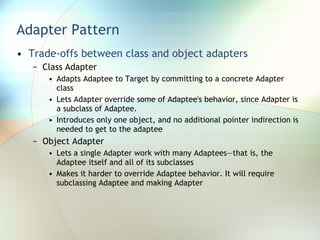

Adapter Pattern Trade-offs between class and object adapters Class Adapter Adapts Adaptee to Target by committing to a concrete Adapter class Lets Adapter override some of Adaptee's behavior, since Adapter is a subclass of Adaptee. Introduces only one object, and no additional pointer indirection is needed to get to the adaptee Object Adapter Lets a single Adapter work with many Adaptees—that is, the Adaptee itself and all of its subclasses Makes it harder to override Adaptee behavior. It will require subclassing Adaptee and making Adapter

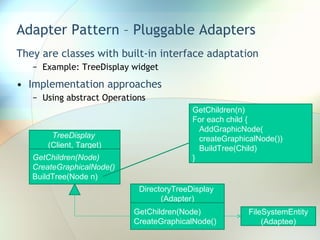

Adapter Pattern – Pluggable Adapters They are classes with built-in interface adaptation Example: TreeDisplay widget Implementation approaches Using abstract Operations TreeDisplay (Client, Target) GetChildren(Node) CreateGraphicalNode() BuildTree(Node n) DirectoryTreeDisplay (Adapter) GetChildren(Node) CreateGraphicalNode() FileSystemEntity (Adaptee) GetChildren(n) For each child { AddGraphicNode( createGraphicalNode()) BuildTree(Child) }

Adapter Pattern – Pluggable Adapters Using delegate objects TreeDisplay (Client) GetChildren(Node) CreateGraphicalNode() BuildTree(Node n) DirectoryBrowser (Adapter) GetChildren(Node) CreateGraphicalNode() Delegate->GetChildren(n) For each child { AddGraphicNode( Delegate.createGraphicalNode()) BuildTree(Child) } FileSystemEntity (Adaptee) TreeAccessDelegate (Target) GetChildren(Node) CreateGraphicalNode() delegate

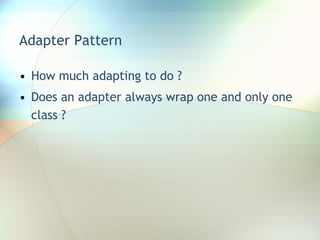

Adapter Pattern How much adapting to do ? Does an adapter always wrap one and only one class ?

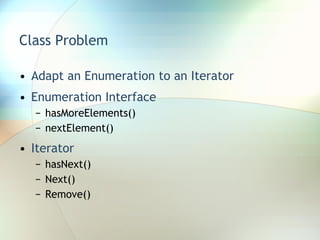

Class Problem Adapt an Enumeration to an Iterator Enumeration Interface hasMoreElements() nextElement() Iterator hasNext() Next() Remove()

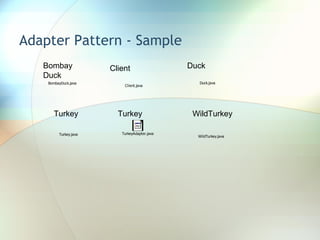

Adapter Pattern - Sample Bombay Duck Client Duck Turkey Turkey WildTurkey

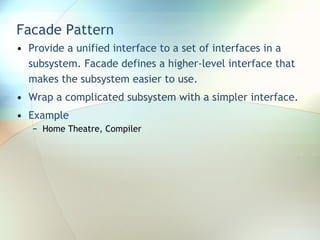

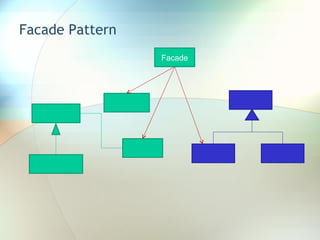

Facade Pattern Provide a unified interface to a set of interfaces in a subsystem. Facade defines a higher-level interface that makes the subsystem easier to use. Wrap a complicated subsystem with a simpler interface. Example Home Theatre, Compiler

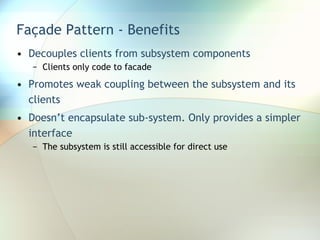

Façade Pattern - Benefits Decouples clients from subsystem components Clients only code to facade Promotes weak coupling between the subsystem and its clients Doesn’t encapsulate sub-system. Only provides a simpler interface The subsystem is still accessible for direct use

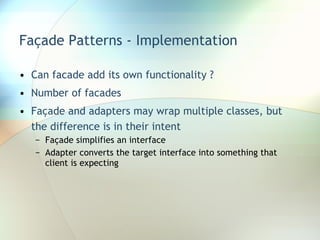

Façade Patterns - Implementation Can facade add its own functionality ? Number of facades Façade and adapters may wrap multiple classes, but the difference is in their intent Façade simplifies an interface Adapter converts the target interface into something that client is expecting

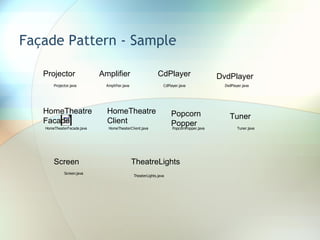

Façade Pattern - Sample Projector Amplifier CdPlayer DvdPlayer HomeTheatreFacade HomeTheatreClient PopcornPopper Tuner Screen TheatreLights

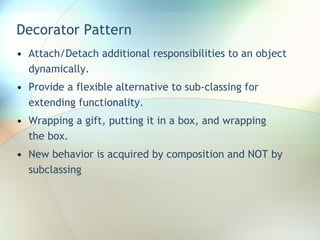

Decorator Pattern Attach/Detach additional responsibilities to an object dynamically. Provide a flexible alternative to sub-classing for extending functionality. Wrapping a gift, putting it in a box, and wrapping the box. New behavior is acquired by composition and NOT by subclassing

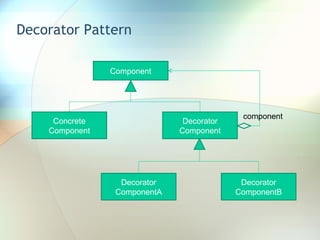

Decorator Pattern Component Concrete Component Decorator Component Decorator ComponentB Decorator ComponentA component

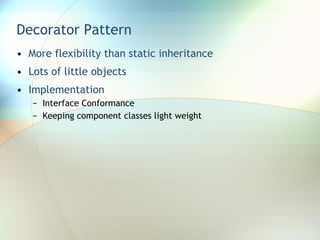

Decorator Pattern More flexibility than static inheritance Lots of little objects Implementation Interface Conformance Keeping component classes light weight

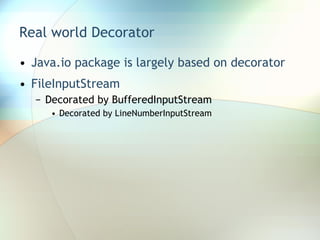

Real world Decorator Java.io package is largely based on decorator FileInputStream Decorated by BufferedInputStream Decorated by LineNumberInputStream

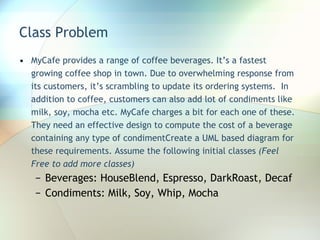

Class Problem MyCafe provides a range of coffee beverages. It’s a fastest growing coffee shop in town. Due to overwhelming response from its customers, it’s scrambling to update its ordering systems. In addition to coffee, customers can also add lot of condiments like milk, soy, mocha etc. MyCafe charges a bit for each one of these. They need an effective design to compute the cost of a beverage containing any type of condimentCreate a UML based diagram for these requirements. Assume the following initial classes (Feel Free to add more classes) Beverages: HouseBlend, Espresso, DarkRoast, Decaf Condiments: Milk, Soy, Whip, Mocha

Decorator Pattern - Sample Beverage CondimentDecorator DarkRoast Decaf Espresso HouseBlend Milk Mocha Soy StarbucksCoffee Whip

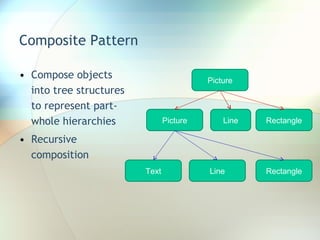

Composite Pattern Compose objects into tree structures to represent part-whole hierarchies Recursive composition Picture Text Rectangle Line Rectangle Line Picture

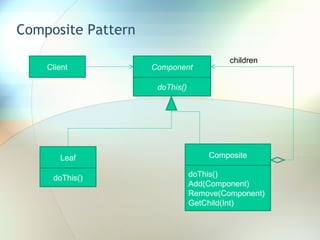

Composite Pattern Client Component doThis() Leaf Composite doThis() Add(Component) Remove(Component) GetChild(Int) children doThis()

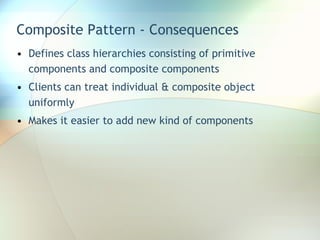

Composite Pattern - Consequences Defines class hierarchies consisting of primitive components and composite components Clients can treat individual & composite object uniformly Makes it easier to add new kind of components

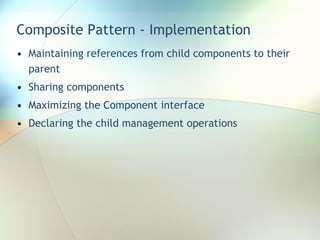

Composite Pattern - Implementation Maintaining references from child components to their parent Sharing components Maximizing the Component interface Declaring the child management operations

Class Problem A newly opened restaurant wants to create a new menu. There are menus for breakfast, lunch & dinner. Each menu has sub-categories such as sub-menu for pancakes in breakfast, sub-menu for chicken and vegetable dishes in lunch & dinner and a sub-menu for desserts. Any menu can be extended further with more categories. Design a UML based class diagram.

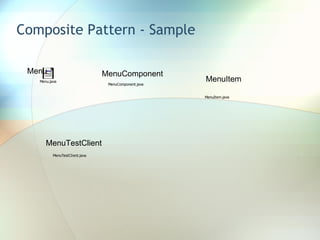

Composite Pattern - Sample Menu MenuComponent MenuItem MenuTestClient

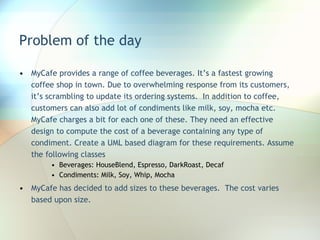

Problem of the day MyCafe provides a range of coffee beverages. It’s a fastest growing coffee shop in town. Due to overwhelming response from its customers, it’s scrambling to update its ordering systems. In addition to coffee, customers can also add lot of condiments like milk, soy, mocha etc. MyCafe charges a bit for each one of these. They need an effective design to compute the cost of a beverage containing any type of condiment. Create a UML based diagram for these requirements. Assume the following classes Beverages: HouseBlend, Espresso, DarkRoast, Decaf Condiments: Milk, Soy, Whip, Mocha MyCafe has decided to add sizes to these beverages. The cost varies based upon size.

Day 3 Agenda Bridge Pattern Flyweight Pattern Proxy Pattern Structural Patterns Summary Behavioral Patterns Command Pattern Iterator Pattern

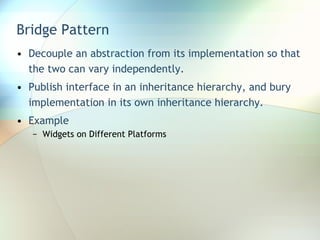

Bridge Pattern Decouple an abstraction from its implementation so that the two can vary independently. Publish interface in an inheritance hierarchy, and bury implementation in its own inheritance hierarchy. Example Widgets on Different Platforms

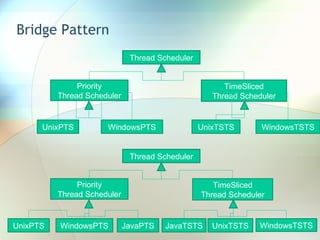

Bridge Pattern Thread Scheduler Priority Thread Scheduler WindowsTSTS UnixTSTS TimeSliced Thread Scheduler WindowsPTS UnixPTS Thread Scheduler Priority Thread Scheduler WindowsTSTS UnixTSTS TimeSliced Thread Scheduler WindowsPTS UnixPTS JavaPTS JavaTSTS

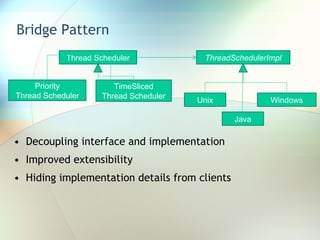

Bridge Pattern Decoupling interface and implementation Improved extensibility Hiding implementation details from clients Thread Scheduler Priority Thread Scheduler Windows TimeSliced Thread Scheduler Unix ThreadSchedulerImpl Java

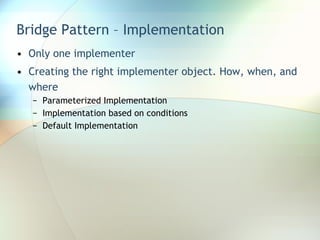

Bridge Pattern – Implementation Only one implementer Creating the right implementer object. How, when, and where Parameterized Implementation Implementation based on conditions Default Implementation

Abstract Factory & Bridge AbstractWindowFactory Unix Window WindowImpl TransitWindow IconWindow

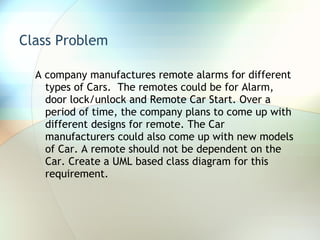

Class Problem A company manufactures remote alarms for different types of Cars. The remotes could be for Alarm, door lock/unlock and Remote Car Start. Over a period of time, the company plans to come up with different designs for remote. The Car manufacturers could also come up with new models of Car. A remote should not be dependent on the Car. Create a UML based class diagram for this requirement.

Bridge Pattern - Sample AlarmRemote Car DoorLock_Unlock Honda Remote RemoteStarter Toyota

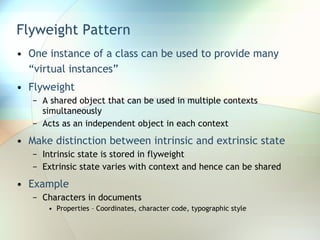

Flyweight Pattern One instance of a class can be used to provide many “virtual instances” Flyweight A shared object that can be used in multiple contexts simultaneously Acts as an independent object in each context Make distinction between intrinsic and extrinsic state Intrinsic state is stored in flyweight Extrinsic state varies with context and hence can be shared Example Characters in documents Properties – Coordinates, character code, typographic style

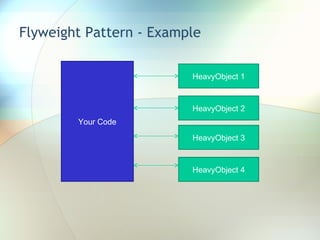

Flyweight Pattern - Example Your Code HeavyObject 1 HeavyObject 2 HeavyObject 3 HeavyObject 4

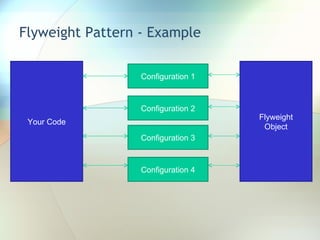

Flyweight Pattern - Example Your Code Configuration 1 Configuration 2 Configuration 3 Configuration 4 Flyweight Object

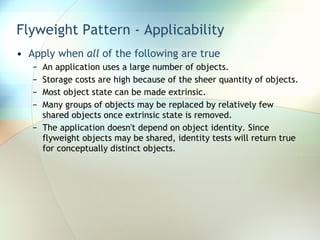

Flyweight Pattern - Applicability Apply when all of the following are true An application uses a large number of objects. Storage costs are high because of the sheer quantity of objects. Most object state can be made extrinsic. Many groups of objects may be replaced by relatively few shared objects once extrinsic state is removed. The application doesn't depend on object identity. Since flyweight objects may be shared, identity tests will return true for conceptually distinct objects.

Flyweight Pattern - Structure FlyweightFactory GetFlyweight(key) Flyweight Operation(extrinsicState) ConcreteFlyweight Operation(extrinsicState) UnsharedConcreteFlyweight Operation(extrinsicState) Client IntrinsicState allState

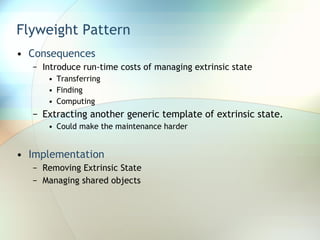

Flyweight Pattern Consequences Introduce run-time costs of managing extrinsic state Transferring Finding Computing Extracting another generic template of extrinsic state. Could make the maintenance harder Implementation Removing Extrinsic State Managing shared objects

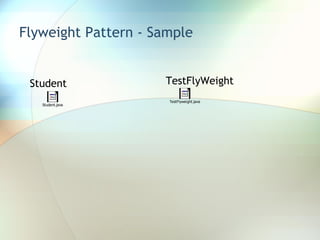

Flyweight Pattern - Sample Student TestFlyWeight

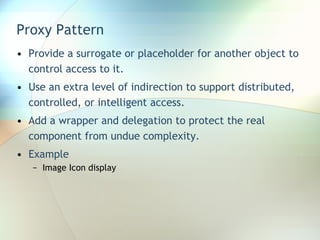

Proxy Pattern Provide a surrogate or placeholder for another object to control access to it. Use an extra level of indirection to support distributed, controlled, or intelligent access. Add a wrapper and delegation to protect the real component from undue complexity. Example Image Icon display

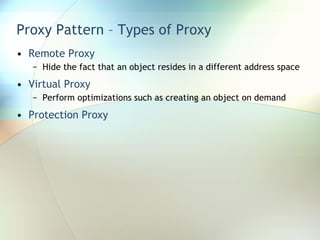

Proxy Pattern – Types of Proxy Remote Proxy Hide the fact that an object resides in a different address space Virtual Proxy Perform optimizations such as creating an object on demand Protection Proxy

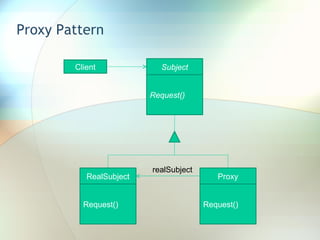

Proxy Pattern Subject Request() RealSubject Request() Proxy Request() realSubject Client

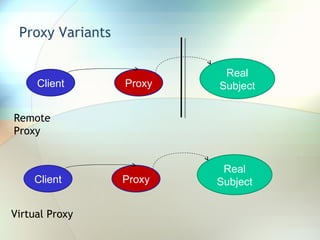

Proxy Variants Client Real Subject Proxy Remote Proxy Client Real Subject Proxy Virtual Proxy

Class Problem An application has to communicate with weighing machines located in different geographies in public places. These machines should return the current status of number of remaining tickets inside them. Create a UML based class diagram for this requirement.

Proxy Pattern - Sample State WeighingMachineClient WeighingMachineImpl WeighingMachineRemote

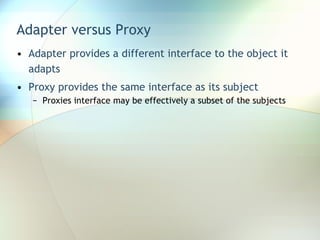

Adapter versus Proxy Adapter provides a different interface to the object it adapts Proxy provides the same interface as its subject Proxies interface may be effectively a subset of the subjects

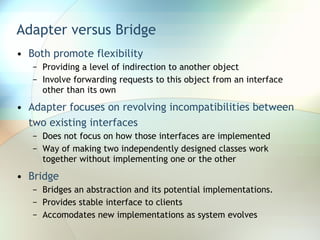

Adapter versus Bridge Both promote flexibility Providing a level of indirection to another object Involve forwarding requests to this object from an interface other than its own Adapter focuses on revolving incompatibilities between two existing interfaces Does not focus on how those interfaces are implemented Way of making two independently designed classes work together without implementing one or the other Bridge Bridges an abstraction and its potential implementations. Provides stable interface to clients Accomodates new implementations as system evolves

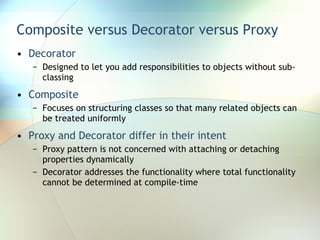

Composite versus Decorator versus Proxy Decorator Designed to let you add responsibilities to objects without sub-classing Composite Focuses on structuring classes so that many related objects can be treated uniformly Proxy and Decorator differ in their intent Proxy pattern is not concerned with attaching or detaching properties dynamically Decorator addresses the functionality where total functionality cannot be determined at compile-time

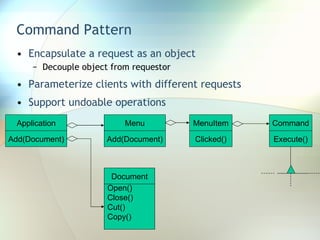

Command Pattern Encapsulate a request as an object Decouple object from requestor Parameterize clients with different requests Support undoable operations Application Add(Document) Menu Add(Document) Document Open() Close() Cut() Copy() MenuItem Clicked() Command Execute()

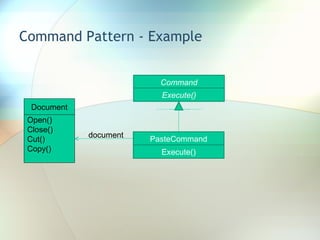

Command Pattern - Example Document Open() Close() Cut() Copy() Command Execute() PasteCommand Execute() document

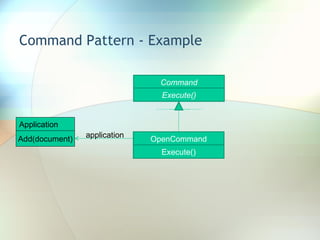

Command Pattern - Example Add(document) Application Command Execute() OpenCommand Execute() application

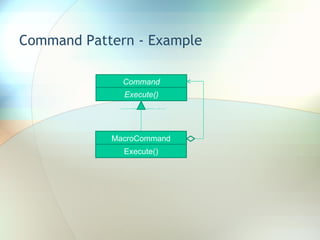

Command Pattern - Example Command Execute() MacroCommand Execute()

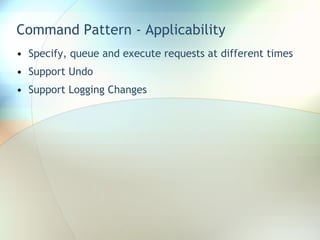

Command Pattern - Applicability Specify, queue and execute requests at different times Support Undo Support Logging Changes

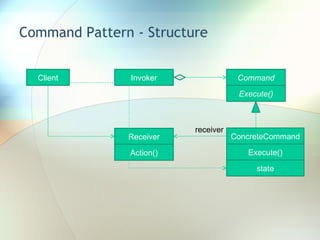

Command Pattern - Structure Client Invoker Command Execute() Receiver Action() ConcreteCommand Execute() state receiver

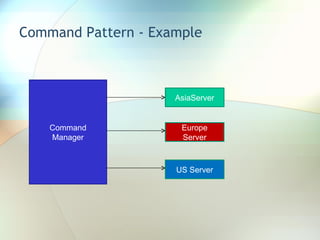

Command Pattern - Example Command Manager AsiaServer Europe Server US Server

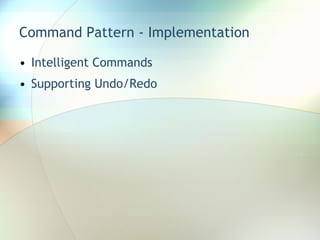

Command Pattern - Implementation Intelligent Commands Supporting Undo/Redo

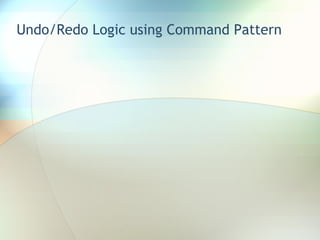

Undo/Redo Logic using Command Pattern

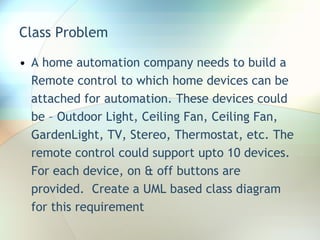

Class Problem A home automation company needs to build a Remote control to which home devices can be attached for automation. These devices could be – Outdoor Light, Ceiling Fan, Ceiling Fan, GardenLight, TV, Stereo, Thermostat, etc. The remote control could support upto 10 devices. For each device, on & off buttons are provided. Create a UML based class diagram for this requirement

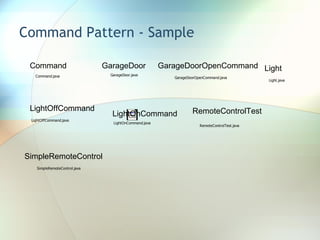

Command Pattern - Sample Command GarageDoor GarageDoorOpenCommand Light LightOffCommand LightOnCommand RemoteControlTest SimpleRemoteControl

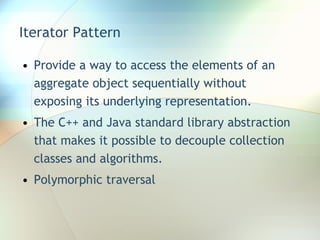

Iterator Pattern Provide a way to access the elements of an aggregate object sequentially without exposing its underlying representation. The C++ and Java standard library abstraction that makes it possible to decouple collection classes and algorithms. Polymorphic traversal

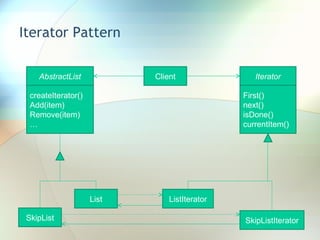

Iterator Pattern AbstractList Client Iterator createIterator() Add(item) Remove(item) … List SkipList ListIterator SkipListIterator First() next() isDone() currentItem()

Iterator Pattern Client AbstractList Iterator createIterator() Add(item) Remove(item) … ConcreteAggregate ConcreteIterator First() next() isDone() currentItem() createIterator()

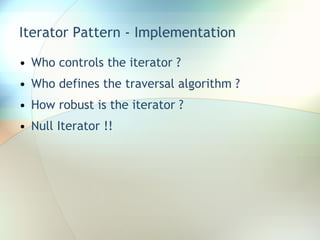

Iterator Pattern - Implementation Who controls the iterator ? Who defines the traversal algorithm ? How robust is the iterator ? Null Iterator !!

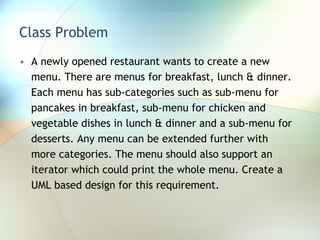

Class Problem A newly opened restaurant wants to create a new menu. There are menus for breakfast, lunch & dinner. Each menu has sub-categories such as sub-menu for pancakes in breakfast, sub-menu for chicken and vegetable dishes in lunch & dinner and a sub-menu for desserts. Any menu can be extended further with more categories. The menu should also support an iterator which could print the whole menu. Create a UML based design for this requirement.

Iterator Sample Client CompositeIterator Menu MenuComponent MenuItem NullIterator

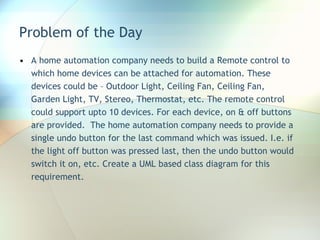

Problem of the Day A home automation company needs to build a Remote control to which home devices can be attached for automation. These devices could be – Outdoor Light, Ceiling Fan, Ceiling Fan, Garden Light, TV, Stereo, Thermostat, etc. The remote control could support upto 10 devices. For each device, on & off buttons are provided. The home automation company needs to provide a single undo button for the last command which was issued. I.e. if the light off button was pressed last, then the undo button would switch it on, etc. Create a UML based class diagram for this requirement.

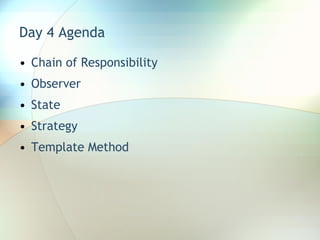

Day 4 Agenda Chain of Responsibility Observer State Strategy Template Method

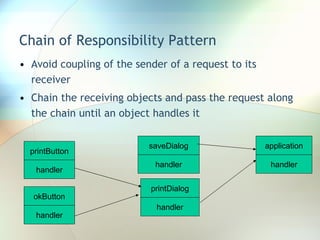

Chain of Responsibility Pattern Avoid coupling of the sender of a request to its receiver Chain the receiving objects and pass the request along the chain until an object handles it printButton handler okButton printDialog application saveDialog handler handler handler handler

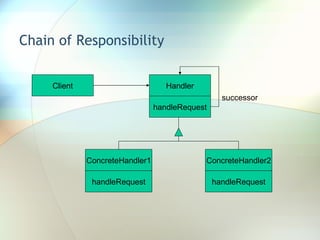

Chain of Responsibility Client Handler handleRequest ConcreteHandler1 handleRequest ConcreteHandler2 handleRequest successor

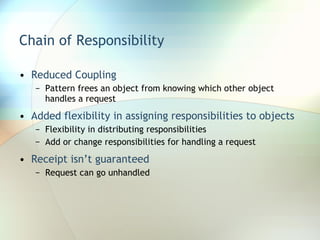

Chain of Responsibility Reduced Coupling Pattern frees an object from knowing which other object handles a request Added flexibility in assigning responsibilities to objects Flexibility in distributing responsibilities Add or change responsibilities for handling a request Receipt isn’t guaranteed Request can go unhandled

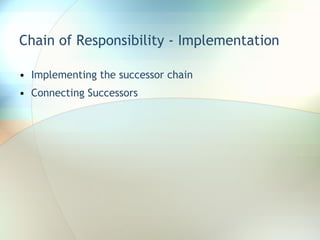

Chain of Responsibility - Implementation Implementing the successor chain Connecting Successors

Class Problem The remote controls designed by the home automation company became an instant hit in the market. The company has been flooded with emails from fans, complaints, spam and new ideas. It wants to handle all these emails in an effective way such that mail detector can determine if an email is spam mail, fan mail, complaint or a new idea. Design a mail detector for this company. Give a UML based class diagram.

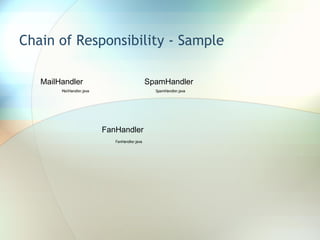

Chain of Responsibility - Sample MailHandler SpamHandler FanHandler

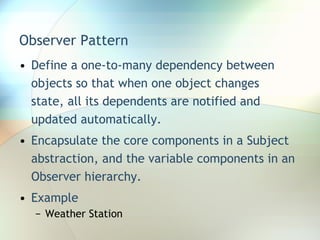

Observer Pattern Define a one-to-many dependency between objects so that when one object changes state, all its dependents are notified and updated automatically. Encapsulate the core components in a Subject abstraction, and the variable components in an Observer hierarchy. Example Weather Station

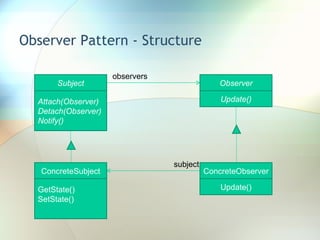

Observer Pattern - Structure Subject Attach(Observer) Detach(Observer) Notify() Observer Update() ConcreteSubject GetState() SetState() ConcreteObserver Update() observers subject

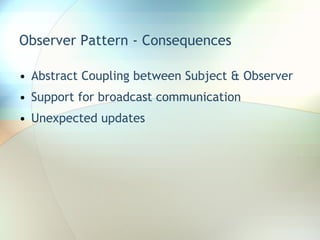

Observer Pattern - Consequences Abstract Coupling between Subject & Observer Support for broadcast communication Unexpected updates

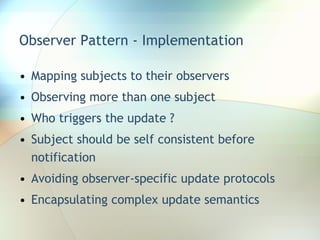

Observer Pattern - Implementation Mapping subjects to their observers Observing more than one subject Who triggers the update ? Subject should be self consistent before notification Avoiding observer-specific update protocols Encapsulating complex update semantics

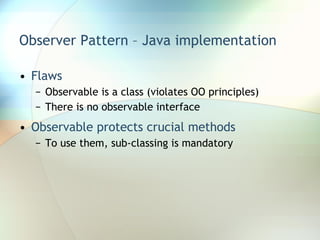

Observer Pattern – Java implementation Flaws Observable is a class (violates OO principles) There is no observable interface Observable protects crucial methods To use them, sub-classing is mandatory

Observer Pattern - Sample CurrentConditionsDisplay StatisticsDisplay WeatherData ForecastDisplay Subject DisplayElement Observer WeatherStation HeatIndexDisplay

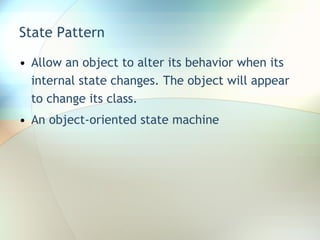

State Pattern Allow an object to alter its behavior when its internal state changes. The object will appear to change its class. An object-oriented state machine

Implementing State Machines Gather States (Threads) START, WORKING, SUSPENDED, STOP Create an instance variable to hold the current state Gather actions which will cause the state transition Write conditional code in each action class based on states. START WORKING SUSPENDED STOP

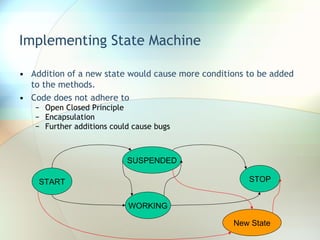

Implementing State Machine Addition of a new state would cause more conditions to be added to the methods. Code does not adhere to Open Closed Principle Encapsulation Further additions could cause bugs START WORKING SUSPENDED STOP New State

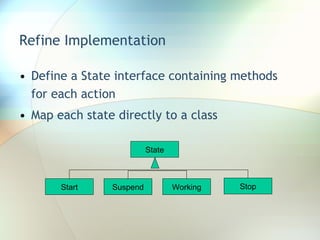

Refine Implementation Define a State interface containing methods for each action Map each state directly to a class State Start Suspend Stop Working

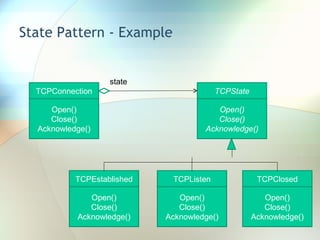

State Pattern - Example TCPConnection Open() Close() Acknowledge() TCPState Open() Close() Acknowledge() TCPEstablished Open() Close() Acknowledge() TCPListen Open() Close() Acknowledge() TCPClosed Open() Close() Acknowledge() state

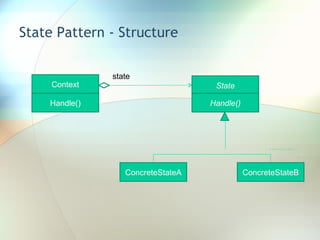

State Pattern - Structure Context State Handle() ConcreteStateA ConcreteStateB Handle() state

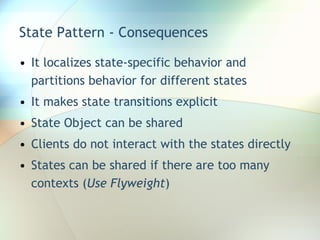

State Pattern - Consequences It localizes state-specific behavior and partitions behavior for different states It makes state transitions explicit State Object can be shared Clients do not interact with the states directly States can be shared if there are too many contexts ( Use Flyweight )

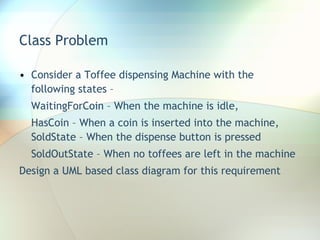

Class Problem Consider a Toffee dispensing Machine with the following states – WaitingForCoin – When the machine is idle, HasCoin – When a coin is inserted into the machine, SoldState – When the dispense button is pressed SoldOutState – When no toffees are left in the machine Design a UML based class diagram for this requirement

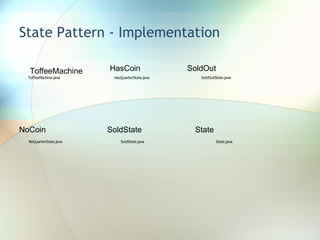

State Pattern - Implementation NoCoin HasCoin SoldOut ToffeeMachine SoldState State

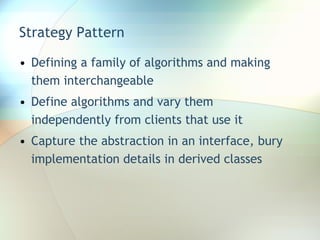

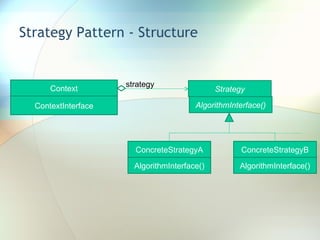

Strategy Pattern Defining a family of algorithms and making them interchangeable Define algorithms and vary them independently from clients that use it Capture the abstraction in an interface, bury implementation details in derived classes

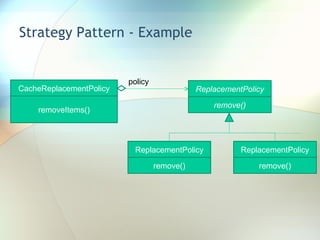

Strategy Pattern - Example CacheReplacementPolicy removeItems() ReplacementPolicy remove() ReplacementPolicy remove() ReplacementPolicy remove() policy

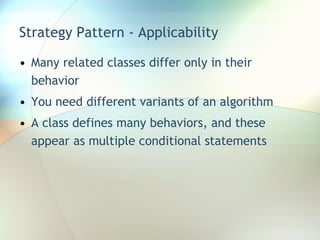

Strategy Pattern - Applicability Many related classes differ only in their behavior You need different variants of an algorithm A class defines many behaviors, and these appear as multiple conditional statements

Strategy Pattern - Structure Context ContextInterface Strategy AlgorithmInterface() ConcreteStrategyA AlgorithmInterface() ConcreteStrategyB AlgorithmInterface() strategy

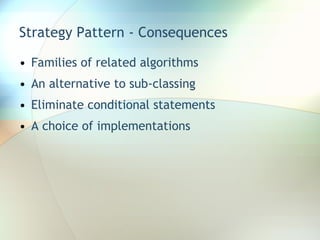

Strategy Pattern - Consequences Families of related algorithms An alternative to sub-classing Eliminate conditional statements A choice of implementations

Strategy & State Pattern Very similar but different intent State Pattern Built around discreet states Context objects change state over time according to a state transition Strategy Control the strategy objects should be using

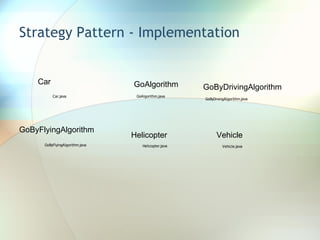

Strategy Pattern - Implementation Car GoAlgorithm GoByDrivingAlgorithm GoByFlyingAlgorithm Helicopter Vehicle

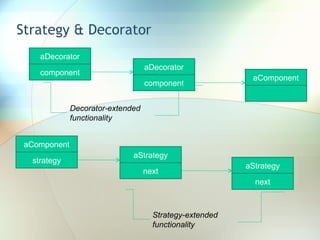

Strategy & Decorator aDecorator component aDecorator component aComponent Decorator-extended functionality aComponent strategy aStrategy next aStrategy next Strategy-extended functionality

Template Method Pattern Define the skeleton of an algorithm in an operation, deferring some steps to subclasses. Template Method lets subclasses redefine certain steps of an algorithm without changing the algorithm’s structure. Base class declares algorithm ‘placeholders’ or ‘hooks’, and derived classes implement the placeholders.

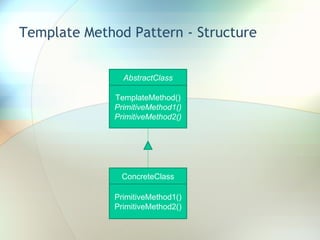

Template Method Pattern - Structure AbstractClass TemplateMethod() PrimitiveMethod1() PrimitiveMethod2() ConcreteClass PrimitiveMethod1() PrimitiveMethod2()

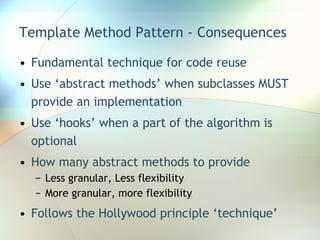

Template Method Pattern - Consequences Fundamental technique for code reuse Use ‘abstract methods’ when subclasses MUST provide an implementation Use ‘hooks’ when a part of the algorithm is optional How many abstract methods to provide Less granular, Less flexibility More granular, more flexibility Follows the Hollywood principle ‘technique’

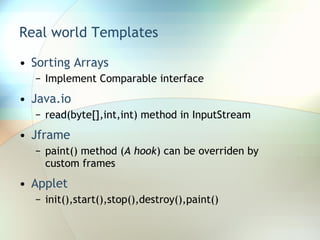

Real world Templates Sorting Arrays Implement Comparable interface Java.io read(byte[],int,int) method in InputStream Jframe paint() method ( A hook ) can be overriden by custom frames Applet init(),start(),stop(),destroy(),paint()

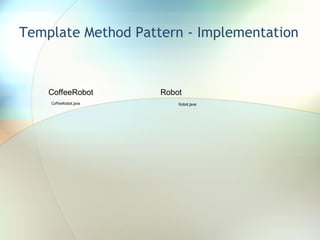

Template Method Pattern - Implementation CoffeeRobot Robot

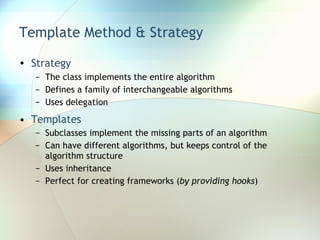

Template Method & Strategy Strategy The class implements the entire algorithm Defines a family of interchangeable algorithms Uses delegation Templates Subclasses implement the missing parts of an algorithm Can have different algorithms, but keeps control of the algorithm structure Uses inheritance Perfect for creating frameworks ( by providing hooks )

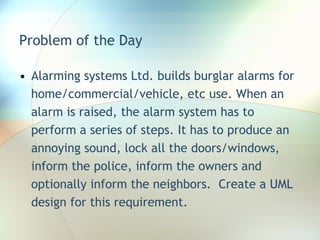

Problem of the Day Alarming systems Ltd. builds burglar alarms for home/commercial/vehicle, etc use. When an alarm is raised, the alarm system has to perform a series of steps. It has to produce an annoying sound, lock all the doors/windows, inform the police, inform the owners and optionally inform the neighbors. Create a UML design for this requirement.

Day 5 Mediator Memento Visitor Interpreter Summary Compound Patterns Other Patterns

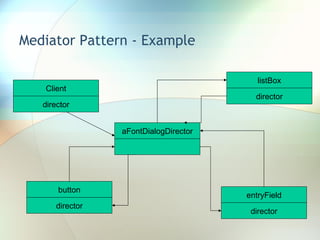

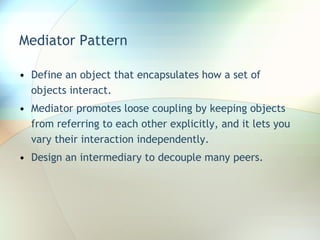

Mediator Pattern Define an object that encapsulates how a set of objects interact. Mediator promotes loose coupling by keeping objects from referring to each other explicitly, and it lets you vary their interaction independently. Design an intermediary to decouple many peers.

Mediator Pattern - Example aFontDialogDirector Client director button director listBox director entryField director

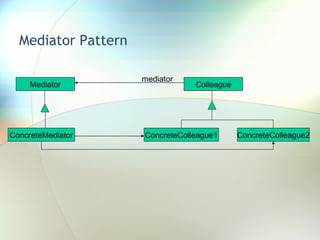

Mediator Pattern Mediator Colleague ConcreteMediator ConcreteColleague2 ConcreteColleague1 mediator

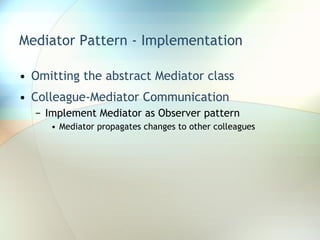

Mediator Pattern - Implementation Omitting the abstract Mediator class Colleague-Mediator Communication Implement Mediator as Observer pattern Mediator propagates changes to other colleagues

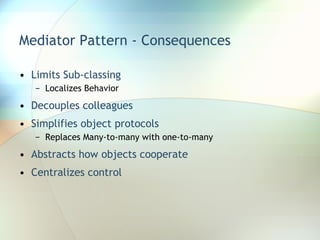

Mediator Pattern - Consequences Limits Sub-classing Localizes Behavior Decouples colleagues Simplifies object protocols Replaces Many-to-many with one-to-many Abstracts how objects cooperate Centralizes control

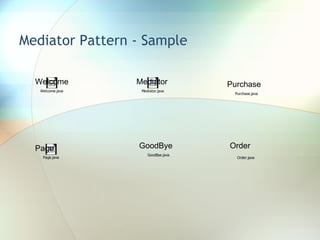

Mediator Pattern - Sample Welcome Mediator Purchase Page GoodBye Order

Mediator & Facade Mediator Arbitrary communication between colleague objects Colleagues communicate with mediator instead of between themselves Centralizes functionality that does not belong to any one of them Façade Interface to subsystem Does not define a new functionality Subsystem classes don’t know about the Facade

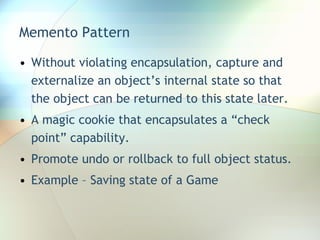

Memento Pattern Without violating encapsulation, capture and externalize an object’s internal state so that the object can be returned to this state later. A magic cookie that encapsulates a “check point” capability. Promote undo or rollback to full object status. Example – Saving state of a Game

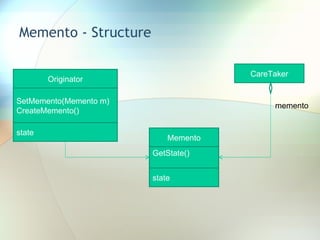

Memento - Structure Originator SetMemento(Memento m) CreateMemento() state Memento GetState() state CareTaker memento

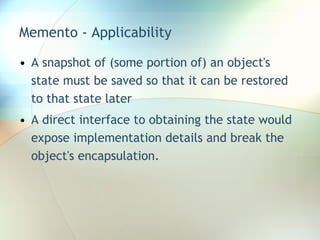

Memento - Applicability A snapshot of (some portion of) an object's state must be saved so that it can be restored to that state later A direct interface to obtaining the state would expose implementation details and break the object's encapsulation.

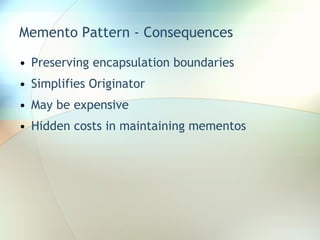

Memento Pattern - Consequences Preserving encapsulation boundaries Simplifies Originator May be expensive Hidden costs in maintaining mementos

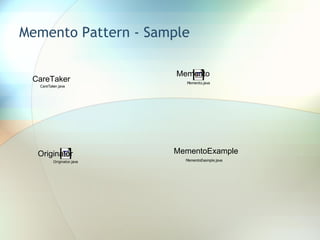

Memento Pattern - Sample CareTaker Memento Originator MementoExample

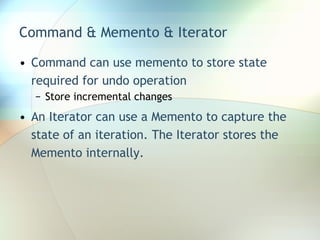

Command & Memento & Iterator Command can use memento to store state required for undo operation Store incremental changes An Iterator can use a Memento to capture the state of an iteration. The Iterator stores the Memento internally.

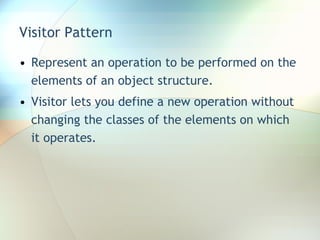

Visitor Pattern Represent an operation to be performed on the elements of an object structure. Visitor lets you define a new operation without changing the classes of the elements on which it operates.

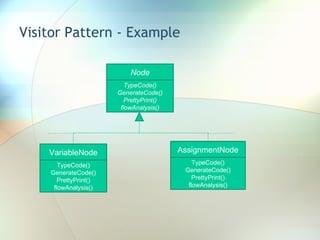

Visitor Pattern - Example Node TypeCode() GenerateCode() PrettyPrint() flowAnalysis() VariableNode TypeCode() GenerateCode() PrettyPrint() flowAnalysis() AssignmentNode TypeCode() GenerateCode() PrettyPrint() flowAnalysis()

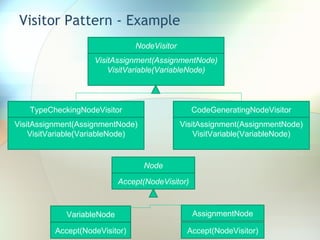

Visitor Pattern - Example NodeVisitor VisitAssignment(AssignmentNode) VisitVariable(VariableNode) TypeCheckingNodeVisitor VisitAssignment(AssignmentNode) VisitVariable(VariableNode) CodeGeneratingNodeVisitor VisitAssignment(AssignmentNode) VisitVariable(VariableNode) Node Accept(NodeVisitor) VariableNode AssignmentNode Accept(NodeVisitor) Accept(NodeVisitor)

Visitor Pattern - Structure NodeVisitor VisitAssignment(AssignmentNode) VisitVariable(VariableNode) TypeCheckingNodeVisitor VisitAssignment(AssignmentNode) VisitVariable(VariableNode) CodeGeneratingNodeVisitor VisitAssignment(AssignmentNode) VisitVariable(VariableNode) Element Accept(NodeVisitor) ConcreteElementA ConcreteElementB Accept(NodeVisitor) Accept(NodeVisitor) Client ObjectStructure

Visitor Pattern - Consequences Makes adding new operations easy Gathers related operations and separates unrelated ones Adding new concrete element classes is hard Visiting across class hierarchies Accumulating state Breaking Encapsulation

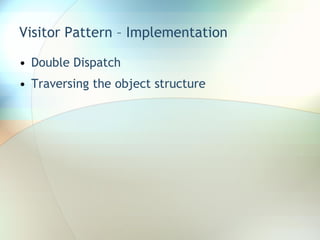

Visitor Pattern – Implementation Double Dispatch Traversing the object structure

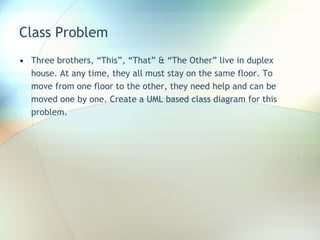

Class Problem Three brothers, “This”, “That” & “The Other” live in duplex house. At any time, they all must stay on the same floor. To move from one floor to the other, they need help and can be moved one by one. Create a UML based class diagram for this problem.

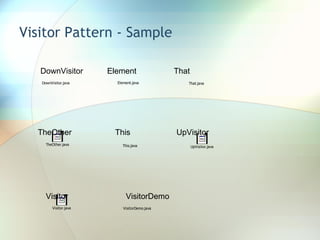

Visitor Pattern - Sample DownVisitor Element That TheOther This UpVisitor Visitor VisitorDemo

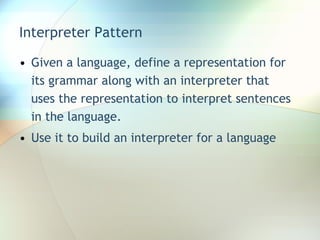

Interpreter Pattern Given a language, define a representation for its grammar along with an interpreter that uses the representation to interpret sentences in the language. Use it to build an interpreter for a language

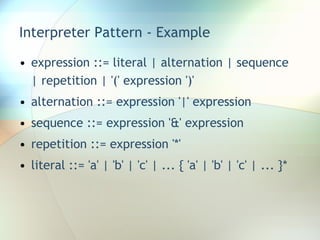

Interpreter Pattern - Example expression ::= literal | alternation | sequence | repetition | '(' expression ')' alternation ::= expression '|' expression sequence ::= expression '&' expression repetition ::= expression '*' literal ::= 'a' | 'b' | 'c' | ... { 'a' | 'b' | 'c' | ... }*

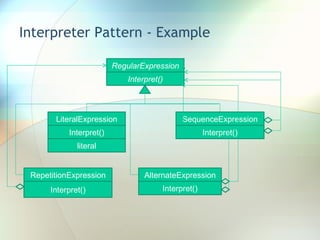

Interpreter Pattern - Example RegularExpression Interpret() SequenceExpression Interpret() LiteralExpression Interpret() AlternateExpression Interpret() RepetitionExpression Interpret() literal

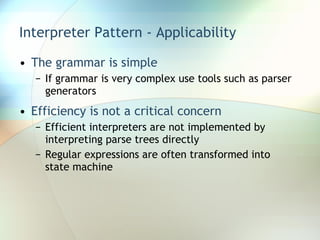

Interpreter Pattern - Applicability The grammar is simple If grammar is very complex use tools such as parser generators Efficiency is not a critical concern Efficient interpreters are not implemented by interpreting parse trees directly Regular expressions are often transformed into state machine

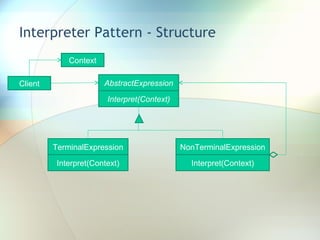

Interpreter Pattern - Structure AbstractExpression Interpret(Context) TerminalExpression Interpret(Context) NonTerminalExpression Interpret(Context) Client Context

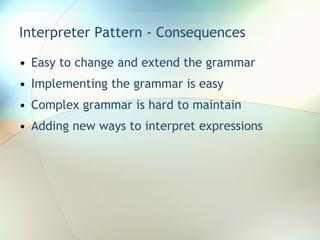

Interpreter Pattern - Consequences Easy to change and extend the grammar Implementing the grammar is easy Complex grammar is hard to maintain Adding new ways to interpret expressions

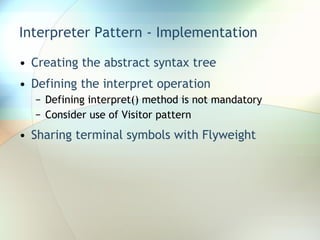

Interpreter Pattern - Implementation Creating the abstract syntax tree Defining the interpret operation Defining interpret() method is not mandatory Consider use of Visitor pattern Sharing terminal symbols with Flyweight

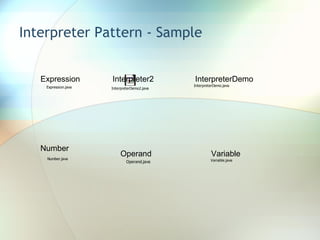

Interpreter Pattern - Sample Expression Interpreter2 InterpreterDemo Number Operand Variable

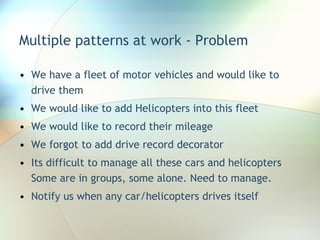

Multiple patterns at work - Problem We have a fleet of motor vehicles and would like to drive them We would like to add Helicopters into this fleet We would like to record their mileage We forgot to add drive record decorator Its difficult to manage all these cars and helicopters Some are in groups, some alone. Need to manage. Notify us when any car/helicopters drives itself

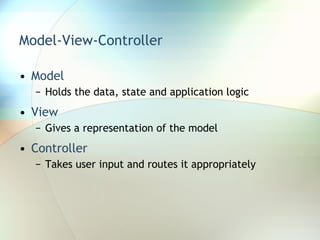

Model-View-Controller Model Holds the data, state and application logic View Gives a representation of the model Controller Takes user input and routes it appropriately

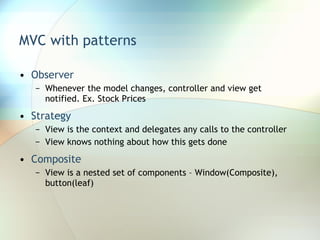

MVC with patterns Observer Whenever the model changes, controller and view get notified. Ex. Stock Prices Strategy View is the context and delegates any calls to the controller View knows nothing about how this gets done Composite View is a nested set of components – Window(Composite), button(leaf)

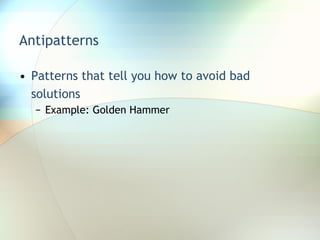

Antipatterns Patterns that tell you how to avoid bad solutions Example: Golden Hammer

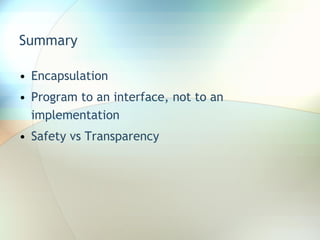

Summary Encapsulation Program to an interface, not to an implementation Safety vs Transparency

P Training Presentation

More Related Content

What's hot

Viewers also liked

Similar to P Training Presentation

P Training Presentation
