- 1. Welkom bij deWebinar Kubernetes 23 april 2020 • Kabisa 1

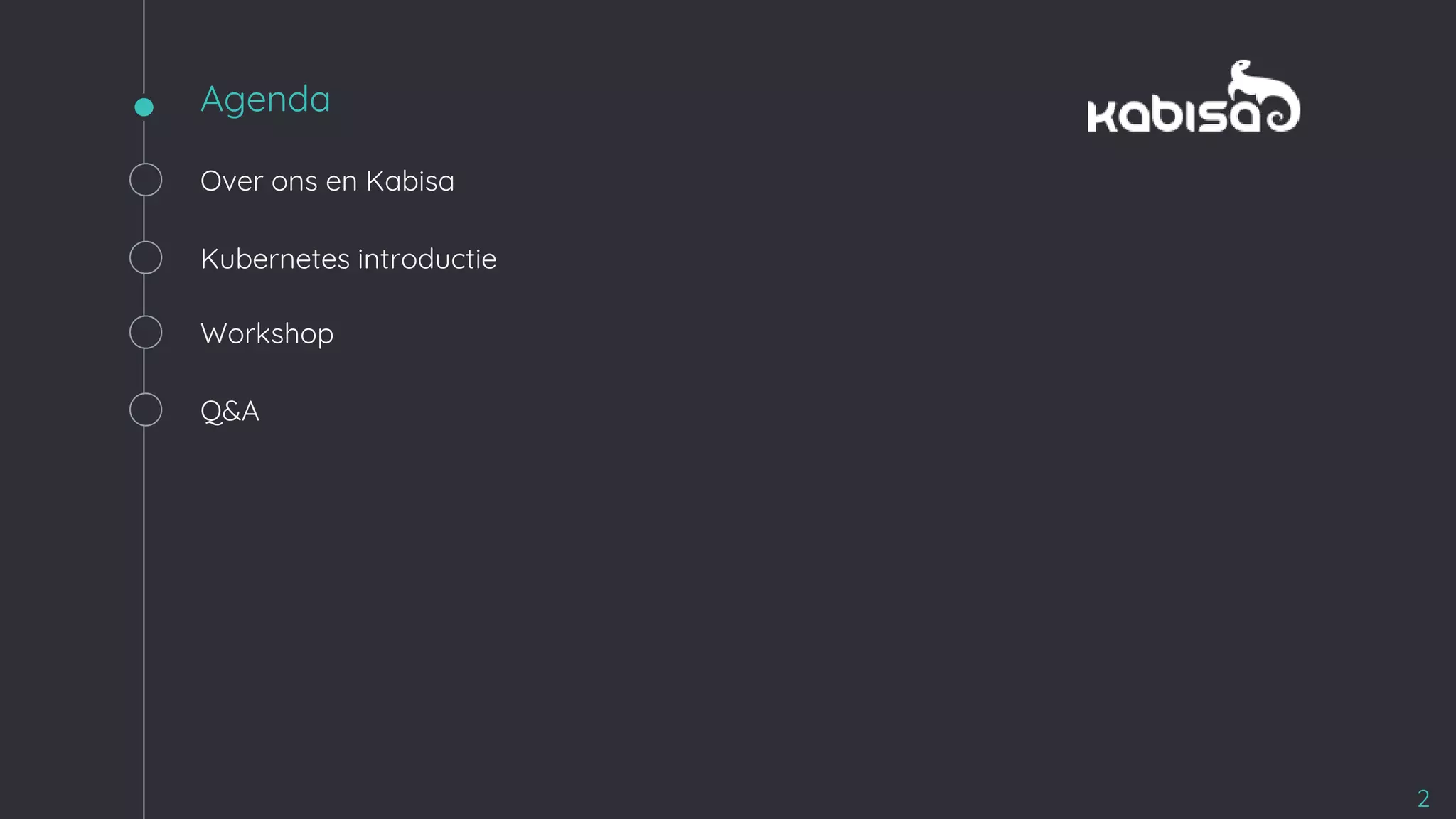

- 2. Agenda 2 Over ons enKabisa Kubernetes introductie Workshop Q&A
- 3. WHERE SOME SEECODE, WE SEE A CANVAS We approach every project as a work of artistry and expression. Combined with vast technical knowledge, flexibility and long term experience in developing web applications, Kabisa delivers custom-made solutions with Quality and Elegance. Always. 3
- 4. Kabisa is asoftware development agency, specialised in custom web and mobile app development & integration. 14+years in business 350+Successful projects 59team members 3Offices 4
- 5. SOFTWARE SPECIALIST IN HIGHTECH,LOGISTICS & COMPLEX RETAIL We approach every project as a work of artistry and expression. Combined with vast technical knowledge, flexibility and long term experience in developing web applications, Kabisa delivers custom-made solutions with Quality and Elegance. Always.

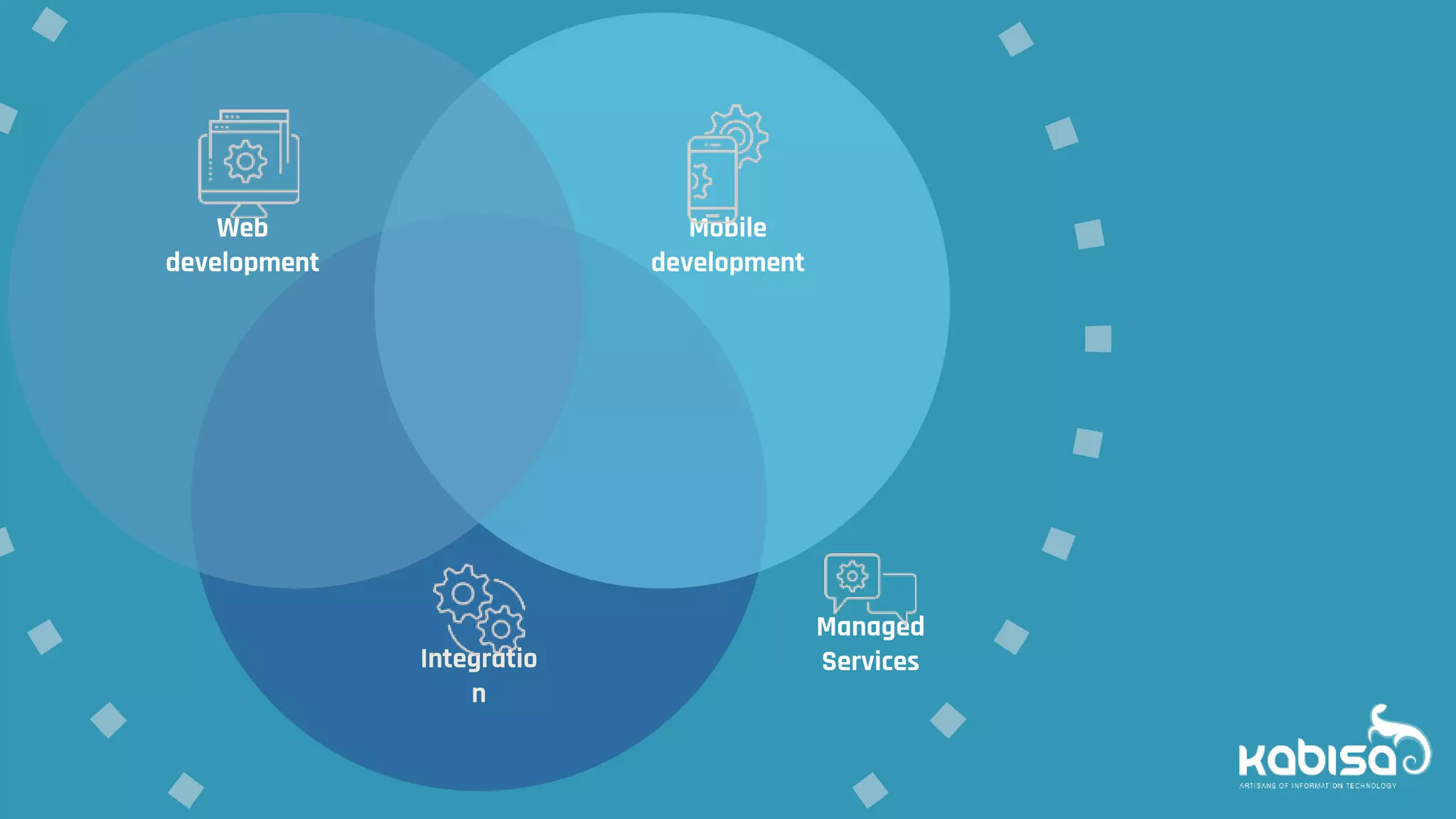

- 6.
- 7. Kabisa is eenmaatwerk software ontwikkelaar die zich specialiseert op het gebied van web en mobiele app ontwikkeling & integratie. Sjuul Janssen Python / DevOps Engineer Pascal Widdershoven Developer & Technology Manager 7
- 8. http://kabisa.nl Wat is julliekennis niveau van Kubernetes?
- 9. Kubernetes “K8s is anopen-source system for automating deployment, scaling, and management of containerized applications.”
- 10. This workshop Concepts 10 Hands onexperience
- 11. 2 Billion containerslaunched per week at Google 11
- 12.
- 13.

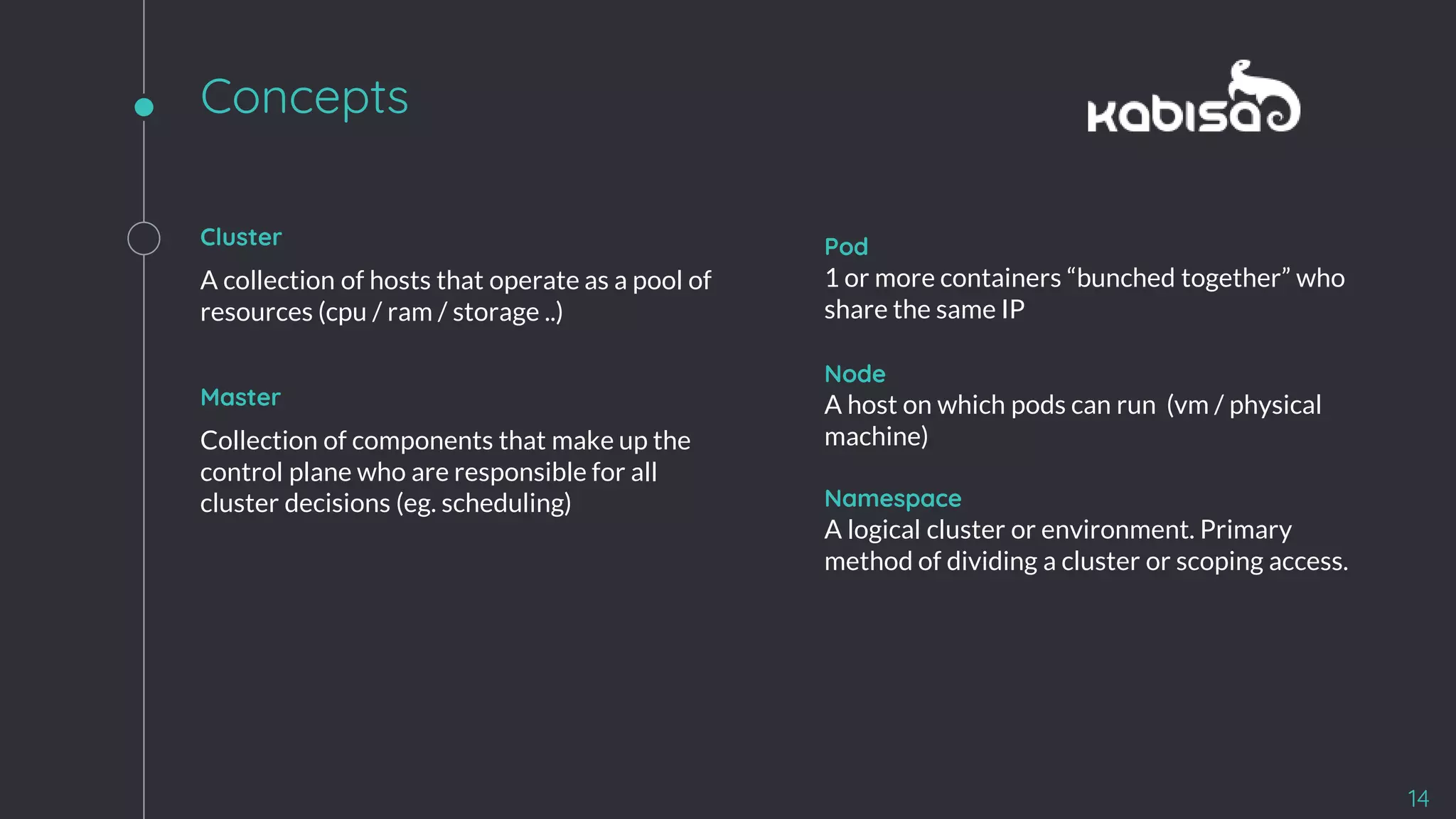

- 14. Concepts Cluster A collection ofhosts that operate as a pool of resources (cpu / ram / storage ..) Master Collection of components that make up the control plane who are responsible for all cluster decisions (eg. scheduling) Pod 1 or more containers “bunched together” who share the same IP Node A host on which pods can run (vm / physical machine) Namespace A logical cluster or environment. Primary method of dividing a cluster or scoping access. 14
- 15.
- 16.

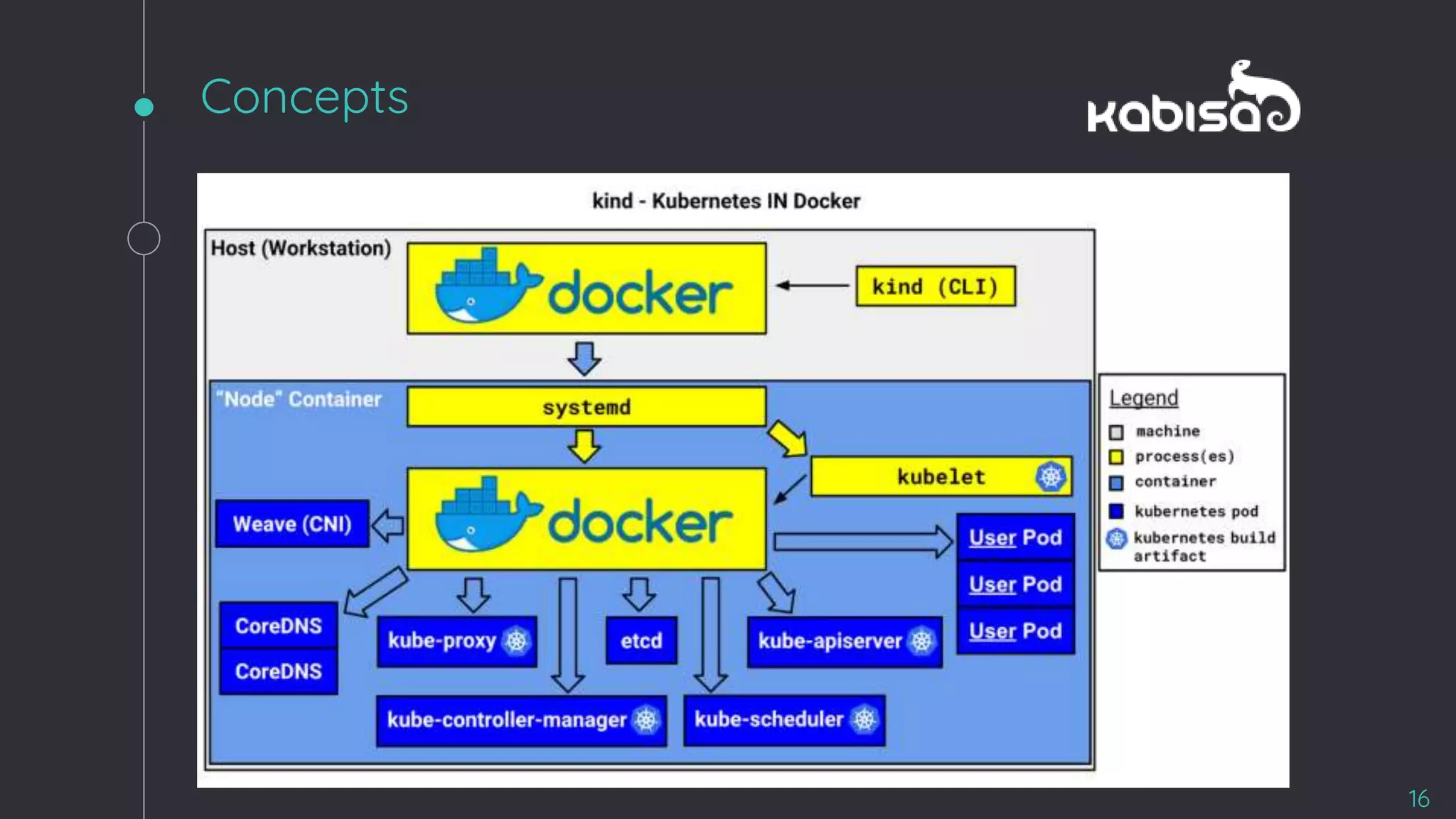

- 17.
- 18.
- 19.
- 20.
- 21.

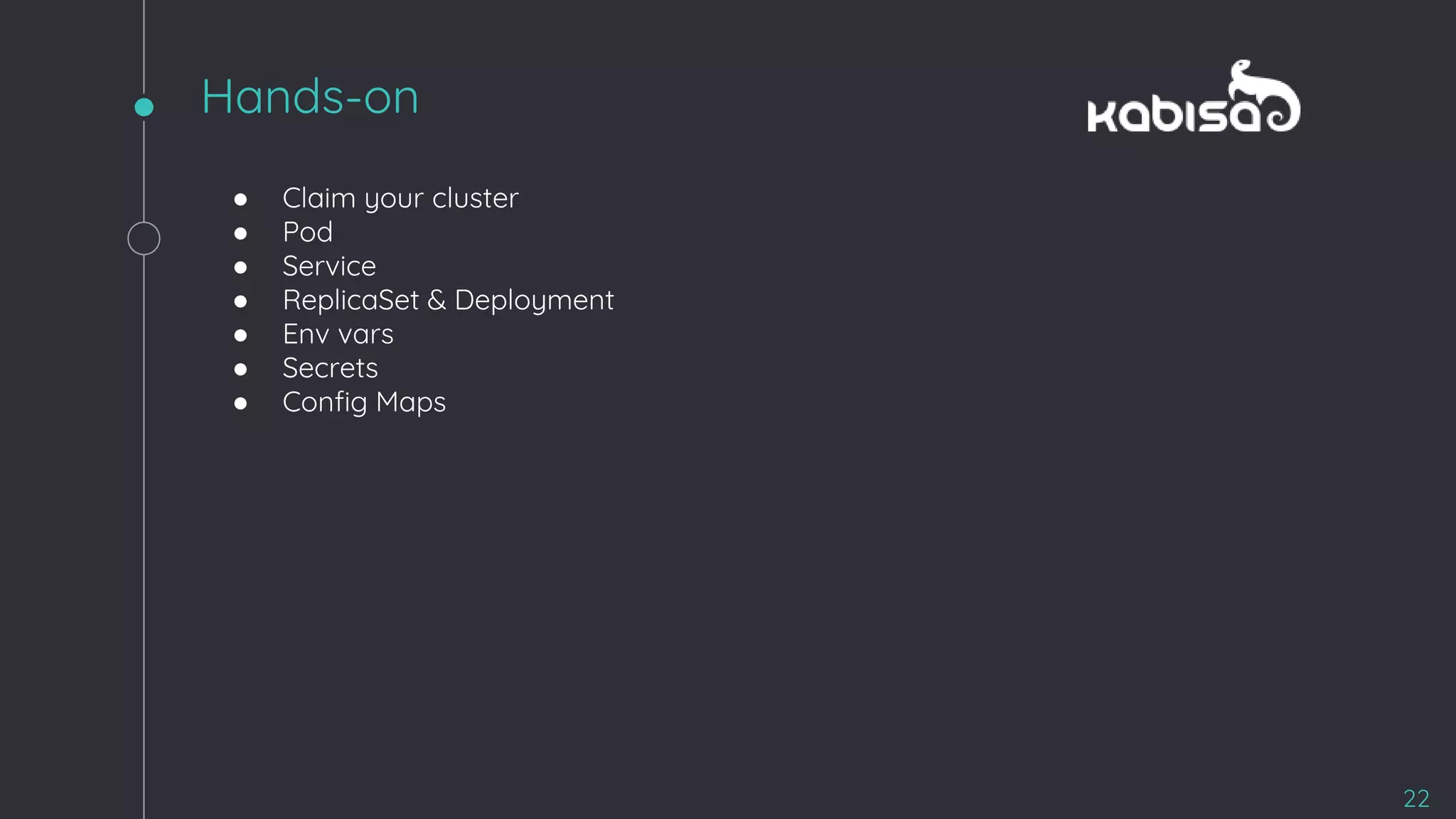

- 22. Hands-on 22 ● Claim yourcluster ● Pod ● Service ● ReplicaSet & Deployment ● Env vars ● Secrets ● Config Maps

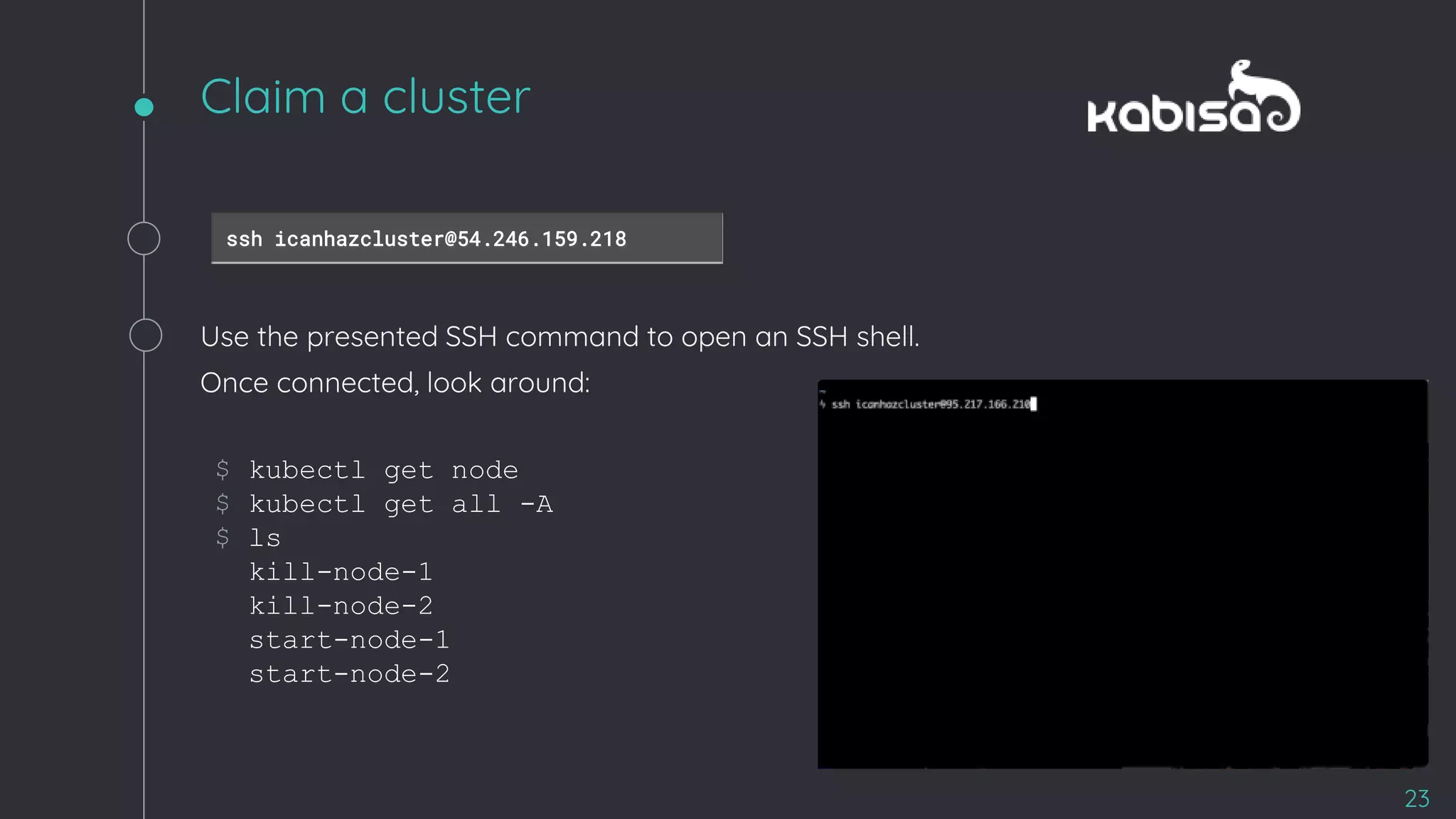

- 23. $ kubectl getnode $ kubectl get all -A $ ls kill-node-1 kill-node-2 start-node-1 start-node-2 Claim a cluster 23 ssh icanhazcluster@54.246.159.218 Use the presented SSH command to open an SSH shell. Once connected, look around:
- 24.

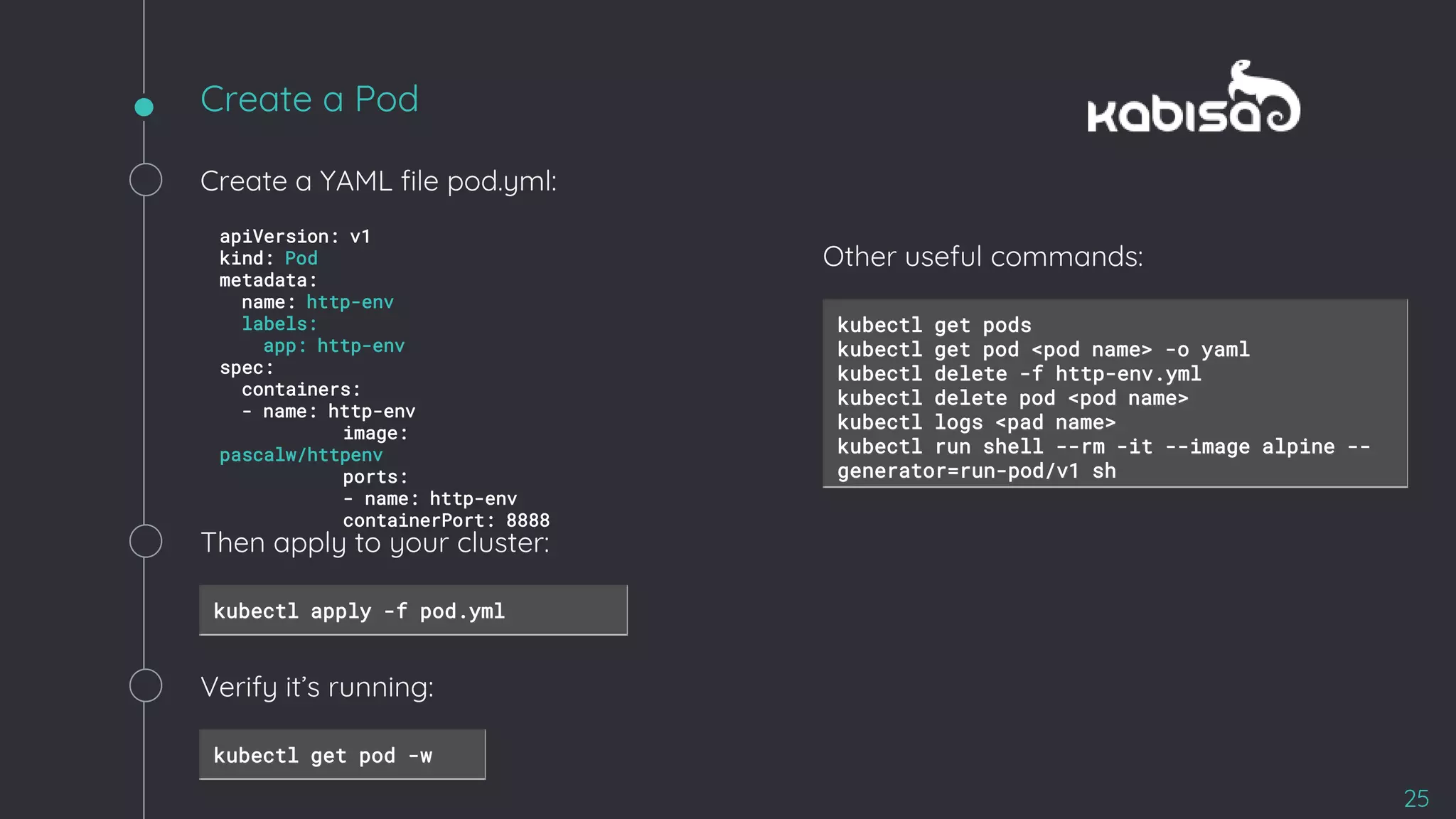

- 25. Create a Pod 25 apiVersion:v1 kind: Pod metadata: name: http-env labels: app: http-env spec: containers: - name: http-env image: pascalw/httpenv ports: - name: http-env containerPort: 8888 Create a YAML file pod.yml: Then apply to your cluster: kubectl apply -f pod.yml Verify it’s running: kubectl get pod -w kubectl get pods kubectl get pod <pod name> -o yaml kubectl delete -f http-env.yml kubectl delete pod <pod name> kubectl logs <pad name> kubectl run shell --rm -it --image alpine -- generator=run-pod/v1 sh Other useful commands:

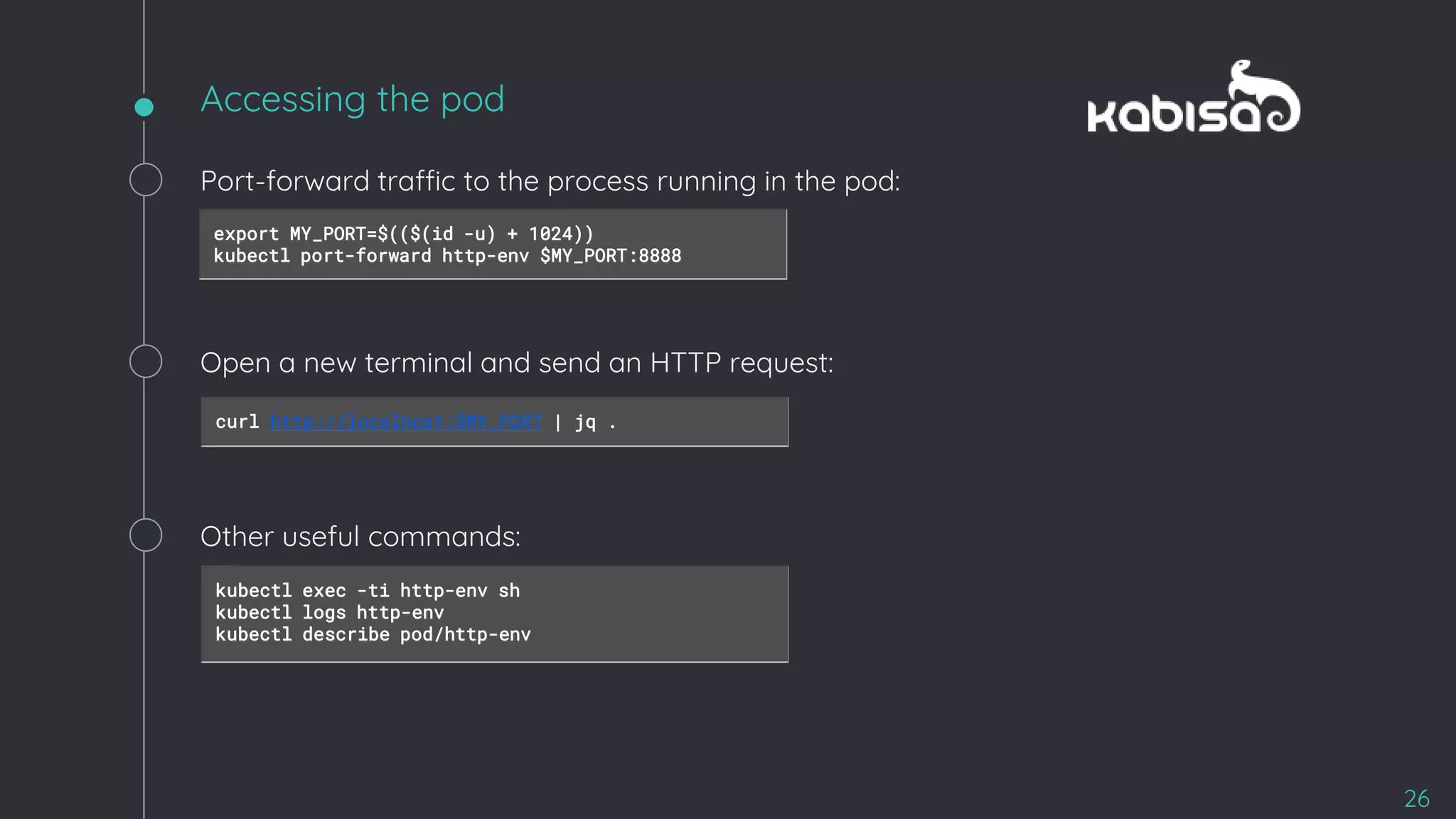

- 26. Accessing the pod 26 Port-forwardtraffic to the process running in the pod: export MY_PORT=$(($(id -u) + 1024)) kubectl port-forward http-env $MY_PORT:8888 Open a new terminal and send an HTTP request: curl http://localhost:$MY_PORT | jq . Other useful commands: kubectl exec -ti http-env sh kubectl logs http-env kubectl describe pod/http-env

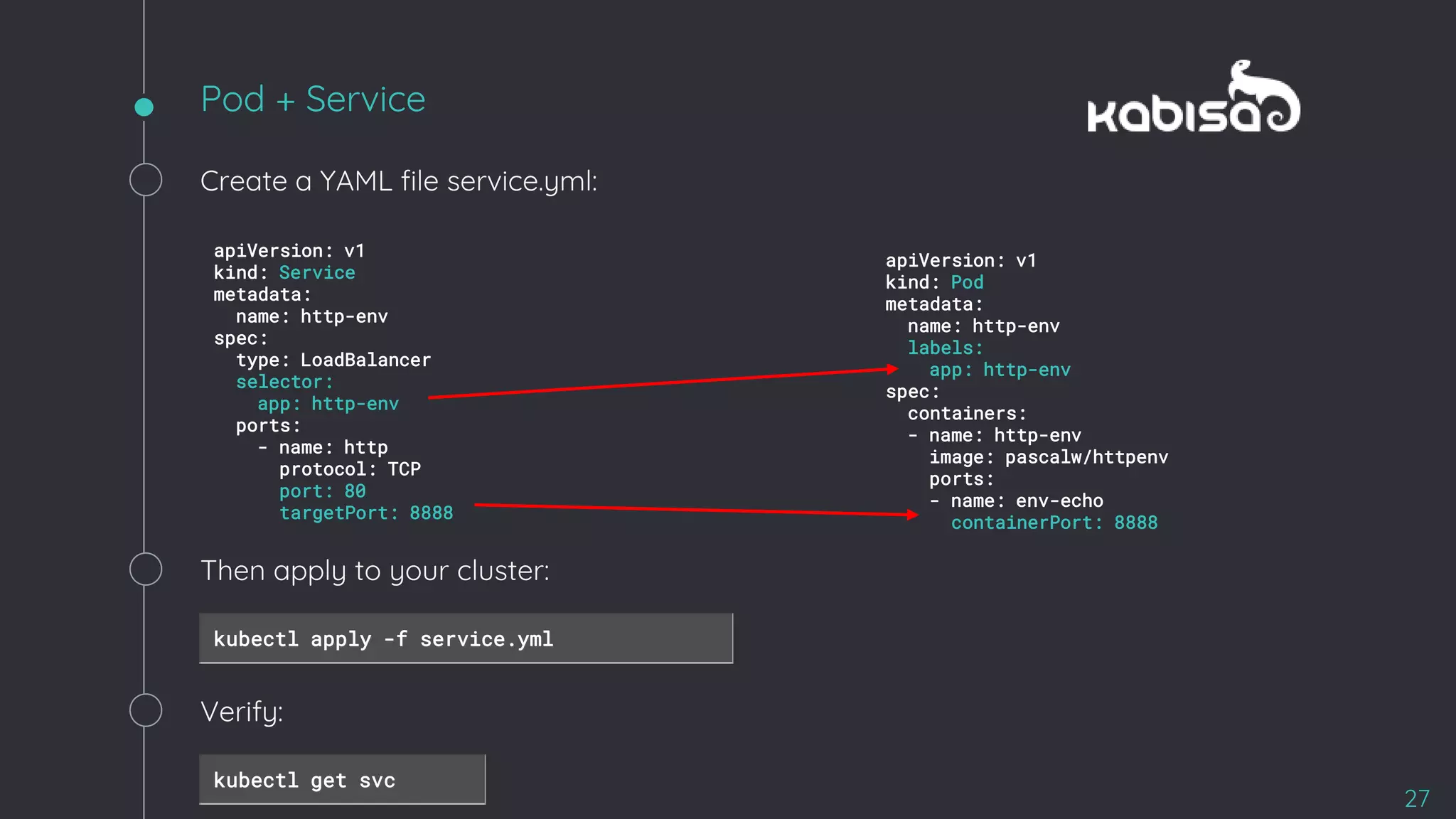

- 27. Pod + Service 27 Createa YAML file service.yml: apiVersion: v1 kind: Service metadata: name: http-env spec: type: LoadBalancer selector: app: http-env ports: - name: http protocol: TCP port: 80 targetPort: 8888 apiVersion: v1 kind: Pod metadata: name: http-env labels: app: http-env spec: containers: - name: http-env image: pascalw/httpenv ports: - name: env-echo containerPort: 8888 Then apply to your cluster: kubectl apply -f service.yml Verify: kubectl get svc

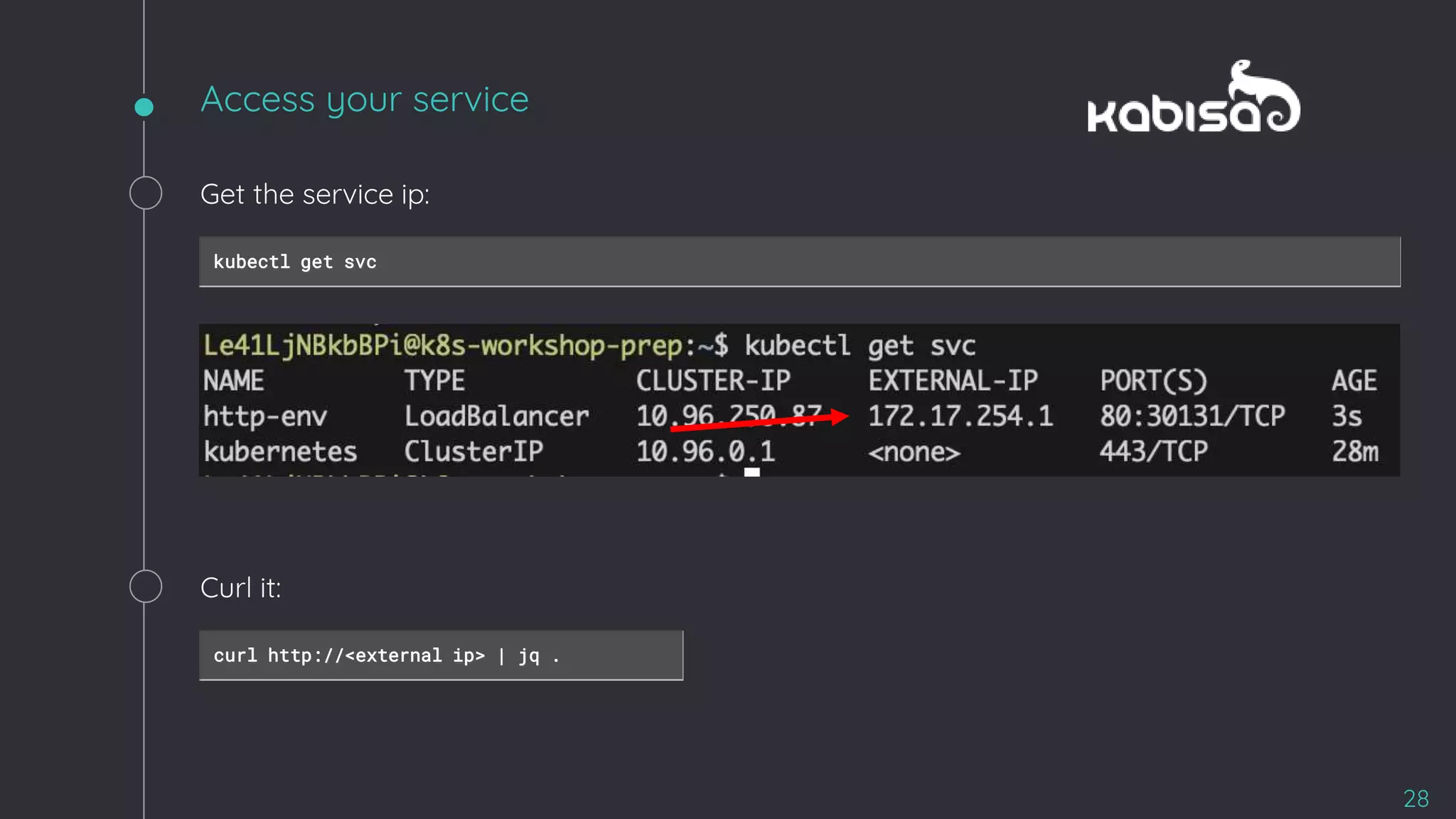

- 28. Access your service 28 Getthe service ip: kubectl get svc Curl it: curl http://<external ip> | jq .

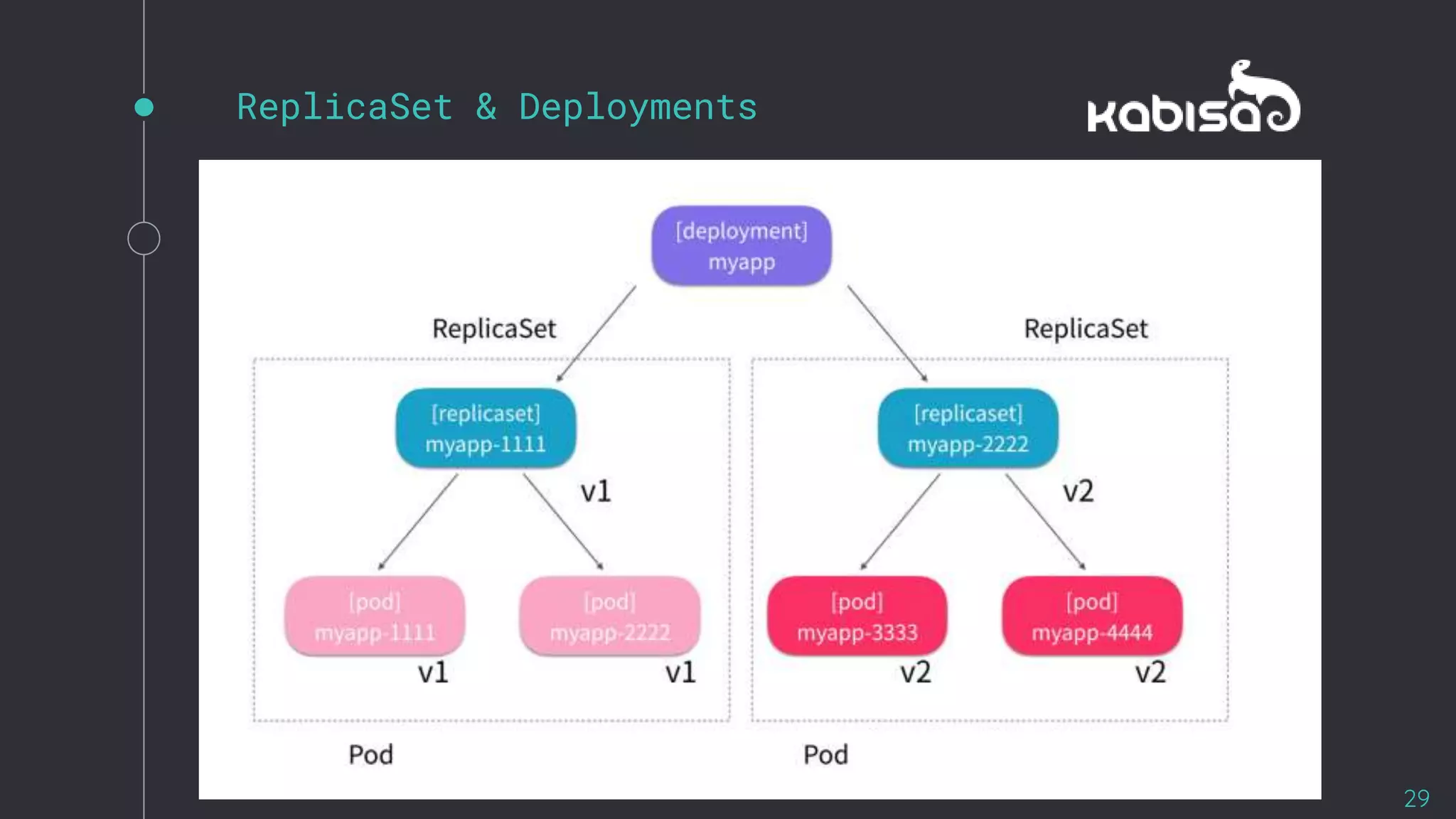

- 29.

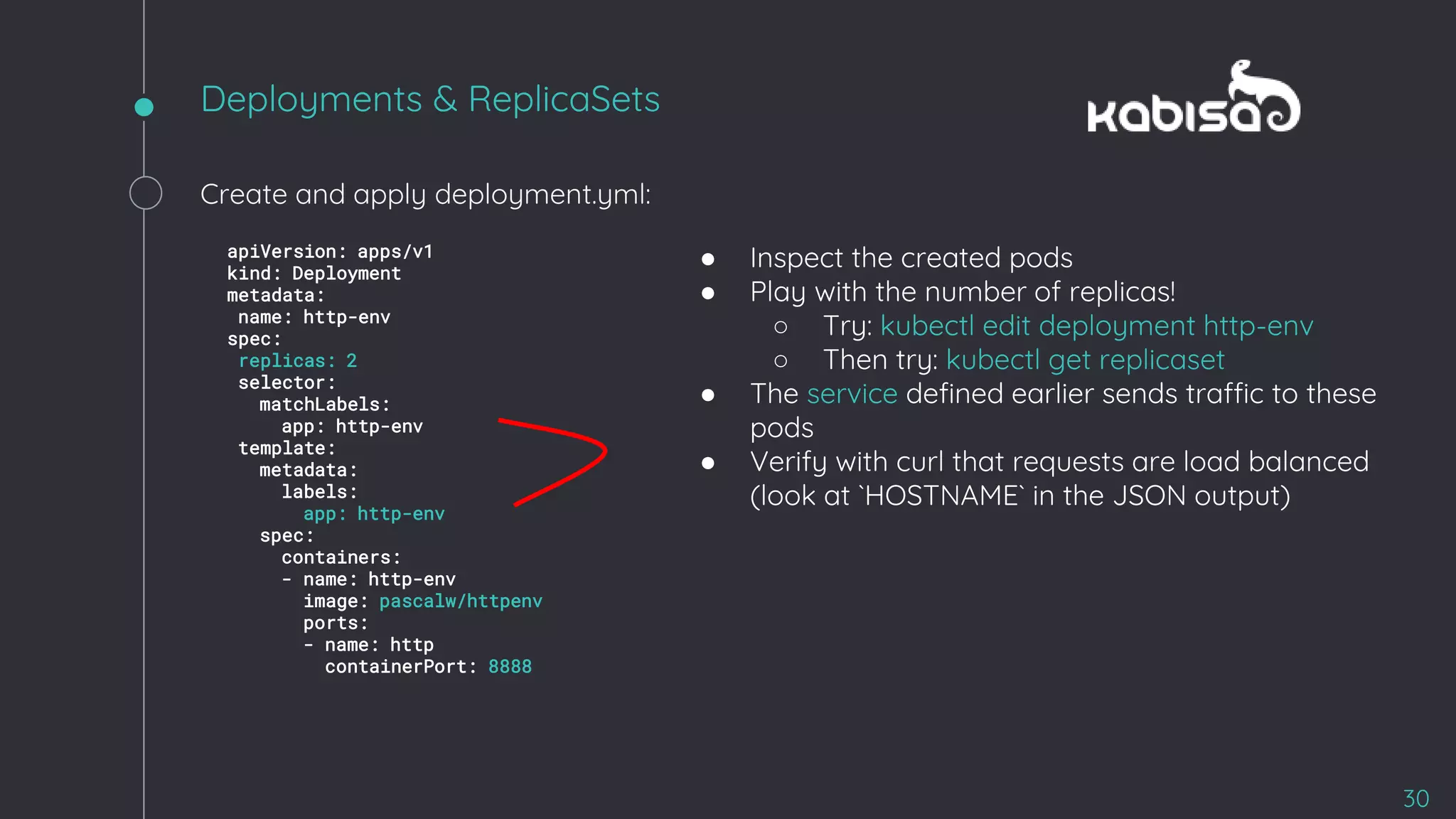

- 30. Deployments & ReplicaSets 30 Createand apply deployment.yml: apiVersion: apps/v1 kind: Deployment metadata: name: http-env spec: replicas: 2 selector: matchLabels: app: http-env template: metadata: labels: app: http-env spec: containers: - name: http-env image: pascalw/httpenv ports: - name: http containerPort: 8888 ● Inspect the created pods ● Play with the number of replicas! ○ Try: kubectl edit deployment http-env ○ Then try: kubectl get replicaset ● The service defined earlier sends traffic to these pods ● Verify with curl that requests are load balanced (look at `HOSTNAME` in the JSON output)

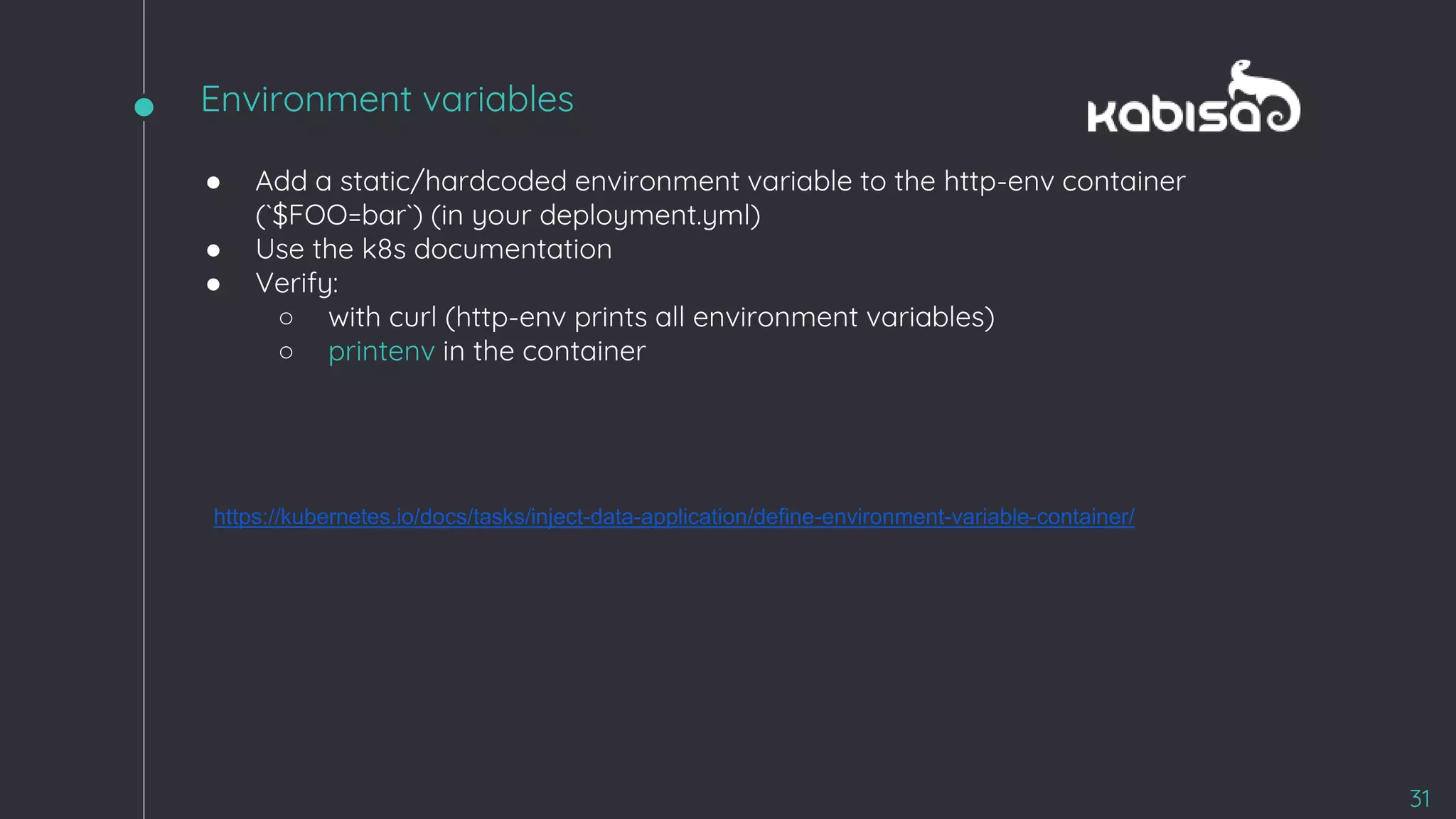

- 31. ● Add astatic/hardcoded environment variable to the http-env container (`$FOO=bar`) (in your deployment.yml) ● Use the k8s documentation ● Verify: ○ with curl (http-env prints all environment variables) ○ printenv in the container https://kubernetes.io/docs/tasks/inject-data-application/define-environment-variable-container/ 31 Environment variables

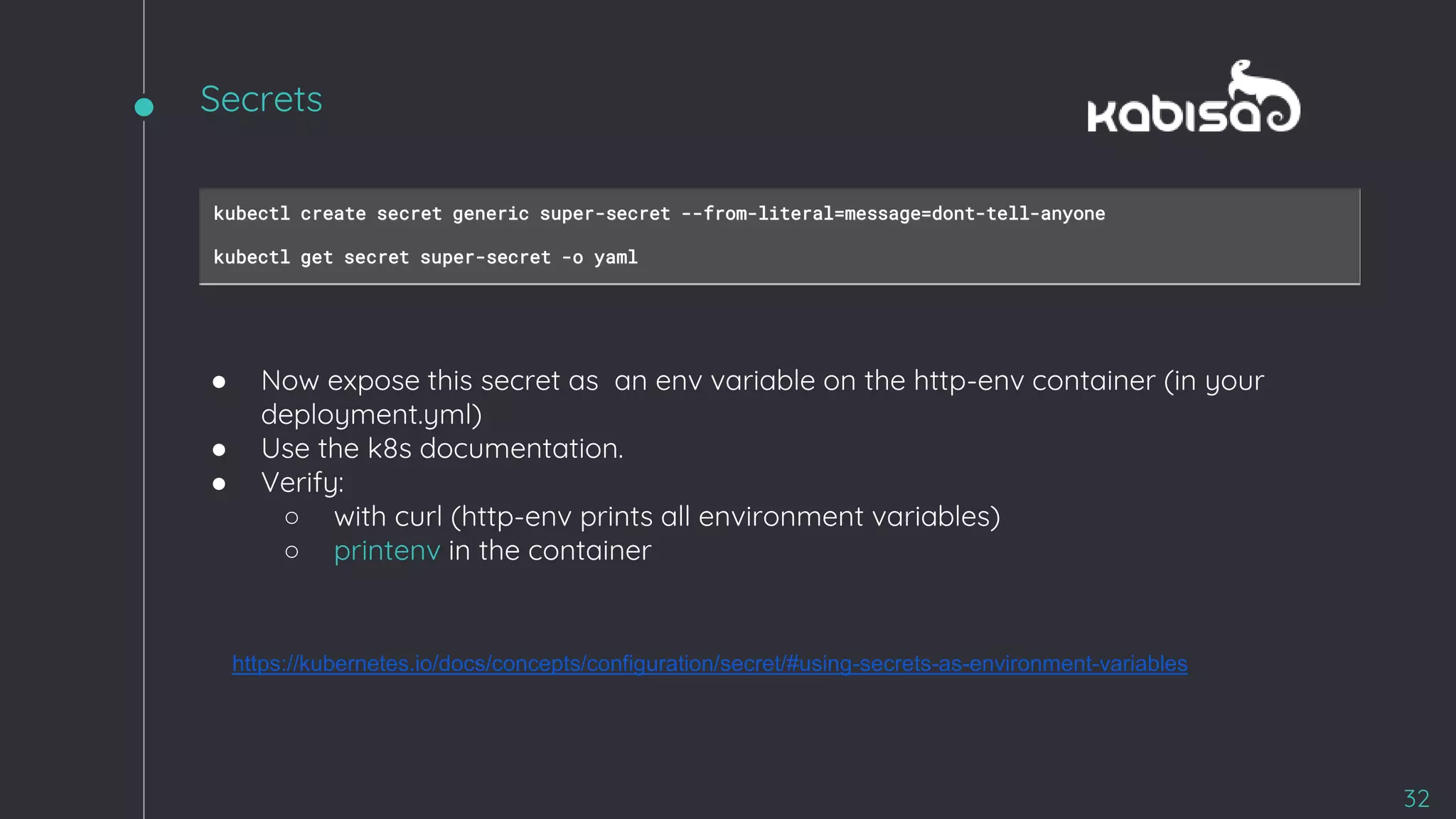

- 32. kubectl create secretgeneric super-secret --from-literal=message=dont-tell-anyone kubectl get secret super-secret -o yaml ● Now expose this secret as an env variable on the http-env container (in your deployment.yml) ● Use the k8s documentation. ● Verify: ○ with curl (http-env prints all environment variables) ○ printenv in the container https://kubernetes.io/docs/concepts/configuration/secret/#using-secrets-as-environment-variables 32 Secrets

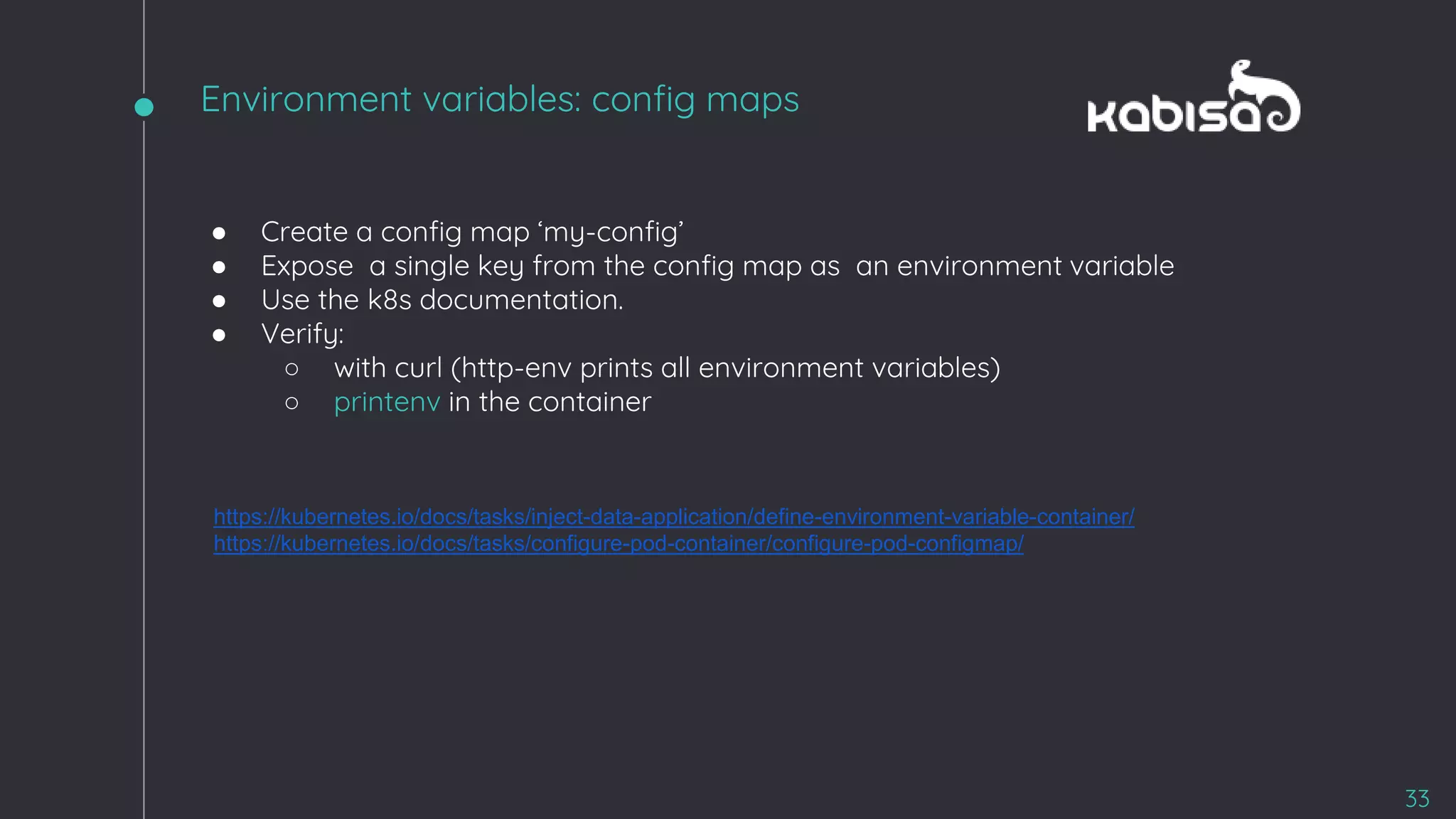

- 33. ● Create aconfig map ‘my-config’ ● Expose a single key from the config map as an environment variable ● Use the k8s documentation. ● Verify: ○ with curl (http-env prints all environment variables) ○ printenv in the container https://kubernetes.io/docs/tasks/inject-data-application/define-environment-variable-container/ https://kubernetes.io/docs/tasks/configure-pod-container/configure-pod-configmap/ 33 Environment variables: config maps

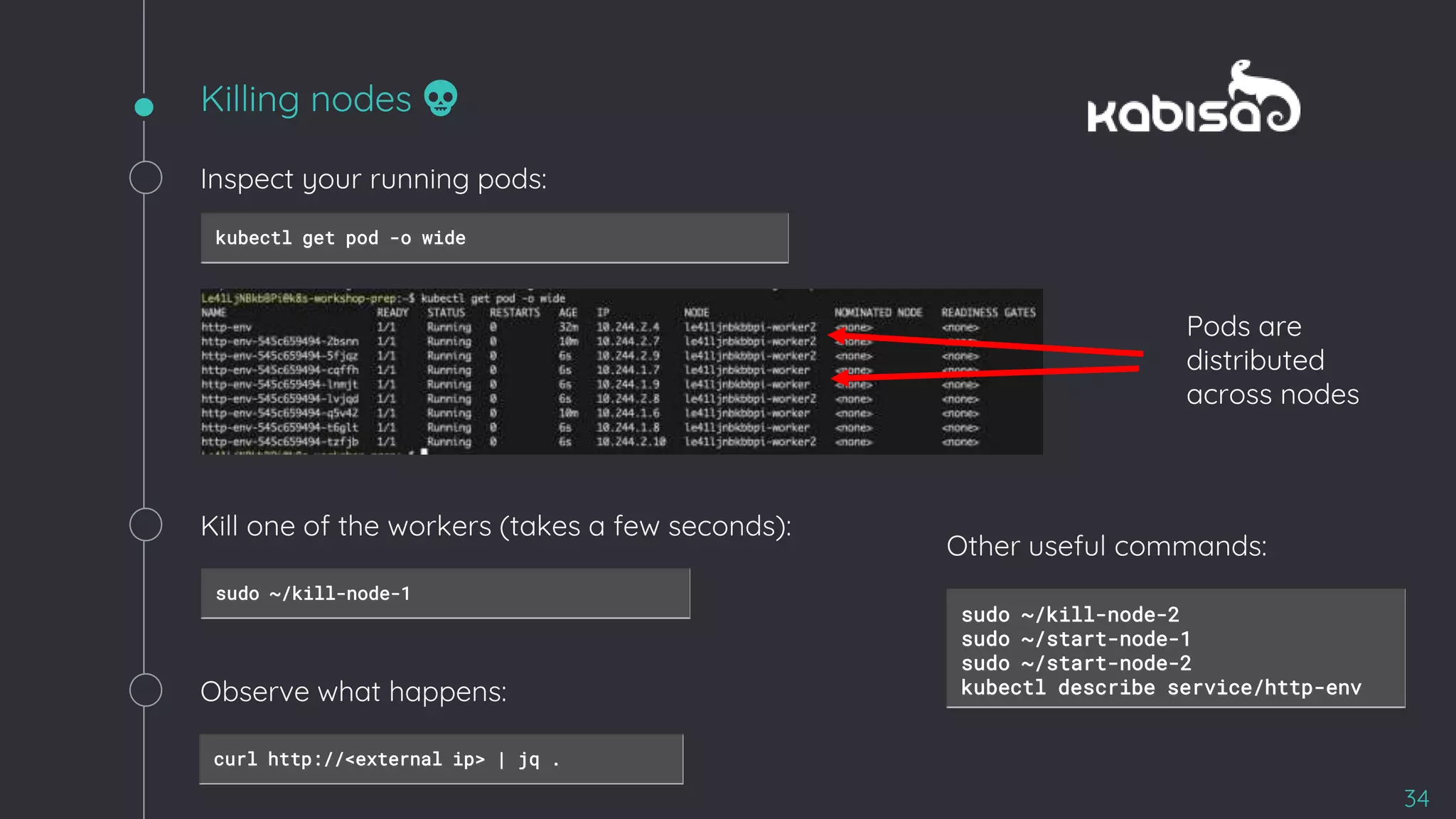

- 34. 34 sudo ~/kill-node-1 Killing nodes💀 Inspect your running pods: kubectl get pod -o wide Pods are distributed across nodes Kill one of the workers (takes a few seconds): Observe what happens: curl http://<external ip> | jq . sudo ~/kill-node-2 sudo ~/start-node-1 sudo ~/start-node-2 kubectl describe service/http-env Other useful commands:
- 35.
