October 29–November 3, 2017 | San Francisco, CA www.usenix.org/lisa17 #lisa17 Kubernetes: Hit the Ground Running Chris "mac" McEniry

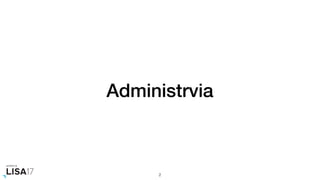

Administrvia 2

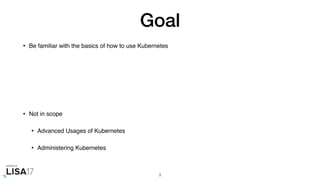

Goal • Be familiar with the basics of how to use Kubernetes • Not in scope • Advanced Usages of Kubernetes • Administering Kubernetes 3

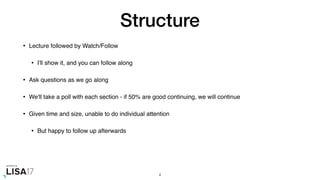

Structure • Lecture followed by Watch/Follow • I'll show it, and you can follow along • Ask questions as we go along • We'll take a poll with each section - if 50% are good continuing, we will continue • Given time and size, unable to do individual attention • But happy to follow up afterwards 4

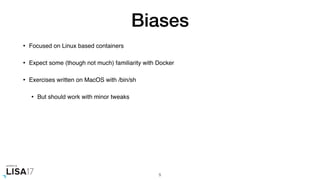

Biases • Focused on Linux based containers • Expect some (though not much) familiarity with Docker • Exercises written on MacOS with /bin/sh • But should work with minor tweaks 5

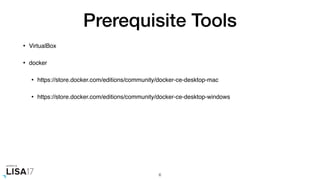

Prerequisite Tools • VirtualBox • docker • https://store.docker.com/editions/community/docker-ce-desktop-mac • https://store.docker.com/editions/community/docker-ce-desktop-windows 6

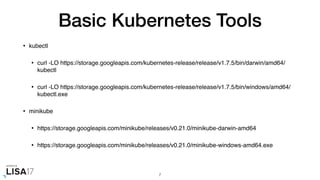

Basic Kubernetes Tools • kubectl • curl -LO https://storage.googleapis.com/kubernetes-release/release/v1.7.5/bin/darwin/amd64/ kubectl • curl -LO https://storage.googleapis.com/kubernetes-release/release/v1.7.5/bin/windows/amd64/ kubectl.exe • minikube • https://storage.googleapis.com/minikube/releases/v0.21.0/minikube-darwin-amd64 • https://storage.googleapis.com/minikube/releases/v0.21.0/minikube-windows-amd64.exe 7

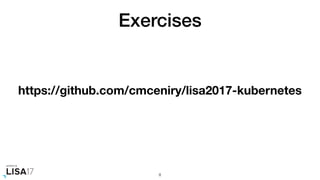

Exercises 8 https://github.com/cmceniry/lisa2017-kubernetes

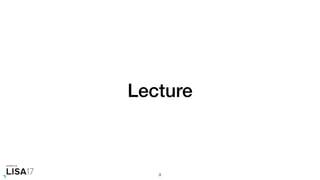

Lecture 9
Containers 10

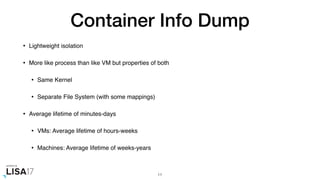

Container Info Dump • Lightweight isolation • More like process than like VM but properties of both • Same Kernel • Separate File System (with some mappings) • Average lifetime of minutes-days • VMs: Average lifetime of hours-weeks • Machines: Average lifetime of weeks-years 11

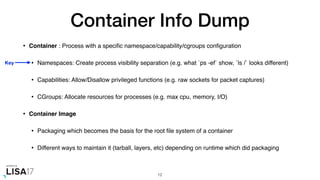

Container Info Dump • Container : Process with a specific namespace/capability/cgroups configuration • Namespaces: Create process visibility separation (e.g. what `ps -ef` show, `ls /` looks different) • Capabilities: Allow/Disallow privileged functions (e.g. raw sockets for packet captures) • CGroups: Allocate resources for processes (e.g. max cpu, memory, I/O) • Container Image • Packaging which becomes the basis for the root file system of a container • Different ways to maintain it (tarball, layers, etc) depending on runtime which did packaging 12 Key

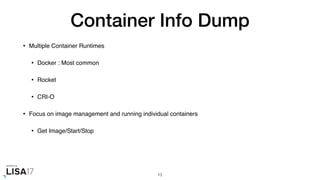

Container Info Dump • Multiple Container Runtimes • Docker : Most common • Rocket • CRI-O • Focus on image management and running individual containers • Get Image/Start/Stop 13

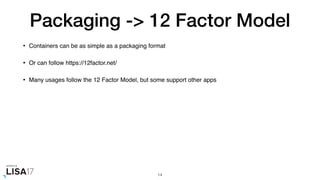

Packaging -> 12 Factor Model • Containers can be as simple as a packaging format • Or can follow https://12factor.net/ • Many usages follow the 12 Factor Model, but some support other apps 14

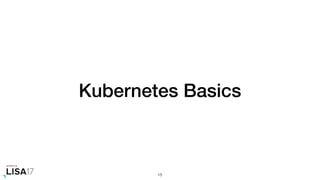

Kubernetes Basics 15

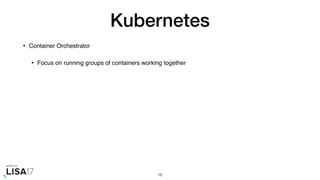

Kubernetes • Container Orchestrator • Focus on running groups of containers working together 16

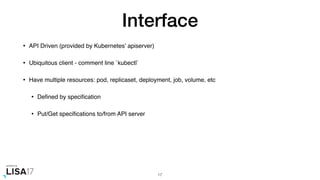

Interface • API Driven (provided by Kubernetes' apiserver) • Ubiquitous client - comment line `kubectl` • Have multiple resources: pod, replicaset, deployment, job, volume, etc • Defined by specification • Put/Get specifications to/from API server 17

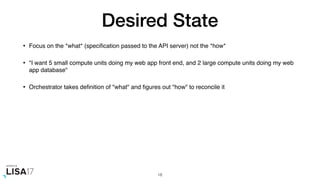

Desired State • Focus on the *what* (specification passed to the API server) not the *how* • "I want 5 small compute units doing my web app front end, and 2 large compute units doing my web app database" • Orchestrator takes definition of "what" and figures out "how" to reconcile it 18

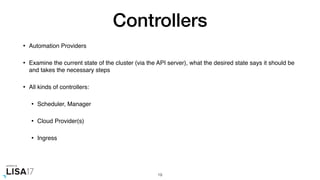

Controllers • Automation Providers • Examine the current state of the cluster (via the API server), what the desired state says it should be and takes the necessary steps • All kinds of controllers: • Scheduler, Manager • Cloud Provider(s) • Ingress 19
Kubernetes Control Plane Components 20

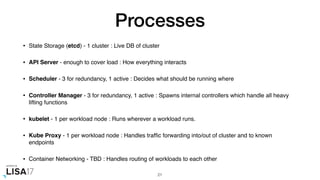

Processes • State Storage (etcd) - 1 cluster : Live DB of cluster • API Server - enough to cover load : How everything interacts • Scheduler - 3 for redundancy, 1 active : Decides what should be running where • Controller Manager - 3 for redundancy, 1 active : Spawns internal controllers which handle all heavy lifting functions • kubelet - 1 per workload node : Runs wherever a workload runs. • Kube Proxy - 1 per workload node : Handles traffic forwarding into/out of cluster and to known endpoints • Container Networking - TBD : Handles routing of workloads to each other 21

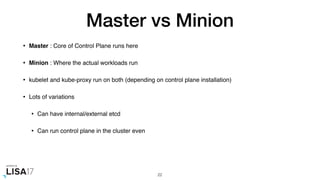

Master vs Minion • Master : Core of Control Plane runs here • Minion : Where the actual workloads run • kubelet and kube-proxy run on both (depending on control plane installation) • Lots of variations • Can have internal/external etcd • Can run control plane in the cluster even 22

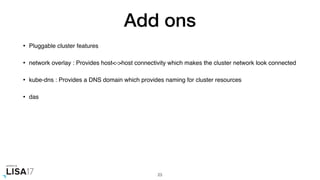

Add ons • Pluggable cluster features • network overlay : Provides host<->host connectivity which makes the cluster network look connected • kube-dns : Provides a DNS domain which provides naming for cluster resources • das 23

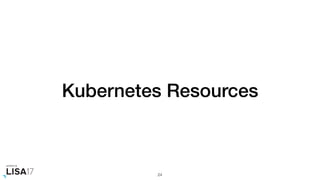

Kubernetes Resources 24

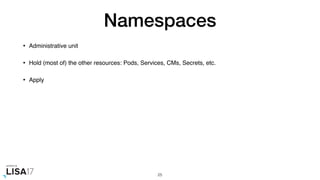

Namespaces • Administrative unit • Hold (most of) the other resources: Pods, Services, CMs, Secrets, etc. • Apply 25

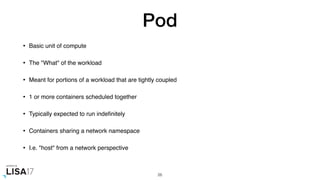

Pod • Basic unit of compute • The "What" of the workload • Meant for portions of a workload that are tightly coupled • 1 or more containers scheduled together • Typically expected to run indefinitely • Containers sharing a network namespace • I.e. "host" from a network perspective 26

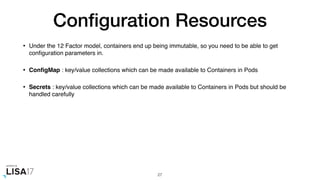

Configuration Resources • Under the 12 Factor model, containers end up being immutable, so you need to be able to get configuration parameters in. • ConfigMap : key/value collections which can be made available to Containers in Pods • Secrets : key/value collections which can be made available to Containers in Pods but should be handled carefully 27

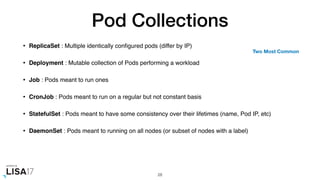

Pod Collections • ReplicaSet : Multiple identically configured pods (differ by IP) • Deployment : Mutable collection of Pods performing a workload • Job : Pods meant to run ones • CronJob : Pods meant to run on a regular but not constant basis • StatefulSet : Pods meant to have some consistency over their lifetimes (name, Pod IP, etc) • DaemonSet : Pods meant to running on all nodes (or subset of nodes with a label) 28 Two Most Common

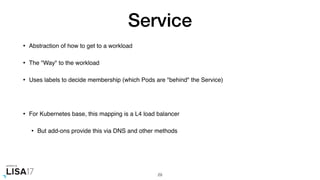

Service • Abstraction of how to get to a workload • The "Way" to the workload • Uses labels to decide membership (which Pods are "behind" the Service) • For Kubernetes base, this mapping is a L4 load balancer • But add-ons provide this via DNS and other methods 29

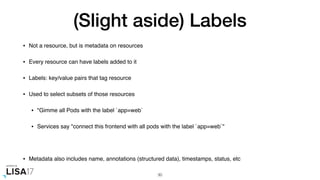

(Slight aside) Labels • Not a resource, but is metadata on resources • Every resource can have labels added to it • Labels: key/value pairs that tag resource • Used to select subsets of those resources • "Gimme all Pods with the label `app=web` • Services say "connect this frontend with all pods with the label `app=web`" • Metadata also includes name, annotations (structured data), timestamps, status, etc 30

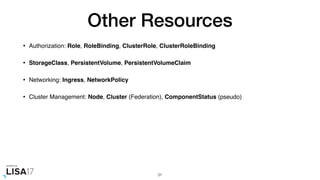

Other Resources • Authorization: Role, RoleBinding, ClusterRole, ClusterRoleBinding • StorageClass, PersistentVolume, PersistentVolumeClaim • Networking: Ingress, NetworkPolicy • Cluster Management: Node, Cluster (Federation), ComponentStatus (pseudo) 31

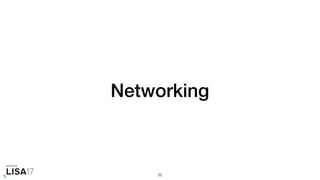

Networking 32

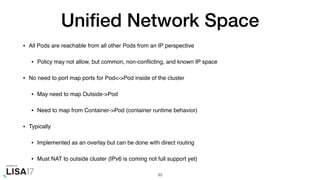

Unified Network Space • All Pods are reachable from all other Pods from an IP perspective • Policy may not allow, but common, non-conflicting, and known IP space • No need to port map ports for Pod<->Pod inside of the cluster • May need to map Outside->Pod • Need to map from Container->Pod (container runtime behavior) • Typically • Implemented as an overlay but can be done with direct routing • Must NAT to outside cluster (IPv6 is coming not full support yet) 33

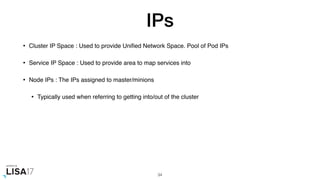

IPs • Cluster IP Space : Used to provide Unified Network Space. Pool of Pod IPs • Service IP Space : Used to provide area to map services into • Node IPs : The IPs assigned to master/minions • Typically used when referring to getting into/out of the cluster 34

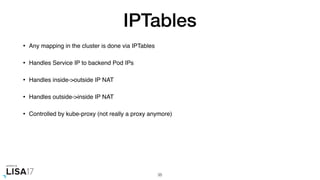

IPTables • Any mapping in the cluster is done via IPTables • Handles Service IP to backend Pod IPs • Handles inside->outside IP NAT • Handles outside->inside IP NAT • Controlled by kube-proxy (not really a proxy anymore) 35

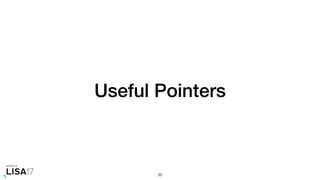

Useful Pointers 36

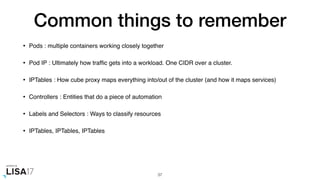

Common things to remember • Pods : multiple containers working closely together • Pod IP : Ultimately how traffic gets into a workload. One CIDR over a cluster. • IPTables : How cube proxy maps everything into/out of the cluster (and how it maps services) • Controllers : Entities that do a piece of automation • Labels and Selectors : Ways to classify resources • IPTables, IPTables, IPTables 37

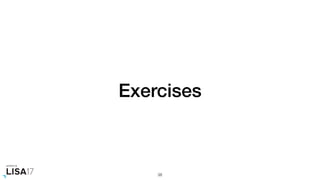

Exercises 38

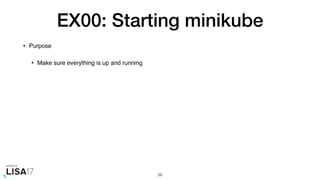

EX00: Starting minikube • Purpose • Make sure everything is up and running 39

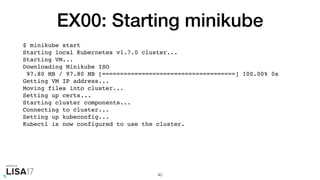

EX00: Starting minikube $ minikube start Starting local Kubernetes v1.7.0 cluster... Starting VM... Downloading Minikube ISO 97.80 MB / 97.80 MB [=====================================] 100.00% 0s Getting VM IP address... Moving files into cluster... Setting up certs... Starting cluster components... Connecting to cluster... Setting up kubeconfig... Kubectl is now configured to use the cluster. 40

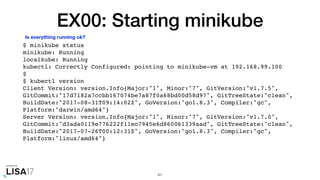

EX00: Starting minikube $ minikube status minikube: Running localkube: Running kubectl: Correctly Configured: pointing to minikube-vm at 192.168.99.100 $ $ kubectl version Client Version: version.Info{Major:"1", Minor:"7", GitVersion:"v1.7.5", GitCommit:"17d7182a7ccbb167074be7a87f0a68bd00d58d97", GitTreeState:"clean", BuildDate:"2017-08-31T09:14:02Z", GoVersion:"go1.8.3", Compiler:"gc", Platform:"darwin/amd64"} Server Version: version.Info{Major:"1", Minor:"7", GitVersion:"v1.7.0", GitCommit:"d3ada0119e776222f11ec7945e6d860061339aad", GitTreeState:"clean", BuildDate:"2017-07-26T00:12:31Z", GoVersion:"go1.8.3", Compiler:"gc", Platform:"linux/amd64"} 41 Is everything running ok?

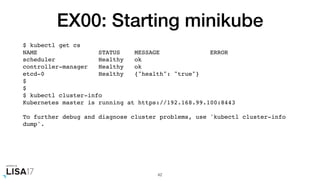

EX00: Starting minikube $ kubectl get cs NAME STATUS MESSAGE ERROR scheduler Healthy ok controller-manager Healthy ok etcd-0 Healthy {"health": "true"} $ $ $ kubectl cluster-info Kubernetes master is running at https://192.168.99.100:8443 To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'. 42

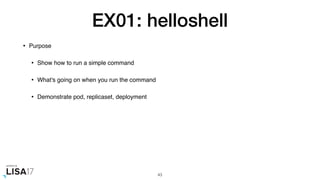

EX01: helloshell • Purpose • Show how to run a simple command • What's going on when you run the command • Demonstrate pod, replicaset, deployment 43

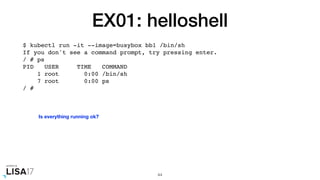

EX01: helloshell $ kubectl run -it --image=busybox bb1 /bin/sh If you don't see a command prompt, try pressing enter. / # ps PID USER TIME COMMAND 1 root 0:00 /bin/sh 7 root 0:00 ps / # 44 Is everything running ok?

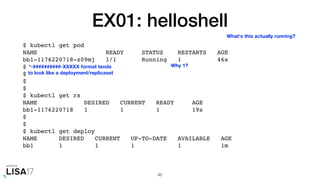

EX01: helloshell $ kubectl get pod NAME READY STATUS RESTARTS AGE bb1-1176220718-z09mj 1/1 Running 1 46s $ $ $ $ $ kubectl get rs NAME DESIRED CURRENT READY AGE bb1-1176220718 1 1 1 19s $ $ $ kubectl get deploy NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE bb1 1 1 1 1 1m 45 What's this actually running? *-##########-XXXXX format tends to look like a deployment/replicaset Why 1?

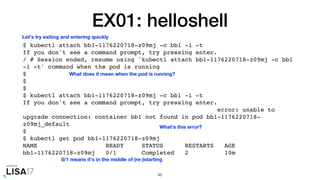

EX01: helloshell $ kubectl attach bb1-1176220718-z09mj -c bb1 -i -t If you don't see a command prompt, try pressing enter. / # Session ended, resume using 'kubectl attach bb1-1176220718-z09mj -c bb1 -i -t' command when the pod is running $ $ $ $ kubectl attach bb1-1176220718-z09mj -c bb1 -i -t If you don't see a command prompt, try pressing enter. error: unable to upgrade connection: container bb1 not found in pod bb1-1176220718- z09mj_default $ $ kubectl get pod bb1-1176220718-z09mj NAME READY STATUS RESTARTS AGE bb1-1176220718-z09mj 0/1 Completed 2 10m 46 Let's try exiting and entering quickly What's this error? What does it mean when the pod is running? 0/1 means it's in the middle of (re-)starting

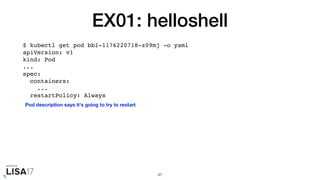

EX01: helloshell $ kubectl get pod bb1-1176220718-z09mj -o yaml apiVersion: v1 kind: Pod ... spec: containers: ... restartPolicy: Always 47 Pod description says it's going to try to restart

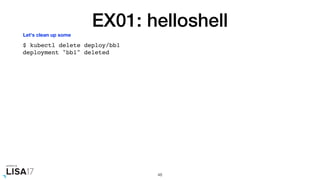

EX01: helloshell $ kubectl delete deploy/bb1 deployment "bb1" deleted 48 Let's clean up some

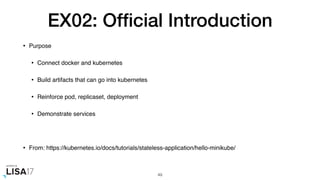

EX02: Official Introduction • Purpose • Connect docker and kubernetes • Build artifacts that can go into kubernetes • Reinforce pod, replicaset, deployment • Demonstrate services • From: https://kubernetes.io/docs/tutorials/stateless-application/hello-minikube/ 49
EX02: Official Introduction $ eval $(minikube docker-env) $ docker ps CONTAINER ID IMAGE COMMAND 6d5fac7595bd gcr.io/google_containers/pause-amd64:3.0 "/pause" ... 50 Connect to minikube's docker daemon Now we can interact with it just as if it was a local docker daemon

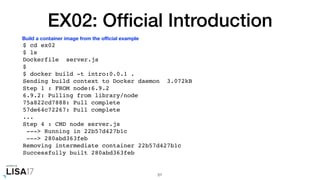

EX02: Official Introduction $ cd ex02 $ ls Dockerfile server.js $ $ docker build -t intro:0.0.1 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 6.9.2: Pulling from library/node 75a822cd7888: Pull complete 57de64c72267: Pull complete ... Step 4 : CMD node server.js ---> Running in 22b57d427b1c ---> 280abd363feb Removing intermediate container 22b57d427b1c Successfully built 280abd363feb 51 Build a container image from the official example

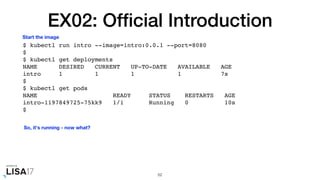

EX02: Official Introduction $ kubectl run intro --image=intro:0.0.1 --port=8080 $ $ kubectl get deployments NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 1 1 1 1 7s $ $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-75kk9 1/1 Running 0 10s $ 52 Start the image So, it's running - now what?

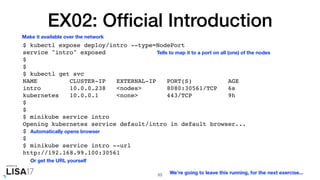

EX02: Official Introduction $ kubectl expose deploy/intro --type=NodePort service "intro" exposed $ $ $ kubectl get svc NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE intro 10.0.0.238 <nodes> 8080:30561/TCP 6s kubernetes 10.0.0.1 <none> 443/TCP 9h $ $ $ minikube service intro Opening kubernetes service default/intro in default browser... $ $ $ minikube service intro --url http://192.168.99.100:30561 53 Make it available over the network Tells to map it to a port on all (one) of the nodes Automatically opens browser Or get the URL yourself We're going to leave this running, for the next exercise...

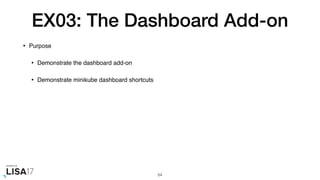

EX03: The Dashboard Add-on • Purpose • Demonstrate the dashboard add-on • Demonstrate minikube dashboard shortcuts 54

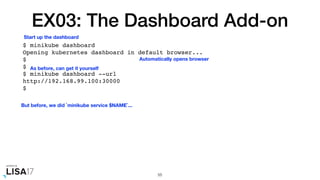

EX03: The Dashboard Add-on $ minikube dashboard Opening kubernetes dashboard in default browser... $ $ $ minikube dashboard --url http://192.168.99.100:30000 $ 55 Start up the dashboard Automatically opens browser As before, can get it yourself But before, we did `minikube service $NAME`...

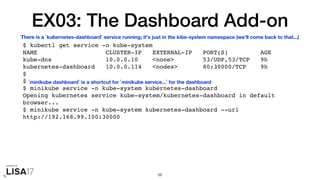

EX03: The Dashboard Add-on $ kubectl get service -n kube-system NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE kube-dns 10.0.0.10 <none> 53/UDP,53/TCP 9h kubernetes-dashboard 10.0.0.114 <nodes> 80:30000/TCP 9h $ $ $ minikube service -n kube-system kubernetes-dashboard Opening kubernetes service kube-system/kubernetes-dashboard in default browser... $ minikube service -n kube-system kubernetes-dashboard --url http://192.168.99.100:30000 56 There is a `kubernetes-dashboard` service running; it's just in the kibe-system namespace (we'll come back to that...) `minikube dashboard` is a shortcut for `minikube service...` for the dashboard

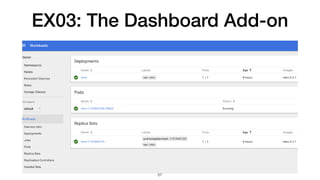

EX03: The Dashboard Add-on 57

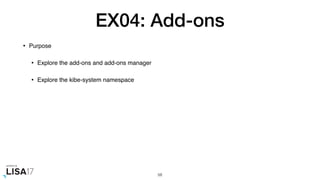

EX04: Add-ons • Purpose • Explore the add-ons and add-ons manager • Explore the kibe-system namespace 58

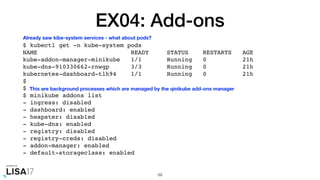

EX04: Add-ons $ kubectl get -n kube-system pods NAME READY STATUS RESTARTS AGE kube-addon-manager-minikube 1/1 Running 0 21h kube-dns-910330662-rnwgp 3/3 Running 0 21h kubernetes-dashboard-tlh94 1/1 Running 0 21h $ $ $ minikube addons list - ingress: disabled - dashboard: enabled - heapster: disabled - kube-dns: enabled - registry: disabled - registry-creds: disabled - addon-manager: enabled - default-storageclass: enabled 59 Already saw kibe-system services - what about pods? This are background processes which are managed by the qinikube add-ons manager

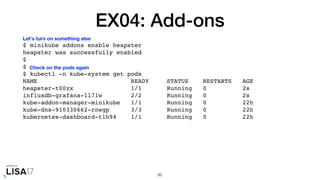

EX04: Add-ons $ minikube addons enable heapster heapster was successfully enabled $ $ $ kubectl -n kube-system get pods NAME READY STATUS RESTARTS AGE heapster-t00zx 1/1 Running 0 2s influxdb-grafana-ll71w 2/2 Running 0 2s kube-addon-manager-minikube 1/1 Running 0 22h kube-dns-910330662-rnwgp 3/3 Running 0 22h kubernetes-dashboard-tlh94 1/1 Running 0 22h 60 Let's turn on something else Check on the pods again

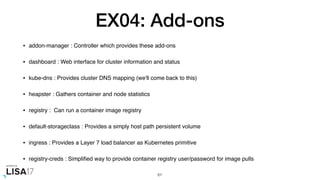

EX04: Add-ons • addon-manager : Controller which provides these add-ons • dashboard : Web interface for cluster information and status • kube-dns : Provides cluster DNS mapping (we'll come back to this) • heapster : Gathers container and node statistics • registry : Can run a container image registry • default-storageclass : Provides a simply host path persistent volume • ingress : Provides a Layer 7 load balancer as Kubernetes primitive • registry-creds : Simplified way to provide container registry user/password for image pulls 61

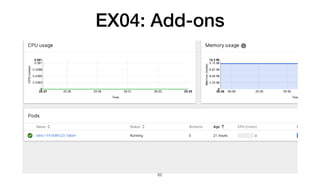

EX04: Add-ons 62

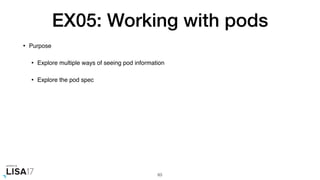

EX05: Working with pods • Purpose • Explore multiple ways of seeing pod information • Explore the pod spec 63

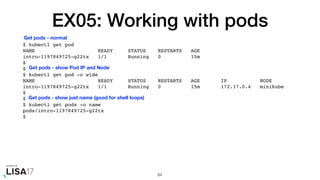

EX05: Working with pods $ kubectl get pod NAME READY STATUS RESTARTS AGE intro-1197849725-g22tx 1/1 Running 0 15m $ $ $ kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE intro-1197849725-g22tx 1/1 Running 0 15m 172.17.0.4 minikube $ $ $ kubectl get pods -o name pods/intro-1197849725-g22tx $ 64 Get pods - normal Get pods - show Pod IP and Node Get pods - show just name (good for shell loops)

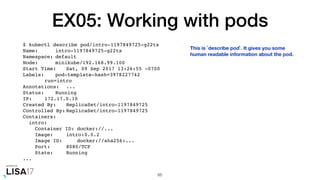

EX05: Working with pods $ kubectl describe pod/intro-1197849725-g22tx Name: intro-1197849725-g22tx Namespace: default Node: minikube/192.168.99.100 Start Time: Sat, 09 Sep 2017 13:26:55 -0700 Labels: pod-template-hash=3978227742 run=intro Annotations: ... Status: Running IP: 172.17.0.10 Created By: ReplicaSet/intro-1197849725 Controlled By: ReplicaSet/intro-1197849725 Containers: intro: Container ID: docker://... Image: intro:0.0.2 Image ID: docker://sha256:... Port: 8080/TCP State: Running ... 65 This is `describe pod`. It gives you some human readable information about the pod.

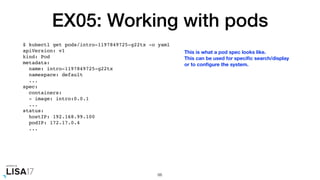

EX05: Working with pods $ kubectl get pods/intro-1197849725-g22tx -o yaml apiVersion: v1 kind: Pod metadata: name: intro-1197849725-g22tx namespace: default ... spec: containers: - image: intro:0.0.1 ... status: hostIP: 192.168.99.100 podIP: 172.17.0.4 ... 66 This is what a pod spec looks like. This can be used for specific search/display or to configure the system.

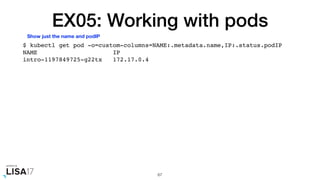

EX05: Working with pods $ kubectl get pod -o=custom-columns=NAME:.metadata.name,IP:.status.podIP NAME IP intro-1197849725-g22tx 172.17.0.4 67 Show just the name and podIP

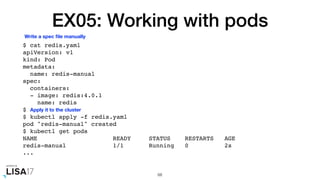

EX05: Working with pods $ cat redis.yaml apiVersion: v1 kind: Pod metadata: name: redis-manual spec: containers: - image: redis:4.0.1 name: redis $ $ kubectl apply -f redis.yaml pod "redis-manual" created $ kubectl get pods NAME READY STATUS RESTARTS AGE redis-manual 1/1 Running 0 2s ... 68 Write a spec file manually Apply it to the cluster
EX05: Working with pods $ kubectl apply -f redis.yaml pod "redis-manual" created $ $ $ $ $ kubectl delete -f redis.yaml pod "redis-manual" deleted $ $ $ $ $ $ kubectl apply -f redis.yaml pod "redis-manual" created $ 69 $ kubectl get pods -w | grep redis redis-manual 0/1 Pending 0 0s redis-manual 0/1 Pending 0 0s redis-manual 0/1 ContainerCreating 0 0s redis-manual 1/1 Running 0 1s redis-manual 1/1 Terminating 0 7s redis-manual 0/1 Terminating 0 8s redis-manual 0/1 Terminating 0 9s redis-manual 0/1 Terminating 0 9s redis-manual 0/1 Pending 0 15s redis-manual 0/1 Pending 0 15s redis-manual 0/1 ContainerCreating 0 15s redis-manual 1/1 Running 0 16s We can also -w(atch) the pod changes

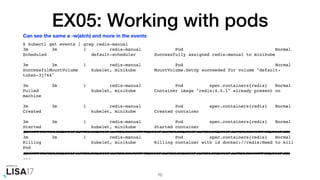

EX05: Working with pods $ kubectl get events | grep redis-manual 3m 3m 1 redis-manual Pod Normal Scheduled default-scheduler Successfully assigned redis-manual to minikube 3m 3m 1 redis-manual Pod Normal SuccessfulMountVolume kubelet, minikube MountVolume.SetUp succeeded for volume "default- token-3j744" 3m 3m 1 redis-manual Pod spec.containers{redis} Normal Pulled kubelet, minikube Container image "redis:4.0.1" already present on machine 3m 3m 1 redis-manual Pod spec.containers{redis} Normal Created kubelet, minikube Created container 3m 3m 1 redis-manual Pod spec.containers{redis} Normal Started kubelet, minikube Started container 3m 3m 1 redis-manual Pod spec.containers{redis} Normal Killing kubelet, minikube Killing container with id docker://redis:Need to kill Pod ... 70 Can see the same a -w(atch) and more in the events

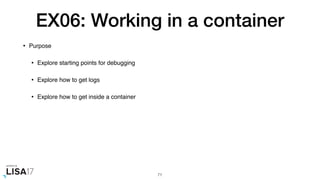

EX06: Working in a container • Purpose • Explore starting points for debugging • Explore how to get logs • Explore how to get inside a container 71

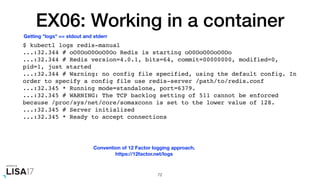

EX06: Working in a container $ kubectl logs redis-manual ...:32.344 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo ...:32.344 # Redis version=4.0.1, bits=64, commit=00000000, modified=0, pid=1, just started ...:32.344 # Warning: no config file specified, using the default config. In order to specify a config file use redis-server /path/to/redis.conf ...:32.345 * Running mode=standalone, port=6379. ...:32.345 # WARNING: The TCP backlog setting of 511 cannot be enforced because /proc/sys/net/core/somaxconn is set to the lower value of 128. ...:32.345 # Server initialized ...:32.345 * Ready to accept connections 72 Getting "logs" == stdout and stderr Convention of 12 Factor logging approach. https://12factor.net/logs

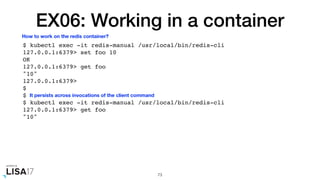

EX06: Working in a container $ kubectl exec -it redis-manual /usr/local/bin/redis-cli 127.0.0.1:6379> set foo 10 OK 127.0.0.1:6379> get foo "10" 127.0.0.1:6379> $ $ $ kubectl exec -it redis-manual /usr/local/bin/redis-cli 127.0.0.1:6379> get foo "10" 73 How to work on the redis container? It persists across invocations of the client command

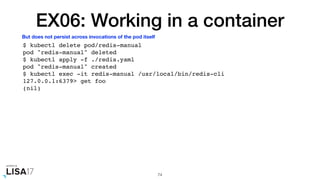

EX06: Working in a container $ kubectl delete pod/redis-manual pod "redis-manual" deleted $ kubectl apply -f ./redis.yaml pod "redis-manual" created $ kubectl exec -it redis-manual /usr/local/bin/redis-cli 127.0.0.1:6379> get foo (nil) 74 But does not persist across invocations of the pod itself

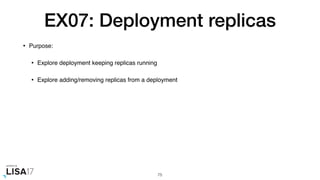

EX07: Deployment replicas • Purpose: • Explore deployment keeping replicas running • Explore adding/removing replicas from a deployment 75

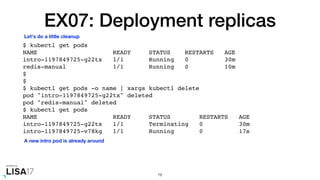

EX07: Deployment replicas $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-g22tx 1/1 Running 0 30m redis-manual 1/1 Running 0 10m $ $ $ kubectl get pods -o name | xargs kubectl delete pod "intro-1197849725-g22tx" deleted pod "redis-manual" deleted $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-g22tx 1/1 Terminating 0 30m intro-1197849725-v78kg 1/1 Running 0 17s 76 Let's do a little cleanup A new intro pod is already around

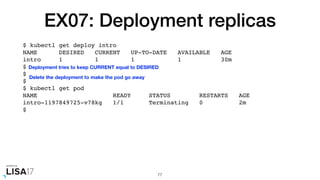

EX07: Deployment replicas $ kubectl get deploy intro NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 1 1 1 1 30m $ $ $ $ kubectl get pod NAME READY STATUS RESTARTS AGE intro-1197849725-v78kg 1/1 Terminating 0 2m $ 77 Deployment tries to keep CURRENT equal to DESIRED Delete the deployment to make the pod go away

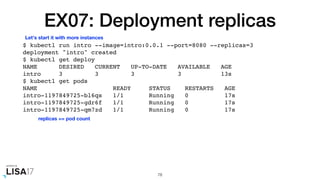

EX07: Deployment replicas $ kubectl run intro --image=intro:0.0.1 --port=8080 --replicas=3 deployment "intro" created $ kubectl get deploy NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 3 3 3 3 13s $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-bl6qs 1/1 Running 0 17s intro-1197849725-gdr6f 1/1 Running 0 17s intro-1197849725-qm7zd 1/1 Running 0 17s 78 Let's start it with more instances replicas == pod count

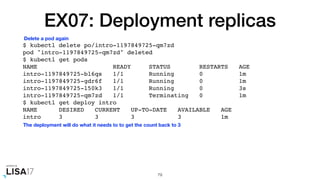

EX07: Deployment replicas $ kubectl delete po/intro-1197849725-qm7zd pod "intro-1197849725-qm7zd" deleted $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-bl6qs 1/1 Running 0 1m intro-1197849725-gdr6f 1/1 Running 0 1m intro-1197849725-l50k3 1/1 Running 0 3s intro-1197849725-qm7zd 1/1 Terminating 0 1m $ kubectl get deploy intro NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 3 3 3 3 1m 79 Delete a pod again The deployment will do what it needs to to get the count back to 3

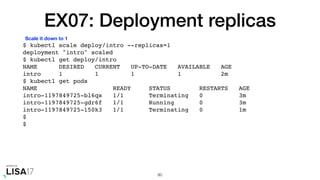

EX07: Deployment replicas $ kubectl scale deploy/intro --replicas=1 deployment "intro" scaled $ kubectl get deploy/intro NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 1 1 1 1 2m $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-bl6qs 1/1 Terminating 0 3m intro-1197849725-gdr6f 1/1 Running 0 3m intro-1197849725-l50k3 1/1 Terminating 0 1m $ $ 80 Scale it down to 1

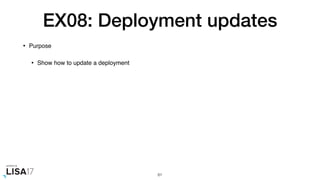

EX08: Deployment updates • Purpose • Show how to update a deployment 81

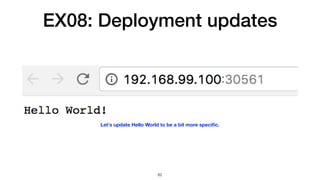

EX08: Deployment updates 82 Let's update Hello World to be a bit more specific.

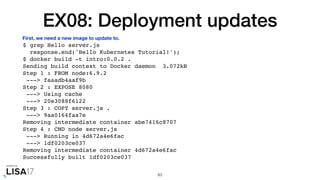

EX08: Deployment updates $ grep Hello server.js response.end('Hello Kubernetes Tutorial!'); $ docker build -t intro:0.0.2 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 ---> faaadb4aaf9b Step 2 : EXPOSE 8080 ---> Using cache ---> 20e3088f6122 Step 3 : COPY server.js . ---> 9aa0164faa7e Removing intermediate container abe7416c8707 Step 4 : CMD node server.js ---> Running in 4d672a4e6fac ---> 1df0203ce037 Removing intermediate container 4d672a4e6fac Successfully built 1df0203ce037 83 First, we need a new image to update to.

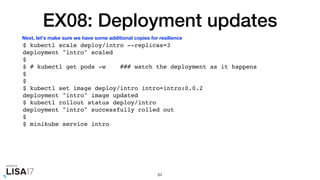

EX08: Deployment updates $ kubectl scale deploy/intro --replicas=3 deployment "intro" scaled $ $ # kubectl get pods -w ### watch the deployment as it happens $ $ $ kubectl set image deploy/intro intro=intro:0.0.2 deployment "intro" image updated $ kubectl rollout status deploy/intro deployment "intro" successfully rolled out $ $ minikube service intro 84 Next, let's make sure we have some additional copies for resilience
85

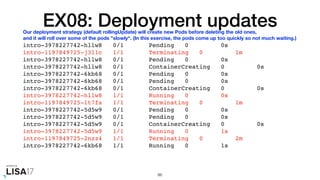

EX08: Deployment updates intro-3978227742-hllw8 0/1 Pending 0 0s intro-1197849725-j3l1c 1/1 Terminating 0 1m intro-3978227742-hllw8 0/1 Pending 0 0s intro-3978227742-hllw8 0/1 ContainerCreating 0 0s intro-3978227742-6kb68 0/1 Pending 0 0s intro-3978227742-6kb68 0/1 Pending 0 0s intro-3978227742-6kb68 0/1 ContainerCreating 0 0s intro-3978227742-hllw8 1/1 Running 0 0s intro-1197849725-lt7fs 1/1 Terminating 0 1m intro-3978227742-5d5w9 0/1 Pending 0 0s intro-3978227742-5d5w9 0/1 Pending 0 0s intro-3978227742-5d5w9 0/1 ContainerCreating 0 0s intro-3978227742-5d5w9 1/1 Running 0 1s intro-1197849725-2nzz4 1/1 Terminating 0 2m intro-3978227742-6kb68 1/1 Running 0 1s 86 Our deployment strategy (default rollingUpdate) will create new Pods before deleting the old ones, and it will roll over some of the pods "slowly". (In this exercise, the pods come up too quickly so not much waiting.)

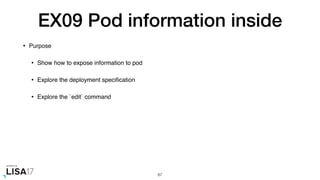

EX09 Pod information inside • Purpose • Show how to expose information to pod • Explore the deployment specification • Explore the `edit` command 87

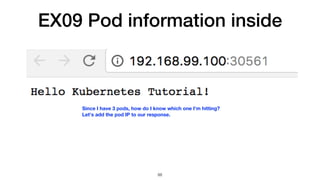

EX09 Pod information inside 88 Since I have 3 pods, how do I know which one I'm hitting? Let's add the pod IP to our response.

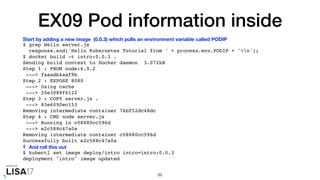

EX09 Pod information inside $ grep Hello server.js response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n'); $ docker build -t intro:0.0.3 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 ---> faaadb4aaf9b Step 2 : EXPOSE 8080 ---> Using cache ---> 20e3088f6122 Step 3 : COPY server.js . ---> 83e6090ec153 Removing intermediate container 76bf52dc48dc Step 4 : CMD node server.js ---> Running in c08880cc596d ---> e2c588c47a0a Removing intermediate container c08880cc596d Successfully built e2c588c47a0a $ $ kubectl set image deploy/intro intro=intro:0.0.3 deployment "intro" image updated 89 Start by adding a new image (0.0.3) which pulls an environment variable called PODIP And roll this out

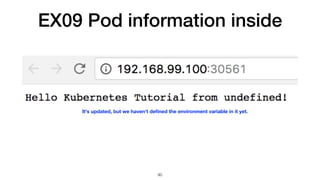

EX09 Pod information inside 90 It's updated, but we haven't defined the environment variable in it yet.

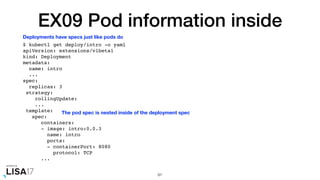

EX09 Pod information inside $ kubectl get deploy/intro -o yaml apiVersion: extensions/v1beta1 kind: Deployment metadata: name: intro ... spec: replicas: 3 strategy: rollingUpdate: ... template: spec: containers: - image: intro:0.0.3 name: intro ports: - containerPort: 8080 protocol: TCP ... 91 Deployments have specs just like pods do The pod spec is nested inside of the deployment spec

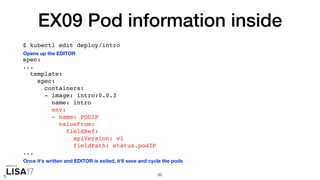

EX09 Pod information inside $ kubectl edit deploy/intro spec: ... template: spec: containers: - image: intro:0.0.3 name: intro env: - name: PODIP valueFrom: fieldRef: apiVersion: v1 fieldPath: status.podIP ... 92 Opens up the EDITOR Once it's written and EDITOR is exited, it'll save and cycle the pods

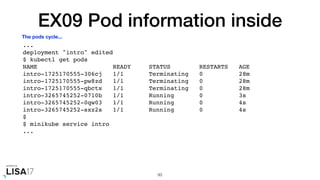

EX09 Pod information inside ... deployment "intro" edited $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1725170555-306cj 1/1 Terminating 0 28m intro-1725170555-pw8zd 1/1 Terminating 0 28m intro-1725170555-qbctx 1/1 Terminating 0 28m intro-3265745252-07l0b 1/1 Running 0 3s intro-3265745252-0qw03 1/1 Running 0 4s intro-3265745252-sxz2s 1/1 Running 0 4s $ $ minikube service intro ... 93 The pods cycle...
EX09 Pod information inside 94 And we are now showing the Pod IP

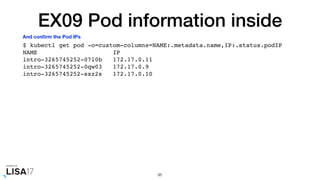

EX09 Pod information inside $ kubectl get pod -o=custom-columns=NAME:.metadata.name,IP:.status.podIP NAME IP intro-3265745252-07l0b 172.17.0.11 intro-3265745252-0qw03 172.17.0.9 intro-3265745252-sxz2s 172.17.0.10 95 And confirm the Pod IPs

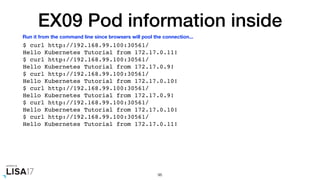

EX09 Pod information inside $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.11! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.9! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.10! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.9! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.10! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.11! 96 Run it from the command line since browsers will pool the connection...

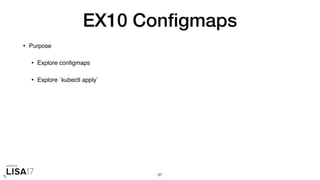

EX10 Configmaps • Purpose • Explore configmaps • Explore `kubectl apply` 97

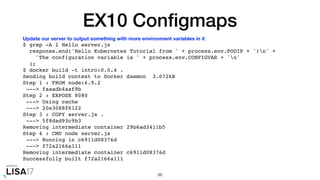

EX10 Configmaps $ grep -A 2 Hello server.js response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n' + 'The configuration variable is ' + process.env.CONFIGVAR + 'n' ); $ docker build -t intro:0.0.4 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 ---> faaadb4aaf9b Step 2 : EXPOSE 8080 ---> Using cache ---> 20e3088f6122 Step 3 : COPY server.js . ---> 5f8dad93c9b3 Removing intermediate container 29b6ad3411b5 Step 4 : CMD node server.js ---> Running in c6911d08376d ---> f72a2166a111 Removing intermediate container c6911d08376d Successfully built f72a2166a111 98 Update our server to output something with more environment variables in it

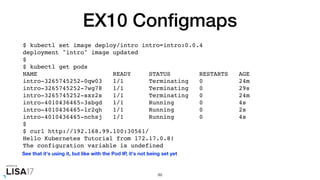

EX10 Configmaps $ kubectl set image deploy/intro intro=intro:0.0.4 deployment "intro" image updated $ $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-3265745252-0qw03 1/1 Terminating 0 24m intro-3265745252-7wg78 1/1 Terminating 0 29s intro-3265745252-sxz2s 1/1 Terminating 0 24m intro-4010436465-3sbgd 1/1 Running 0 4s intro-4010436465-lr2qh 1/1 Running 0 2s intro-4010436465-nchsj 1/1 Running 0 4s $ $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.8! The configuration variable is undefined 99 See that it's using it, but like with the Pod IP, it's not being set yet

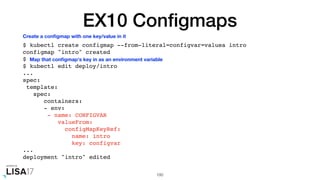

EX10 Configmaps $ kubectl create configmap --from-literal=configvar=valuea intro configmap "intro" created $ $ kubectl edit deploy/intro ... spec: template: spec: containers: - env: - name: CONFIGVAR valueFrom: configMapKeyRef: name: intro key: configvar ... deployment "intro" edited 100 Create a configmap with one key/value in it Map that configmap's key in as an environment variable
EX10 Configmaps $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-2942694475-948fj 1/1 Running 0 6s intro-2942694475-9tf89 1/1 Running 0 6s intro-2942694475-vh007 1/1 Running 0 6s intro-3265745252-07l0b 1/1 Terminating 0 3s intro-3265745252-0qw03 1/1 Terminating 0 4s intro-3265745252-sxz2s 1/1 Terminating 0 4s $ $ $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.10! The configuration variable is valuea 101 Deployment changed, so pods roll And now it's using the CONFIGVAR environment variable to output value
EX10 Configmaps $ kubectl get cm/intro -o yaml apiVersion: v1 data: configvar: valuea kind: ConfigMap metadata: creationTimestamp: 2017-09-10T05:36:09Z name: intro namespace: default resourceVersion: "170767" selfLink: /api/v1/namespaces/default/configmaps/intro uid: f2f0527d-95e9-11e7-b635-080027358e48 $ kubectl get cm/intro -o yaml > intro-cm.yaml 102 Another way is to use the configmap spec like pod and deployment. Can get that by looking at what's in there already. Save that out to a file

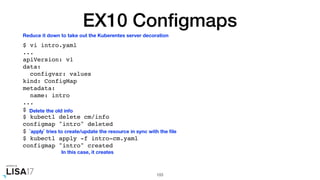

EX10 Configmaps $ vi intro.yaml ... apiVersion: v1 data: configvar: values kind: ConfigMap metadata: name: intro ... $ $ kubectl delete cm/info configmap "intro" deleted $ $ kubectl apply -f intro-cm.yaml configmap "intro" created 103 Reduce it down to take out the Kuberentes server decoration Delete the old info `apply` tries to create/update the resource in sync with the file In this case, it creates

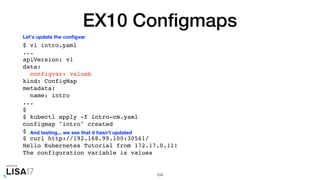

EX10 Configmaps $ vi intro.yaml ... apiVersion: v1 data: configvar: valueb kind: ConfigMap metadata: name: intro ... $ $ kubectl apply -f intro-cm.yaml configmap "intro" created $ $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.11! The configuration variable is valuea 104 Let's update the configvar And testing... we see that it hasn't updated

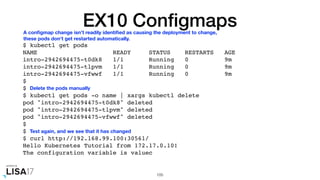

EX10 Configmaps $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-2942694475-t0dk8 1/1 Running 0 9m intro-2942694475-tlpvm 1/1 Running 0 9m intro-2942694475-vfwwf 1/1 Running 0 9m $ $ $ kubectl get pods -o name | xargs kubectl delete pod "intro-2942694475-t0dk8" deleted pod "intro-2942694475-tlpvm" deleted pod "intro-2942694475-vfwwf" deleted $ $ $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.10! The configuration variable is valuec 105 A configmap change isn't readily identified as causing the deployment to change, these pods don't get restarted automatically. Delete the pods manually Test again, and we see that it has changed

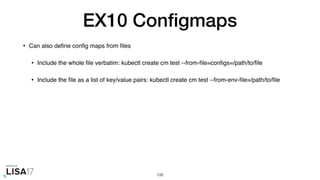

EX10 Configmaps • Can also define config maps from files • Include the whole file verbatim: kubectl create cm test --from-file=configs=/path/to/file • Include the file as a list of key/value pairs: kubectl create cm test --from-env-file=/path/to/file 106

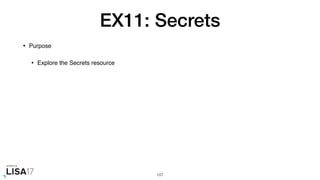

EX11: Secrets • Purpose • Explore the Secrets resource 107

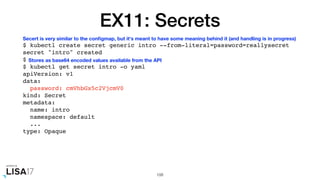

EX11: Secrets $ kubectl create secret generic intro --from-literal=password=reallysecret secret "intro" created $ $ kubectl get secret intro -o yaml apiVersion: v1 data: password: cmVhbGx5c2VjcmV0 kind: Secret metadata: name: intro namespace: default ... type: Opaque 108 Secert is very similar to the configmap, but it's meant to have some meaning behind it (and handling is in progress) Stores as base64 encoded values available from the API

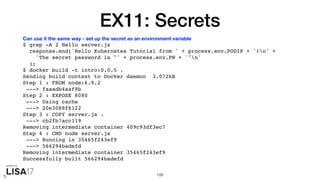

EX11: Secrets $ grep -A 2 Hello server.js response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n' + 'The secret password is "' + process.env.PW + '"n' ); $ docker build -t intro:0.0.5 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 ---> faaadb4aaf9b Step 2 : EXPOSE 8080 ---> Using cache ---> 20e3088f6122 Step 3 : COPY server.js . ---> cb2fb7acc119 Removing intermediate container 409c93df3ec7 Step 4 : CMD node server.js ---> Running in 35465f243ef9 ---> 566294badefd Removing intermediate container 35465f243ef9 Successfully built 566294badefd 109 Can use it the same way - set up the secret as an environment variable

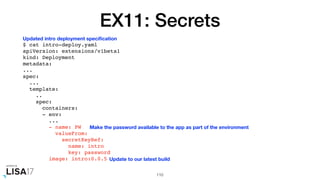

EX11: Secrets $ cat intro-deploy.yaml apiVersion: extensions/v1beta1 kind: Deployment metadata: ... spec: ... template: .. spec: containers: - env: ... - name: PW valueFrom: secretKeyRef: name: intro key: password image: intro:0.0.5 110 Updated intro deployment specification Make the password available to the app as part of the environment Update to our latest build
EX11: Secrets $ kubectl apply -f intro-deploy.yaml Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply deployment "intro" configured $ $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-2942694475-fpnfh 1/1 Terminating 0 30m intro-2942694475-gqdvf 1/1 Terminating 0 30m intro-2942694475-rxn92 1/1 Terminating 0 30m intro-3353884051-kdz2c 1/1 Running 0 2m intro-3353884051-nnkln 1/1 Running 0 2m intro-3353884051-rln6s 1/1 Running 0 2m $ $ minikube service intro Opening kubernetes service default/intro in default browser... 111 Update the new deploy spec with `apply` Updated deployment causes pods to roll And see if it worked...
EX11: Secrets 112 It worked!
EX11: Secrets • You can change access to secrets separate from access to configmaps (see RBAC) • Exposing via the environment may leak it (env available in other ways) --- we'll look at that next • There is work to protect the secrets more • Not allow any node access to the secret -- only ones where the secret is scheduled • Sealing it all the way to the process • Can use external secret stores - Vault, CyberArk, KMS, but mileage may vary 113

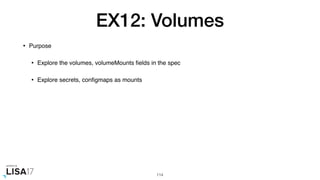

EX12: Volumes • Purpose • Explore the volumes, volumeMounts fields in the spec • Explore secrets, configmaps as mounts 114

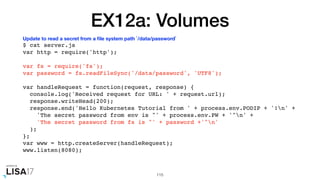

EX12a: Volumes $ cat server.js var http = require('http'); var fs = require('fs'); var password = fs.readFileSync('/data/password', 'UTF8'); var handleRequest = function(request, response) { console.log('Received request for URL: ' + request.url); response.writeHead(200); response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n' + 'The secret password from env is "' + process.env.PW + '"n' + 'The secret password from fs is "' + password +'"n' ); }; var www = http.createServer(handleRequest); www.listen(8080); 115 Update to read a secret from a file system path `/data/password`

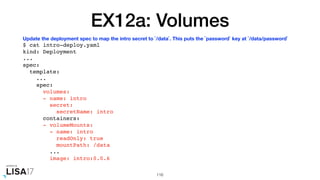

EX12a: Volumes $ cat intro-deploy.yaml kind: Deployment ... spec: template: ... spec: volumes: - name: intro secret: secretName: intro containers: - volumeMounts: - name: intro readOnly: true mountPath: /data ... image: intro:0.0.6 116 Update the deployment spec to map the intro secret to `/data`. This puts the `password` key at `/data/password`

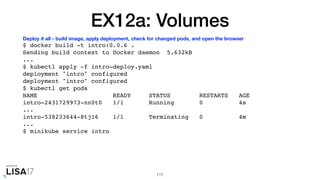

EX12a: Volumes $ docker build -t intro:0.0.6 . Sending build context to Docker daemon 5.632kB ... $ kubectl apply -f intro-deploy.yaml deployment "intro" configured deployment "intro" configured $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-2431729973-nn0t0 1/1 Running 0 4s ... intro-538233644-8tj16 1/1 Terminating 0 4m ... $ minikube service intro 117 Deploy it all - build image, apply deployment, check for changed pods, and open the browser
EX12a: Volumes 118

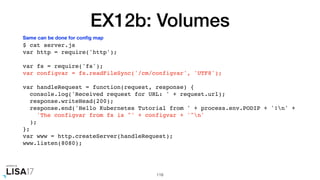

EX12b: Volumes $ cat server.js var http = require('http'); var fs = require('fs'); var configvar = fs.readFileSync('/cm/configvar', 'UTF8'); var handleRequest = function(request, response) { console.log('Received request for URL: ' + request.url); response.writeHead(200); response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n' + 'The configvar from fs is "' + configvar + '"n' ); }; var www = http.createServer(handleRequest); www.listen(8080); 119 Same can be done for config map

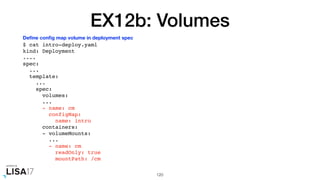

EX12b: Volumes $ cat intro-deploy.yaml kind: Deployment .... spec: ... template: ... spec: volumes: ... - name: cm configMap: name: intro containers: - volumeMounts: ... - name: cm readOnly: true mountPath: /cm 120 Define config map volume in deployment spec

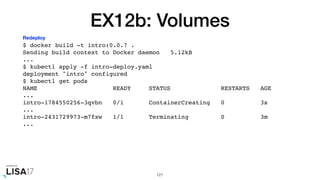

EX12b: Volumes $ docker build -t intro:0.0.7 . Sending build context to Docker daemon 5.12kB ... $ kubectl apply -f intro-deploy.yaml deployment "intro" configured $ kubectl get pods NAME READY STATUS RESTARTS AGE ... intro-1784550256-3qvbn 0/1 ContainerCreating 0 3s ... intro-2431729973-m7fxw 1/1 Terminating 0 3m ... 121 Redeploy
EX12b: Volumes $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.3! The configvar from fs is "valuec" 122 And test...
EX12: Volumes • Additional Volume types, but depend on environment • HostPath volume • Local volume • NFS and NAS volumes • Ceph, Gluster, ScaleIO, etc volumes • Cloud volumes - AWS EBS/EFS, GCP Persistent Disk, Azure Disk/File 123

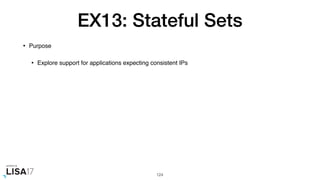

EX13: Stateful Sets • Purpose • Explore support for applications expecting consistent IPs 124

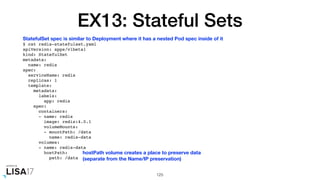

EX13: Stateful Sets $ cat redis-statefulset.yaml apiVersion: apps/v1beta1 kind: StatefulSet metadata: name: redis spec: serviceName: redis replicas: 1 template: metadata: labels: app: redis spec: containers: - name: redis image: redis:4.0.1 volumeMounts: - mountPath: /data name: redis-data volumes: - name: redis-data hostPath: path: /data 125 StatefulSet spec is similar to Deployment where it has a nested Pod spec inside of it hostPath volume creates a place to preserve data (separate from the Name/IP preservation)

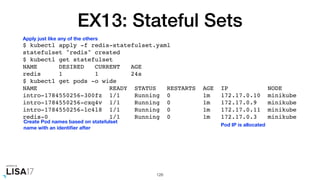

EX13: Stateful Sets $ kubectl apply -f redis-statefulset.yaml statefulset "redis" created $ kubectl get statefulset NAME DESIRED CURRENT AGE redis 1 1 24s $ kubectl get pods -o wide NAME READY STATUS RESTARTS AGE IP NODE intro-1784550256-300fz 1/1 Running 0 1m 172.17.0.10 minikube intro-1784550256-cxq4v 1/1 Running 0 1m 172.17.0.9 minikube intro-1784550256-lc4l8 1/1 Running 0 1m 172.17.0.11 minikube redis-0 1/1 Running 0 1m 172.17.0.3 minikube 126 Apply just like any of the others Pod IP is allocated Create Pod names based on statefulset name with an identifier after

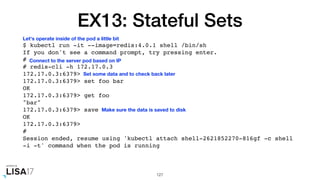

EX13: Stateful Sets $ kubectl run -it --image=redis:4.0.1 shell /bin/sh If you don't see a command prompt, try pressing enter. # # redis-cli -h 172.17.0.3 172.17.0.3:6379> 172.17.0.3:6379> set foo bar OK 172.17.0.3:6379> get foo "bar" 172.17.0.3:6379> save OK 172.17.0.3:6379> # Session ended, resume using 'kubectl attach shell-2621852270-816gf -c shell -i -t' command when the pod is running 127 Let's operate inside of the pod a little bit Connect to the server pod based on IP Set some data and to check back later Make sure the data is saved to disk

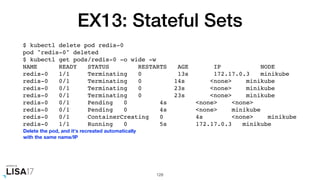

EX13: Stateful Sets $ kubectl delete pod redis-0 pod "redis-0" deleted $ kubectl get pods/redis-0 -o wide -w NAME READY STATUS RESTARTS AGE IP NODE redis-0 1/1 Terminating 0 13s 172.17.0.3 minikube redis-0 0/1 Terminating 0 14s <none> minikube redis-0 0/1 Terminating 0 23s <none> minikube redis-0 0/1 Terminating 0 23s <none> minikube redis-0 0/1 Pending 0 4s <none> <none> redis-0 0/1 Pending 0 4s <none> minikube redis-0 0/1 ContainerCreating 0 4s <none> minikube redis-0 1/1 Running 0 5s 172.17.0.3 minikube 128 Delete the pod, and it's recreated automatically with the same name/IP

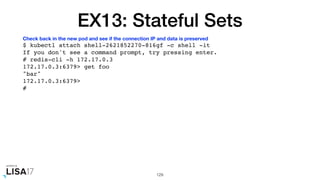

EX13: Stateful Sets $ kubectl attach shell-2621852270-816gf -c shell -it If you don't see a command prompt, try pressing enter. # redis-cli -h 172.17.0.3 172.17.0.3:6379> get foo "bar" 172.17.0.3:6379> # 129 Check back in the new pod and see if the connection IP and data is preserved

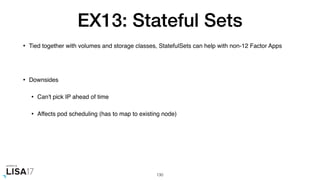

EX13: Stateful Sets • Tied together with volumes and storage classes, StatefulSets can help with non-12 Factor Apps • Downsides • Can't pick IP ahead of time • Affects pod scheduling (has to map to existing node) 130

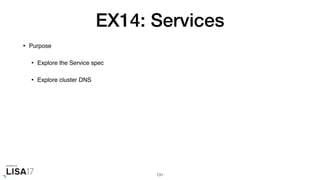

EX14: Services • Purpose • Explore the Service spec • Explore cluster DNS 131

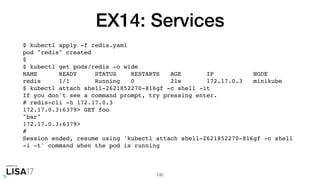

EX14: Services $ kubectl apply -f redis.yaml pod "redis" created $ $ kubectl get pods/redis -o wide NAME READY STATUS RESTARTS AGE IP NODE redis 1/1 Running 0 21s 172.17.0.3 minikube $ kubectl attach shell-2621852270-816gf -c shell -it If you don't see a command prompt, try pressing enter. # redis-cli -h 172.17.0.3 172.17.0.3:6379> GET foo "bar" 172.17.0.3:6379> # Session ended, resume using 'kubectl attach shell-2621852270-816gf -c shell -i -t' command when the pod is running 132

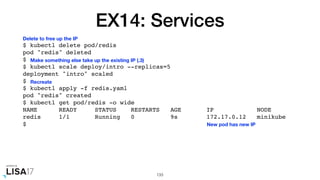

EX14: Services $ kubectl delete pod/redis pod "redis" deleted $ $ kubectl scale deploy/intro --replicas=5 deployment "intro" scaled $ $ kubectl apply -f redis.yaml pod "redis" created $ kubectl get pod/redis -o wide NAME READY STATUS RESTARTS AGE IP NODE redis 1/1 Running 0 9s 172.17.0.12 minikube $ 133 New pod has new IP Delete to free up the IP Make something else take up the existing IP (.3) Recreate
EX14: Services $ kubectl attach shell-2621852270-816gf -c shell -it If you don't see a command prompt, try pressing enter. # # redis-cli -h 172.17.0.3 Could not connect to Redis at 172.17.0.3:6379: Connection refused Could not connect to Redis at 172.17.0.3:6379: Connection refused not connected> exit # # redis-cli -h 172.17.0.12 172.17.0.12:6379> GET foo "bar" 172.17.0.12:6379> # Session ended, resume using 'kubectl attach shell-2621852270-816gf -c shell -i -t' command when the pod is running 134 Let's try to get the data again Using the old IP address will fail Try the new iP Data is still there

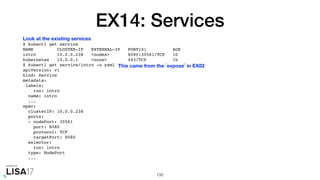

EX14: Services $ kubectl get service NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE intro 10.0.0.238 <nodes> 8080:30561/TCP 1h kubernetes 10.0.0.1 <none> 443/TCP 1h $ kubectl get service/intro -o yaml apiVersion: v1 kind: Service metadata: labels: run: intro name: intro ... spec: clusterIP: 10.0.0.238 ports: - nodePort: 30561 port: 8080 protocol: TCP targetPort: 8080 selector: run: intro type: NodePort ... 135 Look at the existing services This came from the `expose` in EX02

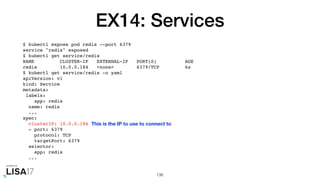

EX14: Services $ kubectl expose pod redis --port 6379 service "redis" exposed $ kubectl get service/redis NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE redis 10.0.0.184 <none> 6379/TCP 6s $ kubectl get service/redis -o yaml apiVersion: v1 kind: Service metadata: labels: app: redis name: redis ... spec: clusterIP: 10.0.0.184 - port: 6379 protocol: TCP targetPort: 6379 selector: app: redis ... 136 This is the IP to use to connect to

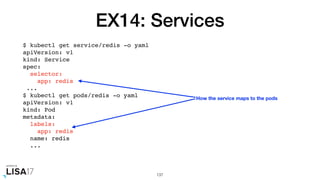

EX14: Services $ kubectl get service/redis -o yaml apiVersion: v1 kind: Service spec: selector: app: redis ... $ kubectl get pods/redis -o yaml apiVersion: v1 kind: Pod metadata: labels: app: redis name: redis ... 137 How the service maps to the pods

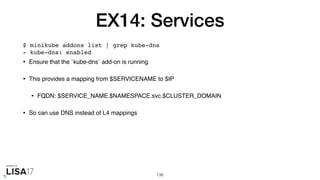

EX14: Services • Ensure that the `kube-dns` add-on is running • This provides a mapping from $SERVICENAME to $IP • FQDN: $SERVICE_NAME.$NAMESPACE.svc.$CLUSTER_DOMAIN • So can use DNS instead of L4 mappings 138 $ minikube addons list | grep kube-dns - kube-dns: enabled

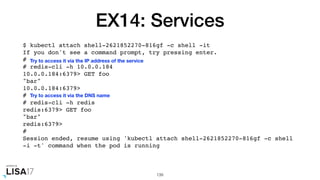

EX14: Services $ kubectl attach shell-2621852270-816gf -c shell -it If you don't see a command prompt, try pressing enter. # # redis-cli -h 10.0.0.184 10.0.0.184:6379> GET foo "bar" 10.0.0.184:6379> # # redis-cli -h redis redis:6379> GET foo "bar" redis:6379> # Session ended, resume using 'kubectl attach shell-2621852270-816gf -c shell -i -t' command when the pod is running 139 Try to access it via the IP address of the service Try to access it via the DNS name

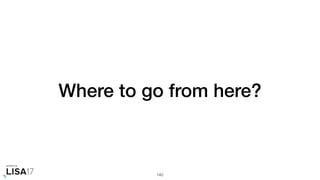

Where to go from here? 140

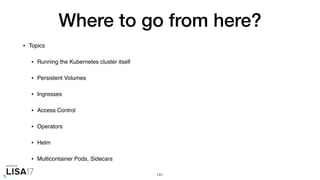

Where to go from here? • Topics • Running the Kubernetes cluster itself • Persistent Volumes • Ingresses • Access Control • Operators • Helm • Multicontainer Pods, Sidecars 141
October 29–November 3, 2017 | San Francisco, CA www.usenix.org/lisa17 #lisa17 Remember to fill in your tutorial evaluations! Thank You! F2 - Kubernetes : Hit the Ground Running Chris "mac" McEniry

More Related Content

PDF
WSO2Con US 2015 Kubernetes: a platform for automating deployment, scaling, an...
byBrian Grant

PDF
LISA2017 Big Three Cloud Networking
byChris McEniry

PDF
Hands-On Introduction to Kubernetes at LISA17
byRyan Jarvinen

PPTX
DevOps with Kubernetes
byEastBanc Tachnologies

PDF
Kubernetes Architecture - beyond a black box - Part 2
byHao H. Zhang

PDF
Evolution of containers to kubernetes
byKrishna-Kumar

PPTX
Introduction to Kubernetes
byrajdeep

PPTX
Kubernetes @ meetic
bySébastien Le Gall

WSO2Con US 2015 Kubernetes: a platform for automating deployment, scaling, an...
byBrian Grant

LISA2017 Big Three Cloud Networking
byChris McEniry

Hands-On Introduction to Kubernetes at LISA17
byRyan Jarvinen

DevOps with Kubernetes
byEastBanc Tachnologies

Kubernetes Architecture - beyond a black box - Part 2
byHao H. Zhang

Evolution of containers to kubernetes
byKrishna-Kumar

Introduction to Kubernetes
byrajdeep

Kubernetes @ meetic
bySébastien Le Gall


What's hot

PDF
(Draft) Kubernetes - A Comprehensive Overview
byBob Killen

PPTX
Kubernetes Introduction
byMartin Danielsson

PDF
Kubernetes Architecture - beyond a black box - Part 1
byHao H. Zhang

PPTX
Kubernetes Introduction & Whats new in Kubernetes 1.6
byOpcito Technologies

PDF
Docker & kubernetes
byNexThoughts Technologies

PDF
DevJam 2019 - Introduction to Kubernetes
byRonny Trommer

PDF
The Operator Pattern - Managing Stateful Services in Kubernetes
byQAware GmbH

PDF
Architecture Overview: Kubernetes with Red Hat Enterprise Linux 7.1
byEtsuji Nakai

PDF
Cloudfoundry Overview
byrajdeep

PPTX
Openstack meetup-pune-aug22-overview
byrajdeep

PPTX
Brief Introduction To Kubernetes
byAvinash Ketkar

PPTX
Introduction to Kubernetes
byParis Apostolopoulos

PPTX
Orchestrating Docker Containers with Google Kubernetes on OpenStack
byTrevor Roberts Jr.

PDF
Getting started with kubernetes
byBob Killen

PDF
Kubernetes Architecture | Understanding Kubernetes Components | Kubernetes Tu...
byEdureka!

PPT
Building Clustered Applications with Kubernetes and Docker
bySteve Watt

PPTX
Intro to cluster scheduler for Linux containers
byKumar Gaurav

PDF
fabric8 ... and Docker, Kubernetes & OpenShift
byroland.huss

PDF
Kubernetes intro public - kubernetes user group 4-21-2015
byreallavalamp

PDF
Kubernetes One-Click Deployment: Hands-on Workshop (Munich)
byQAware GmbH

(Draft) Kubernetes - A Comprehensive Overview
byBob Killen

Kubernetes Introduction
byMartin Danielsson

Kubernetes Architecture - beyond a black box - Part 1
byHao H. Zhang

Kubernetes Introduction & Whats new in Kubernetes 1.6
byOpcito Technologies

Docker & kubernetes
byNexThoughts Technologies

DevJam 2019 - Introduction to Kubernetes
byRonny Trommer

The Operator Pattern - Managing Stateful Services in Kubernetes
byQAware GmbH

Architecture Overview: Kubernetes with Red Hat Enterprise Linux 7.1
byEtsuji Nakai

Cloudfoundry Overview
byrajdeep

Openstack meetup-pune-aug22-overview
byrajdeep

Brief Introduction To Kubernetes
byAvinash Ketkar

Introduction to Kubernetes
byParis Apostolopoulos

Orchestrating Docker Containers with Google Kubernetes on OpenStack
byTrevor Roberts Jr.

Getting started with kubernetes
byBob Killen

Kubernetes Architecture | Understanding Kubernetes Components | Kubernetes Tu...
byEdureka!

Building Clustered Applications with Kubernetes and Docker
bySteve Watt

Intro to cluster scheduler for Linux containers
byKumar Gaurav

fabric8 ... and Docker, Kubernetes & OpenShift
byroland.huss

Kubernetes intro public - kubernetes user group 4-21-2015
byreallavalamp

Kubernetes One-Click Deployment: Hands-on Workshop (Munich)
byQAware GmbH


Similar to LISA2017 Kubernetes: Hit the Ground Running

PDF
Kubernetes From Scratch .pdf
byssuser9b44c7

PPTX
Kubernetes 101
byStanislav Pogrebnyak

PDF
DevOps in AWS with Kubernetes
byOleg Chunikhin

PDF
Introduction to Kubernetes Workshop
byBob Killen

PPTX
Kubernetes Presentation
byCrevise Technologies

PPTX
Kubernetes PPT.pptx
byssuser0cc9131

PDF
kubernetes.pdf
bycrezzcrezz

PPTX
Introduction+to+Kubernetes-Details-D.pptx
bySantoshPandey160

PDF
asofphadfahsfhap hdsfoah fapohf fhsdapfhdaspohf psdfh hafpodhofhf
bymajixoc607

PPTX
Introduction to kubernetes
byRishabh Indoria

PPTX
Kubernetes fundamentals
byVictor Morales

PPTX
Kubernetes PPTghjhhjhhhhhhggjjghjgjhghjghjghghghjghghghgghghghhjghghghghj
bysolomonrajuprimedtal

PDF
Kubernetes - A Comprehensive Overview
byBob Killen

PDF
Kubernetes acomprehensiveoverview
byAnkit Shukla

PDF
Kubernetes a comprehensive overview
byGabriel Carro

PPTX
Kubernetes
byLhouceine OUHAMZA

PDF
Kubernetes Basis: Pods, Deployments, and Services
byJian-Kai Wang

PPTX
Introduction to Kubernetes
byVishal Biyani

PPTX
Working with kubernetes
byNagaraj Shenoy

PPTX
A brief study on Kubernetes and its components
byRamit Surana

Kubernetes From Scratch .pdf
byssuser9b44c7

Kubernetes 101
byStanislav Pogrebnyak

DevOps in AWS with Kubernetes
byOleg Chunikhin

Introduction to Kubernetes Workshop
byBob Killen

Kubernetes Presentation
byCrevise Technologies

Kubernetes PPT.pptx
byssuser0cc9131

kubernetes.pdf
bycrezzcrezz

Introduction+to+Kubernetes-Details-D.pptx
bySantoshPandey160

asofphadfahsfhap hdsfoah fapohf fhsdapfhdaspohf psdfh hafpodhofhf
bymajixoc607

Introduction to kubernetes
byRishabh Indoria

Kubernetes fundamentals
byVictor Morales

Kubernetes PPTghjhhjhhhhhhggjjghjgjhghjghjghghghjghghghgghghghhjghghghghj
bysolomonrajuprimedtal

Kubernetes - A Comprehensive Overview
byBob Killen

Kubernetes acomprehensiveoverview
byAnkit Shukla

Kubernetes a comprehensive overview
byGabriel Carro

Kubernetes
byLhouceine OUHAMZA

Kubernetes Basis: Pods, Deployments, and Services
byJian-Kai Wang

Introduction to Kubernetes
byVishal Biyani

Working with kubernetes
byNagaraj Shenoy

A brief study on Kubernetes and its components
byRamit Surana


More from Chris McEniry

PDF
Evolving for Kubernetes
byChris McEniry

PDF
On the Edge Systems Administration with Golang
byChris McEniry

PDF
Go for SysAdmins - LISA 2015
byChris McEniry

PDF
OSCON2014 : Quick Introduction to System Tools Programming with Go
byChris McEniry

PDF
Intro to linux performance analysis
byChris McEniry

PDF
Value streammapping cascadiait2014-mceniry
byChris McEniry

PDF
CQL3 and Data Modeling 101 with Apache Cassandra
byChris McEniry

Evolving for Kubernetes
byChris McEniry

On the Edge Systems Administration with Golang
byChris McEniry

Go for SysAdmins - LISA 2015
byChris McEniry

OSCON2014 : Quick Introduction to System Tools Programming with Go
byChris McEniry

Intro to linux performance analysis
byChris McEniry

Value streammapping cascadiait2014-mceniry
byChris McEniry

CQL3 and Data Modeling 101 with Apache Cassandra
byChris McEniry


Recently uploaded

PDF
HOW TO OVERCOME THE THREATS OF ARTIFICIAL INTELLIGENCE AGAINST HUMANITY.pdf
byFaga1939

PDF
Explaining the flow of purpose-specific BOM
byakipii ogaoga

PDF
AI Vector Search Best Practices Multicloud Feb 2026
bySandesh Rao

PDF
Automated Governance for FME Flow: Smarter Admin at Scale
bySafe Software

PDF
Escape from the Forbidden Zone: Smuggling green and inclusive tech past the g...
byBookNet Canada

PDF
TrustArc Webinar - From Trends to Action: Fitting AI Governance into Privacy Ops
byTrustArc

PDF
Founder & Tech Lead | Web Development & Digital Growth Consultant | Helping B...
byShyamal Das

PDF
AI TOOLS FOR PRODUCTIVITY IN MODERN TIMES.pdf
bySantunu

PDF
Explaining specific examples of purpose-specific BOM
byakipii ogaoga

PDF
February 2026 Patch Tuesday hosted by Chris Goettl and Todd Schell
byIvanti

PPTX
PPTX game guess the logo with a twistppt
byAdrianAnig

PDF
Spec-Driven Development with Kiro: Elevating Software Quality, Traceability, ...
byHaim Michael

PDF
UiPath Modern Automation Playbook -Session 2
bysuhanisingh58689

PDF
Odoo Implementation Checklist: A Strategic ERP Blueprint for Business-Ready D...
byBANIBRO IT SOLUTION

PPTX
Do You Control the AI, or Does the AI Control You?
bymedhateltoukhy

PPTX
apidays Paris 2025 | Building Agentic Workflows
byapidays

PDF
How does MES(Manufacturing Execution System) work?
byakipii ogaoga

PPTX
CTO Strategy OS 2026: The Tech, AI & Cloud Playbook Boards Want
byridwansassman

PDF
apidays New York 2025 | AI in Application Security
byapidays

PDF
Security-Fails-in-the-Gaps-Between-Systems.pptx.pdf
byOhhproJunction

HOW TO OVERCOME THE THREATS OF ARTIFICIAL INTELLIGENCE AGAINST HUMANITY.pdf
byFaga1939

Explaining the flow of purpose-specific BOM
byakipii ogaoga

AI Vector Search Best Practices Multicloud Feb 2026
bySandesh Rao

Automated Governance for FME Flow: Smarter Admin at Scale
bySafe Software

Escape from the Forbidden Zone: Smuggling green and inclusive tech past the g...
byBookNet Canada

TrustArc Webinar - From Trends to Action: Fitting AI Governance into Privacy Ops
byTrustArc

Founder & Tech Lead | Web Development & Digital Growth Consultant | Helping B...
byShyamal Das

AI TOOLS FOR PRODUCTIVITY IN MODERN TIMES.pdf
bySantunu

Explaining specific examples of purpose-specific BOM
byakipii ogaoga

February 2026 Patch Tuesday hosted by Chris Goettl and Todd Schell
byIvanti

PPTX game guess the logo with a twistppt
byAdrianAnig

Spec-Driven Development with Kiro: Elevating Software Quality, Traceability, ...
byHaim Michael

UiPath Modern Automation Playbook -Session 2
bysuhanisingh58689

Odoo Implementation Checklist: A Strategic ERP Blueprint for Business-Ready D...
byBANIBRO IT SOLUTION

Do You Control the AI, or Does the AI Control You?
bymedhateltoukhy

apidays Paris 2025 | Building Agentic Workflows
byapidays

How does MES(Manufacturing Execution System) work?
byakipii ogaoga

CTO Strategy OS 2026: The Tech, AI & Cloud Playbook Boards Want
byridwansassman

apidays New York 2025 | AI in Application Security
byapidays

Security-Fails-in-the-Gaps-Between-Systems.pptx.pdf
byOhhproJunction


LISA2017 Kubernetes: Hit the Ground Running

  • 1.
    October 29–November 3,2017 | San Francisco, CA www.usenix.org/lisa17 #lisa17 Kubernetes: Hit the Ground Running Chris "mac" McEniry
  • 2.
  • 3.
    Goal • Be familiarwith the basics of how to use Kubernetes • Not in scope • Advanced Usages of Kubernetes • Administering Kubernetes 3
  • 4.
    Structure • Lecture followedby Watch/Follow • I'll show it, and you can follow along • Ask questions as we go along • We'll take a poll with each section - if 50% are good continuing, we will continue • Given time and size, unable to do individual attention • But happy to follow up afterwards 4
  • 5.
    Biases • Focused onLinux based containers • Expect some (though not much) familiarity with Docker • Exercises written on MacOS with /bin/sh • But should work with minor tweaks 5
  • 6.
    Prerequisite Tools • VirtualBox •docker • https://store.docker.com/editions/community/docker-ce-desktop-mac • https://store.docker.com/editions/community/docker-ce-desktop-windows 6
  • 7.
    Basic Kubernetes Tools •kubectl • curl -LO https://storage.googleapis.com/kubernetes-release/release/v1.7.5/bin/darwin/amd64/ kubectl • curl -LO https://storage.googleapis.com/kubernetes-release/release/v1.7.5/bin/windows/amd64/ kubectl.exe • minikube • https://storage.googleapis.com/minikube/releases/v0.21.0/minikube-darwin-amd64 • https://storage.googleapis.com/minikube/releases/v0.21.0/minikube-windows-amd64.exe 7
  • 8.
  • 9.
  • 10.
  • 11.
    Container Info Dump •Lightweight isolation • More like process than like VM but properties of both • Same Kernel • Separate File System (with some mappings) • Average lifetime of minutes-days • VMs: Average lifetime of hours-weeks • Machines: Average lifetime of weeks-years 11
  • 12.
    Container Info Dump •Container : Process with a specific namespace/capability/cgroups configuration • Namespaces: Create process visibility separation (e.g. what `ps -ef` show, `ls /` looks different) • Capabilities: Allow/Disallow privileged functions (e.g. raw sockets for packet captures) • CGroups: Allocate resources for processes (e.g. max cpu, memory, I/O) • Container Image • Packaging which becomes the basis for the root file system of a container • Different ways to maintain it (tarball, layers, etc) depending on runtime which did packaging 12 Key
  • 13.
    Container Info Dump •Multiple Container Runtimes • Docker : Most common • Rocket • CRI-O • Focus on image management and running individual containers • Get Image/Start/Stop 13
  • 14.
    Packaging -> 12Factor Model • Containers can be as simple as a packaging format • Or can follow https://12factor.net/ • Many usages follow the 12 Factor Model, but some support other apps 14
  • 15.
  • 16.
    Kubernetes • Container Orchestrator •Focus on running groups of containers working together 16
  • 17.
    Interface • API Driven(provided by Kubernetes' apiserver) • Ubiquitous client - comment line `kubectl` • Have multiple resources: pod, replicaset, deployment, job, volume, etc • Defined by specification • Put/Get specifications to/from API server 17
  • 18.
    Desired State • Focuson the *what* (specification passed to the API server) not the *how* • "I want 5 small compute units doing my web app front end, and 2 large compute units doing my web app database" • Orchestrator takes definition of "what" and figures out "how" to reconcile it 18
  • 19.
    Controllers • Automation Providers •Examine the current state of the cluster (via the API server), what the desired state says it should be and takes the necessary steps • All kinds of controllers: • Scheduler, Manager • Cloud Provider(s) • Ingress 19
  • 20.
  • 21.
    Processes • State Storage(etcd) - 1 cluster : Live DB of cluster • API Server - enough to cover load : How everything interacts • Scheduler - 3 for redundancy, 1 active : Decides what should be running where • Controller Manager - 3 for redundancy, 1 active : Spawns internal controllers which handle all heavy lifting functions • kubelet - 1 per workload node : Runs wherever a workload runs. • Kube Proxy - 1 per workload node : Handles traffic forwarding into/out of cluster and to known endpoints • Container Networking - TBD : Handles routing of workloads to each other 21
  • 22.
    Master vs Minion •Master : Core of Control Plane runs here • Minion : Where the actual workloads run • kubelet and kube-proxy run on both (depending on control plane installation) • Lots of variations • Can have internal/external etcd • Can run control plane in the cluster even 22
  • 23.
    Add ons • Pluggablecluster features • network overlay : Provides host<->host connectivity which makes the cluster network look connected • kube-dns : Provides a DNS domain which provides naming for cluster resources • das 23
  • 24.
  • 25.
    Namespaces • Administrative unit •Hold (most of) the other resources: Pods, Services, CMs, Secrets, etc. • Apply 25
  • 26.
    Pod • Basic unitof compute • The "What" of the workload • Meant for portions of a workload that are tightly coupled • 1 or more containers scheduled together • Typically expected to run indefinitely • Containers sharing a network namespace • I.e. "host" from a network perspective 26
  • 27.
    Configuration Resources • Underthe 12 Factor model, containers end up being immutable, so you need to be able to get configuration parameters in. • ConfigMap : key/value collections which can be made available to Containers in Pods • Secrets : key/value collections which can be made available to Containers in Pods but should be handled carefully 27
  • 28.
    Pod Collections • ReplicaSet: Multiple identically configured pods (differ by IP) • Deployment : Mutable collection of Pods performing a workload • Job : Pods meant to run ones • CronJob : Pods meant to run on a regular but not constant basis • StatefulSet : Pods meant to have some consistency over their lifetimes (name, Pod IP, etc) • DaemonSet : Pods meant to running on all nodes (or subset of nodes with a label) 28 Two Most Common
  • 29.
    Service • Abstraction ofhow to get to a workload • The "Way" to the workload • Uses labels to decide membership (which Pods are "behind" the Service) • For Kubernetes base, this mapping is a L4 load balancer • But add-ons provide this via DNS and other methods 29
  • 30.
    (Slight aside) Labels •Not a resource, but is metadata on resources • Every resource can have labels added to it • Labels: key/value pairs that tag resource • Used to select subsets of those resources • "Gimme all Pods with the label `app=web` • Services say "connect this frontend with all pods with the label `app=web`" • Metadata also includes name, annotations (structured data), timestamps, status, etc 30
  • 31.
    Other Resources • Authorization:Role, RoleBinding, ClusterRole, ClusterRoleBinding • StorageClass, PersistentVolume, PersistentVolumeClaim • Networking: Ingress, NetworkPolicy • Cluster Management: Node, Cluster (Federation), ComponentStatus (pseudo) 31
  • 32.
  • 33.
    Unified Network Space •All Pods are reachable from all other Pods from an IP perspective • Policy may not allow, but common, non-conflicting, and known IP space • No need to port map ports for Pod<->Pod inside of the cluster • May need to map Outside->Pod • Need to map from Container->Pod (container runtime behavior) • Typically • Implemented as an overlay but can be done with direct routing • Must NAT to outside cluster (IPv6 is coming not full support yet) 33
  • 34.
    IPs • Cluster IPSpace : Used to provide Unified Network Space. Pool of Pod IPs • Service IP Space : Used to provide area to map services into • Node IPs : The IPs assigned to master/minions • Typically used when referring to getting into/out of the cluster 34
  • 35.
    IPTables • Any mappingin the cluster is done via IPTables • Handles Service IP to backend Pod IPs • Handles inside->outside IP NAT • Handles outside->inside IP NAT • Controlled by kube-proxy (not really a proxy anymore) 35
  • 36.
  • 37.
    Common things toremember • Pods : multiple containers working closely together • Pod IP : Ultimately how traffic gets into a workload. One CIDR over a cluster. • IPTables : How cube proxy maps everything into/out of the cluster (and how it maps services) • Controllers : Entities that do a piece of automation • Labels and Selectors : Ways to classify resources • IPTables, IPTables, IPTables 37
  • 38.
  • 39.
    EX00: Starting minikube •Purpose • Make sure everything is up and running 39
  • 40.
    EX00: Starting minikube $minikube start Starting local Kubernetes v1.7.0 cluster... Starting VM... Downloading Minikube ISO 97.80 MB / 97.80 MB [=====================================] 100.00% 0s Getting VM IP address... Moving files into cluster... Setting up certs... Starting cluster components... Connecting to cluster... Setting up kubeconfig... Kubectl is now configured to use the cluster. 40
  • 41.
    EX00: Starting minikube $minikube status minikube: Running localkube: Running kubectl: Correctly Configured: pointing to minikube-vm at 192.168.99.100 $ $ kubectl version Client Version: version.Info{Major:"1", Minor:"7", GitVersion:"v1.7.5", GitCommit:"17d7182a7ccbb167074be7a87f0a68bd00d58d97", GitTreeState:"clean", BuildDate:"2017-08-31T09:14:02Z", GoVersion:"go1.8.3", Compiler:"gc", Platform:"darwin/amd64"} Server Version: version.Info{Major:"1", Minor:"7", GitVersion:"v1.7.0", GitCommit:"d3ada0119e776222f11ec7945e6d860061339aad", GitTreeState:"clean", BuildDate:"2017-07-26T00:12:31Z", GoVersion:"go1.8.3", Compiler:"gc", Platform:"linux/amd64"} 41 Is everything running ok?
  • 42.
    EX00: Starting minikube $kubectl get cs NAME STATUS MESSAGE ERROR scheduler Healthy ok controller-manager Healthy ok etcd-0 Healthy {"health": "true"} $ $ $ kubectl cluster-info Kubernetes master is running at https://192.168.99.100:8443 To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'. 42
  • 43.
    EX01: helloshell • Purpose •Show how to run a simple command • What's going on when you run the command • Demonstrate pod, replicaset, deployment 43
  • 44.
    EX01: helloshell $ kubectlrun -it --image=busybox bb1 /bin/sh If you don't see a command prompt, try pressing enter. / # ps PID USER TIME COMMAND 1 root 0:00 /bin/sh 7 root 0:00 ps / # 44 Is everything running ok?
  • 45.
    EX01: helloshell $ kubectlget pod NAME READY STATUS RESTARTS AGE bb1-1176220718-z09mj 1/1 Running 1 46s $ $ $ $ $ kubectl get rs NAME DESIRED CURRENT READY AGE bb1-1176220718 1 1 1 19s $ $ $ kubectl get deploy NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE bb1 1 1 1 1 1m 45 What's this actually running? *-##########-XXXXX format tends to look like a deployment/replicaset Why 1?
  • 46.
    EX01: helloshell $ kubectlattach bb1-1176220718-z09mj -c bb1 -i -t If you don't see a command prompt, try pressing enter. / # Session ended, resume using 'kubectl attach bb1-1176220718-z09mj -c bb1 -i -t' command when the pod is running $ $ $ $ kubectl attach bb1-1176220718-z09mj -c bb1 -i -t If you don't see a command prompt, try pressing enter. error: unable to upgrade connection: container bb1 not found in pod bb1-1176220718- z09mj_default $ $ kubectl get pod bb1-1176220718-z09mj NAME READY STATUS RESTARTS AGE bb1-1176220718-z09mj 0/1 Completed 2 10m 46 Let's try exiting and entering quickly What's this error? What does it mean when the pod is running? 0/1 means it's in the middle of (re-)starting
  • 47.
    EX01: helloshell $ kubectlget pod bb1-1176220718-z09mj -o yaml apiVersion: v1 kind: Pod ... spec: containers: ... restartPolicy: Always 47 Pod description says it's going to try to restart
  • 48.
    EX01: helloshell $ kubectldelete deploy/bb1 deployment "bb1" deleted 48 Let's clean up some
  • 49.
    EX02: Official Introduction •Purpose • Connect docker and kubernetes • Build artifacts that can go into kubernetes • Reinforce pod, replicaset, deployment • Demonstrate services • From: https://kubernetes.io/docs/tutorials/stateless-application/hello-minikube/ 49
  • 50.
    EX02: Official Introduction $eval $(minikube docker-env) $ docker ps CONTAINER ID IMAGE COMMAND 6d5fac7595bd gcr.io/google_containers/pause-amd64:3.0 "/pause" ... 50 Connect to minikube's docker daemon Now we can interact with it just as if it was a local docker daemon
  • 51.
    EX02: Official Introduction $cd ex02 $ ls Dockerfile server.js $ $ docker build -t intro:0.0.1 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 6.9.2: Pulling from library/node 75a822cd7888: Pull complete 57de64c72267: Pull complete ... Step 4 : CMD node server.js ---> Running in 22b57d427b1c ---> 280abd363feb Removing intermediate container 22b57d427b1c Successfully built 280abd363feb 51 Build a container image from the official example
  • 52.
    EX02: Official Introduction $kubectl run intro --image=intro:0.0.1 --port=8080 $ $ kubectl get deployments NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 1 1 1 1 7s $ $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-75kk9 1/1 Running 0 10s $ 52 Start the image So, it's running - now what?
  • 53.
    EX02: Official Introduction $kubectl expose deploy/intro --type=NodePort service "intro" exposed $ $ $ kubectl get svc NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE intro 10.0.0.238 <nodes> 8080:30561/TCP 6s kubernetes 10.0.0.1 <none> 443/TCP 9h $ $ $ minikube service intro Opening kubernetes service default/intro in default browser... $ $ $ minikube service intro --url http://192.168.99.100:30561 53 Make it available over the network Tells to map it to a port on all (one) of the nodes Automatically opens browser Or get the URL yourself We're going to leave this running, for the next exercise...
  • 54.
    EX03: The DashboardAdd-on • Purpose • Demonstrate the dashboard add-on • Demonstrate minikube dashboard shortcuts 54
  • 55.
    EX03: The DashboardAdd-on $ minikube dashboard Opening kubernetes dashboard in default browser... $ $ $ minikube dashboard --url http://192.168.99.100:30000 $ 55 Start up the dashboard Automatically opens browser As before, can get it yourself But before, we did `minikube service $NAME`...
  • 56.
    EX03: The DashboardAdd-on $ kubectl get service -n kube-system NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE kube-dns 10.0.0.10 <none> 53/UDP,53/TCP 9h kubernetes-dashboard 10.0.0.114 <nodes> 80:30000/TCP 9h $ $ $ minikube service -n kube-system kubernetes-dashboard Opening kubernetes service kube-system/kubernetes-dashboard in default browser... $ minikube service -n kube-system kubernetes-dashboard --url http://192.168.99.100:30000 56 There is a `kubernetes-dashboard` service running; it's just in the kibe-system namespace (we'll come back to that...) `minikube dashboard` is a shortcut for `minikube service...` for the dashboard
  • 57.
  • 58.
    EX04: Add-ons • Purpose •Explore the add-ons and add-ons manager • Explore the kibe-system namespace 58
  • 59.
    EX04: Add-ons $ kubectlget -n kube-system pods NAME READY STATUS RESTARTS AGE kube-addon-manager-minikube 1/1 Running 0 21h kube-dns-910330662-rnwgp 3/3 Running 0 21h kubernetes-dashboard-tlh94 1/1 Running 0 21h $ $ $ minikube addons list - ingress: disabled - dashboard: enabled - heapster: disabled - kube-dns: enabled - registry: disabled - registry-creds: disabled - addon-manager: enabled - default-storageclass: enabled 59 Already saw kibe-system services - what about pods? This are background processes which are managed by the qinikube add-ons manager
  • 60.
    EX04: Add-ons $ minikubeaddons enable heapster heapster was successfully enabled $ $ $ kubectl -n kube-system get pods NAME READY STATUS RESTARTS AGE heapster-t00zx 1/1 Running 0 2s influxdb-grafana-ll71w 2/2 Running 0 2s kube-addon-manager-minikube 1/1 Running 0 22h kube-dns-910330662-rnwgp 3/3 Running 0 22h kubernetes-dashboard-tlh94 1/1 Running 0 22h 60 Let's turn on something else Check on the pods again
  • 61.
    EX04: Add-ons • addon-manager: Controller which provides these add-ons • dashboard : Web interface for cluster information and status • kube-dns : Provides cluster DNS mapping (we'll come back to this) • heapster : Gathers container and node statistics • registry : Can run a container image registry • default-storageclass : Provides a simply host path persistent volume • ingress : Provides a Layer 7 load balancer as Kubernetes primitive • registry-creds : Simplified way to provide container registry user/password for image pulls 61
  • 62.
  • 63.
    EX05: Working withpods • Purpose • Explore multiple ways of seeing pod information • Explore the pod spec 63
  • 64.
    EX05: Working withpods $ kubectl get pod NAME READY STATUS RESTARTS AGE intro-1197849725-g22tx 1/1 Running 0 15m $ $ $ kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE intro-1197849725-g22tx 1/1 Running 0 15m 172.17.0.4 minikube $ $ $ kubectl get pods -o name pods/intro-1197849725-g22tx $ 64 Get pods - normal Get pods - show Pod IP and Node Get pods - show just name (good for shell loops)
  • 65.
    EX05: Working withpods $ kubectl describe pod/intro-1197849725-g22tx Name: intro-1197849725-g22tx Namespace: default Node: minikube/192.168.99.100 Start Time: Sat, 09 Sep 2017 13:26:55 -0700 Labels: pod-template-hash=3978227742 run=intro Annotations: ... Status: Running IP: 172.17.0.10 Created By: ReplicaSet/intro-1197849725 Controlled By: ReplicaSet/intro-1197849725 Containers: intro: Container ID: docker://... Image: intro:0.0.2 Image ID: docker://sha256:... Port: 8080/TCP State: Running ... 65 This is `describe pod`. It gives you some human readable information about the pod.
  • 66.
    EX05: Working withpods $ kubectl get pods/intro-1197849725-g22tx -o yaml apiVersion: v1 kind: Pod metadata: name: intro-1197849725-g22tx namespace: default ... spec: containers: - image: intro:0.0.1 ... status: hostIP: 192.168.99.100 podIP: 172.17.0.4 ... 66 This is what a pod spec looks like. This can be used for specific search/display or to configure the system.
  • 67.
    EX05: Working withpods $ kubectl get pod -o=custom-columns=NAME:.metadata.name,IP:.status.podIP NAME IP intro-1197849725-g22tx 172.17.0.4 67 Show just the name and podIP
  • 68.
    EX05: Working withpods $ cat redis.yaml apiVersion: v1 kind: Pod metadata: name: redis-manual spec: containers: - image: redis:4.0.1 name: redis $ $ kubectl apply -f redis.yaml pod "redis-manual" created $ kubectl get pods NAME READY STATUS RESTARTS AGE redis-manual 1/1 Running 0 2s ... 68 Write a spec file manually Apply it to the cluster
  • 69.
    EX05: Working withpods $ kubectl apply -f redis.yaml pod "redis-manual" created $ $ $ $ $ kubectl delete -f redis.yaml pod "redis-manual" deleted $ $ $ $ $ $ kubectl apply -f redis.yaml pod "redis-manual" created $ 69 $ kubectl get pods -w | grep redis redis-manual 0/1 Pending 0 0s redis-manual 0/1 Pending 0 0s redis-manual 0/1 ContainerCreating 0 0s redis-manual 1/1 Running 0 1s redis-manual 1/1 Terminating 0 7s redis-manual 0/1 Terminating 0 8s redis-manual 0/1 Terminating 0 9s redis-manual 0/1 Terminating 0 9s redis-manual 0/1 Pending 0 15s redis-manual 0/1 Pending 0 15s redis-manual 0/1 ContainerCreating 0 15s redis-manual 1/1 Running 0 16s We can also -w(atch) the pod changes
  • 70.
    EX05: Working withpods $ kubectl get events | grep redis-manual 3m 3m 1 redis-manual Pod Normal Scheduled default-scheduler Successfully assigned redis-manual to minikube 3m 3m 1 redis-manual Pod Normal SuccessfulMountVolume kubelet, minikube MountVolume.SetUp succeeded for volume "default- token-3j744" 3m 3m 1 redis-manual Pod spec.containers{redis} Normal Pulled kubelet, minikube Container image "redis:4.0.1" already present on machine 3m 3m 1 redis-manual Pod spec.containers{redis} Normal Created kubelet, minikube Created container 3m 3m 1 redis-manual Pod spec.containers{redis} Normal Started kubelet, minikube Started container 3m 3m 1 redis-manual Pod spec.containers{redis} Normal Killing kubelet, minikube Killing container with id docker://redis:Need to kill Pod ... 70 Can see the same a -w(atch) and more in the events
  • 71.
    EX06: Working ina container • Purpose • Explore starting points for debugging • Explore how to get logs • Explore how to get inside a container 71
  • 72.
    EX06: Working ina container $ kubectl logs redis-manual ...:32.344 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo ...:32.344 # Redis version=4.0.1, bits=64, commit=00000000, modified=0, pid=1, just started ...:32.344 # Warning: no config file specified, using the default config. In order to specify a config file use redis-server /path/to/redis.conf ...:32.345 * Running mode=standalone, port=6379. ...:32.345 # WARNING: The TCP backlog setting of 511 cannot be enforced because /proc/sys/net/core/somaxconn is set to the lower value of 128. ...:32.345 # Server initialized ...:32.345 * Ready to accept connections 72 Getting "logs" == stdout and stderr Convention of 12 Factor logging approach. https://12factor.net/logs
  • 73.
    EX06: Working ina container $ kubectl exec -it redis-manual /usr/local/bin/redis-cli 127.0.0.1:6379> set foo 10 OK 127.0.0.1:6379> get foo "10" 127.0.0.1:6379> $ $ $ kubectl exec -it redis-manual /usr/local/bin/redis-cli 127.0.0.1:6379> get foo "10" 73 How to work on the redis container? It persists across invocations of the client command
  • 74.
    EX06: Working ina container $ kubectl delete pod/redis-manual pod "redis-manual" deleted $ kubectl apply -f ./redis.yaml pod "redis-manual" created $ kubectl exec -it redis-manual /usr/local/bin/redis-cli 127.0.0.1:6379> get foo (nil) 74 But does not persist across invocations of the pod itself
  • 75.
    EX07: Deployment replicas •Purpose: • Explore deployment keeping replicas running • Explore adding/removing replicas from a deployment 75
  • 76.
    EX07: Deployment replicas $kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-g22tx 1/1 Running 0 30m redis-manual 1/1 Running 0 10m $ $ $ kubectl get pods -o name | xargs kubectl delete pod "intro-1197849725-g22tx" deleted pod "redis-manual" deleted $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-g22tx 1/1 Terminating 0 30m intro-1197849725-v78kg 1/1 Running 0 17s 76 Let's do a little cleanup A new intro pod is already around
  • 77.
    EX07: Deployment replicas $kubectl get deploy intro NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 1 1 1 1 30m $ $ $ $ kubectl get pod NAME READY STATUS RESTARTS AGE intro-1197849725-v78kg 1/1 Terminating 0 2m $ 77 Deployment tries to keep CURRENT equal to DESIRED Delete the deployment to make the pod go away
  • 78.
    EX07: Deployment replicas $kubectl run intro --image=intro:0.0.1 --port=8080 --replicas=3 deployment "intro" created $ kubectl get deploy NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 3 3 3 3 13s $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-bl6qs 1/1 Running 0 17s intro-1197849725-gdr6f 1/1 Running 0 17s intro-1197849725-qm7zd 1/1 Running 0 17s 78 Let's start it with more instances replicas == pod count
  • 79.
    EX07: Deployment replicas $kubectl delete po/intro-1197849725-qm7zd pod "intro-1197849725-qm7zd" deleted $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-bl6qs 1/1 Running 0 1m intro-1197849725-gdr6f 1/1 Running 0 1m intro-1197849725-l50k3 1/1 Running 0 3s intro-1197849725-qm7zd 1/1 Terminating 0 1m $ kubectl get deploy intro NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 3 3 3 3 1m 79 Delete a pod again The deployment will do what it needs to to get the count back to 3
  • 80.
    EX07: Deployment replicas $kubectl scale deploy/intro --replicas=1 deployment "intro" scaled $ kubectl get deploy/intro NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE intro 1 1 1 1 2m $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1197849725-bl6qs 1/1 Terminating 0 3m intro-1197849725-gdr6f 1/1 Running 0 3m intro-1197849725-l50k3 1/1 Terminating 0 1m $ $ 80 Scale it down to 1
  • 81.
    EX08: Deployment updates •Purpose • Show how to update a deployment 81
  • 82.
    EX08: Deployment updates 82 Let'supdate Hello World to be a bit more specific.
  • 83.
    EX08: Deployment updates $grep Hello server.js response.end('Hello Kubernetes Tutorial!'); $ docker build -t intro:0.0.2 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 ---> faaadb4aaf9b Step 2 : EXPOSE 8080 ---> Using cache ---> 20e3088f6122 Step 3 : COPY server.js . ---> 9aa0164faa7e Removing intermediate container abe7416c8707 Step 4 : CMD node server.js ---> Running in 4d672a4e6fac ---> 1df0203ce037 Removing intermediate container 4d672a4e6fac Successfully built 1df0203ce037 83 First, we need a new image to update to.
  • 84.
    EX08: Deployment updates $kubectl scale deploy/intro --replicas=3 deployment "intro" scaled $ $ # kubectl get pods -w ### watch the deployment as it happens $ $ $ kubectl set image deploy/intro intro=intro:0.0.2 deployment "intro" image updated $ kubectl rollout status deploy/intro deployment "intro" successfully rolled out $ $ minikube service intro 84 Next, let's make sure we have some additional copies for resilience
  • 85.
  • 86.
    EX08: Deployment updates intro-3978227742-hllw80/1 Pending 0 0s intro-1197849725-j3l1c 1/1 Terminating 0 1m intro-3978227742-hllw8 0/1 Pending 0 0s intro-3978227742-hllw8 0/1 ContainerCreating 0 0s intro-3978227742-6kb68 0/1 Pending 0 0s intro-3978227742-6kb68 0/1 Pending 0 0s intro-3978227742-6kb68 0/1 ContainerCreating 0 0s intro-3978227742-hllw8 1/1 Running 0 0s intro-1197849725-lt7fs 1/1 Terminating 0 1m intro-3978227742-5d5w9 0/1 Pending 0 0s intro-3978227742-5d5w9 0/1 Pending 0 0s intro-3978227742-5d5w9 0/1 ContainerCreating 0 0s intro-3978227742-5d5w9 1/1 Running 0 1s intro-1197849725-2nzz4 1/1 Terminating 0 2m intro-3978227742-6kb68 1/1 Running 0 1s 86 Our deployment strategy (default rollingUpdate) will create new Pods before deleting the old ones, and it will roll over some of the pods "slowly". (In this exercise, the pods come up too quickly so not much waiting.)
  • 87.
    EX09 Pod informationinside • Purpose • Show how to expose information to pod • Explore the deployment specification • Explore the `edit` command 87
  • 88.
    EX09 Pod informationinside 88 Since I have 3 pods, how do I know which one I'm hitting? Let's add the pod IP to our response.
  • 89.
    EX09 Pod informationinside $ grep Hello server.js response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n'); $ docker build -t intro:0.0.3 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 ---> faaadb4aaf9b Step 2 : EXPOSE 8080 ---> Using cache ---> 20e3088f6122 Step 3 : COPY server.js . ---> 83e6090ec153 Removing intermediate container 76bf52dc48dc Step 4 : CMD node server.js ---> Running in c08880cc596d ---> e2c588c47a0a Removing intermediate container c08880cc596d Successfully built e2c588c47a0a $ $ kubectl set image deploy/intro intro=intro:0.0.3 deployment "intro" image updated 89 Start by adding a new image (0.0.3) which pulls an environment variable called PODIP And roll this out
  • 90.
    EX09 Pod informationinside 90 It's updated, but we haven't defined the environment variable in it yet.
  • 91.
    EX09 Pod informationinside $ kubectl get deploy/intro -o yaml apiVersion: extensions/v1beta1 kind: Deployment metadata: name: intro ... spec: replicas: 3 strategy: rollingUpdate: ... template: spec: containers: - image: intro:0.0.3 name: intro ports: - containerPort: 8080 protocol: TCP ... 91 Deployments have specs just like pods do The pod spec is nested inside of the deployment spec
  • 92.
    EX09 Pod informationinside $ kubectl edit deploy/intro spec: ... template: spec: containers: - image: intro:0.0.3 name: intro env: - name: PODIP valueFrom: fieldRef: apiVersion: v1 fieldPath: status.podIP ... 92 Opens up the EDITOR Once it's written and EDITOR is exited, it'll save and cycle the pods
  • 93.
    EX09 Pod informationinside ... deployment "intro" edited $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-1725170555-306cj 1/1 Terminating 0 28m intro-1725170555-pw8zd 1/1 Terminating 0 28m intro-1725170555-qbctx 1/1 Terminating 0 28m intro-3265745252-07l0b 1/1 Running 0 3s intro-3265745252-0qw03 1/1 Running 0 4s intro-3265745252-sxz2s 1/1 Running 0 4s $ $ minikube service intro ... 93 The pods cycle...
  • 94.
    EX09 Pod informationinside 94 And we are now showing the Pod IP
  • 95.
    EX09 Pod informationinside $ kubectl get pod -o=custom-columns=NAME:.metadata.name,IP:.status.podIP NAME IP intro-3265745252-07l0b 172.17.0.11 intro-3265745252-0qw03 172.17.0.9 intro-3265745252-sxz2s 172.17.0.10 95 And confirm the Pod IPs
  • 96.
    EX09 Pod informationinside $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.11! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.9! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.10! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.9! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.10! $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.11! 96 Run it from the command line since browsers will pool the connection...
  • 97.
    EX10 Configmaps • Purpose •Explore configmaps • Explore `kubectl apply` 97
  • 98.
    EX10 Configmaps $ grep-A 2 Hello server.js response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n' + 'The configuration variable is ' + process.env.CONFIGVAR + 'n' ); $ docker build -t intro:0.0.4 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 ---> faaadb4aaf9b Step 2 : EXPOSE 8080 ---> Using cache ---> 20e3088f6122 Step 3 : COPY server.js . ---> 5f8dad93c9b3 Removing intermediate container 29b6ad3411b5 Step 4 : CMD node server.js ---> Running in c6911d08376d ---> f72a2166a111 Removing intermediate container c6911d08376d Successfully built f72a2166a111 98 Update our server to output something with more environment variables in it
  • 99.
    EX10 Configmaps $ kubectlset image deploy/intro intro=intro:0.0.4 deployment "intro" image updated $ $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-3265745252-0qw03 1/1 Terminating 0 24m intro-3265745252-7wg78 1/1 Terminating 0 29s intro-3265745252-sxz2s 1/1 Terminating 0 24m intro-4010436465-3sbgd 1/1 Running 0 4s intro-4010436465-lr2qh 1/1 Running 0 2s intro-4010436465-nchsj 1/1 Running 0 4s $ $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.8! The configuration variable is undefined 99 See that it's using it, but like with the Pod IP, it's not being set yet
  • 100.
    EX10 Configmaps $ kubectlcreate configmap --from-literal=configvar=valuea intro configmap "intro" created $ $ kubectl edit deploy/intro ... spec: template: spec: containers: - env: - name: CONFIGVAR valueFrom: configMapKeyRef: name: intro key: configvar ... deployment "intro" edited 100 Create a configmap with one key/value in it Map that configmap's key in as an environment variable
  • 101.
    EX10 Configmaps $ kubectlget pods NAME READY STATUS RESTARTS AGE intro-2942694475-948fj 1/1 Running 0 6s intro-2942694475-9tf89 1/1 Running 0 6s intro-2942694475-vh007 1/1 Running 0 6s intro-3265745252-07l0b 1/1 Terminating 0 3s intro-3265745252-0qw03 1/1 Terminating 0 4s intro-3265745252-sxz2s 1/1 Terminating 0 4s $ $ $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.10! The configuration variable is valuea 101 Deployment changed, so pods roll And now it's using the CONFIGVAR environment variable to output value
  • 102.
    EX10 Configmaps $ kubectlget cm/intro -o yaml apiVersion: v1 data: configvar: valuea kind: ConfigMap metadata: creationTimestamp: 2017-09-10T05:36:09Z name: intro namespace: default resourceVersion: "170767" selfLink: /api/v1/namespaces/default/configmaps/intro uid: f2f0527d-95e9-11e7-b635-080027358e48 $ kubectl get cm/intro -o yaml > intro-cm.yaml 102 Another way is to use the configmap spec like pod and deployment. Can get that by looking at what's in there already. Save that out to a file
  • 103.
    EX10 Configmaps $ viintro.yaml ... apiVersion: v1 data: configvar: values kind: ConfigMap metadata: name: intro ... $ $ kubectl delete cm/info configmap "intro" deleted $ $ kubectl apply -f intro-cm.yaml configmap "intro" created 103 Reduce it down to take out the Kuberentes server decoration Delete the old info `apply` tries to create/update the resource in sync with the file In this case, it creates
  • 104.
    EX10 Configmaps $ viintro.yaml ... apiVersion: v1 data: configvar: valueb kind: ConfigMap metadata: name: intro ... $ $ kubectl apply -f intro-cm.yaml configmap "intro" created $ $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.11! The configuration variable is valuea 104 Let's update the configvar And testing... we see that it hasn't updated
  • 105.
    EX10 Configmaps $ kubectlget pods NAME READY STATUS RESTARTS AGE intro-2942694475-t0dk8 1/1 Running 0 9m intro-2942694475-tlpvm 1/1 Running 0 9m intro-2942694475-vfwwf 1/1 Running 0 9m $ $ $ kubectl get pods -o name | xargs kubectl delete pod "intro-2942694475-t0dk8" deleted pod "intro-2942694475-tlpvm" deleted pod "intro-2942694475-vfwwf" deleted $ $ $ curl http://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.10! The configuration variable is valuec 105 A configmap change isn't readily identified as causing the deployment to change, these pods don't get restarted automatically. Delete the pods manually Test again, and we see that it has changed
  • 106.
    EX10 Configmaps • Canalso define config maps from files • Include the whole file verbatim: kubectl create cm test --from-file=configs=/path/to/file • Include the file as a list of key/value pairs: kubectl create cm test --from-env-file=/path/to/file 106
  • 107.
    EX11: Secrets • Purpose •Explore the Secrets resource 107
  • 108.
    EX11: Secrets $ kubectlcreate secret generic intro --from-literal=password=reallysecret secret "intro" created $ $ kubectl get secret intro -o yaml apiVersion: v1 data: password: cmVhbGx5c2VjcmV0 kind: Secret metadata: name: intro namespace: default ... type: Opaque 108 Secert is very similar to the configmap, but it's meant to have some meaning behind it (and handling is in progress) Stores as base64 encoded values available from the API
  • 109.
    EX11: Secrets $ grep-A 2 Hello server.js response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n' + 'The secret password is "' + process.env.PW + '"n' ); $ docker build -t intro:0.0.5 . Sending build context to Docker daemon 3.072kB Step 1 : FROM node:6.9.2 ---> faaadb4aaf9b Step 2 : EXPOSE 8080 ---> Using cache ---> 20e3088f6122 Step 3 : COPY server.js . ---> cb2fb7acc119 Removing intermediate container 409c93df3ec7 Step 4 : CMD node server.js ---> Running in 35465f243ef9 ---> 566294badefd Removing intermediate container 35465f243ef9 Successfully built 566294badefd 109 Can use it the same way - set up the secret as an environment variable
  • 110.
    EX11: Secrets $ catintro-deploy.yaml apiVersion: extensions/v1beta1 kind: Deployment metadata: ... spec: ... template: .. spec: containers: - env: ... - name: PW valueFrom: secretKeyRef: name: intro key: password image: intro:0.0.5 110 Updated intro deployment specification Make the password available to the app as part of the environment Update to our latest build
  • 111.
    EX11: Secrets $ kubectlapply -f intro-deploy.yaml Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply deployment "intro" configured $ $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-2942694475-fpnfh 1/1 Terminating 0 30m intro-2942694475-gqdvf 1/1 Terminating 0 30m intro-2942694475-rxn92 1/1 Terminating 0 30m intro-3353884051-kdz2c 1/1 Running 0 2m intro-3353884051-nnkln 1/1 Running 0 2m intro-3353884051-rln6s 1/1 Running 0 2m $ $ minikube service intro Opening kubernetes service default/intro in default browser... 111 Update the new deploy spec with `apply` Updated deployment causes pods to roll And see if it worked...
  • 112.
  • 113.
    EX11: Secrets • Youcan change access to secrets separate from access to configmaps (see RBAC) • Exposing via the environment may leak it (env available in other ways) --- we'll look at that next • There is work to protect the secrets more • Not allow any node access to the secret -- only ones where the secret is scheduled • Sealing it all the way to the process • Can use external secret stores - Vault, CyberArk, KMS, but mileage may vary 113
  • 114.
    EX12: Volumes • Purpose •Explore the volumes, volumeMounts fields in the spec • Explore secrets, configmaps as mounts 114
  • 115.
    EX12a: Volumes $ catserver.js var http = require('http'); var fs = require('fs'); var password = fs.readFileSync('/data/password', 'UTF8'); var handleRequest = function(request, response) { console.log('Received request for URL: ' + request.url); response.writeHead(200); response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n' + 'The secret password from env is "' + process.env.PW + '"n' + 'The secret password from fs is "' + password +'"n' ); }; var www = http.createServer(handleRequest); www.listen(8080); 115 Update to read a secret from a file system path `/data/password`
  • 116.
    EX12a: Volumes $ catintro-deploy.yaml kind: Deployment ... spec: template: ... spec: volumes: - name: intro secret: secretName: intro containers: - volumeMounts: - name: intro readOnly: true mountPath: /data ... image: intro:0.0.6 116 Update the deployment spec to map the intro secret to `/data`. This puts the `password` key at `/data/password`
  • 117.
    EX12a: Volumes $ dockerbuild -t intro:0.0.6 . Sending build context to Docker daemon 5.632kB ... $ kubectl apply -f intro-deploy.yaml deployment "intro" configured deployment "intro" configured $ kubectl get pods NAME READY STATUS RESTARTS AGE intro-2431729973-nn0t0 1/1 Running 0 4s ... intro-538233644-8tj16 1/1 Terminating 0 4m ... $ minikube service intro 117 Deploy it all - build image, apply deployment, check for changed pods, and open the browser
  • 118.
  • 119.
    EX12b: Volumes $ catserver.js var http = require('http'); var fs = require('fs'); var configvar = fs.readFileSync('/cm/configvar', 'UTF8'); var handleRequest = function(request, response) { console.log('Received request for URL: ' + request.url); response.writeHead(200); response.end('Hello Kubernetes Tutorial from ' + process.env.PODIP + '!n' + 'The configvar from fs is "' + configvar + '"n' ); }; var www = http.createServer(handleRequest); www.listen(8080); 119 Same can be done for config map
  • 120.
    EX12b: Volumes $ catintro-deploy.yaml kind: Deployment .... spec: ... template: ... spec: volumes: ... - name: cm configMap: name: intro containers: - volumeMounts: ... - name: cm readOnly: true mountPath: /cm 120 Define config map volume in deployment spec
  • 121.
    EX12b: Volumes $ dockerbuild -t intro:0.0.7 . Sending build context to Docker daemon 5.12kB ... $ kubectl apply -f intro-deploy.yaml deployment "intro" configured $ kubectl get pods NAME READY STATUS RESTARTS AGE ... intro-1784550256-3qvbn 0/1 ContainerCreating 0 3s ... intro-2431729973-m7fxw 1/1 Terminating 0 3m ... 121 Redeploy
  • 122.
    EX12b: Volumes $ curlhttp://192.168.99.100:30561/ Hello Kubernetes Tutorial from 172.17.0.3! The configvar from fs is "valuec" 122 And test...
  • 123.
    EX12: Volumes • AdditionalVolume types, but depend on environment • HostPath volume • Local volume • NFS and NAS volumes • Ceph, Gluster, ScaleIO, etc volumes • Cloud volumes - AWS EBS/EFS, GCP Persistent Disk, Azure Disk/File 123
  • 124.
    EX13: Stateful Sets •Purpose • Explore support for applications expecting consistent IPs 124
  • 125.
    EX13: Stateful Sets $cat redis-statefulset.yaml apiVersion: apps/v1beta1 kind: StatefulSet metadata: name: redis spec: serviceName: redis replicas: 1 template: metadata: labels: app: redis spec: containers: - name: redis image: redis:4.0.1 volumeMounts: - mountPath: /data name: redis-data volumes: - name: redis-data hostPath: path: /data 125 StatefulSet spec is similar to Deployment where it has a nested Pod spec inside of it hostPath volume creates a place to preserve data (separate from the Name/IP preservation)
  • 126.
    EX13: Stateful Sets $kubectl apply -f redis-statefulset.yaml statefulset "redis" created $ kubectl get statefulset NAME DESIRED CURRENT AGE redis 1 1 24s $ kubectl get pods -o wide NAME READY STATUS RESTARTS AGE IP NODE intro-1784550256-300fz 1/1 Running 0 1m 172.17.0.10 minikube intro-1784550256-cxq4v 1/1 Running 0 1m 172.17.0.9 minikube intro-1784550256-lc4l8 1/1 Running 0 1m 172.17.0.11 minikube redis-0 1/1 Running 0 1m 172.17.0.3 minikube 126 Apply just like any of the others Pod IP is allocated Create Pod names based on statefulset name with an identifier after
  • 127.
    EX13: Stateful Sets $kubectl run -it --image=redis:4.0.1 shell /bin/sh If you don't see a command prompt, try pressing enter. # # redis-cli -h 172.17.0.3 172.17.0.3:6379> 172.17.0.3:6379> set foo bar OK 172.17.0.3:6379> get foo "bar" 172.17.0.3:6379> save OK 172.17.0.3:6379> # Session ended, resume using 'kubectl attach shell-2621852270-816gf -c shell -i -t' command when the pod is running 127 Let's operate inside of the pod a little bit Connect to the server pod based on IP Set some data and to check back later Make sure the data is saved to disk
  • 128.
    EX13: Stateful Sets $kubectl delete pod redis-0 pod "redis-0" deleted $ kubectl get pods/redis-0 -o wide -w NAME READY STATUS RESTARTS AGE IP NODE redis-0 1/1 Terminating 0 13s 172.17.0.3 minikube redis-0 0/1 Terminating 0 14s <none> minikube redis-0 0/1 Terminating 0 23s <none> minikube redis-0 0/1 Terminating 0 23s <none> minikube redis-0 0/1 Pending 0 4s <none> <none> redis-0 0/1 Pending 0 4s <none> minikube redis-0 0/1 ContainerCreating 0 4s <none> minikube redis-0 1/1 Running 0 5s 172.17.0.3 minikube 128 Delete the pod, and it's recreated automatically with the same name/IP
  • 129.
    EX13: Stateful Sets $kubectl attach shell-2621852270-816gf -c shell -it If you don't see a command prompt, try pressing enter. # redis-cli -h 172.17.0.3 172.17.0.3:6379> get foo "bar" 172.17.0.3:6379> # 129 Check back in the new pod and see if the connection IP and data is preserved
  • 130.
    EX13: Stateful Sets •Tied together with volumes and storage classes, StatefulSets can help with non-12 Factor Apps • Downsides • Can't pick IP ahead of time • Affects pod scheduling (has to map to existing node) 130
  • 131.
    EX14: Services • Purpose •Explore the Service spec • Explore cluster DNS 131
  • 132.
    EX14: Services $ kubectlapply -f redis.yaml pod "redis" created $ $ kubectl get pods/redis -o wide NAME READY STATUS RESTARTS AGE IP NODE redis 1/1 Running 0 21s 172.17.0.3 minikube $ kubectl attach shell-2621852270-816gf -c shell -it If you don't see a command prompt, try pressing enter. # redis-cli -h 172.17.0.3 172.17.0.3:6379> GET foo "bar" 172.17.0.3:6379> # Session ended, resume using 'kubectl attach shell-2621852270-816gf -c shell -i -t' command when the pod is running 132
  • 133.
    EX14: Services $ kubectldelete pod/redis pod "redis" deleted $ $ kubectl scale deploy/intro --replicas=5 deployment "intro" scaled $ $ kubectl apply -f redis.yaml pod "redis" created $ kubectl get pod/redis -o wide NAME READY STATUS RESTARTS AGE IP NODE redis 1/1 Running 0 9s 172.17.0.12 minikube $ 133 New pod has new IP Delete to free up the IP Make something else take up the existing IP (.3) Recreate
  • 134.
    EX14: Services $ kubectlattach shell-2621852270-816gf -c shell -it If you don't see a command prompt, try pressing enter. # # redis-cli -h 172.17.0.3 Could not connect to Redis at 172.17.0.3:6379: Connection refused Could not connect to Redis at 172.17.0.3:6379: Connection refused not connected> exit # # redis-cli -h 172.17.0.12 172.17.0.12:6379> GET foo "bar" 172.17.0.12:6379> # Session ended, resume using 'kubectl attach shell-2621852270-816gf -c shell -i -t' command when the pod is running 134 Let's try to get the data again Using the old IP address will fail Try the new iP Data is still there
  • 135.
    EX14: Services $ kubectlget service NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE intro 10.0.0.238 <nodes> 8080:30561/TCP 1h kubernetes 10.0.0.1 <none> 443/TCP 1h $ kubectl get service/intro -o yaml apiVersion: v1 kind: Service metadata: labels: run: intro name: intro ... spec: clusterIP: 10.0.0.238 ports: - nodePort: 30561 port: 8080 protocol: TCP targetPort: 8080 selector: run: intro type: NodePort ... 135 Look at the existing services This came from the `expose` in EX02
  • 136.
    EX14: Services $ kubectlexpose pod redis --port 6379 service "redis" exposed $ kubectl get service/redis NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE redis 10.0.0.184 <none> 6379/TCP 6s $ kubectl get service/redis -o yaml apiVersion: v1 kind: Service metadata: labels: app: redis name: redis ... spec: clusterIP: 10.0.0.184 - port: 6379 protocol: TCP targetPort: 6379 selector: app: redis ... 136 This is the IP to use to connect to
  • 137.
    EX14: Services $ kubectlget service/redis -o yaml apiVersion: v1 kind: Service spec: selector: app: redis ... $ kubectl get pods/redis -o yaml apiVersion: v1 kind: Pod metadata: labels: app: redis name: redis ... 137 How the service maps to the pods
  • 138.
    EX14: Services • Ensurethat the `kube-dns` add-on is running • This provides a mapping from $SERVICENAME to $IP • FQDN: $SERVICE_NAME.$NAMESPACE.svc.$CLUSTER_DOMAIN • So can use DNS instead of L4 mappings 138 $ minikube addons list | grep kube-dns - kube-dns: enabled
  • 139.
    EX14: Services $ kubectlattach shell-2621852270-816gf -c shell -it If you don't see a command prompt, try pressing enter. # # redis-cli -h 10.0.0.184 10.0.0.184:6379> GET foo "bar" 10.0.0.184:6379> # # redis-cli -h redis redis:6379> GET foo "bar" redis:6379> # Session ended, resume using 'kubectl attach shell-2621852270-816gf -c shell -i -t' command when the pod is running 139 Try to access it via the IP address of the service Try to access it via the DNS name
  • 140.
    Where to gofrom here? 140
  • 141.
    Where to gofrom here? • Topics • Running the Kubernetes cluster itself • Persistent Volumes • Ingresses • Access Control • Operators • Helm • Multicontainer Pods, Sidecars 141
  • 142.
    October 29–November 3,2017 | San Francisco, CA www.usenix.org/lisa17 #lisa17 Remember to fill in your tutorial evaluations! Thank You! F2 - Kubernetes : Hit the Ground Running Chris "mac" McEniry
