![9

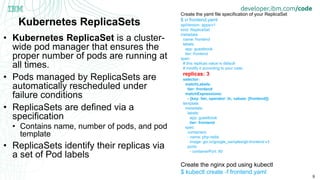

Kubernetes ReplicaSets
• Kubernetes ReplicaSet is a cluster-
wide pod manager that ensures the
proper number of pods are running at
all times.
• Pods managed by ReplicaSets are
automatically rescheduled under
failure conditions
• ReplicaSets are defined via a
specification
• Contains name, number of pods, and pod
template
• ReplicaSets identify their replicas via
a set of Pod labels
Create the yaml file specification of your ReplicaSet
$ vi frontend.yaml
apiVersion: apps/v1
kind: ReplicaSet
metadata:
name: frontend
labels:
app: guestbook
tier: frontend
spec:
# this replicas value is default
# modify it according to your case
replicas: 3
selector:
matchLabels:
tier: frontend
matchExpressions:
- {key: tier, operator: In, values: [frontend]}
template:
metadata:
labels:
app: guestbook
tier: frontend
spec:
containers:
- name: php-redis
image: gcr.io/google_samples/gb-frontend:v3
ports:
- containerPort: 80
Create the nginx pod using kubectl
$ kubectl create -f frontend.yaml](https://image.slidesharecdn.com/kube101opensourceraleightalk-180217231024/85/Kube-Overview-and-Kube-Conformance-Certification-OpenSource101-Raleigh-9-320.jpg)
![10

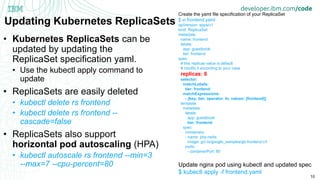

Updating Kubernetes ReplicaSets
• Kubernetes ReplicaSets can be
updated by updating the
ReplicaSet specification yaml.
• Use the kubectl apply command to
update
• ReplicaSets are easily deleted
• kubectl delete rs frontend
• kubectl delete rs frontend --
cascade=false
• ReplicaSets also support
horizontal pod autoscaling (HPA)
• kubectl autoscale rs frontend --min=3
--max=7 --cpu-percent=80
Create the yaml file specification of your ReplicaSet
$ vi frontend.yaml
apiVersion: apps/v1
kind: ReplicaSet
metadata:
name: frontend
labels:
app: guestbook
tier: frontend
spec:
# this replicas value is default
# modify it according to your case
replicas: 6
selector:
matchLabels:
tier: frontend
matchExpressions:
- {key: tier, operator: In, values: [frontend]}
template:
metadata:
labels:
app: guestbook
tier: frontend
spec:
containers:
- name: php-redis
image: gcr.io/google_samples/gb-frontend:v3
ports:
- containerPort: 80
Update nginx pod using kubectl and updated spec
$ kubectl apply -f frontend.yaml](https://image.slidesharecdn.com/kube101opensourceraleightalk-180217231024/85/Kube-Overview-and-Kube-Conformance-Certification-OpenSource101-Raleigh-10-320.jpg)
![25
Kubernetes ConfigMaps
• Kubernetes ConfigMaps provide
configuration information for
container images
• ConfigMaps are composed of
key/value pairs
• Three ways to use ConfigMaps
• File created for each entry based on
keyname
• Set value of an environment variable
• Dynamically create command line for a
container based on ConfigMap values
$ vi config.txt
apiVersion: v1
kind: ConfigMap
metadata:
name: special-config
namespace: default
data:
special.level: very
special.type: charm
Create the ConfigMap
$ kubectl create configmap --from-file=config.txt
apiVersion: v1
kind: Pod
metadata:
name: dapi-test-pod
spec:
containers:
- name: test-container
image: k8s.gcr.io/busybox
command: [ "/bin/sh", "-c", "ls /etc/config/" ]
volumeMounts:
- name: config-volume
mountPath: /etc/config
volumes:
- name: config-volume
configMap:
name: special-config](https://image.slidesharecdn.com/kube101opensourceraleightalk-180217231024/85/Kube-Overview-and-Kube-Conformance-Certification-OpenSource101-Raleigh-25-320.jpg)

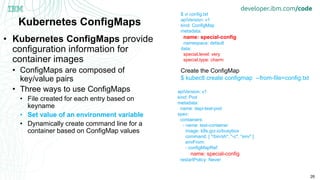

![26
Kubernetes ConfigMaps
• Kubernetes ConfigMaps provide
configuration information for
container images
• ConfigMaps are composed of
key/value pairs
• Three ways to use ConfigMaps
• File created for each entry based on
keyname
• Set value of an environment variable
• Dynamically create command line for a
container based on ConfigMap values
$ vi config.txt
apiVersion: v1
kind: ConfigMap
metadata:
name: special-config
namespace: default
data:
special.level: very
special.type: charm
Create the ConfigMap
$ kubectl create configmap --from-file=config.txt
apiVersion: v1
kind: Pod
metadata:
name: dapi-test-pod
spec:
containers:
- name: test-container
image: k8s.gcr.io/busybox
command: [ "/bin/sh", "-c", "env" ]
envFrom:
- configMapRef:
name: special-config
restartPolicy: Never](https://image.slidesharecdn.com/kube101opensourceraleightalk-180217231024/85/Kube-Overview-and-Kube-Conformance-Certification-OpenSource101-Raleigh-26-320.jpg)

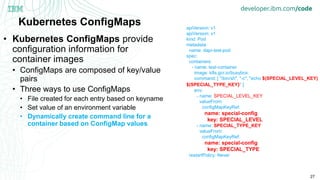

![27
Kubernetes ConfigMaps
• Kubernetes ConfigMaps provide
configuration information for
container images
• ConfigMaps are composed of key/value
pairs
• Three ways to use ConfigMaps
• File created for each entry based on keyname
• Set value of an environment variable
• Dynamically create command line for a
container based on ConfigMap values
apiVersion: v1
apiVersion: v1
kind: Pod
metadata:
name: dapi-test-pod
spec:
containers:
- name: test-container
image: k8s.gcr.io/busybox
command: [ "/bin/sh", "-c", "echo $(SPECIAL_LEVEL_KEY)
$(SPECIAL_TYPE_KEY)" ]
env:
- name: SPECIAL_LEVEL_KEY
valueFrom:
configMapKeyRef:
name: special-config
key: SPECIAL_LEVEL
- name: SPECIAL_TYPE_KEY
valueFrom:
configMapKeyRef:
name: special-config
key: SPECIAL_TYPE
restartPolicy: Never](https://image.slidesharecdn.com/kube101opensourceraleightalk-180217231024/85/Kube-Overview-and-Kube-Conformance-Certification-OpenSource101-Raleigh-27-320.jpg)
More Related Content
Similar to Kube Overview and Kube Conformance Certification OpenSource101 Raleigh
Kube Overview and Kube Conformance Certification OpenSource101 Raleigh
- 1. Introduction to Kubernetesand Overview of the Kubernetes Conformance Certification Program Brad Topol, Ph.D. IBM Distinguished Engineer Kubernetes Contributor Member, Kubernetes Conformance Workgroup

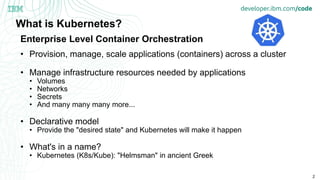

- 2. 2 What is Kubernetes? •Provision, manage, scale applications (containers) across a cluster • Manage infrastructure resources needed by applications • Volumes • Networks • Secrets • And many many many more... • Declarative model • Provide the "desired state" and Kubernetes will make it happen • What's in a name? • Kubernetes (K8s/Kube): "Helmsman" in ancient Greek Enterprise Level Container Orchestration

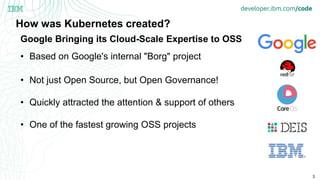

- 3. 3 How was Kubernetescreated? • Based on Google's internal "Borg" project • Not just Open Source, but Open Governance! • Quickly attracted the attention & support of others • One of the fastest growing OSS projects Google Bringing its Cloud-Scale Expertise to OSS
- 4. 4 Where is theKubernetes community? • Main source entry point: https://github.com/kubernetes/ • Communications • https://github.com/kubernetes/community/blob/master/communication.md • Mailing list / google groups: • Devs: kubernetes-dev@googlegroups.com • Users: kubernetes-users@googlegroups.com • Weekly Community Meeting • Conferences (CNCF-con & KubeCon) • Lots of SIGs (special interest groups) for focused areas/functionality • https://github.com/kubernetes/community/blob/master/sig-list.md • Each with their own slack channel, mailing lists, regular calls, ... • Leaders: Google, RedHat, CoreOS, Microsoft (Deis), IBM, Huawei

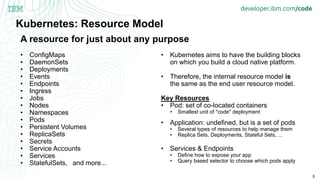

- 5. 5 Kubernetes: Resource Model •ConfigMaps • DaemonSets • Deployments • Events • Endpoints • Ingress • Jobs • Nodes • Namespaces • Pods • Persistent Volumes • ReplicaSets • Secrets • Service Accounts • Services • StatefulSets, and more... • Kubernetes aims to have the building blocks on which you build a cloud native platform. • Therefore, the internal resource model is the same as the end user resource model. Key Resources • Pod: set of co-located containers • Smallest unit of "code" deployment • Application: undefined, but is a set of pods • Several types of resources to help manage them • Replica Sets, Deployments, Stateful Sets, ... • Services & Endpoints • Define how to expose your app • Query based selector to choose which pods apply A resource for just about any purpose
- 6. 6 Kubernetes Pods • Collectionof application containers and volumes running in the same execution environment • Smallest deployable unit in a Kubernetes Cluster • Applications in the same pod • Share IP Address and port space • Share the same hostname • Can communicate using native IPC • Applications in different pods • Have different IP Addresses • Have different hostnames • Pods running on the same node might as well be on different servers • When designing pods ask, “Will these containers work correctly if they land on different machines?”

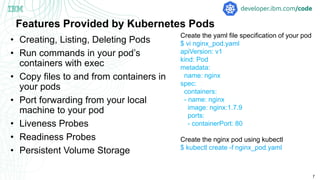

- 7. 7 Features Provided byKubernetes Pods • Creating, Listing, Deleting Pods • Run commands in your pod’s containers with exec • Copy files to and from containers in your pods • Port forwarding from your local machine to your pod • Liveness Probes • Readiness Probes • Persistent Volume Storage Create the yaml file specification of your pod $ vi nginx_pod.yaml apiVersion: v1 kind: Pod metadata: name: nginx spec: containers: - name: nginx image: nginx:1.7.9 ports: - containerPort: 80 Create the nginx pod using kubectl $ kubectl create -f nginx_pod.yaml

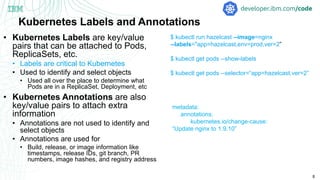

- 8. 8 Kubernetes Labels andAnnotations • Kubernetes Labels are key/value pairs that can be attached to Pods, ReplicaSets, etc. • Labels are critical to Kubernetes • Used to identify and select objects • Used all over the place to determine what Pods are in a ReplicaSet, Deployment, etc • Kubernetes Annotations are also key/value pairs to attach extra information • Annotations are not used to identify and select objects • Annotations are used for • Build, release, or image information like timestamps, release IDs, git branch, PR numbers, image hashes, and registry address $ kubectl run hazelcast --image=nginx --labels="app=hazelcast,env=prod,ver=2” $ kubectl get pods --show-labels $ kubectl get pods --selector=“app=hazelcast,ver=2” metadata: annotations: kubernetes.io/change-cause: “Update nginx to 1.9.10”
- 9. 9 Kubernetes ReplicaSets • KubernetesReplicaSet is a cluster- wide pod manager that ensures the proper number of pods are running at all times. • Pods managed by ReplicaSets are automatically rescheduled under failure conditions • ReplicaSets are defined via a specification • Contains name, number of pods, and pod template • ReplicaSets identify their replicas via a set of Pod labels Create the yaml file specification of your ReplicaSet $ vi frontend.yaml apiVersion: apps/v1 kind: ReplicaSet metadata: name: frontend labels: app: guestbook tier: frontend spec: # this replicas value is default # modify it according to your case replicas: 3 selector: matchLabels: tier: frontend matchExpressions: - {key: tier, operator: In, values: [frontend]} template: metadata: labels: app: guestbook tier: frontend spec: containers: - name: php-redis image: gcr.io/google_samples/gb-frontend:v3 ports: - containerPort: 80 Create the nginx pod using kubectl $ kubectl create -f frontend.yaml
- 10. 10 Updating Kubernetes ReplicaSets •Kubernetes ReplicaSets can be updated by updating the ReplicaSet specification yaml. • Use the kubectl apply command to update • ReplicaSets are easily deleted • kubectl delete rs frontend • kubectl delete rs frontend -- cascade=false • ReplicaSets also support horizontal pod autoscaling (HPA) • kubectl autoscale rs frontend --min=3 --max=7 --cpu-percent=80 Create the yaml file specification of your ReplicaSet $ vi frontend.yaml apiVersion: apps/v1 kind: ReplicaSet metadata: name: frontend labels: app: guestbook tier: frontend spec: # this replicas value is default # modify it according to your case replicas: 6 selector: matchLabels: tier: frontend matchExpressions: - {key: tier, operator: In, values: [frontend]} template: metadata: labels: app: guestbook tier: frontend spec: containers: - name: php-redis image: gcr.io/google_samples/gb-frontend:v3 ports: - containerPort: 80 Update nginx pod using kubectl and updated spec $ kubectl apply -f frontend.yaml
- 11. 11 Kubernetes Service Object •Kubernetes Service is essentially a load balancer for a group of replica pods • Service is assigned a virtual IP called a cluster IP • This IP address will load balance across all of the pods identified by the service’s selector • Cluster IP Addresses are stable and appropriate for giving it an IP Address • Kubernetes provides a DNS service exposed to Pods running in the cluster • Readiness checks are built in • Only ready pods are sent traffic Create an nginx deployment with 3 replicas $ kubectl run hazelcast --image=nginx --replicas=3 --labels="app=hazelcast,env=prod,ver=2” Create a service for an nginx deployment, which serves on port 80 and connects to the containers on port 8000. $ kubectl expose deployment hazelcast –port=80 – target-port=8000

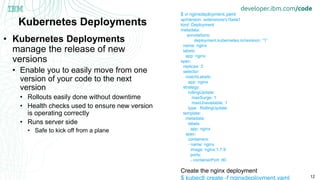

- 12. 12 Kubernetes Deployments • KubernetesDeployments manage the release of new versions • Enable you to easily move from one version of your code to the next version • Rollouts easily done without downtime • Health checks used to ensure new version is operating correctly • Runs server side • Safe to kick off from a plane $ vi nginxdeployment.yaml apiVersion: extensions/v1beta1 kind: Deployment metadata: annotations: deployment.kubernetes.io/revision: “1” name: nginx labels: app: nginx spec: replicas: 3 selector: matchLabels: app: nginx strategy: rollingUpdate: maxSurge: 1 maxUnavailable: 1 type: RollingUpdate template: metadata: labels: app: nginx spec: containers: - name: nginx image: nginx:1.7.9 ports: - containerPort: 80 Create the nginx deployment $ kubectl create -f nginxdeployment.yaml
- 13. 13 Scale a KubernetesDeployment • Scaling a Kubernetes Deployment is very straightforward • Update the replicas value in your YAML specification and use kubectl apply • $ kubectl apply --f nginx deployment.yaml $ vi nginxdeployment.yaml apiVersion: extensions/v1beta1 kind: Deployment metadata: annotations: deployment.kubernetes.io/revision: “1” name: nginx labels: app: nginx spec: replicas: 6 selector: matchLabels: app: nginx strategy: rollingUpdate: maxSurge: 1 maxUnavailable: 1 type: RollingUpdate template: metadata: labels: app: nginx spec: containers: - name: nginx image: nginx:1.7.9 ports: - containerPort: 80 Update the nginx deployment $ kubectl apply -f nginxdeployment.yaml

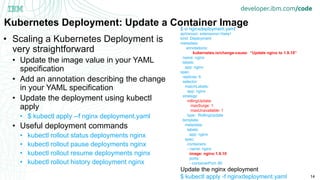

- 14. 14 Kubernetes Deployment: Updatea Container Image • Scaling a Kubernetes Deployment is very straightforward • Update the image value in your YAML specification • Add an annotation describing the change in your YAML specification • Update the deployment using kubectl apply • $ kubectl apply --f nginx deployment.yaml • Useful deployment commands • kubectl rollout status deployments nginx • kubectl rollout pause deployments nginx • kubectl rollout resume deployments nginx • kubectl rollout history deployment nginx $ vi nginxdeployment.yaml apiVersion: extensions/v1beta1 kind: Deployment metadata: annotations: kubernetes.io/change-cause: “Update nginx to 1.9.10” name: nginx labels: app: nginx spec: replicas: 6 selector: matchLabels: app: nginx strategy: rollingUpdate: maxSurge: 1 maxUnavailable: 1 type: RollingUpdate template: metadata: labels: app: nginx spec: containers: - name: nginx image: nginx:1.9.10 ports: - containerPort: 80 Update the nginx deployment $ kubectl apply -f nginxdeployment.yaml

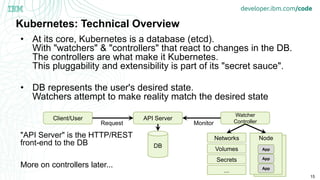

- 15. Node 15 Kubernetes: Technical Overview •At its core, Kubernetes is a database (etcd). With "watchers" & "controllers" that react to changes in the DB. The controllers are what make it Kubernetes. This pluggability and extensibility is part of its "secret sauce". • DB represents the user's desired state. Watchers attempt to make reality match the desired state "API Server" is the HTTP/REST front-end to the DB More on controllers later... DB API ServerClient/User Watcher Controller Node App App App Networks Volumes Secrets ... Request Monitor

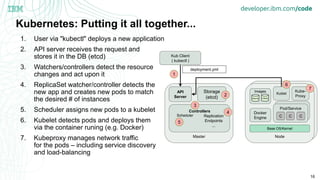

- 16. 16 Kubernetes: Putting itall together... 1. User via "kubectl" deploys a new application 2. API server receives the request and stores it in the DB (etcd) 3. Watchers/controllers detect the resource changes and act upon it 4. ReplicaSet watcher/controller detects the new app and creates new pods to match the desired # of instances 5. Scheduler assigns new pods to a kubelet 6. Kubelet detects pods and deploys them via the container runing (e.g. Docker) 7. Kubeproxy manages network traffic for the pods – including service discovery and load-balancing Node Node Pod Base OS/Kernel Docker Engine Images LibertyUbuntu Kublet Kube- Proxy Pod/Service C C C Master API Server Controllers Replication Endpoints ... Kub Client ( kubectl ) deployment.yml Storage (etcd) 7 1 2 3 4 6 Scheduler 5

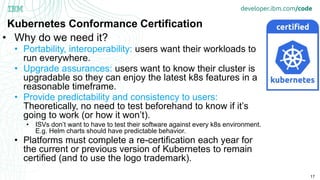

- 17. 17 Kubernetes Conformance Certification •Why do we need it? • Portability, interoperability: users want their workloads to run everywhere. • Upgrade assurances: users want to know their cluster is upgradable so they can enjoy the latest k8s features in a reasonable timeframe. • Provide predictability and consistency to users: Theoretically, no need to test beforehand to know if it’s going to work (or how it won’t). • ISVs don’t want to have to test their software against every k8s environment. E.g. Helm charts should have predictable behavior. • Platforms must complete a re-certification each year for the current or previous version of Kubernetes to remain certified (and to use the logo trademark).
- 18.

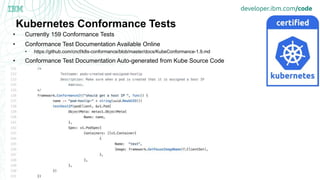

- 19. Kubernetes Conformance Tests •Currently 159 Conformance Tests • Conformance Test Documentation Available Online • https://github.com/cncf/k8s-conformance/blob/master/docs/KubeConformance-1.9.md • Conformance Test Documentation Auto-generated from Kube Source Code

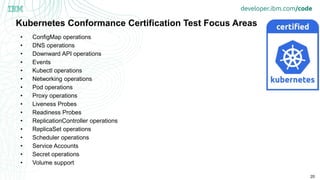

- 20. 20 Kubernetes Conformance CertificationTest Focus Areas • ConfigMap operations • DNS operations • Downward API operations • Events • Kubectl operations • Networking operations • Pod operations • Proxy operations • Liveness Probes • Readiness Probes • ReplicationController operations • ReplicaSet operations • Scheduler operations • Service Accounts • Secret operations • Volume support
- 21. A managed Kubernetesservice providing an intuitive user experience with on-going cluster management. Built-in security and isolation to enable rapid delivery of apps, while leveraging IBM Cloud Services including Weather data, IoT, Analytics, or AI capabilities with Watson. Available in six IBM regions WW, including 20+ datacenters. https://www.ibm.com/cloud/container-service IBM Cloud Container Service | ©2018 IBM Corporation Kubernetes Certified Service Provider Kubernetes Technology Partner Kubernetes Service Providers

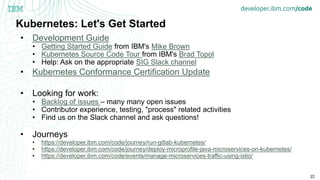

- 22. 22 Kubernetes: Let's GetStarted • Development Guide • Getting Started Guide from IBM's Mike Brown • Kubernetes Source Code Tour from IBM's Brad Topol • Help: Ask on the appropriate SIG Slack channel • Kubernetes Conformance Certification Update • Looking for work: • Backlog of issues – many many open issues • Contributor experience, testing, "process" related activities • Find us on the Slack channel and ask questions! • Journeys • https://developer.ibm.com/code/journey/run-gitlab-kubernetes/ • https://developer.ibm.com/code/journey/deploy-microprofile-java-microservices-on-kubernetes/ • https://developer.ibm.com/code/events/manage-microservices-traffic-using-istio/
- 23.
- 24.
- 25. 25 Kubernetes ConfigMaps • KubernetesConfigMaps provide configuration information for container images • ConfigMaps are composed of key/value pairs • Three ways to use ConfigMaps • File created for each entry based on keyname • Set value of an environment variable • Dynamically create command line for a container based on ConfigMap values $ vi config.txt apiVersion: v1 kind: ConfigMap metadata: name: special-config namespace: default data: special.level: very special.type: charm Create the ConfigMap $ kubectl create configmap --from-file=config.txt apiVersion: v1 kind: Pod metadata: name: dapi-test-pod spec: containers: - name: test-container image: k8s.gcr.io/busybox command: [ "/bin/sh", "-c", "ls /etc/config/" ] volumeMounts: - name: config-volume mountPath: /etc/config volumes: - name: config-volume configMap: name: special-config
- 26. 26 Kubernetes ConfigMaps • KubernetesConfigMaps provide configuration information for container images • ConfigMaps are composed of key/value pairs • Three ways to use ConfigMaps • File created for each entry based on keyname • Set value of an environment variable • Dynamically create command line for a container based on ConfigMap values $ vi config.txt apiVersion: v1 kind: ConfigMap metadata: name: special-config namespace: default data: special.level: very special.type: charm Create the ConfigMap $ kubectl create configmap --from-file=config.txt apiVersion: v1 kind: Pod metadata: name: dapi-test-pod spec: containers: - name: test-container image: k8s.gcr.io/busybox command: [ "/bin/sh", "-c", "env" ] envFrom: - configMapRef: name: special-config restartPolicy: Never
- 27. 27 Kubernetes ConfigMaps • KubernetesConfigMaps provide configuration information for container images • ConfigMaps are composed of key/value pairs • Three ways to use ConfigMaps • File created for each entry based on keyname • Set value of an environment variable • Dynamically create command line for a container based on ConfigMap values apiVersion: v1 apiVersion: v1 kind: Pod metadata: name: dapi-test-pod spec: containers: - name: test-container image: k8s.gcr.io/busybox command: [ "/bin/sh", "-c", "echo $(SPECIAL_LEVEL_KEY) $(SPECIAL_TYPE_KEY)" ] env: - name: SPECIAL_LEVEL_KEY valueFrom: configMapKeyRef: name: special-config key: SPECIAL_LEVEL - name: SPECIAL_TYPE_KEY valueFrom: configMapKeyRef: name: special-config key: SPECIAL_TYPE restartPolicy: Never

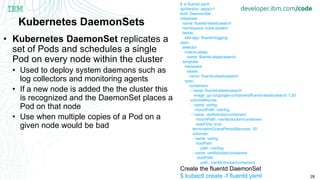

- 28. 28 Kubernetes DaemonSets • KubernetesDaemonSet replicates a set of Pods and schedules a single Pod on every node within the cluster • Used to deploy system daemons such as log collectors and monitoring agents • If a new node is added the the cluster this is recognized and the DaemonSet places a Pod on that node • Use when multiple copies of a Pod on a given node would be bad $ vi fluentd.yaml apiVersion: apps/v1 kind: DaemonSet metadata: name: fluentd-elasticsearch namespace: kube-system labels: k8s-app: fluentd-logging spec: selector: matchLabels: name: fluentd-elasticsearch template: metadata: labels: name: fluentd-elasticsearch spec: containers: - name: fluentd-elasticsearch image: gcr.io/google-containers/fluentd-elasticsearch:1.20 volumeMounts: - name: varlog mountPath: /var/log - name: varlibdockercontainers mountPath: /var/lib/docker/containers readOnly: true terminationGracePeriodSeconds: 30 volumes: - name: varlog hostPath: path: /var/log - name: varlibdockercontainers hostPath: path: /var/lib/docker/containers Create the fluentd DaemonSet $ kubectl create -f fluentd.yaml
