1. Knowledge graph construction with a façade
The SPARQL Anything Project
Enrico Daga - The Open University
Knowledge Graph Construction W3C Community Group
Invited talk, online, 14/02/2022

2. Luigi Asprino
University of Bologna
Enrico Daga
The Open University
Aldo Gangemi
University of Bologna
Justin Dowdy
https://github.com/
justin2004
Paul Warren
The Open University
Paul Mulholland
The Open University
This project has received funding from the European Union’s Horizon 2020 research and
innovation programme under grant agreement GA101004746.
The communication reflects only the author’s view and the Research Executive Agency is not
responsible for any use that may be made of the information it contains.
Credits

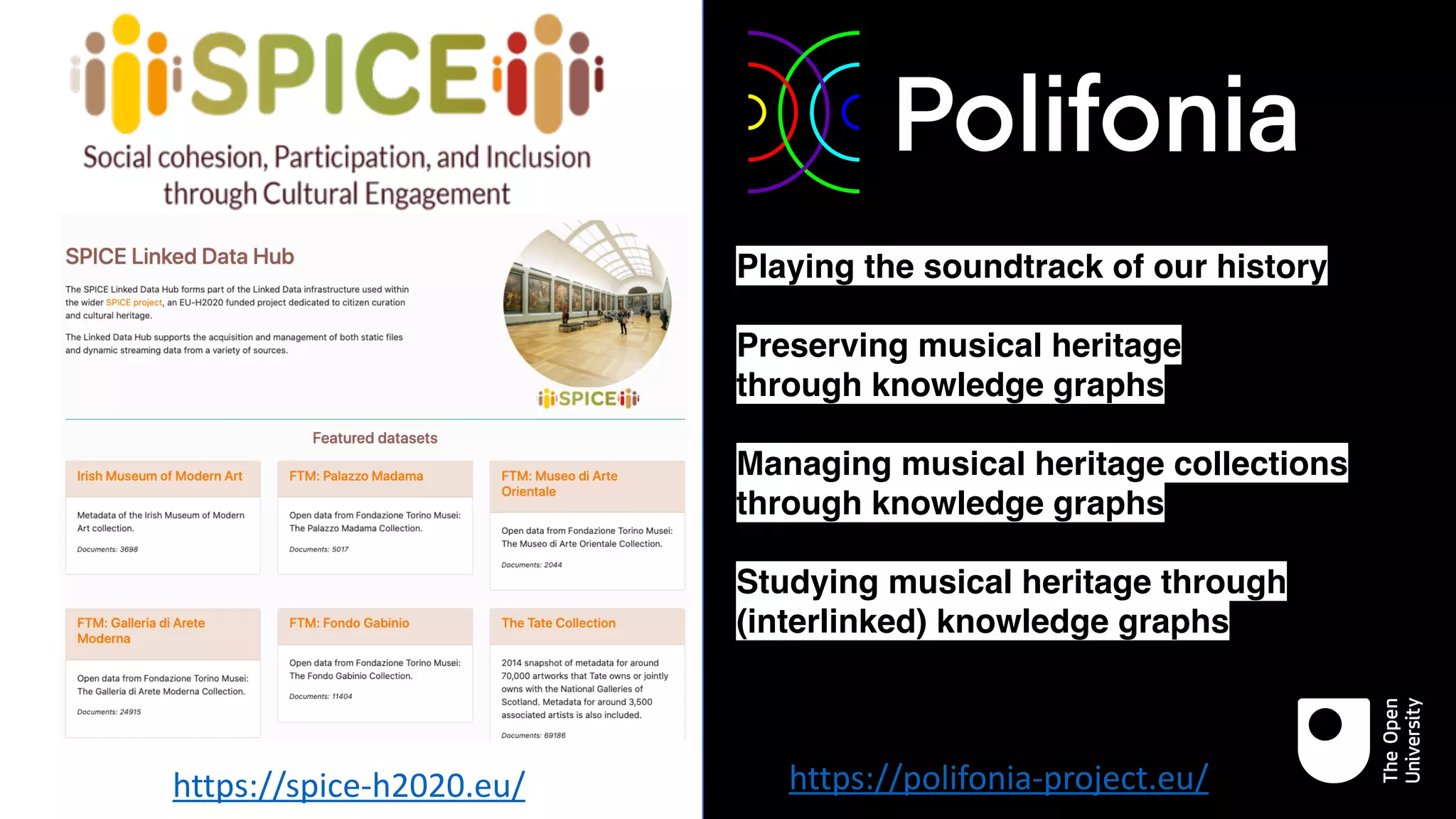

3. Playing the soundtrack of our history
Preserving musical heritage
through knowledge graphs
Managing musical heritage collections
through knowledge graphs
Studying musical heritage through
(interlinked) knowledge graphs
https://spice-h2020.eu/ https://polifonia-project.eu/

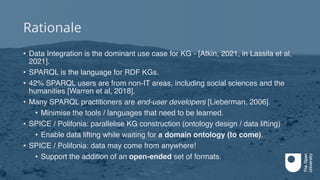

4. Rationale
• Data Integration is the dominant use case for KG - [Atkin, 2021, in Lassila et al,
2021].
• SPARQL is the language for RDF KGs.
• 42% SPARQL users are from non-IT areas, including social sciences and the
humanities [Warren et al, 2018].
• Many SPARQL practitioners are end-user developers [Lieberman, 2006].
• Minimise the tools / languages that need to be learned.
• SPICE / Polifonia: parallelise KG construction (ontology design / data lifting)
• Enable data lifting while waiting for a domain ontology (to come).
• SPICE / Polifonia: data may come from anywhere!
• Support the addition of an open-ended set of formats.

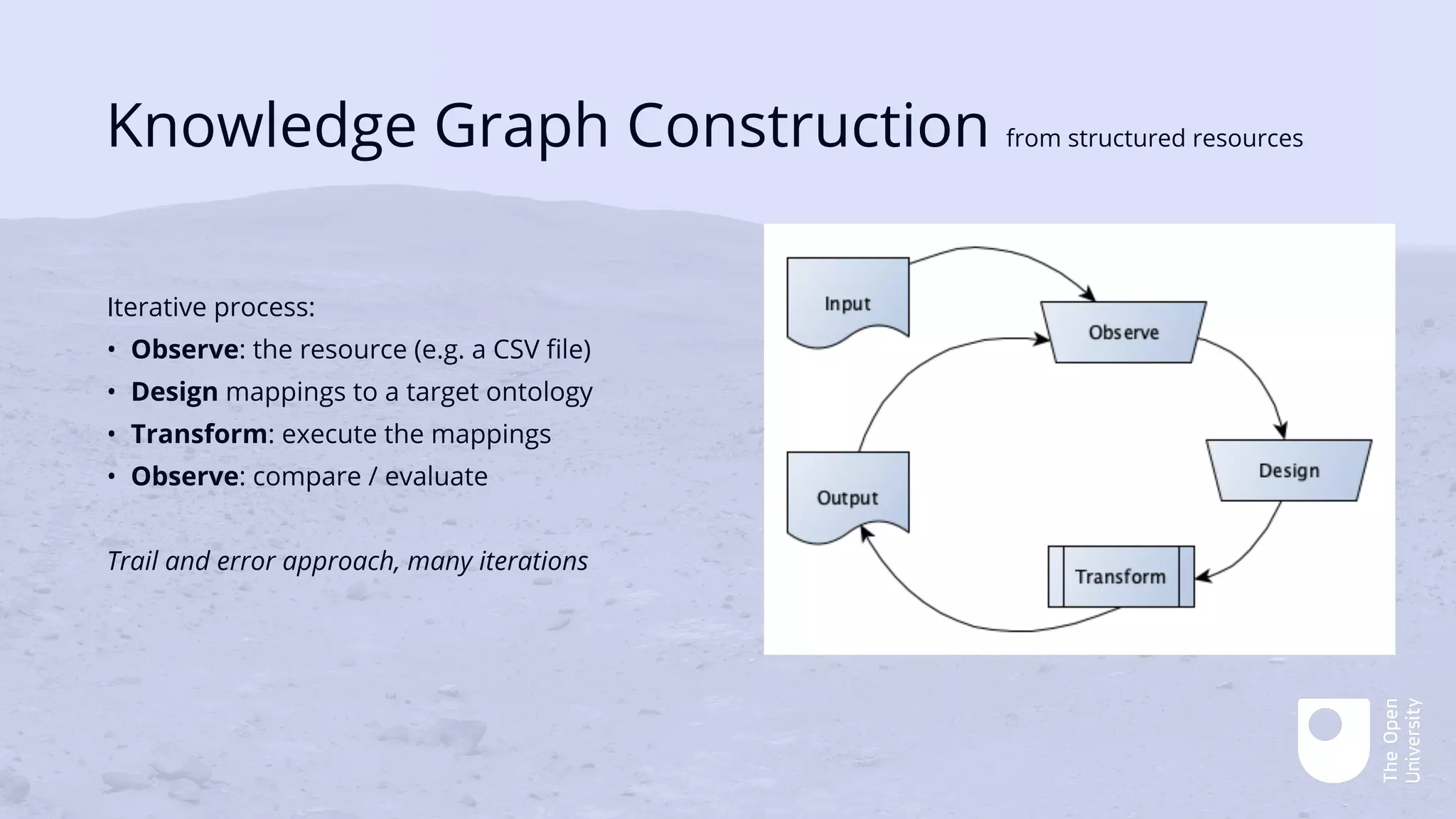

5. Knowledge Graph Construction from structured resources
Iterative process:
• Observe: the resource (e.g. a CSV file)
• Design mappings to a target ontology
• Transform: execute the mappings
• Observe: compare / evaluate
Trail and error approach, many iterations

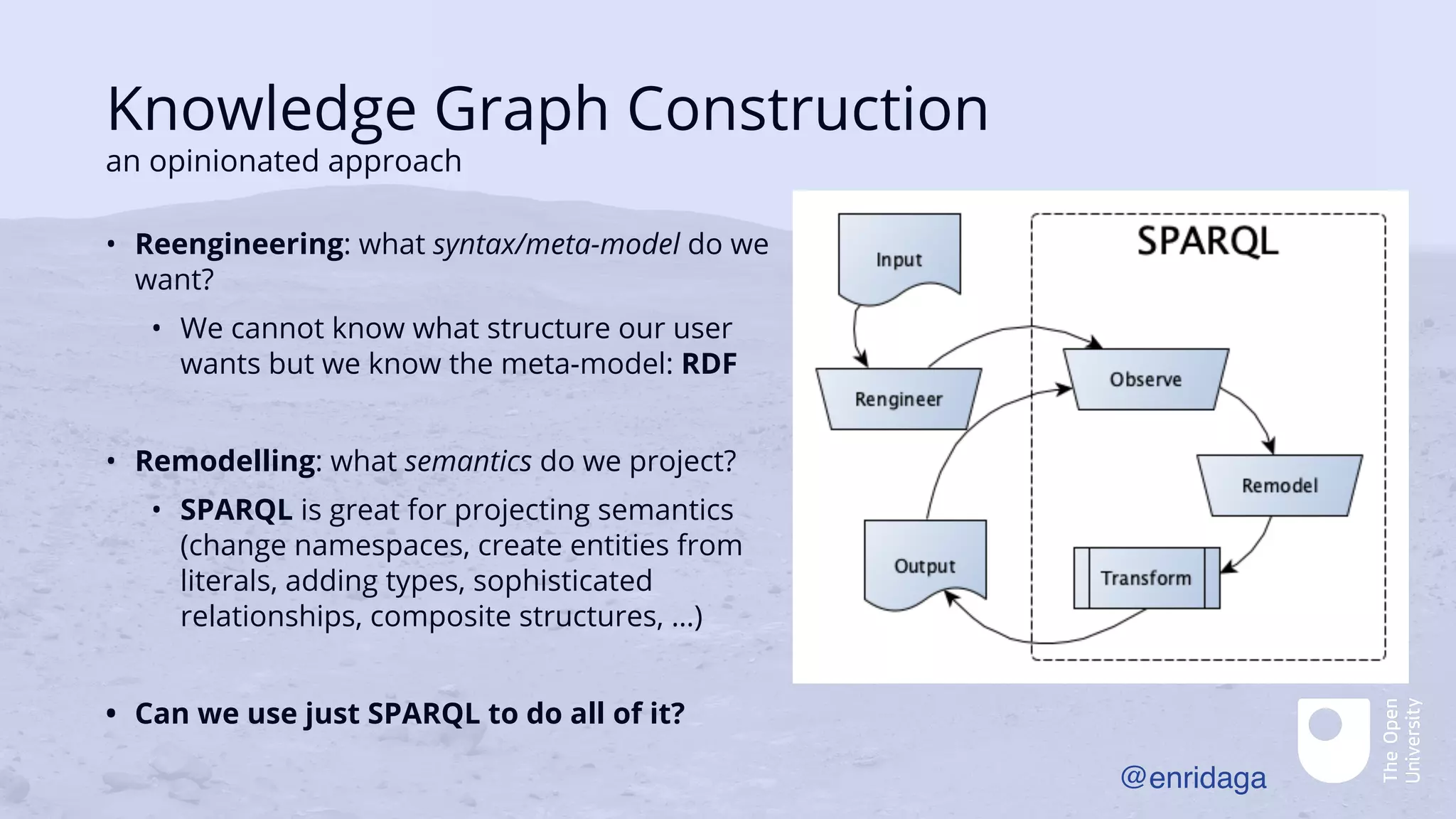

6. Knowledge Graph Construction
an opinionated approach
• Reengineering: what syntax/meta-model do we
want?
• We cannot know what structure our user
wants but we know the meta-model: RDF
• Remodelling: what semantics do we project?
• SPARQL is great for projecting semantics
(change namespaces, create entities from
literals, adding types, sophisticated
relationships, composite structures, …)
• Can we use just SPARQL to do all of it?
@enridaga

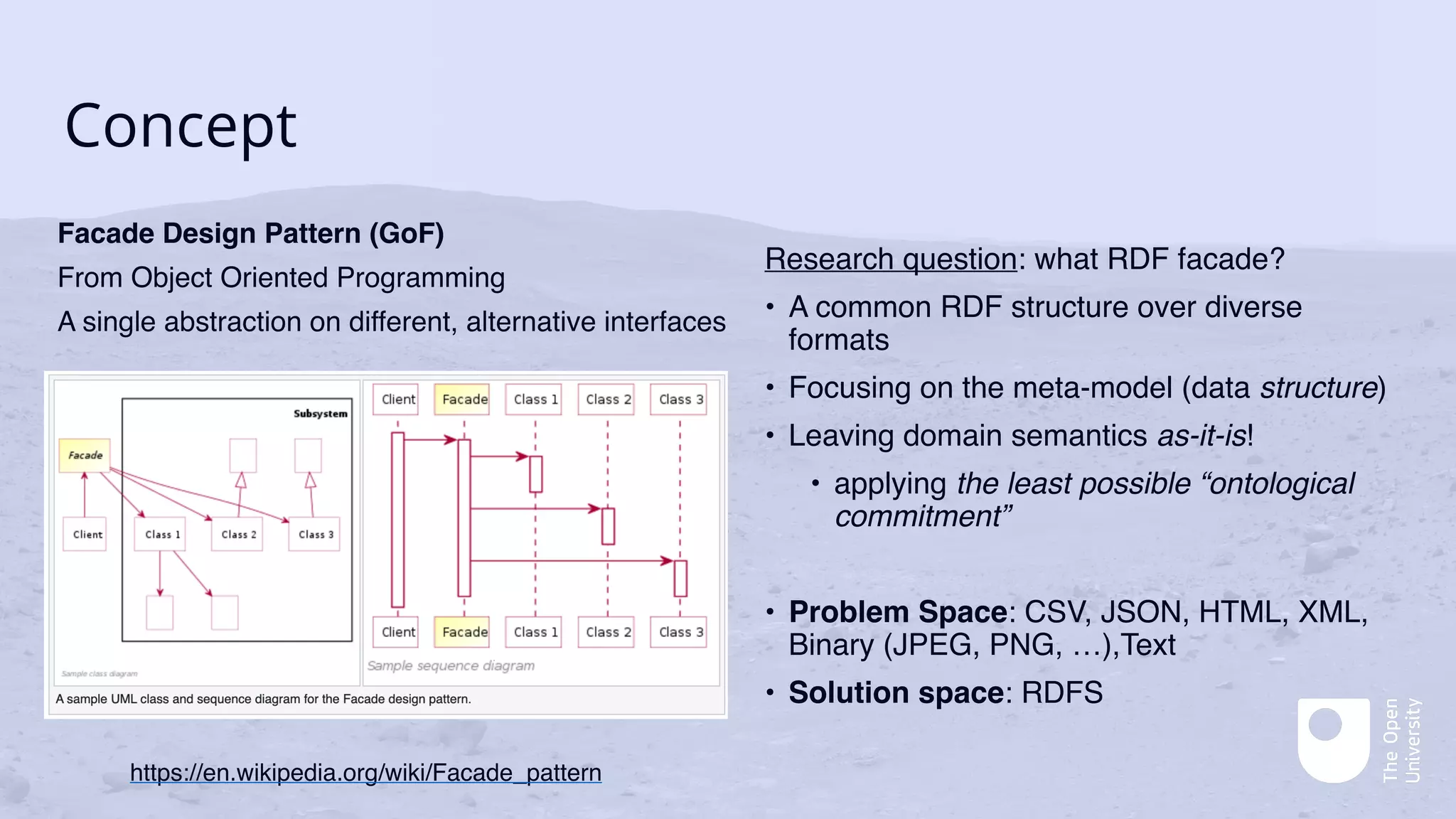

7. Concept
Facade Design Pattern (GoF)
From Object Oriented Programming
A single abstraction on different, alternative interfaces
https://en.wikipedia.org/wiki/Facade_pattern
Research question: what RDF facade?
• A common RDF structure over diverse
formats
• Focusing on the meta-model (data structure)
• Leaving domain semantics as-it-is!
• applying the least possible “ontological
commitment”
• Problem Space: CSV, JSON, HTML, XML,
Binary (JPEG, PNG, …),Text
• Solution space: RDFS

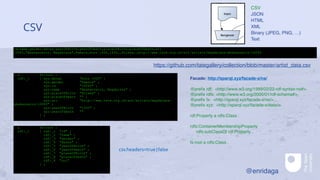

8. CSV
• Resource
Facade: http://sparql.xyz/facade-x/ns/
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>.
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#>.
@prefix fx: <http://sparql.xyz/facade-x/ns/>.
@prefix xyz: <http://sparql.xyz/facade-x/data/>.
rdf:Property a rdfs:Class .
rdfs:ContainerMembershipProperty
rdfs:subClassOf rdf:Property .
fx:root a rdfs:Class .
id,name,gender,dates,yearOfBirth,yearOfDeath,placeOfBirth,placeOfDeath,url
10093,"Abakanowicz, Magdalena",Female,born 1930,1930,,Polska,,http://www.tate.org.uk/art/artists/magdalena-abakanowicz-10093
…
https://github.com/tategallery/collection/blob/master/artist_data.csv
[ a fx:root ;
rdf:_1 [ xyz:dates "born 1930" ;
xyz:gender "Female" ;
xyz:id "10093" ;
xyz:name "Abakanowicz, Magdalena" ;
xyz:placeOfBirth "Polska" ;
xyz:placeOfDeath "" ;
xyz:url "http://www.tate.org.uk/art/artists/magdalena-
abakanowicz-10093" ;
xyz:yearOfBirth "1930" ;
xyz:yearOfDeath ""
] ;
csv.headers=true|false
[ a fx:root ;
rdf:_1 [ rdf:_1 "id" ;
rdf:_2 "name" ;
rdf:_3 "gender" ;
rdf:_4 "dates" ;
rdf:_5 "yearOfBirth" ;
rdf:_6 "yearOfDeath" ;
rdf:_7 "placeOfBirth" ;
rdf:_8 “placeOfDeath" ;
rdf:_9 "url"
] ;
@enridaga
CSV
JSON
HTML
XML
Binary (JPEG, PNG, …)
Text

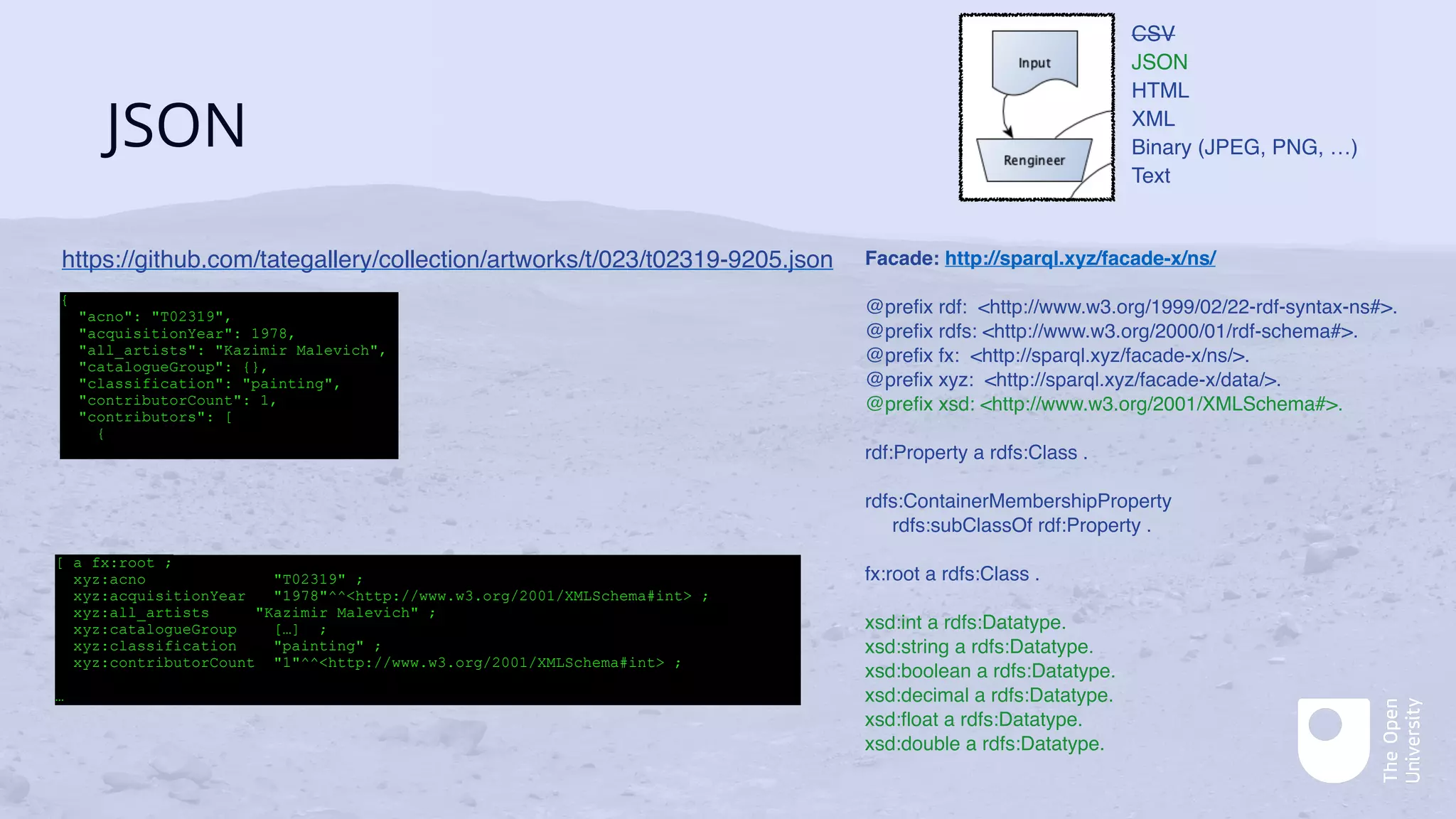

9. JSON
Facade: http://sparql.xyz/facade-x/ns/
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>.
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#>.
@prefix fx: <http://sparql.xyz/facade-x/ns/>.
@prefix xyz: <http://sparql.xyz/facade-x/data/>.
@prefix xsd: <http://www.w3.org/2001/XMLSchema#>.
rdf:Property a rdfs:Class .
rdfs:ContainerMembershipProperty
rdfs:subClassOf rdf:Property .
fx:root a rdfs:Class .
xsd:int a rdfs:Datatype.
xsd:string a rdfs:Datatype.
xsd:boolean a rdfs:Datatype.
xsd:decimal a rdfs:Datatype.
xsd:float a rdfs:Datatype.
xsd:double a rdfs:Datatype.
https://github.com/tategallery/collection/artworks/t/023/t02319-9205.json
[ a fx:root ;
xyz:acno "T02319" ;
xyz:acquisitionYear "1978"^^<http://www.w3.org/2001/XMLSchema#int> ;
xyz:all_artists "Kazimir Malevich" ;
xyz:catalogueGroup […] ;
xyz:classification "painting" ;
xyz:contributorCount "1"^^<http://www.w3.org/2001/XMLSchema#int> ;
…
{
"acno": "T02319",
"acquisitionYear": 1978,
"all_artists": "Kazimir Malevich",
"catalogueGroup": {},
"classification": "painting",
"contributorCount": 1,
"contributors": [
{
CSV
JSON
HTML
XML
Binary (JPEG, PNG, …)
Text

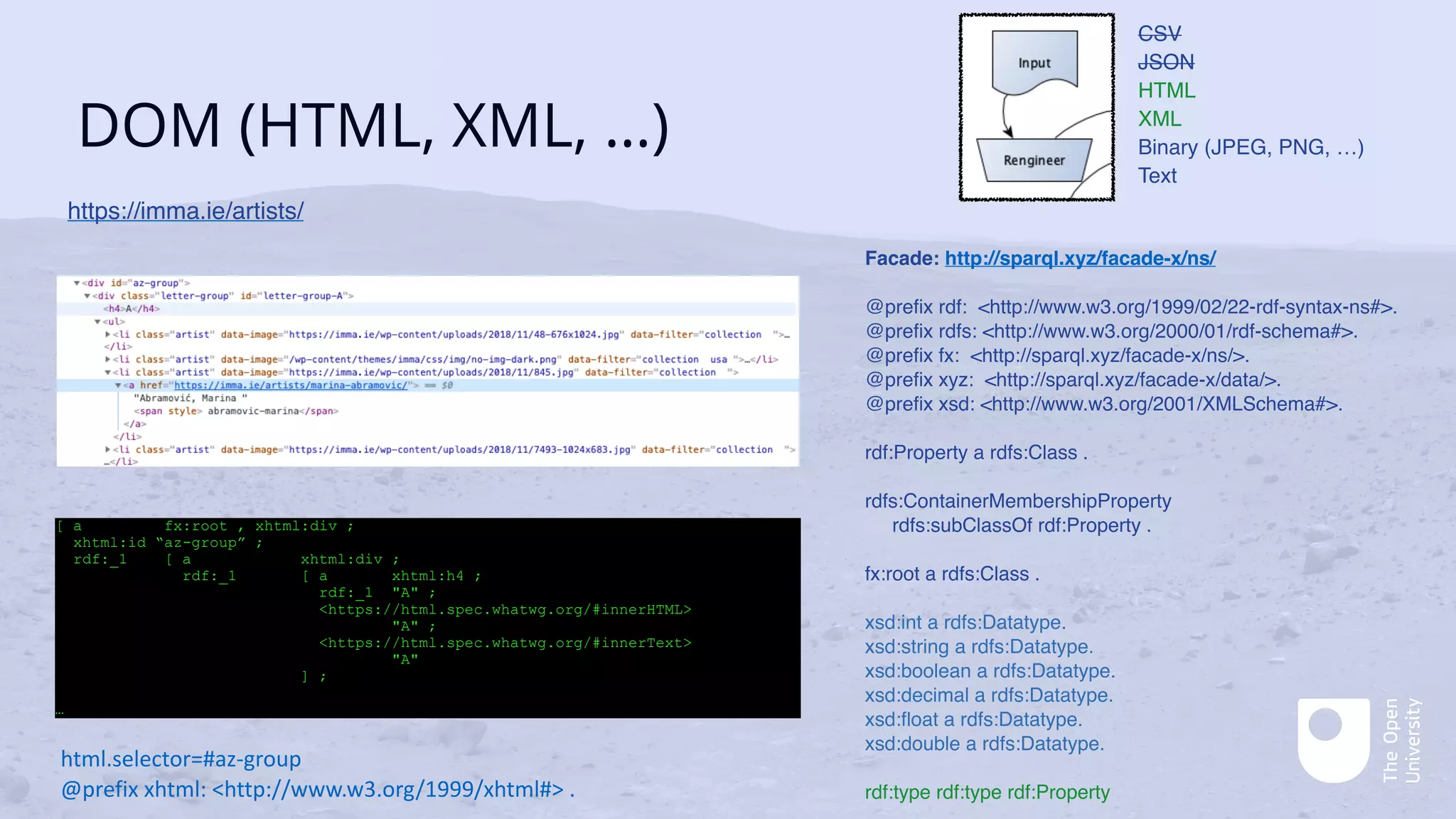

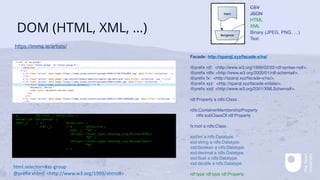

10. DOM (HTML, XML, …)
Facade: http://sparql.xyz/facade-x/ns/
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>.
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#>.
@prefix fx: <http://sparql.xyz/facade-x/ns/>.
@prefix xyz: <http://sparql.xyz/facade-x/data/>.
@prefix xsd: <http://www.w3.org/2001/XMLSchema#>.
rdf:Property a rdfs:Class .
rdfs:ContainerMembershipProperty
rdfs:subClassOf rdf:Property .
fx:root a rdfs:Class .
xsd:int a rdfs:Datatype.
xsd:string a rdfs:Datatype.
xsd:boolean a rdfs:Datatype.
xsd:decimal a rdfs:Datatype.
xsd:float a rdfs:Datatype.
xsd:double a rdfs:Datatype.
rdf:type rdf:type rdf:Property
https://imma.ie/artists/
[ a fx:root , xhtml:div ;
xhtml:id “az-group” ;
rdf:_1 [ a xhtml:div ;
rdf:_1 [ a xhtml:h4 ;
rdf:_1 "A" ;
<https://html.spec.whatwg.org/#innerHTML>
"A" ;
<https://html.spec.whatwg.org/#innerText>
"A"
] ;
…
html.selector=#az-group
@prefix xhtml: <http://www.w3.org/1999/xhtml#> .
CSV
JSON
HTML
XML
Binary (JPEG, PNG, …)
Text

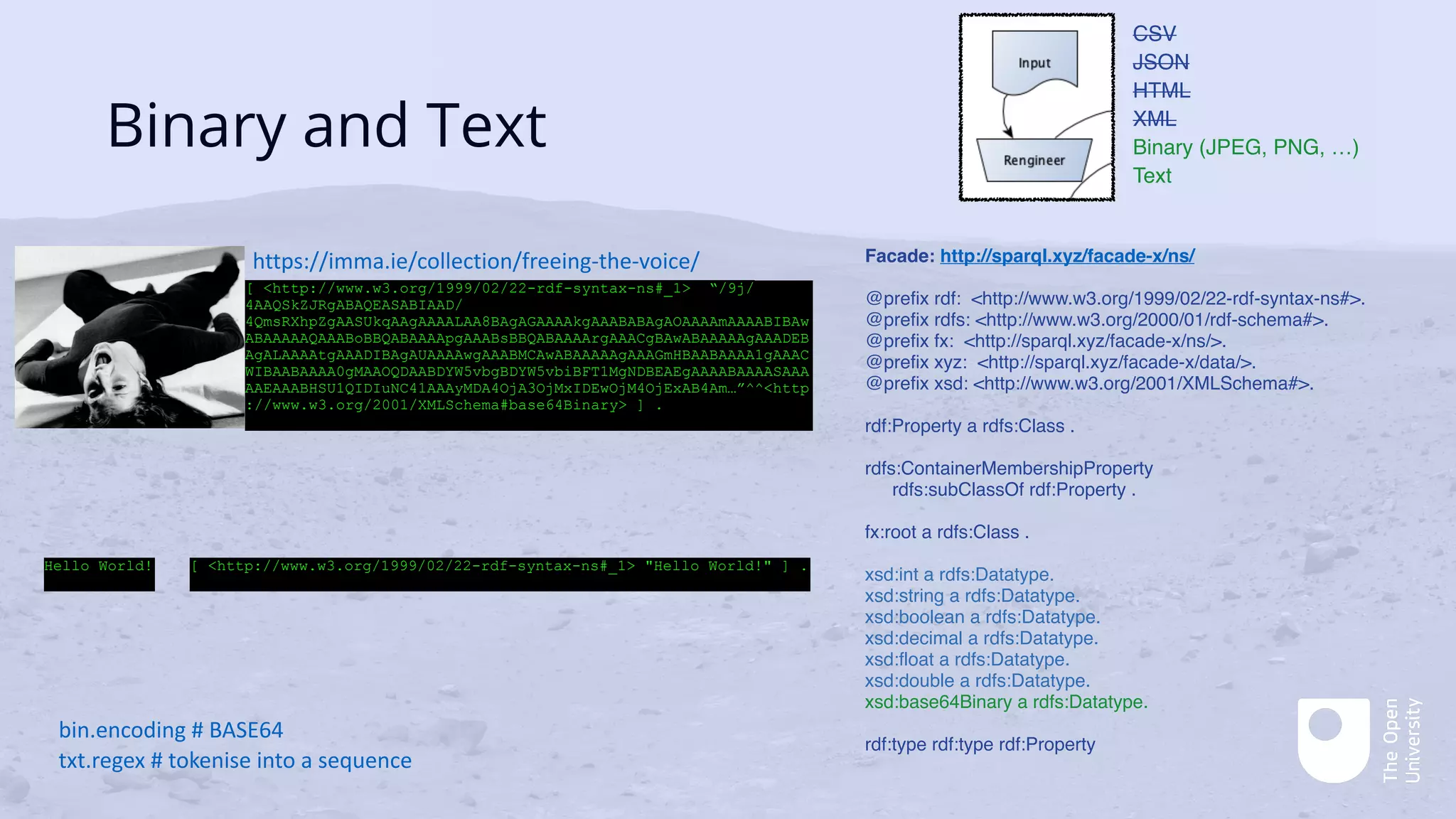

11. Binary and Text
Facade: http://sparql.xyz/facade-x/ns/
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>.
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#>.
@prefix fx: <http://sparql.xyz/facade-x/ns/>.
@prefix xyz: <http://sparql.xyz/facade-x/data/>.
@prefix xsd: <http://www.w3.org/2001/XMLSchema#>.
rdf:Property a rdfs:Class .
rdfs:ContainerMembershipProperty
rdfs:subClassOf rdf:Property .
fx:root a rdfs:Class .
xsd:int a rdfs:Datatype.
xsd:string a rdfs:Datatype.
xsd:boolean a rdfs:Datatype.
xsd:decimal a rdfs:Datatype.
xsd:float a rdfs:Datatype.
xsd:double a rdfs:Datatype.
xsd:base64Binary a rdfs:Datatype.
rdf:type rdf:type rdf:Property
[ <http://www.w3.org/1999/02/22-rdf-syntax-ns#_1> “/9j/
4AAQSkZJRgABAQEASABIAAD/
4QmsRXhpZgAASUkqAAgAAAALAA8BAgAGAAAAkgAAABABAgAOAAAAmAAAABIBAw
ABAAAAAQAAABoBBQABAAAApgAAABsBBQABAAAArgAAACgBAwABAAAAAgAAADEB
AgALAAAAtgAAADIBAgAUAAAAwgAAABMCAwABAAAAAgAAAGmHBAABAAAA1gAAAC
WIBAABAAAA0gMAAOQDAABDYW5vbgBDYW5vbiBFT1MgNDBEAEgAAAABAAAASAAA
AAEAAABHSU1QIDIuNC41AAAyMDA4OjA3OjMxIDEwOjM4OjExAB4Am…”^^<http
://www.w3.org/2001/XMLSchema#base64Binary> ] .
bin.encoding # BASE64
txt.regex # tokenise into a sequence
CSV
JSON
HTML
XML
Binary (JPEG, PNG, …)
Text
https://imma.ie/collection/freeing-the-voice/
Hello World! [ <http://www.w3.org/1999/02/22-rdf-syntax-ns#_1> "Hello World!" ] .

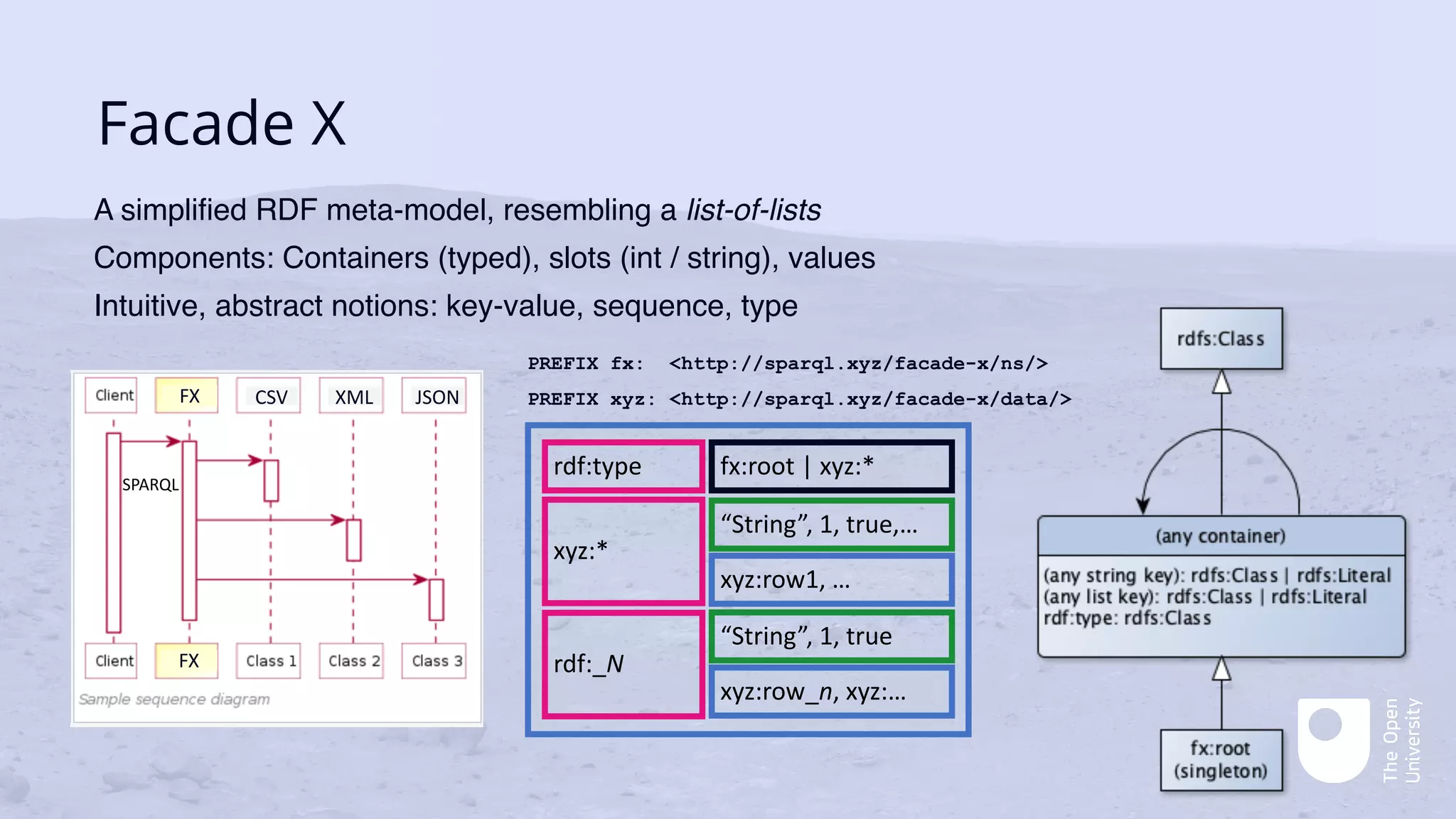

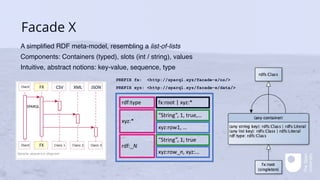

12. Facade X
A simplified RDF meta-model, resembling a list-of-lists
Components: Containers (typed), slots (int / string), values
Intuitive, abstract notions: key-value, sequence, type
“String”, 1, true,…
“String”, 1, true
xyz:row1, …
xyz:row_n, xyz:…
fx:root | xyz:*
rdf:type
xyz:*
rdf:_N
PREFIX fx: <http://sparql.xyz/facade-x/ns/>
PREFIX xyz: <http://sparql.xyz/facade-x/data/>
CSV XML JSON
FX
FX
SPARQL

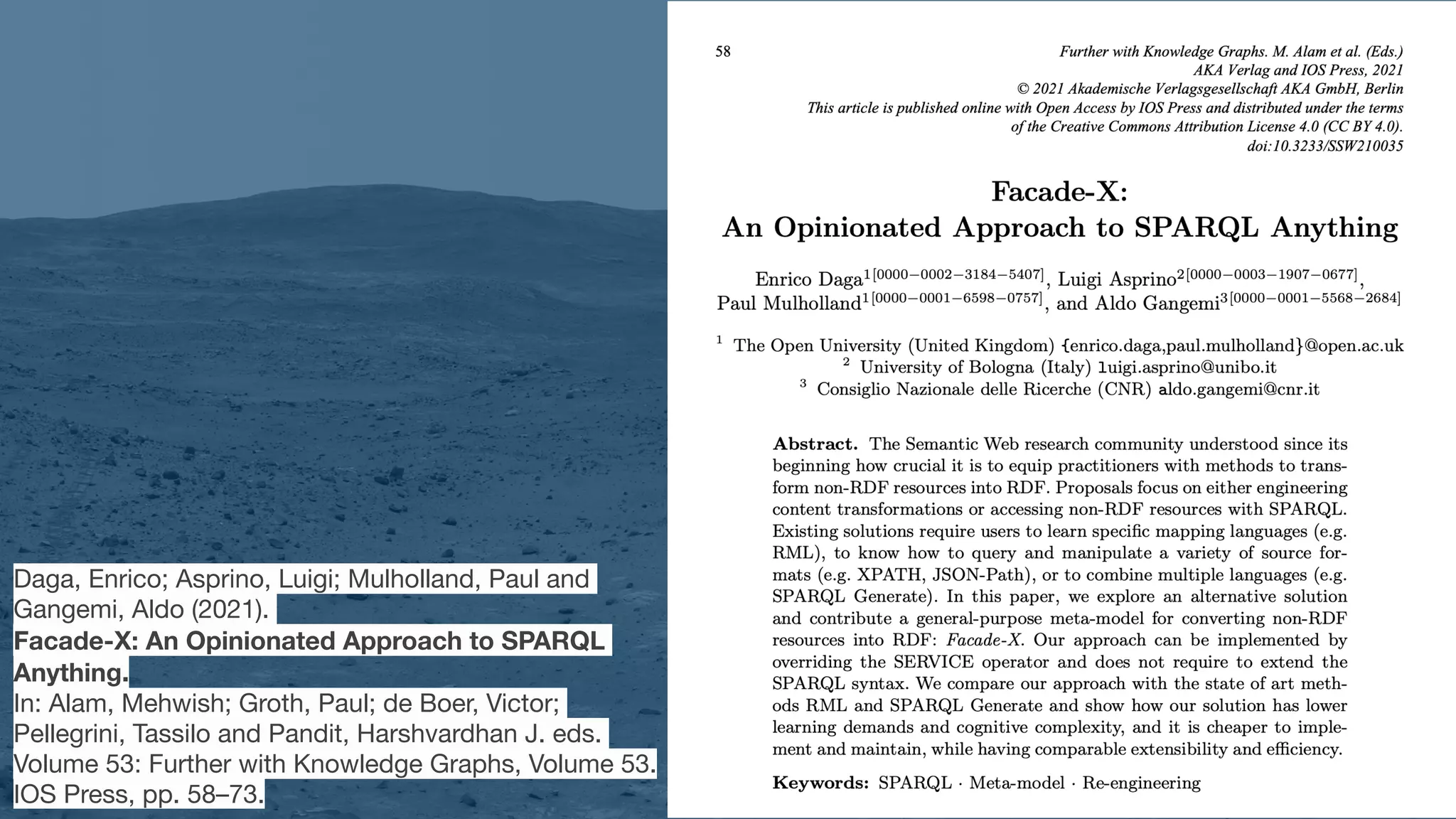

14. Daga, Enrico; Asprino, Luigi; Mulholland, Paul and
Gangemi, Aldo (2021).
Facade-X: An Opinionated Approach to SPARQL
Anything.
In: Alam, Mehwish; Groth, Paul; de Boer, Victor;
Pellegrini, Tassilo and Pandit, Harshvardhan J. eds.
Volume 53: Further with Knowledge Graphs, Volume 53.
IOS Press, pp. 58–73.

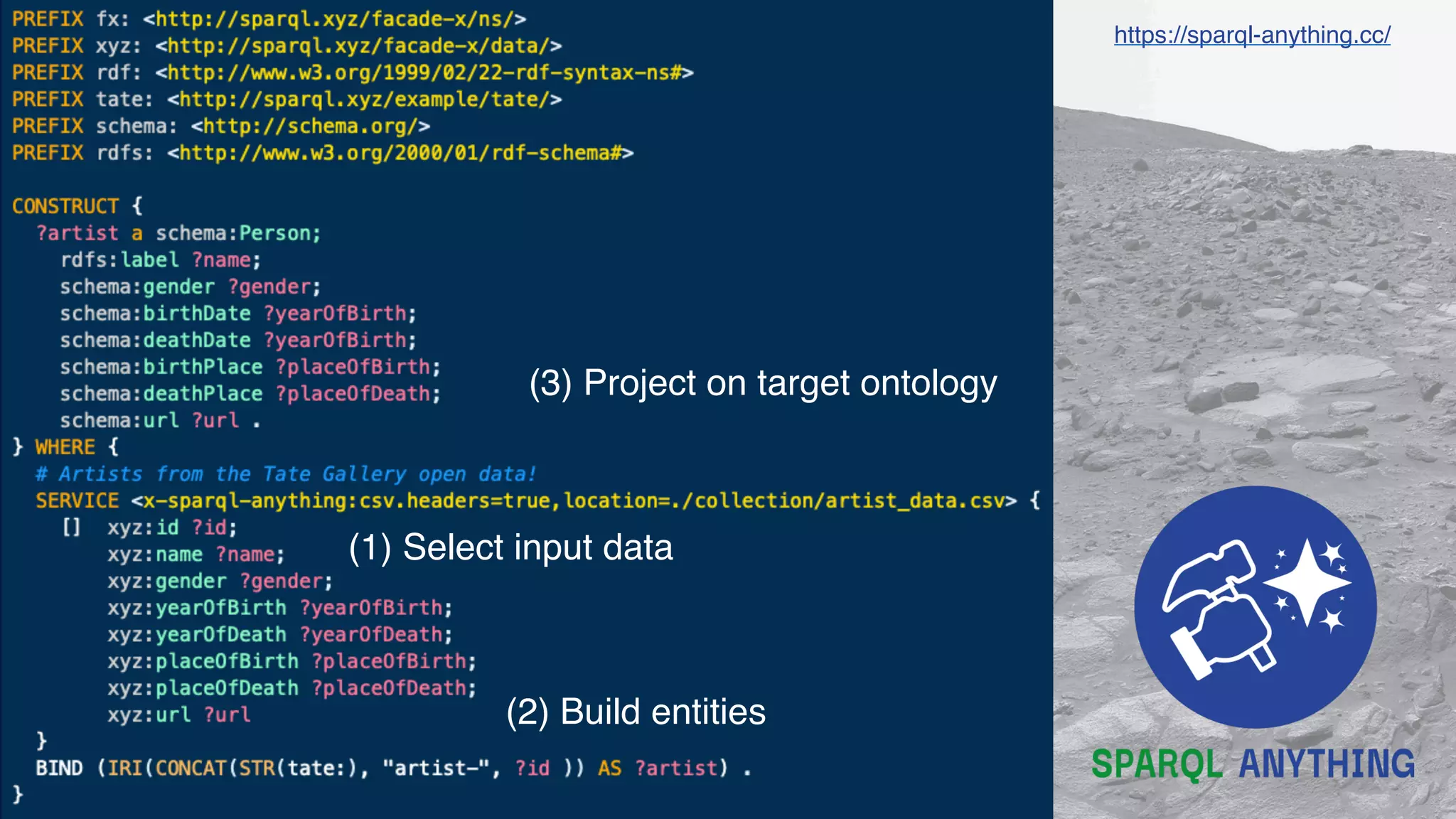

15. https://sparql-anything.cc/
(3) Project on target ontology
(1) Select input data
(2) Build entities

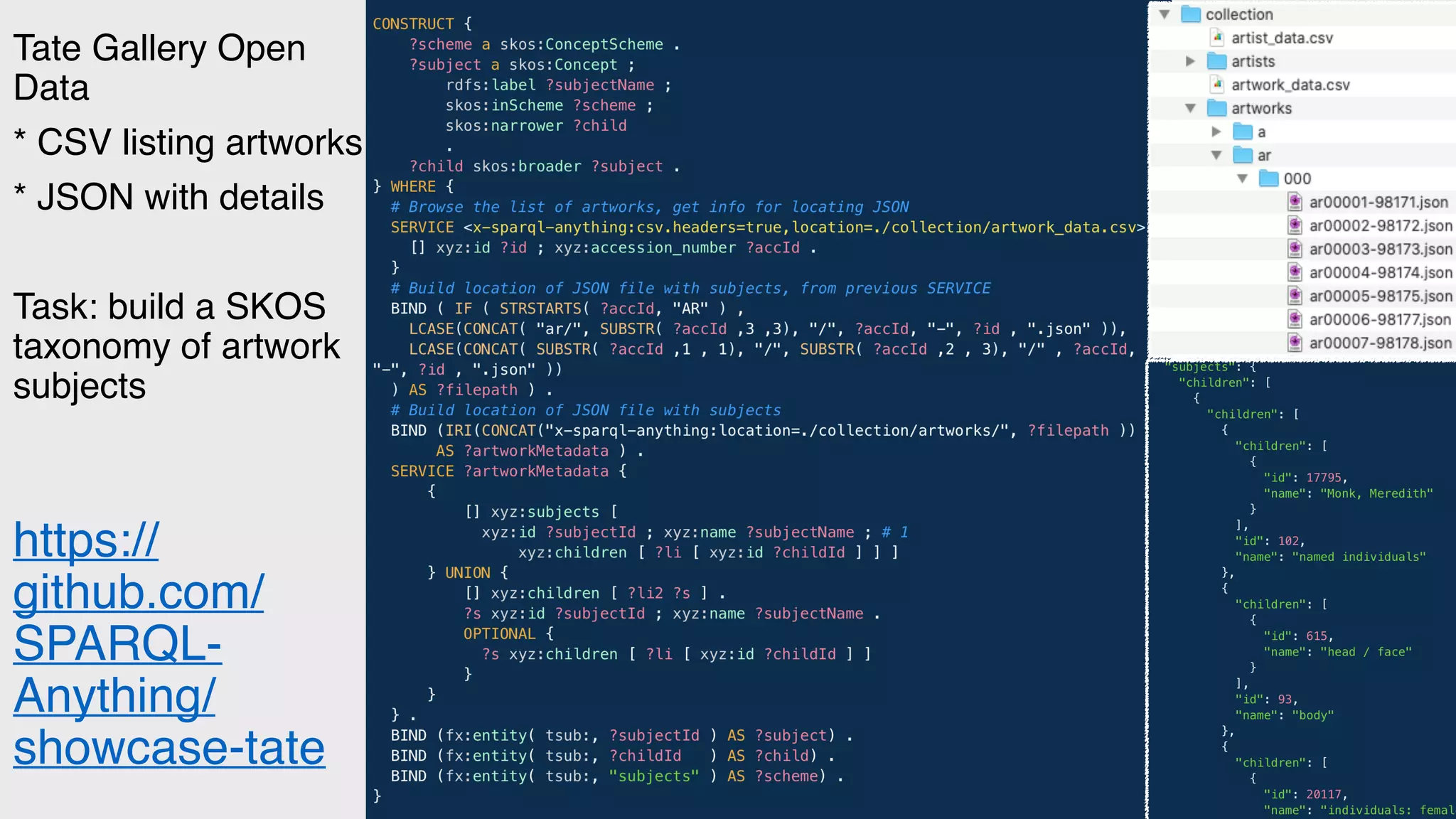

16. https://
github.com/
SPARQL-
Anything/
showcase-tate
Tate Gallery Open
Data
* CSV listing artworks
* JSON with details
Task: build a SKOS
taxonomy of artwork
subjects
@enridaga

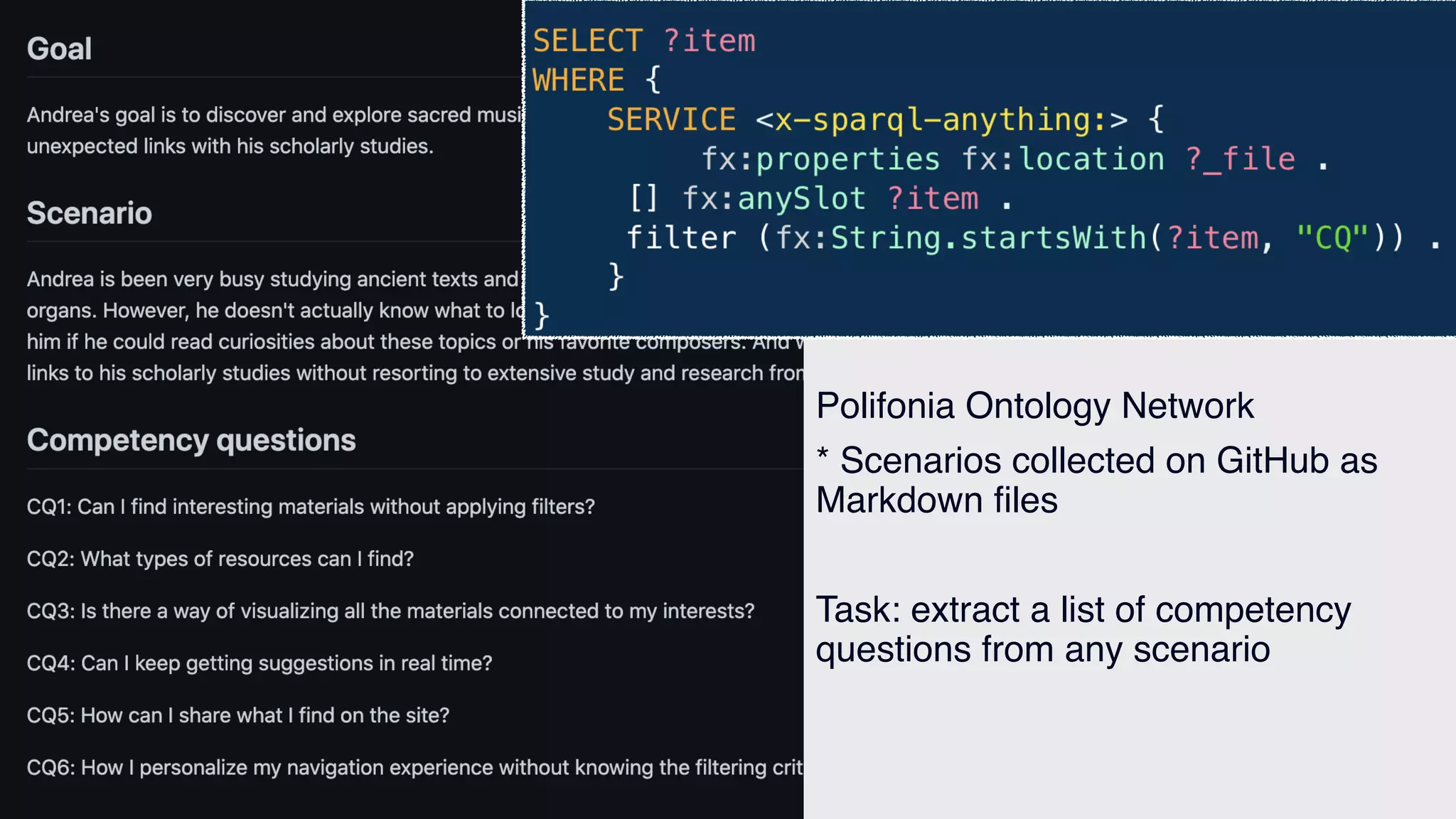

17. Polifonia Ontology Network
* Scenarios collected on GitHub as
Markdown files
Task: extract a list of competency
questions from any scenario

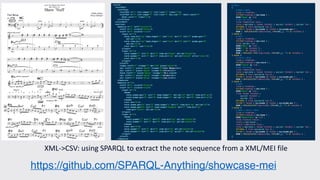

18. https://github.com/SPARQL-Anything/showcase-mei
XML->CSV: using SPARQL to extract the note sequence from a XML/MEI file

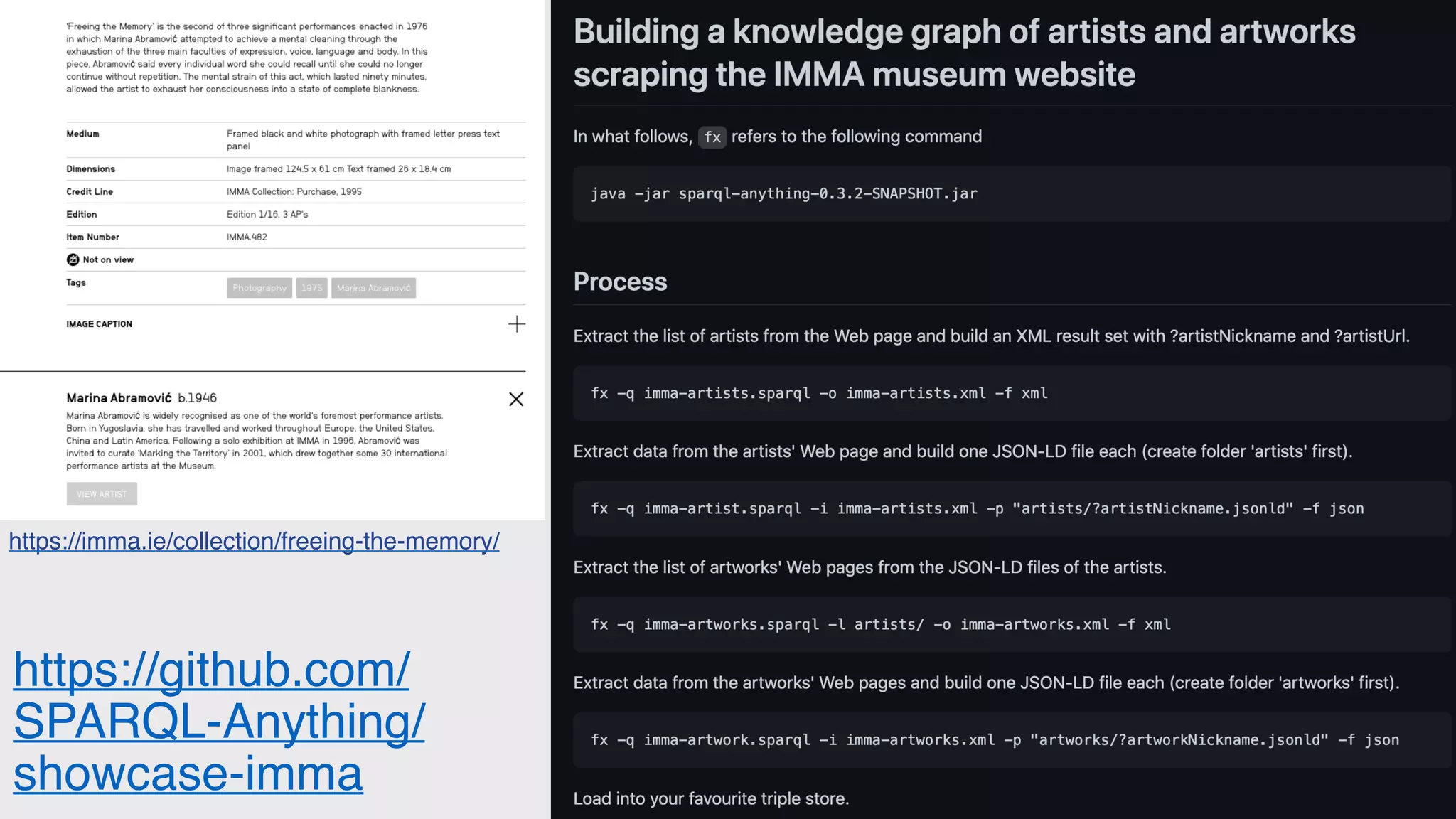

19. https://github.com/
SPARQL-Anything/
showcase-imma
https://imma.ie/collection/freeing-the-memory/

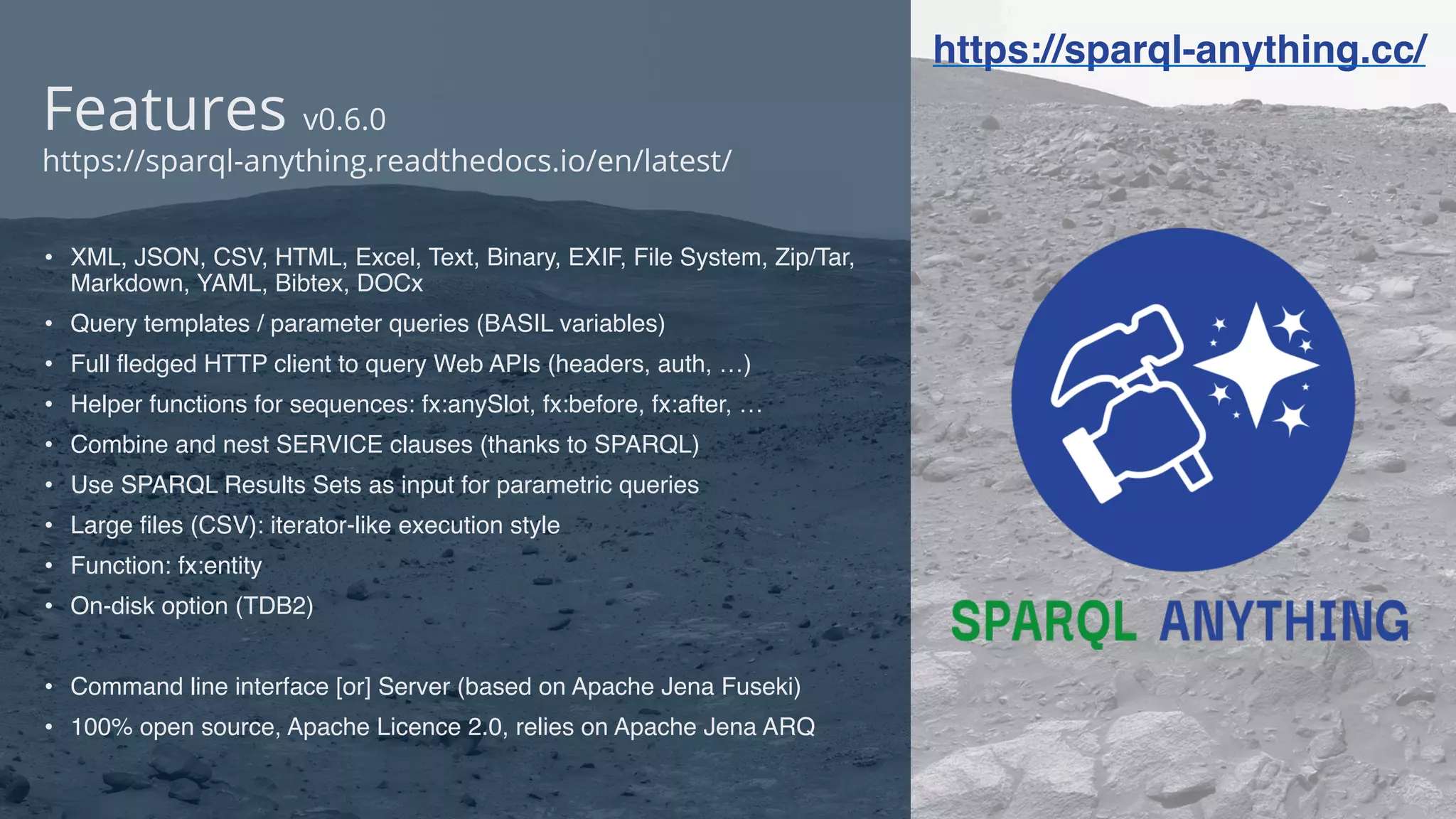

20. Features v0.6.0
https://sparql-anything.readthedocs.io/en/latest/
• XML, JSON, CSV, HTML, Excel, Text, Binary, EXIF, File System, Zip/Tar,
Markdown, YAML, Bibtex, DOCx
• Query templates / parameter queries (BASIL variables)
• Full fledged HTTP client to query Web APIs (headers, auth, …)
• Helper functions for sequences: fx:anySlot, fx:before, fx:after, …
• Combine and nest SERVICE clauses (thanks to SPARQL)
• Use SPARQL Results Sets as input for parametric queries
• Large files (CSV): iterator-like execution style
• Function: fx:entity
• On-disk option (TDB2)
• Command line interface [or] Server (based on Apache Jena Fuseki)
• 100% open source, Apache Licence 2.0, relies on Apache Jena ARQ
https://sparql-anything.cc/

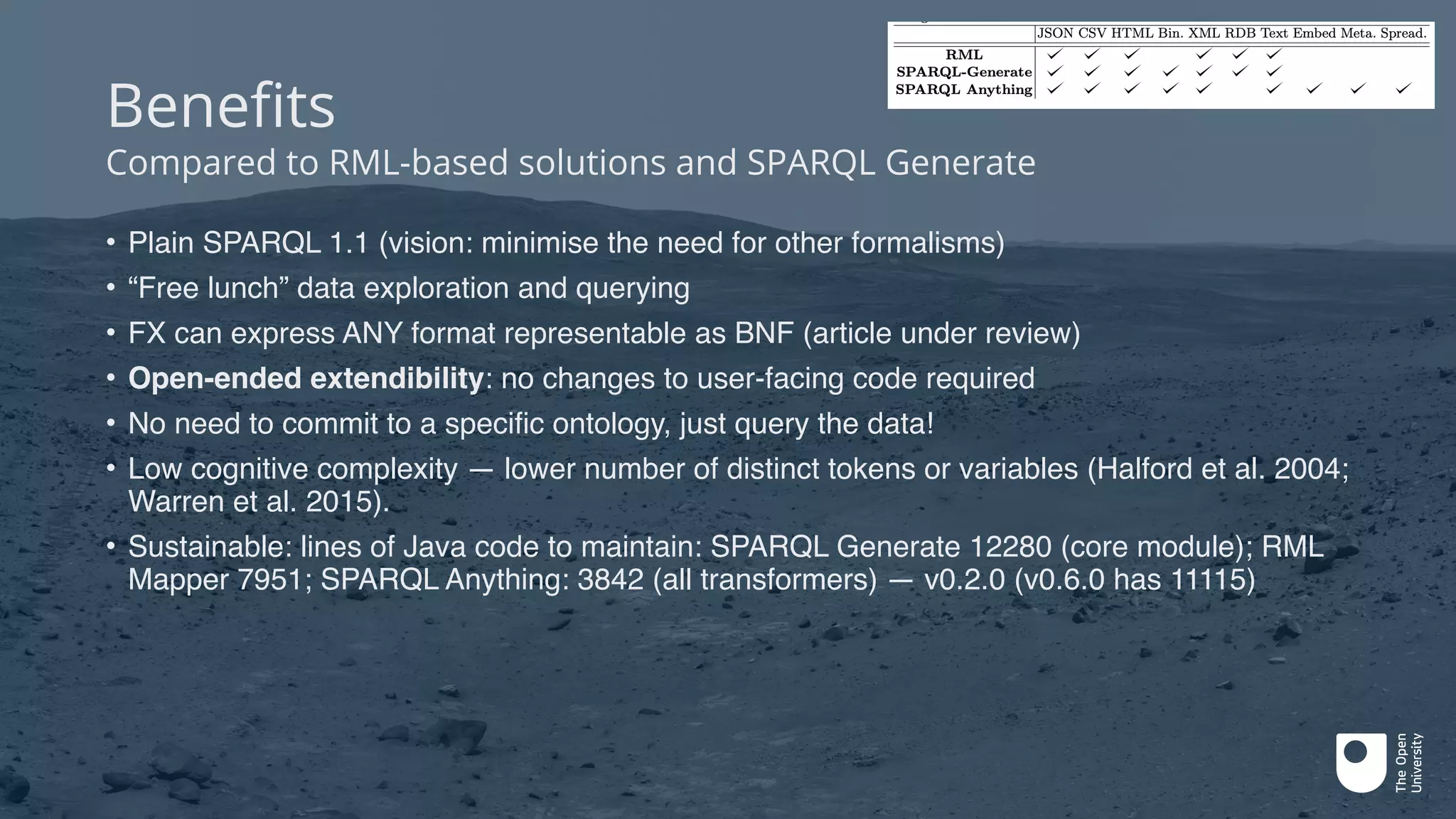

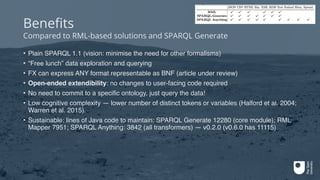

21. Benefits
Compared to RML-based solutions and SPARQL Generate
• Plain SPARQL 1.1 (vision: minimise the need for other formalisms)
• “Free lunch” data exploration and querying
• FX can express ANY format representable as BNF (article under review)
• Open-ended extendibility: no changes to user-facing code required
• No need to commit to a specific ontology, just query the data!

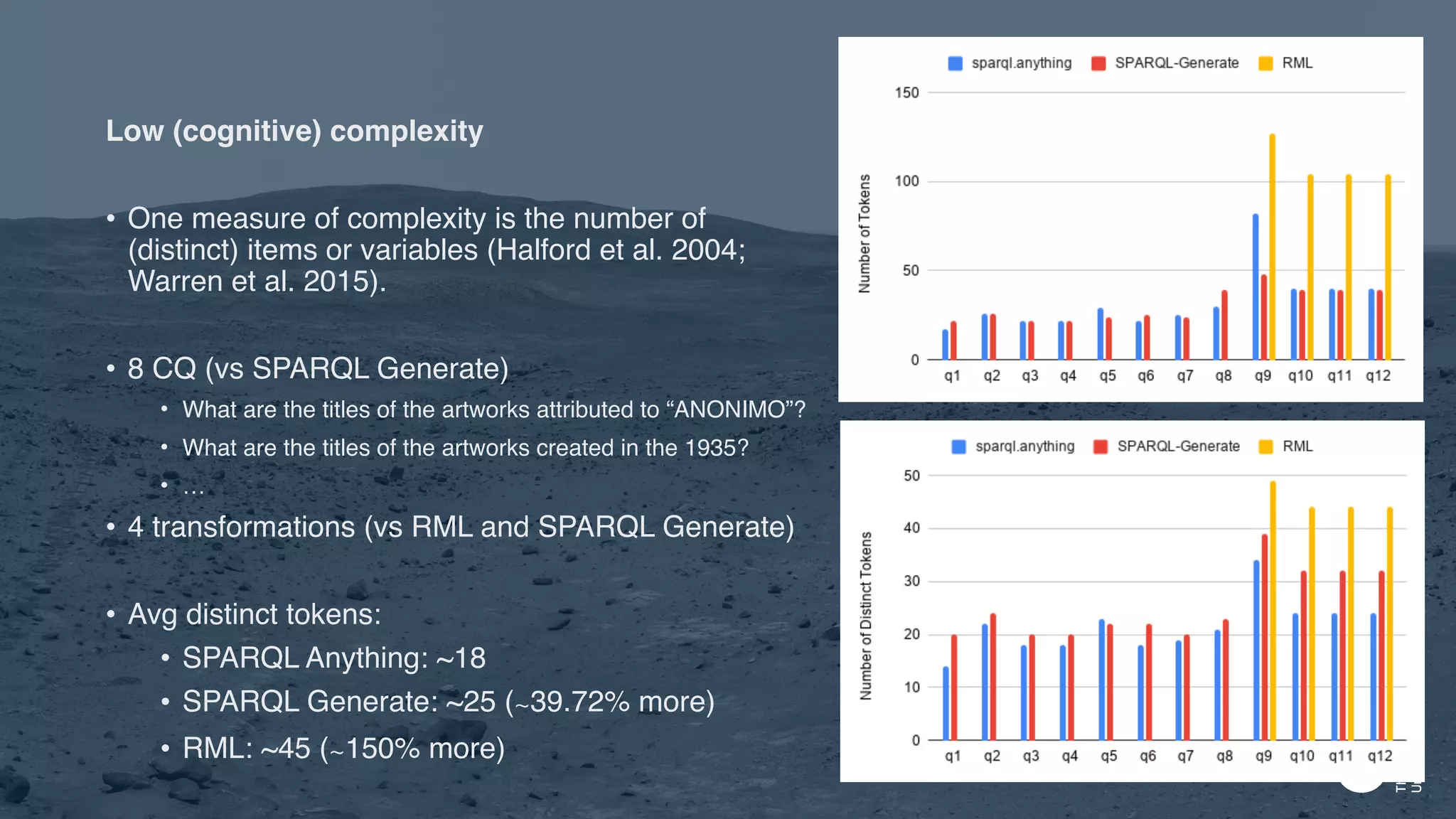

• Low cognitive complexity — lower number of distinct tokens or variables (Halford et al. 2004;
Warren et al. 2015).
• Sustainable: lines of Java code to maintain: SPARQL Generate 12280 (core module); RML
Mapper 7951; SPARQL Anything: 3842 (all transformers) — v0.2.0 (v0.6.0 has 11115)

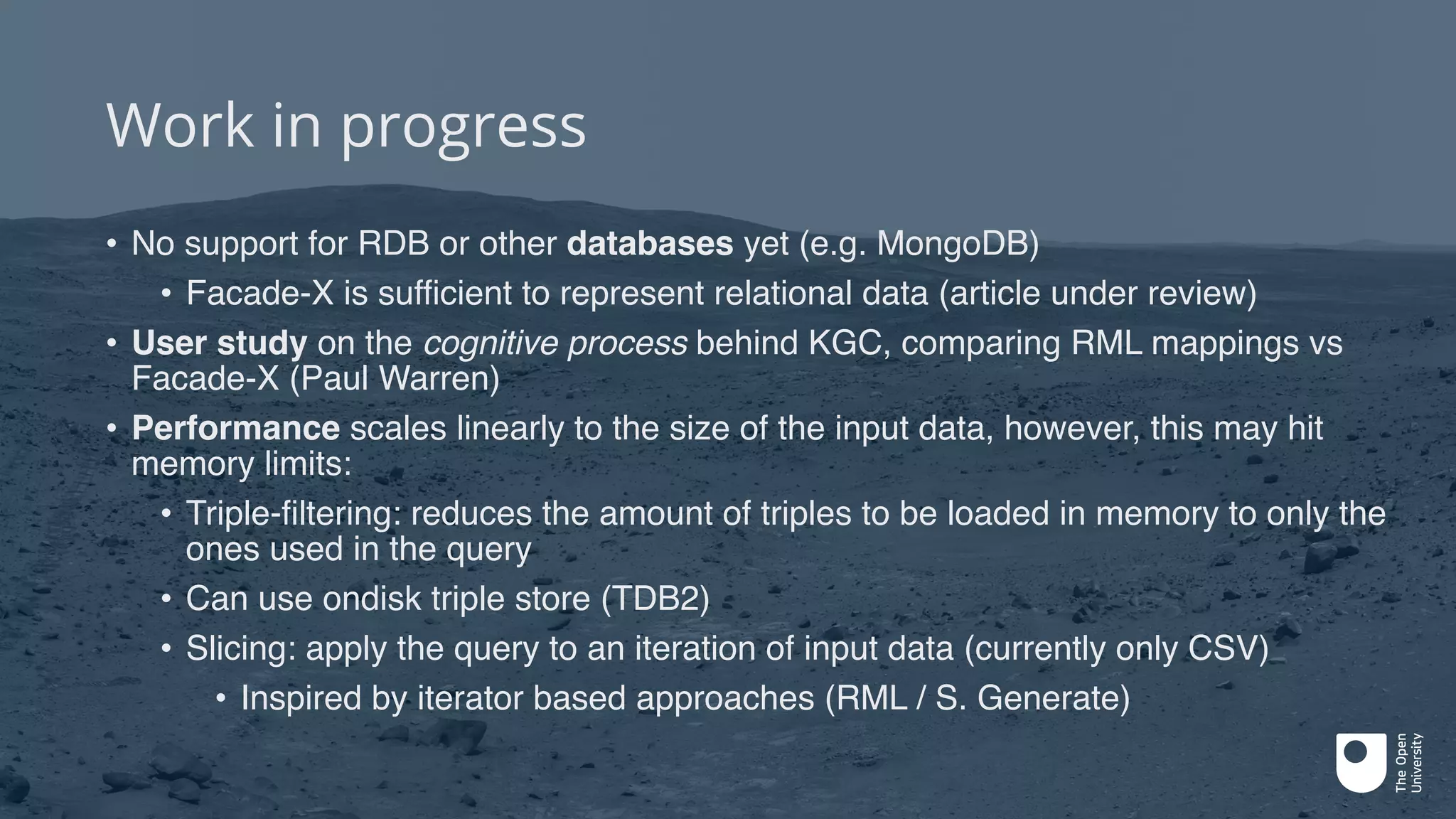

22. Work in progress
• No support for RDB or other databases yet (e.g. MongoDB)
• Facade-X is sufficient to represent relational data (article under review)
• User study on the cognitive process behind KGC, comparing RML mappings vs
Facade-X (Paul Warren)
• Performance scales linearly to the size of the input data, however, this may hit
memory limits:
• Triple-filtering: reduces the amount of triples to be loaded in memory to only the
ones used in the query
• Can use ondisk triple store (TDB2)
• Slicing: apply the query to an iteration of input data (currently only CSV)
• Inspired by iterator based approaches (RML / S. Generate)

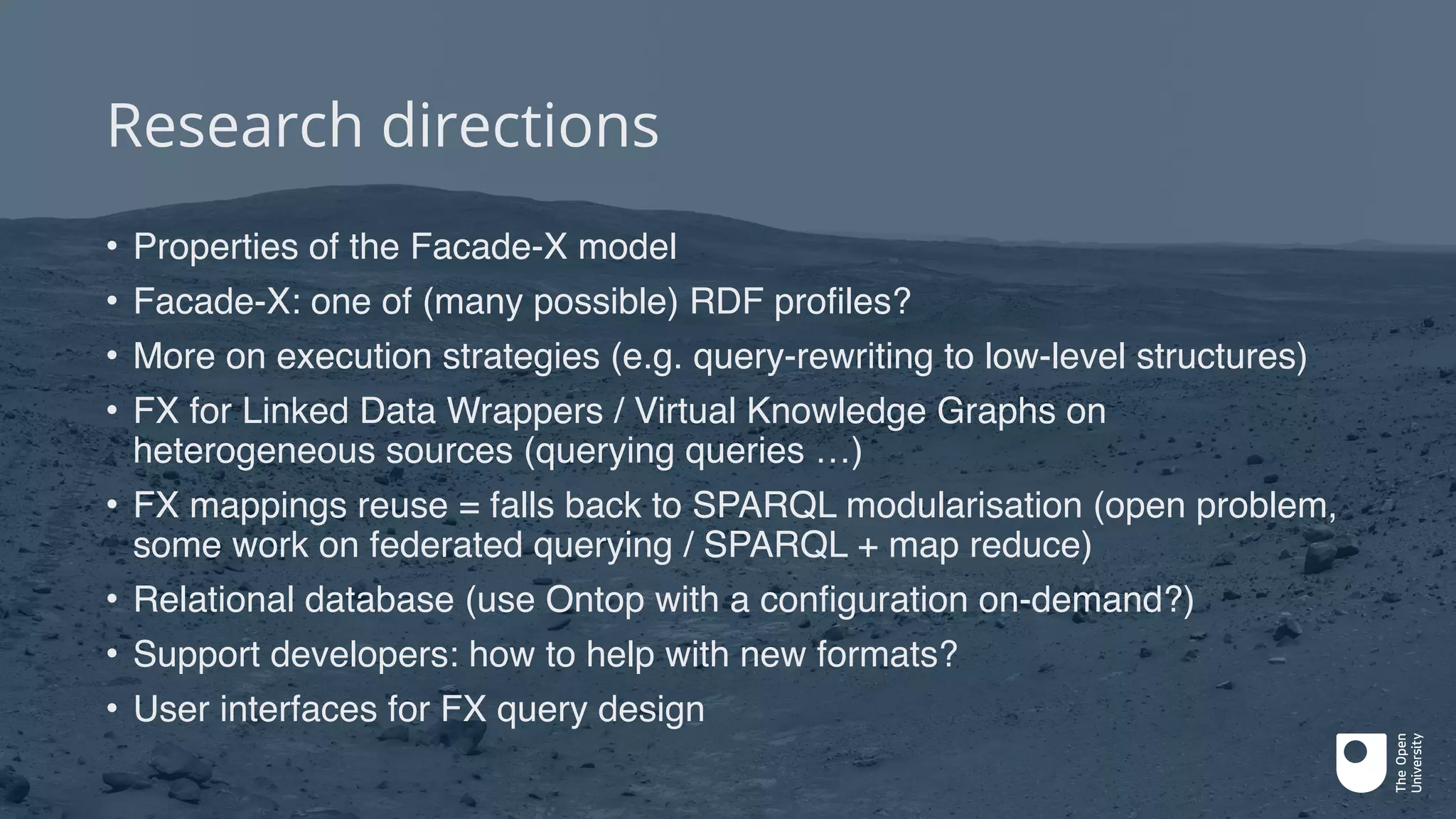

23. Research directions
• Properties of the Facade-X model
• Facade-X: one of (many possible) RDF profiles?
• More on execution strategies (e.g. query-rewriting to low-level structures)
• FX for Linked Data Wrappers / Virtual Knowledge Graphs on
heterogeneous sources (querying queries …)
• FX mappings reuse = falls back to SPARQL modularisation (open problem,
some work on federated querying / SPARQL + map reduce)
• Relational database (use Ontop with a configuration on-demand?)
• Support developers: how to help with new formats?
• User interfaces for FX query design

24. Get in touch!
SPARQL Anything is under active development!
https://sparql-anything.cc
GitHub: https://github.com/SPARQL-Anything/sparql.anything
enrico.daga@open.ac.uk
@enridaga
www.enridaga.net

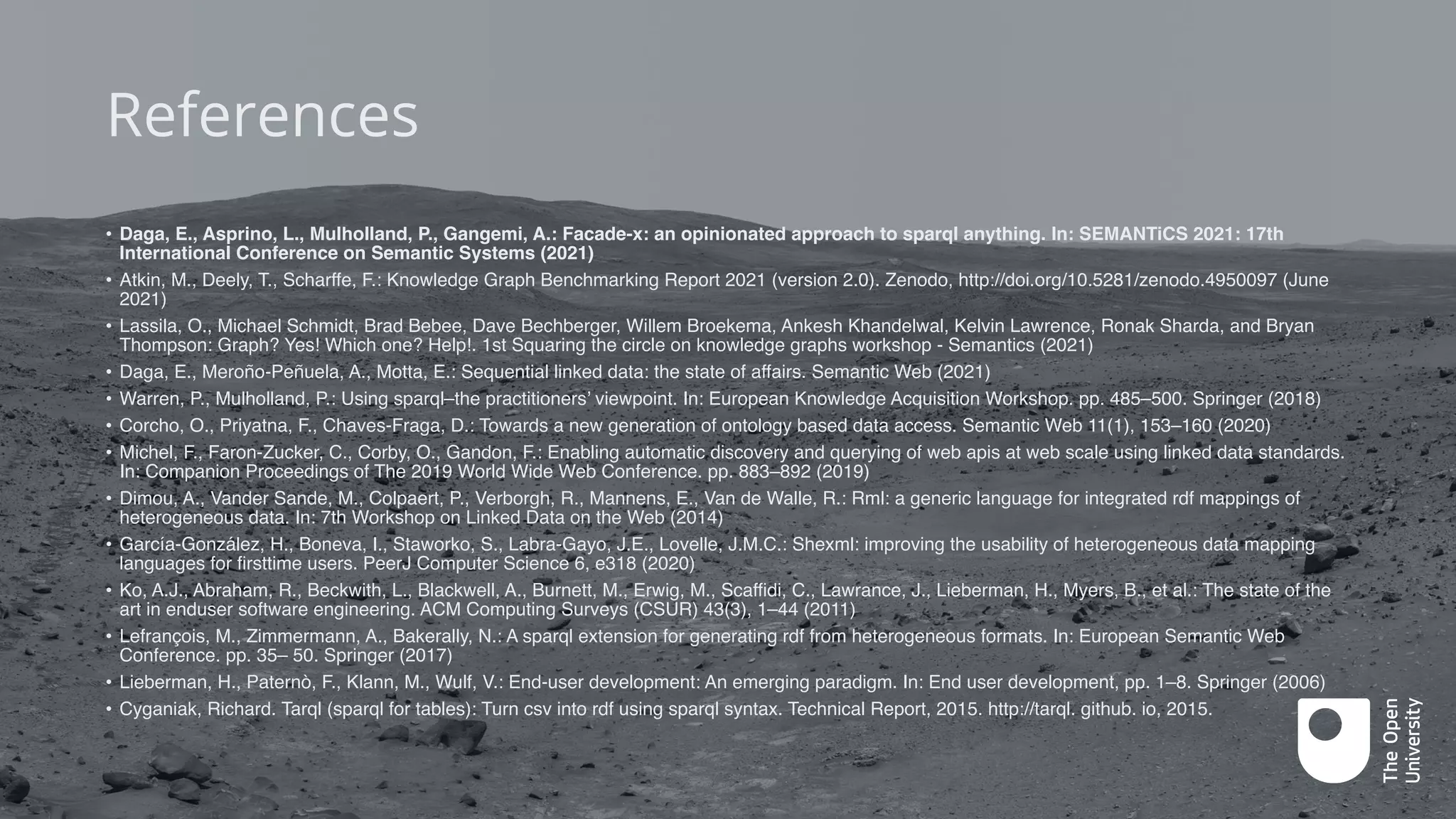

25. • Daga, E., Asprino, L., Mulholland, P., Gangemi, A.: Facade-x: an opinionated approach to sparql anything. In: SEMANTiCS 2021: 17th
International Conference on Semantic Systems (2021)
• Atkin, M., Deely, T., Scharffe, F.: Knowledge Graph Benchmarking Report 2021 (version 2.0). Zenodo, http://doi.org/10.5281/zenodo.4950097 (June
2021)
• Lassila, O., Michael Schmidt, Brad Bebee, Dave Bechberger, Willem Broekema, Ankesh Khandelwal, Kelvin Lawrence, Ronak Sharda, and Bryan
Thompson: Graph? Yes! Which one? Help!. 1st Squaring the circle on knowledge graphs workshop - Semantics (2021)
• Daga, E., Meroño-Peñuela, A., Motta, E.: Sequential linked data: the state of affairs. Semantic Web (2021)
• Warren, P., Mulholland, P.: Using sparql–the practitioners’ viewpoint. In: European Knowledge Acquisition Workshop. pp. 485–500. Springer (2018)
• Corcho, O., Priyatna, F., Chaves-Fraga, D.: Towards a new generation of ontology based data access. Semantic Web 11(1), 153–160 (2020)
• Michel, F., Faron-Zucker, C., Corby, O., Gandon, F.: Enabling automatic discovery and querying of web apis at web scale using linked data standards.
In: Companion Proceedings of The 2019 World Wide Web Conference. pp. 883–892 (2019)
• Dimou, A., Vander Sande, M., Colpaert, P., Verborgh, R., Mannens, E., Van de Walle, R.: Rml: a generic language for integrated rdf mappings of
heterogeneous data. In: 7th Workshop on Linked Data on the Web (2014)
• García-González, H., Boneva, I., Staworko, S., Labra-Gayo, J.E., Lovelle, J.M.C.: Shexml: improving the usability of heterogeneous data mapping
languages for firsttime users. PeerJ Computer Science 6, e318 (2020)
• Ko, A.J., Abraham, R., Beckwith, L., Blackwell, A., Burnett, M., Erwig, M., Scaffidi, C., Lawrance, J., Lieberman, H., Myers, B., et al.: The state of the
art in enduser software engineering. ACM Computing Surveys (CSUR) 43(3), 1–44 (2011)
• Lefrançois, M., Zimmermann, A., Bakerally, N.: A sparql extension for generating rdf from heterogeneous formats. In: European Semantic Web
Conference. pp. 35– 50. Springer (2017)
• Lieberman, H., Paternò, F., Klann, M., Wulf, V.: End-user development: An emerging paradigm. In: End user development, pp. 1–8. Springer (2006)
• Cyganiak, Richard. Tarql (sparql for tables): Turn csv into rdf using sparql syntax. Technical Report, 2015. http://tarql. github. io, 2015.
References

26. Low (cognitive) complexity
• One measure of complexity is the number of
(distinct) items or variables (Halford et al. 2004;
Warren et al. 2015).
• 8 CQ (vs SPARQL Generate)
• What are the titles of the artworks attributed to “ANONIMO”?
• What are the titles of the artworks created in the 1935?
• …
• 4 transformations (vs RML and SPARQL Generate)
• Avg distinct tokens:
• SPARQL Anything: ~18
• SPARQL Generate: ~25 (∼39.72% more)
• RML: ~45 (∼150% more)

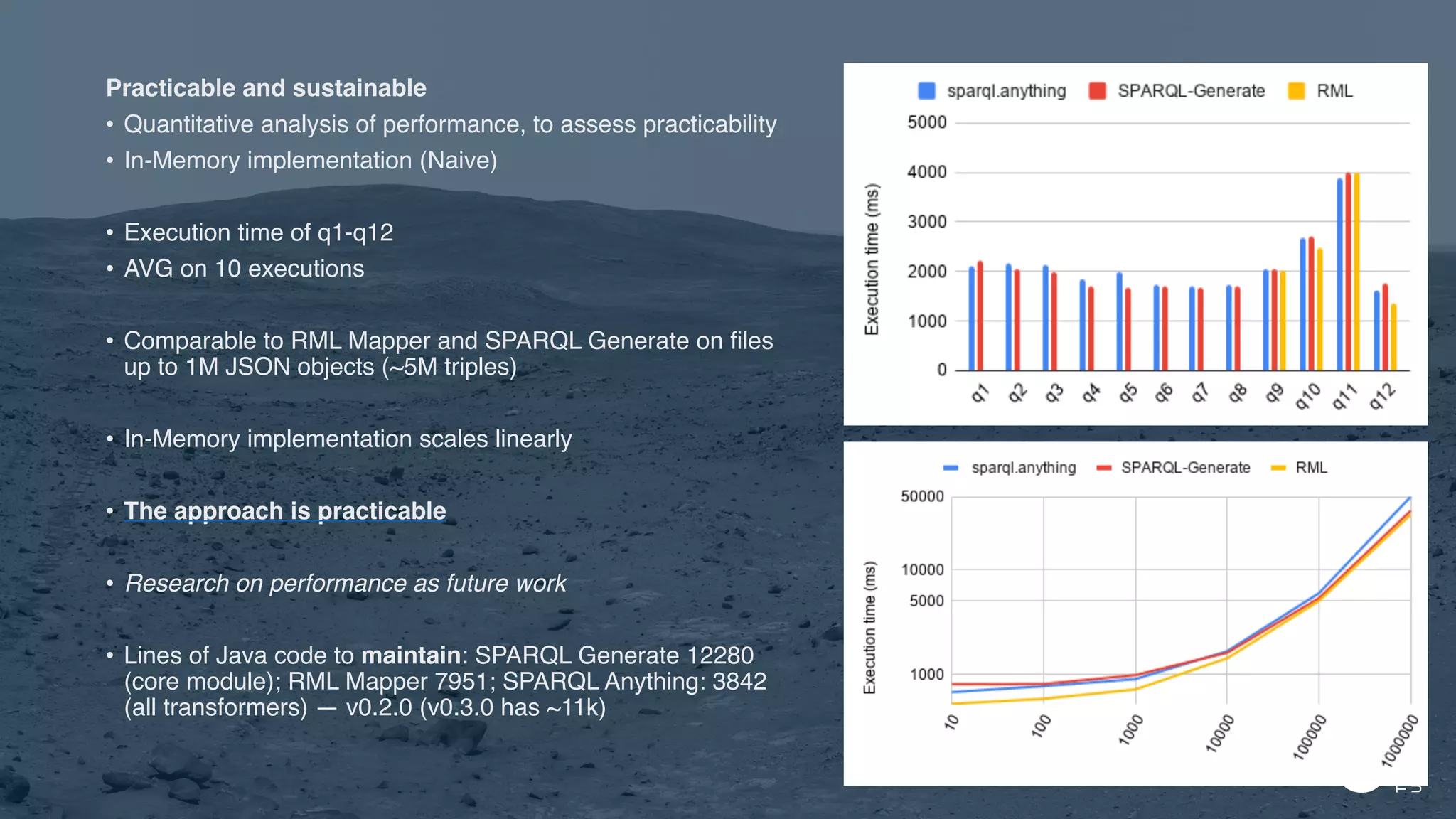

27. Practicable and sustainable
• Quantitative analysis of performance, to assess practicability
• In-Memory implementation (Naive)
• Execution time of q1-q12
• AVG on 10 executions
• Comparable to RML Mapper and SPARQL Generate on files
up to 1M JSON objects (~5M triples)
• In-Memory implementation scales linearly
• The approach is practicable
• Research on performance as future work
• Lines of Java code to maintain: SPARQL Generate 12280
(core module); RML Mapper 7951; SPARQL Anything: 3842
(all transformers) — v0.2.0 (v0.3.0 has ~11k)
